Abundance of plastic debris across European and Asian rivers

Plastic pollution in the aquatic environment is considered one of the most challenging environmental risks globally. Direct effects of unsoundly disposed plastics include the entanglement of aquatic life and increased flood risks through blockage of urban drainage systems [1, 2]. Over time, plastic debris degrades into microplastics due to photodegradation and abrasion [3], that are later ingested by aquatic fauna and small organisms, such as zooplankton. Plastic enters the food chain of humans and animals, threatening global human and ecosystem health [4, 5].

The generation of plastic waste is accelerated by an increasing population, growing economy, and rapid urbanization. Often, waste treatment, recycling, and recovery routes cannot develop at a rate necessary to dispose all the plastic [6]. Of the 6.3 billion tonnes of plastic waste generated until 2015, 79% accumulated in landfills or the natural environment [7]. Waste management, plastic use regulation, and waste and plastic consumption differs considerably between countries in the world [1]. In turn, these factors impact the amount of plastic entering river systems [8]. The terrestrial and marine transport of plastic items is influenced by local characteristics of the river catchment area, such as land-use, wind, rainfall, river discharge, and hydraulic infrastructure [9–11]. A part of the plastic items will sink or strand in the river and a part will eventually reach the river mouth [12–14]. Yet, plastic transport by rivers is assumed to be the main source of plastic litter in the ocean [8]. However, a recent study shows that at least half of the collected plastics of the Great Pacific Garbage Patch in the North Pacific Ocean were objects from marine based sources [15]. Although this study hypothesizes that this is caused by coastal settlement of the plastic, the exact cause of this discrepancy remains unknown. More comprehensive data on the quantity of riverine plastic, the distribution of plastic over the river width, and the riverine plastic composition can contribute to a better understanding of the origin and fate of plastics in aquatic environments, crucial to mitigate the negative impact of plastic pollution.

The amount of plastic litter that is emitted from land to the ocean is estimated globally by several models [11, 16, 17]. These models are generally uncertain due to a lack of data and complexities in the fate and transport of plastics. Model results show that most riverine plastics are emitted in Southeast Asia, but most data driven riverine plastic studies are biased towards European and North American rivers [6] (e.g. the Danube [18], the Thames [19], the Tiber [20], and the Los Angeles basin [21]). Another complicating factor is that plastic transport and composition are often not measured consistently over time and space. While riverine macroplastic debris (>5 mm) remains understudied, this makes up most of the observed mass on the ocean and poses direct hazards on marine life [6, 8]. Available studies on riverine plastic debris focus mainly on plastic in rivers with large basins, but these basins are not necessarily the largest contributor to the ocean plastic pollution [22]. These biases impede a global assessment of riverine plastic debris transport, as has been done on marine plastic litter density [23].

Here, we provide a first transcontinental assessment of riverine floating macroplastic debris across 24 sampling sites in seven countries in Asia and Europe. Plastic debris data was collected using a harmonized method at all sites. In addition to several main European rivers (in The Netherlands, France, Italy), we focus on river basins with high amounts of mismanaged plastic waste (in Thailand, Indonesia, Malaysia, and Vietnam [8]), rather than solely large river basins by surface area. We demonstrate that the average magnitude, composition, and distribution over the river width of plastic debris transport varies considerably per river. Our results show that local in situ data is a prerequisite to understand the origin and fate of river plastic debris, and to optimize prevention and collection strategies.

2.1. Plastic transport observations

2.2. Plastic composition

2.3. Measured waterways

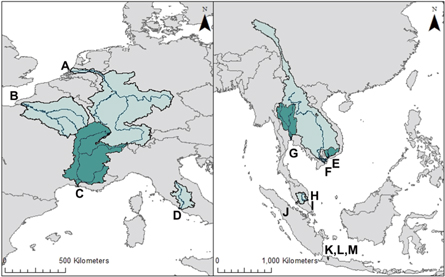

In total, measurements at 24 waterways in seven countries in Asia and Europe are included in this study (see figure 1). A numeration of these waterways and the characteristics of each location are given in table 1. The period and frequency of counting and sampling vary for each river from 3 d in total to a weekly assessment for a period of 12 months. All measurements conducted by this study were done in 2018, except the measurements in 2017 in the Tiber and the Rhône, conducted by Crosti et al [20] and Castro-Jiménez et al [28] respectively.

Zoom In Zoom Out Reset image size

Table 1.  Overview of the waterways where measurements were done. All measurements were performed for this study, except the measurement in the Tiber [20] and the Rhône [28]. The river width refers to the width at the location where the measurements were done. BKT refers to Banjir Kanal Timur and BKB refers to Kanal Banjir Barat.

Measurement location	River	Watercourse type	Main river	River width (m)	Distance to river mouth (km)	Composition method
Italy
1. Fiumicino [20]	Tiber	Distributary	Tiber	31	1	No data
The Netherlands
2. Erasmusbrug	Nieuwe Maas	Distributary	Rhine	504	30	Mass
France
3. Villeneuve-le-Roi [29]	Seine	Main river	Seine	118	367	Item count
4. Triel-sur-Seine [29]	Seine	Main river	Seine	145	268	Item count
5. Meulan-en-Yvelines [29]	Seine	Main river	Seine	132	260	Item count
6. Rouen [29]	Seine	Main river	Seine	133	113	Item count
7. Arles [28]	Rhône	Main river	Rhône	150	50	No data
Vietnam
8. Cau Thu Thiem [30]	Saigon	Main river	Saigon/Dong Nai	300	60	Mass
9. Cau Nguyen Huu Canh	Thi Nghe	Urban canal	Saigon/Dong Nai	65	63	Item count
10. Cau Tan Tuan	Tan Thuan	Urban canal	Saigon/Dong Nai	97	56	No data
11. Saigon	Saigon	Main river	Saigon/Dong Nai	300	62	Mass
12. Quang Trung	Can Tho	Tributary	Mekong	200	80	Item count
13. Cau Di Bo Ben Ninh Kieu	Rach Cai Khe	Urban canal	Mekong	178	78	Item count
Indonesia
14. BKB-Grogol [31]	Ciliwung	Main river	Ciliwung	24	6	Mass
15. BKB-Angke [31]	Ciliwung	Main river	Ciliwung	18	2	Mass
16. Haryono [31]	Ciliwung	Main river	Ciliwung	70	17	Mass
17. Cengkareng Kapuk [31]	Pesanggrahan	Distributary	Pesanggrahan	64	2	Mass
18. BKT mouth [31]	BKT	Flood channel	BKT	48	2	No data
Thailand
19. Ratchawithi	Chao Phraya	Main river	Chao Phraya	309	30	Mass
20. Mahaisawan	Chao Phraya	Main river	Chao Phraya	373	22	No data
Malaysia
21. Klang [32]	Klang	Main river	Klang	115	10	Item count
22. Pahang	Pekan	Main river	Pahang	545	9	Item count
23. Kuantan	Kuantan	Main river	Kuantan	370	1	Item count
24. Galing	Kuantan	Tributary	Kuantan	30	1	Item count

In Europe, measurements were done in Italy, The Netherlands, and France. Rome (Italy) lies close to the sea and the Tiber is flowing right through the city. This makes this river an interesting location to study plastic pollution close to a river mouth. Results from the study Crosti et al [20] are used in this study. The Rhine was estimated to be the most polluted river of Europe [11]. At the location where the river enters The Netherlands, it splits in several rivers forming a complex river delta. The bridge most close by the river mouth has been chosen to conduct measurements, in the city of Rotterdam. To determine the composition of plastic in the Rhine, debris captured by a litter trap was analyzed [26]. The litter trap was emptied about every month in 2017 and 2018 for in total 22 times and each time, the composition was determined. This results in a mean composition that is used in this study. Paris is one of the largest metropolitan areas in Europe. Therefore plastic transport in the Seine was measured at four locations, one upstream of Paris, two downstream of Paris, and one close to the river mouth. The composition was measured using net sampling. The Rhône river in France flows into the Mediterranean sea. Results from the study Castro-Jiménez et al [28] are used in this study. The plastic flux is measured in the middle of the river, with an observation width of 65 m. In Asia, measurements were done in Vietnam, Indonesia, Thailand, and Malaysia. These are all in the top ten of most plastic emitting countries according to Lebreton et al [11]. The measured locations were selected for various reasons. Several tributaries to the Mekong were chosen as the main river was estimated to be one of the 20 most emitting rivers. The Saigon river traverses a developing South East Asian mega city in Vietnam (Ho Chi Minh City) and drains most of the untreated wastewater from dense urban districts and industrial areas [33]. Four locations in Ho Chi Minh City were chosen as measurement locations, and net sampling was used to determine the composition. The chosen waterways in Indonesia are located in Jakarta, the largest city of Indonesia located right at the Java sea. The waterways here are narrow channels so plastic has a high probability to flow through since it cannot accumulate at the riverbank. Bangkok is Thailand's largest city, and is drained by the Chao Phraya river. Two bridges were chosen to conduct visual counting, upstream of the city center and downstream of the city center. Data from an existing litter trap was used to determine the plastic composition [27]. In Malaysia, three rivers has been studied. One river, Klang, that flows through Kuala Lumpur, and two rivers, Kuantan and Pahang, in the east of Malaysia. Net sampling was used in the Klang to determine the plastic composition. The plastic composition in the Kuantan and Pahang was determined visually.

3.1. Magnitude of riverine plastic debris transport

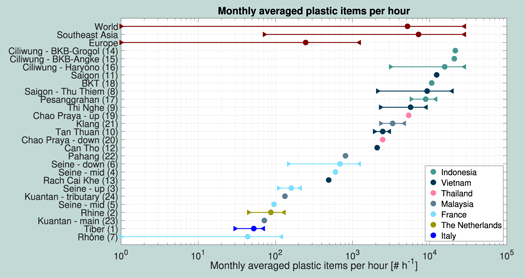

An overview of total floating plastic debris transport of 24 waterways in rivers in four Asian and three European countries, expressed in monthly mean amount of plastic items per hour over the full river width is shown in figure 2. Plastic transport varies between rivers with up to five orders of magnitude, ranging from 10⁰ to 10⁴ plastic items per hour. Six of the eight studied rivers in Asian countries contain more floating plastic than rivers in Europe. The mean amount of plastic items per hour for Southeast Asia (7.1 × 10³ items h⁻¹) is one order higher than the mean amount of plastic items per hour in Europe (2.5 × 10² items h⁻¹). The Ciliwung river in Indonesia ranked the highest in total floating macroplastics observed at 2 × 10⁴ items per hour.

Zoom In Zoom Out Reset image size

Rivers in Indonesia, Vietnam, Malaysia, France, The Netherlands, and Italy were measured multiple times in a year. For these rivers, the difference between the minimum and maximum monthly mean is shown with a bar in figure 2. Several rivers show variation in monthly mean plastic transport, demonstrating plastic debris transport may exhibit strong seasonality. For example, the variability of plastic transport at Ciliwung—Haryono ranged up to one order of magnitude. The highest transport was measured in November, which is the monsoon season, and the lowest transport in May when the dry season starts.

For Vietnam and Malaysia, the amount of floating plastic varied with several orders of magnitude between rivers in the same country. Even within the same river, plastic transport varied between measurement locations. For example, the mean plastic transport in the Seine river in France was an order of magnitude higher downstream (about 7 × 10² items per h) than more downstream (less than 1 × 10² items per h).

3.2. Distribution of plastic debris over the river width

Figure 3 shows for each river the percentage of the river width that contains 50% and 90% of the plastic debris. This demonstrates that most of the plastic items (90%) are distributed over more than half of the river width (69%–92% of the width). The difference in spatial variation over the river width between rivers is bigger (36%) when considering 50% of the plastic items. For some locations, such as Ciliwung (BKB-Grogol), most plastic can be found in the middle of the river. For other locations, such as the Rhine and Chao Phraya, most plastic can be found at the outer sides of the rivers. This is shown in detail per river in figures 5 and 6 in the supplementary material.

Zoom In Zoom Out Reset image size

3.3. The composition of floating macroplastic

The results of this study provide a first assessment of the quantification, composition, and spatial temporal variation of floating macroplastic debris in rivers across Asia and Europe. Several waterways in Indonesia and Vietnam contain up to four orders of magnitude more plastic than waterways in Italy, France, and The Netherlands in terms of plastic items per hour. According to recent model estimates, the top 10–20 polluting rivers are mostly located in Asia and account for 67%–95% of the global total [11, 17]. Our paper presents observational evidence that, for the sampled rivers, Asian rivers transport considerably more plastics towards the ocean. Concerning the results of individual Asian countries, the same ranking of Asian countries can be found in the top 10 of countries worldwide, when considering the share of plastic waste that is inadequately disposed [16].

The seasonal variation of the floating plastic transport at a location varies with an order of magnitude in the Ciliwung river in Indonesia, and the Saigon river in Vietnam. Similar dynamics were previously reported by a study focused on the Los Angeles river basin, where an increase in plastic transport was measured during the wet season [21]. The variability of the plastic flux in the Rhône ranged up to two orders of magnitude. The highest flux is measured in May, which is spring season in France although one would expect a higher flux in wintertime due to an increase of precipitation. Apart from a modeled estimation of the influence of monsoons on floating macroplastic transport in a river, no detailed studies are done on this topic [11]. Also the influence of extreme flood events is unknown for macroplas tics, whereas for example the amount of microplastics in Mersin bay in the Mediterranean sea show a 14-fold increase after heavy rains [34]. It was recently estimated that 10%–20% of the oceanic plastic pollution in the North Pacific Ocean is caused by the Tohoku tsunami in Japan in 2011 [15]. It may be assumed that flood events also play an important role in the transport of plastic to rivers. Since the variability of the riverine plastic transport over a year can be significant, this should be considered when interpreting the plastic transport in the rivers where the measurements are done in only one time period of the year.

The variation of plastic debris across the river width varies per location. Several rivers have a pronounced preferential side for plastic transport, (for example Chao Praya, location 19, and Saigon, location 8), while other rivers show a more symmetrical or evenly distributed pattern (for example Pessanggrahan, location 17). Since 69%–92% of the river width contains 90% of the floating plastic debris, the plastic is often not concentrated in specific segments of the river.

There are factors that influence the distribution of floating plastic over the river width. First, the difference may be caused by litter traps that lie close by the measurement location and only cover one side of the river. Second, the curvature and shape of a river affects the cross-sectional distribution. The flow velocity is higher in the outer bend of the river, what leads to an increase of the plastic transport. The curvature of a natural river is complex due to the meandering, so it is plausible that the preferred side changes continuously along the river. The observed rivers in Indonesia are mostly straight engineered waterways and it can be expected that plastic in these waterways peak in the middle of the river. Also the amount of plastic debris varies between locations in the same river. These local differences could be caused by the presence of cities, dams, and litter traps close by the measurement location [35]. Concluding, the spatial variation of plastic debris is influenced by environmental characteristics, such as wind and river curvature, and by anthropogenic factors, such as navigation and hydraulic infrastructure. Site specific insights can be used to locally optimize plastic recovery strategies. The variety of the plastic transport and distribution demonstrates the complexity of the transport in urban areas.

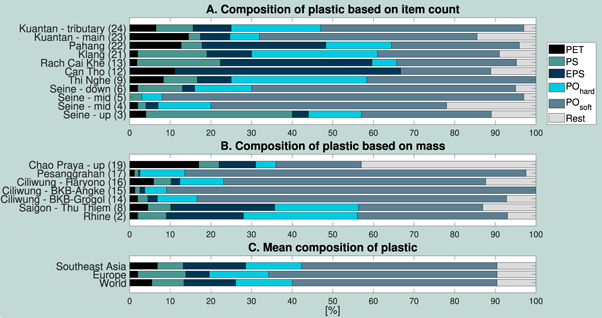

The composition of the plastic varies considerably between and within rivers (figure 4), and may depend on local plastic waste management infrastructure [8]. For example, in several countries PET collection systems are set up to encourage people to recycle plastic bottles. This can lead to shares of PET in riverine plastic debris [36]. Our results show that less PET is found in the Rhine in the Netherlands than in, for example, Kuantan and Pahang river in Malaysia. At the moment, there is no data available of municipality-level waste generation for different countries but it might explain the different composition between different rivers in the same country [8]. For example, the share of EPS is about 55% in Can Tho river and 10% in Thi Nghe canal while both waterways are located in Vietnam. This demonstrates that the composition of floating plastic debris varies within countries and may depend on local consumption, management practices, and environmental conditions.

Zoom In Zoom Out Reset image size

It is often stated that riverine plastic is the major source of marine plastic [8]. On the other hand it is shown that land-sourced plastic is delivered to the open-ocean from nearshore accumulation zones, predominantly as small buoyant fragments [37]. The result of an analysis of 3357 tonnes of debris at 6000 sites at the beach in terms of item count shows that plastic bags are the most common found item (apart from cigarette buds that may not come from the ocean but from direct litter on the beach) [38]. This corresponds to the category PO_soft, which is also most abundant in riverine plastic based on this study. Most items in the top 10 ranking of most common found items, such as plastic cutlery, plates, and straws belong to the category PS. In 2018, the plastic composition in an area of about 300 km² in the North Pacific Ocean was analyzed using air- and seaborne vessels [15], Over 90% of the macroplastics was hard plastic, plastic sheet, and film and only about 0.1% was plastic made of foam (both in terms of item count and mass). Yet, it differs to what extent PS and PO_hard are found in riverine plastic in this study (0%–20%). This analysis has been done on floating oceanic plastic, but riverine and oceanic plastic can also sink to the ocean floor and be stored in the sediment layers. By comparing the composition of plastic in different environments, such as in sediment layers and surface layers, it follows that only thick-walled, larger plastic debris from low density polymers could be horizontally transported from rivers to ocean through currents [37]. Consequently, this study endorses the hypothesis that buoyant plastic waste in oceans and river originates largely from multiple sources.

Insights in the spatial variation of plastic transport and composition, both over width and length of the river, can be used to optimize riverine plastic collection strategies. The categorization of plastic items based on common use introduces uncertainty. Other categorization methods, for instance OSPAR categorization, may be considered in order to reduce this uncertainty. A comprehensive understanding of the quantity and composition of oceanic plastic is still lacking, therefore it remains inconclusive to what extent riverine plastic is contributing to the total amount of oceanic plastic. For future assessments it is recommended to collect mass statistics of riverine plastic debris, in order to express plastic transport in terms of mass per unit of time. That allows to further explore the relations between plastic production, consumption, leakage into the natural environment, and transport through rivers into the ocean. The overview presented in this study emphasizes the need for long-term measurement efforts. In rivers with the longest data series (Saigon, Ciliwung, Klang, Seine, and Rhône), we demonstrate that plastic transport can have an intraannual variation of at least one order of magnitude.

Our paper presents a first transcontinental overview of plastic transport, providing new insights in the magnitude, composition, and spatiotemporal variation of riverine plastic debris. However, this paper also emphasizes the urgent need for more long-term monitoring efforts. Accurate data on riverine plastic debris are extremely important to improve global [11, 17] and local [39] modeling approaches and to optimize prevention and collection strategies.

The amount of floating riverine plastic transport was observed to vary between 10⁰ and 10⁴ items per hour. The variation of the total floating plastic transport can differ up to one order of magnitude for different locations within one river. On average, the studied rivers in Asia transport almost 30 times more macroplastic items than the studied European rivers (7.1 × 10³ and 2.5 × 10² items h⁻¹, respectively). Influencing factors on the amount of floating plastic transport are the type of waste management, location of cities, dams, and litter traps, seasonality of rainfall and river discharge, and flood events. This demonstrates the complexity of the origin and fate of riverine plastics.

The horizontal distribution of floating macroplastic over the river width varies across rivers. Half of the plastic items are transported through 22%–58% of the river width and 90% of the plastic items are transported through 68%–92% of the river width. This means that the plastic is not completely concentrated in a single section of the river.

The composition of the plastic debris can vary up to 45% points for one polymer type between different rivers in the same country. The composition varies also between locations in one river. This may be caused by differences in plastic consumption and management practices, as well as transport mechanisms, and other factors. The plastic polymer composition can provide information on the type of product that was littered. Therefore, determining the type of plastic can lead to the source of the plastic and hence to improvement of waste management and regulation.

Future assessment should further investigate the role of factors determining plastic transport. In our paper, we demonstrate variation in plastic transport and composition across several European and Asian rivers. Future work should also investigate other hypothesized hot spots of riverine plastic pollution, such as West Africa, Central America, China, India, and the Philippines. The results emphasize that riverine plastic pollution is a global issue and urgent action is needed.

We would like to thank the donors of The Ocean Cleanup who helped funding this study. We are also very grateful to all colleagues at The Ocean Cleanup and research partners who facilitated, and participated in the data collection: Michelle Loozen, Kees van Oeveren, Lourens Meijer, Paul Vriend, Marlein Geraeds, Jelle Kaptein, Colin van Lieshout, Mathijs Bruins, Henning Lagemann and Anna Schwarz (The Ocean Cleanup), Université Paris-Est, Ho Chi Minh University of Technology, Waste 4 Change Indonesia, Thailand Department of Marine and Coastal Resources, University of Malaysia Pahang, Universiti Teknologi Petronas and Universiti Putra Malaysia (Klang, Malaysia). We thank Boyan Slat, Caitlyn Hall, Renato Borras-Chavez and Anna Schwarz for the valuable feedback that helped improve this paper, and Paul Vriend for his contribution on the river basins map.

Contributions. CvC and TvE designed the study, CvC conducted the principal analysis and prepared the initial manuscript, CvC and TvE prepared the final manuscript, CvC prepared the figures.

The authors declare no competing financial interests.

The data that support the findings of this study are included within this article.
