Freshwater requirements of large-scale bioenergy plantations for limiting global warming to 1.5 °C

With the Paris Agreement (UNFCCC 2015), the international community has agreed to aim for a global mean temperature (GMT) (see table 3 for a full list of abbreviations) increase of well below 2 °C compared to preindustrial levels, and pursue efforts to limit it to 1.5 °C. Since the remaining carbon emissions budget for such ambitious climate goals is very small (Fuss et al 2014), the use of negative emission technologies (NETs) seems almost inevitable (Rockström et al 2017, Minx et al 2018, Rogelj et al 2018). The necessity for NET deployment might even increase, should efforts of decarbonization be less pronounced or come into action later than envisioned today.

The NET most widely used in projections for the 21st century is bioenergy plantations (BPs) with subsequent carbon capture and storage (BECCS) (Fuss et al 2014, Schleussner et al 2016). BECCS utilizes fast growing plant species to convert atmospheric CO₂ to biomass, which is regularly harvested and burned for energy generation or fermented to produce bio-fuels. The CO₂ from the exhaust or by-product of fermentation is captured, compressed, stored permanently (e.g. in geologic reservoirs), and thus removed from the natural carbon cycle (Lenton 2010, Caldeira et al 2013). BECCS could potentially provide large amounts of negative emissions (NEs), but in turn competes with agriculture and other uses such as ecosystem conservation for land requirements. Different (portfolios of) NETs (Minasny et al 2017, Werner et al 2018) or alternative mitigation pathways (van Vuuren et al 2018) are receiving more and more attention, but bioenergy utilization will likely be significant during the 21st century (Masson-Delmotte et al 2018), since it is relatively cheap, compared to direct-air-capture and more land-effective than afforestation (Smith et al 2016). Therefore, our study provides additional value in support of making deployment decisions based not only on economic, but also eco-hydrologic reasoning.

The cultivation of plants to generate biomass at the level needed to satisfy high NE demands requires extensive plantation areas (Boysen et al 2017), and even more so, if realized under rainfed conditions (Beringer et al 2011). Because of the land scarcity, future BPs are likely to be irrigated to a significant amount in order to expand into more marginal terrain. In view of already existing water stress in many regions (Wada et al 2011, Schewe et al 2014), the quantification of freshwater demands for large-scale BECCS is critical but remains largely unknown—especially under the assumption not to constrain existing demands from agriculture, industry, and domestic users. Furthermore, there is a need to more systematically explore the NE constraints imposed by freshwater limitations (including the trade-off with flow requirements to sustain freshwater ecosystems), and to what extent such limitations could be alleviated by optimal water management on agricultural and BP areas.

Previous studies have provided first assessments of freshwater demands corresponding to large-scale BECCS deployment required to constrain GMT rise. Berndes (2002) projected 2281 km³ yr⁻¹ of additional withdrawals for biomass-based energy production of 304 EJ yr⁻¹ in 2100 (mainly from first generation BPs), while more recent estimates from Smith et al (2016) suggest 720 km³ yr⁻¹ of additional water use to achieve NEs of 3.3 Gt C yr⁻¹ in 2100. A further model study by Bonsch et al (2016) arrived at an additional water demand of 3,362–5860 km³ yr⁻¹ for generating 300 EJ yr⁻¹ in 2100. The large range of these estimates results from different assumptions on productivity increases, the associated BP area demand, and irrigation water productivity levels. Accounting for diverse spatially explicit nature protection areas, Beringer et al (2011) estimate a bioenergy water demand in the range of 1481–3880 km³ yr⁻¹ to generate 130–270 EJ. More recently, Yamagata et al (2018) suggested 1910 km³ yr⁻¹ of consumptive water demand for bioenergy crops to achieve NEs of 3.3 Gt C yr⁻¹, while Séférian et al (2018) estimate the water demand for producing 220–270 EJ in 2100 to be only 178 km³ yr⁻¹, which is probably a result of strong restriction of irrigation and model limitations. Jans et al (2018) project a demand of 1,500–5000 km³ yr⁻¹ to generate 200–1000 EJ, while also securing environmental flow requirements (EFRs) with the prospect of maintaining freshwater ecosystems in a good state.

The large span in projected water demands as a result of the diverse methodologies applied motivates a more systematic and internally consistent approach. The present study comprehensively quantifies how much freshwater for irrigation of BPs will potentially be needed to constrain GMT rise to 1.5 °C above preindustrial levels by the end of the century. It advances previous studies through process-based and spatio-temporally explicit simulations of water use and water consumption of BPs (in addition to other sectors), considering a range of irrigation intensities (including a rainfed option), water management improvements, EFR protection goals, a range of carbon conversion efficiencies (percentage of carbon from harvest of BPs that is permanently removed from the carbon cycle), and their combinations (table 1). The water requirements under each of these setups are evaluated for yearly carbon sequestration demands simulated to follow a prescribed trajectory based on NE trajectories for a 1.5 °C climate from Rogelj et al (2015) (see SI figure S1 available online at stacks.iop.org/ERL/14/084001/mmedia), representative of the upper end of the set of exclusive 1.5 °C scenarios (those that are not within the ranges of likely or medium 2 °C scenarios). The respective NE demands ramp up from 0.54 Gt C in 2030 to 5.45 Gt C in 2100. The scenarios analyzed in Rogelj et al (2015) already take into account a wide range of technologies to reduce emissions, including an increasing global carbon price which is assumed to lead to a lowering of total energy demand, increasing energy efficiency, carbon capture and storage in remaining fossil fuel energy generation plants, greater use of bioenergy in primary energy generation, electrification of the transport sector, and fossil fuel replacement (especially in the transport sector) by biofuels (Bauer et al 2018). By applying the NE demand curve, we implicitly incorporate these underlying model assumptions of the socio-economic scenarios consistent with 1.5 °C. The focus of our analysis is on the sequestration of carbon via BECCS that could serve to achieve the prescribed NE targets, above and beyond the effects of these other transformations, and specifically on the associated water requirements. We do not however consider the economic aspects of implementation of such strategies, which are beyond the scope of the current analysis.

The total sequestration demand corresponding to this target is 255 Gt C over 2030–2100. To account for the possibility of partial or failed mitigation (Werner et al 2018), and, thus, a higher NE demand for compensating remaining emissions, a more ambitious total sequestration demand of 355 Gt C is also explored, obtained by linearly upscaling the original yearly demand.

To account for limited land availability, only areas outside of current urban and agricultural land as well as areas of conservation interest are considered for conversion. All simulations are performed with the Dynamic Global Vegetation Model LPJmL, which computes terrestrial water cycling coupled to the carbon balance and vegetation growth of BPs alongside agricultural and natural vegetation, at daily time steps on a global 0.5° grid (Schaphoff et al 2018). LPJmL dynamically represents land surface processes such as discharge routing, crop growth, and water use efficiency, as well as yield responses to various stresses in any given grid cell. These features allow to dynamically choose the most productive BP type, based on local soil type, climate, and management options available.

Analysis is driven by the research question whether and under which constellations (degree of irrigation, consideration or neglection of EFRs, on-field water management) the targeted NE demands can be met while minimizing the additional pressure on global freshwater resources.

Scenarios

Potential area extent of BPs

The maximum land area that can be converted to BPs (fraction of 0.5° grid cell) was derived by excluding current cropland (Frieler et al 2017, in year 2015 based on HYDE 3.2 by Klein Goldewijk et al (2017)), secondary forest areas for industrial roundwood production and urban build-up areas (Hurtt et al 2016), intact forest landscapes (Potapov et al 2017), wetlands (Lehner and Döll 2004), and areas of conservation interest. Areas of biodiversity concern are derived from a binary dataset developed in this study, considering regions crucial to ecosystem functioning (see figure 1(a), a similar map is also used in Werner et al (2018)). Previous approaches usually preserved fractions of grid cells for conservation (Beringer et al 2011, Boysen et al 2016) rather than excluding entire cells, which can be interpreted as a land sparing approach. Here, a grid cell is excluded from conversion to BPs for reasons of biodiversity protection if it is covered by the World Database on Protected Areas (UNEP-WCMC and IUCN 2015) or if located within Biodiversity Hotspots (Mittermeier et al 2011). In addition, we incorporated a catalogue on endemism richness, assuming plants as proxies for all floral and faunal species (Kier et al 2009), conserving all areas with an endemism richness above the global average (>21.66 endemic species km^–2). Finally, a dataset on threatened species (mean value of amphibians, birds, and mammals) was included (Pimm et al 2014), based on which we assume cells to be protected where more than 3% of all species are currently threatened.

Zoom In Zoom Out Reset image size

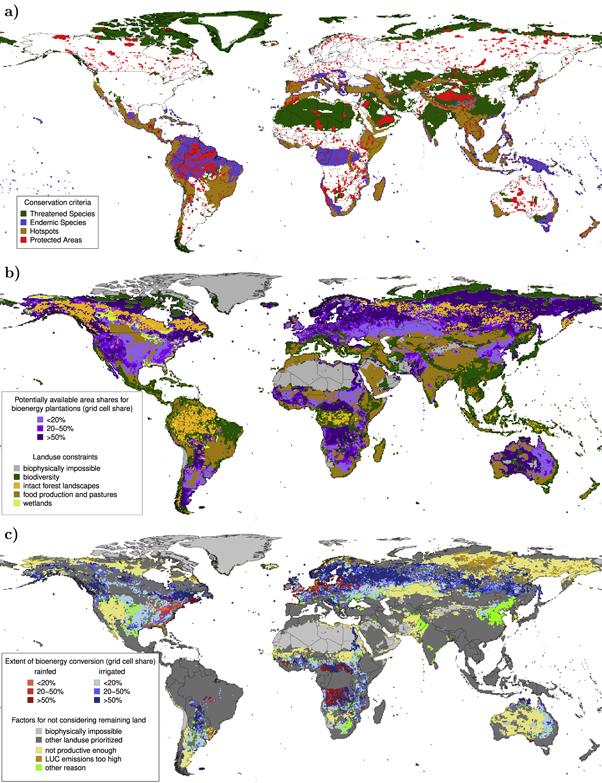

The global area potentially suitable for BPs according to our configuration sums up to 3286 Mha (figure 1(b)). This would be more than twice the current cropland area. Large portions of this area, however, can not sustain BPs with yields above the minimum yield threshold of 2.5 t C ha⁻¹ yr⁻¹ due to climatic conditions, or are associated with too high land-use change (LUC) emissions due to the conversion of natural land to a BP (Houghton et al 2012, Harper et al 2018). We only consider grid cells if the mean yield for the period from plantation start until 2099 is above the harvest threshold. To calculate the LUC emissions as part of the carbon budget, we compare the size of litter, soil and vegetation carbon pools before and after the conversion to BPs and only consider sites where LUC emissions are at least two times compensated for by the net sequestration amount, excluding areas where plantation of bioenergy would only be marginally useful. To choose the most suitable type of BP for each grid cell (see below for bioenergy functional types in LPJmL), five model runs (assuming plantation on all potential areas with the same type of BP—woody, irrigated woody, herbaceous, irrigated herbaceous, no BP) were performed for scenarios IRR, EFR, and WM. These were used to determine the potential yields and water demands for all grid cell shares available for conversion to BPs in each simulation year. For RF, three such pre-runs (woody, herbaceous, no BP) were sufficient, since irrigation is disallowed.

The net yield (nY) for all four possible BP types (rainfed versus irrigated and woody versus herbaceous) is given by the carbon conversion efficiency (c_eff), the yield of the respective bioenergy plant (beY), and the potential timber yield from the initial land-use conversion (tY):

$$\begin{eqnarray}&&{nY}={c}_{{eff}}\cdot 0.475\cdot ({beY}+{tY}),\end{eqnarray} \tag{ 1 }$$

where c_eff defines the percentage of the harvested carbon sequestered and thus extracted from the atmosphere; the factor 0.475 describes the average carbon content of dry biomass from Schlesinger and Bernhardt (2013).

In every grid cell, the net yield is compared with the associated LUC emissions (see figure S2). For most regions, BPs reduce the natural carbon holding capacity and thus have positive LUC emissions. In regions such as eastern Australia, the central/northern United States, or southern Africa, however, managed BPs can have enhancing carbon sequestration effects, besides the yield. For the runs with EFR constraints, the most productive rainfed BP type is chosen if the whole basin or the current cell is already transgressing the EFR requirements. Subsequently, all cells are ranked according to their yield/irrigation water ratio (irrigation water amount is set to 1 if it is a rainfed cell) and from this record, the cells are chosen consecutively (meaning the cell with the highest ratio—least water per yield—is selected first) until the sequestration goal of the respective year is reached. Thereby, overall productivity in each grid cell determines both the type of BP and irrigation, which in turn depend on the soil type, climate conditions, and water availability. This results in unique spatial patterns for each scenario (see figure S3).

LPJmL model

The projected total global freshwater withdrawals (2090–2099) exhibit a large range between 2619 and 5998 km³ yr⁻¹, with a BP contribution of 387–3167 km³ yr⁻¹ (see table 2 for tabled simulation data). The baseline scenario without BPs reaches ∼3000 km³ yr⁻¹ for the same period. Adding BP with unrestrained withdrawals (IrrExp—IRR) almost doubles the total withdrawals compared to purely rainfed BPs. By respecting EFRs and applying improved water management (EFR and WM), the total global water withdrawals can be kept below 4000 (3000) km³ yr⁻¹ in IrrExp (TechUp). Note that despite non-negligible withdrawals for BPs in the order of 400 km³ yr⁻¹ in scenario WM of basic and TechUp setups, the total withdrawals may even fall below those of the respective RF scenario (3011 km³ yr⁻¹), because EFRs are taken into account also for withdrawals of agricultural irrigation and because water is assumed to be more effectively managed also on cropland. Total global (food) crop yields are not substantially changing for RF and IRR compared to a reference run without BP. They are reduced by 3.5% in EFR, while in WM the water and soil management results in 8.4% higher crop yields than in RF.

We observe that most of the scenarios do not reach the target sequestration, meaning that from a certain year on, no more additional BP area is available that fulfills the respective scenario requirements. The dedicated freshwater withdrawals for irrigation of BPs needed to provide 255 Gt C of NEs range from 416 km³ yr⁻¹ (TechUp—WM) to 2388 km³ yr⁻¹ (IrrExp—IRR).

In the basic scenarios RF, IRR, EFR, and WM (figure 2, bottom center), total NEs from BPs are not fulfilling the sequestration target of 255 Gt C. The RF scenario reaches 170 GtC (with no additional water use on top of the global non-BP water use of currently 3011 km³ yr⁻¹). Irrigation of BPs (unconstrained by EFRs) with 701 km³ yr⁻¹ (2090–2099 mean) increases this value to 217 GtC (IRR). With stringent environmental flow protection (EFR) the water demand is reduced to 400 km³ yr⁻¹, whereby a total sequestration of only 181 GtC is achievable. Additional water management (WM) strategies slightly increase the sequestration to 195 GtC while staying below the irrigation water demand of EFR (387 km³ yr⁻¹).

Zoom In Zoom Out Reset image size

To possibly increase the carbon sequestration, we considered either irrigation expansion or technology upgrades. An increase of irr_frac from 0.33 to 1.0 (figure 2, bottom right) enables scenario IRR to reach the sequestration goal and WM to almost reach it (243 GtC). These gains, however, come at the cost of strongly increased water withdrawals for the BPs. IRR more than triples the demand for BP irrigation to 2388 km³ yr⁻¹, while in the WM scenario, more than four times more irrigation water is used (1742 km³ yr⁻¹) compared to basic. In the EFR scenario, less water compared to WM is used (1474 km³ yr⁻¹), however, for a lower sequestration amount. In the TechUp setup (figure 2, bottom left), in which c_eff is increased from 50% to 70%, the additional carbon that can be sequestered from the raw yields is enough to fulfill the sequestration target of 255 Gt C in all four scenarios (RF, IRR, EFR, WM). As a beneficial effect, the associated freshwater withdrawals for BP irrigation are comparable to those of the basic setup (IRR, 638 km³ yr⁻¹; EFR, 417 km³ yr⁻¹; WM, 416 km³ yr⁻¹).

The higher sequestration demand of 355 Gt C, which could become necessary due to delayed or failed mitigation, was analyzed in the TechUp₃₅₅ (top left) and IrrExp₃₅₅ setups (top right). None of the scenarios, however, can deliver sequestrations that high. The IRR scenarios come the closest, although they neglect the EFRs (337 GtC / 775 km³ yr⁻¹ for TechUp₃₅₅ and 321 GtC / 3167 km³ yr⁻¹ for IrrExp₃₅₅).

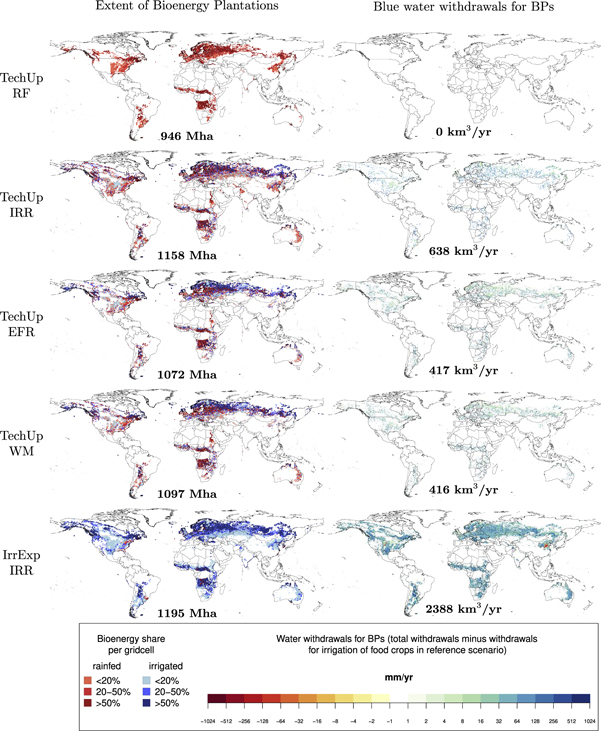

For scenarios that reach the sequestration goal (figure 3) with restricted irrigation use (TechUP—RF, IRR, EFR, and WM) the majority of irrigated BPs is situated in higher latitudes, namely Canada, Scandinavia, and Russia (due to the preference for cells with a low water/productivity ratio), while areas of highest productivity (figure S3) and highest LUC emissions (figure S2) are in the tropics. The biophysical limitations allow the productive growth of herbaceous bioenergy plants only in latitudes between −40° and 50°. Due to their plant physiology, woody bioenergy plants have significantly lower yield productivities, but are able to grow in subpolar regions. The optimization scheme also simulates plantation of bioenergy trees in the tropics, which are either chosen for their greater net carbon sequestration or their lesser need for irrigation.

Zoom In Zoom Out Reset image size

This study was designed to estimate the biophysical potential and water requirements for BECCS if being applied as the primary NET for fulfilling the 1.5 °C target. This approach to model BECCS is based on explicit modeling of BPs (and the associated emissions from land-use change in the process of plantation allocation) together with an assumed carbon conversion efficiency. We thereby adopt an Earth System perspective based on the planet's biophysical capacity and especially the trade-offs associated with freshwater availability and management, rather than explicitly addressing economic feasibility. We have not considered the logistics and economics of transport of solid biofuels, nor the costs of CCS (e.g. Tauro et al (2018), Strefler et al (2018)) as these were beyond the scope of our research. We acknowledge that these issues will be important for the feasibility of strategies for BECCS, not least because the areas identified having the greatest potential for BPs are far from areas of greatest energy demand. However, if these constraints were considered additionally in a more comprehensive study, NE potentials may not necessarily be lower but the BP area would most likely be simulated to shift to other regions (see Bonsch et al 2016).

The key finding is that NE demands necessary to limit global warming to 1.5 °C cannot be met by BECCS alone due to freshwater limitations (and under the land available for conversion assumed here), except under the most ambitious assumptions about conversion efficiency or water use. The only scenario not relying on a high carbon conversion efficiency of 70% is a scenario without respecting EFRs, which thus would come at the cost of riverine ecosystems and overall environmental sustainability. Safeguarding EFRs in turn, would largely limit the irrigation-sustained NE potential. These results add new evidence to the discussion that pathways towards higher water use efficiencies and carbon conversion efficiencies need to be prioritized to meet targeted NEs. The projected additional freshwater withdrawals for achieving the 1.5 °C target using BECCS as the primary NET (figure 2) are substantial (up to 2400 km³ yr⁻¹—mean 2090–2099) and could thus reach the order of current global water withdrawals. Correspondingly, the total water consumption across all sectors would rise to above 3300 km³ yr⁻¹ (figure S4), thereby possibly transgressing the 'planetary boundary' for freshwater use (currently set at a total human consumption of 2800 or 4000 km³ yr⁻¹, respectively; Gerten et al 2013, Steffen et al 2015), with associated detrimental effects for the Earth system. In comparison with previous water consumption estimates for BPs, as for instance in Beringer et al (2011) (1481–3880 km³ yr⁻¹), Bonsch et al (2016) (3000–6000 km³ yr⁻¹), or Jans et al (2018) (1500–5000 km³ yr⁻¹), our global estimates exhibit a similar to larger span while being somewhat more conservative in absolute terms (351–2946 km³ yr⁻¹) due to the large range of scenarios considered and other divergent assumptions such as on the potential locations for BPs in particular. Our study thus does not constrain the previous range but provides a systematic exploration of underlying causes (water use limitations, environmental constraints, management options).

Thus, it is important to note for our study as well that the global amount of freshwater requirements strongly depends on the underlying assumptions about conversion efficiency, water management, and EFR protection. Most freshwater is simulated to be consumed in the IrrExp scenario, whereas the the basic and TechUp scenarios involve significantly lower water consumption. Naturally, among the water use scenarios of each parameter setup, IRR always leads to highest water consumption, while EFR and WM show lower values due to their strict water allocation scheme (EFR) and the constrained water use (WM), respectively.

Our results indicate that a targeted NE amount of 255 Gt C (between 2030 and 2100) could be produced under rainfed conditions only if high conversion efficiencies would apply (c_eff ≥ 70%). Even under this condition, though, rainfed BPs would not provide enough biomass for possible higher NE demands up to the here considered 355 Gt C, which may become necessary if climate change mitigation efforts fail or slow down. The basic setup cannot provide enough NE to fulfill the sequestration demand of even the lower target (255 Gt C), suggesting that either irrigation expansion or highly efficient BECCS systems exceeding 50% carbon conversion efficiency will be needed (or a combination of both). It appears unlikely to implement such high efficiencies at the global level within the next decades due to multiple obstacles such as a lack of socio-political acceptance, policy incentives, and technological readiness (Fuss et al 2014, Reiner 2016, Fridahl and Lehtveer 2018, Gough et al 2018, Vaughan et al 2018).

In view of these technical and institutional challenges, productivity improvements supported by irrigation expansion come into focus for near-term solutions. It is clear that additional water withdrawals at the level presented here would be associated with severe environmental degradation (at least in scenarios where EFRs are not respected) or increased water stress (Rockström et al 2014, Hejazi et al 2015). While such obstacles require further systematic study, any sustainable implementation of BECCS requires serious consideration of freshwater issues in the form of rigid environmental protection, water legislation, and water management improvements.

In addition to the water requirements for irrigation, BPs need extensive land areas (for further discussion, see Boysen et al (2016), Heck et al (2016), Werner et al (2018)). In our study, the maximum additional arable area for BPs under rainfed conditions is roughly 1000 Mha. Irrigation makes more grid cells (200–400 Mha) productive enough to cross the minimum yield threshold and compensate for LUC emissions (see figure S2). The yield threshold is the lower limit of what is considered economically feasible today, while both yields and the threshold may change in the future (even though they are already quite optimal parameters) due to e.g. genetic optimization and management. The assumption that BPs would only be planted if LUC emissions are at least twice compensated for by the net sequestration amount is strict, but economically justified. Conversely, irrigation makes BPs in many regions more productive, such that per unit of NEs, less land is needed. This can be understood as a trade-off between water and land, which has been described before (Bonsch et al 2016, Jans et al 2018).

However, large portions of the identified potentially available areas for BPs in this study are recreational areas or wild remote landscapes which are already in a state of increasing risk for biodiversity loss (Steffen et al 2015). Given that the scenarios suggest replacement of, for example, larger fractions of boreal forest in Scandinavia and northern Asia, which is unlikely to occur in reality at such large scale, our estimates appear to be on the conservative side. If those areas would not be released for conversion, larger BP areas, or more intense irrigation, would have to take place elsewhere to achieve a similar amount of NEs, probably involving even stronger pressure on freshwater systems there. Thus, we stress that the here simulated spatial BP patterns are to be interpreted as biophysical maximum potentials derived under strict conservation criteria, distributed and optimized globally according to the water use efficiency. Further analysis could evaluate the wider consequences of ecosystem change (e.g. terrestrial and aquatic biodiversity loss through conversion of natural land to BPs), like Ostberg et al (2018) provide for biospheric change under scenarios designed to sustain Paris mitigation efforts. Additionally, competition for water between irrigated agriculture and BPs could be explicitly studied by, for example, exploring scenarios where the irrigation of crops always has the highest priority.

In sum, we find that second-generation bioenergy combined with CCS alone can deliver sufficient NEs for ambitious climate targets only under highly optimized conditions and with potentially detrimental side effects on freshwater ecosystems. This first benchmark quantification merits more detailed follow-up studies, especially to analyze synergies and trade-offs with additional NETs operating in different domains, in a complex modeling framework. However, according to initial studies, other NETs would come along with environmental side-effects too, for example, with respect to the area demand of afforestation or the water demand of direct-air-capture (Smith et al 2016).

Despite the socio-political and technological barriers to the implementation of BECCS, bioenergy will most likely become more relevant as a substitution for fossil energy with the need to convert large areas to BPs. To increase the yields and thus reduce the pressure on land, these plantations might have to be irrigated to a substantial degree, potentially putting many freshwater systems under severe additional pressure. Therefore, local water policies, such as for safeguarding EFRs, are important tools to sustain the integrity of freshwater ecosystems. We show that there is a trade-off between limiting irrigation on BPs to sustain EFRs and attaining levels of NEs likely required for limiting global warming to 1.5 °C. On-field water and soil management can help reducing this water gap for BPs and for agriculture. Nevertheless, a stringent and fast reduction of CO₂ emissions is inevitable, because higher carbon sequestration demands would have profound impacts on freshwater systems and their ecological functions that are fundamental to life and societies.

The authors declare no conflict of interest. This study was funded by the CE-Land+ project of the German Research Foundation's priority program DFG SPP 1689 on 'Climate Engineering—Risks, Challenges and Opportunities?', by the BMBF project BioCAP-CCS (Grant No. 01LS1620B) and with partial support from the University of Chicago Center for Robust Decision-making on Climate and Energy Policy (NSF Grant #SES-146364). We thank Sibyll Schaphoff, Jens Heinke, Wolfgang Lucht, and Sebastian Ostberg for valuable discussions, as well as two anonymous reviewers for their constructive comments.
