Normalisation of Paris agreement NDCs to enhance transparency and ambition

The Paris Agreement (UNFCCC 2015) takes the form of a bottom-up approach to tackling climate change, reliant on voluntary commitments in the form of nationally determined contributions (NDCs), which are publicly accessible through the NDC registry. The NDCs are subject to regular review and updated every five years, implying a system of 'pledge and review' with civil society holding countries to account instead of employing direct enforcement mechanisms (Jacquet and Jamieson 2016). Under such a process, however, transparency and comparability of individual country pledges become paramount to the agreement's success. In response, online tools, such as the NDC Explorer (Pauw et al 2016), Climate Watch (Climate Watch 2018), the Climate Equity Reference Calculator (Kemp-Benedict et al 2017) and the Climate Action Tracker (Climate Action Tracker 2018) have appeared to make pledges more comparable. Yet the main lesson from using such tools is merely how much complexity and variance exists among NDCs. It remains challenging to compare what pledges really mean in emission and temperature terms. This job has instead fallen on scientists, requiring them to spend valuable resources analysing the impact of the pledges and judging their ambition (Aldy et al 2016, Jacoby et al 2017).

Initial studies suggest current NDCs are insufficient at meeting the top-down goal (Höhne et al 2017), implying a warming of 2.6 °C–3.1 °C, dependent on speculative negative emission technology (Anderson and Peters 2016, Schleussner et al 2016, Rogelj et al 2016a). Here we evaluate this discrepancy by performing a bottom-up assessment of the transparency and ambition of individual pledges. We identify four main categories of NDCs, and analyse the ambition of each category of NDC. In this context, we define ambition as producing emission targets that limit emission growth or lead to emission reductions in line with the overall goal of limiting global temperature rise to 2 °C. To compare the ambition of each pledge, we perform a normalisation that makes their differences comparable and quantifies their effect on global emissions. This analysis is performed by grouping countries according to geographic region and by ranking them in terms of emission intensity per capita. On the basis of the findings we detect potential counterproductive systemic effects and suggest how transparency and ambition levels of NDCs can be improved.

The Paris Agreement states that the principles of transparency, accuracy, completeness, comparability and consistency (UNFCCC 2015) should be adhered to in accounting for emissions. We argue that these principles, particularly those of transparency and comparability need to be extended to the framing of NDCs themselves. Recent cooperation experiments have shown the need for greater transparency in achieving a fair climate deal (Hurlstone et al 2017). This will have the benefit of making the pledges easier to interpret and scrutinise by external stakeholders, including civil society, alongside having the psychological effect of inducing a behavioural change to increase ambition (Thaler and Sunstein 2008).

2.1. NDC differences regarding scope and gases covered

2.2. Normalisation of NDCs

More fundamentally, large differences exist among how countries express their individual targets. Based on analysing all NDCs (see section 2) we group them into four main categories:

2.2.1. Absolute emission reduction targets

Countries submitting these pledges present absolute emission reductions for a target year in percentage terms relative to a historic base year. The base year is set by the country and ranges from 1990 to 2014, while the target year is typically 2030, and in a few cases 2025.

2.2.2. 'Business as usual' (BAU) reduction (covering also trajectory targets)

Countries submitting these pledges present a percentage reduction in emissions relative to a 'business as usual' scenario, typically to 2030. This scenario is defined by each country itself, causing a large variance to exist in emissions growth among scenarios. Also included in this category are the few countries (Bhutan, Ethiopia, Oman and South Africa—representing only around 1.5% of global emissions) which submitted a fixed emission trajectory target. This approach effectively produces the same result.

2.2.3. Emission intensity reductions

Countries submitting these pledges present a reduction in emission intensity per GDP relative to a historic base year. Emissions targets are therefore dependent upon the historic GDP and emissions in the base year, and any future GDP growth.

2.2.4. Projects absent of GHG-emission targets

This final category includes countries presenting NDCs that did not include an explicit GHG emission target. These submissions typically offered details about projects aiming to reduce emissions, such as investment in renewable energy. However, these are difficult to convert into actual impact on emissions and do not provide a hard limit on emissions for the countries to be held accountable against.

To analyse the ambition of each pledge type, we group countries by pledge type and perform analyses by region and rankings of emission intensity per capita. This allows for systematic comparison of countries of similar geopolitical characteristics, each covering at least 5% of global GHG emissions. The geographical groupings avoid having to report results for relatively small nations and thus assist in presenting the results in a concise way that allows for clear interpretations. Appendix A shows the resulting groups and countries within each. The PRIMAP database (Gütschow et al 2018) was used for historical GHG emissions because it is a peer-reviewed data source that covers all countries which have submitted an NDC. Countries' GHG emission projections to 2030 were calculated by individually assessing their NDC submissions. Where LULUCF or non-CO₂ GHG were not covered in the pledge, such emissions are forecasted using exponential smoothing methods applied to trends between 2006 and 2015. Of the seven countries submitting category iii targets, only India presented an explicit GDP projection in their NDC. Few long-term GDP projections provide complete information available at the country level. Among these, the most reliable are those provided by the OECD (2018), which we use to calculate the expected reduction in emissions. This involves applying world average growth rates for countries without individual GDP projections. In the case of India, we calculate an additional emission projection for 2030, based on the GDP projection that was included in its NDC. When growth in a country's GHG emissions could not be interpreted from the NDC (i.e. countries falling into Category iv), growth was forecast from trends between 2006 and 2015, again using an exponential smoothing method. Finally, the Bahamas and Belize show large changes in global emissions between 2006 and 2015 in the PRIMAP database. For these two countries, forecasts were made from trends between 2011 and 2015. Furthermore, in cases of the NDC pledge holding until 2025, such as for the United States, the trend extrapolated to 2030 by applying exponential smoothing on the data from 2016 to 2025. Appendix B shows the groupings of countries by emissions per capita in 2015, used to produce the calculations reported in table 2. Countries were ranked based on the absolute emissions of all GHGs, and then divided into five groups based on this ranking. For the production of all tables and figures, excluding figure 1, we assume that all requirements of conditional pledges have been fulfilled, thus we are working with conditional pledges rather than unconditional pledges.

Zoom In Zoom Out Reset image size

Table 1 shows the percentage of 2015 global emissions for the four groups. It also mentions weighted percentage changes of projected emissions by 2030 compared to 2015. Absolute values of the emissions in 2015 and 2030 are included in appendix C. In effect, we are normalising the emission pledges for all countries, by converting them into a format similar to category i pledges, but indicating actual emission change, whether positive or negative, compared with a consistent base year. Levels of ambition are more easily judged on the basis of such normalised pledges than for pledges in their original form.

Table 1.  Normalised (I)NDCs by pledge type and region.

Deeper green shades represent greater emission reductions and deeper red colours greater emission growth. For definitions of regions and details of calculations, see section 2. ^aThe 386% change in LAC intensity reduction countries is so high due to Chile having large negative emissions from LULUCF in the 2015 data, giving a very low overall emission total. This produces a very high percentage increase which is not representative of the change in emissions exclusive of LULUCF. Excluding Chile, this figure would only include the emission growth of Uruguay, which equals 104%. The 219% increase refers to that for India. In 2005, the base year for their intensity target, LULUCF emissions were much higher than in 2015. As with Chile, this large percentage increase seems largely related to LULUCF in the data used.

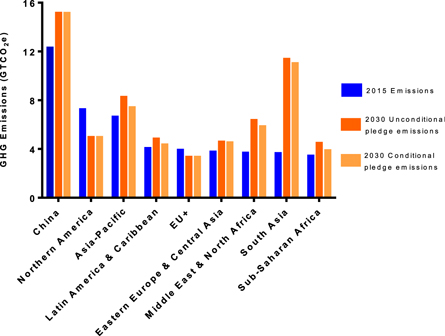

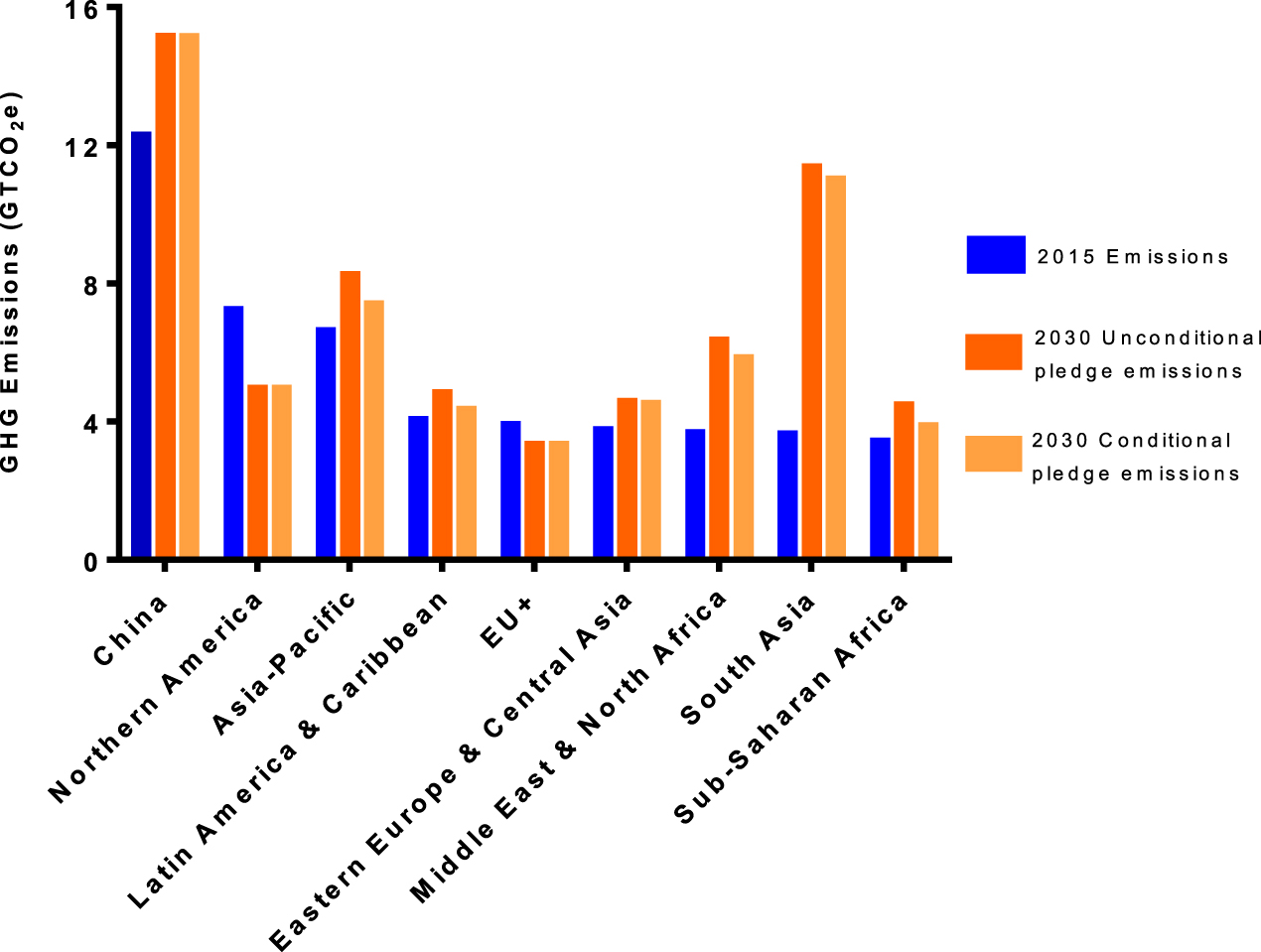

The category i pledges generally prove to have the highest ambition in terms of tangible emission reductions. By contrast, categories ii–iv tend to produce low ambitions with significant emission increases of 29%–61% at global level. The effect of these changes on emissions at the regional level is illustrated in figure 1. Notably, we find that Northern America and EU+ are the only regions aiming for absolute reductions in emissions, while substantial increases are expected in MENA and South Asia. Since countries in the Global North (corresponding to the Annex I countries in the Kyoto Protocol) are more likely to submit category i pledges, it may not seem surprising that they produce the targets with highest ambition.

To control for the fact that these countries tend to have higher emission intensity and thus are more likely to submit category 1 pledges, we present results with countries grouped by their 2015 emission per capita in table 2. We see that category i pledges still tend to outperform the other pledge categories within the same emission intensity grouping. Additionally, it indicates that for the lowest 20% of countries in terms of emissions intensity pledge, type iv performs better in terms of emissions reduction than types i (−8 versus 64%) and ii (63%), while for the highest 20% countries, pledge type iii comes out lower than i (−49 versus −20%). Although this seems counter-intuitive, it is due to category iv pledges being based on recent trends; the more intense emitters are likely to have achieved high growth in emissions, whilst low-intensity countries are likely to have not. Overall, emission growth is lower under category iv pledges than under ii and iii. However, as the category iv pledges have been calculated by projecting recent trends in emissions, it is foreseeable that emission growth could accelerate and be higher than that seen in categories ii and iii countries, given that there is no fixed target which they are pledging to limit their emission growth to.

Table 2.  Normalised (I)NDCs by pledge type and emission intensity per capita.

Deeper green shades represent greater emission reductions and deeper red colours represent greater emission growth. For definitions of ranking groups and details of calculations, see section 2. ^aThe 2864% change corresponds to the percentage change of Chile, the only country in the category. in intensity reduction is so high due to Chile having large negative emissions from LULUCF in the 2015 data, giving a very low overall emission total. This produces a very high percentage increase which is not representative of the change in emissions exclusive of LULUCF. The 219% increase refers to that for India. In 2005, the base year for their intensity target, LULUCF emissions were much higher than in 2015. As with Chile, this large percentage increase seems largely related to LULUCF in the data used.

In terms of global emissions, we see a rise of 23.8%, from 49.8 GtCO₂ in 2015 to 61.6 GtCO₂ in 2030. Rogelj et al (2016b) calculate for a >66% chance of staying within 2 °C of warming, the remaining carbon budget has a range of 590–1240 GtCO₂. The cumulative emissions to 2030 from our analysis are 892 GtCO₂, suggesting that the 2 °C budget will quite likely have already been spent by 2030. It should be noted however that our emission projections are around 10% higher than Rogelj et al (2016a) and UNEP (2016). This is largely due to us trying to present the NDC pledges 'as is' rather than running them through complex modelling without making assumptions of how they translate into policies. Here we are presenting rather a maximum estimation of what the countries are actually committing to in emission terms. The effect on overall emissions, and why it may differ to other publications is also likely due to the sensitivity to the PRIMAP emission dataset and GDP assumptions used. This is particularly seen in the very high growth rate in emissions for India.

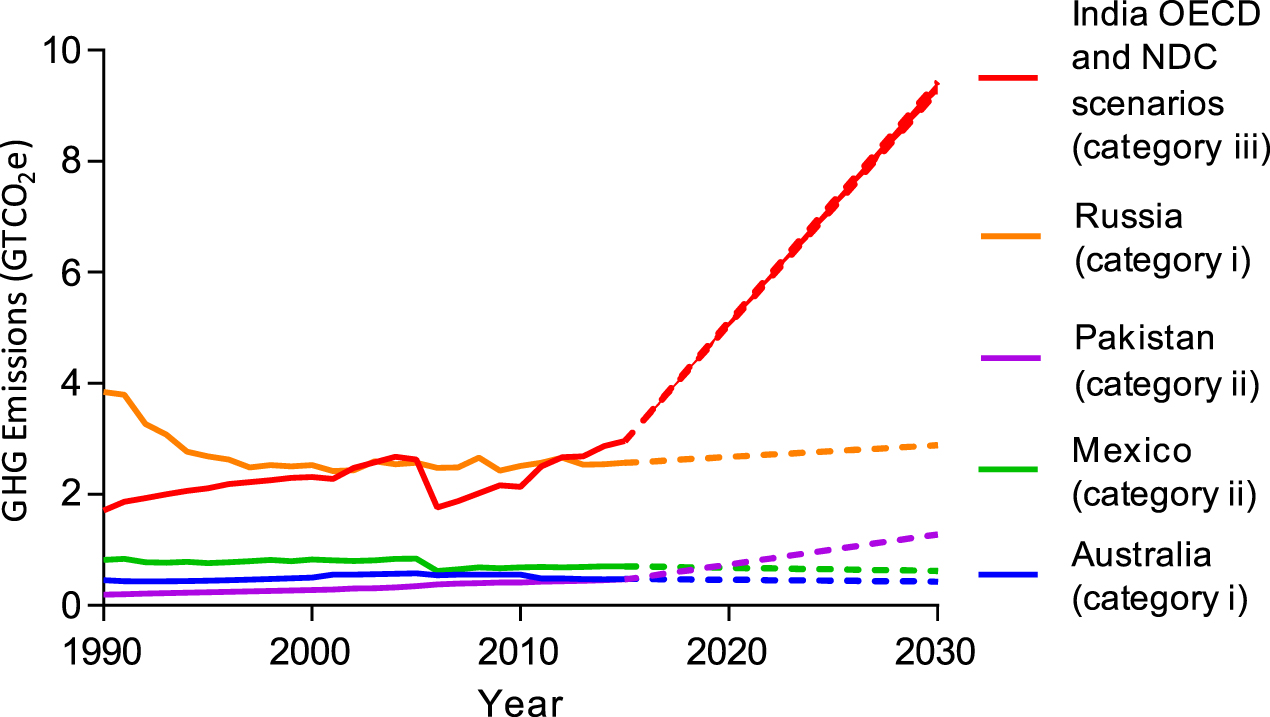

We now explore the variance in transparency and ambition among different pledge types. Figure 2 illustrates emission projections for five sample countries varying in ambition: Australia, India, Mexico, Pakistan and Russia. These countries were chosen as they provide good examples of the difficulty in comparing level of ambition amongst individual countries. Australia and Russia both submitted seemingly similar category i pledges. Although we this appears to be the most effective pledge category, due to the explicit fixed cap on future emissions, we still find much variance in ambition, suggesting a need for achieving more consistency in the future. The choice of base year is particularly relevant. For instance, Russia aims to reduce emissions by 25% relative to the base year 1990, which at face value seems comparable to Australia's 26%–28% reduction relative to 2005. However, comparing both to 2015 emissions, we see Australia's emissions drop by around 9%, whereas Russia's increase by 13%, as it had considerably higher emission levels back in 1990. It is therefore clear that each country's level of ambition cannot necessarily be inferred from their NDC, even when submitting category i pledges.

Zoom In Zoom Out Reset image size

Likewise, a similar issue occurs when trying to compare category ii 'BAU reduction' pledges. Mexico and Pakistan submitted Category ii, which give countries much freedom to define their business-as-usual scenarios. As a result of the scenarios being self-defined, the resulting differences amongst the emission changes for each countries are pronounced. At first sight, Pakistan's conditional BAU reduction of 20% may appear roughly comparable to Mexico's 22% unconditional GHG target. However, if we normalise both relative to 2015 emissions, we see a striking difference between how they translate into 2030 emissions. Mexico's GHG emissions decrease 11% from 2015 levels, while Pakistan's pledge would increase emissions by 182%. Despite producing only half of Mexico's emissions in 2015, Pakistan may emit twice as much as Mexico by 2030. The key difference is in the detail of the BAU scenarios; Pakistan's BAU scenario entails a 241% increase from 2015-level emissions while Mexico's is a more modest 38%.

Although few countries opted for category iii pledges, they include the major emitters China and India, which together account for around a third of global emissions. The outcome of these targets is more difficult to predict. Their greatest weakness is that they do not limit emissions: the more growth, the higher the emissions. These targets also suffer from needing economic data for interpretation. Using current long-term GDP growth forecasts from the OECD (OECD 2018) India's 33% reduction in intensity will likely translate to emissions growth of 229% from 2015 levels. India include a GDP projection for 2030 in their NDC, namely a 173% increase from their 2014 GDP. The OECD projections are very similar, namely a 178% increase in GDP, resulting in a comparable result in terms of CO₂e emissions with a 213% increase from 2015. This small range is shown in figure 2. However, it is important to note that the percentage increases are very high partly due to the accounting for LULUCF in the data. There was a large drop in LULUCF emissions between 2005 and 2006, the result of which can be seen clearly in figure 2. This is particularly significant given that 2015 was the chosen base year for India's intensity target. However, this further illustrates the difficulties in clearly assessing countries' pledges under the current framework. Note that it is not our intention with these illustrations to question goals agreed for developing countries, but to illustrate that in their current form even a simple comparison of NDCs requires careful analysis. Detailed analysis of mitigation effort or fairness will require more informative metrics (Aldy et al 2017).

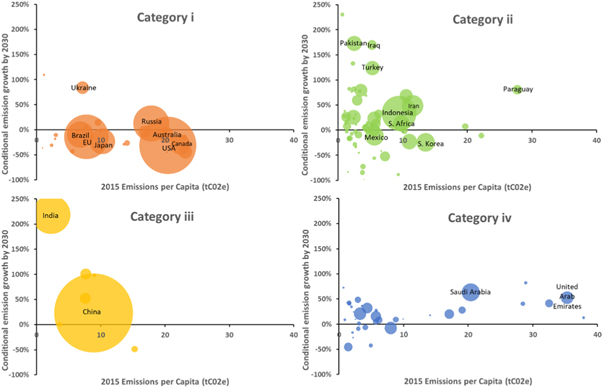

Due to normalisation of all NDCs we are able to compare these now systematically. This results in figure 3, which shows the data of emission growth and emissions per capita for all individual countries, excluding a few outliers. While there is a large degree of variance among countries, category 1 targets generally lead to more ambitious emission targets, regardless of emissions per capita. The full data on normalised pledges for each individual country is presented in appendix D. The majority of countries fall into an area between −25% and 75% emission growth, and up to 10 TCO₂e emissions per capita. However, three groups of outliers exist. Firstly, there are countries with very high emission growth; most significantly Pakistan, India, Iran and Turkey. These countries have much greater growth in emissions compared to countries of similar emission intensity. Secondly, there are category 1 countries with already very high emission intensities, including Russia, USA, Canada and Australia. These countries are generally aiming for relatively significant emission reductions with the exception of Russia. Thirdly, there are several high-emission intensity countries, such as the United Arab Emirates and Saudi Arabia, which can be expected to continue to significantly grow their emissions due to having submitted category iv targets.

Zoom In Zoom Out Reset image size

The calculations underlying the tables and figures assume that nations stick to, and successfully meet their stated pledge. There is a lot of potential for countries to meet or exceed their targets, particularly if economic growth turns out to be below current projections. However, one may expect the targets to be difficult to achieve due to systemic effects, such as carbon rebound (Druckman et al 2011, Antal and van den Bergh 2014), carbon leakage (Babiker 2005) and the green paradox (Sinn 2012). Of these, carbon leakage is of particular interest to our discussion as it is influenced by differences in national policy stringency, which can be connected to differences in NDCs. Carbon leakage arises when companies move production to countries with weaker climate policies or when imports from such countries increase due to products being cheaper than ones from other countries or produced domestically. This merely transfers emissions from one country to another. As we have seen, countries fall into four tiers of pledge ambition, which creates the problem of carbon leakage from countries with relatively ambitious NDCs to those with relatively non-ambitious NDCs. Although category iv NDCs theoretically lead to less emission growth than category ii and iii pledges in our analysis, one should expect considerable carbon leakage to these countries as they lack a target for emissions. This will make compliance of the latter countries with their NDCs more difficult, leading to higher cost of compliance—as more emissions have to be reduced than foreseen—which in turn may lead to efforts by such countries to reduce their NDC or to increase it less in the future than originally intended.

The current format of pledges presents two problems. Firstly, it is difficult to accurately assess and compare what the pledges will mean in actual emission terms. Russia, India and Pakistan all frame their NDCs in terms of percentage reductions; Russia relative to a base year, India relative to emissions per GDP and Pakistan relative to a BAU scenario. Not only does this make the associated pledges difficult to interpret and compare to other pledges without detailed analysis, but may produce a psychological effect of reducing ambition level. Psychology shows us that the framing of information is important in the decision-making process (Thaler and Sunstein 2008). Russia, for instance, might have been more ambitious in its pledge if it was unable to frame its actual 13% increase in emissions as a 25% decrease against a base year of choice. The same applies for all pledges in categories 1–3: here pledges are being framed as percentage reductions, although the actual effect of the reduction rarely corresponds to the actual effect on emissions. In view of this, our advice would be to prevent countries from presenting their pledges in a frame which appears more ambitious than its true effect. This is in line with experiments demonstrating how aversion from shame is a powerful motivator in public contribution (Samek and Sheremeta 2014). This would likely be challenging to achieve politically, as one of the factors that brought countries into the agreement was the freedom to be able to able to set their own targets in a format of their choosing. However, what we are proposing is not a radical change. For the majority of countries (those not in category iv), this would involve a simple conversion based on already available data, as we have done so in this analysis, so would not prove to be an undue burden on parties. Instead, it will be important achieving the goal of the Paris Agreement through the ratcheting mechanism. Alternatively, the countries could submit in a flexible format but their 'ratcheted pledges' would be immediately normalised by the UNFCCC. If known before, this would create healthy pressure on delivering ambitious updates.

The Paris Climate Agreement was undoubtedly a giant step in the right direction for international climate policy. However, studies have shown that, in its current form, it is at best inadequate and at worst grossly ineffective. Civil society has the right to be able to clearly understand and compare climate change commitments by countries, including whether they are fair, ambitious and add up to international climate goals. Moreover, providing consistent and easily comparable information about national climate goals has been found to contribute to their public acceptance (Gütschow et al 2018). The current lack of transparency and consistency, which requires compensation by tools and models supplied by academic research, will hinder the NDC process. To move forward, we propose that the Principles of Transparency and Consistency from the TACCC framework are extended to the framing of the NDCs themselves. This would be easy to achieve, by having countries convert their pledges into clear emission targets relative to the most recent available year in the data, inclusive of all significant gases and sectors. Alternatively, countries could deliver pledges in a flexible format which then would be normalised by the UNFCCC. An important detail is that the base year should be consistent across all countries' NDCs. In effect, countries' NDCs would then be normalized as we have done in our analysis (table 1), according to a category i style target. In our analysis we accomplished this normalisation comparing emissions to a consistent base year of 2015, the most recently available base year in the PRIMAP dataset. Going forward, as countries update their NDCs this base year should be updated, to keep pledges relevant for the next period. Not only can this help produce targets of greater ambition that are more open to external scrutiny, but it also will assist in improving effectiveness through minimising counterproductive systemic effects. Normalisation of pledges will also put pressure on delivering ambitious updates of pledges every five years under the Paris Agreement's ratcheting mechanism.

The authors acknowledge financial support from the Spanish Ministry of Science, Innovation and Universities, through the 'María de Maeztu' program for Units of Excellence (MDM-2015-0552), and from the European Research Council (ERC) under the European Union's Horizon 2020 research and innovation programme through an ERC Advanced Grant (grant agreement no. 741 087). The authors thank Stefan Drews for useful comments.
