Nonlinear impacts of future anthropogenic aerosol emissions on Arctic warming

Currently the Arctic warms at a much higher rate than the rest of the globe. Its sea-ice cover is increasingly shrinking during summer and its volume does not fully recover in winter (Cohen et al 2014). The acceleration of warming may be due to natural climate variability (Swart et al 2015), deposition of black carbon (BC) on the sea and land ice (Clarke and Noone 1985, Hansen and Nazarenko 2004), albedo feedback over the ice-free ocean (Serreze and Francis 2006), global temperature feedbacks (Pithan and Mauritsen 2014), tropical forcing (Ding et al 2014), mid-latitude sea surface temperature forcing (Peings and Magnusdottir 2014, Perlwitz et al 2015) and anomalies in oceanographic transport into the Arctic (Årthun et al 2012).

The redistribution of anthropogenic aerosol emissions in the last decades in the Northern Hemisphere could have also significantly contributed to Arctic warming (Mitchell and Johns 1997, Yang et al 2014, Baker et al 2015, Najafi et al 2015, Stohl et al 2015, Acosta Navarro et al 2016). The reduction of sulphur dioxide (SO2) emissions in Europe since 1980 may have additionally increased the Arctic near-surface temperatures as much as 0.5 °C (Acosta Navarro et al 2016). The implementation of stringent air quality policies in Europe and North America together with the simultaneous growth of industrial production in South and East Asia has caused a shift in the magnitude and composition of pollutant emissions. SO₂ emissions doubled between 1990 and 2010 in China and India from about 20–40 Tg yr^–1, and decreased by 70% in Europe and North America from about 52–16.5 Tg yr^–1 (Granier et al 2011, Smith et al 2011, Klimont et al 2013). Anthropogenic emissions of primary particulate matter with diameter below 2.5 μm dropped from 9–4 Tg yr^–1 in Europe and Russia, and from 2–1.3 in North America, while they increased in East Asia from 15–20 Tg year^–1. Global BC emissions increased by 15% since 1990 despite strong reductions in Europe and North America (Klimont et al 2017).

The direct radiative forcing by aerosols in South and East Asia may interact with the monsoon activity and modify winds and precipitation (e.g. Li et al 2016, Jiang et al 2017). By diminishing the incoming radiation at the surface over land, increasing of both SO₂ and BC emissions may have reduced the monsoon precipitation in summer, partly offsetting the expected global warming effect due to higher global carbon dioxide (CO₂) concentration (Mitchell and Johns 1997, Menon et al 2002, Ramanathan et al 2005, Bollasina et al 2011, Guo et al 2015). The effect of BC could be particularly intense due to the warming of lower troposphere by absorption of heat (Ramanathan et al 2005). Increasing aerosol concentrations over Asia force decadal variations of mid-latitude cyclones (Wang et al 2014) and intensify winds over the North Pacific Ocean (Takahashi and Watanabe 2016). Changes in natural aerosol concentrations in the tropics may initiate stationary planetary waves in the atmosphere (Lewinschal et al 2013) that propagate into the Arctic. This is consistent with modelling and observational findings on the remote impacts of heat anomalies in the tropical Pacific Ocean on the enhanced Arctic warming by the action of planetary waves (e.g. Ding et al 2014). Theoretically it can be expected that heat anomalies in Southeast Asia may force the atmospheric circulation in the high latitudes (e.g. Hoskins and Karoly 1981).

Historical pollution emission estimates contain regionally and temporally varying uncertainties, but generally they show a simultaneous reduction of pollution in Europe and North America and increase in Asia (e.g. Crippa et al 2016, Hoesly et al 2018, Klimont et al 2017). On the other hand, there is a larger uncertainty in estimating future pollution emissions (Amman et al 2013, Rao et al 2017). Although the geographical distribution of major sources of anthropogenic aerosol emissions has changed, even a future decrease in emissions in South and East Asia might accelerate the sea-ice melting in the Arctic (Westervelt et al 2015, Acosta Navarro et al 2017, Wang et al 2018). This means that likely more stringent air quality policies in the future require additional reductions in CO₂ concentrations in order to avoid the negative impact in the Arctic. Here we perform climate simulations until 2050 with an Earth system model that includes the coupling between the land, ocean, atmosphere and sea-ice. The study estimates how different aerosol reduction measures, considering consistent CO₂ emissions due to the burning of fossil and bio fuels under two global warming scenarios, may impact Arctic temperatures and sea-ice melting through the propagation of regional radiative perturbations from the mid-latitudes associated to the direct aerosol forcing.

2.1. Earth system model

2.2. Experiments

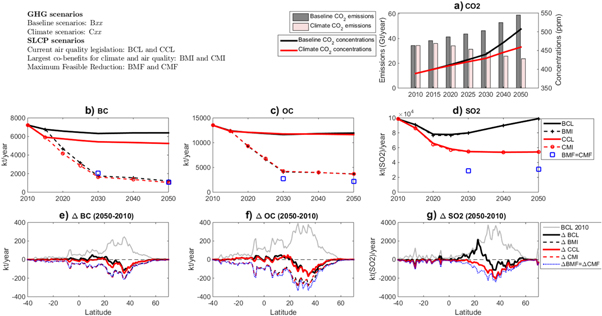

Six experiments describe different scenarios of energy use, industrial production and agricultural activity until 2050 with consequent greenhouse gases (GHGs) concentration trajectories and different strategies to reduce the emissions of short lived climate pollutants (SLCP) (figure 1). There are two pathways of GHG concentrations mainly driven by the energy use defined in the International Energy Agency study (IEA 2012). The first, referred to as 'Baseline', is an extension of current trends with doubled energy use in 2050 compared to 2009 and absence of efforts to stabilize CO₂ atmospheric concentration. The second, named 'Climate', would give an 80% chance of keeping the mean global temperature increase below 2 °C by 2100 (figure 1(a)). Three mitigation scenarios reducing aerosol and ozone precursor emissions are combined with both the 'Baseline' and 'Climate' GHG scenarios (figures 1(b)–(g), and supplementary figures S1 and S2 which are available online at stacks.iop.org/ERL/14/034009/mmedia). The first assumes effective implementation of the air pollution current legislation such as the NEC directive for European Union or the China 12th Five-Year Plan (named BCL for Baseline and CCL for Climate scenario). The second introduces measures beyond current legislation which are characterized by the largest co-benefits for climate and air quality (named BMI for Baseline and CMI for Climate scenario), based on the 20 years Global Temperature change Potential (GTP20) metric calculated for each SLCP emission type. These mitigation scenarios imply that sulphur emissions, potentially cooling the atmosphere through sulphate aerosol radiative forcing, are not affected when compared to the corresponding Baseline and Climate scenarios (figure 1(d)). The third assumes the maximum feasible reduction in air pollutants (named BMF for Baseline and CMF for Climate scenario).

Zoom In Zoom Out Reset image size

The six transient simulations make use of the ECLIPSEv5a anthropogenic emission scenarios of gases and aerosols (Stohl et al 2015) estimated from 2015–2050 (available at http://www.iiasa.ac.at/web/home/research/researchPrograms/air/ECLIPSEv5a.html) and further extended until 2065 with constant GHG concentrations and SLCP emissions of year 2050. Experiments are preceded by a 6 years long simulation starting from CESM initial conditions for year 2000 obtained in a climate simulation starting in 1850 from an equilibrium state.

In the 'Baseline' scenarios BCL and BMI global energy-related CO₂ emissions increase by up to 60 Gt yr^–1 reaching concentrations of more than 500 ppm in 2050 similar to the RCP6.0 scenario of IPCC AR5 (Lamarque et al 2010). The 'Climate' scenarios are based on the IEA 2 °C energy scenario (IEA 2012), where CO₂ emissions peak in 2015 and decrease to about 24 Gt yr^–1 giving a concentration of about 450 ppm in 2050. In BMI and CMI ECLIPSEv5a includes reductions of SLCP targeting BC and ozone mitigation similarly to the UNEP/WMO assessment (UNEP/WMO 2011, Shindell et al 2012).

Climate scenarios assume a large reduction of sulphur emissions co-occurring with reduced CO₂ emissions resulting from declining use of fossil fuels and only minor changes in BC emissions. In BMI and CMI scenarios ECLIPSEv5a assumes additional measures for mitigating SLCP by further drastically reducing BC, organic carbon, as well several co-emitted species, including non-methane volatile organic compounds, carbon monoxide, and to some extent nitrogen oxides. With respect to BMI and CMI, the BMF and CMF scenarios from ECLIPSEv5a further assume a drastic reduction of SO₂ emissions after 2030 and a modest reduction in OC emissions, while BC emissions are basically unchanged.

As the study focuses on impacts from aerosol mitigation, which is subject of air quality control, methane emissions are left unchanged. Having a much longer lifetime than aerosols, methane is almost uniformly mixed in the atmosphere and its warming impact should be similar to impacts of CO₂ (e.g. Stohl et al 2015). All experiments include a multiyear average of forest and grassland fire emissions from the ACCMIP MACCity biomass burning emission dataset (Lamarque et al 2010). Mineral dust and sea spray emissions are calculated online by the atmospheric model in CESM.

2.3. Uncertainties

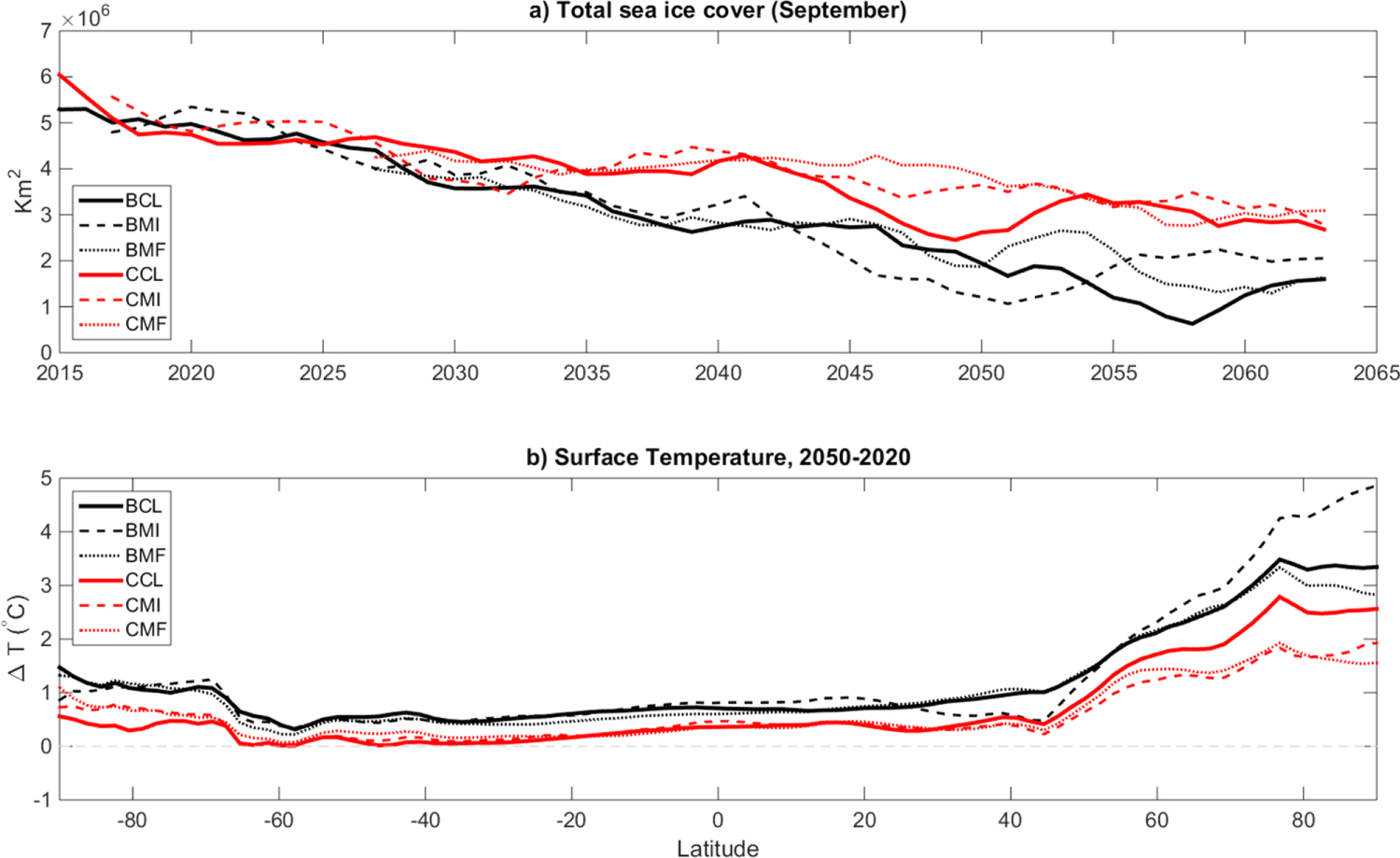

The Arctic sea-ice cover in September is reduced in all four experiments (figure 2(a)). Differences between experiments are the largest between 2045–2055 showing the greatest loss in BMI with 1.2 × 10⁶ km² less than in BCL, consistently with the previously estimated increase of Arctic warming and sea-ice loss due to aerosol emission reductions (Westervelt et al 2015, Acosta Navarro et al 2016, Acosta Navarro et al 2017). When the CO₂ concentration is limited in experiment CCL, 1.2 × 10⁶ km² more sea-ice is preserved than in BCL, which is consistent with reduced global warming due to lower CO₂ concentrations. On the other hand, contrary to previous studies (Westervelt et al 2015, Acosta Navarro et al 2016, Acosta Navarro et al 2017), reduced aerosol emissions combined with lower CO₂ concentrations in CMI result in the preservation of an additional 1.3 × 10⁶ km² of sea-ice area.

Zoom In Zoom Out Reset image size

Zonal averages of near-surface temperatures in 2050 show an impact from high and low CO₂ concentrations, having 0.5 °C lower temperatures in the 'Climate' scenarios almost at every latitude in the Southern and Northern Hemispheres, while lower aerosol emissions do not produce significant impacts (figure 2(b)). In the Arctic there is enhanced warming in all experiments. In agreement with sea-ice cover differences, near the surface BCL is 0.8 °C warmer than CCL, BMI is 1.0 °C warmer than BCL and CCL is 0.7 °C warmer than CMI. Regional differences with opposite signs in sea-ice coverage and near-surface temperatures due to aerosol reductions with high and low CO₂ concentrations may be explained by differences in the heat fluxes over the polar cap from 2036–2055. In addition to direct solar radiation anomalies, total heat in the Arctic varies due to anomalous transport from lower latitudes meridionally through the atmosphere and ocean and due to variations of heat loss through the top of the atmosphere. Sea-ice cover variations depend on the meridional and surface heat flux anomalies in the ocean. Sea-ice melts from approximately April–September, while from October–March it freezes. Supplementary table S3 shows that during melting the ocean in BMI receives more heat than in BCL due to larger surface fluxes consistent with the warmer atmosphere due to larger meridional atmospheric heat transport. In CCL the ocean receives less heat through the surface than in BCL due to colder atmosphere with less radiation at its top. Larger sea-ice cover in CMI with respect to CCL originates from the colder ocean due to weaker meridional heat transport in the ocean.

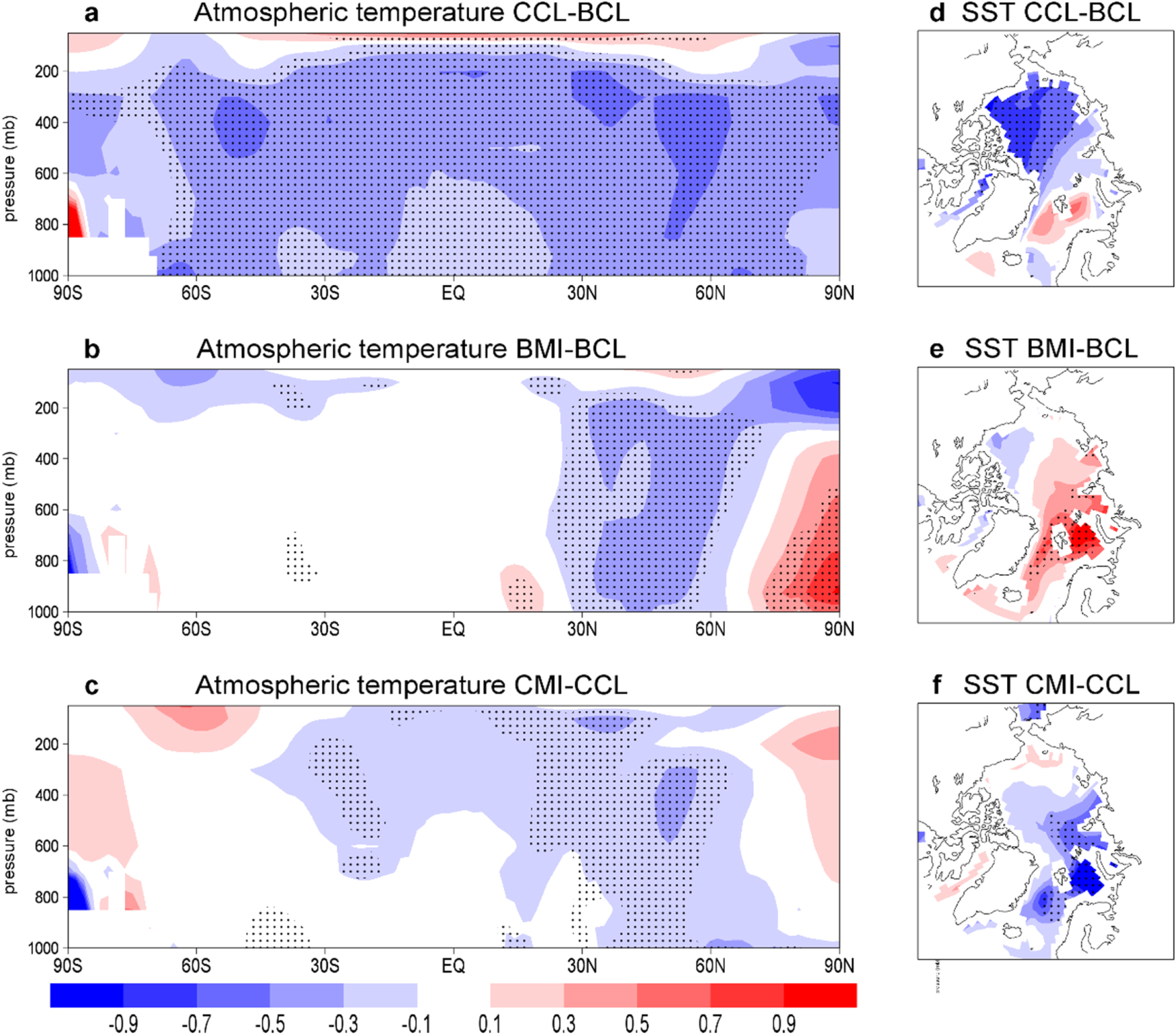

Reduced CO₂ concentrations almost uniformly reduce tropospheric temperatures over the whole globe including the Arctic (figure 3(a)) and SST is lower (here SST represents temperature of the top ocean model layer) over the Arctic Ocean (figure 3(d)). On the other hand, reduced BC and organic carbon concentrations in BMI and CMI appear with reduced tropospheric temperatures in the lower and mid-latitudes of the Northern Hemisphere (figures 3(b), (c)), while the tropospheric temperature response in the Arctic seems to differ in BMI and CMI. In BMI Arctic tropospheric warming is enhanced (figure 3(b)) and SST is higher (figure 3(e)), eventually due to higher meridional heat transport in the atmosphere (supplementary table S3). In CMI Arctic tropospheric temperatures do not change significantly (figure 3(c)), but SST is lower (figure 3(f)), probably due to lower meridional heat transport in the ocean (supplementary table S3). In BMI and CMI, anthropogenic aerosol concentrations and AODs are reduced over much of the Northern Hemispheric subtropics from Africa to Southeast Asia and northward towards Northeast Asia (figures 4(a)–(d)), although the reduction is smaller in CMI due to already lower BC emissions from less burning of fossil fuels (figure 1). Lower AODs in the Northern Hemisphere reduce zonal tropospheric temperatures in the mid-latitudes (figures 3(b), (c)). In BMI the zonally non-uniform forcing of tropospheric temperatures from lower aerosol concentrations forms cyclonic anomalies of geopotential height spreading between Africa and Northeast Asia. They initiate predominant planetary waves propagating into the Arctic (figures 4(a), (b)). In CMI cyclonic anomalies are weaker, initiating a less intense and statistically insignificant planetary wave that only partly penetrates into the Arctic (figures 4(c), (d)).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

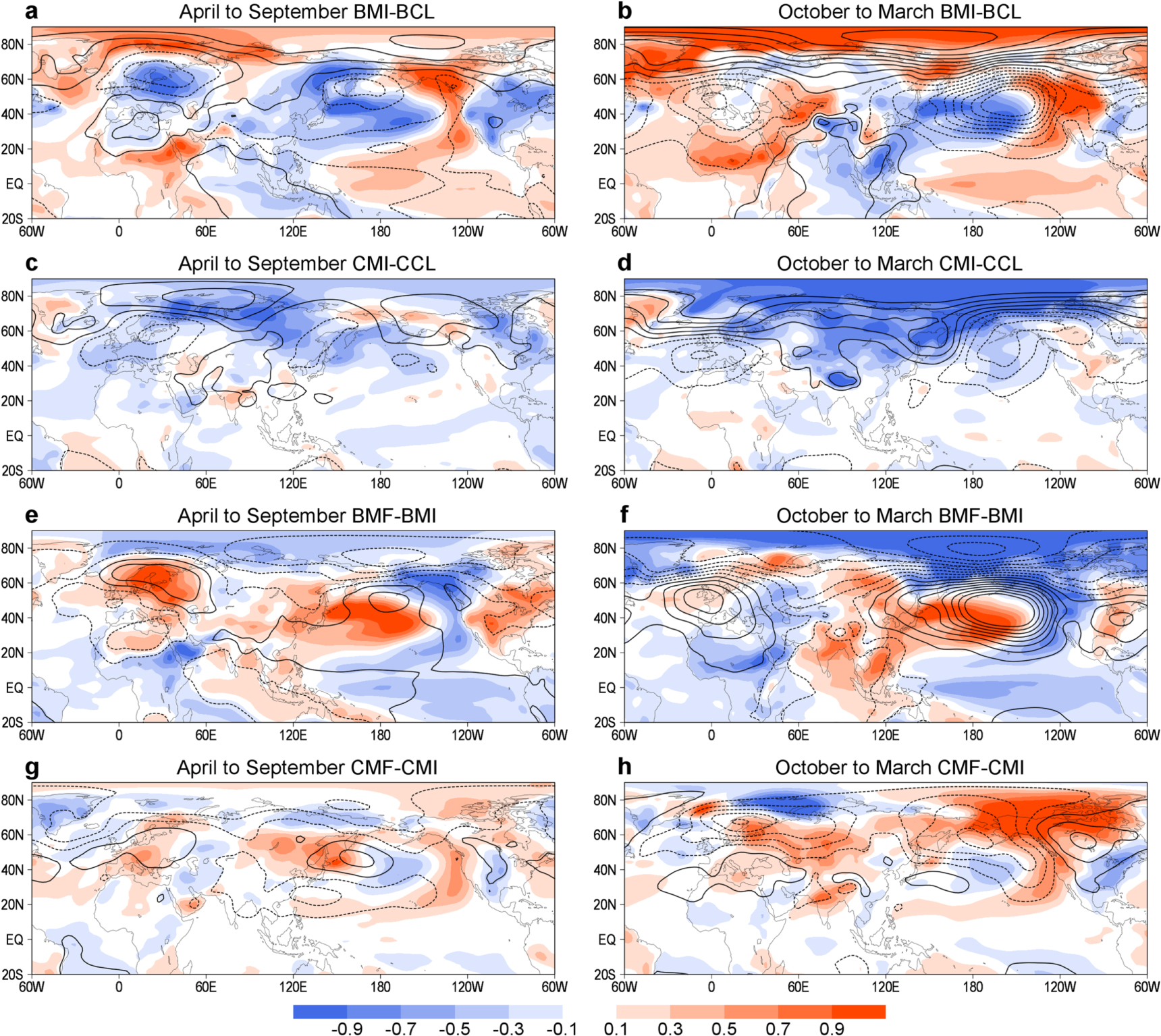

Reduced SO₂ emissions in BMF compared to BMI determine a large reduction in AOD between the Atlantic and Pacific Oceans with the planetary wave limited to the middle and low latitudes and an anticyclone over the Pacific Ocean (figures 4(e), (f)). Very similar AOD reduction and anticyclone over the Pacific Ocean appear in CCL compared to BCL (supplementary figure S6), due to the reduced SO₂ emissions from using less fossil fuel (Klimont et al 2017). The AOD reduction in CMF compared to CMI is smaller, because SO₂ emissions are partly reduced already in CCL, and the planetary wave is insignificant (figures 4(g), (h)). Different atmospheric waves corresponding to BC and SO₂ forcings indicate a strong impact of the regional distribution of the tropospheric forcing by atmospheric aerosols in agreement with Wang et al (2015).

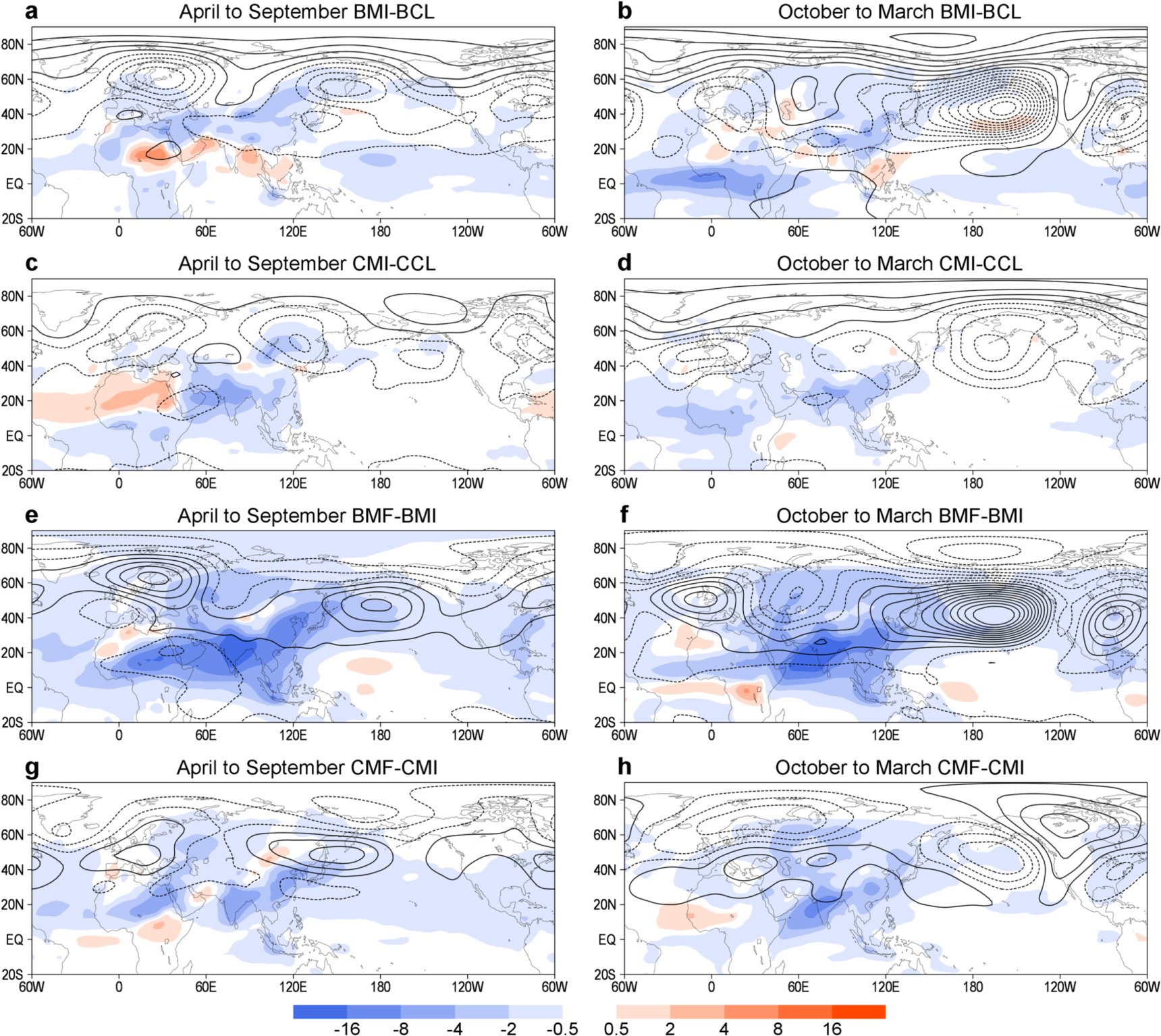

Surface response to the planetary wave perturbation also differs between simulations with high and low CO₂ concentrations (figure 5). With respect to BCL, in BMI, near-surface winds over Scandinavia, indicated by sea level pressure gradients, increase the transport of warm air from West Siberia into the Arctic Ocean increasing surface heat fluxes into the ocean (supplementary table S3) and warmer tropospheric temperature and SST in the Arctic (figures 3(b) and (e)). With lower CO₂ concentrations, sea level pressure differences between CMI and CCL occur more to the south. The cyclonic circulation anomaly over the Atlantic (figures 5(c), (d)) forms the northerly wind anomaly along the coast of Scandinavia opposing the North Atlantic current that carries heat from the North Atlantic Ocean into the Arctic Ocean in agreement with lower lateral ocean transports of heat (supplementary table S3) and lower SST in the Arctic (figure 3(f)). Compared to BMI and CMI, BMF and CMF either reduce or increase surface temperatures in the Arctic depending on the direction of atmospheric transport anomalies produced by planetary waves (figures 5(e)–(h)).

Zoom In Zoom Out Reset image size

In section 3 model outputs were compared for the decade surrounding 2050, but due to internal climate variability, aerosol reduction impacts on sea-ice melting differ in other decades (figure 2(a)). After 2050 sea-ice cover anomalies in BMI and CCL are reduced, in BCL and BMF it shrinks to lower values than in BMI, while in CMI and CMF it maintains the largest and most stable sea-ice cover throughout the simulation. When averaged over 35 years (supplementary figures S7 and S8), model outputs show very similar planetary waves in each experiment as in figures 4 and 5. On the other hand, their impacts differ, because small changes in direction and intensity of atmospheric transport at the edges of low and high pressure centres may either increase or decrease Arctic warming. This supports the hypothesis on the nonlinear and complex interaction between the Arctic and other latitudes (Overland et al 2016). For example, in BMI and CMI very similar near-surface atmospheric circulation anomalies, characterised by high pressure anomalies over the Arctic and low over the North Atlantic, produce different sea-ice cover anomalies due to small differences in the intensity and form of the flow structure between pressure anomalies (figures 5(a)–(d)). In a fully nonlinear manner the remote response in the Arctic is characterised by distinct solutions initiated by similar forcing perturbations over Asia and changes in the atmospheric circulation in the Northern Hemisphere.

Uncertainties in sea-ice cover are significant at ±0.6 × 10⁶ km² that is less than the impact of the CO₂ forcing, but it is comparable to impacts from air pollution policies (supplementary table S1). Supplementary table S4 shows that ratio between simulated trends of mean global temperature and Arctic sea-ice cover are similar to observed values (Rosenblum and Eisenman 2017).

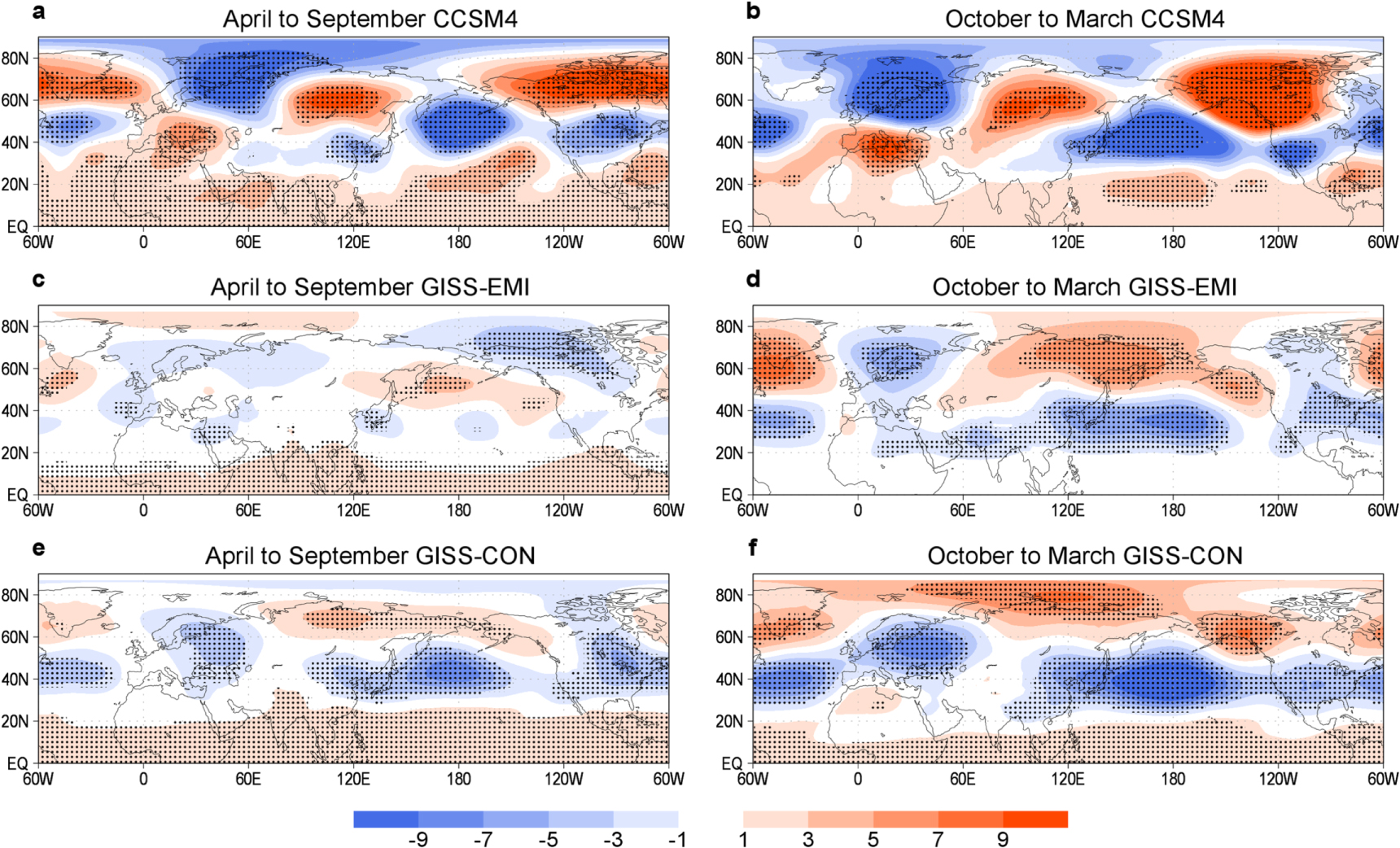

Increasing aerosol emissions after 1950 in CMIP5 simulations (supplementary figure S3) also initiate predominant planetary waves that are very similar among model ensembles (figure 6). In all ensembles cyclones formed over East Asia and the Pacific Ocean force anticyclones further to the northeast. Amplitudes are the largest in CCSM4 having the highest horizontal resolution, while in summer wave structures far from the sources may differ in different ensembles. In all ensembles, however, anticyclones penetrate into the Arctic. All ensembles further show increasing sea level pressure between the Mediterranean and Southeast Asia, in agreement with Mitchell and Johns (1997), and planetary wave signatures spreading over East Asia and the Pacific Ocean and penetrating into the Arctic (supplementary figure S9). Partly due to small ensemble sizes, signatures of planetary waves in CCSM4 and CESM1/CAM5 are less significant far from source areas, while they are significant in the two larger GISS-E2 ensembles. Historical Arctic sea-ice cover increases after 1950 in the three models simulating indirect effects, while in CCSM4 it decreases (supplementary table S1). Although eventually uncertain in coarse resolution models (Ma et al 2014), modifications of clouds by atmospheric aerosols in the Arctic might also have an important impact on sea-ice melting (Wang et al 2018).

Zoom In Zoom Out Reset image size

Depending on the background CO₂ concentration and internal variability of climate, future additional changes in pollution emissions, having a regional radiative forcing effect in Asia, may differently contribute to Arctic warming. They may influence Arctic sea-ice cover by initializing predominant planetary waves that eventually propagate into the Arctic. According to geographical positions of their intrusions into the high latitudes, predominant planetary waves may either increase or diminish heat transport from the mid-latitudes. The impact is nonlinear with distinct solutions depending on whether the changes in heat transport happen in the atmosphere or ocean. Ensembles of CMIP5 simulations further confirm the formation of predominant planetary waves forced by changing regional aerosol concentrations in Asia and propagating into the Arctic. Our results differ from Westervelt et al (2015), Acosta Navarro et al (2017) and Wang et al (2018) who simulate aerosol effects on clouds, that are absent in our study, and predict increased Arctic warming due to reduced anthropogenic aerosol concentrations. Those studies eventually simulate reduced cloud formation in the Arctic (Wang et al 2018), that may be uncertain in low resolution models (Ma et al 2014), and do not specifically relate atmospheric aerosol concentrations to CO₂ emissions.

This study confirms that policies reducing future CO₂ concentrations may slow down Arctic sea-ice loss. On the other hand, it suggests that future policies additionally improving air quality may have a less certain warming effect in the Arctic. Further understanding of remote effects on sea-ice will require improved simulations of variations of aerosol concentrations in the Arctic including their local interactions with clouds.

We thank four anonymous reviewers for their constructive and useful comments.
