A fluctuation in surface temperature in historical context: reassessment and retrospective on the evidence

Given that climatologists were well aware that GMST fluctuates on decadal (and longer) time scales, the emergence of a claim in the climate literature from about 2009 that climate change as represented by GMST had entered a 'pause' or 'hiatus' was a strong claim. In effect, the claim was that the most recent decadal-scale fluctuation in GMST was somehow extraordinary or substantially different from past GMST fluctuations. This interpretation is consistent with the fact that the fluctuation was given a name ('pause' or 'hiatus') and with the claim frequently made in pause-papers that this fluctuation (but not others) was not consistent with the GMST response to increases in greenhouse gases (Lewandowsky et al 2016).

In order to assess the claims made about this particular fluctuation in the literature, we identified a set of 224 peer reviewed articles in the climate literature (through 2016) that referred to a 'pause' or 'hiatus' in GMST in the title or abstract. From this larger set, we constructed a subset of papers that defined a start and end date for any alleged pause, and which specified the GMST data used for analysis. This is the minimum amount of information needed to reproduce and test the claims of a 'pause' in these papers. The application of these criteria reduced the subset to 90 papers, which is the analysis subset used here and denoted 'pause-papers'. The number of papers published each year on the 'pause' is shown in figure 1(a) and rises substantially from 2013. The 'pause-research period' (as reflected by published papers) extends from about 2010 through the present.

Zoom In Zoom Out Reset image size

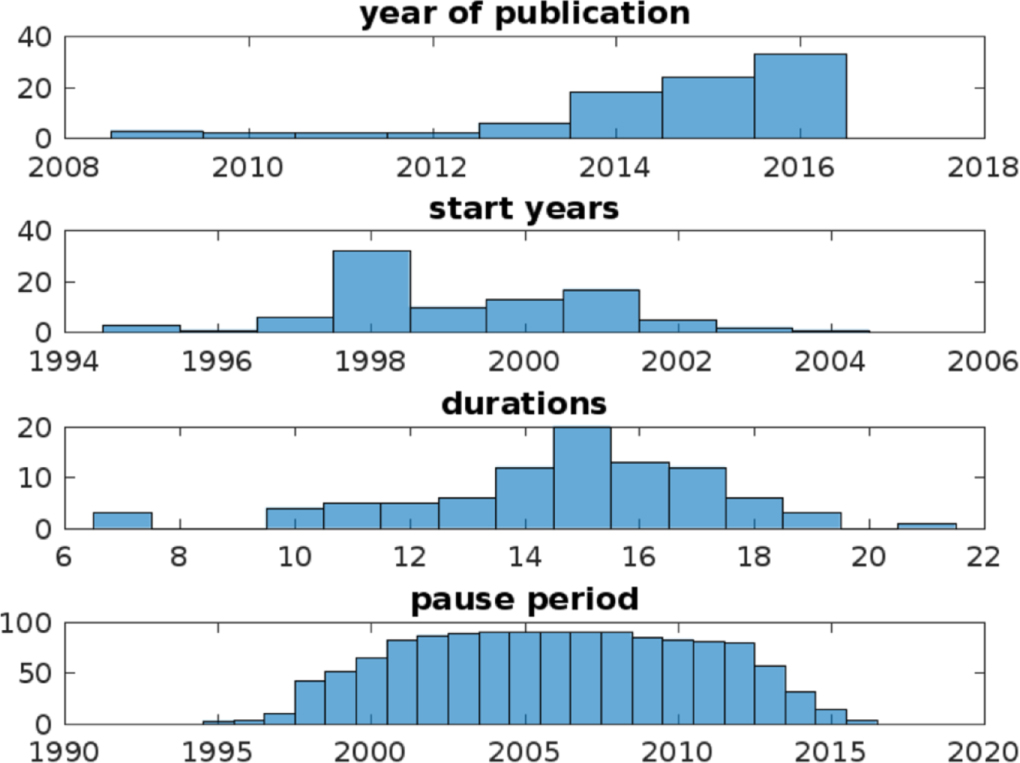

Note that the 90 'pause-papers' are the subset that refer to a climate 'pause' and that provide sufficient information to reconstruct the nominal notion of the pause for that paper (the period used and the GMST dataset(s)). Many of these papers presuppose the existence of a 'pause' and address issues that are conditional upon its existence, without necessarily providing their own analysis or evidence for the identified 'pause'. The purpose of this literature set is to allow us to develop a picture of what the GMST pause is presumed to be in the literature, capturing areas of diversity and commonality. Further, the set of 'pause-papers' allow us to be inclusive in capturing all the different definitions used for the pause in GMST in our analysis here. The set of papers are listed in the appendix.

There is no single or dominant definition of the 'pause' in the literature (Lewandowsky et al 2015b). Many papers are not explicit about the period used to assess the pause or the criteria used to reach the conclusion that there is a pause. The distribution of start dates from the pause-papers (set of 90) for the 'pause' is shown in figure 1(b). These span a range from 1995 to 2004 illustrating the lack of consensus on this issue. Further, there is usually little or no statistical justification offered for choice of the start-year. This is a critical issue which we return to in section 3.4. Similarly, the durations presumed for pauses in the pause-papers span a range from about 10 to 20 years with a median of 15 years (figure 1(c)). The number of times a given year falls into the period defined as a pause across all the pause-papers is shown by the histogram in figure 1(d). The frequency profile of the histogram reveals a 'pause-period' in the literature spanning roughly 1998–2015.

The pause-period was selected by the authors of pause-studies to correspond to a period where the rate of warming is slower than the average longer-term warming rate. This period can be highlighted and placed in context by showing a sliding sequence of short-term trends in GMST through the modern period (figure 2). By colour-coding the trends as red/blue according to whether they are warming faster/slower than the longer-term rate of warming, it is apparent that there are persistent periods of faster and slower than average warming. The pause-period in the pause-literature shows up as the second slower than average warming period on the plot. The identification of a period of slower than average warming does not suffice to demonstrate that such a period is statistically unusual. For that more formal criteria would need to be applied.

Zoom In Zoom Out Reset image size

Different criteria have been used to constitute a 'pause' in the pause-papers. Most early papers employ it in a manner consistent with the common sense usage to signify an absence of a warming trend (no trend). Later papers, however, often use it to signify a reduction in the warming trend, i.e. a slower than normal trend. This shift in definitions, by itself, might indicate a problem, as it shows that even at the time, the scientific community was unclear and inconsistent as to what the object of study was. In this paper we test both claims. To illustrate these definitions we have redrawn figure 2 in idealised form in figure 3. Here, we represent the GMST series (without interannual variation) in its idealised form as undergoing regular fluctuations about a long-term mean warming rate (the dashed black line). The fluctuating line is again coloured red when the trend is greater (warming faster) than the longer-term mean trend and blue when it is smaller (warming slower) than the mean trend. One expects short-term trends to fluctuate faster and slower through time than the longer-term trend as illustrated here. There has been little research attention on the faster fluctuation that preceded the slower fluctuation that is the target of the pause-papers (Rahmstorf et al 2007, Lewandowsky et al 2015a).

Zoom In Zoom Out Reset image size

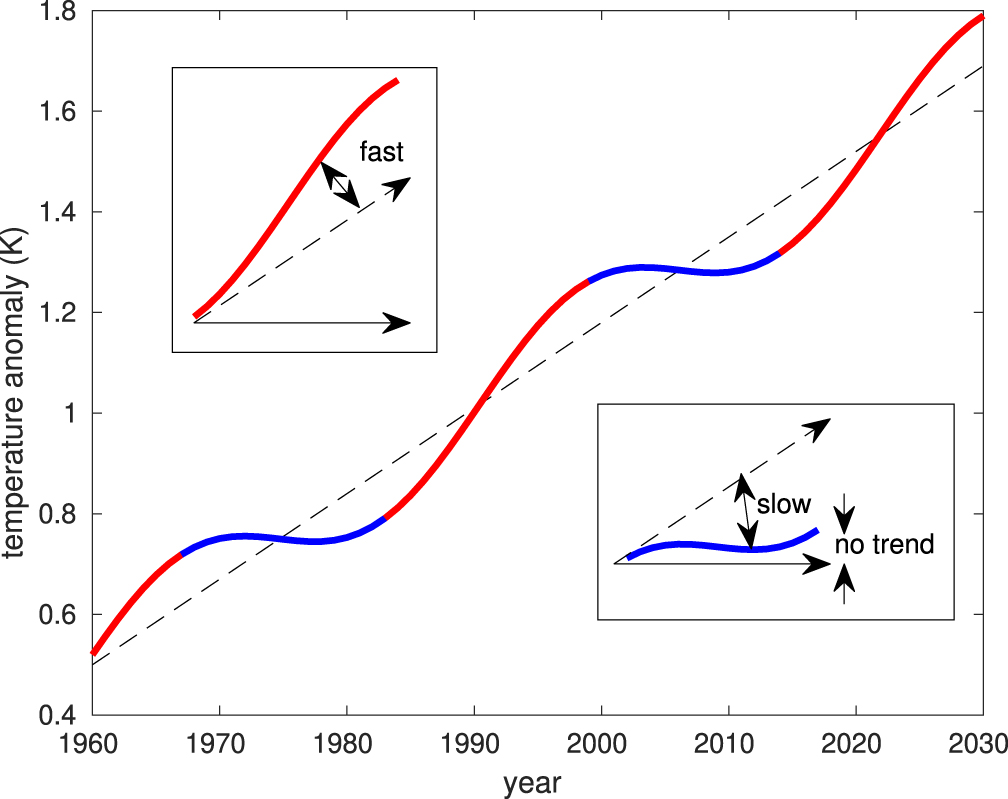

The 'slow' trend view of the pause (figure 3) is seldom defined formally in the pause-literature. It could refer (as in Stocker et al 2013) to a meaningful change in the trend (slope) of GMST in the pause-period relative to the longer-term trend that prevailed prior to the pause-period (change in trend). Alternatively, it could refer to a claim that the trend during the pause-period is unusual relative to trends of a similar length during the modern warming period (unusual trend). For example, the pause-period fluctuation in figures 2 and 3 could be assessed against slower than average fluctuation periods such as the prior one in the 1980s. We will restrict this comparison to fluctuations that occur through the period that GMST has been fairly steadily increasing (with fluctuations) to avoid including a large sample of the early record when the longer-term warming trend was much weaker. An objective way to determine how far back to include past fluctuations is to assess the GMST record for meaningful 'change-points' in trend (Cahill et al 2015). We have performed change-point analysis on each of the GMST records used here and find changes in each dataset near 1970. This is consistent with other analyses and with the choice often made in the literature to define the modern warming period. In all the analyses to follow we use the change-points (near 1970) particular to each dataset in assessing how unusual the recent slower fluctuation is.

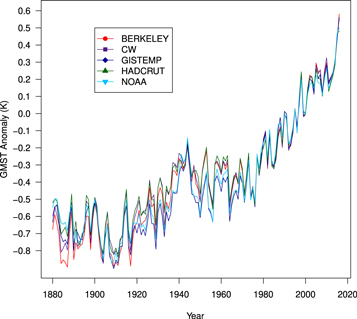

The main data for this review of short-term GMST trends are the five GMST series (as they existed at different points in time) that formed the basis of the trend assessments for papers on an alleged 'pause'. The datasets and some of their properties are described in table 1.

All of these datasets have undergone some forms of bias reduction effort over the past decade during which the climate community has focused on short-term GMST trends. This means that different versions of the data were in play at different times. The Berkeley (Rohde et al 2013), Cowtan and Way (Cowtan and Way 2014), and HadCRUT data use HadSST for their SST component, which was bias reduced in going from HadSST2 (Rayner et al 2006) to HadSST3 (Kennedy et al 2011). This change corresponded to the version change from HadCRUT3 (Brohan et al 2006) to HadCRUT4 (Morice et al 2012). Similarly GISTEMP (Hansen et al 2010) and NOAA (Smith et al 2008) use ERSST, which underwent bias reduction work from ERSSTv3 (Smith et al 2008) to ERSSTv4 (Huang et al 2015). The bias reduction in these SST datasets related to a range of issues including changes in ship-based SST measurement and coverage, and the increased role of buoy records (Karl et al 2015, Hausfather et al 2017). The earlier (less well bias-reduced) versions of the SST records have a cool bias during the recent period, which does affect the magnitudes of short-term trends (section 4.1).

The differences in global coverage among the datasets (see table 1) also matter for determination of short-term trends. That is because the differences relate substantially to whether the Arctic region is well represented (Berkeley, Cowtan and Way, GISTEMP) or not (HadCRUT, NOAA), given that the Arctic has been warming fast enough relative to the global mean rate over the recent period to make a difference (Benestad 2008, Rahmstorf et al 2017). Note that Cowtan and Way is based on HadCRUT, except that Cowtan and Way include data coverage in the Arctic by applying kriging techniques to interpolate into the Arctic (Cowtan and Way 2014). The differences between Cowtan and Way and HadCRUT4 thus provide a direct measure of the role of data coverage, at least over recent decades when observational coverage is sufficient to properly support near-global temperature reconstruction.

The analyses conducted here have been repeated with all six of the datasets shown in table 1. For the sake of presentation we sometimes show results for just GISTEMP and HadCRUT. One reason for this is that we seek to provide a retrospective assessment of what the trends looked like at different points in time, and these two datasets were in use throughout the period of research on the 'pause', whereas some of the other datasets (Berkeley, Cowtan and Way) were only available after the start of this research. GISTEMP and HadCRUT are also good choices for contrasting lower data coverage (HadCRUT) and near complete coverage (GISTEMP). HadCRUT effectively provides the lowest estimate of short-term warming trends throughout the 'pause' research period and so provides a lower bound on what a pause-researcher with no insight into the differences between data sets might infer concerning the GMST trend.

All of the GMST datasets have been truncated here to the period 1880–2016. All data were converted to anomalies using a common reference period of 1981–2010. This reference period is suitable because the different SST records are most consistent over this period, and it avoids the recent changes in ship bias (Kent et al 2017, Hausfather et al 2017). All trends calculated here are linear trends using least squares regressions. The choice of linear trends matches usage in the literature, and can be justified over the period since about 1970 in which no new change points are detected in the GMST series (Cahill et al 2015, 2018). Versions of the GMST datasets were archived for analysis as they existed at different points in time over the 'pause' research period. This allows us to provide a set of 'historical' views of what the GMST trends looked like at different points in time as described in the next section. These data are available at: https://git.io/fAuos.

In some of the analysis here we break the GMST time series into a baseline-period and a pause-period to perform statistical tests. The baseline-period extends from the start of the modern warming period up to the beginning of each pause-period tested. The modern warming period is assumed to start at the last significant change point detected in each GMST series (Cahill et al 2015). These are 1970 for GISTEMP, NOAA, and Berkeley, and 1974 for HadCRUT and Cowtan and Way. A range of different intervals are used to test many different choices of pause-periods, with the range of intervals encompassing the set of periods inferred from the literature in figure 1(d).

We could, and have, examined GMST trends over the pause-period using the latest available GMST data (through 2016 here). We term this view of the trends the 'hindsight' view since the current (hindsight) GMST data has the benefit of any and all bias reductions that have taken place in the preceding periods. While 'hindsight' provides the best current view of the pause-period trends, the calculation of trends during the pause-period necessarily relied on the versions of the data that were available at the points in time when the research was conducted. To be fair to researchers at any given point in time, we have also calculated a set of 'historically-conditioned' trends for each of the GMST datasets. The historically-conditioned trends use the versions of each of the datasets that were current at the time the trend was calculated.

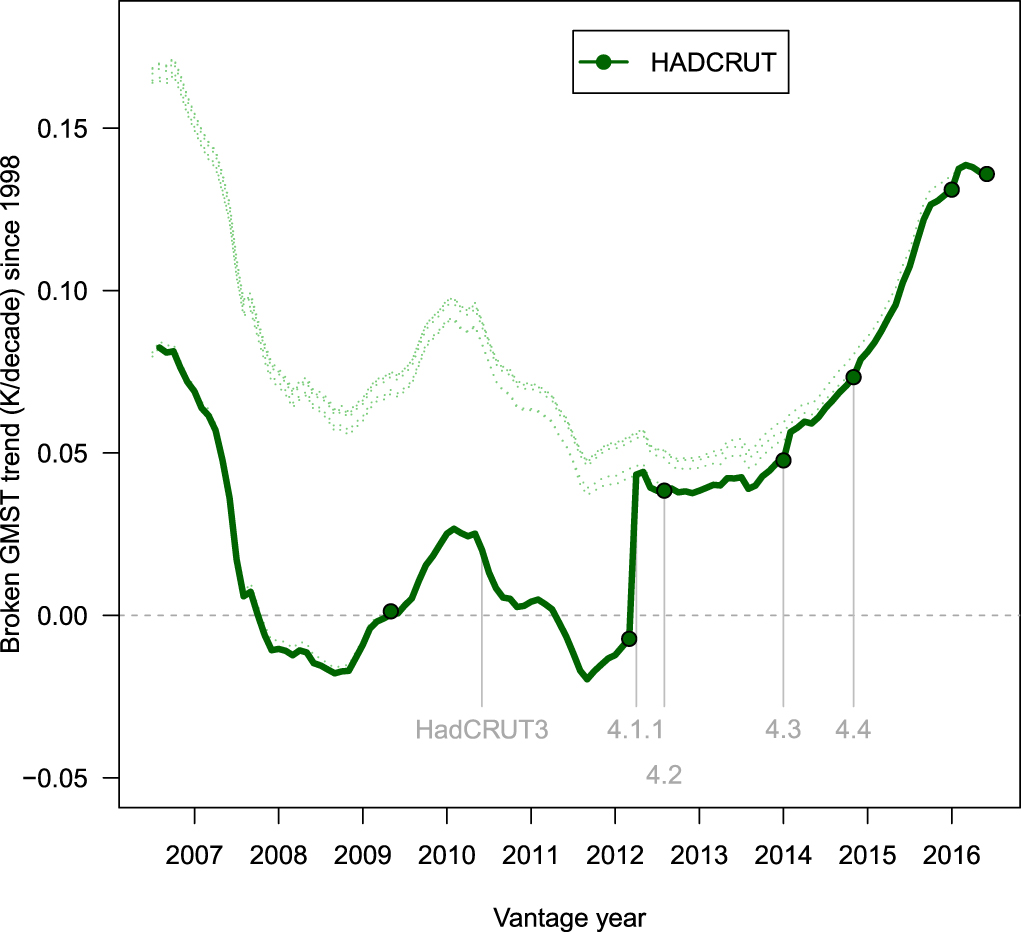

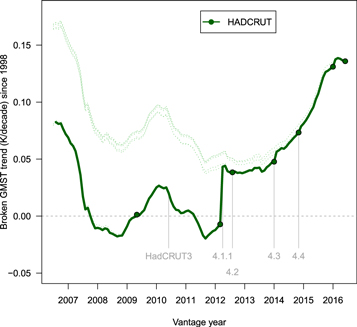

The concept of 'historically-conditioned' trends is illustrated for the HadCRUT dataset in figure 5. This figure shows the trend value for trends starting in 1998 and ending at the points in time marked on the x-axis (vantage year). The solid line is the series of historically-conditioned trend values and uses only data that was available up to the time of the vantage year. Different versions of the HadCRUT data are indicated by the dots on the trend line. The trend line shows one particularly large jump up (of about 0.05 K/decade) just after 2012, corresponding to the switch from HadCRUT3 to HadCRUT4 (where the ship-buoy bias went from uncorrected to partially corrected (table 1)). The thin lines in figure 5 show the trends calculated back to the earlier vantage years as if the newer versions of the data existed in the earlier periods. The difference between the thick historically-conditioned trend line and the thin (hindsight) lines is thus an indication of how the trends change between different versions of the datasets. In this case, the differences between HadCRUT3 and HadCRUT4 are quite marked as indicated by the large differences between the solid and thin lines.

Zoom In Zoom Out Reset image size

In the calculation in figure 5 we performed the trend calculations as traditional in the pause-literature using a simple trend between a start and end date. However, when the trend is fitted to the data in this way (without regard for the years preceding or following the chosen start and end years respectively), then the isolated trend is 'broken', meaning not continuous with, trends in the remainder of the data. This has implications for the testing of the data (Rahmstorf et al 2017).

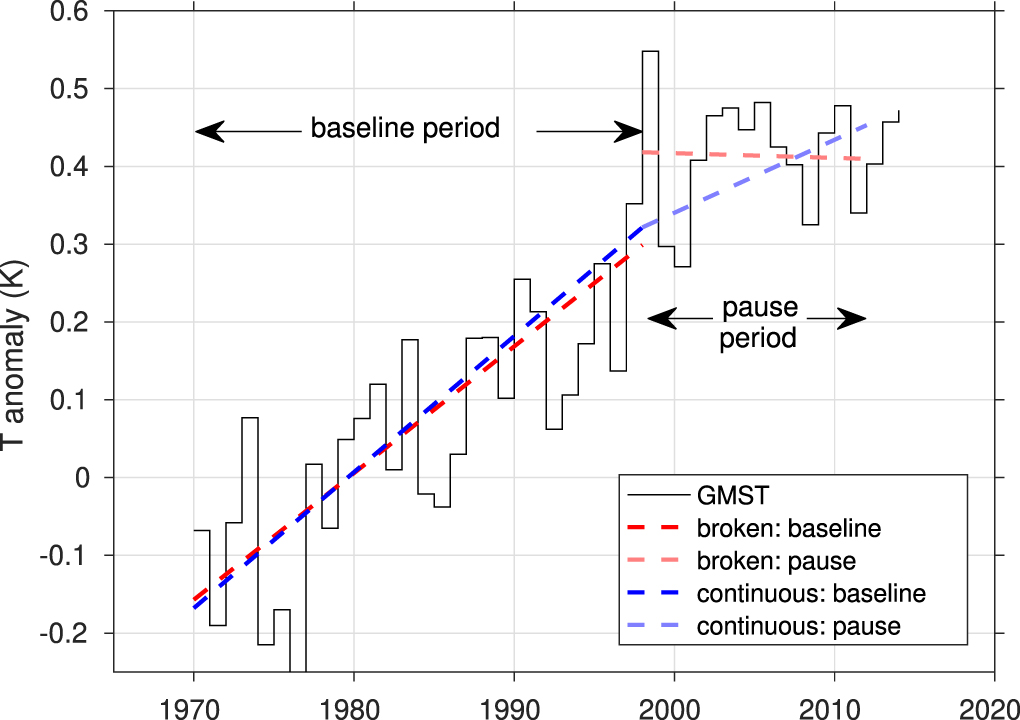

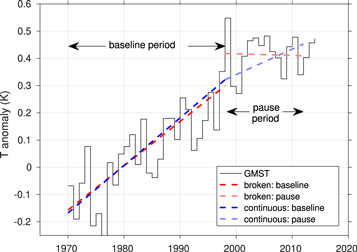

An example of 'broken' and 'continuous' trends in the HadCRUT3 GMST data is shown in figure 6. Here the trend in the pause-period from 1998 to 2012 is shown as a broken-trend (not continuous with prior trends) by the dashed red best-fit trend line over the period. The red broken-trend line for the baseline-period 1970–1998 preceding the broken-pause trend exhibits a jump discontinuity at the common year in 1998. This introduces an extra degree of freedom into the trend analysis which affects the assessment of statistical significance. Such a jump should be explicitly mentioned (e.g. 'temperature jumped upward and then remained flat', rather than just stating it remained flat), and it would normally require some physical justification as to why such a jump in the series should be modelled here (Rahmstorf et al 2017). Such allowance and justification is largely absent from the pause-literature that purports to find a pause. A more parsimonious and physical assumption that does not introduce the extra degree of freedom is to model the trends as continuous trends as shown by the dashed blue trend lines in figure 6. The change in slope of the continuous trend line is much less severe during the pause-period. In testing short-term GMST trends against the hypothesis of 'no trend' we will show results for both broken and continuous trends.

Zoom In Zoom Out Reset image size

In the set of pause-literature supporting the notion of a pause in GMST, there is often little or no explanation for why the pause-period used was chosen. While there are differences in the periods chosen to examine GMST for a pause (figure 1), the periods have in common the property that they roughly cover the interval from the late 1990s to early 2010s when GMST was fluctuating with a slower short-term trend than the long-term trend (Risbey et al 2015) (as represented by the 'blue' period in figure 3). It is clear from this commonality of pause-periods that the period was not randomly chosen or drawn. Rather, the pause-period was selected (from many possible time intervals) because of its lower trend (Rahmstorf et al 2017), as evident in figure 2. Any analysis of the significance of such a period must take into account the fact that it was selected on the basis of its value rather than randomly drawn. This is the 'selection bias' problem. This problem is not accounted for in any of the pause-papers that claim to have found a significant slowdown of warming. Since frequentist hypothesis testing requires a sampling plan that is 'blind' to the nature of the data, selecting a subset of data on the basis of its value and then testing it will have the effect of artificially raising the presumed significance of the pause-periods chosen.

Appropriate corrections for selection bias are described in Rahmstorf et al (2017) and performed as one variant of the analysis here. The selection bias problem is referred to as 'multiple testing' (Ventura et al 2004, Wilks 2006) in Rahmstorf et al, since overcoming the bias in the selection period requires one to perform multiple tests for different start and end times of the tested period.

The procedure used to account for selection bias must address the issue that we have only a half century or so of relatively enhanced greenhouse warming (the modern warming period), and thus few samples from which to test the unusual nature of the pause-period. The remedy applied here is to generate Monte Carlo samples from the modern period as follows: for each of the five datasets the longer-term (baseline) trend is fitted to the period post the change-point determined circa 1970 for each dataset up to the start of each pause-period selected (usually close to 1998). The standard deviation of the residuals about the baseline fit is calculated. We then generate synthetic realisations of GMST over the period encompassing both the baseline and the pause-period using the same linear trend as the baseline-period plus white noise with the same standard deviation as the residuals⁹ . This procedure is repeated to give 1000 synthetic realisations. We then compare the magnitude of the pause-period trend with all trends of the same length that occur (at any time) through the 1000 realisations. We report the result as the percentage of realisations that contain a trend with a magnitude smaller than the pause-period trend. We take the view here that a minimal requirement for a trend to be unusually weak (paused) with this procedure is that fewer than 5% of all realisations sampled contain a less-positive trend interval than the selected pause-period trend. If this is not satisfied, then the trend is not very unusual in relation to what one would expect to find in the case of a constant warming trend superimposed by random interannual variability.

The various GMST datasets were updated during the pause-research period, resulting in different views of short-term trends for different versions of these datasets (section 3.2). An illustration of the effect of these changes on short-term trends is shown in figure 7, which plots the magnitude of the trend since 1998 in each of the five datasets. Noticeable jumps in the trend value (solid lines) occur for HadCRUT, NOAA, and GISTEMP as they undergo the bias reductions to SST described in section 3.1.

Zoom In Zoom Out Reset image size

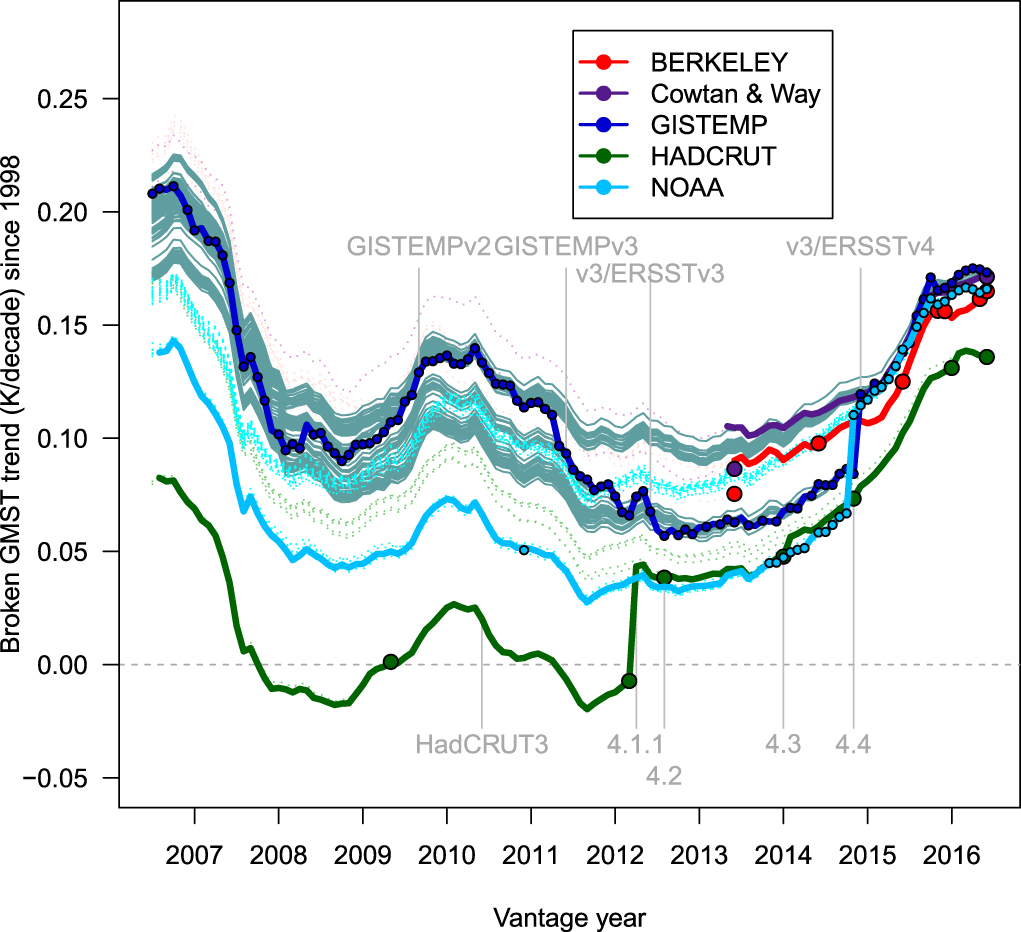

The period from 2012 to 2014 is of particular interest, since it spans the completion of the 5th IPCC assessment report. The HadCRUT, NOAA, and GISTEMP trends appear to be in good agreement over this period, however this agreement is illusory, because the NOAA and GISTEMP records did not include corrections for the SST bias until late 2014. The apparent agreement in trends arises from HadCRUT4 underestimating the rate of warming due to incomplete area coverage and the remaining datasets underestimating warming due to the uncorrected SST data.

Some reduction in the spread of trend values across the datasets would be expected for later vantage years as the actual trend interval considered is longer. However, this is not the main factor in this case. If one traces the thin lines back to 2007 (showing what the trends would have been then if the later versions of the datasets had been available), the spread in trend values across datasets in 2007 is reduced by about half from the historical spread (thick lines) of about 0.1 K/decade to the hindsight spread (thin lines) of about 0.05 K/decade.

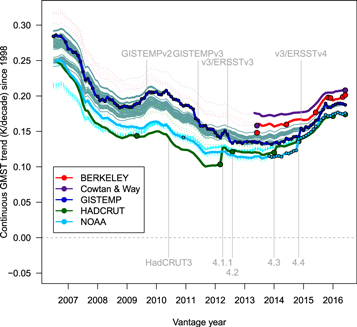

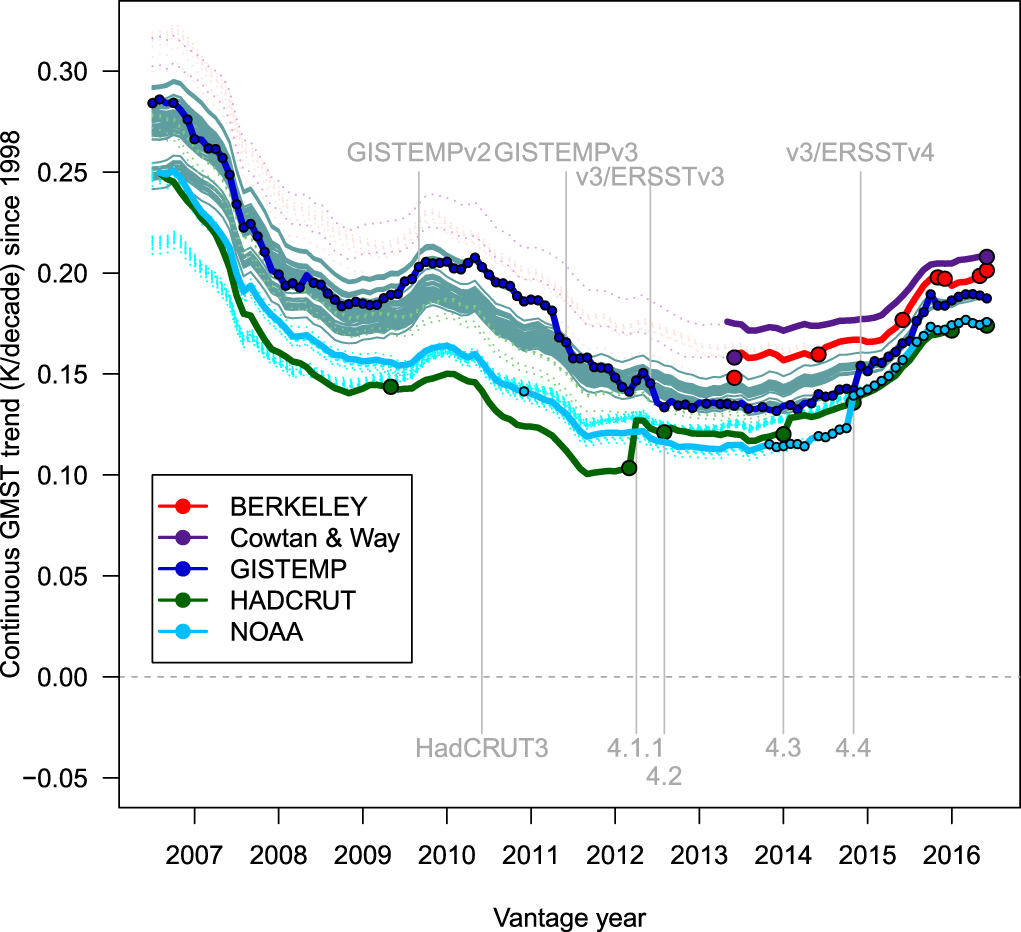

The trends shown in figure 7 are all broken trends. The same data and trends are replotted in figure 8 ensuring that all trends are continuous with the prior period (section 3.3). The results change markedly. The trend values are all higher and do not fall below 0.1 K/decade for any dataset (even HadCRUT3) for any vantage year. This is in contrast to the results for broken trends (figure 7) where HadCRUT3 trends are near zero for vantage years from 2008 to 2012. The spread between trend values for earlier versions of the GISTEMP, NOAA, and HadCRUT datasets is substantially reduced in figure 8 using continuous trends. Taken together, the shift to high positive trend values and the reduction in spread across datasets make it clear that use of continuous trends would not have supported the view of GMST 'pausing' at any point in time here, for any dataset.

Zoom In Zoom Out Reset image size

In this section we provide a systematic assessment from historical and hindsight perspectives on whether one could make a statistical determination that there was no-trend in GMST during the pause-period. For this assessment we show results for both the HadCRUT and GISTEMP data, since both datasets have been heavily used through the pause-research period and HadCRUT provides a lower bound on the magnitudes of pause-period trends.

We assessed a matrix of trends from 3 to 25 years duration from vantage points (i.e. the last year of the trend interval) between 1989 and 2016 as shown in figure 9 for GISTEMP. Note that this set of intervals includes all those used in the pause-literature for the 'pause' along with earlier intervals to provide further context for the pause-period. The earliest vantage year considered here is 1989 so as not to include intervals that are substantially outside the period of modern warming. The colour scale shows positive trends in red and negative trends in blue. It is clear right away that trends less than about 10 years duration are 'noisy' in the sense that they could be of either sign. It is generally regarded that about 17 year intervals are needed to obtain sufficient power to detect a signal in GMST (Lewandowsky et al 2015b) or tropospheric temperature (Santer et al 2011). The trends significant at the level p < 0.05 in figure 9 are represented by black dots in the matrix. If there is no black dot in a square here, one has failed to reject the hypothesis that there is no trend in the data. In the landscape of trends provided by these diagrams one is interested in whether it takes longer to reject the hypothesis of zero trend during the pause-period than at other times.

Zoom In Zoom Out Reset image size

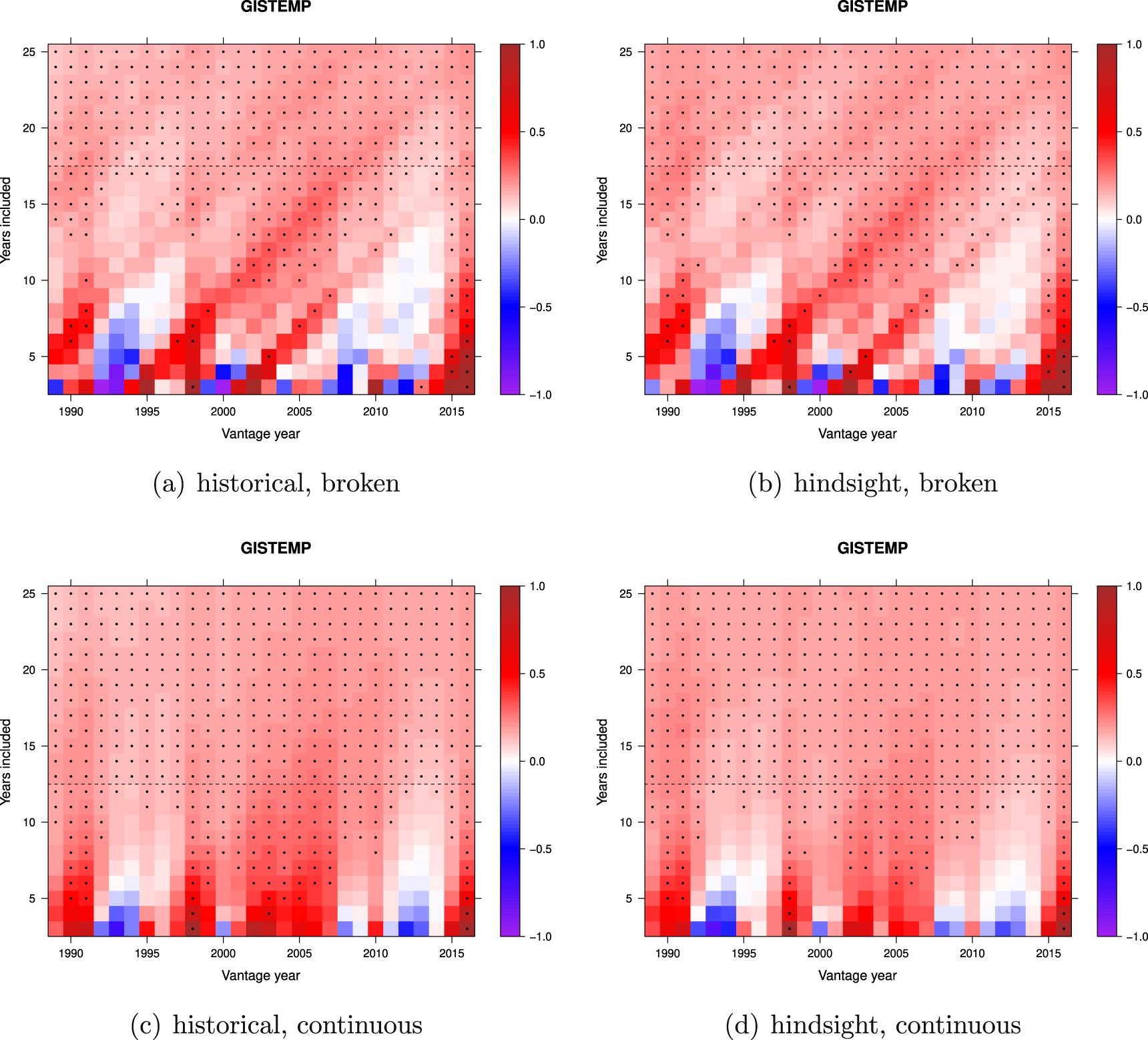

For GISTEMP using broken trends (figures 9(a), (b)) two major periods of non-significant trend show up (represented by intervals extending to 17 years to reject the no-trend hypothesis). The second of these periods corresponds to the pause-period. Neither of these periods seem statistically unusual. For GISTEMP there is also little difference in this picture whether one uses historical (Figure 9(a)) or hindsight (figure 9(b)) versions of the data to calculate the trends. When switching from broken to continuous trends (figures 9(c), (d)) any weakly significant trend in GMST is even less pronounced, and it takes only 12 years to reject the no-trend hypothesis during even the slower fluctuation periods.

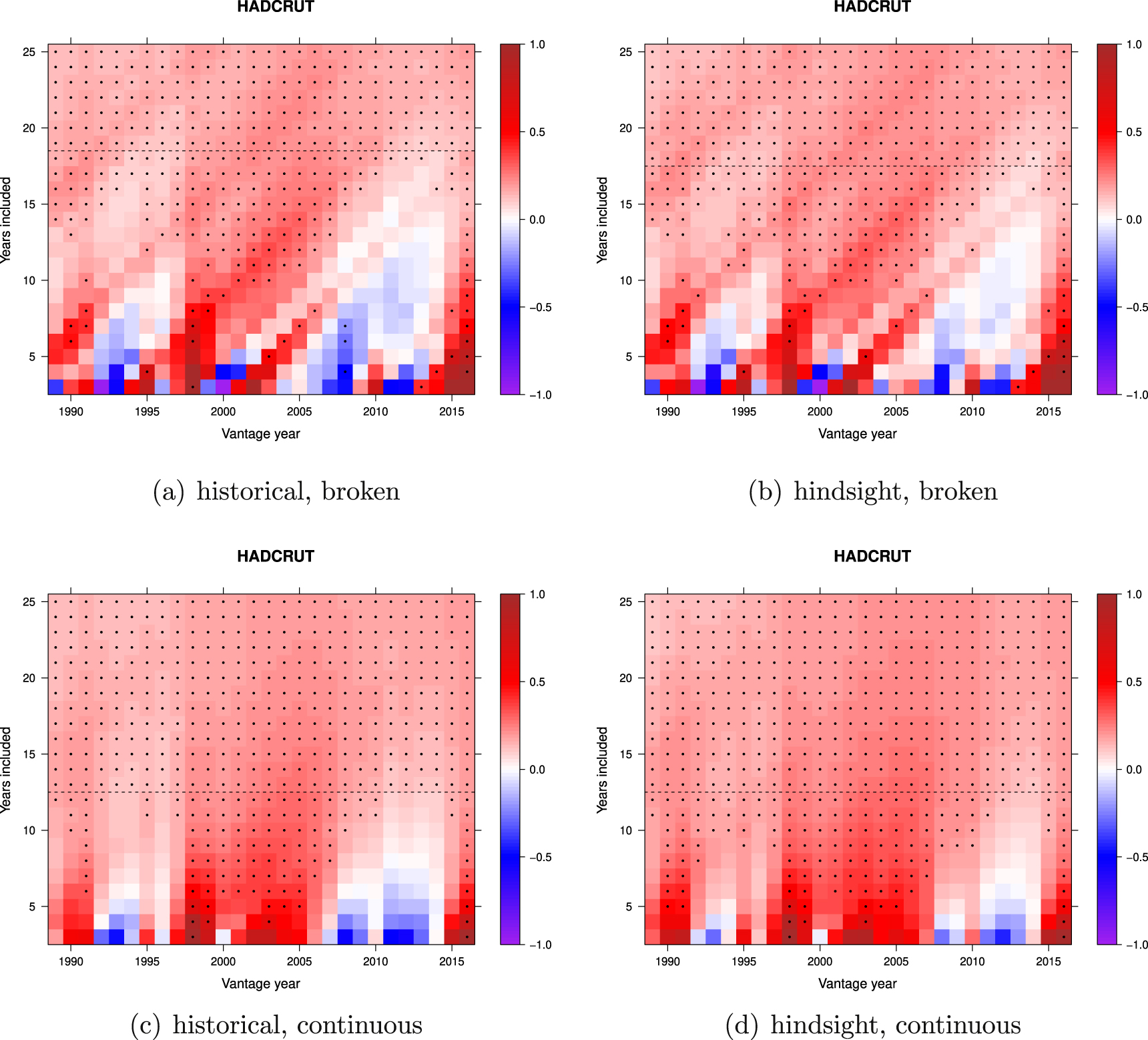

For HadCRUT (figure 10) the matrix of trend magnitudes and intervals to reject the no-trend hypothesis is broadly similar to that for GISTEMP. That is, with broken trends (figures 10(a), (b)) there are two slower than average fluctuations evident in the matrix of trends, and the time needed to reject zero-trend is similar to GISTEMP and similar using historical or hindsight versions of the data. Further, the use of continuous trends for the analysis (figures 10(c), (d)) reduces the interval needed to reject zero-trends to only about 12 years. In short, the trend matrices for GISTEMP and HadCRUT both show that there are no unusual or remarkable periods where it takes longer than expected to eliminate the no-trend hypothesis. This conclusion is not sensitive to whether one used historical data or not, or whether one used broken or continuous trends.

Zoom In Zoom Out Reset image size

The view of the 'pause' as a significant slowing of trend can be assessed either as a change in trend or as an unusual trend. In this section we address the 'unusual trend' definition, and in the following section we address the 'change in trend' definition.

A pause-period trend would be unusual if it were very unlikely to find similar length trends with such a weak magnitude during the modern warming period. The Monte Carlo testing procedure described in section 3.4 has been applied to each of the GMST data sets over a combination of pause-segments of varying lengths and start times sufficient to span the range of pause-definitions found in section 2.1 (figure 1(d)). For each pause-segment there is a baseline-segment spanning the interval from the change point detected in the dataset up to the pause-segment. The Monte Carlo series is generated over the combination of these two periods and provides the basis to assess whether the pause-segment is unusual.

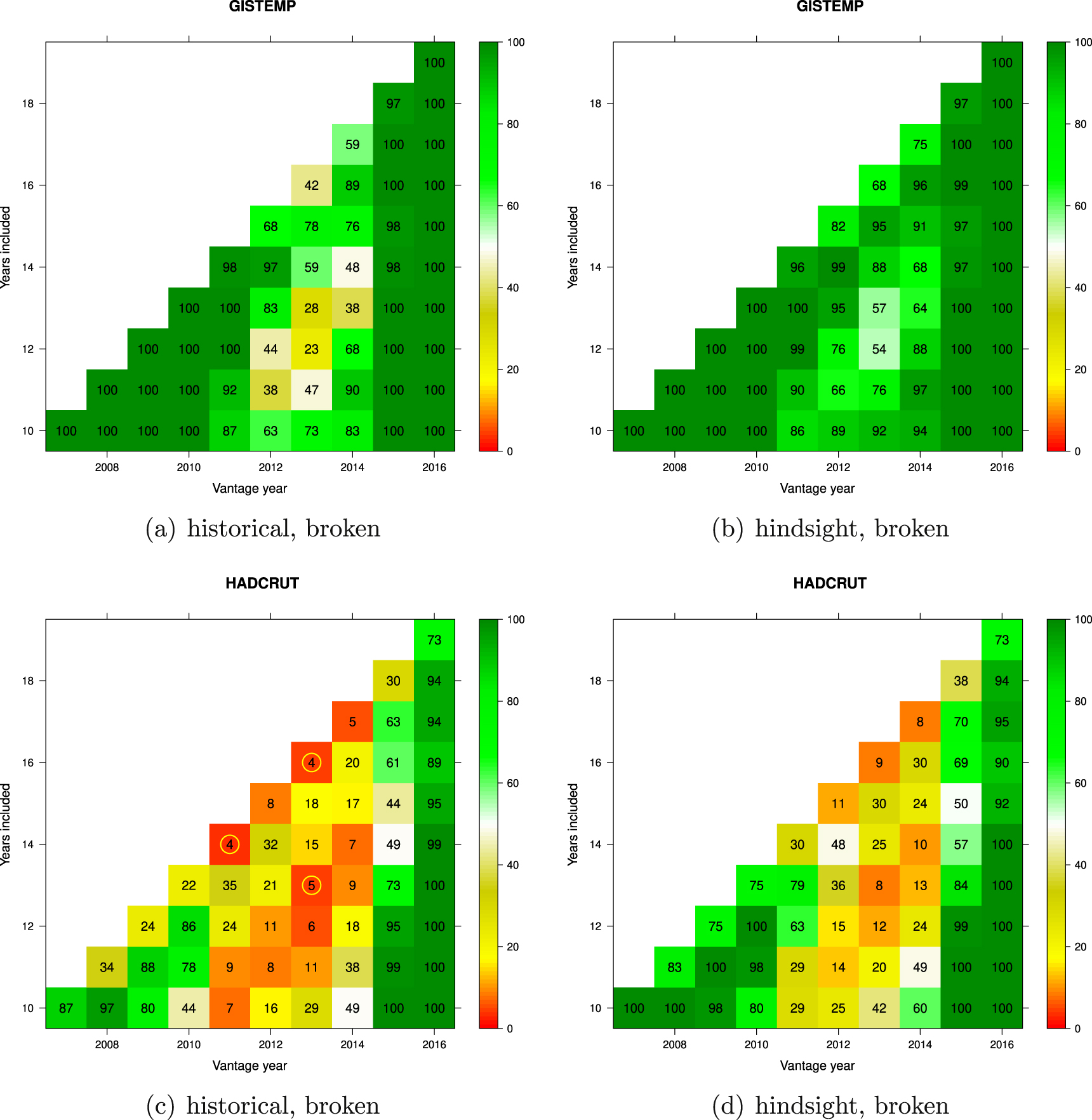

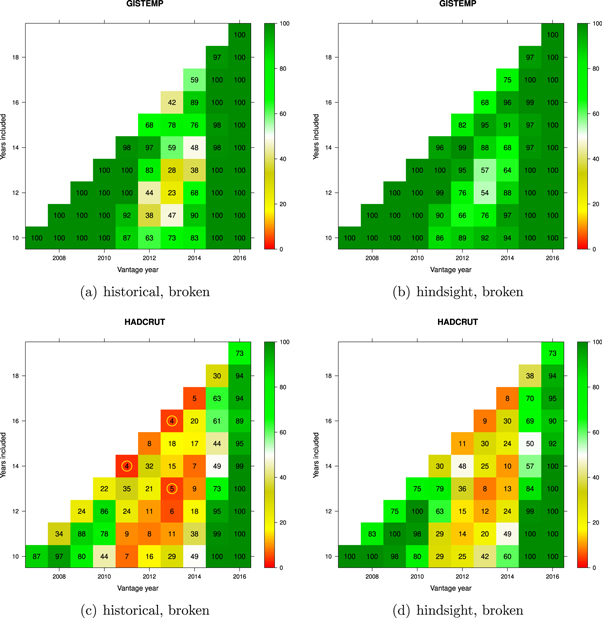

The results for GISTEMP and HadCRUT are shown in figure 11. A matrix of pause-segments are represented. The vantage year (x-axis) is the last year of each pause-segment tested, and the number of years included (y-axis) defines how far back the pause-interval extends. For every pause-segment represented by an element in the matrix we have tested intervals of the same length throughout the Monte Carlo realisations of the series. The left column of figure 11 uses the historical data as they existed for each interval of the matrix, and the right column is for the hindsight version of each dataset.

Zoom In Zoom Out Reset image size

For GISTEMP the pause-period trends are not at all unusual as shown by the high proportions of realisations in the Monte Carlo sample that contain a trend with magnitude lower than that in the pause-period. This conclusion holds whether considering historical or hindsight versions of GISTEMP. For HadCRUT the results show some differences from GISTEMP, but the conclusions are substantially the same. For the hindsight version of HadCRUT4 the pause-periods are not unusual and never drop below 8% of the Monte Carlo realisations. The same result also generally holds for the historical HadCRUT, but there are a few isolated choices of pause-interval (given by the yellow circles in figure 11) where there is a smaller than 5% chance of finding a lower magnitude trend in the Monte Carlo sample. For two choices of pause-intervals in the HadCRUT historical Monte Carlo data there is a 1 in 25 chance of obtaining a lower trend magnitude than the pause-interval. Such odds are not that unusual given that the analysis involves multiple trials by testing different possible durations of slowdown intervals, which increases the likelihood of finding one by chance. To be unusual, one would expect to see a more sustained set of intervals about these intervals that are also indicative of low odds weak trends. That is not the case for even the HadCRUT historical data, where those few occasions where the odds drop below 5% are among intervals where the trends are more typical. As such, the evidence that the pause-intervals are unusual is weak, even in the most favourable configuration (HadCRUT historical) for such evidence.

The assessment of unusual trends above allowed each pause-segment tested to be 'broken'. A more reasonable test is to ensure that each segment tested is continuous with the data that precedes it (section 3.3). When the Monte Carlo assessment is carried out with continuous trends it then becomes a test of a change in trend between the baseline-segment and the pause-segment. When the baseline-segment and pause-segment share the overlapping year in common without a jump (continuous trend), then the proportion of Monte Carlo series containing a lower magnitude trend than the pause-segment provides a statistical measure of the change in trend between the baseline and pause segments.

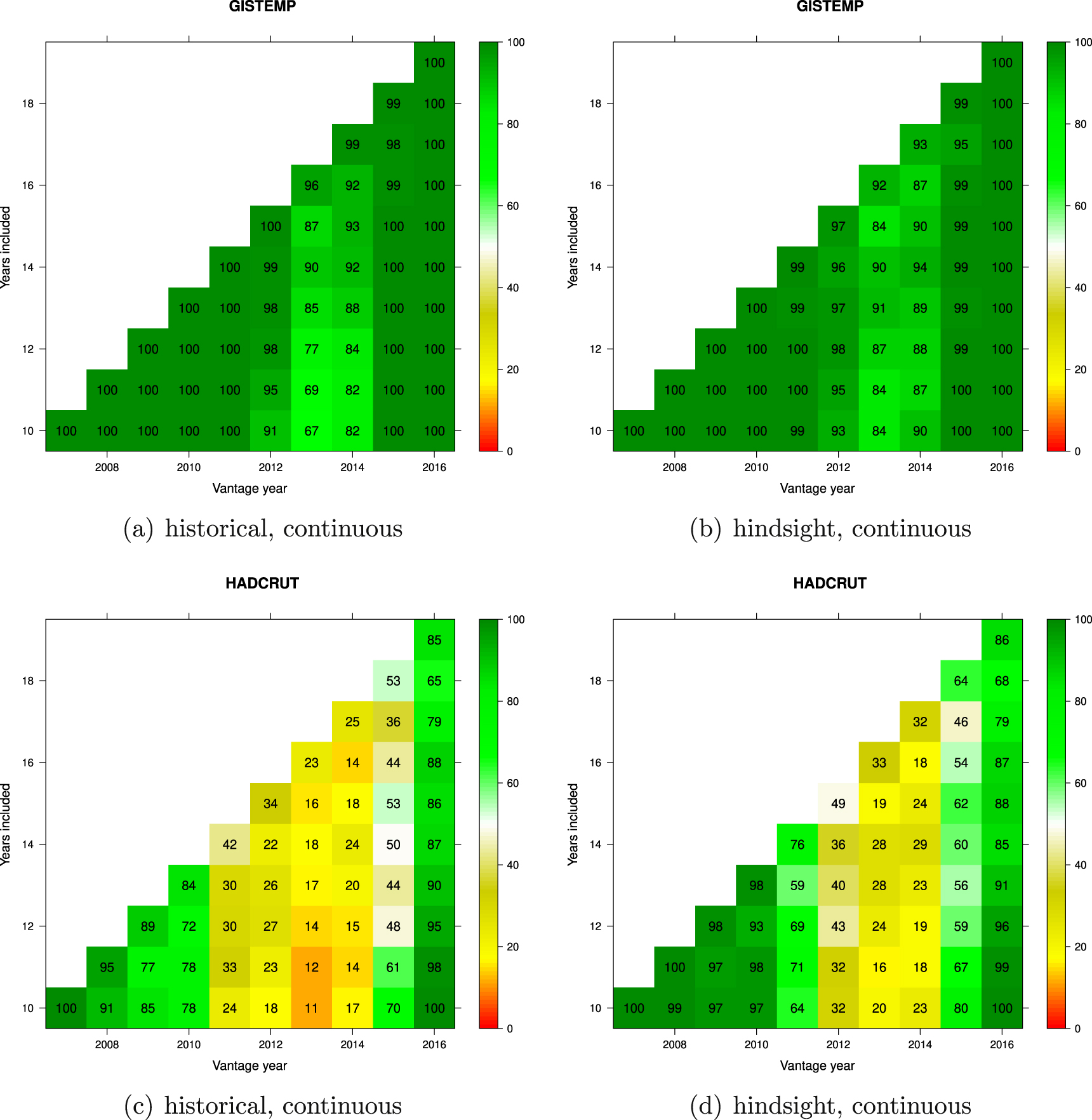

The results for Monte Carlo tests with continuous trends are shown in figure 12. As in figure 11 the tests are shown for GISTEMP and HadCRUT with both historical (left column) and hindsight (right column) data. In practice it makes no real difference to the results whether hindsight or historical data are used. For both cases and both datasets the change in trend is not unusual. Even for HadCRUT historical data, the pause-segment from the change in trend is always larger in trend than the trends in at least 10% of other Monte Carlo realisations. Thus, the evidence to support a change in trend in GMST during the pause-period is similarly lacking.

Zoom In Zoom Out Reset image size

In this section we review the evidence for a 'pause', as it was asserted in the GMST record. We review the evidence through time as it depended on different versions of the GMST record, on the number of years available in the record, and on the methods applied to assess the record. Use of the term 'evidence' implies that the information has some substantive meaning to the nature of the phenomenon asserted—in this case the claim of an unusual and noteworthy period of global temperature trend that has such different characteristics from prior temperature fluctuations that it warrants its own name and can be posited as a form of counter-evidence to global warming (e.g. Guemas et al 2013, Kosaka and Xie 2013, England et al 2014, Santer et al 2014). The evidence for this could be strong, or partial, or not at all. Evidence can also be current in the sense that it continues to be sustained by data and reason. Evidence can also be 'apparent' in the sense that it appears (or appeared) to support the existence of the phenomenon, but upon closer inspection turns out not to be substantive.

In section 2 we noted that the 'pause' is typically neither clearly defined nor consistently defined in the literature. It is possible to characterise the range of pause-period definitions by surveying what is used to assess 'pauses' in the pause-literature (figure 1). All our assessments of pause-periods sampled the entire range of pause-periods used. The views of the 'pause' for observations in the literature divide into assessments of 'no-trend' or a 'slow-trend' as illustrated in figure 13. Much of the pause-literature models the trends as 'broken' trends, but does not take into account the additional degree of freedom introduced by that choice (section 3.3), nor the need to account for selection bias (section 3.4). The branches in figure 13 represent allowance for those choices in examination of pause-trends. For the 'slow-trend' definition of the 'pause', use of broken trends amounts to search for unusual trends (section 4.3), whereas use of continuous trends tests for a change in trend (section 4.4).

Zoom In Zoom Out Reset image size

In any assessment of pause-trends one must select sources of GMST data. Many studies use a single data source, though it is prudent, given the sensitivity of trends to uncertainties in the data, to sample multiple sources. The HadCRUT, GISTEMP, and NOAA datasets were available to researchers throughout the entire pause-research period. Versions of the Cowtan and Way and Berkeley data came online during the pause-research period, and were thus only partly available (see table 1). We represent the data-choice available to researchers by the penultimate branches, HadCRUT, GISTEMP, and Other (NOAA, Cowtan and Way, Berkeley) in figure 13. Thus, descending the tree in the figure, a typical researcher makes choices (explicitly or implicitly) about how to define the 'pause' (no-trend or slow-trend), how to model the pause-interval (as broken or continuous trends), which (and how many) datasets to use (HadCRUT, GISTEMP, Other), and what versions to use for the data with what foresight about corrections to the data (historical, hindsight). For example, a researcher who chose to define the 'pause' as no-trend and selected isolated intervals to test trends (broken trends) using HadCRUT3 data would be following the left-most branches of the tree. These assessments could be made at various points in time during the pause-research period. The bottom rows in figure 13 represent assessments made for each year from 2010 through 2016.

Since the GMST datasets changed through time during the pause-research period, we kept track of the 'historical' data that was available at the time any pause-research was conducted, and made sure that one line of our analysis used only historical data. We also redid all assessments using the most recent versions of each dataset, termed 'hindsight' here. In practice, some datasets incorporated improvements before others. Further, some of the deficiencies in the historical datasets were known at the time. For example, the effect of a lack of Arctic coverage on assessment of GMST trends was known before the pause-research period (Benestad 2008, Simmons et al 2010), and was addressed in some datasets, but not others (table 1). The presence of a bias in the SSTs arising from the increase in buoy observations was also known prior to most of the pause literature (Smith et al 2008). As such, even when using purely historical data, researchers often have some knowledge of limitations in the data used, of improvements available, and of the effects of those changes. That is, the 'historical' perspective is not entirely blind to the 'hindsight' data, and thus in practice the historical researcher sits some way between these perspectives.

From the 'hindsight' (current data) perspective, the results of this study are unanimous in showing no evidence for a statistical 'pause' in GMST. This unanimity is represented by the bottom rows (years 2010–2016) in figure 13 for all the 'hindsight' branches. The open green symbol on these branches is used to indicate little or no statistical evidence. Using hindsight GMST it does not matter how one defines the 'pause' (as a lack of trend or as a slow trend), whether one models the trends as broken or continuous, or even which version of GMST one uses (HadCRUT, GISTEMP, NOAA, Cowtan and Way, or Berkeley). For any given set of choices on the above, the result is the same in showing a lack of statistical evidence for a 'pause'. That is, looking back using current data we can't find any evidence for a 'pause', even using the most generous (and statistically dubious—broken trends, no selection bias correction) assumptions of how to model and define the 'pause' (no trend, slow trend).

Moving to the purely 'historical' data perspective, the result of the combination of tests from section 4 is substantially the same. For the no-trend definition of the 'pause' the interval length in years required to obtain significant trends is longer if using broken trends than continuous trends. However, even for broken trends, the interval is about 17 years, consistent with the result in the literature that it takes about this long to establish a signal (Santer et al 2011, Lewandowsky et al 2015b). This conclusion does not depend on the dataset used. Since there is nothing statistically unusual in this result, we have classified it as 'little or no evidence' in figure 13.

Redefining the 'pause' from no-trend to a slower than average trend introduces ambiguity into the definition of the 'pause' (Lewandowsky et al 2015b). It also creates confusion by using a common-language term in an uncommon manner. However, even if we accept the 'slow trend' definition of the 'pause' in historical data there is still little indication of a statistically unusual pause. The closest any of the tests comes to showing evidence is for the use of broken trends to test for an unusual trend. In the sole case of a choice of historical HadCRUT data there are a few isolated trend intervals that occur in the Monte Carlo realisations at the 1 in 20 to 1 in 25 level (4%–5%) for low trend values. We have judged this to be weak evidence in figure 13 as such levels of occurrence are not very extreme and are not sustained outside a few intervals. Further, the length of the intervals reaching this level (13, 14, and 16 years) is less than that typically required to demonstrate signal in GMST trends. And, in any of the other datasets available at the time, the pause-segment trend values for these particular intervals are even more common.

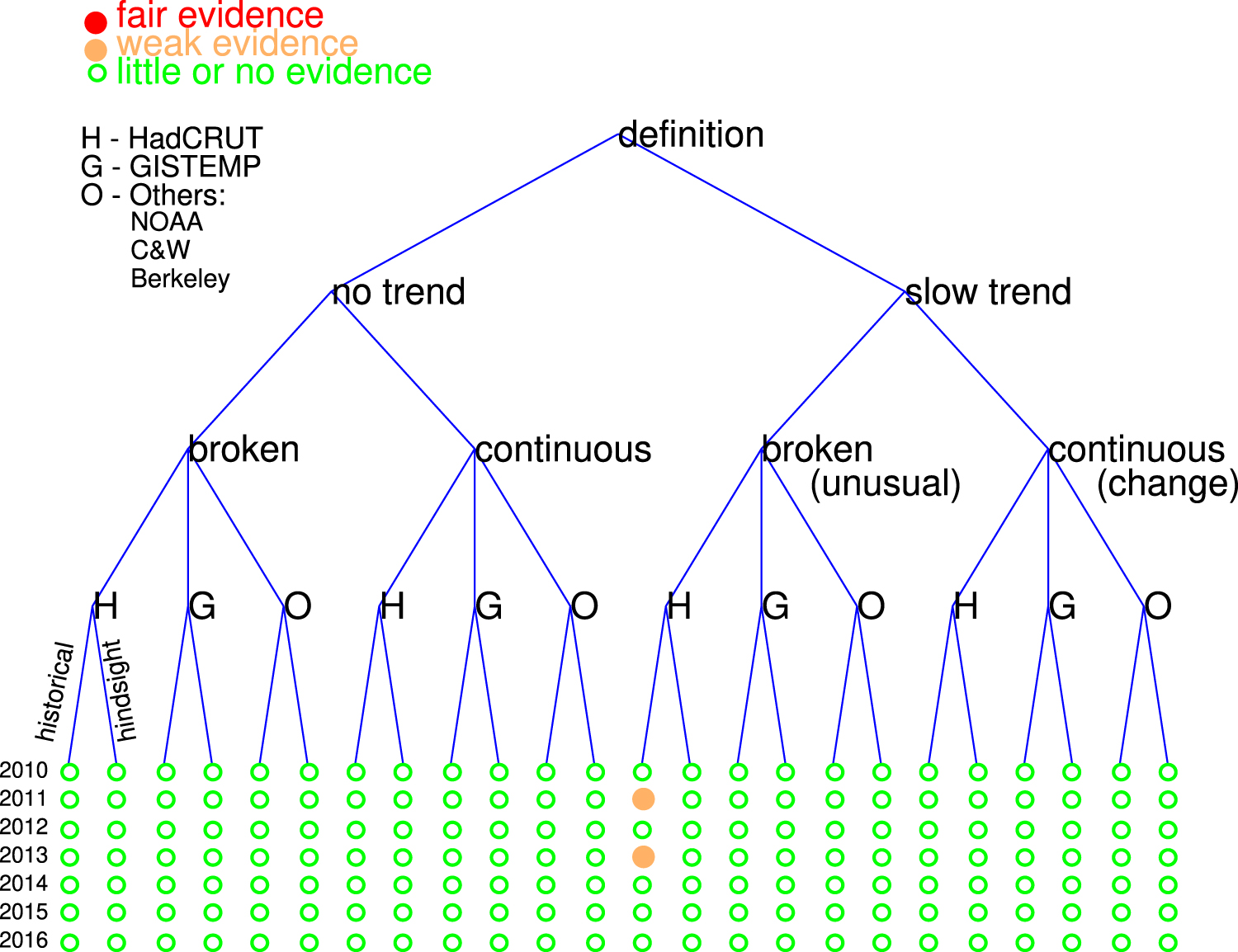

The vast preponderance of outcomes summarised in figure 13 shows that there is little or no evidence (now or then) for a lack of trend or slowing of trend in GMST during the alleged pause-period. In order to infer even minimal statistical evidence for a 'pause' a researcher must have accepted all of the following: that the term 'pause' refers to a change in the rate of, rather than a cessation of warming; that a broken trend implying an upward jump in temperature at the start of the pause-period is the best way to detect a change in rate of warming; that HadCRUT is a better representation of GMST (than other data sources) despite known limitations in coverage; and that isolated intervals suffice to make the case. One may ask whether this isolated case of 'weak evidence' in figure 13 among all possible choices and outcomes is consonant with declaration of a 'pause' in GMST? The case against this is strong and includes the following points:

• The requirement to coin a new climate phenomenon, 'a pause' in observed GMST, which allegedly ran counter to greenhouse warming expectations is that the period in question should be quite exceptional or statistically unusual. The period alleged does not meet that requirement.
• Researchers knew that the climate fluctuates naturally on the time scales considered and knew to expect faster and slower than average warming periods spanning a decade or two.
• Even in the most favourable case for a pause, using HadCRUT3, the pause-period was not very exceptional.
• Researchers knew that short-term trends were sensitive to uncertainties in the GMST data, and that other GMST datasets were even less remarkable in their pause-intervals.
• There were reasons to view the other GMST datasets as good/better alternatives to HadCRUT for trend examination. This included updated corrections and better spatial coverage. The wisdom of this has been confirmed as HadCRUT trends move closer to the other datasets when HadCRUT is updated (figure 7).
• The pause-research literature did not reach a consensus on what the 'pause' actually was (figure 1), and the pause-definitions shifted through time.
• The pause-research literature did not generate robust statistical evidence for a 'pause'.

With GMST now returning to a period where decadal trends are fluctuating steeper (faster) than the longer term warming rate (red periods in figures 2 and 3), various researchers have reviewed the evidence for a 'pause' in the prior slower than average warming rate fluctuation. The comprehensive review of Medhaug et al (2017) is agnostic about a pause in GMST observations and concludes that it depends 'on the time period considered, the dataset, and the hypothesis tested'. We agree with that only to the extent that there is a sensitivity to these factors. The choice of dataset and the statistical tests used contributed to a perception of a 'pause' for one dataset and for some questionable statistical tests using that dataset only. That apparent evidence was weak as discussed above and does not withstand more rigorous scrutiny with more complete or updated datasets, nor with appropriate statistical tests. Medhaug et al argue that 'the diverging conclusions' (about the reality of the pause) 'do not need to be inconsistent'. We argue that they are inconsistent because we do not accept that equally valid conclusions about the 'pause' in GMST can be reached using incomplete statistical methods and subsets of the data with known additional biases.

The review of Fyfe et al (2016) is mostly addressed at the view of a pause as a discrepancy between observations and models (see Lewandowsky et al 2018 for analysis of this view of the 'pause'), but concludes on the issue of a 'slowdown' in the GMST record that the 'pause' has a sound scientific basis and is supported by observations. They argue that any baseline period used to assess a pause-period in GMST must commence from 1972, not earlier. That is consistent with our choice here to use the last significant break point in the GMST record, circa 1970 (depending on dataset), to mark the beginning of the baseline-period. Fyfe et al argue that using this baseline period, the trend over 2001–2014 is significantly smaller than the baseline warming rate. It is not clear whether the testing underlying this conclusion took into account testing for continuous (versus broken) trends, or for correction for the selection bias problem. Our analysis, which does take these issues into account, does not support their claim to find a soundly-based slowdown in the observational record (see also Rahmstorf et al 2017). Some of the pause-literature has not made clear the statistical tests applied, and in some cases the evidence offered has been simple visual inspection of curves without any statistical support. The 'visual' evidence for a 'pause' may seem compelling if the series is truncated in particular ways, but it does not withstand substantive statistical scrutiny.
