Human impacts on terrestrial hydrology: climate change versus pumping and irrigation

Humans impact the hydrologic cycle on a range of scales. At the global scale, anthropogenic climate change is altering large-scale heat and moisture transport, with subsequent impacts on air temperatures and precipitation patterns, frequency and intensity (Trenberth et al 2003, Bates et al 2008). At the local scale, groundwater pumping for irrigation and local consumption is well documented to have caused widespread groundwater declines and stream depletion in the High Plains and Central Valley regions of USA (McGuire 2007, Faunt 2009), the North China Plain (Wang et al 2008), northwest India (Rodell et al 2009) and watersheds around the world (Wada et al 2012). Climate change affects terrestrial water and energy budgets—and ultimately surface water and groundwater resources—through changes in surface inputs (precipitation) and surface flux potentials (potential evapotranspiration). Water management practices on the other hand directly alter terrestrial water storage, including groundwater storage (via groundwater pumping) and shallow soil moisture (via irrigation), with subsequent feedbacks on surface fluxes.

In both cases, anthropogenic impacts on terrestrial water resources depend on interactions and feedbacks within and between water and energy cycles (Diffenbaugh et al 2005, Seneviratne et al 2006, Maxwell and Kollet 2008a, Ferguson and Maxwell 2010, 2011). It is well established that the hydrologic response to meteorological forcing (e.g., a precipitation event) is dependent on antecedent moisture conditions: the amount of runoff and recharge generated by a given precipitation event depends on the initial soil moisture content and water table distribution within the affected watershed. Anthropogenic changes in soil moisture and groundwater storage through water management practices such as irrigation and groundwater pumping thus have the potential to affect runoff generation, infiltration and recharge, with subsequent effects on streamflow, groundwater storage and evapotranspiration (Sophocleous 2002, Haddeland et al 2006).

Similarly, recent studies have shown that the hydrologic response to changing climate conditions depends on feedbacks between atmospheric, land surface and subsurface processes. Land energy fluxes have been shown to play an important role in driving local and regional-scale weather and climate, particularly in semi-arid plains regions where land–atmosphere interactions drive a significant portion of seasonal-to-interannual climate variability (e.g. Hong and Kalnay 2000, Koster et al 2003). Changes in temperature and precipitation, for example, alter soil moisture through impacts on evaporation and infiltration, respectively. Changes in soil moisture in turn affect the land energy balance, including the partitioning of incoming solar radiation between latent heat (evapotranspiration), sensible heat and ground heat fluxes. Changes in the land energy balance subsequently affect atmospheric boundary layer development, including mass and energy exchange between the land surface and the atmosphere as well as precipitation generating processes such as convection. These changes in boundary layer development ultimately feed back on weather and climate conditions, with potentially significant effects on local and regional hydrologic variability (Eltahir 1998, Diffenbaugh et al 2005, Patton et al 2005, Seneviratne et al 2006, Maxwell et al 2007, Anyah et al 2008).

Climate change adaptation and mitigation in the water resources sector will require an improved understanding of hydrologic response to anthropogenic perturbations, including local water management. While many studies have evaluated individual impacts of climate change, irrigation or groundwater pumping on terrestrial hydrology, few of these studies account for feedbacks between groundwater dynamics, overland (surface) flow, and land surface water and energy fluxes. Moreover, no previous study has directly compared hydrologic impacts of climate change and water management on local and basin-scale water and energy budgets.

Here we evaluate and compare impacts of climate change and water management on local and basin-scale water and energy budgets of a representative watershed in the Southern Great Plains, USA, an important agricultural region. We use a fully-integrated model of three-dimensional variably-saturated groundwater flow, overland flow, and land surface and vegetation processes that includes a complete coupling of water and land energy fluxes, important for land–atmosphere interactions. This model was used to simulate watershed response to three climate change scenarios and three water management scenarios. Climate scenarios were developed by perturbing observed meteorological forcings to reflect the median projected temperature change and range of projected precipitation change over central North America by year 2050 (Christensen et al 2007). Water management scenarios were developed by imposing groundwater pumping and irrigation in agricultural grid cells during the growing season at a rate equal to the estimated mean irrigation demand for the study region (Masoner et al 2003). Climate and management scenarios are compared to an unperturbed (control) simulation to evaluate impacts on local (grid cell) and basin-integrated water and energy fluxes.

This study used the integrated watershed model ParFlow. ParFlow is a parallel watershed model capable of simulating mass and energy transport in the deep subsurface, vadose zone, root zone and land surface (Ashby and Falgout 1996, Jones and Woodward 2001, Maxwell and Miller 2005, Kollet and Maxwell 2006, 2008). ParFlow simulates overland flow (river and hillslope flows) via a free-surface overland flow boundary condition (Kollet and Maxwell 2006, Maxwell and Kollet 2008b) and includes a land surface model (CLM) which computes energy and plant processes at the land surface (Dai et al 2003, Maxwell and Miller 2005, Kollet and Maxwell 2008). ParFlow uses parallel, or high performance, computing and runs efficiently across many processors (Kollet et al 2010). The ParFlow used here (commonly referred to as PF.CLM) is forced with a dataset of meteorology at the top of the vegetation canopy, and meteorological conditions are transmitted through the rest of the domain via the integration of ParFlow and CLM. That is, depending on land cover (e.g. vegetation type) precipitation fluxes to the land surface and evapotranspiration from the root zone are all based on atmospheric conditions and land surface (e.g. soil moisture) constraints.

ParFlow was used to simulate a 45 km × 32 km domain encompassing the Little Washita River watershed in Oklahoma, USA, located within the semi-arid Southern Great Plains. Climate, topography and agricultural practices in the region—including heavy reliance on groundwater pumping for irrigation—are broadly representative of many semi-arid agricultural regions around the world, including the North China Plain and northern India (Döll et al 2012). The domain was discretized with uniform horizontal resolution of 1 km and vertical resolution of 0.5 m, with a deep subsurface (>90 m) to capture deeper groundwater flow as well as shallow subsurface flow. The watershed is characterized by rolling terrain; soils within the watershed are predominately loam and loamy sand, with some areas of sand and silt loam. Vegetation includes grasslands, open shrublands, croplands and interspersed trees. The domain was constructed using previously published elevation, soils and vegetation data (Maxwell et al 2007, Kollet and Maxwell 2008).

Seven equilibrium simulations were conducted to quantify watershed response to climate change and water management practices: one control (CNTRL) based on observed meteorology and no treatment of water management; three climate perturbation scenarios; and three water management perturbation scenarios. The CNTRL simulation was previously described in detail by Kollet and Maxwell (2008) and was shown to agree quite well with available observations of streamflow, soil moisture, and latent and sensible heat flux from within the study area. Climate scenarios are based on future climate projections for central North America based on some 20 global climate models (Christensen et al 2007); perturbations consisted of (1) systematic increase in air temperature by 2.5 °C with all other forcings unchanged (hot, H); (2) increase in air temperature by 2.5 °C with a 20% increase in precipitation (hot–wet, HW); and (3) increase in temperature by 2.5 °C with a 20% decrease in precipitation (hot–dry, HD). Climate scenarios analyzed here were previously analyzed by Maxwell and Kollet (2008a) and Ferguson and Maxwell (2010) and represent the median projected temperature change and range of precipitation change over the study region by the year 2050. Changes were not made to rainfall timing (as suggested by e.g. Crosbie et al 2012), though changes in intensity are included in these systematic perturbations of precipitation. It should be noted that predicted rainfall frequencies and intensities for future climate scenarios depend upon cloud parameterizations and are thus highly uncertain (Solomon et al 2007).

Water management scenarios are designed to evaluate the individual and combined effects of groundwater pumping and irrigation on local and basin-scale water and energy budgets. They consisted of (1) daily irrigation application to agricultural grid cells over the growing season (irrigation-only, I); (2) groundwater pumping from agricultural grid cells over the growing season (pumping-only, P); and (3) combined irrigation and pumping from agricultural grid cells (pumping + irrigation, PI). Scenario PI is representative of irrigation using groundwater from on-farm wells, and is consistent with the dominant irrigation practice throughout the study region; scenario I is representative of irrigation using water imported via inter-basin transfer. Scenario P is not representative of water management practices in the study area, but serves as an end-member in assessing impacts of local water management practices. Management scenarios were previously analyzed by Ferguson and Maxwell (2011) and are based on estimated annual irrigation demand for a nearby watershed as detailed information on irrigation practices within the study area is not available. Irrigation was applied daily from 07:00–19:00 local time during the growing season (1 June–15 September). The rate of irrigation was 0.396 mm h⁻¹ for a total of 508 mm (20 inches) of water applied to the crop cells. While actual irrigation practices depend on on-farm conditions, this amount is consistent with the average annual irrigation demands for common crops in the study area (e.g. wheat, alfalfa and corn) and across the Southern Great Plains of North America (Masoner et al 2003). For the pumping cases (P and PI) the amount of pumping was equal to the irrigation applied at each cell, for consistency, and water was only withdrawn from the agricultural cells. Additionally, the timing of groundwater pumping was assumed to equal that of irrigation and irrigation scheduling was not varied in response to weather or soil moisture conditions.

Each scenario was spun-up for several years to achieve quasi-equilibrium conditions. Scenarios were initialized from CNTRL state and forced repeatedly with perturbed meteorology or water management treatment until the change in mass and energy balance over the water year dropped below a specified threshold. Only the last year of each simulation is analyzed.

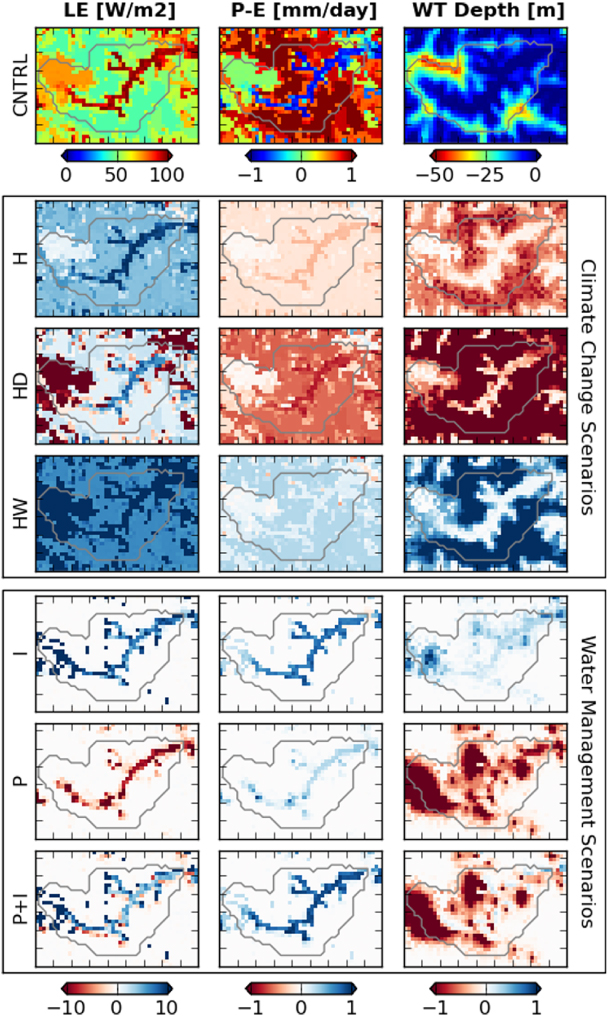

Figure 1 shows the spatial distributions of annual mean latent heat flux (LE, (W m⁻²)), potential recharge (precipitation plus irrigation minus evapotranspiration, referred to here as P–E, (mm)), and water table depth (D_wt, (m)) for CNTRL and annual mean differences for each scenario (scenario − CNTRL). LE is representative of the coupled water and energy balance at the land surface, while P–E and D_wt are representative of the water balance at the land surface and subsurface, respectively. All three variables exhibit similar spatial structures in CNTRL, highlighting the strong interdependence between local-scale water and energy budgets. Topographically driven groundwater flow results in groundwater convergence and shallow D_wt along the river valley; vertical moisture transport from shallow groundwater contributes to root zone soil moisture and high evapotranspiration (equivalently, high LE) and negative P–E in these areas. Where D_wt is greater, groundwater is disconnected from the land surface; soils in these areas become moisture limited during hot, dry summer conditions, resulting in decreased evapotranspiration (decreased LE) and positive P–E.

Zoom In Zoom Out Reset image size

Figure 1 shows significant differences in local-scale water and energy budgets for all scenarios with respect to CNTRL. The magnitude of differences is similar between climate and management scenarios; however, spatial distribution varies substantially, with climate change scenarios exhibiting widespread differences throughout the study area and management scenarios exhibiting differences only in crop areas where pumping and irrigation occur. Maximum absolute difference in annual mean LE exceed 10 W m⁻² in all scenarios, with corresponding differences in evaporative fraction (fraction of total land–atmosphere energy flux as latent heat) greater than 25% (not shown). Difference in P–E exceeds 1 mm/day over irrigated areas, with negligible change outside of crop cells (figure 1; I and PI); pumping has a weaker but notable effect on P–E, with the maximum difference exceeding 0.5 mm/day (figure 1; P). Differences in P–E in climate scenarios are generally weaker but encompass most of the watershed (figure 1; H, HW and HD). Note that pumping and irrigation both result in positive differences in potential recharge: pumping reduces moisture availability, reducing evapotranspiration, thus increasing P–E; by contrast, increased inputs from irrigation outweigh the resulting increase in evapotranspiration, thus increasing P–E. Differences in D_wt in scenarios P, I and PI are similarly limited to areas up-gradient of wells or irrigation; by contrast, differences in scenarios H, HW and HD all encompass areas except those with initially shallow groundwater levels (D_wt[CNTRL] < 2.5 m), where groundwater convergence maintains shallow water table conditions in all scenarios (Maxwell and Kollet 2008a, Ferguson and Maxwell 2010). Note that as shown in previous studies D_wt decreases in scenario I, indicating increasing groundwater storage due to irrigation with imported water.

Local-scale differences in LE are strongly dependent on feedbacks between energy and moisture availability. While the spatially-uniform increase in air temperature in scenarios H, HW and HD drives a uniform increase in potential evapotranspiration, moisture limitations result in decreased LE over portions of the domain in H and more notably in HD (figure 1, H and HD). Increased precipitation in HW increases moisture availability, resulting in increased LE throughout the domain (figure 1, HW). Consistent with previous studies, irrigation increases moisture availability over agricultural areas, increasing LE from direct canopy evaporation and plant transpiration (figure 1, I (e.g. Lobell et al 2009, Ozdogan et al 2010, Döll et al 2012)); as expected, pumping reduces groundwater levels, decreasing LE in areas where groundwater contributes to moisture availability at the surface (figure 1, P). When pumping and irrigation are combined, irrigation increases LE in agricultural areas, while pumping-induced groundwater declines decease LE in some adjacent areas.

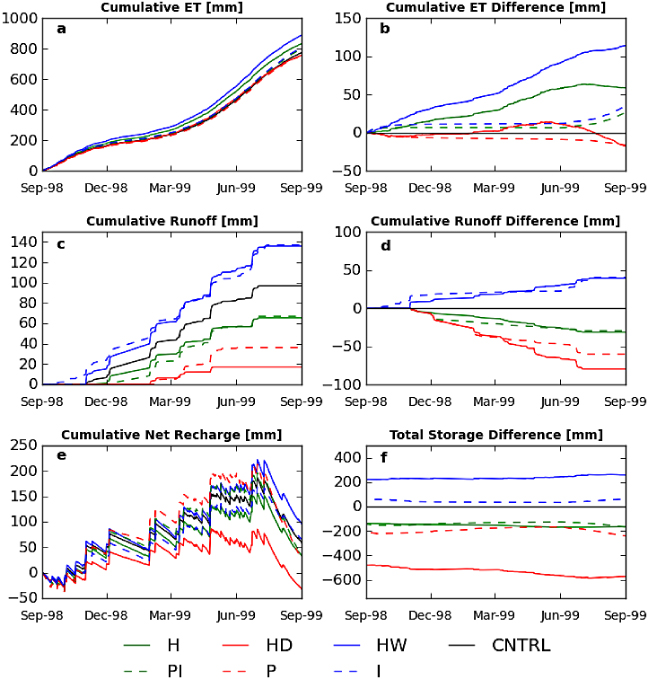

Changes in local-scale water and energy budgets alter spatially-distributed recharge and runoff processes, which subsequently impact on basin-scale and averaged hydrologic response. Figure 2 shows cumulative evapotranspiration (ET, (mm)) summed spatially over the basin, stream discharge at the basin outlet (Q, (mm)), and net groundwater recharge also summed over the basin (ΔS, (mm)) for CNTRL and each scenario, normalized by basin area (left column), and differences in cumulative ET, cumulative Q, and total groundwater storage (S_gw; (mm)) between each scenario and CNTRL (scenario − CNTRL; right column). Differences in basin-integrated annual ET, Q and S_gw are shown in table 1.

Zoom In Zoom Out Reset image size

Impacts of climate change and water management on basin-scale cumulative ET exhibit the same order of magnitude but distinct seasonal characteristics. Differences in cumulative ET due to pumping and irrigation, respectively, are monotonic over the water year. That is, moisture availability increases due to irrigation and decreases due to groundwater pumping with no change in atmospheric conditions. This change in soil moisture drives a monotonic increase in cumulative ET for irrigation and a decrease for pumping. Irrigation increases moisture availability throughout the year, which in turns drives a monotonic increase in cumulative ET; conversely, groundwater pumping decreases moisture availability throughout the year, driving a monotonic decrease in cumulative ET. However, differences in basin-integrated ET in scenarios I, P and PI are negligible outside of the growing season, as evidenced by negligible change in cumulative difference from October to June (figure 2(b)). In scenario HW, uniform increases in precipitation and temperature over the year drive an approximately constant, monotonic increase in cumulative ET throughout the year. In scenarios H and HD, however, changes in cumulative ET are not monotonic, again illustrating that dependence of changes in land surface water and energy fluxes on both moisture and energy availability.

Figure 2(d) shows striking similarities between impacts of climate change and water management on stream discharge Q: precipitation-driven increases in Q under scenario HW are approximately equal to irrigation-driven increases under scenario I; temperature-driven reductions under scenario HW are approximately equal to pumping-induced reductions under scenario PI; and combined precipitation and temperature-driven reductions under scenario HD are similar to pumping-induced reductions under scenario P. Uniform climate perturbations over the water year results in relatively constant differences in Q, as evidenced by the predominately linear, monotonic changes in figure 2(d). Differences due to water management are monotonic, but exhibit greatest slopes during the growing season and negligible slopes outside of this period.

Net recharge is characterized by short periods of positive recharge associated with precipitation events followed by gradual losses to ET and baseflow between events. Figure 2(e) shows that net recharge follows a similar pattern in all scenarios at both event and seasonal timescales. Close inspection of figure 2(e) shows, however, that differences in event recharge are generally small and differences in cumulative net recharge are driven primarily by differences in ET between scenarios. Differences in cumulative net recharge result in large changes in groundwater storage S_gw within the basin (figure 2(f)). Whereas changes in Q are nearly equal for climate and water management scenarios (figure 2(d)), changes in S are much greater for climate scenarios. Groundwater depletion is approximately equal in scenarios H and PI, but is substantially greater in scenario HD than scenario P; similarly, increased groundwater storage is substantially greater in scenario HW than scenario I. While figure 1 shows that local-scale changes in water table depth due to irrigation and groundwater pumping are comparable to those due to climate change, these changes are generally localized to agricultural areas within the domain; climate-driven changes in groundwater storage are thus much greater when viewed at the basin scale.

Careful inspection of figure 1 indicates widespread decreases in water table depths under scenario I, as well as isolated areas of decreased water table depth in scenario PI, indicating increased groundwater recharge from irrigation, consistent with other recent studies (e.g. Döll et al 2012). Note also that this figure demonstrates that the storage changes for P are less than for H due to the localized nature of pumping (the cones of depression a clearly seen in figure 1) and the total amounts: changes in ET due to changing temperature and temperature yield greater recharge changes than pumping due to water management.

Impacts of climate change and water management practices are likely to differ between regions depending on local climate, geologic and hydrologic conditions, as well as local cropping and irrigation practices. Notably, in addition to changes in annual precipitation amount, impacts of climate change on runoff and recharge are likely to depend on changes in precipitation frequency and intensity. Impacts of irrigation and groundwater pumping are likely to depend on local cropping practices, irrigation scheduling and technology, irrigation source (i.e., groundwater versus local surface water versus imported surface water), and well depth and distribution, along with initial water table depth and distribution. Further analysis of factors affecting watershed response to climate change and water management is beyond the scope of this study.

In summary, this study uses a fully-integrated model of groundwater, surface water and land surface processes to evaluate and compare impacts of large-scale climate change and local-scale water management practices on local and basin-scale water and energy budgets for an agricultural watershed the semi-arid Southern Great Plains, USA. Our results demonstrate, surprisingly, that water management impacts on land surface fluxes and basin-scale surface water and groundwater resources can be comparable to those of climate change. Notably, the effects of climate change and water management on stream discharge and groundwater storage are nearly equivalent for the study area and scenarios evaluated here.

Our results show that changes in climate directly alter local, spatially-distributed surface fluxes throughout the study area, with subsequent feedbacks on surface water and groundwater resources. Conversely, water management practices directly alter water availability and distribution, with feedbacks on land surface fluxes. These results imply that many semi-arid basins worldwide that practice widespread groundwater pumping and irrigation may already be experiencing similar hydrologic impacts as would be expected from a warming climate and underscore the need to account for the hydrologic and land energy impacts of local water management practices in developing climate change projections and adaptation and mitigation strategies for water resources.

These results suggest that feedbacks from large-scale pumping and irrigation, currently omitted from most studies, might exacerbate climate impacts in agricultural watersheds; a topic ripe for future study. Moreover, while it is well known that ET feedbacks from irrigation may propagate in coupled atmospheric simulations (e.g. Lobell et al 2009) feedbacks from groundwater depletion have not been thoroughly studied. Our results suggest that management and mitigation strategies for semi-arid regions need be based on an understanding of impacts and feedbacks from changes in both climate and water management.

Global reliance on groundwater to meet agricultural, municipal and industrial water demands has increased significantly over recent decades (Döll et al 2012, Scanlon et al 2012), and recent studies have shown increasing areas of groundwater overdraft and depletion (e.g. Rodell et al 2009). To date, local-scale groundwater use has been largely neglected in climate change impact and risk assessments. Our results suggest that increasing reliance on groundwater pumping is likely to exacerbate the impacts of climate change and lessen the resilience of local communities. These results underscore the importance of accounting for the effects of local water management practices as well as changing climate conditions in assessing climate change impacts on water supplies and in developing local-scale adaptation and mitigation strategies.

In addition to impacts on water supply, our results demonstrate significant feedbacks between water management practices and land energy fluxes. While studies have demonstrated that land energy fluxes play an important role in driving local and regional-scale weather and climate, particularly in semi-arid plains regions where land–atmosphere interactions drive a significant portion of seasonal-to-interannual climate variability, irrigation may also have an important impact on these processes (e.g. DeAngelis et al 2010). Current projections of climate change neglect interactions between groundwater dynamics, shallow soil moisture and land energy fluxes; similarly, effects of water management practices such as groundwater pumping and irrigation are also neglected. Our results suggest that water management practices and local- to basin-scale hydrologic feedbacks significantly affect land energy fluxes and therefore may impact local and regional climate. These results emphasize the need to account for hydrologic and land energy impacts of local water management practices in developing climate change projections and adaptation and mitigation strategies for water resources.

This material was based in part upon work supported by the National Science Foundation (NSF) under Grant No. WSC-1204787.
