Nitrogen use in the global food system: past trends and future trajectories of agronomic performance, pollution, trade, and dietary demand

We use the generic representation of agro-food systems (GRAFS) (Billen et al 2013, 2014) which is based on functional relationships between crop farming, livestock breeding, and human nutrition expressed in terms of protein-N transfers. The system’s driving variables are (1) the size of the human population; (2) the human apparent diet, including wastes generated at consumption; (3) the livestock population and grass consumption by grazing livestock; and (4) the intensity of fertilization of cropland by synthetic fertilizers, animal manure, symbiotic fixation and atmospheric deposition.

The approach starts with the calculation of a yearly N budget over the period 1961–2009, based on production data from FAOSTAT (FAO 2012), for 12 world regions. These regions were defined by Lassaletta et al (2014a), on the basis of their current level of self-sufficiency with regard to their local protein needs for feeding humans and livestock (supplementary material S1).

NUE of the agro-food system is calculated as the ratio between N in harvested crop products to N inputs. N inputs (fertilization) include synthetic fertilizers, animal manure, symbiotic fixation and atmospheric N deposition. We assume a one parameter hyperbolic relationship between crop yield (Y expressed as kg N ha⁻¹ yr⁻¹) and total N inputs (F) as shown in equation (1)

$$\begin{eqnarray}&&Y(F)={Y}_{{\rm{\max }}}\displaystyle \frac{F}{F+{Y}_{{\rm{\max }}}}\mathrm{.}\end{eqnarray} \tag{ 1 }$$

The asymptote of this curve, Y_max, can be expressed as ${Y}_{{\rm{\max }}}=YF/(F-Y).$ Changes in management, crop mix, improved crop varieties or irrigation can cause a shift towards a higher Y_max.

Crops include all annual and perennial food and feed crops, biofuels, fruits, vegetables, stimulants, fibers and rubber. N contents used to calculate N harvest are from Lassaletta et al (2014a). Ornamental crops are not included in this study. Total N inputs to arable land include synthetic fertilizer application (corrected for estimation of fertilizer application to grassland, see Lassaletta et al 2014b), symbiotic N fixation (estimated according to the approach developed by Lassaletta et al 2014b and Anglade et al 2015), manure application (calculated from animal excretion according to Lassaletta et al 2014b) and atmospheric deposition obtained from Dentener et al (2006).

Grass production is defined as grass consumed by ruminants (in terms of N), and it is calculated from the food and feed balance of each region. Grass production is calculated as the sum of human and animal consumption of plant proteins minus the sum of local crop production and net import of crop products (see supplementary material S2 for a discussion about the uncertainties of this estimation). The results obtained with this budget approach are not strictly grass production but include any other sources of feed not included in official statistics, such as backyard production, scavenging and swill use. Our estimates of grass production are in good agreement with estimates from the integrated model to assess the global environment (IMAGE) (Bouwman et al 2005, Stehfest et al 2014).

Animal excretion is calculated from animal stocks of ruminants (cattle, sheep, goats and other ruminants) and monogastrics (pigs, poultry and other domesticated birds) using time- and region-specific excretion coefficients. A fraction of the excreted N is applied to crops as estimated by Lassaletta et al (2014a) and it has now been corrected for The Netherlands, Ireland and United Kingdom. Animal production is the N content of carcasses, milk and eggs produced, skins, offals and fats. However, in the estimation of human consumption a non-edible fraction of offals, fats, and skins is subtracted.

Animal ingestion is calculated as the sum of excretion plus production. The livestock N conversion efficiency is defined as the ratio of edible production to ingestion. Ammonia volatilization is calculated as 30% of the excreted N that is stored and managed before spreading of manure (Bouwman et al 1997, Bouwman et al 2002). The calculations were made separately for ruminants and monogastrics. Similarly, cereal consumption (as well as total crop consumption excluding fiber) by animals is also estimated from the food and feed balance of each region. Cereal consumption by animals is total cereal production plus net import minus human consumption and use. The food waste of cereals at post-harvesting, processing, and distribution stages (ranging from 1%–8% according to FAO balance sheets) is not considered in this analysis.

Seafood, including freshwater fish, represents 15% of human animal protein consumption and is not included in this analysis. This does not influence human meat consumption, because fish ingestion was calculated separately (see supplementary information S6). Ignoring fish production implies that all compound feeds as obtained from FAOSTAT (FAO 2012) are allocated to livestock production, and are thus not corrected for the share devoted to aquaculture. The potential errors caused by this are small, because currently the volume of compound feeds used in aquaculture (Tacon and Metian 2008) is minor compared to feed crop use in livestock (FAO 2012) and because a large part of the world’s seafood consumption comes from direct capture (Bouwman et al 2013b). However, the volume of feed crop allocated to fish is expected to dramatically increase during the coming years (Fry et al 2016).

Actual human diets are compared to what is considered to be an equitable diet, which is also healthy in terms of animal protein N, i.e., a total protein ingestion of 4 kg N per capita per year with a fraction of 40% animal proteins (1.6 kg N per capita per year). This diet corresponds to the richest diet which could be shared by all regions in the world at current levels of agronomic performance (Billen et al 2015). This diet is about 20% above the WHO (2007) recommendations for a healthy diet in terms of protein consumption, and in turn accounts for unavoidable losses at the consumption level (Gustavson et al 2011).

N trade is trade of N embedded in products, not virtual N as has been sometimes considered (Galloway et al 2007, Oita et al 2016). The trade N fluxes are estimated from the N content (protein-N) of traded agricultural products (not including fertilizers). In our approach, international trade flows between countries of the same region are excluded. This results in smaller trade flows than a previous study (Lassaletta et al 2014b), which included trade flows between countries.

In the GRAFS approach, the basis for establishing a comprehensive budget of N transfers through the agro-food system further allows for recalculating budgets for future scenarios including population growth, diet shifts, or changes in production systems, the latter being characterized by the region-specific parameters of the yield-fertilization relationship and the conversion efficiencies of ruminant and monogastric livestock.

We constructed four scenarios to illustrate the trade-offs between protein in human diet, environmental impact of N losses in agriculture, and the role of inter-regional food and feed trade. To this end, we considered two contrasting development paths, i.e., (i) the  business as usual (BAU) approach and (ii) and an alternative approach here called self-sufficiency/equitable diet (SSED). In the BAU approach, it is assumed that production trends, in particular regional specialization, continue, and that world regions with production exceeding domestic demand export proteins to regions where domestic production is insufficient to meet local demand, assuming that no barriers to international trade exist. In the SSED approach, it is assumed that regions attempt as a matter of priority to meet domestic demand of both animal and vegetal proteins by local, diverse production and aim at limiting their dependence on imports, while converging to a healthy human diet (e.g. Bodirsky and Popp 2015). In this approach, therefore, inter-regional trade occurs only when local needs cannot be met by local production given the other constraints considered.

Using these two paths, we designed four contrasting scenarios of the agro-food system in 2050; BAU standard, SSED local, and one variant of each assuming optimized allocation of production (table 1). In all scenarios, population in each region is that projected by United Nations (2011), the area of cropland and grassland is constant at the 2009 level (FAO 2012). The agronomic performances of crop and livestock production systems, characterized by Y_max of crop systems and the protein-N conversion efficiency for livestock, are extrapolated from the trend observed during the last decades. These trends are depicted for each region in supplementary material S6, and the extrapolated values of the parameters for 2050 are listed in table 2.

Regarding the future human diet, the two BAU scenarios use the implementation of the Global Orchestration/A1 scenario considered by the MAgPIE economic model (Lotze-Campen et al 2008, 2010,  Bodirsky et al 2012, 2014 Schmitz et al 2012). This model predicts the human diet in the different world regions based on economic development (Valin et al 2014), which results in future regional diets richer in protein than present ones, and large inter-regional disparities. The two SSED scenarios consider a convergence of human diet in each region towards the equitable diet defined above (see section 2.1).

The distribution of livestock in the BAU scenarios is defined for each region based on the data provided by MAgPIE for the GO/A1 scenario, which assumes that all regions converge towards the European feed rations and productivity. In the SSED scenarios, the distribution of livestock in each region first depends on a full exploitation of grassland by ruminants, together with 20% additional feed, and the efficiency calculated for 2050 (table 2). If the protein-N produced by ruminants does not meet the requirements for an equitable diet, additional animal production consisting of pig or poultry and eggs may be considered. This additional monogastric production only occurs if it can be based on locally produced feed which is in excess over human and ruminant requirements. In regions where the calculated ruminant production meets or exceeds local needs for animal proteins, a minimum monogastric production is nevertheless assumed in order to ensure diversity in animal protein consumption. This monogastric production has been arbitrarily set at a value corresponding to an ingestion rate of crop products by monogastric equal to 5% of that by ruminants.

Regarding cropland production and nutrient use, three different rules were used. In the ‘BAU standard’ scenario, the proportions of global crop production in each region have been considered identical to those predicted in the GO/A1 Scenario of the MAgPIE model. Thereby, fertilizer application rates have been adjusted based on the yield/fertilization relationship (with its regional Y_max value) and taking into account the previously calculated local resources of manure. In the ‘SSED local’ scenario, the total N input to cropland in each region is adjusted to ensure that the volume of local crop production is as close as possible to the domestic human and livestock protein requirements (in addition to the protein supply in the form of grass); however N input to cropland is limited to a maximum set at 50% of Y_max (i.e., Y_max/2). If the crop production at Y_max/2 exceeds the local human and livestock protein requirements, extra production takes place for export; export is not allowed to exceed a maximum fraction of local production. This fraction is the same for all regions, and is adjusted so that global crop production equals global consumption. Note that in this work the term ‘local’ refers to the 12 intrinsic macro regions here defined; we did not explore the effect of intra-regional connections as was done by Zumkehr and Campbell (2015).

Optimal allocation of N inputs between the 12 regions in both BAU and SSED follows the methodology of Mueller et al (2014). In this variant, N inputs are optimized in order to maximize the global NUE for the scenario-specific volume of global crop production. Optimal allocation means that global NUE and production is maximized for a given volume of N input. The condition for optimal allocation is a constant dY/dF across all regions, regardless of Y_max. To illustrate the mechanism behind this optimization, consider two regions of similar Y_max but with low and very high N application rates. Assuming that the total N input over the two regions is the same, production can be maximized by redistributing N fertilizer from the region of high N rates to the region with low N application rates; this can lead to an increase of total production, since the marginal yield response to additional fertilizer (dY/dF) in the low-N region will exceed the marginal yield loss in the high-N region after a reduction in fertilizer application. This is a consequence of the asymptotic response of yield to increasing fertilizer inputs (e.g. Paris 1992). Once a constant dY/dF is achieved across both regions, further reallocation will not lead to net production gains. The formal proof that this approach leads to an optimal global NUE is provided in supplementary information S4. The application of this principle of optimum allocation of N input leads to an additional variant of the BAU and SSED scenarios in which N inputs (either as synthetic N fertilizer application or as symbiotic N fixation through inclusion of legumes in the crop rotations) are adjusted in such a way that NUE in each region is equal to the value defined at the global scale for meeting the requirements of crop protein consumption. In the case of the SSED scenario, this additional constraint prevents local crop production to be fully adjusted on local needs.

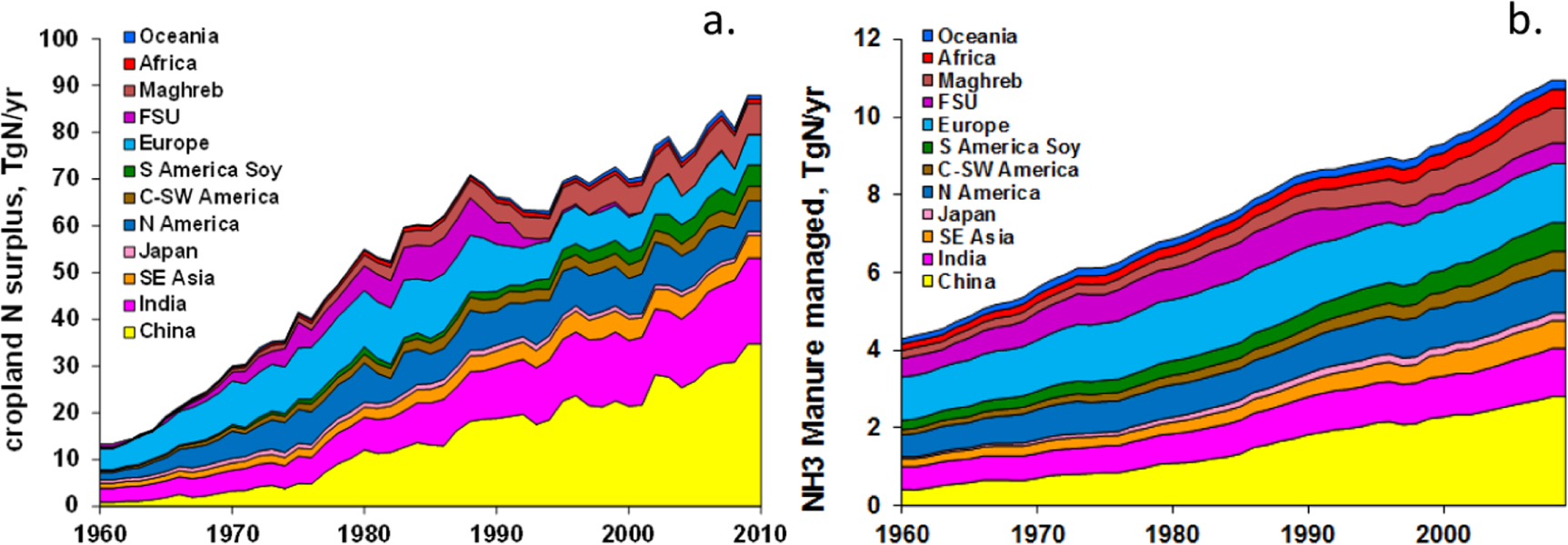

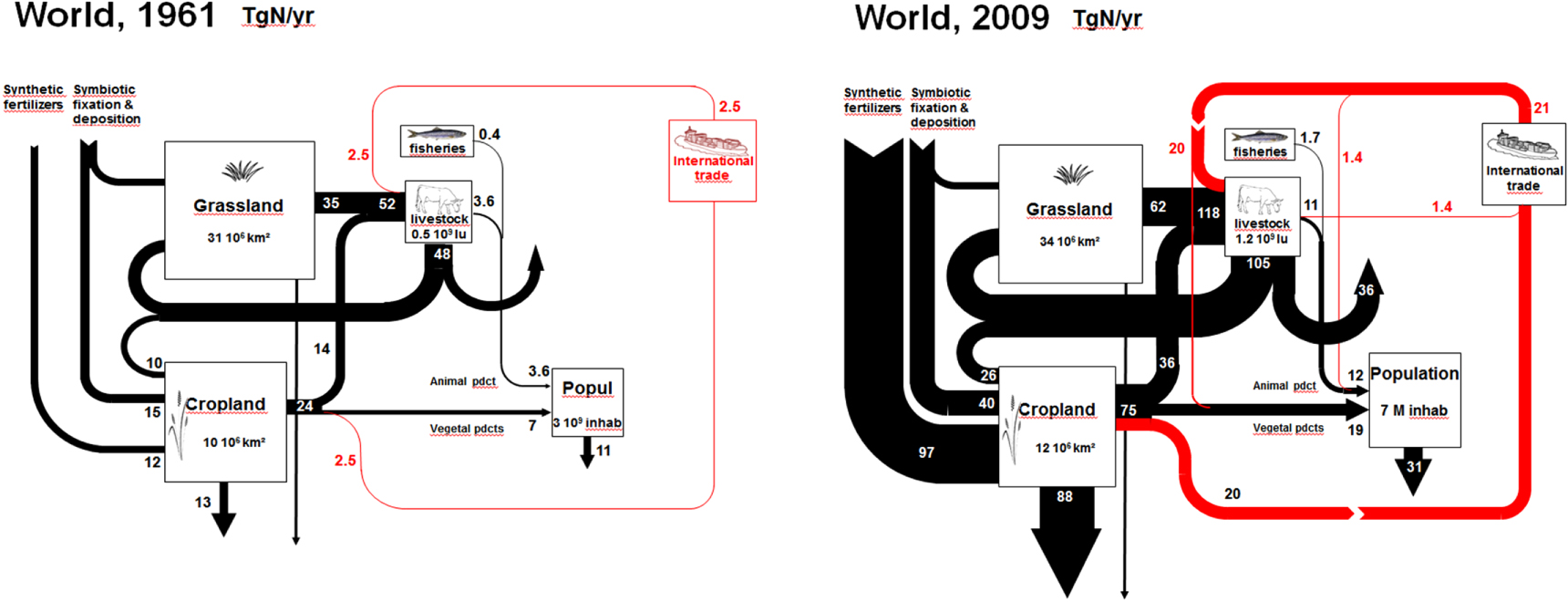

The N budgets for the 12 world regions and the world total over the past 5 decades (1961–2009) calculated with GRAFS are available as supplementary material S3, S6 and S7. At the global scale, total N inputs to cropland soils increased by a factor of 4.4, while total protein production in croplands increased by a factor of 3.1 (figure 1). These changes imply a reduction of NUE from 66% to 46%, and an increase of N losses from cropping systems from 12 Tg N yr⁻¹ in 1961 to 88 Tg N yr⁻¹ in 2009 (Tg = teragram; 1 Tg = 10¹² g). During the same period, international trade between the 12 regions increased eight times from 1.7 to 12.6 Tg N yr⁻¹ (from 2.5 to 21 Tg N yr⁻¹ when considering flows between all countries). These results are within the range of other global approaches (Bouwman et al 2013a, Sutton et al 2013).

Zoom In Zoom Out Reset image size

There are strong differences between world regions. Based on both the current organization of the agro-food system in each region and its trends and variations during the last 50 years, we can group the 12 regions as follows: (i) regions with rapidly growing population, decreasing self-sufficiency and increasing dependence on imports of food and feed (Sub-Saharan Africa, Maghreb and Middle East, Central and South West America, China, South East Asia); (ii) regions with stabilizing or moderately growing population, producing excess food and feed for export to deficient countries (North America, South American Soy Countries, Oceania); (iii) regions with stabilizing population and strongly dependent on imports (Japan, Europe, Former Soviet Union); (iv) regions with rapidly growing population, and not depending on international trade (India).

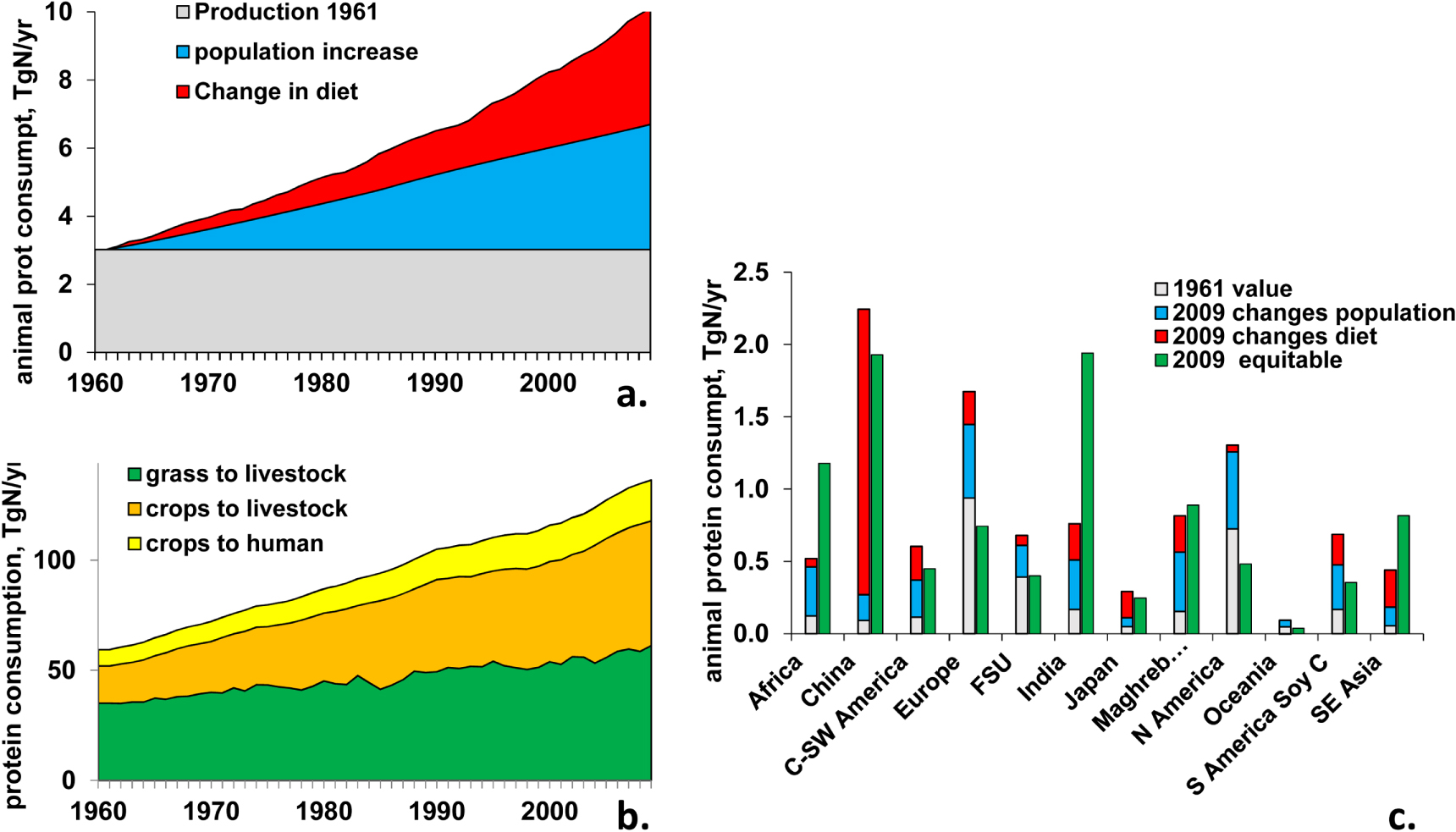

Global average per capita protein consumption increased from 3.6 to 4.5 kg N cap⁻¹ yr⁻¹ during the past 5 decades, whereby the fraction of animal proteins (including fish) was 31% in the 1960s and 39% in the last decade. About half of the increase in total animal protein N consumption is the result of population growth, the other half results from diet shift (figure 2(a)). The rapid increase in demand for animal proteins has also caused changes in the crop production system due to increased feed crop demand; N in crops used for animal feed increasing from 17 in 1960 to 57 Tg N yr⁻¹ in 2009, representing about three quarters of global crop production (figure 2(b)). This proportion is much higher than when it is expressed in calories (Cassidy et al 2013), because especially N rich material is used as feed. This value is slightly higher but coherent with the value obtained by calculating the total protein allocated to feed by using the FAO Food Balance Sheets and also including fodder crops (FAO 2012) and distiller grains (DDGS, several sources); small discrepancies can be associated with the indirect way of calculation in our approach of for example wastes, which are considered separately in the FAOSTAT Food Balance Sheets.

Zoom In Zoom Out Reset image size

The consumption of animal proteins is not equally distributed in the different parts of the world, which is clearly illustrated by the share of the increase in animal protein consumption attributable respectively to population increase and change in diet between 1961 and 2009 (figure 2(c)). The Americas, Europe, Former Soviet Union, Japan, China and Oceania have an animal protein consumption that exceeds a diet considered to be equitable in terms of animal products (i.e., 1.6 kg N cap⁻¹ yr^–1). The other regions are below that level. China, South East Asia and Japan are the regions where diet change towards more animal protein has been the most significant, explaining more than half of the increase in total consumption of animal products in the last 50 years (figure 2(c)). The largest absolute change in consumption of animal proteins is seen in China and Europe and North America are the regions that most surpass the equitable diet limit.

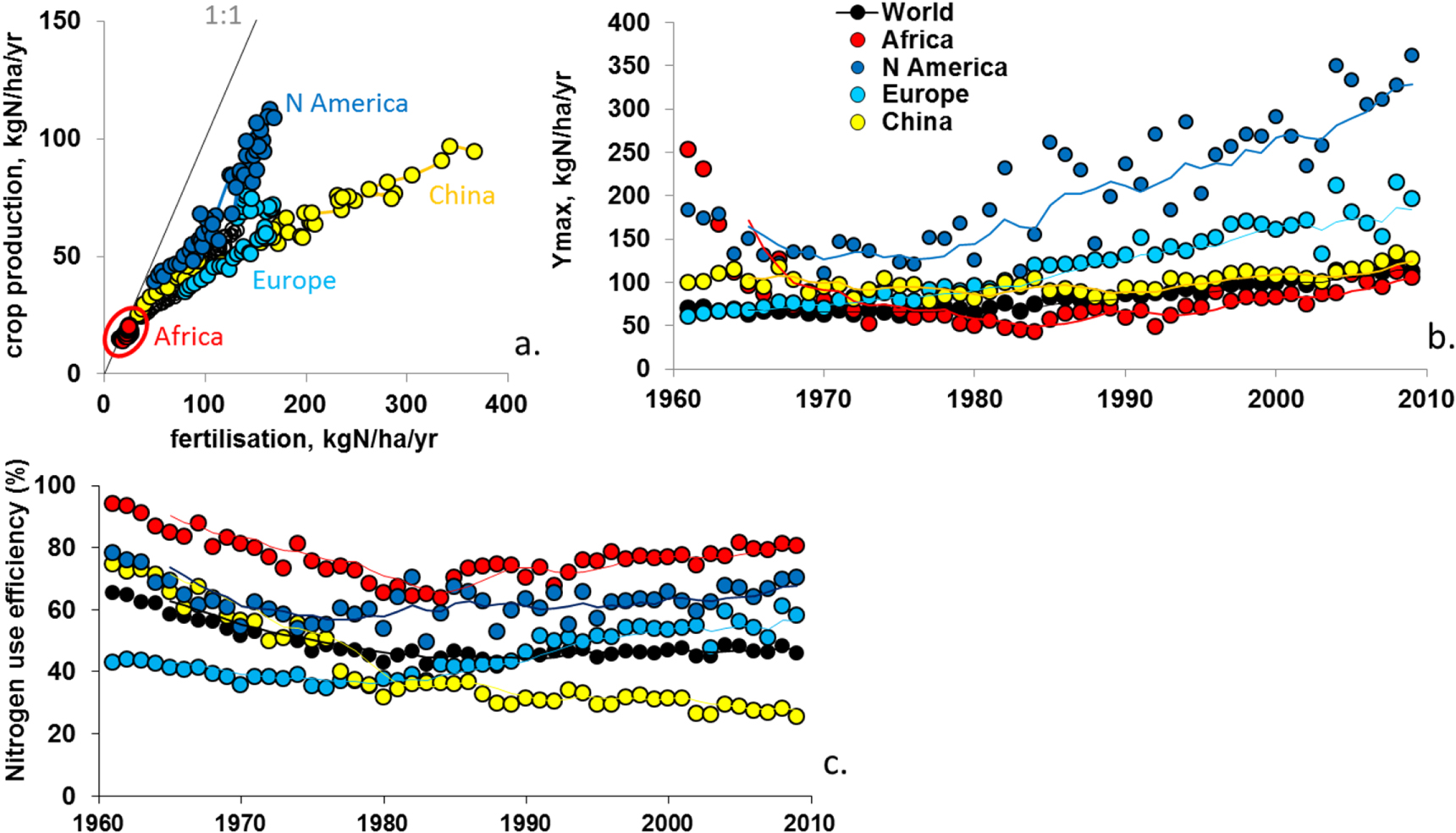

An overall increase in the agronomic performances of cropping systems, as characterized by increasing Y_max (the asymptote of Y(F), equation (1)), is observed in most of the 12 world regions (figure 3, table 2 and supplementary material S3, S6 and S7). However, rates of increase in NUE are much larger in North America and Europe than in the other regions such as China, where the NUE has even dropped (figure 3). While China and Africa have similar Y_max levels and trends (figure 3(b)), there are large differences between these two regions in terms of crop productivity and N fertilization (figure 3(a)), with much higher N yields and N inputs in China. Despite increasing efficiency of crop production systems in several regions (i.e. the ratio of total N input to cropland to N in harvested products) (figure 3(c)). The absolute N losses to the environment, as calculated by the difference between total N input to cropland and N content of harvested products (N surplus) has increased in past decade (figure 4(a)). This is also true for the N surplus expressed per unit cropland area (supplementary material S7) Gaseous N losses through volatilization from animal manure management more than doubled during the last 5 decades to around 10 Tg N yr⁻¹ (figure 4(b)).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

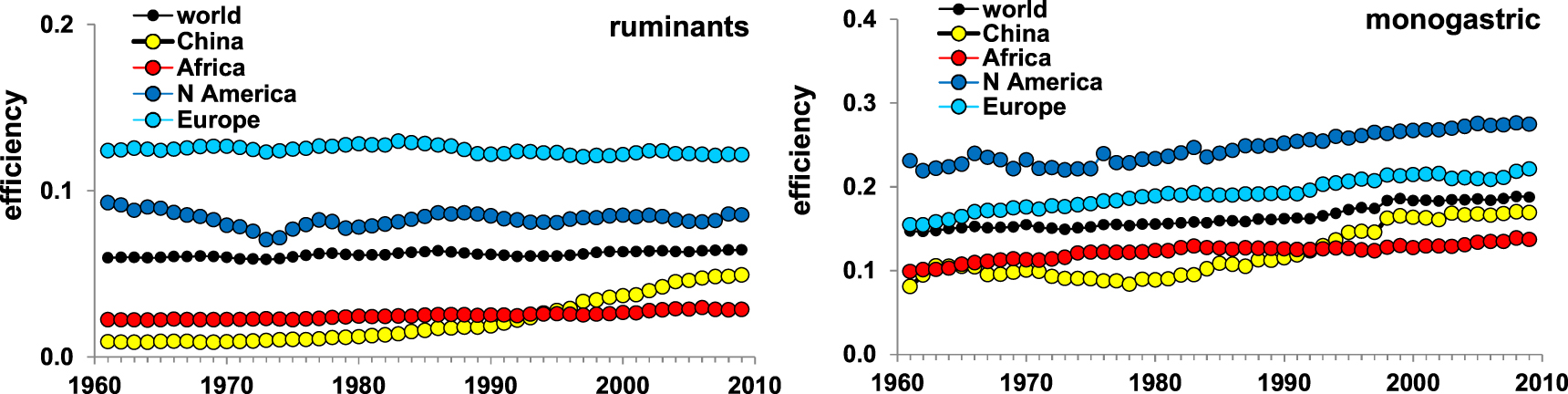

N conversion efficiencies in livestock production (figure 5) are much lower than in crop production (figure 3(c)). Ruminants in particular show low efficiencies. In the same way as crops, livestock systems generally have seen an increase in their performance in terms of the efficiency of conversion of vegetable to animal proteins, primarily in monogastric systems (figure 5, table 2). There are also large differences in the N conversion efficiency between world regions for both animal groups, with higher values in Europe and North America than in developing countries.

Zoom In Zoom Out Reset image size

There are major differences in the self-sufficiency and agricultural specialization of the various world regions. In many regions, a significant and growing share of the N in food and feed demand was obtained through imports, while other regions are exporting N in animal and/or vegetable products. Global trade expressed in terms of N exchanged between the 12 regions increased by a factor of 7.5 for vegetable proteins (from 1.6 to 12.1 Tg N yr⁻¹) and by a factor of 10 for animal protein (from 0.05 to 0.5 Tg N yr⁻¹) from 1961 to 2009.

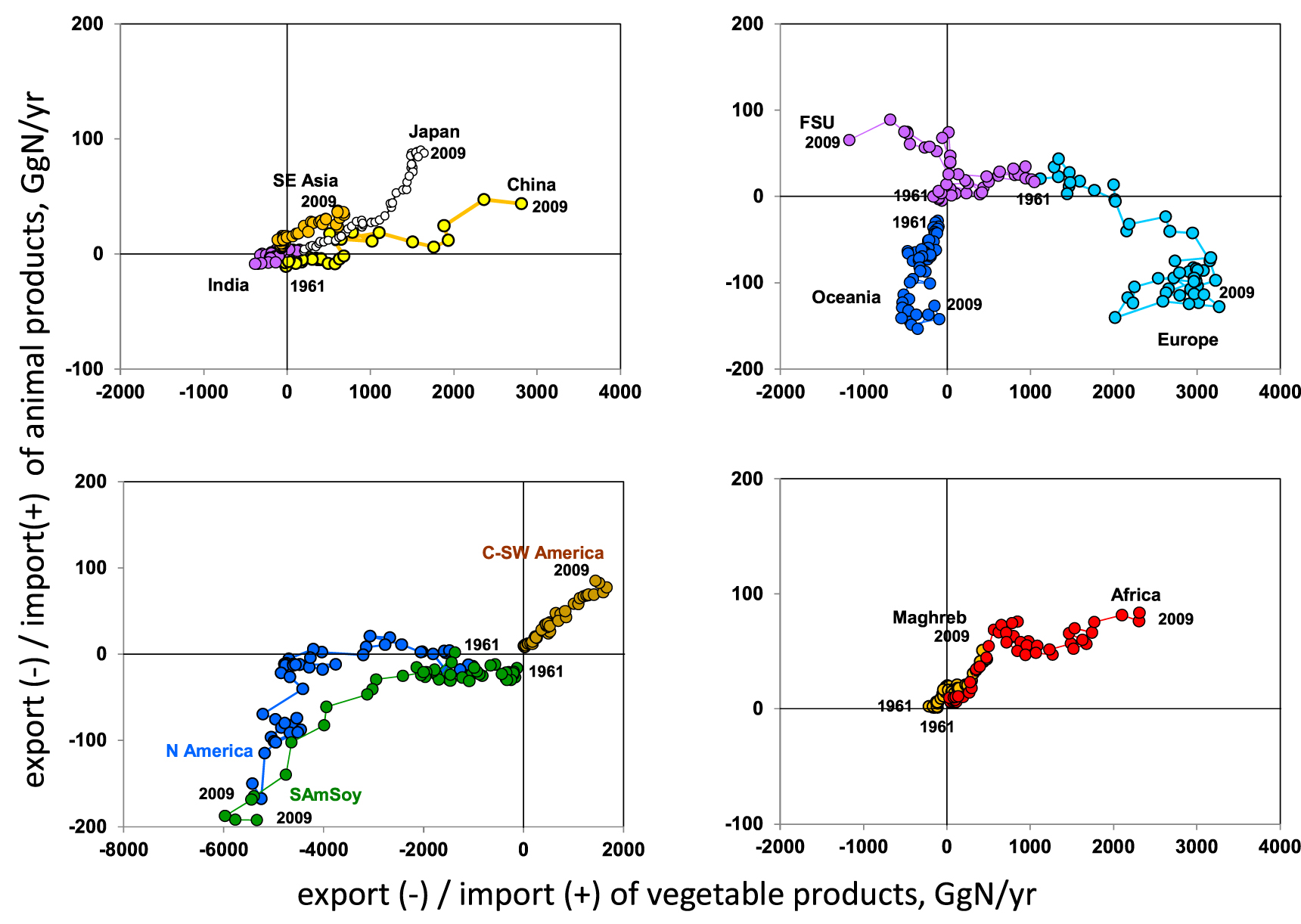

The regions show contrasting trade patterns for animal and vegetable protein over the course of the study period (figure 6). The protein demand in some regions exceeded domestic production leading to protein-N import, with important increases in China, Japan, South East Asia, Maghreb and Middle East, Africa and Central and South West America. In contrast, other regions are protein-N exporters (North America, South American Soy Countries, Oceania). Europe has an intermediate position as it moves to larger imports of vegetable proteins (mainly soybean from South America) and larger exports of animal proteins. India is a small exporter for both animal and vegetable proteins, with no clear trend in time.

Zoom In Zoom Out Reset image size
