Temporal and spatial distribution of global mitigation cost: INDCs and equity

We used AIM/CGE, which has been widely used in climate mitigation and impact assessment [11–15]. AIM/CGE is a recursive dynamic general equilibrium model that includes 17 regions and 42 industrial classifications. Energy sectors, including power sectors, are disaggregated in detail. Moreover, to assess bioenergy and land use competition appropriately, agricultural sectors are also highly disaggregated [16]. This CGE model was developed based on the 'Standard CGE model' [17], and details of the model structure and mathematical formulas are described in the AIM/CGE basic manual [18].

The production sectors are assumed to maximize profits under multi-nested constant elasticity substitution (CES) functions and each input price. Energy transformation sectors input energy and value added as fixed coefficients of output. They are treated in this manner to appropriately deal with energy conversion efficiency in the energy transformation sectors. Power generation values from several energy sources are combined with a Logit function. This method is adopted in consideration of energy balance because the CES function does not guarantee a material balance. Household expenditures on each commodity are described by a linear expenditure system function. The saving ratio is endogenously determined to balance saving and investment, and capital formation for each good is determined by a fixed coefficient. The Armington assumption is used for trade, and the current account is assumed to be balanced.

In addition to energy-related CO₂ emissions, CO₂ from other sources, CH₄, and N₂O are treated as GHG emissions in this model. Non-energy related CO₂ emissions consist of land use change and industrial processes. CH₄ has various sources, but the main sources are the rice production, livestock, fossil fuel mining, and waste management sectors. N₂O is emitted by fertilizer applications and livestock manure management, as well as by the chemical industry. Energy-related emissions are associated with fossil fuel consumption and combustion. Non-energy-related emissions, other than land use change emissions, are assumed to be in proportion to the level of activities (i.e., output). Land use change emissions are derived from the difference of forest land area from that of the previous year multiplied by the carbon stock density.

The implementation of mitigation is represented by either a global emissions constraint or country-level emission constraints. A carbon tax is employed to meet the global or country-level emission constraints, and it is therefore either globally uniform or variable across regions, depending on the type of constraint. The carbon tax makes the price of fossil fuel goods higher when emissions are constrained and promotes energy savings and the substitution of fossil fuels by lower emission energies and also acts as an incentive to reduce the non-energy-related emissions. Gases other than CO₂ are weighted by global warming potential and summed as GHG emissions in CO₂ equivalents. The revenue from the carbon tax is assumed to be received by households.

Table 1 outlines the four scenarios simulated in this study: Baseline, 450CO2e, INDC_450CO2e, and SINDC_450CO2e. The baseline scenario entails no emissions constraints and follows current trends in energy technologies. The 450CO2e scenario includes emissions constraints that approximately meet the emission radiative forcing target of 2.6–2.8 W m⁻² in 2100, which can be interpreted as being in the range of the 2 °C target. The scenario employs a uniform global carbon price subject to particular emission targets discussed later. The INDC_450CO2e scenario also meets a similar radiative forcing target. INDC pledges are satisfied before 2030. The resulting gap between INDC_450CO2e and 450CO2e in cumulative CO₂ emissions prior to 2030 is addressed by further reducing emissions from the 450CO2e emission trajectory after 2030 in INDC_450CO2e. The SINDC_450CO2e scenario is similar to the INDC_450CO2e scenario, but the INDC target for each country is 20% higher as compared with the target in INDC_450CO2e. The emissions pathway after 2030 is determined in the same manner as in the INDC_450CO2e scenario. The mathematical method of determining the emissions pathways can be found in the supplementary material (SM). The details of how to construct an emissions constraint in 2030 are also shown in SM; other socioeconomic policies, such as renewable energy targets, are not treated in this study. However, the energy system responds to the carbon price associated with the chosen emissions constraints.

The simulation period is 2005–2100. The socioeconomic assumptions behind all of the scenarios follow shared socioeconomic pathways (SSP2) [19] socioeconomic assumptions. Socioeconomic assumptions generally include assumptions not only on demographics and economic scale but also on other aspects, such as changes in energy technologies and dietary preference changes. The results might be sensitive to the SSP socio-economic assumptions. Here SSP2 is used as it is seen to be the continuing of the current social, economic and technological trend, leaving the world face moderate challenges to mitigation and adaptation [19]. Population and gross domestic product (GDP) growth are assumed to be the same as in Samir and Lutz [20] and Dellink et al [21] and are presented in the SM. Other energy, land use, and agricultural assumptions are based on Fujimori et al [22]. Countries are grouped into three regions: developing countries, industrial countries, and transition countries. The regional definitions are presented in the SM.

After we obtained the scenario results, we analyzed the mitigation costs with respect to generational equity. Here, consumption loss or its rate is treated as a representative metric of mitigation costs. To make current and future mitigation costs comparable for inter-generation comparisons and to be able to aggregate the costs across time for both inter-generational and inter-regional analyses, a discount rate is introduced.

We made three types of analysis in section 3. First, we divided the years 2020–2100 into two generations to analyze inter-generational equity. The current generation was defined as 2020–2060 and the future one as 2060–2100. Then, we compared the net present value (NPV) of both generations in terms of absolute consumption loss in the various scenarios. Using the discount rate, we converted future mitigation costs into an equivalent present value for 2020 and aggregated the values. The second and third are for inter-regional equity by evaluating the relationship between the consumption loss rate and GDP per capita across regions in each year as well as their average values for the entire period.

2.3.1. Ramsey rule and the discount rate

The discount rates were determined by equation (1) based on the Ramsey rule [23]:

$$\begin{eqnarray}&&{\rho }_{{\rm{t}},{\rm{r}}}=\delta +\eta {g}_{{\rm{t}},{\rm{r}}}.\end{eqnarray} \tag{ 1 }$$

Here ${\rho }_{{\rm{t}},{\rm{r}}}$ is the discount rate at time t for region r, and $\delta$ is the pure rate of time preference for the present. We assumed that the pure rate of time preference was 0 following the practice of previous studies [24, 25], because there is broad consensus for a zero or near-zero pure rate of time preference for the present [1]. The parameter ${g}_{{\rm{t}},{\rm{r}}}$ is the consumption growth rate in region r, and $\eta$ can be viewed as a measure of intertemporal inequality aversion [26–29]. AR5 [1] explained $\eta$ with the following thought experiment. Imagine an economic policy the aim of which is to increase consumption by 1 unit for every person in a poor group by reducing consumption for every wealthy person by x units. The maximum value of x that a person would accept to implement the policy is a metric of that person's inequality aversion. Values of 1–3 were often used for inequality aversion, with 2 being the most common value [1, 30]. This implies that the x from the thought experiment ranges from 2 to 8. Arrow et al [30] suggested that $\eta$ reflects the maximum sacrifice one generation should make to transfer income to another generation.

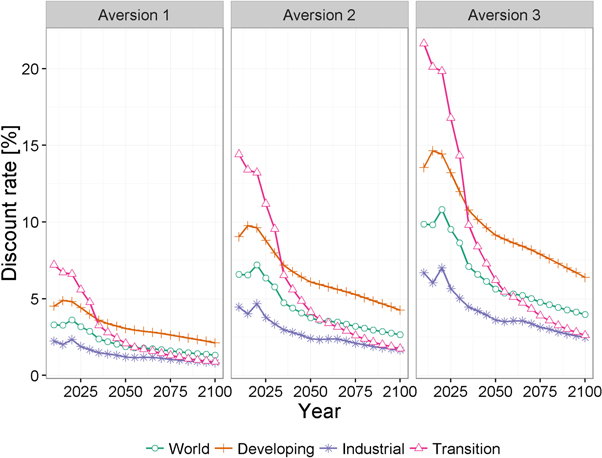

Figure 1 shows how the discount rate varies over time with different values of inequality aversion in Baseline. The discount rates are almost the same across scenarios since the GDP loss is small enough to change discount rates significantly. More detailed consumption growth rates and discount rates in different regions and scenarios are presented in the SM. All of the curves show a declining trend after 2020.

Zoom In Zoom Out Reset image size

2.3.2. Equity principles

3.1.1. GHG emissions

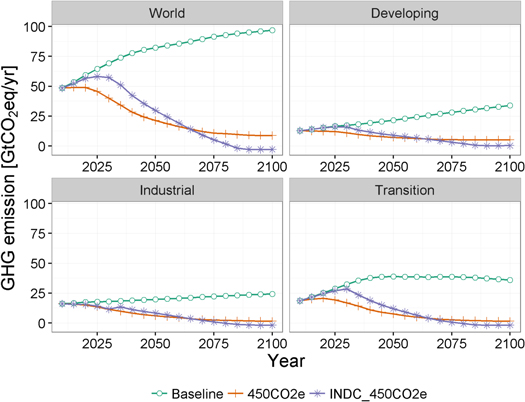

Figure 2 shows the emission paths for the Baseline, 450CO2e and INDC_450CO2e scenarios. To meet the 2 °C target, the 450CO2e scenario assumes a gradually declining global emission path. Total global emissions are 48.9 GtCO₂eq in 2020 and 8.76 GtCO₂eq in 2100. In the INDC_450CO2e scenario, each country's emissions between 2020 and 2030 are consistent with its INDC pledge. After 2030, the gap in cumulative CO₂ emissions from before 2030 as compared with emissions in the 450CO2e scenario will be filled by allocating additional emissions reductions to the latter part of the period. After 2080, total global emissions reach a lower limit and then remain steady.

Zoom In Zoom Out Reset image size

Emissions in developing countries, transition countries, and globally are greater in the INDC_450CO2e scenario than those in the 450CO2e scenario from 2020 to 2030, whereas they are about the same in industrial countries. Industrial countries' emissions increase slightly after 2030, primarily because the global uniform carbon price after the INDC period is much lower than it is during the INDC period.

3.1.2. Carbon price

In the 450CO2e scenario, a uniform global carbon price is assumed throughout the period. In the INDC_450CO2e scenario, we set country-level carbon prices from 2020 to 2030 and a uniform global carbon price from 2030 to 2100. Carbon price climbed dramatically after 2075 in the INDC_450CO2e scenario (figure 3(a)), primarily because greater emission reductions are required in the latter part of the century and the marginal cost of emission reduction is rising. Developing countries and transition countries have lower carbon prices in the INDC_450CO2e scenario than in the 450CO2e scenario from 2020 to 2030, whereas industrial countries have higher prices (figure 3(b)).

Zoom In Zoom Out Reset image size

3.1.3. Mitigation cost

Figure 4 presents regional and global consumption loss rates as an indicator of mitigation costs. Global mitigation costs in the INDC_450CO2e scenario are less than those in the 450CO2e scenario before 2060, but they are higher afterwards. Because the discount rate is not accounted for in these figures, the mitigation cost of the current and the future generations are not comparable.

Zoom In Zoom Out Reset image size

We calculated the NPV of consumption losses for the current (2020–2060) and future (2060–2100) generations, as well as the relative differences between the two generations in each scenario. The relative difference was calculated as (NPV of the current generation−NPV of the future generation)/NPV of the future generation. This difference reflects the relative gap in mitigation costs between the two generations. Hence, it is an indicator of inter-generational equity—smaller values indicate greater inter-generational equity. It is important to note that it is only the absolute value of the relative difference that matters, not whether the value is positive or negative.

Figure 5 shows the consumption losses for the two generations and the relative differences between the two generations' global consumption losses. The discounted consumption loss is lower in the current generation and higher in the future in the INDC_450CO2e scenario as compared with the 450CO2e scenario for all inequality aversion values. The relative difference decreases as inequality aversion increases in both scenarios, but the relative difference in the 450CO2e scenario is always lower and approaches 0 when the inequality aversion is 3. Except for the case when the inequality aversion is 3 in the 450CO2e scenario, both scenarios favor the current generation over the future generation. In addition, the INDC_450CO2e scenario always has worse inter-generational equity, regardless of the inequality aversion value. It should be noted that the absolute difference is small when inequality aversion is high, which will not be apparent in the relative differences figure.

Zoom In Zoom Out Reset image size

Figure 6 shows scatter plots for the NPV consumption loss rates of the entire time period of 17 regions versus GDP per capita for the 450CO2e and INDC_450CO2e scenarios. We used the NPV consumption loss rate for each region to represent the average mitigation cost throughout the entire time period. The trend lines of the scatter plots show the trend of the relationship between income and mitigation cost for the different scenarios. A negative sloping trend line indicates that mitigation causes low-income countries to have higher consumption loss rates. The slope of the trend line in scenario INDC_450CO2e is more negative than that of scenario 450CO2e when the inequality aversion is small (i.e., 1). When the inequality aversion is 2 or 3, the slope in the INDC_450CO2e scenario is greater than that of the 450CO2e scenario. This occurs because the impact of the latter part of the century become less important to the NPV of the entire time period when the discount rate is relatively high, and the earlier part of the century is more heavily weighted.

Zoom In Zoom Out Reset image size

Focusing on the confidence intervals (>95%) of the slope parameters, the aversion 3 case is relatively small (table 2) and there is no great overlap between 450CO2 and INDC450CO2e. Therefore, under the assumption of equality aversion parameter 3, their difference is sufficiently large. However, it would be difficult to distinguish differences between these two scenarios with small aversion parameters 1.

We also evaluated variations in inter-regional equity over time from the regression parameters of the inter-region scatter plots in different years (figure 7). The discount rate is not used here. In the first part of the period, scenario INDC_450CO2e has better inter-regional equity compared to scenario 450CO2e. After about 2060, however, the situation is reversed. Focusing on the confidence intervals (>95%) of the slope parameters in figure 7, in the early and late parts of this century, i.e., before 2045 and after 2075, there is no great overlap between the 450CO2e and INDC450CO2e scenarios. Therefore, the slopes of the curves differ significantly. Between 2045 and 2075, however, the confidence intervals are large and we could not distinguish the slopes of the curves in the two scenarios.

Zoom In Zoom Out Reset image size

We assumed a uniform carbon price across regions for the entire period in the 450CO2e scenario and from 2030 to 2100 in the INDC_450CO2e scenario. A global carbon price would have a greater adverse impact on low-income countries than on high-income countries. Before 2030, INDC pledges ensure that inter-regional equity improves because low-income regions gain opportunities to develop their economies by pledging lower emission reductions during this period. During this period, a uniform carbon price in 450CO2e scenario harms the inter-regional equity. The low-income countries continue to benefit from this economic development from 2030 to 2055 even though the global carbon price increases. Thus, before 2060, inter-regional equity is better in the INDC_450CO2e scenario, but the carbon price after 2060 becomes much higher in the INDC_450CO2e scenario than in the 450CO2e scenario, and mitigation costs increase for the low-income countries. At this point, the impact of the global carbon price becomes dominant, and the INDC_450CO2e scenario performs worse than the 450CO2e scenario in terms of inter-regional equity.

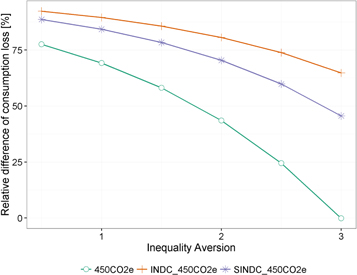

In the SINDC_450CO2e scenario, we assumed each region had more stringent INDC emission targets to explore how it would affect inter-generational and inter-regional equity. Increasing the emissions reduction target in the INDC period reduced the relative difference of consumption losses between current and future generations compared with the INDC_450CO2e scenario (figure 8).

Zoom In Zoom Out Reset image size

That the SINDC_450CO2e scenario has a regression line slope that is less negative than the slope of the INDC_450CO2e scenario regression line when the inequality aversion is below 2 (figure 9) indicates greater inter-regional equity. This is primarily because the carbon price is lower in SINDC_450CO2e than it is in INDC_450CO2e, particularly in the latter half of the century.

Zoom In Zoom Out Reset image size

There are four points to be discussed. First, we observed that inter-generational equity was worse in scenario INDC_450CO2e than it was in 450CO2e, mainly because INDC_450CO2e has a limited amount of emission reductions through 2030 and postpones the reduction efforts into the future as compared with 450CO2e. The inter-generational equity status for the INDC and post-INDC emission pathway is not favorable in this sense, because the future generation suffers from the larger emissions reductions required in the latter part of the century. This conclusion was robust for inequality aversion parameters (i.e., implied discount rates) ranging from 1 to 3. This would suggest that additional emission reduction efforts in the near term are desirable to achieve the 2 °C target from the viewpoint of inter-generational equity.

Second, scenario INDC_450CO2e performs better in terms of inter-regional equity during the entire period on average as compared with scenario 450CO2e if the inequality aversion is large. Equity was defined such that high-income regions and low-income regions have close consumption loss rates. Under this principle, INDC_450CO2e has better inter-regional equity in the early part of the century as compared with that of 450CO2e in which a global carbon price is assumed during the period up to 2030. However, this is not the case for the latter part of the century because of the drastic increase of mitigation costs in this period.

Third, the modified INDC scenario, SINDC_450CO2e, had increased emission reductions prior to 2030. Inter-generational equity improved as compared with INDC_450CO2e, although it still was worse than inter-generational equity with 450CO2e. Furthermore, its average inter-regional equity was also better than that of INDC_450CO2e. The Paris Agreement states that emissions targets will be reviewed and revised in 2020 [2]. This implies that there is still room to enforce stronger emissions reduction for 2030. Our results indicate that each country should adjust its target and commit to greater emissions reductions in the follow-up INDC communications.

Moreover, although we did not consider a specific burden-sharing scheme after 2030 in this study, we surmise from the inter-regional equity results that a global uniform carbon price is relatively harmful for developing countries. Considering inter-regional equity, global carbon pricing should be avoided. However, a global carbon price is the best solution to achieve our climate goals efficiently. Therefore, we may be better off if we find intermediate solutions. Also, it seems that ongoing consideration for low-income countries will be needed as part of global climate change cooperation after 2030.

There are four points with respect to limitations of this study and future steps. First, the 21st Conference of Parties (COP21) reached an agreement to pursue efforts to limit the global temperature increase to 1.5 °C above pre-industrial levels. How would the status of generational equity change assuming we follow the INDC pledges and the achievement of the 1.5 °C target by the year 2100? We have not yet addressed this issue but regard it as a next step in our study of equity in climate change policy.

Second, in this study we only considered distribution equity in terms of the distribution of global mitigation costs. Historical responsibilities, compensatory justice, and other factors that may also be relevant to the equity discussion [4] were not considered. For example, many studies working on equity issues discuss cumulative emission allocation schemes [31–35], which are not discussed in this paper. Meanwhile, a focus of recent studies has been the emissions transfer from developed countries to developing countries through international trade [36–40]. This emissions accounting method is certainly relevant to the equity debate, but it was not considered in this study.

Third, here we only considered mitigation costs, negative impacts of climate change and adaptation costs are obviously important elements of the generational equity issue. Although mitigation cost assessment is a prioritized area in terms of INDCs and emission reduction targets, impact and adaptation aspects need to be considered in future studies.

Finally, we assumed that each year's emissions after 2030 were adjusted to fill the gap between the immediate emission reduction scenario and the INDC emission targets during the INDC period. In future studies, we may try to use an emission INDC pathway derived from some type of intertemporal model, for example, the DICE model.
