Is anthropogenic sea level fingerprint already detectable in the Pacific Ocean?

In this study, we used the altimetry-based 2D gridded sea level anomalies from AVISO. This data is available on a weekly interval as a ¼° regular grid from January 1993 to December 2013. This is the DT-MSLA 'Ref' series computed at Collecte Localisation Satellite (CLS) by merging several altimeter missions namely: Topex/Poseidon, Jason-1 and Jason-2, Envisat, ERS-1 and ERS-2. This dataset has undergone geophysical and orbital corrections. Detailed information on the dataset and processing can be found in Ablain et al (2009). In order to be consistent with the other data sets used in this study, the altimetry sea level data at weekly intervals has been averaged to a monthly scale. The annual and semi-annual signals have been removed through a least-square fit of twelve and six month period sinusoids. Since the focus of our study is regional sea level trend patterns, the uniform global mean sea level has been removed from the altimetry data.

The contribution of decadal climate variability (i.e. IPO) to sea level can be derived from a regression of the climatic index on sea level (Palanisamy et al 2015). Here we make use of an updated version of the IPO index available from 1871 until mid-2014 (kindly provided by C K Folland). This index is similar to that of PDO which is defined as the leading principal component of the North Pacific (poleward of 20°N) monthly sea surface temperature (SST) variability (Mantua et al 1997, Mantua and Hare 2002, Zhang et al 1997). The IPO is the Pacific-wide equivalent of the PDO, with as much variance in the Southern Hemisphere Pacific (at least to 55°S) as in the Northern Hemisphere (Folland et al 1999). Using the IPO index, we perform a multiple linear regression of IPO and its corresponding Hilbert transform on altimetry based observed sea level. The Hilbert transform will also take the phase of the IPO associated with propagating signal into account (Palanisamy et al 2015). The IPO contributed sea level signal obtained as a result is then removed from the observed altimetry-based sea level.

The limited time length of the altimetry data can become an issue when evaluating low frequency variability in terms of trends (Frankcombe et al 2014). IPO is a low frequency natural climate oscillation with a periodicity of around two to three decades. Several studies (Deser et al 2004, Yasunaka and Hanawa 2003, Hare and Mantua 2000) have shown evidence of four IPO phase changes since the 20th century: two warm phases during 1925–1946, 1977–1997 and two cold phases during 1947–1976 and since 1998. Performing regression of IPO index on the observed altimetry sea level signal since 1993 implies that we take into account only one complete phase of the IPO climate mode, i.e., the current negative IPO phase since 1998. This can result in trend aliasing (Frankcombe et al 2014), i.e. the incomplete separation of the trend and low frequency IPO variability since the period of the internal variability is longer than the altimetry period. The inability to distinguish between the trend and low frequency variability results in the low frequency variability itself to be aliased as a trend. Frankcombe et al (2014) have shown that around 50 years of time series is required to extract low frequency variability from the sea level signal. However, it is to be noted that exact quantification of signal related to internal variability using finite records still remains a challenge. For example, Wittenberg (2009) has shown that there is no guarantee that 150 year historical SST records can be used to determine a full representative for ENSO modulation. Furthermore, Bordbar et al (2015) have mentioned that the lack of long-term observations poses a challenge in quantifying long-term internal variability as it can introduce considerable uncertainty on the future evolution of regional sea level.

In our study, in order to verify if the residual trend pattern in the tropical Pacific after having removed the IPO contribution from altimetry sea level is due to aliasing effect or not, we also used the updated version of a 2D past sea level reconstruction from Meyssignac et al (2012a) available from 1960 to 2013. This 2D past sea level reconstruction is an optimal interpolation of long tide gauge records with Empirical Orthogonal Function (EOF) deduced from the sea level output of 3 different ocean reanalyses, namely GECCO2 (Köhl, 2015), SODA 2.1.6 (Carton and Giese 2008) and ORAS4 (Balmaseda et al 2013). This approach uses EOFs to combine 134 long tide gauge records of limited spatial coverage and 2D sea level patterns based on ocean reanalysis. Three different past sea level reconstructions based on EOFs from each ocean reanalysis were performed and then merged in a unique mean reconstruction following Meyssignac et al 2012a. Compared to previous reconstructions available in the literature, these updated reconstructions are not global reconstructions based on global EOFs. They are based on regional reconstructions over the Pacific-Indian Basin and the Atlantic Basin which were further concatenated into global reconstructions. By separating the Indian-Pacific region from the Atlantic region, it is expected that EOFs are more consistent with the regional climate modes of the basins (ENSO and PDO in the Indo-Pacific region and NAO in the Atlantic) to interpolate the tide gauge records. It yields a better reconstruction of the sea level over the last decades in comparison with independent tide gauge records (see Meyssignac et al  2015).

The linear regression of IPO is then performed on this data with a time length of 53 years and IPO contribution is then removed from the reconstruction-based sea level signal. Comparison of reconstruction based residual trend pattern with altimetry-based residual trend pattern over 1993–2013 would reveal the presence of aliasing if any.

To investigate changes in sea level due to external forcing, we also analyzed the dynamic sea surface height from 21 climate models from CMIP5 (Taylor et al 2012). Table 1 displays the list of CMIP5 models used. The dynamic sea surface height includes changes in the thermohaline and wind-driven circulations (Richter and Marzeion 2014). The CMIP5 climate models do not include the net ocean mass changes from melting ice sheets and glaciers as well as associated gravitational and solid earth responses. But this term is almost uniform over the last 20 years and likely negligible (Landerer et al 2014, Yin et al 2010) in terms of spatial variability in regional sea level trends. Hence it is not important for our study. We used the historical 'all forcing' CMIP5 climate simulations available from 1850/1860. These simulations are forced by natural forcing agents (solar radiation, volcanic aerosols) and anthropogenic forcing agents (e.g. greenhouse gas, anthropogenic aerosols, and ozone etc, Taylor et al 2012). CMIP5 historical simulations in general end in 2005. Since our period of interest corresponds to that of the satellite altimetry era from 1993 until 2013, we therefore extended the historical simulations by concatenating the 21st century projections under the Representative Concentration Pathway (RCP) 8.5 scenario (2006–2098/2100) to the historical simulations. The RCP8.5 scenario assumes continuous anthropogenic GHG emission throughout the 21st century and can also be considered as a representative of the present scenario (IPCC 2013).

Among the 21 models, some models provide multiple realizations of the historical experiment. For example, CMIP5 historical runs initialized from different times of a control run would be identified as 'r1','r2', etc. The RCP simulation is assigned the same realization number as the historical run from which it was initiated (information on CMIP5 data reference syntax can be found at http://cmip-pcmdi.llnl.gov/cmip5/output_req.html). In our study, all possible realizations that correspond to the Historical+RCP8.5 simulations were taken into account (see table 1). As a result, 53 realizations were used in this study. The data is at yearly resolution and the spatial fields are remapped to a regular 1° × 1° resolution. All climate models are corrected for the model drift (Gregory et al 2001, Sen Gupta et al 2012) by removing the quadratic trend in the time series of the accompanying pre-industrial control run. The global mean was removed from the dynamic sea level data at every time step.

The temporal phases of the internal climate variability in the CMIP5 models are not reproduced. This is because in Global Coupled Models (GCMs), the unforced internal climate modes (e.g. ENSO, IPO) are not constrained to be synchronized to real-world occurrence (Landerer et al 2014). Furthermore, the ability of climate models to accurately reproduce the internal climate modes has been a questionable subject. Since the interest of this study is to look for externally forced sea level signals, performing a multi-model ensemble (MME) of several such CMIP5 models will in general average out/reduce signals related to internal climate variability thereby reflecting the forced signal mostly due to external forcings. To avoid bias to models with more realizations, in this study, the realizations of each model are first averaged to obtain the model mean and then the 21 models are averaged (as in Yin, 2012).Taking into account one realization per model (instead of averaging all realizations of each model first) produces the same results.

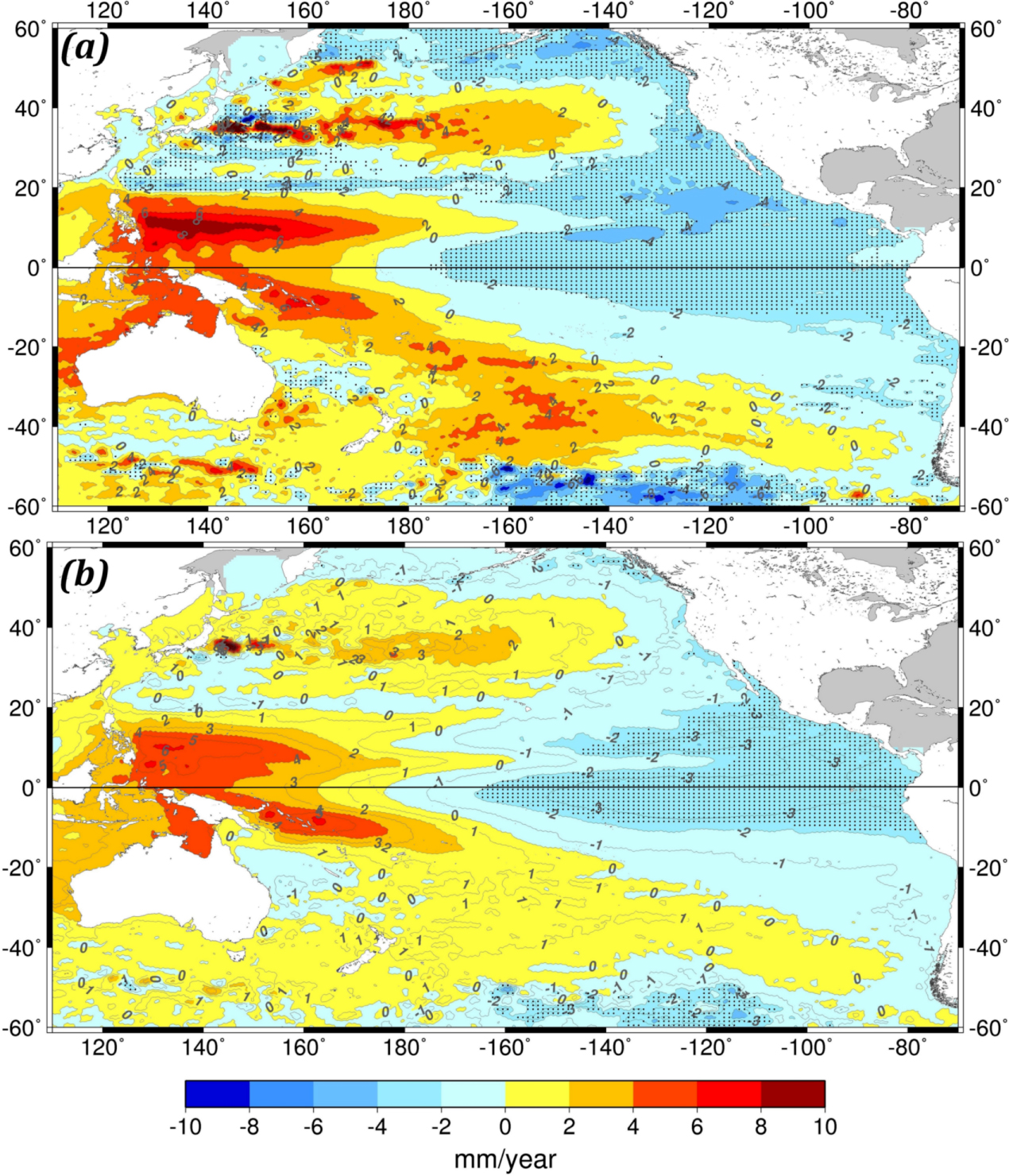

Figure 1(a) displays the observed altimetry based sea level spatial trend pattern over 1993–2013 (with the global mean sea level (GMSL) removed) and figure 1(b) displays the contribution of IPO to Pacific Ocean sea level trend over 1993–2013 based on the regression of IPO index on sea level signal. Stippling indicates regions where the trends are non-significant (p-value > 0.05). The IPO contributed sea level trend pattern exhibits similar broad scale positive v-shaped trend pattern and east-west tropical dipole as the observed altimetry-based sea level trend pattern. This trend pattern is also similar to the decadal sea level fingerprint of Zhang and Church (2012) (see their figure 4(b)) and the PDO contributed sea level trend pattern of Hamlington et al (2014a) (see their figure 1(b)). Their methodology of calculation of the decadal sea level fingerprint somewhat differs from the methodology used in this study. Zhang and Church (2012) used multiple variable linear regression (defining 'new' interannual and decadal climatic indices based on PDO and Multivariate ENSO Index (MEI)) to discriminate the interannual, decadal and longer term trend. On the other hand, Hamlington et al (2014a) estimated the PDO contribution by an EOF analysis of sea level reconstruction (Hamlington et al 2014b) based 20 year trend patterns from 1950 to 2010. Based on the results obtained in this study and studies of Zhang and Church (2012) and Hamlington et al (2014a), we can observe that the IPO contributed observed sea level spatial trend pattern is hardly sensitive to the methodologies used.

Zoom In Zoom Out Reset image size

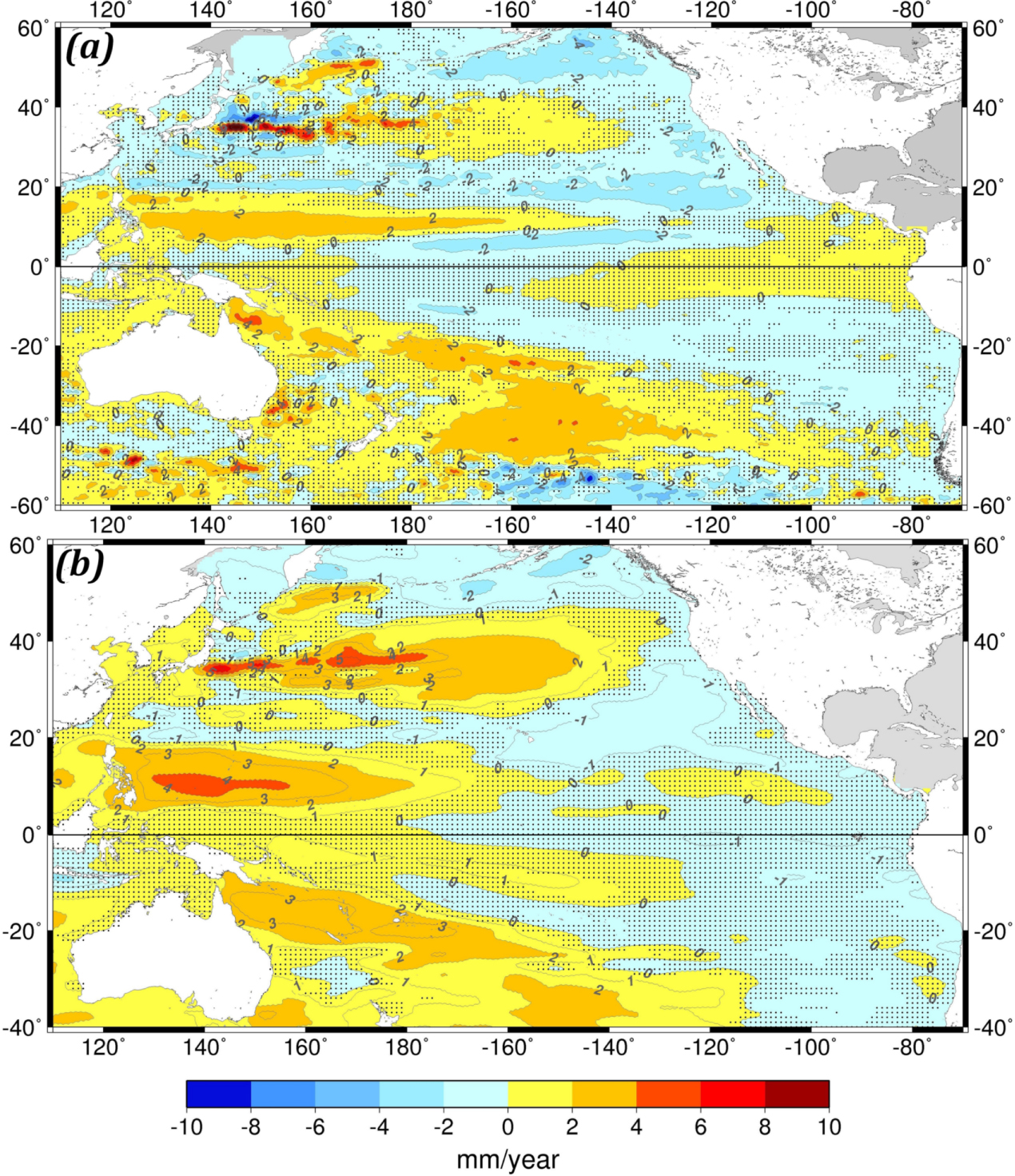

Observed altimetry-based sea level trend pattern without IPO contribution (figure 2(a)) and henceforth called the (Alti-IPO) residual signal, is estimated by subtracting the IPO contributed sea level signal from the altimetry based sea level signal. The Alti-IPO sea level trend pattern is insignificant in most of the regions of the Pacific Ocean with exceptions in the western tropical and southern central Pacific. Though weaker, the positive trend pattern in the western tropical Pacific (especially near 10°N/S) is in the order of 2–4 mm yr^-1. The residual sea level trend pattern is similar to figure 1(c) of Hamlington et al (2014a) that has been attributed to an anthropogenic sea level fingerprint.

Zoom In Zoom Out Reset image size

In order to verify if the residual trend pattern is due to aliasing of IPO and sea level signal as a result of short time length of study, we used the 2D reconstruction based Pacific Ocean (until 40°S latitude as the reconstruction data is not available further south) sea level spatial trend pattern over 1993–2013 without IPO contribution (figure 2(b)). As described in section 2.2, this is obtained by performing a regression of IPO on reconstruction based sea level signal over 53 years and removing its contribution. The residual trend patterns in both figure 2(a) (Alti-IPO) and figure 2(b) (reconstruction-IPO) at the region of interest, i.e the western tropical Pacific are very similar. This implies that the trend pattern of the Alti-IPO residual signal is likely not a result of the aliasing effect.

3.1.1. Analysis of Alti-IPO residual signal

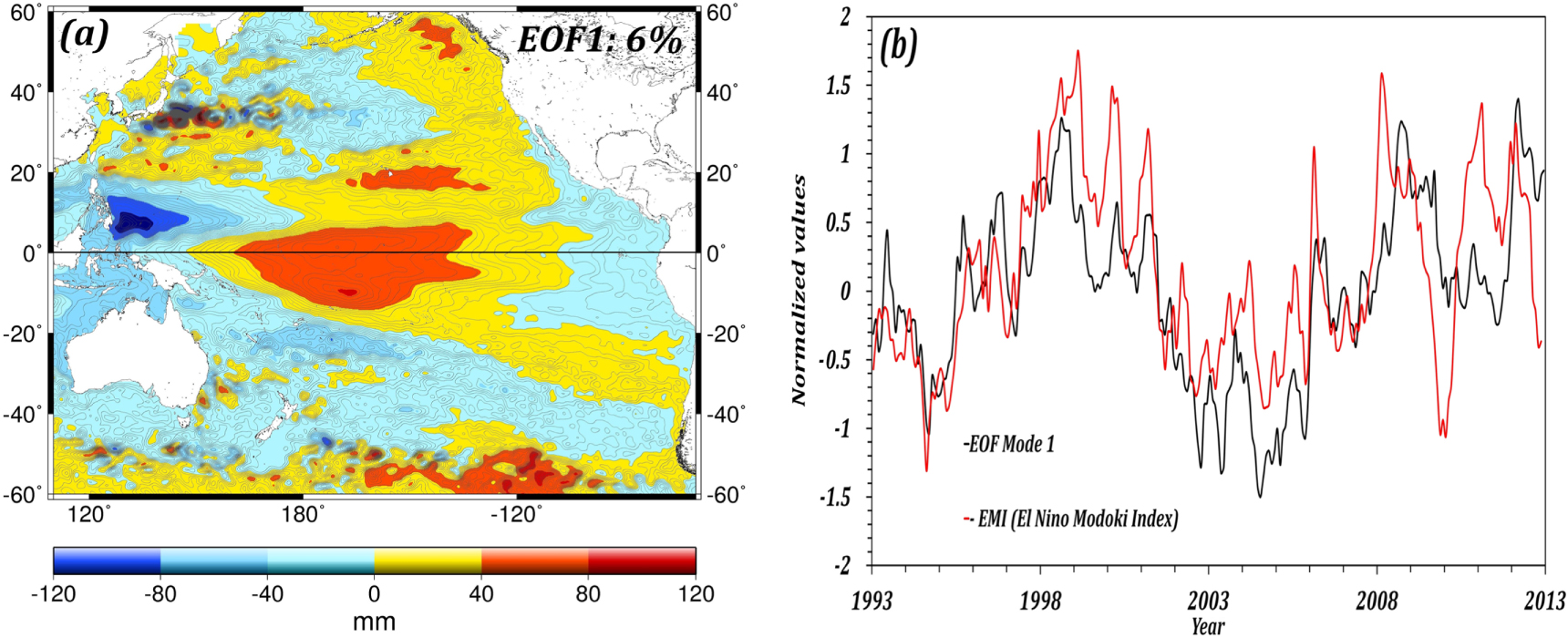

As the next step, we tried to verify if Alti-IPO residual pattern can be related to any physical processes. So an EOF analysis was first performed on the Alti-IPO residual signal and the mode with the maximum variance was analyzed. Figures 3(a) and (b) show the spatial pattern and corresponding temporal curve of the first EOF mode of Alti-IPO sea level signal, respectively. The maximum variance explained by the first EOF mode of the Alti-IPO residual is only 6%. Performing an EOF analysis directly on the Pacific Ocean observed altimetry based sea level results in a first mode with a variance of 17% (not shown here). The reduction in the maximum variance explained by the Alti-IPO EOF implies the significant role of IPO in the Pacific Ocean sea level. From figure 3(a), we can observe that the spatial pattern very closely resembles the central Pacific ENSO event, also called the El Niño Modoki. While conventional El Niño is characterized by strong anomalous warming in the eastern tropical Pacific, El Niño Modoki is associated with strong anomalous warming in the central tropical Pacific and cooling in the eastern and western tropical Pacific (Ashok et al 2007, also see figure 14 of Bosc and Delcroix (2008)).

Zoom In Zoom Out Reset image size

The temporal curve that corresponds to EOF1 was then analyzed. Firstly, it was correlated with the El Niño Modoki Index (EMI). The index is calculated as the area averaged sea surface temperature anomaly (SSTA) over 3 regions: (1) 165°E–140°W, 10°S–10°N, (2) 110°W–70°W, 15°S–5°N, and (3) 125°E–145°E, 10°S–20°N (see Ashok et al (2007) for more details). Over 1993–2013, we find a correlation of 0.7 between the temporal curve and the EMI index. If we consider only the time period between 1993 and 2008 (since from figure 3(b), we can observe deterioration between the two temporal curves after 2008), the correlation increases to 0.8. The correlations are all significant at the 95% confidence level. One possible reason for the deterioration of correlation after 2008 (correlation = −0.2) could be related to the occurrence of two extreme La Niña events (2007–2008 and 2010–2011). However this needs to be further investigated. Even though this mode represents only 6% of the total variance, it can have an impact on sea level trends. For example, the positive trend observed in the temporal curve between 2004 and 2008/2009 is related to the period of El Niño Modoki events (see figure 1 of Singh et al (2011)). As a result, during this time period, the central tropical Pacific experienced increased sea level rates.

On performing a power spectral analysis on the EOF1 temporal curve over 1993–2013, we obtain a periodicity of approximately 3 years. This corresponds to the periodicity of ENSO events that ranges between 3 and 8 years.

The presence of El Niño Modoki signal in the Alti-IPO residual indicates that there is in fact some ENSO-related (in specific El Niño Modoki until 2008) internal variability still remaining even after the removal of IPO.

3.1.2. Analysis of Alti-IPO-EMI residual signal

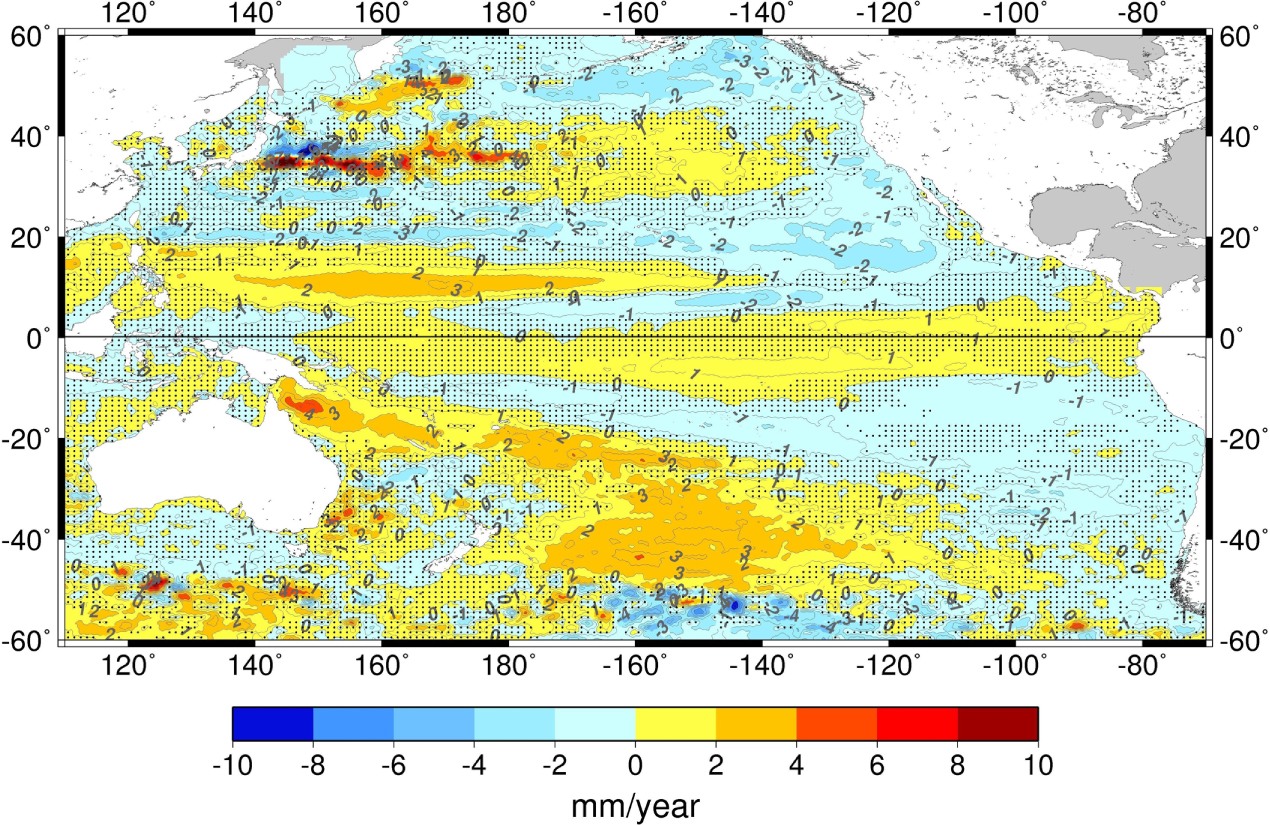

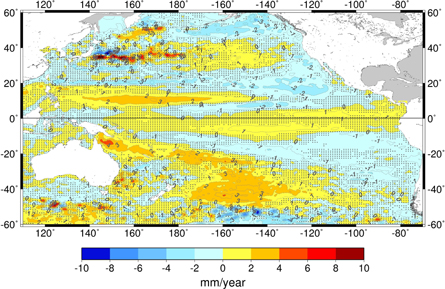

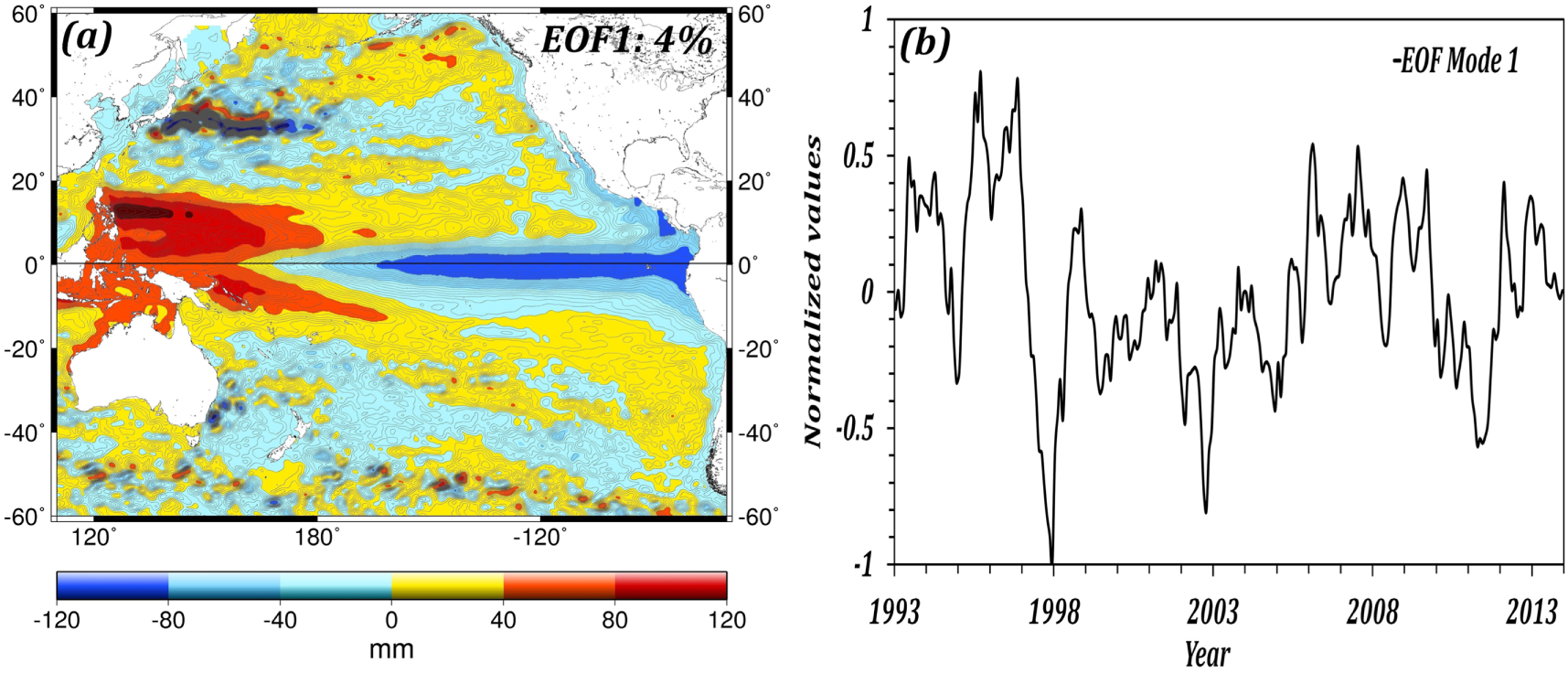

To further analyze the residual trend pattern, we then removed the El Niño Modoki contributed signal from the Alti-IPO residual signal (henceforth called Alti-IPO-EMI) by once again performing a linear regression of EMI on Alti-IPO. Figure 4 displays the sea level spatial trend pattern in the Pacific Ocean from observed altimetry without IPO and El Niño Modoki related internal variability. On comparison with Alti-IPO residual sea level trend pattern in figure 2(a), we can observe that the removal of the El Niño Modoki signal from Alti-IPO results only in a small decrease in magnitude of the residual sea level trend with no significant changes in the trend pattern. Furthermore, in figure 4, we can observe meridionally alternating positive and negative sea level trend patterns within 20°N and 20°S with mostly positive trend patterns at the equatorial band. These patterns suggest accumulation of a warm water volume in the equatorial band and a reduction in the north and south equatorial counter currents which all together are a reminiscent of a strong El Niño situation (Meinen and McPhaden 2000, Kessler and Taft 1987). However, since the trend patterns in this region are not significant, it is difficult to have a robust conclusion on this. An EOF analysis on the Alti-IPO-EMI sea level signal results in the first EOF mode closely resembling the eastern Pacific ENSO event in terms of spatial pattern (figure 5(a)) with the evident strong 1997/1998 El Niño event clearly visible in the temporal curve (figure 5(b)). The periodicity of the temporal curve is around 3–4 years and this once again corresponds to the ENSO periodicity.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

All the above discussed results show that attempts to separate/remove both decadal and interannual climate modes from observed altimetry based sea level signal through the method of linear regression (as shown in this study) or the methodology of Hamlington et al (2014a) do not in fact totally eliminate the internal sea level variability. Some non-linear internal variability related to intense ENSO events such as the 1997/1998 El Niño still remains in the residual.

3.2.1. Multi model ensemble (MME) and internal climate modes

As mentioned in section 2.3, performing a Multi Model Ensemble (MME) of the 21 CMIP5 models would in general average out/reduce sea level signal due to internal climate modes. The MME containing only the expected sea level response to external forcings (natural and anthropogenic) can then be compared with the Alti-IPO and Alti-IPO-EMI residual sea level trend patterns. If the sea level spatial trend pattern of MME is similar to that of the above mentioned two residual trend patterns, we can conclude the presence of externally forced sea level signal in the Pacific Ocean over the 2 recent decades.

Before a direct comparison of the sea level trend patterns, the presence of any internal climate modes in the MME was first verified. EOF decomposition was performed on the MME-based sea level signal between 1900 and 2098, and the corresponding spatial and temporal patterns were studied. Even though the main region of interest of our study is the Pacific Ocean, for this verification, we chose the global ocean. This would enable us to verify the effectiveness of MME in reducing the impact of internal climate modes not only in the Pacific but also in the other oceans. Furthermore, such verification would also give us an idea on regions where the impact of external forcing is the maximum and the structure of their corresponding spatial patterns.

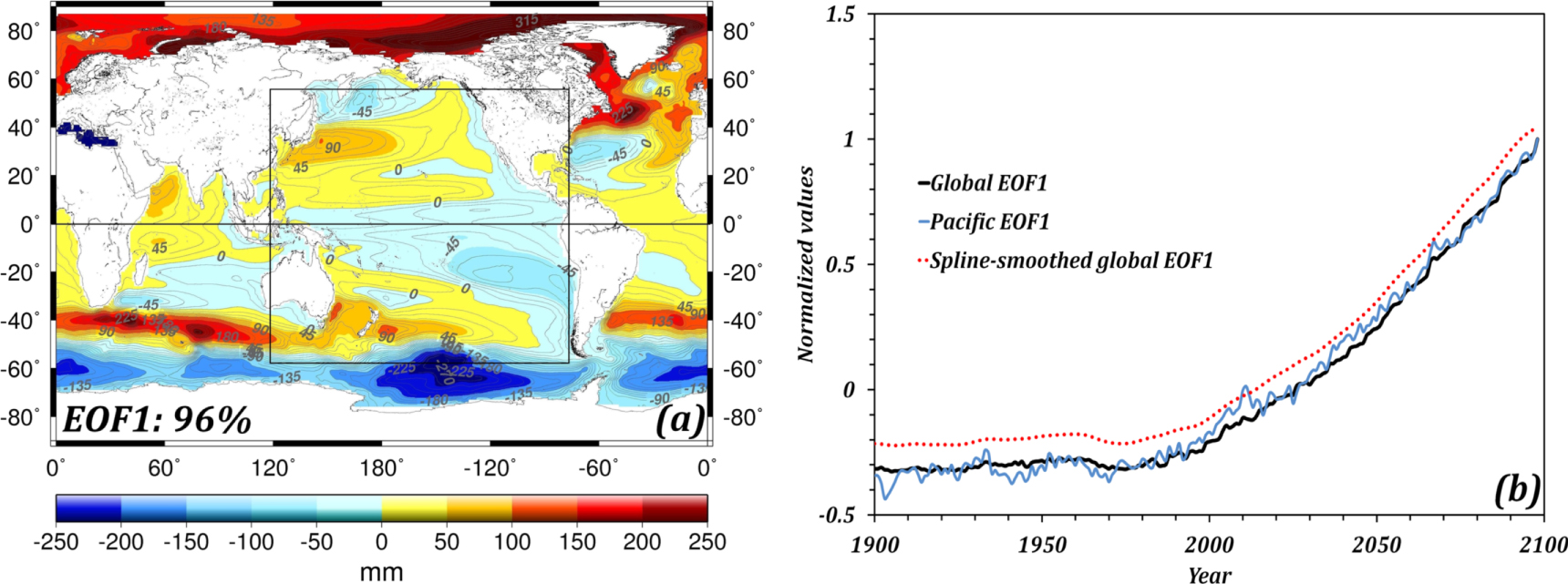

Figure 6(a) and the black curve in figure 6(b) display the spatial pattern and temporal curve of the first EOF mode of the MME sea level with total variance of 96%. The second and third EOF modes contribute 3% and 1% of the total variance and do not exhibit any significant spatial patterns or temporal curves (not shown here). From figure 6(b), we can observe that the temporal curve is almost flat until 1970 after which there is an increase that continues over time implying an accelerated dynamic sea level change. Skeie et al (2011) (figure 1(a)) and Myhre et al (2013) (figure 8.18) have shown that the radiative forcing from CO₂ and other well-mixed greenhouse gases (WMGHG) has rapidly increased since the 1950s with the CO₂ emission being the largest contributor to the increased anthropogenic forcing since 1960s. These are in agreement with the time series in figure 6(b) showing an increased signal since 1970.

Zoom In Zoom Out Reset image size

In terms of spatial pattern, this increase in sea level appears in the northern high latitudinal band between 70°N and 85°N, North Atlantic Ocean south of Greenland between 30°N and 60°N and also in the southern latitudinal band between 40°S and 45°S. Regions of positive sea level patterns also occur in the western extra-tropical Pacific Ocean between 30°N and 40°N and in western Indian and central Atlantic oceans. Region of negative sea level change appears in the Southern Ocean beyond the 50°S latitudinal band. This is in agreement with the results from Bilbao et al (2015). Performing the same EOF analysis only on the Pacific Ocean (boxed region in figure 6(a)), we obtain the same Pacific Ocean spatial pattern (with a variance of 93%) as in figure 6(a). The temporal curve that corresponds to the Pacific Ocean first EOF mode (blue curve in figure 6(b)) is very similar to that of the global EOF1 temporal curve. On close observation of both EOF1 temporal curves, we can also notice that while the global curve exhibits small amplitude oscillations, the curve corresponding to the Pacific Ocean exhibits higher amplitude oscillations throughout the time period. Presence of oscillations in both the curves which do not correspond to oscillations in the external forcing (due to volcanic forcing or solar forcing) indicates that performing the multi-model mean may not average out the entire signal that corresponds to internal variability and there may still remain some residual internal variability. Since, in general the internal variability exhibits stronger amplitude oscillations regionally than globally, even the residual of the Pacific Ocean internal variability obtained (blue curve in figure 6(b)) tends to be greater at regional scale.

In order to effectively obtain the temporal curve and spatial pattern that corresponds to external forcing only, we performed a spline smoothing (Ribes et al 2010) on the global EOF1 temporal curve to remove the small amplitude oscillations. The smoothed temporal curve (red dotted curve in figure 6(b) with an upward offset of 0.1 for clarity) is then regressed on to the CMIP5 MME sea level dataset and the sea level pattern that corresponds to the smoothed temporal curve is obtained. On calculating the variance, the CMIP5 MME sea level signal thus obtained after regression (hereafter called regressed CMIP5 MME) explains 97% of the total CMIP5 MME signal. The regressed CMIP5 MME sea level signal can now be considered to contain mainly externally forced sea level signal.

3.2.2. MME-based sea level spatial trend pattern over altimetry period

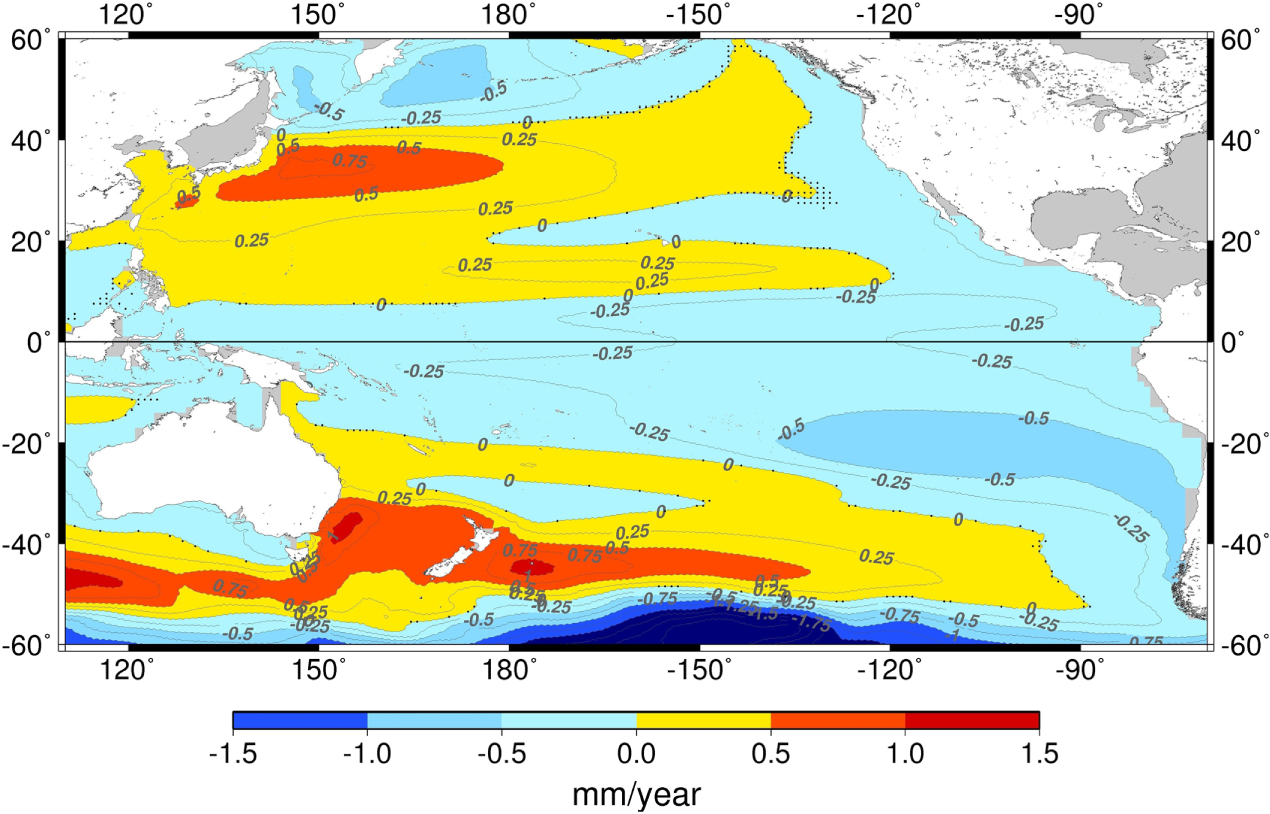

As mentioned in section 3.2.1, the regressed CMIP5 MME sea level signal that contains mainly externally forced signal can be compared with Alti-IPO and Alti-IPO-EMI residual sea level spatial trend patterns to verify if the two latter residual patterns are linked to external forcing. Figure 7 displays the regressed MME-based sea level spatial trend pattern in the Pacific Ocean between 1993 and 2013. Stippling indicates regions where the trends are insignificant (p-value > 0.05). The externally forced sea level spatial trend pattern is positive in the north-west and south-west Pacific Ocean between the sub-tropical latitudes of 20°N–40°N and 20°S-40°S. In the north-west Pacific, the positive trend values are in the order between 0.2 mm yr⁻¹ and 0.7 mm yr⁻¹ while in the south-west the trend values range between 0.2 mm yr⁻¹ and 1.6 mm yr⁻¹. Interestingly, from the Alti-IPO (figure 2(a)) and Alti-IPO-EMI (figure 4) residual patterns, we can clearly notice that in the western tropical Pacific, the residual sea level trend patterns are not comparable with the regressed CMIP5 MME based trend pattern in figure 7 (Note that the color scale is not the same as in figure 2(a) and 4). Contrary to the Alti-IPO and Alti-IPO-EMI trend patterns, the positive trend pattern that appears in the western tropical Pacific extending towards the east between 10°N to 20°N and 120°E to 120°W is only in the range of 0.1 mm yr⁻¹ to 0.3 mm yr⁻¹. The absence of significantly high positive sea level trend in the western tropical Pacific over the altimetry era from the regressed CMIP5 MME based data shows that the residual trend patterns observed in the altimetry signal after having removed IPO and EMI contribution is not consistent with the CMIP5 MME based expected sea level response to external forcing. This once again suggests that the residual Alti-IPO/ Alti-IPO-EMI patterns cannot be attributed to anthropogenic signal. However in the Pacific Ocean east of the Australian continent between 20°S and 40°S latitudes, we can observe that the Alti-IPO and Alti-IPO-EMI trend patterns are consistent with that of the CMIP5 MME. This indicates the possible sea level response to external forcing in this region.

Zoom In Zoom Out Reset image size

Several earlier studies (e.g. Zhang and Church 2012, McGregor et al 2007, Verdon and Franks 2006, Power et al 2006 Deser et al 2004, Mantua and Hare 2002) have tried to understand and explain the relation between ENSO and IPO/PDO. They have shown that PDO/IPO is essentially the low frequency residual of ENSO variability occurring at multi-decadal time scales. Furthermore, Verdon and Franks, (2006) have shown that an increased occurrence of El Nino events during positive phase of PDO/IPO whereas negative PDO/IPO triggers more La Niña events.

While the above mentioned studies have shown that PDO/IPO and ENSO are inter-related, several studies (e.g. Schneider and Cornuelle 2005, Pierce 2001) have also shown that the former is not a mode of variability linked only to ENSO but is a blend of several other phenomena like the zonal advection in the Kuroshio-Oyashio Extension, Aleutian low anomalies and others. All these studies lead us to question if attempts to remove the decadal natural climate mode (PDO/IPO, if assumed that they are adequately sampled using existing historical and observational records) from the sea level signal could also effectively remove all other internal natural climate modes.

In this study, we analyzed the observed altimetry based sea level spatial trend patterns in the Pacific Ocean after having removed IPO contribution through linear regression. On performing a simple EOF analysis on the residual (Alti-IPO) sea level signal, we found the presence of ENSO-related El Nino Modoki (Central Pacific) signal in the residual. Further efforts to remove the El Niño Modoki signal from Alti-IPO signal through linear regression still resulted in the presence of Eastern Pacific ENSO signal in the residual. This indicates that linearly regressing IPO on observed sea level and removing its contribution does not totally remove the entire internal sea level variability. Nonlinear ENSO-related variability that does not linearly co-vary with IPO still remains in the residual sea level signal. Our results show that the methodology of removing the main decadal natural climate mode from sea level signal and analyzing the residual is not an effective way to explain the contribution of external anthropogenic sea level fingerprint.

The range of altimetry-based regional sea level trend uncertainties/error estimate should also be considered in these studies as the residual sea level trend pattern after removing IPO and ENSO contributions should be compared to the pattern of uncertainty. A detailed comparison is beyond the scope of this study as further investigations are needed to obtain accurate altimetry-based trend error patterns at regional scale. However we expect that the patterns of regional altimetry error do not coincide to those in figure 2(a) (Alti-IPO) and figure 4 (Alti-IPO-EMI) as the errors are mainly large spatial patterns at hemispherical scale in the order of 2 mm yr^-1 to 3 mm yr⁻¹ with orbital errors contributing the most (Ablain et al 2015, Couhert et al 2015).

Furthermore, regressed CMIP5 MME-based sea level spatial trend pattern in the tropical Pacific over the altimetry period do not display any positive sea level trend values that are comparable to the altimetry based sea level signal after having removed the contribution of the decadal natural climate mode. This suggests that the residual positive trend pattern observed in the western tropical Pacific is not externally forced and thereby not anthropogenic in origin. In addition the amplitude of the sea level spatial trend pattern from regressed CMIP5 MME is low over the altimetry period in the tropical Pacific. This amplitude is significantly lower than the expected error in trend patterns from satellite altimetry (in the order of 2 mm yr^-1 to 3 mm yr⁻¹, Ablain et al 2015, Couhert et al 2015) and suggest that satellite altimetry measurement is still not accurate enough to detect the anthropogenic signal in the 20 year tropical Pacific sea level trends.

Our results are also in agreement with studies of Richter and Marzeion (2014), Lyu et al (2014), Jordà (2014), Frankcombe et al (2014), Bilbao et al (2015) who have shown that in regions of high internal variability, the trend due to externally forced signal is masked during longer time spans than in regions of low internal variability. This is the case of tropical Pacific which is a region highly impacted by internal variability. Studying the residual sea level signal after separating/removing the internal climate modes over a short time period of 20 years in this region may not yield significant results with respect to external forcing. This is also in agreement with Meyssignac et al (2012b) who have shown that over the 17 years altimetry period, the tropical Pacific observed sea level spatial trend pattern is mainly due to internal variability.

Our study suggests that detection/attribution studies should be focused on other regions such as Northern and Southern Oceans, North Atlantic, Southern Pacific to the east of Australia. Based on CMIP5 MME (see figures 6 and 7), these are the regions that show significant externally forced sea level signals. Detailed studies on these regions could help us understand the role of externally forced signal on sea level.

Lastly, another important factor to consider would be the impact of external anthropogenic forcing on the natural internal climate modes. In the previous studies (Hamlington et al 2014b, Palanisamy et al 2015) and this current study, it has been assumed that the natural internal climate mode is independent of the external anthropogenic forcing. Attempts have then been made to separate/remove the internal climate mode from the sea level signal and attribute the residual to be anthropogenic in origin. However it should not be forgotten that the anthropogenic global warming signal may not only appear as a constant increasing pattern in response to greenhouse gas emissions (as seen in figure 6(b)) but could also change the behavior of the internal climate modes. Recently, using CMIP5 models, Dong et al (2014) have shown that in the twentieth century, the Pacific Decadal Variability is not only dominated by internal variability but also significantly affected by external forcing (combined effects of greenhouse gases and anthropogenic aerosols). While the greenhouse gas forcing induces strong surface downward shortwave radiation over the tropical Pacific resulting in stronger warming, the anthropogenic aerosol forcing induces stronger cooling in the North Pacific due to reduced surface downward shortwave radiation (Dong et al 2014). Furthermore, in terms of ENSO events, studies such as Cai et al (2015), Cai et al (2014), Power et al (2013 and references therein) have shown an increase in the frequency of extreme El Niño and La Niña events occurring due to increasing greenhouse warming while Yeh et al (2009) show an increase in El Niño Modoki events. Though possibly model dependent, all the above mentioned studies show the role of external anthropogenic forcing on internal climate modes. Therefore by removing/separating the internal climate mode from sea level signal, it is highly probable that we also remove a part of (if not all) the external anthropogenic forcing.

This also indicates that we cannot totally deny the role of external forcing in the western tropical Pacific sea level changes over the two recent decades. Indeed the recent sea level intensification in this region could be a result of very high internal variability driven by intensified trade winds which could have partly been driven by the anthropogenic forcing itself (e.g. England et al 2014). Therefore in future, it is important to first understand how anthropogenic forcing can impact the mechanisms that drive the internal climate modes.
