Overview of the TCV tokamak experimental programme

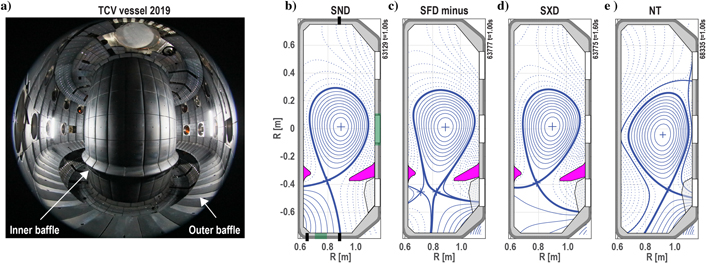

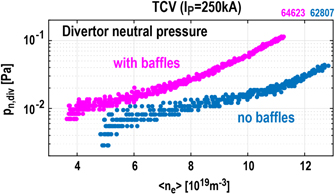

The effect of the neutral pressure in a conventional single-null divertor, figure 1(b), is investigated by comparing identically programed density ramp discharges in baffled and un-baffled configurations. These discharges are performed in reverse field, where the magnetic field is directed in the unfavourable direction for H-mode access to remain in L-mode. L-mode plasmas facilitate tests of divertor models as they are easier to diagnose and plasma parameters are generally more stationary. Measurements with target Langmuir probes and the novel RDPA diagnostic show that, as predicted, increasing p_n,div in the baffled divertor leads to a cooler and denser divertor plasma for the same core density [22]. Ion flux measurements with the RDPA also reveal a stronger ionisation source in the baffled divertor. As a result, and again as predicted, detachment detected by its characteristic target particle flux roll-over, figure 3(a), and a displacement of the CIII emission front towards the X-point, figure 3(b), commences at 20%–30% lower ⟨n_e⟩ [16]. Experiments using main chamber fuelling provide further evidence that the onset of detachment is primarily determined by p_n,div rather than n_e.

Zoom In Zoom Out Reset image size

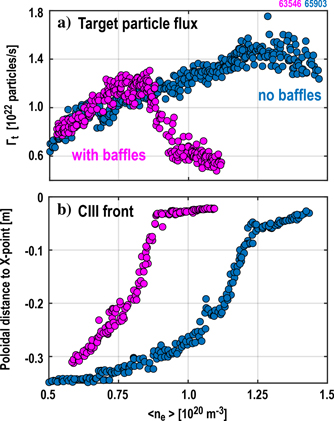

Efforts to test drift models in the SOLPS-ITER code predicted an electric potential well and altered drift patterns in reverse field discharges with extremely low plasma temperatures in the divertor [23]. RDPA measurements in baffled discharges at sufficiently high density and, hence, sufficiently low plasma temperature, subsequently confirmed the presence of such a well [24]. Target current measurements show that, in the cold TCV divertor, more easily accessible with baffles, SOL currents are dominated by Pfirsch–Schlüter currents [24]. These measurements employed a plasma current of 190 kA, the highest value for reliable Ohmic L-mode operation, and both field directions. Measured peaks in the target current, their directions and dependence on field directions and density, are found in qualitative agreement with SOLPS-ITER calculations. A high-fidelity test of SOLPS-ITER was attempted for a density ramp discharge in reverse field and with a somewhat higher current of 250 kA [25]. Cross-field diffusivities were set to match the T_e and n_e profiles measured by Thomson scattering well above the X-point. The model then reasonably describes T_e and n_e below the X-point, measured with the reciprocating probe (RPTCV), and near the outer target, by the new divertor Thomson chords, albeit with somewhat broader than predicted profiles. The model, however, clearly overpredicts the target plasma density and underpredicts its temperature. The model, also, concurrently overpredicts the divertor neutral pressure (by approximately a factor 4). The identified discrepancies will guide further refinements in the model and spur diagnostic developments. One recent question, for example, is the accuracy of the description of molecular-activated recombination (MAR) that, according to a recent spectroscopic investigation, can provide a significant volumetric particle sink in TCV discharges [26, 27].

Detachment was also obtained with nitrogen seeding in reverse field, Ohmic, L-mode discharges [28]. A sufficiently high seeding rate led to the detachment at both targets and the formation of a stable radiator around the X-point. Measurements with TCV's gold-foil bolometer system, with 64 intersecting lines of sight, indicate that up to 80% of the power crossing the last closed flux surface (LCFS) into the SOL can thus be radiated. While nitrogen seeding generally reduced the energy confinement time, this reduction is only a marginal effect at higher plasma density, indicative of a lower level of nitrogen penetration into the core plasma and, yet again, consistent with SOLPS-ITER simulations [29].

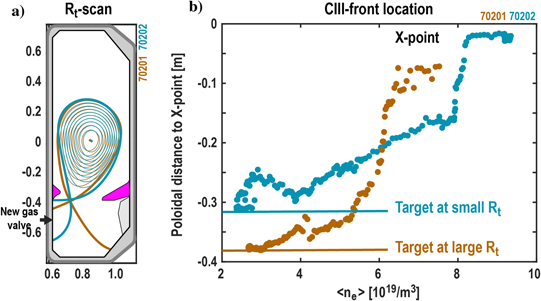

Inspired by the MAST-Upgrade design [30], and motivated by recent SOLPS-ITER simulations that explain the absence of advantageous effects of a larger target radius in previous TCV experiments with a varying angle between the divertor leg and the target surface and poor neutral trapping [31], detailed investigations were conducted on TCV's super-X divertor configuration [32], figure 1(d). Specific configurations designed to disentangle the effects of a large target radius, R_t, and the angle between the divertor leg and the target surface, and employing the divertor baffles and a newly installed gas valve to fuel into the private flux region, figure 4(a), confirm the predicted dependence of the detachment onset on this angle and demonstrate a reduction in the detachment threshold with larger R_t, figure 4(b). This reduction, however, remains weaker than predicted [31] for a strongly baffled divertor. Target measurements with Langmuir probes reveal that, while the electron temperature decreases with larger R_t, the electron density does not increase as expected, reminiscent of the discrepancies identified for the single-null divertor, section 3.1.

Zoom In Zoom Out Reset image size

Other investigations addressed the snowflake minus configuration, figure 1(c), where a secondary X-point in the divertor splits one side of the SOL into distinct divertor legs with consequences for the power distribution to the targets and the radiation volume. In attached conditions, upstream profiles, from reciprocating probe measurements, remain independent of the divertor configuration. Probe measurements at the entrance of the low-field side snowflake minus divertor, a configuration that attracted attention due to its unexpectedly strong broadening of the SOL at the secondary X-point [33], reveal large pressure drops that depend on the position of the secondary X-point and the drift direction and highlight the dominant role of parallel convection and E × B drifts in the power distribution to the targets [34]. Operating the snowflake minus in the baffled TCV divertor revealed significant particle fluxes to the top of the baffle, indicative of divertor over-closure. This hypothesis is supported by experiments on a variant of the snowflake minus, where only the outer divertor is baffled, which achieved a higher divertor neutral pressure than the fully baffled snowflake [35]. This will be further tested with the next combination of baffles foreseen for 2021.

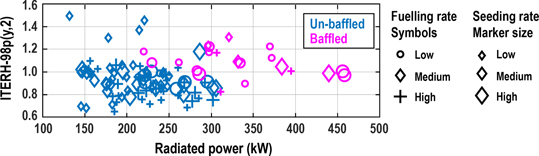

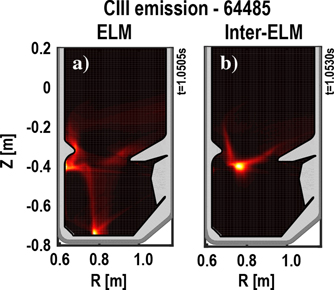

Power exhaust studies were extended to type-I ELMy H-modes at 170 kA (q₉₅ = 4.6) and with 700 kW of NBI heating well above the NBI power of ∼450 kW needed to access H-mode [16]. The addition of the divertor baffles decreases the peak electron temperature at the outer target between ELMs from ∼5 eV to ∼3 eV. Lower divertor temperatures in the baffled divertor are supported by measurements of CIII emission, which is located farther from the target in baffled discharges. Seeding of nitrogen is effective in further cooling the divertor between ELMs as seen by a three-fold decrease in the target particle flux and a CIII emission front that recedes towards the X-point with baffles, figure 5(b). There are, in particular, no indications of a bi-furcation in either case. However, even with strong seeding, ELMs are able to re-attach the plasma divertor legs, figure 5(a).

Zoom In Zoom Out Reset image size

The width of the heat carrying plasma channel of the SOL, λ_q , and its extrapolation to future devices, is key in determining the magnitude of the heat exhaust challenge. Its value generally decreases in H-mode, relevant for most current reactor scenarios, thus magnifying this challenge. Its L-mode scaling remains important as it determines mitigation requirements during the start-up and landing phases of the discharge.

The extensive database of SOL width measurements in TCV L-modes [36], together with a cross-machine database of λ_q [37] spanning more than an order of magnitude, is found to be well described by an analytical model based on turbulent cross-field transport driven by resistive ballooning modes competing with convective parallel transport [38]. A larger experimental spread seen on all devices is attributed to experimental conditions that extend beyond the sheath-limited regime and geometric modifications, such as plasma triangularity, known to affect the ballooning stability, that are, as yet, ignored by the model. Shaping effects are, however, included in the GBS code [39]. A rigorous validation exercise employing reciprocating probe fluctuation measurements in TCV discharges with circular, elongated and (negative) triangular cross sections showed that the shaping model implemented in GBS improves the description of SOL turbulence [40].

In H-mode, the TCV inter-ELM SOL is typically found 2 times smaller than in L-mode, similar to observations in other devices [41], but also 2–3 times smaller than for H-modes in other devices for the same value of poloidal field (PF) [42], suggesting that a scaling solely based on B_pol does not capture all key dependencies. The TCV measurements, however, agree with cross-machine scalings [43] that include terms for the toroidal field, q₉₅ and heating power.

At sufficiently high density, the SOL is generally observed to broaden, with a distinct second, longer, fall-off length in the plasma density emerging—a process referred to as shoulder formation. While the density shoulder does little to alleviate heat loads in the divertor, it is feared it may increase main chamber recycling and erosion, with consequences for particle control, impurity influx and lifetime of the first wall in future devices. Repetition of L-mode discharges that clearly displayed a density shoulder in the un-baffled divertor, showed no such evidence in the baffled divertor, although divertor detachment starts at lower plasma density, providing further evidence that SOL collisionality is not the sole determining criterion [44]. Since baffles are expected to operate with a decreased main chamber neutral density, this behaviour indicates an important effect of neutrals on SOL transport, for example via suppressing zonal flows that stabilise anomalous transport [45] or blob fuelling [46]. Further support for the importance of the main chamber neutral density is obtained from an inner gap scan in the un-baffled divertor [44], with a smaller gap resulting in a more pronounced density shoulder, consistent with a strong, reinforcing, role of main chamber recycling and, hence, neutral pressure.

The characterisation of the SOL turbulence in TCV was extended to H-mode [47]. In the analysed high triangularity (δ = 0.5), low current (I_P = 180 kA), H-mode scenario with 1 MW of NBI heating, the inter-ELM density profiles exhibit a broadening with sufficiently strong fuelling and, hence, divertor neutral pressure, p_n,div, similar to observations on ASDEX-Upgrade and JET. This broadening is accompanied by an increased blob frequency, as detected by Langmuir probes at the outboard midplane wall. Contrary to observations in L-mode, the broadening also prevails for a baffled divertor. The broadening of the upstream density profile is, however, not observed when a dissipative divertor is formed using nitrogen seeding rather than deuterium fuelling.

The L–H threshold, P_LH, remains a critical issue for ITER and for a reactor as it determines the minimum required installed auxiliary heating power, and, neglecting hysteresis, also sets the minimum power that must be successfully exhausted in a divertor during H-mode operation. Current extrapolations are based on empirical scaling laws with 'hidden parameters' that were experimentally observed to affect the measured value.

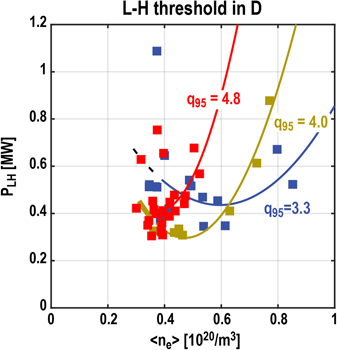

The NBI system allows strong decoupling between heating and plasma current that led to the discovery of a strongly increasing current (or unfavourable q₉₅) dependence of P_LH that increases with density [48], figure 6. This is not included in the present ITPA scaling [49] where good agreement is only obtained for q₉₅ < 3.5 or at a plasma density close to the minimum required to enter H-mode that, ironically, may be the least favourable operational position to enter H-mode with regard to ELM heat loads. Revisiting the isotope and charge number dependence with experiments in D, H and He resulted in good agreement with the ITPA scaling, again provided that q₉₅ is sufficiently low. Adding small concentrations of D to H plasmas showed, however, a rapid decrease of the L–H threshold suggesting doping of H-plasmas as an option to lower P_LH in the pre-nuclear phase of ITER.

Zoom In Zoom Out Reset image size

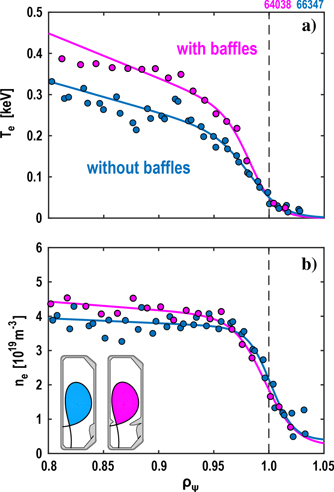

Particular attention was dedicated to the pedestal in type-I ELMy H-modes, where the baffles were used to decouple the roles of main chamber and divertor neutral pressures, p_n,main and p_n,div, in the pedestal structure. Fuelling and, thereby, a higher neutral pressure, generally degrades the pedestal pressure, p_e,ped, through a degradation of the temperature pedestal, while the density pedestal height remains approximately constant, consistent with previous findings [50] that linked this degradation to an outward shift of the density profile. This outward shift and the related pedestal degradation are, however, found to be considerably more benign in the baffled divertor, presumably due to a weaker increase of p_n,main, leading to a significantly higher T_e,ped and, hence, higher p_e,ped at high divertor neutral pressure, p_n,div, figure 7, [51]. In this way, high fuelling rates, together with nitrogen seeding into the baffled divertor, resulted in an up to three-fold increase in the radiated power without significant core confinement degradation, figure 8. This improved performance was also observed across a range of target radii, R_t, highlighting alternative divertors' weak effect on pedestal and core properties.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

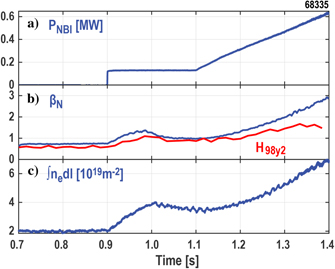

In a continued effort to extrapolate ELMy H-mode performance to the ITER baseline (IBL) scenario, NBI and X3 heated H-modes succeeded in matching the ITER targets of κ = 1.8, δ = 0.5, β_N = 1.8 and q₉₅ = 3.0 whilst retaining good confinement (H_98y2 ∼ 1) [52]. The Greenwald fraction reached 0.65, which is still lower than the IBL target, but sufficient for EC absorption at the third harmonic (X3) to become unreliable. Since EC heating with X3 is effective in preventing, or delaying, low m/n (usually 2/1) MHD, ELM triggered neoclassical tearing modes (NTMs) were only avoided by reducing I_P and, hence, the density, with a stationary demonstration of the scenario at q₉₅ = 3.6. The plasma shape of the TCV IBL discharge was chosen to match a corresponding experiment in ASDEX-Upgrade. Integrated modelling of TCV's IBL discharges predicted the observed heat and particle transport, with dominant ITG modes. It also shows that the observed density peaking is sustained by core NBI fuelling and turbulent transport.

ITER and other future high-performance devices need to operate at densities close to the density limit for high fusion power and divertor protection. The H-mode density limit has therefore been studied in TCV in newly developed NBI-heated scenarios at I_P = 170 kA and 100 kA, corresponding to q₉₅ = 3.7 and 6.2, respectively. In both scenarios, a density ramp follows the characteristic phases also observed in other devices (e.g. on ASDEX Upgrade [53]) [54]. At sufficiently high core density, the temperature pedestal starts to erode, and confinement to degrade, which is ultimately followed by an H–L back transition and the formation of a strongly radiating region at the X-point generally associated with an MARFE (multifaceted asymmetric radiation from the edge). A further density increase leads to strong edge cooling, an upward displacement of the MARFE from the X-point along the high-field side edge and, eventually, macroscopic MHD leading to a disruption at a line averaged density close to the Greenwald limit. The evolution through these phases is more gradual in the baffled divertor and occurs at lower edge density than in the un-baffled divertor, consistent with higher divertor dissipation (see section 3.1). Experiments demonstrated that additional NBI heating power is effective in counteracting the upward MARFE displacement and, therefore, qualified NBI as a valuable actuator for feedback-controlled operation near the density limit (see section 7.4).

The small ELM regime, developed on ASDEX-Upgrade and TCV [55] and also referred to as quasi-coherent exhaust regime [56], greatly reduces the transient power and particle loads associated with type-I ELMs. This regime requires high triangularity, a close to double-null diverted configuration, and steady gas fuelling where small ELMs gradually replace large ELMs at sufficiently high separatrix density [57]. The small ELM regime could also be accessed in the baffled TCV divertor, where it requires a substantially increased divertor fuelling rate. The regime's operational window was extended down to q₉₅ ∼ 3.7, albeit only at reduced toroidal field [58]. First attempts at nitrogen seeding in the baffled divertor showed no significant detrimental effect on core confinement, reminiscent of the observations in type-I ELMy regimes, section 4.2, although a comparison with the un-baffled divertor is still pending.

A comparison of the pedestal dynamics of the small ELM regime with type-I ELMs was performed using a novel short-pulse reflectometer [59]. The reflectometer takes advantage of new advances in hardware, particularly GHz-range arbitrary waveform generators and vector-network-analyser extension modules. Shifting the reflectometry paradigm from the conventional frequency domain to the time domain, the time of flight of nanosecond-scale pulses is measured directly, and fast scans of the wave-train frequency can resolve the entire density profile on a microsecond-scale [60]. The instrument measures fast changes in pedestal density profiles with high spatio-temporal resolution (mm and μs). The small-ELM scenario is found to feature a ∼25–35 kHz quasi-coherent density fluctuation near the separatrix ρ_ψ ∼ 0.993–1.05 not observed during a similar type-I ELM discharge. This oscillation is also seen by magnetic pick-up probes that display a strong ballooning character and n = +1 toroidal mode number and could help explain the markedly different pedestal dynamics observed in the small-ELM regime.

Some effort was dedicated to the development of a low-density H-mode scenario with counter-injected NBI heating in pursuit of conditions compatible with QH-mode. These conditions are prone to high fast ion losses yielding low ion temperatures and diminished toroidal rotation profiles. Reducing the plasma size and, thereby, increasing the outer gap between plasma and wall, proved effective in partially restoring efficient heating. In addition, edge ECRH deposition was used to lower the density by increasing the ELM frequency. However, true quiescent conditions remain to be obtained.

Negative triangularity (NT), pioneered by TCV since the 1990s [61, 62] and recently also demonstrated in DIII-D [63], emerges as an attractive alternative scenario with H-mode like energy confinement, but with L-mode like pressure profiles and no ELMs. NT was extensively revisited taking advantage of new TCV capabilities in order to confirm an advantageous L-mode confinement and further explore its stability and exhaust properties [64].

5.3.1. Core confinement

The attractiveness of the NT tokamak arises from its advantageous confinement properties. The confinement improvement observed in limited Ohmic plasma with increasing negative triangularity has been documented up to δ = −0.6 without any evidence of saturation [64].

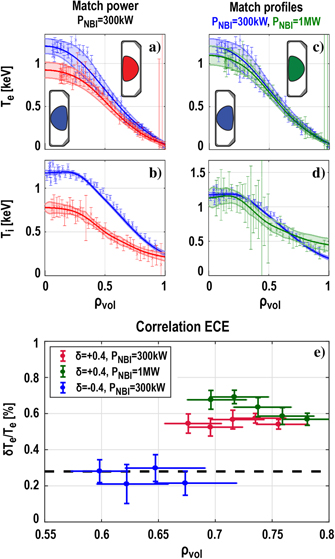

NBI heating has permitted an extension of TCV's NT research towards more reactor-relevant regimes with T_e/T_i ∼ 1 at low collisionality. Using NBI and ECH to scan negative triangularity in limited configurations is seen to improve confinement over the entire range of temperature ratios, T_e/T_i, from 0.5 to 5 and collisionality, 1/ν_eff, from 0.1 to 2 [65]. The correlation electron cyclotron emission diagnostic, sensitive to wavenumbers k_θ < 0.4 cm⁻¹ and measuring at ∼2/3 of the minor radius (0.55 < ρ_vol < 0.75), shows a decrease in radiative temperature fluctuations, figure 9. This decrease also occurs for matched heating powers as well as for matched plasma profiles. Linear gyrokinetic flux tube simulations confirm that the turbulence regime changes from pure trapped electron mode (TEM) dominated in Ohmic and EC heated to a mixture of TEM and ion temperature gradient (ITG) modes in strongly NBI heated discharges. The simulations suggest that in both turbulence regimes, NT partially stabilises the most unstable modes with low wavenumbers and supports the idea that the critical gradients, beyond which micro-instabilities are triggered, are higher.

Zoom In Zoom Out Reset image size

The investigation of NT confinement has also been extended to diverted configurations, with the port protection tiles installed throughout the 2020 campaign without baffles extending the range of possible strike point positions to the outer wall, e.g. figure 1(e) [64]. A scan of the upper triangularity from 0.5 to −0.5 shows a continuous improvement in the confinement time by up to 50%. Adding NBI power leads to further improvements in the H_98(y,2) confinement factor, indicating a more favourable power and/or density dependence than in the scaling, figure 10. L–H transitions have been observed only sporadically in these fully NT diverted scenarios, indicating a wide L-mode existence range—up to 1 MW input power—despite a magnetic field directed in the traditionally favourable direction (with the ion grad B-drift directed from the core plasma towards the X-point).

Zoom In Zoom Out Reset image size

Understanding NT's advantageous confinement properties advanced with the first global non-linear gyrokinetic simulations using the GENE code that reproduce the observed transport level over a major portion of the minor radius for a pair of limited TCV plasmas with δ = −0.3 and δ = +0.3 [66]. The plasmas were heated with ECH and the turbulent transport was, consequently, in the TEM regime. In addition to predicting the absolute transport levels, the simulations also predict a density fluctuation profile as measured in similar discharges [1]. A comparison of the global calculations with local, flux tube calculations revealed that non-local effects play a crucial role in negative δ performance and must be retained to describe the experiment [66].

5.3.2. Performance

5.3.3. Edge

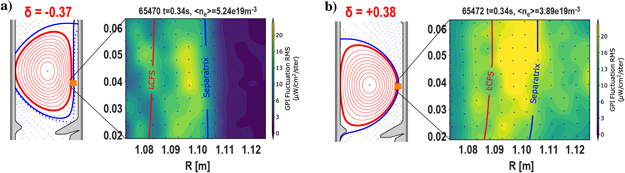

Reciprocating probe plunges past the LCFS of Ohmic, inner wall limited NT plasmas confirm a reduced turbulent radial particle flux extending from the core into the plasma edge. The reduction near the LCFS is poorly explained by reduced fluctuation amplitudes, but more by a change in the phase shift between density and potential fluctuations [64]. The saturation current is, however, dramatically reduced in the SOL region past the separatrix, which enters the vessel in sufficiently negative δ plasmas [68]. This transition is also seen clearly by the new mid-plane GPI system as a strong reduction of the fluctuation level [68], figure 11. This reduction outside the separatrix occurs equally in inner-wall limited and diverted NT plasmas. The appearance of a separatrix in the vessel, at sufficiently negative δ, also coincides with a strong decrease in the main chamber–wall interaction [68]. The decrease in fluctuation level correlates particularly well with a significant reduction in connection length of the flux tubes that connect to the outer wall. This strong decrease in main chamber PWI addresses a key concern for reactors.

Zoom In Zoom Out Reset image size

With ELMs avoided and main PWI strongly suppressed, power exhaust in NT still requires mitigation of target heat fluxes. With an L-mode SOL width, though narrower than for positive δ [69] that is comparable to conventional H-modes, a reactor will have to dissipate similar levels of power in an SOL. This dissipation must be achieved along field lines that are typically shorter but end at higher target radii. Nitrogen seeding effectively decreased the plasma temperature at the outer target below 5 eV, albeit with some degradation in core confinement.

Start up in helium (He) has been investigated by comparing the 1D reaction–diffusion–convection code TOMATOR-1D to magnetised RF He plasmas in TCV [70]. Plasmas were generated and maintained with X2 heating. The model can describe the evolving density profile and reveals a decrease of the EC absorption efficiency with heating power, which is explained by electron energy gains beyond optimal for electron impact ionisation. Further experiments reveal a dramatic increase of the EC absorption efficiency when an additional vertical field in the range of 0.25%–0.5% of the toroidal field strength is applied that may result from an effective decrease in the power density at the resonance layer.

In ITER, electron cyclotron current drive (ECCD) is selected as the main tool to stabilise NTMs. Modelling, however, generally overestimates the current drive efficiency and must invoke an empirical, anomalous, transport of fast electrons to match experiments. New insight was gained by measuring the dynamic response to modulated ECCD applied at the second harmonic X-mode (X2) with an absolutely calibrated multi-chord hard x-ray spectrometer diagnostic (HXRS) [71, 72]. The applied square wave envelope with 750 kW of EC power, a modulation frequency of ∼100 Hz and duty-cycle of ∼20% is a trade-off between minimising perturbations of the equilibrium current profile and generating sufficient HXRS signal. The response to on- and off-axis ECCD, which indicates an outward transport in space and an acceleration to higher energies with time, can be compared to predictions of the time-varying Fokker–Planck modelling with the 3D bounce-averaged relativistic code LUKE coupled with the synthetic hard-x-ray diagnostic module R5-X2. Diffusivity models that depend on power (as a proxy for temperature) and/or electron momentum (as required to describe kinetic instabilities) provided significantly better agreement than a constant anomalous diffusivity, but still fell short of describing all aspects of the measured dynamic response [72]. Potential mechanisms that are being investigated include EC wave scattering by edge fluctuations, already reported in simple magnetised plasmas [73], and in dedicated experiments on TCV [74].

The ITER baseline scenario is prone to NTMs and, hence, their control is a prerequisite for safe, high performance, operation. Systematic variations of the current profile using ECCD revealed an unexpected density dependence of the onset of trigger-less NTMs. A newly developed model of the classical stability index Δ' explains these observations with the known density dependence of the current drive efficiency and a new density dependence in the stability of Ohmic plasmas that become more unstable at higher densities [75]. The improved description of the island is still sufficiently simple to be evaluated in real-time and may be used to inform the supervisory controller of an integrated control framework, such as that presented in section 7.4, of the plasma state and, thereby, facilitate NTM pre-emption in future devices.

Fast ion confinement affects the NBI and ultimately the alpha-heating in ITER. Magneto-hydrodynamic modes, some driven by the fast particle population itself, can decrease that confinement by an order of magnitude. In addition to a degradation in the auxiliary and internal heating performance, the lost, highly energetic particles can also damage the walls. It is, therefore, essential to minimise fast particle losses in safe and efficient fusion operation.

Enabled by the first NBI heating system installed in 2015, fast-ion studies are gaining prominence with the development of robust scenarios that display rich, fast-ion driven, MHD spectra [76]. Several classes of Alfvén eigenmodes (TAE, EAE, RSAE) have already been identified by mode number and frequency evolution. TAEs and EAEs occur during NBI heated phases, but only with simultaneous ECRH. EGAMs were also identified but again only with ECRH. EGAMS are driven by a bump-on-tail fast ion distribution generated by strong charge exchange losses. The dependence of beam-driven modes on ECRH is explained by its effect on the slowing down time of beam ions that increases the fast ion density. For the same reason, NBI of hydrogen, with a faster slowing down times leading to a lower fast ion density, is not seen to drive these modes. Fast ion confinement in TCV appears close to neoclassical and, thus far, is unaffected by the observed modes. In addition to the beam driven modes, a continuous mode, enhanced by NBI, is also observed. Its frequency evolution is suggestive of a TAE and it is hypothesised that it may be related to an interaction with turbulence.

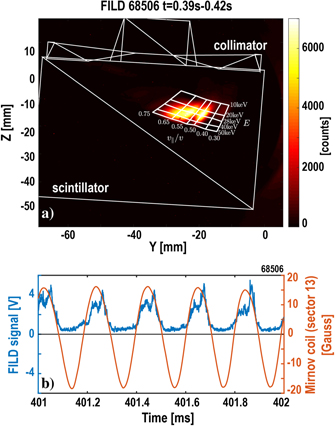

A newly operational fast ion loss detector (FILD) is now operational that can delineate the reciprocal effect of these modes on the fast-ion population [77]. The diagnostic features a novel double-slit design to detect fast-ion losses in plasma discharges with either co- or counter-current injection. First measurements show, for example, an enhanced fast ion loss in NBI heated discharges with 2/1 NTMs, figure 12(a). The signal amplitude correlates with the maximum magnetic perturbation amplitude at the location of the FILD, figure 12(b).

Zoom In Zoom Out Reset image size

Further experiments aim at understanding and controlling runaway electrons (REs), whether created during start-up or by disruptions, as they can cause severe damage in larger devices such as ITER. Models of RE generation, and their subsequent dynamics, must be validated through comparison with experiments. On TCV, RE beams were routinely and reproducibly created using Ne or Ar injection through a dedicated large aperture fast valve. The RE scenarios were recently extended to use He, Kr and Xe injection, and NT and diverted configurations, increasing the region available for model validation.

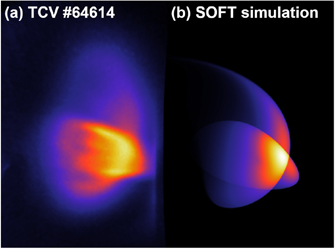

Filtered imaging for multiple wavelength ranges, avoiding in particular contributions from strong line radiation using TCV's MULTICAM diagnostic, provided the first measurements of synchrotron radiation emitted by an RE beam on TCV and even allowed the detection of pre-disruption seed distributions, figure 13(a), [78]. The versatility of TCV and its control system allowed the beam to be vertically displaced, altering the diagnostic viewing angle, and thereby test the synthetic synchrotron diagnostic SOFT, figure 13(b). A comparison with kinetic theory for RE dynamics in uniform magnetic fields indicates significant non-collisional pitch angle scattering as well as radial transport of REs, as can be caused by magnetic perturbations [79].

Zoom In Zoom Out Reset image size

In addition, strategies to purge the impurities from a post-mitigation RE beam with secondary D₂ injection are being explored. He, Ne and Ar have been successfully purged and the required D₂ density scanned. Mitigation with pure D₂ injection, however, led to a full RE current re-conversion and subsequent return to a thermal plasma within 50 ms [80].

A new procedure to calculate the PF coil current trajectories during plasma start-up was applied to the development of doublet-shaped plasmas, which feature two magnetic axes and an internal separatrix. Following encouraging results obtained in 2017 [82], new experiments were performed that attempted to obtain stationary doublet plasmas lasting many current redistribution times. The new procedure achieved reliable and reproducible breakdowns and early ramp-up with two separate current channels. Depending upon the programed PF coil trajectories, the two current channels could be made to either part into separate droplets, or merge into a single-axis plasma. This experimental campaign yielded valuable data on the early formation of doublets providing the validation of new and promising control tools, to be tested further in future campaigns.

Plasma exhaust control, for future reactors, was explored using an estimate of the CIII radiation profile along the divertor leg, indicative of the local T_e, as a proxy for detachment. The strategy comprised real-time-analysis of spectral video images using the MANTIS diagnostic [83], experiments to characterise the dynamic relationship between gas valve actuation and displacement of the emission front [84] and offline feedback design and resulted in the demonstration of feedback control of the distance of the radiation from the target to the X-point for both L- and H-mode scenarios [85].

An important requirement for integrated real-time control is to know the state of the plasma.

7.3.1. Confinement states

7.3.2. Kinetic equilibrium reconstruction

With a view to future long-pulse tokamak discharges, a generic and, therefore, easily transferable plasma control framework has been developed and implemented in the TCV control system [90, 91]. Such a control framework includes real-time plasma state reconstruction, monitoring and supervision, and actuator management, as well as robust detection and handling of off-normal events. The novel framework consists of a tokamak-specific interface layer and a tokamak-independent task layer. The interface layer translates diagnostic and actuator signals into general descriptions of the state of the plasma and the actuators that can be processed by the task layer. Real-time decisions on control task priorities are taken by a high-level supervisory controller based on the detection of off-normal events, with details in the task execution delegated to lower-level, multiple, controllers. This plasma control framework was tested in numerous TCV experiments. The first example demonstrated real-time re-assignment of ECRH actuators from q-profile and β_N control to NTM control in response to the appearance of a mode [91, 92]. More recently, a density limit disruption avoidance algorithm was implemented within the same framework (see section 4.4). This algorithm controls the NBI power and the fuelling rate based upon a real-time estimated proximity to the disruptive boundary [93], previously identified on ASDEX Upgrade [94].
