Remote targeted electrical stimulation

Many processes in biology and nature rest on electrical signal transduction. Bioelectric medicine and neuromodulation aim to manipulate these signals in a targeted manner with the goal to restore or augment function (van Balken et al 2004, Larson 2014, Lempka and Patil 2018, Peeples 2019). Currently, circumscribed targeting of electric fields is achieved by inserting or implanting electrodes into the intended locations (van Balken et al 2004, Larson 2014, Lempka and Patil 2018). This requires invasive steps that limit the flexibility and safety of this traditional approach (Bergey et al 2015, Tonge et al 2015, Sinai et al 2019, Giordano et al 2020).

Noninvasive approaches, which have rested on electrical, magnetic, and electromagnetic fields, have much greater flexibility in that they do not incur additional risk to subjects when modulating multiple sites. However, these approaches do not have the necessary spatial resolution to modulate specific neural circuits at depth. For instance, electric fields generated with current noninvasive approaches, including electroconvulsive therapy (ECT) or transcranial direct or alternating current stimulation are relatively broad (Lisanby 2007, Caumo et al 2012, Herrmann et al 2013). Consequently, the sizable activation of the brain associated with ECT often results in cognitive side effects (Ingram et al 2008). The spatial resolution of these methods can be improved using multi-channel approaches (Shin et al 2018, Vargas et al 2020, Pena et al 2021) or spatially interfering fields (Nemec 1959, Grossman et al 2017), but the resulting fields are still broad with respect to the dimensions of neural circuits. Transcranial magnetic stimulation (TMS) uses pulses of magnetic fields to noninvasively induce electric fields in the brain. TMS can produce appreciable effects in the cortex and ameliorate symptoms of depression (George et al 2000), but the approach cannot directly and focally modulate deep brain regions.

Electromagnetic waves currently cannot be used to modulate deep brain targets in a focal manner. At high frequencies (light or infrared), electromagnetic waves are severely attenuated by the skull or superficial tissue layers (McCormick et al 1992). At lower frequencies, the waves (microwaves) can penetrate into depth, but microwaves at the relevant neuromodulatory doses damage mitochondria and possibly other cellular structures (McRee and Wachtel 1980, Hao et al 2015). At yet lower frequencies (radio range), the wavelength is too broad—dozens of centimeters or meters—to allow for focal stimulation (Lustenberger et al 2013).

Ultrasonic waves combine depth penetration and safe application. Ultrasound can effectively modulate excitable cells at high frequencies—above 10 MHz—at which there are strong radiation forces that mechanically displace membranes and activate ion channels (Menz et al 2013, Kubanek et al 2016, 2018, Prieto et al 2018). However, ultrasound at such high frequencies is severely attenuated by the human skull (Fry 1977, Fry and Barger 1978); for this reason, frequencies below 1 MHz have been used for transcranial therapies (Kubanek 2018). Ultrasound can modulate excitable structures also at lower frequencies (Naor et al 2016, Blackmore et al 2019), but strong effects that are based on established biophysical principles, remain elusive.

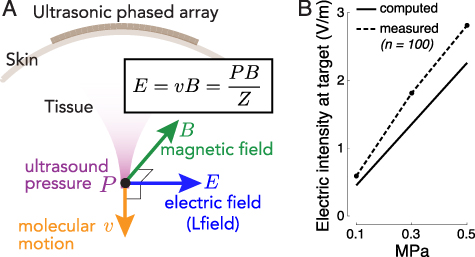

Recent advances in the production of strong magnetic fields (Battesti et al 2018) make it possible to noninvasively generate localized electric fields. This can be achieved via combined use of focused ultrasound and a magnetic field. Specifically, when a charged molecule q moves at a velocity $\vec{v}$ in magnetic field $\vec{B}$, the molecule experiences the Lorentz force $\vec{F} = q(\vec{v} \times \vec{B})$ with intensity $\vec{E} = \frac{\vec{F}}{q} = \vec{v} \times \vec{B}$. To produce localized electric field, the molecular motion $\vec{v}$ should occur only in the target of interest. Critically, this targeting can be achieved using focused ultrasonic waves. Ultrasound—a mechanical pressure wave—displaces molecules at its target with velocity $v = \frac{P}{Z}$ (Cobbold 2006), where Z is a constant of the medium, 'acoustic impedance'. Thus, acoustic waves delivered into a target perpendicularly to a magnetic field produce in the target electric field intensity $E = \frac{PB}{Z}$. This intensity points in the direction that is perpendicular to both constituents (figure 1(A)). As a consequence of this electric field, positively and negatively charged molecules are pulled in opposite directions, inducing electric currents. Sound waves alone would displace positively and negatively charged molecules in the same direction, thus no gradient of charge and so no electric field would be created; the magnetic field is a critical addition. The temporal profile of the evoked field E(t) corresponds to $E(t) = \frac{P(t)B(t)}{Z}$. Therefore, the induced waveform can be controlled by the temporal profile of the ultrasonic, magnetic, or both, fields.

Zoom In Zoom Out Reset image size

We refer to the resulting electric field as Lfield and the resulting stimulatory effects as Lstim, given their origin in the Lorentz equation and their electrical and local nature. While theoretically plausible (Edrich and Zhang 1993, Norton 2003, Kishawi and Norton 2010, Yuan et al 2016), whether the effect is applicable to manipulations of biological or physical systems has been unclear (Wang et al 2019).

2.1. Ultrasonic apparatus

The ultrasonic stimuli for the field assessment and the peripheral nerve stimulation were generated using a focused, MRI-compatible ultrasonic transducer (H-115, Sonic Concepts, 64 mm diameter, 52 mm focal depth). The transducer was operated at 258 kHz. A water-filled coupling cone (1 mm-thick plastic) was used to focus the ultrasound into the target (figure 2). The height of the cone was 52 mm and its diameter 70 mm. The cone's aperture had a 16 mm diameter at the ultrasound target. Stimuli were generated by a custom Matlab program that produced the stimulation waveforms in a programmable function generator (33520B, Keysight). The signals were amplified using a 55 dB, 250 kHz–30 MHz power amplifier (A150, Electronics & Innovation).

Zoom In Zoom Out Reset image size

2.2. Measurements of the ultrasonic fields

2.3. Magnetic field

2.4. Measurements of the generated electric fields

2.5. Computation of the generated electric fields

2.6. Nerve stimulation

2.7. Stimuli

The stimulation was performed inside the bore of the 7 T MRI scanner or at a 3 m distance away from it. The stimulation order was randomized, without replacement, such that half of the subjects experienced the stimulation in the scanner first and the other half outside of the scanner first. Subjects were asked to place the finger on the aperture in the direction perpendicular to the ultrasonic and magnetic fields (figure 2(B)) to maximize the Lstim effects.

We used nine distinct stimuli, of three pressure levels and three distinct waveforms (figure 2(D)). A tenth, sham stimulus, delivered negligible pressure (5 kPa, corresponding to the noise level of the amplifier-transducer output) under the same conditions. The parameters were chosen to provide safe and effective stimulation. The transducer's fundamental carrier frequency was 258 kHz. The duration of each stimulus (200 ms) was chosen to provide ample time for potential integrative effects. The peak pressure amplitudes of the ultrasound measured at the center of the aperture were 0.35 MPa, 0.53 MPa, and 0.7 MPa. The peak pressures were chosen such as to trigger appreciable electric intensities at target (up to 3.1 V m⁻¹), but low enough to comply with the $I_\textrm{SPPA}$ Track 3 510(k) recommendation for each pulse and within the $I_\textrm{SPTA}$ recommendation over the course of the experiment (see Stimulus safety), and low enough to prevent unpleasant nociceptive responses. The stimuli were either continuous (200 ms of tone burst) or pulsed at 500 Hz or 10 kHz, both at 50% duty. We added the pulsed stimuli under the hypothesis that pulsed stimuli may provide multiple onset responses (Grossman et al 2017), thus amplifying the stimulation. The effect of Lstim was observed regardless of whether the stimulus was continuous or pulsed; there was only a weak (table 1) interaction of the stimulus waveform and magnetic field.

Table 1. Summary of the effects. The effects of magnetic field (M), ultrasound pressure (P), and stimulus waveform (W; continuous or pulsed) on the frequency of nociceptive (left column) and tactile responses (right column). These effects were assessed using a three-way ANOVA that featured the three main effects and all possible interactions. Bold entries are significant (p < 0.05).

	Nociceptive	Tactile
M	$\boldsymbol{\lt0.001}$	0.0042
P	$\boldsymbol{\lt0.001}$	$\boldsymbol{\lt0.001}$
W	$\boldsymbol{\lt0.001}$	$\boldsymbol{\lt0.001}$
M × P	0.0012	0.23
M × W	0.043	0.040
P × W	$\boldsymbol{\lt0.001}$	$\boldsymbol{\lt0.001}$
M × P × W	0.54	0.83

There were ten repetitions of the ten stimuli, producing a total of 100 stimulation trials per subject inside the scanner and 100 trials outside the scanner. The stimuli were delivered every 8–12 s. The stimuli were drawn from the 100-stimulus set randomly without replacement. This way, stimulus order could not affect the results.

2.8. Responses and their assessment

2.9. Acoustic continuum

2.10. Stimulus safety

2.11. Non-human primate brain stimulation

The equation that governs the generation of electric field from ultrasonic and magnetic fields, $E\,=\,\frac{PB}{Z}$, predicts that the generated electric field intensity should scale with the ultrasound pressure at the rate of $\frac{B}{Z}$ (figure 1(B), solid). In line with this prediction, we measured (figure 1(B), dashed) a significant increase of the evoked electric intensity with ultrasound pressure (p = 0.037, F-test of linear regression). The slope of the measured field, 5.5 V m⁻¹ MPa⁻¹, was in good agreement with that computed using the Lorentz equation (4.4 V m⁻¹ MPa⁻¹) for the applicable magnetic field strength (7 T). Therefore, perpendicular applications of magnetic and ultrasonic fields indeed generate electric fields as predicted by the Lorentz equation, thus providing a direct validation of the concept (Norton 2003, Yuan et al 2016).

Figure 1 demonstrates that standard hardware can produce Lfield intensities that are relevant to biological applications. A 0.5 MPa stimulus, well within the FDA 510(k) safety indices (FDA 2023), evokes inside a 7 T field peak electric intensity of 2.81 V m⁻¹ (figure 1(B)). Such field strength can appreciably modulate neural activity (Liu et al 2018). Fields as low 0.3 V m⁻¹ have been shown to modulate neuronal spiking (Francis et al 2003). The clinically-relevant transcranial electrical stimulation produces about 0.28 V m⁻¹ (95th percentile) in the human brain (Huang et al 2017) for the generally accepted maximum current of 2 mA.

We applied the same hardware to test whether Lstim can modulate bioelectric signaling. Specifically, we focused ultrasound from a distance of 52 mm onto a target that features intact nerves and receptors—the human thumb (figure 2(B)). Focused ultrasonic stimuli (figures 2(C) and (D)) were delivered into the target every 8–12 s. Subjects (n = 18) were asked to report any nociceptive or tactile sensation. A nociceptive sensation results from activation of free nerve endings in the skin (Dubin et al 2010) and thus constitutes a metric of neural activation.

We found that the magnetic field substantially enhanced the magnitude of nociceptive responses (figure 3(A)). Across all pressure levels and waveforms, Lstim increased the magnitude of nociceptive responses by 74%. In contrast to nociceptive responses, tactile responses were suppressed (figure 3(A)); there was a double dissociation of the effects with respect to magnetic field and the sensation kind (two-way ANOVA, magnetic field × sensation interaction, p < 0.001; $F(1,644) = 13.20$). The effect was similar when subjects' responses were not scaled by their intensity (p < 0.001; $F(1,644) = 13.93$). Pairwise post-hoc tests showed that the increase in the nociceptive responses (p = 0.0059; $t(17) = 3.14$, paired two-sided t-test) and the decrease in tactile responses (p = 0.0033; $t(17) = -3.41$) were significant. These effects were also similar when the responses were not scaled by their intensity (p = 0.0037; $t(17) = 3.36$ and p = 0.0029; $t(17) = -3.47$, respectively).

Zoom In Zoom Out Reset image size

We next specifically analyzed the nociceptive responses, which reflect an activation of nerves or nerve endings (Dubin et al 2010). Figure 3(B) shows the dependence of all stimuli on the presence or absence of magnetic field, separately for each ultrasound pressure. The figure confirms the findings of figure 3(A) that the magnetic field amplifies the nociceptive responses. We assessed the effects using a full, three-way ANOVA model with factors magnetic field, ultrasound pressure, stimulus waveform, and all possible interactions (table 1). The effect of magnetic field was significant also in this omnibus analysis (p < 0.001, $F(1,408) = 18.55$).

Lstim produces focused electric fields at ultrasound targets according to $E = \frac{P B}{Z}$. In this equation, the effect increases with the ultrasound pressure P. Therefore, the higher the ultrasound pressure, the stronger the induced electric fields, and the stronger the nociceptive responses we should observe, in addition to any neuromodulatory effects of ultrasound alone. In line with this expectation, we found a significant interaction between the magnetic field and ultrasound pressure (figure 3(B)); p = 0.0012, $F(3,408) = 5.41$).

We summarize the effects of all factors and interactions in table 1. With respect to nerve activation, as assessed by the nociceptive responses, there was a significant interaction between magnetic field and the stimulus waveform (p = 0.043, $F(2,408) = 3.16$). The contrast between Lstim and ultrasound only was higher when the ultrasound was pulsed. Specifically, averaged across all pressures, the response frequency ratio (7 T versus 0 T) for the continuous waveform was 1.61, compared to 1.85 and 3.85 for the pulsed 500 Hz and 10 kHz waveforms, respectively.

If the reported effects are indeed due to the induction of localized electric field, as governed by the Lorentz electromotive force equation, they should depend on the orientation of the nerves with respect to the electric field. Specifically, electric fields can effectively stimulate nerves if their gradients point along nerves, as opposed to across (Rattay 1999). To test this, four subjects were asked to place their thumb on the aperture (1) perpendicularly to the magnetic field (the current default) and (2) in parallel with the magnetic field. We found (figure 3(C)) that these conditions significantly modulated the responses (p = 0.041, $F(2,33) = 3.50$). As expected, the effect was specific to the perpendicular geometry; there was no effect for the parallel geometry (p = 0.88, $t(3) = 0.17$, paired two-sided t-test).

The stimuli used in this study were designed to comply with the applicable safety indices (table 2). Specifically, all ultrasonic stimuli were safely within the FDA 510(k) indices (FDA 2023). Furthermore, the induced electric fields lied safely below the recommended charge density (Cogan et al 2016) of 30 µC cm⁻² (table 2). There were no detrimental acute or long-term effects reported by the subjects.

We finally evaluated the effects of Lstim on deep brain regions of non-human primates. Specifically, we targeted the lateral geniculate nuclei (LGN), deep brain regions that pass visual information to visual cortex (figure 4(B)). Our previous study (Webb et al 2023) showed that ultrasonic neuromodulation of the LGN increases gamma activity over visual cortex. We therefore used the same apparatus and recordings to assess the effects of Lstim. The stimulation was delivered inside and outside of a static field of a 3 T MRI magnet every 4 s. The ultrasonic stimuli were 2 MPa in amplitude, 100 ms in duration, and were either continuous or pulsed at 200 Hz pulse repetition frequency. Replicating our previous findings (Webb et al 2023), we found a robust increase in gamma activity over visual cortex following the ultrasonic stimulation (figure 4(C); black). Crucially, the presence of the strong magnetic field had a profound influence on the induced gamma activity (figure 4(C); green). In particular, the presence of the magnetic field dampened the gamma response, and led to a much more gradual increase following the stimulus onset. We assessed these effects using a two-way ANOVA, with factors magnetic field and stimulus type (continuous or pulsed). We measured the gamma activity in the time window immediately following the ultrasound offset (100 ms) up until the end of each trial (time 4 s). There was a significant effect of magnetic field ($F(1,981) = 5.64$, p = 0.018). Stimulus type or the interaction of the two factors were non-significant ($F(1,981) = 1.27$, p = 0.26 and $F(1,981) = 1.06$, p = 0.30, respectively). In the time window considered, there was an average increase of gamma by 6.1% and 5.4% in monkeys 1 and 2 at 0 T, compared with 2.0% and 2.5% at 3 T. No detrimental effects were observed during or after the stimulation. The animals showed normal behavior following the procedures.

Zoom In Zoom Out Reset image size

This study shows that the combination of magnetic and focused ultrasonic fields generates localized electric fields remotely and noninvasively. The resulting stimulation, Lstim, produces notable neuromodulatory effects using standard hardware in the peripheral nervous systems of humans and the central nervous system of non-human primates. The method can therefore be deployed for electrode-free modulations of neural and other processes that rest on electrical signaling.

Lstim provides three major advantages compared with traditional, electrode-based stimulation. The first, key advantage is that Lstim does not require the insertion of electrodes into a target to produce localized electric fields. The localization is achieved through the focusing of ultrasound. For high ultrasound frequencies, the stimulation focus can be as tight as a few dozens of micrometers (Menz et al 2013). Second, Lfield produces much sharper gradients and thus has a much higher potential for triggering bioeffects compared with electric fields generated with a pair of electrodes. Specifically, the Lorentz equation $E(x,y,z) = P(x,y,z)\frac{B}{Z}$ shows that the spatial distribution of the electric intensity $E(x,y,z)$ follows the distribution of the ultrasonic pressure wave $P(x,y,z)$. Consequently, the propagating sinusoidal ultrasound pressure wave generates an E gradient with the peak positive and peak negative E values spaced by $\frac{\lambda}{2}$. At 258 kHz, this amounts to ${\approx}2.9$ mm. In comparison, traditional electromagnetic fields, due to their much higher speed of propagation, have a $\frac{\lambda}{2} \approx 231$ m for the same frequency. Thus, thanks to the ultrasonic component, Lstim generates in the target electric field gradients that are five orders of magnitude stronger compared to traditional electromagnetic fields. This difference is critical with respect to neurostimulation as neurostimulation effects are known to scale with an activating function $f \propto \frac{\mathrm dE}{\mathrm dx}$, where $\frac{\mathrm dE}{\mathrm dx}$ is the gradient of the electric fields along the excitable structure (Rattay 1999). The Lfield gradients can be controlled by specific frequencies and waveforms of the ultrasonic pressure wave. And third, Lstim circumvents the barriers associated with biological membranes. Membranes are transparent to Lstim. This is because membranes are transparent to magnetic and ultrasonic fields (Cobbold 2006). Lstim's independence of biological membranes may open a new set of applications that modulate intracellular processes remotely and more effectively than previously possible.

We detected notable effects on peripheral nerves in humans at ultrasound pressures approximately three times lower than those allowable by current FDA 510(k) guidelines (0.7 MPa compared with 2.4 MPa or $\lt190$ W cm⁻² in soft tissues FDA 2023). At 2.4 MPa, still considered safe, the effects of Lstim would be more than three times stronger than those reported here. Moreover, for the relatively low frequencies such as those used here, ultrasound amplitudes higher than 2.4 MPa may be applied in brief pulses without a risk of harmful heating (Downs et al 2018). If even stronger effects are needed for certain applications, the stimulation could be performed in stronger magnetic fields. Magnetic fields over 30 T are readily available (Battesti et al 2018).

We found that Lstim increased nociceptive responses and decreased tactile responses. The preferential engagement of nociceptive fibers is likely due to the sharp, mm-level gradients induced by Lstim. The gradients are likely to preferentially engage nerve structures with geometries on that order (i.e. nociceptive fibers), while the effects may average out over geometries that exceed the wavelength (i.e. tactile receptors and fibers). Moreover, this double dissociation suggests that Lfields modulated the electrical signals generated by skin receptors in response to ultrasound (Riis and Kubanek 2021). This modulation should be studied in detail in the future as it may have important applications for blockage of aberrant signaling, such as that involved in pain.

We delivered into the deep brain targets of non-human primates pressures of 2.0 MPa to induce reliable changes in gamma activity recorded over visual cortex. We found that that the presence of 3 T magnetic field substantially dampened and slowed the gamma responses to ultrasound. The effect was present for at least 4 s, the duration of the inter-stimulus interval. High-frequency continuous electrical waveforms have been used for neural inhibition or conduction block (Kilgore and Bhadra 2014, Grossman et al 2017). The relatively high carrier frequency of the ultrasound produces high-frequency waveforms, and thus the effect is consistent with that literature. It is possible that the relatively high pressure amplitude of 2.0 MPa further amplified this effect. It is also likely that peripheral nerves and LGN neurons respond to this new mode of stimulation, which induces sharp gradients, in fundamentally distinct ways. These findings warrant the study of this phenomenon systematically for each specific neural structure.

We hypothesized that continuous stimuli, which consist of a high-frequency carrier, would suppress neural activity (Kilgore and Bhadra 2014) while pulsed stimuli would produce an 'onset response'—transient increases in neural activity following the onset of a high-frequency stimulus (Grossman et al 2017). Yet, both the human peripheral and the monkey central nervous systems did not distinguish between the stimulus types. It is possible that the induction of a pronounced neural excitation with Lstim will require much higher pulse repetition frequencies than those considered here.

The noninvasive and targeted nature of Lstim provides a new means for systematic modulation of specific neural targets in each individual, with the potential to realize the promise of precision medicine. Existing arrays of transducers focus ultrasound programmatically into neural targets that can be as small as a few dozens of micrometers when applied in soft tissues (Menz et al 2013), and about 3 mm in diameter when applied through the human skull (Ghanouni et al 2015). Coupled with the microsecond-level temporal resolution of ultrasound, Lstim can activate multiple circuits in sequence or in concert. Together, the high spatiotemporal resolution of the method provides the means to modulate specific neural targets systematically. For instance, clinical teams could use Lstim to identify the neural circuits that are involved in chronic pain of a particular individual. In addition, the ability to systematically manipulate specific brain circuits has the potential to transform our understanding of basic brain function. Because Lstim uses energy levels well within recommended guidelines (table 2), such systematic applications are expected to be safe. Indeed, ultrasound has been applied to the human brain inside strong magnetic fields, up to 7 T, and no detrimental effects were reported (Lee et al 2016, Ai et al 2018).

For static magnetic fields, Lstim produces stimulation of the same frequency as that of the applied ultrasound. The defined ultrasound frequency make the approach immune to potential influence of external sources, unless they operate at the same frequency as that of the ultrasound.

Lstim may require two additional innovations for practical deployment in clinical and research settings. First, Lstim requires a strong magnetic field and so operation inside an MRI machine. This increases the cost and complicates the logistics of deployment. This issue could be addressed by producing the magnetic field using custom coils. Since no gradients and imaging are required, such systems could be produced much more affordably than an MRI scanner. And second, the human skull attenuates ultrasound strongly and shows high subject-to-subject variability in the attenuation Riis et al (2022). Approaches that address this issue in a noninvasive way are being developed (Riis et al 2022).

Lstim induces electric fields without the need for inserting electrodes into the target, thus preserving its integrity and sterility. This may lead to applications beyond neuromodulation, such as remote stimulation of tissue or cell cultures (Hu et al 2019), food processing, or the catalysis of certain chemical reactions.

In summary, this study shows that remote application of magnetic and ultrasonic fields produces electrical stimulation that is both effective and safe. The high spatiotemporal resolution of the stimulation, enabled by existing ultrasound phased array technology, provides a new means to modulate biological processes flexibly and systematically. This systematic tool is expected to accelerate basic biological research and enable noninvasive modulations of spatially specific biological processes, including those in the nervous system.
