EEGNet: a compact convolutional neural network for EEG-based brain–computer interfaces

The P300 event-related potential is a stereotyped neural response to novel visual stimuli [49]. It is commonly elicited with the visual oddball paradigm, where participants are shown repetitive 'non-target' visual stimuli that are interspersed with infrequent 'target' stimuli at a fixed presentation rate (for example, 1 Hz). Observed over the parietal cortex, the P300 waveform is a large positive deflection of electrical activity observed approximately 300 ms post stimulus onset, the strength of the observed deflection being inversely proportional to the frequency of the target stimuli. The P300 ERP is one of the strongest neural signatures observable by EEG, especially when targets are presented infrequently [49]. When the image presentation rate increases to 2 Hz or more, it is commonly referred to as rapid serial visual presentation (RSVP), which has been used to develop BCIs for large image database triage [50–52].

The EEG data used here have been previously described in [51]; a brief description is given below. 18 participants volunteered for an RSVP BCI study. Participants were shown images of natural scenery at 2 Hz rate, with images either containing a vehicle or person (target), or with no vehicle or person present (non-target). Participants were instructed to press a button with their dominant hand when a target image was shown. The target/non-target ratio was $20\%/80\%$. Data from three participants were excluded from the analysis due to excessive artifacts and/or noise within the EEG data. Data from the remaining 15 participants (9 male and 14 right-handed) who ranged in age from 18 to 57 years (mean age 39.5 years) were further analyzed. EEG recordings were digitally sampled at 512 Hz from 64 scalp electrodes arranged in a 10–10 montage using a BioSemi active two system (Amsterdam, The Netherlands). Continuous EEG data were referenced offline to the average of the left and right earlobes, digitally bandpass filtered, using an FIR filter implemented in EEGLAB [53], to 1–40 Hz and downsampled to 128 Hz. EEG trials of target and non-target conditions were extracted at $[0, 1]$ s post stimulus onset, and used for a two-class classification.

Error-related negativity potentials are perturbations of the EEG following an erroneous or unusual event in the subject's environment or task. They can be observed in a variety of tasks, including time interval production paradigms [54] and in forced-choice paradigms [55, 56]. Here we focus on the feedback error-related negativity (ERN), which is an amplitude perturbation of the EEG following the perception of an erroneous feedback produced by a BCI. The feedback ERN is characterized as a negative error component approximately 350 ms, followed by a positive component approximately 500 ms, after visual feedback (see figure 7 of [57] for an illustration). The detection of the feedback ERN provides a mechanism to infer, and to possibly correct in real-time, the incorrect output of a BCI. This two-stage system has been proposed as a hybrid BCI in [58, 59] and has been shown to improve the performance of a P300 speller in online applications [60].

The EEG data used here comes from [57] and was used in the 'BCI Challenge' hosted by Kaggle (www.kaggle.com/c/inria-bci-challenge); a brief description is given below. 26 healthy participants (16 for training, 10 for testing) participated in a P300 speller task, a system which uses a random sequence of flashing letters, arranged in a $6 \times 6$ grid, to elicit the P300 response [61]. The goal of the challenge was to determine whether the feedback of the P300 speller was correct or incorrect. The EEG data were originally recorded at 600 Hz using 56 passive Ag/AgCl EEG sensors (VSM-CTF compatible system) following the extended 10–20 system for electrode placement. Prior to our analysis, the EEG data were band-pass filtered, using an FIR filter implemented in EEGLAB [53], to 1–40 Hz and down-sampled to 128 Hz. EEG trials of correct and incorrect feedback were extracted at $[0, 1.25]$ s post feedback presentation and used as features for a two-class classification.

Some neural activities contain both ERP as well as an oscillatory components. One particular example of this is the movement-related cortical potential (MRCP), which can be elicited by voluntary movements of the hands and feet and is observable through EEG along the central and midline electrodes, contralateral to the hand or foot movement [62–65]. The MRCP components can be seen before movement onset (a slow 0–5 Hz readiness potential [66, 67] and an early desynchronization in the 10–12 Hz frequency band), at movement onset (a slow motor potential [67, 68]), and after movement onset (a late synchronization of 20–30 Hz activity approximately 1 s after movement execution). The MRCP has been used previously to develop motor control BCIs for both healthy and physically disabled patients [69–71]

The EEG data used here have been previously described in [72]; a brief description is given below. In this study, 13 subjects performed self-paced finger movements using the left index, left middle, right index, or right middle fingers. The data was recorded using a 256 channel BioSemi Active II system at 1024 Hz. Due to extensive signal noise present in the data, the EEG data were first processed with the PREP pipeline [73]. The data were referenced to linked mastoids, bandpass filtered, using an FIR filter implemented in EEGLAB [53], between 0.1 Hz and 40 Hz, and then downsampled to 128 Hz. We further downsampled the channel space to the standard 64 channel BioSemi montage. The index and middle finger blocks for each hand were combined for binary classification of movements originating from the left or right hand. EEG trials of left and right hand finger movements were extracted at $[-.5, 1]$ s around finger movement onset and used for a two-class classification.

A common control signal for oscillatory-based BCI is the sensorimotor rhythm (SMR), wherein mu (8–12 Hz) and beta (18–26 Hz) bands desynchronize over the sensorimotor cortex contralateral to an actual or imagined movement. The SMR is very similar to the oscillatory component of the MRCP. Although SMR-based BCIs can facilitate nuanced, endogenous BCI control, they tend to be weak and highly variable across and within subjects, conventionally demanding user-training (neurofeedback) and long calibration times (20 min) in order to achieve reasonable performance [45].

The EEG data used here comes from BCI Competition IV Dataset 2A [74] (called the SMR dataset for the remainder of the manuscript). The data consists of four classes of imagined movements of left and right hands, feet and tongue recorded from nine subjects. The EEG data were originally recorded using 22 Ag/AgCl electrodes, sampled at 250 Hz and bandpass filtered between 0.5 and 100 Hz. We resampled the timeseries to 128 Hz, and follow the same EEG pre-processing procedure as described in [32], using software that was provided by the authors; a brief summary is given here. The data were causally filtered using a third-order Butterworth filter in the 4–40 Hz frequency band to minimize the influence of class-discriminative eye movements. The EEG signals were then standardized with an exponential moving average window with a decay factor of 0.999 (further details can be found in section A.7 of [32]).

For both the training and test sets we epoched the data at [0.5, 2.5] seconds post cue onset (the same window which was used in [40, 45]). Note that we make predictions for only this time range on the test set. We perform a four-class classification using accuracy as the summary measure.

Here we introduce EEGNet, a compact CNN architecture for EEG-based BCIs that (1) can be applied across several different BCI paradigms, (2) can be trained with very limited data and (3) can produce neurophysiologically interpretable features. A visualization and full description of the EEGNet model can be found in figure 1 and table 2, respectively, for EEG trials, collected at 128 Hz sampling rate, having C channels and T time samples. We fit the model using the Adam optimizer, using default parameters as described in [75], minimizing the categorical cross-entropy loss function. We run 500 training iterations (epochs) and perform validation stopping, saving the model weights which produced the lowest validation set loss. All models were trained on an NVIDIA Quadro M6000 GPU, with CUDA 9 and cuDNN v7, in Tensorflow [76], using the Keras API [77]. We omit the use of bias units in all convolutional layers. Note that, while all convolutions are one-dimensional, we use two-dimensional convolution functions for ease of software implementation. Our software implementation can be found at https://github.com/vlawhern/arl-eegmodels.

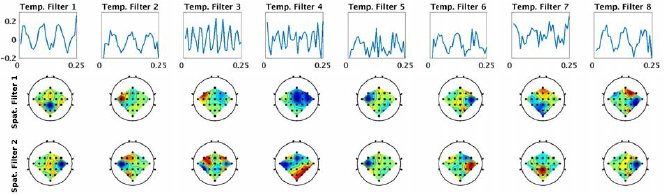

• In block 1, we perform two convolutional steps in sequence. First, we fit F₁ 2D convolutional filters of size $(1, 64)$, with the filter length chosen to be half the sampling rate of the data (here, 128 Hz), outputting F₁ feature maps containing the EEG signal at different band-pass frequencies. Setting the length of the temporal kernel at half the sampling rate allows for capturing frequency information at 2 Hz and above. We then use a depthwise convolution [43] of size $(C, 1)$ to learn a spatial filter. In CNN applications for computer vision the main benefit of a depthwise convolution is reducing the number of trainable parameters to fit, as these convolutions are not fully-connected to all previous feature maps (see figure 1 for an illustration). Importantly, when used in EEG-specific applications, this operation provides a direct way to learn spatial filters for each temporal filter, thus enabling the efficient extraction of frequency-specific spatial filters (see the middle column of figure 1). A depth parameter D controls the number of spatial filters to learn for each feature map (D  =  1 is shown in figure 1 for illustration purposes). This two-step convolutional sequence is inspired in part by the filter-bank common spatial pattern (FBCSP) algorithm [78] and is similar in nature to another decomposition technique, bilinear discriminant component analysis [79]. We keep both convolutions linear as we found no significant gains in performance when using nonlinear activations. We apply batch normalization [80] along the feature map dimension before applying the exponential linear unit (ELU) nonlinearity [81]. To help regularize or model, we use the dropout technique [82]. We set the dropout probability to 0.5 for within-subject classification to help prevent over-fitting when training on small sample sizes, whereas we set the dropout probability to 0.25 in cross-subject classification, as the training set sizes are much larger (see section 2.3 for more details on our within- and cross-subject analyses). We apply an average pooling layer of size (1, 4) to reduce the sampling rate of the signal to 32 Hz. We also regularize each spatial filter by using a maximum norm constraint of 1 on its weights; $\left\| w \right\|^2 < 1$.
• In block 2, we use a separable convolution, which is a depthwise convolution (here, of size $(1, 16)$, representing 500 ms of EEG activity at 32 Hz) followed by F₂ $(1, 1)$ pointwise convolutions [43]. The main benefits of separable convolutions are (1) reducing the number of parameters to fit and (2) explicitly decoupling the relationship within and across feature maps by first learning a kernel summarizing each feature map individually, then optimally merging the outputs afterwards. When used for EEG-specific applications this operation separates learning how to summarize individual feature maps in time (the depthwise convolution) with how to optimally combine the feature maps (the pointwise convolution). This operation is also particularly useful for EEG signals as different feature maps may represent data at different time-scales of information. In our case we first learn a 500 ms 'summary' of each feature map, then combine the outputs afterwards. An average pooling layer of size $(1, 8)$ is used for dimension reduction.
• In the classification block, the features are passed directly to a softmax classification with N units, N being the number of classes in the data. We omit the use of a dense layer for feature aggregation prior to the softmax classification layer to reduce the number of free parameters in the model, inspired by the work in [83].

Zoom In Zoom Out Reset image size

Table 2. EEGNet architecture, where C  =  number of channels, T  =  number of time points, F₁  =  number of temporal filters, D  =  depth multiplier (number of spatial filters), F₂  =  number of pointwise filters, and N  =  number of classes, respectively. For the Dropout layer, we use p  =  0.5 for within-subject classification and p  =  0.25 for cross-subject classification (see section 2.2.1 for more details)

Block	Layer	# filters	Size	# params	Output	Activation	Options
1	Input				(C, T)
	Reshape				(1, C, T)
	Conv2D	F1	(1, 64)	64 * F1	(F1, C, T)	Linear	Mode  =  same
	BatchNorm			2 * F1	(F1, C, T)
	DepthwiseConv2D	D * F1	(C, 1)	C * D * F1	(D * F1, 1, T)	Linear	Mode  =  valid, depth  =  D, max norm  =  1
	BatchNorm			2 * D * F1	(D * F1, 1, T)
	Activation				(D * F1, 1, T)	ELU
	AveragePool2D		(1, 4)		(D * F1, 1, T // 4)
	Dropout*				(D * F1, 1, T // 4)		p  =  0.25 or p  =  0.5
2	SeparableConv2D	F2	(1, 16)	$16 * D * F_1 + F_2 * (D * F_1)$	(F2, 1, T // 4)	Linear	Mode  =  same
	BatchNorm			2 * F2	(F2, 1, T // 4)
	Activation				(F2, 1, T // 4)	ELU
	AveragePool2D		(1, 8)		(F2, 1, T // 32)
	Dropout*				(F2, 1, T // 32)		p  =  0.25 or p  =  0.5
	Flatten				(F2 * (T // 32))
Classifier	Dense	N * (F2 * T // 32)			N	Softmax	Max norm  =  0.25

We investigate several different configurations of the EEGNet architecture by varying the number of filters, F₁, and the number of spatial filters per temporal filter, D to learn. We set $F_2 = D * F_1$ (the number of temporal filters along with their associated spatial filters from block 1) for the duration of the manuscript, although in principle F₂ can take any value; $F_2 < D * F_1$ denotes a compressed representation, learning fewer feature maps than inputs, whereas $F_2 > D * F_1$ denotes an overcomplete representation, learning more feature maps than inputs. We use the notation EEGNet-F₁,D to denote the number of temporal and spatial filters to learn; i.e.: EEGNet-4,2 denotes learning four temporal filters and two spatial filters per temporal filter.

We compare the performance of EEGNet against the DeepConvNet and ShallowConvNet models proposed by [32]; full table descriptions of both models can be found in the appendix. We implemented these models in Tensorflow and Keras, following the descriptions found in the paper. As their architectures were originally designed for 250 Hz EEG signals (as opposed to 128 Hz signals used here) we divided the lengths of temporal kernels and pooling layers in their architectures by two to correspond approximately to the sampling rate used in our models. We train these models in the same way we train the EEGNet model (see section 2.2.1).

The DeepConvNet architecture consists of five convolutional layers with a softmax layer for classification (see figure 1 of [32]). The ShallowConvNet architecture consists of two convolutional layers (temporal, then spatial), a squaring nonlinearity (f(x)  =  x²), an average pooling layer and a log nonlinearity ($f(x)=\log(x)$). We would like to emphasize that the ShallowConvNet architecture was designed specifically for oscillatory signal classification (by extracting features related to log band-power); thus, it may not work well on ERP-based classification tasks. However, the DeepConvNet architecture was designed to be a general-purpose architecture that is not restricted to specific feature types [32], and thus it serves as a more valid comparison to EEGNet. Table 3 shows the number of trainable parameters per model across all CNN models.

We also compare the performance of EEGNet to that of the best performing traditional approach for each individual paradigm. For all ERP-based data analyses (P300, ERN, MRCP) the traditional approach is the approach which won the Kaggle BCI competition (code and documentation at http://github.com/alexandrebarachant/bci-challenge-ner-2015), which uses a combination of xDAWN spatial filtering [84], Riemannian geometry [85, 86], channel subset selection and L₁ feature regularization (referred to as xDAWN  +  RG for the remainder of the manuscript). Here we provide a summary of the approach, which is done in five steps:

• 1.
  Train two set of 5 xDAWN spatial filters, one set for each class of a binary classification task, using the ERP template concatenation method as described in [86, 87].
• 2.
  Perform EEG electrode selection through backward elimination [88] to keep only the most relevant 35 channels.
• 3.
  Project the covariance matrices onto the tangent space using the log-Euclidean metric [85, 89].
• 4.
  Perform feature normalization using an L₁ ratio of 0.5, signifying an equal weight for L₁ and L₂ penalties. An L₁ penalty encourages the sum of the absolute values of the parameters to be small, whereas an L₂ penalty encourages the sum of the squares of the parameters to be small (a theoretical overview of these penalties can be found in [90]).
• 5.
  Perform classification using an elastic net regression.

We use the same xDAWN+RG model parameters across all comparisons (P300, ERN, MRCP) with the exception of the initial number of EEG channels to use, which was set to 56 for ERN and 64 for P300 and MRCP. While the original solution used an ensemble of bagged classifiers, for this analysis we only compared a single model with this approach to a single EEGNet model on identical training and test sets, as we expect any gains from ensemble learning to benefit both approaches equally. The original solution also used a set of 'meta features' that were specific to that data collection. As the goal of this work is to investigate a general-purpose CNN model for EEG-based BCIs, we omitted the use of these features as they are specific to that particular data collection.

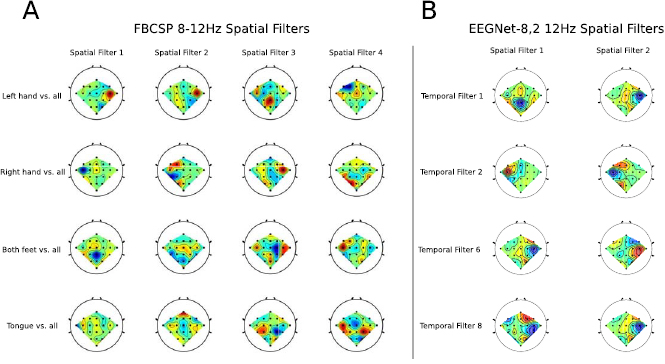

For oscillatory-based classification of SMR, the traditional approach is our own implementation of the one-versus-rest (OVR) filter-bank common spatial pattern (FBCSP) algorithm as described in [78]. Here we provide a brief summary of our approach:

• 1.
  Bandpass filter the EEG signal into nine non-overlapping filter banks in 4 Hz steps, starting at 4 Hz: 4–8 Hz, 8–12 Hz,..., 36–40 Hz.
• 2.
  As the classification problem is multi-class, we use OVR classification, which requires that we train a classifier for all pairs of OVR combinations, which there are four here (class 1 versus all others, class 2 versus all others, etc). We train two CSP filter pairs (four filters total) for each filter bank on the training data using the auto-covariance shrinkage method by [91]. This will give a total of 36 features (nine filter banks  ×  four CSP filters) for each trial and each OVR combination.
• 3.
  Train an elastic-net logistic regression classifier [92] for each OVR combination. We set the elastic net penalty $\alpha = 0.95$.
• 4.
  Find the optimal λ value for the elastic-net logistic regression that maximizes the validation set accuracy by evaluating the trained classifiers on a held-out validation set. The multi-class label for each trial is the classifier that produces the highest probability among the 4 OVR classifiers.
• 5.
  Apply the trained classifiers to the test set, using the λ values obtained in step 4.

Note that this approach differs slightly from the original technique as proposed in [78], where they use a naive Bayes Parzen window classifier. We opted to use an elastic net logistic regression for ease of implementation, and the fact that it has been used in existing software implementations of FBCSP (for example, in BCILAB [93]).
