Enhancing the photo-luminescence stability of CH₃NH₃PbI₃ film with ionic liquids

In recent years, hybrid organic–inorganic lead halide perovskites (with general formula ABX₃) and perovskite-type materials have been attracting a large amount of attention, owing to their enormous optical and electrical characters, such as strong absorption, long electron–hole diffusion lengths, and relatively low trap densities.^[1–3] Those outstanding characteristics give them promising prospect in fields including the solar cells, lasers, light emitting diodes, and photodetectors.^[4–7] Among those excellent materials, the iodide-based cubic perovskite CH₃NH₃PbI₃ (MAPbI₃) with direct band gap (1.68 eV) shows great application in infrared emission, lasers, photodetectors, and solar cells.^[8,9] For example, the power conversion efficiency of MAPbI₃ solar cells have been increased to as high as 22.1%.^[10,11] Song and the cooperators have demonstrated that the dynamically tuned micro-lasers based on the MAPbI₃ perovskite exhibit its process in optical memory, flip–flop, and ultrafast switches.^[12] However, MAPbI₃ perovskite is very sensitive to the oxygen and moisture,^[11,13] which prevents its further development. The MAPbI₃ can react with the water and dissolve into CH₃NH₃ and PbI₂, which induces the decrease of absorption intensity across the visible light and a distinct change of the crystal structure.^[14,15] More and more researchers give their smart efforts to develop perovskite materials with strong moisture resistance. Lu et al. implemented a series of calculations to demonstrate an effective strategy to develop perovskite materials with no or a minor photo-striction effect.^[16] In fact, various modifications and engineering aspects have been applied to solve the issue. Among those programs, ionic liquids are considered as an ideal additive to enhance the properties, because ionic liquid, a salt, generally consists of large organic cation and various organic or inorganic anion, making it possess the properties of high ionic conductivity, thermal and electrochemical stability.^[17,18] Tang and his cooperators have investigated the ionic liquid of 1-butyl-2,3-dimethylimidazolium chloride ([BMMIm]Cl) in carbon-based cesium lead bromide (CsPbBr₃) perovskite solar cells, verifying that it is used as a modification layer for passivating the surface defects and can increase the efficiency to 9.92%.^[19] The assistance of thiocyanate in MAPbI₃ photodetector has greatly enhanced its stability of electrical properties, the light and dark current could almost keep immovable for 10 days.^[18] Here we introduce the ionic liquid of BMIMBF₄ into PbI₂ mixture (MAPbI₃ precursor solution) when preparing perovskite film. Interestingly, the additive of BMIMBF₄ improves the crystalline quality of perovskite film with fewer defects and enhances its stability in the ambient environment. The photoluminescence intensity of the film with BMIMBF₄ is about ten-fold of that without BMIMBF₄ after one week in the ambient environment. Furthermore, with the 405-nm CW laser focusing on the film, the fluorescent duration of perovskite with BMIMBF₄ is as long as 2.75 min, while the film without BMIMBF₄ is only 6 s. This interesting result is meaningful in the perovskite's development, which verifies an important method of adding ionic liquid of BMIMBF₄ in the precursor solution to improve its stability.

2.1. Materials synthesis

All the chemicals including PbI₂ (purity 99.999%, Aladdin), CH₃NH₃I (99.999%, Aladdin), dimethyl sulfoxide (DMSO, 99.9%, Aladdin), isopropanol (>99.9%, Macklin), and 1-Butyl-3-methylimidazolium tetrafluoroborate (BMIMBF₄, 97%, Aladdin) were used without further treatment. The glass substrate was cleaned in the ultrasonic bath by deionized water, ethanol, acetone, isopropanol, and deionized water for 15 min respectively, followed by the ozone treatment in an UV-ozone cleaner for 10 min. First, PbI₂ (0.461 g) was entirely dissolved in the DMSO (1 mL), followed by the ionic liquid of BMIMBF₄ (20 μ L). A clear yellow solution was achieved after stirring. Second, CH₃NH₃I (0.1 g) was entirely dissolved in the isopropanol (2 mL), which changed to a transparent solution after stirring at 60 °C for 2 h, because it is difficult to dissolve at room temperature. Third, the PbI₂ mixture of 50 μ L was dropped on the glass substrate, which is fixed on the spin coater as shown in Fig. 1(a). After it spun at 3000 rpm for 10 s, the CH₃NH₃I solution of 50 μ L was dropped and continued to spin for 20 s. At the same time the film was to be black. Then the substrate was put on the hot plate at 150 °C for 30 min, at this moment the MAPbI₃ film with ionic liquid, which was named film (II). The film without ionic liquid named after film (I) was synthesized by the same procedure, except that there is no ionic liquid in PbI₂ precursor solution. Figure 1(a) (IV) shows the passivation effect of the MAPbI₃ film after adding BMIMBF₄. It is worth mentioning that all of the synthesis and fabrication procedures are carried out in the glove box.

Zoom In Zoom Out Reset image size

2.2. Device fabrication

2.3. Characteristics

Figures 1(b) and 1(c) show their optical microscope photographs, which give a larger view and declare the films are uniform and homogeneous. For details, figures 1(d) and 1(e) give the SEM images of film (I) and film (II), respectively. Figure 1(d) shows that the film (I) is homogeneous in micro area, but still has lots of grain boundaries due to the storage process after being prepared. In Fig. 1(e), the SEM image of film (II) exhibits the uniform and smooth surface. Furthermore, the amount of grain boundaries is fewer than that of the film (I), suggesting that the film (II) possesses a better crystallinity and stability. Clearly, the microcrystals of film (II) are similar in size to the film (I). And the additive of BMIMBF₄ can really improve the crystallinity structure quality, which has been further confirmed by the XRD spectra.

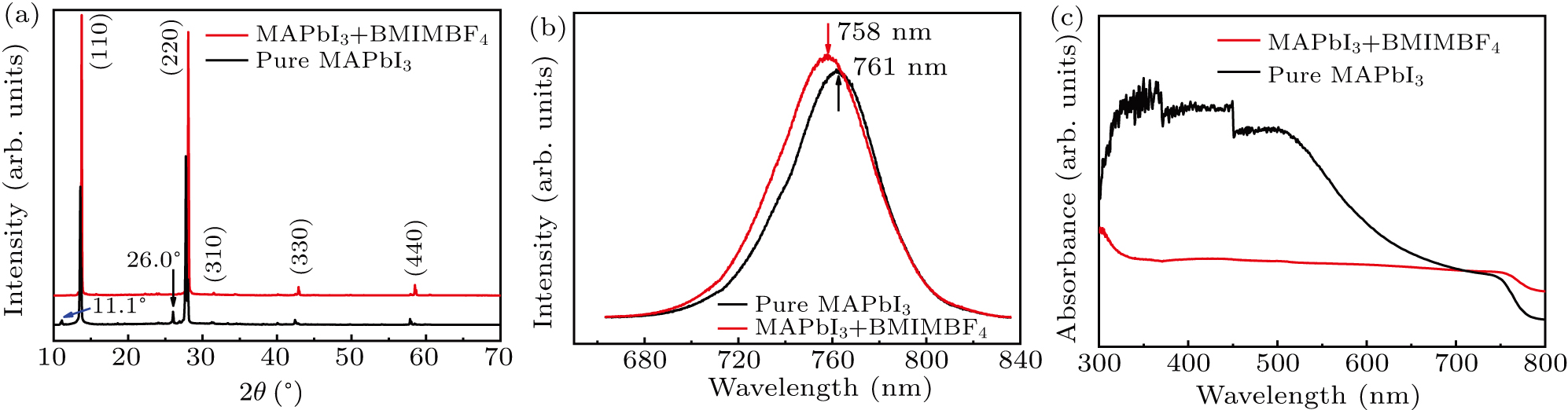

As shown in Fig. 2(a), the XRD patterns show the typical diffraction peaks (110) and (220), which are located at 13.97° and 28.2°, respectively.^[20,21] The positions of those XRD peaks of film (I) and film (II) are all the same, indicating that both of their crystal structures are cubic phase. However, the relative strength of the main diffraction peaks increases largely after the addition of ionic liquid, which implies that the film (II) has better crystallinity. In the XRD pattern of film (I), there is a diffraction peak at 11.1°, which is corresponding to the PbI₂ crystal, illustrating that film (II) has been resolved a little, while there is no diffraction peak at 11.1° in the XRD spectrum of film (II). It declares obviously that the film (II) has not been resolved obviously and is more stable than the film (I). As shown in Fig. 2(b), the emission peaks of the PL spectra of film (I) and film (II) are centered at 758 nm and 761 nm, respectively, which consists with the band gap of MAPbI₃.^[20] The difference of their PL peaks about 3 nm can be attributed to the ambient environment influence. Furthermore, both of the full width at half maxima (FWHM) are about 35 nm close to the FWHM reported in the perovskite film, indicating that the films are with high quality.^[22] The absorption spectra are shown in Fig. 2(c). For film (I), the absorption begins from the wavelength of 760 nm, consisting with the band gap wavelength of CH₃NH₃PbI₃ crystal.^[4,23,24] While the absorption spectrum of film (II) begins about 770 nm, but the absorption intensity at wavelength range from 750 nm to 300 nm is smaller than the film (I). It is because that the ionic liquid effectively promotes the growth of crystal grains, reduces the grain boundaries inside the crystal, and makes the surface of the perovskite smooth as a mirror, thereby reducing the absorption of external light.

Zoom In Zoom Out Reset image size

To further illustrate the stability, we measure the PL spectrum of film (I) and film (II) after one week. As we can see in Fig. 3(a), the PL peak intensity of film (I) is enormously weaker than before, while the PL peak centered at 763 nm of film (II) (red line) is stronger largely than that of film (I) (black line). What is more, compared to the FWHM of film (II) as prepared in Fig. 2(b), the FWHM after one week becomes wider to 49 nm because of the shallow bound states generated from crystal damage induced by the moisture or oxygen, which also makes the PL peak redshifts to 763 nm of film (II) (red line). Importantly, its intensity is much stronger than that of film (I) (black line), which can be interpreted as ionic liquids provide chemical stability by filling I⁻ or MA⁺ vacancies in the perovskite lattice, and immobilize the migrated ions through ionic interaction, preventing ion migration from the perovskite lattice to achieve passivation.^[25]

Zoom In Zoom Out Reset image size

Meanwhile, as shown in Figs. 3(b) and 3(c), the dark-field optical images emphasize the photo-luminescence intensity difference again clearly. The red light of film (II) (Fig. 3(c)) is very obvious even though it has been kept in the ambient environment for one week, while there is not any signal at all of film (I) (Fig. 3(b)). As shown in Fig. 3(d) (film (I)) and 3(e) (film (II)), the time-dependent PL intensities further demonstrate the duration of the emission process, which are well fitted by one exponential function with time constant of 6 s (as shown in 211790-SI-video_1) for film (I) and 2.75 min (as shown in 211790-SI-video_2) for film (II), respectively. It suggests that the fluorescent duration of film (I) is much shorter than that of film (II) under the illumination of 405-nm CW laser. Under ultraviolet (UV) illumination, the decomposed reaction will speed up due to the stripping of effective samples and structural damages.^[26] However, even after one week the film (II) still emits strong red light with high intensity for a long time of 2.75 min, illustrating that the additive of BMIMBF₄ improves the stability enormously.

In addition, figure 4(a) shows the I–V curves. In the dark, under the bias voltage of 2 V, the current of film (I) is about 2.6 × 10⁻¹¹ A, while the current of film (II) rises to 1.7 × 10⁻¹⁰ A, indicating the resistance decreases from 7.7 × 10¹⁰Ω to 1.17 × 10¹⁰Ω, namely the electron concentration increases enormously. As shown in Fig. 4(b), the normalized light response curves illustrate that their rise time and delay time differ a lot: the rise time of film (II) is about 0.27 s, which is shorter than 0.98 s of film (I), and the delay time of film (II) is 0.47 s, which is also shorter than 1.06 s of film (I), which is contributed to the better crystallinity than before and high conductivity of BMIMBF₄.

Zoom In Zoom Out Reset image size

As we all know, the ionic liquid consists of large organic cation and various organic or inorganic anion generally, which effectively reduce the inhibition of charge recombination and trapping state through the interaction between the amino lone electron pair of the ionic liquid and the unsaturated Pb²⁺ in the perovskite.^[27] Due to the bulky size of the cation or sometimes, of both the cation and anion, the interionic space is very large, hence the attractive electrostatic force becomes weaker. As a result, those are liquid in nature below or around 100 °C.^[28] Figure 4(c) shows that the chemical structure of BMIMBF₄ molecule where the molecule has two parts, amino group and anion ${{\rm{BF}}}_{4}^{-}$.^[29] In the prepared process, the amino group will combine with the ${{\rm{CH}}}_{3}{{\rm{NH}}}_{3}^{+}$ as shown in Fig. 4(d), where the red sphere is corresponding to the amino group. Here the interionic electrostatic force is stronger than that of the volatile organic liquids, which make them almost non-volatile, hence it plays a role of passivation.^[29] Another factor of ionic liquid to enhance the electrical properties is that the ionic liquid possesses high ionic conductivity and thermal conductivity, increasing the electron concentration and decreasing the dissolution process, which is important for the electron transport.

Zhang and his cooperators highlight that the poor chemical stability is intrinsic to CH₃NH₃PbI₃ and suggests that element-substitution may solve the chemical stability problem in hybrid halide perovskite solar cells.^[30] As shown in Table 1, Lewis acid,^[31,32] Lewis base based on the donor type,^[33,34] low-dimensional perovskites,^[35] and ionic liquid^[36,37] are effective to enhance the stability of the MAPbI₃ film. The excellent luminescence performance and stability of the MAPbI₃ film proves that this method is feasible. In short, all of the excellent results indicate that the additive of BMIMBF₄ improves the film's stability and electric performance, providing a promising way to develop the perovskite's further application.

In conclusion, we successfully synthesized MAPbI₃ films of high crystallinity quality with/without ionic liquid. And it is demonstrated that the additive of ionic liquid BMIMBF₄ can improve the crystallinity quality and enhance the stability largely in the ambient environment, thus hindering the perovskite's dissolution. The PL intensity of the film with BMIMBF₄ is about ten-fold of that without BMIMBF₄ after being stored for a week in the ambient environment. Furthermore, the fluorescent duration of pure perovskite film without BMIMBF₄ is about 6 s, while the perovskite film with BMIMBF₄ is as long as 2.75 min under the focus of 405-nm CW laser. Here the ionic liquid of BMIMBF₄ plays a role of passivation owing to combination with perovskite film and its large organic cation, as a result, it can prevent the reaction with the oxygen or moisture. Meanwhile, according to the I–V curves, the resistance of film (II) decreases obviously because of ionic liquid's high ionic conductivity and thermal conductivity, which increase the electron concentration and decrease the dissolution process. Therefore, the additive of BMIMBF₄ is highly effective for the electron transport on the glass substrate. In a word, the approach is very significant for the stability and electric performance, which gives a bright promising application in perovskite development.

Project supported by the National Key Research and Development Program of China (Grant No. 2018YFC2001100), the Natural National Science Foundation of China (Grant No. 61574017), the Fundamental Research Funds for Central Universities, China (Grant No. 2017CX10007), and the Open Foundation of Guangxi Key Laboratory of Processing for Non-ferrous Metals and Featured Materials, Guangxi University (Grant No. 2020GXYSOF08).
