Electronic, optical and thermoelectric properties of CaO:F mono-layer: a DFT study

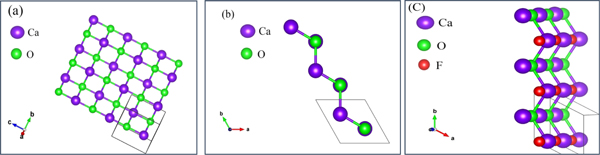

In figure 1, the unit cell of CaO and CaO:F mono-layers are shown. As we can see in panel (b), this arrangement of atoms is not flat and the atoms have a buckling of 0.22 (A°), after optimization. In panel (c), it can be seen that we have substituted the F atom instead of the oxygen. There are a total of 4 atoms in our unit cell, two atoms related to Ca and two atoms related to O, and in the presence of impurity, we put an F atom instead of one of the O atoms. It can be seen that the type of interatomic bonds are of sp type and by adding F atom, the type of bonds will not change, but an additional electron will remain in the system, which will definitely cause fundamental changes in its electronic and optical behavior.

Zoom In Zoom Out Reset image size

To show the mechanical stability from a static point of view, in figure 2, the curve of unit cell energy changes in terms of volume changes (E-V) is drawn based on Birch–Murnaghan equations for the CaO and CaO:F mono-layers. In both (a) and (b) panels, we see the minimum points which indicate the ground state point for both structures, refer to the equilibrium volume for them. The results of these diagrams as the equilibrium volume, lattice constants, bulk modulus, derivative bulk modulus, total energy of unit call, and total magnetic moment are listed in table 1.

Zoom In Zoom Out Reset image size

It can be seen the curve slope of the pure state, in smaller volumes and under stress, has a steeper slope than when the unit cell is under strain. Therefore, when the CaO mono-layer is under stress, it gives a greater response to the applied force. With the introduction of F impurity into this compound, it can be seen in panel (b) that the E-V diagram becomes completely symmetrical and this compound shows relatively same responses to external forces under stress and strain. The results of table 1 show, by adding the F impurity, the lattice constant has changed slightly, so it can be said that the inclusion of this element in the composition has made the stronger bonds. Also, the derivative of the bulk modulus in table 1 shows that the bond between atoms are ionic and with the addition of the F atom, these bonds have become stronger. The bulk modulus of both compounds shows the high hardness of them. The CaO:F mono-layer total energy is less than other case, which refer to its stability than CaO mono-layer. The total magnetic moment in the pure case is zero, which is in agreement with other researches and confirms the correctness of our calculations, while with the addition of F atoms, we see an increase in the magnetic moment by 0.84 μB.

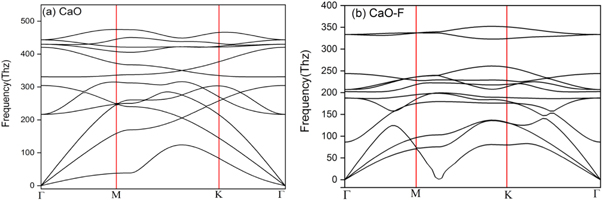

In the following, we have examined the phonon band structure curves of CaO and CaO:F mono-layers compounds along the Γ-M-K- Γ in the figure 3. It can be seen that all the phonon branches are positive, which indicates the dynamic stability of these compounds. In the CaO compound, the phonon branches are intertwined and have a greater slope, which means more heat transfer for it. In the CaO:F mono-layer, with the addition of the F atom, two oscillating gaps have been found, which is due to the difference in the atomic weight of F atom compared to the other two atoms. Also, the presence of F atom in the CaO:F compound has reduced the frequency of the optical levels compared to the CaO case.

Zoom In Zoom Out Reset image size

One of the important parameters to determining the mechanical stability of any structure is their elastic behaviour. The elastic constants are the mechanical response of the crystal against stress and strain. In table 2, we have calculated the elastic constants of CaO and CaO:F mono-layers and related parameters such as Young's modulus, Shear modulus and Poisson's ratio. Both mentioned structures have the condition of elastic stability (C₁₁-C₁₂ > 0, C₂₂ > 0, C₆₆ > 0). Positive and relatively large values of Young's and Shear modules show the great resistance to shear stress for these compounds. Next, Poisson's ratio shows that with the addition of F atoms, the bonds have become stronger and tend to be ionic.

Investigating the electronic properties of materials is very important for understanding other physical properties, so in the following, we calculated the density of states (DOS), and the band structure of CaO and CaO:F mono-layers with GGA approximation and plotted the results in figures 4 and 5. The DOS curve in figure 4(a) shows that the CaO mono-layer is a p-type semiconductor with 2.6 eV energy gap, which is in agreement with other results [22, 23]. Figure 1 shows that adding the F atom impurity to the CaO mono-layer, we have seen major changes in its electronic behaviour. The CaO:F mono-layer electronic behaviour is converted to a half-metal with a magnetic moment of 0.84 μ_B and 98% spin polarization at the Fermi level, it has metallic behaviour at up spin and tendency to semiconductor property at down one with about 0.2 eV energy gap. The panel (b) is observed, which is the main cause of the magnetic behaviour is occurred at the Fermi area, due to the presence of an additional electron in F 2p⁵ than Ca 2p⁴. These are bonding orbital and are therefore present in the Fermi area. It is observed in panel (d) that in the energy −4 eV to −5.5 eV zone, there are O p orbital electron states that have the least amount of magnetic behavior, and in both up and down spins with 1.7 eV and 2.7 eV are separated from the Fermi level. Electron states in the conduction area in both spins are completely continuous up to 5 eV energies, so when exited electrons, by heat, light or other physical factors, it happen good conduction. Due to the half-metallic behavior of this compound and the presence of two large gaps in the up and down spins, it can be used for the GMR, TMR, optoelectronic, and thermoelectric applications.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Figure 5 shows the CaO and CaO:F monolayers bandstructure along the Γ-M-K-Γ path at the Brillouin zone. It can be seen in the pure case that the electron levels of Ca p orbitals are located below the Fermi level with high density, above which there is a large 2.6 eV gap, which makes this compound a suitable option for thermoelectric and optoelectronic purposes. The conduction levels also have a large gradient that allows the excited electrons to high mobility.

With the addition of the F atom to the CaO mono-layer, it can be seen that the bandstructure in the up and down spins are completely different (figures 5(b), (c)). The electronic and magnetic effect of an extra electron of the F atom has caused the p orbital levels of the Ca atom to be shifted to lower energies and at the same time to be split for two spins. In the up spin, an electronic level belonging to the F p orbital has interrupted the Fermi level, while in the down spin we see a small indirect energy gap of 0.2 eV.

The dielectric function shows the interaction and response of matter to the light emitted on it and represents the electronic structure of the materials. This function is complex and consists of two, real and imaginary parts (ε(ω) = ε₁(ω) + iε₂(ω)). The real and imaginary parts of dielectric functions follow as Kramers-Kronig relations [25]:

$$\begin{eqnarray}&&\mathrm{Re}\,{\varepsilon }^{-1}\left(q,\omega \right)=1+P\displaystyle {\int }_{-\infty }^{+\infty }\displaystyle \frac{\text{Im}\,{\varepsilon }^{-1}\left(q,\xi \right)}{\pi }\,\displaystyle \frac{d\xi }{\xi -\omega }\,,\end{eqnarray} \tag{ 1 }$$

$$\begin{eqnarray}&&\text{Im}\,{\varepsilon }^{-1}\left(q,\omega \right)=-P\displaystyle {\int }_{-\infty }^{+\infty }\displaystyle \frac{\left[\mathrm{Re}\,{\varepsilon }^{-1}\left(q,\xi \right)-1\right]}{\pi }\displaystyle \frac{d\xi }{\xi -\omega },\end{eqnarray} \tag{ 2 }$$

The imaginary part of dielectric function is directly related to the electronic structure of the material so that its peaks represent the electron transitions in two intra- and inter-band transitions and the electronic gap correctly, and derived from it, also, the metallic behavior can be resulted from its graph [36].

In the following, the optical characteristics of these two two-dimensional structures will be investigated. For this purpose, the graphs of real (Re_eps) and imaginary (Im_eps) parts of dielectric function, and energy loss function (eloss) are drawn in two directions of in-plane (x) and perpendicular (z) to it, of light radiation according to the energy of the emitted photon in figure 6. For CaO:F monolayer, based its half-metallic nature, we used from intra-band switch for our calculations. In the (a) panel, it can be seen that the static value of the Re_eps coefficient of CaO mono-layer in both directions has the same value of 3.2, which indicates the strong semiconducting behavior of this compound, and there is no change in the behavior of this compound by changing the angle of rotation. Convergence in optical behavior continues in both x and z directions along with the stability of optical behavior in infrared, visible and ultraviolet edge regions. In the region of 4.8 to 9 eV, the optical response along the x-axis is stronger than along the z-axis, and in this region there are at least three peaks for each direction. These fluctuations can be due to the behavior of excited electrons, which gives metallic behavior to this compound. From the energy of 9.2 eV onwards, the value of the Re_eps coefficient is less than one, which indicates the superluminance behavior for it. At the energy of 9.2 eV, both graphs have a root, which represents the plasmon oscillations, and the response of this compound to the light radiated in both directions becomes zero. By adding the F atom to the CaO mono-layer compound, we have seen a significant change in its optical behavior. The static behavior of the Re_eps coefficient is different in the x and z directions, along the x direction it shows a semiconducting behavior and in the z ones its shifted to the metallic behavior. Along the x-axis, we see optical stability in the infrared region, and in the visible region, it is completely unstable and has a very sharp peak. After three smaller peaks in the ultraviolet region, it has become negative at the energy of 9 eV and has two roots in this region, which has a red shift compared to its pure case. But in the z direction of radiation, we have big instability in the infrared region, and it has shown relatively stable behavior in the visible and ultraviolet regions. In the infrared region, this function has become negative, which has two roots in this region. The presence of these changes in the Re_eps function and bigger responses to the irradiated light compared to the pure case, is due to an extra electron that the F atom has compared to the Ca.

Zoom In Zoom Out Reset image size

In panels (c) and (d), the Im_eps coefficient along the x and z directions are plotted according to the energy of the radiated photon for CaO and CaO:F monolayers. In the pure case of large optical gap, it confirms the semiconducting behavior in both directions. The peaks of this diagram represent the electron transition, it has been observed that the transitions occurred in the ultraviolet region and the energy range is 5 to 10 eV. In this energy range, the graphs are completely continuous, which indicates the high absorption of light, as a result of which electrons are continuously excited. Two peaks of relatively equal size can be seen along the x-axis and two peaks along the z-axis, but the peak is larger at the energy of 10 eV. In panel (d), it can be seen that the CaO:F mono-layer has different behaviours in the x and z directions, so that along the z direction, the optical gap is zero, and in the x direction, we show the 0.8 eV gap. It can be seen that by adding Fe atom to the composition, we see a red shift for the peaks, which indicates the tendency to metallic behavior, and by changing the direction of the irradiated light, the optical behavior changes and behaves like an optical switch.

At the end of the optical section, the loss function curves of the mentioned structures are drawn. In the pure case of figure 7(a), it can be seen that there is a big gap up to the edge of the ultraviolet region for two mentioned directions, and further up to the range of 10 eV, the values of this diagrams are relatively small, and at 12.5 eV, we see a sharp and big peak, and due to the presence of the Re_eps roots at this energy therefore plasmonic oscillations occurred there. In panel (b), it shows that two case happened when the F atom entered the structure, firstly, all the graphs have a red shift in both directions, and secondly, there is an anisotropy in the x and z directions, and small loss gaps can be seen for both directions. On the other hand, from the infrared region, we see the beginning of the peaks and gradually their magnitude and fluctuations have increased, which indicates that the addition of an electron by F atom to the CaO mono-layer structure has caused the emergence of metallic behavior.

Zoom In Zoom Out Reset image size

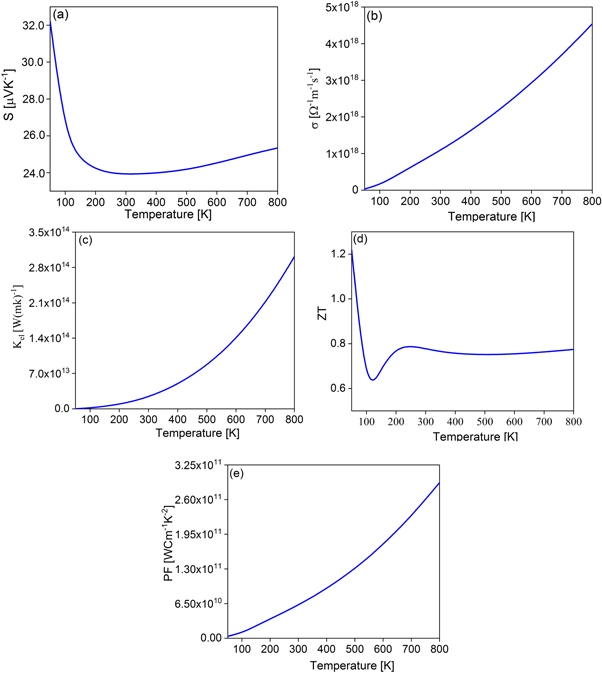

In the following, we will show the thermoelectric behaviour of CaO:F mono-layer compound in down spin under temperature. The thermoelectric property of any material is directly related to its band structure, and this property has higher efficiency quality in semiconductors with a gap less than one eV, with high density levels around the Fermi level. In figure 8, the thermoelectric parameters of CaO:F monolayer compound for down spin are plotted. In the band structure diagrams, it was observed that with the introduction of the F atom into the structure of the pure case, the energy gap has decreased from 2.6 eV to 0.2 eV, on the other hand, we see an increase in the density of the levels around the Fermi level. Panel (a) shows the Seebeck coefficient under temperature, this graph has a maximum at 50 K, which is comparable to other works [23, 24].

Zoom In Zoom Out Reset image size

By increasing temperature to room temperature, the Seebeck coefficient is decreased to 24 μVK⁻¹, and it reaches stable conditions at room temperature, so it can be said that this compound can be suitable for thermoelectric purposes at room temperature. The electrical conductivity under temperature has been depicted in panel (b), and it has a zero value at a temperature of 50 K, which is consistent with its semiconductor behaviour. Considering the small band gap and the high density of electron levels, it can be seen that with the increase in temperature, the electrical conductivity increases with a steep slope. In panel (c), we have shown the thermal conductivity caused by the electron contribution under temperature, where we see a thermal gap up to 100 K, and after that, the conductivity increases exponentially. In panel (d), the important thermoelectric parameter named figure of merit (ZT) coefficient under temperature is shown. In thermoelectric materials, the dimensionless coefficient of merit plays an important role in defining their efficiency, this coefficient is calculated from the following equation [31–34]:

$$\begin{eqnarray}&&ZT=\displaystyle \frac{{s}^{2}\sigma T}{K}\end{eqnarray} \tag{ 3 }$$

where T is the absolute temperature, S is the Seebeck coefficient, σ is the electrical conductivity, and K is the thermal conductivity value [37–41].

If the values of this parameter are in the range of one, it indicates the thermoelectric quality. This graph has two points, firstly, it has a value of 1.2 at 50 K, and secondly, it has reached a saturation limit at room temperature and has shown a stable behaviour with value of 0.75.

Therefore, CaO:F mono-layer has the desired thermoelectric quality for use in thermoelectric tools at room and upper temperatures. Also, this claim has been proven again in a panel (e), here the power factor (PF) diagram has been drawn and it can be seen that at high temperatures, its values are increasing, so it can be said that this combination is a power generator and is suitable for this application.
