A new design for a traveling-wave Zeeman decelerator: II. Experiment

Translationally cold molecules represent ideal systems for precision measurements [1–3] and fundamental collision studies [4–12]. Over the last two decades, a variety of methods has been developed to produce cold molecules from warm samples, including buffer-gas cooling [13], Stark [14, 15] and Zeeman deceleration [16–20], centrifugal-force based deceleration [21] and direct laser cooling [22–29]. In addition, a number of 'indirect' methods have been implemented for 'synthesizing' cold molecules from cold atoms including photoassociation [30] and magnetoassociation [31].

Over the last decade, Zeeman deceleration has been established as one of the most widely used methods for generating samples of translationally cold molecules [16, 17, 20, 32–34]. Zeeman deceleration relies on the slowing down of beams of paramagnetic atoms or molecules in low-field-seeking (LFS) Zeeman states which are inserted into a linear array of coils generating time-dependent inhomogeneous magnetic fields [35–40]. Cold atoms and molecules produced by Zeeman deceleration have found applications in precision measurements [41], fundamental studies of collisions between molecules at very low temperatures [7] and trapping studies [19, 42–45]. Conventional Zeeman deceleration techniques rely on reducing the kinetic energy of atoms or molecules in LFS states by a fast switching of time-dependant inhomogeneous magnetic fields. On the other hand, traveling-wave Zeeman deceleration relies on traveling inhomogeneous magnetic waves, which features the same working principle as a traveling-wave Stark decelerator [46–51] but works for different types of atoms and molecules. Atoms or molecules in their LFS states are trapped around the minima of the traveling magnetic wave which is slowed down to reduce the kinetic energy of the trapped particles. Conventional Zeeman decelerators experience problems of the coupling of the longitudinal and transverse motions of the decelerated molecular beam similar to conventional Stark decelerators [20]. These couplings can severely impair the deceleration efficiency [36, 52, 53]. Moving-trap Zeeman decelerators [17, 54] overcome the losses due to non-ideal transverse focusing forces, as do designs based on electromagnetic coils combined with static magnetic hexapoles [55].

In this work, we introduce a new traveling-wave Zeeman decelerator based on a double-helix coil geometry capable of decelerating samples of paramagnetic species down to an arbitrary final velocity. Compared to the conventional Zeeman or Stark decelerators, the presented decelerator exhibits full three-dimensional confinement of the molecules at a full range of velocities leading to an improvement of the overall phase-space acceptance. In section 2, we describe the working principle of the decelerator. In section 3, the physical implementation of the decelerator modules is detailed. The electronics for generating the time-dependent currents giving rise to the traveling-wave magnetic traps is described in section 4. The principle of the decelerator is proven with experimental results backed up by simulations in section 5 followed by conclusions and an outlook.

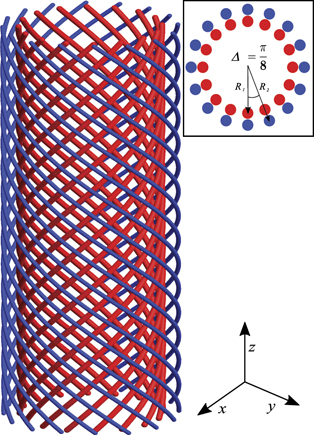

We start by giving a brief summary of the principle for generating traveling magnetic waves in the present device. A full account of the theory is published in an accompanying paper [56]. Let us consider a coil geometry consisting of two layers of wires wound around a cylindrical base (figure 1). The first layer consists of 16 wires wound in right-handed (RH) oriented helices superimposed by a second layer of 16 left-handed (LH) oriented helices. The inset in figure 1 shows a cross section of the helix assembly. Wires are distributed along a circle of radius R, where R = R₁ corresponds to the radius of the RH helix layer and R = R₂ to the LH helix layer. Neighboring helices in each layer are separated by an arc length of RΔ where Δ = π/8. Applying time-dependent currents of the form

$$\begin{equation}{I}_{\text{RH},n}(t)={I}_{\text{RH}}\enspace \mathrm{sin}({\phi }_{\text{RH}}(t)+n{\Delta})\end{equation} \tag{ 1 }$$

$$\begin{equation}{I}_{\text{LH},n}(t)={I}_{\text{LH}}\enspace \mathrm{sin}({\phi }_{\text{LH}}(t)+n{\Delta})\end{equation} \tag{ 2 }$$

to the nth wire (n = 0, ..., 15) in each layer leads to a total magnetic field B of the form of a traveling wave on the central axis of the decelerator:

$$\begin{equation}\vert \mathbf{B}(x=0,y=0,z,t)\vert =\vert {B}_{0}\enspace \mathrm{sin}(kz-{\phi }_{z}(t))\vert .\end{equation} \tag{ 3 }$$

Here, I_RH and I_LH denote the current in the RH and LH layer, respectively and ϕ_RH(t) and ϕ_LH(t) stand for the corresponding phases. ϕ_RH(t) and ϕ_LH(t) are related to ϕ_z (t) and ϕ_θ (t) by

$$\begin{equation}{\phi }_{\text{RH}}(t)={\phi }_{z}(t)+{\phi }_{\theta }(t),\end{equation} \tag{ 4 }$$

$$\begin{equation}{\phi }_{\text{LH}}(t)={\phi }_{z}(t)-{\phi }_{\theta }(t),\end{equation} \tag{ 5 }$$

Zoom In Zoom Out Reset image size

where ϕ_z (t) = at² + bt + c defines the time-dependent position of the minimum of the magnetic field, and ϕ_θ (t) controls the orientation of the magnetic field in the xy plane perpendicular to the longitudinal direction z [56]. The parameters a/k and b/k denote deceleration (or acceleration) and initial velocity, respectively, of the traveling wave. Here, k = 2π/λ, where λ = 14 mm is the periodicity of the helices. c is a free parameter, corresponding to an arbitrary phase shift of the traveling wave at time t = 0 s.

Figures 2(a)–(c) show the calculated magnetic field |B(x, y, z, t)| along different directions inside the double-helix Zeeman decelerator generated by the time-dependent currents I_RH,n (t) and I_LH,n (t) over a single helix period λ. The currents assumed are I_RH = I_LH = +300 A which corresponds to typical values used in the experiments. In (a) and (b), the magnetic trap with a depth of ≈0.5 T is clearly visible along the longitudinal (z) direction. In the transverse x direction, the trap depth is ≈0.35 T, whereas along the y direction it is only 0.05 T. The travelling-wave aspect of the magnetic field is shown in figure 3(a) which shows the calculated magnetic field along the z axis, |B(0, 0, z, t)| at different times. The minima of the magnetic field can be seen to propagate in the +z direction. The corresponding forward velocity of the moving trap is controlled by the phase ϕ_z (t) of the currents. With an appropriate choice of parameters a and b, the traveling magnetic wave can decelerate, accelerate or propagate with a constant velocity in both the +z and −z directions. The present magnetic-field configuration allows for a three-dimensional confinement of molecules or atoms in LFS Zeeman states along one of the transverse directions. From figures 3(a)–(c), it can be seen that at t = 0 s particles in LFS states can be confined both along the x and z coordinates, while along y the trapping field is more shallow. This limitation can be mitigated by introducing an additional experimentally controllable time-dependent phase ϕ_θ (t) = ω_θ t. A continuous variation of ϕ_θ leads to a change of the orientation of the radial trapping field, allowing for a dynamic radial trapping of the particles. The effect is illustrated in figures 3(b) and (c) which display the time-dependence of the magnetic field for both radial directions, |B(x, 0, 0, t)| and |B(0, y, 0, t)|, at different times over half a period of rotation. The time-averaged field strength over one period, $T=\frac{2\pi }{{\omega }_{\theta }}$, is represented by a red trace for both radial components. A detailed characterisation of the dynamics of the traveling trap can be found in reference [56].

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

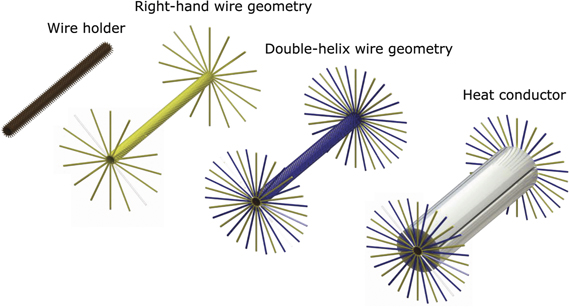

The present traveling-wave Zeeman decelerator features a modular design consisting of 16 individual modules. Each module consists of a 56 mm long Vespel tube with a diameter of 4 mm (figure 4). Vespel was chosen for its favourable thermal and outgassing properties. On the outer surface of the Vespel tubes, grooves were machined for easier mounting of the wires. On the surface of each tube, a RH layer of wires was mounted into the grooves followed by the LH layer. Each layer consists of 16 square wires (0.36 mm × 0.36 mm), mounted in a helical geometry with periodicity λ = 14 mm. Figure 4 shows a schematic of the Vespel tube (brown) together with a RH (yellow) and a LH (blue) helical layer of wires. The radii of the RH and LH helical layers were chosen to be R₁ = 2.0 mm and R₂ = 2.4 mm, respectively.

Zoom In Zoom Out Reset image size

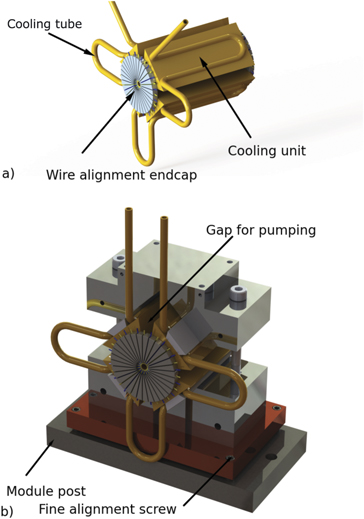

Figure 5 shows a schematic of a complete decelerator unit. Four segments of 7 mm thick precision-machined aluminium nitride (AlN) elements were placed around the wires. AlN was chosen for its exquisite thermal conductivity of 285 W mK⁻¹ and its low electric conductance of 10⁻¹¹–10⁻¹³ Ω⁻¹ cm⁻¹. Neighboring AlN segments were separated by a 0.5 mm gap to enable the evacuation of the different elements of the modules. On top of each AlN segment, a cooling unit machined from 12.5 mm thick copper was placed. The heat produced during the operation of the decelerator was thus dissipated into the AlN and copper cooling units. On the outer surface of the copper unit, a 5 mm wide and 4 mm deep U-shaped groove was machined. Inside the groove, a copper tube with 1.8 mm inner diameter and 4.2 mm outer diameter was placed and connected to the main cooling system. To improve the heat transfer between the cooling units and the tubes, vacuum-compatible heat-conduction paste was applied. An illustration of a fully assembled cooling unit is displayed in figure 5(a). All 16 modules of the decelerator were connected in parallel to the main in-vacuum cooling system. The cooling liquid consisting of 50% deionized water and 50% propanol and held at a temperature of typically 5 °C was passed through the cooling system by a compact low-temperature thermostat (RCS 6 Lauda, 2.4 kW).

Zoom In Zoom Out Reset image size

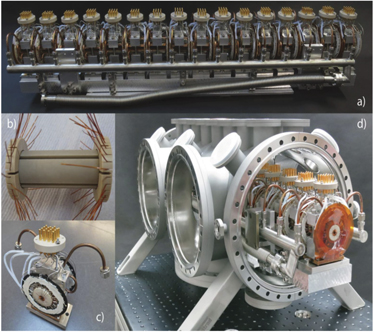

On the front and the back side of each module, endcaps enabling a precise alignment of the wires were placed (figure 5(a)). The disk-shaped endcaps were machined from polyether–ether–ketone thermoplastic. 32 equidistantly spaced slits around each endcap were used to position and guide the individual wires. The assembled segments were held by two aluminum braces and mounted onto a copper base (60 mm × 43 mm × 6 mm) which was in turn screwed onto an aluminum base (85 mm × 43 mm × 9 mm). Four screws were placed in the four corners of the copper base to enable fine-adjustment of the alignment of the modules, i.e., the vertical offset and angle in the horizontal plane between the neighboring modules. A fully assembled module is shown in figure 5(b). Each module was placed on a main stainless steel base plate (100 mm × 896 mm × 30 mm). The position of each module on the base plate was fixed by two alignment pins placed at the bottom of each module (15 mm × 6 mm diameter, 40 mm separation). Figures 6(a)–(d) show photographs of different elements of the decelerator. For the current experiments, a total of 16 decelerator modules was used.

Zoom In Zoom Out Reset image size

The Zeeman deceleration of paramagnetic species requires changes in the magnetic field of several Tesla over distances of a few millimeters within a few microseconds. In addition, these magnetic fields are typically switched at frequencies on the order of tens of kHz. For this purpose, a high-power current generator was developed which produces bipolar currents up to 400 A amplitude with frequencies ranging from 0–40 kHz. Bursts of sinusoidal currents I_L of variable instantaneous frequencies can be generated with a repetition rate 1/t_r of typically 2 Hz.

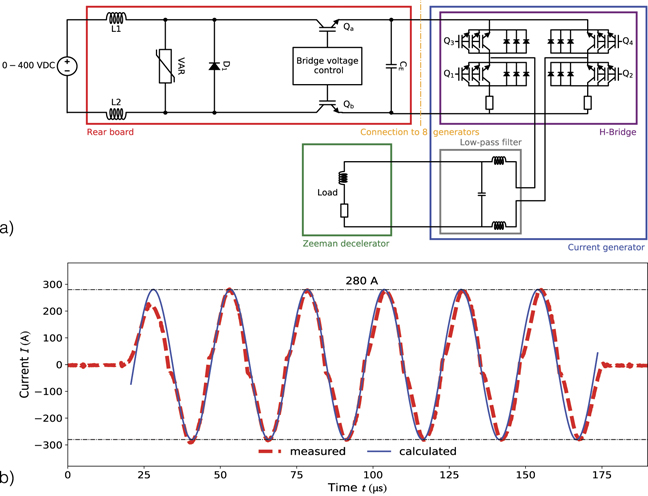

The desired current waveform was generated by a full H-bridge inverter [57], see figure 7(a). The H-bridge inverter consists of four switches Q₁–Q₄ operating the bridge itself. Two additional switches Q_a and Q_b are used to control the power supplied to the bridge. Before the very first pulse of each experimental cycle, switches Q₁–Q₄ are open while switches Q_a –Q_b are closed allowing a DC power supply to load the capacitor C_E (C_E = 1000 μF). The DC power supply is smoothly ramped up to avoid current spikes and voltage drops. At the beginning of each pulse, switches Q_a and Q_b are opened which isolates the DC power supply from the bridge. This enables to use a single power supply to operate up to eight current generators. Switches Q₁–Q₄ are then alternately operated in order to convert the DC voltage V_C of the capacitor C_E into an AC voltage V_H across the low-pass filter. A low-pass filter reduces the amplitude of the high-frequency components of V_H to only a few percent of the main frequency component. After each pulse, switches Q₁–Q₄ remain open, while Q_a and Q_b are closed again, and capacitor C_E is recharged.

Zoom In Zoom Out Reset image size

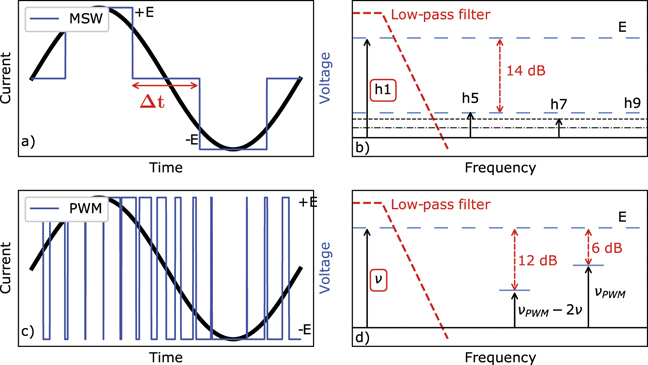

Two control strategies have been applied to operate the current generator: three-level modified square-wave (MSW) control and pulse-width modulation (PWM), see figure 8. The MSW control relies on generating a modified square signal of three discrete values (−E, 0, +E) at the effective frequency across the load. The ratio between the main frequency component h1 and the odd harmonics (h3, h5, h7, ...) is tuned via the angle β defined as $\beta =\frac{\pi {\Delta}t}{T}$, where Δt is the time duration of the zero level and T is duration of one period. When β = π/3, h3 vanishes and the first undesired harmonic becomes h5 which is suppressed by 14 dB compared to the fundamental and is easily filtered out. In addition, the peak of the current can slightly be tuned via the angle β at the expense of an increased harmonic distortion of the signal. MSW control results in only small power losses in the switches, since switching occurs at the frequency ν of the desired current I_L. This control scheme is especially suitable for the generation of high-frequency currents (20–40 kHz). The harmonics h5 and h7 lie far outside the bandwidth of the low-pass filter (cutoff at 40 kHz) and are therefore easily eliminated. The generation of low-frequency currents (0–20 kHz) requires a different control strategy because higher harmonics fall into the bandwidth of the low-pass filter.

Zoom In Zoom Out Reset image size

The PWM control scheme relies on the application of a square wave at a fixed frequency ν_PWM to the load, which is chosen much higher than the target frequency ν of the current I_L. The duty cycle of the square wave is modulated at frequency ν. The voltage V_H across the bridge then exhibits a fundamental frequency component at ν, and the strongest unwanted frequency components at ν_PWM − 2ν and ν_PWM. Unwanted frequency components always lie around ν_PWM and are thus easily pushed outside the bandwidth of the low-pass filter. This control strategy can in principle be adapted to the generation of all frequencies in the range 0–40 kHz, as long as ν_PWM is chosen high enough. As a disadvantage of this approach, PWM produces more losses in the switches than the MSW method, as more switching is required. As a consequence, we only used the PWM scheme for generating currents with frequencies lower than 20 kHz.

We have chosen a third-order (n = 3) Butterworth low-pass filter with frequency response $G(\omega )=1/\sqrt{1+{\omega }^{2n}}$, where ω is the angular frequency. In the MSW control scheme, the filter reduces the harmonics h5 by 42 dB, thereby reducing the ratio h1/h5 from 20% to 0.16%. In the PWM strategy, the minimum acceptable PWM frequency ν_PWM is set by the frequency component ν_PWM − 2ν and attenuation requirements. In order to generate frequencies up to 20 kHz, we have set ν_PWM = 120 kHz. The relative weights of the ν_PWM and ν_PWM − 2ν components with the respect to the fundamental are thus 0.4% and 0.2%, respectively.

The present application requires high peak currents, high switching frequencies and high rates for changing currents (dI_L/dt > 6 kA μs⁻¹). Therefore, electrical connections needed to be treated with extra care. The capacitor C_E is mounted on a motherboard with a biplanar connection to the H-bridge. In order to minimize the voltage overshoots due to the connection inductance, the biplanar connection is realized through low-impedance printed-circuit boards which exhibit a linear induction lower than 1 nH m⁻¹. For the same reason, the low pass filter is located as close as possible to the load and consists of only three components: two inductors and one capacitor. Due to the high currents flowing in the low-pass-filter, the internal magnetic field in these conductors is quite high, so low inductances of 1.2 μH and air-core inductors were preferred in order to minimize core losses. Finally, the connection from the H-bridge to the load is about 1 m long and consists of a 50 Ω coaxial cable. This cable introduces a small additional inductance of 250 nH m⁻¹ which has been taken into account in the design of the low-pass filter.

The electronics are controlled by a LabView code [58] developed in-house. From the initial velocity of the molecular beam and desired final velocity of the molecular package at the end of the decelerator, the parameters a, b and c are calculated which define the phase ϕ_z (t) at time t controlling the positions of the traveling traps (see figure 2). These parameters together with the predefined rotational frequency of the traveling trap ω_θ = 2πf (f = 0–10 kHz) are then sent to the current generators. An embedded software for the current generators accepts the parameters and uses the parameters to calculate the current switching sequences for each generator. Additionally, extensive status-checking functionalities, e.g. for monitoring the temperature of the boards, the status of the switching sequences and possible overvoltage and overcurrent failures, are in place for each generator to verify its correct operation.

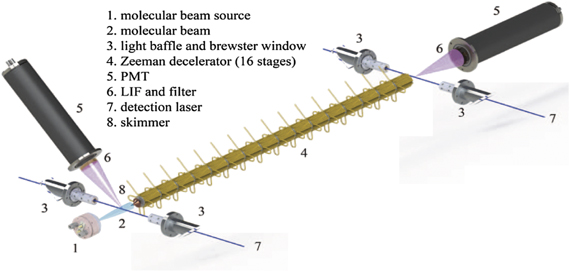

A schematic of the complete experimental apparatus is shown in figure 9. A molecular beam of OH radicals with a mean longitudinal velocity of 445 m s⁻¹, and 50 m s⁻¹ velocity spread (FWHM) was produced by a pulsed gas valve discharging H₂O seeded in Xe [59]. In the supersonic expansion emanating from the valve, about 98% of the molecules were populated in the lowest rotational level (J = 3/2) of the vibrational (v = 0) and electronic ground state (X²Π_3/2) [59]. In the presence of a magnetic field, the degeneracy between different m_J levels (m_J = ±3/2, ±1/2) is lifted, where m_J denotes the magnetic quantum number. Only particles in the LFS states (m_J = +1/2, +3/2) are amenable to Zeeman deceleration [16]. The effective magnetic moment of OH in the m_J = +3/2 state is 1.4 μ_B [60], where μ_B denotes the Bohr magneton. The molecular beam passed through a skimmer (beam dynamics, 2 mm diameter) 7 cm downstream from the valve orifice to enter the deceleration chamber where it was coupled into the decelerator.

Zoom In Zoom Out Reset image size

After deceleration, the OH molecules in the X²Π_3/2, v = 0, J = 3/2 state were excited by a 282 nm laser pulse (with the energy of 1.2 mJ) into the A²Σ⁺, v = 1, J = 1/2 excited state. The laser radiation was generated by the output of a frequency-doubled dye laser operating with a Rhodamin 6G dye pumped by a Nd:YAG laser. The resulting fluorescence from the A²Σ⁺(v = 1) → X²Π(v = 1) transition (720 ns lifetime) centered at 313 nm was collected by a UV-grade lens with 50 mm focal length and detected by a photo-multiplier tube (PMT) (electron tubes B2/RFI, 9813 QB). Unwanted light was filtered by a combination of four UV-grade filters [61]. Time-of-flight (TOF) profiles of the molecules exiting the decelerator were recorded by monitoring the laser-induced fluorescence (LIF) yield as a function of the laser delay. All TOFs were referenced to the opening of the valve. The time step between consecutively recorded TOF data points was 2 μs and each point was averaged over 200 laser shots.

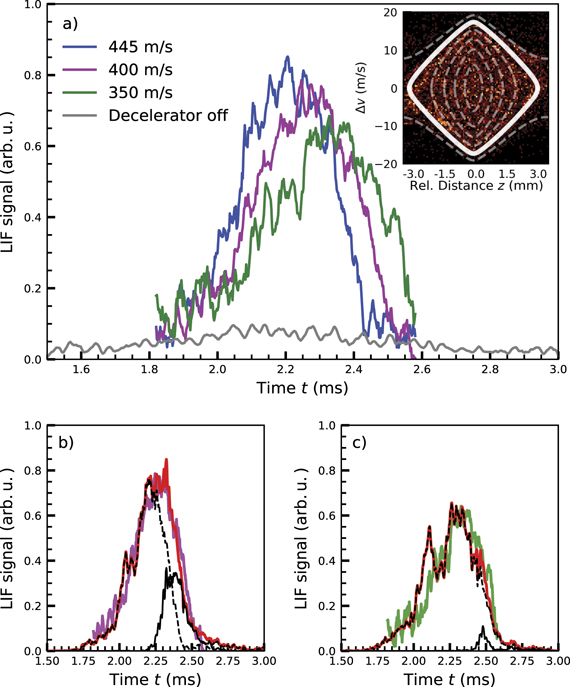

TOF profiles of OH molecules decelerated to specific final velocities starting from an initial velocity of 445 m s⁻¹ are shown in figure 10(a). The blue trace corresponds to a guiding experiment in which the final velocity of the traveling wave is matched to the initial velocity so that the molecules were guided at 445 m s⁻¹ around the node of the traveling magnetic field. The magenta and green traces correspond to experiments with a constant deceleration of the magnetic trap from the initial velocity down to 400 m s⁻¹ and 350 m s⁻¹, respectively. The gray curve represents the TOF profile obtained when the decelerator was switched off. The inset in figure 10(a) shows a 1D phase-space distribution (PSD) along the deceleration axis of particles which were efficiently trapped inside a single traveling trap throughout the deceleration process extracted from numerical trajectory simulations [56]. In the numerical trajectory simulations, 3.6 × 10⁵ molecules were created 9.3 cm upstream from the decelerator. The initial positions and velocities of the molecules were sampled from a normal distribution. Molecules were created with 445 m s⁻¹ mean forward velocity and 50 m s⁻¹ longitudinal velocity spread (FWHM) and a longitudinal spatial spread of 60 mm. The molecules were propagated to the detection region with their positions and velocities recorded every 100 microseconds. The inset of figure 10(a) shows a snapshot taken 2.2 ms after the molecules exit the nozzle at time they arrive in the detection region. The thick white curve represents the separatrix, a line encircling the area of PSD for which molecules are efficiently trapped during deceleration, corresponding to the trap depth of 0.24 cm⁻¹ (0.34 K). Broken white lines in the inset indicate isoenergetic phase-space trajectories separated by 0.05 cm⁻¹. One can see that particles were confined inside a ≈ 7 mm long region along the decelerator axis which corresponds to the geometric size of the trap defined by a λ/2 = 7 mm.

Zoom In Zoom Out Reset image size

In reference [62], it was shown that it is possible to discern contributions from particles that are effectively trapped around the node of the magnetic wave from those that accidentally distribute around it in the TOF profiles. In our case, this was not possible due to experimental limitations. In order to obtain an isolated structure of decelerated molecules in the TOF measurements, a molecular beam with a narrow spatial spread along the deceleration axis would be required so that only a single traveling trap would be occupied with molecules. In the present experiments, the entirety of the molecular beam was overlapped with traveling traps and thereby multiple traps were filled with molecules. This explains the broad TOF profile of the decelerated beam shown in figure 10(a).

These limitations could be circumvented by, e.g., employing laser dissociation of HNO₃ for generating a spatially narrow beam of OH radicals [63] instead of an electric discharge.

However, it is also possible to characterize the decelerated fraction of the molecular beam by comparison with simulations. Figures 10(b) and (c) illustrate such a comparison of experimentally obtained TOF profiles to those extracted from numerical particle-trajectory simulations. The red traces correspond to numerical simulations for final velocities of (b) 400 m s⁻¹ and (c) 350 m s⁻¹. To understand how decelerated molecules contribute to the overall TOF profiles, the position and velocity of each molecule in the simulation were checked if they fall within phase-space accepted area of each trap. The total simulated TOF profile is then split into two parts arising from decelerated and undecelerated molecules shown as full and broken black lines in figure 10, respectively. An evolutionary algorithm was developed for optimizing the initial parameters of the molecular beam in order to minimize the discrepancy between numerical simulations and experimental results. Details can be found in reference [56]. The overall agreement between experiments and simulations are good. Small discrepancies are attributed to the lack of a detailed knowledge of the properties of the molecular beam, notably its exact spatial and temporal profile before it is coupled into the decelerator.

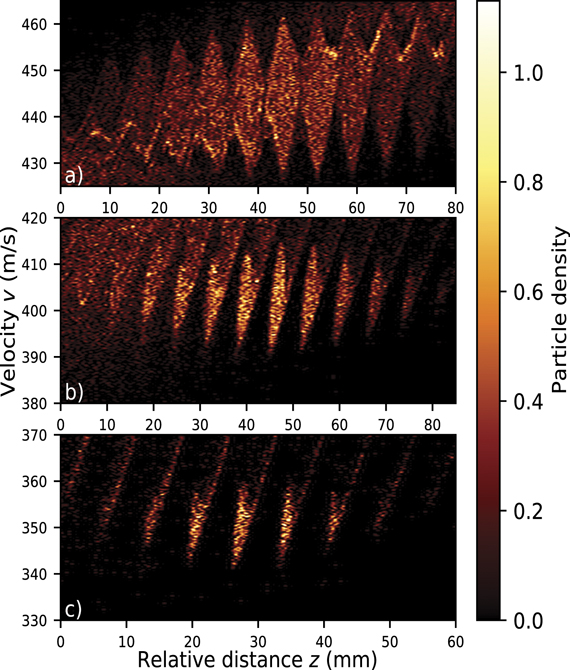

Figure 11 presents PSDs of particles extracted from the numerical trajectory simulations shown in figure 10. Only molecules which are effectively trapped during flight are shown. The normalized particle density is represented by a color map. Panel (a) correspond to the PSD of particles guided at 445 m s⁻¹ extracted at a timestamp of 2.2 m s in the simulation when they exit the decelerator and enter the detection region. Panels (b) and (c) represent PSDs of particles decelerated to final velocities of 400 m s⁻¹ and 350 m s⁻¹ and extracted at 2.3 m s and 2.4 m s, respectively. Each decelerator module consists of eight geometrical traps, but depending on when currents are switched on (off) relative to the arrival (departure) of the package of molecules, differing numbers of effective traps can be created leading to a different fractions of the molecular beam being coupled into the decelerator. This is reflected in the present PSDs. In guiding mode (figure 11(a)), ten traps filled with molecules are propagated through the decelerator. On the other hand, lower final velocities lead to lower effective trap depths which in turn lead to smaller fractions of molecules being decelerated (b) and (c).

Zoom In Zoom Out Reset image size

In conclusion, we have designed, implemented and characterized a new type of travelling-wave Zeeman decelerator. We have demonstrated the successful operation of the apparatus by decelerating a molecular beam of OH molecules in the X²Π_3/2 state from an initial forward velocity of 450 m s⁻¹ down to a final velocity of 350 m s⁻¹. Experimental TOF traces were favorably compared with numerical trajectory simulations.

The decelerator is modular in design allowing for its ready extension. Compared to conventional Zeeman or Stark decelerators [64–67], the present implementation exhibits a full three-dimensional confinement of the molecules as also evidenced from the trajectory simulations leading to an improved overall phase-space acceptance [56]. For the purpose of producing the required time-dependent currents, we have developed compact arbitrary waveform current generators capable of producing currents up to 300 A and 0–40 kHz frequency. The decelerator was so far operated at 2 Hz repetition rate. With improvements to the cooling system, the repetition rates could be increased up to 10 Hz.

In the future, the decelerator will be extended by another 16 modules, allowing for improved deceleration capabilities and the deceleration of OH radicals down to final velocities of about 50 m s⁻¹. Even at the present length of the decelerator with 16 modules, light particles such as H atoms and metastable ${\mathrm{H}}_{2}^{\ast }$ can be decelerated to effectively a standstill. We expect that the present decelerator will be ideally suited for the investigation of scattering experiments between cold molecules and trapped ions or loading decelerated molecules into a trap.

We thank the mechanical and electronics workshops from FHI and the Department of Chemistry at the University of Basel for their support. Funding from the Swiss National Science Foundation, Grant Nr 200020_175533, and the University of Basel is acknowledged. DZ acknowledges the financial support from Freiwillige Akademische Gesellschaft (FAG) Basel, the Research Fund for Junior Researchers of the University of Basel and the National Key R&D Program of China (No. 2019YFA0307701).

The data that support the findings of this study are available upon reasonable request from the authors.
