Topologically nontrivial interband plasmons in type-II Weyl semimetal MoTe₂

Single crystal of 1T'-MoTe₂ were grown by using Te as flux. Starting materials Mo (column, 99.9999%) and Te (lump, 99.9999%) were mixed in an Ar-filled glove box at a molar ratio of Mo:Te = 1:20. The mixture was placed in an alumina crucible, which was then sealed in an evacuated quartz tube. The tube was heated to 1100 °C over 20 h and dwelt for 10 h. Then, the tube was slowly cooled down to 950 °C at a rate of 1 °C h⁻¹ followed by separating the crystals from the Te flux by centrifuging. Shiny crystals with the size of 1 × 5 mm² were obtained on the bottom of the crucible.

The good crystal quality is characterized ex situ by x-ray diffraction and the surface of the cleaved sample is checked by x-ray photoelectron spectroscopy (XPS), which can exclude the possible surface contamination or oxidation of them. The details of the sample characterizations are shown in the supplemental materials (https://stacks.iop.org/NJP/22/103032/mmedia).

As a surface sensitive technique, HREELS is an ideal candidate to explore the low-energy collective excitations of MoTe₂. Compared with conventional HREELS, our recently developed two-dimensional (2D)-HREELS can directly obtain a 2D energy-momentum mapping in a very large momentum scale without rotating sample, monochromator, or analyzer [48].

The energy and momentum of the collective excitations (either plasmon or phonon) are obtained using the conservation of energy and momentum for incident and scattered electrons. As given by ℏq_∥ = ℏ(k_i  sin α_i − k_s  sin α_s) (where α_i and α_s are the incident and scattering angles, respectively), the parallel momentum q_∥ depends on incident energy E_i, energy loss E_loss = E_s − E_i, α_i and α_s according to

$$\begin{equation}{q}_{{\Vert}}=\frac{\sqrt{2m{E}_{\mathrm{i}}}}{\hslash }\left(\mathrm{sin}\enspace {\alpha }_{\mathrm{i}}-\sqrt{1-\frac{{E}_{\text{loss}}}{{E}_{\mathrm{i}}}}\enspace \mathrm{sin}\enspace {\alpha }_{\mathrm{s}}\right)\approx \frac{\sqrt{2m{E}_{\mathrm{i}}}}{\hslash }\left(\mathrm{sin}\enspace {\alpha }_{\mathrm{i}}-\mathrm{sin}\enspace {\alpha }_{\mathrm{s}}\right).\end{equation} \tag{ 1 }$$

In this study, all the HREELS measurements were performed in situ within ∼10 h after fresh cleavage in ultra-high vacuum (∼1 × 10⁻¹⁰ Torr). We obtained the information around the first Brillouin zone (BZ) center Γ with the incident energy ranging from 15 eV to 110 eV at room temperature. And the temperature-dependent measurements were obtained with the incident energy of 110 eV only.

The first-principles calculations are performed by using Vienna ab initio simulation package (VASP) [49] based on the density function theory with Perdew–Burke–Ernzerhof parameterization of generalized gradient approximation [50, 51]. The energy cutoff of the plane wave basis is set as 300 eV, and the BZ of MoTe₂ is sampled by 18 × 10 × 4 k-mesh. The ionic positions are fully optimized with the VdW correction until the force on each atom was less than 0.01 eV Å⁻¹ while the lattice parameters are fixed as the experimental value. The dynamical dielectric function are calculated based on the Hamiltonian of maximally localized Wannier functions [52] with s, p, d orbitals of Mo atoms and s, p orbitals of Te atoms.

Within the random phase approximation (RPA), the dynamical dielectric function ɛ^RPA(q, ω) can be calculated from the formula:

$$\begin{equation}\begin{aligned}\hfill \varepsilon \left(q,\omega \right)& =1-\frac{4\pi {e}^{2}}{\kappa {q}^{2}}{\chi }_{0}\hfill \\ \hfill & =1-\frac{4\pi {e}^{2}}{\kappa {q}^{2}V{N}_{k}}\sum _{mn,k}\frac{{f}_{mk}-{f}_{nk}}{{E}_{mk}+\omega -{E}_{nk}+i\eta }\left\langle mk\left\vert nk+q\right.\right\rangle \left\langle nk+q\left\vert mk\right.\right\rangle \hfill \\ \hfill & =1-\frac{4\pi {e}^{2}}{\kappa {q}^{2}V{N}_{k}}\sum _{mn,k}\frac{{f}_{mk}-{f}_{nk+q}}{{E}_{mk}+\omega -{E}_{nk+q}+i\eta }\left\langle mk\left\vert nk+q\right.\right\rangle \left\langle nk+q\left\vert mk\right.\right\rangle \hfill \end{aligned}\end{equation} \tag{ 2 }$$

where the effective background dielectric constant κ is calculated from VASP, the values of which are 218.2 for the T_d phase and 190.3 for the 1T' phase along the Γ–X direction (κ_xx). The formula of ɛ^RPA(q, ω) can be written as the long wavelength limit of q = 0:

$$\begin{equation}\varepsilon \left(0,\omega \right)=1+\frac{4\pi {e}^{2}}{\kappa V{N}_{k}}\left[\sum _{m,k}\frac{\frac{\partial {f}_{mk}}{\partial {E}_{mk}}{\left(\frac{\partial {E}_{mk}}{\partial k}\right)}^{2}}{{\left(\omega +i{\eta }_{1}\right)}^{2}}-\sum _{m,k}\sum _{n\ne m}\frac{{f}_{mk}-{f}_{nk}}{{E}_{mk}-{E}_{nk}+\omega +i{\eta }_{2}}\frac{\left\langle mk\right\vert \frac{\partial H}{\partial k}\left\vert nk\right\rangle \left\langle nk\right\vert \frac{\partial H}{\partial k}\left\vert mk\right\rangle }{{\left({E}_{nk}-{E}_{mk}\right)}^{2}}\right]\end{equation} \tag{ 3 }$$

where the first term is the intraband term with a broadening parameter η₁ and the second term is the interband term with a broadening parameter η₂.

MoTe₂ is a layered Van der Waals material with two different structures at 300 K: hexagonal (2H) phase or monoclinic (1T') phase, due to different growth conditions. In this study we focus on the 1T' phase (a trivial metal/semimetal), which exhibits a structural phase transition to the T_d phase at ∼250 K [53]. Although these two phases share the same in-plane structure, the T_d phase with a vertical (90°) stacking belongs to the non-centrosymmetric space group Pmn2₁ while the 1T' phase with a distorted stacking belongs to the centrosymmetric space group P21/m [see figures 1(a) and (c)]. Only the low temperature T_d phase was predicted to support type-II Weyl fermions, while the centrosymmetric 1T' phase is topologically trivial. Angle-resolved photoemission spectroscopy together with the first-principles calculations shows that Fermi surfaces in the T_d phase MoTe₂ consist of both topologically trivial and nontrivial bands [41–44, 46]. Figure 1(e) shows the BZ of the T_d phase, and the locations of the Weyl points are shown in figure 1(f) and a corresponding enlarged zone in figure 1(g). Previous theoretical and experimental works suggest four pairs of Weyl points in the k_z = 0 plane of the BZ [37, 38].

Zoom In Zoom Out Reset image size

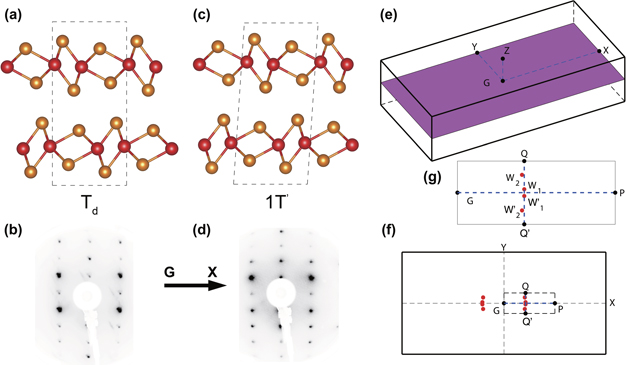

The MoTe₂ single crystals with the 1T' phase at ∼294 K were cleaved in situ, and the obtained (001) surface exhibits excellent (1 × 1) low energy electron diffraction (LEED) patterns of sharp spots with a very low background, as shown in figure 1(b). At 44 K, the T_d phase surface shows almost unchanged (1 × 1) LEED patterns [figure 1(d)] as the 1T' phase, since the two phases share the same in-plane structure. The angle-resolved inelastic electron scattering was performed by the HREELS with the capability of 2D energy-momentum mapping [48]. The results in both the 1T' and T_d phases at different temperatures were obtained.

Figures 2(a) and (b) display the 2D energy-momentum mappings obtained from the HREELS measurements along the Γ–X direction with the incident beam energy of 110 eV for the T_d phase at 44 K and for the 1T' phase at 294 K, respectively. In the T_d phase, the energy distribution curve (EDC) integrated over momentum [red curve in figure 2(a)] shows two distinct energy-loss peaks around 90 and 170 meV, which are labeled as α and β, respectively. In contract, the integrated EDC for the 1T' phase only shows one energy-loss peak around 220 meV, which is labeled as γ. The energies of all these peaks are much higher than the highest phonon energy (around 35 meV) in MoTe₂ [54], indicating that they are not phonons. Through XPS measurement to test the 3d binding energy of Te and Mo, and the comparison of the HREELS spectra between clean and exposed surfaces, we show that these loss peaks are not vibrations of possibly adsorbed molecules (e.g., H₂O) or the Te–O bond due to possible surface oxidation. Instead, they are most likely to be plasmons.

Zoom In Zoom Out Reset image size

Then the dispersions of these modes are checked from q-dependent EDCs extracted from the 2D mapping, as shown in figures 2(c) and (d). Due to the semimetallic nature of MoTe₂, there exists a strong Drude background in the energy loss EDCs. We employ a background subtraction method based on a polynomial fitting of the baseline, which has been used in graphene [55] and graphite [56], to extract the information of the exact energy loss peaks, including energy, full width at half maximum, and intensity (see details in the supplemental materials). The exact fitted energies of α, β and γ modes at the Γ point are 89(±1) meV, 174(+6/−3) meV and 216(+13/−19) meV, respectively. The obtained experimental energy-momentum points of these modes are plotted in figures 2(e)–(h) (solid dots). All of the three modes are almost dispersionless, and their intensities show quick damping with the increasing momentum q, becoming invisible when q > 0.05 Å⁻¹. In addition, their energies are nonzero at q = 0, evidencing that they are not plasmons originating from surface states. Instead, they should be bulk (bp) or surface plasmons (sps) originating from the bulk bands. In the T_d phase, the average ratio of energy between α and β is $\frac{{\omega }_{\alpha }}{{\omega }_{\beta }}\sim 0.56{\pm}0.04$, significantly deviating from the conventional ratio between the energies of bp and its corresponding sp from the same electronic band: $\frac{{\omega }_{\mathrm{s}\mathrm{p}}}{{\omega }_{\mathrm{b}\mathrm{p}}}=\frac{1}{\sqrt{2}}\sim 0.71$ for the ideal case, and varies from 0.60 ± 0.35 (lithium) to 0.73 ± 0.11 (potassium) for typical real metals [57]. And in the 1T' phase, only one mode (γ) is detected.These observatoins suggest that β and α cannot be the conventional bp and its corresponding sp. However, our current results with different incident angles and various incident engergies (shown in the supplemental materials) cannot provide convinced evidence if the observed loss features are bp or sps.

To further clarify the nature of these modes, we performed first-principles calculations to obtain the electronic bands as well as the density–density correlation functions in the two phases of MoTe₂. Then the dynamical dielectric functions ɛ^RPA(q, ω) were calculated within the RPA. The calculated plasmon modes appear as sharp peaks in the energy loss function ${\varepsilon }_{\text{loss}}=-\mathrm{Im}\left(\frac{1}{{\varepsilon }^{\text{RPA}}}\right)$, which are directly related to the experimental excitation spectra probed by HREELS. First, we checked the bulk or surface nature of the modes by performing a slab calulation (details in the supplemental materials). It turns out that the peak positions of the energy loss function in the slab center (corresponding to bulk modes) are almost identical to those obtained at the slab surface (corresponding to surface modes). As a result, no matter if the measured plasmon modes are surface or bulk, their originations are the same, both from the bulk band structure.

In addition to the terms describing the intraband transitions in the regular plasmon study, the calculations also include the terms describing the interband transitions which may dominate in the plasmons with inverted energy bands [9]. We set the Fermi energy at −50 meV, and use two different broadening parameters for the intraband (η₁ = 150 meV) term and the interband (η₂ = 20 meV) term, respectively, to fit the experimental results. It turns out that the interband transitions dominate the loss function intensities, while the intraband transitions only act as negligible backgrounds. We will focus on the interband contributions in the following. The intensity mappings of the calculated electron energy loss functions for the T_d phase and the 1T' phase are shown in figures 2(e) and (f), and the corresponding loss functions at different q are plotted in figures 2(g) and (h), respectively. The experimental energy-momentum points of the three modes are superimposed on the calculated results. Considering the experiemntal energy uncertainty shown above, the theoretical simulation in the small q range shows a good agreement with the measured peak positions. The main discrepancy is that the calculated results damp slower and disperse to a larger momentum range where the loss peaks are invisible in the measurements. This is largely due to the simplification of the theoretical model. In the simulations, all the plasmon modes are simplified as interband correlations, with the intraband correlations neglected, which might also contribute to the damping rate. Other scattering processes, such as electron–phonon scattering, electron-defect scattering and electron-surface scattering, are also ignored in the simulations, resulting in the discrepancy of the momentum of electron–hole excitations between the simulation and experimental observations. Nevertheless, the theoretical calculations can well reproduce the energies of the observed plasmon modes as well as their connections to the phase transition. Details of the calculation methods and analyses can be found in the supplemental materials.

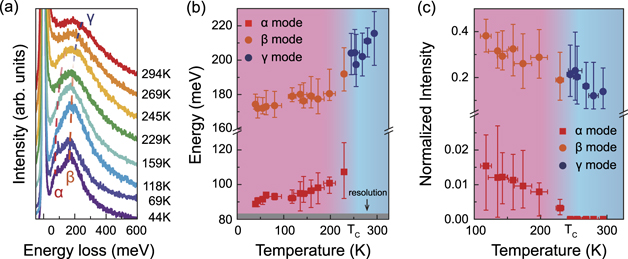

To gain more insights into the behaviors of plasmons accompanied with the structural phase transition, we performed temperature-dependent HREELS measurements from 294 K to 44 K. Figure 3(a) shows the stacked EDCs at Γ point at several temperatures (a complete set of temperature-dependent measurements is provided in the supplemental materials). With the temperature decreasing, the γ mode gradually evolves into the β mode, while the α mode gradually appears. The energies and intensities of these three modes as a function of temperature are extracted by using the fitting method mentioned above, with the results plotted in figures 3(b) and (c). When the temperature is above ∼260 K, the data can be only well fitted with one peak. And when the temperature is below ∼200 K, the data can be only well fitted with two peaks. It should be noted that, in the temperature range from 200 K to 260 K where the structural phase transition temperature T_C locates, the data can be fitted equally well either with one peak or with two peaks. The present HREELS plasmon measurements cannot provide accurate information near T_C, possibly because of the intermediate new phase with frustrated disorders [58] in the structure associated with the phase transition. But it is pretty clear that only the γ mode exists in the high-temperature 1T' phase, while there are indeed two modes (α and β) existing in the low-temperature T_d phase.

Zoom In Zoom Out Reset image size

Figure 3(b) shows that the energies of the observed plasmon modes exhibit similar temperature-dependent behaviors, all increasing with rising temperature. This is different from the prediction that the energy of the intrinsic plasmon in type-I Weyl/Dirac semimetals has a nonlinear temperature dependence when only a single Weyl/Dirac cone contributes to the Fermi surface [13, 14]. The electronic structure of MoTe₂ is more complicated than the single Weyl/Dirac cone model, and all of the three plasmon modes mainly originate from the interband correlations. As a result, the temperature dependences of energies of these modes should be hard to be faithfully captured by the theoretical predictions based on the simple ideal model.

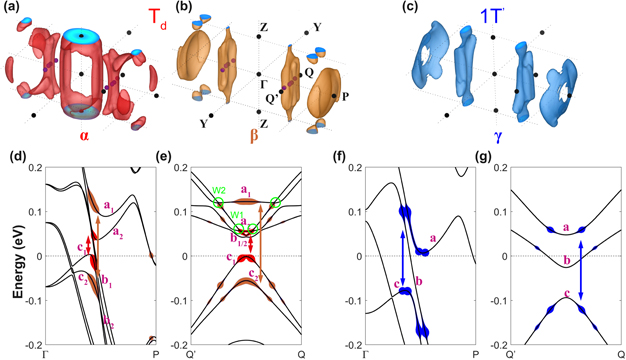

To explore the origin of these plasmon modes, we decompose the contribution of each plasmon mode to the energy loss function [i.e., Im ɛ^RPA(0, ω)] (with details described in the supplemental materials) and project it onto the energy bands along a selected path in the BZ. Figures 4(a)–(c) show the distributions of Im ɛ^RPA(0, ω) for α, β and γ in the BZ, respectively. The distributions of Im ɛ^RPA(0, ω) for the α and β modes are different, and those for the β and γ modes share some similarity, while they are still distinct due to the difference of the band structures in the two phases. Figures 4(d)–(g) illustrate the band structures, contributions and the corresponding strength of Im ɛ^RPA(0, ω) for the three modes in the T_d phase and 1T' phase along the Γ–P direction and Q'–Q direction, respectively. The relevant bands are labeled as a, b, c in the 1T' phase and a₁, a₂, b₁, b₂, c₁, c₂ in the T_d phase, respectively. As shown in figure 4(f), the band a and the band c can be regarded as two crossing bands with a band gap under the influence of the spin–orbit coupling. In this kind of inverted band structure, a plasmon mode γ originating from the interband transitions indeed exists, similar to the case in reference [9]. Accompanied with the structural phase transition from the 1T' phase to the T_d phase, the bands a, b, c split into a₁/a₂, b₁/b₂, and c₁/c₂ due to the inversion symmetry breaking, forming eight Weyl points at the crossing points of the bands a₁/a₂ and b₁/b₂. The positions of the Weyl points W1 and W2 are shown in figure 4(e). Accordingly, the γ mode in the 1T' phase splits into two plasmon modes, α and β. The interband correlations between a₂ and c₁ contribute to the α mode while the correlations between a₁ and c₂ contribute to the β mode [shown in figure 4(d)]. These two plasmon modes in the T_d phase are dominated by the interband correlations between the topologically nontrivial bands and trivial bands.
