Dipole–dipole interactions in optical lattices do not follow an inverse cube power law

Recent experimental progress in cooling heteronuclear polar molecules with large electric dipole moments [1–11], Rydberg atoms [12] and atoms with large magnetic dipole moments, in particular chromium [13], erbium [14] and dysprosium [15, 16], has sparked interest in the properties of ultracold dipolar gases. While in many ultracold atomic systems interactions are short-range and well-modeled by a contact pseudopotential, the interactions in dipolar gases have a long-range and anisotropic character in free space, decaying as 1/r³ with the separation r between particles. These features of the dipole–dipole interaction have lead to a variety of intriguing theoretical proposals such as exotic pairing and bound states in ladder geometries [17, 18] and the realization of quantum liquid crystal states of matter [19–21]. Even for atoms with relatively weak dipole moments, such as rubidium, dipole–dipole interactions can play a significant role [22, 23]. In this paper, we show that the effective dipolar interaction in a lattice can deviate significantly from its free-space form. In particular, we find a non-algebraic decay at moderate separations which becomes algebraic for large separations. Corrections of order 36–48% arise for interactions at the nearest-neighbor distance in moderately confined quasi-low-dimensional scenarios.

A key component of our analysis is the presence of a continuous, periodic potential, which for ultracold atomic and molecular gases is provided by an optical lattice. As first discovered by Kohn [24], Wannier functions, the most localized set of orthogonal single-particle states with the symmetries of the lattice, generally feature an exponential decay. We find that the effective dipolar interaction in an optical lattice depends essentially on the exponential tails of the Wannier functions rather than only on their widths. Hence, approximating the Wannier functions with localized functions which match only the mean width will fail to accurately capture the effective interaction in an optical lattice.

An additional essential ingredient for our findings is an asymmetry in the degree of confinement along the principal axes of the lattice due to the anisotropic character of the dipole–dipole interaction. In this work, we characterize confinement using the curvature of a lattice site minimum. Our work builds on a wealth of confinement-induced phenomena in ultracold quantum gases, such as confinement-induced resonances [25–28], the fermionization of a one-dimensional (1D) Bose gas [29] and the Berezinskii–Kosterlitz–Thouless transition in a quasi-two-dimensional (2D) Bose gas [30, 31]. We stress, however, that our work does not deal with dipolar confinement-induced resonances such as those studied in [32], but rather on the modification of the effective interaction in an optical lattice due to the localization properties of the single-particle basis. In dipolar gases, the effects of confinement have been studied in harmonic traps [33–35], and within the Gross–Pitaevskii approximation in a triple-well potential [36] and a 1D lattice [37]. For the harmonic oscillator, it has been shown that strong confinement along the axis of a field orienting the dipoles leads to purely repulsive interactions in the weakly confined plane. Additionally, because of the anisotropic character of the dipole–dipole interaction, the stability of a dipolar Bose–Einstein condensate (BEC) displays a strong dependence on anisotropy in external confinement, and stable solutions can even take surprising forms such as the 'red blood cell' dipolar BEC [38]. Similarly, anisotropic lattice confinement has surprising differences from preconceptions based on uniform isotropic systems. Dipolar interactions in confined geometries appear in many other branches of physics, such as in ferromagnetic nanostructures [39], where the dipole–dipole interaction plays a key role in the dispersion relation for spin waves in ferromagnetic films [40] and wires [41].

An important application of our results is in deriving many-body models to describe the low-energy physics of dipolar gases on lattices. Previous derivations, for example [42–46], assume that the interaction between localized lattice states has the same functional form as in the continuum. Since this amounts to replacing the localized single-particle probability distributions with delta functions, we will call this the delta function approximation (DFA). Performing matrix product state (MPS) simulations [47] on infinite 1D lattices, we demonstrate that the DFA can lead to significant errors in the determination of the phase diagram.

This paper is organized as follows. In section 2 we review the theory of Wannier functions and their use in deriving effective many-body lattice models for strongly correlated systems. In particular, we provide a quantitative analysis of the decay properties of Wannier functions as well as properties of their squares interpreted as probability distributions. Section 3 provides numerical results for the effective dipole–dipole interactions in the presence of an optical lattice and discusses the effects of confinement. In section 4 we study the phase diagram of hard-core bosons in one dimension with infinite-size MPS techniques to exemplify the impact of the confinement-induced modification of dipole–dipole interactions on many-body physics. Finally, in section 5, we conclude. In appendix A we discuss numerical methods for evaluating matrix elements of nonlocal potentials in a basis of Wannier functions, and in appendix B, we provide an explicit evaluation of the dipole–dipole interaction in a cylindrically symmetric harmonic trap for a comparison with the results in an optical lattice.

The theory of quantum mechanical objects in a continuous periodic potential is well established [48]. Here, we present a review of the basic facts in order to set notation, and also provide some explicit computations for the optical lattice potential equation (1) which do not appear elsewhere in the literature, to the best of our knowledge.

We consider that our system is subject to the separable simple cubic potential

$$\begin{eqnarray} &&V(\mathbf{r})=\textstyle{\sum_{\nu\in\{x,y,z\}}V_{\nu}\sin^2(\pi \nu/a)}, \end{eqnarray} \tag{ 1 }$$

where a is the lattice spacing. The typical energy scale derived from a is the recoil energy E_R = ℏ²π²/2ma². A potential of the form equation (1) is produced for ultracold gases by an optical lattice consisting of three sets of counter-propagating laser beams. The interaction of an optical potential which is far detuned from any atomic or molecular resonances may be described by the ac Stark shift [49]

$$\begin{eqnarray} &&\skew3\hat{H}_{\mathrm{opt}}(\mathbf{r})=-\mathbf{E}_{\mathrm{opt}}^{\star}(\mathbf{r})\cdot \tilde{\alpha}(\omega_{\mathrm{opt}})\cdot \mathbf{E}_{\mathrm{opt}}(\mathbf{r}), \end{eqnarray} \tag{ 2 }$$

where $\mathbf {E}_{\mathrm {opt}}(\mathbf {r})$ is the optical field and $\tilde {\alpha }(\omega _{\mathrm {opt}})$ is the dynamical polarizability tensor of the object evaluated at the optical frequency ω_opt. The quantities V_x, V_y and V_z in equation (1), which we will refer to as the lattice heights along the x, y and z directions, may be tuned by increasing the intensity of the optical field. Throughout this paper, we will use the notation $\skew3\tilde{V}\equiv V/E_{\mathrm { R}}$ to denote the dimensionless ratio of a lattice height to the recoil energy. The assumption of a separable potential such as equation (1) applies when the polarizability tensor is a scalar, as occurs naturally for alkali atoms. When the dynamical polarizability contains non-scalar components, internal states of, e.g., a rotating molecule can be coupled together for certain polarizations of the optical potential [50]. The theory given in this paper can be extended to this case, but the analysis is more complex. For clarity of exposition, we will focus on the separable case, equation (1).

For particles subject to a periodic lattice potential, the energy eigenfunctions are Bloch functions ψ_nk(r) characterized by a quasi-momentum index k in the first Brillouin zone (BZ) and a band index n. Bloch functions are the simultaneous eigenfunctions of the single-particle Hamiltonian and the lattice translation operators, and so represent the analogues of plane waves in free space when the translational symmetry is a discrete, rather than continuous, group. As such, Bloch functions are delocalized objects, and so are often not an appropriate basis for expanding a many-body Hamiltonian with strong local interactions. A more appropriate basis for describing strong interactions in lattices is provided by Wannier functions, which are the quasi-momentum Fourier transforms of the Bloch functions

$$\begin{eqnarray} &&w_{\mathbf{in}}(\mathbf{r})\equiv w_{\mathbf{n}}(\mathbf{r}-\mathbf{r}_{\mathbf{i}})=\frac{1}{\sqrt{L}}\sum_{\mathbf{k}\in\mathrm{BZ}}{\rm e}^{-{\rm i}\mathbf{k}\cdot\mathbf{r}_{\bf i}}\psi_{\mathbf{nk}}(\mathbf{r}). \end{eqnarray} \tag{ 3 }$$

Here L is the total number of unit cells in a lattice with periodic boundary conditions and r_i denotes the coordinate of lattice site i. For simplicity, we will restrict our attention to the lowest band in most cases. When the band index n is not specified, lowest band Wannier functions are assumed. The extension of our results to multi-band situations [51] is straightforward. Additionally, our methods also extend readily to other bases, for example, localized bases which take into account strong contact interactions [52–55].

2.1. Properties of Wannier functions

It was shown in a seminal work by Kohn [24] that the phases on the Bloch functions can be chosen such that the Wannier functions are exponentially decaying away from their centers for 1D centro-symmetric lattice potentials in a sense to be discussed in the next paragraph. The Wannier functions with this choice of phases are called maximally localized Wannier functions, and are used throughout this paper. The exponential decay of Wannier functions has been extended to general 1D lattice potentials [56], non-degenerate bands in arbitrary dimensions [57] and general 2D and three-dimensional (3D) insulators with vanishing Chern number [58]. Hence, the exponential localization of Wannier functions, which will play an important role in our results, is a general property which does not require fine tuning or a specific lattice structure.

Because the potential we consider, equation (1), is separable, the Bloch solutions of the 3D single-particle Schrödinger equation are products of the Bloch solutions of the 1D Hamiltonian

$$\begin{eqnarray} &&{H}(x)=-\frac{\hbar^2}{2m}\frac{\mathrm{d}^2}{\mathrm{d}x^2}+V\sin^2\left(\frac{\pi x}{a}\right). \end{eqnarray} \tag{ 4 }$$

The linearity of the transformation equation (3) implies that the 3D Wannier functions of equation (1) are hence products of 1D Wannier functions obtained by quasi-momentum Fourier transform of the 1D Bloch eigenfunctions of equation (4),

$$\begin{eqnarray} &&w_{\mathbf{in}}(\mathbf{r})=w_{i_xn_x}(x)w_{i_yn_y}\left(y\right)w_{i_zn_z}\left(z\right). \end{eqnarray} \tag{ 5 }$$

Thus, we can use the results of Kohn [24] to discuss the properties of the 1D Wannier functions $w_{\mathrm { in}}\left (x\right )$. In particular, the Wannier functions decay exponentially as $|w_{0n}\left (x\right )|\sim \exp (-h_nx)$ in the sense that

$$\begin{eqnarray} &&\lim_{x\to\infty} |w_{0n}(x)|\mathrm{e}^{qx}=\left\{\begin{array}{@{}c@{}} 0,\;\;q<h_n,\\ \infty,\;\;q>h_n.\end{array}\right. \end{eqnarray} \tag{ 6 }$$

The parameter h_n is the distance to the nearest branch point from the real axis in the complex quasi-momentum plane. The decay length h_n can be determined numerically by locating crossings in the band structure computed with quasi-momentum k = k_n + iκ, $k_n=\pi (1-\left (-1\right )^{n+1} )/2a$ and κ real. At the point k where bands n and n + 1 cross, h_n = κ. The results of this analysis for the lowest two bands of the 1D potential equation (4) are shown in figure 1(a). He and Vanderbilt [59] pointed out that equation (6) is consistent with an exponential decay multiplied by an algebraic factor. They then demonstrated that the precise asymptotic behavior of maximally localized, orthogonal Wannier functions in 1D is

$$\begin{eqnarray} |w_{0n}(x)|&\sim&\exp\left(-h_nx\right)x^{-3/4}, \end{eqnarray} \tag{ 7 }$$

for a lattice consisting of periodically repeating Gaussian wells. By performing numerical fits with the obtained h_n from figure 1(a), we find that this same algebraic factor appears in the Wannier functions of the potential equation (4), and the power of the algebraic correction does not appear to depend on the lattice height or the band index. The resulting fits to the Wannier functions, together with the numerically computed Wannier functions, are shown in figure 1(b). Figure 1 provides a rigorous definition of the decay of the Wannier functions we consider in this paper as a function of the height of the optical lattice potential.

Zoom In Zoom Out Reset image size

2.2. Approximation of Wannier functions by Harmonic oscillator functions

It is difficult to obtain quantitative analytical predictions from Wannier functions due to their complicated form. Hence, approximations to the true Wannier functions are often made for analytical convenience. The most common such approximation is to replace a single site of the optical lattice by a harmonic well with the same local curvature. We shall call this the harmonic oscillator approximation (HOA). The curvature-matching condition amounts to $\ell _{\nu }=a/(\pi \skew3\tilde{V}_{\nu }^{1/4})$, where ℓ_ν is the harmonic oscillator length along Cartesian direction ν. The 1D ground state wave function, which is taken to approximate the 1D lowest band Wannier function, is

$$\begin{eqnarray} &&\psi_{\mathrm{ho}}(x)=\frac{1}{\sqrt{\ell\sqrt{\pi}}}\exp\left(-\frac{x^2}{2\ell^2}\right). \end{eqnarray} \tag{ 8 }$$

There are several important differences between the HOA equation (8) and the true Wannier function. Firstly, equation (8) is everywhere positive, while Wannier functions, even for the lowest band, always have nodes in order to maintain orthogonality between lattice sites. Thus, the HOA poorly captures quantities like tunneling, which involve overlaps of derivatives of Wannier functions. Also, equation (8) decays much more rapidly than the true Wannier functions, as a Gaussian rather than an exponential. Hence, the HOA will consistently underestimate the overlap of Wannier functions at different sites. Thirdly, the HOA equation (8) is more peaked around its center value than the true Wannier function, and so quantities computed on-site are overestimated by the HOA. Finally, the true Wannier functions have all of the lattice symmetries, while the HOA displays the symmetries of an ellipsoid for the simple cubic lattice. The difference in symmetries is especially important when discussing interaction-induced diagonal tunneling [27, 28].

We can make the comparison between Wannier functions and the HOA more quantitative by considering the moments of their associated single-particle probability distributions. We define the p^th 1D moments as

$$\begin{eqnarray} \langle x^p\rangle_{\psi}&\equiv \left\{\begin{array}{@{}l@{}} \int_{-\infty}^{\infty} \,{\rm d}x \left|w(x)\right|^2 x^p\,, \quad \psi=w,\\ \frac{1}{\sqrt{\pi}\ell}\int_{-\infty}^{\infty} \,{\rm d}x \exp\left(-\frac{x^2}{\ell^2}\right)x^p,\quad \psi=g,\end{array}\right. \end{eqnarray} \tag{ 9 }$$

where ψ = w and g stand for Wannier and Gaussian, respectively. The second moment gives an estimate for the width of the distribution. It is convenient to define the kurtosis κ_ψ ≡ (〈x⁴〉_ψ/〈x²〉²_ψ) − 3, which is a measure of the peakedness of a distribution as well as the heaviness of its tails [60]. We show the second and fourth moments of the true Wannier functions and the HOA in figure 2. The width of the lowest band Wannier function is well captured by the HOA for deep lattices with $\skew3\tilde{V}\gtrsim 20$, although the HOA always has a smaller second moment than the true Wannier function. The harmonic oscillator always has a vanishing kurtosis, κ_g = 0, as is known for Gaussian distributions. In contrast, the Wannier functions have an always positive kurtosis which is very sizable for shallow lattices and approaches zero for deeper lattices. For example, we observed κ_w = 10 for $\skew3\tilde{V}=2$ and κ_w = 0.12 for $\skew3\tilde{V}=35$. This difference in the kurtosis quantifies the essential difference between the decay of the Wannier functions and the HOA.

Zoom In Zoom Out Reset image size

2.3. Derivation of Hubbard models for dipolar particles

With the identification of the lowest band Wannier functions as the appropriate single-particle basis for describing strongly interacting particles in a lattice, we derive a many-body lattice model using the well-known procedure [61, 62] of expanding the field operator $\hat {\psi }(\mathbf {r})$ in the basis of Wannier functions and substituting this expansion into the second-quantized expression for the interaction Hamiltonian

$$\begin{eqnarray} &&\skew3\hat{H}_{\mathrm{int}}={\frac{1}{2}\int \,{\rm d}\mathbf{r}\int \,{\rm d}\mathbf{r}'\,}\hat{\psi}^{\dagger}(\mathbf{r})\hat{\psi}^{\dagger}(\mathbf{r}'){V}_{\mathrm{int}}(\mathbf{r}-\mathbf{r}')\hat{\psi}(\mathbf{r}')\hat{\psi}(\mathbf{r}), \end{eqnarray} \tag{ 10 }$$

where ${V}_{\mathrm {int}}(\mathbf {r})$ is the two-particle interaction potential. The expansion of equation (10) in Wannier functions yields

$$\begin{eqnarray} &&\skew3\hat{H}_{\mathrm{int}}=\frac{1}{2}\sum_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}\mathcal{U}_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}\hat{a}_{\mathbf{i}_1}^{\dagger}\hat{a}_{\mathbf{i}_2}^{\dagger}\hat{a}_{\mathbf{i}_2'}\hat{a}_{\mathbf{i}_1'}, \end{eqnarray} \tag{ 11 }$$

where $\hat {a}_{\mathbf {i}}$ destroys a particle in a lowest band Wannier state centered at site i and

$$\begin{eqnarray} \mathcal{U}_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}&\equiv{\int \,{\rm d}\mathbf{r}\int \,{\rm d}\mathbf{r}'\,} f_{\mathbf{i}_1\mathbf{i}_1'}(\mathbf{r}){V}_{\mathrm{int}}(\mathbf{r}-\mathbf{r}')f_{\mathbf{i}_2\mathbf{i}_2'}(\mathbf{r}). \end{eqnarray} \tag{ 12 }$$

Here, f_ii'(r) ≡ w^⋆_i(r)w_i'(r) is a product of Wannier functions. The matrix elements $\mathcal {U}_{\mathbf {i}_1\mathbf {i}_2\mathbf {i}_2'\mathbf {i}_1'}$, which we will call Hubbard parameters, describe the interactions between particles localized in lowest band Wannier states.

The interaction we consider is the dipole–dipole interaction, commonly given as

$$\begin{eqnarray} &&V_{\mathrm{DD}}(\mathbf{r})=\frac{1}{r^3}[\hat{\mathbf{d}}\cdot \hat{\mathbf{d}}-3(\hat{\mathbf{d}}\cdot\mathbf{e}_r)(\mathbf{e}_r\cdot\hat{\mathbf{d}})], \end{eqnarray} \tag{ 13 }$$

where $\hat {\mathbf {d}}$ is the dipole operator, r is the relative position of the interacting particles, $r=\left |\mathbf {r}\right |$ and e_r is a unit vector in the direction of r. It is convenient to instead recast the dipole–dipole potential as the contraction of two spherical tensors as [63]

$$\begin{eqnarray} &&V_{\mathrm{DD}}(\mathbf{r})=-\frac{\sqrt{6}}{r^3}\sum_{q=-2}^{2}\left(-1\right)^{q}C^{(2)}_{-q}(\mathbf{r})[\hat{\mathbf{d}}\otimes \hat{\mathbf{d}}]^{(2)}_{q}, \end{eqnarray} \tag{ 14 }$$

where $C^{\left (2\right )}_q(\mathbf {r})=\sqrt {\frac {4\pi }{5}}Y^{\left (2\right )}_{q}(\mathbf {r})$ is an unnormalized spherical harmonic in the spherical coordinates of r and

$$\begin{eqnarray} &&[\hat{\mathbf{d}}\otimes \hat{\mathbf{d}}]^{(2)}_{q}=\sum_{m=-1}^{1}\langle 1,m,1,q-m|2,q\rangle \hat{d}_{m}\otimes \hat{d}_{q-m} \end{eqnarray} \tag{ 15 }$$

is the irreducible tensor product of two dipole operators with 〈j₁m₂j₂m₂|jm〉 a Clebsch–Gordan coefficient. The operators

$$\begin{eqnarray} &&\hat{d}_{\pm 1}\equiv \mp (\hat{d}_x\pm {\rm i}\hat{d}_y)/\sqrt{2},\quad \hat{d}_0\equiv \hat{d}_z \end{eqnarray} \tag{ 16 }$$

are the spherical decompositions of the vector operator $\hat {\mathbf {d}}$. The interaction Hamiltonian may be written in terms of coupling constants U^DD,q and geometrical factors $\mathcal {G}^{\mathrm {DD},q}$ as

$$\begin{eqnarray} &&\skew3\hat{H}_{\mathrm{int}}=\frac{1}{2}\sum_{q=-2}^{2}\left(-1\right)^{q}U^{\mathrm{DD},-q}\sum_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}\mathcal{G}^{\mathrm{DD},q}_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}\hat{a}_{\mathbf{i}_1}^{\dagger}\hat{a}_{\mathbf{i}_2}^{\dagger}\hat{a}_{\mathbf{i}_2'}\hat{a}_{\mathbf{i}_1'}, \end{eqnarray} \tag{ 17 }$$

where

$$\begin{eqnarray} &&U^{\mathrm{DD},q}\equiv \sqrt{\frac{3}{2}}{[\hat{\mathbf{d}}\otimes \hat{\mathbf{d}}]^{(2)}_{q}}/{a^3},\end{eqnarray} \tag{ 18 }$$

$$\begin{eqnarray} &&\mathcal{G}^{\mathrm{DD},q}_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}\equiv -2a^3{\int \,{\rm d}\mathbf{r}\int \,{\rm d}\mathbf{r}'\,} f_{\mathbf{i}_1\mathbf{i}_1'}(\mathbf{r})\frac{C^{(2)}_{q}(\mathbf{r}-\mathbf{r}')}{|\mathbf{r}-\mathbf{r}'|^3}f_{\mathbf{i}_2\mathbf{i}_2'}(\mathbf{r}'). \end{eqnarray} \tag{ 19 }$$

All of the information about the size of the dipole moment and the lattice spacing are contained in the coupling constants equation (18). On the other hand, the geometrical integrals equation (19) contain the information about the effects of lattice confinement on the effective interaction through the Wannier function products $f_{\mathbf {ii}'}(\mathbf {r})$. It is these geometrical factors which we are interested in studying in the present paper.

While our methods can be applied to all components q of the dipole–dipole interaction, for simplicity we focus on the terms in equation (17) with q = 0. These terms do not change the projection of the total angular momentum along a space-fixed quantization axis. The q = 0 components are the only terms relevant for ultracold ¹Σ molecules in an optical lattice and oriented in a strong dc electric field, as states with dipole-allowed transitions are separated by energy splittings large compared to the characteristic dipole–dipole interaction energy [45, 64]. Also, these are the most relevant processes for magnetic dipoles in an optical lattice with a strong magnetic field to prevent dipolar relaxation and spontaneous demagnetization [65–67], or a quantum simulation of magnetic dipoles using symmetric top molecules in a strong electric field [68]. In this case, we have

$$\begin{eqnarray} &&U^{\mathrm{DD},0}=\frac{1}{a^3}\left[\hat{d}_0\hat{d}_0+\frac{1}{2}\left(\hat{d}_1\hat{d}_{-1}+\hat{d}_{-1}\hat{d}_1\right)\right],\end{eqnarray} \tag{ 20 }$$

$$\begin{eqnarray} &&\mathcal{G}^{\mathrm{DD},0}_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}=-2a^3{\int \,{\rm d}\mathbf{r}\int \,{\rm d}\mathbf{r}'\,} f_{\mathbf{i}_1\mathbf{i}_1'}(\mathbf{r})\frac{C^{(2)}_{0}(\mathbf{r}-\mathbf{r}')}{|\mathbf{r}-\mathbf{r}'|^3}f_{\mathbf{i}_2\mathbf{i}_2'}(\mathbf{r}')\end{eqnarray} \tag{ 21 }$$

$$\begin{eqnarray} &&\hphantom{\mathcal{G}^{\mathrm{DD},0}_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}}=a^3{\int \,{\rm d}\mathbf{r}\int \,{\rm d}\mathbf{r}'\,} f_{\mathbf{i}_1\mathbf{i}_1'}(\mathbf{r})\frac{1-3\cos^2\theta}{|\mathbf{r}-\mathbf{r}'|^3}f_{\mathbf{i}_2\mathbf{i}_2'}(\mathbf{r}'), \end{eqnarray} \tag{ 22 }$$

where θ is the polar angle of the relative coordinate (r − r'). The commonly used DFA [42–46] replaces $f_{\mathbf {ii}'}(\mathbf {r})\to \delta \left (\mathbf {r}-\mathbf {r}_{i}\right )\delta _{\mathbf {ii}'}$, such that

$$\begin{eqnarray} &&\mathcal{G}^{\mathrm{DD},0}_{\mathbf{i}_1\mathbf{i}_2\mathbf{i}_2'\mathbf{i}_1'}=\delta_{\mathbf{i}_1\mathbf{i}_1'}\delta_{\mathbf{i}_2\mathbf{i}_2'}a^3\frac{1-3\cos^2\theta_{i_1i_2}}{\left|\mathbf{r}_{i_1}-\mathbf{r}_{i_2}\right|^3}, \end{eqnarray} \tag{ 23 }$$

where θ_i1i2 is the polar angle of the relative vector between lattice sites i₁ and i₂ with positions r_i1 and r_i2, respectively.

The terms in equation (17) may be viewed as scattering processes in which particles in the lowest band at lattice sites i₁' and i₂' move to lattice sites i₁ and i₂, respectively, in the course of an interaction. The largest magnitude terms in equation (17) are those in which i₁ = i₁' and i₂ = i₂', which we will call direct interactions using the scattering process analogy. The direct terms arise as density–density interactions in the interaction Hamiltonian, proportional to $\hat {n}_{{\bf i}_1}\hat {n}_{{\bf i}_2}$. Another class of terms which are proportional to $\hat {n}_{{\bf i}_1}\hat {n}_{{\bf i}_2}$ are the exchange interactions, in which i₁ = i₂' and i₂ = i₁' with i₁' ≠ i₂'. All other processes involve changing the position of a Wannier state from its initial position. Examples of such processes are assisted tunneling [46] and pair hopping [27, 69], both of which can introduce new quantum phases in shallow lattices [69]. However, assisted tunneling, pair hopping and exchange terms are all suppressed by factors related to the exponential decay of the Wannier functions, see figure 1, and the behavior of these Hubbard parameters with lattice confinement is qualitatively similar. Because the focus of this work is on the qualitative behavior of the Hubbard parameters with the lattice confinement, we will restrict our attention to the direct and exchange terms with the understanding that the behavior of assisted tunneling and pair hopping is similar to that of the exchange term. It should be noted that our methods apply to any Hubbard parameter. Hence, keeping only the direct and exchange interactions and taking into account the statistics of the particles, the expansion equation (11) may be written for the dipole–dipole interaction as

$$\begin{eqnarray} &&\skew3\hat{H}_{\mathrm{int}}=U\left[\frac{1}{2} \sum_{\mathbf{i}} I_{0}\hat{n}_{\mathbf{i}}(\hat{n}_{\mathbf{i}}-1)+\frac{1}{2}\sum_{\mathbf{i}\ne\mathbf{i}'}I_{\mathbf{i}',\mathbf{i}}\hat{n}_{\mathbf{i}}\hat{n}_{\mathbf{i}'}\right], \end{eqnarray} \tag{ 24 }$$

where we have defined U ≡ U^DD,0 and

$$\begin{eqnarray} &&I_{0}\equiv \textstyle \mathcal{G}^{\mathrm{DD};0}_{\mathbf{0000}},\quad \textstyle I_{\mathbf{i}',\mathbf{i}}\equiv \textstyle [\mathcal{G}^{\mathrm{DD};0}_{\mathbf{ii'i'i}}\pm \mathcal{G}^{\mathrm{DD};0}_{\mathbf{ii'ii'}}]. \end{eqnarray} \tag{ 25 }$$

The plus (minus) sign on the exchange term in equation (25) refers to bosons (fermions). Results for the effective interactions, equation (25), computed using the methods of appendix A, are presented in the next section.

With respect to the length scale of the lattice constant a, the short range physics is given by the interactions I₀ which occur within a unit cell. A point of comparison for the on-site dipolar interaction I₀ is provided by the dimensionless interaction energy $I_0^{\mathrm {ho}}=\langle \hat {H}_{\mathrm {DD}}\rangle /U$ of two bosonic particles in the ground state of a harmonic trap, where the harmonic trap is chosen to match the local curvature of a lattice site as detailed in section 2.2. In the case where the oscillator lengths in the xy plane are equal, ℓ_x = ℓ_y = ℓ_⊥, we have that

$$\begin{eqnarray} &&I_0^{\mathrm{ho}}= \frac{\sqrt{2}}{\pi \bar{\ell}\,^3}\left[\frac{2}{3}+\beta^2-\frac{\beta}{1-\alpha^2}\cot^{-1}(\beta)\right] , \end{eqnarray} \tag{ 26 }$$

where $\skew3\bar{\ell }\equiv (\ell _z\ell _{\perp }^2)^{1/3}/a$ is the geometric mean oscillator length in units of a, α ≡ ℓ_z/ℓ_⊥ measures the confinement asymmetry and β ≡ α(1 − α²)^−1/2. Notably, the interaction energy I^ho₀ vanishes for isotropic confinement, α = 1. For α < 1, corresponding to stronger confinement along the quantization axis, contributions from $\theta > \arccos \sqrt {\frac {1}{3}}$, where the dipole–dipole potential is negative, are suppressed. Hence, I^ho₀ is positive for α < 1. In contrast, for α > 1 where confinement is weakest along the quantization axis, I^ho₀ is negative. These qualitative features are shared by the true effective interaction using Wannier functions, as is shown in appendix B. Of particular interest is that the on-site dipole–dipole interaction vanishes when the lattice heights are equal, $\skew3\tilde{V}\equiv \skew3\tilde{V}_x=\skew3\tilde{V}_y=\skew3\tilde{V}_z$. Also, as noted in section 2.2, the HOA energy I^ho₀ is always greater than the on-site energy computed using Wannier functions.

For the moderate- to long-range interactions I_i',i, let us define I_j ≡ I_i+j,i with j along the x direction. The parameters I_j correspond to effective dipole–dipole interactions separated by a distance of j lattice spacings along a principal axis. The DFA predicts that the exchange contribution vanishes and the direct term contributes a factor of j⁻³ such that I_j = j⁻³. Hence, there are two possible sources of deviation from the DFA. The first source is a non-vanishing contribution from the exchange term. The second source is a deviation of the direct term from j⁻³. The exchange term is non-vanishing due to overlap between Wannier functions on different sites, and so decreases with increasing lattice height as the exponential localization factor h₁ increases, see figure 1. We can expect that the exchange processes will be negligible in magnitude even at the nearest-neighbor distance when 2h₁a > 1, as then the Wannier functions are well-localized within a unit cell. From figure 1, this gives an estimation of $\skew3\tilde{V}\gtrsim 5$. In contrast to the modification of the effective interaction by the exchange term, modification of the effective interaction due to the direct term relies essentially on asymmetry in 3D confinement. This can be understood in analogy with the effective short-range interaction discussed in the last paragraph, and is a consequence of the fact that the dipole–dipole interaction has relative d-wave symmetry.

To demonstrate the effects of asymmetric lattice confinement, we evaluate the parameters I_j for two quasi-low dimensional scenarios. In the quasi-2D scenario, we take the z direction to be tightly confined with a lattice height $\skew3\tilde{V}_z=45$ and the lattice heights along the x and y directions to be equal, $\skew3\tilde{V}_{\perp }\equiv \skew3\tilde{V}_x=\skew3\tilde{V}_y$. In the quasi-1D scenario we take both the z and y lattices to be tightly confining with $\skew3\tilde{V}_z=\skew3\tilde{V}_y=45$, and call the x lattice height $\skew3\tilde{V}_{\perp }$. These quasi-dimensional reductions are quite moderate and are commonplace in current experiments [70, 71]. The confinement-induced modifications of effective dipole–dipole interactions with respect to the DFA in the quasi-1D and quasi-2D scenarios are shown in figure 3. Here, the modifications to the direct term are shown as $(\mathcal {G}_{0110}-1)$, which is the deviation from the DFA prediction of 1 at the nearest-neighbor distance. The exchange term is identically zero in the DFA, and so any non-vanishing value for the exchange term represents a deviation from the DFA. The red curves are the numerical computation with Wannier functions, and the blue curves use the HOA. We note that the exchange contributions, shown with dashed lines, are drastically underestimated by the HOA, as expected, since the HOA has Gaussian rather than exponential tails, and the exchange term depends on overlap between these tails. The modifications of the direct term shown with solid lines display qualitatively similar features between the true solution and the HOA. In particular, both show vanishing modifications of the direct term when there is no asymmetry in confinement, $\skew3\tilde{V}_{\perp }=45$. However, the HOA underestimates the modifications of the direct term, quite significantly for shallow quasi-low-dimensional confinement.

Zoom In Zoom Out Reset image size

In figure 3, we showed the behavior of the confinement-induced modifications of the effective dipole–dipole interactions with confinement asymmetry at the nearest-neighbor distance. These modifications also depend on the distance between sites in the lattice, and this dependence has a length scale set by the confinement. In order to get a complete picture of the dependence of confinement effects on both distance between sites and confinement asymmetry we fit the numerically obtained data for I_j to the form

$$\begin{eqnarray} &&I_{j}=a_{\rm e}\exp(-b_{\rm e}j)+wj^{-p}, \end{eqnarray} \tag{ 27 }$$

for j∈[1,7], i.e. out to seven sites. The DFA predicts no exponential, a_e = 0 or b_e → ∞ and w = 1 and p = 3 for the long-range contribution. The factor w gives a renormalization of the algebraic part of the effective dipole–dipole potential which can be easily accounted for. The fit parameters for our data generated using the numerical methods of appendix A are shown in figure 4. Here the solid (dashed) lines refer to the quasi-1D (quasi-2D) scenarios. The top panels are the short-range parameters a_e and b_e in equation (27), with panel (a) (panel (c)) pertaining to bosons (fermions). The bottom panels are the per cent differences of the long-range parameters w and p in equation (27) with respect to the DFA predictions, w − 1 and (p − 3)/3. Here, panel (b) (panel (d)) pertains to bosons (fermions). We note that for quasi-low dimensional confinement $\skew3\tilde{V}_{\perp }\gtrsim 7$, the predictions for bosons and fermions are the same to a few per cent. This implies that the exchange contribution in equation (25) plays no role for deep lattices, where deep lattices corresponds to $\skew3\tilde{V}\gtrsim 5$ in accordance with our expectations.

Zoom In Zoom Out Reset image size

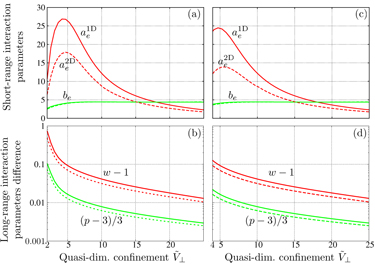

We chose the ansatz equation (27) from several fit functions because it had the lowest fitting error and it provides a characteristic length scale a_c ∼ a/b_e of the confinement-induced modifications. However, we do not propose that the form of equation (27) is exact. We also stress that the exponential constant b_e has no a priori relation to the exponential decay constant h_n of the Wannier functions. Across a wide range of quasi-low dimensional confinement, a_c ∼ 0.2a, and so the moderate range over which confinement modifies interactions is a few lattice sites. While the fact that a_c < a means that the modifications of dipole–dipole interactions are quite short range, these modifications can be sizable even out to the second neighbor distance when the coefficient of the short range modification, a_e, is large, see figures 4(a), (c) and  5(b). It should also be noted that the confinement-induced modifications of the effective interactions will also have a nontrivial angular dependence due to the fact that Wannier functions are not spherically symmetric, but rather have the symmetries of the lattice. We leave investigations of the nontrivial angular dependence for future work.

Zoom In Zoom Out Reset image size

To illustrate the implications of our findings for many-body physics, we study a model of quasi-1D hard-core bosons with long-range dipolar interactions [64]

$$\begin{eqnarray} &&\skew3\hat{H}=\textstyle -t\sum_{\langle i j\rangle }\hat{a}_i^{\dagger}\hat{a}_{j}+U\sum_{i<j}I_{j-i}\hat{n}_i\hat{n}_j-\mu\sum_{i}\hat{n}_i. \end{eqnarray} \tag{ 28 }$$

Here, the nearest-neighbor tunneling amplitude is t, 〈i,j〉 denotes nearest-neighbor pairs i and j and μ is the chemical potential. We compute the phase diagram of equation (28) for two realizations of I_j using the infinite size variational ground state search algorithm for MPSs (iMPS) [72]. In one realization, we use the DFA result, I_j = j⁻³. In the second realization, I_j is the effective interaction in an optical lattice computed with Wannier functions, equation (25). We take the lattice heights to be $\skew3\tilde{V}_{z}=\skew3\tilde{V}_{y}=45$, $\skew3\tilde{V}_{x}=6$, which fixes the tunneling energy t and ensures that assisted tunneling terms are small. The large confinement asymmetry enforces the hard-core constraint through a large on-site interaction, see appendix B⁵. Due to the hard-core constraint, the dominant interactions which transfer particles to higher bands occur at the nearest-neighbor distance. Due to the fact that Wannier functions for different bands are orthogonal, the interaction matrix elements of these processes are small and we find that the effect of transitions to higher bands is ≲ 6 times smaller than the effects considered in this paper. We also stress that band excitations at the nearest-neighbor distance and beyond rely crucially on the finite widths of the Wannier functions, and so a quantitative estimate of these processes requires the methods developed in this paper. The coefficient U can be tuned for ultracold polar molecules by an applied dc electric field. One can determine the strength of the interaction U = U^DD,0 knowing only the expected dipole moment and the lattice constant from single-particle physics. Since our goal is to demonstrate deviations of many-body predictions using the true effective dipole–dipole interactions from the DFA, we will scale the phase diagram to U, as this is the nearest-neighbor interaction energy predicted by the DFA.

The iMPS method assumes that the many-body ground state has translational invariance under shifts by q sites, and represents the wave function of the q-site unit cell as a MPS [47] with entanglement cutoff χ. One minimizes the energy functional of the unit cell variationally in the parameters of the matrix product, using a sweeping procedure across sites in the unit cell reminiscent of the density-matrix renormalization group (DMRG) procedure for finite lattices [75]. Alternating with unit cell minimization is an updating of the effective environment of the unit cell using the most current parameters of the unit cell. The procedure is halted when the two-norm distance between the unit cell in successive optimizations drops below a desired tolerance. Long-range interactions are facilitated within iMPS by using matrix product operators and fitting the interaction I_j to a sum of exponentials [76–78]. The advantage of the iMPS method for the problem at hand is its ability to handle strong long-range interactions without the significant boundary effects that plague DMRG-type procedures on finite lattices. All results given here have been checked for convergence in the entanglement cutoff χ and the unit cell length q.

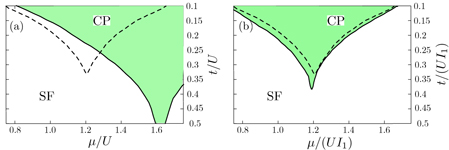

The phase diagrams of equation (28) for the DFA and lattice-modified dipolar interactions are shown in figure 5. The bordered areas represent predicted regions of crystalline phase (CP) with density ρ = 1/2 and a non-vanishing single-particle gap. The remainder of the plots are a gapless superfluid phase. In the CP, the density correlation function $\mathcal {N}(r)\equiv \langle (\hat {n}_0-\rho )(\hat {n}_r-\rho )\rangle$ behaves as $\mathcal {N}(r)\to \mathrm {cst.}(-1)^r$ as r → ∞ and the single-particle density matrix $\mathcal {A}(r)=\langle \hat {a}_0^{\dagger }\hat {a}_r\rangle$ is exponentially decaying with r. In panel (a), the area bounded with dashed lines represents the region of CP computed using the DFA in the parameters μ/U and μ/U. The green area bordered with solid lines represents the CP boundaries computed with the actual lattice dipolar interaction. The region predicted by the DFA is shifted both in chemical potential and tunneling by approximately I₁ − 1 ≈ 36%. However, the difference between the DFA and the true solution is not a simple rescaling of the axes. This is shown in panel (b), which rescales the chemical potential and tunneling to the nearest-neighbor interaction energy, μ/(UI₁) and t/(UI₁). The fact that a difference between the DFA and the true interaction persists even when the phase diagram is rescaled to the nearest-neighbor interaction energy demonstrates that the modifications of the dipole–dipole potential are significant beyond the nearest-neighbor distance due to either strong short-range interactions or significant modification of the long-range algebraic tail, see equation (27) and figure 4. The accuracy of the DFA will increase with increasing lattice depth and lesser confinement imbalance. Similar changes in the phase diagram will occur for the 2D case, with shifts of about 48% for the parameters of [43]. For soft-core particles which also possess local, isotropic interactions, the modified dipolar interaction will be relevant to the convexity of the interaction potential and hence to the formation of supersolid phases [79].

In conclusion, we have shown that the dipole–dipole interaction can be strongly modified by imperfect localization of particles in an unequally confined lattice, as found in many experiments in ultracold quantum gases. In particular, we demonstrated that the effective dipole–dipole interactions in optical lattices, given by the matrix elements of the dipole–dipole interaction in a basis of lowest band Wannier functions, can be significantly modified from the free-space form of the dipole–dipole interaction. The modifications of the dipole–dipole interaction arise both from interactions in the exchange channel, controlled by the overlap between Wannier functions at different sites, and interactions in the direct channel. The latter interactions depend crucially on the asymmetry in lattice confinement due to the d-wave symmetry of the dipole–dipole interaction. We compared our results to results obtained by approximating Wannier functions as localized Gaussians. Interactions in the direct channel are qualitatively reproduced by this approximation, though estimates of the magnitude can be off by significant factors. Interactions in the exchange channel are quantitatively very poor in the exchange channel, underestimating interactions by orders of magnitude. Based on numerical results, we put forward a simple characterization of the modified interaction as being exponential at moderate separations of a few lattice sites and power-law for large separations. Using iMPS simulations, we showed that the modified interaction can significantly alter the predictions of many-body systems, including the determination of phase diagrams.

We acknowledge useful discussions with Mahadevan Ganesh, Kenji Maeda and Zhigang Wu. This research was supported in part by the National Science Foundation under Grants PHY-1207881 and NSF PHY11-25915, by AFOSR grant number FA9550-11-1-0224, by the Heidelberg center for Quantum Dynamics and by the Alexander von Humboldt Foundation. We also acknowledge the Golden Energy Computing Organization at the Colorado School of Mines for the use of resources acquired with financial assistance from the National Science Foundation and the National Renewable Energy Laboratories. We would like to thank the KITP for hospitality.

In this section, we discuss numerical techniques for computing geometrical integrals such as equation (19) which determine the effective interaction between particles localized in lowest band Wannier states. Such integrals may be written in the general form

$$\begin{eqnarray} &&\mathcal{G}_{\mathbf{i_1i_2i_2'i_1'}}=\int {\rm d}\mathbf{r}\int {\rm d}\mathbf{r}'f_{\mathbf{i}_1\mathbf{i}_1'}(\mathbf{r}) I\left(\mathbf{r}-\mathbf{r}'\right) f_{\mathbf{i}_2'\mathbf{i}_2'}(\mathbf{r}'), \end{eqnarray} \tag{ A.1 }$$

where $I\left (\mathbf {r}-\mathbf {r}'\right )$ is the dimensionless two-particle potential. The first method employs the convolution theorem to express the integration over the primed coordinates in equation (A.1) as a function of the unprimed coordinates with high accuracy. The remaining 3D integral is then performed with standard numerical quadrature. We will call this method the real-space method. In the second method, we compute the interaction matrix elements of the dipole–dipole interaction potential in the basis of lowest band Bloch functions. The matrix elements in the Wannier basis are then obtained by quasi-momentum Fourier transform. We will refer to this latter method as the Bloch expansion method. Both methods exhibit steep scaling with the linear domain size L which prohibits studies of very large systems. In order to ensure well-converged results, we restricted our analysis to a separation of at most seven lattice sites, see section 3.

A.1. Real-space method

In the real-space method, we begin with equation (A.1) and apply the convolution theorem to find

$$\begin{eqnarray} &&\mathcal{G}_{\mathbf{i_1i_2i_2'i_1'}}=\int {\rm d}\mathbf{r} f_{\mathbf{i}_1\mathbf{i}_1'}(\mathbf{r})\mathcal{F}^{-1}_{\mathbf{r}}\{\mathcal{F}_{\mathbf{k}}[I(\mathbf{r})]\mathcal{F}_{\mathbf{k}}[f_{\mathbf{i}_2\mathbf{i}_2'}(\mathbf{r}')]\}, \end{eqnarray} \tag{ A.2 }$$

where $\mathcal {F}_{\mathbf {k}}[g(\mathbf {r})]$ denotes the Fourier transform of the function g(r) as a function of k and likewise for the inverse transform $\mathcal {F}^{-1}_{\mathbf {r}}\{\bullet \}$. For example, the Fourier transform of the spatial part of the dipole–dipole potential is $\mathcal {F}_{\mathbf {k}}[{C^{(2)}_q(\mathbf {r})}/{r^3}]=- {4\pi }C^{(2)}_q(\mathbf {k})/3$, ⁶ and the Fourier transform of the delta-function potential is a constant. Hence, the evaluation of the Hubbard parameter may be computed by 3D Fourier transforms followed by a 3D integration in real-space rather than by a six-dimensional real-space integral. To perform these procedures numerically, we consider each Cartesian dimension to be a symmetric finite interval S = [ − L/2,L/2] with periodic boundary conditions, and discretize each interval with n_g grid points. The grid spacing in the discrete Fourier conjugate domain is 2π/L and the extent of the domain in Fourier space is controlled by πn_g/L, the inverse real-space step size. The transformation from a function to its discrete Fourier conjugate is performed by the fast Fourier transform algorithm in $\mathcal {O}(n_{\mathrm { g}}^3\log n_{\mathrm { g}})$ time [80]. Because the Wannier functions on a finite domain are periodic and band-limited, their discrete and continuous Fourier transforms are related by a scaling constant provided we sample the entire domain at a frequency of at least twice their largest frequency component [80]. As is known for spectral methods, convergence of the Fourier space calculation in equation (A.2) is exponential in L provided that n_g/L is large enough to capture the full support of the function in Fourier space. Defining g to be the support of the lowest band Wannier function in the discrete Fourier space, the choice n_g = 2gL + 1 ensures that the function is fully captured in Fourier space. The support of a Wannier function in Fourier space can be determined by using Parseval's theorem on finite Fourier subintervals to determine that the norm is unity to a desired tolerance. For typical g ∼ 5 − 7, the real-space integration in equation (A.2) is of acceptable precision using a high-order Simpson integrator [81].

There are two dominant sources of error in the real-space method. The first error is due to the discretization of the real-space domain and the associated discretization error of the numerical quadrature. This error may be controlled by increasing g. The second source of error is spurious interactions due to periodic boundary conditions. While these interactions vanish as the domain becomes infinite, convergence may be slow due to, e.g. the power-law decay of the dipole–dipole interaction at long range. Hence, we have instead used a finite-size scaling analysis to extrapolate our results to the limit of an infinite lattice. The main limitation on the system sizes that we can reach using the real-space method is a memory requirement which scales as $\mathcal {O}(g^3L^3)$ due to the non-separability of the dipole–dipole potential.

A.2. Bloch expansion method

In the Bloch expansion method, we study the matrix elements of the interaction potential in the basis of lowest band Bloch functions $\psi _{\mathbf {q}}(\mathbf {r})$,

$$\begin{eqnarray} &&\mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}=\int {\rm d}\mathbf{r}\int \,{\rm d}\mathbf{r}' [\psi_{\mathbf{q}_1}(\mathbf{r})\psi_{\mathbf{q}_2}(\mathbf{r}')]^{\star}I(\mathbf{r}-\mathbf{r}')[\psi_{\mathbf{q}_1'}(\mathbf{r})\psi_{\mathbf{q}_2}(\mathbf{r}')]. \end{eqnarray} \tag{ A.3 }$$

The geometric integral equation (A.1) is then given by

$$\begin{eqnarray} &&\mathcal{G}_{\mathbf{i_1i_2i_2'i_1'}}=\frac{1}{L^2}\sum_{\mathbf{q}_1\mathbf{q}_2\mathbf{q}_1'\mathbf{q}_2'}{\rm e}^{{\rm i}\mathbf{q}_1\cdot\mathbf{r}_{i_1}}{\rm e}^{{\rm i}\mathbf{q}_2\cdot\mathbf{r}_{i_2}}{\rm e}^{-{\rm i}\mathbf{q}_1'\cdot\mathbf{r}_{i_1'}}{\rm e}^{-{\rm i}\mathbf{q}_2'\cdot\mathbf{r}_{i_2'}}\mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}, \end{eqnarray} \tag{ A.4 }$$

see equation (3). Using the fact that the interaction potential depends only on the relative coordinate, we find

$$\begin{eqnarray} &&\mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}={\rm e}^{{\rm i}\mathbf{R}\cdot \mathbf{Q}}\mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}, \end{eqnarray} \tag{ A.5 }$$

where R is any Bravais lattice vector and Q ≡ q₁' + q₂' − q₁ − q₂ modulo 2π. This implies that there are only N³ independent non-vanishing matrix elements in equation (A.3) for a lattice with N unit cells, as opposed to the N⁴ possible configurations of the four quasi-momenta. As in the main text, we will study the case of the simple cubic lattice in which the Bloch functions separate along principal axes,

$$\begin{eqnarray} &&\psi_{\mathbf{q}}(\mathbf{r})=\prod_{\nu=x,y,z}\psi_{q_{\nu}}\left(r_{\nu}\right). \end{eqnarray} \tag{ A.6 }$$

The separability of the Bloch functions allows us to write the integral equation (A.3) in the form

$$\begin{eqnarray} &&\fl \mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}=\prod_{\nu=x,y,z}\int_0^L \,{\rm d}{r}_{\nu} \int_0^{L} \,{\rm d}{r}_{\nu}' [\psi_{{q}_{1\nu}}({r}_{\nu})\psi_{{q}_{2\nu}}({r}_{\nu}')]^{\star}I(\mathbf{r}-\mathbf{r}')[\psi_{{q}_{1\nu}'}({r}_{\nu})\psi_{{q}_{2\nu}'}({r}_{\nu}')]. \end{eqnarray} \tag{ A.7 }$$

Changing integration variables to 2ξ_ν ≡ r_ν + r_ν', 2η_ν ≡ r_ν − r_ν' with Jacobian 2 along each Cartesian direction and expanding the 1D Bloch functions as

$$\begin{eqnarray} &&\psi_{q}(x)=\lim_{\ell\to\infty} \frac{1}{\sqrt{L}}{\rm e}^{{\rm i}qx}\sum_{p=-\ell}^{\ell}c_q^p\,{\rm e}^{2\pi \mathrm{i} p x} \end{eqnarray} \tag{ A.8 }$$

with L the number of lattice sites along each Cartesian direction, we find

$$\begin{eqnarray} &&\mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}=\frac{2^3}{L^6}\prod_{\nu=x,y,z}\sum_{p_{1\nu}p_{2\nu}p_{1\nu}'p_{2\nu}'} c_{q_1}^{p_1}c_{q_2}^{p_2}c_{q_1'}^{p_1'}c_{q_2'}^{p_2'} \sum_{f_{\nu}=\left\{-1,1\right\}}f_{\nu} \end{eqnarray} \tag{ A.9 }$$

$$\begin{eqnarray} &&\hphantom{\mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}=}\times \int_0^{f_{\nu}L/2} \,{\rm d}{\eta }_{\nu} \,{\rm e}^{2\pi \mathrm{i}\eta_{\nu}\Delta_{\nu}}I\left(2\boldsymbol{\eta}\right) \int_{f_{\nu}\eta_{\nu}}^{L-f_{\nu}\eta_{\nu}} {\rm d}{\xi}_{\nu} {\rm e}^{2\pi \mathrm{i} t_{\nu}\xi_{\nu}}. \end{eqnarray} \tag{ A.10 }$$

Here, ℓ is a finite Fourier cutoff used in numerics and we have defined

$$\begin{eqnarray} t_{\nu}&\equiv p_{1\nu}'-p_{1\nu}+p_{2\nu}'-p_{2\nu}+\frac{q_{1\nu}'-q_{1\nu}+q_{2\nu}'-q_{2\nu}}{2\pi}\,, \end{eqnarray} \tag{ A.11 }$$

$$\begin{eqnarray} \Delta_{\nu}&\equiv p_{1\nu}'-p_{1\nu}+p_{2\nu}-p_{2\nu}'+\frac{q_{1\nu}'-q_{1\nu}+q_{2\nu}-q_{2\nu}'}{2\pi}\,. \end{eqnarray} \tag{ A.12 }$$

The integrals over ξ_ν are

$$\begin{eqnarray} &&\int_{f_{\nu}\eta_{\nu}}^{L-f_{\nu}\eta_{\nu}} {\rm d}{\xi}_{\nu} {\rm e}^{2\pi\mathrm{ i} t_{\nu}\xi_{\nu}}=L\delta_{t_{\nu},0}-\frac{\sin\left(2\pi \eta_{\nu} t_{\nu}\right)}{\pi t_{\nu}}. \end{eqnarray} \tag{ A.13 }$$

We will keep only the term proportional to the Kronecker delta, as this is the dominant contribution for large lattices. This approximation becomes exact in the limit of an infinite lattice, L → ∞, as has been shown for the delta-function potential in [28]. For simplicity, we now also require that the interaction potential is invariant under inversion by any Cartesian coordinate. This is true for the q = 0 component of the dipole–dipole interaction, as well as for the delta function potential. However, the method directly extends to more general interactions. With these two conditions, we find in the limit as L → ∞,

$$\begin{eqnarray} \mathcal{V}_{\mathbf{q}_1\mathbf{q}_1'}^{\mathbf{q}_2\mathbf{q}_2'}&=&\frac{1}{L^3}\prod_{\nu=x,y,z}\sum_{p_{1\nu}p_{2\nu}p_{1\nu}'p_{2\nu}'} \delta\left(p_{1\nu}'-p_{1\nu}+p_{2\nu}'-p_{2\nu}+\frac{q_{1\nu}'-q_{1\nu}+q_{2\nu}'-q_{2\nu}}{2\pi}\right)\nonumber \\ & &\times c_{q_1}^{p_1}c_{q_2}^{p_2}c_{q_1'}^{p_1'}c_{q_2'}^{p_2'}\mathcal{F}_{\pi \boldsymbol{\Delta}}\left[I\right], \end{eqnarray} \tag{ A.14 }$$

where $\mathcal {F}_{\mathbf {k}}[I]$ is again the Fourier transform of I as a function of k and $\boldsymbol {\Delta }=(\Delta _x,\Delta _y,\Delta _z)$.

The Bloch expansion method has the advantage of not introducing any discretization error, and also requires significantly less memory when the lattice is separable. However, the computational scaling of this method is $\mathcal {O}(L^9)$ as opposed to $\mathcal {O}(L^3)$ for the real-space method. The Bloch expansion method suffers from spurious interactions due to periodic boundary conditions, just as in the real-space method. We find that both methods agree when we extrapolate to the limit L → ∞, and allow us to put a conservative bound of 1% on our estimated error. Additionally, we have benchmarked both methods with the case of a delta-function potential, where both analytical and numerically exact results are available.

In this appendix we derive the dipolar interaction energy of two particles in the ground state of an anisotropic harmonic oscillator, equation (26) of the main text, and compare the results with the on-site interaction energy in an optical lattice. As in the main text, we use the quasi-2D geometry ℓ_x = ℓ_y ≡ ℓ_⊥ and choose the harmonic oscillator lengths to match the local curvature of a lattice site minimum via

$$\begin{eqnarray} &&\ell_{\nu}=\frac{a}{\pi\tilde{V}_{\nu}^{1/4}}. \end{eqnarray} \tag{ B.1 }$$

The ground state wave function may be written in cylindrical coordinates as

$$\begin{eqnarray} &&\psi\left(\rho,\phi,z\right)=\frac{1}{\ell_{\perp}\sqrt{\ell_z}\pi^{3/4}}\exp\left(-\frac{z^2}{2\ell_z^2}-\frac{\rho^2}{2\ell_{\perp}^2}\right), \end{eqnarray} \tag{ B.2 }$$

where ρ² = x² + y². Using the convolution theorem, we can write the dimensionless dipolar interaction energy as

$$\begin{eqnarray} &&I_{0}^{\mathrm{ho}}=\frac{a^3}{2\pi^2}\int {\rm d}\mathbf{k}(\cos^2\theta-1/3)n^2(\mathbf{k}), \end{eqnarray} \tag{ B.3 }$$

where

$$\begin{eqnarray} &&n(\mathbf{k})=n\left(\rho,z\right)=\exp\left(-\frac{z^2\ell_z^2}{4}-\frac{\rho^2\ell_{\perp}^2}{4}\right) \end{eqnarray} \tag{ B.4 }$$

is the Fourier transform of the density and θ is the angle between k and the z-axis. Performing the integration in equation (B.3) over z and ϕ yields

$$\begin{eqnarray}&&\fl I_{0}^{\mathrm{ho}}=a^3\int_{0}^{\infty}\,{\rm d}\rho \rho \exp\left(-\frac{\rho^2\ell_{\perp}^2}{2}\right)\left\{\frac{1}{3}\sqrt{\frac{8}{\pi}}\frac{1}{\ell_z}-\rho\exp\left(\frac{\rho^2\ell_z^2}{2}\right)\left[1-\mathrm{erf}\left(\frac{\rho\ell_z}{\sqrt{2}}\right)\right]\right\}, \end{eqnarray} \tag{ B.5 }$$

with $\mathrm {erf}\left (x\right )$ the error function. Integrating over ρ yields

$$\begin{eqnarray} &&\fl I_{0}^{\mathrm{ho}}=\frac{a^3}{3}\sqrt{\frac{8}{\pi}}\frac{1}{\ell_z\ell_{\perp}^2}+\sqrt{\frac{2}{\pi}}\frac{\ell_z}{\ell_{\perp}^2}\frac{1}{\ell_{\perp}^2-\ell_z^2}-\sqrt{\frac{2}{\pi}}\frac{1}{\left(\ell_{\perp}^2-\ell_z^2\right)^{3/2}}\cot^{-1}\left(\frac{\ell_z}{\sqrt{\ell_{\perp}^2-\ell_z^2}}\right). \end{eqnarray} \tag{ B.6 }$$

Inserting the definitions from the main text, $\skew3\bar{\ell }\equiv (\ell _z\ell _{\perp }^2)^{1/3}/a$, α ≡ ℓ_z/ℓ_⊥ and β ≡ α(1 − α²)^−1/2, we find

$$\begin{eqnarray} &&I_0^{\mathrm{ho}}= \frac{\sqrt{2}}{\bar{\ell}\,^3\pi}\left[\frac{2}{3}+\beta^2-{\beta}(1-\alpha^2)^{-1}\cot^{-1}(\beta)\right].\end{eqnarray} \tag{ B.7 }$$

A comparison between the function equation (B.7) with the oscillator lengths chosen as in equation (B.1) and the result computed via Wannier functions as explained in appendix A is given in figure B.1. We find that the on-site interaction energy in the harmonic oscillator is always larger than the corresponding energy in an optical lattice, often by 10%. Additionally, the on-site interaction is large for small to moderate V_∥, enforcing the hard-core constraint used in the many-body study in the main text.
