Response of nuclear track detector CR-39 to low energy muons

Conventional muon detectors are generally large scale installations, such as the compact muon solenoid system at the Large Hadron Collider, which consists of 2000 m³ of drift tubes [1]. A mini muon tracker system has been developed that is an order of magnitude smaller, at ∼4 m³ [2]; however, this muon detector still uses drift tubes.

Drift tubes rely on charged particles and photons to create trails of gaseous ionisation between conductive plates. In environments where there are many different types of charged particles at high dose rates, it can be difficult to achieve unambiguous muon detection with drift tubes.

Within the last two decades, the continued improvement of ultra-intense laser systems has allowed high energy particle acceleration on a compact scale [3–5] to become a reality, opening up the potential for a much broader range of applications. One such application is the production of muons by laser-wakefield accelerated electrons [6–8]. However, most laser plasma acceleration experiments produce a variety of sub-atomic particles and ionising radiation in high doses, making the de-convolved measurement of a specific particle or photon in an energy range particularly challenging. This is especially the case for muons produced from laser wakefield experiments as their yields are predicted to be especially low until the next generation of ultra-intense lasers and wakefield accelerators are developed.

Laser plasma acceleration experiments need particle and radiation detector technology to be developed not only towards the particle or radiation to be detected, but also the ability to deconvolve the measurement from a the high radiological background produced as a result of the plasma acceleration. In order to measure and characterise the particles, radiation and beams a variety of diagnostics can be drawn upon, depending on the parameter being measured, e.g. spatial profile, spectral characteristics, timing properties, etc.

One type of diagnostic commonly used are solid state nuclear track detectors (SSNTDs), which can be used to detect individual particles. Typically the SSNTD is exposed, chemically etched and optically imaged to reveal the latent tracks of individual particles within the sensitivity range of the SSNTD. A commercially available SSNTD is a plastic more commonly known by its trademarked name, CR-39 (Columbia Resin #39), chemical name PADC (PolyAllyl Diglycol Carbonate). It is used in a wide range of science and technology applications, from eyeglass lenses to inertial confinement fusion experiments [9]. Its response to protons [10], neutrons [11], alpha particles [12], and heavier ions [13] is well studied, and there are examples of its use to study the spectral properties of laser accelerated proton beams in particular [16]. CR-39 can be used to distinguish between different types of particles (within its sensitivity range), while also being insensitive to electromagnetic pulses [17] and relatively insensitive to x-rays [18], gamma-rays [19] and electrons [20]. This makes it particularly well suited for laser plasma experiments, where it exhibits a low sensitivity to the high background of electrons and x-rays usually present, allowing more specific measurements of protons and neutrons to be made.

Some of the advantages and versatility of CR-39 make it worthwhile to investigate its potential as a muon detector. This paper outlines the modelling, testing and characterisation performed to investigate the feasibility of CR-39 as a muon detector, categorise its use cases for muon detection and areas of future study

As a charged particle propagates through CR-39, it leaves a latent track of damaged molecular bonds as it deposits energy. To reveal the tracks, CR-39 is chemically etched in an alkali solution (typically sodium hydroxide). The surface of the plastic etches away at a slow bulk etch rate and regions of damage etch away at a faster rate, revealing the latent track as a 'pit' on the surface.

The dimensions of the pit is dependent on the incident particle (type and energy) and its angle of incidence, however the etch conditions (concentration, temperature and time) also effect the resultant track size. To account for the variation in etch conditions, the bulk etch length (i.e. the depth the undamaged surface has etched away by) is measured as the independent variable, and used to compare between data collected under different etch conditions (e.g. different temperatures, or different chemical etch solution concentrations). As an example, after a bulk etch length of 40 µm, a 5 MeV proton typically produces a track diameter of ∼5 µm [20]. The tracks are then observed with an optical microscope to determine their spatial properties.

As CR-39 is primarily used for neutron and charged particle dosimetry, there are many studies characterising the detector for given particles species and energy ranges, allowing the relationship between energy and particle track diameter to be well understood [9, 13, 19]. Characterisation of CR-39's response to relatively low ($\lt$10 MeV) energy muons does not appear to have been investigated.

There has been evidence of muons produced from the cosmic ray background being detected by CR-39 [23, 24], but these results appear to have been at low flux and in the presence of other cosmic ray particles.

CR-39 is generally understood to be insensitive to cosmic ray muons, which tend to have an average energy at sea level in the GeV region. This study used the MuSR Spectrometer station at the ISIS Neutron and Muon Source, UK, which receives muons of 28 MeV c⁻¹ momentum. It was hypothesised the CR-39 may be sensitive to muons of these lower energies.

In this experiment we used PADC SSNTD commonly known as CR-39 obtained from Track Analysis Systems Ltd under the tradename TASTRAK. The sensitivity of CR-39 to different particles can be described in terms of a material's stopping power: the rate at which a particle deposits energy as it travels through a material. The stopping power of particles travelling through CR-39 will depend on their type and energy. This is summarised in figure 1 which shows simulated data for the stopping power of CR-39 for protons and muons. For polymer damage to occur, sufficient energy must be deposited within a given range in CR-39, which is indicated by the material's stopping power. It is known from previous studies that 1–30 MeV protons are able to deposit sufficient energy for damage to occur and tracks to develop with etching. The graph shows that the relatively higher energy protons deposit a similar amount of energy to relatively lower energy muons; therefore, it is expected that muons within this energy range will produce damage in CR-39. Consideration should also be made of the 2.2 µs average lifetime [15] of muons when depositing energy in CR-39. The decay products of positive muons are a positron, an electron neutrino and a muon antineutrino. However, in a similar fashion to electrons, these decay products are unlikely to deposit any significant energy in CR-39, including the energy from the photons produced as a result of positron annihilation events in CR-39.

Zoom In Zoom Out Reset image size

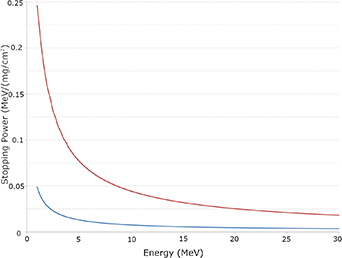

Due to the stopping power of CR-39, provided it can detect muons, there is also the potential for discrimination between protons and muons (provided the energy range of the protons is known). Comparing the rate of decline of stopping power for the two particle types suggests that for similar energy particles, CR-39 has a greater stopping power for protons; i.e. a 5 MeV proton will not travel as far through CR-39 as a 5 MeV muon, as shown clearly in figure 2. This difference in stopping power gives rise to a potential technique for distinguishing between the two particles over certain energy ranges in an environment where both are present, by identifying the depth in the CR-39 beyond which the protons should have lost their energy and will not be present.

Zoom In Zoom Out Reset image size

Take for example, a 10 MeV muon can travel up to ∼5 mm through CR-39, where a 10 MeV proton should only travel up to ∼1 mm. This stopping range was used to specifically design stacks to test the hypothesis that CR-39 would detect muons. For polymer damage to occur, sufficient energy must be deposited within a given range in the CR-39, which is indicated by the material's stopping power. From the literature, it is known that 1–30 MeV protons are able to deposit sufficient energy for damage to occur and tracks to develop with etching. The stopping range graph (figure 2) shows that the relatively higher energy protons deposit a similar amount of energy to relatively lower energy muons; therefore, it is expected that muons within this energy range will produce damage in the CR-39.

Stacks were designed to detect muons across a range of energies, spanning the range they were predicted to deposit energy in. The stack of CR-39 was made up of multiple thin elements (200 µm thick), to give the most surfaces on which pits could be detected. This also gave the possibility of a higher chance of muons which were the correct energy for energy deposition, in the eventuality that it was only a very narrow range. To also provide a continuous varying thickness between these surfaces, two different wedges were also used on the front of the CR-39 stacks, as shown in figure 3. The two wedges were a plastic (PMMA) wedge, which tapered down from 1 mm, and an aluminium wedge which tapered down from 600 µm. As the muon source used was quasi-monoenergetic (with 2% bite) [14], this provided a continuous spectra of energies which ensured damage to the CR-39 would happen at a surface where it could be detected. A third stack was used as a background stack, placed within the area but not in path of the beam.

Zoom In Zoom Out Reset image size

From Geant4 modelling (Monte Carlo simulations), given an initial energy of 3.88 MeV, a negligible amount of muons make it through 1000 µm of CR-39, irrespective of where they are along the plastic or aluminium wedge. This informed the stack design, and the final design used was 2000 µm total, a stack of 10 elements.

These stacks of CR-39 were then exposed to the muons in the MuSR spectrometer at the ISIS Neutron and Muon Source.

The ISIS European Commission Muon Facility was accessed to provide a low-background source of quasi-monoenergetic (with 2% bite) positive muons. The muon beam has a momentum of 28.63 ± 0.66 MeV c⁻¹, equivalent to an energy of ∼3.88 MeV, with a beam diameter of ∼18 mm. The beam is pulsed at a rate of 40 pulses/sec with ∼20 000 muons/pulse produced [14].

Three stacks were used, as shown in figure 3 and described previously. Stack #1 was placed in the target area, away from the beam, as a background measurement. Stacks #2 and #3 were exposed to the direct muon beam, one at a time. The beam was roughly centred on the centre of the front element and the exposure time was ∼10 seconds, resulting in an exposure of ∼8 $\times10^{6}$ muons.

Post-exposure, the sheets of CR-39 were then etched in sodium hydroxide solution, of 6.25 M, heated to 85 ± 5 ^∘C (the bulk etch length of this process is 4.25 µm h⁻¹). Scanning was carried out with an automated scanning system and software produced by Track Analysis Systems Ltd (TASLIMAGE). The system consists of a motorised, backlit stage where an element is held, which is then translated within the image frame of a microscope. The CR-39 is clamped between two glass plates to mitigate any warping effects (a result of the decreased thickness due to etching), and to ensure that the microscope stays in focus as it images different areas of the surface.

The TASLIMAGE scanning and readout system [21] detects and records 'events' within a given frame, measuring the parameters shown in figure 4, such as: the minor and major diameter of each pit, the depth to which the track has been etched, and information which can give the angle of incidence of the track. These parameters are used to filter the data, and define whether the event is a true pit or a false detection.

Zoom In Zoom Out Reset image size

There were various sources of image artefacts, such as scratches or residue from etching (despite washing in distilled water). Another artefact was due to the very thin CR-39 used, which meant pits created on the opposite side of the piece of CR-39 can be simultaneously imaged, albeit out of focus. These were not accepted as valid pits through filtering, as the edges were so out of focus the measured parameters would indicate a non-elliptical pit.

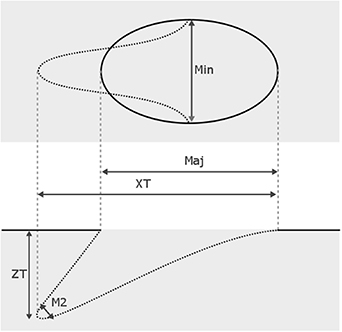

Figure 4 shows the pit parameters which were measured and estimated by the TASL software and so could be used to analyse the pits. These parameters were used to reject any pits with too steep an entry angle into the CR-39. As the CR-39 had been placed perpendicular to a collimated source of muons, this would reject any particles not associated with the source.

Figures 5 and 6 are of pieces of CR-39 taken from the same stack (Stack #2, with the plastic wedge). Figure 5 shows the majority of muons are detected within the area beneath the plastic wedge. The wedge moderates the muons down to an energy at which they will deposit energy in the CR-39 and cause detectable tracks. Muons that do not pass through the wedge maintain their higher energies and pass through the CR-39 undetected. This piece is the backside of the 3rd element in the stack, so the muons have passed through 600 µm of CR-39 and varying thickness of plastic wedge (max thickness 1 mm).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

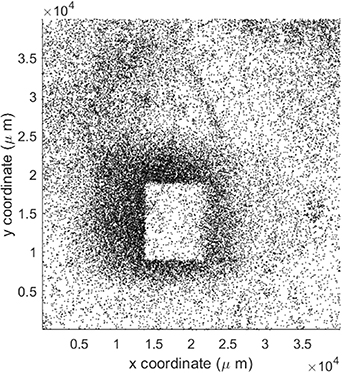

Compare this to figure 6, in which the majority of muons are detected outside of the imprint of the plastic wedge. This piece of CR-39 is after 800 µm of CR-39, and as can be seen inside the wedge outline, most muons have already reached their stopping range. Muons outside of the wedge which are unmoderated are within the correct energy range to damage the CR-39 and cause pits which can be detected.

Using the MuSR Spectrometer of ISIS, muons were successfully detected in CR-39 stacks. The results were analysed to determine what energy range of muons were associated with causing molecular bond damage and creating tracks within the CR-39. This was done through comparison between the scans of the pits formed on the surface of the CR-39 at different depths through the stacks, and the Geant4 modelling results. By comparing the modelling to points across the surface of the CR-39, both inside and outside the wedge, it was deduced that muons were detected within the energy range bounded by 0 and 2.8 MeV.

To further define this energy range, a closer look within the muons moderated by a wedge could give insight. A selected piece of CR-39 was chosen (see figure 7), in which the muons pits across the wedge visually describe the optimum energy to cause detectable pits.

Zoom In Zoom Out Reset image size

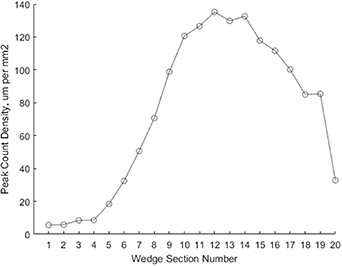

The area of interest beneath the wedge is shown enlarged in figure 8, and sub-divided into 20 sections, each 50 µm wide. The number of muons in each section can then be summed, as shown in figure 9, showing a maximum number of pits deposited in wedge sections 10–15.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Using Geant4, each of the plastic wedge section median thicknesses, combined with the total CR-39 thickness (600 µm) was modelled to conclude the peak energy of muons reaching the CR-39 surface at that depth in the stack (see figure 10). The optimum detection energy regime for the muons is estimated in this way to be between 0.4 and 1.6 MeV.

Zoom In Zoom Out Reset image size

Note that muons are detected in some wedge sections where modelling indicates none. This discrepancy is most likely due to scatter at each of the boundaries within the stack of CR-39, causing a dispersion of the muons as they traverse the stack.

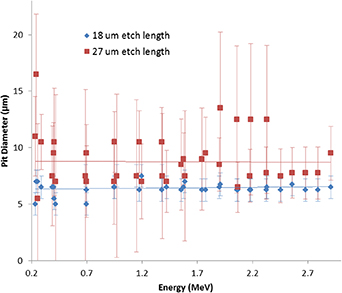

The processed results were analysed to look for characteristics which could differentiate them from protons and neutrons. Figure 11 was made from one piece of CR-39, and looking at the pits created in the CR-39 by the muons across the wedge which represented differing peak energies of muons. These were plotted across the wedge to determine if there was a change in the major pit axis (the largest dimension of the pit, see figure 4) due to the change in energy of the muons. The pit size is consistent across the energies, and the dominant factor affecting the pit size is the length of time the CR-39 has been etched for, measured by the bulk etch length. At 18 µm etch length, the average pit diameter is approximately 7 µm, and at 27 µm bulk etch length, it is approximately 9 µm.

Zoom In Zoom Out Reset image size

From a review of the literature, these pit sizes are comparable to neutron and proton pit sizes of certain energies. For 14 MeV neutrons, with a similar bulk etch length, the pit diameter is within a similar range (2–22 µm, as per [22]).

An extensive study of proton pit sizes is described in [16]. Proton pit diameters increase in size from 0.2 to 1 MeV between ∼6 and ∼25 µm, and then above 1 MeV decrease in size with increasing energy. These pit diameters overlap with the CR-39 pit sizes described here; therefore, any possible proton sources in future experiments contributing to the pits in the CR-39 would need to be considered and controlled for.

In order to make a complete analysis, the characteristic response of CR-39 to low energy muons should also be expressed as the etch rate ratio. The etch rate ratio, V, is the ratio of the track etch rate (V_t ) to the bulk etch rate (V_b ) [25].

$$\begin{equation} V = \frac{V_{t}}{V_{b} }. \end{equation} \tag{ 1 }$$

In a simple approximation, perpendicular incident particles are assumed to create ideal cones for etch pits [26], and V can expressed as a function of the pit radius r after a bulk etch length G:

$$\begin{equation} V = \frac{1+(r/G)^2}{1-(r/G)^2}. \end{equation} \tag{ 2 }$$

From our data, the etch rate ratio of CR-39 for low energy muons is estimated to be between 1.06 and 1.08.

Monte Carlo simulations and experimental results from a muon beamline of 3.88 MeV average energy demonstrate that SSNTDs such as CR-39 can be used to detect muons. The Monte Carlo simulations indicate that CR-39 is capable of detecting muons with energies up to 2.8 MeV, with an optimum sensitivity within the energy range of 0.4–1.6 MeV. These results support the observations of SSNTDs being effective at detecting cosmic ray muons but also offer a larger and more straightforward muon dataset due to the use of a dedicated muon source. The diameters of the pits deposited in CR-39 after exposure to muons, after being step-etched and scanned, did not strongly correlate to the energy of the muon at that pit depth, rather the diameters showed stronger correlation with the bulk etch length. CR-39's insensitivity to electrons and ionising photons enables it to be used to discriminate muons from them, in addition to its more common use as a proton or neutron detector. The potential of CR-39 to be used to discriminate tracks deposited by muons from those deposited by protons and neutrons in a similar momentum range will require a larger data set and a more comprehensive analysis. If CR-39 can be shown to be more effective in discriminating between muons and protons/neutrons in a similar momentum range it would be a highly effective muon dosimeter in environments with a high radiological dose such as laser plasma acceleration experiments.

One of the authors, David Neely, sadly passed away before this work was published.

The authors would like to express their gratitude to UKRI and STFC for providing access to the MuSR spectrometer muon beamline at the ISIS Neutron and Muon Source, UK.

The data that support the findings of this study are available upon reasonable request from the authors.
