Evaluating the effect of setup uncertainty reduction and adaptation to geometric changes on normal tissue complication probability using online adaptive head and neck intensity modulated proton therapy

Intensity modulated proton therapy (IMPT) has the potential to reduce the risk of radiation-induced side effects associated with conventional photon radiotherapy while achieving equivalent or superior tumor control (Blanchard et al 2016a, Leeman et al 2017, Moreno et al 2019). This is especially relevant for the treatment of head and neck cancers, where common side effects such as xerostomia and dysphagia can significantly impair quality of life (Langendijk et al 2008). To identify the patients that would benefit the most from the toxicity reductions associated with proton therapy, model-based approaches using normal tissue complication probability (NTCP) have been suggested (Langendijk et al 2013, Widder et al 2016). A recent implementation of a model-based patient selection system suggested that 35% of all head and neck patients eligible for initial treatment plan comparison would qualify for proton therapy due to an expected clinically significant reduction in NTCP (Tambas et al 2020).

NTCP reductions associated with proton therapy are obtained by leveraging the sharp dose falloff created at the distal edge of the Bragg peak. However, this feature also makes proton therapy more sensitive than photon radiotherapy to inter-fractional geometrical changes such as random non-rigid anatomical variations (e.g. jaw positioning, head rotation, neck folds, etc) and treatment-related changes (e.g. weight loss, tumor shrinkage, etc) (Müller et al 2015, Stützer et al 2017). While a loss in target coverage is usually the main concern associated with geometrical changes, they can also lead to an over-dosage of the organs at risk (OARs) surrounding the target volume. This was highlighted by Stützer et al (2017) who reported, after 20 fractions, an increase in the median dose to the ipsilateral parotid gland of 3.4 Gy for proton therapy, compared to 0.8 Gy for photon radiotherapy. Likewise, (Müller et al 2015) reported a reduction in the conformity index of the 95% isodose of up to 15% for proton therapy plans compared to less than 5% for photon radiotherapy in head and neck patients after 10 fractions.

The usual approach to mitigate the impact of inter-fractional setup variations and anatomical changes on IMPT dose distributions is to increase the robustness of the treatment plan upfront, using robust optimization (Van De Water et al 2016, Cubillos-Mesías et al 2019). However, gains in plan robustness are often achieved at the cost of an increase in NTCP (Van De Water et al 2016), potentially compromising the benefits of IMPT. As an alternative, online adaptive proton therapy workflows have been proposed by different groups (Da Silva et al 2015, Jagt et al 2017, Botas et al 2018, Matter et al 2019, Lalonde et al 2021, Paganetti et al 2021, Bobić et al 2021, 2023). Online adaptation (OA) corrects for anatomical changes and setup variations by adapting the treatment plan just before delivering each fraction, using either a fast re-optimization (Botas et al 2018, Matter et al 2019, Lalonde et al 2021, Paganetti et al 2021, Bobić et al 2021, 2023) or dose restoration (Da Silva et al 2015, Jagt et al 2017, Bernatowicz et al 2018) technique. The potential benefits of online adaptive proton therapy in terms of NTCP mitigation are twofold: first, it might reduce the need for large setup uncertainty margins (Jagt et al 2017, Lalonde et al 2021) and second, it has the potential to account for geometrical changes that would result in an increased dose to OARs. When both effects are leveraged, online adaptive proton therapy has been shown to yield a lower dose to most OARs while maintaining superior target coverage than state-of-the-art robust optimization methods (Lalonde et al 2021). The potential impact of online adaptive proton therapy on NTCP has however not been quantified yet.

The aim of this work was to assess and quantify the reductions in toxicity risks achievable using online adaptive head and neck IMPT, as well as the individual contributions of setup uncertainty reduction (SUR) and adaptation to geometrical changes (AGC) on the total NTCP reductions. For this purpose, a retrospective cohort of ten head and neck squamous cell carcinoma patients with daily cone-beam CT (CBCT) was used to compare NTCP for six toxicities using three distinct scenarios. Differences in NTCP between each scenario was evaluated to assess the impact of SUR alone, AGC alone and SUR and AGC combined. Finally, the clinical significance of NTCP reductions associated with each mechanism was established using a decision tree inspired by a model-based patient selection algorithm.

Patient data

Treatment planning

Dose accumulation and OA

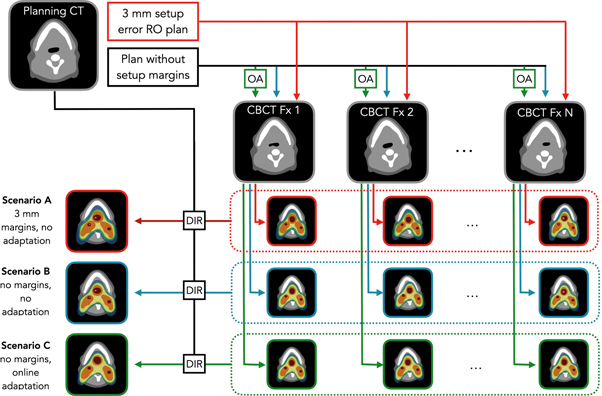

The three scenarios illustrated in figure 1 were considered in this work. Scenario A consisted of the robust plan used at each fraction without adaptation, scenario B the non-robust plan used without adaptation and scenario C, the non-robust plan used with daily OA. As detailed in the following section, patient-specific results associated with each scenario were intercompared rather than analyzed individually, this to assess the specific impact on NTCP of SUR alone, AGC alone as well as SUR and AGC combined.

Zoom In Zoom Out Reset image size

For scenario C, OA of the treatment plans was done using a constrained spot-intensity re-optimization approach developed within our group and detailed in previous publications (Lalonde et al 2021, Bobić et al 2021, 2023). This method restores the plan quality by only re-optimizing the weights of a subset of highly weighted proton beamlets, without modifying their position or energy. This makes OA fast and potentially avoids elaborate quality assurance procedures compared to full re-optimization, but limits the possibility to fully restore the initial plan quality in cases of drastic anatomical changes. The beamlets selected for optimization were defined as the smallest subset of beamlets carrying at least 33% of the total spot weights, with the constraint that the number of beamlets selected represented at least 10% of the total number of spots. The same constraints and objectives as for the initial treatment planning were used to re-optimize the plans.

Plan adaptation was based on the daily scatter corrected CBCT images. Scatter correction was performed in the projection domain using a Monte Carlo trained deep convolutional neural network previously validated for head and neck proton therapy (Lalonde et al 2020). Once corrected for scatter, the CBCT images were rigidly registered (using 6 degrees of freedom) to the planning CT focussing on a region of interest encompassing the high-risk CTV and the spine, mimicking our in-room clinical setup. From there, a set of daily contours were generated using deformable image registration (DIR) between the planning CT and the scatter corrected CBCTs in Plastimatch (Sharp et al 2010). Visual inspection of the propagated contours was done before each adaptation. Re-optimization of the selected beamlets' weight was done using Opt-4D (Trofimov et al 2005), while dose calculation was performed using gPMC (Qin et al 2016), a GPU accelerated dose calculation algorithm, using the same beam model as in RayStation. The median time for adaptation including DIR and dose calculation was 12 min, ranging from 8 to 22 min within our patient cohort. For all patients, dose distributions associated with each scenario were calculated on the daily scatter-corrected CBCTs and accumulated on the planning CT using DIR. Dose calculation on the daily CBCTs was performed using RayStation (with Monte Carlo) for scenario B, while gPMC was used for scenarios A and C. This way, any potential discrepancies between gPMC and RayStation would be intrinsically addressed by AGC without affecting scenario B.

NTCP calculation and evaluation

NTCP models for acute oral mucositis of grade ≥ 3 (Bhide et al 2012), xerostomia lasting 12 months after therapy (Houweling et al 2010), patient reported swallowing dysfunctions for solids and liquids (Christianen et al 2012), physician-rated dysphagia of grade ≥ 2 (Christianen et al 2012) and aspiration assessed by video-fluoroscopy (Eisbruch et al 2011) were applied to the cumulative dose distributions associated with each scenario. NTCP models and parameters used for each toxicity are summarized in table 1, derived from reference (Jakobi et al 2015). From the three scenario-specific NTCP values, toxicity reductions associated with SUR, AGC and SUR and AGC performed together were calculated as follows for each patient:

$$\begin{eqnarray}&&\begin{array}{l}{\rm{\Delta }}NTC{P}_{SUR}=NTC{P}_{B}-NTC{P}_{A}\\ {\rm{\Delta }}NTC{P}_{AGC}=NTC{P}_{C}-NTC{P}_{B}\\ {\rm{\Delta }}NTC{P}_{SUR\,\&\,AGC}=NTC{P}_{C}-NTC{P}_{A}\end{array}\end{eqnarray} \tag{ 1 }$$

where ${\mathrm{NTCP}}_{X}$ represents the NTCP associated with the cumulative dose distribution from scenario X as detailed in figure 1 and ${\mathrm{\Delta NTCP}}_{Y}\,$refers to the NTCP reduction induced by mechanism Y. Of note, while ${\mathrm{\Delta NTCP}}_{\mathrm{AGC}}$ could in theory be calculated from any realistic baseline setup robustness (e.g. 3 mm instead of 0), we decided to limit our analysis to the three scenarios described above for the sake of clarity and simplicity. The same applies to ${\mathrm{\Delta NTCP}}_{\mathrm{SUR}},$ which could also have been evaluated from a different setup uncertainty pair (e.g. going from 4 to 1 mm). Previous work has however demonstrated that NTCP for common head and neck toxicities was linearly related to setup uncertainty settings between 1 and 5 mm (Wagenaar et al 2021), indicating that our evaluation should be representative of any SUR of 3 mm within that range. To evaluate whether the linearity of NTCP with the setup uncertainty setting was indeed preserved down to 0 mm, an additional scenario considering a 1 mm setup uncertainty setting and no OA was considered and compared to scenarios A and B. Results for this analysis are presented in the appendix.

Table 1. NTCP models implemented in this work.

Toxicity	NTCP model	Parameter values
Oral mucositis	$\mathrm{NTCP}={\left(1+{\left(\frac{{D}_{50}}{D}\right)}^{k}\right)}^{-1}$	D = Dmean of oral mucosa
		D50 = 51 Gy
		k = 1
Xerostomia	$\mathrm{NTCP}={\rm{\Phi }}\left(\frac{g\mathrm{EUD}\left(n\right)-{D}_{50}}{m\,\cdot {D}_{50}}\right)$	n = 1 for contralateral parotid gland dose
		D50 = 39.9 Gy
		m = 0.4
Swallowing dysfunction—solids	$\mathrm{NTCP}={\left(1+{e}^{a-b\cdot {X}_{1}-c\cdot {X}_{2}}\right)}^{-1}$	X1 = Dmean of supraglottic larynx
		X2 = 1
		a = 5.98
		b = 0.074 Gy−1
		c = −1.209
Swallowing dysfunction—liquids	$\mathrm{NTCP}={\left(1+{e}^{a-b\cdot {X}_{1}-c\cdot {X}_{2}}\right)}^{-1}$	X1 = Dmean of superior PCM
		X2 = Dmean of supraglottic larynx
		a = 6.89
		b = 0.049 Gy−1
		c = 0.048 Gy−1
Dysphagia	$\mathrm{NTCP}={\left(1+{e}^{a-b\cdot {X}_{1}-c\cdot {X}_{2}}\right)}^{-1}$	X1 = Dmean of superior PCM
		X2 = Dmean of supraglottic larynx
		a = 6.09
		b = 0.057 Gy−1
		c = 0.037 Gy−1
Aspiration	$\mathrm{NTCP}={\rm{\Phi }}\left(\frac{g\mathrm{EUD}\left(n\right)-{D}_{50}}{m\,\cdot \,{D}_{50}}\right)$	n = 1 for larynx dose
		D50 = 46.5 Gy
		m = 0.5

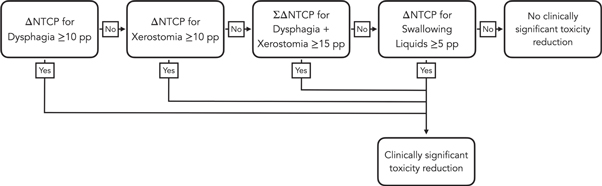

Finally, the clinical significance of NTCP reductions associated with each mechanism was established using a decision tree illustrated and figure 2 and inspired by the one used in the Dutch model-based selection system (Tambas et al 2020). Although in this work no form of patient triage was performed, the decision tree was used to quantify the number of patients for whom a given mechanism induced a clinically meaningful NTCP reduction.

Zoom In Zoom Out Reset image size

NTCP reductions associated with SUR, AGC and SUR and AGC combined, as calculated with equation (1), are presented for each toxicity in figure 3. Each colored line represents one patient while the thick black line reports the mean value of the cohort. Missing lines correspond to patients for whom an OAR needed for NTCP calculation was fully encompassed by one of the target volumes. With very few exceptions, NTCP differences in figure 3 are negative, indicating that both SUR and AGC have the potential to reduce the risk for all toxicities considered in this work. Note that ΔNTCP can be positive in cases where the reduced setup robustness makes the plan more vulnerable to anatomical changes or when OA has to compromise OAR sparing in order to maintain tumor coverage. With the exception of aspiration, results also indicate that NTCP reductions achievable with SUR are generally larger than with AGC alone. Unsurprisingly, for most patients and most toxicities, the largest NTCP reductions were obtained when SUR and AGC are applied together.

Zoom In Zoom Out Reset image size

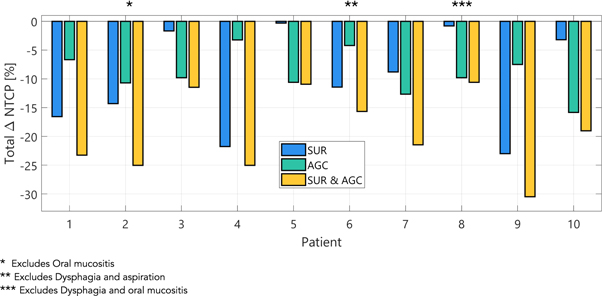

Figure 4 presents the patient-specific total NTCP reductions for the four main toxicities considered in this work that are derived from different anatomical structures: xerostomia, dysphagia, oral mucositis and aspiration. When SUR and AGC are performed together, reductions in the probability of developing any of these four toxicities ranged between 10.94 and 30.48 percentage points (pp) within our patient cohort. Focussing on NTCP reductions achieved by SUR and AGC separately, results in figure 4 indicates that AGC was more beneficial than SUR for half of the patient cohort, and SUR was more beneficial for the other half of the group. This contrasts with the results of figure 3, where toxicity-specific NTCP reductions averaged over the whole patient cohort were generally higher with SUR than AGC. A power analysis of the differences in total NTCP reductions induced by SUR, AGC and SUR&AGC combined is presented in the appendix.

Zoom In Zoom Out Reset image size

Finally, the proportion of patients identified to have a clinically significant NTCP reduction utilizing each mechanism according to the decision tree presented in figure 2 is reported in figure 5. Using SUR alone, no patient was identified to have a clinically meaningful NTCP reduction, compared to only one using AGC alone and five using AGC and SUR simultaneously.

Zoom In Zoom Out Reset image size

In this study, a cohort of ten head and neck squamous cell carcinoma patients with daily scatter corrected CBCTs was used to retrospectively assess the reduction in NTCP induced by SUR and AGC in the context of online adaptive proton therapy. NTCP models for six different endpoints were calculated on the cumulative dose distributions from three different clinical scenarios to assess NTCP reductions associated with SUR, AGC and SUR and AGC combined. While previous studies have investigated the influence of the setup robustness setting on NTCP for head and neck IMPT (Van De Water et al 2016, Arts et al 2017, Wagenaar et al 2021), this work is the first to quantify the contributions of SUR and AGC on NTCP reductions achievable using online adaptive head and neck IMPT based on cumulative dose distributions.

The potential of OA to restore plan quality and limit the impact of anatomical changes on target coverage and the dose to the surrounding OARs has been highlighted in previous studies (Da Silva et al 2015, Jagt et al 2017, Botas et al 2018, Lalonde et al 2021, Bobić et al 2021, 2023). NTCP models implemented in this work showed that the OAR sparing achieved with online adaptative IMPT does translate into meaningful reductions in the risk of late toxicity when SUR and AGC are performed simultaneously. Among the six NTCP toxicities considered in this work, daily OA was shown to have the greatest impact on the risk of aspiration, dysphagia and xerostomia with mean reductions of 8.25, 5.42 and 5.12 pp respectively. While daily adaptation was used in this work as a proof of principle, it has been demonstrated that OAR sparing was comparable using daily and weekly OAs (Bobić et al 2021), suggesting that similar NTCP reductions as the one obtained in this study could be achieved using less frequent adaptations. Similarly, our results are expected to be representative of what would be achieved using CT-on-rails instead of scatter corrected CBCT as in-room imaging modality, since both were shown to provide clinically equivalent results in the context of head and neck online adaptive proton therapy (Nesteruk et al 2021, 2022).

Our analysis consisted of comparing NTCP associated with three scenarios utilizing different setup robustness settings (3 mm versus 0 mm) and adaptation schemes (fast daily OA versus no adaptation). As done in similar studies, our data analysis was focussed on NTCP differences between each scenario rather than absolute NTCP values (Van De Water et al 2016, Arts et al 2017, Wagenaar et al 2021), this to isolate the impact of selected mechanisms on NTCP while minimizing the impact of patient characteristics and institution-specific treatment planning protocols on our conclusions. When SUR alone is considered, our results are similar to what has been reported previously in terms of NTCP reductions achievable by decreasing the setup robustness setting. In our study, a mean reduction in NTCP using SUR of 0.93 pp mm⁻¹ and 1.00 pp mm⁻¹ was achieved for xerostomia and dysphagia respectively, compared to 1.0 pp mm⁻¹ and 0.7 pp mm⁻¹ in Wagenaar et al (2021). Differences between these studies are most likely explained by the fact that our analysis was based on cumulative dose distributions rather than simulated setup error scenarios.

Focussing on AGC alone, our results indicate that online adaptive proton therapy can induce NTCP reductions that go beyond what is achieved when applying SUR only. Indeed, total NTCP reductions per patient for xerostomia, dysphagia, aspiration and oral mucositis reported in figure 4 ranged between 3.25 and 15.84 pp when using AGC alone, and half of our cohort in fact benefited more from AGC than SUR alone based on the cumulative doses. This indicates that by simply readjusting the intensity of highly weighted beamlets daily, online adaptive proton therapy can limit the escalation of NTCP induced by the degradation of the plan quality. Interestingly, NTCP reductions associated with AGC were not uniform across all toxicities, as shown in figure 3. For instance, the risk for oral mucositis was below 3 pp for all patients using AGC, while for aspiration, reductions up to 10 pp were achieved. One possible explanation is the much larger inter-fractional motion amplitude of the larynx compared to organs in the oropharynx region (Gurney-Champion et al 2018), from which NTCP for oral mucositis is calculated. For SUR, more uniform mean NTCP reductions were achieved across the toxicities considered in this work, with the exception of solid swallowing problems, where both SUR and AGC had minor influence.

The clinical significance of the reductions in NTCP induced by SUR and AGC was assessed using a decision tree inspired by the Dutch model-based selection system (Tambas et al 2020). Based on this tree, half of our patient cohort (patients # 1, 2, 6, 9 and 10) was shown to have a clinically significant NTCP reduction when performing online adaptive proton therapy combining SUR and AGC. However, adapting to geometrical changes at a constant setup uncertainty robustness resulted in a clinically meaningful toxicity reduction for only one patient. Thus, it appears that despite its potential to address inter-fractional anatomical changes, OA is more likely to induce a clinically meaningful reduction in toxicity risks if it is also leveraged to reduce the setup uncertainty robustness setting. Likewise, reducing setup uncertainty margins by 3 mm was shown to induce no clinically meaningful toxicity reductions at the end of treatment if inter-fractional geometrical changes in the patient anatomy were not also addressed during treatment delivery. Considering that contrary to AGC, robustness reductions have the potential to compromise tumor control (Wagenaar et al 2021), it appears that SUR performed alone has little potential to improve the therapeutic index of head and neck IMPT.

The fact that clinically meaningful toxicity reductions were observed in five out of ten patients also illustrates the heterogeneous effect of online adaptive proton therapy on toxicity reductions across our patient cohort. This is even more apparent in figure 4, where half of the patient cohort had larger NTCP reductions with SUR than AGC alone, while the opposite was true for the other half. Although our work suggests that AGC and SUR should be implemented together to maximize clinical benefits, the variable effect of both mechanisms on each patient stresses out the challenge of identifying which kind of adaptation strategy is more suited for a given patient, if any. Clinical factors leading to meaningful NTCP reductions using OA could not be identified by this study due to our limited cohort size but neither the volumes of the CTVs or the amount of weight lost during treatment seemed to be indicative of the NTCP reduction's amplitude achieved with both SUR and AGC. While challenging, identifying the subset of patients that would benefit the most from OA would be clinically relevant, as this could allow for a more efficient allocation of resources. In that regard, methods based on anatomical modeling (Gurney-Champion et al 2018, Zhang et al 2022), previously identified pre-treatment clinical factors (van Kranen et al 2013) or deep learning (Pakela et al 2021) should be investigated in the future.

This study had some limitations worth mentioning. First, uncertainties in image deformation, contour propagation and residual setup errors beyond treatment adaptation were neglected. NTCP reductions achieved in this work shall therefore be interpreted as the best-case scenario for AGC and might not be fully achievable in a clinical setting. However, it is also worth noting that several strategies have been suggested to mitigate the impact of these uncertainties in the context of online adaptive proton therapy: the integration of structure uncertainties in plan re-optimization (Nenoff et al 2022), the use of surface guidance to monitor patient positioning (Freislederer et al 2020) and prompt gamma imaging to assess setup errors (Hueso-González et al 2018). A second limitation is that our methodology assumed equivalent proton range uncertainty between CT and CBCT, which again represents a best-case scenario for scenarios involving AGC. In practice, proton therapy plans optimized on different imaging modalities require revisiting the margin recipe used to account for range uncertainty. We anticipate this simplification to only have a minor impact on this work, since proton ranges calculated on CBCT images corrected for scatter using our deep learning algorithm were shown to agree with CT within 0.66% (Lalonde et al 2020) and because range uncertainty has been shown to have a minimal effect (less than 0.5 pp/%) on NTCP in head and neck patients (Van De Water et al 2016, Wagenaar et al 2021). However, for cases where proton range prediction accuracy would significantly differ between offline and online imaging (for instance dual-energy CT for treatment planning (Bär et al 2017) and magnetic resonance for adaptation (Hoffmann et al 2020)), NTCP reductions reported in this work for AGC might not be achievable once the different range uncertainty regiments are properly accounted for.

Another limitation to consider is the fact that NTCP models were derived from photon patients. Blanchard et al (2016b) showed that photon-based NTCP models were valid in a cohort of head and neck proton therapy patients, suggesting that similar conclusions could have been drawn if we had used proton-specific NTCP models instead. However, other work has demonstrated that toxicity risk was influenced by voxel-level dose distributions which, for similar dose-to-organ, can be considerably different between photons and protons (Monti et al 2017). An evaluation of the benefits of online adaptative strategies using proton specific NTCP models could therefore be insightful. Finally, results presented in this study were focussed on NTCP values, as those are the metrics guiding modern model-based selection tools. The impact of adaptation on tumor control probability (TCP) was not addressed since the primary objective of OA is to restore target coverage, which will always improve TCP. Moreover, NTCP reductions associated with SUR and AGC could in theory be leveraged to perform dose-escalation for some patients, which would again increase TCP. Evaluating the potential of OA to increase the therapeutic window of head and neck IMPT through TCP and NTCP optimization was out of the scope of this work but warrants future investigation.

In conclusion, this study highlighted for the first time the impact of online adaptive proton therapy on toxicity risks. Combining effects from a reduction of the setup uncertainty setting by 3 mm and the AGC, online adaptive proton therapy based on a limited spot-intensity re-optimization workflow was shown to allow clinically meaningful toxicity reductions in 50% of our patient cohort, with total NTCP reductions up to 30.48 pp for the four main toxicities considered in this work.

We acknowledge financial support by the Natural Sciences and Engineering Research Council of Canada (NSERC, PDF-532784-2019), the Fonds de recherche du Quebec—Nature et Technologies (FRQNT, 267388) and the National Cancer Institute (NCI R01CA229178, Fast Individualized Delivery Adaptation in Proton Therapy). The authors would also like to thank the RaySearch Laboratories AB (Stockholm, Sweden) for providing a non-clinical software license for the RayStation treatment planning system as well as the NVIDIA Corporation for the donation of a Titan Xp GPU used for this research.

The data cannot be made publicly available upon publication because they are not available in a format that is sufficiently accessible or reusable by other researchers. The data that support the findings of this study are available upon reasonable request from the authors.

Appendix. Linearity of NTCP with setup uncertainty setting

In this work, the impact of a 3 mm SUR was evaluated by computing differences in NTCP for cumulative doses obtained with plans optimized using a 3 mm setup uncertainty robustness and plans optimized with no explicit setup robustness (or, equivalently, a 0 mm setup uncertainty). Previous work has demonstrated that NTCP for common head and neck toxicities is linearly related to the setup uncertainty setting within 1 and 5 mm, suggesting that any 3 mm SUR within that range would have an equivalent impact on NTCP. To evaluate whether this relationship is valid down to 0 mm, we simulated an additional scenario considering robustly optimized plan using a 1 mm setup uncertainty for all ten patients. Cumulative doses obtained with that scenario were compared to scenarios A and B to assess the impact on NTCP of SUR of 2 and 3 mm. Results presented in figure A.1 demonstrate a linear behavior of the mean NTCP differences between all three levels of setup uncertainty (0, 1 and 3 mm). Similarly, figure A.2 shows the evolution of NTCP reductions achieved with a SUR of 0 mm (which by definition implies no NTCP difference), 2 and 3 mm on a patient per patient basis. Once again, a linear behavior is observed in terms of mean NTCP reduction for most toxicities.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Appendix. Power analysis

To assess the statistical significance of the differences in NTCP reductions induced by each mechanism considered in this work, a power analysis was performed using a two-sample t-test based on the total NTCP reductions associated with xerostomia, dysphagia, aspiration and oral mucositis considering a significance level of 0.05. Results presented in figure A.3 show a power larger or equal to 79% for SUR versus SUR and AGC as well as AGC versus SUR and AGC with the current cohort size.
