1. Introduction

The surge in the use of light-duty vehicles transport has resulted in increased air pollution through the combustion of fuels. In the UK since the early 2000s, 86% of commuters use cars, vans or motorcycles as their primary form of transport [1]. Sustainable fuel sources such as pure-electric and fuel cell powered systems have the potential to produce transport that emits near-zero tailpipe gases and particles. Though more sustainably powered vehicles have been commissioned, the technologies and infrastructure needed are still in their infancy for mass market adoption by consumers and thus internal combustion engine (ICE) powered vehicles will still be needed for several years [2–5]. Since the 1970s, emission standards and emission limits to air pollutants have led to the control of pollution levels in the short-term. These regulations are tightened every 4 to 10 years thus reducing the maximum emission limits, resulting in automotive companies searching for solutions to meet these ever-tightening standards [6, 7].

Common air pollutants generated by ICE, which have been regulated in the US and EU include: nitrogen oxides (NO_x), unburnt hydrocarbons (HC), volatile-organic compounds, carbon monoxide (CO) and particulate matter (PM) [8]. Around, 86% of newly registered vehicles in the UK in 2019 use gasoline or diesel engines, with, studies showing these are a major contributor to PM emissions in urban areas [9–11]. Diesel vehicles are subject to emission controls towards PM emission number and mass. However, due to the mechanism of fuel injection in traditional port fuel injection gasoline engines, these engines result in a relatively low level of PM emissions [9, 12]. However, the recent market shift towards more fuel-efficient gasoline direct injection (GDI) engines, has consequently led to a change in the emission profile from gasoline vehicles [9, 12], —specifically, an increase in the mass and the number of smaller PM emission [13].

PM emissions can be divided into three sizes: coarse particles (diameter 2.5 to 10 μm, PM₁₀), fine particles (0.1 to 2.5 μm, PM_2.5) and ultra-fine particles (UFP) (less than 0.1 μm) [14]. As well as having an effect on the weather, climate and outdoor visibility, these sub-micron sized particles are inhalable and contribute to cardio-vascular and pulmonary related deaths [15, 16].

The toxicity effects of PM emissions can vary depending on their chemical composition, which can differ due to the emitter's fuel, lubrication oils, engine composition etc [17]. PMs are composed of a soot component (carbonaceous material from fuel combustion), and an ash component which consists of incombustible inorganic material, produced through the decomposition of engine additives (e.g. Fe, Ni, Cu, Cr, Sn), oil lubrication, anti-wear additives and engine wear (e.g. Zn, Ca, Mg, Zn, Ti), normally in the form of metal sulphates, phosphates and oxides [18–21].

Gasoline particulate filters (GPFs), also known as 'four-way catalytic convertors', are a relatively novel automotive after treatment solution used in newer GDI engines. The system utilises a 'three-way catalyst' (TWC) to convert CO, NO_x and unburnt HC using a catalyst based on precious metal (Pt, Pd, Rh) supported over a mixed oxide (CeZrO₄, Al₂O₃). The catalyst is applied onto a honeycomb monolith, usually made of synthetic cordierite ceramic, which also traps PM emissions simultaneously [22].

PM components build up during operational filtration, which may result in blocked pores within the structure which in turn may affect the GPF operation conditions. Though most soot components are removed during operation through combustion using O₂ and/or NO₂ (passive regeneration), some incombustible materials such as ash are more difficult to remove through active regeneration strategies [23]. Therefore, due to their inability to be readily removed, these inorganic components are in proximity to the catalyst for longer times. The ash components from lubrication oils have been shown to have an impact on catalytic performance within diesel particulate filters; however, very little is known of their potential impact on a TWC system [24]. Over the lifespan of the GPF, the system may experience excursion temperatures around 1000 °C [25, 26]. With this in mind, it is important to understand how the catalytic system activity changes both on the incorporation of ash components and at these extremely high temperatures.

Several previous studies have used synchrotron based x-ray techniques, especially x-ray absorption fine structure (XAFS) to analyse TWC, enabling an understanding of the changes in the active metal species under different operation conditions [27–29]. A more recent study using operando x-ray absorption near edge structure (XANES) analysis on a GPF system, with and without ash loading and with ageing treatments suggested that light-off temperatures for CO, HC and NO_x increase with the loading. However, no XANES data were reported above light-off temperatures, i.e. above 300 °C and no data given on the catalytic activity of the washcoat prior to incorporation onto the monolith [30].

To understand these key effects of high temperatures on the ash loaded GPF TWC system, and on the effect that the manufacturing of the GPF plays on the performance of the catalyst, here we investigate an industrial GPF model catalyst based on a PdRh/CeZrO₂/Al₂O₃ catalyst. The effect of the manufacturing process on the catalyst activity was evaluated through the comparison of the catalytic activity of the fresh washcoat with a sample extracted from a GPF with no ash deposition (0 g GPF). The effect of ash on the system was achieved through comparing a heavily ash loaded sample (20 g l⁻¹) acquired from a GPF monolith with the 0 g ash GPF sample. For the first time an operando XAFS study of the Pd K-edge has been performed for an ash loaded GPF sample subjected to high temperatures which may be observed during GPF operation (up to 1000 °C). In this study we have observed changes in the Pd of the 20 g l⁻¹ ash sample and the fresh washcoat catalyst during working conditions, by flowing a model gas mixture representative of exhaust gases and heating the catalyst to these extreme temperatures. Coupled with mass spectrometry, the CO oxidation, NO reduction and propane consumption profiles were followed and compared with the profile of a sample extracted from the 0 g ash GPF sample, in order to determine the role of the ash on the activity of the catalyst and the effect the GPF production plays on the activity of the initial catalyst formulation

2. Experimental section

2.1. Sample preparation

GPF samples were provided by Johnson Matthey plc. The Pd and Rh loading was at less than 1% wt on a CeZrO₂ support.

Ash was loaded onto the system using a DPG rig which uses diesel combustion to produce model PM. The GPF was weighed at 250 °C, followed by the addition of soot and ash (3:2 ratio) at 186 kg h⁻¹. Soot was then removed through oxidation at 600 °C for 3 h under air. The GPF was then reweighed to determine the ash loading. This process was then repeated until the desired weight was achieved. Ash components were made through doping the diesel with Zinc dialkyldithiophosphates (ZDDP, 4 g l⁻¹) and calcium sulphonate (4 g l⁻¹), which is then co-combusted at 1 kg h⁻¹ through the DPG.

Three experimental samples were studied. Prior to experiment, the catalyst and ash species were extracted from the 20 g l⁻¹ GPF monolith through a process of grinding and sieving fragments of sample. The 0 g ash sample was likewise scraped from a GPF monolith, having not been treated in the DPG rig. A separate sample of catalyst washcoat (not applied to the GPF monolith) was acquired from a washcoat slurry which was dried at 140 °C to remove solvent, affording a yellow powder.

2.2. XAS measurements

Operando XAFS experiments at the Pd K-edge on the 20 g ash GPF and washcoat samples were conducted on the B18 Core extended x-ray absorption fine structure (EXAFS) beamline at the Diamond Light Source, UK [31]. The measurements were carried out using a Si 311 double crystal monochromator. The spectra were collected in fluorescence mode using a 36 element Ge detector system, which was placed perpendicular to the incoming beam on the sample. The size of the beam used at the sample was approximately 200 (H) × 250 (V) μm. The Pd K-edge spectra were obtained to a k-space_max 10.7 Å⁻¹), with a time resolution of 180 s. Under isothermal conditions, 10 Pd scans were merged per temperature point.

The capillary flow microreactor was custom designed at B18 Diamond Light Source as shown in figure 1. The reactor was constructed out of ceramic, with a steel mounting rail to which a quartz capillary could be attached. Quartz capillaries (2.5 mm inner diameter) were packed with the catalysts and plugged with quartz wool. These capillaries were then mounted onto a steel rail and held using adhesive. Gas lines were fitted to the inlet and outlet of the capillary using Swagelok fittings, a K-type thermocouple was inserted through the outlet side of the capillary and was positioned in the middle of the catalyst bed. A secondary K-type thermocouple was used to control the temperature of the furnace. Mass spectrometry data of the outlet gases were collected using a Pfeiffer Omnistar GSD301 C mass spectrometer.

Approximately 65 mg of each sample, sieved to a particle size range of 250–125 μm, were loaded into the quartz capillary, giving a bed length of 12 mm, corresponding to a gas hourly space velocity of 102 715 h⁻¹. Room temperature Pd K-edge XAFS were acquired while the sample was under a flow of He (100 ml min⁻¹). The samples were heated under a reactive gas feed comprised of: CO₂ (2%), CO (0.5%), O₂ (0.5%), NO (1000 ppm), C₃H₈ (1000 ppm) and He (Balance), at a total flow rate of 100 ml min⁻¹. The sample was heated at 10 °C min⁻¹, during which Pd K-edge XAFS spectra were collected. The samples were stabilised at 5 different temperatures: 100 °C, 130 °C, 230 °C, 750 °C and 200 °C (upon cooldown from 1000 °C), at which time, and isothermal Pd K-edge EXAFS were acquired. Pd K-edge XANES were also acquired during the ramp down to room temperature.

2.3. XAS analysis

The processing of EXAFS and XANES data was performed using IFEFFIT with the demeter package (Athena and Artemis) [32]. Reference foil spectra were acquired in transmission, using ion chamber detectors when no sample was in the beam.

The k² weighted EXAFS data at an appropriate k range (up to 10.6 Å⁻¹, and at most 9.4 independent points) was used. Using a k-weighting of two provides an adequate scattering contribution between low Z value (O) and high Z value (Pd) species present [33, 34]. Fourier transformed data analysis was limited to the first shell scattering paths between Pd–Pd (2.734 Å) found in Pd foil, and the Pd–Pd (3.030 Å) as well as the Pd–O (2.018 Å) scattering paths found in bulk PdO. Spectra for PdO was acquired ex situ at the beamline prior to the experiment. The amplitude reduction factor, S₀ ², of 0.85 was determined from Pd K-edge EXAFS of Pd foil, by setting a fixed Pd–Pd coordination number of 12. Isothermal EXAFS measurements merged at least 10 spectra together in order to improve the signal to noise. Likewise, for the EXAFS acquired during temperature ramps, similar spectra within a temperature range of around 50 °C (at most 3) were merged.

3. Results and discussion

Here we investigate industrial GPF model catalysts. Firstly we study the effect of the manufacturing process on the catalyst activity evaluated through the comparison of the catalytic activity of the fresh washcoat with a sample extracted from a GPF with no ash deposition (0 g GPF). Secondly we study the effect of ash loading by comparing the 0 g GPF with the 20 g GPF.

3.1. Effect of the GPF production

Comparing the mass spectrometry profiles under model exhaust conditions of the catalyst washcoat and the 0 g ash GPF both show a similar CO oxidation light off temperature, the temperature at which 50% of the CO has been consumed (T_{50 CO}), was reached at 220 °C, figure 2.

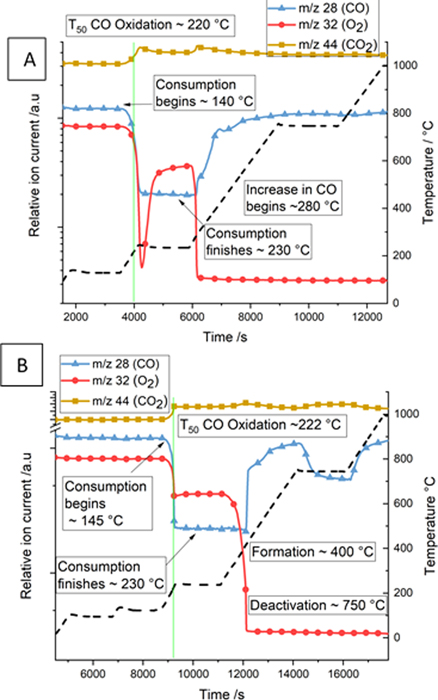

**Figure 2.** Mass Spectrometry profiles of fragments at 28 (CO), 32 (O₂) and 44 (CO₂) for washcoat sample (A) and 0 g ash GPF sample (B) on ramping at 10 °C min⁻¹ from room temperature to 1000 °C under a model exhaust gas feed conditions. The temperature profile is shown by the dashed line.
Download figure:
Standard image High-resolution image

The Pd K-edge EXAFS conducted on the washcoat system, suggests at room temperature that metallic Pd is present with an oxygen surface, with the data fitting well using a Pd–O scattering path at 1.97 ± 0.02 Å and a Pd–Pd scattering path at 2.67 ± 0.05 Å, consistent with Pd⁰. It was initially predicted that the Pd species would be more akin to PdO, though a reason for this initial difference in Pd speciation could be due to the manufacturing process of GPFs, where the catalyst washcoat undergoes high calcination temperatures to adhere onto the monolith channel walls and allow for decomposition of metal precursor compounds. During CO oxidation an increase in metallic Pd contribution was observed, figure 3, which shows the non phase-corrected Fourier transform of the k² weighted Pd K-edge EXAFS data (plus imaginary components of the data, fit and scattering paths) of the washcoat sample recorded close to CO light-off temperature. The data can be fitted well using two scattering paths, a Pd–Pd scattering path of 2.75 Å consistent with Pd⁰ and the Pd–O scattering path. The coordination number of the metal contribution increases from 0.4 at room temperature to 4.5 during CO light-off, table 1. Likewise, the EXAFS analysis also indicated that the Pd species within the washcoat undergo reduction, with the O coordination number reducing from 3.6 to 1.3.

**Figure 3.** Magnitude of the k²-weighted, FT of the experimental Pd K-edge EXAFS data for the washcoat close to the CO oxidation temperature of 230 °C. The imaginary components of the scattering paths of Pd–Pd of Pd⁰ and the Pd–O consistent with PdO used in the fits.
Download figure:
Standard image High-resolution image

Table 1. Pd K-edge EXAFS fitting parameters ^a for the washcoat and 20 g l⁻¹ ash-loaded samples at room temperature and at their respective CO light-off temperatures.

Conditions	Atom pair	ΔE₀ (eV)	CN	R (Å)	σ² (Å²)	R_factor
Washcoat at 20 °C	Pd–O	−2 ± 3	3.6 ± 0.3	1.97 ± 0.02	0.0029	0.008
			Pd–Pd⁰		0.4 ± 0.3		2.67 ± 0.05	0.0019
			Pd–Pd(PdO)		—		—	—
Washcoat at 230 °C	Pd–O	−5 ± 3	1.3 ± 0.4	1.96 ± 0.04	0.0042	0.03
			Pd–Pd⁰		4.5 ± 0.7		2.76 ± 0.03	0.0078
			Pd–Pd(PdO)		—		—	—
20 g l⁻¹ ash-loaded GPF at 20 °C	Pd–O	1 ± 3	3.6 ± 0.4	2.02 ± 0.02	0.0013	0.03
20 g l⁻¹ ash-loaded GPF at 20 °C		1 ± 3	Pd–Pd(PdO)		4 ± 1	0.03	3.07 ± 0.03	0.0052
20 g l⁻¹ ash-loaded GPF at 255 °C	Pd–O	0 ± 4	2.8 ± 0.4	2.02 ± 0.03	0.0026	0.009
			Pd–Pd(PdO)		3 ± 2		3.02 ± 0.06	0.0066
			Pd–Pd⁰		2 ± 2		2.78 ± 0.06	0.0072

^aFitting parameters: S₀ ² determined from Pd foil = 0.85, 1 < R < 3.0 Å, K-range 3.0–9.1, no. of independent points 7.56.

On increasing temperature, a sharp onset of NO consumption is observed coincident with the formation of N₂, consistent with NO reduction, as shown in the mass spectrometry data in figure 4. A significantly higher NO reduction temperature was observed over the 0 g GPF catalyst, with a T_{50 NO} of 410 °C compared to a T_{50 NO} of 288 °C for the washcoat sample, as shown in figures 4(A) and (B), respectively. Interestingly, on cooling, post high temperature ageing, both the washcoat sample, and the 0 g GPF sample had comparable NO light off temperatures of 310 °C, shown in figure S1 (see supporting information (https://stacks. iop.org/JPCM/33/284001/mmedia)). Surprisingly, the high temperature ageing process appears to be advantageous in the case of NO reduction.

**Figure 4.** Mass Spectrometry profiles of NO consumption and N₂ formation of the 0 g GPF sample (A) and the washcoat sample (B) on ramping at 10 °C min⁻¹ from room temperature to 1000 °C under a model exhaust gas feed conditions. The temperature profile is shown by the dashed line.
Download figure:
Standard image High-resolution image

From the Fourier Transform of the k² weighted EXAFS data taken close to the NO light off temperature, a slight increase in the Pd⁰ contribution to the EXAFS is observed along with the continued presence of a small contribution of Pd–O scattering. (Figure 5, table 2). The rise in the presence of metallic Pd was observed to begin from room temperature, reaching a maximum at ∼350 °C. After cooling, this sample appeared to be more metallic in nature compared to the sample at room temperature as the scattering path for Pd–O or Pd–Pd from PdO were no longer required in the EXAFS fits, where the pattern was associated uniquely to a Pd–Pd scattering path from Pd⁰ (see table S1 of supporting information).

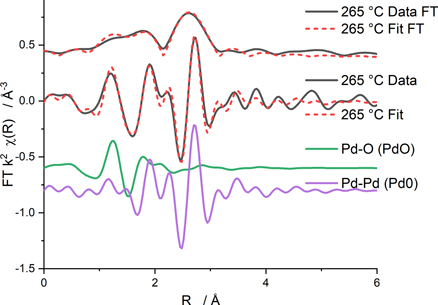

**Figure 5.** Magnitude of the k²-weighted Fourier transform of the Pd K-edge EXAFS data for the washcoat sample around the NO light off temperature of 265 °C. The imaginary components of the scattering paths of Pd–Pd of Pd⁰ and the Pd–O consistent with PdO used in the fits.
Download figure:
Standard image High-resolution image

Table 2. Pd K-edge EXAFS fitting parameters ^a for the washcoat and 20 g ash-loaded samples at room temperature and their respective NO light-off temperatures of 265 and 382 °C.

Conditions	Atom pair	ΔE₀ (eV)	CN	R (Å)	σ² (Å²)	R_factor
Washcoat at ∼265 °C	Pd–O	−1 ± 2	1.2 ± 0.4	1.95 ± 0.03	0.0053	0.036
			Pd–Pd		—		—	—
			Pd–Pd⁰		5.1 ± 0.7		2.77 ± 0.01	0.0085
20 g l^–1 ash-loaded GPF at ∼382 °C	Pd–O	0 ± 4	2.3 ± 0.2	2.02 ± 0.02	0.0025	0.02
			Pd–Pd (PdO)		2.1 ± 0.6		3.02 ± 0.03	0.0042
			Pd–Pd⁰		1.6 ± 0.6		2.78 ± 0.03	0.0050

^aFitting parameters: S₀ ² determined from Pd foil = 0.85, 1 < R < 4.0 Å, K-range 3.0–9.1, no. of independent points 7.56.

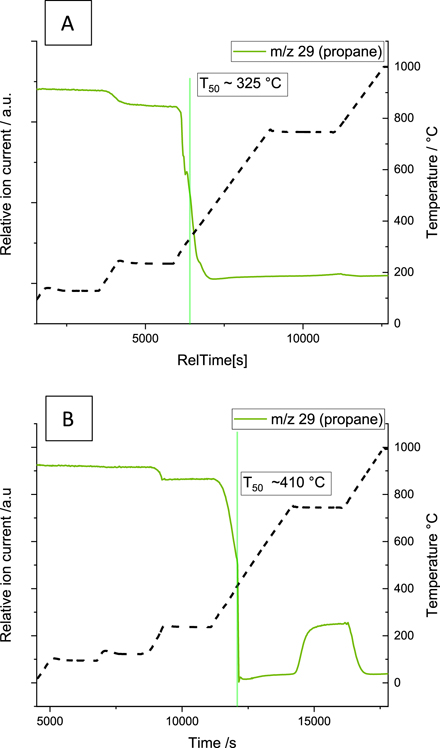

The mass spectrometry data in figure 6(A) shows that full propane consumption was observed at a T_50C3H8 of 325 °C for the washcoat sample. At this temperature the EXAFS data suggests that the Pd was metallic, table 3, figure 7, with minimal contribution of a Pd–O scattering path, as shown from the imaginary components of the scattering paths in figure 7, the EXAFS are dominated by the metal scattering path. The 0 g ash GPF sample has a much higher propane consumption temperature of 410 °C. In both cases, during propane consumption an increase in the mass fragments associated with hydrogen (m/z 2), water (m/z 18), ethylene (m/z 26), and carbon monoxide (m/z 28) were observed with a slight fall in carbon dioxide (m/z 44), which may suggest a competition between the processes of complete propane oxidation (forming CO₂), propane dehydrogenation and subsequent propene cracking to form ethylene and methane, (figure S3 and S4 of supporting information). These cracking and dehydrogenation products were also observed during the blank experiment with no catalyst, but at a very low proportion and at significantly higher temperatures (500–700 ^oC), figure S2, implying that while some part is attributed to thermal effects, the catalyst is facilitating this hydrocarbon conversion pathway.

Table 3. Pd K-edge EXAFS fitting parameters ^c for the washcoat and 20 g ash-loaded sample at room temperature and their respective propane light-off temperatures.

Conditions	Atom pair	ΔE₀ (eV)	CN	R (Å)	σ² (Å²)	R_factor
Washcoat at 357 °C ^b	Pd–O	−2 ± 2	0.7 ± 0.4	1.95 ± 0.04	0.0057	0.07
			Pd–Pd		—		—	—
			Pd–Pd⁰		5.4 ± 0.8		2.75 ± 0.02	0.0096
20 g l⁻¹ ash-loaded GPF at 472 °C	Pd–O	−1 ± 2	2.7 ± 0.2	2.02 ± 0.02	0.0026	0.026
			Pd–Pd		1.6 ± 0.8		3.00 ± 0.04	0.0053
			Pd–Pd⁰		1.3 ± 0.8		2.77 ± 0.04	0.0070

^a K-range 3.1– 8.8, no. of independent points 7.06.^b K-range 3.1– 10.0, no. of independent points 8.56.^cFitting parameters: S₀ ² determined from Pd foil = 0.85, 1 < R < 3.0 Å.

**Figure 7.** Magnitude of the k²-weighted Fourier transform of the Pd K-edge EXAFS data for the washcoat sample around the propane light off temperature of 357 °C. The imaginary components of the scattering paths of Pd–Pd of Pd⁰ and the Pd–O used in the fits.
Download figure:
Standard image High-resolution image

Summarising the observed changes in Pd speciation of the washcoat sample during the operando XAFS study: firstly, at high temperatures (>800 °C) the system shows a significant presence of Pd⁰, with a CN of around ∼10. Interestingly, an apparent phase hysteresis in Pd oxidation state was also observed between 450 °C and 730 °C, where the sample was initially mostly metallic Pd; this contribution then decreased while the amount of PdO increased; above 730 °C the system reverted to an exclusively metallic Pd.

3.2. Effect of ash loading

At room temperature, for the 20 g ash GPF sample, the Pd K-edge EXAFS data are consistent with PdO, with the EXAFS data fitting well to a Pd–O scattering path of 2.02 ± 0.02 Å and a Pd–Pd scattering path of around 3.06 ± 0.02 Å, consistent with PdO. This difference in Pd speciation compared to the washcoat sample, which was metallic Pd NPs at room temperature, could be due to the high temperature treatment used to add the catalyst to the GPF or also the ash deposition treatment, as outlined in the Experimental section. As the reaction proceeded, a higher CO oxidation T_{50 CO} was observed for the sample from the 20 g ash GPF compared with the 0 g ash GPF, at 242 °C and 220 °C respectively, as shown in figure 8 and figure 2(B). Oscillations in the CO and CO₂ mass spectrometer responses (m/z 28 and 44) were observed during CO oxidation for the 20 g ash GPF sample. Dann et al observed a similar oscillation pattern with Pd/γ-Al₂O₃ where the oscillations were attributed to the competition of CO storage and formation of a surface oxide on the surface of the nanoparticle [34]. Here, taking the ratio of CO₂ produced to O₂ consumed from figure 2(B) the value oscillates around 2, the stoichiometry consistent with CO oxidation. However, the ratio of CO₂ produced to CO consumed is always <1, implying some possible competition for CO consumption which does not have a 1:1 stoichiometry with CO₂ or some additional production of CO.

**Figure 8.** Mass spectrometry profile of fragments at *m/z* 28 (CO), *m/z* 32 (O₂) and *m/z* 44 (CO₂) for and 20 g ash GPF sample (A). The CO and O₂ consumed and CO₂ produced are shown in (B) and the carbon mass balance (C) for the 20 g ash GPF reaction up to 1000 ^oC, where carbon balance is the sum of the CO₂, CO and propane divided by the value at 4000s, prior to the onset of reaction.
Download figure:
Standard image High-resolution image

We speculate that there are three reactions contributing to these oscillations, CO oxidation, C deposition, possibly via the Boudouard reaction and partial oxidation of the carbon to produce primarily CO, as oxygen supply is limited. This production of CO would help to explain the sharp drops in CO consumption which do not always coincide with CO₂ production. The carbon mass balance, figure 8(C), shows that, during the region of these oscillations, some carbon deposition occurs. The oscillation process was not observed from the MS profile of the catalyst from the 0 g ash GPF, which suggest that this could be due to the addition of the ash components present in the system.

From the Pd K-edge EXAFS analysis, an increase in metallic Pd contribution was observed during CO oxidation. A Pd–Pd scattering path of 2.75 Å consistent with Pd⁰ was required to fit the data, with coordination numbers increasing from 0 to 2 from room temperature to the CO light-off temperature range, table 1. A slight reduction in O coordination number was also observed, reducing from 3.8 to 2.8. However, some evidence of remaining PdO was observed through the continued presence of the Pd–Pd scattering path around 3 Å, figure 9.

**Figure 9.** Magnitude of the k²-weighted, FT of the experimental Pd K-edge EXAFS data for the 20 g ash GPF system around the CO light off temperature of 276 °C. The imaginary components of the 3 scattering paths used in the fit are shown.
Download figure:
Standard image High-resolution image

A similar NO reduction temperature (figure 10 and figure 4) was also observed for both the 20 g ash GPF sample and the 0 g ash GPF samples, with a T_{50 NO} of around 410 °C. However, on cooling, post high temperature ageing, the 0 g ash GPF sample had an NO light-off temperature of 310 °C whereas the 20 g ash GPF sample maintained its high temperature NO light-off of 410 °C, figure S1 (see supporting information). It would appear that the combination of ash and ageing leads to an irreversible increase in NO reduction temperature. During the ageing process, at NO light-off temperatures, the Pd speciation did show significant change from that observed during CO light off with Pd-Pd scattering paths from both PdO and Pd⁰ present, table 2 and figure 11. After cooling, the sample is fully metallic in nature compared to the fresh sample, as the scattering path for Pd–O or Pd–Pd from PdO were no longer present in the EXAFS fits, the data was fitted uniquely to a Pd-Pd scattering path from Pd⁰. Table S3 (see supporting information).

**Figure 11.** Magnitude of the k²-weighted Fourier transform of the Pd K-edge EXAFS data for the 20 g ash GPF sample around the NO light off temperature of 362 °C. The imaginary components of the 3 scattering paths used in the fit are shown.
Download figure:
Standard image High-resolution image

The T₅₀ for propane (T_{50 C3H8}) consumption occurred around 410 °C in both the 0 g ash and 20 g ash GPF samples, figure 6 and 12. At this temperature the 20 g ash GPF sample has a contribution from PdO still present in the EXAFS data, figure 13. From the mass spectrometry profile, figure 12, the 20 g ash GPF sample showed a more gradual decrease in the propane mass fraction until 750 °C when the majority of the propane was then converted into ethylene and methane. Between 375 °C and 475 °C an increase in the mass fragments associated with hydrogen (m/z 2), water (m/z 18), ethylene (m/z 26), and carbon monoxide (m/z 28) were observed with a slight fall in carbon dioxide (m/z 44), which may suggest a competition between the processes of complete propane oxidation (forming CO₂), propane dehydrogenation and subsequent propene cracking to form ethylene and methane (figure S5 of supporting information). However, as explained earlier the conversion at high temperature was associated to a thermal effect. It should be noted that the formation of methane and ethylene was observed to be more prominent in the ash loaded system compared to the 0 g GPF sample (see supporting information S2).

**Figure 12.** Mass spectrometry profiles of propane consumption of the 20 g ash GPF sample on ramping at 10 °C min⁻¹ from room temperature to 1000 °C under model exhaust gas feed conditions.
Download figure:
Standard image High-resolution image

**Figure 13.** Magnitude of the k²-weighted Fourier Transform of the Pd K-edge EXAFS data for the 20 g ash loaded sample near the propane light off temperature of 472 °C. The imaginary components of the 3 scattering paths used in the fit are shown.
Download figure:
Standard image High-resolution image

On increasing temperature (>800 °C) during the ageing process, the 20 g ash GPF sample shows a significant presence of Pd⁰, with a CN of around 10, table S4. However, an additional complication in the EXAFS fitting was observed in this sample from 680 °C–850 °C. The EXAFS analysis suggested that a Pd scattering path of 2.9 Å which could not be associated with Pd scattering from PdO (3.02 Å) or Pd⁰ (2.75 Å), was required to fit the data. It was initially postulated that this could be an association of Pd migrating into a vacant sites in CeO₂, as this is present within the oxide support; however this distance would have been too large (cerium to oxygen distance being around 2.3 Å). Likewise, the incorporation into other vacant sites within the support including the alumina would have been too large [35]. The suggestion of the formation of an interstitial carbide or hydride was also explored for these systems. Observing the white line intensity within the XANES and shifts in the reciprocal space in the EXAFS, implied that there was a low probability of interstitial carbide formation. This observation is in agreement with the work of Bugaev et al: the presence of a carbide species on Pd would be distinguishable by the negligible change in the white line intensity when compared to the metallic species, alongside a shift to lower radial distances when comparing the oscillations in reciprocal space [36]. Although a Pd hydride may be a likely candidate due to the production of hydrogen prior to the appearance of this EXAFS feature and fitting a Pd to Pd scattering path at 2.89 Å associated with PdH could be used to model the spectra obtained at this temperature range (see table S1) [37]. However, the associated XANES features with a PdH_x, as described by Bugaev et al, a slight shift in the energy of the white line feature when compared to Pd metal and a positive difference when subtracting the spectra to the reference foil, are not observed. Another possibility is that a phase change of Pd metal could occur under these conditions. However, a recent computational study based on density functional theory suggests that the Pd–Pd bond distance in the hcp phase would be 2.76 Å at room temperature. [38] After around 900 °C, the species begins to reduce and a phase more akin to metallic Pd begins to form, as shown in table S4. Having ruled out numerous potential Pd structures, it is possible that at these temperatures the Pd is a mixture of metal and oxide resulting in an intermediate Pd–Pd distance as determined from the EXAFS analysis. These small mixed oxide and metallic particles may be stabilised by the support but on increasing temperature are reduced fully. It should be noted it is not the firsttime these intermediate Pd distances have been observed over Pd/Al₂O_3. catalysts at similar temperatures [39].

4. Summary and conclusion

An operando XAFS investigation was performed on two model catalysts used in three-way catalysis within GPFs, with the aim to understand both the effect that the production of GPFs has on the performance of the catalyst and the role that ash plays in the catalytic activity. To achieve this operando XAFS was conducted on one sample from a catalyst washcoat which had not been previously adhered onto a GPF monolith and the other was extracted from a GPF with 20 g l⁻¹ of ash pre-deposited onto the system. Both activity profiles were compared to what was observed with a catalyst extracted from a GPF containing no-ash components (0 g ash GPF). This XAFS study under model gas mixture conditions representative of exhaust gases showed that within the washcoat sample a hysteresis of oxidation state of the Pd is observed in the washcoat sample. Furthermore, an increase in metallic Pd was observed during CO oxidation. Oscillations in the CO, O₂ and CO₂ signals were observed in the 20 g ash GPF sample and are speculatively associated with a combination of CO oxidation, C deposition possibly via the Boudouard reaction and partial oxidation to CO of the deposited C, which is suggested to be facilitated by the presence of calcium in the ash. The washcoat sample appears to have a lower light-off temperature for NO reduction compared to the 0 g ash GPF sample implying that the necessary process of adhering the catalyst onto the GPF may adversely affect the catalyst's ease of NO reduction. However, comparing the NO reduction temperature post high temperature ageing of the 0 g and 20 g ash GPF samples, the 0 g ash GPF sample recovers and has NO light-off similar to that of the washcoat (310 °C), whereas the combined effect of ash and ageing results in a high temperature NO reduction temperature, (410 °C). Assuming the 0 g ash GPF and washcoat samples must be similar post ageing due to the similar T_{50 NO} temperatures, comparison of the XAFS data of the washcoat and 20 g ash GPF sample would be expected to provide some indication of the structural differences responsible. However, on comparison of the XAFS data of the washcoat and 20 g ash GPF samples post ageing, both appear to be fully metallic by this point. Future studies will be reported in order to understand this interesting observation.

Acknowledgments

The authors would like to thank Diamond Light Source for provision of beamtime SP24156, the UK Catalysis Hub access to equipment and the EPSRC (EP/R512138/1) for the iCASE studentship for M Panchal. Johnson Matthey is thanked for the studentship and providing the GPF materials for Monik Panchal. Lara Kabalan is thanked for communicating the results of DFT calculations prior to publication. Donato Decarolis is thanked for his insight and consultation with MS analysis. Support from the UK Catalysis Hub (EP/R026939/1, EP/R026815/1) is gratefully acknowledged. Stephan A Parry is thanked for the production of the B18 microreactor and Vladimír Novák is thanked for initial insight into the project and supplying the material from Johnson Matthey.

Data availability statement

All data that support the findings of this study can be accessed from the University of Glasgow's data repository: http://dx.doi.org/10.5525/gla.researchdata.1141.
