Role of W-site substitution on mechanical and electronic properties of cubic tungsten carbide

At room temperature, WC crystallizes in a hexagonal structure with space group P$\overline{6}$m2 ($\alpha$-WC) [33]. But, the cubic NaCl-type phase (space group Fm$\overline{3}$m) of WC is known to be a high-temperature phase which can be stabilized at room temperature with a rapid quenching process [7]. In $\beta$-WC, the C atoms occupy all octahedral interstitials in the fcc sublattice of W and can form a stoichiometric compound. It may be noted that the bcc phase of W forms the carbide with fcc structured metal sublattice i.e. the presence of carbon induce changes in the crystal structure of the metal and leads to a changes in the symmetry of the metal sublattice [10]. Already several WXC₂ phases were synthesized and their structures are characterized [74–77]. Using the experimental structural information as input, we have obtained the substituted systems WXC₂ by replacing 50 percentage of W atoms in $\beta$-WC by other elements (X  =  Si, Sc, Ti, V, Cr, Ge, Y, Zr, Nb, Mo, Ru, Rh, Pd, Ag, Cd, Sn, Hf, Ta, Re, Os, Ir, Pt, Th, U). We introduced the new elements in the Wykoff 1c site (0.5, 0.5, 0). Whereas, the remaining W atoms were placed in the Wykoff site of 1b (0, 0, 0.5) and carbon atoms at the 1a (0, 0, 0) and 1d (0.5, 0.5, 0.5) sites. The analysis of structural parameters from structural optimization for the new systems shows a tetragonal P4mmm structure as primitive due to reduction in the symmetry elements by W-site substitution. The estimated equilibrium structural parameters for the ground state geometry for all the considered compounds are listed in table 1, where the comparison is made with available experimental data and the corresponding crystal structure is displayed in figure 1.

Table 1. The optimized structural parameters for WXC₂ systems.

Compound	a ($\mathring{\rm A}$)	c ($\mathring{\rm A}$)	V ($\mathring{\rm A}$3)
WSiC2	2.975	4.509	39.911
WScC2	3.166	4.387	43.98
WTiC2	3.079	4.325	41.00
	3.045a	4.306a	39.92a
WVC2	3.033	4.268	39.27
	2.988b	4.226b	37.74b
WCrC2	3.037	4.248	39.19
WGeC2	3.038	4.673	43.14
WYC2	3.307	4.546	49.72
WZrC2	3.204	4.490	46.09
	3.182c	4.500c	45.56c
WNbC2	3.128	4.423	43.28
WMoC2	3.092	4.384	41.92
WRuC2	3.084	4.328	41.17
WRhC2	3.106	4.318	41.66
WPdC2	3.145	4.355	43.75
WAgC2	3.194	4.420	45.10
WCdC2	3.227	4.539	47.28
WSnC2	3.152	4.847	48.16
WHfC2	3.185	4.248	45.36
	3.148d	4.452d	44.12d
WTaC2	3.127	4.429	43.31
	3.083e	4.360e	41.44e
WReC2	3.089	4.370	41.69
	2.899f	4.101f	34.49f
WOsC2	3.103	4.344	41.83
WIrC2	3.130	4.329	42.41
WPtC2	3.152	4.403	43.75
WThC2	3.463	4.780	57.34
WUC2	3.312	4.568	50.11

^aDenbnovetskaya [74] (ICSD 618 962). ^bRogl et al [75] (ICSD 619 083). ^cEremenko et al [76] (ICSD 619 104). ^dEremenko et al [76] (ICSD 618 065). ^eDenbnovetskaya [74] (ICSD 618 866). ^fLawson [77] (ICSD 618 713).

Zoom In Zoom Out Reset image size

From the comparative analysis of predicted equilibrium structural parameters with corresponding experimental data, it can be seen that most of the systems show good agreement. Even though they are very close, one can notice that the computed lattice constants are slightly overestimated since we have used GGA potential for all our calculations. As all the considered compounds are having transition metals, the Coulomb correlation effect may be important to consider to predict the equilibrium lattice parameters accurately. So, we have made additional test calculations for ZrWC₂ including Coulomb correlation effect using GGA+ U method with U value of 4 eV for both Zr and W [78, 79]. The comparative analysis of structural parameters from both the calculations show that, GGA calculations give better agreement with the experimental lattice parameters than the GGA+U results (GGA gives 1.16 %, deviation in equilibrium volume with experimental value, whereas, GGA+U shows 2.48 % deviation). So, we have proceeded with GGA calculations for remaining systems since it is more reliable and computationally less expensive.

Further, the experimental lattice parameters for WReC₂ reported in the literature [77] it is stated that the strong x-rays scattering from the transition metal compared with C atom, they could observe the position of transition metal alone reliably. For the position of C atom they have assumed that it will occupy the octahedral voids. Interestingly, the equilibrium lattice parameter reported in this literature for WReC₂ (4.101 $\mathring{\rm A}$) is found to be in excellent agreement with the lattice parameter of 4.100 $\mathring{\rm A}$, reported for WReC_0.8 recently [80]. So, one can conclude that the equilibrium lattice parameter for WReC₂ reported in the literature is in fact that of WReC_0.8. This observation could explain why the calculated equilibrium volume for WReC₂ is deviating very much from the corresponding experimentally reported value than that for all the other compounds considered in the present study.

Apart from various approximations involved in our calculations the temperature effect also will cause some differences since the results from the present study is applicable for 0K whereas, the experimental results correspond to finite temperature.

Enthalpy of formation is an important parameter to understand the thermodynamic stability of solids. At ambient conditions the volume change in a solid is quite small and hence the PV terms can be neglected in the free energy of the system. Therefore, the enthalpy of formation can be compared with internal energy change. By excluding the effect of entropy contribution, the enthalpy of formation for $\beta$-WC can be calculated as,

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn1} \Delta H_{\rm f}^{\rm WC} = E_{\rm t}^{\rm WC}-(E_{\rm t}^{\rm W}+E_{\rm t}^{\rm C}). \nonumber \end{align} \tag{ 1 }$$

Where E$_{\rm t}^{\rm WC}$, E$_{\rm t}^{\rm W}$, and E$_{\rm t}^{\rm C}$ are the total energy for $\beta$-WC, bcc-W and C(graphite), respectively obtained from structural optimization. Similarly, enthalpy of formation for WXC₂ can be calculated as,

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn2} \Delta H_{\rm f}^{\rm WXC_{2}} = E_{\rm t}^{\rm WXC_{2}}-(E_{\rm t}^{\rm W}+2E_{\rm t}^{\rm C}+E_{\rm t}^{\rm X}) \nonumber \end{align} \tag{ 2 }$$

where E$_{\rm t}^{\rm WXC_{2}}$ and E$_{\rm t}^{\rm X}$ are the ground state total energy of the WXC₂(tetragonal P4mmm) and X systems, respectively obtained from our structural optimizations. By substituting the total energy values from first principles calculations in equations (1) and (2), we have obtained the enthalpy of formation of $\beta$-WC and WXC₂ compounds and are given in table 2. From these values, it is clear that Sc, Ti, V, Cr, Y, Zr, Nb, Hf, Ta and U substituted systems are thermodynamically stable. It may be noted that WTiC₂, WVC₂, WZrC₂, WHfC₂ and WTaC₂ are experimentally found to be stable compounds and our theoretical predictions are in consistent with these experimental observations. Among the considered systems WScC₂, WCrC₂, WYC₂ and WNbC₂ also found to be thermodynamically stable according to our total energy calculations. We hope that the present study will motivate the experimentalists to synthesis these newly predicted systems.

Table 2. Enthalpy of formation ($\Delta H_{\rm f}^{\rm WXC_{2}}$) in kJ mol⁻¹ and eV/atom of WXC₂ compounds.

Compound	$\Delta$H$_{\rm f}^{\rm WXC_{2}}$ (kJ/mol)	$\Delta$H$_{\rm f}^{\rm WXC_{2}}$ (eV/atom)	Experimentally Available
$\beta$-WC	9.47	0.05
WSiC2	175.6	0.46	No
WScC2	−164.48	−0.43	No
WTiC2a	−195.66	−0.51	Yes
WVC2b	−109.55	−0.28	Yes
WCrC2	−9.21	−0.02	No
WGeC2	280.49	0.73	No
WYC2	−10.41	−0.03	No
WZrC2c	−160.82	−0.42	Yes
WNbC2	−134.06	−0.35	No
WMoC2	5.73	0.01	No
WRuC2	179.11	0.46	No
WRhC2	191.29	0.50	No
WPdC2	276.43	0.72	No
WAgC2	438.45	1.14	No
WCdC2	453.55	1.18	No
WSnC2	361.10	0.94	No
WHfC2d	−185.41	−0.48	yes
WTaC2e	−128.99	−0.33	Yes
WReC2f	192.51	0.50	Yes
WOsC2	279.70	0.72	No
WIrC2	282.46	0.73	No
WPtC2	329.79	0.85	No
WThC2	127.42	0.33	No
WUC2	−57.90	−0.15	No

^aDenbnovetskaya [74] (ICSD 618 962). ^bRogl et al [75] (ICSD 619 083). ^cEremenko et al [76] (ICSD 619 104). ^dEremenko et al [76] (ICSD 618 065). ^eDenbnovetskaya [74] (ICSD 618 866). ^fLawson [77] (ICSD 618 713).

From the calculated $\Delta H_{\rm f}^{\rm WXC_{2}}$ values, it is clear that Sc, Ti, V, Cr, Y, Zr, Nb, Mo, Hf, Ta and U substitutions in the W-site form stable phase and among them Ti is the most favourable substituent to have stable phase.

The single crystal elastic constants are significant parameters that characterize the deformation capacity of materials under an externally applied stress. Determination of single crystal elastic constants are essential because they are closely related to various fundamental physical properties of the system. It gives information about the chemical bonding, mechanical stability, stiffness, and sound velocity. Moreover, it is used as a tool to predict the material's hardness. Investigation of the elastic properties also provides valuable information about thermodynamic properties such as specific heat, thermal expansion, and Debye temperature. It implies that the elastic constants are important parameters while selecting suitable materials for many practical applications. There are several experimental methods to find out the single crystal elastic constants of materials. It needs a perfect single crystal of the materials with sufficient dimension which in most of the cases difficult to synthesis. So, it signifies the importance of the theoretical calculation of elastic constants. It is well known that the elastic properties of a solid belong to the most fundamental ground-state properties that can be predicted from the first-principles total-energy calculations. [71]

The single crystal elastic constant values measure the response of the material to the external stress. The first three diagonal elements c₁₁, c₂₂, c₃₃ are the coefficient of uniaxial stress along the principal directions $\langle$1 0 0$\rangle$, $\langle$0 1 0$\rangle$, and $\langle$0 0 1$\rangle$, respectively [81]. Similarly, the remaining diagonal elements c₄₄, c₅₅, c₆₆ are the coefficients corresponds to the shear stress between planes (1 0 0) and (0 1 0), (0 1 0) and (0 0 1), (0 0 1) and (1 0 0), respectively. Whereas, the off-diagonal elements i.e. c_ij with $i \neq j$ are called biaxial elements represents the shear and normal strains.

In this work the single crystal elastic constants of WXC₂ (X  =  Si, Sc, Ti, V, Cr, Ge, Y, Zr, Nb, Mo, Ru, Rh, Pd, Ag, Cd, Sn, Hf, Ta, Re, Os, Ir, Pt, Th, U) are calculated at their equilibrium volume obtained from strctural optimization using the change in total energy under various deformation as implemented in VASP. The elastic constants of a material can be tuned and modified by substitutions. The corresponding modified values of elastic constants depend on the properties of the substituents, and the substituent-host matrix interactions. As discussed earlier, due to the W-site substitution in $\beta$-WC, the system loses some of its symmetry elements and hence the primitive cell of all the WXC₂ compounds can be described in simple tetragonal structure as shown in figure 1. The elastic properties of cubic crystals can be fully described through three independent elastic constants, i.e c₁₁, c₁₂, and c₄₄. On the other hand, the tetragonal structure has six independent elastic constants such as c₁₁, c₁₂, c₁₃, c₃₃, c₄₄, and c₆₆ [82]. The knowledge of single crystal elastic constants is important because the whole variety of polycrystalline elasticity can be described by means of it [83]. The calculated values of elastic constants (c_ij), bulk modulus B, shear modulus G, Young's modulus E, Poisson's ratio $\nu$ and inverse of Pugh's modulus ratio or Pugh's index (B/G) for all the systems considered in the present study are listed in table 3. Also, the table 3 contains calculated.

Table 3. Calculated values of the independent elastic constants (c_ij, in GPa), bulk moduli (B, in GPa), shear moduli (G, in GPa), Young modulus (E, in GPa), Poisson's ratio ($\nu$), and inverse of Pugh's index (B/G) for $\beta$-WC and WXC₂ systems.

Compound	c11	c12	c13	c33	c44	c66	B	G	E	B/G	$\nu$
$\beta$-WC	846.2	192.4			85.7		410.3	151.9	405.6	2.70	0.307
	696.5a	215.5a			122a		375.9a	160.7a	422.7a	2.34a	0.313a
	706.5b	191.4b			151.6b		363.1b	187.7b	480.4b	1.93b	0.279b
WSiC2	756.97	162.64	132.84	438.69	119.58	265.89	302	187.7	466	1.6	0.242
WScC2	618.82	140.90	119.31	739.42	178.73	146.48	303	201	494	1.5	0.228
WTiC2	756.91	153.63	145.69	800.80	178.41	157.51	356	218	543	1.6	0.246
WVC2	793.73	168.24	158.40	825.46	151.95	150.55	376	206	522	1.8	0.268
WCrC2	784.50	183.71	171.43	797.42	100.26	115.88	380	164	430	2.3	0.311
WGeC2	219.13	72.67	132.29	215.47	87.76	111.94	146	72	185	2.0	0.289
WYC2	453.51	125.67	104.99	600.60	158.31	106.15	241	158	389	1.5	0.231
WZrC2	516.43	248.08	123.40	702.10	167.01	233.38	302	190	471	1.6	0.241
WNbC2	779.59	160.50	151.70	788.32	149.71	137.04	364	199	505	1.8	0.269
WMoC2	808.15	186.64	187.95	791.56	81.70	89.84	392	146	390	2.7	0.334
WRuC2	729.15	216.20	188.16	778.16	32.41	67.28	380	98	270	3.9	0.382
WRhC2	810.68	224.51	188.83	827.58	25.32	104.68	406	103	286	3.9	0.383
WPdC2	562.54	184.03	184.63	687.19	32.99	90.39	323	88	243	3.7	0.375
WAgC2	484.43	163.53	163.76	593.09	43.25	87.69	282	89	242	3.2	0.356
WCdC2	455.42	148.34	156.16	474.09	67.62	95.40	256	101	268	2.5	0.326
WSnC2	596.59	172.24	115.17	342.71	95.21	191.34	249	143	359	1.7	0.260
WHfC2	711.31	151.08	133.69	752.08	170.04	144.15	335	205	510	1.6	0.246
WTaC2	827.00	169.70	161.75	824.44	148.86	140.06	385	204	520	1.9	0.275
WReC2	787.85	225.68	219.28	777.16	13.96	14.70	409	72	204	5.7	0.417
WOsC2	724.12	236.54	222.51	774.88	7.28	18.62	398	62	177	6.4	0.426
WIrC2	662.10	239.71	195.43	819.84	−1.73	74.72	378	55	158	6.9	0.430
WPtC2	561.59	222.15	215.26	642.35	−10.45	86.61	341	29	84	11.8	0.459
WThC2	325.75	116.20	127.87	423.30	94.34	57.81	200	93	241	2.2	0.299
WUC2	470.05	172.41	148.52	657.29	90.69	40.92	280	103	276	2.7	0.336

^aCalculated by CASTEP with GGA scheme in [82]. ^bCalculated by FLAPW with GGA scheme in [83].

For the requirement of mechanical stability of a tetragonal (I) class (4/mmm) crystal structure, the values of independent elastic constants should satisfy the conditions $c_{11}>|c_{12} |$, $2c_{13}<c_{33}(c_{11}+c_{12})$, c₄₄  >  0, c₆₆  >  0 [84]. From the table 3, the estimated values of elastic constants reveal that Ir and Pt substituted $\beta$-WC systems are mechanically unstable; whereas, all the other systems under investigation satisfy the above Cauchy's mechanical stability criteria. The bulk moduli(B) and shear moduli(G) for polycrystalline materials are usually obtained from single crystal elastic constants based on two averaging methods namely Voigt and Reuss methods. The former method assumes uniform strain throughout a polycrystal and defines B_v and G_v as a function of elastic stiffness constants c_ij [84]. But the later method assumes uniform stress and gives B_R and G_R as a function of elastic compliance constants s_ij, which are the inverse matrix element of c_ij [85]. According to these methods, B and G for the tetragonal system are given as [25],

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn3} B_v = 1/9(c_{11}+c_{22}+c_{33})+2/9(c_{12}+c_{23}+c_{13}) \nonumber \end{align} \tag{ 3 }$$

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn4} G_V=&\,1/15(c_{11}+c_{22}+c_{33})-1/15(c_{12}+c_{23} +c_{13})\nonumber \\ &+1/5(c_{44}+c_{55}+c_{66}) \nonumber \end{align} \tag{ 4 }$$

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn5} 1/B_R = (s_{11} + s_{22} + s_{33}) + 2(s_{12} + s_{23} + s_{13}) \nonumber \end{align} \tag{ 5 }$$

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle 1/G_R =&\,4/15 (s_{11} + s_{22} + s_{33}) -4/15 (s_{12} + s_{23} + s_{13}) \nonumber \\ &+1/5 (s_{44} + s_{55} + s_{66}) \label{eu_eqn6} \nonumber \end{align} \tag{ 6 }$$

where the subscript V denotes the Voigt value (upper bound for all lattices), R denotes the Reuss value (lower bound for all lattices). According to Voigt–Reuss–Hill (VRH) approximation, the arithmetic average of Voigt and Reuss values give the best estimation for the B and G of a polycrystalline material [86]. In this work, the B and G values are calculated based on the VRH approximation.

The bulk modulus is a measure of the substance's resistance to uniform compression. The low values of B for X substituted $\beta$-WC systems reveal that these systems are more vulnerable to hydrostatic pressure compared to $\beta$-WC. There are some systems such as WReC₂ and WRuC₂ have bulk moduli comparable to that of $\beta$-WC. The comparative analysis of shear moduli G shows that Ti, Hf or Y substituted systems have considerably higher values than undoped $\beta$-WC; whereas, Ta, Pd, Ag, Cd, or Cr substituted $\beta$-WC have relatively smaller shear moduli values. This means that the substituted systems show a wide range of values for resistance to shear stress, depending on the substituents.

The Young's modulus and Poisson's ratio are measured frequently for polycrystalline materials and these values can also be calculated using the bulk modulus and shear modulus as follows:

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn7} E = (9BG)/(3B+G) \nonumber \end{align} \tag{ 7 }$$

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn8} \nu = (3B-2G)/2(3B+G). \nonumber \end{align} \tag{ 8 }$$

The Young's modulus E is also a proportionality constant between stress and strain. It is a measure of the stiffness of solids to change in the length. Among all the considered systems, WYC₂ has the highest stiffness which is noticeably higher than that of pure $\beta$-WC. The Poisson's ratio $\nu$ is a measure of relative lateral expansion (compression) of a material due to the relative longitudinal compression (expansion). The Poisson's ratio, $\nu = 0.5$ corresponds to, no volume change during elastic deformation [71]. It characterizes the volume change associated with their deformations. Poisson's ratio also provides information about the directionality of the bonding. The value of $\nu$ is much less than 0.25 (around 0.1) for a typical covalent compound, while it is nearly 0.25 or more for a typical ionic compound [87]. In the present study, all the compounds show positive value of $\nu$ and none of them has $\nu = 0.5$. Based on the Poisson's ratio one can interpret that most of the WXC₂ compounds show ionic nature. The central-force solids are limited within the range of Poisson's ratio of 0.25 to 0.5 [71]. Even though many of the WXC₂ systems are central-force solids, the WAgC₂, WHfC₂, WNbC₂, and WZrC₂ are non-central. The table 3 contains the B/G ratio called inverse of Pugh's index which roughly distinguish the brittle or ductile behaviour of materials. According to Pugh's criteria [88], the material is brittle if B/G  <  1.75 otherwise, the material behaves in a ductile manner. So we can conclude that the WXC₂ with X  =  Si, Sc, Ti, Y, Zr, Sn or Hf are brittle and others are ductile as $\beta$-WC.

The investigation of directional dependence of the elastic properties is important for the practical application of a material. The anisotropy in the elastic properties vary with symmetry in solids. If one knows the c_ij values, one can easily estimate the directional dependency of elastic properties such as bulk modulus, shear modulus, Young's modulus and Poisson's ratio. [71, 89] We have already done such calculations for orthorhombic [71] and hexagonal [90] crystals and given the methodology elaborately. In the same way, the directional dependence of the elastic properties of selected materials are investigated and depicted in figure 2 using MATLAB software [91] from the elastic stiffness constants predicted from our DFT calculations.

Zoom In Zoom Out Reset image size

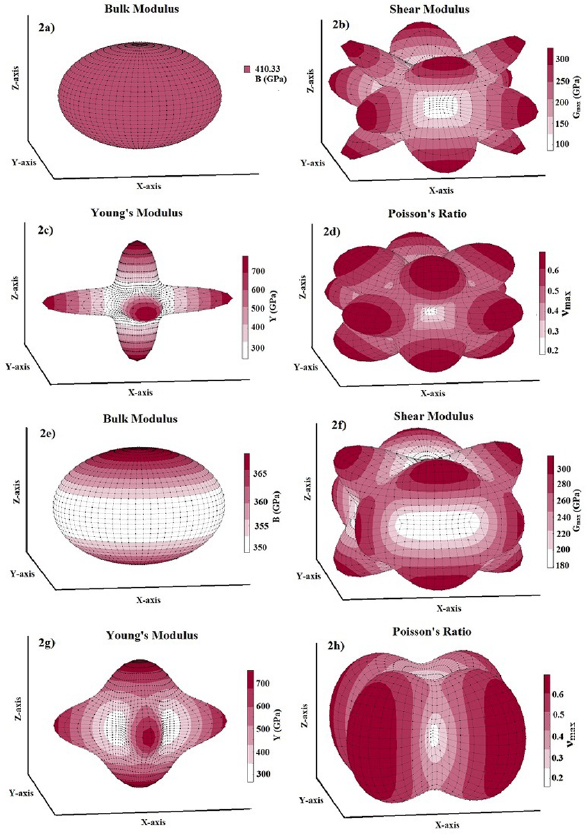

The figures 2(a)–(d) show the directional dependent elastic properties of $\beta$-WC, whereas figures 2(e)–(h) shows the same for WTiC₂ system. The partial substitution of W by Ti atom makes considerable changes in the directional dependency of elastic properties. If we compare the variation of bulk modulus with direction for Ti substituted $\beta$-WC, the B is higher along c direction [0 0 1] of the crystal compared to other principle axes. But, the degree of variation is not very large. Whereas, it is isotropic in all directions in the case of $\beta$-WC. From the figures 2(a) and (e), one can also note that the value of B for Ti-substituted system is lower than that of $\beta$-WC. Compared with the directional dependent variation of bulk modulus, the shear moduli shows considerable directional dependent behaviour for both $\beta$-WC and WTiC₂. It is interesting to note that, though the bulk modulus of the pure system is isotropic and the Ti-substituted system is anisotropic, the anisotropy in the shear moduli for the pure system is higher than that of the Ti-substituted system as evident from figures 2(b) and (f). The common feature in the shear moduli of both the materials is that the value of shear moduli is minimum along the principal axis whereas, maximum along the angular bisectors of the principal axis. I.e. the shear modulus is small along the principal axis of the crystal implies it is easy to shear along the principal direction compare to all the other direction.

The comparative analysis of the directional dependent Young's modulus of pure and Ti-substituted system show that Young's modulus of Ti-substituted system has small anisotropic behaviour along (1 0 0) and (0 1 0) planes compared to the (0 0 1) plane. But the parent system shows anisotropy in the calculated Young's modulus and almost the same in all the principal planes. The Poisson's ratio analysis brings out completely different anisotropic behaviour for both, the parent and the Ti substituted systems. The Poisson's ratio reaches the minimum value along the principal axis in both the systems and maximum only along the angular bisectors of the principal axis in the parent system. However, in the case of Ti-substituted system, the Poisson's ratio show highly anisotropic behaviour and hence along [0 0 1] direction the Poisson's ratio is much higher than that in other principal directions. It may be noted from figure 2(d) that for pure $\beta$-WC the 2-dimensional projection of Poisson's ratio on all the principal planes are identical. From the above observations, we conclude that Young's modulus and Poisson's ratio of Ti-substituted systems have different behaviour along (0 0 1) plane compared to other principal planes. However, the Poisson's ratio is highly anisotropic along (0 0 1) where Young's modulus show more isotropic behaviour.

Debye temperature, $\theta_{\rm D}$ is defined as the temperature of a crystal's corresponds to the highest normal mode of vibration. It is one of the fundamental parameters of a solid and correlated with physical properties such as specific heat, melting temperature, elastic constant etc. It determines thermal properties of the crystal such as electron-phonon interaction in the bulk etc. So, the estimation of Debay temperature from single crystal elastic constants is of current interest and it can be calculated from single crystal elastic constants as follows [92],

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn9} \theta_{\rm D}=h/k[(3n/4\pi)(N_{\rm A}\rho/M)]^{1/3} v_{\rm m} \nonumber \end{align} \tag{ 9 }$$

where h is Planck's constant, k is Boltzmann constant, N_A is Avogadro's number, $\rho$ is the density, M is the molecular weight, n is the number of atoms in the molecule and v_m is the average wave velocity. v_m can be calculated as a function of v_t and v_l which represents the transverse and longitudinal wave velocities of the material as given in equations (10)–(12) [92].

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn10} v_{\rm m}=(1/3(2/v_{\rm t}^{3}+1/v_{\rm l}^{3}))^{\rm -1/3} \nonumber \end{align} \tag{ 10 }$$

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn11} v_{\rm l}=((3B+4G)/3\rho)^{1/2} \nonumber \end{align} \tag{ 11 }$$

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn12} v_{\rm t} =(G/\rho) ^{1/2} \nonumber \end{align} \tag{ 12 }$$

where the values of v_l and v_t directly depend on shear modulus and bulk modulus. i.e. the Debye temperature of a material can be easily calculated from the elastic constants. In this work, we have calculated the Debye temperature for all the WXC₂ systems using this method and the values are given in table 4. As the calculated density get changed, depend upon the substituents the sound velocity change accordingly and hence the Debye temperature. Among the considered compounds in the present study WTiC₂ show the highest Debye temperature and hence the constituents are tightly bonded to each other resulting higher phonon frequency. For WPtC₂ the calculated Debye temperature is very small compared to that of all the considered systems. The smaller value of Debye temperature in WPtC₂ could explain its unstable behaviour (positive heat of formation).

Table 4. The density $\rho$ in g cm⁻³, longitudinal, transverse, average elastic wave velocity ($\nu _{\rm l}$, $\nu _{\rm t}$, $\nu_{\rm m}$ in m s⁻¹), and the Debye temperature ($\theta$_D) of $\beta$-WC and WXC₂ systems obtained from single crystal elastic constants.

	$\rho$	$\nu_{\rm l}$	$\nu$t	$\nu_{\rm m}$	$\theta_{\rm D}$
$\beta$-WC	15.292	6310	3120	3502	474
WSiC2	9.817	7497	4372	4850	670
WScC2	9.546	7738	4591	5084	680
WTiC2	10.357	7901	4587	5090	697
WVC2	10.944	7707	4335	4824	670
WCrC2	11.258	7293	3819	4271	598
WGeC2	9.126	5143	2803	3126	398
WYC2	9.911	6749	3992	4422	568
WZrC2	10.776	7179	4195	4652	613
WNbC2	11.540	7383	4151	4619	621
WMoC2	12.035	6986	3485	3910	531
WRuC2	12.460	6401	2801	3163	432
WRhC2	12.828	6510	2839	3206	442
WPdC2	12.117	6031	2700	3045	410
WAgC2	11.625	5870	2772	3119	414
WCdC2	11.248	5892	2995	3356	438
WSnC2	11.260	6246	3558	3954	513
WHfC2	14.144	6554	3805	4222	559
WTaC2	14.907	6637	3698	4117	554
WReC2	15.696	5672	2141	2429	331
WOsC2	11.206	6553	2354	2675	324
WIrC2	15.665	5367	1879	2136	289
WPtC2	15.294	4979	1373	1567	210
WThC2	12.739	5043	2699	3014	369
WUC2	14.776	5313	2642	2965	380

The term hardness describes the ability of a material to resist the deformation under a mechanical load [93]. It is also defined as the resistance to plastic deformation. Extensive research on correlating hardness with physical properties in solids continues over the past several decades to identify superhard materials for various applications. Although hardness is a fundamental mechanical property of materials, it is not as well defined as other physical properties at the microscopic level. It remains a poorly understood property. So, the main focus of this field of research is to understand the hardness microscopically and identify new superhard materials. Superhard materials are defined as the materials having a hardness value above 40 GPa [94]. There are few conventional superhard materials such as diamond, cubic boron nitride etc. The WC also has a high value of hardness i.e. 30 GPa [95]. Even though the superhard materials have technological importance, they are not abundant. Also, they have limitations in certain applications. This makes the field of research on identifying new superhard materials more attractive. In several studies, hardness numbers have been compared with other properties of materials. It is widely believed that correlating elastic properties with hardness is the best tool for the search of superhard materials. Because, factors governing both of these properties are almost the same namely bond length, nature of the bond, bond strength, valence electron density etc. There are many works in which correlation between average elastic constants and hardness are reported. For example, Sung et al [66]and Liu et al used bulk modulus for predicting the hardness, Teter [68] and Brazhkin et al [69] proposed that shear modulus can also be used as an indicator. Chen et al suggested an equation based on Pugh's modulus ratio to predict the value of hardness, which correlates the B and G simultaneously with the hardness value of materials [66]. Recently, Rong Yu et al [67] predicted that the softest elastic mode of the elastic constants matrix show far good correlation with hardness. According to them, the eigenvalues of an elastic constants matrix describe the ability of a material to resist the deformation in independent elastic modes and therefore the softest elastic mode sets the limit of the hardness.

In the present work, we have predicted hardness value using two different methods based on lowest eigenvalue as discussed by Rong Yu et al [67] and Pugh's criteria as discussed by Chen et al [66]. In the first method, we have reproduced the relation between hardness and the lowest eigenvalue using the data given in [67]. The graphical representation of this result is given in figure 3. We have used the linear fit of the source data as a tool to predict the hardness of WXC₂ materials by calculating the lowest eigenvalue from single crystal elastic constants. In the second method, we have calculated the hardness value using equation (13). Where k is the G/B value. The calculated values of softest eigenvalue and hardness from both the methods are listed in table 5

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \label{eu_eqn13} H_{\rm v} = 2(k^{2}G)^{\rm 0.585} - 3. \nonumber \end{align} \tag{ 13 }$$

Zoom In Zoom Out Reset image size

Table 5. The estimated values of hardness (in GPa) based on the correlation between hardness versus minimum eigenvalues/Pugh's modulus ratio for WXC₂ systems.

Compound	Minimum eigenvalue (GPa)	Hardness (GPa) (based on minimum eigenvalue)	Hardness (GPa) (Using Pugh's modulus ratio)
$\beta$-WC	86	10.9	34.8
WSiC2	120	15.9	18.2
WScC2	146	19.7	24.5
WTiC2	158	21.4	23.3
WVC2	150	20.2	19.3
WCrC2	122	16.2	11.8
WGeC2	63	7.5	7.6
WYC2	106	13.8	20.6
WZrC2	167	22.7	21.9
WNbC2	137	18.4	18.8
WMoC2	82	10.3	8.6
WRuC2	32	3.0	3.0
WRhC2	25	2.0	3.1
WPdC2	33	3.2	3.0
WAgC2	43	4.6	4.1
WCdC2	68	8.3	7.0
WSnC2	95	12.2	15.9
WHfC2	144	19.4	22.3
WTaC2	140	18.8	18.3
WReC2	14	0.4	0.2
WOsC2	7	−0.64	−0.4
WIrC2	−2	−2.0	−0.8
WPtC2	−10	−3.1	−2.2
WThC2	59	7.0	8.5
WUC2	41	4.3	6.4

The calculated hardness for $\beta$-WC based on Pugh's criteria and softest eigenvalue are 34.8 and 10.7 GPa, respectively. The hardness value of the $\beta$-WC was previously predicted as 32 GPa. This value is in good agreement with our results estimated based on Pugh's criteria. It implies that the Pugh's criteria is more accurate than the softest eigenvalue method in predicting the hardness of $\beta$-WC. But most of the other cases, the hardness estimated from both these approach are close enough. In the case of WRuC₂, we could get exactly the same results from both the approach, i.e. the method based on softest elastic mode to estimate hardness is successful in predicting the hardness of some materials. Further studies are essential to understand the predicting capability of these two methods. From the results, it is clear that the substitution in $\beta$-WC makes considerable changes in its hardness. According to the Pugh's criteria, none of the substituted systems show the hardness greater than that of $\beta$-WC and obviously, none of the substituted systems is superhard. However, some of the stable systems (mechanically as well as thermally) such as the WHfC₂, WNbC₂, WTaC₂, WTiC₂, WVC₂, WYC₂ and WZrC₂ have a relatively higher value of hardness. But they still posses hardness much lower than that of $\beta$-WC. The mechanically unstable compounds such as WIrC₂ and WPtC₂ show negative eigenvalue and hardness. Whereas, the WOsC₂ is an exception which is mechanically stable but it still shows a negative value of hardness.

In order to understand the basic features of chemical bonding and structural phase stability, we have calculated the total density of states (TDOS) and partial density of states (PDOS) of some of the systems considered for the present study at their equilibrium geometries and the results are presented in figure 4. Here, we discuss the compounds which exhibit different behaviour in their mechanical stability, thermodynamic stability and hardness values. For example, other than WPtC₂, all the WXC₂ systems in the figure 4 are mechanically stable even though only WTiC₂ is thermodynamically stable. While considering the hardness, one can notice from table 5 that WOsC₂ and WPtC₂ show negative hardness values; whereas, WReC₂ shows a very small positive hardness value and WTiC₂ exhibits comparatively high hardness value.

Zoom In Zoom Out Reset image size

In order to have covalent bonding between constituents they should spatially adjacent to each other and energetically their outermost energy levels should have degenerate behaviour. So, from the partial DOS analysis we can identify the position of electron energy states of valance electrons and from that we can identify the bonding and anti-bonding hybrids and does covalent bonding. If the material has strong covalency, their energy states are usually broad due to strong overlap interactions. In the case of ionic solids, due to large electron negativity difference between cations and anions their valance electrons energy states are well separated with each other. Further, the number of electrons in the valance band obtained from integrated site projected partial DOS for the cation will be smaller than the valance electrons of the corresponding neutral atom. Moreover, due to negligibly small overlap interactions between cations and anions, the DOS will have narrow band features.

In most of the ordered intermetallic compounds a deep valley in the density of states (DOS) curve in the vicinity of Fermi level is observed and this deep valley is called pseudogap. The origin of the pseudogap in ordered intermetallic compounds is traced to (i) charge transfer or ionicity, (ii) hybridization or covalence and (iii) d-resonance [96, 97]. If the electronegativity difference between the constituents is large, due to screening or charge neutrality consideration, a drastic alteration in band shape takes place due to the redistribution of electrons in energy. As a consequence, the screening electrons arc assigned mostly to low-lying states in the band leading to the creation of a minimum in the DOS curve. If the constituents in the intermetallic compounds offer electrons in the same energy range their wave functions are strongly mixed with each other and this covalent hybridization increases the bond strength implying a transfer of electrons to lower energy range, thereby producing a pseudogap. In transition metals and their compounds, the presence of narrow d-states near the Fermi level pulled towards lower energy range from Fermi level due to resonance effect and, hence, deep valley closer to E_f appears. As the $\beta$-WC and the transition metals substituted substituted WXC₂ compounds considered in this study have mixed bonding nature, the combined effects of the above mechanisms are responsible for the changes in the DOS at the Fermi level.

A detailed discussion on structural phase stability and position of Fermi level in the DOS curve is given in [98–102]. The comparative analysis of TDOS for the $\beta$-WC obtained from our calculations is in good agreement with that from the previous theoretical study [6]. The non-vanishing DOS at the Fermi level indicates the metallic nature of all these systems in figure 4. For Ag, Os, and Pt substituted $\beta$-WC system, one can notice that there is sharp peak like features in the DOS curve in the vicinity of Fermi level (see figures 4(b)–(d)). This indicates that the small external perturbation by temperature, pressure, magnetic field, electric field etc there will be large changes in the DOS at the Fermi level and this explains the unstable nature of these Ag, Os, and Pt substituted WXC₂ compounds. It may be noted that in $\beta$-WC also the Fermi level falls on a small peak and this may be the reason why this compound is not stable at ambient conditions and stable only at high temperatures. In WReC₂, the TDOS at the Fermi level is having reasonably high value (2.36 states (eV f.u)⁻¹) and however, the DOS profile in the vicinity of Fermi level is not having any sharp peaks. In the case of WTiC₂ the DOS at the Fermi level is very small and the Fermi level falls just above a pseudogap feature and hence, one can expect relatively more stability in this system [103] (see the enthalpy of formation given in table 2). It may be noted that the DOS at the Fermi level is dominantly contributed by the transition metal d- states in all the systems considered in the present calculations.

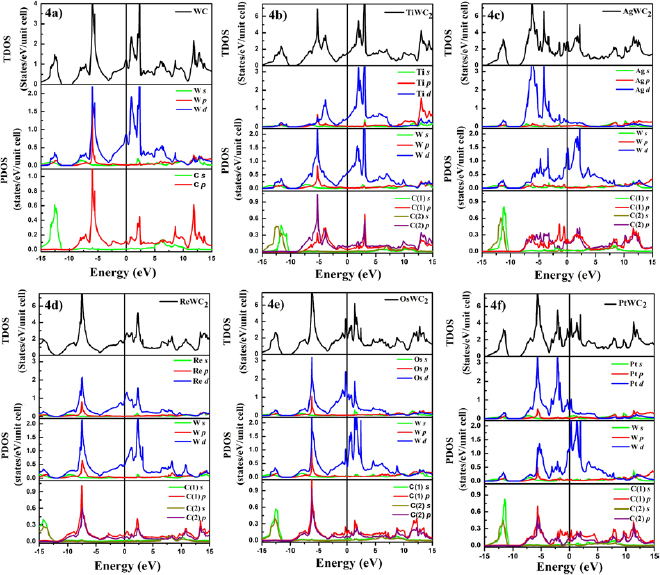

The partial density of states analysis shows that the occupied band (i.e. electronic states below Fermi level) are dominantly contributed by the transition metal d- and the carbon p -sates. In the occupied band, both transition metal d-states and carbon states are energetically degenerate and this is the indication for covalent interaction between transition metal and carbon atoms. i.e. from the partial DOS plot one can notice that the transition metal d-states and carbon p -states are distributed the same energy window and have similar electronic states distribution in the occupied band. Therefore the electrons at C atom and transition metals leads to covalent bond interactions. In the $\beta$-WC, WAgC₂, and WPtC₂ systems, W- d and C- p  orbitals form the electronic states just below the Fermi level. However, in all the other considered cases the d-states of substituted atoms also highly contribute to the topmost region of the occupied band. The TDOS of the $\beta$-WC shows peaks in the energy range between  −10 to  −2.5 eV originating from the W- d and C- p  orbitals and leads to a strong covalent bonding between them. There is a significant electron transfer from the W- s to the C- p  orbitals and gives ionic characteristic also. Because, in the elemental state, the the outer most s-orbital of W atom is fully filled, whereas, C atoms have only 2 electrons in its p  orbital. But, from the figure 4(a) it can be noted that the outer most s orbital of W is almost empty while the p  orbital of C is nearly half filled. Similar kind of bonding interaction is present in transition metal substituted $\beta$-WC also. However, in those cases the covalent interaction is weaker than that in $\beta$-WC. For example, in the case of Ag substituted system, due to weak covalent interaction between Ag with its neighbours the electronic state distribution of W- d states at the occupied band does not have same feature as other substituted systems.

The weakening of these covalent bonds could explain why the hardness of transition metal substituted systems are smaller than that of $\beta$-WC. The difference in electronegativity between the transition metals and carbon may also attribute to the strengthening of bonds by adding some ionic character. Bond strength is one of the important characteristics behind the hardness; therefore, comparatively weak bonds present in substituted systems may be the main reason behind the decrease in hardness value of such compounds. To explain the bonding nature more systematically, we have analysed the COHP and charge density in the following sections.

3.7.1. The chemical bonding analysis from crystal orbital Hamiltonian population (COHP).

The chemical bonding in $\beta$-WC and WXC₂ compounds were investigated using the Crystal Orbital Hamilton Populations (COHP) between constituents obtained from Lobster package [104] based on the VASP output. A quantitative bonding analysis is made possible on the basis of the shape and energy integrals (ICOHP—integrated value of COHP) of the COHP given in figure 5 and table 6. The calculated ICOHP of all phases indicates that the W-C1 bond has a higher value than the X-C2 bond. The W-C bond in $\beta$-WC is stronger than the W-C bond in other substituted carbides due to strong covalent bonding between W-C in $\beta$-WC. The weakening of the covalent bonding by transition metals substitution in $\beta$-WC will be the reason for the smaller hardness value in substituted systems.

Zoom In Zoom Out Reset image size

Table 6. The calculated integrated crystal orbital Hamiltonian population (ICOHP) (eV/bond) up to Fermi level between constituents in $\beta$-WC and that for selected WXC₂(X  =  Ti, Ag, Re, Os, or Pt) systems.

Compound	X-C1	X-C2	W-C1	W-C2
$\beta$-WC			−17.427
WTiC2	−11.144	−5.385	−7.113	−13.546
WAgC2	−3.907	−1.846	−6.620	−12.596
WReC2	−14.126	−7.322	−7.968	−15.299
WOsC2	−9.219	−4.550	−6.467	−12.596
WPtC2	−5.951	−2.900	−6.080	−10.906

In figure 5 all the bonding states for W-C bonding pair in $\beta$-WC located in the valance band while the anti-bonding states solely appear in the unoccupied region i.e. above the Fermi level. According to band filling of the bonding states analysis, the system will have maximum stability when all the bonding states are filled and all the antibonding states are empty. The COHP between W-C in $\beta$-WC show such behaviour (see figure 5(a) and hence one could expect relatively high stability for this system. In contrast, in the case of WAgC₂, WOsC₂, WPtC₂, and WReC₂ the COHP between X-C in figure 5 show that there is noticeable antibonding states are get occupied. As the filling of antibonding states weakens the structural phase stability as well as bond strength, this could explain why these compounds are not having high stability according to our heat of formation study (see table 2). However, the Ti substituted system also exhibits similar bonding interaction as $\beta$-WC that the COHP between constituents given in figure 5(b) show that all the bonding states are filled and all the antibonding states are empty. This could explain the experimental observation of stable WTiC₂ compound. The present COHP analysis suggests that the formation of C vacancy at the C-site closer to X will stabilize most of the compounds mentioned above those have poor structural phase stability. This may be the reason why it is experimentally reported that transition metal substituted WC systems having carbon vacancy such as OsWC_0.6, MoWC_1.5, RuWC_0.6, RhWC_0.5 etc.

3.7.2. The chemical bonding analysis from charge density.

Finally, in order to gain more insights into the bonding interactions between constituents in WXC₂ crystals, we have analysed the charge density plot of selected systems. The charge density for a plane where one could see the bonding interaction between all the constituents is depicted in figure 6. The homogeneous charge density distribution at the interstitial region in all the systems considered in the present study indicates the presence of metallic bonding. However, the directional nature of the charge density distribution between W and C indicate the presence of covalent interaction between W-C in all these systems. The charge density plot for $\beta$-WC shows that there is a depletion in charge density around the W atom; whereas, the population of electrons in the carbon sites is increased compared with the neutral carbon atom. This indicates that there is noticeable ionic bonding also present between tungsten and carbon. So one can characterise that the bonding interaction between W-C is metallic with iono-covalent nature. Similarly, the chemical bonding between the W and C(1) shows more ionic character than that between W and C(2) and hence more charge is accumulated in the C(2) site as evident from figure 6 for all the WXC₂ compounds. In addition, the analysis of charge density between W-site substituted atoms and C atoms shows the directionality in charge density distributions for Re, Os, and Pt substituted systems; which is the fingerprint for covalent bonding interaction. But, the Ag substituted system does not show such covalent interaction between Ag and C atoms. This may be the reason behind its unstable nature. Even though Ti atom in WTiC₂ does not make any covalent interaction with the C atoms there is an ionic bonding by the charge transfer from the Ti site to C site. From the charge density analysis, one can understand that the bonding mechanisms in all the above-mentioned systems are combinations of ionic, covalent and metallic nature with varying degrees from one system to another. Also, the noticeable difference in bonding interaction between transition metal with two different carbon atoms indicates the anisotropy in the bonding interactions and this can lead to anisotropy in the elastic properties.
