Abstract
The spin crossover (SCO) transitions at both the surface and over the entire volume of the [Fe{H2B(pz)2}2(bipy)] polycrystalline films on Al2O3 substrates have been studied, where pz = pyrazol-1-yl and bipy = 2,2'-bipyridine. For [Fe{H2B(pz)2}2(bipy)] films of hundreds of nm thick, magnetometry and x-ray absorption spectroscopy measurements show thermal hysteresis in the SCO transition with temperature, although the transition in bulk [Fe{H2B(pz)2}2(bipy)] occurs in a non-hysteretic fashion at 157 K. While the size of the crystallites in those films are similar, the hysteresis becomes more prominent in thinner films, indicating a significant effect of the [Fe{H2B(pz)2}2(bipy)]/Al2O3 interface. Bistability of spin states, which can be inferred from the thermal hysteresis, was directly observed using temperature-dependent x-ray diffraction; the crystallites behave as spin-state domains that coexist during the transition. The difference between the spin state of molecules at the surface of the [Fe{H2B(pz)2}2(bipy)] films and that of the molecules within the films, during the thermal cycle, indicates that both cooperative (intermolecular) effects and coordination are implicated in perturbations to the SCO transition.
Export citation and abstract BibTeX RIS
1. Introduction
In spin crossover (SCO) molecular materials, transition metal centers exhibit spin-state transitions that are driven by entropy and structural changes [1–5]. These SCO transitions, although molecular in origin [3], become cooperative when the molecules are coupled in a solid, yielding phase-transition-like changes of spin states and even hysteresis in the SCO transition in thermal cycles (as schematically indicated in figure 1(a)), due to the intrinsic coupling of spin state and structure [2]. Various external stimuli can trigger SCO transitions by perturbing either the structure (pressure [2, 5, 6]) or the electronic states (light [7–13], charge injection and electromagnetic field [14–16]). This sensitivity to external stimuli may be exploited to realize molecular switches for next generation information storage and processing applications [14, 15, 17–28].

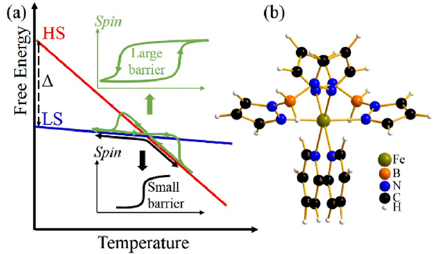

Figure 1. (a) Schematic energy diagram of the SCO transition, in which the free energy changes with temperature according to entropy. HS state (HS) ↔ LS state transition temperature depends on the enthalpy difference Δ between the spin states. The width of the hysteresis depends on the free-energy barrier between spin states. (b) Molecular structure of [Fe{H2B(pz)2}2(bipy)].
Download figure:
Standard image High-resolution imageFor widespread applications, one key aspect of the molecular switches is the non-volatile control, which for SCO molecular complexes, requires bistability of the spin states, ideally over a broad temperature range, around room temperature [11, 29, 30]. Naturally, the coupling of spin state and structure may be employed to achieve this bistability [2]. The challenge is to find the proper enthalpy differences between the spin states (denoted as Δ in figure 1(a)) to place the SCO transition around room temperature and suitable structural differences between the spin states to generate sizable hysteresis [2, 3, 5, 29]. Another route to achieving these goals is to make use of perturbation caused by interactions at a substrate-film interface, because (1) the electronic and structural couplings at the interface may change the enthalpy difference of the spin states (Δ) which changes the SCO transition temperatures; (2) the modification of the energy barrier between the spin states, by the interface, can tune the width of the hysteresis loop [28, 30–34]. In this regard, the spin state of thin-film [Fe{H2B(pz)2}2(bipy)], a Fe(II) molecular SCO complex, exhibits remarkable tunability, where H2B(pz)2 = bis(hydrido)bis(1H-pyrazol-1-yl)borate, bipy = 2,2'-bipyridine, as shown in figure 1(b). It has already been established that oxide substrates like SiO2 [34], Al2O3 [34], NiCo2O4 [16], and La0.67Sr0.33MnO3(0 0 1) [16] tends to lock very thin [Fe{H2B(pz)2}2(bipy)] molecular films (<40 nm) in a largely low-spin (LS) state, to temperatures well above the thermal SCO transition temperature, where the high-spin (HS) state would be generally favored. A comparison of different measurements of the spin-state occupancy suggests that a significant shift of the transition temperature is indeed possible [35]. On the other hand, the effect of the interface on the spin-state bistability, which is caused by the energy barrier between the spin states, has not been fully investigated.
Here we focus on the molecular complex [Fe{H2B(pz)2}2(bipy)] [36, 37], which is among the few SCO molecules that can be evaporated in vacuum without decomposition [9, 16, 28, 34–40]. This molecule exhibits a non-hysteretic transition between a high-temperature HS state and a low-temperature LS state at T1/2 = 157 K in bulk [28, 35–39]. A thermal activation energy of about 60 ± 7 meV was ascertained for [Fe{H2B(pz)2}2(bipy)] thin films on SiO2 [34], consistent with the measured enthalpy of about 80 meV [39]. The HS and the LS states of the Fe(II) complex correspond to electronic configurations of
(S = 2) and
(S = 0) respectively, where eg and t2g are the Fe 3d states split due to the ligand field. We found that the [Fe{H2B(pz)2}2(bipy)] films, hundreds of nm (300 nm, 900 nm) thick, surprisingly exhibit spin-state hysteresis in thermal cycles around the bulk SCO transition temperature, which suggests bistability.
2. Experimental
The 300 nm and 900 nm polycrystalline [Fe{H2B(pz)2}2(bipy)] films were deposited on 5 × 5 mm2 Al2O3 substrates (at 300 K) using physical vapor deposition in high vacuum (
Torr), with a growth rate of 0.1 Å s−1. The film morphology and thickness calibration was measured by atomic force microscopy and the RMS (root mean square roughness) was found to be about 50 nm. The temperature dependent (cooling, 2 K min−1) x-ray (500 Hz, 80 ps pulse, 1.033 Å) diffraction was carried out at the beamline 14ID-B in the Advanced Photon Source at the Argonne National Lab. The x-ray powder diffraction patterns were measured using a 2D Rayonix MX340-HS detector 40 cm away from the sample and perpendicular to the incident x-ray on a 20 × 20 μm2 sample spot for a period of 5 min for every temperature. The x-ray damage on [Fe{H2B(pz)2}2(bipy)] films was checked before the temperature-dependent x-ray diffraction, which showed neither structure change nor material loss after 1.0
105 x-ray shots. The sample temperature was controlled using a Cryostream system and calibrated using the lattice constants of the substrates obtained from the experimental diffraction angles.
Temperature dependence of the [Fe{H2B(pz)2}2(bipy)] magnetic susceptibility (an indicator of spin state) was measured using superconducting quantum interference device (SQUID) magnetometer. The soft x-ray absorption spectroscopy (XAS) measurements were performed at the bending magnet beamline 6.3.1, at the Advanced Light Source at Lawrence Berkeley National Laboratory, as in other studies of [Fe{H2B(pz)2}2(bipy)] thin films on Al2O3 [34]. The photon flux was estimated to be around 1.65
105 photons/s/μm2. X-ray absorption spectra were obtained, in both the total electron yield (TEY) mode and photoluminescence yield mode (PLY) at the same time, at the absorption of the Fe L3 edge. In the TEY mode, the XAS data was recorded by measuring the compensation current from ground to the sample, proportional to the TEY from the sample. Due to the limited effective electron sampling depth
, which is only a few nm or less, XAS acquired in the TEY mode is more sensitive to the surface properties of the [Fe{H2B(pz)2}2(bipy)] thin film than those acquired in the PLY mode, where there is x-ray transmission through the whole film, and photoluminescence in the sample is detected. The combination of the TEY and the PLY modes made it possible to characterize the surface and bulk property simultaneously across a temperature range from 80 K to 300 K for both cooling and heating sequences. As noted above, one problem faced in these specific x-ray absorption experiments is that the x-rays initiate a spin state change for [Fe{H2B(pz)2}2(bipy)] on many dielectric substrates, as discussed elsewhere [16, 34, 35]. That means the influence of the x-ray excitation should be kept as low as possible while absorption data must be acquired rapidly, so as to avoid having the measured spin state occupancy to be too strongly affected by the measurement process. Only then the influence of molecular coordination on cooperative effects resulting in hysteresis and shifts in the thermal SCO transition can be resolved. In the case of the thin film studies, reported here, the XAS spectra have degraded energy resolution due to the need for rapid data acquisition so as to acquire spin state transition rates. The typical Fe L3-edge spectrum, for the 300 nm [Fe{H2B(pz)2}2(bipy)] thin films on Al2O3, was acquired in ca. 15 s, as in previous studies [16, 34].
3. Results and discussion
3.1. Effect of the substrate/film interface
The temperature dependence of magnetic susceptibility for two different [Fe{H2B(pz)2}2(bipy)] films are compared with that of the powder in figure 2. Unlike the powder form, which shows minimum hysteresis as seen in figure 2 and reported elsewhere [36–39], both [Fe{H2B(pz)2}2(bipy)] films thicknesses on Al2O3 exhibit more prominent hysteresis of the SCO transition. For the 900 nm thick [Fe{H2B(pz)2}2(bipy)] film, T1/2 equals to 152 K in cooling processes and 157 K in warming processes, respectively. Thus
= 5 K. The temperature dependence of the magnetic susceptibility (or spin-state occupancy) of 300 nm film deviates more significantly from the bulk behavior. As shown in figure 2(c), the hysteresis measured using magnetometry shows
= 15 K in the 300 nm film, which is three times compared to
in 900 nm film. The differences in the extent of the hysteresis,
, suggest that the average energy barrier between the HS and LS states is larger in the 300 nm films than that in the 900 nm films.
Figure 2. Magnetic susceptibility (χ) of (a) powder (b) 900 nm and (c) 300 nm [Fe{H2B(pz)2}2(bipy)] films, on Al2O3, in thermal cycles plotted as scatters dots.
Download figure:
Standard image High-resolution imageTo further probe the transition between the spin states in the 300 nm films, we carried out temperature-dependent x-ray diffraction measurements. The structures of [Fe{H2B(pz)2}2(bipy)] in bulk are monoclinic with space group C2/c for both the HS and the LS states [37]. On the other hand, previous work shows that the lattice constants of the HS state (at 300 K) and that of the LS state (at 140 K) differ by about 1.5% which is much larger than what is expected from thermal expansion [37]. This significant difference in lattice constants can be employed to probe the spin state occupancies using x-ray diffraction.
Figure 3(a) shows a typical 2D x-ray powder diffraction pattern. Integrating the azimuthal angle, one gets the powder diffraction intensity as a function of 2θ (diffraction spectrum), which is consistent with the C2/c structure. Figure 3(b) shows the profile near the (
) Bragg diffraction peak of the 300 nm thick [Fe{H2B(pz)2}2(bipy)] film at 125 and 255 K. The diffraction profile at 125 K clearly has a main peak and a shoulder of a similar width at larger 2θ, so the diffraction profile can be fit using two Gaussian functions, as shown by the dashed lines. The centers of the main peak and the shoulder in figure 3(b) differ by about 1.4%, suggesting that the main peak corresponds to the HS state and the shoulder corresponds to the LS state [3, 37].
Figure 3. (a) Typical powder x-ray diffraction pattern of [Fe{H2B(pz)2}2(bipy)] films, on Al2O3, measured using a 2D detector. The rings show polycrystalline nature of the films. (b)–(d) includes data of a 300 nm film. (b) Diffraction profiles near the (
) Bragg peak; the 125 K profile is fit using a main peak (HS) and a shoulder peak (LS). (c) Diffraction profiles plotted as a 2D image around the (
) Bragg peaks. (d) The intensity ratio between the shoulder (LS) and the main peak (HS) as a function of temperature.
Download figure:
Standard image High-resolution imageFigure 3(c) shows the evolution of the (
) diffraction profile when the 300 nm film sample is cooled; the asymmetric broadening of the peaks at low temperature comes from the enhancement of the LS state. By fitting the diffraction profile with two components, we found that the main diffraction peak shifts towards a higher-angle when the temperature is lowered, as indicated by the line in figure 3(c), consistent with the lattice constant in linear contraction behavior with a coefficient 1.3 × 10−6 K−1. The ratio between the intensity (area) of the shoulder peak (LS) and that of the main peak (HS) grows upon cooling, as shown in figure 3(d).
Hence, in the 300 nm film, coexistence of spin state occupancy which indicates bistability, was directly observed using x-ray diffraction, in line with the hysteretic behavior in the magnetic susceptibility (figure 2(b)). Furthermore, the bistability of spin states in the 300 nm film appears to occur at the crystallite level. As shown in figure 3(b), the widths of the main peak (HS) and the shoulder peak (LS) are similar and insensitive to temperature, indicating that the size of the crystallites for both spin states are similar (about 100 nm) [41]. Therefore, the crystallites, as the unit of diffraction, are in either HS or LS state. They are spin-state domains.
In contrast, the coexistence of both HS and LS spin states was less obvious in the x-ray diffraction of 900 nm films. Figure 4(a) shows the diffraction spectra near the (
) Bragg peaks of the 900 nm film, in which the size of the crystallites is also about 100 nm according to the peak width [41]. The shape of the 125 K spectrum resembles that taken at 255 K. As shown in figure 4(b), the evolution of the (
) diffraction profile, as observed during cooling, behaves more like a peak shift due to a lattice constant change, instead of the appearance of an additional peak. Yet the effects seen are non-linear, with the shift of (
) diffraction profile, toward the higher-angles, occurring faster at lower temperatures.
Figure 4. X-ray diffraction of a 900 nm thick [Fe{H2B(pz)2}2(bipy)] film, on Al2O3. (a) Diffraction profiles near the (
) Bragg peak at 125 K and 255 K. (b) Diffraction profiles plotted as a 2D image around the (
) Bragg peaks.
Download figure:
Standard image High-resolution imageThe thickness dependence of the SCO transition in the [Fe{H2B(pz)2}2(bipy)] films on Al2O3, suggests that different parts of the films behave differently. If the films are divided into three parts: near substrate, interior, and near surface, the near-substrate part most likely contributes to the hysteretic behavior of the SCO transition the most, because it is known that the modification of the energy barrier between the spin states of the molecules by the interface can tune the width of the hysteresis loop [28, 30–33]. For the [Fe{H2B(pz)2}2(bipy)]/Al2O3 interface, in particular, the LS state of very thin films (<40 nm) can be locked to temperatures well above the bulk SCO transition temperature, indicating a significant interaction at the substrate/film interface.
3.2. The effect of the coordination
The question then is whether the thermal SCO transition is the same at the surface as within the volume of a molecular thin film, of sufficient thickness so that substrate effects are diminished, yet still present. The surface would be of lower coordination and farther away from the interface with the substrate than the interior of the film, thus could be affected differently by the incident x-ray, intermolecular cooperative effects, and the substrate. The spin state occupancy of the [Fe{H2B(pz)2}2(bipy)] Fe(II) complex may be extracted from the x-ray absorption spectra [9, 16, 34, 35, 40, 42]. In the LS of the [Fe{H2B(pz)2}2(bipy)] molecule, the 3d electrons occupy the t2g orbitals in pairs leaving the eg orbitals empty. This is generally observed in the Fe L3 edge (2p 3/2) x-ray absorption spectra as a major feature at a photon energy around 708 eV (figures 5 and 6). By comparison, in the HS configuration, the eg orbitals are partially populated while the t2g orbitals subsequently get partly depopulated, which corresponds to the XAS spectra with a decrease of the peak intensity at 708 eV and an increase of the t2g shoulder around 706.5 eV. The temperature-dependent XAS of the [Fe{H2B(pz)2}2(bipy)] thin films on Al2O3, is shown in figures 5 and 6. Figure 5 shows XAS taken in the PLY mode, probing the bulk of [Fe{H2B(pz)2}2(bipy)] thin films on Al2O3, while figure 6 illustrates the XAS for the [Fe{H2B(pz)2}2(bipy)] films in the TEY mode, where the latter is more surface sensitive. The spectra taken at low temperature in blue (in figures 5 and 6) are representative of the LS state and the spectra in red (in figures 5 and 6) are representative of the HS state. We note that the SCO transition temperature, taken in the TEY mode is close to the expected SCO transition temperature of 157 K, for [Fe{H2B(pz)2}2(bipy)] [34–39, 43], although the observed thermal hysteresis make a precise comparison difficult.
Figure 5. The x-ray absorption spectra, taken in the PLY mode for (a) cooling sequence and (b) heating of 300 nm [Fe{H2B(pz)2}2(bipy)] thin film on Al2O3. Red indicates XAS spectra representative of the HS state and blue indicates LS state.
Download figure:
Standard image High-resolution image
Figure 6. The x-ray absorption spectra, taken in the total electronic yield mode (TEY) for (a) cooling sequence and (b) heating of 300 nm [Fe{H2B(pz)2}2(bipy)] thin film on Al2O3. Red indicates XAS spectra representative of the HS state and blue indicates LS state.
Download figure:
Standard image High-resolution imageTo further investigate the occupancy of the HS state, with changing temperature, we have used the 'empty t2g/empty eg' ratio as an empirical approximation of molecules in the HS state at a given temperature [9, 16, 34, 40, 42]. The HS state occupancy upon heating is different from the HS state occupancy upon cooling, as indicated in figure 7, from the analysis of the XAS spectra taken in both the TEY mode and the PLY modes. The SCO transition temperature T1/2 (50% HS state occupancy), in the TEY mode, the transition temperature T1/2 for cooling sequence is around 150 K on cooling the sample, and around 170 K (figures 6 and 7) on heating. In the PLY mode, T1/2 is around 160 K on cooling and 180 K for the heating sequence and is in agreement with SQUID magnetometry, as seen in the insert in figure 7. Both SQUID magnetometry and XAS in the PLY mode, give around a 20 K difference of T1/2 between the cooling and heating process. Also, both the surface (TEY mode) and bulk (PLY mode) exhibit thermal hysteresis in spite of the much lower coordination at the surface of the [Fe{H2B(pz)2}2(bipy)] film, than should be the case in the bulk of the film. The molecules of [Fe{H2B(pz)2}2(bipy)], at the surface layers have vacuum on one side, while in the bulk of the thin film, the [Fe{H2B(pz)2}2(bipy)] molecules are surrounded by other [Fe{H2B(pz)2}2(bipy)] Fe (II) complex molecules. So the surface of the film has [Fe{H2B(pz)2}2(bipy)] with lower coordination and possibly diminished strain.
Figure 7. Temperature dependent hysteresis loops for 300 nm thick [Fe{H2B(pz)2}2(bipy)] thin films on Al2O3 indicating the HS state occupancy based on XAS taken in TEY mode (red hollow square) and PLY mode (black hollow triangle), arrows indicate cooling sequence and heating sequence. Insert: temperature dependent hysteresis loop measured by SQUID (dots) in comparison to PLY data measured by XAS (lines).
Download figure:
Standard image High-resolution imageThe lower coordination at the surface implies reduced intermolecular interactions, which means that cooperative effects, induced by the Al2O3 substrate [16, 34], that tend to lock the [Fe{H2B(pz)2}2(bipy)] in the LS state, would be diminished at the surface. In this scenario, the influence of the substrate to film interface on [Fe{H2B(pz)2}2(bipy)] would favor the LS state within the bulk of the film, where the coordination is high. This would push the apparent SCO transition temperature, for the bulk of the film, to higher temperatures than the surface, where coordination is low. This is what is observed. As we previously showed, that for the ferroelectric polyvinylidene fluoride (PVDF), the interface interactions favor the HS state in [Fe{H2B(pz)2}2(bipy)] when the ferroelectric is poled towards the [Fe{H2B(pz)2}2(bipy)] molecular film [44, 45]. This interface with PVDF, unlike Al2O3, should favor the HS state in the bulk of the film, and the LS state at the surface, where coordination is low. As shown in figure 8, the x-ray absorption spectra, taken in the PLY mode and in the TEY mode for 20 molecular layers of [Fe{H2B(pz)2}2(bipy)] thin film on PVDF, taken at 150 K, indicate the presence of more HS state occupancy in the interior of the film (PLY) than at the surface (TEY). The electronic transition between spin states is enabled by a conformational change of the ligands around the Fe(II) ion. We suggest, that close to the interface this conformational change is sterically inhibited, whereas closer to the surface changes in conformation can be accommodated or even proliferated by neighboring molecules which are close to the interface. The local charge and strain environment is likely to influence the balance of electrostatic interactions between the ligands making the conformation associated with the LS/HS states favorable close to the interface.
Figure 8. X-ray absorption spectra of [Fe{H2B(pz)2}2(bipy)] thin film on PVDF substrate where the polarization has been poled towards the thin film, taken in the PLY mode (black) and in the TEY mode (red), at temperature 150 K. Insert: x-ray absorption spectra of [Fe{H2B(pz)2}2(bipy)] thin film on Al2O3 substrate taken in two modes at 150 K.
Download figure:
Standard image High-resolution image
Other explanations cannot be completely excluded. Thermal gradient effects cannot be, a priori, excluded completely on the basis of measurements done here. However, they seem unlikely on the basis of the agreement between the superconducting SQUID magnetometry and the x-ray absorption, taken in the PLY mode. Recent measurements [44] show the electrical resistance is much higher for [Fe{H2B(pz)2}2(bipy)] in the LS state than that in the HS state which might hint at a low thermal conductivity akin to a Wiedemann–Franz law [46]. This potentially permits thermal excitations, associated with the XAS measurement, so that the surface might locally heat more than the bulk due to the lower coordination of [Fe{H2B(pz)2}2(bipy)] species at the surface. If significant, this reduced thermal conductivity could lower the measured SCO transition temperature at the surface compared with the bulk, if significant. Yet such thermal conductivity effects should also serve to decrease the observed thermal hysteresis in the surface SCO transition temperature, which is not seen. Thermal excitations, near the surface, due to the x-ray fluence are unlikely to be the cause – especially given that the x-rays largely pass through the film almost unimpeded. It is hard to see how such thermal effects could be significant on a nanometer scale and remain sufficiently local so as not to perturb the bulk (interior) of the [Fe{H2B(pz)2}2(bipy)] molecular film. This explanation also cannot be reconciled with the results obtained for the [Fe{H2B(pz)2}2(bipy)] thin film on PVDF, shown in figure 8. An alternative explanation, for the observed difference between the surface and the bulk, involves quenching or screening of soft x-ray induced HS excited state configuration. Such quenching or screening of soft x-ray induced HS excited state configuration could indicate cooperative effect or intermolecular interactions, which should be more significant for the higher coordination number at the interface and would be expected to be less significant at the surface. This latter explanation requires a multi-excitation process, one to form the excited state configuration and a second for the core to bound excitation that is the basis for x-ray absorption spectroscopy. These multi-excitations processes, here, would have to occur on much shorter time scale than indicated in prior work [16, 34], i.e. seconds rather than minutes for a large ensemble of [Fe{H2B(pz)2}2(bipy)] species. Again, this explanation also cannot be reconciled with the results obtained for the [Fe{H2B(pz)2}2(bipy)] thin film on PVDF, shown in figure 8.
The temperature difference between the surface and the bulk spin crossover tranisition temperature, as seen in figure, helps explain the shift in the spin crossover transition temperature seen in magnetometry in figure 2. The Al2O3 interface likely locks some volume of the [Fe{H2B(pz)2}2(bipy)] thin film in the low spin state [34]. The remaining volume has a higher surface to volume ratio with decreasing film thickness, and thus more influenced by the surface volume, where the spin crossover transition is shifted to lower temperatures.
4. Conclusions
In conclusion, the bistability of the spin states and the spin state hysteresis have been observed in the films of hundreds of nanometers in thickness, indicating tunability of the energy barrier between the spin states in [Fe{H2B(pz)2}2(bipy)]. The thickness dependence of the hysteresis and the fact that the size of the crystallites are similar in these films, indicate that this effect comes from the [Fe{H2B(pz)2}2(bipy)]/Al2O3 interface [32, 47]. Microscopically, the effect of the interface appears to cause the SCO transition collectively at the crystallite level, which enhances the barrier between the spin states and generates hysteresis and bistability in [Fe{H2B(pz)2}2(bipy)]. The thickness dependence of the hysteresis in spin state also points to a possibility that the temperature range of the bistability can be broadened, perhaps to include room temperature, although this may require a SCO complex different from [Fe{H2B(pz)2}2(bipy)]. We also used the x-ray absorption spectroscopy and magnetometry study to investigate the electronic state of the [Fe{H2B(pz)2}2(bipy)] thin film on Al2O3 substrates. Cooperative effects have been revealed from the temperature dependent hysteresis loops and confirmed by differences in the SCO transition temperature at the surface and the bulk.
