Swift heavy ion irradiation of CaF₂ – from grooves to hillocks in a single ion track

The formation of surface nanostructures due to single ion impact is an intriguing phenomena in ion-surface interaction [1–8]. Swift heavy ion (SHI) as well as slow highly charged ion (HCI) irradiations show similarities in the nanostructure formation on different materials despite of the different primary excitation processes involved. While HCIs deposit their potential energy to the topmost atomic layers, SHIs transfer their energy by ionization and electronic excitation processes (electronic stopping) to the bulk and surface of the irradiated material. The subsequent energy transfer from the electronic to the lattice system leads to damage as well as material modifications at the impact site in the form of nanohillocks or craters (for a recent review see [9]). For the ionic crystal CaF₂, which is interesting for various applications in microelectronic and optoelectronic devices [10, 11], a large data set from different irradiation experiments is available which shows the creation of nanosized hillocks due to SHI and HCI irradiation under normal ion impact. For HCI irradiation of CaF₂ a so called phase-diagram [8] could be elaborated. It shows that hillock formation is only possible above a certain potential energy threshold of 12–14 keV. There the high energy deposition of HCI leads to melting of a nano-sized region around the impact site, followed by thermal expansion and rapid quenching, leading to permanent surface modifications in the form of small nanohillocks [12]. At considerably higher potential energies a further threshold has been predicted [13], above which sublimation/evaporation of atoms and clusters should occur. Since SHIs create similar nanostructures as HCIs [9], in this contribution we investigate nanostructure formation due to SHI irradiation, for which higher energy deposition is more easily achieved than via production of HCI in really high charge states. The SHI irradiation is performed under grazing incidence since this particular collision geometry forces the track to a region close to the surface comparable to the shallow damage of slow HCI.

The occurrence of nanohillocks induced by SHI on CaF₂ under normal incidence was first reported in 2002 by Müller et al [14]. These authors showed that the hillock height increases almost linearly with increasing energy loss reaching a height of 13 nm at 35 keV nm⁻¹. Further systematic studies [15–17] confirmed these observations and determined an energy loss threshold for hillock creation between S_e = 2.3–5.8 keV nm⁻¹. A similar energy loss threshold was found when measuring the CaF₂ volume expansion (swelling) [18] due to SHI irradiation. First AFM images of CaF₂ irradiated under grazing incidence were presented by Akcöltekin et al [19] and showed the creation of chains of single nanodots as already reported before for other materials like SrTiO₃ and TiO₂ [6, 19, 20]. Eddy current microscopy (ECM) measurements of the irradiated CaF₂ samples indicated that the produced nanodots predominantly consist of metallic Ca [21]. This observations suggested a depletion of fluorine, resulting in Ca colloids and were in good agreement with earlier transmission electron microscope measurements that showed the creation of intermittent tracks, consisting of aligned anion voids (or rather calcium inclusions) after irradiation with clusters of ions of a few tens of MeV [22]. The authors of [19] noted the limited spatial resolution of the AFM measurements of the tracks produced on CaF₂ because of the tip radius (convolution) and problems arising from the reactivity of the samples under ambient conditions, which causes the formation of adsorbate islands around the surface tracks, which eventually cover the whole sample and make prolonged measurements difficult.

In this contribution we show that heating of the CaF₂ surface under vacuum conditions largely prevents adsorbate island formation under ambient conditions. Using an AFM instrument with superior resolution, we are able to reveal a more complicated track structure on CaF₂ due to SHI impact than observed so far (section 3). To interpret our results we successfully apply a three dimensional extension of the two-temperature-model (section 4).

The irradiations have been performed at the IRRSUD beamline of GANIL, Caen, France. Ex situ cleaved CaF₂(111) crystals (Crystec, Korth) have been irradiated with $\sim 100$ MeV ²⁰⁸Pb²⁹⁺ (${{S}_{\text{e}}}=18$ keV nm⁻¹) or $\sim 95$ MeV ¹³⁶Xe²³⁺ (${{S}_{\text{e}}}=16$ keV nm⁻¹) under grazing angles of incidence, with S_e being the electronic stopping power calculated with SRIM [23]. The charge states of the used ions are close to the respective equilibrium charge states [24]. The targets were mounted on a vertical target holder, which could be rotated around the vertical axis by a stepping motor. The angle of incidence, measured with respect to the surface plane, was varied between ${{0.3}^{\circ}}$ and ${{3}^{\circ}}$ with an accuracy of ${{0.2}^{\circ}}$ [7]. In order to avoid overlapping of individual ion tracks an ion fluence between $1\times {{10}^{10}}$ ions cm⁻² and $5\times {{10}^{10}}$ ions cm⁻², depending on the incident angle, was chosen, leading to  ∼5 tracks per μm². After irradiation the samples were immediately inspected with a VEECO NanoScope III atomic force microscope in Caen. For more detailed investigation the samples were transferred to Vienna and studied with an Asylum Research Cypher Scanning Probe Microscope in tapping mode under ambient conditions. As probes, standard Si cantilevers OMCL-AC240TS-R3 (Olympus) with a resonance frequency of 70 kHz and a spring constant of 1.7 N m⁻¹ were used. Since the observed tracks are a convolution between the real topography and the tip, the AFM images were first unfolded with the software WSxM [25] by assuming a tip radius of curvature of 7 nm and afterwards evaluated with the software Gwyddion [26].

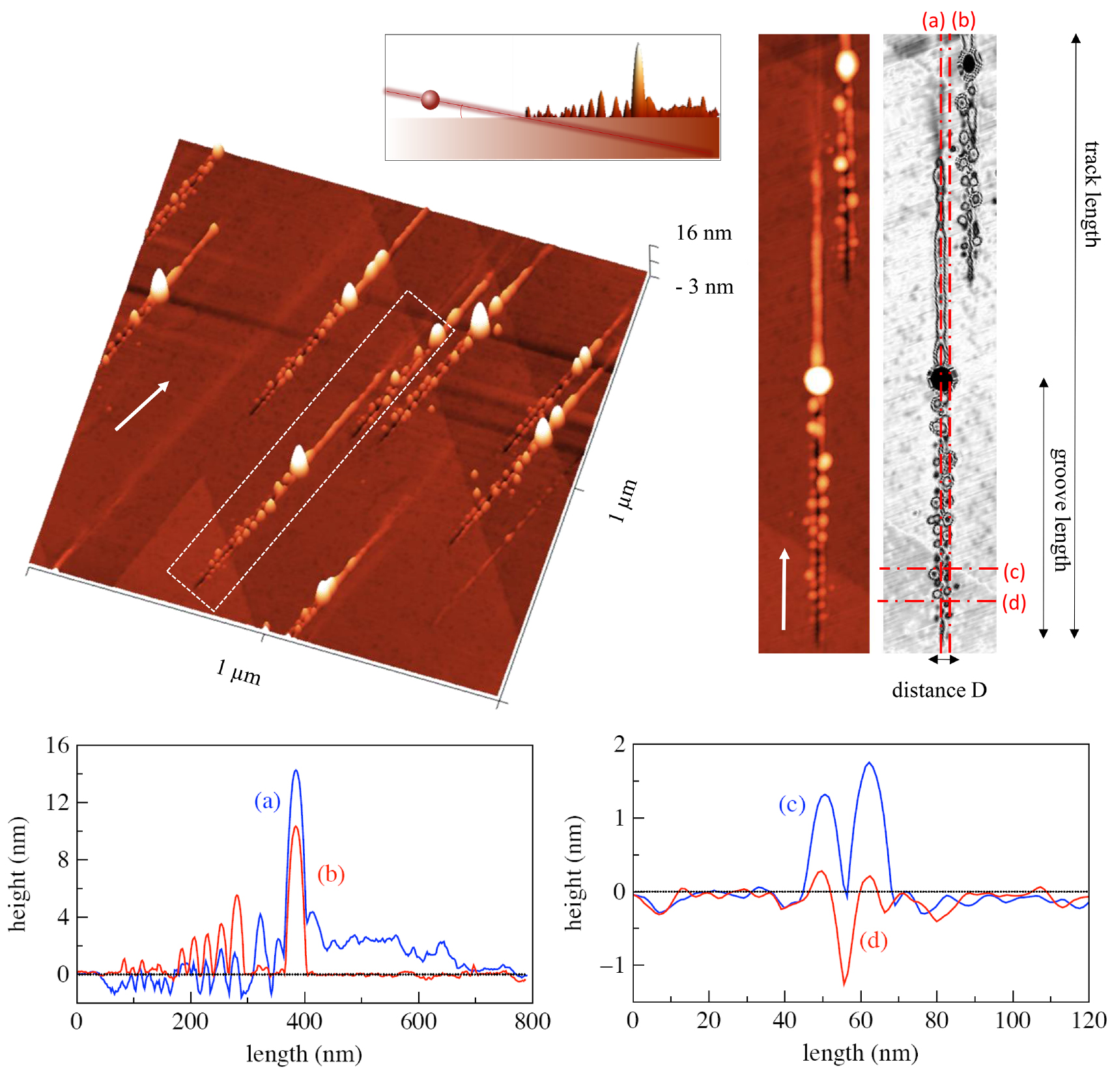

The 3D plot of figure 1 shows the typical topography of a CaF₂ surface after swift heavy ion irradiation under grazing incidence of ${{1.3}^{\circ}}$. It shows the creation of several parallel arranged tracks induced by individual ion impacts. The arrow indicates the direction of the incoming ions. The irradiation induced damage on CaF₂ remarkably differs from the modification previously observed on other insulating materials (SrTiO₃, TiO₂, Al₂O₃, SiO₂ [6, 7, 19]). The enlarged figure next to the 3D plot shows a detailed picture of one of the created tracks. At the impact site a  ∼400 nm long groove, bordered by a series of nanohillocks on both sides, is created. The end of the groove is marked by a single huge hillock which is followed by a protrusion of several 100 nm length. Longitudinal and cross profiles at various positions of the track enable the analysis of the height, depth and width of the created nanostructures, some examples are plotted in figure 1. The longitudinal profile (a) through the center of the track shows the formation of a groove at the impact site with a depth of 1–2 nm, terminated by a huge single hillock of 14 nm, which is followed by a decaying protrusion of some nm height. Profile (b) is shifted from the center towards one of the chains of the single nanohillocks. It shows a series of equally spaced nanodots with increasing height up to  ∼5 nm which eventually merge into the huge single nanodot at the end of the groove. The profile line to the right of this hillock demonstrates nicely the flatness of the CaF₂ sample (RMS-roughness  =  0.15 nm). The cross sections (c) and (d) through the former part of the track show the formation of single nanodots on the right and left side of the groove with a distance of  ∼15 nm in between.

Zoom In Zoom Out Reset image size

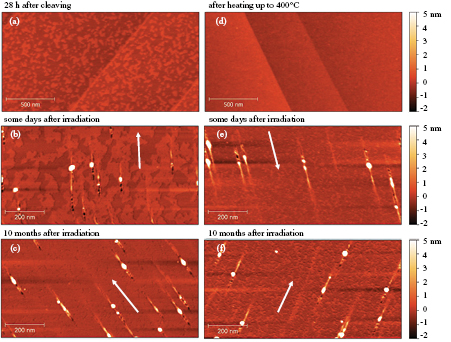

As mentioned before [19], AFM measurements on CaF₂ might be challenging due to the formation of adsorbate islands. Adsorption is enhanced in the vicinity of defects and tracks. Under UHV conditions the morphology of the surface is stable and does not change even after days [27]. However, in situ AFM measurements of irradiated samples are tedious and require dedicated equipment often not available at beamlines. During our measurements the adsorbate island formation with time was obvious. Figure 2(a) shows an unirradiated sample stored in air 28 h after cleaving where the formation of these islands is clearly visible. Also on an irradiated sample (figure 2(b)) these islands are clearly visible some days after irradiation. When repeating the AFM measurements ten months later, roughly the whole sample is covered (figure 2(c)) by adsorbates. Nevertheless the ion induced nanotracks are still observable. In the course of our investigations we have found a surface preparation technique, which largely prevents the formation of these adsorbate islands. Heating the cleaved samples to $400{{~}^{\circ}}$C under high vacuum conditions (10⁻⁶ mbar) for a prolonged time (several hours), seems to make the morphology of the surface stable even under subsequent exposition to air. Figures 2(d)–(f) show such a pretreated CaF₂ surface before (d), some days (e) and 10 months (f) after irradiation at room temperature. A possible explanation for the stabilization of such pretreated surface is that at moderate temperatures up to $240{{~}^{\circ}}$C, defects like H and F centers diffuse within the bulk towards the surface, leading there to flourine desorption and F center aggregation into metallic colloids [28, 29]. The metallic colloids progressively oxidize or hydroxilize by oxygen and water, therefore forming islands. By heating the crystal well above $250{{~}^{\circ}}$C, the evaporation temperature for calcium is surpassed, the surface metal (Ca colloids) is evaporated and an inert and stoichiometric CaF₂ surface is formed. On perfect CaF₂ surfaces water molecules do not adsorb at room temperature [30].

Zoom In Zoom Out Reset image size

Although this is only a tentative explanation for the positive effect of sample heating on adsorbate island formation, we found that the surface morphology and the induced tracks remain stable over an extended period of time. Some properties, like the height and the volume of the single nanodots, may change slightly with time due to the variation of the surface morphology and depend on the imaging mode as well, see [16]. But other properties such as the length of the groove or the length of subsequent track and the distance between the single nanodots of the chains remain the same and are therefore discussed in more detail in the next paragraph.

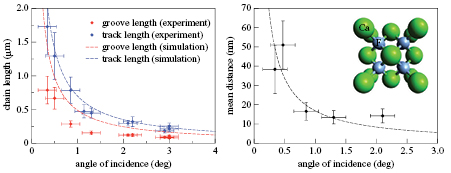

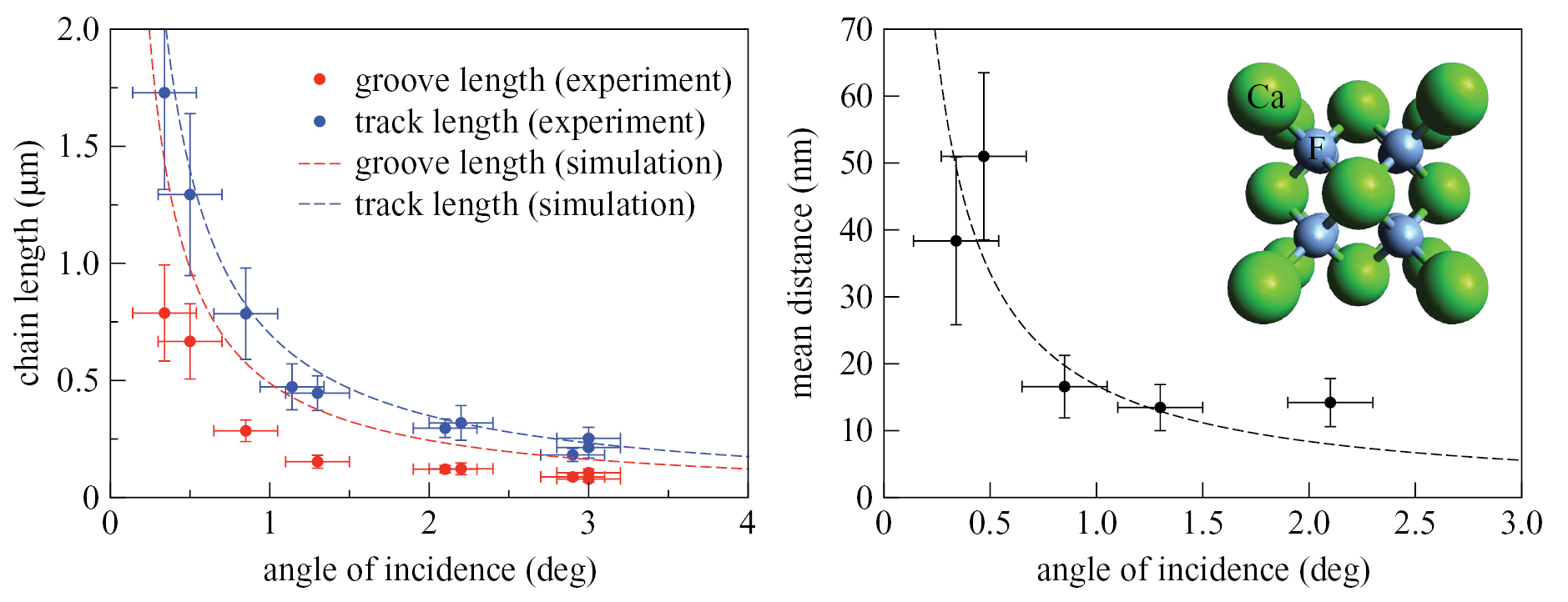

As reported previously for other materials like SrTiO₃ [19, 27], also for CaF₂ the length of the ion track can be controlled by varying the incident angle. As can be seen from figure 3 both, the length of the groove as well as the length of the whole track (for definition see figure 1), follow the relation $L=d/\tan \left(\alpha \right)$ when varying the impact angle from ${{0.3}^{\circ}}\leqslant \alpha \leqslant {{3}^{\circ}}$ in our experiment. This relation is simply motivated by a geometrical consideration, where L is the track/groove length and d the maximum depth from which this particular ion induced modification can still be detected at the surface. From such a fit the characteristic depth for the groove formation is evaluated to be around d  =  4.8 nm while for the whole track length a value of d  =  10.6 nm is found. The single hillocks along the borders of the groove are periodically arranged and their distance also follows a similar $a/\tan \left(\alpha \right)$ relation with the value of a being close to the lattice constant of 5.462 Å (see figure 3).

Zoom In Zoom Out Reset image size

The SHI induced damage created on CaF₂, more precisely the created grooves surrounded by hillocks followed by a single protrusion, differs from the nanostructure formation on other materials. The chain of single nanodots on SrTiO₃ and TiO₂ could be successfully interpreted as remnants of molten zones from rapidly quenched thermal spikes and the appearance of equidistant nanodots attributed to the fact that the ions cross regions with varying electron density [6]. Recently, for SrTiO₃ a so called rift directly in front of the hillock chain has been reported [31], similar to the rifts found in SiC [7]. In contrast to the case of CaF₂, the rifts were not bordered by hillocks.

From our AFM measurements of CaF₂, which show the formation of a deep groove with bordered hillocks along the impacting trajectory, we conclude that not only melting but also sublimation processes become relevant for this particular track formation. When a SHI with sufficient kinetic energy passes through material, several processes take place on different time scales: in the first fractions of a femtosecond the projectile energy is deposited into the electronic system by excitation and ionization processes, in the following several 100 femtoseconds the energy dissipates from the electronic to the lattice system and in the next ten picoseconds (or more) target material is restructured due to lattice dynamics.

To check if and at which locations the lattice temperature of the irradiated CaF₂ samples due to energy deposition of the incident ions actually surpasses the sublimation temperature necessary for groove formation, and where the melting temperature for hillock formation, calculations based on the two-temperature-model (TTM) [32, 33] have been performed. The TTM is based on two coupled heat diffusion equations, one for the electron and one for the phonon system, in which the electron–phonon coupling parameter g controls the energy transfer from the electronic to the lattice system. Since the irradiations have been performed under grazing angle of incidence and the cylindrical symmetry assumed in the conventional TTM is therefore broken, a fully three-dimensional version of the TTM had to be used [7, 34]. In order to compare our experimental data, we chose an incidence angle of ${{0.5}^{\circ}}$ by setting up a simulation box with length ${{x}_{\text{box}}}=3000$ nm, width ${{y}_{\text{box}}}=50$ nm and depth ${{z}_{\text{box}}}=50$ nm. The simulation box is surrounded by a thermal bath with van Neumann boundary conditions for the surface. Inside the simulation box, the two equations

$$\begin{eqnarray}&&{{C}_{\text{e}}}\left({{T}_{\text{e}}}\right)\centerdot \frac{\partial {{T}_{\text{e}}}}{\partial t}\left(\vec{r},t\right)=\nabla \centerdot \left({{\kappa}_{\text{e}}}\left({{T}_{\text{e}}}\right)\,\nabla {{T}_{\text{e}}}\left(\vec{r},t\right)\right)\\ &&-g\centerdot \left({{T}_{\text{e}}}\left(\vec{r},t\right)-{{T}_{\text{p}}}\left(\vec{r},t\right)\right)+S\left(\vec{r},t\right)\\ &&{{C}_{\text{p}}}\left({{T}_{\text{p}}}\right)\centerdot \frac{\partial {{T}_{\text{p}}}}{\partial t}\left(\vec{r},t\right)=\nabla \centerdot \left({{\kappa}_{\text{p}}}\left({{T}_{\text{p}}}\right)\,\nabla {{T}_{\text{p}}}\left(\vec{r},t\right)\right)\\ &&+g\centerdot \left({{T}_{\text{e}}}\left(\vec{r},t\right)-{{T}_{\text{p}}}\left(\vec{r},t\right)\right)\end{eqnarray}$$

are solved. The subscripts e and p refer to electron and phonon quantities, respectively. $T\left(\vec{r},t\right)$ are the temperatures, C(T) and $\kappa (T)$ are the heat capacity and thermal conductivity, respectively. For the lattice as well as for the electrons we use the relation $\kappa =D\times C$ with D being the diffusivity. For the phonons ${{\kappa}_{\text{p}}}$ can then be calculated from ${{D}_{\text{p}}}\times C$ with a constant lattice diffusion of ${{D}_{\text{p}}}=0.368$ ${{\mathring{\rm A}}^{2}}$ fs⁻¹. For the electrons we assume that the passing ion will on average excite one electron per CaF₂ molecule into the conduction band of CaF₂ with a mean free path of ${{\lambda}_{\text{e}}}=10$ Å. Based on the free electron gas, we can calculate the electron density and the Fermi velocity ${{v}_{\text{F}}}=h/\left({{m}_{\text{e}}}{{\lambda}_{\text{F}}}\right)$, respectively. The electronic heat capacity can then be calculated with the diffusivity given by ${{D}_{\text{e}}}=1/3{{\lambda}_{\text{e}}}{{v}_{\text{F}}}$. The electron–phonon-coupling constant $g=1.2\times {{10}^{19}}$ J (sm³K)⁻¹ was calculated from the bandgap of CaF₂ with a value of 11.8 eV. For the source term $S\left(\vec{r},t\right)$ we used the expression of Waligorski [35] using a mean ionization potential of 0.137 keV corresponding to the stoichiometry of CaF₂.

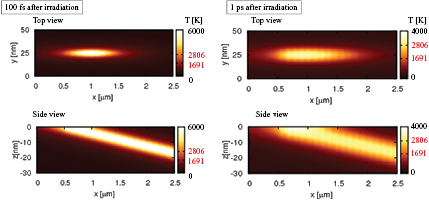

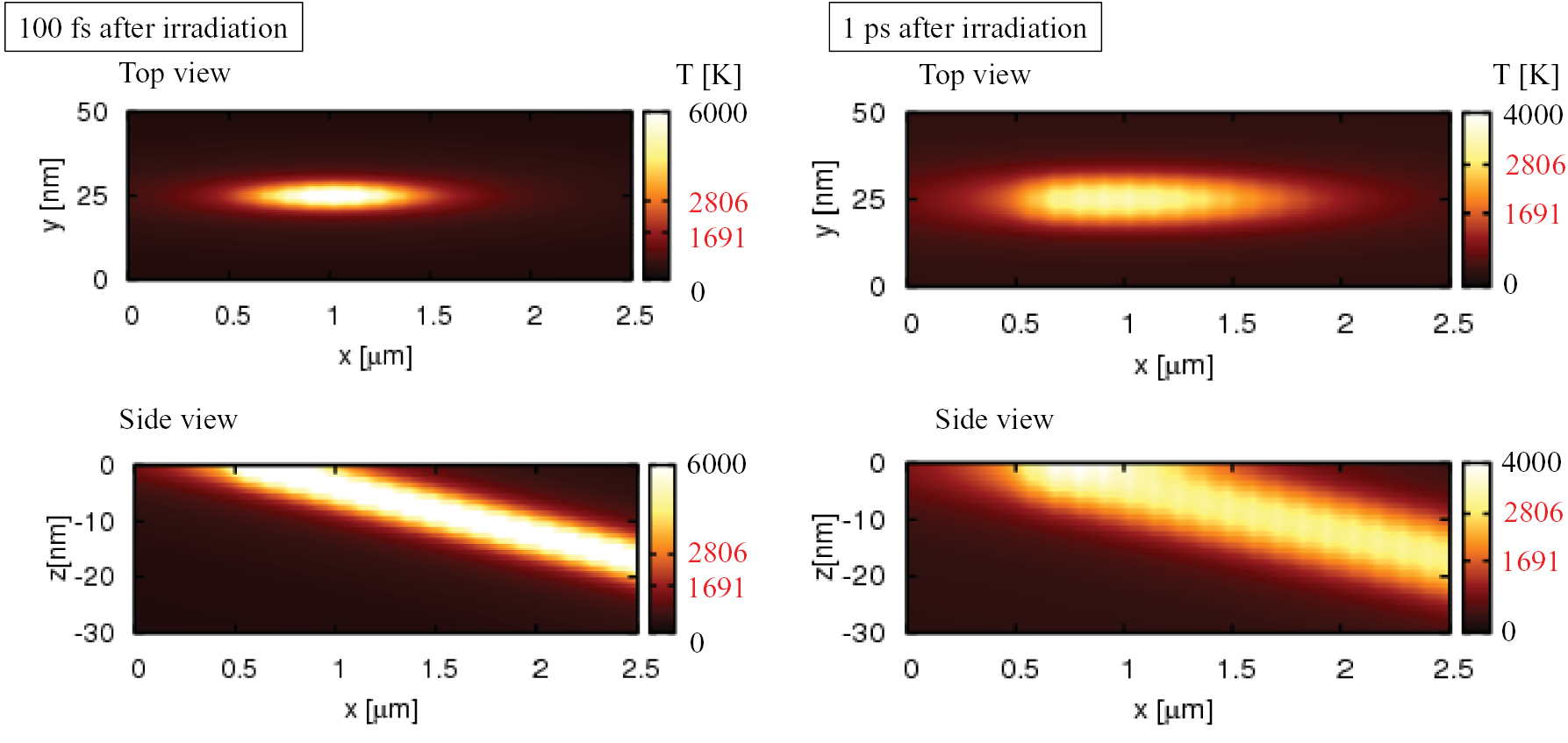

The calculations provide a temperature profile of the surface and the bulk of CaF₂ after SHI impact under grazing incidence. Figure 4 shows the top-view and side-view of the sample temperature 100 fs and 1 ps after ion impact, respectively. The highlighted temperatures of 1691 K and 2806 K mark the region in which the melting and the sublimation temperature of CaF₂ is surpassed. To compare the results of the simulation with our experimental findings, calculations under different incident angles have been executed. The extension of the surface region, where the sublimation/melting temperature of CaF₂ is surpassed, is compared with the experimental values found for the groove and track length respectively. In figure 3 both, the experimental and the simulation results are compared. While the experimental and simulated data for the total track length are in good agreement, the simulation data overestimate the groove length. This could be due to the omission of the latent heat from the calculation or the rather asymmetric track formation. At the 'impact site' the target atoms gain enough energy to be ejected from the surface. Sublimation leads to groove formation. Around the hot zone, where only the melting temperature is surpassed, melting, followed by thermal expansion and rapid quenching, leads to hillock formation. As stated for other materials [6, 20], the creation of a chain of nano-sized hillocks during SHI irradiation at grazing angles of incidence is coupled to the spatially inhomogeneous electron density of the material. Every time the projectile travels through a region of high electronic density, energy can effectively be deposited into the electronic system. Since the electron density corresponds to the periodicity of the crystal, the formation of equidistant hillocks has to be expected.

Zoom In Zoom Out Reset image size

The deeper the ions penetrate the bulk, the less target atoms can leave the surface. More deeper layers are molten and push material towards the surface, thus filling the initial groove with material. An increase of the hillock height, surrounding the hot zone, is visible which eventually combine to one single huge hillock. Further penetration of the swift projectile into deeper layers of the target is accompanied by a single long protrusion from the (quenched) thermal expansion, which slowly fades until the track vanishes. As a further agreement between measurements and simulation we note that the distance D between the two chains of hillocks (for details see figure 1) corresponds well with the calculated lateral extension of the melt zone of  ∼10–15 nm (see top view images of figure 4 and also [36]).

The simulations therefore show that target regions in which the sublimation and melting temperature of CaF₂ is surpassed, are of comparable dimension as the observed tracks. Similar nanostructures were also observed on other materials [19], but due to the lack of detailed imaging no reliable explanation could be given. The next step will be to check the hypothesis by performing irradiations of other materials with SHI and comparing the found nanostructures with the calculated temperatures in the locally heated areas.

We have shown that SHI irradiation of CaF₂ leads to a complex form of ion tracks consisting of a long groove bordered by chains of equally spaced nanodots eventually followed by a single chain of unseparated nanodots with a single high hillock at the beginning. The length of the groove as well as the length of the whole nanotrack can be controlled by varying the angle of incidence. The assumption that the grooves and the surrounding hillocks are induced by sublimation and melting processes, respectively, and the following chains are created by molten material from deeper layers pushed towards the surface, is supported by 3D-TTM calculations. Further investigations by experiments and simulations promise a deeper understanding of the fundamental mechanism of ion-solid interaction processes as well as control over the production of this complex form of nanostructure.
