A SURVEY OF STELLAR FAMILIES: MULTIPLICITY OF SOLAR-TYPE STARS

While we chose the 5% error threshold to limit our sample to good-quality parallax measures, this raises the question of a potential bias, namely, could astrometric perturbations from close companions lead to relatively large errors in the Hipparcos astrometry, preferentially excluding these binaries from our study? Alternatively, the large errors could be due to the faintness of the sources, which would imply stars too far to fit within our volume limit, so a closer inspection of these stars is warranted. Table 3 lists the 24 stars that were left out of the sample because their parallax errors were greater than 5% of the corresponding parallax value. Columns 13 and 14 list an alternate parallax and its corresponding error, estimated as identified by Column 15.

Five stars have parallaxes with better than 5% accuracy for a physically associated companion. One of these (HD 53706) is included in this work as a companion of HD 53705, while the remaining four are too distant to make the 40-mas cutoff. For an additional 10, our distance estimates using Hipparcos photometry yields parallaxes below 17 mas. While these estimates are crude, they nevertheless place these stars far beyond our distance limits, justifying their exclusion. It should be noted that these distance estimates assume that the stars are main-sequence dwarfs. If they are subdwarfs, their actual distances will be less than the photometric estimates. However, only 7% of our sample is comprised of subdwarfs, and so any effect of this error on these 24 stars is minimal. Two more entries in the table (HD 139460 and 139461) represent a physically bound pair, of which HD 139461 is itself a spectroscopic binary with an M-dwarf companion. The spectral-type measures of these stars from Gray et al. (2003) and the consistent mass estimates from Tokovinin & Gorynya (2001) place this system beyond the 25 pc limit. This leaves only seven stars that could possibly lie within the distance limit of our sample. Two of these (HD 23439 and 217580) have single-lined spectroscopic (SB1) companions and a third (HD 212697) has a common proper-motion (CPM) companion. The implied multiplicity fraction is consistent with our overall results, so the effect of this possible bias is minimal.

The Hipparcos catalog contains astrometry of unprecedented quality of over 118,000 stars. The faintest target that could be reached by the telescope was about V = 12.4 mag (Perryman et al. 1995), but the catalog is complete to significantly brighter limits. The Hipparcos target list was selected based on two criteria. About 52,000 "survey" stars were selected as a complete sample down to well-defined magnitude limits varying from 7.3–9.0 mag depending on the spectral type and the galactic latitude. Stars later than G5 were restricted to a limit brighter by 0.6 mag as compared with earlier type stars to preferentially select nearby A, F, and early G-type stars over distant red giants, which would otherwise have dominated the list (Turon et al. 1992a, 1992b). The remaining 66,000 "faint" stars were selected down to about 12 mag from various proposals submitted to the Hipparcos Scientific Selection Committee (Turon et al. 1992b). Given that the current sample includes several stars fainter than the 7.3 mag limit to which the catalog is complete for all spectral types and galactic latitudes, a further analysis is warranted to ensure that our sample does not suffer from any brightness limits. Such limits, if present, would introduce the Malmquist bias, favoring the selection of binaries in our most distant bins.

First, we check the completeness of the Hipparcos catalog against the Tycho-2 catalog, which is 99% complete down to V = 11.0 mag (Høg et al. 2000). Figure 2 shows the V magnitude distributions of the two catalogs as well as the percentage of Tycho-2 stars that are also in the Hipparcos catalog. A few things are apparent from this figure. First, the linear slope on a logarithmic scale of the Tycho-2 catalog out to V ∼ 11 confirms its completeness out to that limit. Similarly, the Hipparcos catalog is seen as complete out to about 7.5 mag, no surprise given the limits discussed above. Second, while the Tycho-2 distribution falls off rapidly beyond the peak, the Hipparcos distribution shows a moderated fall. This is somewhat due to the graded Hipparcos limits based on spectral types and galactic latitudes, but mainly because of the selection of more than half of the Hipparcos stars fainter than the completeness limits based on their scientific rationale. Presumably, most nearby solar-type stars would have made this cut, not only because of their interest to various scientific investigations but also because most of these had existing ground-based parallax measurements, which the Hipparcos mission could verify and improve.

Zoom In Zoom Out Reset image size

Figure 3 shows the distance distribution of the Hipparcos stars conforming to our sample selection criteria, but expanding the distance limit out to 35 pc. The dotted curve marks the expected distribution for a complete sample extrapolated from the 15 pc sample. This extrapolation makes two assumptions. First, it assumes that the space density of nearby stars is uniform, which is true for our sample of stars within 25 pc. Second, it assumes that the 15 pc sample is complete. This is justifiable because our subsample within 15 pc includes only two stars fainter than the 7.3 mag limit to which the Hipparcos catalog is complete for all spectral types and galactic latitudes. One of these is within the Hipparcos magnitude limit for its galactic latitude, given the specific magnitude limit definitions in Turon et al. (1992b), and the other is just 0.14 mag fainter than the limit. Furthermore, these two stars are among the most intrinsically faint stars in the sample (spectral types K2.5 V and K3 V) and close to the limit of 15 pc (both are 14 pc away). Thus, the chances of any stars being left out of the 15 pc sample due to brightness limits are slim. Given this, Figure 3 suggests that the actual 25 pc sample is also complete and does not suffer from brightness limits as the actual distribution matches the expected one fairly well. The deficiency in the 23–25 pc bin is within a 1σ deviation for Poisson statistics and is made up in the very next distance bin, suggesting that it may be due to statistical scatter alone. While the overall profile of the curve shows the effects of brightness limits creeping in, they occur beyond the 25 pc limit of our sample. We will revisit this topic in Section 5.2 using the multiplicity data gathered by this effort to show that the percentage of single stars is statistically equivalent for various distance-limited subsamples, consistent with the expectations of a complete volume-limited sample.

Zoom In Zoom Out Reset image size

The DM91 multiplicity survey was based on a volume-limited sample of 164 solar-type stars, selected with parallaxes of 45 mas or greater, spectral types F7–G9, and spectral classes IV-V, V, or VI. Selecting a sample subject to these same criteria from the Hipparcos catalog results in 148 primaries, but only 92 of these overlap with the DM91 sample. This indicates that 72 stars (44%) of the DM91 sample are now known to lie outside their selection criteria and 56 (38%) of the stars meeting their criteria were not included in their sample. The important question is whether these substantial differences introduce possible biases that would taint their multiplicity results. While the distribution of the CNS stars in Halbwachs et al. (2003) showed no systematic deviations from the main sequence when plotted using Hipparcos data, Figure 4 shows a preferential shift for the DM91 sample. The majority of stars that are now known to lie outside the DM91 criteria are elevated above the main sequence and even include evolved stars, demonstrating the need for an updated survey. Furthermore, a closer inspection of the Hipparcos stars matching the DM91 criteria reveals that several are erroneously included due to incorrect spectral-type assignments in Hipparcos. Our sample selection, based on the B − V color, mitigates this problem.

Zoom In Zoom Out Reset image size

Due to the proximity of the stars studied here, their proper motions are generally quite large (367 of the 453 stars have proper motions larger than 02 yr⁻¹). This, along with archival digitized images taken several years apart, facilitates the identification of CPM companions by blinking the images. The primary source of the archival images utilized in this effort is the multi-epoch STScI Digitized Sky Survey⁹ (DSS). In some cases, when the time interval between the two DSS images was not sufficient to easily detect the proper motion of the primary star, SuperCOSMOS Sky Survey (SSS; Hambly et al. 2001) images were used for the earlier epoch, significantly increasing the apparent motion seen upon blinking. Figure 6 shows the epoch distribution of the images blinked. The earlier epoch distribution is bimodal, with 266 frames from 1949 to 1957 for predominantly northern hemisphere stars and 187 frames from 1974 to 1989 for mostly southern hemisphere stars. The later epoch is more tightly constrained, with all 453 frames obtained during 1984–2000. The resulting time interval between the pairs of images blinked varies from 1 to 49 years, with well over half of the intervals exceeding 28 years. Figure 7 illustrates this method with the two images blinked for HD 9826 (υ And), allowing the identification of the CPM companion and the detection of two WDS entries as unrelated field stars with minimal proper motion. The effect of the target star's proper motion, while noticeable in these printed images, is readily apparent when they are blinked numerous times in quick succession. While we utilized image subtractions as an additional tool, our experience shows that a visual examination by blinking the images offers the most effective method for identifying candidate CPM companions. This technique is well suited for identifying companions with separations greater than ∼15''–30'' from the primary (depending on its brightness), as companions closer than this are often buried in the saturation around the bright primaries. However, in many instances, bright companions inside the saturation region can be identified by twin, comoving diffraction spikes.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

3.1.1. CPM Companions Identified

To enable an effective search out to a linear radius of about 10,000 AU from each primary, we blinked 22' square images for systems closer than 20 pc and 15' square images for the more distant systems. The larger images were blinked as four sub-images of 15' square from each corner, allowing for a closer inspection. Figure 8 shows the distribution of the linear projected separation searched around each primary, illustrating that most systems were effectively searched out to a separation of ∼10,000 AU. While companions farther than this separation limit have been reported (e.g., Latham et al. 1991; Poveda et al. 1994), such wide companions are rare and are not often expected to survive dynamical interactions in clusters (Parker et al. 2009), so the range selected here enables an effective search of the region containing the vast majority of companions. Companions down to R = 17 mag could be readily identified in the images used, as evidenced by the refuted candidate companion to HD 141004, which has R = 16.9 and was clearly seen above the background. In comparison, the apparent R magnitude of an M5 dwarf at 25 pc is 12.5 (Cox 2000), and the star–brown dwarf transition occurs at about R = 19.0 at 25 pc, estimated using data from Dahn et al. (2002). This implies that our search is sensitive to all but the lowest mass stellar companions. Of the 453 image pairs blinked, 44 did not show a discernible motion of the primary and an additional 43 had marginally detectable motions. Hence, for 366 of the 453 targets investigated, this technique proved to be fully effective in identifying most CPM stellar companions, and somewhat effective for an additional 43.

Zoom In Zoom Out Reset image size

The 366 primaries adequately inspected reveal 88 candidate companions in the vicinity of 79 primaries. These include a few previously reported CPM companions at wider separations than our systematic search, which we confirmed by blinking adequately large images. While CPM is necessary for a physical association, it is by no means sufficient. Accordingly, we confirm candidates as physical only if their (1) independently measured parallaxes and proper motions from the literature are consistent with the primaries' Hipparcos values, (2) existing or new photometry and/or spectral types indicate distances compatible with the primaries' Hipparcos parallaxes, (3) multiple resolved images show conclusive orbital motions, or (4) proximity to the primary and matching large proper motions (greater than 05 yr⁻¹) argue for a physical association. Table 4 lists every candidate identified by this method, grouped by the ones confirmed as physical and those refuted by follow-up work. Table 5 lists the candidates confirmed or refuted by their photometric distance estimates, derived as described in Henry et al. (2004), along with their spectral types, proper motions, and photometry. The separations and position angles listed in Table 4 are approximate measurements from the more recent of the images blinked, whose epoch is also noted in the table. These measurements are generally good to within a few arcseconds and degrees, respectively, except for measurements between twin diffraction spikes, which typically have larger uncertainties. The separations are repeated in Table 5 to identify the star whose distance is estimated. Overall, this method led to the identification of 70 CPM companions, including four new discoveries. The new companions are identified in the archival images in Figure 9. In addition, while many of the entries in Table 4 were previously suspected CPM companions, we confirm their definitive physical association as documented in the last column of the table.

Zoom In Zoom Out Reset image size

Table 4. CPM Companions Identified

WDS			Primary	CPM Candidate Companion				Reason
ID	Disc.	Pair	Name	ρ ('')	θ (°)	Epoch	Name	Code
Physically associated CPM companions
...	...	...	HD 004391a	49	240	1993.70	...	1
01158−6853	HJ 3423	A-CD	HD 007693	318	315	1989.73	HD 7788	2
01368+4124	LWR 1	AD	HD 009826	55	150	1989.77	υ And B	3
01398−5612	DUN 5	AB	HD 010360	13	185	1997.61	HD 10361	4
02361+0653	PLQ 32	AB	HD 016160	162	110	1990.73	NLTT 8455	1
02482+2704	LDS1138	AB	HD 017382	21	27	1989.98	NLTT 8996	1
02556+2652	LDS 883	AC	HD 018143	45	267	1989.98	NLTT 9303	2
03042+6142	LDS9142	AC	HD 018757	262	68	1993.94	NLTT 9726	1
03182−6230	ALB 1	AB	HD 020807	308	220	1996.87	HD 20766	2
04076+3804	ALC 1	AE	HD 025998	746	100	1989.76	HD 25893	2
04153−0739	STF 518	AC	HD 026965	81	99	1985.96	LHS 25	2

Notes. Reason code values: (1) photometric distance to the CPM candidate matches the Hipparcos distance to the primary (see Table 5). (2) Published parallax and proper motion for the CPM candidate matches the corresponding primary's values from Hipparcos. (3) Spectroscopic distance to the CPM candidate matches the Hipparcos distance to the primary. (4) Known companion with a published orbit (each of these were seen as comoving diffraction spikes). (5) Published evidence, see Section 4.3. (6) Companionship implied by proximity to the primary and a matching, large proper motion. (7) Measurements of the pair in the WDS confirm orbital motion. (8) While the proper motion is similar enough to enable selection as a possible CPM companion, the numerical value for the candidate in catalogs (Høg et al. 1998; Salim & Gould 2003; Zacharias et al. 2004b; Lépine & Shara 2005, Hipparcos) are significantly different from the primary's Hipparcos values, ruling out a physical association. (9) The candidate companion is a non-stellar artifact such as a plate defect. (10) Photometric distance to the CPM candidate is significantly different than the primary's Hipparcos distance (see Table 5). ^aNew companion discovered by this effort.

Only a portion of this table is shown here to demonstrate its form and content. A machine-readable version of the full table is available.

Download table as:  DataTypeset image

Table 5. Spectral Type, Proper Motion, and Photometry of CPM Candidates

Primary	Comp.	Spec.		μα	μδ		CCD Magnitudes						Nbr	Infrared Magnitudes			D	Error
Name	ρ ('')	Type	Ref.	(mas yr−1)		Ref.	V	Ref	R	Ref.	I	Ref.	Obs	J	H	K	(pc)	(pc)
(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)	(10)	(11)	(12)	(13)	(14)	(15)	(16)	(17)	(18)	(19)
Physically associated CPM companions
HD 004391	49	...	...	...	...	...	14.36	1	13.14	1	11.46	1	3	9.88	9.34	9.03	19.3	3.1
HD 016160	162	M3.5V	2	1813	1447	3	11.68	1	10.47	1	8.87	1	1	7.33	6.79	6.57	6.9	1.1
HD 017382	21	...	...	275	−123	3	16.5	4	13.89	5	...	...	...	10.73	10.17	9.87	22.1	9.0
HD 018757	262	...	...	717	−697	3	12.65	6	...	...	10.07	7	...	8.88	8.33	8.10	22.6	5.2
HD 032778	81	...	...	656	−70	8	10.49	1	9.64	1	8.85	1	1	7.86	7.32	7.06	23.9	3.9
HD 043162	164	...	...	−32	106	7	12.96	1	11.78	1	10.21	1	1	8.72	8.16	7.87	13.2	2.0
HD 043587	102	...	...	−212	166	7	13.29	1	12.11	1	10.58	1	1	9.09	8.56	8.27	16.5	2.5
HD 061606	57	...	...	67	−286	9	8.93	10	8.09	10	7.34	10	...	6.38	5.70	5.57	12.5	2.1
HD 063077	914	DC	11	−246	1654	7	16.60	1	15.97	1	15.39	1	1	14.78	14.55	14.40	15.3	1.1
HD 065907	61	...	...	521	103	12	9.33	12	...	...	7.47	7	...	6.91	6.28	6.06	17.5	4.8
HD 074385	46	...	...	−294	−84	13	12.68	14	...	...	...	...	...	9.00	8.42	8.17	22.0	3.4
HD 075732	84	...	...	−482	−238	8	13.26	1	11.91	1	10.24	1	2	8.56	7.93	7.67	8.7	1.4
HD 082342	11	M3.5V	15	−75	386	13	13.14	1	12.03	1	10.58	1	1	9.27	8.77	8.50	23.7	4.2
HD 082443	65	M5.5V	15	−134	−242	3	16.8	4	14.39	5	12.07	7	...	10.36	9.86	9.47	12.6	5.1
HD 096064	13	...	...	−189	−113	16	10.0	4	...	...	...	...	...	7.27	6.62	6.42	17.0a	2.6
HD 100180	17	...	...	−328	−189	3	9.24	17	7.75	7	...	...	...	7.04	6.52	6.37	23.5	4.3
HD 144579	70	...	...	−547	55	3	14.23	18	12.75	18	11.47	18	...	9.90	9.45	9.16	25.4b	7.3
HD 157347	49	M3.0V	1	...	...	...	12.18	1	11.06	1	9.64	1	3	8.26	7.68	7.44	13.4	2.1
HD 186858	810	F5.5IV-V	19	19	−447	3	9.25	20	8.38	21	...	...	...	6.64	6.12	6.00	15.4	2.9
HD 187691	23	...	...	...	...	...	12.67	1	11.55	1	10.04	1	1	8.89	8.30	8.01	20.0	4.8
HD 191785	102	M3.5V	1	−432	392	3	13.93	1	12.73	1	11.14	1	1	9.63	9.11	8.88	20.9	3.4
HD 197076	125	M2.5V	10	108	312	3	11.88	1	10.80	1	9.47	1	1	8.16	7.65	7.42	15.8	2.5
HD 198425	33	...	...	−158	−278	3	18.6	4	15.47	7	13.68	7	...	11.78	11.18	10.86	25.7	7.3
HD 203985	88	M3.5V	1	...	...	...	13.49	1	12.29	1	10.71	1	1	9.22	8.62	8.35	15.9	2.4
HD 211472	76	...	...	205	66	3	13.93	22	...	...	...	...	...	9.72	9.19	8.93	22.3	3.5
HD 212168	20	G0V	19	60	35	23	8.80	1	8.09	1	7.43	1	1	6.56	5.94	5.81	16.9c	2.8
HD 218868	50	...	...	−50	−322	7	15.32	22	...	...	12.57	7	...	10.84	10.23	9.90	25.9	6.0
HD 263175	30	M0.5V	10	−454	99	3	12.15	10	11.18	10	10.11	10	...	8.99	8.43	8.18	30.6	4.8
Refuted CPM candidates
HD 009540	336	...	...	288	−153	13	12.75	1	11.94	1	11.12	1	1	10.10	9.47	9.35	69.1	11.7
HD 012846	304	...	...	−32	−102	7	11.48	21	10.62	21	9.84	7	...	10.18	9.80	9.66	81.7	13.2
HD 026923	223	...	...	−15	−131	...	9.99	1	9.50	1	9.06	1	1	8.43	8.04	7.88	55.6	8.9
HD 073667	335	...	...	58	185	3	15.35	1	14.27	1	12.96	1	1	11.70	11.18	10.92	82.4	13.4
HD 075767	385	...	...	58	−178	3	13.77	1	12.74	1	11.51	1	1	10.22	9.57	9.30	38.1b	6.8
HD 096064	296	...	...	...	...	...	16.20	1	15.36	1	14.60	1	1	13.63	13.06	12.85	355.8	58.7
HD 097658	346	...	...	...	...	...	15.94	1	14.95	1	13.61	1	1	12.32	11.74	11.56	109.4	18.3
HD 114783	240	...	...	...	...	...	9.78	1	9.31	1	8.90	1	2	8.32	7.90	7.79	54.0	9.3
HD 141004	235	...	...	...	...	...	18.35	1	16.92	1	15.11	1	2	13.40	12.85	12.59	76.9	13.2
HD 206860	591	...	...	111	−89	24	15.04	21	14.07	7	13.63	7	...	12.77	12.15	12.06	300.0	83.9

Notes. Reference codes for Columns 4, 7, 9, 11, and 13: (1) CTIO observations obtained for this work; (2) Henry et al. 2002; (3) The LSPM North catalog (Lépine & Shara 2005); (4) Visual Double Stars in Hipparcos (Dommanget & Nys 2000); (5) The Guide Star Catalog, version 2.2.01 (I/271); (6) Catalog of stars with high proper motions (I/306A); (7) the USNO B 1.0 Catalog (Monet et al. 2003); (8) Revised Luyten Half-Second Catalog (Bakos et al. 2002); (9) The Revised NLTT Catalog (Salim & Gould 2003); (10) Reid et al. 2004; (11) Kunkel et al. 1984; (12) All-sky Compiled Catalog (Kharchenko 2001); (13) NLTT Catalog (Luyten 1980); (14) The Catalog of Nearby Stars (Gliese & Jahreiß 1991); (15) Hawley et al. 1996; (16) Yale Trigonometric Parallaxes, Fourth Edition (van Altena et al. 1995); (17) An Astrometric Catalog (Rapaport et al. 2001); (18) Weis 1996; (19) Gray et al. 2003, 2006; (20) The Tycho-2 Catalog (Høg et al. 2000); (21) The NOMAD Catalog (Zacharias et al. 2004a); (22) The Guide Star Catalog, version 2.3.2 (Lasker et al. 2008); (23) Yale Zones Catalog Integrated (I/141); (24) The DENIS Consortium (The 2005). ^aWhile this distance is too low compared to the primary's Hipparcos distance of 24.6 pc, the companion is a roughly equal-brightness binary. Adjusting the Hipparcos and 2MASS magnitudes accordingly changes the distance estimate to 24.0 ± 3.7, a much better match with the distance to the primary. ^bSee Section 4.3 for a discussion of these photometric distance estimates and the status of these companions. ^cEven though the companion is HIP 110719, its Hipparcos astrometry has large errors, necessitating the photometric distance check.

Download table as:  ASCIITypeset image

3.1.2. Linear Motions of Field Stars

In addition to producing unprecedented astrometry, the Hipparcos mission identified many stellar companions, which we evaluate next for our sample stars. The primary identification of companions in the Hipparcos catalog is reported in field H59, with further details in the Double and Multiple Systems Annex. Potential companions are identified as one of the five types by various multiplicity flags: C, G, O, and X, which are discussed in the subsections below, and V (photocentric movement due to the variability of one or more components), which was not assigned to any star of this survey. In addition to the multiplicity flag, field H61 of the main catalog lists an "S" for suspected non-single stars, based on the astrometric fit obtained, although a satisfactory double star solution could not be obtained. Some of these correspond to the "X" entries of field H59. Also, field H52 contains a "D" (duplicity-induced variability) identifying photometric variability presumably caused by a companion. While H52 and H61 contribute 16 possible companions that are not identified by field H59, we do not consider them reliable companion detection indicators for this work unless there is an independent confirmation. There are several additional flags in the catalog that can imply a companion, such as H10, which contains a reference flag for components of double or multiple systems, and H62, which is a component designation for double or multiple systems. However, these indicators overlap with the flags discussed above in all cases, and are not discussed further because they do not contribute any new companions. The following subsections treat each of the companion indicators considered and describe the methods of this survey in evaluating their verity.

3.2.1. Component Solutions

3.2.2. Accelerating Proper Motions

3.2.3. Orbital Solutions

3.2.4. Stochastic Solutions

Building on comprehensive prior efforts (e.g., McAlister 1978a, 1978b; McAlister et al. 1987, 1993; Hartkopf & McAlister 1984; Mason et al. 1998b; Hartkopf et al. 2008; Horch et al. 2008), we were able to perform targeted speckle observations of 21 stars to ensure that every target on the list has at least one observation using this technique (B. D. Mason et al. 2010, in preparation). While limited by Δmag ≲3, speckle interferometry offers an efficient way of splitting pairs down to the diffraction limits of ground-based telescopes. This, along with the systematic searches for visual pairs for centuries, has resulted in the recording of many measures for each pair in the WDS, enabling us to definitively confirm many suspected companions as physical associations and show others to be unrelated field stars. The primary catalogs utilized by us for this purpose are the WDS and the INT4 as of 2008 July. The WDS lists measurements of pairs with epoch, separation, and position angle from techniques such as visual micrometry, speckle interferometry, and long-baseline optical interferometry (LBOI). The INT4 documents the results from high-resolution searches. While there is a significant overlap between these sources, the WDS includes historical observations which may not be of high precision, but nevertheless are very useful in significantly increasing the time baseline of measurements. On the other hand, the INT4 is useful in determining the status of many pairs, not only based on the measures of resolved pairs, but also because it includes the null results along with detection limits. The results from these techniques and catalogs are discussed in several sections. The linear motions of field stars were covered in Section 3.1.2. Various other results are discussed throughout this work, including the evaluation of many Hipparcos pairs in Section 3.2, and visual orbits derived from those measures in Section 3.4. The WDS pairs that could be confirmed or refuted via photometric distance estimates are discussed next. Table 5 includes 23 confirmed and two refuted WDS pairs that were also seen upon blinking the archival images, and Table 10 lists the 12 additional WDS pairs that were confirmed using photometric distance estimates. Finally, the individual evaluation of other WDS entries and their corresponding results are discussed in Section 4.3.

The ORB6 catalog contains orbital solutions from the measurements of either relative separations between resolved pairs or photocentric motions of unresolved pairs. Orbits based on the explicit measurements of relative separations are coded with grades 1 (definitive) to 5 (indeterminate), those determined by visibility modulations measured by LBOI are coded with grade 8, and photocentric-motion orbits are flagged as grade 9. Table 11 lists the 98 orbits from this catalog for the stars of our sample, separated into the resolved and unresolved pairs. The first four columns identify the pair and are taken from the ORB6 catalog. Columns 5 and 6 from the WDS show the number of measurements of the pair and the time span of these observations. Column 7 lists the orbital period from the ORB6 in days (d) or years (y), and is useful in matching spectroscopic orbits. Columns 8 and 9 list the orbit's grade and reference from the ORB6, and Column 10 identifies whether the orbit has a corresponding single-lined (1) or double-lined (2) spectroscopic orbit. Finally, Column 11 lists the status we adopt for the pair's physical association.

Orbits of grade 8 are robust solutions, typically combining spectroscopic and interferometric observations for short-period orbits. The quality of the other resolved-pair orbits degrades from 1 to 5, due to diminishing orbital coverage provided by measurements of the pair. Accordingly, there is a strong correlation between an orbit's grade and its period. While orbital solutions of grades 4–5 can potentially undergo significant revisions, the components are likely to be physically bound. Our investigation of the 72 individual systems found supporting evidence in all but one instance. We confirm physical associations due to one or more of the following factors: the existence of matching spectroscopic orbits, the many WDS measurements demonstrating not only CPM but also curved orbital motion, and in the case of very long period orbits, the WDS measures showing CPM and linear motions consistent with a small arc of the orbit. The lone exception, HD 32923, despite an orbit of grade 3 in ORB6, was refuted by follow-up investigations (see Section 4.3). We also investigated each of the 26 photocentric orbits in Table 11 and found all but four to be physical associations, confirmed by matching spectroscopic orbits or definitive photocentric orbits presented in the references indicated. We refute three claims of photocentric orbits, flagged as "NO" in Column 11, because their expected radial-velocity modulations are not seen by high-precision measurements (Abt & Biggs 1972; Nidever et al. 2002; Gontcharov 2006; D. W. Latham et al. 2010, in preparation). One orbit, noted as "MAY" in Column 11, is retained as a candidate for further investigation.

While the astrometry of the CNS catalog has been superseded by Hipparcos (as discussed in Section 2.3), the CNS also identified stellar components as either CPM pairs or those with definitive or suggestive radial-velocity variations. For the stars studied here, the CNS listed 148 CPM companions and 50 suspected companions due to radial-velocity variations. Our investigations refuted six of the claimed CPM companions, and all remaining pairs were confirmed as physical due to supporting evidence from one or more of the methods described by this work. While most of the companions listed in this source are also present in the other sources checked, two wide companions (15' from HD 63077 and 20' from 137763) were identified solely based on their CNS entries, both of which were subsequently verified by blinking large-enough images and further confirmed by matching proper motions and parallaxes. The CNS, however, was not as accurate on claims of radial-velocity variations. The results of modern surveys have enabled us to refute 23 of these 50, while three more (HD 20010, 23484, 90839) remain candidates (see Section 4.3). Table 12 lists the refuted companion claims. Columns 2 and 3 identify the specific companion claim (spectroscopic binary or radial-velocity variations). Column 4 lists the references we used to conclude that this star does not show any evidence of radial-velocity variations in high-precision, long-term campaigns and/or from independent measures over an extended time period.

Most eclipsing binaries are more distant than our limit of 25 pc. Our search of the All Sky Automated Survey¹⁰ for variable stars and Malkov et al. (2006), a catalog of 6330 eclipsing binaries, reveals only three potential companions to the stars of this study: HD 123, 9770, and 133640. While the latter two are real, HD 123 was later refuted by Griffin (1999) (see Section 4.3). For HD 9770, Cutispoto et al. (1997) present an eclipsing light curve and a corresponding 11.4 hr orbit. HD 133640 is listed in Malkov et al. (2006) with a period of 6.4 hr, which matches that of the double-lined spectroscopic orbit.

Searches for field brown dwarfs in infrared surveys, particularly the Two-Micron All-Sky Survey (2MASS) database (Skrutskie et al. 2006), over the last 10 or so years have identified many such substellar objects (e.g., Kirkpatrick et al. 1999, 2000). These have been augmented by high-resolution, high-contrast searches for substellar companions to nearby solar-type stars (e.g., Liu et al. 2002; Potter et al. 2002; Luhman et al. 2007). While these efforts have revealed several hundred brown dwarfs, a far greater tally would be expected if the stellar mass function extends into the sub-stellar regime. The deficiency of field and companion brown dwarfs has given rise to the term "brown dwarf desert." To identify brown dwarf companions to the stars in our sample, we searched the publications and also used the Dwarf Archives,¹¹ an online source that maintains a comprehensive list of known brown dwarfs along with their spectral types and astrometric information. A search of the contents of this catalog as of 2009 November revealed 17 entries within half a degree of 15 sample stars. Eight of these entries are confirmed companions to seven stars (HD 3651, 79096, 97334, 130948, 137107, 190406, and 206860), at separations of 09–200'' from their primaries. Further details of these substellar objects are included in the tables and figures discussed in Sections 4.2, 5.3.1, and Section 5.3.8. A widely separated brown dwarf, about 27' from HD 145958, shows consistent proper motion and is hence retained as a candidate (see Section 4.3). The remaining eight entries, representing brown dwarfs 225''–30' from their primaries (HD 53927, 86728, 90508, 130948, 136202, 161198, 202751, and HIP 91605), were refuted as physical companions because they are 2–3 mag fainter than expected for their spectral type at the primary's distance, or because their proper-motion and/or parallax measures from the Dwarf Archives or from Faherty et al. (2009) were significantly different than the corresponding primary's value. These eight chance alignments of unassociated brown dwarfs are consistent with the expectation of random alignments of the 453 sample stars and the 752 brown dwarfs in the Dwarf Archives, assuming isotropic distributions, which is valid for these nearby objects. Finally, none of the substellar companions to our sample stars in the exoplanet catalogs has a minimum mass of over 13 M_J, and only 3 of 52 have minimum masses greater than 5 M_J, consistent with the expectations of the brown dwarf desert.

To complete our exhaustive search for companions, we extracted information on planetary companions from the two regularly updated online sources, namely, the Extrasolar Planets Encyclopedia¹² and the CCPS program's Web site.¹³ As of 2009 October, 52 planetary companions are known to orbit 35 stars of our sample, excluding the Sun. Their details are listed in Table 13 and the relevant discussions are covered in Section 5. As discussed in Section 4.3, two of the planetary candidates, one each around HD 143761 and 217107, might, in fact, be stellar companions. Every exoplanet belonging to our sample was discovered by radial-velocity measurements and one (HD 189733b) has complementary photometric observations of transiting events as well (Bouchy et al. 2005).

We follow the Washington Multiplicity Catalog¹⁴ (WMC) standards for naming stellar and brown dwarf companions as prescribed in Hartkopf & Mason (2004) and use the actual WDS designations when available. This hierarchical nomenclature designates components using a combination of uppercase and lowercase alphabets, and in the case of exceptionally complex systems, numbers as well. It is best understood by following the illustration of a fictitious example in Figure 10, which is adapted from a similar example in Hartkopf & Mason (2004) and described in the figure caption. While this is not a perfect method, it adequately handles our evolving knowledge of components while capturing the hierarchical relationship between them. While the WMC standards were intended to cover companions of all types, a different de-facto standard has evolved for naming planetary companions, including some brown dwarf companions discovered by the planet search teams. This method attaches a lowercase alphabetic suffix, separated by a blank, to the host star's name for each substellar companion, starting with "b" and incremented alphabetically in discovery sequence. Due to the wide acceptance of this standard, we follow this lowercase letter designation for the planetary companions.

Zoom In Zoom Out Reset image size

Table 13 lists each star of our sample along with its stellar and planetary companions, if any. This table only includes confirmed or candidate companions, leaving out components that are now known to be physically unrelated. Such refuted components are discussed in the preceding sections and in Section 4.3. The stars of the current sample are listed in order of right ascension, immediately followed in subsequent lines by the stellar and planetary companions of that system. Note that six stars in this sample (identified by superscript "a" in Column 6) are actually not the primary components of their systems, but are still listed first within their group. Their primaries (component A, F0–K2) are not included in our sample because they are not Hipparcos stars or do not satisfy our B − V color limits. Stellar companions are listed in order of proximity to the primary and planetary companions that are listed directly under the star they orbit, also sequenced by proximity to the star. For ease of readability, the right ascension and declination (Columns 1 and 2) are only listed at the beginning of each group and correspond to the sample star. Column 3 lists the HD number of the star, when available, and Column 4 lists an alternate name of the star or the name of the planet. In the first line of each system, Column 5 lists an "N" if this system has specific notes in Section 4.3. For systems without notes, the companions listed, or lack thereof, are fully explained in the preceding sections and do not require any further comments.

For the first line of each system, Column 6 identifies the component designation of the sample star according to the nomenclature described above, unless it has no companions, in which case the column is empty. For stellar companions, this column identifies the pair whose details are listed in Columns 7–15. The stellar components of the pair are each named according to the WMC standards. The components are separated by a comma, which is suppressed when both components are represented by uppercase alphabets (e.g., AB; AB,C; and Aa,Ab are valid pair designations). In some instances, a single component may represent more than one star. For example, consider a visual binary, the secondary of which is itself a single-lined spectroscopic binary. This system will have the sample star listed first, followed by two pairs: AB representing the measurements of the visual binary, and Ba,Bb with details of the spectroscopic orbit. The B component of the AB pair hence identifies the spectroscopic binary and represents its center of light as observed by the visual observations. For planetary companions, this column is left empty. Column 7 lists the orbital period of the pair, when available from spectroscopic and/or visual orbit solutions, in hours (h), days (d), or years (y). Column 8 lists the angular separation measured between the components in arcseconds. It is the most recent measure from the WDS or other published references, or is our approximate measure from the archival images for new CPM companions. Column 9 lists the semi-major axis from orbital solutions when Column 8 is empty, or the projected linear separation corresponding to the angular separation in Column 8, in AU. Column 10 lists the status of companionship used for the multiplicity statistics derived here—"Y" indicates a confirmed companion and "M" implies an unconfirmed candidate. The next five columns list additional information about the techniques used to identify each companion as follows.

Column 11 corresponds to visual orbits and contains an "O" for robust orbits of grade 1, 2, 3, or 8; "P" for preliminary orbits of grade 4 or 5; and "U" for unresolved photocentric-motion orbits (see Sections 3.4 and 4.3 for details). Column 12 identifies spectroscopic companions as a "1" for single-lined orbits, "2" for double-lined orbits, and "V" for radial-velocity variations indicating a companion, but without an orbital solution (see D. W. Latham et al. 2010, in preparation and Section 4.3). Column 13 identifies CPM companions as close pairs with matching proper motions ("M"), pairs with evidence of orbital motion ("O") companions with matching proper motions and photometric distances ("P," see Tables 5 and 10), close pairs with published evidence of companionship ("R," see Section 4.3), companions with matching proper motions and spectral-type identifications that are consistent with the primary's distance ("S," see Section 4.3), or pairs with independently measured matching proper motions and trigonometric parallaxes ("T"). Column 14 identifies unresolved companions other than spectroscopic or visual ones such as eclipsing binaries ("E," see Section 3.6), companions indicated by an overluminous star ("L," see Section 4.3), or implied by proper-motion accelerations ("M," see Section 3.2.2). Finally, Column 15 identifies companions seen by CHARA LBOI as SFP ("S," D. Raghavan et al. 2010a, in preparation) or as visibility-modulation binaries ("V," Raghavan et al. 2009; D. Raghavan et al. 2010b, in preparation).

To identify the proficiency of various techniques in revealing companions, and to illustrate the overlap among the various methods, Table 14 lists the number of confirmed companions found as visual binaries (VB, including resolved-pair and photocentric-motion binaries), spectroscopic binaries (SB, including single-lined, i.e., SB1, and double-lined, i.e., SB2, orbits, and radial-velocity variations without an orbit), CPM pairs (CP), and other techniques (OT, representing mostly accelerating proper motions, but including the few eclipsing binaries and overluminous objects indicating unseen companions). Column 2 shows the total number of companions found by each of the above methods, Column 3 lists the number of companions detected uniquely by each method, and the remaining columns show the overlap of companion detections by more than one method.

Following are the notes on individual systems which are marked with an "N" in Column 5 of Table 13. These systems require explanations about confirmed, refuted, or candidate companions beyond what is covered in the previous sections.

HD 123: Triple. This system is composed of a 107 year visual-orbit pair, the secondary of which was shown to be the more massive component from absolute astrometry (Griffin 1999), suggesting that it itself was an unresolved binary. Brettman et al. (1983) reported a periodic variation in the component's brightness over roughly a 1 day period, which Griffin (1999) later disproved based on Hipparcos photometry and instead showed it to be a spectroscopic binary with a 47.7 day period, estimating component masses of 0.98, 0.95, and 0.22 M_☉ for the three components.

HD 1237: Binary, one planet. In a systematic search for faint companions to planet hosts, Chauvin et al. (2006) discovered a CPM companion to this star using VLT NACO adaptive optics (AO) and demonstrated orbital motion. Chauvin et al. (2007) characterized the companion as M4 ± 1V.

HD 3651: Binary, one planet. Luhman et al. (2007) reported the discovery of a T7.5 ± 0.5 companion 43'' away from this planet-host star using Spitzer Infrared Array Camera (IRAC) images, and confirmed CPM using 2MASS images. The brown dwarf's infrared colors are consistent with the distance to the primary, confirming companionship. They estimate the companion's mass as 0.051 ± 0.014 M_☉ and age as 7 ± 3 Gyr by comparing luminosity with evolutionary tracks. This was the first substellar object imaged around an exoplanet host. An additional component listed in the WDS is clearly optical (see Table 6).

HD 4391: Triple. The WDS lists three measurements of a companion with separations ranging 100–166 over 98 years, and we discovered an additional companion 49'' away by blinking archival images (see Section 3.1.1). Our VRI images, obtained in 2007 July and October at the CTIO 0.9 m telescope, clearly reveal both companions, confirming CPM. The closer companion was saturated in all but one V-band image, but the differential photometry extracted from this image allowed confirmation as a companion (see Table 10). For the newly discovered wider companion, our absolute VRI photometry along with 2MASS JHK_S magnitudes confirmed a physical association (see Table 5).

HD 4628: Single, candidate Binary. Heintz & Borgman (1984) detected a companion, 27 away, on 11 exposures over two nights, but did not see the companion on 164 other plates or on multiple visual checks with a micrometer. Their two observations about 25 days apart show evidence of variation in the companion's brightness by about 1 mag. Heintz (1994) notes an acceleration in proper motion for the primary and speculates that this might be caused by the companion reported earlier. Roberts et al. (2005) did not detect a companion using AO down to ΔI ≲ 10 and note that only a white dwarf companion could have escaped detection, while the flaring companion as seen by Heintz should have been detected. Moreover, the Hipparcos and Tycho-2 proper motions of HD 4628 match to within 2σ, and the INT4 lists several null results with speckle interferometry and AO. B.D.M. and D.R. observed this target using the KPNO 4 m telescope in 2008 June, and while the separation was too wide and the Δm too large for speckle observations, the finder TV showed a faint source about 5'' away at about 230°. Could this be the companion seen by Heintz after about 30 years of orbital motion? While a possibility, follow-up observations by Elliott Horch 2 days later with the WIYN 3.6 m telescope on KPNO failed to identify the source. Additionally, 5 s exposures in VRI taken by T.J.H. at the CTIO 0.9 m telescope in 2008 June also failed to identify any companion, although saturation around the primary could hide the companion in these images. Nidever et al. (2002) report that the primary shows no variations in its radial-velocity measurements. At this time, we do not have sufficient information to confirm or refute this companion, although, chances of a physical companion appear slim. The wider component listed in the WDS is clearly optical (see Table 6).

HD 4676: Binary. Boden et al. (1999) presented a visual orbit based on LBOI observations for this 14 day SB2 and derived component masses of 1.223 ± 0.021 M_☉ and 1.170 ± 0.018 M_☉. Earlier, Nadal et al. (1979) had speculated on the presence of a third companion based on temporal changes in the spectroscopic orbital elements. While this suspected companion has been mentioned in subsequent literature (Fekel 1981; Tokovinin et al. 2006), it was refuted by Boden et al. (1999) based on imaging and spectroscopic evidence. Two additional components listed in the WDS are clearly optical (see Table 6).

HD 9826: Binary, three planets. Lowrance et al. (2002) discovered an M4.5V companion, 55'' away from planet host υ And and confirmed its physical association by demonstrating CPM and showing that its spectral type is consistent with its magnitudes at the primary's distance. Two additional components listed in the WDS are clearly optical (see Table 6).

HD 13445: Binary, one planet. This planet-host star with a 4 M_J planet exhibits a long-term trend in radial velocity, consistent with a stellar companion beyond 20 AU (Queloz et al. 2000). A significant difference between the Hipparcos and Tycho-2 proper motions (see Table 8) also suggests a nearby unseen companion. Later work has resolved this companion and demonstrated orbital motion (Lagrange et al. 2006). The companion was initially misidentified as a T dwarf (Els et al. 2001) and later shown to be a white dwarf based on spectroscopy (Mugrauer & Neuhäuser 2005) and a dynamical analysis of astrometry and radial velocities (Lagrange et al. 2006).

HD 20010: Binary, candidate Triple. The secondary of a 5'' CPM pair with a preliminary visual orbit is listed in the CNS as "RV-Var?". Eggen (1956) mentions that there is a strong evidence of variability, quoting a 1928 publication by van den Bos, but this reference could not be found. With insufficient evidence to confirm or refute a physical association, the additional companion is retained as a candidate.

HD 20807: Binary. The wide CPM companion, HD 20766, lies 309'' away and is confirmed by matching proper motions and parallax. Additionally, the WDS lists a single speckle interferometry measure of a companion in 1978, 0046 away at 11° (Bonneau et al. 1980). However, Bonneau et al. failed to resolve the companion in 1979 and da Silva & Foy (1987) mention that the 1978 measure was in fact an artifact in the diffraction pattern of the telescope spider.

HD 21175: Binary. While this companion only has three ground-based measurements, they span more than 50 years and are consistent with a bound pair. The Hipparcos catalog also identifies this star as a suspected binary because the astrometry did not adequately fit either a single or binary solution (H59 = "X"). Söderhjelm (1999) presents a visual orbit combining Hipparcos and ground-based measures, confirming a physical association.

HD 22049: Single, one planet. This is Eri, the well-studied exoplanet host. The WDS lists a single speckle resolution of a potential stellar companion, 0048 away (Blazit et al. 1977), significantly closer than the planet. However, 13 other attempts by speckle and AO have failed to resolve the companion (e.g., McAlister 1978a; Hartkopf & McAlister 1984; Oppenheimer et al. 2001). Presumably, the Blazit measure is spurious. The WDS lists 10 additional components, all of which were confirmed as optical by blinking archival images (see Table 6).

HD 23484: Single, candidate Binary. The CNS lists this as "RV-Var," but no radial-velocity data could be found in modern surveys. Catalogs (Abt & Biggs 1972; Duflot et al. 1995; Gontcharov 2006) list velocities with rms scatter of about 3 km s⁻¹, but this could be due to measurement errors or zero-point variances. This candidate companion is retained as a candidate.

HD 24496: Binary. The two measurements with ρ = 26–27 and θ = 254°–256° listed in the WDS are by Wulff Heintz, nine years apart and consistent with a bound pair. The first measure is based on observations over three nights and the second on observations over two additional nights. Given the quality of the observations (Δm = 4–5 measured) and the reasonably high proper motion of the primary, this is likely a physical companion, but one that could use new measurements.

HD 25680: Binary. A companion 02 away was discovered by McAlister et al. (1993) with speckle interferometry and confirmed by the same technique by Hartkopf et al. (2008). These measures show evidence of orbital motion, and given the 02 yr⁻¹ proper motion of the primary and an elapsed time of 15 years between them, this companion can be confirmed as physical. Due to the constant radial velocity of the primary (D. W. Latham et al. 2010, in preparation), this might be close to a face-on orbit. The WDS lists another potential companion 177'' away, which we also identified by blinking archival images. This candidate (HIP 19075) was however refuted based on its significantly different proper motion in Hipparcos from the corresponding value of the primary (see Table 4). The two additional WDS entries are clearly optical (see Table 6).

HD 26491: Binary. A comparison of Hipparcos and Tycho-2 proper motions shows a significant difference suggesting a companion (see Section 3.2.2), which is confirmed by radial-velocity variations (Jones et al. 2002). A preliminary spectroscopic orbit exists (H. Jones 2008, private communication).

HD 32923: Single. The WDS lists 19 measurements at roughly 01 separation over 76 years, and Eggen (1956) even derived two preliminary visual orbits from these measures. However, Heintz & Borgman (1984) suggest that this is likely spurious and show that the observations are not consistent with orbital motion of any period. Three additional speckle observations exist since the Heintz & Borgman publication, from 1984 to 1987 (Tokovinin 1985; Tokovinin & Ismailov 1988; McAlister et al. 1993), but there are 17 null detections listed in the INT4 by speckle interferometry as well as by AO. This star has a stable radial velocity in Nidever et al. (2002) and D. W. Latham et al. (2010, in preparation). It appears that these multiple, but sporadic, measures are spurious.

HD 35296: Binary. DM91 noted the primary of a 12' CPM pair as "SB," but one that was not confirmed by their work. Modern measures (Nidever et al. 2002; D. W. Latham et al. 2010, in preparation) show this star to have a stable radial velocity, refuting the earlier claim.

HD 36705: Quadruple. The WDS lists two measures of this 10'' pair (AB Dor AB), separated by 69 years and consistent with a bound pair. The first observation, by Rossiter (1955), measured a Δm ∼ 6, explaining the lack of many more observations. Close et al. (2005) recovered this pair with AO at the VLT, and it is also seen in VRI images obtained by T.J.H. in 2008 September at the CTIO 0.9 m telescope. While the photometric distance estimate varies from the primary's Hipparcos distance by 7σ (see Table 10), the V magnitude from Rossiter (1955) is likely approximate. Given the high proper motion of the primary, the consistent measures over 79 years indicate a physical association. The 2MASS colors indicate an M dwarf with a V magnitude estimate of about 12.0, in good agreement with the measure of Rossiter (1955) and consistent with the primary's Hipparcos distance. High-contrast AO efforts have split each of these components into binaries themselves. The primary was identified by Hipparcos as showing accelerating proper motion, indicating an unseen companion, and this is supported by the significant difference between Hipparcos and Tycho-2 proper motions (see Section 3.2.2). The suspected companion has since been revealed by very long baseline interferometry (Guirado et al. 1997), resolved by AO (Close et al. 2005), and confirmed as a physical association by photometry and spectroscopy (Close et al. 2005, 2007; Boccaletti et al. 2008, and references therein). Close et al. (2005) also split the secondary into a 0070 pair, which was later confirmed by Janson et al. (2007) who measured it 66.1 mas away at 2385.

HD 40397: Triple. The five measures in the WDS for AB between 1902 and 1932 are consistent with a bound pair. The measured Δm ∼ 7 makes this a difficult target for classical techniques and out of the reach of speckle interferometry. Given that more than 70 years have passed since the latest measure, this is a good candidate for follow-up AO observations. This pair also has a wide CPM companion, NLTT 15867, which was confirmed by photometric distance estimates (see Table 10), and an additional WDS component, which is clearly optical (see Table 6).

HD 43834: Binary. Eggenberger et al. (2007) detected a companion, 3'' away, three times over three years with AO at the VLT, demonstrating CPM and showing a hint of orbital motion. They also mention a linear trend in CORALIE radial velocities consistent with this companion, confirming a physical association, and estimate the companion to be M3.5–M6.5 with a mass of 0.14 ± 0.01 M_☉.

HD 45270: Single, candidate Binary. The WDS lists three measurements spanning 43 years of a Δm ∼ 4 companion separated by about 16'', which are consistent with a bound pair. Curiously, no additional measurements exist. This companion was listed in the Hipparcos input catalog, but not resolved by Hipparcos. 2MASS lists a source near this candidate companion, but it is clearly not the same star because its infrared colors are more than 3 mag fainter than the visual magnitude of 10.6 from the Hipparcos input catalog. No additional information was found on this companion and hence it is retained as a candidate.

HD 48189: Binary. The WDS lists 19 measurements over 105 years that are consistent with a bound pair. During this time, the separation has closed in from about 3'' to about 03 and the position angle has changed by about 15°. Given the small projected separation of 6–60 AU, one might expect a greater change in position angle as evidence of orbital motion. The change of only 15° indicates that the semimajor axis is larger than the observed separations, perhaps due to a high inclination. While a more robust confirmation is not available, the primary has moved about 9'' during the measures, and the companion seems to be moving along with it, indicating a physical association.

HIP 36357: Triple, candidate Quadruple. The primary of this system, HD 58946, lies about 13' away, and its physical association is confirmed by matching parallax and proper motion. The primary has a closer companion, about 3'' away, confirmed by greater than 11σ difference between Hipparcos and Tycho-2 proper motions (see Table 8) and five measurements in the WDS over 25 years which demonstrate CPM and orbital motion. Additionally, proper-motion variations suggest an unseen companion to HIP 36357 as well, but one we could not confirm (see Table 8). Two wider WDS components are clearly optical (see Table 6).

HD 64606: Binary. For the primary of an SB1 pair, the WDS lists two measures of a Δm ∼ 4 component separated by 49, one each from Hipparcos and Tycho. The Hipparcos solution is flagged as "poor" quality, and there is no independent confirmation of this companion. T.J.H. observed this star using the CTIO 0.9 m telescope in 2008 September and obtained 1 s exposure images in VRI. No source was found at the expected position in those images, whereas a companion of Δm ∼ 4 should easily have been seen above the background. While the SB1 pair is real, this astrometric detection is refuted.

HD 65907: Triple. LHS 1960 is a companion to this star, separated by about 60'', and confirmed by photometric distance estimates (see Table 5). The WDS lists four measures of an additional companion to LHS 1960, observed 1930–1983, indicating that this component itself is a 3'' CPM binary. No further evidence of companionship could be found, but given the high proper motion of the primary and the four consistent measurements by four different telescopes over 53 years, this system can be confirmed as a triple.

HD 68257: Quintuple, candidate Sextuple. The three brightest roughly solar-type components (ζ Cancri A, B, and C) are supported by over 1000 visual measurements each, corresponding to two visual orbits. Component C has been noted to have an irregular motion for most of its history and was identified as an SB1 with an orbit of 6302 ± 59 days (Griffin 2000), consistent with earlier astrometric orbits. However, earlier efforts (Heintz 1996) had noted a mass ratio for the C component binary of about 1, and with C being a G0 star, the non-detection was puzzling and attributed to the companion being a white dwarf or itself a binary. Hutchings et al. (2000) finally observed this pair (Ca, Cb) via AO observations at infrared wavelengths, designated Cb as an M2 dwarf based on its infrared colors, and argued on the basis of prior mass-ratio estimates that it itself is an unresolved binary (Cb1, Cb2). Richichi (2000) confirmed the presence of Cb via lunar occultation measures. While he could not confirm its binary nature, his K-band photometry supported the binary M-dwarf hypothesis, for which he determined an upper limit for projected separation of 20–30 mas. Further, Richichi reported the potential discovery of a sixth component in this system (Cb3). While seen just above his detection limit and hence retained as a candidate for this work, he nonetheless confirmed its presence by three independent data analysis methods and excluded it from being the unresolved companion Cb2 noted above due to its larger separation of at least 1.6 AU from the lunar occultations. He tentatively identified Cb3 as an M2–M4 dwarf. In addition to all these, we identified a potential wide companion, 372'' away at 107°, which was later refuted (see Table 4), as were six additional WDS components, which are clearly optical (see Table 6).

HD 72760: Binary. This companion was suggested by a significant difference in Hipparcos and Tycho-2 proper motions. Recently, Metchev & Hillenbrand (2009) resolved the companion in a Palomar/Keck AO survey, confirmed companionship based on color and magnitude measurements, and estimated the companion's mass as 0.13 M_☉.

HD 73350: Single. The WDS lists a B component 60'' away and a C component about 10'' from B. While the DSS images were taken over just a two-year interval, the SSS image provides a longer time baseline and helps confirm component B (HD 73351) as a field star (see Table 6). Component C is a CPM companion of B based on three consistent measures separated by over 100 years, and hence also physically unassociated with our sample star.

HD 73752: Binary. The CNS lists the primary of the 13 visual binary as "SB" and notes that there are suspected perturbations in its proper motion. The reference detailing the perturbations (Hirst 1943) presents a 35 year inner orbit, which is noted as very preliminary with several different orbits equally permissible. The author also states that systematic effects alone may explain the residuals. His 214 year outer orbit was later revised to 145 years by Heintz (1968), who also points out that the observed range of radial velocities could be ascribed to scatter. Adopting a parallax of 0058, he derived a mass sum of 1.1 M_☉, and noted that at least one component must be overluminous. If we adopt the HIP parallax of 50.2 mas, we get a mass sum of 1.9 M_☉, so the components are likely not overluminous. Radial-velocity catalogs (Abt & Biggs 1972; Gontcharov 2006) list velocities in the range 40–48 km s⁻¹, but the differences could be due to zero-point offsets between observers. The early claim of a possible companion is not supported by subsequent observations, which in fact question it. While the visual binary is real, the third component is refuted. An additional wide component listed in the WDS is clearly optical (see Table 6).

HD 75767: Quadruple. Tokovinin et al. (2006) reported the discovery of a wide Δm = 4.3 companion to a 10.3 day SB1 binary with NACO AO and confirmed CPM using a partial resolution in 2MASS images. This companion was independently discovered by Fuhrmann et al. (2005), who obtained two observations four years apart, demonstrating CPM, and confirmed companionship by showing consistent radial velocity with the primary. Their spectra also enabled them to identify the companion itself as a double-lined binary, as evidenced by its Hα emission and near-infrared absorption lines appearing as pairs with an offset of about 21 km s⁻¹. Using composite-spectrum analysis, they derived spectral types of M3 and M4. Blinking archival images revealed a possible fifth companion 385'' away, and its photometric distance estimate matches the primary's Hipparcos value within 2σ. However, the Lépine & Shara (2005) proper motions of the two stars are significantly different, indicating that this might be a comoving star perhaps born out of the same cloud as HD 75767, but one that is not gravitationally bound to it.

HD 79096: Quadruple. Wilson et al. (2001) discovered an L8V companion (Gl 337C) 43'' from the SB2VB pair from 2MASS images. The two images, separated by 2.5 years, demonstrated CPM. They also showed that the magnitudes are consistent with the primary's distance to within 1σ, confirming companionship. Burgasser et al. (2005) later resolved Gl 337C as a nearly equal-magnitude binary separated by 053 ± 003 at 291° ± 8° using Lick natural guide star AO. Companionship was confirmed based on proximity and CPM, which was demonstrated by the absence of a source in 2MASS images at the expected position of a background star. Three other components listed in the WDS are clearly optical (see Table 6).

HD 86728: Binary, candidate Triple. Gizis et al. (2000) identified a wide CPM companion from 2MASS and confirmed it with a spectral-type classification of M6.5. However, based on it being overluminous (M_K = 8.19 using 2MASS magnitudes and Hipparcos parallax versus 9.60 for its spectral type) and having high activity (emission observed twice), they argued that it is an unresolved equal-mass binary, or even possibly a triple. We could not find any follow-up work confirming or refuting this claim, so while this system is confirmed as a binary, we retain the third component as a candidate. Additionally, the Dwarf Archives lists a brown dwarf about 25' away from the primary, but its photometric distance estimate suggests a distant field object.

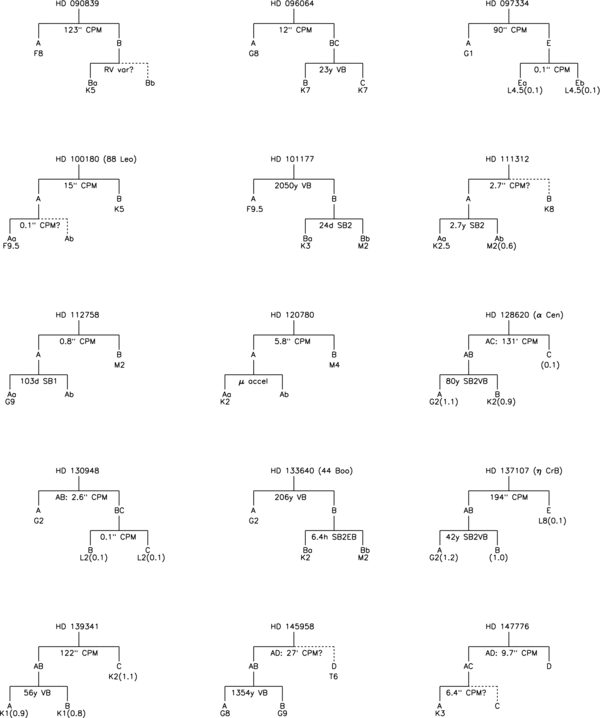

HD 90839: Binary, candidate Triple. The CNS lists the primary of a wide CPM pair as "SB?" and the secondary (HD 237903, GJ 394) as "RV-Var." The primary is a constant velocity star (see Table 12), refuting the CNS claim, but the modern surveys did not observe the secondary. DM91 listed this companion with a constant velocity of 8.24–8.62 km s⁻¹ over 700 days. Heintz (1981) listed velocities of 7.7–8.4 km s⁻¹ over 4 days but noted that the coverage was too weak to definitively show velocity variations. He also noted that the spectrum had emission features. Wilson (1967) listed a velocity of 7.8 km s⁻¹ over three plates with a range of 7.7 km s⁻¹ and standard deviation of 3.1 km s⁻¹. Radial-velocity catalogs (Abt & Biggs 1972; Duflot et al. 1995) list values that range over many km s⁻¹, but this could be due to zero-point differences between observers, and these catalogs do not note any variation. While the wide binary is confirmed based on matching parallax and proper motion and the primary's SB claim is refuted, the possible radial-velocity variation of the secondary is inconclusive and hence retained as a candidate. An additional WDS component is clearly optical (see Table 6).

HD 97334: Triple. Kirkpatrick et al. (2001) discovered an L4.5V CPM companion (Gl 417B) 90'' away at 245° from the primary using 2MASS images and confirmed a physical association by demonstrating CPM and consistent parallaxes. Bouy et al. (2003) later resolved this brown dwarf into a binary (0070 ± 00028 at 796 ± 12) using HST WFPC2. While companionship of this pair has not been established conclusively, proximity argues for a physical association. Three additional WDS components are clearly optical (see Table 6).

HD 98230: Quadruple. ξ UMa is a quadruple system composed of a 60 year visual binary, the primary of which is an SB1VB and the secondary is an SB1. Mason et al. (1995) reported a possible fifth companion detected via speckle interferometry near the secondary. While the single detection reported is quite convincing, this companion has never again been seen, despite multiple attempts. Our efforts with CHARA, while limited to ΔK ≲ 2.5, also failed to resolve any additional components. Given only one measure and about a dozen null results with the same technique, this new companion is likely a chance alignment of an unrelated star. An additional wide component listed in the WDS is clearly optical (see Table 6).

HD 100180: Binary, candidate Triple. The primary of the 15'' CPM binary (see Table 5) has two speckle interferometry measurements of a close companion in the WDS, observed 0035 away at 68 in 2001 and 0122 at 3558 in 2004. One of the two attempts by B.D.M. and D.R. at the KPNO 4 m telescope in 2008 June resulted in an "uncertain" measure of 0218 at 146. Given the 0378 yr⁻¹ proper motion of the primary, these measures are consistent with a bound pair, but further observations are warranted to obtain a definitive confirmation, especially given the constant radial velocity reported by Nidever et al. (2002).

HD 100623: Binary. The WDS lists only a single measure of this large Δm companion discovered by Luyten in 1960. While the proximity and large magnitude difference make follow-up observations difficult, Henry et al. (2002) obtained spectra of this 15th magnitude companion and showed that it is a DC or DQ white dwarf, not an M-dwarf as reported in the CNS. The second observation confirms CPM, and the spectral type and photometry are consistent with a physical association.

HD 102365: Binary. The companion, discovered by Luyten in 1960, is LHS 313 and has a proper motion that matches the primary's 16 yr⁻¹. Hawley et al. (1996) identified the companion as M4V, which was recovered by 2MASS at a similar position angle and separation as Luyten's observation. Its infrared colors are consistent with an M4 dwarf at the primary's distance.

HD 103095: Single. The CNS and DM91 listed a companion with separation 2'' at 175°. DM91 noted that the companion was flaring with magnitudes of 8.5–12 and also mentioned that it was normally not seen. The INT4 lists four null measurements with speckle interferometry and there are no radial-velocity variations. Three attempts by B.D.M. and D.R. in 2008 June at the KPNO 4 m telescope failed to identify a companion. Recently, Schaefer et al. (2000) have shown that the brightness enhancements observed are likely due to superflares on the stellar surface rather than due to a companion.

HD 109358: Single. The WDS lists a single speckle measure of a companion 01 away (Bonneau & Foy 1980), but the INT4 has over 20 null speckle detections. B.D.M. and D.R. failed to resolve the suspected companion in 2008 June at the KPNO 4 m telescope. Given the mention of telescope artifacts as being responsible for some detections by this observer (da Silva & Foy 1987), we side with the many null detections, including one by the same observer. Additionally, the CNS listed this star as "SB" and Abt & Levy (1976) presented a preliminary orbital solution. However, those claims were subsequently refuted (Morbey & Griffin 1987). The wide AB pair in the WDS is clearly optical, as seen on blinking the archival images (see Table 6).

HD 111312: Binary, candidate Triple. This is a 2.7 year SB2. The WDS lists a single speckle measure with a separation of 0089 at 906 in 2001 and the pair was seen again in 2006 with a separation of 0050 at 446 by B.D.M. These measurements are consistent with the spectroscopic binary and more observations are needed to develop a visual orbit. The WDS lists an additional companion, 27 away with Δm ∼ 4 based on Hipparcos and Tycho measures. The Hipparcos solution is flagged as "poor" quality, and there is no independent confirmation of this companion. Its orbital period, if real, would be too long to affect the velocities obtained over some seven years. With no conclusive evidence to confirm or refute this companion, it is retained as a candidate requiring further observations.

HD 112758: Triple. This is a triple system with an inner SB1 pair and a wider visual component which was first resolved by van den Bos in 1945 and then again in 1960 with Δm ∼ 5. McAlister et al. (1987) recovered this visual companion in 1983, and the three observations show evidence of orbital motion. The McAlister et al. measurement with speckle interferometry implies Δm ≲ 3, suggesting that the companion may be variable. B.D.M. and D.R. attempted to resolve this companion at the KPNO 4 m telescope in 2008 June, but could not see it, perhaps because of the large magnitude difference.

HD 113449: Binary. Hipparcos presents a photocentric orbit for this star with a period of about 231 days. Moore & Paddock (1950) noted this star as a radial-velocity variable, Gaidos et al. (2000) mentioned that the velocity changed by 20 km s⁻¹ over 10 months, and variations are also seen in the measurements reported in D. W. Latham et al. (2010, in preparation). However, no definitive orbit exists. The companion was resolved at the Palomar 200 inch telescope with aperture masking in 2007 January, 35.65 ± 0.6 mas away at 2252 ± 05 with ΔH ∼ 1.6, and confirmed at the Keck telescope more than a year later (M. Ireland 2008, private communication). With consistent astrometric and spectroscopic evidence, this is a bound pair.

HD 120136: Binary, one planet. τ Boo hosts a 4.13 M_J minimum-mass planet in a 3 day orbit. Additionally, 56 observations over 170 years in the WDS confirm a stellar companion based on CPM and orbital motion, which has a preliminary orbital solution (see Table 11). Wright et al. (2007) and references therein mention a long-term drift in radial velocity consistent with this visual companion.

HD 120780: Triple. The WDS lists two measures of a 6'' pair 51 years apart and consistent with a bound system, but follow-up observations have been difficult due to a magnitude difference of ∼5.5. We obtained I-band images in 2006 July and 2007 June at the CTIO 0.9 m telescope. The companion was seen at both epochs about 56 away at 89° with ΔI ∼ 3.3. These three observations demonstrate CPM with a fast-moving primary (06 yr⁻¹), and, in fact, hint at orbital motion, confirming companionship. Additionally, Hipparcos identifies this star as an accelerating proper-motion binary, and the Tycho-2 proper motion differs from the Hipparcos value by a 19σ significance (see Table 8). While the Tycho-2 proper motion, averaged over about 100 years, is no doubt affected by the wide pair mentioned above, whose orbital period could be about 1000 years, the Hipparcos observations are over some three years and indicate a closer companion.

HD 124850: Single, candidate Binary. The ORB6 catalog lists a photocentric orbit for this star with a period of 55 years and an inclination of 60°. The corresponding preliminary orbit was recently presented by Gontcharov & Kiyaeva (2010) by combining Hipparcos data with astrometric ground-based observational catalogs, but we do not find the motion convincing enough to confirm the companion. This star was not included in the Nidever et al. (2002) or D. W. Latham et al. (2010, in preparation) survey, and radial-velocity catalogs (Abt & Biggs 1972; Duflot et al. 1995; de Medeiros & Mayor 1999; Gontcharov 2006) do not indicate variations. B.D.M. and D.R. could not resolve any companion via speckle interferometry on the KPNO 4 m telescope in 2008 June. With inconclusive evidence to confirm or refute this companion, it is retained as a candidate.

HD 125276: Single, candidate Binary. The Hipparcos and Tycho-2 proper motions differ by greater than a 3σ significance, suggesting an unseen companion (see Table 8). These proper-motion variations could be due to a WDS and CNS companion, separated by 3''–8'' over four measures between 1891 and 1936. Some of these measures indicate a Δm ∼ 8, which might explain the several non-detections also included in the WDS. An attempt by B.D.M. and D.R. at the KPNO 4 m telescope in 2008 June could not detect this companion. While the pair is too wide and too high in contrast for detection via speckle, the finder TV, sensitive to faint companions, did not reveal any source at the expected position. Without conclusive evidence to confirm or refute this companion, it is retained as a candidate. An additional WDS companion is clearly a background star as seen by blinking archival images (see Table 6).

HD 125455: Binary. This companion was discovered by Kuiper in 1937 and has measurements in 1960 and 1987 that are consistent with a bound system. The companion is LHS 2895 with a proper motion that matches the primary's, and its 2MASS colors indicate a late M-dwarf at approximately the primary's distance.

HD 128620: Triple. This is the closest known star system, α Centauri, which is composed of an SB2VB pair and a wide companion, Proxima Centauri, about 2° away. While the angular separation to Proxima is extreme for bound systems, it translates to a linear projected separation of 10,000 AU, which is well within the limits of gravitationally bound pairs. Wertheimer & Laughlin (2006) used kinematic and radial-velocity data to show that Proxima Centauri is bound to α Centauri. A possible new substellar companion to Proxima Centauri was reported by Schultz et al. (1998) 034 away using the HST FOS as a coronagraphic camera. In a follow-up effort, Golimowski & Schroeder (1998) used HST WFPC2 to show that the Faint Object Spectrograph (FOS) feature seen was likely an instrumental effect and exclude any stellar or substellar companion within 009–085 of Proxima Centauri.

HD 130948: Triple. Potter et al. (2002) discovered a pair of brown dwarf companions using AO on the Gemini North 8 m telescope. They demonstrated CPM with observations over 7 months and confirmed companionship based on their infrared colors, spectral-type of dL2 ± 2, and a consistent age with the primary of less than 0.8 Gyr derived by comparing their position on an H-R diagram with theoretical models. They also noted that the relative youth is consistent with the high X-ray activity, Li abundance, and fast rotation. The Dwarf Archives lists an additional brown dwarf 523'' away from the primary, but its photometric distance estimate suggests a distant field object. An additional CNS claim of an SB companion was refuted by modern surveys (see Table 12).

HD 135204: Binary. A companion, 01 away, is listed in the WDS and CNS and confirmed by the 17 measurements in the WDS over 82 years which not only demonstrate CPM, but also orbital motion.

HD 137107: Triple. Kirkpatrick et al. (2001) discovered a wide L8V companion (Gl 584C) to the SB2VB binary using 2MASS images and confirmed the physical association with additional measures and spectroscopy. Two additional WDS components are clearly optical (see Table 6).

HD 137763: Quadruple. The primary of a 52'' CPM binary is itself SB2, and also has a wide companion about 20' away that was first mentioned by CNS and confirmed by a spectral-type identification of M4.5 and a distance estimate of 21.6 ± 1.9 pc (Reid et al. 1995). Another wide WDS component is clearly optical (see Table 6).

HD 140901: Binary. The WDS lists seven measures for this companion from 1897 to 1960 which are consistent with a bound system. We obtained VRI images at the CTIO 0.9 m telescope in 2006 July and 2007 July, which reveal the companion at the expected position, confirming CPM. The magnitude difference of over six makes photometry difficult, but given the large matching proper motion and proximity, this companion can be confirmed as physical. An additional WDS component is clearly optical, as seen when blinking the archival images (see Table 6).

HD 141272: Binary. The WDS lists four micrometer observations of this pair over 56 years that are consistent with a bound system. Eisenbeiss et al. (2007) confirm companionship using photometry and spectroscopy, and derive an estimated mass for the dM3 ± 0.5 companion of 0.26^+0.07_−0.06 M_☉.

HD 143761: Single planet-host or binary with no known planets. ρ CrB definitely has a companion, but it is not clear whether it is planetary or stellar in nature. Hipparcos identified a photocentric orbit with a period of 78 days, exactly twice that of the planetary companion reported by Noyes et al. (1997). Gatewood et al. (2001) used Hipparcos and ground-based observations to conclude that the photocentric orbit is of the same period as the planet, and in fact the "planet" is an M-dwarf companion with a mass estimate of 0.14 M_☉ in a nearly face-on orbit. Bender et al. (2005) failed to identify such a companion using high-resolution infrared spectroscopy, and placed an upper limit on the companion's mass of 0.11–0.15 M_☉. Baines et al. (2008) attempted to resolve this question with LBOI observations at the CHARA Array, and could not settle the issue once again. While interferometric visibilities did not perfectly fit a single-star solution, additional data are required for a definitive conclusion. This system has a stellar or planetary companion, but not both. Further observations are warranted. A WDS component is clearly optical (see Table 6).

HD 144284: Binary. Mazeh et al. (2002) presented a 3 day SB2 orbit for this star using infrared spectroscopy to measure the faint companion, deriving a mass ratio of 0.380 ± 0.013. Mayor & Mazeh (1987) had identified this system as a possible triple based on a 1.7 km s⁻¹ variation in the velocity semiamplitude between their solution and that of Luyten (1936). While the velocity semiamplitude does seem to vary for the different orbital solutions presented for this pair (Luyten 1936; Mazeh et al. 2002; DM91) and the D. W. Latham et al. (2010, in preparation) SB1 orbital solution has residuals of up to 2 km s⁻¹ on each side, there is no obvious periodic pattern or long-term drift over the 4.8 years of velocity coverage. The most recent velocity measure of this star in D. W. Latham et al. (2010, in preparation) is from 1990, so additional observations are warranted.

HD 144579: Binary. The proper motion of the primary is 0574 yr⁻¹ and of the CPM candidate is 0550 yr⁻¹ from the LSPM. The companion's distance estimate has a large uncertainty and differs from the primary's Hipparcos value by 1.5σ (see Table 5). Given the proximity of these two stars in the sky, the very large and similar proper motions, and similar distances, this appears to be a physical companion, as it has been previously recognized (DM91; CNS). The differences in the proper motions might indicate that the companion or the primary has a close unresolved companion and warrants further observations.

HD 145958: Binary, candidate Triple. The primary of a 4'' visual binary has two additional possible companions, one of which was refuted by this effort and the other remains a candidate. The WDS lists a nearby companion, 02 away, detected by H.A.M. in 1983. The INT4 catalog lists this as a weak detection and possibly spurious, and includes a null detection using the same technique. B.D.M. and D.R. failed to resolve a companion at the KPNO 4 m telescope in 2008 June. Nidever et al. (2002) identify this as a constant velocity star. Evidence seems to be mounting against this candidate companion, which is considered refuted for this work. Separately, the Dwarf Archives includes a T6 object about 27' away from this star. Looper et al. (2007) discovered this T dwarf in the 2MASS survey, obtained spectra, typing it as T6, and estimated its proper motion and distance, but did not suggest an association with HD 145958. Their proper motion and distance estimates are similar to the primary's corresponding values from van Leeuwen (2007b). While the projected linear separation is very large at about 40,000 AU, this could be a loosely bound companion to HD 145958, and is retained as a candidate. An additional wide component listed in the WDS is clearly optical (see Table 6).

HD 146361: Quintuple. See Raghavan et al. (2009) for a comprehensive treatment of all components of this system.

HD 147776: Binary, candidate Triple. The WDS lists three candidate companions, but the details actually correspond to four stars. The Δm ∼ 4 component 103'' away at 281° is clearly a field star, as seen by blinking the archival images (see Table 6). Three additional companions were reported by Sinachopoulos (1988)—64 separation at 173° with Δm ∼ 3, 97 separation at 14°, and 719 separation at 28°. The latter two components do not have differential-magnitude measurements. Sinachopoulos measured these pairs using a 1.5 m telescope by combining 4–16 exposures of a few seconds each. The wide companion 72'' away should have been seen in the DSS images, but no stellar source was seen at the expected position. The closest star to this position in the 1995 DSS image is 83'' away at 15° and is clearly a field star. The other two sources seen by them would be buried in the saturation around the primary in the DSS images, so we obtained VRI frames in 2008 May and August at the CTIO 0.9 m telescope. The images clearly show a faint companion about 9'' away at 19°. This is likely the 97 companion seen by Sinachopoulos (1988), exhibiting CPM, and given the proximity, is likely physical. The closest source seen by Sinachopoulos is not detected in the CTIO images and remains a candidate. Additionally, the CNS lists a companion for this star 3'' away at 281° in 1909. This is likely the same as the component measured by Burnham as listed in the WDS, which was seen 103'' away at 281° in 1909 and as discussed above, is clearly optical.

HD 148704: Binary. This is a 32 day SB2 binary for which Hipparcos and Tycho identified another companion 41 away at 221°. Our CTIO 0.9 m images obtained in 2008 October do not reveal any companion at the expected position, while a Δm ∼ 3 companion as indicated by Hipparcos should have been seen above the tail of the primary's point-spread function (PSF). However, given the proper motion of the primary, a field star would have moved closer and possibly could be buried within the primary's PSF. Gray et al. (2006) list the spectral type of the companion as G9V and its coordinates imply a separation of 24 at 55°, the exact position where a field star would be 15 years since the Hipparcos measure. The Gray et al. spectral type, along with the Tycho-2 V = 10.5, implies a significantly larger distance to this star compared to the primary, enabling us to refute this candidate.

HD 149806: Binary. This companion was first reported by Rossiter (1955) 59 away at 22° and has two additional measurements in the WDS over the next 54 years, which are consistent with a bound system. While the photometric distance estimate is not a good match (see Table 10), the R magnitude listed is likely approximate. Given the moderate proper motion of the primary, the consistent measures over 54 years indicate a physical association. The 2MASS colors indicate an M-dwarf with a V magnitude estimate of about 12, in fair agreement with the measure of Rossiter (1955). B.D.M. and D.R. attempted to observe this companion at the KPNO 4 m telescope in 2008 June. While the separation and Δm are too large to be resolved using speckle, the finder image at the telescope showed a source at the expected position with a Δm similar to those of prior observations.

HD 153557: Triple. The WDS lists 17 measurements over 95 years with separations of 19–49, which are consistent with a bound system, and given the 03 yr⁻¹ proper motion of the primary, imply a physical association. This pair also has a wider companion, HD 153525, about 2' away, which is confirmed by matching proper motion and parallax.

HD 165341: Binary. CNS lists component A of an 88 year SB2VB as a possible binary with a period of about 17 years, but this is inconsistent with modern measurements (D. W. Latham et al. 2010, in preparation). Heintz (1988) presented a revised orbit of the SB2 and excluded the possibility of any additional companions with periods below 55 years, stating that the once suspected velocity variation of A is disallowed by the more precise recent measurements. The WDS lists 15 more components for this star, all of which are clearly optical (see Table 6).

HD 165908: Binary, candidate Triple. This is a 56 year visual binary orbit. Additionally, the WDS lists one speckle measure with a separation of 0228 at 502 from Scardia et al. (2008), who list this new discovery as "faint." They also resolved the known VB companion about 1'' away, and noted it as "very faint." In the absence of additional measures that can help confirm CPM, this close companion is retained as a candidate. Five other components listed in the WDS are clearly optical (see Table 6).

HD 178428: Binary. The primary of a 22 day SB1 has a single 1987 measure listed in the WDS with a separation of 02. However, the INT4 lists six null results and attempts by B.D.M. and D.R. at the KPNO 4 m telescope in 2008 June once again failed to reveal any visual companion. A wider component listed in the WDS is clearly optical (see Table 6).

HD 186408: Triple, one planet. This close companion to 16 Cyg A was first resolved 3'' away by Turner et al. (2001) with AO at the Mount Wilson Observatory and confirmed by Patience et al. (2002), who demonstrated CPM and measured infrared magnitudes consistent with the primary's distance. Four velocity measures over 25 years show a slow drift (D. W. Latham et al. 2010, in preparation), consistent with this companion. This system also has a wide companion, 16 Cyg B, which is a planet host. The WDS lists an additional source, 16'' away from 16 Cyg B, but Patience et al. (2002) measured the infrared magnitudes of this candidate, demonstrating that it is a background star. This is the only planetary system in this study with more than two stars.

HD 190067: Binary. This companion was discovered by Turner et al. (2001) with AO at the Mount Wilson Observatory, but the single-epoch measure with no color information does not allow confirmation of a physical association. B.D.M. and D.R. observed this star at the KPNO 4 m telescope in 2008 June. While the separation and Δm are too large for speckle observations, a stellar source was seen at the expected position, confirming CPM, and given the proximity to a large proper motion (06 yr⁻¹) primary, the physical association of this companion is very likely.

HD 190406: Binary. Liu et al. (2002) discovered a faint companion 08 from this star with AO at the Gemini North and Keck II telescopes and confirmed a physical association by demonstrating CPM, consistent spectroscopy, and long-term radial-velocity trend. They determined a spectral type for the companion of L4.5 ± 1.5, estimated its mass to be 55–78 M_J and age as 1–3 Gyr. This is the first substellar object imaged so close to a solar-type star and indicates that brown dwarfs can exist in extra solar systems at positions comparable to the gas giants in our solar system. Eight additional WDS components are clearly optical (see Table 6).

HD 191499: Binary. The WDS lists 51 measurements of this companion between 1782 and 2003, which are consistent with a bound system. There is little evidence of orbital motion during the roughly 200 years of observations, possibly because the companion is near apastron in an eccentric orbit or the orbit is highly inclined. Hipparcos and Tycho-2 proper motions differ by 5.6σ, suggesting some orbital motion (see Table 8). The photometric distance estimate is not a very good match (see Table 10), but photometry would be tricky for this close pair as indicated by the large uncertainties of the 2MASS magnitudes. Given the evidence of consistent WDS measures, proper motion differences between Hipparcos and Tycho-2, and similar distance estimates, this pair likely has a physical association. An additional wide WDS component is clearly optical (see Table 6).

HD 195564: Binary. The WDS lists 16 measures over 110 years that are consistent with a bound pair. While proximity to the primary and Δm ∼ 5 (from WDS) make photometry of the companion difficult, the proximity and CPM implied by the measures argue for a physical association. An additional wide WDS component is clearly optical (see Table 6).

HD 200525: Triple. The CNS and Hipparcos identified the closer pair as a possible binary (stochastic solution) and Goldin & Makarov (2006) derived a photocentric orbit using the Hipparcos intermediate astrometry data. Their orbital solutions using data from the two independent Hipparcos reduction methods, Fundamental Astronomy by Space Techniques (FAST) and the Northern Data Analysis Consortium (NDAC), are consistent. They tested their orbit determination method satisfactorily against 235 known binaries and derived a better than 99% confidence level based on simulations. The WDS lists four measurements from 1898 to 1932, during which time the separation reduced from about 1'' to 016. The respective position angles of the measurements are consistent with a high-inclination orbit. Given these independent measurements leading to similar results, we conclude that while the orbital elements may be preliminary, this companion is physically bound. For the wider component, the WDS has five measures over 88 years that are also consistent with a bound pair. The companion is NLTT 50542 with a proper motion that matches the primary's, and the notes in the catalog recognize this component as gravitationally bound. 2MASS magnitudes have a large error, but are consistent with a mid-K dwarf companion at approximately the primary's distance.

HD 200560: Binary. The WDS has seven measures of a companion with separations 28–33 over 28 years, suggesting a bound system. This is especially significant given the primary's large proper motion of 04 yr⁻¹. The companion, GJ 816.1B, is recognized in the CNS as bound, although no conclusive evidence is presented. The 2MASS photometry has large errors, and hence is not very useful. The Hipparcos and Tycho-2 proper motions are different by about 8σ, providing evidence of orbital motion and lending credibility to a physical association. The WDS lists this pair as the CD component of the B3V binary HD 200595 AB, but there is clearly no physical association between HD 200560 and HD 200595 as seen by blinking archival images. An additional wide WDS component is also clearly optical (see Table 6).

HD 202275: Binary. This is a 5.7 year SB2VB. Tokovinin et al. (2006) give an additional orbit with a period of 5.7 days, which is in fact the former orbit listed with an incorrect unit (A. Tokovinin 2007, private communication). This system is a binary with mass estimates of 1.2 M_☉ and 1.1 M_☉ by Pourbaix (2000). An additional wide WDS component is clearly optical (see Table 6).

HD 206860: Binary. Luhman et al. (2007) reported the discovery of a T2.5 ± 0.5 companion using Spitzer IRAC images and confirmed CPM using 2MASS images. The infrared colors are consistent with the distance to the primary, confirming companionship. By comparing the luminosity with evolutionary tracks, they estimate the companion's mass as 0.021 ± 0.009 M_☉ and age as 0.3 ± 0.2 Gyr. An additional, potentially wide companion was identified 591'' away by blinking archival images but refuted based on its photometric distance estimate (see Table 5).

HD 215648: Binary. A companion, 11'' away, is listed in the WDS and CNS and confirmed by the 23 measurements in the WDS over 179 years which not only demonstrate CPM, but also orbital motion. A wider WDS component is clearly optical (see Table 6).

HD 217107: Single star with two planets or a binary with one planet. The WDS lists two measurements, 15 years apart, of a companion 03 away from this star, which also hosts two planets. These speckle interferometry detections could however not be confirmed by the same technique on at least three other occasions, indicating that this pair might have a large or varying Δm. Interestingly, the farther planet is one of the most widely separated planets reported, at least 5 AU from the star. Vogt et al. (2005) present orbital solutions with periods of 7–9 years, but mention that it could be three times larger. Wright et al. (2009) present an updated orbit with P = 11.5 ± 0.5 years and a = 5.27 ± 0.36 AU. At the 20 pc distance to the star, these separations are consistent with the speckle observations. Given the inconsistent measures, if we assume a ΔV near the speckle limit of about 3, the companion to the G8 IV-V primary (Gray et al. 2003) could be an early M-dwarf. The mass sum of such a binary is consistent with the Wright et al. (2009) orbital elements. Vogt et al. (2005) note that an AO image obtained with the Keck telescope did not reveal any stars beyond 01 from the primary, and Chauvin et al. (2006) confirm this null result with VLT and CFHT AO observations. The M-dwarf companion would also imply a significantly larger velocity semi-amplitude for the primary, but that possibility is not excluded by the orbital plot in Wright et al. (2009). While it appears that this "planetary" companion could be a star, further observations are warranted.

HD 220140: Triple. The WDS has five measurements over 100 years for the closer visual companion at separations of about 10'' that are consistent with a bound pair. The companion is NLTT 56532 with a proper motion matching that of the primary and 2MASS colors consistent with an early M-dwarf at approximately the primary's distance. The wide CPM companion, 16' away, was first identified by Lépine & Shara (2005) and confirmed by Makarov et al. (2007) who show that the companion's trigonometric parallax is consistent with the primary's Hipparcos value. Their BVRI photometry along with 2MASS near-infrared magnitudes show that this star is overluminous in the K_s band, confirming its suspected pre-main-sequence status, and enabling an age estimate of 12–20 Myr.

Table 15 enumerates the coverage of the sample by various systematic searches and Figure 11 identifies the detection limits of the methods. The shortest-period systems are comprehensively covered by the radial-velocity surveys. The CCPS effort is sensitive down to planetary masses for periods of some 10 years and the D. W. Latham et al. (2010, in preparation) survey is capable of identifying K₁ ⩾ 1 km s⁻¹ with periods below 30 years.¹⁵ The CHARA SFP detection space covers ΔK ⩽ 2.5 for separations of 10–80 mas. These, and the following angular separations are converted into linear separations assuming a distance of 20 pc (the median distance of our sample) and translated into periods assuming a mass sum of 1.5 M_☉. Speckle interferometry, typically done on 4 m class telescopes, is sensitive to ΔV ⩽ 3 and separations 30 mas to 2''. AO and other visual searches for high-contrast binaries are done using telescopes of up to 10 m apertures and can detect ΔV ⩽ 2 at 50 mas separation, improving to about 10 mag for 2''–10''. While AO observations are not part of our systematic efforts, their results from other searches (e.g., Turner et al. 2001; Liu et al. 2002; Luhman & Jayawardhana 2002; Potter et al. 2002; Roberts et al. 2005; Chauvin et al. 2006; Lagrange et al. 2006; Metchev & Hillenbrand 2009) are nevertheless included in our multiplicity results. Unfortunately, many of these studies only report companion detections, leaving the list of targets searched, and the corresponding null results, unpublished. Nevertheless, we were able to identify the results of AO searches around 82 of our sample stars from studies that published their target lists (Luhman & Jayawardhana 2002; Chauvin et al. 2006; Metchev & Hillenbrand 2009), or for which we could obtain unpublished null results (Turner et al. 2001), and their results are included in the last row of Table 15. Finally, the widest companions are detected by blinking archival images, capable of identifying roughly equal-magnitude binaries as close as 5'' as twin diffraction spikes. At wider separations beyond 15''–30'' (depending on the particular image), this technique can reveal companions with R ⩽ 17, i.e., all but the lowest mass stars. Figure 11 also shows the overlap of the actual pairs from our results with estimates of masses and periods as described in Sections 5.3.1 and 5.3.3, respectively, highlighting the thorough coverage by the various techniques and validating the detection-limit estimates. This, along with the robust overlap of the detection space by multiple complementary techniques, suggests that our tally of companions is comprehensive and nearly complete. Next, we estimate the number of stellar and sub-stellar companions missed by this survey.

Zoom In Zoom Out Reset image size

As seen in Column 4 of Table 15, our efforts added only a few new companions, underscoring the collective comprehensiveness of prior efforts. Moreover, the techniques employed are capable of detecting stellar companions of nearly all masses. We can thus estimate the number of stellar companions missed by simply extrapolating the number of new companions found by each technique (Column 4 of the table) to the full sample, accounting for their incomplete coverage. So, for example, the four new CPM companions found around 409 stars imply that one undetected companion might exist in the 45 stars not searched by this technique. Similarly, the radial-velocity techniques listed in the first two rows of Table 15 imply two spectroscopic companions missing from our tally. While these spectroscopic techniques are not sensitive to companions in nearly face-on orbits, the CCPS survey, in particular, should see a velocity trend from stellar companions in all but perfectly face-on orbits, which are highly improbable. Moreover, the dearth of short-period systems in general, and low-mass ones in particular, as seen in Figure 11, suggests that we are not missing many such companions. At longer periods, companions in face-on orbits should be detected by the visual techniques. The two new companions reported by AO searches (last row of Table 15) suggest that nine high-contrast companions might exist near the 371 stars not surveyed by these efforts. However, given that only six of at least 22 AO companions in our results were discovered by the references included in Table 15, most of these companions are expected to be counted in our results, and any further missing AO companions are expected to be covered by the estimates performed below.

Considering missing low-mass companions, Figure 11 identifies two possible gaps in the coverage of the parameter space for potential companions: the low-mass region between RV and AO and then again between AO and CPM. While these gaps suggest a few missing companions, they are nevertheless populated by some actual detections because of other techniques such as Hipparcos double stars, whose companions are investigated and included in our tally, but whose detection regions are not included in the plot. The dearth of low-mass companions was first established by radial-velocity surveys for P ≲ 5 years, and extended to all separations by high-contrast visual searches (e.g., Gizis et al. 2001; Kirkpatrick et al. 2001; Lowrance et al. 2002; Burgasser et al. 2003; McCarthy & Zuckerman 2004; Neuhäuser & Guenther 2004; Grether & Lineweaver 2006; Kraus et al. 2006; Allen et al. 2007; Lépine & Bongiorno 2007; Looper et al. 2007; Metchev & Hillenbrand 2009). While many of these searches specifically targeted brown dwarf companions, they were more sensitive to, and often reported, the discovery of low-mass stellar companions as well. Additionally, a specific search for low-mass companions out to separations of 10,000 AU around solar-type stars within 10 pc using 2MASS infrared images resulted in no new detections (D. Looper 2009, private communication). Consistent with these findings, our results include only eight brown dwarf companions, found by high-resolution techniques such as coronagraphy, AO, and space-based observations (e.g., Potter et al. 2002; Bouy et al. 2003; Burgasser et al. 2005; Luhman et al. 2007). Moreover, while our CPM efforts using archival images are not sensitive to brown dwarfs, widely separated substellar companions to nearby stars have effectively been identified using 2MASS infrared images (Kirkpatrick et al. 2001; Lowrance et al. 2002; Looper et al. 2007). While these efforts readily present new detections, null results often remain unpublished. Nevertheless, these searches using 2MASS infrared images have largely yielded null detections (D. Kirkpatrick 2009, private communication), suggesting a real shortage of low-mass companions. As noted above, the CCPS survey is specifically suited to identifying relatively long-period low-mass companions, or those in nearly face-on orbits, as low-amplitude temporal drifts in the radial-velocity measurements of the host stars. Our search of the CCPS data revealed 21 stars which have such drifts with rms deviation from a uniform velocity of less than 0.1 km s⁻¹ over some 10 years. Fourteen of these have known stellar companions, many of which are close enough to cause the radial-velocity variations seen. The remaining seven stars do not have any known companions, implying undetected stellar or sub-stellar companions to presumed single stars. While some of these could turn out to be planets in long-period orbits, they could all be new stellar or brown dwarf companions. Added to the one missing CPM companion and two missing spectroscopic companions discussed above, we estimate that our survey might be missing about 10 companions to presumed single stars.

The extrapolation of new companions used above to estimate the number of companions missed by our survey is valid only if the stars not observed by a particular technique have, in general, been historically covered in equal measure as those observed by that technique. If the stars not surveyed by a given technique fall into a set of generally neglected stars, the approach used above would underestimate missing companions. We address this assumption next for the D. W. Latham et al. (2010, in preparation) and CPM surveys, as these are the primary techniques yielding new discoveries from observations of a subset of the overall sample. The speckle and Hipparcos searches exhaustively covered the sample, and hence no extrapolation is necessary. We exclude the CCPS survey from this analysis because of the inherent bias in its sample selection, as it avoids known close binaries. The percentage of single stars among the 344 primaries observed by D. W. Latham et al. (2010, in preparation) is 55% ±  4%, compared to 59% ±  7% for the 109 stars not observed by this survey. These percentages agree to well within 1σ, indicating no deficit of historical attention for the stars excluded from the Latham et al. survey. Similarly, the fraction of single stars among the 409 stars explored by the CPM technique is 54% ± 3%, compared to 75% ± 13% for the 44 unexplored stars, an agreement to 1.6σ. While still consistent within expected statistical deviations, this is a larger departure than seen for the radial-velocity survey. Moreover, stars not investigated for CPM companions exhibit low proper motion in archival images, a factor that could have contributed to their exclusion from some companion search efforts. However, even if we adopt the fraction of single stars from the surveyed subsets, this analysis suggests that 54%–55% of Sun-like stars are likely to be single, consistent with the above estimate of about 10 missing companions in our survey.

Finally, we try another approach to estimate the number of missing companions. Rather than extrapolate new companions, we apply the fraction of detected companions found by each technique (Column 3 of Table 15) to the unsurveyed stars and estimate the number that would apply to presumed single stars. For example, the 70 companions discovered among 409 stars searched for CPM companions imply eight undiscovered companions in the 44 not searched. Given that 75% of these 44 stars do not have any observed companions from any technique, six of these eight missing companions may apply to presumed single stars. Because of the systematic reason for the exclusion of these 44 stars, i.e., these are not conducive to CPM searches by any efforts relying on archival images, this may be a better estimate than the one missing companion estimated by extrapolating new companions. However, some of these stars may be the same as the ones for which companions are suggested by the other subsets of the incompletion analysis, suggesting that about 10–15 companions may be missing from our results. Hence, the various approaches of estimating the incompletion of our survey yield consistent results, resulting in our estimate that about 13 presumed single stars may have yet undiscovered companions. Note that the extrapolation of total companions discovered, as discussed above for CPM, could also be applied to the radial-velocity and AO surveys listed in Table 15. However, there is no systematic reason for excluding targets from the D. W. Latham et al. (2010, in preparation) survey or the AO surveys (other than declination limits, which by themselves do not suggest any bias impacting companion fractions). The missing companions implied by these extrapolations, 12 from the radial-velocity survey and 27 from the AO survey, are largely expected to have been discovered by other efforts using these techniques, as suggested by consistent multiplicity fractions among the surveyed and unobserved subsets discussed above. The consistent multiplicity results for various subsamples with distance and declination limits, covered in the next section, further improve confidence in our estimates of missing companions for the substantially larger sample.

Table 16 lists our overall multiplicity results for solar-type stars in the solar neighborhood and facilitates a comparison with the DM91 results. Our overall observed fractions of single, double, triple, and higher-order systems are 56% ± 2%, 33% ± 2%, 8% ± 1%, and 3% ± 1%, respectively, counting all confirmed stellar and brown dwarf companions. If all candidate, i.e., unconfirmed, companions identified are found to be real, the percentages would change to 54% ± 2%, 34% ± 2%, 9% ± 2%, and 3% ± 1%, respectively. Based on the completeness analysis discussed in Section 5.1, we conclude that 54% ± 2% of solar-type stars are single, i.e., without stellar or brown dwarf companions.¹⁶

We now return to the question about the completeness of our volume-limited sample, explored in Section 2.2. As pointed out, if our sample suffered from Hipparcos magnitude limits, we would expect the percentage of single stars to drop with increasing distance, because a magnitude-limited sample would favor the inclusion of spatially unresolved binaries at farther distances. However, the multiplicity fractions for the 15, 20, and 23 pc subsamples and that of the full 25 pc sample, shown in the second section of Table 16, are all statistically equivalent. This is consistent with the expectations for a complete, volume-limited sample, enabling us to conclude that our sample does not suffer from any magnitude limitations.

Given the longstanding appreciation of the DM91 survey, we now compare our multiplicity fractions with their results, reproduced in the third section of Table 16. The comparison reveals several interesting facts. First, the percentage of triple and quadruple systems in the current study is roughly double that of DM91. Our results show that 25% of non-single stars are higher-order multiples, compared to 13% in DM91, confirming their prediction that additional multiple systems were likely to be detected among nearby solar-type stars. Second, while the percentage of multiple systems has doubled, it has come solely at the expense of binary systems. It is indeed remarkable that despite almost 20 years of monitoring since DM91, the observed percentage of single stars before any incompleteness corrections has remained virtually unchanged—from 56.7% in DM91 to 56.4% in our study. Third, candidate companions have a smaller influence on our multiplicity statistics compared to DM91—2% versus 7%. DM91 considered radial-velocity variations with P(χ²) < 0.01 as non-random variations suggesting unseen companions. While this metric has been subsequently used as an indication of companionship (Nordström et al. 2004), it alone is not reliable for this purpose (D. W. Latham et al. 2010, in preparation). In contrast, in the current study, we individually inspect each candidate and use multiple methods and observations to confirm or refute the companions whenever possible, leaving us with fewer candidates. Fourth, DM91 made significant incompleteness corrections, estimating that only 43% of solar-type stars have companions with mass ratio q>0.1. Further, they assume that many low-mass companions were missed, concluding that only one-third of solar-type stars are truly single, i.e., without companions with masses greater than 10 M_J. The significant detection gaps discussed in DM91 in the spectroscopic, visual, and low-mass regimes have been effectively plugged by our effort, as shown in Figure 11, resulting in our modest incompleteness correction discussed in the previous section. We thus believe that DM91 significantly overestimated the number of low-mass companions missed by their survey.

However, there are some systematic differences between our sample and that of DM91, whose possible effects we investigate next. The last section in Table 16 includes results from various subsamples to facilitate this analysis. The first two lines present the statistics from the 106 systems that are common to the two studies. While the DM91 results for this subsample are consistent with their overall results, the updated results for this subset show a 7% reduction in the percentage of single stars, a 1σ deviation. A check of the individual results indicates that while three of the DM91 companions to these stars have since been refuted, 17 new companions have been discovered to 15 of these stars. We explored several avenues to investigate a systematic cause for this difference, but failed to identify any such factor. First, the third row in this group lists the statistics for 10,000 randomly selected subsets of 106 stars from our sample, showing that their results are consistent with our overall numbers and suggesting that the difference for the particular set of 106 stars overlapping with DM91 is just statistical scatter. Second, while our sample is all-sky, the DM91 sample was declination limited to north of −15°. To check whether stars in the southern hemisphere have been studied less completely, resulting in a greater percentage of presumed single stars, we checked the subsample of our study with declination north of −15°. The results, listed in the fourth row of this section in the table, indicate no such bias. A third factor could be the difference in the color ranges of the two samples. While our study includes stars with 0.5 ⩽ B − V ⩽ 1.0, roughly corresponding to spectral types F6–K3, DM91 selected a narrower F7–G9 range. As later spectral types are known to have fewer companions (see Section 5.3.2), this might be a factor. However, as shown in the last row of the table, a subsample of matching spectral types does not show a significant deviation from our overall results.

Finally, we examine whether the DM91 sample represents a particularly well-studied set of stars when compared to the non-DM91 stars in our sample. Of the 106 stars common to both surveys, 104 (98%) were observed for CPM companions. In comparison, 88% ± 5% of the 347 sample stars not in the DM91 study were observed for CPM companions. The difference might be due to the preferential selection of high-proper-motion stars for ground-based parallax measurements that governed the selection of the DM91 sample, compared to the more comprehensive Hipparcos catalog used by this effort. Nevertheless, this difference might suggest a moderately better coverage of the DM91 sample, but the companions possibly missed due to this effect were estimated in the previous section and are included in our results. Comparing the coverage of these subsamples by the D. W. Latham et al. (2010, in preparation) survey, we find that 97% of the 106 common stars were observed by the Latham et al. survey, compared to 69% of the non-DM91 stars. Further analysis confirms that this is simply due to the declination limits of the DM91 (⩾−15°) and Latham et al. (⩾−40°) efforts, compared to our all-sky sample. Limiting the comparison to stars north of the DM91 declination limit, we find an identical coverage of 97% by the D. W. Latham et al. (2010, in preparation) effort for both subsets, i.e., the 106 common stars and the 201 non-DM91 stars. As discussed above, the declination-limited subsample yields multiplicity fractions consistent with our overall results, confirming that our comprehensive synthesis of other efforts adequately covers the southern-hemisphere stars. Apparently, the differences in the particular subsample common to the DM91 and our survey are simply due to statistical scatter.

5.3.1. Sources and Estimation of Physical Parameters

5.3.2. Multiplicity by Spectral Type and Color

Figure 12 shows the multiplicity fraction for stars and brown dwarfs. Most O-type stars seem to form in binary or multiple systems, with an estimated lower limit of 75% in clusters and associations having companions (Mason et al. 1998a, 2009). Studies of OB-associations also show that over 70% of B and A type stars have companions (Shatsky & Tokovinin 2002; Kobulnicky & Fryer 2007; Kouwenhoven et al. 2007). In sharp contrast, M-dwarfs have companions in significantly fewer numbers, with estimates ranging from 11% for companions 14–825 AU away (Reid & Gizis 1997) to 34%–42% (Henry & McCarthy 1990; Fischer & Marcy 1992). Finally, estimates for the lowest mass stars and brown dwarfs suggest that only 10%–30% have companions (Burgasser et al. 2003; Siegler et al. 2005; Allen et al. 2007; Maxted et al. 2008; Joergens 2008). Our results for F6–K3 stars are consistent with this overall trend, as seen by the thick solid lines for the incompleteness-corrected fraction. Moreover, the thick dashed lines for two subsamples of our study show that this overall trend is present even within the range of solar-type stars. Of the blue subsample (0.5 ⩽ B − V ⩽ 0.625, F6–G2, N = 131), 50% ± 4% have companions, compared with only 41% ± 3% for the red subsample (0.625 < B − V ⩽ 1.0, G2–K3, N = 323).

Zoom In Zoom Out Reset image size

5.3.3. Period Distribution

Figure 13 shows the period distribution of all 259 confirmed pairs, with an identification of the technique used to discover and/or characterize the system. To provide context, the axis at the top shows the semimajor axis corresponding to the period on the x-axis assuming a mass sum of 1.5 M_☉, the average value of all the confirmed pairs. When period estimates are not available from spectroscopic or visual orbits, we estimate them as follows. For CPM companions with separation measurements, we estimate semimajor axes using the statistical relation log a'' = log ρ'' + 0.13 from DM91, where a is the angular semimajor axis and ρ is the projected angular separation, both in arcseconds. This, along with mass estimates as described in Section 5.3.1 and Newton's generalization of Kepler's Third Law yields the period. For the remaining few unresolved pairs, we assume periods of 30–200 years for radial-velocity variables and 10–25 years for proper-motion accelerations. The period distribution follows a roughly log-normal Gaussian profile with a mean of log P = 5.03 and σ_log P = 2.28, where P is in days. This average period is equivalent to 293 years, somewhat larger than Pluto's orbital period around the Sun. The median of the period distribution is 252 years, similar to the Gaussian peak. This compares with corrected mean and median values of 180 years from DM91. The larger value of the current survey is a result of more robust companion information for wide CPM companions. The similarity of the overall profile with the incompleteness-corrected DM91 plot suggests that most companions they estimated as missed have now been found. The shading in the figure shows the expected trend—the shortest period systems are spectroscopic, followed by combined spectroscopic/visual orbits, then by visual binaries, and finally by CPM pairs. The robust overlap between the various techniques in all but the longest period bins underscores the absence of significant detection gaps in companion space and supports our earlier statements about the completeness of this survey. Binaries with periods longer than log P = 8 are rare, and only 10 of the 259 confirmed pairs (4%) have estimated separations larger than 10,000 AU. Although separations wider than this limit were not searched comprehensively, Figure 8 shows that separations of up to 14,000 AU were searched for some systems, and 56% of the primaries were searched beyond the 10,000 AU limit. The drop in the number of systems with companions thus appears to occur within our search space and hence is likely real. While binaries with separations ∼0.1 pc have been reported (Latham et al. 1991), they are rare and unlikely to survive dynamical interactions in clusters (Parker et al. 2009). The few such extremely wide binaries in our sample might have formed outside clusters, which are the exception rather than the rule (e.g., Lada & Lada 2003). Looking at a closer limit, Lépine & Bongiorno (2007) concluded that at least 9.5% of Hipparcos stars within 100 pc have distant stellar companions with projected separations greater than 1000 AU. Our results for the Hipparcos solar-type stars within 25 pc show that 11.5% have companions with projected separations greater than 1000 AU, consistent with Lépine & Bongiorno's conclusions and suggesting that their companion search effort was fairly comprehensive.

Zoom In Zoom Out Reset image size

5.3.4. Period–Eccentricity Relationship

Figure 14 shows the period–eccentricity relationship for the 127 pairs with estimates of these parameters from visual and/or spectroscopic orbital solutions. Pairs with orbital periods longer than the circularization limit of about 12 days have a roughly flat eccentricity distribution out to e ∼ 0.6, independent of period, as shown by Figure 15. The deficiency of high eccentricities is likely due to dynamical interactions for short-period systems and the lack of measurements for long-period systems. The flat eccentricity distributions in Figure 15 are in contrast to the DM91 results, which showed a normal distribution for periods below 1000 days, and an f(e) = 2e distribution for longer-period systems. Pairs with periods below 12 days are circularized, with one notable exception. The 7 day SB2 pair HD 45088 Aa-Ab seems to have an unusually high eccentricity of 0.1471 ± 0.0034 for its short period, and the longer 600 year AB orbit has an eccentricity of 0.25. A possible explanation is that this system is relatively young and hence not yet circularized. The log R'_HK of the primary of −4.266 (Gray et al. 2003) is among the highest for the stars of this sample, suggesting relative youth, which is consistent with a high rotational-velocity and emission features in its spectra (Mishenina et al. 2008). However, the chromospheric activity and high rotation can also be explained by tidal interactions between the components of the short-period binary. An alternate explanation of the high eccentricity is the Kozai mechanism (Kozai 1962), which causes periodic oscillations in the eccentricity and inclination of inner orbit due to tidal forces from the wide companion. Another similar system, HD 223778, has an outer orbit with an large eccentricity of 0.55, and an inner orbit with a small eccentricity of 0.0174 ± 0.0035. While low, the inner orbit's eccentricity is different from zero by a 5σ significance, suggesting that the Kozai mechanism could be at play in this system as well. In another observational support of the Kozai mechanism, Figure 14 shows that the upper-eccentricity envelope is dominated by components of triple systems, as also observed by DM91.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

5.3.5. Mass-ratio Distribution

Figure 16 shows the distribution of mass ratios (M₂/M₁) for binaries, pairs in higher-order multiple systems, and composite-mass pairs in multiple systems (see the figure caption for an example). These plots exclude 11 systems with components whose masses could not be estimated by the process described in Section 5.3.1. The figure shows a roughly flat distribution for mass ratios 0.2–0.95. Binaries show a deficiency of low-mass companions, and Figure 17 illustrates the lack of low-mass, short-period companions. This parameter space is effectively covered by the CCPS and D. W. Latham et al. (2010, in preparation) radial-velocity studies (see Figure 11), so the deficiency of such companions appears to be real, suggesting that short-period systems prefer higher mass ratios. The fraction of short-period (P < 100 days) systems increases from 0% for mass ratios below 0.2, to 4% for mass ratios below 0.45, to 8% for mass ratios 0.45–0.9, and to 16% for mass ratios above 0.9. Figure 16 shows that the preference for like-mass pairs applies to binaries and pairs in higher-order multiples (such as Aa, Ab in a Aa, Ab, B triple), but does not apply when the aggregate mass of a pair is compared with the third component (e.g., mass of Aa+Ab, compared to mass of B). Consistent with the above observations, like-mass pairs (M₂/M₁>0.95) prefer relatively short periods—only six of 27 such pairs have periods longer than some 200 years and none have periods longer than about 1000 years, corresponding to about 115 AU. These results agree with predictions from hydrodynamical simulations (Bate et al. 2002), which show that gas around a protobinary preferentially accretes on to the lower-mass component. This is a consequence of the lower-mass component sweeping a larger space, thereby aggregating more mass until the masses are roughly equal. These results contradict DM91's conclusions, which showed no preference for like-mass pairs. Figure 17 also shows that the majority of short-period pairs belong to triple systems. Of the 16 systems with periods below 100 days, seven are binaries and nine are the inner pairs of triple systems. These observations support predictions from hydrodynamical simulations, which suggest that many short-period pairs could have formed at wider separations and migrated closer as a result of dynamical interactions in unstable multiple systems or orbital decays due to gas accretion and/or the interaction of a binary with its circumbinary disk (Bate et al. 2002).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

5.3.6. Multiplicity by Chromospheric Activity and Age

Multiplicity studies of young stars (Ghez et al. 1997; Kouwenhoven et al. 2007), nearby solar-type stars (Mason et al. 1998b), and aging stars in globular clusters (Sollima et al. 2007) show an anticorrelation between age and the fraction of stars with companions. To check this trend within our sample, we use chromospheric emission as measured by log R'_HK, an age indicator (Henry et al. 1996; Mason et al. 1998b; Mamajek & Hillenbrand 2008). We avoid the potential contamination from tidally induced high activity in short-period binaries by excluding systems with orbital periods less than 12 days. The overall multiplicity fraction of the active (log R'_HK ⩾ −4.75) and inactive (log R'_HK < −4.75) subsamples are statistically equivalent. Among low activity (older) stars, 40% ± 3% have companions, compared with 44% ±  4% of high activity (younger) stars. Interestingly, there appears to be a relationship between age and the interaction cross sections of systems, i.e., systems with more stellar components or those with long orbital periods are preferentially younger. Figure 18 shows the relationship between orbital period, chromospheric activity, and multiplicity order. Not surprisingly, all systems with P < 12 days are active, presumably because of tidal interactions. These systems are excluded from any age-related analyses. Among systems that have no orbital periods shorter than 12 days, the active subset has a larger fraction of higher-order multiples, i.e., 26% of the active systems are triples or higher-order multiples compared to only 17% of low-activity systems. Consistent with this trend, only 32% of binaries are active, compared to 44% of higher-order multiples. Also, the fraction of active single stars is 33%, virtually identical to the fraction for binaries. Thus, it appears that binaries tend to remain intact after dynamical interactions, but higher-order multiples get disrupted, assuming that the formation rates of higher-order multiples have not changed over time. Similarly, long-period systems also tend to erode with age. For systems with log P < 8 (i.e., periods below some 275,000 years or, assuming a mass sum of 1.5 M_☉, semimajor axes less than 5000 AU), only 33% ± 4% are in the active subset. In comparison, 69% ± 23% of systems with longer periods are active. Comparing these distributions using the Kolmogorov–Smirnov test shows consistent results, but the sample sizes in many cases are too small to yield definitive answers. In summary, our results suggest that systems with more than two stellar components or those with long orbital periods tend to preferentially lose companions with age, likely due to dynamical interactions.

Zoom In Zoom Out Reset image size

5.3.7. Multiplicity by Metallicity

Figure 19 shows the fraction of stars with stellar, brown dwarf, and planetary companions as a function of metallicity. The planet–metallicity correlation, first demonstrated by Fischer & Valenti (2005), is clearly seen in our volume-limited sample as well. Due to the dearth of brown dwarfs, testing whether similar correlations exist for these more massive substellar companions is a challenge. While none of the seven stars of our sample with confirmed brown dwarf companions has [Fe/H] <−0.3, the steady rise with metallicity seen for planets is not evident for brown dwarfs. While the fraction of stars with planets rises from 2% at −0.3⩽ [Fe/H] <−0.2 to 40% for 0.2⩽ [Fe/H] <0.3, the corresponding numbers for brown dwarf companions are constrained between 0% and 3%, and are all statistically equivalent due to the small numbers. To generate a larger sample, we looked at all brown dwarfs in the Dwarf Archives with known stellar companions. Twenty-two such stars were found, and 13 of them have metallicity measurements. All but one of these stars have metallicity values between −0.4 and 0.3, and the exception has [Fe/H] =−0.69. With such small numbers and the above exception, we are not able to conclude anything specific about the correlation between a star's metallicity and its tendency to have brown dwarf companions, although the data hint a possible relationship.

Zoom In Zoom Out Reset image size

Figure 19 illustrates two additional points. First, the population of solar-type stars in the solar neighborhood is metal poor compared with the Sun. Seventy percent of the 414 stars with metallicity measurements are less abundant in heavy elements than the Sun. Second, while stars with [Fe/H] > − 0.3 show no correlation between metallicity and the fraction of stars with stellar companions, stars with metallicities below this limit show a greater tendency to have stellar companions, which appears to increase with decreasing metallicity. While the implied anticorrelation for the individual bins in this region is not statistically significant and consistent with a flat distribution,¹⁷ the aggregate differences on either side of this limit are significant. Using Poisson uncertainties, our data suggest that 57% ± 9% of stars with [Fe/H] <−0.3 have companions, compared with 39% ± 3% of the higher metallicity stars. This result is in contrast to several recent multiplicity studies of K and M subdwarfs, which find a lower companion fraction for subdwarfs when compared to corresponding main-sequence stars (Riaz et al. 2008; Jao et al. 2009; Lodieu et al. 2009). However, these surveys targeted known subdwarfs, which are often initially identified by their sub-main sequence location on the H-R diagram, potentially excluding some binaries because they are elevated on the diagram. On the other hand, based on an analysis of short-period binaries, Grether & Lineweaver (2007) concluded that low-metallicity stars are more likely to have companions and further pointed out that this tendency is limited to relatively red stars (B − V>0.75). Our work confirms these conclusions. Splitting the analysis into red and blue subsets on either side of B − V = 0.625 (the limit used in Section 5.3.2), we find no relationship between metallicity and the tendency to have stellar companions for B − V < 0.625. For the redder subset, however, the relationship shown in Figure 19 is not only repeated, but further accentuated. While the anticorrelation across the individual metallicity bins is still statistically insignificant, the aggregate percentage of stars with stellar companions is 63% ± 11% for [Fe/H] <−0.3 and 35% ± 4% for the higher metallicity subset. Although this interesting result is somewhat tentative, it may indicate that lower-metallicity clouds are more likely to fragment and form binary stars, as suggested by numerical simulations (Bate et al. 2003; Bate 2005; Machida et al. 2009). Because older-population stars are relatively metal-poor, these differences could appear to contradict the conclusion in Section 5.3.6, but there is no relationship between metallicity and chromospheric activity for our sample of stars.

5.3.8. The Hierarchy of Multiple Systems

Figures 20–22 show the hierarchy of triple systems, Figure 23 that of quadruple systems, and Figure 24 that of higher-order systems. Candidate companions are connected via dotted lines and confirmed companions via solid lines. The figures identify the relationship between the hierarchical pairs and the period or separation as appropriate. When available, the components' spectral types from Table 1 and mass estimates from Tables 17 and 18 are also listed. The hierarchical order of multiple systems is clearly seen in our results. All confirmed multiple systems, excluding two outliers discussed below, have period ratios between any pair and the next level up ranging 23,000–33,000. The corresponding semimajor axis ratios are 9–1900. The outlier with the largest ratio is HD 133640, whose period and semimajor axis ratios of 251,000 and 5300 are driven by the very short period of 6.4 hr for the inner pair. The outer pair is separated by about 2'' and has a visual orbit of 246 years. The exception with the lowest ratio can be more informative about dynamical interactions among components. HD 4391 has a period ratio of 5 and a semimajor axis ratio of 3. While this seems to be low enough to raise questions about the dynamical stability of this system, it is composed of two CPM pairs with separations of 17'' and 49'', the wider of which was discovered by this effort. The estimates of semimajor axes from observed separations using the statistical relationship discussed in Section 5.3.3, and the resulting periods, are rough estimates useful for overall statistical analyses, but not accurate for individual systems. Hence, these ratios for this system are not meaningful and the observed projected separations can correspond to a whole host of stable orbital configurations.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The hierarchical relationships in the 33 confirmed triple systems suggests a strong preference for the tertiary component to orbit the more massive component. Twenty-five (76%) of these systems are like HD 40397 (G7+M4, M5) or HD 18143 (K2+K9, M7), where the plus symbol connects the close pair, and the comma delineates the wide component. Only eight (24%) of the systems have the two lower-mass components in a tight orbit, in orbit around a more distant primary (e.g., HD 65907: F9.5, M0+M5 and HD 101177: F9.5, K3+M2). Notably, both brown dwarf pairs in triple systems (HD 97334 and 130948; the third, HD 79096 is a quadruple system) are part of this minority, i.e., tight brown dwarf pairs are preferred rather than two brown dwarfs orbiting their host star in a planetary-system formation, consistent with the findings of Burgasser et al. (2005). These results might indicate a selection effect that the lower-mass components of binaries are less often searched for companions. Alternatively, they may imply that the more massive cloud preferentially fragments in the formation of triple systems when the resulting components are stellar in nature.

All but two of the 13 systems with four or more components are based on a double–double relationship. Nested three level hierarchies for quadruple systems such as those for HD 9770 and HD 137763 appear rare. In instances when these systems are formed solely through fragmentation, these observables suggest that formation processes favor the fragmentation of both first-level clouds rather than the successive fragmentation of one cloud while its counterpart stays intact. In instances when the wider relationships are established via capture, these results suggest a binary–binary combination is more probable and stable than a triple–single combination.

5.3.9. Multiplicity in Exoplanet Systems
