A solar powered handheld plasma source for microbial decontamination applications

Global measurements of the velocity field were taken along the centreline of the SBD electrode with a time-resolved particle image velocimetry (PIV) system from TSI Incorporated. All measurements were conducted inside a closed chamber to ensure the plasma generated air flow was not influenced by any external drafts. The chamber had a cross-section of $1000~\text{mm}\times 1000~\text{mm}$ and a height of 1500 mm. The PIV system consisted of a Photron Fastcam APX camera ($1024\times 1024$ pixels), a New Wave Research Pegasus PIV laser and a TSI 9307-6 oil droplet generator. Olive oil with a nominal size of $1\,{\rm{\mu}}$m was used to seed the air within the closed chamber. The camera was set to view an area of $80~\text{mm}\times 80~\text{mm}$, and 500 image pairs were acquired at a frequency of 500 Hz, with a time delay between frames being typically $200\,{\rm{\mu}}$s. Data processing was performed with INSIGHT 3G software from TSI using a recursive cross-correlation algorithm to generate vectors on a $32\times 32$ pixel interrogation area with a 50% overlap, providing velocity data with a 1 mm spatial resolution to an accuracy of 3–5% [15]. The Stokes numbers of the seeding particles used throughout this study was  <0.1. This ensured that the seeding particles followed the fluid flow closely with tracing errors being  <1% [16].

Bactericidal properties of the plasma system were evaluated using two different bacterial species, both commonly found in water systems, E. coli (NCIMB 12413) and Pseudomonas fluorescens (NCIMB 9046). Bacterial solutions were prepared with autoclaved tap water to obtain an initial concentration of approximately 10⁸ colony-forming units per ml ($\text{CFU}\cdot \text{m}{{\text{l}}^{-1}}$). A 25 ml sample of each suspension was transferred to a petri dish prior to plasma exposure. During plasma exposure, the plasma source was placed on top of the petri dish containing the liquid sample for the duration of the treatment. The discharge power was monitored continuously throughout the treatment by measuring the applied voltage and current to calculate the instantaneous power, which was averaged over many applied voltage cycles using a 1 GHz bandwidth large memory oscilloscope [6]. Different exposure times were used according to the plasma regime under investigation; in a continuous plasma generation mode of operation (10 W dissipated power), plasma exposure times included 30 s, 1 min, 2 min, 3 min and 4 min. In a pulse modulated mode of operation, with a duty cycle of 25% (2.5 W dissipated power), exposure times of 2, 4, 8, 12 and 16 min were considered. Treatment times in the pulsed modulated case were chosen such that they are directly comparable in terms of energy use to the continuous treatments. In all cases, gentle stirring was used to enhance species transport in to the bulk liquid phase. The temperature of the liquid was measured at the end of each test and was found not to exceed 25 °C under any of the plasma generation conditions considered. All treatments were conducted in triplicate. Immediately after treatment suspensions were serially diluted and plated on Tryptic Soy Agar. The Agar plates were incubated overnight at 37 °C (E. coli) and 26 °C (P. fluorescens). The number of counted colonies on each Agar plate was used to determine the level of bacterial survival, information which was converted to a log reduction using the standard approach [17].

Long-lived gas phase species were measured using Fourier transform infra red (FTIR) spectroscopy. The electrodes were placed within a sealed enclosure with a volume similar to that used in the microbiology experiments and plasma was generated using the same conditions as those used in the microbiology tests (detailed in section 3.2). After each test, the effluent within the sealed enclosure was drawn into an FTIR gas cell (multi-pass design with 16 m path length) using a small vacuum pump. A Jasco FT/IR-4000 spectrometer with a mid-IR optical bench from 7800 cm⁻¹ to 500 cm⁻¹ was used to record the resulting IR absorption spectrum. For each measurement, the resolution for data acquisition was set to 4 cm⁻¹ and each spectra comprised of 25 individual acquisitions averaged. Following each measurement, the system was exhausted in to a fume extraction unit and the measurement system flushed for several minutes with laboratory air to remove plasma species from the gas cell and electrode enclosure.

The concentration of gaseous phase species were estimated by fitting the FTIR absorption peaks for each molecule with standard reference profiles obtained from the Pacific Northwest National Laboratory (PNNL) [18]. The standard reference data was collected at 1 part-per-million-meter (ppm-meter) resolution at 296 K with a path length of 1 m. To obtain the concentration (C) of a particular molecule from the absorption spectra, the equation $C~=~A/$(B.l) was used, where A is the area of the FTIR peak of a particular specie, B is the standard peak area and l is the difference between the experimental gas cell path length and the path length used to obtain the reference data. To supplement the FTIR measurements time-resolved ozone density was measured using an ozone monitor from 2B technologies, model 106-M.

A potential drawback of the SBD configuration is the limited mass-transfer of reactive plasma species from the plasma region to the sample. Sakiyama et al conducted a computational study to investigate the transport of plasma species in the afterglow region of an air SBD and it was hypothesized that the introduction of a convective flow on the order of 10 m s⁻¹ could greatly improve the mass-transport of species beyond the discharge region, enabling species such as N, O, OH and NO to reach a sample surface situated 1 mm from the discharge [19]. It is well known that dielectric barrier discharges, excited using either sinusoidal or pulsed excitation, are capable of generating air flow velocities of several m s⁻¹; this phenomena is attributed to the electro-hydrodynamic (EHD) effect of the plasma and has been widely exploited for aerodynamic flow control applications [20]. Typically, the electrode geometry used in such studies comprises of a single strip electrode attached to a dielectric surface with a counter electrode attached to the opposite side of the dielectric material (thus forming an SBD). Operating this arrangement in quiscent air typically results in a filamentary plasma, Boeuf et al provided an approximate expression to calculate the EHD force generated under such conditions as $f\approx {{\varepsilon}_{0}}{{V}^{2}}~{{s}^{-3}}$, where V is the potential drop in the cathode sheath and s is the sheath length, although difficult to measure such parameters, numerical studies have shown that the range of forces expected to be on the order of $5\times {{10}^{2}}\sim 5\times {{10}^{4}}~\text{N}\cdot ~{{\text{m}}^{-3}}$ [21], with resulting velocities in the m s⁻¹ range. In such an arrangement, initiation of the discharge in quiescent air creates a starting vortex which moves along and away from the electrode in a direction parallel to the dielectric surface [22]. However, for the application reported here, it is desirable for the reactive plasma species to be transported perpendicular to the dielectric surface and towards the sample. In order to achieve this, two electrodes are placed side-by-side on the dielectric surface (see schematic in figure 4), such that a discharge forms in the gap between the two electrodes. On initiation of the discharge two starting vortices are created, which move toward one another, collide, and lift vertically away from the dielectric surface by vortex induction [23]. Under continual plasma forcing, the two counter-rotating vortices are followed by a jet flow, which also moves vertically away from the dielectric surface: see figure 4, which shows the ensemble-averaged velocity field around one set of electrodes. Here, data close to the wall is omitted due to the glare caused by the laser reflection on the dielectric surface. In order to scale the device, multiple electrodes are placed side-by-side, thus creating multiple jets directed perpendicularly from the dielectric surface and towards the sample. It should be noted that the jets are always created perpendicular to the dielectric surface irrespective of the device orientation.

Zoom In Zoom Out Reset image size

When using parallel strip electrodes the spacing between the two facing electrode edges is a key factor in determining the velocity of the flow downstream of the dielectric surface. If the gap between the two opposing electrodes is small (e.g. 5 mm, as shown in figure 5), the length of each discharge is limited which results in a lower induced velocity. In addition, as the wall jets travel over the dielectric surface the jet half-width increases, and energy is dissipated through skin-friction drag, which results in a lower induced velocity downstream of the discharge. Figure 5 shows the impact of the spacing between two strip electrodes at various applied voltages. Taking the 10.7 kV_pp case as an example, it is clear that the peak velocity is achieved at an electrode spacing of 15 mm; away from the optimum spacing the downstream velocity of the flow rapidly falls away. This trend is similar at 9.7 kV_pp, whereas at 8.5 kV_pp plasma is only partially generated along the length of the electrode, compromising the flow generation efficiency. Enhancing the electrode geometry to improve the mass transport of plasma generated species to a downstream location is clearly advantageous for any application which relies on their subsequent reaction at the gas-surface interface. On the other hand, separating the electrodes by a significant distance ultimately means fewer strips can be placed within a given area, resulting in a lower density of plasma species produced. Clearly it is necessary to strike a compromise between the spacing of electrodes and the amount of plasma coverage in a given area. For the plasma device considered here, an electrode spacing of 1 cm was chosen to give a compromise between efficient mass transfer (with flow velocities in the 0.3–0.6 m s⁻¹ range) whilst still generating a significant amount of plasma (1950 mm² of plasma coverage on the 100 mm diameter dielectric disc at a 10 W operating power). By choosing an electrode separation of 10 mm, rather than the optimum 15 mm observed in figure 5, enabled six electrode pairs of varying length to be attached to the circular dielectric surface. A key benefit of the electrode geometry considered here is that the jet flows observed from the electrode unit are well defined and directed towards the sample region, with velocities typically five times higher in magnitude than those observed from the widely used hexagonal mesh electrodes typically found in many SBD system (data not shown).

Zoom In Zoom Out Reset image size

Numerous experimental and theoretical studies have examined the composition of plasma generated RON species in the downstream region of a SBD. A numerical study conducted by Liu et al considering 53 air plasma species involved in 624 reactions indicated that very few plasma generated species propagate beyond the discharge region. Following 100 s of plasma generation only hydrogen peroxide, ozone and the oxides of nitrogen (NO₂, NO₃ and N₂O₅) were found to be present 1 mm downstream of the plasma generation region at a concentration above 10¹⁷ m⁻³ (noting that the model only accounted for the diffusive transport of neutral species) [14]. In the experiments reported here the spatial separation between the liquid surface and the SBD electrode was fixed at $\backsim$2 mm, with the enhanced convective flow provided by the optimised electrode geometry ($\backsim 0.5~\text{m}\cdot {{\text{s}}^{-1}}$) it is possible that plasma species such as nitric oxide and hydroperoxyl radicals do reach the liquid surface, introducing additional microbial inactivation pathways thus increasing the antimicrobial effects of the plasma treatment. It is well known that the chemical composition in the separating gas layer is extremely sensitive to the plasma generation conditions. Under low input power conditions (<0.2 $\text{W}\cdot \text{c}{{\text{m}}^{-2}}$) the gas phase chemistry is known to be dominated by reactive oxygen species, typically ozone [4]. Under high input power conditions (>0.25 $\text{W}\cdot \text{c}{{\text{m}}^{-2}}$) the gas phase chemistry is typically dominated by reactive nitrogen species, in the form of nitrogen dioxide and nitrous oxide [4]. This significant shift in chemical composition of the gas phase has been attributed to several possible mechanisms, including the increased thermal decomposition of ozone at elevated temperatures and the poisoning of ozone due to elevated nitric oxide production in the discharge at higher operating powers. Shimizu et al proposed that vibrationally excited nitrogen, produced under high-power operating conditions, leads to an increased rate of nitric oxide formation through the reaction N$_{2}(v)+\text{O}\to \text{NO}+\text{N}$ ($k=1\times {{10}^{-17}}~{{\text{m}}^{3}}~\cdot ~{{\text{s}}^{-1}}$), which consumes atomic oxygen and quenches ozone formation through the reaction O$_{3}\,+\,\text{NO}\to \text{N}{{\text{O}}_{2}}+{{\text{O}}_{2}}$ ($k=1.9\times {{10}^{-20}}~{{\text{m}}^{3}}~\cdot {{\text{s}}^{-1}}$) [24]. Indeed, Eliasson et al indicate that nitric oxide and nitrogen dioxide can act catalytically in the presence of ozone and atomic oxygen to quench ozone-producing reactions, such that a very small concentration of nitric oxide and/or nitrogen dioxide can consume the ozone present in the system and inhibit further ozone production [25, 26].

In the plasma system considered here, the power dissipated within the plasma was fixed at 10 W by varying the applied voltage, this gave a power per unit area of surface coverage of 0.51 $\text{W}\cdot \text{c}{{\text{m}}^{-2}}$, putting the device directly within the nitrogen dominated mode of operation. FTIR analysis of the gas phase species confirms this, as shown in figure 6(a). Critically, previous experimental and theoretical studies have demonstrated that the production of abundant RON species in the gas phase above a liquid layer ultimately results in the production of nitrates and nitrites in the liquid with an associated and significant drop in pH [6, 14]. In the context of the intended application, i.e. the microbial decontamination of water for possible human consumption, such changes to the liquid are highly undesirable. To overcome this, pulse modulation of the discharge on a millisecond timescale was employed. Olszewski et al showed pulse modulation to be a viable technique to prevent the transition from an oxygen dominated to nitrogen dominated gas phase chemistry. Unlike low power operation, pulse modulation has the distinct advantage that it does not compromise the spatial uniformity of the discharge along the length of the electrode strips, thus it does not compromise the convective mass transport of species away from the discharge region. Figure 6(b) shows the gas phase composition obtained at a time-averaged input power of 2.5 W (10 W input at a duty cycle of 25%), giving a time averaged power density of 0.127 $\text{W}\cdot \text{c}{{\text{m}}^{-2}}$, putting the discharge in the oxygen dominated mode of operation.

Zoom In Zoom Out Reset image size

Figure 7 shows the temporal evolution of ozone and nitrous oxide in the gas phase under both continuous and pulse modulated operation. Notably, under high-power continuous conditions, the ozone density rapidly increases to reach a maximum of 2200 ppm within 3 min, after which it rapidly decreases; a trend which is well reported in the literature [6, 24, 25]. Under low-power, pulse modulated operation, the ozone density increases at a slower rate, reaching a plateau after 14 min of operation and showing no appreciable decrease over the 16 min test duration. In contrast, nitrous oxide density increases in a linear fashion under continuous operation, reaching a maximum of 80 ppm over the duration of the test; under pulse modulated operation, nitrous oxide gradually rises to 20 ppm within 6 min followed by a plateau for the reminder of the test. It is worth noting that, long-lived RONS including ozone and nitrogen oxides that are transported through the gas phase react at the gas–liquid interface to form a rich variety of potent antimicrobial species. The penetration of these species on to the bulk liquid is limited to the interface region, with computational studies of species transport through the aqueous medium indicating that many species are confined to the first few nanometers of the liquid [14]. Critically, the long-lived plasma generated species arriving at the gas–liquid interface are important precursors for the production of reactive species in the liquid phase species such as hydroxyl radicals and aqueous nitric oxide, both of which are known to have powerful antimicrobial properties [14].

Zoom In Zoom Out Reset image size

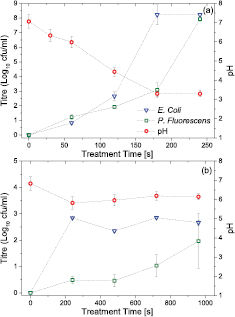

It is evident from the temporal evolution of the ozone and nitrous oxide density, shown in figure 7, that the gas phase chemistry varies significantly with the discharge mode of operation and is non-stationary in time; consequently, any microbial decontamination effect observed is likely to be attributed to the combined effect of both the reactive oxygen and nitrogen species. The decontamination efficiency of the device is highlighted in figure 8 which shows the number of viable bacterial colonies present in autoclaved potable water inoculated with E. coli and Pseudomonas fluorescens with a starting concentration of $1\times {{10}^{8}}~\text{CFU}\cdot \text{m}{{\text{l}}^{-1}}$ and subjected to plasma treatments of varying duration. The impact of high-power, continuous, plasma operation is shown in figure 8(a) along with the pH of the solution measured at the end of each test. For both E. coli and P. fluorescens, a 4 min exposure time was sufficient to yield the maximum 8 log reduction in the number of viable bacterial colonies. Notably, an abrupt jump in the level of inactivation is observed between 3 and 4 min for E. coli and 4 to 5 min for P. fluorescens. The change in pH of the treated solution can be used to explain this discontinuity in the inactivation curve, as it is well known that P. fluorescens and E. coli are sensitive to pHs below 4 [14, 27]. During short treatment times, where the pH remains above 4, relatively modest log reductions are observed (1.92 and 2.65 log reduction for P. fluorescens and E. coli, respectively, following 120 s of plasma exposure). In contrast, low-power, pulse modulated operation shows a significantly lower level of inactivation, with a maximum 2.85 log reduction of E. coli and 1.97 log reduction of P. fluorescens observed. Under these plasma generation conditions, the pH shows only a minor decrease from 6.8 to $\backsim$6; thus any microbial inactivation cannot be attributed to acidification of the solution. Interestingly, the level of inactivation observed in the pulse modulated case is consistent with that observed during short exposures to the high-power discharge. Based on the temporal evolution of gas phase species shown in figure 7, it is clear that the gas phase composition in the pulse modulated case is similar to that observed in the first 2 min of continuous discharge case (with high ozone concentration and low nitrous oxide concentration) thus indicating that ozone is one of the major inactivation pathways under neutral and weakly acidic conditions (pH $\;$ 4.5); such observations are in line with those presented by Pavlovich et al where aqueous-phase ozone was identified as the dominant inactivation mechanism [4]. At lower pH values, the enhanced decontamination has been linked to synergistic effects such as the increased production of hydroperoxyl and peroxynitrite radicals, both of which are readily able to penetrate cellular membranes and damage bacteria [14].
