MULTIMODAL DIFFERENTIAL EMISSION MEASURE IN THE SOLAR CORONA

DEMT consists of two steps. In a first step, a time series of EUV images is used to tomographically determine the 3D distribution the plasma emission in a given band (the FBE), formally defined in Equation (1) below. To that end the corona is discretized in a spherical computational grid. This first task is independently performed for each EUV band. In a second step, the FBE values of all bands are used to determine the LDEM in each tomographic grid voxel independently. From the resulting LDEM distributions, 3D maps of the coronal electron density and temperature can be derived. This section provides a brief description of the key concepts of DEMT that are needed in this work. For a detailed explanation the reader should consult Frazin et al. (2009).

The AIA instrument images the off-limb corona up to about 1.25 ${R}_{\odot }.$ To perform EUV tomography, the inner corona volume in the height range 1.00–1.25 ${R}_{\odot }$ is discretized on a 25 × 90 × 180 (radial × latitudinal × longitudinal) spherical grid. Due to optical depth issues and EUV S/N levels, the DEMT results are reliable in the height range from 1.03 to 1.20 ${R}_{\odot }$. For each band k, a series of images covering a full solar rotation is used to tomographically reconstruct the value of the FBE ${\zeta }_{i}^{(k)}$ for each tomographic cell i. The FBE is defined by Frazin et al. (2009) as

$$\begin{eqnarray}&&{\zeta }_{i}^{(k)}=\int d\lambda \;{\phi }_{k}(\lambda )\;{\eta }_{i}(\lambda ),\end{eqnarray} \tag{ 1 }$$

where ${\eta }_{i}(\lambda )$ is the plasma emissivity volumetrically averaged over the ith tomographic cell and ${\phi }_{k}(\lambda )$ is the normalized bandpass function of the band k. The tomographic solution for the FBE of each EUV band, over the entire coronal volume, is found as the solution of a global optimization problem. To that end, an objective function is defined as the squared difference between the observed intensity and the synthetic intensity predicted by the FBE, summed over every pixel of the data time series. The objective function also contains a regularization term that penalizes unphysical (too strong) angular gradients in the solution. The amplitude of this term is controlled by a free parameter known as the regularization parameter, which is determined through cross-validation techniques, as discussed in the Appendix below in connection with tomographic uncertainties.

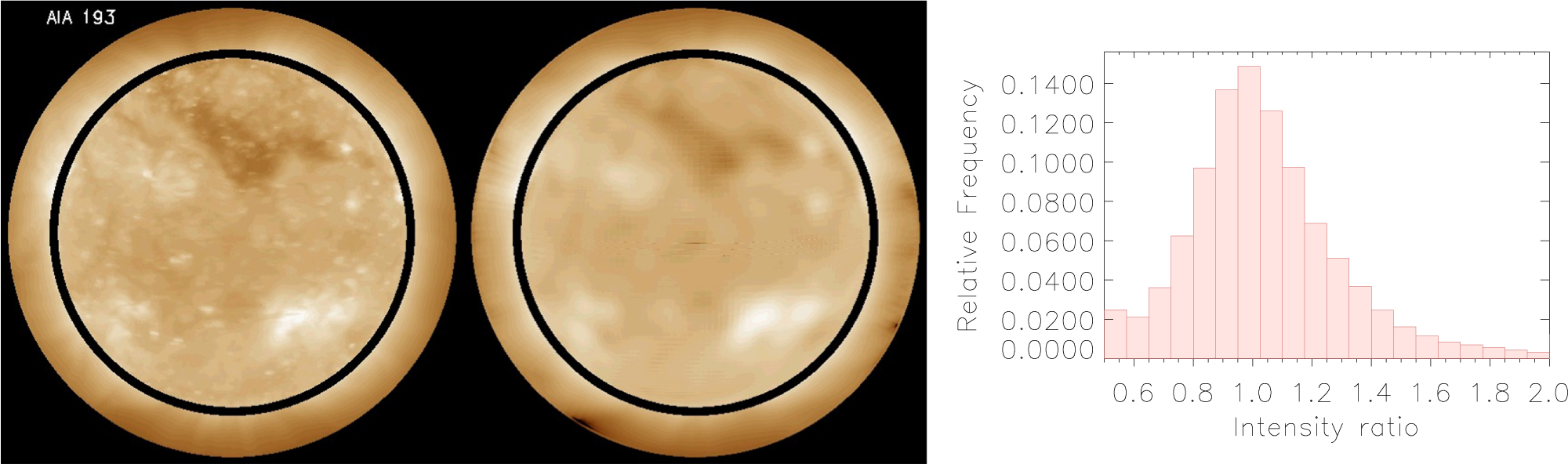

Due to temporal changes in the corona, tomographic reconstructions exhibit artifacts such as smearings and negative values of the reconstructed FBEs, or zero when the solution is constrained to positive values. These are called zero-density artifacts (ZDAs; see Frazin et al. 2009). Synthetic images based on the tomographic reconstruction can be produced by numerically computing LOS integrals of the 3D FBE. As an example, the left panel in Figure 1 shows an image taken with the 193 Å AIA filter (left) and the corresponding synthetic image computed from the tomographic FBE (right). The black rings in the images shown in Figure 2 correspond to pixels with projected radius in the range 0.98–1.025 ${R}_{\odot }.$ This near-limb data is not actually used for the tomographic inversion, as the emission along their corresponding LOSs can be affected by optically thick emission (Frazin et al. 2009). The right panel shows the frequency histogram of the ratio of synthetic to observed intensity ratio for every corresponding pair of pixels in the two images. The relative difference between the synthetic and observed values in each pixel is below 10%, 20%, and 30%, for 37%, 63%. and 79% of the pixels, respectively, and virtually the same statistics hold when off-limb or on-disk pixels are considered separately. A similar level of agreement is found for all AIA bands. The tomographic model then provides a quite detailed reliable description of the average global corona during the reconstructed period.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Within any given tomographic voxel, the LDEM ${\xi }_{i}(T)$ is a measure of the thermal distribution within the ith voxel. Following Frazin et al. (2009), the FBE and the LDEM are related by

$$\begin{eqnarray}&&{\zeta }_{k,i}={\displaystyle \int }_{{T}_{\mathrm{min}}}^{{T}_{\mathrm{max}}}{dT}\ {Q}_{k}(T)\ {\xi }_{i}(T),\end{eqnarray} \tag{ 2 }$$

where the TRF ${Q}_{k}(T)$ is defined as

$$\begin{eqnarray}&&{Q}_{k}(T)\equiv \int d\lambda \ {\phi }_{k}(\lambda )\;\eta (\lambda ;T,{N}_{{\rm{e}}0},{a}_{0})/{N}_{{\rm{e}}0}^{2},\end{eqnarray} \tag{ 3 }$$

in which ${N}_{{\rm{e}}0}$ is a reference electron density and ${a}_{0}$ is a reference set of abundances used to computed the plasma emissivity from an optically thin plasma emission model such as CHIANTI (Dere et al. 1997). The temperatures ${T}_{\mathrm{min}}$ and ${T}_{\mathrm{max}}$ define the main range of temperature sensitivity of the TRF, as discussed in Section 2.3.

Due to the limited number of available bands, K, the reconstruction of LDEM is underdetermined. The solution is implemented by modeling the LDEM with a family of functions ${\xi }_{i}(T)=F\;(T,{{\boldsymbol{\alpha }}}_{i}),$ depending on a vector of parameters ${{\boldsymbol{\alpha }}}_{i},$ with $L\sim K$ elements. In each tomographic cell i the problem consists of finding the values of the parameters ${{\boldsymbol{\alpha }}}_{i}$ that allow the K tomographically reconstructed values of FBE in that cell to be best reproduced. To do so an objective function that measures the quadratic differences between tomographically determined FBEs and the FBEs synthesized from the modeled LDEM is defined, i.e.,

$$\begin{eqnarray}&&{\rm{\Phi }}\left({{\boldsymbol{\alpha }}}_{i}\right)\equiv \displaystyle \sum _{k=1}^{K}{C}_{k}^{-2}{\left[{\zeta }_{k,i}\ -{\displaystyle \int }_{{T}_{\mathrm{min}}}^{{T}_{\mathrm{max}}}{dT}\ {Q}_{k}(T)\ F\left(T,{{\boldsymbol{\alpha }}}_{i}\right)\right]}^{2},\end{eqnarray} \tag{ 4 }$$

where K normalization coefficients C_k, each given by the median value of ${\zeta }_{k,i}$ in the whole reconstructed coronal volume, are included to make the objective function dimensionless. The minimization of the objective function is numerically implemented using the conjugate gradient method (Press et al. 1996).

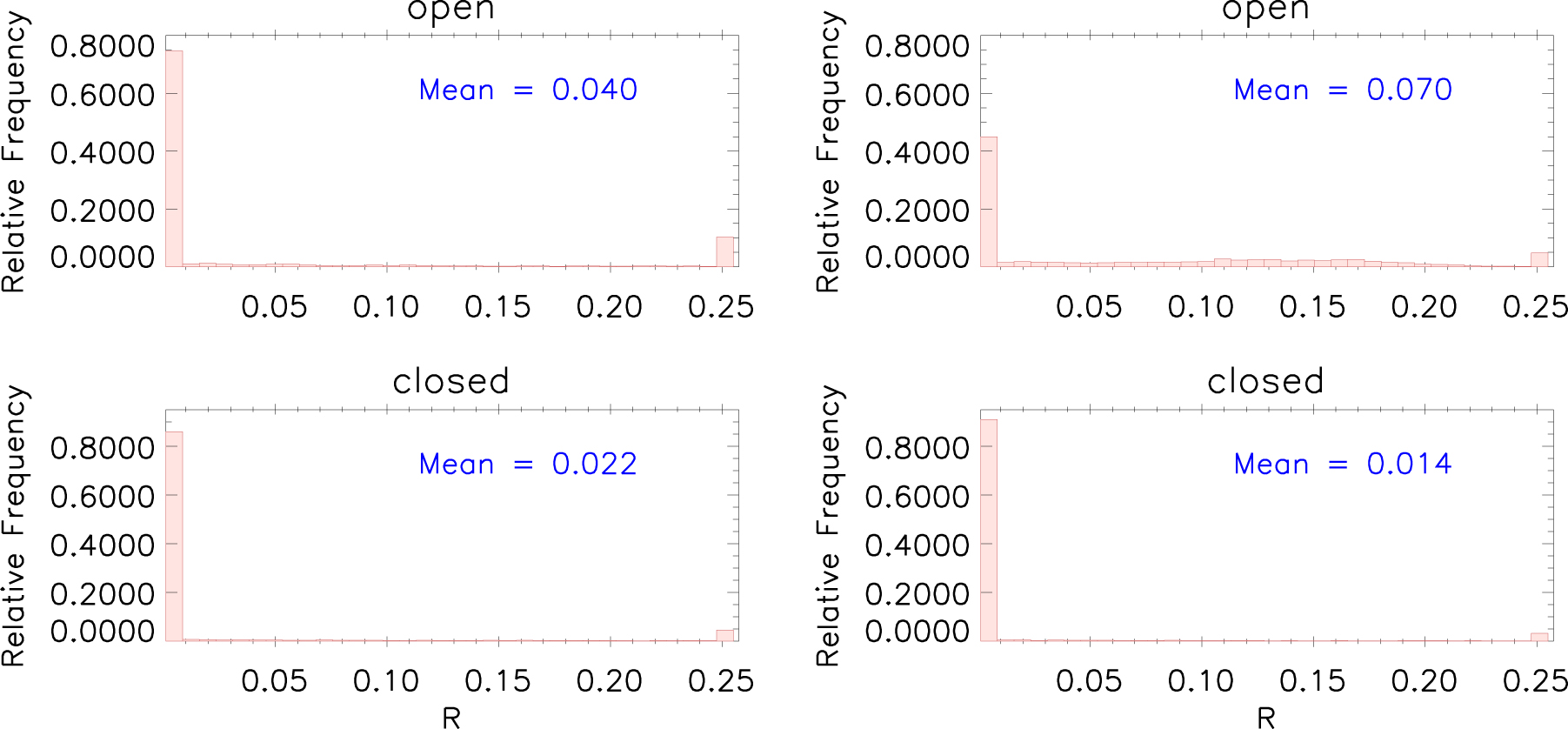

At each cell i the following score is then computed, as a measure of the degree of success of the LDEM in reproducing the tomographically reconstructed FBEs

$$\begin{eqnarray}&&{R}_{i}\;\equiv \ (1/K)\;\displaystyle \sum _{k=1}^{K}\left|\;1-{\zeta }_{i,\mathrm{syn}}^{(k)}/\;{\zeta }_{i,\mathrm{tom}}^{(k)}\;\right|,\end{eqnarray} \tag{ 5 }$$

where ${\zeta }_{i,\mathrm{tom}}^{(k)}$ and ${\zeta }_{i,\mathrm{syn}}^{(k)}$ are the tomographic and synthetic FBEs. A perfect fit implies R = 0, and the higher the score the poorer the fit.

Once the LDEM is found at each tomographic cell i, we can derive 3D maps of the plasma parameters, by taking moments of the LDEM, specifically

$$\begin{eqnarray}&&{N}_{{\rm{e}},i}^{2}={\displaystyle \int }_{{T}_{\mathrm{min}}}^{{T}_{\mathrm{max}}}{dT}\ {\xi }_{i}(T),\end{eqnarray} \tag{ 6 }$$

$$\begin{eqnarray}&&{T}_{m,i}={N}_{{\rm{e}},i}^{-2}\ {\displaystyle \int }_{{T}_{\mathrm{min}}}^{{T}_{\mathrm{max}}}{dT}\ {\xi }_{i}(T)\ T,\end{eqnarray} \tag{ 7 }$$

that are the square electron density and the mean electron temperature, respectively.

The same formalism can also be used to perform a parametric 2D DEM analysis of EUV image sets. The relationship between the intensity of band k in pixel i, ${I}_{k,i},$ and the DEM along the LOS associated with that pixel, ${\psi }_{i}(T)$, is, similarly to Equation (2),

$$\begin{eqnarray}&&{I}_{k,i}={\displaystyle \int }_{{T}_{\mathrm{min}}}^{{T}_{\mathrm{max}}}{dT}\ {Q}_{k}(T)\ {\psi }_{i}(T).\end{eqnarray} \tag{ 8 }$$

In the analysis below the DEM is described by the same parametric models used for the LDEM, and the optimal value of the parameter vector for each pixel is found in a similar fashion. In this case, the zeroth and first moments of the DEM distribution ${\psi }_{i}(T)$ provide the emission measure (EM) and the mean electron temperature along the LOS associated with pixel i, respectively. In Section 3.5 a parametric 2D DEM analysis of an AR and the diffuse region around it is developed, and the results are compared to those obtained by other authors.

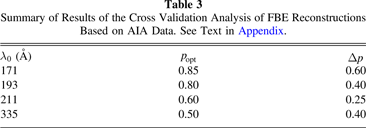

The main sources of uncertainty in DEMT are the effects of coronal dynamics into the reconstructed FBE, the uncertainty in the determination of the regularization parameter, and the uncertainty in the relative radiometric calibration of the bands of the EUV telescope. For reconstructions based on EUVI data, the uncertainty due to the regularization parameter was reported in the studies by Frazin et al. (2009) and Vásquez et al. (2009, 2010, 2011), while the one associated with the relative radiometric calibration was studied in Huang et al. (2012). In the Appendix below, we quantitatively investigate how the combination of these two last sources of uncertainty propagates on the tomographic results of the present work, based on AIA data. Investigating the effects of coronal dynamics on the tomographic reconstructions requires a comprehensive reconstruction study based on synthetic data generated from coronal models with a variable level of dynamics, which is beyond the scope of this work and will be the subject of a future effort.

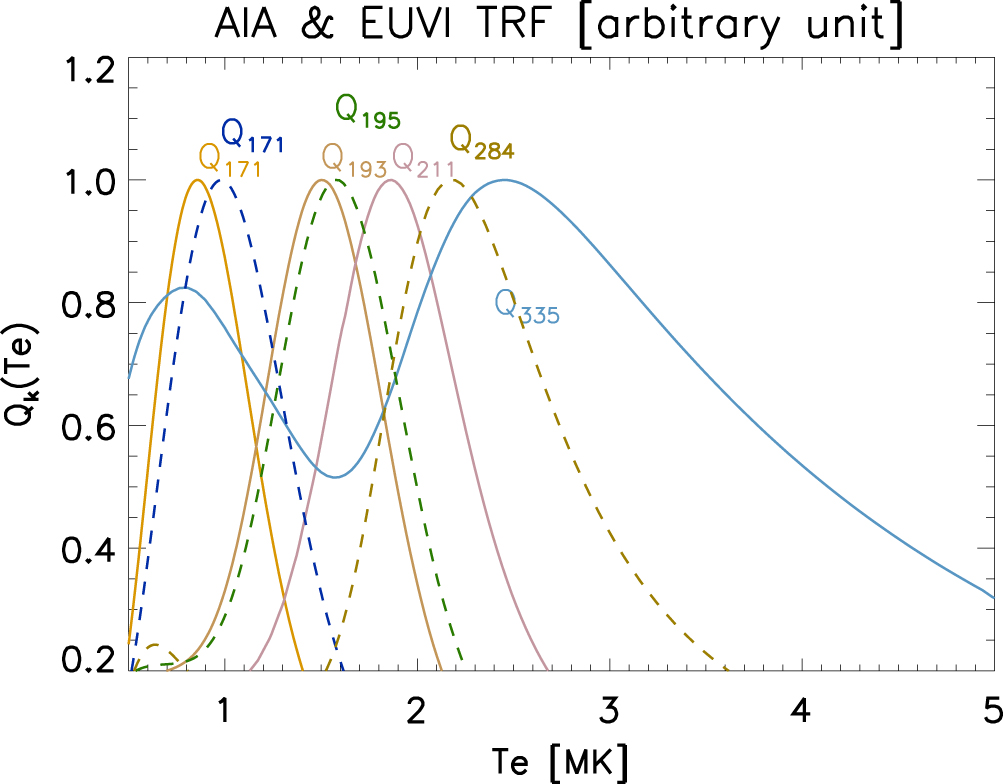

Figure 2 shows the TRF of the four coronal bands of the AIA instrument used in this work, as well as those of the three coronal bands of the EUVI. We used the latest effective areas released by the AIA team in the Solar Soft package, which includes a broad sensitivity plateau, roughly between 400 and 900 Å, that affects the low temperature sensitivity of all bands. Calculations were performed with version 7.1 of the CHIANTI atomic database (Landi et al. 2013), using the abundance set sun_coronal_feldman_1992_ext.abund (Feldman et al. 1992; Landi et al. 2002) and the ionization equilibrium calculations set chianti.ioneq. An important change in the spectrum introduced in CHIANTI v 7.1 is found in the wavelength range below 170 Å, implying a more accurate calculation of the TRF of the 171 Å band. With these settings we revisited the calculation of the response function of all instruments. When compared to previous calculations, (Lemen et al. 2012; Nuevo et al. 2012) the most important change is found in the very low temperature sensitivity of the AIA 335 Å band, below the coronal temperatures considered in this work. The most noticeable change at coronal temperatures is found in the TRF of the 171 Å band of both instruments, becoming narrower and thus less sensitive to temperatures below ∼0.5 MK. All the TRFs are mainly characterized by a maximum sensitivity temperature (T₀). Table 1 summarizes the values of T₀, as well as the full width half maximum (${\mathrm{FWHM}}_{0}$). This information serves as a simple characterization of the sensitivity temperature range of each telescope band, and will be useful for setting up different aspects of the reconstruction of the parametric LDEM, as we describe in the next section. Note that, in the case of the 335 Å band, there is a secondary high sensitivity range that overlaps that of the 171 Å.

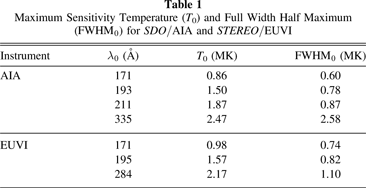

Table 1.  Maximum Sensitivity Temperature (T₀) and Full Width Half Maximum (${\mathrm{FWHM}}_{0}$) for SDO/AIA and STEREO/EUVI

Instrument	${\lambda }_{0}$ (Å)	T0 (MK)	${\mathrm{FWHM}}_{0}$ (MK)
AIA	171	0.86	0.60
	193	1.50	0.78
	211	1.87	0.87
	335	2.47	2.58
EUVI	171	0.98	0.74
	195	1.57	0.82
	284	2.17	1.10

Download table as:  ASCIITypeset image

In this section we describe and discuss the parametric models used to determine the LDEM.

• 1.
  Single Gaussian model (named "G1" hereafter):

  $$\begin{eqnarray}&&\xi (T)=A\ {\mathcal{N}}\left(T;[{T}_{0},{\sigma }_{T}]\right)\equiv \displaystyle \frac{A}{\sqrt{2\pi }{\sigma }_{T}}\;\mathrm{exp}\left[-\displaystyle \frac{1}{2}{\left(\displaystyle \frac{T-{T}_{0}}{{\sigma }_{T}}\right)}^{2}\right].\end{eqnarray} \tag{ 9 }$$

  In this model, the free parameters are the centroid T₀, the standard deviation ${\sigma }_{T}$, and the amplitude A. This model will be applied when using the three AIA bands: 171, 193 and 211 Å, a set of filters we will refer to as "AIA-3" hereafter. This is the same parametric model used for all previous DEMT works based on data provided by the three bands of the EUVI instrument (e.g., Vásquez et al. 2011). The temperature range considered for the reconstruction, indicated as the limits in the integral of Equation (2), is determined with the following criteria. The minimum temperature is taken to be roughly ${T}_{\mathrm{min}}\approx {T}_{0}-{\mathrm{FWHM}}_{0}/2,$ where T₀ and ${\mathrm{FWHM}}_{0}$ are the values of Table 1 for the coolest band that is considered, or 171 Å for AIA-3. Similarly, we take ${T}_{\mathrm{max}}\approx {T}_{0}+{\mathrm{FWHM}}_{0}/2,$ where T₀ and ${\mathrm{FWHM}}_{0}\;\mathrm{are}$ the values of Table 1 of the hottest band that is considered, or 211 Å for AIA-3. In the case of both the AIA-3 and the EUVI sets these criteria lead us to consider the temperature range $[0.5,2.3]$ MK.
• 2.
  Double Gaussian model (named "G2" hereafter):

  $$\begin{eqnarray}&&\xi (T)={A}_{1}\ {\mathcal{N}}\left(T;[{T}_{\mathrm{0,1}},{\sigma }_{T1}]\right)\ +\ {A}_{2}\ {\mathcal{N}}\left(T;[{T}_{\mathrm{0,2}},{\sigma }_{T2}]\right),\end{eqnarray} \tag{ 10 }$$

  being a superposition of two Gaussian functions. The first one has three free parameters (as for the model G1). The second one has two free parameters (amplitude and centroid), with its standard deviation assumed to be ${\sigma }_{T2}\approx 0.25\mathrm{MK}$ (which is half the temperature step between the peak response of the consecutive AIA bands 211 and 335 Å). This model then has a total of five free parameters, and will be applied when using the four AIA bands: 171, 193, 211, and 335 Å, a set of filters named "AIA-4" hereafter. In this case, even if the number of free parameters is larger than the number of filters, the approach is justified as it is posed as a global optimization problem. To select the temperature range to be considered for the LDEM reconstruction we apply the same criteria applied to model G1, which leads us to consider the range $[0.5,3.8]$ MK. The strategy of model G2 is to allow the first fully free Gaussian function to mainly describe the plasma below about 2 MK (detected by the 171, 193, and 211 Å bands, as well as by the low temperature end of the TRF of the 335 Å band), while the second Gaussian aims at mainly describing the plasma with temperatures around 2.5 MK (detected by the main sensitivity peak of the 335 Å band). Accordingly, the standard deviation value set for the second Gaussian function is of the order of the temperature difference that the "neighboring" 211 and 335 Å bands can resolve.
• 3.
  Quadruple Gaussian model (named "G4" hereafter):

  $$\begin{eqnarray}&&\xi (T)=\displaystyle \sum _{j=1}^{4}{A}_{j}\ {\mathcal{N}}\left(T;[{T}_{0,j},{\sigma }_{T,j}]\right),\end{eqnarray} \tag{ 11 }$$

  being a superposition of four Gaussian functions with their centroids and widths set at prescribed values, with four free parameters that are the amplitudes of each Gaussian function. The fixed centroids are set to the T₀ values of the four TRFs (see Table 1) and the fixed widths are set equal to half the temperature difference between the T₀ values of consecutive bands. The strategy of this parametrization, applied when using AIA-4, is for each Gaussian function to predict the emissivity of the respective band.
• 4.
  Other unimodal models: for AIA-4 we experimented with several alternate unimodal models, specifically:

  • (a)
    the G1 model described above;
  • (b)
    the "top hat" (TH) model,

    $$\begin{eqnarray}\xi (T) & = & \mathrm{TH}\left(T;[A,{T}_{0},{\sigma }_{T},a]\right)\\ & \equiv & \displaystyle \frac{A}{\sqrt{2\pi }{\sigma }_{T}}\;\mathrm{exp}\left[-\displaystyle \frac{1}{2}{\left(\displaystyle \frac{T-{T}_{0}}{{\sigma }_{T}}\right)}^{2a}\right],\end{eqnarray} \tag{ 12 }$$

    characterized by four free parameters: an amplitude A, a centroid T₀, a width ${\sigma }_{T},$ and a parameter a controling the gradient of the sensitivity drop at both the cooler and the hotter temperature ends of the model. Note that for a = 1 the model becomes a Gaussian function, while for larger values of a the shape of the model resembles that of a top hat function;
  • (c)
    the asymmetric "top-hat" (ATH) model,

    $$\begin{eqnarray}\xi (T) & = & \mathrm{ATH}\left(T;[A,{T}_{0},{\sigma }_{T},a,p]\right)\\ & \equiv & \mathrm{TH}\left(T;[A,{T}_{0},{\sigma }_{T},a]\right)\ {T}^{p},\end{eqnarray} \tag{ 13 }$$

    which multiplies the TH model by a power law, adding a fifth free exponent parameter p that allows us to achieve asymmetrical distributions, allocating more plasma on the cooler or the hotter end depending on its sign.

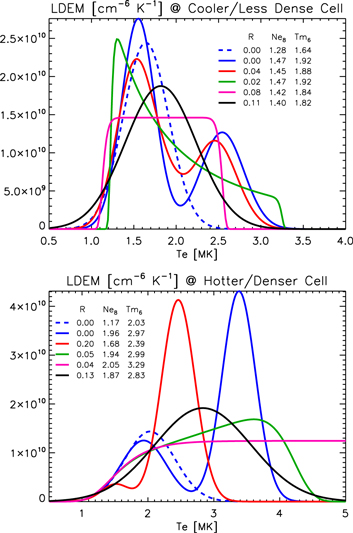

Table 2 shows a summary of the different parametric models and their main characteristics. Figure 12 shows examples for all the models described above. As mentioned in the introduction, similar models have been used by recent parametric DEM studies. Aschwanden & Boerner (2011) performed DEM analysis along bright loops in ARs based on AIA images, modeling the DEM with a combination of different numbers of Gaussian functions in order to reproduce the emission observed in the six bands of AIA. Del Zanna (2013) also used AIA data to study the DEM in the core of an AR, modeling the DEM in each pixel with ∼10 Gaussian functions spaced across the temperature range from 0.5 to 4.0 MK.

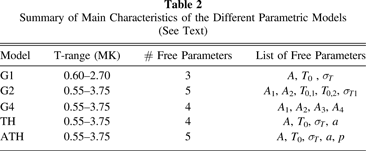

Table 2.  Summary of Main Characteristics of the Different Parametric Models (See Text)

Model	T-range (MK)	# Free Parameters	List of Free Parameters
G1	0.60–2.70	3	A, T0 , ${\sigma }_{T}$
G2	0.55–3.75	5	A1, A2, ${T}_{\mathrm{0,1}},$ ${T}_{\mathrm{0,2}},$ ${\sigma }_{T1}$
G4	0.55–3.75	4	A1, A2, A3, A4
TH	0.55–3.75	4	A, T0, ${\sigma }_{T},$ a
ATH	0.55–3.75	5	A, T0, ${\sigma }_{T},$ a, p

Download table as:  ASCIITypeset image

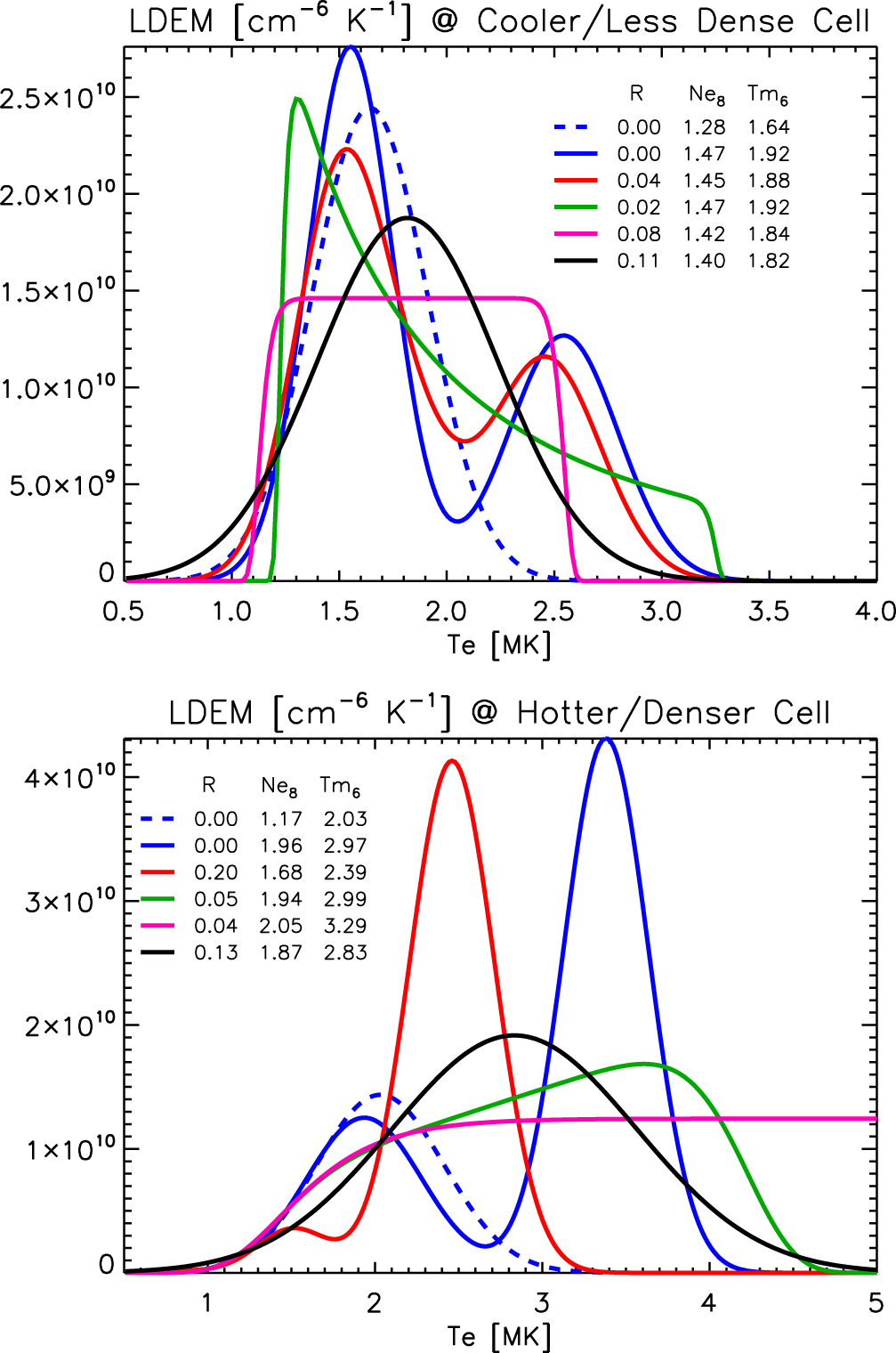

With the aim of performing a controlled study of the LDEM reconstruction, and understanding the capabilities and limitations of the parametric models, we implemented an ensemble of assumed LDEM curves and derived synthetic FBE data. To generate the synthetic data we adopt for the LDEM a "top-hat" model with a very steep gradient at both ends of the distribution. The free parameters of the model are set so that the resulting distribution is roughly constant between a fixed minimum temperature ∼0.8 MK (a coronal temperature a bit lower than the maximum temperature sensitivity of the 171 Å band), and a maximum temperature that we change for each model. The ensemble is generated by changing the maximum temperature of the simulation that was set at a minimum value of ∼1.2 MK and incremented in steps of 0.01 MK up to maximum value of ∼10 MK. The simulation with the lowest maximum temperature has all the plasma in the sensitivity range of the 171 Å band, while the successive simulations add plasma at progressively larger temperatures, in the range of sensitivity of all the bands of the AIA-4 filter set and beyond.

For every assumed LDEM of the ensemble we calculated its moments using Equations (6)–(7). Using the TRFs showed in Section 2.2 we calculated synthetic values of the FBE for all bands using Equation (2). We then used this synthetic data to perform the LDEM reconstruction, as described in Section 2.1, using the parametrizations G1 and G2 explained in Section 2.3. Finally, we calculated the moments of the reconstructed LDEM. We are now in a position to compare, for all simulations in the ensemble, the moments of the assumed LDEM and those of the reconstructed LDEM. Note that the way the simulations are designed, the mean temperature T_m of the simulations monotonically increases with the density N_e, which is important to bear in mind when analyzing the results below.

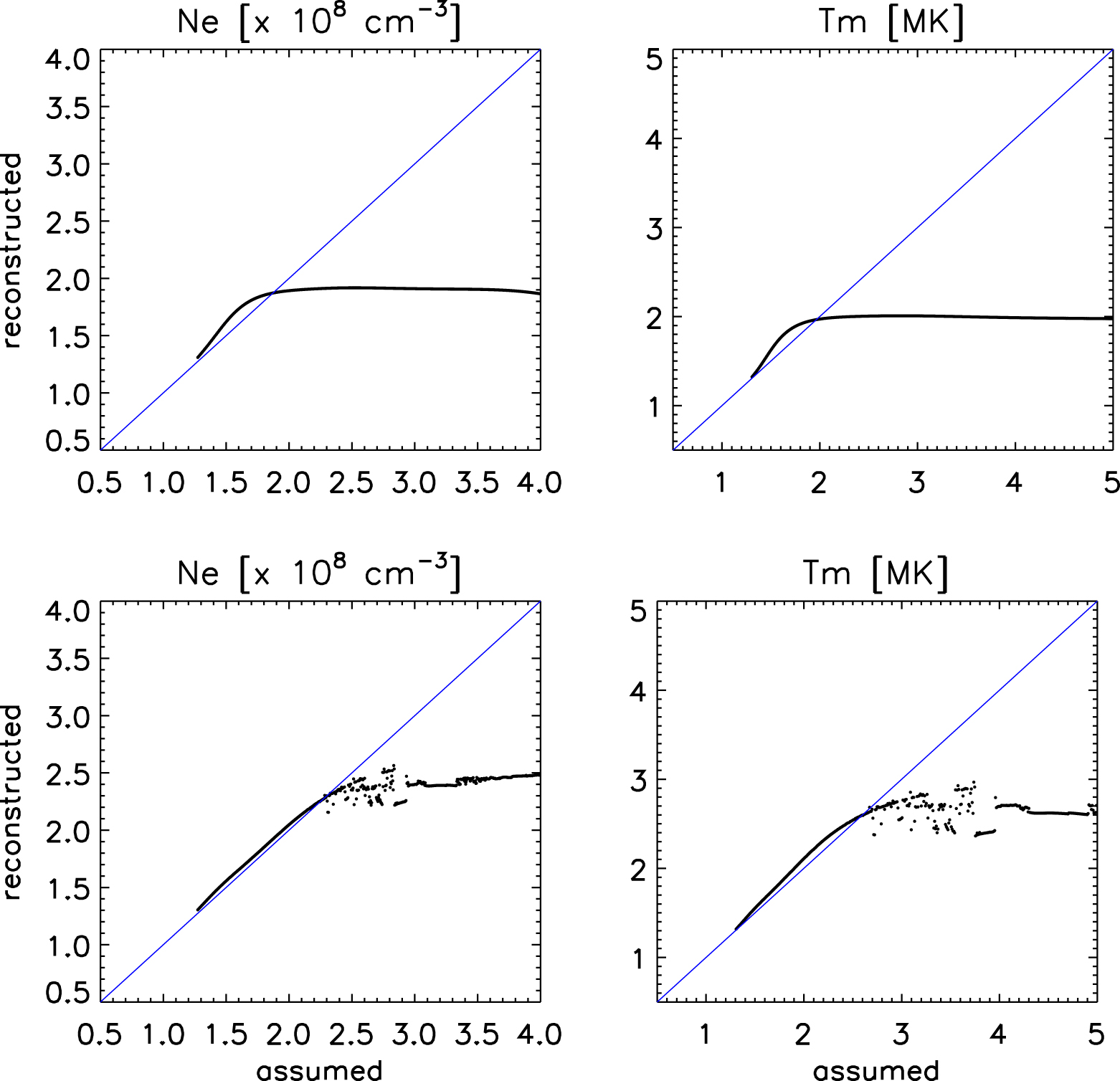

Using the AIA-3 data set and model G1 for the LDEM (AIA-3/G1, hereafter), the top panels of Figure 3 show scatter plots of the moments of the assumed LDEM versus those of the reconstructed LDEM. The bottom panels show the same comparisons when using the AIA-4 data set and model G2 for the LDEM (AIA-4/G2, hereafter).

Zoom In Zoom Out Reset image size

For AIA-3/G1, the simulations with ${T}_{{\rm{m}}}\lt 1.7$ MK show a very high correlation between the moments of the simulated and the reconstructed LDEM, while for simulations with ${T}_{{\rm{m}}}\gtrsim 1.8$ MK the moments of the reconstructed LDEM are approximately constant. The reason for this is that for top-hat LDEM simulations with ${T}_{{\rm{m}}}\gtrsim 1.8$ MK the maximum temperature becomes ${T}_{\mathrm{MAX}}\gtrsim 2.8$ MK, so that the plasma that is added by models with increasing T_m is well beyond the upper limit of the sensitivity range of the 211 Å band, which, from Table 1 is roughly ${T}_{0}+{\mathrm{FWHM}}_{0}/2\sim 2.3\;\mathrm{MK}.$

Similarly, for AIA4/G2 (second row of panels) there is a good correlation between the moments of the simulated and the reconstructed LDEM for simulations with ${T}_{{\rm{m}}}\lesssim 2.7$ MK, while for simulations with ${T}_{{\rm{m}}}\gtrsim 2.8$ MK the moments of the reconstructed LDEM are approximately constant. The reason for this is that for top-hat LDEM simulations with ${T}_{{\rm{m}}}\gtrsim 2.8$ MK the maximum temperature becomes ${T}_{\mathrm{MAX}}\gtrsim 4.8$ MK, so that the plasma that is added by models with increasing T_m is well beyond the upper limit of the high sensitivity range of the 335 Å band, which, from Table 1 is roughly ${T}_{0}+{\mathrm{FWHM}}_{0}/2\sim 3.75\;\mathrm{MK}.$

As previous DEMT works have been based on the EUVI instrument, we are interested in testing how the results of reconstructing the LDEM based on data from that instrument compares with those of inverting the LDEM based on data from AIA-3. Toward that end we have also performed a similar analysis of reconstruction of simulated data, as described above, but using the TRFs of the EUVI-B instrument and mode G1 for the LDEM (EUVI-B/G1, hereafter). For every simulation of the ensemble, we compared the moments of the LDEM reconstructed from EUVI-B data against those of the LDEM reconstructed from AIA-3 data, using the G1 model in both cases. The inferred electron density differs in less than 3% in all cases, while the mean temperature differs in less than 5%.

We performed the DEMT analysis of the Carrington Rotation (CR) 2099 (2010, July 13 through August 9), during the early rising phase of solar cycle 24. This period is one of the earliest ones for which AIA data is available for the full rotation, and the most quiet period ever observed by that instrument, which is preferred for global DEMT analysis. As all previously published work on EUV tomography has been based on EUVI data, we also performed reconstructions based on EUVI data for the same period, for comparison purposes. During CR-2099 the angular separation between SDO and STEREO was about $\sim 72^\circ .$ As a consequence, differences observed between the results using AIA and EUVI are partly caused by solar dynamics. As the DEMT analysis is not well suited to study ARs, these were excluded from it. In the quantitative analyses shown below, tomographic voxels belonging to the open corona, the closed QS corona, and the ARs were carefully separated. To this end, ARs were identified in the catalog provided by the National Oceanic and Atmospheric Administration (NOAA) Space Weather Prediction Center,³ and verified that they correspond to the highest density values in the tomographic reconstruction. Indeed, we were able to indentify all ARs by finding the regions where the tomographic density value was above a suitable threshold value. A threshold was established at each height of the tomographic grid independently, since the density decreases rapidly with height. For example, at 1.075 ${R}_{\odot }$ a good way to characterize ARs in the tomographic reconstruction is to look for tomographic density values above $\sim 1.4\times {10}^{8}\;{\mathrm{cm}}^{-3}.$

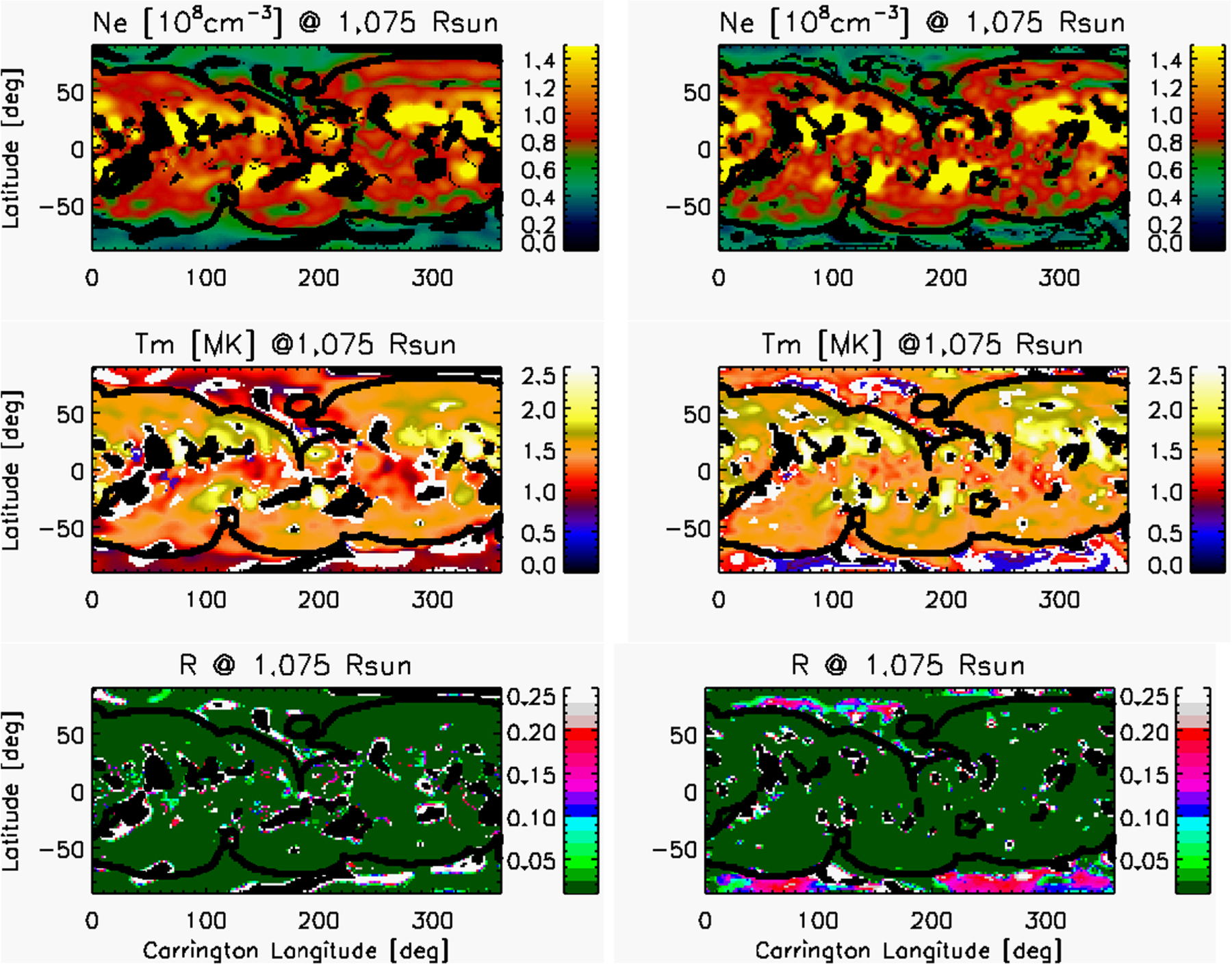

Figure 4 shows the DEMT results for N_e and T_m using both EUVI-B/G1 and AIA-3/G1, at a height of 1.075 ${R}_{\odot }.$ Similar maps are also obtained at all 25 height bins of the tomographic grid. The analysis in the Appendix shows that the typical fractional uncertainties of N_e and T_m in the closed region are 2% and 3%, respectively, while in the open region are 5% and 7%, respectively.

Using a PFSS extrapolation we overplot the boundaries between magnetically open and closed regions as a thick black curve. The PFSS model is computed using the finite-difference iterative solver FDIPS by Tóth et al. (2011) on a $150\times 180\times 360$ spherical grid, covering 1.0–2.5 ${R}_{\odot }.$ While the morphology of the corona is clearly more complex compared to that of the solar minimum, there is an overall good agreement between the open/closed boundary of the PFSS model and the density and temperature structures of the DEMT analysis. There is an overall high consistency between the results of the PFSS and the tomographic models. Figure 4 shows that the location of the open/closed boundary of the PFSS model is characterized by a very high transverse gradient in both the electron density and the mean temperature maps derived from the DEMT analysis. This has been previously found and analyzed in detail in DEMT studies of solar minimum rotations (Vásquez et al. 2010, 2011).

Zoom In Zoom Out Reset image size

In the mean temperature maps, black voxels indicate ZDAs, the regions of zero emissivity described in Section 2.1. In the same maps, white voxels indicate cells for which the parametric LDEM possesses a score $R\gt 0.2.$ In these cases, we consider that the parametric LDEM performs poorly in reproducing the tomographic FBEs. This happens in locations where the set of FBE values is unusual, and we dub these anomalous emissivity voxels (AEVs). In the electron density maps, both ZDAs and AEVs are indicated in black. In the score R maps, ZDAs are indicated in black, while AEVs are not highlighted.

Before comparing the similarities and differences between the DEMT results obtained with the different instrumental sets, we will comment on the quality of the results as measured by the score R defined in Equation (5). Figure 5 shows histograms for the values of R shown in the bottom panels of Figure 4, for the open and closed region separately. The vast majority of the tomographic voxels possess a score $R\lt {10}^{-2},$ meaning that the tomographic and synthetic band emissivities differ less than 1%, on average.

Zoom In Zoom Out Reset image size

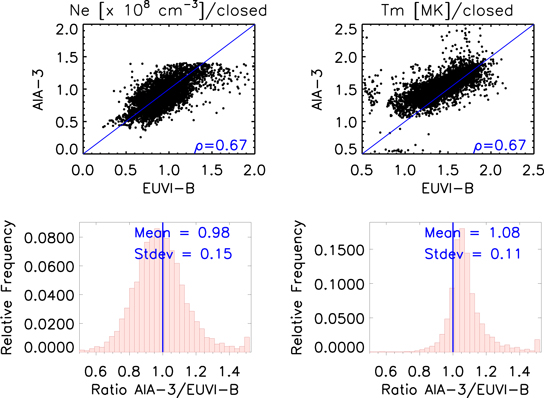

As seen in Figure 4, the results obtained with EUVI-B/G1 and AIA-3/G1 are very consistent in the closed magnetic region. To evaluate differences quantitatively, Figure 6 shows scatter plots and histograms comparing the DEMT results obtained in the closed region. There are small systematic differences, with a mean temperature increase of order $\sim 8\%$ and a density decrease of order $\sim 2\%$ for the analysis based on AIA data compared to those based on EUVI. The differences are due to differences in the TRFs of both instrumental sets, mainly between the AIA 211 Å band and EUVI 284 Å band TRFs. There are also non-systematic differences, reflected by the standard deviation of the histograms, which are to be expected due to solar dynamics effects as the time series of data used for each instrument are not synchronous.

Zoom In Zoom Out Reset image size

In this section we analyze the results of DEMT based on the AIA-4 data set, which adds the 335 Å band to the AIA-3 set. The additional band has a maximum sensitivity at temperature 2.47 MK.

First, the LDEM is modeled with the G1 parametrization. The results are displayed in the left column of Figure 7 which shows, from top to bottom, the Carrington maps of N_e, T_m, and R at 1.075 ${R}_{\odot },$ and the frequency histograms of the R values at the same height, separated in the open and closed region. A comparison of the results for R in this column against those in the right column of Figure 4, and also those in Figure 5, shows that the G1 model cannot explain the emisivity in the four bands as succesfully as it does for the three bands. It is the shape of the G1 model and the fact that it depends on only three parameters that makes it unsuccessful in coping with the wider temperature sensitivity range of the AIA-4 data set.

Zoom In Zoom Out Reset image size

Next, we test the TH parametric model, which by adding a $\mathrm{fourth}$ parameter has the flexibility of widening the range of temperatures over which the LDEM is near its maximum value, as compared to the G1 model, while still being a simple symmetric unimodal distribution. The middle column in Figure 7 shows the results using this model. Even if the number of free parameters has been increased by 1 compared to the G1 model, the histograms of R do not show improvement over the previous model.

Next, we test the ATH model, which allows for both negative and positive temperature gradients, depending on the sign of the exponent of the multiplicative power law, allocating more plasma at the low or high temperature end, as needed. The results of using this unimodal assymetric parametrization are shown in the right column of Figure 7. The histograms of R show a slight improvement over the G1 and TH models, with the smallest median and mean values for the score R, while still performing significantly worse than the G1 model for the AIA-3 set.

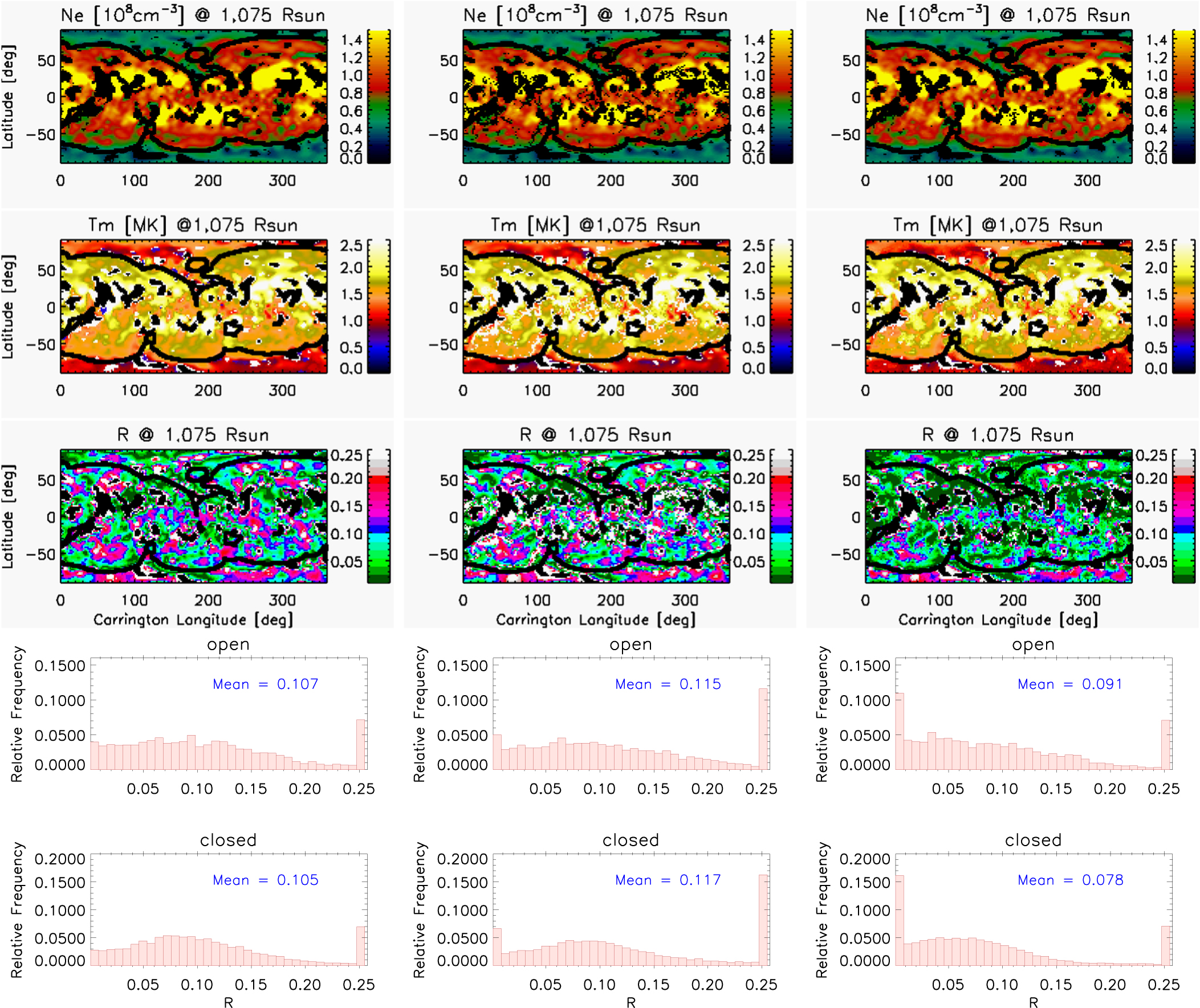

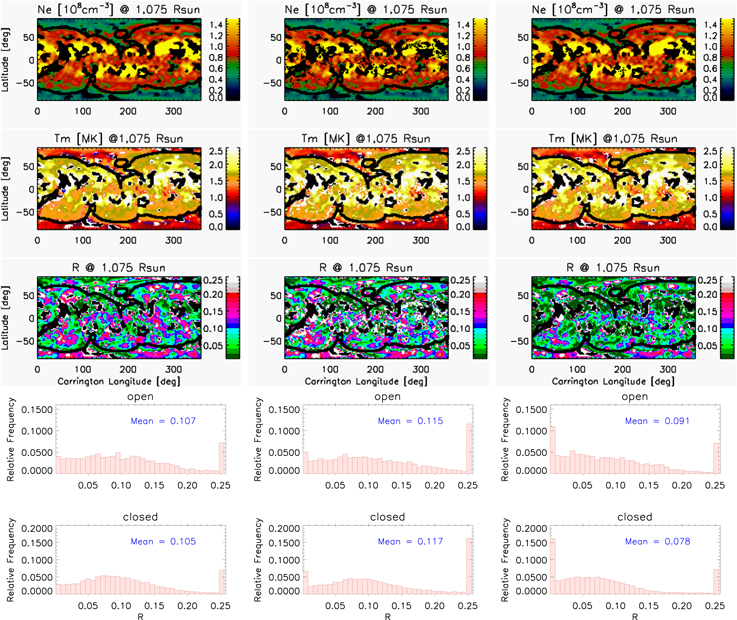

Figure 7 shows that, in order to explain the emissivities of the AIA-4 set none of the unimodal models, symmetric or asymmetric, performs as well as the G1 model does for the AIA-3 set (Figure 4). Looking for better agreement, we attempt the multimodal distributions G2 and G4 described in Section 2.3. The maps of N_e, T_m, and R are shown in Figure 8, and the histograms of R are shown in Figure 9. The analysis in the Appendix shows that the typical fractional uncertainties of N_e and T_m are 4% and 5%, respectively, in both the open and closed regions.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

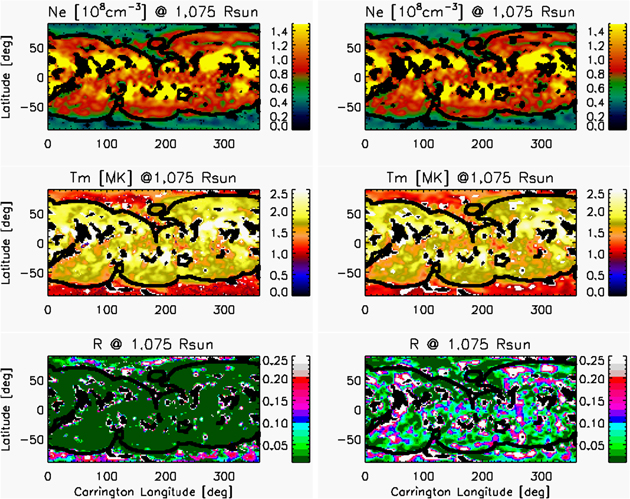

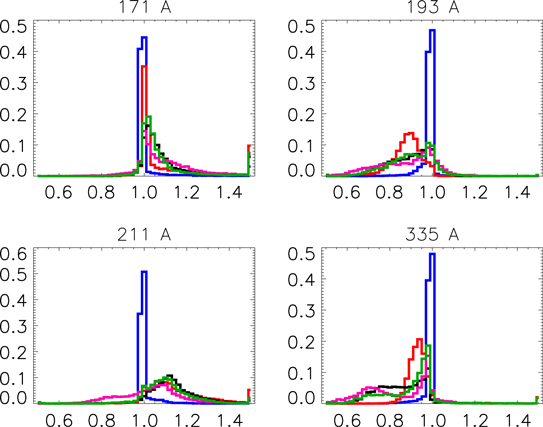

A qualitative comparison between the results of the G2 and G4 models (left and right panels of Figure 8) shows that both models have similar values of N_e and T_m. Indeed, a quantitative comparison (not shown to save space) reveals that the median LDEM moments differ in less than 4%. Even so, the G2 model performs better than the G4 model, as it achieves the best score R. Indeed, a comparison of the histogram of the left panel of Figure 9 with the histograms of Figure 5 reveals that the score R of the G2 model when using the AIA-4 data set is as good as the one achieved by the G1 model when using the AIA-3 data set. Figure 10 shows the histograms of the ratio ${\zeta }_{k}^{(\mathrm{synth})}/{\zeta }_{k}^{(\mathrm{tom})}$ for the four bands k of AIA-4, for the different parametric models used for the LDEM, at 1.075 ${R}_{\odot }.$ The much higher degree of suceess of the G2 model for each band is readily verified independently.

Zoom In Zoom Out Reset image size

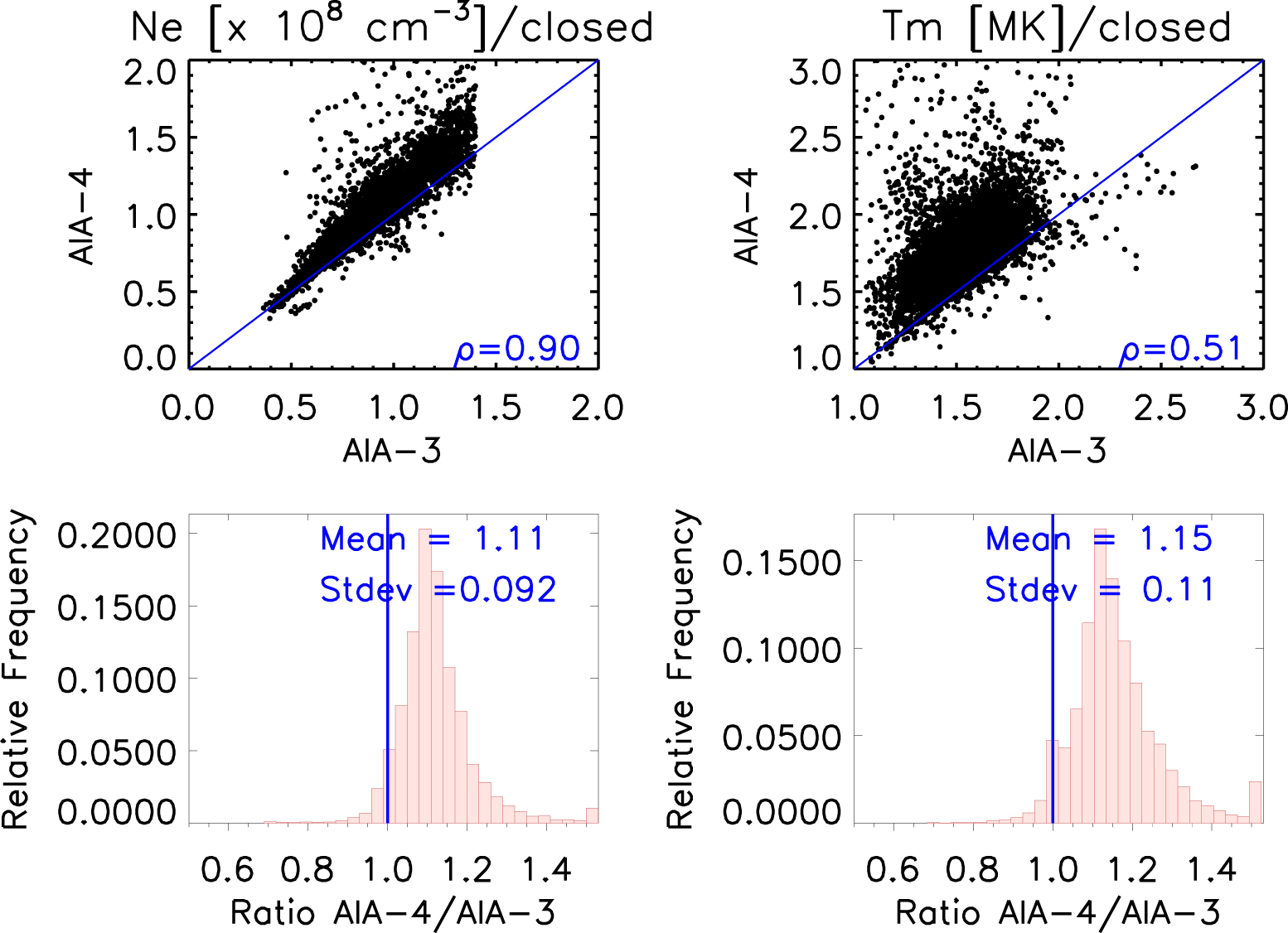

The differences seen in Figures 4 and 8 between the results obtained with AIA-3/G1 and with AIA-4/G2 data sets are mainly due to the inclusion of the AIA 335 Å band, which is sensitive to temperatures higher than the other three bands. As can be qualitatively seen in the right panels of Figure 4 and the left panels of Figure 8, the AIA-4/G2 results have systematically larger values of N_e and T_m with respect to the results obtained with AIA-3/G1. The systematic increase in the LDEM moments is more significant in the closed region, where the hotter plasma is located. To evaluate differences quantitatively, Figure 11 shows scatter plots comparing the plasma parameters obtained in the closed region with AIA-4/G2 and those obtained with AIA-3/G1, as well as histograms of the respective ratios. When the 335 Å band is included the LDEM inversion leads to an increase in the electron density and mean temperature of about 11% and 15%, respectively, in the closed region. A similar analysis, but considering the voxels in the open region (not included here to save space), indicates that the increase in the density and temperature are about 2% and 8%, respectively.

Zoom In Zoom Out Reset image size

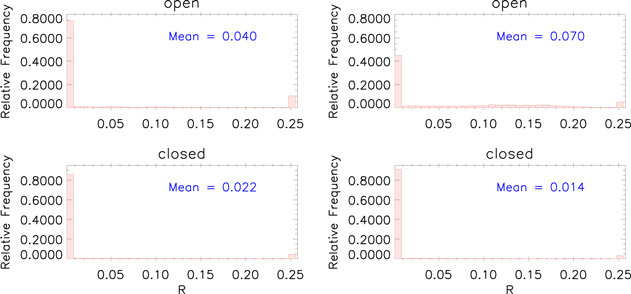

So far we have compared global maps of the moments and score R that are obtained with all the different parametrizations. It is interesting to also compare all the parametric distributions. For two sample tomographic voxels, one belonging to a coronal region hotter and denser than the other, Figure 12 shows the LDEM obtained using the different parametric models and compares their performances.

Zoom In Zoom Out Reset image size

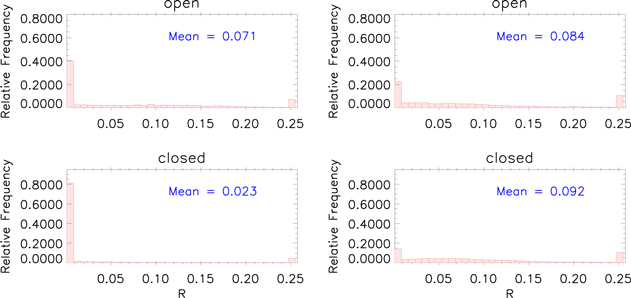

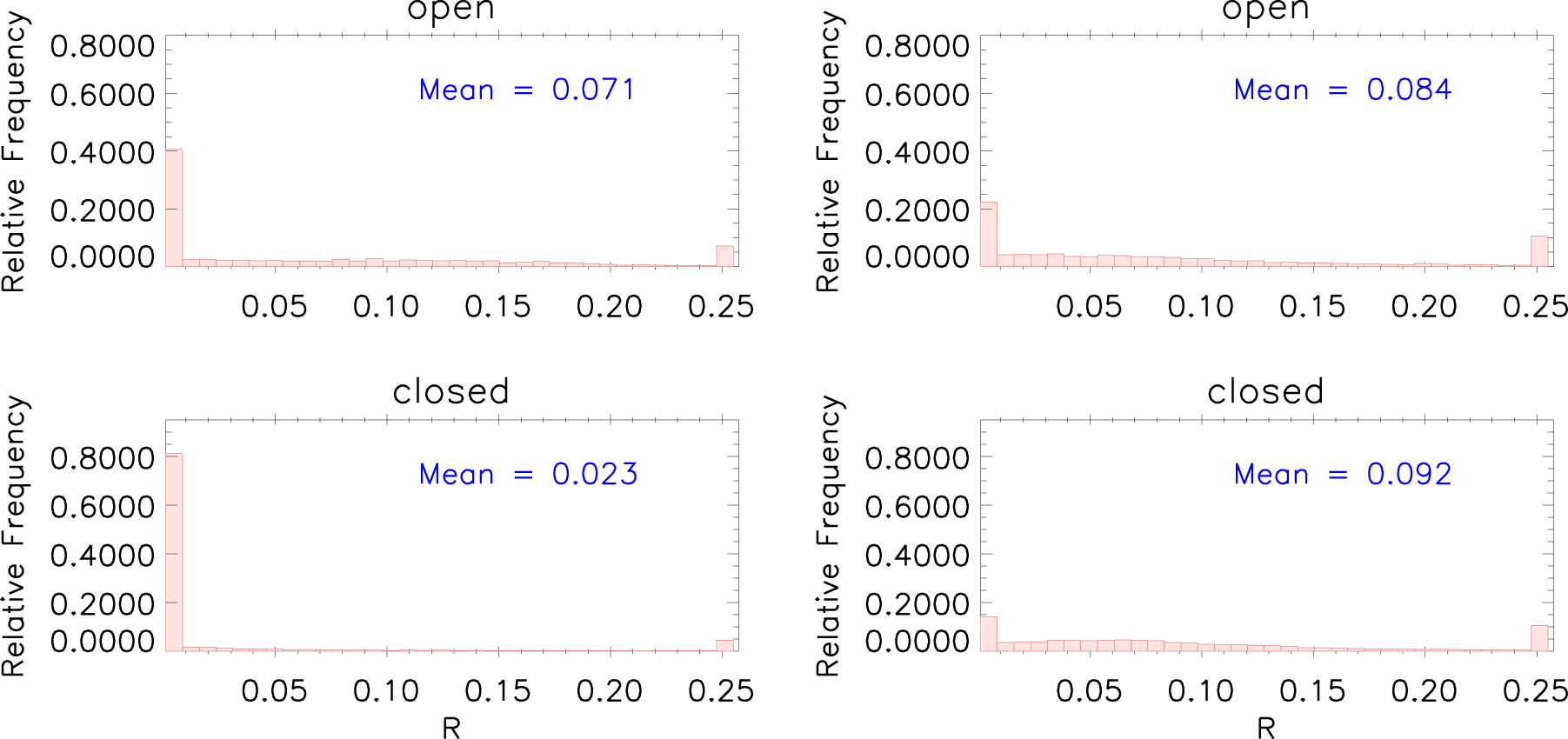

We first highlight that the AIA-3/G1 (dashed-blue) and AIA-4/G2 (solid-blue) results achieve $R\lt {10}^{-2}$ in both coronal regions. Among the rest of the models, the one that best performs for AIA-4 in both voxels is the ATH model (solid-green). The reason is that by adjusting a positive or negative temperature gradient, this model is able to allocate more plasma in the large temperature end for the hotter cell, and in the low temperature end for the cooler one. In the case of the G1 model for AIA-4 data, the single Gaussian adjusts its centroid to an intermediate temperature between the two components of the G2 model, but it is of course unable to allocate plasma preferentially in one temperature end or the other. Interestingly enough the G4 model does not perform so well. The reason for this is that this model can only adjust the four free amplitudes to allocate more or less plasma at each fixed centroid temperature, which affects neighboring bands as their respective TRFs overlap. The reason the G2 model performs so well is that the three bands 171–193–211 Å are well explained by the cooler component, while the sensitivity at the maximum sensitivity of the 335 Å band is explained by the hotter component. The low-temperature sensitivity in the 335 Å band (which overlaps that of the 171 Å band) is also captured by the cooler component.

It must be noted that the success of the G2 model does not simply rely on the number of free parameters, as other models with the same or similar number of free parameters (G4, ATH) cannot perform nearly as well. The high degree of success of the G2 parametrization of the LDEM to reproduce the FBEs observed with all four bands of the AIA-4 instrumental set is due to the assumed bimodality. Our results show then that the quiet solar corona local (3D) DEM is bimodal at the spatio-temporal resolution of the DEMT and the temperature resolution of the TRFs of the AIA filters.

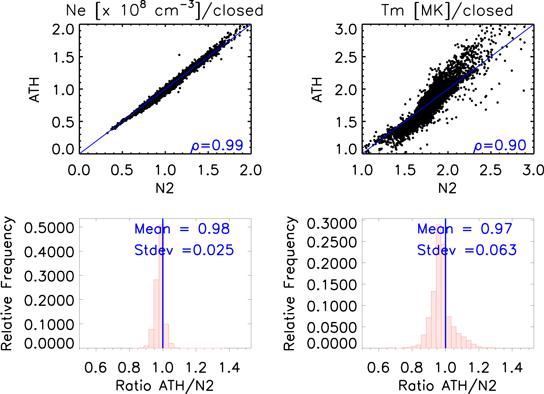

Finally, it is very interesting to note that the electron density and mean temperature predicted by the G2 model are almost the same as the values predicted by the ATH model over the whole corona. This is shown in detail in Figure 13, which compares the electron density and mean electron temperature obtained with both models. Even if the choice of a reasonably low R parametrization is not unique, they achieve very similar 3D maps of the electron density and mean temperature. In this regard, the AIA-4 set is able to reveal extra plasma not previously detected by AIA-3, EUVI, or EIT, which accounts for an extra 11% of coronal mass in the closed region, and a mean temperature 15% higher.

Zoom In Zoom Out Reset image size

In the previous section we established that the closed quiet corona is bimodal at the spatiotemporal resolution of the tomographic grid and the temperature resolution of the AIA narrow band TRFs. In this section, we quantify how strong the bimodality of a given LDEM distribution is by calculating the fractional squared density ${\left({N}_{{\rm{e}},j}/{N}_{{\rm{e}}}\right)}^{2}$ for each Gaussian component ($j=1,2$) of the model G2. Figure 14 shows Carrington maps of both ${\left({N}_{{\rm{e}},1}/{N}_{{\rm{e}}}\right)}^{2}$ and ${\left({N}_{{\rm{e}},2}/{N}_{{\rm{e}}}\right)}^{2}$ at 1.075 ${R}_{\odot }.$ It is readily seen that the cooler component is dominant in most of the magnetically closed corona, except in localized regions, and in coronal holes. The hotter component is significant in the magnetically closed corona and dominates the compact regions where the cooler component is more modest. To quantify the statistical relevance of the hotter component, Figure 15 shows the frequency histograms of its fractional squared density ${\left({N}_{{\rm{e}},2}/{N}_{{\rm{e}}}\right)}^{2}$ at the same height in the open and closed regions, separating the voxels within the QS (middle panel) from those in the ARs (bottom panel). The bimodality is much more important in the closed region than in the open region. Also, within the closed region, the bimodality is more important in ARs than in the QS. For example, the histograms show that the fraction of voxels for which the hotter component is the dominant one, i.e., for which ${\left({N}_{{\rm{e}},2}/{N}_{{\rm{e}}}\right)}^{2}\;\geqq \;0.5,$ is 25, 5, and 2% in the ARs, closed quiet corona, and open corona, respectively. As a summary of this trend, the mean fractional squared density of the hot component is 27% on average in the closed region, ranging between 20% and 34% according to the uncertainty analysis in the Appendix. The same fraction is systematically smaller in the open region, being 15% on average and ranging between 10% and 20%.

Zoom In Zoom Out Reset image size

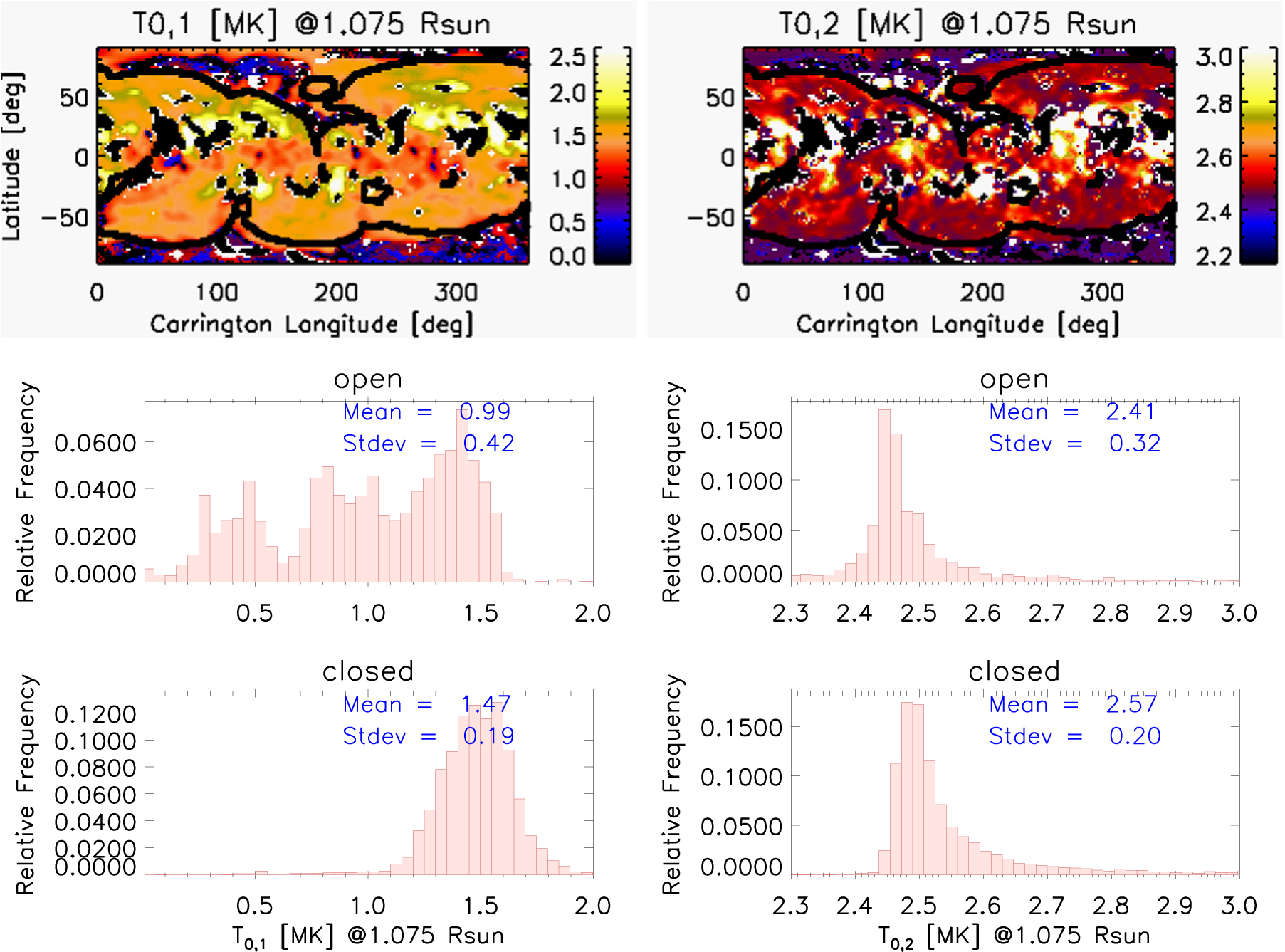

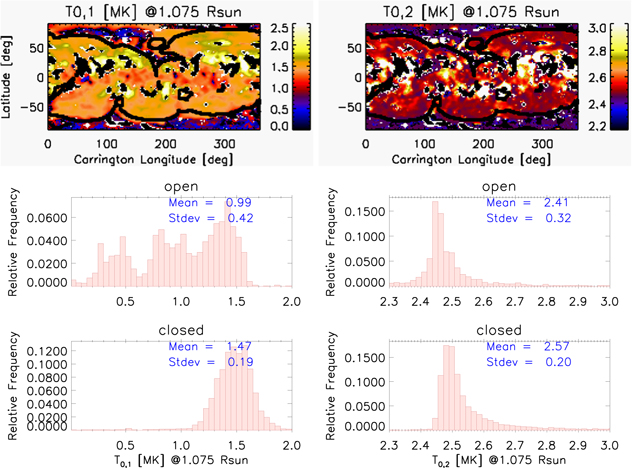

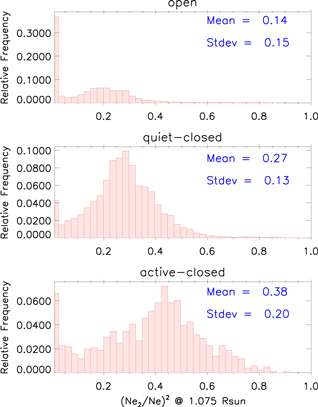

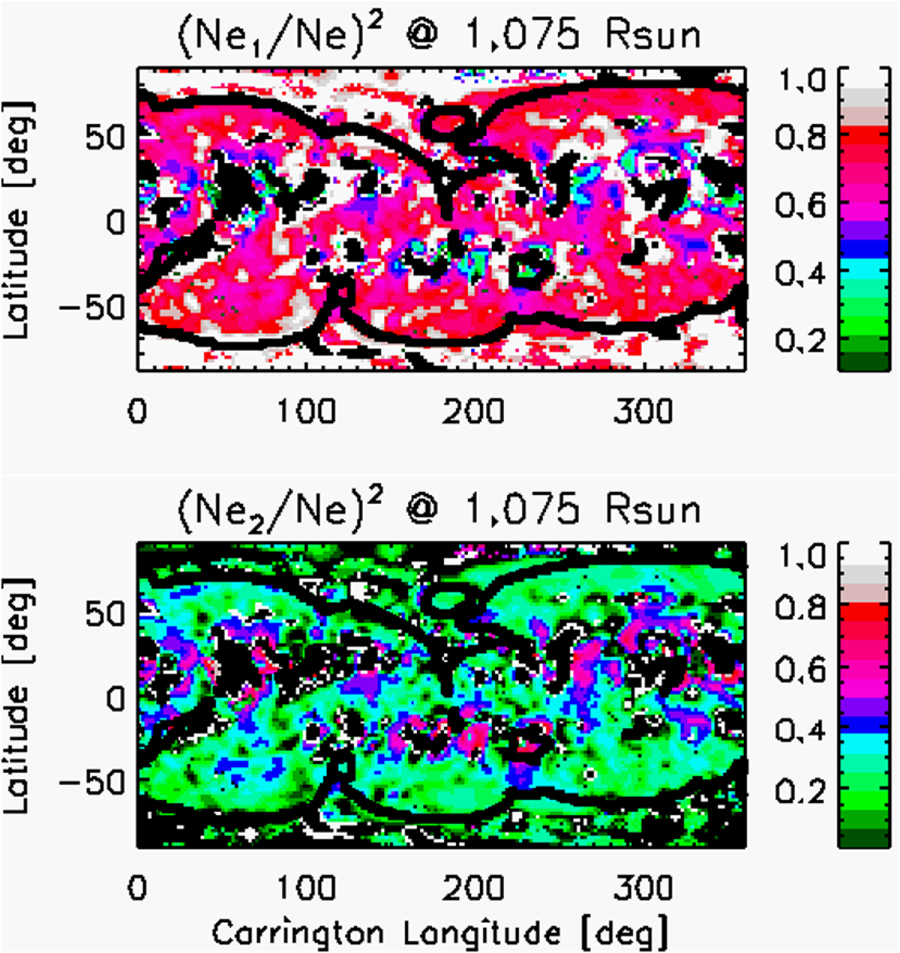

Figure 16 shows Carrington maps and histograms of the centroids ${T}_{\mathrm{0,1}}$ and ${T}_{\mathrm{0,2}}$ of the two components of the model G2. The values of ${T}_{\mathrm{0,1}}$ are significantly and systematically smaller in the open region, consistent with sub-MK temperatures in coronal holes reported by many studies (Wilhelm et al. 1998; Feng et al. 2009; Vásquez et al. 2011, 2012). On other hand, the values of the centroid ${T}_{\mathrm{0,2}}$ always distribute around the maximum temperature sensitivity of the 335 Å band (see Table 1) throughout the closed corona. Within the open corona the centroid ${T}_{\mathrm{0,2}}$ tends to be systematically smaller, yet statistically close to the maximum temperature sensitivity of the 335 Å band. The main result of this analysis is that the closed QS is characterized by two well defined average centroid temperatures $\langle {T}_{\mathrm{0,1}}\rangle =(1.47\pm 0.05)\;\mathrm{MK}$ and $\langle {T}_{\mathrm{0,2}}\rangle =(2.57\pm 0.05)\;\mathrm{MK},$ where the error bars correspond to the analysis described in the Appendix. We dub these two components of the LDEM "warm" and "hot," respectively.

As commented above in relation to Figure 15, the hot component of model G2 is much weaker in the open region. This is due to the colder temperatures that dominate the open corona and the correspondingly much weaker 335 Å emissivity. Still, model G2 is the most successful one also in the open corona, as it allows the hot component to be as weak as needed, yet still present. Unimodal models can mimic this by increasing their width, at the cost of diminishing the synthetic-to-observed agreement for the colder bands, then increasing the value of the score R.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

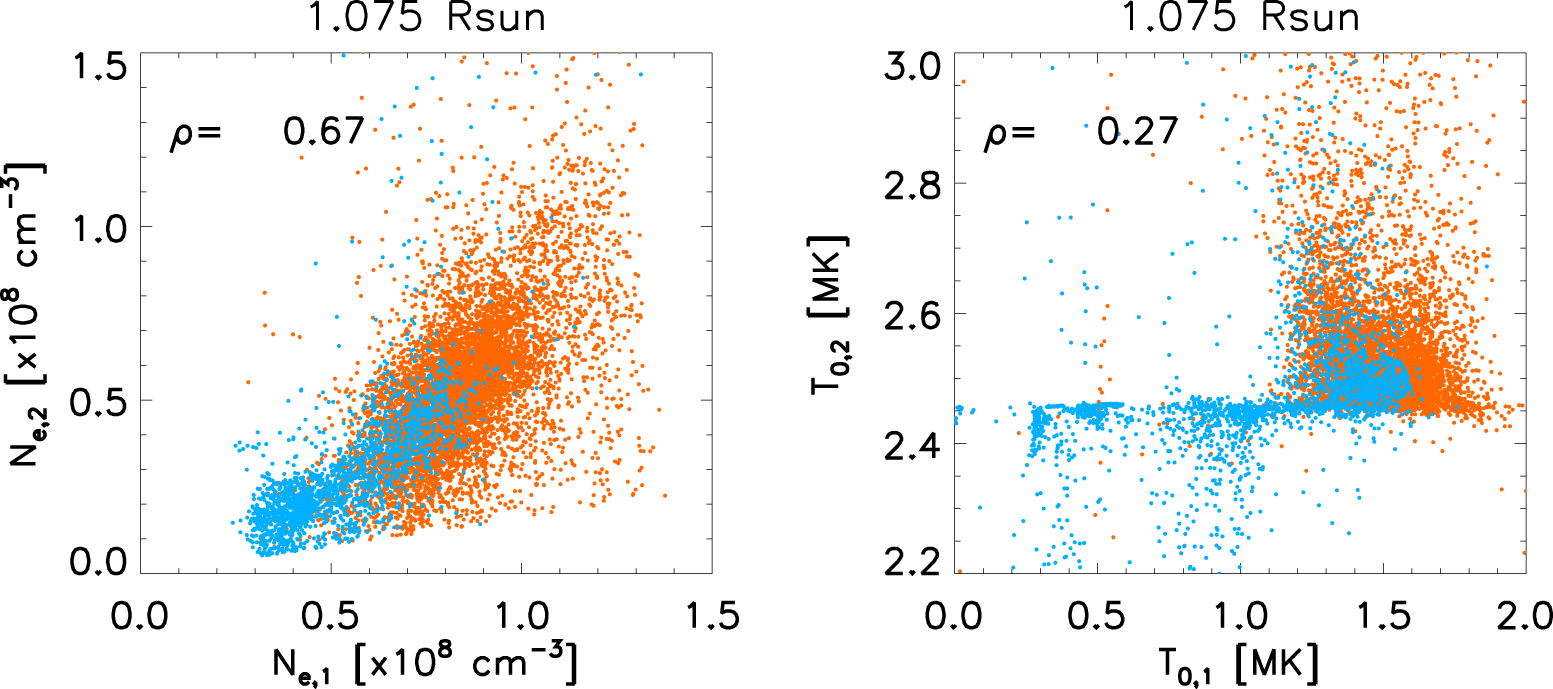

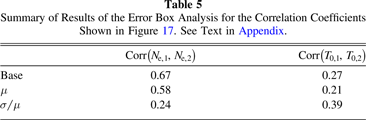

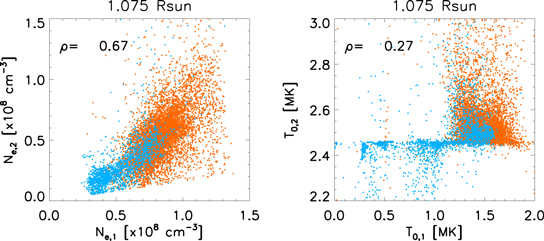

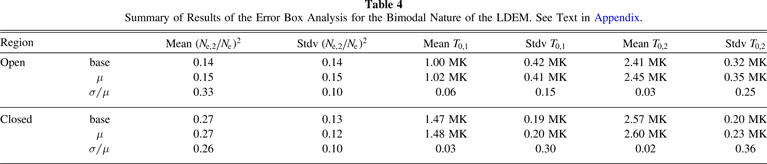

The left panel in Figure 17 shows a scatter plot of the electron densities of both components of model G2. The orange dots indicate voxels of the magnetically closed region, while blue dots indicate voxels of the magnetically open region. The right panel shows a scatter plot of the centroid electron temperatures of both components of the model G2. While the two centroid temperatures are clearly not correlated, the densities are, both in the open and closed regions. The fractional squared density of the hot component, a measure of the bimodality, is much larger in denser, magnetically closed, regions, while it is less important in the less dense open regions, as already shown in Figure 15.

Zoom In Zoom Out Reset image size

For the analysis shown in this section we chose 1.075 ${R}_{\odot }$ as an intermediate sample height. Similar results were found at all tomographic heights. We investigated the dependence with height of both ${N}_{{\rm{e}},2}(r)$ and ${N}_{{\rm{e}},1}(r)$ within the quiet region of the streamer belt, similar to Vásquez et al. (2011). The scale heights of both quantities differ by only about 12%, so that the ratio of squared densities ${\left({N}_{{\rm{e}},2}/{N}_{{\rm{e}},1}\right)}^{2}$ is roughly constant with height, showing a variability of less than 10% over the range 1.025 to 1.20 ${R}_{\odot }.$

The approach of parametric modeling of the LDEM used in this work is similar to that used in all previously published DEMT studies (for example Frazin et al. 2009; Vásquez et al. 2010, 2011, and Nuevo et al. 2013). As explained in Section 2.1, the same technique can be used to find the standard 2D DEM from simultaneous EUV image sets. With the aim of validating the parametric models, we use them to perform a standard DEM analysis of an AR and the diffuse region around it. We used the AIA-4 images taken at 12:00 UT on 2010 July 25, and found the DEM at each pixel using the G2 model. By taking the zeroth moment of each DEM we find the emission measure (EM [${\mathrm{cm}}^{-5}$]) of each pixel.

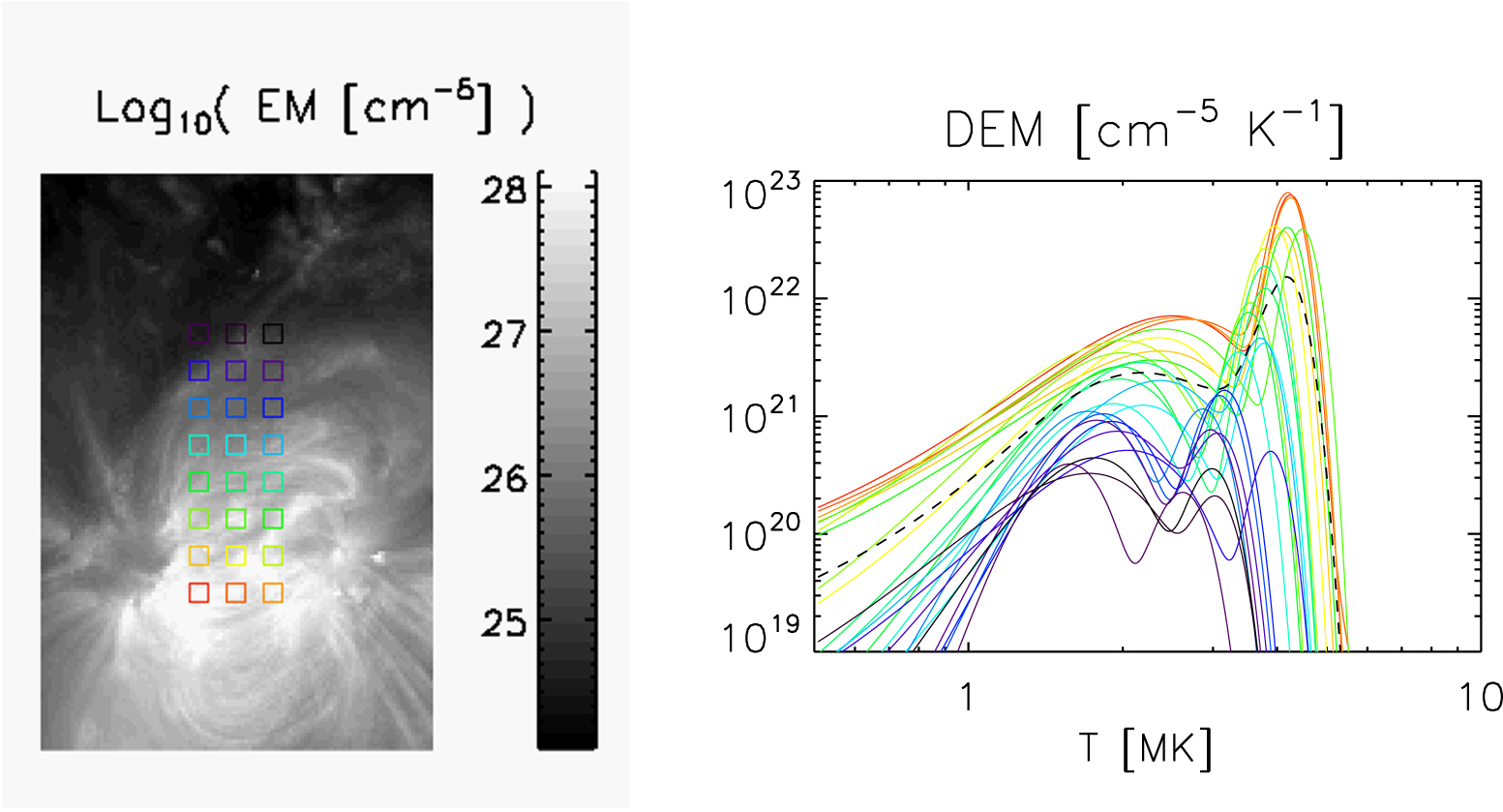

The left panel of Figure 18 shows, in gray scale, an image of the EM of the analyzed region, which corresponds to AR NOAA 11089. The color boxes, of size $5\times 5$ pixels, identify selected regions in the image. Using the same color code, the right panel shows the average DEM model obtained within each color box. This figure can be directly compared with a similar analysis shown in Figure 6 of Narukage et al. (2014), who performed an MCMC inversion. Their technique to determine the DEM, described in Winebarger et al. (2012), uses seven spectral lines of the EIS on board the Hinode (1–6 MK) and two broadband images of the X-Ray Telescope (XRT) on board Hinode. In their Figure 6, the authors show the DEM obtained in each selected region, which are indicated in their Figure 7. Note that we have chosen the color code of this work in a similar fashion to that of Figures 6 and 7 of Narukage et al. (2014), with the red/yellow colors corresponding to the core of the AR core, dark/blue colors corresponding to the dark region around the AR, and green/light-blue colors corresponding to intermediate regions.

Zoom In Zoom Out Reset image size

There are several similarities between both works that we should highlight. In the comparison one should bear in mind that the specific ARs analyzed in both works is not the same. First, the MCMC analysis of Narukage et al. (2014) shows in a bimodal DEM in virtually all regions, except for pixels in the deep core of the AR, where a third hotter component may arise. Second, in both analyses, as one moves from the dimmer regions surrounding the AR into the deep core of the AR, the area of both the cooler and the hotter component increases, the centroids of the two components gradually shift to higher temperatures, and the hotter component becomes dominant. In both works, the range of temperatures of the plasma described by the DEM exhibits similar values. For the MCMC analysis the centroid of the cooler component ranges from 1.2 to 1.5 MK, while the centroid of the hotter component ranges from 2.5 to 4.0 MK. In the parametric analysis of this work, the centroid of the cooler component ranges from 1.5 to 2.25 MK, while the centroid of the hotter component ranges from 2.5 to 4.0 MK. The absolute values of the DEM in units of $[{\mathrm{cm}}^{-5}\;{{\rm{K}}}^{-1}]$ (which we will omit in the rest of this paragraph) are also similar in both analyses, with comparable orders of magnitude. In the MCMC analysis, the amplitude of the cooler component is typically within the range $1-4\times {10}^{21},$ while the amplitude of the hotter component ranges from 0.5 to 10 × 10²¹. In the parametric analysis of this work, the amplitude of the cooler component ranges between 0.3 and 6 × 10²¹, while the amplitude of the hotter component ranges between 0.2 and 70 × 10²¹. In the core of the AR, the DEMs by Narukage et al. (2014) predict the intensity of the key EIS spectral lines (Winebarger et al. 2012) within a 30% precision. That level of agreement is comparable to the requirement $R\lt 0.2$ we have set for the voxels that are included in our tomographic analysis.
