ON THE CURVATURE EFFECT OF A RELATIVISTIC SPHERICAL SHELL

In the astrophysical phenomena involving relativistic jets, such as gamma-ray bursts (GRBs), the relativistic beaming of radiation plays an important role and leads to an interesting effect, especially when combined with a non-planar geometry. For a jet with spherical geometry, the emission from a jet location that has higher latitude than the line of sight takes a longer time to reach an observer than the emission along the line of sight. Thus, although emitted simultaneously from the jet, this so-called "high-latitude emission" spreads out along the time axis as received by the observer. Also, due to the relativistic beaming effect, the emission from higher latitudes has a progressively smaller Doppler factor, so that the observed flux density decays rapidly with the observer time. These two aspects of the high-latitude emission are known as the "curvature effect" of a relativistic spherical shell.

If the photon spectrum has a power-law shape in the fluid frame, co-moving with the spherical shell, the high-latitude emission from the shell produces an observed spectral flux ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ at an observed frequency ${\nu }_{\mathrm{obs}}$, such that it satisfies a simple relation between the temporal index $\hat{\alpha }$ and the spectral index $\hat{\beta }$,

$$\begin{eqnarray}&&\hat{\alpha }=2+\hat{\beta },\end{eqnarray} \tag{ 1 }$$

in the convention of ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}\propto {t}_{\mathrm{obs}}^{-\hat{\alpha }}\;{\nu }_{\mathrm{obs}}^{-\hat{\beta }}$, where ${t}_{\mathrm{obs}}$ is the observer time. This relation was first correctly derived by Kumar & Panaitescu (2000), and later verified by several authors both analytically (e.g., Dermer 2004) and numerically (e.g., Dyks et al. 2005).⁴

In reality, when the spherical shell emits continuously, the observed spectral flux ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ does not follow Equation (1) since the emission from higher latitudes has smaller Doppler boosting and is buried under the continuous emission from the jet emitted at later times. In this case, the temporal evolution of ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ is mainly determined by the time evolution of the jet power along the observer's line of sight. However, for the jets with rapid variability, such as in the GRB jets, one may consider a situation where the emission from the jet ceases abruptly. In such a case, the observed spectral flux can be purely produced by the high-latitude emission, and thus, the curvature effect of the spherical shell shapes the observed light curves. This effect has been invoked to interpret the steep decay phase of the early X-ray afterglow of GRBs (Zhang et al. 2006, 2009; Genet & Granot 2009) and the decay segment of the X-ray flares following GRBs (Liang et al. 2006).

In this paper, we present a simple analytical derivation of the observed spectral flux ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ from a relativistic spherical shell, for the case of an arbitrary shape of a photon spectrum in the fluid frame. We derive the same expression while employing two different approaches: (1) the emitted spectral power of the electrons in the shell and (2) the received spectral power of the electrons and an integration over the equal-arrival time surface (EATS). Then, we show that Equation (1) for the high-latitude emission is naturally satisfied in our derivation, but holds only in the case where the shell expands with a constant value of the bulk Lorentz factor. Presenting numerical models where the shell is under acceleration or deceleration, we show that the high-latitude emission indeed deviates from Equation (1) for an accelerating or decelerating shell. We also discuss its possible implications in the context of GRB observations. During the afterglow phase, the emission region is known to be under deceleration (Mészáros & Rees 1997; Sari et al. 1998). On the other hand, during the prompt emission phase, the emission region may undergo acceleration if the prompt emission is powered by dissipating magnetic energy in a Poynting flux dominated jet (e.g., Zhang & Yan 2011).

We first analytically derive the curvature effect of a spherical shell using two different methods.

Consider a thin spherical shell of radius r at time t expanding with a bulk Lorentz factor Γ in the lab frame, which was initially ejected at time t = 0 from a central explosion at radius r = 0. An observer located at a large cosmological distance from the shell sets the observer time ${t}_{\mathrm{obs}}$ equal to zero upon receiving the very first photon emitted from the center at time t = 0. Then, a photon emitted from the shell at time t from a location of a polar angle θ with respect to the observer's line of sight will be detected by the observer at observer time

$$\begin{eqnarray}&&{t}_{\mathrm{obs}}=\left(t-\displaystyle \frac{r}{c}\;\mu \right)(1+z),\end{eqnarray} \tag{ 2 }$$

where $\mu \equiv \mathrm{cos}\theta$, c is the speed of light, and z is the redshift of the explosion.

Also, consider a total of N electrons uniformly distributed in the shell and assume that, in the fluid frame co-moving with the shell, an electron of a Lorentz factor ${\gamma }_{{\rm{e}}}$ has its spectral power ${P}_{{\nu }^{\prime }}^{\prime }\equiv {{dP}}^{\prime }/d{\nu }^{\prime }$ at frequency ${\nu }^{\prime }$ as⁵

$$\begin{eqnarray}&&{P}_{{\nu }^{\prime }}^{\prime }({\nu }^{\prime })\propto H(x)\quad {\rm{with}}\quad x={\nu }^{\prime }/{\nu }_{0}\prime ,\end{eqnarray} \tag{ 3 }$$

so that the photon spectrum of the electron is shaped by the functional form of $H(x)$ and is located at a characteristic frequency ${\nu }_{0}\prime$. At every location in the shell, the electrons form a spectrum ${{dN}}_{{\rm{e}}}/d{\gamma }_{{\rm{e}}}$ in their energy space. Thus, the photon spectrum emitted from those electrons needs to be evaluated as a convolution of Equation (3) with the electron spectrum ${{dN}}_{{\rm{e}}}/d{\gamma }_{{\rm{e}}}$, which would then yield a spectral shape different from that of $H(x)$. In order to describe this photon spectrum arising from a group or "ensemble" of electrons placed together, we introduce here a functional form ${H}_{\mathrm{en}}(x)$ with $x={\nu }^{\prime }/{\nu }_{\mathrm{en}}^{\prime }$, which is then located at an ensemble frequency ${\nu }_{\mathrm{en}}^{\prime }$. For instance, the function ${H}_{\mathrm{en}}(x)$ may have a GRB "Band-function" shape (Band et al. 1993) or simply a power-law shape. Dividing the spectral luminosity emitted from all of the electrons within the ensemble by the number of electrons included there, we now assume that the spectral power of each electron within the ensemble may also, on average, be described by the same functional form. In other words, we propose

$$\begin{eqnarray}&&{P}_{{\nu }^{\prime }}^{\prime }({\nu }^{\prime })={P}_{0}^{\prime }\;{H}_{\mathrm{en}}(x)\quad {\rm{with}}\quad x={\nu }^{\prime }/{\nu }_{\mathrm{en}}^{\prime },\end{eqnarray} \tag{ 4 }$$

where ${P}_{0}^{\prime }$ is a measure of the spectral power of a single electron in the fluid frame. Note that ${P}_{0}^{\prime }$ and ${\nu }_{\mathrm{en}}^{\prime }$ here are not necessarily constant and can evolve in time. With the set-up depicted in Equation (4), we can efficiently investigate solely the relativistic curvature effect of a spherical shell as we proceed below, without invoking a detailed shape of the electron spectrum or a specific radiation process.

Consider again an electron located in the shell with a polar angle θ with respect to the observer's line of sight. Then, a photon emitted from the electron in the direction of the observer has the same angle θ with the radial bulk motion of the electron, and thus appears with a frequency ν in the lab frame,

$$\begin{eqnarray}&&\nu (\theta )={\nu }^{\prime }\;{[{\rm{\Gamma }}(1-\beta \mu )]}^{-1},\end{eqnarray} \tag{ 5 }$$

while the same photon has a frequency ${\nu }^{\prime }$ in the fluid frame. Here, β is given by $\beta ={(1-{{\rm{\Gamma }}}^{-2})}^{1/2}$. Provided that the electron emits photons isotropically⁶ in the fluid frame, the spectral energy $\delta {E}_{\nu }$ emitted by the electron at frequency ν during a time interval $\delta t$ into a solid angle $\delta {\rm{\Omega }}$ in the direction of the observer is given in the lab frame as

$$\begin{eqnarray}&&\delta {E}_{\nu }=\displaystyle \frac{\delta t\;\delta {\rm{\Omega }}}{{{\rm{\Gamma }}}^{3}{(1-\beta \mu )}^{2}}\;\displaystyle \frac{1}{4\pi }\;{P}_{0}^{\prime }\;{H}_{\mathrm{en}}(\nu /{\nu }_{\mathrm{en}}),\end{eqnarray} \tag{ 6 }$$

where ${\nu }_{\mathrm{en}}\equiv {\nu }_{\mathrm{en}}^{\prime }\;{[{\rm{\Gamma }}(1-\beta \mu )]}^{-1}$.

Now consider a thin ring in the shell in a polar angle range between θ and $\theta +\delta \theta$. Since the number of electrons contained in the ring is given by $(| \delta \mu | /2)N$, the spectral energy $\delta {\tilde{E}}_{\nu }$ emitted from the ring at frequency ν during $\delta t$ into $\delta {\rm{\Omega }}$ in the direction of the observer reads in the lab frame as

$$\begin{eqnarray}&&\delta {\tilde{E}}_{\nu }=\delta {E}_{\nu }\;(| \delta \mu | /2)N.\end{eqnarray} \tag{ 7 }$$

Here, the tilde indicates the ring. In reality, the electrons in the ring emit photons continuously as the shell expands. However, as described in Uhm et al. (2012), we may view the emission from the shell as a series of "flashes." We assume that the electrons in the ring accumulate their emission between any two consecutive flashes (separated by a time interval $\delta t$) and emit all of the accumulated energy instantaneously like a flash at the end of each time interval.

When the spectral energy $\delta {\tilde{E}}_{\nu }$ of the ring is released into $\delta {\rm{\Omega }}$ as a flash, the ring's thickness (between θ and $\theta +\delta \theta$) introduces a time interval $\delta \tilde{t}=(r/c)\;| \delta \mu |$ in the lab frame along the observer's line of sight (Uhm et al. 2012). Hence, the spectral luminosity of the ring at frequency ν, which is shone into $\delta {\rm{\Omega }}$ in the direction of the observer, reads in the lab frame as

$$\begin{eqnarray}\delta {L}_{\nu } & = & \displaystyle \frac{\delta {\tilde{E}}_{\nu }}{\delta \tilde{t}}=\displaystyle \frac{c}{2r}\;N\;\delta {E}_{\nu }\\ & = & \displaystyle \frac{1}{4\pi }\;\displaystyle \frac{c}{2r}\;\displaystyle \frac{N\;\delta t\;\delta {\rm{\Omega }}}{{{\rm{\Gamma }}}^{3}{(1-\beta \mu )}^{2}}\;{P}_{0}^{\prime }\;{H}_{\mathrm{en}}(\nu /{\nu }_{\mathrm{en}}),\end{eqnarray} \tag{ 8 }$$

where the ring's thickness, i.e., $\delta \mu$, cancels out, and thus we remove a tilde from $\delta {L}_{\nu }$.

The photons emitted into $\delta {\rm{\Omega }}$ at frequency ν are redshifted while traveling and would be seen by the observer at an observed frequency

$$\begin{eqnarray}&&{\nu }_{\mathrm{obs}}=\nu /(1+z).\end{eqnarray} \tag{ 9 }$$

The observed spectral flux at frequency ${\nu }_{\mathrm{obs}}$ is then given as

$$\begin{eqnarray}\delta {F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}} & = & \displaystyle \frac{(1+z)\;\delta {L}_{\nu }}{{D}_{{\rm{L}}}^{2}\delta {\rm{\Omega }}}\\ & = & \displaystyle \frac{1+z}{4\pi {D}_{{\rm{L}}}^{2}}\displaystyle \frac{c}{2r}\displaystyle \frac{{{NP}}_{0}^{\prime }\;\delta t}{{{\rm{\Gamma }}}^{3}{(1-\beta \mu )}^{2}}{H}_{\mathrm{en}}({\nu }_{\mathrm{obs}}/{\nu }_{\mathrm{en}}^{\mathrm{obs}}),\end{eqnarray} \tag{ 10 }$$

where D_L is the luminosity distance to the shell from the observer and ${\nu }_{\mathrm{en}}^{\mathrm{obs}}\equiv {\nu }_{\mathrm{en}}/(1+z)$. Note that the solid angle $\delta {\rm{\Omega }}$ also cancels out here. Finding μ from Equation (2),

$$\begin{eqnarray}&&\mu =\displaystyle \frac{c}{r}\left(t-\displaystyle \frac{{t}_{\mathrm{obs}}}{1+z}\right),\end{eqnarray} \tag{ 11 }$$

we now have an integral for ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ in terms of ${t}_{\mathrm{obs}}$ and ${\nu }_{\mathrm{obs}}$,

$$\begin{eqnarray}&&{F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}=\displaystyle \frac{1+z}{4\pi {D}_{{\rm{L}}}^{2}}\\ &&\quad \times \displaystyle \int \displaystyle \frac{c}{2r}\displaystyle \frac{{{NP}}_{0}^{\prime }{H}_{\mathrm{en}}((1+z){\rm{\Gamma }}(1-\beta \mu ){\nu }_{\mathrm{obs}}/{\nu }_{\mathrm{en}}^{\prime })}{{{\rm{\Gamma }}}^{3}{(1-\beta \mu )}^{2}}{dt}.\end{eqnarray} \tag{ 12 }$$

Here, we have used ${\nu }_{\mathrm{en}}^{\mathrm{obs}}={\nu }_{\mathrm{en}}^{\prime }\;{[(1+z)\;{\rm{\Gamma }}(1-\beta \mu )]}^{-1}$. Note that the redshift factor z enters Equation (12) only through the combinations ${t}_{\mathrm{obs}}/(1+z)$ and ${\nu }_{\mathrm{obs}}(1+z)$ as well as the overall normalization. Therefore, redshift only plays a global role in shaping the observed spectral flux ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ in a 3D space (${t}_{\mathrm{obs}}$, ${\nu }_{\mathrm{obs}}$, ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$).

It is widely known that the high-latitude emission from a spherical shell satisfies Equation (1) for the convention ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}\propto {t}_{\mathrm{obs}}^{-\hat{\alpha }}\;{\nu }_{\mathrm{obs}}^{-\hat{\beta }}$ (Kumar & Panaitescu 2000). We point out that this relation $\hat{\alpha }=2+\hat{\beta }$ is naturally achieved in our derivation above. For ${H}_{\mathrm{en}}(x)\propto {x}^{-\hat{\beta }}$, Equation (12) gives

$$\begin{eqnarray}&&{F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}\propto \int \displaystyle \frac{{{NP}}_{0}^{\prime }{\nu }_{\mathrm{en}}^{\prime \;\hat{\beta }}{\nu }_{\mathrm{obs}}^{-\hat{\beta }}}{r{{\rm{\Gamma }}}^{3+\hat{\beta }}{(1-\beta \mu )}^{2+\hat{\beta }}}\;{dt}.\end{eqnarray} \tag{ 13 }$$

Consider now a constant value of Γ, which ensures that $r=c\beta t$ is satisfied. Equation (2) then becomes

$$\begin{eqnarray}&&{t}_{\mathrm{obs}}=t\;(1-\beta \mu )(1+z).\end{eqnarray} \tag{ 14 }$$

Combining Equations (13) and (14), we have

$$\begin{eqnarray}&&{F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}\propto {t}_{\mathrm{obs}}^{-(2+\hat{\beta })}\;{\nu }_{\mathrm{obs}}^{-\hat{\beta }}\int {{NP}}_{0}^{\prime }{\nu }_{\mathrm{en}}^{\prime \;\hat{\beta }}\;{t}^{1+\hat{\beta }}\;{dt}.\end{eqnarray} \tag{ 15 }$$

While the shell is still emitting, the integral in Equation (15) varies in time, but once the emission from the shell is turned off, the integral becomes a constant value. Therefore, the observed spectral flux ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ beyond the turn-off point, which is then produced purely by the high-latitude emission, satisfies the relation $\hat{\alpha }=2+\hat{\beta }$. We stress, however, that this relation $\hat{\alpha }=2+\hat{\beta }$ does not hold any longer when Γ evolves in time because Equation (14) becomes invalid; see also Section 3.

We now present an alternative derivation of Equation (12) by making use of an EATS. Consider an electron located in the shell at time t with a polar angle θ with respect to the observer's line of sight. Its received spectral power at frequency ν into a solid angle $\delta {\rm{\Omega }}$ in the direction of the observer is given in the lab frame as

$$\begin{eqnarray}&&\delta {P}_{\nu }^{\;\mathrm{rec}}=\displaystyle \frac{\delta {\rm{\Omega }}}{{{\rm{\Gamma }}}^{3}{(1-\beta \mu )}^{3}}\;\displaystyle \frac{1}{4\pi }\;{P}_{0}^{\prime }\;{H}_{\mathrm{en}}(\nu /{\nu }_{\mathrm{en}}).\end{eqnarray} \tag{ 16 }$$

The photons emitted from this electron at time t will be received by the observer at an observer time ${t}_{\mathrm{obs}}$ (given by Equation (2)). Now we integrate over the EATS of this ${t}_{\mathrm{obs}}$ between t and $t+\delta t$, by counting the number of electrons that contribute to the same ${t}_{\mathrm{obs}}$. During the time interval $\delta t$, the shell travels a distance of $c\beta \;\delta t$ and has a radius of $r+c\beta \;\delta t$ at time $t+\delta t$. The definition of EATS of this ${t}_{\mathrm{obs}}$ reads

$$\begin{eqnarray}&&r\mathrm{cos}\theta +c\;\delta t=(r+c\beta \;\delta t)\mathrm{cos}(\theta -\delta \theta ),\end{eqnarray} \tag{ 17 }$$

where $\theta -\delta \theta$ is the polar angle of EATS of this ${t}_{\mathrm{obs}}$ at time $t+\delta t$. Note that during the shell's expansion for $\delta t$, the polar angle of EATS of this ${t}_{\mathrm{obs}}$ decreases by an amount of $\delta \theta$. Since $\mathrm{cos}(\theta -\delta \theta )\simeq \mathrm{cos}\theta +\mathrm{sin}\theta \;\delta \theta$, Equation (17) gives

$$\begin{eqnarray}&&\mathrm{sin}\theta \;\delta \theta \simeq \displaystyle \frac{c}{r}\;(1-\beta \mathrm{cos}\theta )\;\delta t.\end{eqnarray} \tag{ 18 }$$

The number of electrons contained on the EATS of this ${t}_{\mathrm{obs}}$ between r and $r+c\beta \;\delta t$ (or equivalently between θ and $\theta -\delta \theta$) is equal to the number of electrons contained in the shell in the polar angle range between $\theta -\delta \theta$ and θ, which is given by

$$\begin{eqnarray}&&(| \delta \mu | /2)N=\displaystyle \frac{1}{2}(\mathrm{sin}\theta \;\delta \theta )N=\displaystyle \frac{c}{2r}(1-\beta \mu )N\;\delta t.\end{eqnarray} \tag{ 19 }$$

These electrons, contained on the EATS of this ${t}_{\mathrm{obs}}$ in the time range between t and $t+\delta t$, contribute to the same ${t}_{\mathrm{obs}}$ and give the spectral luminosity $\delta {L}_{\nu }$ at frequency ν as follows.

$$\begin{eqnarray}&&\delta {L}_{\nu }=\left[\displaystyle \frac{c}{2r}\;(1-\beta \mu )N\;\delta t\right]\delta {P}_{\nu }^{\;\mathrm{rec}}.\end{eqnarray} \tag{ 20 }$$

Note that Equation (20) becomes identical to the result above, Equation (8), when Equation (16) is substituted in. Hence, we arrive at Equation (12) again.

We consider a spherical shell at redshift z = 1. For its luminosity distance D_L from the observer, we adopt a flat ΛCDM universe with the parameters ${H}_{0}=71$ km ${{\rm{s}}}^{-1}$ ${{\rm{Mpc}}}^{-1}$, ${{\rm{\Omega }}}_{{\rm{m}}}=0.27$, and ${{\rm{\Omega }}}_{{\rm{\Lambda }}}=0.73$ (the concordance model). The number of electrons in the shell N is assumed to increase at a constant injection rate ${R}_{\mathrm{inj}}\equiv {dN}/{{dt}}^{\prime }={10}^{45}\;{{\rm{s}}}^{-1}$ from an initial value N = 0, where t' is the time measured in the co-moving fluid frame. For the functional form of ${H}_{\mathrm{en}}(x)$, we take a simple power-law shape ${H}_{\mathrm{en}}(x)={x}^{-\hat{\beta }}$ with a spectral index $\hat{\beta }=1$. Regarding the choice of ${P}_{0}^{\prime }$ and ${\nu }_{\mathrm{en}}^{\prime }$, having the synchrotron radiation in mind, we adopt the following from the synchrotron theory (Rybicki & Lightman 1979).⁷

$$\begin{eqnarray}&&{P}_{0}^{\prime }=\displaystyle \frac{3\sqrt{3}}{32}\;\displaystyle \frac{{m}_{{\rm{e}}}{c}^{2}\;{\sigma }_{{\rm{T}}}B}{{q}_{{\rm{e}}}},\quad {\nu }_{\mathrm{en}}^{\prime }=\displaystyle \frac{3}{16}\;\displaystyle \frac{{q}_{{\rm{e}}}B}{{m}_{{\rm{e}}}c}\;{\gamma }_{\mathrm{inj}}^{2}.\end{eqnarray} \tag{ 21 }$$

Here, m_e and q_e are the mass and charge of the electron, respectively, and ${\sigma }_{{\rm{T}}}$ is the Thomson cross section. The magnetic field strength B in the shell and the injection Lorentz factor ${\gamma }_{\mathrm{inj}}$ of the electrons are measured in the fluid frame. Choosing B = 30 G and ${\gamma }_{\mathrm{inj}}=5\times {10}^{4}$, we place the ensemble spectrum at around $h{\nu }_{\mathrm{en}}^{\prime }\simeq 1$ keV in the fluid frame. Such a set of parameters are the correct ones to reproduce the observed prompt emission spectra of GRBs (Uhm & Zhang 2014; Zhang et al. 2015).

We present nine numerical models, for which everything given above remains the same. The first model we present (named [1a]) is under constant bulk motion with ${\rm{\Gamma }}=300$, while the other eight models are under acceleration or deceleration with Γ in a power-law form in radius: ${\rm{\Gamma }}{(r)={{\rm{\Gamma }}}_{0}\;(r/{r}_{0})}^{s}$ with ${r}_{0}={10}^{14}$ cm. The second model (named [2a]) is under acceleration with ${{\rm{\Gamma }}}_{0}={10}^{2}$ and $s=0.4$, and the third model (named [3a]) is under deceleration with ${{\rm{\Gamma }}}_{0}={10}^{3}$ and $s=-0.4$. We begin our calculations at radius r₀ (and at time ${t}_{0}={r}_{0}/(c\beta )$ for ${\rm{\Gamma }}=300$) and turn off the emission of the shell at ${\hat{t}}_{\mathrm{obs}}=3$ s. Here, ${\hat{t}}_{\mathrm{obs}}$ is defined by ${\hat{t}}_{\mathrm{obs}}=(1+z)\int {dt}/(2{{\rm{\Gamma }}}^{2})$, and measures the observed time of photons emitted with $\theta =0$ along the observer's axis.⁸ Note that the same turn-off time (${\hat{t}}_{\mathrm{obs}}=3$ s) corresponds to a different turn-off radius for each of these three models [1a], [2a], and [3a] since they have different ${\rm{\Gamma }}(r)$ profiles.

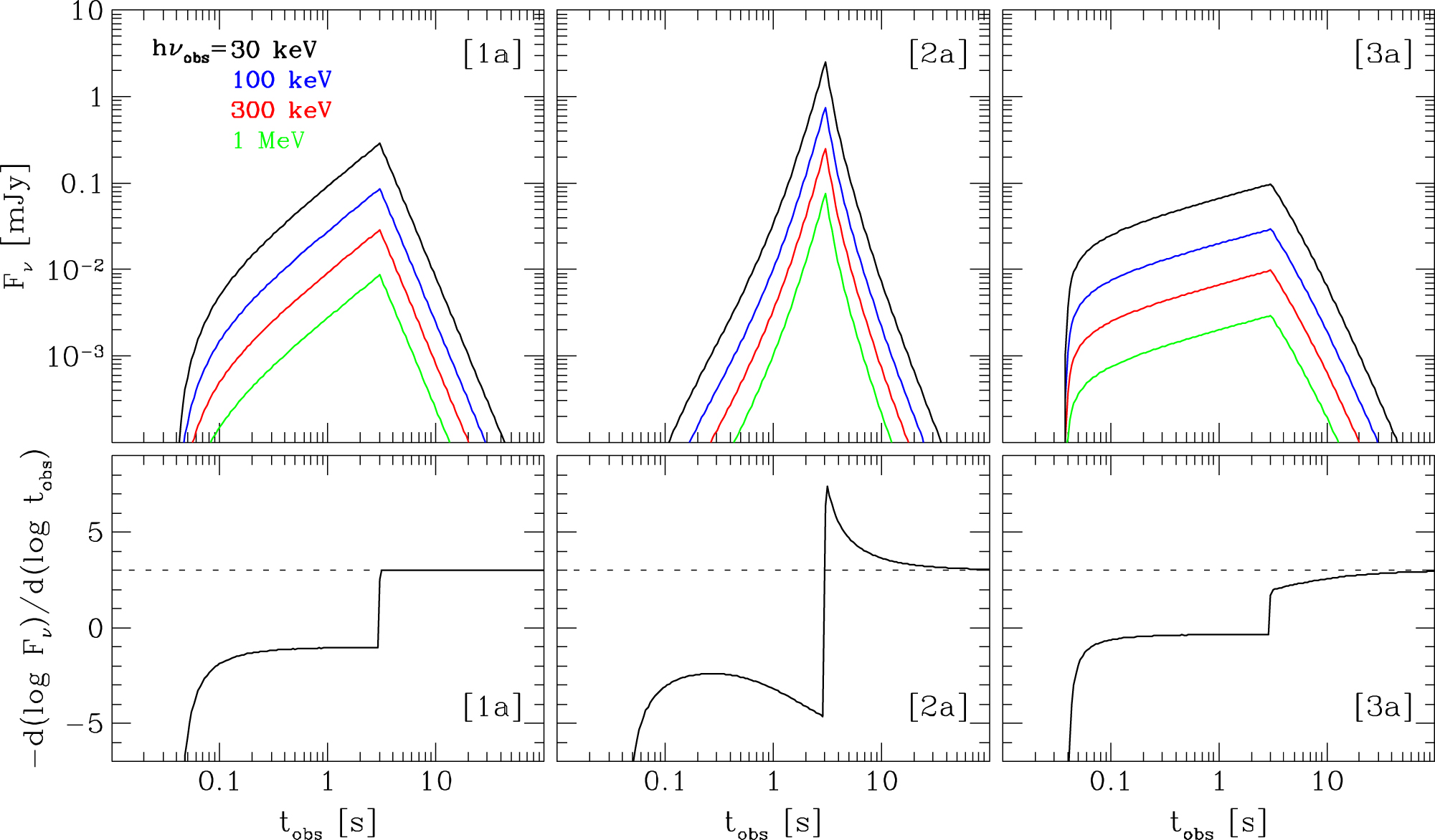

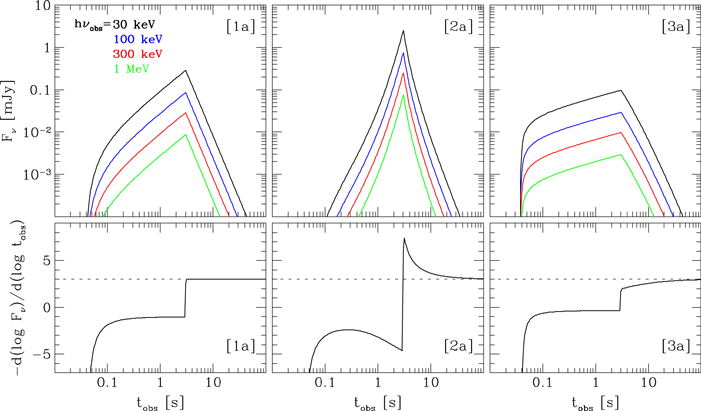

Figure 1 shows the resulting light curves of models [1a], [2a], and [3a]. In the upper panels, we show the observed spectral flux ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ as a function of observer time ${t}_{\mathrm{obs}}$ at $h{\nu }_{\mathrm{obs}}=30$ keV (black), 100 keV (blue), 300 keV (red), and 1 MeV (green), respectively, and in the lower panels, we show the temporal index $\hat{\alpha }=-d(\mathrm{log}{F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}})/d(\mathrm{log}{t}_{\mathrm{obs}})$ of these four light curves. The dotted line in the lower panels represents the relation $\hat{\alpha }=2+\hat{\beta }$ for the spectral index $\hat{\beta }=1$. The light curves in all three models rise initially (since N increases with time), peak at the turn-off time of 3 s, and then subsequently decay beyond that time, displaying a high-latitude emission of the shell. For the model [1a] with a constant value of Γ, it is noted that the $\hat{\alpha }$ curve agrees with the expected relation $\hat{\alpha }=2+\hat{\beta }$ beyond the turn-off time. However, for model [2a], under acceleration, the $\hat{\alpha }$ curve beyond the turn-off time indicates that the light curves produced purely by the high-latitude emission initially exhibit a much steeper decay than in model [1a] and then gradually resume the relation $\hat{\alpha }=2+\hat{\beta }$ in about one and a half orders of magnitude in observer time. For model [3a], under deceleration, the trend is in the opposite direction. The light curves produced purely by the high-latitude emission beyond the turn-off time are initially shallower than in model [1a] and gradually resume the relation $\hat{\alpha }=2+\hat{\beta }$ in about one and a half orders of magnitude in observer time.

Zoom In Zoom Out Reset image size

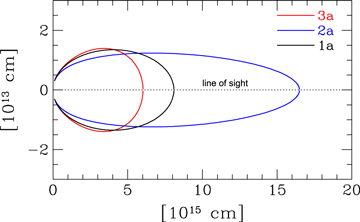

We also calculate the EATS (of contributing to ${t}_{\mathrm{obs}}=3$ s) for these three models, [1a], [2a], and [3a], and show them in Figure 2. As compared to the ellipsoidal shape of EATS of the model [1a], the EATS of the model [2a] (under acceleration) is elongated along the line of sight further on the side of larger radii. On the other hand, the EATS of the model [3a] (under deceleration) is elongated less on the side of larger radii, as also shown in previous publications (e.g., Sari 1998). This difference in the shape of three EATS's can help visualize our finding in Figure 1.

Zoom In Zoom Out Reset image size

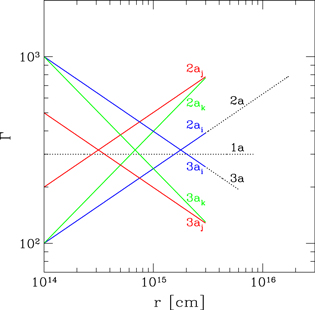

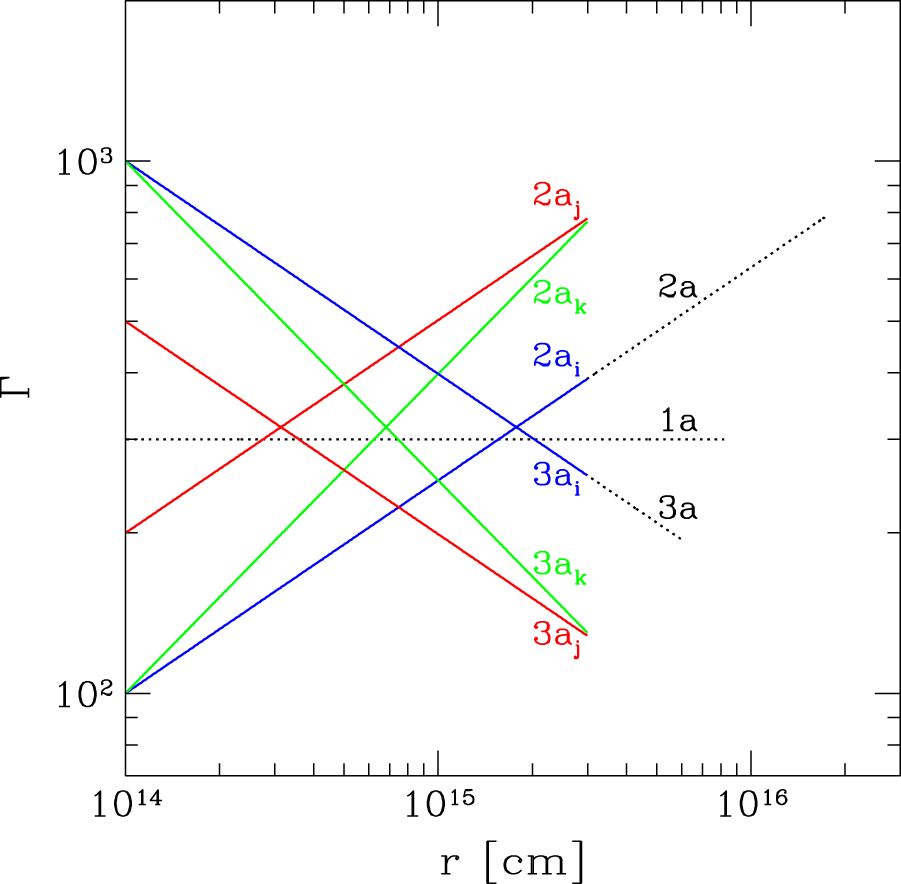

In order to better understand this deviation from the expected relation $\hat{\alpha }=2+\hat{\beta }$, we now make the following three variations on the model [2a] and another three variations on the model [3a]. First, we would like to see if the turn-off radius matters. Thus, for model [2a_i], we take the same profile of ${\rm{\Gamma }}(r)$ as in the model [2a] but turn off the emission of the shell at a smaller radius, ${r}_{\mathrm{off}}=3\times {10}^{15}{\rm{cm}}$, than in model [2a]. For model [2a_j], we keep everything the same as in model [2a_i], but increase ${{\rm{\Gamma }}}_{0}$ by a factor of two. For model [2a_k], everything is the same as in model [2a_i], but s is changed to a higher value $s=0.6$. Three variations on model [3a] are made in the same way. Model [3a_i] has the same profile of ${\rm{\Gamma }}(r)$ as in model [3a], but has the turn-off radius ${r}_{\mathrm{off}}$. Model [3a_j] has a ${{\rm{\Gamma }}}_{0}$ that is smaller by a factor of two when compared to model [3a_i]. Model [3a_k] has a lower value of $s=-0.6$ as compared to model [3a_i]. In Figure 3, we show all of these six variations, together with the previous models, [1a], [2a], and [3a].⁹

Zoom In Zoom Out Reset image size

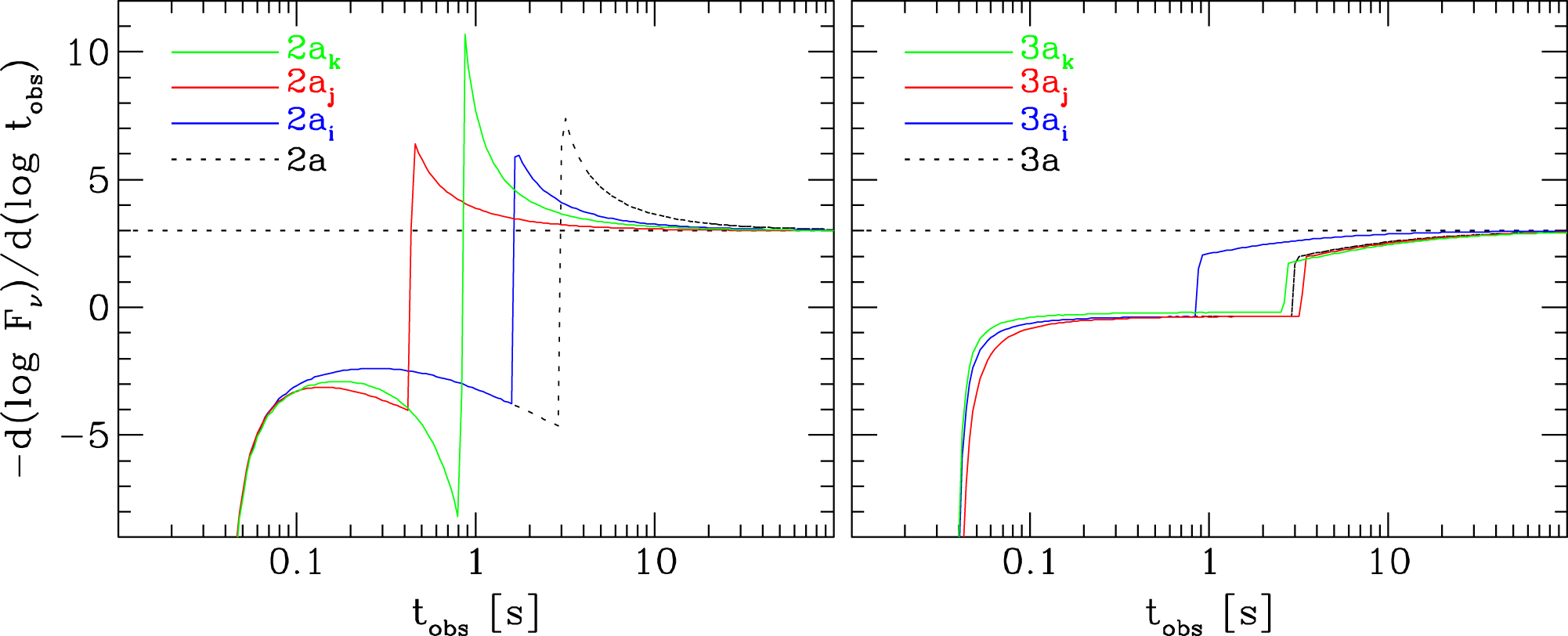

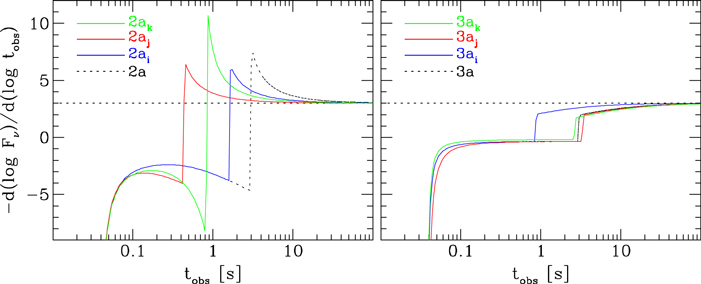

We repeat our calculations for these new models and show the $\hat{\alpha }$ curve of each model in Figure 4. From the left panel, we conclude that, in the case of an accelerating spherical shell, the steepness of the light curves beyond the turn-off point depends weakly on the turn-off radius and the value ${{\rm{\Gamma }}}_{0}$, but responds most sensitively to the value of the acceleration index s. The higher the value s, the steeper the light curves. In the case of a decelerating spherical shell, the right panel shows that the shallowness of the light curves beyond the turn-off point is nearly insensitive to the turn-off radius and the value ${{\rm{\Gamma }}}_{0}$, but depends weakly on the value of the deceleration index s. The lower the value s, the shallower the light curves.

Zoom In Zoom Out Reset image size

In this paper, we consider a relativistic spherical shell expanding with a bulk Lorentz factor Γ and calculate the spectral flux received by a distant observer located at a large cosmological distance. Assuming an arbitrary shape of the photon spectrum in the fluid frame co-moving with the shell, we present a simple analytical derivation of the observed spectral flux ${F}_{{\nu }_{\mathrm{obs}}}^{\;\mathrm{obs}}$ in terms of observer time ${t}_{\mathrm{obs}}$ and observed frequency ${\nu }_{\mathrm{obs}}$. In particular, we derive the same expression while making use of two different approaches: (1) the emitted spectral power of the electrons and (2) the received spectral power of the electrons and an integration over the EATS. It is known that the high-latitude emission from a spherical shell satisfies a relation $\hat{\alpha }=2+\hat{\beta }$ between the temporal index $\hat{\alpha }$ and the spectral index $\hat{\beta }$. We show that this relation is naturally achieved in our derivation, but holds only in the case of a constant value of Γ.

We present nine numerical models: one model under constant bulk motion (named [1a]), four models under acceleration (named [2a], [2a_i], [2a_j], and [2a_k]), and another four models under deceleration (named [3a], [3a_i], [3a_j], and [3a_k]). Calculating the light curves at four different energy bands and finding the temporal index $\hat{\alpha }$ of those light curves for each model, we show that the relation $\hat{\alpha }=2+\hat{\beta }$ is indeed satisfied only for the first model [1a]. For the models under acceleration, we find that the light curves produced purely by the high-latitude emission initially exhibit much steeper decay than in the model [1a] and gradually resume the relation $\hat{\alpha }=2+\hat{\beta }$ in about one and a half orders of magnitude in observer time. For the models under deceleration, the trend is opposite. We show that, in the case of a decelerating spherical shell, the light curves produced purely by the high-latitude emission initially exhibit a shallower decay than in model [1a] and gradually resume the relation $\hat{\alpha }=2+\hat{\beta }$ again in about one and a half orders of magnitude in observer time. More specifically, we find that, for a shell under acceleration, the initial steepness of the high-latitude emission depends most sensitively on how fast the Lorentz factor Γ increases, but also depends weakly on the value Γ itself and the radius where we turn off the emission of the shell. In the case of a decelerating shell, we show that the initial shallowness of the high-latitude emission depends weakly on how fast the Lorentz factor Γ decreases, but is nearly insensitive to the value Γ itself and the radius where the emission of the shell is turned off.

This departure from the relation $\hat{\alpha }=2+\hat{\beta }$ may find applications to many aspects of GRB observations. It is well known that during the afterglow phase, the emission region is under deceleration (Mészáros & Rees 1997; Sari et al. 1998). If the afterglow emission from the blast wave ceases abruptly, e.g., when the blast wave enters a density void as originally envisaged by Kumar & Panaitescu (2000), the observed light curves would be shaped by the high-latitude emission arising from the blast that has been decelerating. More interestingly, during the prompt emission phase, the emission region may be during an acceleration phase, if the prompt emission is powered by dissipating magnetic energy via internal collision-induced magnetic reconnection and turbulence (ICMART, Zhang & Yan 2011). This is because ICMART events are expected to happen when the bulk magnetization parameter σ (ratio between Poynting flux and matter flux) is above unity, so that the outflow is still during an acceleration phase (e.g., Komissarov et al. 2009; Granot et al. 2011). During the ICMART process, σ is expected to drop rapidly. Part of the dissipated magnetic energy would be converted to the kinetic energy of the outflow, giving rise to an extra acceleration to the outflow (e.g., Zhang & Zhang 2014). Identifying a deceleration signature in the afterglow emission can directly confirm the deceleration nature of the afterglow. Also, identifying an acceleration feature in the prompt emission would have profound implications for our understanding of the jet composition and energy dissipation mechanism of the prompt emission. An application of the theory presented here to GRB data will be presented in a future work (Z. L. Uhm & B. Zhang 2015, in preparation).

This work is supported by the China Postdoctoral Science Foundation through grant No. 2013M540813, and the National Basic Research Program ("973" Program) of China under grant No. 2014CB845800.
