ON THE DETECTION AND TRACKING OF SPACE DEBRIS USING THE MURCHISON WIDEFIELD ARRAY. I. SIMULATIONS AND TEST OBSERVATIONS DEMONSTRATE FEASIBILITY

Space debris consists of a range of human-made objects in a variety of orbits around the Earth, representing the remnants of payloads and payload delivery systems accumulated over a number of decades. With the increasing accumulation of debris in Earth orbit, the chance of collisions between the debris increases (causing an increase in the number of debris fragments). More importantly, the chance of collisions between debris and active satellites increases, posing a risk of damage to these expensive and strategically important assets. This risk motivates the need to obtain better information on the population characteristics of debris (distribution of sizes and masses, distribution of orbits, etc).

Research into space debris is considered a critical activity worldwide and is the subject of the Inter-Agency Space Debris Coordination Committee,²¹ previously described in detail in many volumes, including a United Nations Technical Report on Space Debris (United Nations 1999) and a report from the Committee on the Peaceful Uses of Outer Space (Dempsey et al. 2012). The American Astronomical Society maintains a Committee on Light Pollution, Radio Interference and Space Debris,²² since space debris poses a risk to important space-based astrophysical observatories.

The risks posed by space debris, and the difficulties inherent in tracking observations and orbit predictions, were illustrated starkly on 2009 February 10, when the defunct Russian Kosmos-2251 satellite collided with the active Iridium-33 satellite at a relative speed of over 11 km s⁻¹, destroying the Iridium satellite.²³ Even with the global efforts to track space debris and predict their orbits, this collision between two satellites of 900 kg and 560 kg, respectively, and of ∼10 m² debris size, was unanticipated. Further exploration of Space Situational Awareness (SSA) capabilities is required to continue to minimize collision risks and provide better early warnings following collision breakups that multiply debris numbers and randomize orbits.

Methods for obtaining data on space debris include ground-based (radar observations and optical observations) and space-based measurements. Previously, large ground-based radio telescopes (whose primary operations are for radio astronomy) have been used in a limited fashion to track space debris. For example, the 100 m Effelsberg telescope in Germany, outfitted with a seven-beam 1.4 GHz receiver, was used for space debris tracking using reflected radiation generated by a high-power transmitter (Ruitz et al. 2005). Recently, a new method of ground-based space debris observation has been tested, using interferometric radio telescope arrays (also primarily operated for radio astronomy), in particular using the Allen Telescope Array (Welch et al. 2009). This technique utilizes stray radio frequency emissions originating from the Earth that reflect off space debris and are received and imaged at the interferometric array with high angular resolution. Scenarios such as this, with a passive receiver and a non-cooperative transmitter, are described as "passive radar," a sub-class of the bi-static radar technique (transmitter and receiver at different locations).

This paper explores the possibilities offered by this technique, using a new low-frequency radio telescope that has been built in Western Australia, the Murchison Widefield Array (MWA). The MWA is fully described in Tingay et al. (2013). Briefly, the MWA operates over a frequency range of 80–300 MHz with an instantaneous bandwidth of 30.72 MHz, has a very wide field of view (∼2400 deg² at the lower end of the band), and has reasonable angular resolution (∼6 arcmin at the lower end of the band).

Recent observations with the MWA by McKinley et al. (2013) have shown that terrestrial FM transmissions (between 87.5 and 108.0 MHz) reflected by the Moon produce a significant signal strength at the MWA. McKinley et al. (2013) estimate that the Equivalent Isotropic Power of the Earth in the FM band is approximately 77 MW. The ensemble of space debris is illuminated by this aggregate FM signal and will reflect some portion of the signal back to Earth, where the MWA can receive the reflected signals and form images of the space debris, tracking their positions on the sky as they traverse their orbits.

It should be noted that this technique makes use of the global distribution of FM radio transmitters, but that the technique is likely to work most effectively with receiving telescopes that are well separated from the transmitters. If the receiving array is in close proximity to an FM transmitter, the emissions directly received from the transmitter will be many orders of magnitude stronger than the signals reflected from the space debris. Therefore, the technique can likely only be contemplated using telescopes like the MWA, purposefully sited at locations such as the radio-quiet Murchison Radio-astronomy Observatory (MRO), located in Murchison Shire, 700 km north of Perth in Western Australia (Johnston et al. 2008). The MWA is a science and engineering precursor for the much larger and more sensitive low-frequency component of the Square Kilometre Array (SKA; Dewdney et al. 2009), which will also be located at the MRO and is currently under development by the international SKA organization.

In this paper we estimate the conditions under which the MWA can detect space debris, in passive radar mode in the FM band. In Section 2 we consider a simple calculation of the expected signal strength at the MWA for one idealized scenario. We also present comprehensive but idealized electromagnetic simulations that agree well with the simple calculation and show that space debris detection is feasible with the MWA. For normal MWA observation modes, the detection of space debris of the order of ∼0.5 m radius and larger appears feasible. If efforts are made to modify standard MWA observation modes and data processing techniques, then substantially smaller debris could be detected, down to ∼0.2 m in radius in low Earth orbits. In Section 3 we present observational tests that show the basic technique to be feasible, but also illustrate challenges that must be overcome for future observations. In Section 4 we discuss the utility of the technique, complementarity with other techniques, and suggest future directions for this work.

As an example that illustrates the feasibility of this technique, we consider the MWA as the receiving element in a passive radar system in the FM band and consider a single transmitter based in Perth, Western Australia (specifically the transmitter for call sign 6JJJ: Australian Communications and Media Authority (ACMA) Licence Number 1198502). The transmitter is located at (LAT, LONG) = (−32°00'42'', 116°04'58'') and transmits a mixed polarization signal, with an omnidirectional radiation pattern in the horizontal plane, at 99.3 MHz over the FM emission standard 50 kHz bandwidth and with an Effective Radiated Power (ERP) of 100 kW. The MWA, acting as receiver, is located at (LAT, LONG) = (−26°42'12'', 116°40'15''), ∼670 km from the transmitter.

We consider an idealized piece of space debris (a perfectly conducting sphere of radius r, in meters) at a distance of R_r km from the MWA site. We denote the distance between the transmitter and the space debris as R_t km. For simplicity, we model the Radar Cross Section (RCS; denoted by σ) of the debris as the ideal backscatter from a conducting sphere in one of two domains that are approximations of Mie scattering (Stratton 1941): (1) when the wavelength λ > 2πr, the RCS is described by Rayleigh scattering and σ = 9πr²(2πr/λ)⁴; and (2) when λ ≪ 2πr, σ = πr², corresponding to the geometrical scattering limit. The greatest interest is in case 1, as the space debris size distribution is dominated by small objects (although the example given in the introduction shows that even the largest items of space debris pose serious unknown risks). For case 1 we obtain Equation (1), below, following the well-known formula for bi-static radar (Wills 2005),

$$\begin{equation} S=3.5\times 10^{6}\frac{P_{t} G r^{6} \nu ^{4}}{R_{t}^{2} R_{r}^{2} B}, \end{equation} \tag{ 1 }$$

where S is the spectral flux density of the received signal at the MWA in astronomical units of jansky (1 Jy = 10⁻²⁶ W m⁻² Hz⁻¹), P_t is the ERP in kW, G is the transmitter gain in the direction of the space debris, B is the bandwidth in kHz over which the signal is transmitted, R_t, R_r, and r are as described above, and ν is the center frequency of the transmitted signal in MHz.

For P_t = 100 kW, R_r = 1000 km, R_t = 1200 km, G = 0.5, B = 50 kHz, r = 0.5, and ν = 99.3 MHz, the spectral flux density, S, is approximately 4 Jy. The assumption of G = 0.5 is based on an idealized dipole antenna transmitter radiation pattern which is omni-directional in the horizontal plane. FM transmitter antenna geometries vary significantly, with local requirements on transmission coverage dictating the directionality and thus the antenna geometry. Phased arrays can be used to compress the radiation pattern in elevation, and different antenna types can produce gain in preferred azimuthal directions. Therefore, in reality, significant departures from a simple dipole are normal. Propagation losses in signal strength due to two passages through the atmosphere are assumed to be negligible. Due to the approximations described above, this estimate should be considered as order-of-magnitude only. However, the calculation indicates that the detection of objects of the order of 1 m in size is feasible. In a 1 s integration with the MWA over a 50 kHz bandwidth, an image can be produced with a pixel rms of approximately 1 Jy (Tingay et al. 2013), making the reflected signal from the space debris a several sigma detection in 1 s.

According to Equation (1), the MWA will be sensitive to sub-meter scale space debris. However, for FM wavelengths, sub-meter scale debris are in the Rayleigh scattering regime, meaning that the RCS drops sharply for smaller debris, dramatically reducing the reflected and received power. In order to more systematically explore the detectability of debris of different sizes and relative distances between transmitter, debris, and receiver, we have performed a series of electromagnetic simulations.

The simulations performed take the basic form described above, in which a single FM transmitter (idealized dipole radiation pattern for the transmitter, omni-directional in the horizontal plane) at a given location was considered (separate simulations were performed for 11 different transmitters located in southwest Western Australia), along with the known location of the MWA as receiving station. The debris were modeled as being directly above the MWA. A range of different debris altitudes was modeled: 200 km, 400 km, 800 km, and 1600 km (as for the calculation above, propagation losses due to the atmosphere are considered negligible). The debris was assumed to be a perfectly conducting sphere, with a range of radii: 0.2 m, 0.5 m, 1 m, and 10 m. The simulations proceeded using the XFdtd code from Remcom Inc.²⁴ XFdtd is a general-purpose electromagnetics analysis code based on the finite-difference, time-domain technique and can model objects of arbitrary size, shape, and composition. The 11 (transmitters) × 4 (radii) × 4 (altitudes) = 176 runs of XFdtd were calculated on a standard desktop computer over the course of several hours. The simulations compute output that includes the RCS according to the full Mie scattering solution and the spectral flux density at the location of the MWA, for each combination of debris size, altitude, and transmitter.

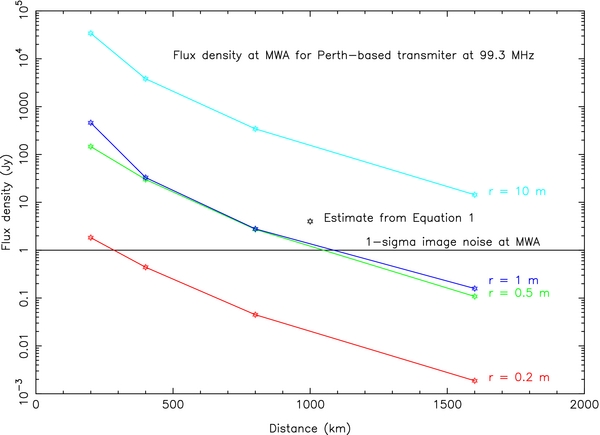

Figure 1 shows a selection of results from the simulations, for the Perth-based 6JJJ transmitter and the ranges of debris size and altitudes listed above. Also shown is a single point representing the result of the simple calculation from Equation (1). The simple calculation overestimates, by a factor of approximately two, relative to the XFdtd simulation, the flux density at the MWA. This level of agreement is reasonable, given the simplifying assumptions made for Equation (1).

Zoom In Zoom Out Reset image size

Figure 1 shows that debris with r > 0.5 m can plausibly be detected up to altitudes of approximately 800 km with a 1 s observation. The solid line in Figure 1 denotes the 1σ sensitivity calculation made for the simple example, above, based on information from Tingay et al. (2013), showing that a 3σ detection can be made for debris of r = 0.5 m at 800 km. Of course, if longer observations can be utilized, the detection thresholds can be reduced. For example, a 10 s observation would yield a 3σ detection of debris with r = 0.5 m at 1000 km.

The solution to the detection of smaller (∼10 cm) scale debris with low-frequency passive radar in the past has been to use ERPs of gigawatts, as with the 217 MHz NAVSPACECOM "Space Fence" (Petersen 2012). An alternative approach is to build larger and more sensitive receiving antennas. The natural evolution of the MWA is the much larger and more sensitive low-frequency SKA, which will have a factor of ∼1000 more receiving area and be far more sensitive than the MWA. The low-frequency SKA may have great utility for space debris tracking later this decade.

We verified the technique outlined above with an observation using the MWA during its commissioning phase. This is a subarray of 32/128 tiles with a maximum east-west baseline of roughly 1 km and a maximum north-south baseline of roughly 2 km, giving a synthesized beam of roughly 5' × 10' at a frequency of ∼100 MHz. We observed an overflight of the International Space Station (ISS) on 2012 November 26, as shown in Figure 2. The center frequency of our 30.72 MHz bandpass was 103.4 MHz, and we correlated the data with a resolution of 1 s in time and 10 kHz in frequency. We used two different array pointings, as plotted in the right panel of Figure 2. The first was from 12:20:00 UT to 12:24:56 UT and was pointing at an azimuth of 180° (due south) and an elevation of 60°. The second was from 12:24:56 UT to 12:29:52 UT at an azimuth of 90° (due east) and an elevation of 60°. As discussed in Tingay et al. (2013) and verified by Williams et al. (2012), the MWA has an extremely broad primary beam (roughly 35° FWHM) which was held fixed during each observation. We observed the overflight of the ISS between 12:23:00 UT and 12:26:00 UT, when it was at a primary beam gain of >1%, traversing about 112° on the sky.

Zoom In Zoom Out Reset image size

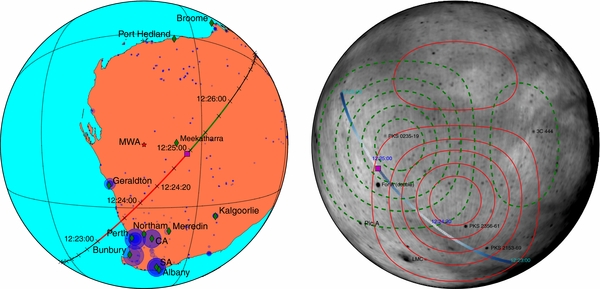

During the pass, the ISS ranged in distance between approximately 850 km (at the low elevation limit of the MWA, approximately 30°) and approximately 400 km (near zenith at the MWA; Figure 2); its angular speed across the sky is approximately 05 s⁻¹, corresponding to approximately five synthesized beams with this antenna configuration.

To image the data, we started with an observation pointed at the bright radio galaxy 3C 444 taken before the ISS observations. This observation was used as a calibration observation, determining complex gains for each tile assuming a point-source model of 3C 444, which was sufficient to model the source given that its extent (<4') is the same as the FWHM of the synthesized beam of the MWA subarray at this frequency. While we changed pointings between this observation and those of the ISS, we have previously found that the instrumental phases are very stable across entire days, and that only the overall amplitudes need to be adjusted for individual observations.

Antenna-based gain solutions were obtained using the CASA task bandpass on a two-minute observation. Solutions were obtained separately for each 10 kHz channel, integrating over the full two minutes. The flux density used for 3C 444 was 116.7 Jy at the central frequency of 103 MHz, with a spectral index of −0.88. An S/N > 3 was required for a successful per-channel, per-baseline solution, and the overall computed gain solutions for each antenna were of S/N > 5. Calibration solutions were applied to the ISS observations using the CASA task applycal, and the corrected data were written to uv-fits format for imaging in miriad (Sault et al. 1995).

For the two ISS observations, we flagged bad data in individual fine channels (10 kHz wide) associated with the centers and edges of our 1.28 MHz coarse channels. Because of the extremely fast motion of the ISS, we created images in 1 s intervals (the integration time used by the correlator) using miriad. We started by imaging the whole primary beam (40° × 40°), separating the data into 3 × 10.24 MHz bandpasses. The bottom two bandpasses covered the FM band, while the top bandpass was above the FM band. We used a 1' cell size and cleaned emission from Fornax A. Note that miriad does not properly implement wide-field imaging, but our images used a slant-orthographic projection such that the synthesized beam is constant over the image (Ord et al. 2010).

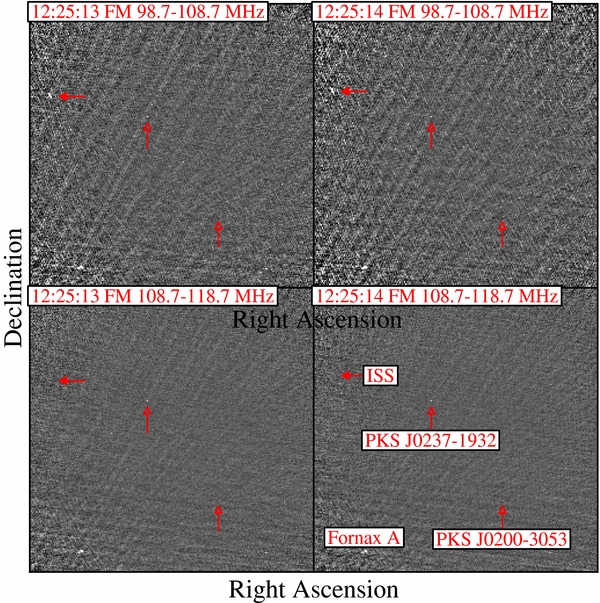

The results covering the two time intervals and two bandpasses are shown in Figure 3. The ISS is readily visible as a streak moving through our images, but is only visible in the images that cover the FM band as would be expected from reflected terrestrial FM emission (as in McKinley et al. 2013). We predicted the position of the ISS based on its two-line ephemeris using the pyephem package.²⁵ The predicted position agrees with the observed position to within the observational uncertainties.

Zoom In Zoom Out Reset image size

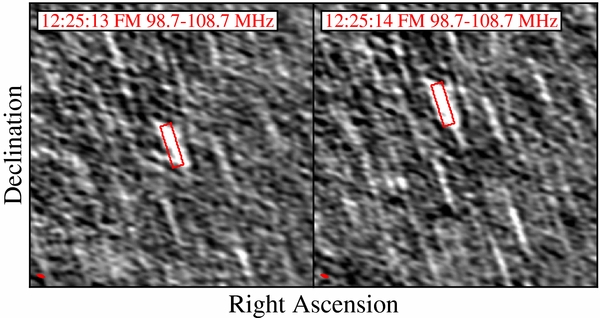

To determine more quantitatively the nature of the emission seen in Figure 3, we imaged each 1 s interval and each 10 kHz fine channel separately (as before, this was done in miriad). We did not deconvolve the images at all; most of them had no signal or the emission from the ISS was very weak. The emission from the ISS is not a point source (smeared due to its motion), and adding deconvolution for a non-stationary object to our already computationally demanding task was not feasible. In each of our 180 × 3072 dirty images, we located the position of the ISS based on its ephemeris. We then measured its flux density by adding up the image data over a rectangular region of 10' (comparable to our instrumental resolution) in width and with a length appropriate for the instantaneous speed of the ISS (up to 40' in a 1 s interval), as seen in Figure 4. The resulting dynamic spectra showing flux density as functions of time and frequency are shown in Figure 5. These spectra have been corrected for the varying primary beam gain of the MWA over its field of view based on measurements of the sources PKS 2356−61 (first observation, assuming a flux density of 166 Jy at 97.7 MHz) and PKS J0237−1932 (second observation, assuming a flux density of 35 Jy at 97.7 MHz); we have ignored the frequency dependence of the primary beam gain for the purposes of this calculation. Note that the emission seen in Figure 5 is manifestly not radio-frequency interference that is observed as a common-mode signal by all of our tiles. It is only visible at a discrete point in our synthesized images corresponding to the position of the ISS (Figure 4). We ran the same routines used to create the dynamic spectra in Figure 5 but using a position offset from the ISS position, and we see almost no emission, with what we do see consistent with sidelobes produced by bright emission in individual channels, due to the ISS.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The ISS has an approximate maximum projected area of ∼1400 m², is of mixed composition (thus not well approximated as perfectly conducting), has a highly complex geometry, and was at an unknown orientation relative to the transmitter(s) and receiver during the observations. The detailed transmitter antenna geometries and gain patterns are not known. Thus, it is very difficult to accurately predict the flux density we would expect from either simple calculations or electromagnetic simulations.

We can, however, unambiguously identify the origin of some of the transmissions reflected off the ISS. For example, we consider the dynamic spectrum from our observations in Figure 5 at the time 12:24:20 UT. At this time there are clearly a number of strong signals detected, plus a large number of much weaker signals. The five strongest signals at this time, in terms of the integrated fluxes (Jy.MHz, measured by summing over individual transmitter bands in the dynamic spectra to a threshold defined by the point at which the derivative of the amplitude changed sign), are listed in Table 1, along with transmitters that can be identified as the origin of the FM broadcasts (ACMA 2011). Each of the five identified transmitters are local to Western Australia and, as can be seen from Figure 2, are all relatively close to the ISS at this time. Each of the five transmitters have omni-directional antenna radiation patterns in the horizontal plane.

If we take the reported ERP for a typical station from Table 1 and use it with Equation (1) to estimate the received flux, we find values of roughly 10⁴ Jy.MHz, assuming the full 1400 m² of reflecting area for the ISS. Given its varying composition and orientation, the measured fluxes in Table 1 are reasonably consistent with this estimate.

Many, but not all, of the much weaker signals detected can also be identified. However, it is clear that some of these weaker signals are from powerful transmitters at much larger distances, making unique identification of the transmitter more difficult (FM broadcasts are made on the same frequencies in different regions). Furthermore, it is clear that transmitters local to Western Australia, and of comparable power to those listed in Table 1, have not been detected in our observations. This is likely to be the result of the complex transmitter/reflector/receiver geometries mentioned above and the rapid evolution of the geometry with time, illustrated by the rapid evolution of the received signals identified in Table 1. The five strongest signals at 12:24:20 UT are strongest over a 5 s period, have a highly modulated amplitude over a further 30 s period, but are generally very weak or not detected over the majority of our observation. Thus, it is highly likely that other transmitters of comparable strength would be detected at other times, when favorable geometries prevail. At 12:24:20 UT, it appears that the geometries were favorable for the Central Agricultural, Northam, and Geraldton transmitters, but not for transmitters of comparable power in Perth, Bunbury, and Southern Agricultural. We note that, while the strongest signals detected originated from transmitters with omni-directional transmitting antennas (see above), the transmitters of comparable power not detected (Perth, Southern Agricultural and Bunbury) also have omni-directional antennas. Thus, the most likely factor driving detection or non-detection is the transmitter/reflector/receiver geometry, rather than transmitting antenna directionality.

The modulation in power of the reflected radiation is likely at least partly due to "glints" from the large, complex structure, which creates a reflected radiation pattern whose finest angular scale is ∼λ/d, where λ is the wavelength of the radiation and d is the extent of the object. For d ∼ 100 m (full extent of the ISS) and λ ∼ 3 m, the glints are >2° in angular extent. At an altitude of ∼500 km, the smallest glint footprint on the surface of the Earth is ∼10 km. With an ISS orbital speed of 8 km s⁻¹, the glint duration at the MWA is of the order of 1 s. This corresponds well to some of the modulation timescales seen in Figure 5, although modulation exists on longer timescales (10 s and longer). These longer timescales may be due to glints involving structures smaller than the full extent of the ISS (single or multiple solar panels, for example). A full analysis of the modulation structure of the signals is extremely complex and cannot be performed at a sufficiently sophisticated level to be useful at present. In the future, detailed electromagnetic simulations of complex reflector geometries may be used to gain insight into the modulations, but such an analysis is beyond the scope of the current work.

In long integrations, such as required for Epoch of Reionization experiments (Bowman et al. 2013), the effect of having 10 pieces of space debris in the MWA primary beam at any given time with flux densities >1 Jy is the equivalent of a <1 mJy additional confusion noise foreground component in the FM band. This contribution will have no discernable impact on the MWA's science goals for observations in the FM band.

At meter size scales, of the order of 1000 pieces of debris are currently known and tracked. On average, up to approximately 10 such pieces will be present within the MWA field of view at any given time, allowing continuous, simultaneous detection searches and tracking opportunities.

These estimated detection rates naturally lead to two primary capabilities. The first is a blind survey for currently unknown space debris, provided by the very large instantaneous field of view of the MWA. The second capability is the high-cadence detection and tracking of known space debris. The wide field of view of the MWA means that large numbers of debris can be simultaneously detected and tracked, for a substantial fraction of the time that they appear above the local horizon.

Imaging with the MWA can provide measurements of the right ascension and declination (or azimuth and elevation) of the space debris, as seen from the position of the MWA (convertable to topocentric right ascension and declination). The MWA will also be able to measure the time derivatives of right ascension and declination, giving a four vector that defines the "optical attributable." Measurements of the four vector at two different epochs allow an estimate of the six parameters required to describe an orbit. Farnocchia et al. (2010) describe methods for orbit reconstruction using the optical attributable, taking into account the correlation problem (being able to determine that two measurements of the four vector at substantially different times can be attributed to the same piece of space debris).

The calculations and practical demonstrations presented above show that the basic technique using the MWA is feasible and worthy of further consideration as a possible addition to Australia's SSA capabilities, particularly considering that the MWA is the precursor to the much larger and more sensitive low-frequency SKA. However, the calculations and observational tests presented here also point to the challenges that will need to be met in order to develop this concept into an operational capability.

Overall, these challenges relate to the non-standard nature of the imaging problem for space debris detection, compared to the traditional approach for astronomy. In radio interferometric imaging, a fundamental assumption is made that the structure of the object on the sky does not change over the course of the observation. This assumption is broken in spectacular fashion when imaging space debris, due to their rapid angular motion across the sky relative to background celestial sources and due to the variation in RCS caused by the rapidly changing transmitter/reflector/receiver geometry.

Another standard assumption used in astronomical interferometric imaging is that the objects being imaged lie in the far field of the array of receiving antennas; the wavefronts arriving at the array can be closely approximated as planar. It transpires that for space debris, most objects lie in the transition zone between near field and far field at low radio frequencies, for an array the size of the MWA. S/N is degraded somewhat when the standard far-field assumption is adopted, as an additional smearing of the imaged objects results. It is worth noting that this will be a much larger effect for the SKA, with a substantially larger array footprint on the ground. Thus, accounting for this effect for the MWA will be an important step toward using the SKA for SSA purposes. For example, for an object at 1000 km and the MWA spatial extent of 3 km, the deviation from the plane wave assumption translates into more than a radian of phase error across the array at a frequency of 100 MHz, which produces appreciable smearing of the reconstructed signal with traditional imaging. It may be possible to use the near-field nature of the problem to undertake three-dimensional imaging of the debris, using the wavefront curvature at the array to estimate the distance to the debris.

Further significant work is required to implement modified signal and image processing schemes for MWA data that take account of these time-dependent and geometrical effects and sharpen the detections under these conditions. For example, the flexible approach to producing MWA visibility data (the data from which MWA images are produced) allows modifications to the signal processing chain to incorporate positional tracking of an object in motion in real-time. Additionally, it is possible to collect data from the MWA in an even more basic form (voltages captured from each antenna) and apply high-performance computing in an offline mode to account for objects in motion. This would also enable measurement of the Doppler shifts of individual signals (expected to be ∼few kHz, which is smaller than our current 10 kHz resolution) that could enable separation of different transmitters at the same frequency and unambiguous identification of transmitters (a Doppler shift pattern fixes a one-dimensional locus perpendicular to the path of the reflecting object, so combining two passes allows two-dimensional localizations). That in turn would help with constraining the basic properties of the reflecting objects.²⁶ Finally, modifications to image processing algorithms can be applied in post-processing to correct for near-field effects, essentially a limited approximation of the same algorithms that can be applied earlier in the signal chain. The results of this future work will be reported in subsequent papers.

Once these improvements are addressed, the remaining significant challenges revolve around searching for and detecting signals from known and unknown space debris. These challenges are highly aligned with similar technical requirements for astronomical applications, in searches for transient and variable objects of an astrophysical nature. A large amount of effort has already been expended in this area by the MWA project, as one of the four major science themes the project will address (Bowman et al. 2013; Murphy et al. 2013). To illustrate the challenges, our flux estimates require (for example) greater than 4σ significance, but that is for a single trial. This is correct when looking to recover debris with an approximately known ephemeris, but blind searches have large trial factors that can require significantly revised thresholds. Given the full 2400 deg² field of view of the MWA, we must search over ∼10⁴ individual positions in each image to identify unknown debris. Combined with 3000 channels and 3600 time samples (for an hour of observing; note that we might observe with a shorter integration time in the future) this results in 10¹¹ total trials. So our 4σ threshold (which implies 1 false signal in 10⁴ trials) would generate 10⁷ false signals, and we would need something like an 8σ threshold to be assured of a true signal. Given the steep dependence of flux on object size (Equation (1)), this means our size limit may need to be increased significantly. However, knowledge of individual bright transmitters (from the type of analysis presented in this paper) means we can reduce the number of trials in the frequency axis substantially, and seeking patterns among adjacent time samples that fit plausible ephemerides will also help mitigate this effect.

If the challenges above can be addressed and a robust debris detection and tracking capability can be established with the MWA, it could become a very useful element of a suite of SSA facilities focused on southern and eastern hemispheric coverage centered on Australia.

In 2012 November an announcement was made via an Australia–United States Ministerial Consultation Joint Communiqué that a U.S. Air Force C-band radar system for space debris tracking would be relocated to Western Australia.²⁷ This facility will provide southern and eastern hemispheric coverage, allowing the tracking of space debris to a 10 cm size scale. This system can produce of the order of 200 object determinations per day (multiple sets of range, range-rate, azimuth, and elevation per object) and will be located near Exmouth in Western Australia, only approximately 700 km from the MWA site.

Additionally, the Australian Government has recently made investments into SSA capabilities, via the Australian Space Research Program: RMIT Univerity's "Platform Technologies for Space, Atmosphere and Climate"; and a project through EOS Space Systems Pty Ltd, "Automated Laser Tracking of Space Debris." The EOS project will result in an upgrade to a laser tracking facility based at Mount Stromlo Observatory, near Canberra on Australia's east coast, capable of tracking sub-10 cm debris at distances of 1000 km.²⁸

In principle, the C-band radar system, a passive radar facility based on the MWA, and the laser tracking facility could provide a hierarchy of detection and tracking capabilities covering the southern and eastern hemispheres. The C-band radar system could potentially undertake rapid but low positional accuracy detection of debris, with a hand-off to the MWA to achieve better angular resolution and rapid initial orbit determination (via long-duration tracks). The MWA could then hand off to the laser tracking facility for the most accurate orbit determination. Such a diversity of techniques and instrumentation could form a new and highly complementary set of SSA capabilities in Australia. A formal error analysis, describing the benefits of combining the data from such a diverse set of tracking assets, will be the subject of work to be presented in a future paper.

Such a hierarchy of hand-off between facilities has implications for scheduling the MWA, whose primary mission is radio astronomy. Currently the MWA is funded for science operations at a 25% observational duty cycle (approximately 2200 hr of observation per year). This duty cycle leaves approximately 6500 hr yr⁻¹ available to undertake SSA observations (assuming that funds to operate the MWA for SSA can be secured). Even taking a conservative approach where only nighttime hours are used for observation, up to approximately 2200 hr could be available for SSA. It would be trivial to schedule regular blocks of MWA time, per night or per week, to undertake SSA observations. Given the rapid sky coverage of the MWA and the short observation times effective for SSA, the entire sky could be scanned over the course of approximately 1 hr each night, or using multiple shorter duration observations over the course of a night. Since the MWA can be rapidly repointed on the sky, the possibility of interrupting science observations for short timescale follow-up SSA observations, triggered from other facilities such as the C-band radar, could be considered.

A review of Australia's capabilities in SSA was presented by Newsam & Gordon (2011), pointing out that better connections between the SSA community and latent expertise and capabilities in the Australian astronomical community could be leveraged for significant benefit. In particular the authors suggested involving new radio astronomy facilities in SSA activities, given the advances in Western Australia connected with the SKA. The development of a passive radar facility in the FM band using the MWA would be a significant step in this direction.

Immediate future steps are to repeat the ISS measurements with the full 128 tile MWA, as an improvement on the 32 tile array used for the observations reported here, as well as to target smaller known satellites as tests and to implement the improvements described above.

We acknowledge the Wajarri Yamatji people as the traditional owners of the Observatory site. Support for the MWA comes from the U.S. National Science Foundation (grants AST CAREER-0847753, AST-0457585, AST-0908884, AST-1008353, and PHY-0835713), the Australian Research Council (LIEF grants LE0775621 and LE0882938), the U.S. Air Force Office of Scientific Research (grant FA9550-0510247), the Centre for All-sky Astrophysics (an Australian Research Council Centre of Excellence funded by grant CE110001020), New Zealand Ministry of Economic Development (grant MED-E1799), an IBM Shared University Research Grant (via VUW & Curtin), the Smithsonian Astrophysical Observatory, the MIT School of Science, the Raman Research Institute, the Australian National University, the Victoria University of Wellington, the Australian Federal government via the National Collaborative Research Infrastructure Strategy, Education Investment Fund and the Australia India Strategic Research Fund and Astronomy Australia Limited, under contract to Curtin University, the iVEC Petabyte Data Store, the Initiative in Innovative Computing and NVIDIA sponsored CUDA Center for Excellence at Harvard, and the International Centre for Radio Astronomy Research, a Joint Venture of Curtin University and The University of Western Australia, funded by the Western Australian State government. The electromagnetic simulations were performed by Gary Bedrosian and Randy Ward of Remcom Inc.
