Sky Variability in the y Band at the LSST Site

The Large Synoptic Survey Telescope (LSST) is a proposed wide-field camera that is currently in the design and development phase (LSST Science Collaborations et al. 2009, hereafter LSST09). The project has designated the telescope's site to be Cerro Pachon, Chile, on the same ridge that hosts the Gemini South and SOAR telescopes. The LSST will survey the sky in the Sloan Digital Sky Survey's ugriz passbands, plus an additional near-infrared band, y, at wavelengths ∼990 nm, only recently made possible by deep-depletion CCD technology that enhances quantum efficiency (QE) at the reddest wavelengths (O'Connor et al. 2006). The Pan-STARRS (Kaiser et al. 2002) survey also uses the y band.

The designation of "y" may present confusion. Infrared astronomers use a band Y, typically with a central wavelength near 1.03 μm (Hillenbrand et al. 2002; Hewett et al. 2006). Their use of infrared detectors, with a flatter response curve near 1 µm, yields a passband with significantly different shape than the CCD-based y. Our filter also bears no relation to the optical y filter of the Strömgren passbands, which is centered on 550 nm. This degeneracy in terminology is most unfortunate, but seems likely to persist.

The sky brightness in the y band has not been well characterized for astronomical CCD applications. Past work describing sky brightness at observatories typically cite values for the UBVRI bands, but not y (Patat 2003; Krisciunas et al. 2007; Sanchez et al. 2007). The reddest band in the SDSS survey is z, whose red edge is determined by the rapidly falling QE of the SDSS detectors, which have very little sensitivity in the y-band region. The UKIRT survey presented sky measurements for the Y band (Warren et al. 2007), but as explained before, the total transmission curve is significantly different than that using a deep-depletion CCD.

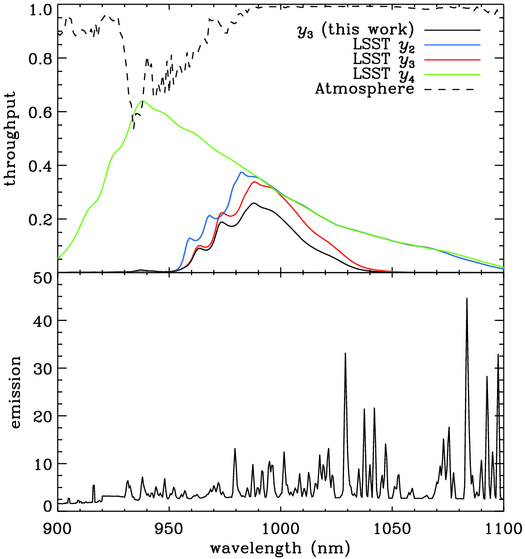

Our aim has been to provide the first dedicated CCD measurements, at the proposed LSST site, of the y-band sky background and its variability over the course of a night. While the exact character of the new y band to be used for LSST is under active consideration, we used a filter candidate called y₃ (LSST09). We expect our qualitative findings to hold for any y-band variant under active consideration because the sky background in all cases arises overwhelmingly from narrow OH emission lines. Figure 1 shows potential y-band transmission curves with detector QE and atmospheric response for both LSST and our apparatus, along with the anticipated sky emission spectrum.

Zoom In Zoom Out Reset image size

In § 2 we briefly describe the known nature of sky emission within the y passband, covering past aeronomic (§ 2.1) and astronomical (§ 2.2) measurements. In § 3 we describe the dedicated instrument we assembled for these measurements. Section 4 discusses the observations, and the data reduction is outlined in § 5. Section 6 presents results on spatial (§ 6.1) and temporal (§ 6.2) variability, and an absolute calibration (§ 6.3), and we conclude with § 7.

The background sky in the y passband is dominated by Meinel band emission due to hydroxyl (Meinel 1950a, 1950b), in a physical process that has long been observed (e.g., Wiens et al. 1997; Nakamura et al. 1999) and modeled (Rousselot et al. 2000; Cosby et al. 2006; Cosby & Slanger 2007) by atmospheric scientists (for a useful overview, see Marsh et al. 2006). Hydroxyl is well stratified in the mesopause at 90 km in a 10 km thick layer (Baker & Stair 1988; Melo et al. 2000). Above the ozone layer in the stratosphere, daytime UV light from the sun dissociates O₂ to make O + O, which react with other O₂ to produce O₃. UV light also dissociates O₃, completing the oxygen-ozone cycle. O₃ additionally reacts with H to produce O₂ and excited OH, which then emits photons to produce the airglow within the y band.

As distinct from Rayleigh scattering, Meinel emission is known to vary significantly over a number of spatial and temporal scales (e.g., Marsh et al. 2006). The airglow varies with the tides, and is linked to the seasons and the solar cycle. Traveling and standing atmospheric gravity waves, which are coherent density perturbations analogous to ocean waves, are regularly observed by aeronomers (e.g., Taylor & Hill 1991; Garcia et al. 1997; Nakamura et al. 1999; Li et al. 2005), and give rise to a variable background over a single, wide-field y-band CCD image.

2.1. Aeronomic Measurements

2.2. Previous Astronomical Measurements

We used a Pixis system (detector, readout electronics, dewar and shutter) from Princeton Instruments, equipped with a type 1024BR CCD. This detector, made by EEV with their designation 47–10, was a back-illuminated deep-depletion sensor that exhibits enhanced sensitivity at wavelengths near 900 nm due to the thicker region of silicon from which photocharge is harvested. The sensor was an array of 1040 × 1027 pixels, each of which was 13.0 μm on a side. The Pixis camera was equipped with a thermoelectric cooler that maintained the detector at a temperature of -20 C. Dark current was negligible compared to the flux seen from the sky. We measured the camera's gain to be 3.8 e^- ADU^-1.

Princeton Instruments designed the 1024BR CCD to suppress fringing that would otherwise arise from night-sky line emission. We observed no significant fixed fringing patterns in any of the images we obtained, and did not have to apply any fringe-frame corrections to the data. We therefore judge any systematics in the photometry due to fringing to be subdominant for the purposes of the results presented here.

The Pixis camera was controlled from a laptop computer that ran the Linux operating system. We used custom software to control the exposure times and imaging sequence of the instrument. All images were stored as 16 bit FITS files.

We attached a 17–55 mm variable focal length f/2.8 Canon EFS lens to the Pixis dewar, using a C-mount adapter made by Birger Engineering. The system was operated at f/2.8. The y filter we used was an interference filter manufactured to the LSST y₂ specification by Barr Associates, in a 2 inch × 2 inch format. We attached the filter to the front of the lens using a modified professional photography filter holder that mated to the 75 mm front threads of the Canon lens. The lens's focal length was adjusted so as to provide a plate scale of 145^'' pixel^-1, and a square field of view of 41°. Although we made use of a y₂ filter, the resultant system throughput more closely matches the LSST y₃ response curve due to the difference in our detector QE and AR coatings on the optics from the predicted LSST system.

The camera, lens, and filter combination was mounted on a stationary tripod. This arrangement did not provide pointing information in the image headers, but as will be described, we were later able to determine astrometry using the positions of cataloged sources.

Our optical configuration was not identical to that of LSST. The LSST filters will be placed in an f/1.23 converging beam. Light from a point source therefore passes through the LSST filter in a (hollow) cone with an opening half-angle between 14.2° and 23.6°. Obscuration from the secondary blocks rays at angles less than 14.2°. The transmission curve through the interference filter depends on the angle of incidence. Rays that traverse the filter at angles θ other than normal incidence produce a blue shifted transmission function, shifted to the blue by roughly

where n is the effective index of refraction of the filter dielectric. The effective LSST passband is the appropriately weighted integral of these angle-dependent transmission functions.

For our observations we placed the filter in front of the lens, so rays from any point source pass through the filter as parallel rays. The center of our field is observed through the filter at normal incidence. The edges of our field are observed through the filter at an incidence angle of 20°. While we cannot replicate the distribution of rays that will pass through the LSST filters, by judiciously choosing the region in our field where we measure the sky brightness, we can try to match the median LSST ray that traverses the filter at an angle of 18.9° (LSST09). We therefore expect, even for a perfect match between our interference filter and that of LSST, slight differences in the effective passbands. See Figure 1 for a comparison of passbands.

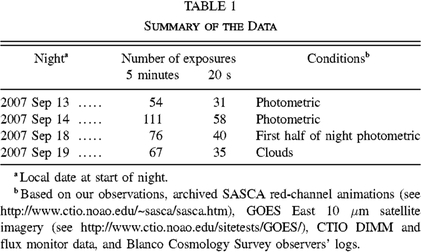

We obtained images over four nights, UT 2007 September 13, 14, 18, and 19. On September 13 we acquired data during the second half of the night, and pointed the camera on the local meridian and low to the horizon at a zenith angle of about 60°. For the remaining nights, we aimed the camera on the local meridian toward the equatorial, at approximately 30° north.

The moon was 6% illuminated on the first two nights and set at 01^h43^m UT. The moon was 44% illuminated on the last two nights and rose at 05^h30^m UT. For the all observations, the moon was not a complicating factor. We estimate that the conditions on the first two nights were photometric, whereas high clouds began to form on the second half of September 18 and all of September 19. Table 1 summarizes the observations.

On each night we elected to take all images at a fixed azimuth and elevation in order to simplify our analysis of the temporal variation in sky brightness. The nominal pointing changed somewhat from night to night, however, because we disassembled the apparatus each morning. We did not track the camera in R.A. We alternated between sequences of five 20 s ("short") exposures and 10 300 s ("long") exposures throughout the night. On September 14 we acquired a total of 55 short exposures and 110 long exposures. The short frames had only slight trailing of stars, and were useful for astrometry and photometric normalization using the normal toolkit of astronomical data reduction for point sources. The longer images offered better signal-to-noise ratios (S/N) for the sky brightness, but stars trailed significantly in the EW direction.

We used the utilities in IRAF to do a line-by-line bias subtraction of each of the images, using the overscan. The 300 s exposures were combined into a normalized sky flat, by taking a flux-scaled median of the frames. This normalized sky flat was then used to flat-field each of the images. The normalized sky flat had a fractional response suppression of about 20% from the center to the corners of the field, presumably due to vignetting and perhaps plate scale variation from the lens. This variation in flux sets an upper bound for potential systematic errors in sky brightness due to passband dependence on the angle of incidence, at 0.2 mag. We take this as an extreme upper limit, since we do expect cosⁿ factors to roll off the response at the edges of the field. Because we are measuring sky brightness, the stacked sky flat is indeed appropriate for correcting the pixel-to-pixel variations on the scale of a point-spread function (PSF). Our 41° × 41° field of view rendered twilight flat-fielding impossible due to sky gradients over such a large field, and to the short window of time over which useful sky levels per pixel could be acquired, and we had no system in place for obtaining the equivalent of dome flats. As noted in § 3, the 1024BR CCD was specifically designed to suppress fringing, and indeed we observed no fringe patterns in any of our data and therefore made no fringe-frame corrections. Figures 2 and 3 show typical long exposures, after flat-fielding and bias subtraction.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

We first explored relative measurements of the sky background, because we expect relative errors to be significantly smaller than the overall uncertainty from absolute zero-point calibration. We then estimated the overall zero point in the Vega and AB magnitude systems.

6.1. Spatial Variability

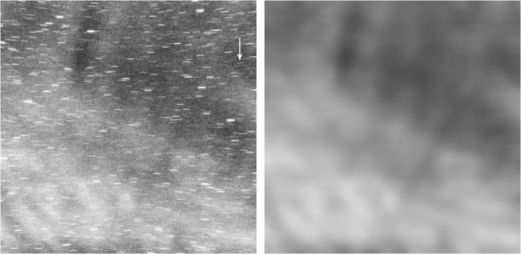

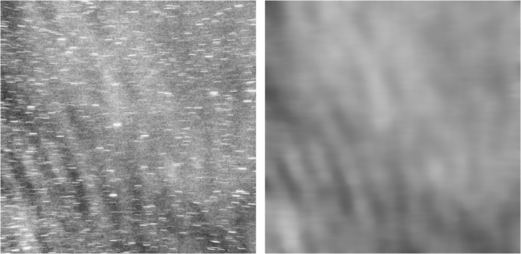

The gravity waves we observed in the vast majority of our images are easily seen in Figures 2 and 3. These structures were not due to flat-fielding errors. This can be deduced from the two example images themselves, which were taken from the same night and had the same flat-field correction applied to them. Roughly speaking, the locations of large-scale brightness minima in Figure 2 correspond to maxima in Figure 3. Indeed, these waves appear and disappear, and move coherently in images from any given night viewed consecutively. Their direction of propagation is perpendicular to their wavefronts.

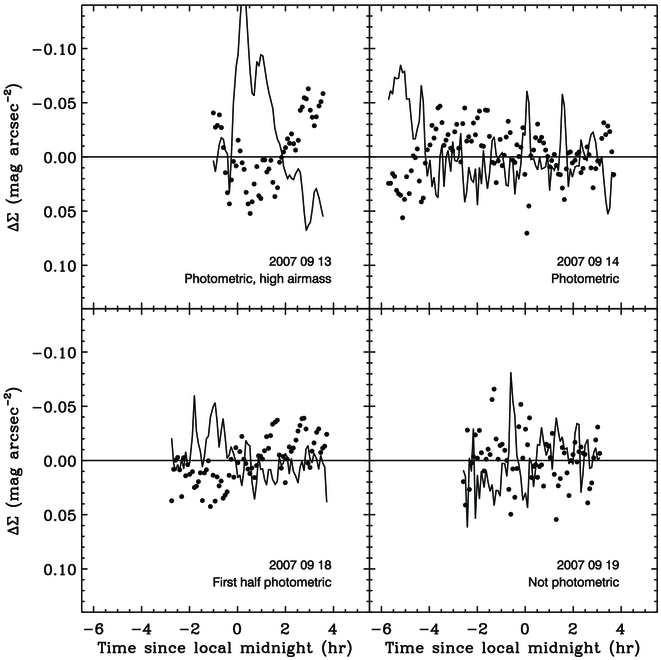

To quantitatively estimate the effect of the waves on sky brightness at any given time, we computed the mode of the sky brightness values for three regions of the detector, for each of the flat-fielded 300 s images. The reference region was the central 500 × 500 pixel area of the detector. This was used to estimate the zero level over the large area of sky that we observed. Our "calibrator" region was a smaller, circular aperture of radius 50 pixels near the detector corner that we ultimately used for zero-point calibration (§ 6.3). The "control" region was another 50 pixel radius aperture near the opposite corner, but at the same angle of incidence with respect to the camera boresight. The calibrator and control regions were chosen to be smaller than the size of the smallest coherent spatial gravity waves in the images, whereas the reference region was chosen to be much larger.

We calculated the mode of pixel values in each aperture to attain sky counts c in ADU pixel^-1. Relative magnitudes between each corner region and the central reference region were calculated as ΔΣ = 2.5 log(c_cal/c_ref) (likewise for c_ctrl/c_ref), with units of mag arcsec^-2, assuming a common pixel scale between the two apertures. Figure 4 shows these fractional differences over each night.

Zoom In Zoom Out Reset image size

Observations on the night of September 13 were taken at sec(z) = 2 airmasses at the center of the detector, with the calibrator region at 1.4 airmasses and the control region at approximately 4 airmasses, due to our large field of view. This gave rise to rms spatial sky brightness variations of 3% between the calibrator and the reference region, 6% between the control and the reference region, and 8% between the calibrator and control regions. On the other three nights, the camera pointed at about 1.2 air masses, with the calibrator region at 1.0 air masses and the control region at 1.4 air masses. Ignoring the early part of September 14, where the Galactic plane fell within the control region, these nights exhibited 2–3% rms spatial variability with respect to the reference, and 3–4% rms variability between the calibrator and control regions. We conclude that, on angular scales of the wavelength of the gravity waves, ≳2%, the spatial variability in the y band is typically 3%–4% rms. Our relative photometric errors are expected to be subdominant to this effect. Under the assumptions that gain, exposure time, and pixel scale are all constant in any given image, these results are independent of those quantities and of any absolute flux calibration.

6.2. Temporal Variability

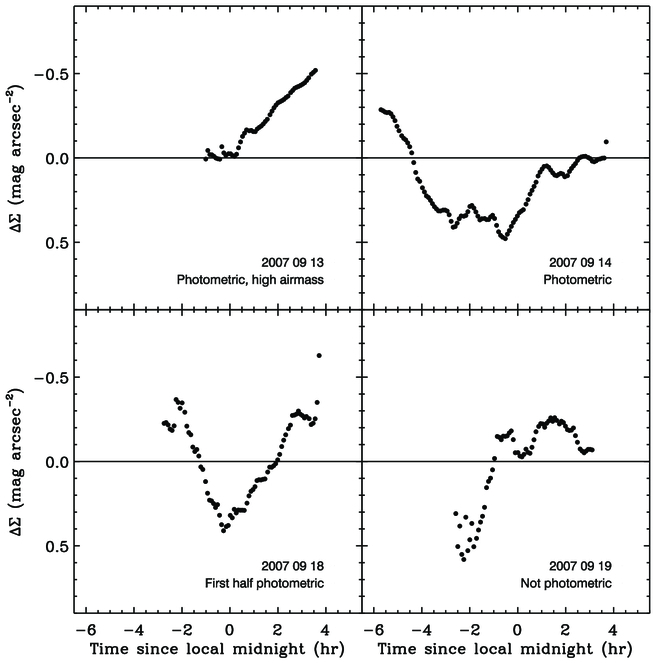

The overall temporal sky variability is estimated using a similar approach as in the previous section. The fluxes within the 500 × 500 pixel reference region are compared to the mean over all 4 nights, and plotted in Figure 5. Here we are comparing 2.5 times the log of sky counts in ADU pixel^-1 between images rather than within them, but because all exposure times, gain values, and pixel regions (and therefore pixel scales) were the same, this is equivalent to measuring relative sky brightness in mag arcsec^-2. Again, all that needs to be done to bring this to an absolute scale is to add a zero point in mag arcsec^-2.

Zoom In Zoom Out Reset image size

Immediately evident both in Figure 5 and in the raw images viewed in succession is a significant overall sky level variability. The peak-to-peak variation on September 13 is 1.8 in flux, and on September 14, 18, and 19 are 2.0, 2.7, and 2.2 in flux, respectively. We used a huge region of about 400 deg², and we expect our statistical uncertainties from both the gravity waves and from electron counting to be subdominant to the temporal variability we measure. Changes in overall sky level are highly correlated in time, and all of the structure seen in Figure 5 is due to the atmospheric emission variablity.

The relative results have made use of only ADU counts, assuming constancy for all other quantities that are needed for an absolute flux calibration. Our final task is to estimate the overall zero point.

6.3. Absolute Sky Brightness

In order to convert measurements from ADU sec^-1 pixel^-1 to mag arcsec^-2 we determined the gain, pixel scale, and magnitude zero point. We measured the gain to be 3.8 e^- ADU^-1. The pixel scale and zero-point measurements were both accomplished using a standard star.

We used photometry of a type A0V standard star to establish a conversion between our instrumental magnitudes and a Vega-based y₃ band magnitude scale. This follows the approach used in Hillenbrand et al. (2002) and Hewett et al. (2006), where A0V stars are used as proxies for Vega to establish a zero point on the Vega magnitude scale.

We were fortunate to have beta-test access to the astrometry.net web utility,¹ which has the remarkable ability to determine a WCS solution for an arbitrary image. We input one of our images, frame 110 (taken at UT 06^h19^m22^s) to this site and learned that the image was centered at R.A. 01^h17^m34.8^s, decl. -02°20^'49'' (J2000). We then queried the SIMBAD archive to find A0 stars that coincided with this field. The A0V star ρ Ceti at R.A. 02^h25^m57.0^s, decl. -12°17^'26'' (J2000) (also designated as HR 708 and SAO 148385) met our criteria. This object has cataloged magnitudes that are listed in Table 2.

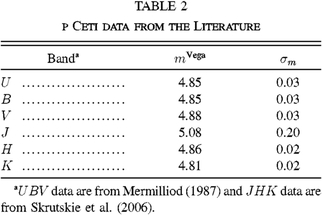

We identified ρ Ceti in five of the short exposure images, and used IRAF to perform aperture photometry. The resulting centroid positions, object fluxes, and sky background values are given in Table 3. We determined the flux from the star by averaging these measurements, obtaining 119 ± 17 ADU accumulated in 20 s, or 5.95 ± 0.85 ADU s^-1 for an object with a Vega-based magnitude of y^Vega = 4.86 mag. This fractional flux uncertainty corresponds to a systematic uncertainty in the Vega-based magnitude zero point of 0.15 mag. Using the long exposures would not gain much in S/N, because the S/N is independent of exposure time when an object trails in an image.

The rate of motion of a star at a known right ascension and declination allows for the mapping from pixels to arcseconds in the region near the star. The data from Table 3 were also used to this end. ρ Ceti was at a declination of -12.29°, implying an apparent motion across the sky of μ = 15^'' s^-1 cos 12.29, or 14.66^'' s^-1. We detected the object as moving 8.6 pixel in 85 s, or 0.101 pixel s^-1. This implies a plate scale of 144.9^'' pixel^-1, so that each pixel subtends an area of 20,995 arcsec², or 5.8 arcmin². We consider this plate scale to be determined with a fractional uncertainty of about 5%, due to both the 1 s granularity in the timing between exposures and the centroid measurement uncertainty for the star. Our dynamic plate scale determination is also within 6% of the 153.4^'' pixel^-1 that was returned by astrometry.net, based on matching sources across the field to cataloged objects. In one of our longer exposures we measured the trail length of a star at this same location on the array as spanning 31.2 pixels in a 300 s exposure, again confirming the plate-scale determination at the 5% level.

The calibration source, and the region around it where we determined the sky-brightness values, reside near a corner of the field. The rays that are brought to a focus at this location pass through the filter at an angle of 18.6°, while the median LSST incidence angle is 18.9°. We therefore consider the center of our effective passband at this location to be a good match to LSST's, but the shape at the passband edges will still differ somewhat.

With the photometric calibration and plate scale in hand, we were in a position to convert the sky brightness values, Σ, into Vega-based units of mag arcsec^-2. We converted the sky brightness values into units of ADU s^-1 arcsec^-2 by dividing by 20,995 arcsec² pixel^-1. We then computed the Vega-based sky brightness using the flux from the comparison star, as

where ϕ is the sky flux in ADU s^-1 arcsec^-2. Note that we selected a region for sky-brightness determination that surrounded the calibration star to minimize our sensitivity to large-scale flat-fielding errors and pixel scale variations. The final zero point that converts all temporal results of Figure 5 to Vega magnitudes is Σ = ΔΣ + 17.8 mag arcsec^-2 (Vega).

We also supply the conversion of Vega magnitudes through the y band to AB magnitudes, because, while the AB and Vega magnitude scales are matched at the V band, they monotonically diverge at longer wavelengths. The Spitzer flux conversion utility² delivers with an uncertainty of 0.05 mag, where . This level of uncertainty is adequate for our purposes here. The conversion also agrees within the uncertainties with the AB-to-Vega offset terms presented in Table 7 of Hewett et al. (2006). Thus the conversion Σ = ΔΣ + 18.3 mag (AB) brings all temporal results of Figure 5 into the AB system. Table 4 presents a summary of the potential sources of systematic error that might afflict these results.

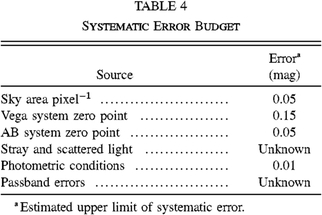

We have performed first measurements of y₃-band sky brightness in Chile from Cerro Tololo, and have argued that these results to apply to the nearby LSST site on Cerro Pachon. We observed rms spatial variability of 3%–4% due to atmospheric gravity waves on scales of a few degrees and larger, and a factor of 2 variability in flux over the course of the nights we observed. These relative results make no reference to absolute calibrations, and we argue that they apply to nearly any y-band variant because the sky background is overwhelmingly due to narrowband OH emission. Finally, we estimate an absolute zero point and find a mean sky level of about 17.8 mag arcsec^-2. Our absolute calibration suffers up to 20% systematic uncertainty from zero-point and pixel-scale measurement errors, while our relative photometry is uncertain at about a percent.

Previous aeronomy work has characterized the OH background in depth, and suggests that the variability is somewhat predictable. We expect the sky background through any similar, CCD-based y-band variant to fluctuate significantly, although nominal variation and absolute levels will differ depending on the precise nature of the total filter response curve. Our qualitative results and conclusions should apply to any y band.

The variability suggests that sky survey projects would benefit from a y-band sky brightness monitor, and an adaptive strategy that would exploit times when the y sky is dark to take observations in this band. The background in y appears uniform to within 4% over much of the sky, so we advise it is better to chase times of low background than to find directions of dark sky in y. The coherent spatial structures in y band airglow present a potential difficulty to sky-based illumination correction strategies. Assuming random Gaussian fluctuations, 15 images or more are needed to achieve sub-percent uniformity over fields of view larger than about a degree. The spatial coherence of the gravity waves means the fluctuations are not random, making this a lower limit.

We have demonstrated the effectiveness of this apparatus. Given the observed variability in y₃-band sky brightness, there is considerable merit in implementing a long-term monitor at the LSST site. Having long-term sky-brightness data in hand early will inform the optimal scheduling of the LSST system.

We thank the LSST Corporation, Harvard University, and the US Department of Energy Office of Science and the National Science Foundation for their support. The LSST design and development activity is supported by the National Science Foundation under Scientific Program Order No. 9 (AST-0551161) through Cooperative Agreement AST-0132798. Additional funding comes from private donations, in-kind support at Department of Energy laboratories, and other LSSTC Institutional Members. We thank the CTIO scientific and technical staff for their invaluable help in setting up these observations. We are also very grateful to the team that is establishing the astrometry.net online resource, which we used in its testing phase to determine the centers of the images we obtained. The authors gratefully acknowledge the referee for insightful comments and recommendations. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation.
