Pickering emulsions: structure, properties and the use as colloidosomes and stimuli-responsive emulsions

Pickering emulsions undergo the same processes as surfactant-stabilized emulsions, particularly, flocculation, coalescence, sedimentation and Ostwald ripening.

A decrease in the distance between the dispersed phase droplets leads to flocculation, that is, the formation of floccules in which the droplets are separated by interlayers, which represent mono- or bilayers of particles adsorbed on the droplet surfaces (see Fig. 4). If such interlayer is insufficiently tough of if droplets migrate from the contact zone, coalescence of droplets necessarily takes place.

The flocculation and the subsequent coalescence were studied for both Pickering emulsions and model systems — thin films separating two bulk phases and for an oil or water drop approaching a water/oil interface from the side of opposite polarity phase.

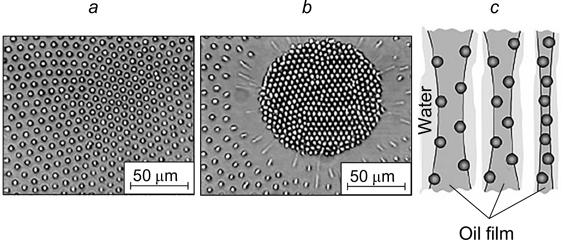

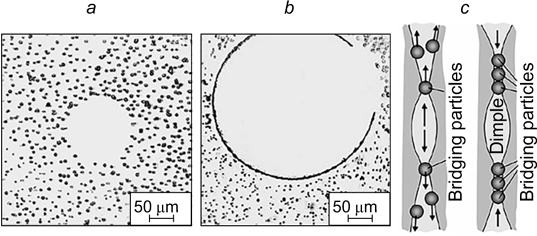

Horozov et al. ⁴³ investigated aqueous and octane films simulating an interlayer of the dispersion medium between droplets of the dispersed phase. Upon thinning of a water film in octane containing a low concentration of silica particles with a diameter of 3 μm and a contact angle of 99°, the particles migrated towards the periphery to give a dimple (Fig. 7 a ). Subsequently, the film ruptured. At θ = 65°, the dimple was surrounded by a ring of particles adsorbed at its periphery (Fig. 7 b ). These films were relatively stable, since the dimple was arrested, and the particles that were in contact with the aqueous phases on the two sides did not migrate towards the film periphery (Fig. 7 c ). The lateral mobility of the particles in the film played the crucial role in the stabilization. If the packing density of particles on the surface was low, the particles were dragged by the hydrodynamic flow of the liquid out of the film, and the thinnest part of the film between the droplets approaching one another turned bare.

Zoom In Zoom Out Reset image size

The octane films in water containing silica particles with θ = 152° were stable. Thinning of the film gave rise to a hexagonal packing of particles (Fig. 8 a ), with the distance between the particles gradually decreasing. On further film thinning, a spherical area of close-packed particles located at ∼1.2 μm distances from one another and contacting with both aqueous phases on the two sides of the film appeared in the thinnest part of the film (Fig. 8 b ). A sketch depicting the arrangement of particles in the octane film as the film is thinned is given in Fig. 8 c .

Zoom In Zoom Out Reset image size

In the case of high particle concentration, thinning of water films in octane and thinning of octane films in water resulted in the formation of an area of close-packed particles. As the close-packed particle areas approached each other, a bilayer formed; subsequently, it transformed into a monolayer, with the bilayer structure being retained at the periphery. ⁴³ Experimental data and results of calculations showed that the critical capillary pressure at which the bilayer is transformed into a monolayer is markedly lower than the critical pressure needed for rupture of a film stabilized by a bilayer of particles; therefore, the film stability depended on the stability of the particle monolayer.

Stancik et al. ⁴⁴ reported the results of studying the behaviour of droplets approaching a water/decane interface from the side of opposite polarity (Fig. 9 a ). Adsorbed spherical polystyrene particles with an average diameter of 3.1 μm were located on the droplet surface and on the flat interface.

Zoom In Zoom Out Reset image size

In all cases, thinning of the film led to the formation of a dimple. At low particle concentration on the flat surface, most of the particles migrated from the contact zone during film drainage before coalescence. However, some of the particles were trapped in the dimple, being arranged as a thin ring consisting of a single row of particles (Fig. 9 b ). As the concentration of particles adsorbed at the interface increased, the ring became thicker (Fig. 9 c ). Further increase in the particle concentration on the surface gave rise to a round area with a regular hexagonal packing of particles inside the dimple (Fig. 9 d ). Despite the film drainage, the particles inside the dimple were located at a certain distance from one another due to repulsion forces between them.

When a water droplet approached the water/decane interface from the side of decane, an area of close-packed particles formed in the contact zone, as the repulsion forces between the particles were much weaker in non-polar decane.

There are not a lot of reported visual data confirming the structure of the interfacial layer in the contact zone between the flocculated droplets of the dispersed phase in Pickering emulsions. French et al. ⁴⁵ investigated dodecane emulsions in water stabilized by silica particles of 860 nm in diameter with the surface modified with isopropyl myristate. The freeze fracture scanning electron microscopy (SEM) image is shown in Fig. 10 a . In the contact zone between two droplets with a diameter of ∼60 μm, a monolayer of adsorbed silica particles formed.

Zoom In Zoom Out Reset image size

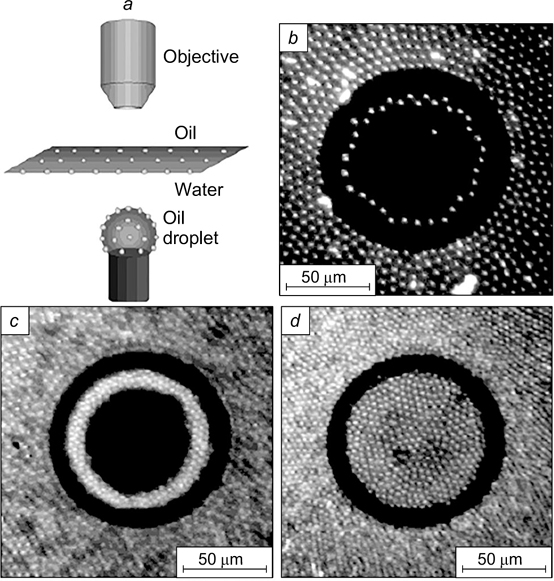

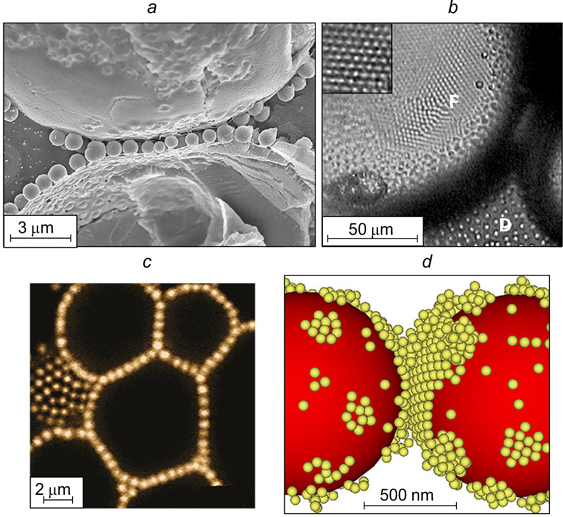

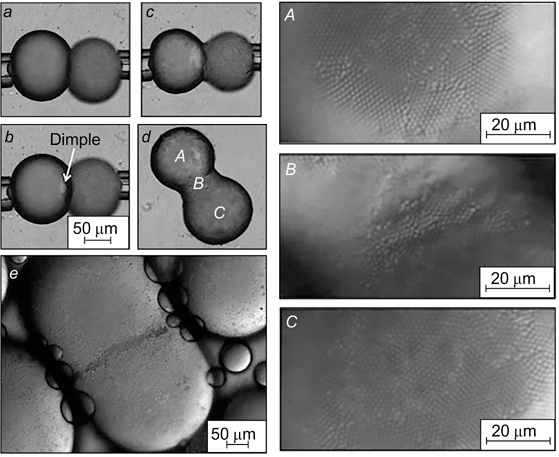

Horozov and Binks ⁴⁶ reported optical microscopy images of the contact zone between the flocculated drops taken using an extra-long working distance objectives. An emulsion of water in octane with a drop size of 300 μm was stabilized by silica particles with a diameter of 3 μm with θ = 152°. It can be seen (see Fig. 10 b ) that the contact zone designated by the letter F is a rounded area consisting of a monolayer of close-packed particles. At the periphery outside the contact zone designated by the letter D, the particles are located rather sparsely.

Lee et al. ⁴⁷ studied W/O emulsions consisting of a solution of dimethyl sulfoxide in water dispersed in a mixture of toluene and dodecane. Droplet flocculation resulted in a monolayer of silica particles with a diameter of 975 nm (Fig. 10 c ).

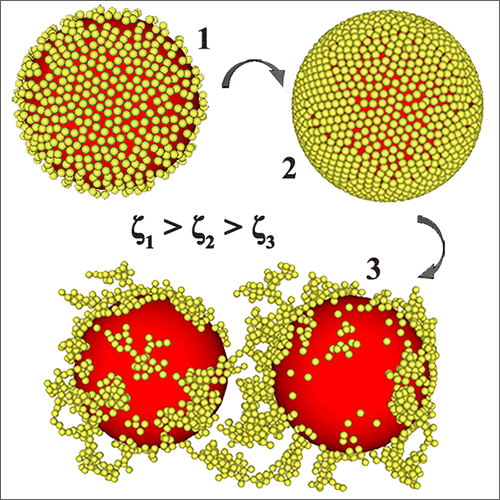

Langevin dynamics simulation of the adsorption of silica nanoparticles on the surface of oil droplets of 1 μm in diameter showed ⁴⁸ that flocculation in the contact zone also gives a monolayer of adsorbed silica nanoparticles (Fig. 10 d ). When the ionic strength of the aqueous dispersion medium changes from 0.01 to 3 mol L⁻¹ and if flocculation of oil droplets took place, they were located at 50 nm distance from one another, which corresponded to the diameter of a silica nanoparticle. An area of close-packed nanoparticles appeared in and around the contact zone. In other regions, the surface of an oil droplet was only slightly covered by adsorbed nanoparticles.

The formation of mono- and bilayers in the contact zone was observed by confocal microscopy during flocculation of decane droplets stabilized by poly(N-isopropylacrylamide) microgel particles of ∼950 nm in diameter in water (Fig. 11). ⁴⁹ Possibly, in these emulsions, the bilayer in the contact zone was not transformed into a monolayer, since the hydrogel microparticles were easily deformed. ⁵⁰

Zoom In Zoom Out Reset image size

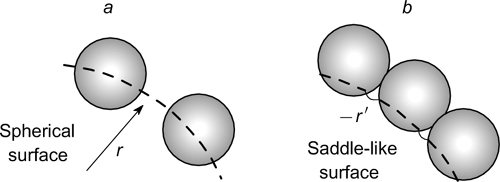

In a monolayer, the capillary forces acting between the particles connecting two droplets of the dispersed phase attract the particles to one another, which leads to the formation of a closer packing of particles in the thinnest parts of the film of the dispersion medium. Even if the long-range repulsion forces between the particles on the drop surface are relatively high, the particles are attracted to one another in the contact zone of the droplets.

Depending on the capillary pressure, the structure of the layer separating the flocculated droplets of the dispersed phase may be different. In the case of small-droplet emulsions, the formation of a monolayer in the contact zone is more likely, as the capillary pressure is high. In large droplets, the capillary pressure is lower; therefore, the particle bilayer between the droplets may exist for longer periods of time. ⁴³

However, this conclusion is valid only theoretically. In practice, a monolayer of non-deformable particles is typically formed in the contact zone between flocculated droplets in emulsions. As a result, the emulsions are stable to coalescence, even if the droplet surface is only partly covered by adsorbed particles. It is noteworthy that when the monolayer is formed in the contact zone of droplets, the flocculation becomes irreversible.

Many authors noted that immediately after preparation, so-called limited coalescence of dispersed phase droplets takes place in Pickering emulsions, like in surfactant-stabilized emulsions. ⁵¹ The cause for this process is the formation of a too large interfacial area upon dispersion, so that the available amount of the surfactant or particles is insufficient for stabilization. The limited coalescence phenomenon was first described by Hardy ⁵² in 1928 in relation to emulsions formed by lubricating oils. In emulsions stabilized by solid particles, the occurrence of limited coalescence is in line with the Pickering's statement that the droplet size depends on the number and size of stabilizing particles rather than on the stirring intensity. ¹

The rate of limited coalescence gradually decreases with time and then becomes virtually zero. As a rule, this process takes from approximately several seconds to several minutes after preparation of the emulsion. ^{46, 53} After limited coalescence is over, Pickering emulsions with a narrow droplet size distribution stable to coalescence for a long period of time (several months to several years) are formed rather often.

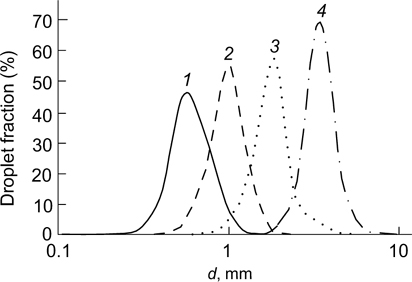

Arditty et al. ⁵³ studied emulsions of polydimethylsiloxane in water with a fraction of the dispersed phase of 90 mass %, which were prepared by manual shaking. The emulsions were stabilized by silica nanoparticles of 25 nm in diameter with n-octyltriethoxysilane grafted to the surface. The photographs taken in various time intervals after formation of the emulsion are depicted in Fig. 12. In the initial period, the average droplet size rapidly increased, while later it remained nearly constant. When limited coalescence took place, a narrow droplet size distribution was retained, while the average droplet diameter increased from 0.59 to 3.39 mm in 151 s (Fig. 13).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The specific interfacial area of emulsions after completion of the limited coalescence depended on the dispersion intensity during the preparation of initial emulsions. Due to the turbulent stirring, the specific interfacial area was approximately equal to the surface area at which the monolayer of hexagonally close-packed particles was formed. During the preparation of coarse emulsions by gentle manual shaking (see Fig. 12), aggregates of silica nanoparticles were adsorbed on the droplet surface. The specific interfacial area in these emulsions after the limited coalescence was ∼10 times smaller than in the case of turbulent stirring fabrication of the emulsions. The authors attributed this result to the fact that the initial nanoparticles were aggregated in water. The energy of manual shaking was insufficient to breakup the aggregates; therefore, the aggregates of nanoparticles were adsorbed on the droplet surface. The turbulent stirring resulted in not only more efficient dispersion, but also in the breakup of nanoparticle aggregates. Hence, the emulsions were stabilized by adsorption of single silica nanoparticles on the droplet surface.

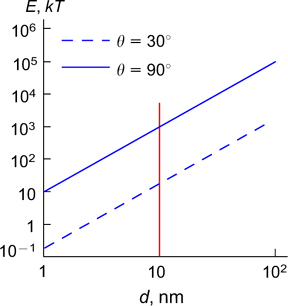

Thus, with efficient adsorption of particles on the droplet surface, Pickering emulsions are, most often, highly stable to coalescence. ⁵ The layer of adsorbed particles acts as a mechanical barrier that prevents coalescence, ^{4, 6, 54} and these disperse systems remain stable to this process for a long period of time.

Pawar et al. ⁵⁵ observed the formation of non-spherical droplets upon partial coalescence (Fig. 14). Droplets partially covered by adsorbed particles were squeezed out of two micropipettes and brought together. First, the formation of a dimple in the contact zone was observed and then coalescence took place. The surface area of the partially coalesced droplets decreased, and at some time point, a layer of close-packed particles formed on the surface of the two initial droplets and in the neck netween them (Fig. 14 d ). This phenomenon was called arrested coalescence.

Zoom In Zoom Out Reset image size

The non-spherical droplets were transformed with time into spherical droplets even in the presence of close-packed adsorbed particles on the surface, no matter how great the energy of particle desorption from the interface was. Structures of this type can exist for relatively long time in highly concentrated emulsions; for example, they were detected in a particle-stabilized emulsion obtained by bulk mixing (see Fig. 14 e ).

Studying of the limited coalescence process demonstrated that preparation of a Pickering emulsion stable against coalescence for a long period of time requires the formation of a close-packed layer of adsorbed particles on the surface of dispersed phase droplets. Some authors (see, e.g., Refs 46, 48, 54, 56, 57) emphasized that emulsions can be stable against coalescence even if the concentration of particles in the system is insufficient to form a close-packed layer on the droplet surface. This may be caused by several factors. On the one hand, an area of close-packed particles can be formed in the droplet contact zones (see Figs 9 d and 10 b ), which serves as a mechanical barrier that prevents coalescence, ^{46, 54} while on the other hand, adsorbed particles migrate over the interface as a result of Brownian motion, which retards the coalescence of droplets barely covered with the particles. ⁵⁶

The particles present in Pickering emulsions can not only be adsorbed on the interface, thus ensuring stability against coalescence, but also aggregate with one another to give a spatial network in the bulk of the dispersion medium. ⁵⁸ The formation of the gel-like network increases the stability of the emulsion, as droplet coming in contact and sedimentation slow down. ⁵⁹ Also, there is additional time for adsorption of particles at the interface, which results in emulsions more stable to coalescence. ⁶⁰

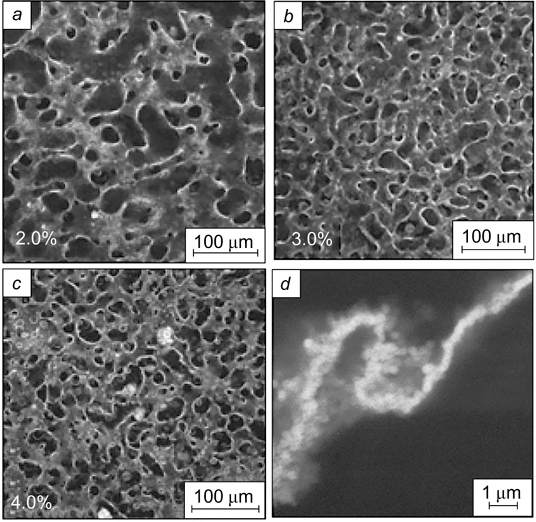

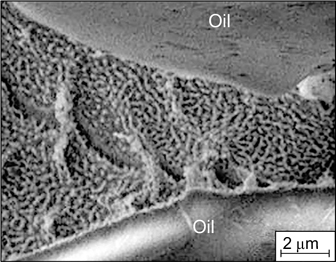

Emulsions that form a gel of aggregated particles in the dispersion medium may have different structures. In these systems, the surface of dispersed phase droplets may be covered by adsorbed particles (Fig. 15 a ). Meanwhile, emulsions can be stable even if the layer of adsorbed particles is sparse or absent. In this case, stability is provided by the gel-like structure of aggregated particles in which dispersed phase droplets can exist in the isolated state for a long period of time. The Langevin dynamics calculations reported by Koroleva et al. ⁴⁸ showed that in the case of formation of a rather dense network of aggregated SiO₂ nanoparticles in the bulk of the dispersion medium, only single clusters of close-packed nanoparticles were present on the surface of oil droplets (Fig. 15 b ). The major part of the droplet surface was naked. Similar results were obtained in the simulation of stabilization of O/W emulsions by a mixture of SiO₂ and Fe₃O₄ nanoparticles. ²⁹

Zoom In Zoom Out Reset image size

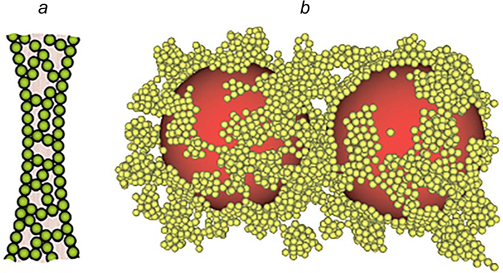

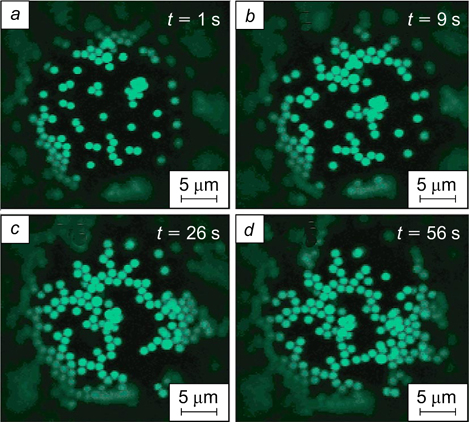

The Brownian dynamics method used to model particle aggregation showed the formation of aggregates with a fractal structure similar to the structure of polymer gels. ⁶¹ It was shown ⁶² that a gel-like network of aggregated nanoparticles, preventing the oil droplet coming in contact and flocculation, is formed at pH 8 in the dispersion medium of O/W emulsions stabilized by mixtures of Ludox CL silica and magnetite nanoparticles (Fig. 16).

Zoom In Zoom Out Reset image size

The increase in the emulsion stability upon the formation of the gel-like network of aggregated particles in the dispersion medium was observed in numerous publications for O/W emulsions stabilized by spherical silica particles, ⁶³ plate-like clay nanoparticles, ^{64, 65} palygorskite needle particles, ⁶⁶ cellulose needle nanoand microcrystals, ^{67 – 69} chitin nanocrystals, ⁷⁰ chitosan particles, ⁷¹ etc.

Rheological measurements for emulsions carried out by oscillation rheometry showed the formation of a gel-like network in the dispersion medium of emulsions stabilized by oppositely charged particles of the layered double hydroxide [Mg₂Al(OH₆)]NO₃ ^. 2 H₂O and montmorillonite. ⁷² The gel structuring of the dispersion medium took place in water-in-water (W/W) emulsions stabilized by crystalline cellulose nanorods. ⁷³ In all cases, the formation of gel-like network in the emulsion dispersion medium prevents droplets of the dispersed phase from approaching one another and thus hampers aggregation and subsequent coalescence.

During the Ostwald ripening, caused by different Laplace pressures for small and large droplets, small droplets are dissolved, while large droplets becomer larger. The droplet size of the dispersed phase of Pickering emulsions is often several tens (and more) micrometres. In these disperse systems, Ostwald ripening is almost absent, since due to large radius of curvature of the interface, the Laplace pressure is relatively low. However, this process can take place in emulsions with smaller drops.

The Ostwald ripening (disproportionation) in foams proceeds in a similar way. It was shown experimentally that this process can be arrested almost completely by foam stabilization by solid particles. ^{74 – 77} In emulsions, the particles are adsorbed at the interface almost irreversibly; therefore, the Ostwald ripening can proceed in the initial time periods, and then its rate sharply decreases. ⁷⁸ This occurs if the adsorbed particles form a barely packed layer on the droplet surface. The substance of the dispersed phase partially migrates from smaller droplets and the layer of adsorbed particles on the smaller droplets becomes close-packed. The particles are not desorbed from the interface, since the desorption energy is high, and Ostwald ripening almost stops.

It was shown ⁷ that in the Pickering emulsions with a barely packed particle layer at the interface, the radius of curvature of the droplet surface between adsorbed particles is equal to the droplet radius (Fig. 17). In emulsions with close-packed layer of particles, the sign of the surface curvature is reversed, as the adsorbed particles are mainly wetted by the dispersion medium; correspondingly, the Laplace pressure, which is the driving force of the Ostwald ripening, is different. ⁷⁹

Zoom In Zoom Out Reset image size

In some studies, it was shown experimentally that the Ostwald ripening in Pickering emulsions was either absent or substantially retarded. In emulsions stabilized by poly(glycerol monomethacrylate-b-2,2,2-trifluoroethyl methacrylate) copolymer nanoparticles of ∼8.4 nm in size, the average size of dodecane and tetradecane droplets in water changed insignificantly for 6 weeks. ⁸⁰ The 200 – 400 nm squalene droplets in water stabilized by Bindzil CC30 silica nanoparticles did not change in size for three years. ⁸¹ Ostwald ripening took place when hydrocarbons with a higher water solubility were used as the dispersed phase. ^{80, 81}

In W/O emulsions with dispersed phase droplet size of ∼270 nm stabilized by ∼28 nm nanoparticles of poly(stearyl methacrylate-co-2,2,2-trifluoroethyl methacrylate) block copolymer, Ostwald ripening was absent if the NaCl concentration in the dispersed phase exceeded 0.11 mol L⁻¹. ⁸²

Thus, Ostwald ripening in O/W emulsions proceeds due to the diffusion of dispersed phase molecules dissolved in the dispersion medium. If the solubility is not negligibly low, Ostwald ripening most often does take place; when the solubility is very low, Ostwald ripening is absent. In W/O emulsions, the transport of water from smaller droplets to larger ones does take place if the Laplace pressure is not counterbalanced by the osmotic pressure created by the electrolyte.

It is noteworthy that the trends described above are valid for Pickering emulsions stabilized by non-modified particles. If the particles are modified with surfactant molecules for changing their hydrophobicity, a more intense Ostwald ripening is possible. In emulsions with modified particles, the surfactant micelles can transfer the dispersed phase substance between the droplets, which usually increases the rate of Ostwald ripening. ⁷⁹

Oil-in-water and water-in-oil emulsions are typical among Pickering emulsions. The fraction of the dispersed phase in these emulsions can vary from very low values to ⩾ 74%, i.e., both dilute and highly concentrated emulsions are possible. As an example, Fig. 19 shows the SEM images of these emulsions. This review mainly addresses particularly these types of Pickering emulsions.

Zoom In Zoom Out Reset image size

There are Pickering emulsions with different combinations of phases: W/O/W, O/W/O and O/O/O. The multiple Pickering emulsions are obtained when both the primary and secondary emulsions are stabilized by micro- or nanoparticles. Systems in which only one emulsion (primary or secondary) is stabilized by particles, while the other one is stabilized by conventional surfactants were also reported. For example, the primary W/O emulsion is stabilized by a surfactant, while the globules of the W/O emulsion dispersed in the external aqueous phase are stabilized by particles, or vice versa. It should be noted that multiple emulsions stabilized by particles with different contact angles are, as a rule, much more stable than the multiple emulsions stabilized by two surfactants. ³

The structure and preparation of a W/O/W Pickering emulsion were considered by Nair et al. ⁸⁶ The organic phase of this emulsion was a solution of terephthalic acid and bisphenol branched copolymers in ethyl acetate; the internal aqueous phase consisted of carboxymethyl cellulose hydrogel, with the droplet diameter of 100 – 500 nm. The droplets of the primary W/O emulsion were dispersed in the external aqueous phase and stabilized by Ludox TM silica nanoparticles with a size of 22 nm. Evaporation of ethyl acetate and water afforded hollow polymer particles the inner structure of which corresponded to the structure of the primary W/O emulsion (Fig. 20). Similar images were obtained upon polymerization of the organic phase of a water/styrene/water emulsion, in which the primary W/O emulsion was stabilized by hydrophobic silica nanoparticles, while the secondary emulsion was stabilized by Fe₃O₄ nanoparticles. ⁸⁷

Zoom In Zoom Out Reset image size

The stabilization solely by particles resulted in the formation of W/O/W emulsions, stable for several months, with sunflower oil as the organic phase. The primary W/O emulsion was stabilized by ethyl cellulose particles, while the secondary emulsion was stabilized by rutoside particles. ⁸⁸ Frasch-Melnik et al. ⁸⁹ described a multiple W/O/W emulsion with sunflower oil, in which the primary emulsion was stabilized by crystalline mono- and triglycerides and the secondary emulsion was stabilized by sodium caseinate.

Water-in-dodecane-in-water emulsions were formed using a combination of worm-like particles of hydrophobic poly(lauryl methacrylate) – poly(benzyl methacrylate) and hydrophilic poly(glycerol monomethacrylate) – poly(2-hydroxypropyl methacrylate) – poly(benzyl methacrylate) copolymers for stabilization. ⁹⁰

Multiple O/W/O emulsions were studied by Szuma a and Luty. ⁹¹ The external and internal oil phases consisted of liquid paraffin or jojoba oil. The emulsions were stabilized by carnauba wax particles. Cunha et al. ⁹² described hexadecane-in-water-in-hexadecane emulsions; the primary emulsion was stabilized by cellulose nanocrystals, while the secondary one was stabilized by lauryl chloride-modified cellulose nanocrystals.

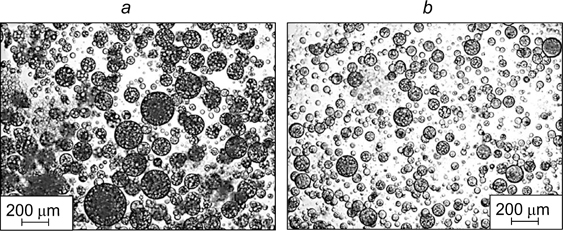

Tyowua et al. ⁹³ prepared emulsions of the O/O/O type, namely, olive oil-in-polydimethylsiloxane-in-olive oil and rapeseed oil-in-polydimethylsiloxane-in-rapeseed oil stabilized by silica nanoparticles the hydrophobicity of which was changed by surface modification with dimethyldichlorosilane (the fractions of the SiOH groups on the surface were 70 and 20%, respectively). The micrographs of multiple Pickering emulsions with rapeseed oil are shown in Fig. 21. ⁹³ The emulsions were stable against coalescence, but tended to undergo sedimentation at low concentration of hydrophilic silica particles.

Zoom In Zoom Out Reset image size

Multiple Pickering emulsions are most in-demand in the food and pharmaceutical industry.

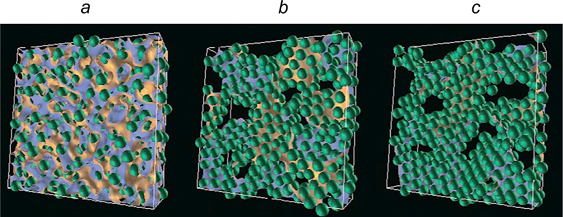

The possibility of existence of bicontinuous Pickering emulsions was shown for the first time by mathematical modelling. Stratford et al. ⁹⁴ called thus structure bicontinuous intefacially jammed emulsion gel (or Bijel). ¹ The images illustrating the stages of formation of a bicontinuous emulsion stabilized by particles of 10 nm in diameter are depicted in Fig. 22.

Zoom In Zoom Out Reset image size

The existence of these structures was confirmed experimentally. ^{95, 96} Bicontinuous emulsions were formed upon spinodal decomposition on fast heating of the system. Confocal microscopy images of bicontinuous Pickering emulsions consisting of water and 2,6-lutidine and stabilized by silica particles with a diameter of 290 nm are shown in Fig. 23. These emulsions were stable for more than 7 months.

Zoom In Zoom Out Reset image size

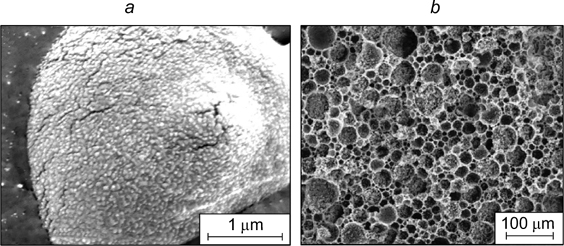

White et al. ⁹⁷ showed that a decrease in the hydration of silica particles changes the type of emulsion from 2,6-lutidine-in-water to water-in-2,6-lutidine; in the case of intermediate hydrophilicity of stabilizing particles corresponding to phase inversion, the system was a bicontinuous Pickering emulsion.

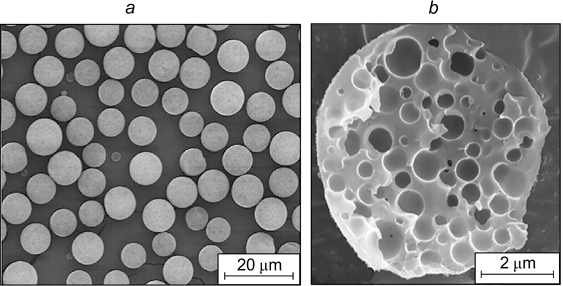

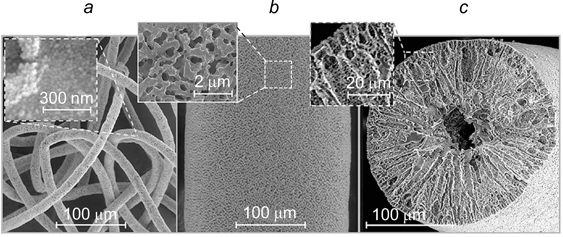

Using phase separation via solvent diffusion from bicontinuous Pickering emulsions, unsymmetrical and hierarchical structures were formed. ⁹⁸ Phase separation took place upon extraction of the solvent from a homogeneous three-component mixture. Emulsions were stabilized by silica nanoparticles with a size of 22 nm modified with cetyltrimethylammonium bromide for increasing their hydrophobicity. Hexane-1,6-diol diacrylate or butyl acrylate was used as the organic phase; they were polymerized for fixing the bicontinuous emulsion structure (Fig. 24).

Zoom In Zoom Out Reset image size

Bicontinuous Pickering emulsions can be used as microreactors with liquid counter-current and as catalysts when stabilized by catalytically active particles. ⁹⁶

Water-in-water emulsions are formed upon dispersion of two immiscible concentrated aqueous solutions of polymers. Each of the aqueous phases of these emulsions contains a solution enriched in one of the polymers, while the concentration of the other polymer is low. Subsequently, while describing the composition of phases of these emulsions, we will use the expression polymer solution, implying a solution enriched in one polymer and depleted in the other one.

Water-in-water emulsions, characterized by very low interfacial tension (1 μN m⁻¹ to 1 mN m⁻¹) and thickness of the interfacial region up to several ^{73, 99} or several tens ²⁸ of nanometres, cannot be stabilized by conventional surfactants. Effective stabilization of these emulsions requires that the energy of particle removal from the interfacial region be noticeably larger than the energy of thermal motion kT, according to Eqn (1), which corresponds to particle size not smaller than 160 nm. ²⁸

Poortinga ¹⁰⁰ showed that solid fat particles were adsorbed at the interface between two immiscible aqueous solutions of polysaccharides — dextran, maltodextrin and alginate — in various combinations. These emulsions were relatively stable.

Gonxalez-Jordan et al. ¹⁰¹ investigated emulsions containing a polyethylene oxide solution in an aqueous solution of dextran and a dextran solution in an aqueous solution of polyethylene oxide stabilized by polystyrene latex particles. It was shown that polystyrene latex particles modified with whey proteins stabilize emulsions consisting of a solution of polyethylene oxide dispersed in a solution of dextran. The particles without whey proteins stabilized emulsions containing a dextran solution dispersed in a solution of polyethylene oxide.

A micrograph of a drop of a dextran solution in a solution of polyethylene oxide with polystyrene latex particles with a diameter of 250 nm on the surface is shown in Fig. 25. ¹⁰² The contact angle of polystyrene particles through the dextran solution was 145°. The particles were preferably wetted by the phase containing polyethylene glycol; therefore, they stabilized dextran solution-in-polyethylene glycol solution emulsions.

Zoom In Zoom Out Reset image size

Vis et al. ²⁸ produced W/W emulsions in which an aqueous solution of dextran was dispersed in an aqueous solution of fish gelatin. The emulsions were stabilized by plate-like gibbsite [Al(OH)₃] nanoparticles of ∼170 nm in diameter and ∼7 nm thickness; they were stable for several weeks. When larger and thicker particles were used for stabilization, emulsions were unstable and broke down.

Plate-like poly(lactide) particles were used to stabilize polyethylene glycol solution/dextran solution emulsions. ¹⁰³ The particle size, that is, the length of up to 3.75 μm and the thickness of 12 nm, were determined by transmission electron microscopy (TEM) (Fig. 26 a ). The interfacial tension at the boundary between two polymer solutions was 3.05 μN m⁻¹. According to investigations, 3.75 μm long polylactide particles more efficiently stabilized W/W emulsions (Fig. 26 b ) than shorter particles of the same thickness. When the particle concentration was >0.3 mass %, the stability of the emulsions sharply increased (Fig. 26 c ).

Zoom In Zoom Out Reset image size

Emulsions containing a solution of polyethylene oxide dispersed in a solution of dextran were stabilized by rod-like nanoparticles of crystalline cellulose with 160×6×6 nm dimensions ⁷³ and by protein particles with a diameter of ∼300 nm. ¹⁰⁴ Firoozmand et al. ¹⁰⁵ obtained W/W bicontinuous emulsions from a gelatin solution and an oxidized starch solution using polystyrene latex particles for stabilization.

Emulsions consisting of two immiscible aqueous solutions of polymers stabilized by particles of various shapes and natures are promising for the use in food industry ⁹⁹ and as stimuli-responsive systems and microreactors.

Oil-in-oil (O/O) Pickering emulsions are usually obtained from two immiscible liquids with different polarities. For example, Rozynek et al. ¹⁰⁶ prepared emulsions of silicone oil in castor oil stabilized by 10 μm polystyrene particles. It can be seen in Fig. 27 that the particles form nearly regular hexagonal packing on the surface of a silicone oil droplet.

Zoom In Zoom Out Reset image size

Rymaruk et al. ¹⁰⁷ described the formation of emulsions of plant oils in silicone oil stabilized by block copolymer particles. The size of dispersed phase droplets in emulsions with castor oil or tall oil fatty acids almost did not change during four weeks at 20 °C (Fig. 28). In sunflower oil emulsions, the size of droplets increased with time. This difference was attributed to more intense Ostwald ripening caused by higher solubility of sunflower oil in silicone oil compared to other oils.

Zoom In Zoom Out Reset image size

Using stabilization by graphene oxide nanoparticles modified with alkylamines with C₁₂ or longer hydrocarbon chains, dimethylformamide-in-octane and acetonitrile-in-octane emulsions were obtained. If a C₆ hydrocarbon chain was present in alkylamine, octane emulsions in dimethylformamide or in acetonitrile were formed. ¹⁰⁸

Emulsions of diethylenetriamine in decalin were formed in the case of stabilization by ∼6 μm montmorillonite particles modified with quaternary ammonium salt. ¹⁰⁹ Hexane-in-methanol and dodecane-in-ethanol emulsions were formed when silica particles of 440 nm in diameter were used for stabilization. ¹¹⁰ Silica nanoparticles with a size of 20 – 30 nm were used to stabilize emulsions of olive oil in glycerol. ¹¹¹

Bicontinuous emulsions consisting of styrene trimer and low-molecular-mass polybutene were stabilized by silica nanoparticles. ¹¹² Multiple O/O/O emulsions were obtained in the olive oil/silicone oil/olive oil and rapeseed oil/silicone oil/rapeseed oil systems and stabilized by silica nanoparticles with a size of 20 – 30 nm and different wettability. ⁹³

Oil-in-oil emulsions of various structures can be used for encapsulation of non-polar drug substances, in food industry, as lubricating materials, etc.

Silica micro- and (especially) nanoparticles have been considered most often as stabilizers for Pickering emulsions. Most studies use commercially available Ludox silica nanoparticles, which are obtained by sol – gel process via hydrolysis and polycondensation of silicate solutions, or Aerosil fumed silica, which is formed upon hydrolysis of silicon tetrachloride in water vapour. Nanoparticles of both types are hydrophilic. The surface of deposited particles (Ludox silica) bears numerous silanol groups Si–OH, while the fumed silica surface contains a lot of siloxane groups Si–O–Si; therefore, different sorts of nanoparticles respond differently to changes in the pH and electrolyte concentrations. ¹¹³ The authors of some publications used hand-made silica particles; as a rule, these particles were a few micrometres in size.

Many authors emphasize that preparation of stable oilin-water Pickering emulsions requires the use of partly flocculated particles as small aggregates. This is reasonable, because particles with a high surface charge repel from one another and are slowly adsorbed on oil droplets, which usually have a relatively low surface charge. The particles on the droplet surface also repel from one another; hence, the adsorbed particle layer is not close-packed, which increases the probability of droplet coalescence. If the particles are highly flocculated, the adsorption of large flocs on the droplet surface would not result in uniform particle distribution and formation of a packed layer because of the attraction forces. Only the adsorption of small flocs may result in uniform distribution of the particles over the surface giving a layer in which the adsorbed particles are attracted to each other thus forming a close packing.

Maas et al. ¹¹⁴ suggested that clusters consisting of a small number of silica particles have a higher surface activity than single nanoparticles.

Binks and Lumsdon ¹¹³ studied toluene emulsions in water stabilized by Aerosil 200 fumed silica nanoparticles of 12 nm in diameter. In the dispersion medium pH range from 2 to 10, the emulsions were unstable to creaming and coalescence in the absence of electrolytes. After the addition of NaCl, the emulsions remained unstable; however, in the presence of LaCl₃ or tetraethylammonium bromide, the stability of the emulsions increased. The authors attributed the stability of emulsions to flocculation of silica nanoparticles. If the nanoparticles were weakly flocculated in the initial suspension, the emulsions were stable. Extensive flocculation of nanoparticles resulted in destabilization of emulsions. The use of precipitated silica nanoparticles in the presence of CaCl₂ markedly increased the stability of emulsions with an alkaline dispersion medium. The addition of dodecyldimethylammonium bromide afforded stable Pickering emulsions. ¹¹⁵

An increase in the polarity of the oil molecule also increased the emulsion stability. This was attributed ¹¹⁵ to adsorption of oil molecules on the silica nanoparticle surface and change in their wettability. Similar results were mentioned in another publication. ¹¹⁶ Attempts to prepare emulsions with non-polar oils in the presence of fumed silica nanoparticles failed. Emulsions with the dispersed phase composed of ethyl acetate, butyl lactate, butanol, diethyl adipate, diisopropyl adipate or diisobutyl adipate were stable for >6 months.

The surface of hydrophilic silica particles can be modified with surfactant molecules which are adsorbed on the surface via hydrogen bonds or organic compounds that are linked to the surface via covalent bonds; most often, these are silane derivatives. This changes the wetting contact angle and the surface charge of particles.

If the dissociated surfactant molecules and particles are oppositely charged, the flocculation of particles takes place; by controlling this process, it is possible to obtain stable emulsions. Studies of dodecane-in-water emulsions stabilized by Ludox HS-30 nanoparticles with a negative surface charge at pH 9.5 and by a cationic surfactant, cetyltrimethylammonium bromide, showed ¹¹⁷ that the addition of the surfactant induced flocculation of nanoparticles in the initial suspension. This gave emulsions most stable to creaming and coalescence. A similar trend was observed when the emulsions were stabilized by positively charged Ludox CL nanoparticles and an anionic surfactant, sodium dodecyl sulfate, and the pH of the dispersion medium was 3.5; at this pH, the nanoparticles and surfactant molecules had opposite charges. A micrograph of the interface with a layer of adsorbed Ludox CL nanoparticles in this emulsion is shown in Fig. 29. ¹¹⁸

Zoom In Zoom Out Reset image size

Liu et al. ¹¹⁹ studied emulsions stabilized by negatively charged silica nanoparticles and dodecyl dimethyl carboxyl betaine, a zwitter-ionic surfactant. The emulsions were stable to coalescence at pH ⩽ 5 and completely broke down at pH > 8.5. In acidic solutions, carboxyl betaine molecules became positively charged and were adsorbed on silica nanoparticles. Correspondingly, at high pH values, the surfactant molecules did not modify the hydrophilic nanoparticles, and these nanoparticles did not stabilize the emulsion.

When stabilization was performed by hydrophilic fumed silica nanoparticles modified with non-ionic alkyl poly(oxyethylene), emulsions with flocculated nanoparticles were again most stable. Using experimentally determined contact angle and interfacial tension, the energy of desorption of modified nanoparticles from the interface was calculated. The dependence of the desorption energy on the surfactant concentration had a maximum, which corresponded to the most stable emulsion. The maximum energy of nanoparticle detachment from the interface was ∼550 kT at an alkyl poly(oxyethylene) concentration of ∼10 mmol L⁻¹ (Ref. 120).

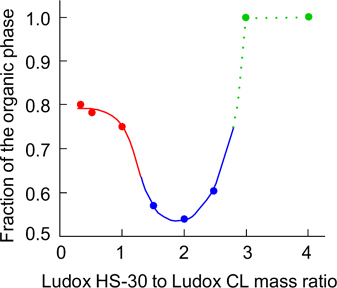

Binks et al. ⁶³ used mixtures of negatively and positively charged SiO₂ nanoparticles to stabilize emulsions. The pH values of initial suspensions of Ludox HS-30 and Ludox CL were 9.9 and 3.6, respectively. The optimal mass ratio of negatively and positively charged particles was 2 : 1 (without correction of the mixture pH). The nanoparticles in the mixture flocculated, and dodecane-in-water emulsions containing 50 vol.% dispersed phase and stabilized by nanoparticle heteroaggregates were stable for >8 months. During this period, the size distribution of dispersed phase droplets almost did not change, which attested to the absence of coalescence. Heteroaggregates were adsorbed on the droplet surface and were located in the dispersion medium of emulsions. The fact that the dispersed phase droplets were covered by an adsorption layer of nanoparticles was confirmed by dilution of these emulsions with water: in dilute emulsions, the viscosity of the dispersion medium was lower, and creaming of oil droplets took place, but no coalescence occurred.

Emulsions of liquid paraffin in water stable to coalescence were formed when the mass ratio of Ludox HS-30 and Ludox CL nanoparticles was (0.3 – 1.0) : 1. When the nanoparticle ratio was (1.5 – 2.5) : 1, the emulsions were stable to flocculation and creaming. If the ratio of nanoparticles exceeded 3 : 1, the emulsions were unstable to coalescence and soon broke down (Fig. 30). This is due to the fact that at the 2 : 1 ratio (and total concentration of 3 mass %), the nanoparticles formed a gel-like network within the first 24 h after mixing. When the nanoparticle ratio was 1 : 1, the gel formation from heteroaggregates proceeded very slowly (within 20 days). Hence, the emulsions were stable to coalescence, but unstable to creaming. When the mass ratio of nanoparticles was 3 : 1, large heteroaggregates appeared, which were unable to stabilize emulsions. ⁶²

Zoom In Zoom Out Reset image size

Oil-in-water Pickering emulsions were obtained using stabilization by silica nanoparticles modified with lecithin and oleylamine, ¹²¹ sodium alginate, ¹²² palmitic acid, ¹²³ oleic acid, ¹²⁴ didodecyldimethylammonium bromide, ¹²⁵ alkyl poly(oxyethylene) monododecyl ethers, ^{126, 127} chitosan, ⁷¹ poly(N-isopropylacrylamide), ¹²⁸ and by silica nanoparticles with surface-grafted benzaldehyde, ¹²⁹ poly(styrene sulfonate), ¹³⁰ methyl(polyethylene glycol)silane and organosilanes with propyl and methyl groups, ¹³¹ (3-glycidyloxypropyl)trimethoxysilane ¹³² and perfluorodecyldimethylchlorosilane. ¹³³

Water-in-paraffin oil emulsions were stabilized by fumed silica nanoparticles with a size of ∼20 nm. If the pH value of the internal phase of the emulsion was low or high, intense flocculation of dispersed phase droplets took place. This was attributed to the destruction of the surface siloxane groups and increase in the number of surface silanol groups. Modification of silica nanoparticles with octadecyltrimethoxysilane gave water-in-oil Pickering emulsions containing 80 vol.% dispersed phase. ¹³⁴

Emulsions of hexadecane in water with 30 vol.% dispersed phase were stable for 4 months after preparation when stabilized by hydrophilic silica fibres with a length of 10 μm and a diameter of 200 – 250 nm. When the fibres used for stabilization had the same thickness and lengths of 1 and 5 μm, the emulsions completely broke down after 3 and 7 days respectively. The concentration of the fibres was 2 g L⁻¹ with respect to the aqueous phase. When the fibre surface was modified with hexadecyltrimethoxysilane, the obtained water-in-hexadecane emulsions were stable for >4 months when stabilized by 1.5, 2.5 or 5 μm fibres. ¹³⁵

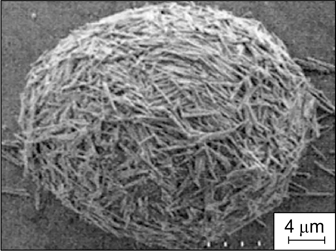

Water-in-lutidine emulsions were stabilized by hydrophobic silica rods with a length of ∼4 μm. The dispersed phase droplets were covered by a multilayer shell consisting of chaotically arranged rods (Fig. 31). ¹³⁶

Zoom In Zoom Out Reset image size

Pickering emulsions stabilized by polystyrene latex particles were investigated most often. It was shown ¹³⁷ that the use of polystyrene latex particles with aldehyde and sulfate groups on the surface with an average size from 0.03 to 6.1 μm in the presence of 10⁻³ to 1 mol L⁻¹ of NaCl in the aqueous phase resulted in the formation of W/O Pickering emulsions, which were stable to coalescence for >6 months. A micrograph of a water droplet in this emulsion, with particles forming a regular hexagonal packing on the surface, is shown in Fig. 32.

Zoom In Zoom Out Reset image size

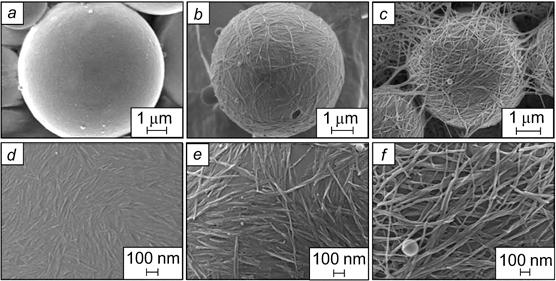

Not only spherical particles form ordered structures on the droplet surface. Gentle stirring of a mixture of water, hexadecane and rod-like epoxy resin particles yielded a W/O emulsion in which the rod-like particles were also self-assembled on the surface of water droplets ¹³⁸ (Fig. 33).

Zoom In Zoom Out Reset image size

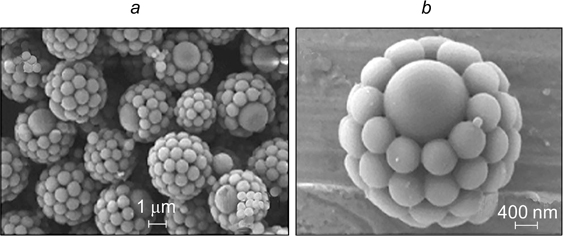

Golemanov et al. ¹³⁹ obtained W/O emulsions in which polystyrene latex particles with sulfate groups on the surface (190 – 220 nm in diameter) were initially dispersed in the aqueous phase. Water-in-oil emulsions were formed when non-polar oils such as hexadecane and tetradecane were used as the dispersion media. If the dispersion medium consisted of more polar molecules with a relatively high viscosity (50 mPa s), e.g., soybean or silicone oil, the latex particles were not adsorbed on the droplet surface, but migrated into the bulk of the oil phase. When the silicone oil viscosity was lower (<5 mPa s), stable W/O emulsions were formed. The authors explained this by the fact that the adhesion of particles to the interface was higher in the case of emulsions with silicone oil of a low viscosity; therefore, during emulsification, the adsorbed particles did not detach from the droplet surface. The following should be mentioned: if the latex particles in the initial aqueous suspension were in the aggregated state, stable emulsions with both hexadecane and tetradecane as well as with the low-viscosity silicone oil were obtained.

Of course, a certain proportion of the particles are adsorbed on the droplet surface during preparation of the emulsion. However, particle adsorption does not stop after the preparation. Tarimala et al. ¹⁴⁰ studied the rate of adsorption of polystyrene latex particles with sulfate groups (1.1 μm in diameter) on the surface of silicone oil droplets in water. The micrographs illustrating coverage of the droplet surface by particles over time are depicted in Fig. 34. The adsorption of latex particles on the droplet surface after the end of emulsion prepatation was relatively fast and ∼1 min later it was substantially retarded; in this case, a relatively large part of droplet surface was not covered by particles.

Zoom In Zoom Out Reset image size

Nallamilli et al. ¹⁴¹ prepared Pickering emulsions stabilized by polystyrene latex particles with opposite surface charges. The contact angles (measured through the aqueous phase) of polystyrene particles bearing amidine and sulfate groups amounted to 103.1 ± 4.0° and 116.1 ± 12.3°, respectively. Usually, polystyrene latex particles with sulfate groups stabilize W/O emulsions, despite the fact that initially they were dispersed in the aqueous phase. ¹³⁹ The charge values of the negatively and positively charged particles used by the authors ¹⁴¹ were high, and these particles did not stabilize emulsions if used not in a mixture. Oil-in-water emulsions with 50 vol.% fraction of dispersed phase were most stable to coalescence when the numerical ratio of oppositely charged particles was close to 1 : 1. The increase in the fraction of the dispersed phase to 80 vol.% at the same ratio of the particles resulted in phase inversion — oil-in-water emulsions were converted to water-in-oil ones.

In various studies, Pickering emulsions were stabilized by various latex particles:

• —
  polystyrene latex particles with surface-grafted polyethyleneimine molecules modified with 4-vinylbenzyl chloride, ¹⁴²
• —
  polystyrene latex particles modified with chitosan, ¹⁴³
• —
  particles consisting of a polystyrene core and a poly[(2-dimethylamino)ethyl methacrylate-stat-ethylene glycol dimethacrylate] shell, ¹⁴⁴
• —
  tert-butylaminoethyl methacrylate – ethylene glycol methacrylate copolymer, ¹⁴⁵
• —
  2-diethylaminoethyl methacrylate – ethylene glycol methacrylate copolymer. ¹⁴⁶

Stabilization by the 10 – 40 nm nanoaggregates of poly(styrene-4-sulfonic acid-co-maleic acid) sodium salt afforded an emulsion of liquid paraffin in water with droplet size of ∼200 nm. ¹⁴⁷ Stable emulsions of dodecane in water with a droplet size from 50 to 250 mμ were obtained; stabilization was attained by using polymerosomes (block copolymer vesicles) of ∼230 nm in diameter formed by cross-linked copolymer of glycerol monomethacrylate, 2-hydroxypropyl methacrylate and ethylene glycol dimethacrylate. If the copolymer was not cross-linked, the polymerosomes were destroyed during preparation of the emulsions, and copolymer molecules were adsorbed at the interface. ¹⁴⁸

Graphene and graphene oxide particles, single- and multi-walled carbon nanotubes and soot were studied as stabilizers for Pickering emulsions.

Graphene oxide nanoparticles have a plate-like shape with a large number of carboxyl groups at the edges and numerous hydrophobic areas of non-oxidized benzene rings on the basal planes; therefore, these nanoparticles can be considered as amphiphilic. ¹⁴⁹ SEM images of the monolayer formed by graphene oxide nanoparticles at the interface, and the surface pressure isotherm depending on the coverage of the interface by the particles, which illustrate the surface activity of graphene oxide particles, are presented in Fig. 35. ¹⁵⁰

Zoom In Zoom Out Reset image size

Graphene oxide nanoparticles with a size of several micrometres across the basal plane were used to stabilize emulsions of toluene in water. ¹⁴⁹ When pH of the aqueous solution in the dispersion medium was 2, emulsions were stable for several months, despite the fact that the dispersed phase droplets were relatively large — several hundred micrometres.

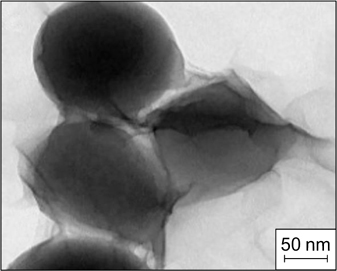

Styrene-in-water emulsions with a droplet size of 200 nm were formed with graphene oxide nanoparticles for stabilization. A micrograph of such emulsion after styrene polymerization is shown in Fig. 36. ¹⁵¹

Zoom In Zoom Out Reset image size

Emulsions stabilized by graphene oxide nanoparticles were most stable if the dispersed phase was a substituted aromatic compound, e.g., benzyl chloride. ¹⁵² A decrease in the emulsion stability was observed in the following series of dispersed phases: benzene > polar compounds (decanol or ethyl heptanoate) > non-polar or slightly polar compounds (hexane or cyclohexane). Upon the addition of electrolytes, the stability of emulsions increased, as graphene oxide nanoparticles were aggregated. A similar trend was identified by Thickett and Zetterlund, ¹⁵³ who demonstrated that emulsions with styrene as the dispersed phase were more stable than the emulsions with methyl methacrylate. At low concentrations of graphene oxide nanoparticles, low pH, high oil to water ratio and high electrolyte concentrations, multiple W/O/W emulsions formed. ¹⁵²

Pickering emulsions were stabilized by graphene oxide nanoparticles modified with polyvinyl alcohol, ¹⁵⁴ by silver nanoparticles ^{152, 155} and by iron oxide nanoparticles. ¹⁵⁶

Small graphene nanoparticles with a size of up to 10 nm across the basal plane that behaved as quantum dots were employed ^{157 – 159} to stabilize emulsions. For increasing the hydrophobicity of nanoparticles, they were subjected to heat treatment to remove a part of edge oxygen groups, ¹⁵⁷ and their surface was modified with hexylamine ¹⁵⁸ or dodecylamine. ¹⁵⁹

Carbon nanotubes can also serve as stabilizers for Pickering emulsions. The surface of a non-modified carbon nanotube is hydrophobic; therefore, they can stabilize W/O emulsions. Wang and Hobbie ¹⁶⁰ were the first to use single-walled carbon nanotubes to stabilize emulsions of water in toluene.

When adsorbed at the interface in a water-in-1,2-dichlorobenzene emulsion, single-walled carbon nanotubes were bent along the interface and formed rings with an average diameter of 202 ± 76 nm (together with other structures such as slightly bent tubes, unclosed rings, irregular structures). The rings consisted of nanotubes combined into bundles comprising several tens to several hundreds of nanotubes. ¹⁶¹

Briggs et al. ¹⁶² stabilized Pickering emulsions using up to 1 μm-long carbon nanotubes with a diameter of 6 – 9 nm and thickness of 3 to 6 carbon layers. Pristine nanotubes with a hydrophobic surface were used to stabilize water-in-dodecane emulsions. After nitric acid oxidation, the hydrophilicity of nanotubes increased, and O/W emulsions formed. Despite the presence of polar groups on the surface of oxidized carbon nanotubes, the attraction forces between them were relatively high, and a rigid network of adsorbed nanotubes formed on the interface and prevented droplets from coalescence. ¹⁶³

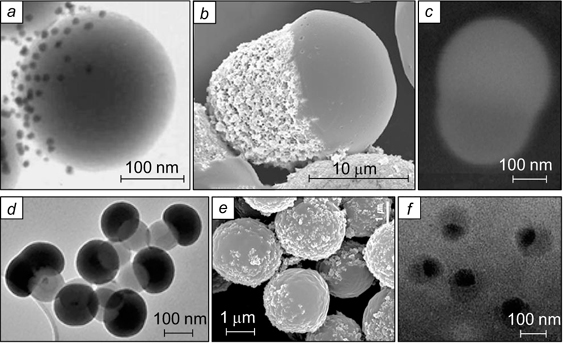

Baudouin et al. ¹⁶⁴ described Pickering emulsions consisting of polyamide dispersed in the ethylene – acrylate copolymer; the emulsions were prepared at 180 °C, i.e., at a temperature above the polymer melting point. Pristine multi-walled carbon nanotubes formed island structures on the droplet surface (Fig. 37).

Zoom In Zoom Out Reset image size

It was shown ¹⁶⁵ that carboxyl-terminated carbon black also has surfactant properties. Yu et al. ¹⁶⁶ used carbonaceous microspheres to stabilize highly concentrated emulsions with styrene dispersion medium. The use of non-modified carbonaceous microspheres followed by polymerization of the dispersion medium afforded closed-cell high-porosity polymer materials. When carbonaceous microspheres were modified with sorbitan monooleate, materials with interconnected pores were formed.

Hydroxyapatite particles are of interest for stabilization of Pickering emulsions, since they can be used to prepare microspheres and microfibres of biocompatible polymers, most often, polylactic acid polymers. These microspheres and microfibres are promising for the use in bone tissue reconstruction due to high adhesion of cells, including fibroblasts, to the hydroxyapatite shell.

Fujii et al. ^{167, 168} described emulsions with a dichloromethane solution of polylactic acid as the dispersed phase stabilized by hydroxyapatite nanoparticles of 40 nm in size. Polylactic acid microspheres coated by hydroxyapatite nanoparticles were formed upon evaporation of dichloromethane. Emulsions with polylactic acid solution in a mixture of dichloromethane and dimethylformamide as the dispersed phase were used for electrospinning of microfibres. ¹⁶⁹

The stability of Pickering emulsions with polylactic acid and hydroxyapatite nanoparticles depended on the pH of the dispersion medium. At pH 5, the emulsions were highly unstable; when pH increased from 7 to 10, the emulsion stability increased. If the concentration of polylactic acid in the dispersed phase was 5 mass %, the type of emulsion did not change within this pH range. In the case of polylactic acid concentration of 2 mass %, phase inversion took place with increasing pH in this range: an O/W emulsion was converted to a W/O emulsion. ¹⁷⁰

The use of rod-like hydroxyapatite nanoparticles of ∼410 nm length and ∼80 nm in diameter resulted in the formation of stable emulsions with methyl myristate dispersed phase. If the dispersed phase consisted of hexane, dodecane, chloroform, toluene, undecanol or dichloromethane, the emulsions stabilized by hydroxyapatite nanorods broke down within 24 h. ¹⁷¹

Cooling of Pickering emulsions obtained under hydrothermal conditions gave biodegradable polymer microspheres. In these emulsions, dispersed phase droplets consisted of a polycaprolactone and poly(L-lactide-co--caprolactone) melt and were stabilized by hydroxyapatite nanoparticles. ¹⁷²

Highly porous materials were obtained from highly concentrated W/O emulsions with hydroxyapatite nanoparticles. The dispersion medium of these emulsions was a solution of lactic acid – glycolic acid copolymer in dichloromethane. Evaporation of dichloromethane from the dispersion medium yielded a highly porous polymer nanocomposite. ¹⁷³ Sun et al. ¹⁷⁴ fabricated a highly porous material by polymerization of dopamine in the dispersion medium of emulsions stabilized by hydroxyapatite nanoparticles.

Particles of layered silicates, montmorillonite and laponite, are used most often to stabilize Pickering emulsions. Montmorillonite nanoparticles have a plate-like shape, ∼200 nm length and 1 nm thickness. Laponite RD nanoparticles are 1 nm-thick discs of 30 nm in diameter. They are hydrophilic, have a negative surface charge, and are aggregated in aqueous solutions. It was shown that these particles stabilize O/W emulsions due to both the adsorption of clay nanoparticles on the droplet surface and the formation of a three-dimensional gel-like network in the emulsion dispersion medium. ^{64, 65} If laponite nanoparticles are in the flocculated state, the most stable emulsions are formed. ⁷⁸

Mica particles with a diameter of 8 μm and a thickness of 50 nm modified with polymethylmethoxysiloxane were used to prepare emulsions of water in silicone oil. ¹⁷⁵ The addition of more water induced phase inversion to give an O/W emulsion; this was attributed to a change in the structure of aggregates formed by mica particles.

Dodecane emulsions in sea water were obtained using montmorillonite particles modified with bis(2-hydroxyethyl)oleylamine. The emulsions were stable even at a low particle concentration such as 0.1 mass %. Phase inversion to give a W/O emulsion took place as the amounts of bis(2-hydroxyethyl)oleylamine and montmorillonite increased. ¹⁷⁶

An increase in the stability of liquid paraffin-in-water emulsions was observed in the presence of laponite particles in the aqueous phase and paraffin wax in the organic phase. ¹⁷⁷ Whitby et al. ¹⁷⁸ studied dodecane-in-water emulsions containing laponite in the dispersion medium and oil-soluble compounds solid at room temperature and possessing amphiphilic properties as the dispersed phase. In the presence of octadecylamine, synergistic effect appeared, and the droplet size decreased. In the presence of stearic acid, antagonistic effect was manifested, and coalescence took place in the emulsions. Most likely, the difference in the emulsion stability was related not to the difference between the amphiphilic properties of oil-soluble additives but rather to the size of crystals formed by these compounds during the preparation and subsequent cooling of the emulsions.

Sunflower oil-in-water emulsions stabilized by illite particles with a size <2 μm were stable for more than three weeks. ¹⁷⁹ Lu et al. ⁶⁶ reported data on the stability of toluene emulsions in water containing several micrometrelong needle-shaped palygorskite particles with a diameter of 20 – 50 nm. The emulsions were stable in the pH range from 1.4 to 11.4, in particular due to the formation of a three-dimensional gel-like network of aggregated particles in the dispersion medium.

Since Pickering emulsions are being actively investigated for food industry applications, numerous publications are devoted to stabilization of the emulsions by biocompatible particles. ^{13, 20, 180} A typical example are spherical or elliptical natural starch particles. They are hydrophilic; the hydrophobicicity of the particles can be increased by esterification of octenylsuccinic anhydride. ^{9, 16, 181} Stable emulsions of corn oil in water were formed in the presence of crystalline particles of esterified sago starch. ¹⁸² Comparison of the sunflower oil emulsions stabilized by various starch particles (rice, waxy maize, wheat and potato starch) demonstrated that rice starch-containing emulsions are most stable. ¹⁸³ Emulsions containing native particles of rice starch, waxy maize starch and wheat starch were obtained, while attempts to prepare emulsions containing native potato starch particles failed. ¹⁸⁴

A comparison of emulsions of canola oil and tocoferol stabilized by amaranth starch particles (native and modified via esterification with lauroyl chloride) was reported. ¹⁸⁵ The stabilization by modified starch particles resulted in the formation of emulsions with smaller droplets of the dispersed phase, which were hence more stable.

The use of sweet potato starch and corn starch particles of 100 to 220 nm in diameter afforded the most stable emulsions. When smaller or larger particles were used, the stability of emulsions decreased. ¹⁸⁶

If the emulsion was heat-treated, the particles adsorbed on the surface of oil droplets swelled. As a result, the particle shell became more compact and represented a continuous layer on the surface (Fig. 38). This was favourable for increasing the emulsion stability, but simultaneously the rate of material transport through this layer decreased. The degree of swelling of starch particles adsorbed on the droplet surface could be controlled by varying the temperature and duration of heating. ^{187, 188}

Zoom In Zoom Out Reset image size

Saari et al. ¹⁸⁹ observed a similar effect upon gelation of starch particles in emulsions with CaCl₂ in the dispersion medium at room temperature. After 30 min, a continuous layer formed on the droplet surface.

The use of rice starch particles gave rise to highly concentrated emulsions with a 0.75 – 0.85 fraction of the oil dispersed phase. ¹⁹⁰

Poly(butyl methacrylate) nanocomposite particles were obtained by polymerization of the dispersed phase of an emulsion consisting of the monomer and stabilized by starch particles. ¹⁹¹

The first study ¹⁹² dealing with stabilization of Pickering emulsions by microcrystalline cellulose particles was published in 1986. However, cellulose nanocrystals with a length from 70 nm to several micrometres and a thickness from 5 to 20 nm, are more efficient emulsifiers. ^{8, 193} Due to high surface charge and, hence, electrostatic repulsion, cellulose nanocrystals are weakly adsorbed on the surface of dispersed phase droplets in emulsions with distilled water. The addition of electrolytes in low concentrations reduces the surface charge, and cellulose nanocrystals are adsorbed to form a denser surface layer.

The stabilizing ability of nano- and microparticles of cellulose depends on the type of plant material and the method used to extract cellulose from the plant. ¹² When hexadecane droplets in water were stabilized by 200 nmlong needle-shaped nanocrystals of cotton cellulose with a diameter of 16 nm, more stable emulsions with smaller droplets were obtained than in the case of stabilization by 19 nm long granules with a diameter of 11 nm. ¹⁹⁴

Emulsions with the dispersed phase of coconut oil and canthaxanthin are more stable when stabilized by cotton cellulose nanocrystals with a length of 112 nm than in the case of ∼1.2 μm-long bacterial cellulose particles. ¹⁹⁵ The micrographs of polystyrene particles that were formed upon polymerization of styrene-in-water emulsions stabilized by cellulose nanocrystalss of various origin (5 g L⁻¹ concentration) are presented in Fig. 39. ¹⁹⁶ Using stabilization with bacterial cellulose nanocrystals, emulsions of hexadecane in water with a similar droplet size distribution were produced. ¹⁹⁷

Zoom In Zoom Out Reset image size

Kalashnikova et al. ¹⁹⁶ showed that the minimum coverage of the droplet surface by cellulose nanocrystals required for the formation of emulsions is ∼44% for of Cladophora cellulose, ∼60% for bacterial cellulose and ∼84% for cotton cellulose. The nanocrystal length varied from 189 nm for cotton cellulose to 4 μm for cladophora cellulose; the diameter was 13 – 20 nm. The emulsions were more efficiently stabilized by small nanocrystals of cotton cellulose than by larger ones. The latter could not be completely adsorbed on the droplet surface and attached simutaneously to two droplets, which resulted in flocculation of droplets in the emulsion. This is a typical behaviour of bacterial cellulose particles and, to a higher extent, for cladophora cellulose ones (see Fig. 39 c, f ).

Meanwhile, at lower concentrations of needle nano- and microcrystals of cellulose in a certain range of the solution ionic strength, the aggregation of crystals can take place in the dispersion medium, resulting in the formation of a gel-like network, which provides emulsions with additional sedimentation stability. ^{67 – 69}

The W/O Pickering emulsions were obtained using hydrophobized cellulose. For example, water-in-toluene emulsions were formed in the presence of cellulose nanocrystals modified with cinnamic acid ¹⁹⁸ or carboxylic acids. ¹⁹⁹ Highly concentrated emulsions of water in toluene, cyclohexane or styrene with up to 89 vol.% fraction of the dispersed phase were prepared using microcrystalline cellulose modified with stearoyl chloride. ²⁰⁰

Emulsions with Miglyol 812 medium-chain triglycerides as the dispersed phase were stabilized by a mixture of 170 nm-long cellulose nanoparticles of 17 nm in diameter and round-shaped quinoa starch particles with a size of 1.7 μm in 1 : 1 mass ratio. These emulsions were more stable to coalescence and sedimentation than those obtained with a single type of particles. The higher stability was attributed to the fact that the starch particles created a steric barrier that prevented coalescence. Possibly, cellulose nanoparticles on the droplet surface affected the Ostwald ripening. ²⁰¹

Oil-in-water emulsions stabilized by composite nanoparticles consisting of multiwalled carbon nanotubes and cellulose ²⁰² or magnetite and cellulose ²⁰³ were reported.

Stabilization of emulsions by lipid particles is mainly in demand in the food industry. For example, emulsions of water in soybean oil containing tristearin, palm stearin or palm oil crystals were obtained, but their stability was moderate. ²⁰⁴

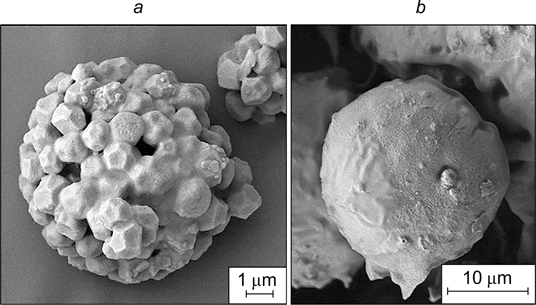

Emulsions containing canola oil as the dispersed phase and glycerylstearyl citrate particles of ∼152 nm in diameter with a high ζ-potential (–49 mV) were stable for >6 months. ^{205, 206} A micrograph of this emulsion is shown in Fig. 40. ²⁰⁶

Zoom In Zoom Out Reset image size

Sunflower oil-in-water emulsions were stable to coalescence for long periods of time at a full coverage of the interface by ∼170 nm tripalmitine particles modified with sodium caseinate. ²⁰⁷ The polarity of tripalmitine particles depended on the type of surfactant used for modification and decreased in the following order: whey protein isolate > soybean lecithin > soybean lecithin + Tween 20 > Tween 20 > polyglyceryl-polyricinoleate > no surfactant. Hence, lipid particles with a whey protein isolate were able to stabilizy sunflower oil-in-water emulsions. In the presence of lipid particles modified with soybean lecithin, O/W emulsions formed, but they were highly unstable. In the presence of lipid particles with soybean lecithin and Tween 20, W/O emulsions with a droplet size up to 30 μm were formed. Water-in-oil emulsions highly stable to coalescence with a dispersed phase droplet size of 5 – 15 μm were formed by using tripalmitine particles modified with Tween 20 or polyglyceryl-polyricinoleate or these lipid particles without surfactant modification. ^{208, 209}

Lipid particles consisting of Suppocires C (a mixture of C₁₀–C₁₈ fatty acid mono-, di- and triglycerides) modified with surfactant KolliphorsHS15 (a mixture of polyethylene glycol 660 and polyethylene glycol 660 12-hydrostearate, solid below 20 °C), were used to stabilize nanoemulsions with the LabrafacsWL 1349 dispersed phase (a mixture of medium-chain triglycerides). ²¹⁰

Corn oil droplets with added whey protein isolate, which have a positive surface charge, were stabilized by octadecane lipid particles modified with sodium dodecyl sulfate and, hence, having a negative surface charge. ²¹¹

Zafeiri et al. ²¹² studied lyophilization and the subsequent resuspension of lipid particles of glyceryl tristearate or cetyl palmitate modified with sodium caseinate or Tween 80. Stabilization by sodium caseinate-modified lipid particles gives sunflower oil-in-water emulsion with droplet size of 8 – 15 μm. The droplet size did not change upon lyophilization and the subsequent resuspension.

Soybean oil-in-water emulsions stabilized by phytostyrene microparticles were obtained. An increase in the concentration of phytostyrene particles resulted in the formation of W/O emulsions. ²¹³

Gu et al. ²¹⁴ described emulsions in which corn oil droplets were dispersed in water and stabilized by β-lactoglobulin. These droplets had a positive surface charge. After pectin modification, the surface charge of the droplets changed to negative. Then the emulsion of pectin-modified droplets with s size of 0.6 μm was mixed with an emulsion in which the droplets were not modified and had a 0.2 μm size. The smaller positively charged droplets were adsorbed on the surface of the larger, negatively charged ones. A relatively stable system formed if the concentration of the smaller droplets was sufficient to completely cover the surface of the larger droplets.

Pickering emulsions stabilized by particles of drugs are known. For example, Capmul® MCM C8 (caprylic acid monoglyceride) emulsions stabilized by ∼340 nm silybin particles, consisting of a mixture of flavonolignans extracted from milk thistle, were obtained. ²¹⁵ Sunflower oil-in-water emulsions were stabilized by amorphous curcumin particles ²¹⁶ and flavonoid (rutin and naringin) particles. ²¹⁷

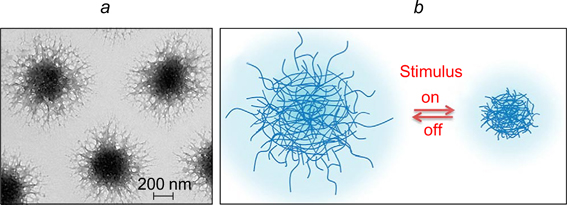

Microgel particles are micrometre particles formed from a polymer gel. ^{218, 219} At temperatures below the critical solution temperature, microgel particles swell; ²²⁰ they become porous and are deformed. ^{14, 58, 221} Microgel particles of poly(N-isopropylacrylamide) and its copolymers are used, most often, to stabilize Pickering emulsions. ²²² The first publication addressing this issue appeared in 2003. ²²³

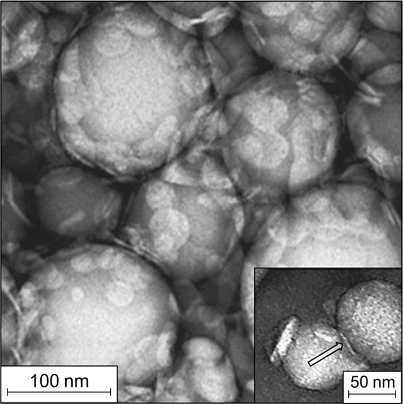

When the degree of cross-linking of polymer molecules was relatively low, the microgel particles had a spherical shape when located in the bulk of the dispersion medium and assumed a flattened or lens shape upon the adsorption at an interface in an emulsion (Fig. 41 a ). As the degree of cross-linking increased, the shape of the microgel particles adsorbed at the interface became more and more spherical (see Fig. 41 b,c ). It can be seen (see Fig. 41 d ) that the filaments in the peripheral areas of the neighbouring deformed particles overlapped. ²²⁴

Zoom In Zoom Out Reset image size

The more deformable the microgel particles were upon adsorption, the higher was the tendency of the dispersed phase droplets in this emulsion for flocculation. ²²⁵ In relation to emulsions stabilized by poly(N-isopropylacrylamide) microgel particles with the same degree of cross-linking, but with different size, it was shown that particles with a size of 760 nm were more deformable than 250 nm particles. Thus, emulsions stabilized by larger particles were more flocculated. ²²⁶

If the layer of the adsorbed microgel particles was dense and homogeneous, the probability of droplet flocculation to give a monolayer of bridging particles decreased. This situation occurred when stabilization was performed by small and derformable particles, which were more rapidly adsorbed at the interface; in this case, the adsorption layer was faster rearranged into a close-packed layer with a high degree of overlap of the peripheral areas of the microgel particles. The adsorption of larger particles with a greater degree of cross-linking was slower. Hence, the adsorption layer was less homogeneous due to the non-uniform core and shell size of the adsorbed particles, and this promoted the flocculation of droplets of the dispersed phase. ²²¹

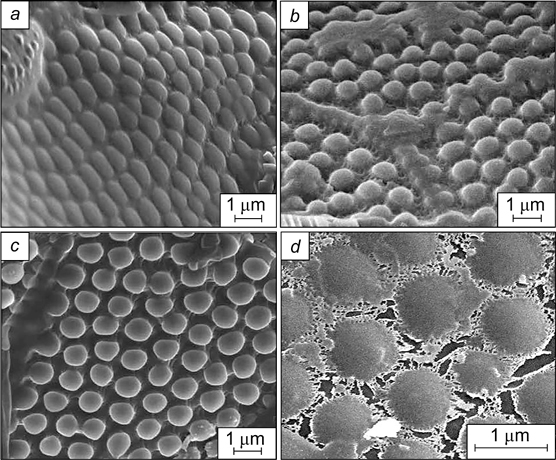

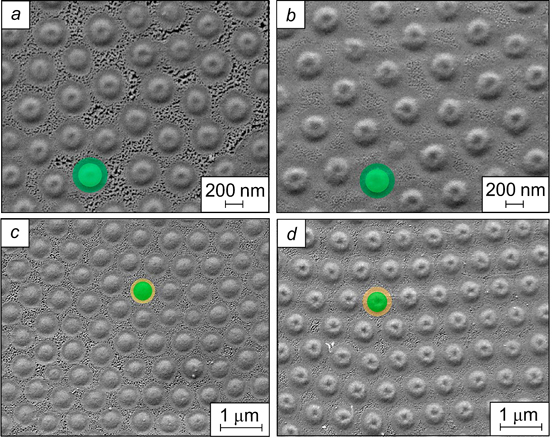

Geisel et al. ²²⁷ obtained two types of microgel particles, those formed by the N-isopropylacrylamide – methacrylic acid copolymer and similar particles with a poly(N-isopropylacrylamide) shell. At pH 3, the particles without a shell were almost uncharged; at pH 9, they had a negative surface charge. As the pH changed from 3 to 9, the particle size increased from 276 to 362 nm. The size of particles with the poly(N-isopropylacrylamide) shell changed to a lesser extent upon the change in the pH from 3 to 9, namely, from 378 to 400 nm, that is, the degree of their swelling increased insignificantly. The surface charge did not change with increasing pH of the aqueous phase either. The particles with and without a shell both had a higher degree of cross-linking at the centre and a lower one at the periphery, i.e., they had a core–corona morphology. When examined from the aqueous side, all particles were noted to be considerably deformed at the water/oil interface, in particular, the core was flattened and the corona with a low cross-linking degree was stretched (Fig. 42). Upon flattening, the particles were slightly immersed into the organic phase. On the side of the aqueous phase, the particles retained a bulk shape, which depended on the pH of the aqueous phase; thus, the adsorbed particles had a lens shape.

Zoom In Zoom Out Reset image size

Massé et al. ²²⁸ emphasized that the charge distribution at the centre and on the surface of microgel particles did not affect significantly their ability to be adsorbed at the interface in the emulsion. Irrespective of the degree of swelling, microgel particles were adsorbed on the oil droplets to form a hexagonal packing. Thus, stabilization of emulsions via the adsorption of these particles depends on the viscoelastic properties of the interface with the microgel particles rather than on the electrostatic repulsion of the droplets. ²²⁹ The results of interfacial rheological measurements showed a correlation between the interfacial elasticity and stability of emulsions. ²³⁰

Most of bioactive polymer particles are micro- and nanogel particles. Their main difference from the particles described in the previous Section is that they consist of natural polymers used in food industry. Protein and polysaccharide particles are used for stabilization of emulsions. ^{15, 17} The starch and cellulose particles considered above also refer to bioactive polymer particles.

Milk can be regarded as a Pickering emulsion stabilized by casein micelles. ²¹⁸ Despite this name, casein micelles are not conventional micelles formed by amphiphilic molecules. They are highly hydrated particles with an average diameter of ∼200 nm and consist of various phosphorylated milk proteins, caseins and calcium phosphate nanoclusters.

Wang et al. ²³¹ studied emulsions of medium-chain triglycerides in water stabilized by genipin-cross-linked gel nanoparticles of casein with a size of ∼18 nm and gel particles with a size of ∼110 nm consisting of calcium-cross-linked casein nanoparticles subsequently cross-linked by genipin (Fig. 43). After 30 days of storage, the average size of dispersed phase droplets stabilized by smaller casein nanoparticles almost did not change: the initial diameter was 1.48 ± 0.06 μm, while 30 days later, the diameter was 1.51 ± 0.08 μm. In emulsions with larger gel casein particles, the average droplet size increased during 30 days from 3.66 ± 0.07 to 4.27 ± 0.51 μm.

Zoom In Zoom Out Reset image size

In soybean oil-in-water emulsions stabilized by 100 – 400 nm-long β-lactoglobulin fibrils, dispersed phase droplets with a size of 11 – 19 μm did not coalesce for 56 days at room temperature. ²³²

Canola oil-in-water emulsions were stabilized by zein particles with a size of ∼136 nm. ²³³ When zein particles were modified with sodium caseinate, their adsorption on the droplet surface increased; hence, emulsion stability was enhanced. When soybean oil emulsions were stabilized by zein particles with a size of 360 nm modified with sodium stearate, the resulting emulsions were stable to flocculation and coalescence. ²³⁴

Corn oil-in-water emulsions with ∼400 nm particles of quinoa protein isolate were stable to flocculation at a particle concentration >1 mass %. ²³⁵ In the case of stabilization of corn oil droplets by 2 mass % whey protein isolate particles of 200 – 500 nm in size, stable emulsions were formed only at pH above or below the protein isoelectric point and at an ionic strength of the dispersion medium not exceeding 10 mmol L⁻¹ (Ref. 236).

Zhu et al. ²³⁷ studied the stability of soy oil emulsions in freezing – thawing processes. Emulsions containing heat-treated soy protein isolate particles (∼178 nm in size) and whey protein isolate particles (∼266 nm in size) were more stable than the emulsions stabilized by the same particles (92 and ∼130 nm in size, respectively) without heat treatment. In the presence of NaCl in the dispersion medium, the stability of the emulsions to freezing – thawing increased. ²³⁸

Soybean oil emulsions stabilized by the particles of pea protein isolate of 40 – 500 nm in size were stable at pH 3. ^{239, 240} The rate of release of encapsulated β-carotene decreased as the dispersed phase fraction increased to 0.6; the stability of emulsions under conditions mimicking the process of digestion increased.

Sarkar et al. ²⁴¹ investigated emulsions containing lactoferrin particles of 100 nm in diameter and lactoferrin–inulin particles with a diameter of 116 nm. It was shown that in the acidic gastric medium in vitro, the adsorbed particles create a barrier that retarded the diffusion of pepsin and simultaneously prevented coalescence of droplets in the Pickering emulsions.

Highly concentrated emulsions with hexane or sunflower oil (80 vol.%) as the dispersed phase stabilized by gelatine microgel particles of ∼200 nm in size have been prepared. The emulsions were stable at pH values differing from the isoelectric point. ²⁴² Emulsions containing 50 vol.% dispersed phase were stabilized by gelatine microgel particles modified with glucomannan and tannic acid. The minimum concentration of the particles needed for the formation of emulsions of medium-chain triglycerides in water was 0.1 mass %. ²⁴³

Whey protein isolate particles of 150 nm in size were used to stabilize W/W emulsions in which one aqueous phase contained waxy maize starch, while the other phase was an aqueous solution of the ceratonia siliqua gum. ²⁴⁴

Pickering emulsions stabilized by chitosan particles are being actively studied. ¹⁰ Chitosan is insoluble in water at pH above its pK_a = 6.5 and forms nanometre-sized particles or micrometre-sized flocculated aggregates. ²⁴⁵ At pH 6.5, the size of gel-like chitosan particles is 82 – 84 nm. ^{245, 246} Liquid paraffin, hexane, toluene, dichloromethane, ²⁴⁵ medium-chain triglycerides, ²⁴⁷ corn oil ²⁴⁶ and sunflower oil ²⁴⁸ emulsions in water stabilized by chitosan particles were prepared. The emulsions with a droplet size of 1.7 μm were stable for >5 months. ²⁴⁶ Chitosan nanoparticles modified with lecithin ²⁴⁹ and tripolyphosphate ²⁵⁰ were used to stabilize the Pickering emulsions.

Highly concentrated hexadecane-in-water emulsions with a dispersed phase fraction of 80 vol.% were stabilized by rod-shaped chitin nanocrystals with a length of 160 nm and a thickness of 16 nm. ²⁵¹ In corn oil-in-water emulsions with a dispersed phase fraction of 10 mass %, chitin nanocrystals were adsorbed on oil droplets and formed a gel-like network in the bulk of the dispersion medium. Emulsions with a chitin concentration of 1 mass % were stable for 6 months. ⁷⁰

Owing to their biocompatibility and high stability, Pickering emulsions stabilized by bioactive polymer particles are used in food and pharmaceutical industry ^{11, 18, 252} and for targeted delivery of hydrophilic and lipophilic bioactive compounds. ¹⁹

Pickering emulsions can be obtained using non-traditional particles such as cells of microorganisms. The baker's yeast cells Saccharomyces cerevisiae and the lactic acid bacteria Lactobacillus acidophilus and Streptococcus thermophilus inactivated by heat treatment were studied as stabilizers for O/W emulsions. ²⁵³

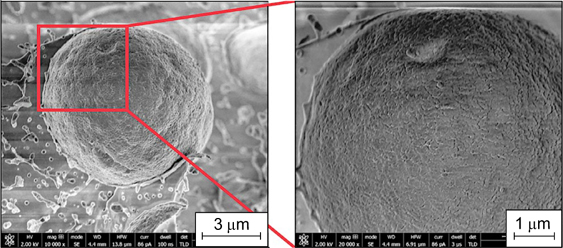

The L. acidophilus cells had a rod-like shape and were <5 μm long. Their adsorption resulted in the most complete (>90%) coverage of the olive droplet surface in the emulsion (Fig. 44). Upon the adsorption of the round-shaped S. cerevisiae cells with a diameter of <10 μm, the surface coverage was ∼80%. The Streptococcus thermophilus cells were the smallest (<1 μm in diameter) and the surface coverage of the droplets did not exceed 65%. Correspondingly, emulsions stabilized by the L. acidophilus and Saccharomyces cerevisiae cells were more stable.

Zoom In Zoom Out Reset image size

The yeast cells grown in the medium containing paraffin oil, water and inorganic salts stabilized the system with the formation of a Pickering emulsion. ²⁵⁴ Similar results on the cell adsorption at the interface between hexadecane, octane or p-xylene and water were obtained upon the growth of Acinetobacter calcoaceticus. ²⁵⁵

Stable emulsions were formed using stabilization by A. venetianus cells, which surrounded droplets of hexadecane in water as a three-dimensional network. ⁴¹ The stability of hexadecane-in-water emulsions stabilized by the Saccharomyces cerevisiae yeast cells and the effect of various factors on phase separation of these emulsions were studied by Furtado et al. ²⁵⁶

The yeast cells modified with oleic acid were used to stabilize toluene-in-water emulsions containing magnetite nanoparticles in the dispersed phase. ²⁵⁷ Emulsions of tetradecane in water were obtained when electrostatically bound associates of chitosan molecules with Escherichia coli, Staphylococcus aureus, Bacillus subtilis, Bacillus cereus and Lactobacillus sakei cells were adsorbed at the interface. ²⁵⁸

Janus particles were named after the two-faced Roman god. ²⁵⁹ The surface of a Janus particle consists of two parts differing in the chemical composition or physical properties such as hydrophobicity, magnetic and optical properties and so on. Janus particles can consist of polymers, lipids or inorganic compounds.

If the particle consists of two parts differing in the hydrophobicity, this particle is considered to possess amphiphilic properties. ²⁵⁹ These particles are arranged at oil/water interfaces in the same way as surfactant molecules. ^{31 – 33}

On the one hand, Pickering emulsions can be used to obtain Janus particles and, on the other hand, they can be stabilized by such particles. ²¹

Most often, Janus particles are obtained by changing the composition or by functionalizing a part of the surface of homogeneous particles. In Pickering emulsions, a part of a particle at the interface is immersed into the organic phase and, hence, it is protected from the chemical action of the aqueous phase. If the dispersed phase is an oil with a relatively high melting point, such as paraffin, cooling of a Pickering emulsion results in solidification of the parts of particles immersed into the organic phase, which prevents the particle migration over the interface or rotation. Meanwhile, the part of the particle located in the aqueous phase can be chemically modified (Fig. 45). This method is suitable for preparing large amounts of Janus particles. ²⁶⁰

Zoom In Zoom Out Reset image size

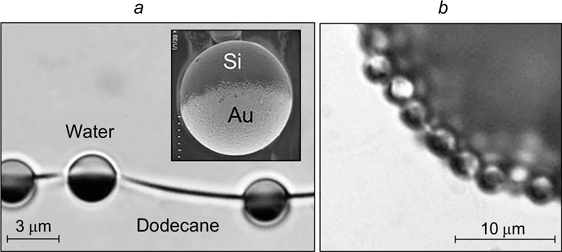

Janus particles made of silica were prepared in such a way that a half of their surface was covered by gold and modified with octadecanethiol to make it hydrophobic. ²⁶¹ At a water/dodecane interface, these particles were immersed into both the aqueous and organic phases (Fig. 46 a ). Almost all Janus particles were adsorbed on the droplet surface in a W/O emulsion (Fig. 46 b ), which confirms that they were surface active.

Zoom In Zoom Out Reset image size

Janus particles were formed when a part of the surface of a silica particle was modified with 3-aminopropyltrimethoxysilane and gold nanoparticles were then deposited on the modified part of the surface (Fig. 47 a ). ²⁶²

Zoom In Zoom Out Reset image size

Water-in-oil and oil-in-water emulsions were stabilized by particles consisting of an aqueous gel of alginate and shellac (Fig. 47 b ), ²⁶³ polystyrene and poly[3-(ethoxysilyl)-propyl methacrylate] (Fig. 47 c ), ²⁶⁴ polystyrene and poly(2-vinylpyridine), ²⁶⁵ copolymer of methacrylic acid, methyl methacrylate and butyl acrylate and copolymer of methacrylic acid and methyl methacrylate. ²⁶⁶ Stabilization of W/O emulsions was attained by silica particles half of which were coated by gold nanoparticles. ²⁶⁷

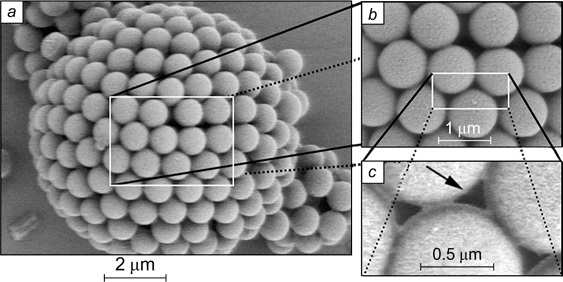

A micrograph of a W/O emulsion stabilized by three-component Janus particles, one part of which consisted of the styrene – divinylbenzene copolymer, and the other part consisted of silica-coated Fe₃O₄, is shown in Fig. 47 d . ²⁶⁸

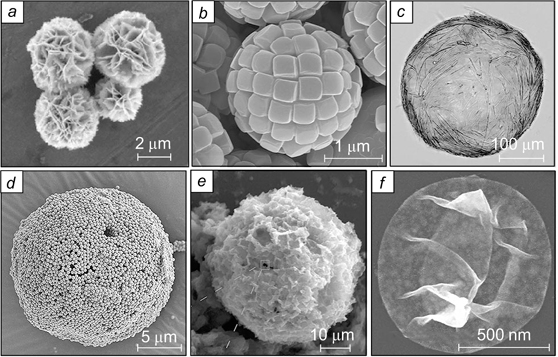

Stable O/W emulsions were obtained using Janus particles one part of which was composed of the styrene – polyvinyl alcohol copolymer and the other part of which consisted of polytetradecyl acrylate. The styrene – polyvinyl alcohol copolymer surface was decorated with Fe₂O₃ nanoparticles stabilized by polyvinylpyrrolidone (Fig. 47 e ). ²⁶⁹ In a magnetic field, these emulsions broke down, while in the absence of a magnetic field, they could be redispersed.

Oil-in-water emulsions with an alkaline dispersion medium were stabilized by particles the cores of which consisted of the methyl acrylate – butyl acrylate copolymer, a part of the surface was coated by a shell of 2-(dimethylamino)ethyl methacrylate – butyl acrylate copolymer, while the other part was coated by the pentafluorostyrene – butyl acrylate copolymer (Fig. 47 f ). ²⁷⁰

Many authors emphasize that Janus particles can be used to obtain emulsions responsive to various stimuli (see Section 7).

Among emulsions that respond to the change in the pH of the aqueous dispersion medium, most studied are those stabilized by microgel particles formed by polyacrylate derivatives that are hydrated in the acid medium and dehydrated in the alkaline medium. The effect of pH of the dispersion medium on the stability and breakdown of emulsions was studied by various researchers (see, for example, publications ^{144, 146, 229, 230, 270, 305, 307} ).

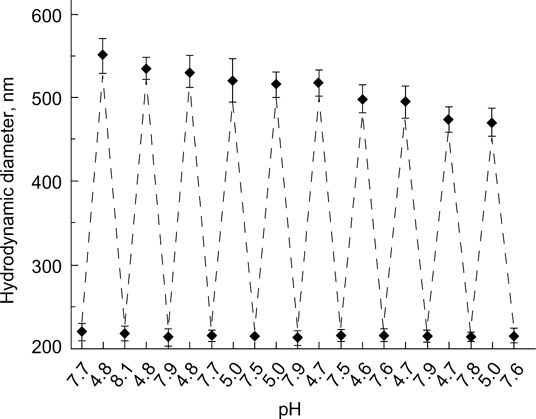

The latex–microgel transition took place in the particles of 2-(diethylamino)ethyl methacrylate – ethylene glycol methacrylate copolymer cross-linked by divinylbenzene at pH < pK_a (pK_a = 6.9). Upon this transition, the particle size increased from ∼220 to ∼550 nm (Fig. 54). At pH 10, the particles existing in the latex state and having a negative surface charge stabilized emulsions of dodecane, sunflower oil, isononyl isononanoate or isopropyl myristate in water. Meanwhile, at pH 3, the particles existing as microgel had a positive surface charge; hence, they were desorbed from the interface and thus did not stabilize the emulsion. It was possible to carry out more than ten emulsification–demulsification cycles by changing the pH of the dispersion medium. ¹⁴⁶

Zoom In Zoom Out Reset image size

Similar results were obtained when emulsions were stabilized by Janus particles with the core of the methyl acrylate – butyl acrylate copolymer, a part of the surface had a 2-(dimethylamino)ethyl methacrylate – butyl acrylate copolymer shell and the rest of the surface was covered by pentafluorostyrene – butyl acrylate copolymer. These emulsions were stable at pH 10. At pH 3, the particles were desorbed from the interface due to protonation of groups in poly[2-(dimethylamino)ethyl methacrylate]. ²⁷⁰

Water-in-water emulsions with a polyethylene oxide solution dispersed in a dextran solution or a dextran solution in a polyethylene oxide solution were obtained. The emulsions were stabilized by microgel particles of ethyl acrylate – methacrylic acid – butane-1,4-diol diacrylate terpolymer. When the pH was increased in a narrow range, the particle radius sharply increased from 60 to 220 nm at pH ∼7. In the pH range from 5.0 to 7.5, the microgel particles were adsorbed at the interface, but only in the narrow pH range of 7.0 – 7.5, the emulsions were stable for more than a week. ³¹⁴

Most likely, the change in the microgel particle size and charge is not crucial for stabilization of emulsions. As shown by Brugger et al., ²³⁰ in the emulsions stabilized by cross-linked microgel particles of the N-isopropylacrylamide – methacrylic acid copolymer of ∼500 nm in size at 20 °C, the elastic modulus of the interfacial layer sharply decreased at pH < 5. An analogous decrease in the elasticity of the interfacial layer was observed upon temperature rise, which was attributed to decrease in the particle interactions with one another due to a decrease in their hydrophilicity. Meanwhile, in the case of the charged surface and counterions inside the microgel particles, the degree of particle swelling increases. The microgel particles become more deformable, which influences the viscoelastic properties of the interfacial layer. ²²⁹

Emulsions responsive to a pH change were obtained when modified silica nanoparticles were used for stabilization. 3-Aminopropyltriethoxysilane was grafted on the surface of the silica nanoparticles and then benzaldehyde was bound to the amino groups. At pH 7.8, these nanoparticles were adsorbed at the interface and stabilized O/W emulsions. When pH decreased to 3.5, dissociation and elimination of benzaldehyde took place. The nanoparticle became hydrophilic and desorbed from the interface. ¹²⁹

Cellulose nanocrystals modified by poly[2-(dimethylamino)ethyl methacrylate] stabilized an emulsion with an alkaline dispersion medium. For poly[2-(dimethylamino)ethyl methacrylate], pK_a ≈ 7.4. At pH > pK_a, the polymer molecules were hydrophobic and, in combination with hydrophilic cellulose nanocrystals, they were adsorbed at the interface in the emulsion. At pH < pK_a, the particles became hydrophilic due to hydration of poly[2-(dimethylamino)ethyl methacrylate] and migrated to the aqueous phase. ⁶⁷

At pH values above pK_a = 6.5, chitosan forms water-insoluble nanoparticles that stabilize O/W emulsions. At pH < pK_a, chitosan is dissolved in the dispersion medium and, hence, the emulsions break down. Five emulsification–demulsification cycles were carried out in these systems. ^{71, 245}

Protein nanostructures shaped as dodecahedra with a size of ∼25 nm were used to prepare emulsions responsive to pH changes. In neutral and alkaline media, stable O/W emulsions were formed. In acidic media, flocculation of oil droplets took place. This process was reversible; flocculation and redispersion of the emulsions occurred in five cycles. ³¹⁵

Emulsions stabilized by negatively charged silica nanoparticles and a zwitter-ionic surfactant, dodecyldimethyl carboxyl betaine, were stable to coalescence at pH ⩽ 5, while in acidic solutions, the surfactant molecules were charged oppositely to nanoparticles and were adsorbed on their surface. In alkaline solutions at pH > 8.5, the emulsions broke down. ¹¹⁹

Stabilization by Ludox CL silica nanoparticles modified with the poly(sodium 4-styrenesulfonate) polyelectrolyte, which were positively charged in neutral medium, gave emulsions stable for >8 months. As pH decreased to 1 or increased to 13, phase separation in the emulsions took place. ³¹⁶

When Ludox CL nanoparticles modified with potassium hydrogen phthalate were used, O/W emulsions were formed in the pH range from 3.5 to 5.5. An increase or decrease in the pH resulted in phase inversion of emulsions. ³¹⁷

At pH > 9.5, an oil-in-water emulsion stabilized by Mg(OH)₂ particles was obtained; at lower pH, phase separation took place. This process was also reversible. ³¹⁸

Janus particles composed of polystyrene and poly(2-vinylpyridine) stabilized an emulsion of water in toluene at pH 7. A decrease in pH to 2 induced phase inversion and gave an O/W emulsion; as pH increased to 9, a W/O emulsion formed once again. Several cycles of pH variation from 2 to 9 were carried out. After phase inversion, the size of droplets of the dispersed phase in the emulsion changed within the error of measurements. ²⁶⁵ Janus particles consisting of polystyrene, 2-(diisopropylamino)ethyl methacrylate and 3-(triethoxysilyl)propyl methacrylate also stabilized the O/W emulsions at pH < 6.0 and W/O emulsions at pH > 7.0. ³¹⁹

The action of certain ions changes the structure of polymer molecules, which can also be used for the design of stimuli-responsive Pickering emulsions. Tan et al. ³²⁰ obtained Pickering emulsions sensitive to perchlorate ions. Emulsions were stabilized by silica particles with surface-grafted poly[2-(methacryloyloxy)ethyltrimethylammonium] chloride molecules. The addition of NaClO₄ in a concentration of <10 or >40 mmol L⁻¹ resulted in the formation of stable emulsions; in the concentration range of 10 – 40 mmol L⁻¹, the emulsions broke down.

In a system consisting of liquid paraffin and an aqueous phase containing >0.2 mol L⁻¹ calcium cations, 10 – 40 nm nanoaggregates of the sodium salt of the 4-styrenesulfonic acid – maleic acid copolymer formed. In the presence of these nanoaggregates, stable O/W emulsions were formed. When the concentration of calcium ions was <0.2 mol L⁻¹, the polymer nanoaggregates split into separate molecules, and the emulsions broke down. ¹⁴⁷

Pickering emulsions sensitive to gases have been developed. For example, O/W emulsions stabilized by particles of the copolymer of 2-(diethylamino)ethyl methacrylate and sodium methacrylate cross-linked with N,N'-methylenebis(acrylamide) were sensitive to CO₂ and N₂ dissolved in water. On bubbling of CO₂, pH of the dispersion medium decreased from 8.8 to 5.6, and emulsions broke down. The subsequent bubbling of N₂ and homogenization resulted again in emulsification. ³²¹ However, the response time was much longer than that of pH-responsive emulsions under the action of acids or alkalis: 15 – 20 min.

The emulsions stabilized by microgel particles of poly[2-(diethylamino)ethyl methacrylate-co-2,3,4,5,6-pentaflu- orostyrene] were sensitive to O₂ and CO₂. ³²²

Emulsions can respond to temperature changes because of the change in the hydration of molecules of the stabilizing particles. For example, the molecules of oxyethylated surfactants become hydrophobic upon dehydration at elevated temperature. The O/W emulsions stabilized by silica nanoparticles modified with alkyl polyoxyethylene monododecyl ethers were stable at room temperature, but broke down on heating. The process was reversible; the emulsions could be redispersed after a decrease in temperature. ¹²⁷

When temperature-responsive polymer particles are used to stabilize emulsions, phase separation takes place due to the sharp decrease in the particle volume upon temperature change. In systems with a lower critical solution temperature, if the temperature drops below this value, the molecules of a linear polymer are hydrated and dissolved. The cross-linked polymer molecules swell to form a hydrogel. Hence, upon the external stimulus, for example, on temperature rise, the particle size decreases (Fig. 55). ²²¹ Thus latex particles with a size of ∼1 μm obtained by copolymerization of N-isopropylacrylamide, acrylamide and N,N'-methylenebis(acrylamide) decreased ∼10-fold in the volume as the temperature increased above the critical solution temperature of poly(N-isopropylacrylamide). ²²⁰

Zoom In Zoom Out Reset image size

Diblock copolymer of sulfobetaine methacrylamide and N-isopropyl methacrylamide, which has both lower and upper solution temperatures, was grafted to silica nanoparticles. These nanoparticles stabilized O/W emulsions at 65 °C, while at 25 °C, the emulsions broke down. ³²³

In O/W Pickering emulsions stabilized by star-shaped polyethylene oxide particles with a diameter of 24 nm, dispersed phase droplets were in the non-flocculated state at room temperature. On heating above the cloud point, flocculation of the oil droplets took place. Coalescence did not occur in the emulsion, but flocculation was irreversible. ³²⁴

Tavacoli et al. ³²⁵ obtained microcapsules with the core made of a bicontinuous emulsion stabilized by silanized silica particles and the external surface formed by poly(12-hydroxystearic acid) particles, which responded to changes in the temperature and the phase ratio.

Heating of nanoemulsions stabilized by solid lipid nanoparticles above the lipid melting point resulted in coalescence of the dispersed phase droplets; hence, the rate of release of the ketoprofen encapsulated in the dispersed phase droplets increased. ²¹⁰

A magnetic field induces demulsification, since magnetic particles are desorbed from the interface. In the absence of magnetic field, these emulsions can be mechanically redispersed. Most often, there emulsions are stabilized using iron oxide nanoparticles and nanocomposites with iron oxide nanoparticles.

In experiments carried out by Kaiser et al., ³²⁶ cyclohexane droplets stabilized by FeO_x–polystyrene core – shell particles moved into the aqueous medium under the action of a permanent magnetic field. They could be separated from the aqueous phase, washed, and redispersed. Under the action of high-frequency magnetic field, demulsification took place. Melle et al. ³²⁷ determined the critical magnetic field strength for destabilization of a decane-in-water emulsion stabilized by iron carbonyl particles.

Magnetic field-responsive O/W emulsions were stabilized by non-modified Fe₃O₄ nanoparticles, ^{328, 329} oleic acid-modified Fe₃O₄ nanoparticles, ³³⁰ ferrocenyl azine, ³³¹ Fe₃O₄–cellulose nanocrystal nanocomposites, ³³² Janus particles consisting of polymers and Fe₂O₃. ²⁶⁹ Water-in-oil emulsions were stabilized by graphene oxide nanoparticles modified with iron oxide nanoparticles. ¹⁵⁶

Emulsions stabilized by Fe₃O₄ nanoparticles modified with poly[2-(dimethylamino)ethyl methacrylate] were responsive to the magnetic field and to the change in the pH of the aqueous medium. ³³³

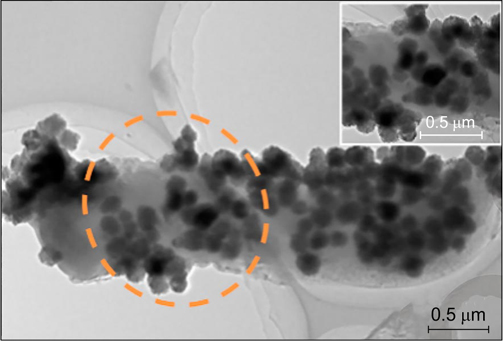

The crude oil-degrading Brevibacillus parabrev bacteria covered by a shell of Fe₃O₄ nanoparticles modified with poly(allylamine hydrochloride) (Fig. 56) proved to be efficient stabilizers for Pickering emulsions and emulsified kerosene, diesel fuel, tetradecane, dimethyl silicone oil and soya oil with an efficiency of >95%. Then the dispersed phase with adsorbed bacteria was separated by the action of a permanent magnet. This method was developed for cleaning the surface of water bodies after spillage of petroleum products. ³³⁴

Zoom In Zoom Out Reset image size

Ultraviolet irradiation of TiO₂ nanoparticles with dodecylsilane molecules grafted to the surface induced cleavage of hydrocarbon chains, and chains with ∼7 remained on the surface. The contact angle of the particles decreased from 140.5 to 105.5°; in the presence of such particles, water-in-oil emulsions broke down. ³³⁵

On visible light irradiation, phase inversion took place in O/W emulsions with silica nanoparticles modified with 2,2-dimethyl-5-(furan-2-ylmethylene)-1,3-dioxane-4,6-dione. ³³⁶ The irradiation in the near-IR region resulted in phase inversion in W/O emulsions containing silica nanoparticles with grafted spiropyran molecules. On repeated exposure to visible light, Pickering emulsions were again converted to W/O emulsions. ³³⁷

Some publications report the formation of Pickering emulsions responsive to combined stimuli such as pH change and temperature, ^{67, 229, 230} temperature and magnetic field, ³³⁸ pH and magnetic field, ^{330, 333} light and magnetic field, ³³⁹ light and the presence of dissolved CO₂ or N₂ gases, ³⁴⁰ pH and the same dissolved gases. ²⁶⁸
