Atmospheric Seasonality as an Exoplanet Biosignature

The search for life beyond our solar system will focus on the identification of biosignature gases in exoplanet atmospheres or perhaps surface signatures of life (Des Marais et al. 2002; Schwieterman et al. 2018). The expectation that life should be recognizable via atmospheric chemistry on inhabited worlds is supported by the co-evolution of Earth's biosphere and atmosphere (reviewed by Olson et al. 2018), including the emergence of biogenic disequilibrium (Lederberg 1965; Lovelock 1965). Nonetheless, uniquely identifying life based on spectral snapshots is complicated by potential ambiguities, including false positives (abiotic processes that chemically mimic life) and false negatives (misleading nondetections). As an example, Earth's O₂-rich atmosphere is the most globally apparent expression of its photosynthetic biosphere (e.g., Lyons et al. 2014), and O₂ is thus the most widely referenced biosignature gas. However, high levels of O₂ do not always require biological processes (reviewed by Meadows 2017; Meadows et al. 2018b): CO₂ photolysis or hydrogen escape may lead to detectable O₂ and/or O₃ (e.g., Domagal-Goldman et al. 2014; Luger & Barnes 2015). At the other extreme, O₂-producing life may evade detection. Oxygenic photosynthesis, for example, predated high levels of O₂ in Earth's atmosphere by more than two billion years if recent inferences of mid-Proterozoic (∼1.8–0.8 Ga) O₂ levels are correct (Planavsky et al. 2014a, 2014b). Earth's oxygenation trajectory thus demonstrates that extensive biological production of O₂ in surface habitats need not result in detectable levels of O₂ in the atmosphere, and productive biospheres may be "invisible" to conventional biosignature analysis (Gebauer et al. 2017; Reinhard et al. 2017). This potential for both false positives and negatives highlights the need to develop alternative biosignatures, including consideration of time-dependent signals.

Among a range of possibilities, seasonality in atmospheric composition is particularly promising. Atmospheric seasonality is biologically modulated on Earth and is likely to occur on other inhabited worlds regardless of specific metabolic substrates or products. It arises naturally on Earth, as it would elsewhere, from the interplay between the biosphere and axial tilt (obliquity). On Earth, for example, seasonal patterns in insolation shift the balance between photosynthesis:

$$\begin{eqnarray}&&{\mathrm{CO}}_{2}+{{\rm{H}}}_{2}{\rm{O}}\to {\mathrm{CH}}_{2}{\rm{O}}+{{\rm{O}}}_{2}\end{eqnarray} \tag{ 1 }$$

and the reverse reaction, aerobic respiration:

$$\begin{eqnarray}&&{\mathrm{CH}}_{2}{\rm{O}}+{{\rm{O}}}_{2}\to {\mathrm{CO}}_{2}+{{\rm{H}}}_{2}{\rm{O}},\end{eqnarray} \tag{ 2 }$$

resulting in antithetic oscillations of atmospheric CO₂ and O₂ (Keeling et al. 1976). Meanwhile, net fluxes of CH₄ and other trace biological products evolve seasonally as well, responding to temperature-induced changes in biological rates, gas solubility, precipitation patterns, density stratification, and nutrient recycling (e.g., Khalil & Rasmussen 1983). Biologically modulated seasonality ultimately impacts nearly every constituent of Earth's atmosphere. The question is whether these time-variable signals would be detectable to a remote observer.

Despite detailed analysis of Earth's present-day atmospheric seasonality via ground-based and satellite observations, the discussion of seasonality as a biosignature has remained qualitative (Meadows 2006, 2008; Schwieterman 2018). We lack a comprehensive understanding of which spectral features are likely to be impacted by observable seasonality on inhabited worlds and how these impacts would be modulated by stellar, planetary, and biological circumstances. We also lack criteria for evaluating potential false-positive seasonality scenarios, including insolation or temperature impacts on reaction rates or phase changes (e.g., Aharonson et al. 2009). We take a step here toward filling that gap by developing a conceptual framework that refines our expectations for, and interpretation of, temporal variability in atmospheric composition.

We begin by reviewing the biological, chemical, and physical mechanisms of CO₂, CH₄, and O₂ seasonality on Earth, including insight from its deep geologic past, and discuss how temporal variations in these gases may play out on terrestrial exoplanets. We include an examination of biotic and abiotic drivers of seasonal variations for these gases and how they may be discriminated. We end with a discussion of both the advantages and observational challenges facing seasonal biosignatures.

2.1. Carbon Dioxide

Seasonal variability in atmospheric CO₂ is well-documented and mechanistically understood on the modern Earth (Keeling et al. 1976), and it is consequently the most frequently discussed temporal biosignature for Earth-like exoplanets (e.g., Schwieterman 2018). Carbon dioxide is also widely regarded as an important atmospheric component on habitable exoplanets owing to its likely role in climate regulation via temperature-dependent weathering feedbacks (Walker et al. 1981; Kopparapu et al. 2013). Assuming life elsewhere is also carbon-based, seasonal differences in biological C exchange with the environment may inevitably result in seasonality in atmospheric CO₂—independent of the specific metabolic substrates, pathways, and products involved. Therefore, CO₂ seasonality may be common to all inhabited worlds that experience seasonally variable insolation as the result of either orbital obliquity or eccentricity, although the apparent magnitude of biogenic seasonality will be modulated both by the land-ocean dichotomy of the planet and the viewing geometry of the observer (see Section 5 below). From our perspective, the question is not whether biogenic CO₂ seasonality occurs elsewhere but whether it is detectable and if it can be discriminated from potential false positives.

Observing CO₂ seasonality will be a challenge for two reasons. First, CO₂ is extremely soluble in liquid water because it forms carbonic acid and other dissolved inorganic carbon species. Consequently, seasonal variations in CO₂ uptake and release by life in the ocean are chemically buffered, and these seasonal oscillations in the marine biosphere are ineffectively communicated to the atmosphere. The shifting balance of photosynthesis and respiration in land-based ecosystems, which are in more direct contact with the atmosphere, therefore, dominates the seasonal CO₂ signal. Given this limitation, CO₂ seasonality would be an unsuitable biosignature for water worlds lacking substantial continental biospheres. Indeed, CO₂ seasonality is very weak in the ocean-dominated Southern Hemisphere today despite a strong signal in the more-continental Northern Hemisphere (Figure 1). The second issue is that key CO₂ absorption features, such as the 4.3 and 15 μm bands, are effectively saturated at CO₂ levels that are low compared to the CO₂ levels that are likely on habitable zone (HZ) planets. The resulting loss of spectral sensitivity will further mute the spectral expression of CO₂ seasonality on many habitable planets, particularly at the outer edge of the HZ where atmospheric CO₂ might be very high (Kopparapu et al. 2013).

Zoom In Zoom Out Reset image size

Attractive candidates for observable CO₂ seasonality would have terrestrial biospheres capable of producing a large-magnitude seasonal signal but low overall pCO₂. An example of such a world may be Earth in the far geologic future following continued increases in solar luminosity and CO₂ drawdown via silicate weathering feedback (e.g., Lovelock & Whitfield 1982) or Earth-like exoplanets very near to the inner edge of their star's HZ.

Although seasonal CO₂ cycles may be vulnerable to nondetection (a false negative), large-magnitude CO₂ seasonality is unlikely to arise from abiotic processes on habitable planets with liquid water, potentially making this biosignature robust against false positives. An exception to biological controls involves seasonal CO₂ ice sublimation and deposition, which produces a seasonal CO₂ cycle on Mars today (Wood & Paige 1992). However, significant levels of water vapor, which would suggest temperatures incompatible with the seasonal CO₂ ice cycle, could preclude a Mars-like scenario. Seasonality in CO₂ in the presence of an ocean (Robinson et al. 2014) would be a powerful but difficult to detect indicator of life on habitable planets.

2.2. Methane

2.3. Oxygen and Ozone

The cycles of O₂ and CO₂ are intimately linked through photosynthesis and aerobic respiration such that O₂ seasonality mirrors CO₂ seasonality (Equations (1)–(2)). We can predict from the above reactions that ∼1 mole of O₂ increase balances ∼1 mole of CO₂ drawdown, and vice versa, throughout the seasonal cycle. There are, however, important differences in the O₂ and CO₂ cycles that produce notable deviations from this idealized scenario—ultimately increasing the absolute (molar) magnitude of O₂ seasonality compared to that of CO₂.

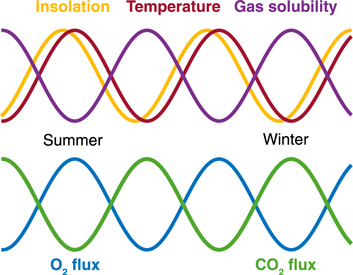

Oxygen is significantly less soluble than CO₂, which increases the sensitivity of atmospheric pO₂ to seasonal changes in O₂ cycling at the Earth's surface—particularly within the surface ocean. The magnitude of O₂ seasonality is further amplified by the phase relationship between the net O₂ production/consumption cycle and the seasonal pattern of insolation, temperature, and thus gas solubility. Maximum O₂ production (and CO₂ drawdown) via photosynthesis occurs during the summer months when warm temperatures also minimize gas solubility (Figure 2); the biological and physical components of seasonality therefore oppose each other for CO₂ but are additive for O₂. The magnitude of O₂ seasonality varies latitudinally (Keeling et al. 1998; Manning et al. 2003), but it is nearly 20× greater in absolute terms than the corresponding pattern for CO₂ in the present-day Southern Hemisphere (Keeling & Shertz 1992), albeit against a much higher background on the modern Earth. For these reasons, O₂ seasonality may, under some circumstances, have a greater potential to fingerprint the activities of aquatic biospheres, particularly those resembling Earth's early biosphere with its low levels of O₂.

Zoom In Zoom Out Reset image size

Oxygen seasonality may also induce O₃ seasonality. Ozone is produced in the atmosphere photochemically from O₂ via (Chapman 1930):

$$\begin{eqnarray}&&{{\rm{O}}}_{2}+{hv}\to {\rm{O}}+{\rm{O}}\end{eqnarray} \tag{ 3 }$$

$$\begin{eqnarray}&&{\rm{O}}+{{\rm{O}}}_{2}+{\rm{M}}\to {{\rm{O}}}_{3}+{\rm{M}},\end{eqnarray} \tag{ 4 }$$

and O₃ is destroyed via:

$$\begin{eqnarray}&&{{\rm{O}}}_{3}+{hv}\to {{\rm{O}}}_{2}+{\rm{O}}\end{eqnarray} \tag{ 5 }$$

$$\begin{eqnarray}&&{{\rm{O}}}_{3}+{\rm{O}}\to 2{{\rm{O}}}_{2}.\end{eqnarray} \tag{ 6 }$$

Ozone has a short atmospheric lifetime and its abundance is therefore strongly sensitive to both the UV environment and O₂ abundance (Equations (3)–(6)). Today's high levels of O₂ are not limiting for O₃ formation, and modern oscillations in O₃ are thus dominated by seasonally variable stratospheric transport (Weber et al. 2011; Butchart 2014). In a weakly oxygenated atmosphere, however, O₃ would be highly responsive to changes in O₂ (Kasting & Donahue 1980), possibly even the ppmv-level oscillation that we observe today (Figure 3(a)). Thus, although O₃ is not a direct biological product, O₃ seasonality may be biologically modulated. Compared to the other seasonal cycles discussed here, O₃ seasonality may have a strong spectral impact, and we hypothesize that this signal may be detectable on weakly oxygenated worlds for which direct O₂ detection is unlikely.

Zoom In Zoom Out Reset image size

As a proof of concept, we have quantified O₃ seasonality, chemically and spectrally, for a low O₂ early Earth analog orbiting a Sun-like star. Our illustrative calculations consider an atmosphere with a long-term average O₂ level of 15 ppmv, compatible with geochemical proxies constraining pO₂ to 10⁻⁵ to 10⁻³ times the present atmospheric level (PAL) during the mid-Proterozoic, ∼1.8–0.8 billion years ago (Pavlov & Kasting 2002; Planavsky et al. 2014b). We then impose modern magnitude O₂ oscillation in the ocean-dominated Southern Hemisphere around this baseline (Keeling & Shertz 1992; Keeling et al. 1998; Manning et al. 2003). This choice minimizes the influence of the terrestrial biosphere, which is appropriate because there were no land plants in the Proterozoic. The true magnitude of mid-Proterozoic seasonality is unknown, but the constancy of the carbon isotope record suggests that the productivity of the marine biosphere was not markedly different from today (Krissansen-Totton et al. 2015). Given that the magnitude of obliquity-induced insolation oscillation was also similar, modern magnitude seasonality in the Southern Hemisphere (∼20 ppmv) is therefore a reasonable approximation for the mid-Proterozoic.

We calculated seasonality in the O₃ abundance arising from this O₂ seasonality scenario using a 1D photochemical model (Kasting et al. 1979) that has a long legacy of modeling early Earth and Earth-like exoplanets (e.g., Arney et al. 2016, 2017). We then examined the spectral impacts of O₂ seasonality using synthetic reflectance spectra generated by SMART (Spectral Mapping Atmospheric Radiative Transfer; Meadows & Crisp 1996; Crisp 1997), focusing on the O₂-A band and the Hartley–Huggins O₃ bands. SMART has been validated by observations (Robinson et al. 2011) and was recently used to model the spectral appearance of early Earth analogs (Arney et al. 2016, 2017).

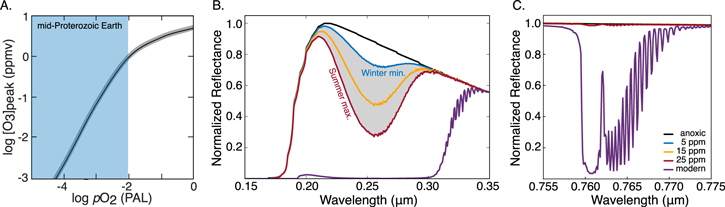

In our calculations, the seasonal O₂ maxima and minima result in distinctly different absorption signals for O₃ (Figure 3(b)), but O₂ itself is masked in the spectra generated throughout the seasonal cycle (Figure 3(c)). Consequently, biogenic O₂ seasonality may be inferred via O₃ seasonality, and biospheric O₂ fluxes could be quantified in the absence of detectable O₂.

Although photochemical scenarios for O₃ buildup are known and may display seasonality, seasonal recovery of O₂ requires an active source of O₂ commensurate with what is produced by the modern biosphere. This constraint rules out terminal atmospheric states where abiotic production and consumption fluxes of O₂ balance to zero, such as would be expected from extensive water loss in the geologic past. Additionally, it would be difficult to explain such a seasonal cycle in the absence of life on an Earth-like planet orbiting a Sun-like star because the abiotic production of O₂ is strongly disfavored around most FGK stars (see Harman et al. 2015; Domagal-Goldman et al. 2014). Confidence in a biological origin for O₂ and O₃ could be further enhanced by the detection of H₂O, strong Rayleigh scattering, and N₂–N₂ collisional absorption (Domagal-Goldman et al. 2014; Schwieterman et al. 2015) and by excluding significant CO, which would be expected to arise from CO₂ photolysis (Harman et al. 2015; Schwieterman et al. 2016). It is also important to note that inner-working angle constraints for future direct-imaging telescopes will favor the habitable zone planet–star combinations least conducive to hypothesized O₂ and O₃ false positives.

Searching for seasonality as a biosignature may have several potential advantages and is highly complementary to conventional biosignature approaches. As discussed above, atmospheric seasonality may be a uniquely generic biosignature. This biosignature is likely to be particularly sensitive to photosynthetic biospheres, but its utility does not necessarily depend on the identity of the electron donor for photosynthesis (e.g., H₂O, H₂S, Fe(ii))—and biospheres that do not harvest light energy may still produce atmospheric seasonality as they respond to oscillatory surface temperature. Seasonality may corroborate suggestions of life from isolated observations or mitigate potential false negatives through temporal variability in gases that are readily detectable in atmospheric spectra but are not uniquely biological in origin (e.g., CO₂, CH_4,). Even more intriguingly, seasonality may allow quantification of biospheric fluxes, providing an opportunity to characterize, rather than simply identify, exoplanet biospheres. Like conventional biosignatures, seasonality will inevitably have both false positives and negatives, but it is nonetheless essential to develop biosignatures with differing biospheric blind spots to minimize the chance that we fail to recognize life elsewhere.

Despite the potential utility of seasonality in remote life detection, seasonality simultaneously poses observational challenges for remote life detection. An additional implication of our case study is that although O₃ may serve as a proxy for undetectable O₂ (e.g., Segura et al. 2003), O₃ and other short-lived gases might not be continuously detectable at every orbital phase in exoplanet atmospheres experiencing strong seasonality. Thus, it is possible that the spectral fingerprints of a biosphere may be missed in a single viewing. In the early Earth example presented here, intermittent detectability of O₃ would be particularly problematic because—in addition to low O₂—mid-Proterozoic Earth was also characterized by low CH₄ (Olson et al. 2016). Life was pervasive at the surface of the Earth at that time, but without access to spectroscopic data at UV wavelengths to support O₃ characterization (Reinhard et al. 2017), and potentially without repeated viewings, Earth may have appeared sterile to a remote observer expecting to detect O₂ or CH₄ on an inhabited planet. Consideration of seasonality is therefore important regardless of its utility as an independent biosignature because it may negatively impact the detectability of conventional biosignatures in isolated observations.

Characterization of seasonality demands a significant observational investment. Seasonal signals will be most readily accessible via direct imaging with future generations of large-aperture space-based telescopes (e.g., the LUVOIR or HabEx concepts; Dalcanton et al. 2015; Mennesson et al. 2016; Bolcar et al. 2017), as transit spectroscopy samples the same seasonal view, and thermal phase curves with JWST will likely lack the sensitivity to detect seasonal variations in gas abundances for terrestrial HZ planets (Meadows et al. 2018a). Observing seasonality will also necessitate multiple viewings spanning months to years for Earth-like planets orbiting Sun-like stars, which will be among the most favorable targets for direct-imaging studies because low angular separation will limit characterization of HZ planets around M stars.

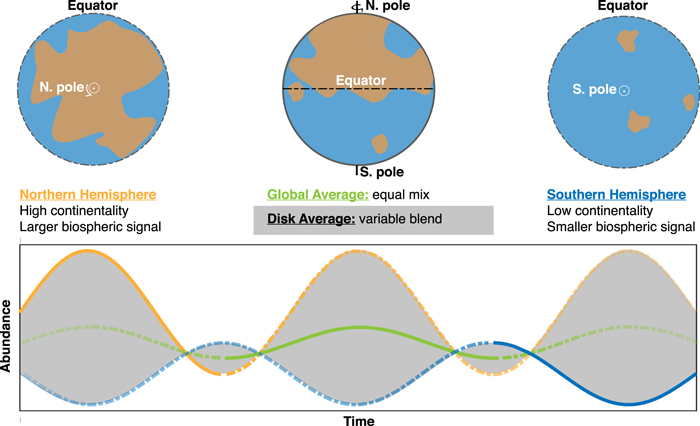

In some cases, exoplanet viewing geometries may introduce challenges for exploiting seasonality as a biosignature. The perceived magnitude of seasonality will inevitably be less than the actual magnitude of seasonality at an exoplanet's surface owing to latitudinal averaging in disk-integrated spectra, including contributions from hemispheres experiencing opposite seasons (Figure 4). Remote characterization of seasonality is thus limited by our ability to isolate opposing seasonal signals, as modulated by orbital obliquity and the inclination of the system with respect to the observer. The apparent seasonality may be further muted by planetary parameters, such as the distribution of continental area for some orbital configurations and viewing geometries. However, although asymmetry is important for generating seasonality on global average, such asymmetry is not strictly necessary for expressing seasonality in disk average (Figure 4).

Zoom In Zoom Out Reset image size

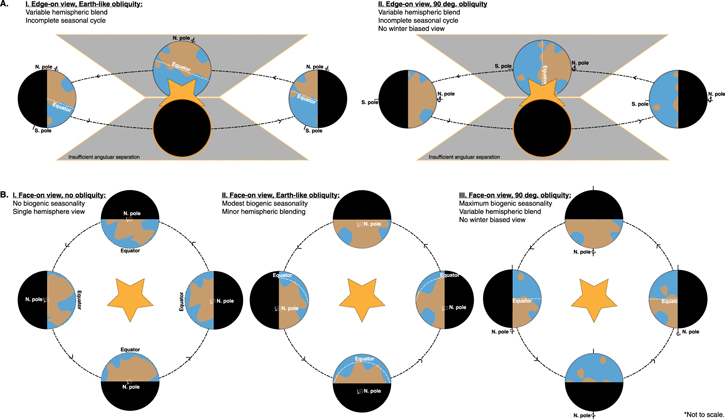

As orbital obliquity increases, the seasonal contrast—and thus the potential for large-magnitude biogenic seasonality—increases. However, while high obliquity maximizes the biogenic cycle, high obliquity also limits illumination of the winter hemisphere, potentially reducing the detectability of seasonal signals (Figure 5). As the detectability of seasonality depends on both the magnitude of the biogenic signal and the extent to which observation conditions mute that signal, the detectability of seasonality as a biosignature is likely optimized at intermediate obliquity that is sufficient to produce a large-magnitude signal but not so large as to preclude viewing of the winter hemisphere. Future work leveraging 3D photochemical and spectral models will be required to offer robust quantitative predictions of these effects.

Zoom In Zoom Out Reset image size

Global seasonality driven by eccentricity rather than hemispheric seasonality arising from obliquity introduces fewer geometric complications and may be more observable, so long as sufficient angular separation is maintained to observe summer at perihelion. The inclination of the system might also limit access to the full seasonal cycle, particularly for transiting exoplanets (Figure 5), and may introduce challenges associated with variable hemispheric blending with evolving orbital phase. In these cases, seasonality may deviate from sinusoidal behavior. Characterization of seasonality will therefore be further optimized for a system with an inclination of ∼90° with respect to the observer (a face-on scenario).

Atmospheric seasonality is a biologically modulated phenomenon on Earth, and biogenic seasonality may be common among inhabited worlds. As a biosignature, seasonality would be versatile with respect to metabolic sensitivity—and may even be an inevitable expression of a surface biosphere on planets that experience time-variable insolation. In addition to corroborating static evidence for life, seasonality may provide a tool to mitigate ambiguities (false positives and false negatives) and support characterization, rather than simple recognition, of an exoplanet biosphere. As an example, our calculations demonstrate that O₂ seasonality, as diagnosed via variations in the strength of the O₃ bands in the UV, may be the most notable spectral expression of life on weakly oxygenated planets, such as Earth's mid-Proterozoic biosphere. These exciting results suggest that quantification of O₂ fluxes may be possible even in the absence of detectable O₂ and strongly motivate the inclusion of UV (200–400 nm) capabilities in future direct-imaging missions, such as LUVOIR or HabEx.

Ultimately, seasonality poses both an opportunity and a challenge for remote life detection because strong seasonality may render trace biological products only intermittently detectable. Continued investigation of biogenic and abiogenic seasonality for other gases, aerosols, or surface features—and their expression around different star types—will yield additional insight into the most likely spectral expressions of life in the universe. Such studies will be essential to elucidate the value of repeated viewings spanning an exoplanet's full orbital period and inform the implementation of effective exoplanet viewing strategies for remote life detection.
