HST Grism Confirmation of 16 Structures at 1.4 < z < 2.8 from the Clusters Around Radio-Loud AGN (CARLA) Survey

The last decade has seen an explosion in our understanding of the early stages of galaxy cluster formation, largely built upon samples of distant galaxy clusters identified from the Infrared Array Camera (IRAC; Fazio et al. 2004) on the Spitzer Space Telescope. Mid-infrared observations provide an incredibly sensitive tool for identifying massive galaxies at high redshift. For stellar populations formed at high redshift, negative k-corrections provide a nearly constant 4.5 μm flux density over a wide redshift range, while red [3.6]–[4.5] colors provide an effective means of isolating galaxies at z > 1.3 (e.g., Papovich 2008). Indeed the sensitivity required to detect L^⋆ galaxies at z ∼ 0.7 with mid-infrared observations, which Spitzer reaches in <2 minute integrations, is sufficient to detect such galaxies to z ≳ 2. Several large projects are exploiting mid-infrared data to search for high-redshift galaxy clusters using Spitzer and WISE (e.g., Eisenhardt et al. 2008; Galametz et al. 2010, 2013; Papovich et al. 2010; Stanford et al. 2012, 2014; Muzzin et al. 2013; Rettura et al. 2014; Wylezalek et al. 2014; Brodwin et al. 2015, 2016; Paterno-Mahler et al. 2017). Such work has, for example, proved useful for (i) measuring the galaxy cluster autocorrelation function out to z ∼ 1.5, which provides a measure of the typical galaxy cluster mass (Brodwin et al. 2007); (ii) targeted cosmological surveys for z > 1 SNe Ia in dust-free environments (Suzuki et al. 2012); (iii) probing evolution in the σ–T_x correlation (Brodwin et al. 2011); (iv) using the rest-frame near-infrared luminosity function and rest-frame optical colors to probe the formation epoch of cluster galaxies (Mancone et al. 2010, 2012; Snyder et al. 2012; Wylezalek et al. 2014; Cooke et al. 2015; Nantais et al. 2016); (v) probing the role of AGN feedback in forming clusters (Galametz et al. 2009; Martini et al. 2013); (vi) leading cosmological investigations based on the incidence of massive, high-redshift clusters (Brodwin et al. 2012; Gonzalez et al. 2012); and (vii) probing the dependency of galaxy quenching on environment (Muzzin et al. 2014, Nantais et al. 2017).

A significant challenge, however, is to confirm these massive, distant cluster candidates, particularly at the highest redshifts, which probe the earliest stages of their evolution. At $z\sim 1.4$, the strong [O ii] and D4000 features shift to infrared wavelengths where ground-based spectroscopic follow-up is more challenging, particularly for absorption-line redshifts. Near-infrared grism spectroscopy using the Wide Field Camera 3 (WFC3) onboard the Hubble Space Telescope (HST) provides impressive sensitivity for studying galaxy clusters at high redshift. Courtesy of the multiplexing advantages of slitless spectroscopy combined with the low, absorption-free background provided from space, grism data is sufficient to confirm clusters out to z ∼ 2. Indeed the majority of the most distant clusters currently known were selected on the basis of Spitzer mid-infrared data and confirmed with Hubble grism spectroscopy. This includes clusters at z = 1.75 (Stanford et al. 2012), z = 1.80 (Newman et al. 2014), z = 1.89 (Zeimann et al. 2012), and our own recent confirmation of one evolved cluster and one younger forming structure at z = 2.00 and z = 1.99, respectively (Noirot et al. 2016; hereafter N16).

Much work on distant clusters is based on blind field searches, which provide both a strength and a weakness. Field surveys have a simpler selection function for measuring the growth of structure through cluster counts. However, field surveys—both in the mid-infrared and at other wavelengths (e.g., Sunyaev–Zel'dovich (SZ) or X-ray surveys; Bleem et al. 2015; Tozzi et al. 2015)—find few massive clusters at the highest redshifts (z ≳ 1.5). Many key galaxy cluster studies do not require knowledge of the cluster space density (e.g., Krick et al. 2008; Stern et al. 2010; Rettura et al. 2011; Suzuki et al. 2012), and therefore targeted searches for high-redshift galaxy clusters have many advantages.

We report on a comprehensive, 40-orbit Hubble program using the unique near-infrared grism capabilities of the WFC3 to attempt confirmation of the 20 richest z > 1.4 galaxy cluster candidates identified from our 408 hr Warm Spitzer survey of 420 radio-loud AGN across the full sky, Clusters Around Radio-Loud AGN (CARLA; Wylezalek et al. 2013, 2014). With IRAC exposures of ∼1 hr per field, CARLA reaches 10σ depths of m* + 2 out to z ≳ 2. Extensive literature reaching back 50 years shows that powerful radio-loud AGN preferentially reside in overdense environments (e.g., Matthews et al. 1964). We identified sources with red mid-infrared colors ([3.6]–[4.5] > −0.1; AB), which are primarily expected to be galaxies at z ≳ 1.3 (e.g., Wylezalek et al. 2013). Considering the surface density of sources with such colors as selected from the 1 deg² Spitzer UKIDSS Ultra-Deep Survey (SpUDS, PI: J. Dunlop), we find that the average blind field contains $\langle {{\rm{\Sigma }}}_{\mathrm{SpUDS}}\rangle =8.3\pm 1.6$ red Spitzer galaxies arcmin⁻². In contrast, 92.4% of the CARLA fields are denser than this SpUDS average density. Approximately 10% of the CARLA fields are as rich or richer than twice the average SpUDS density of red galaxies (i.e., Σ ≥ 16.3 arcmin⁻²), compared to 0.7% of SpUDS fields. Indeed, many of the CARLA fields—and all the fields reported here—are richer than the highest density region in SpUDS, the z = 1.62 cluster reported by Papovich et al. (2010) and Tanaka et al. (2010). This Hubble program enhances the census of confirmed rich structures at z > 1.4 by a factor of several, identifying systems at a time when clusters are believed to be actively forming.

The paper is structured as follows. Section 2 reports on the observations, while Section 3 briefly summarizes the data analysis; we refer the reader to N16 for a detailed description of the data processing. Section 4 reports on some initial results from the rest-frame optical spectroscopy, including cluster membership (Section 4.2), cluster star formation rates (SFRs; Section 4.4), and a detailed description of several newly confirmed structures of particular interest (Section 4.6). Section 5 investigates statistical correlations probed by the data, including comparison to other cluster surveys (Section 5.1), typical Hα/[O iii] line ratios at high redshift (Section 5.2), and how SFR depends on galaxy mass (Section 5.3) and distance from the cluster center (Section 5.4). We summarize our results in Section 6. Throughout we use AB magnitudes, and we adopt the concordance cosmology, Ω_M = 0.3, ${{\rm{\Omega }}}_{{\rm{\Lambda }}}=0.7$, and H₀ = 70 km s⁻¹ Mpc⁻¹.

Our HST program consists of WFC3/F140W imaging and WFC3/G141 grism spectroscopy of the 20 densest CARLA cluster candidates, selected from 420 radio-loud AGN at z > 1.3 observed in our Spitzer program (Wylezalek et al. 2013). The HST fields are 4σ to 8σ overdense in Spitzer color-selected sources (i.e., selected to have mid-infrared colors consistent with z > 1.3), compared to the mean SpUDS density of similarly selected sources (Wylezalek et al. 2014). The targeted radio-loud AGN (RLAGN) at the center of the fields observed with HST cover the redshift range 1.37 < z < 2.80, with a median redshift $\tilde{z}=1.655$. A total of 10 fields are associated with high-redshift radio galaxies (HzRGs, type-2 RLAGN), and the other 10 with radio-loud quasars (RLQs, type-1 RLAGN). The 20 fields were observed between 2014 October and 2016 April (Program ID: 13740) with a 2-visit per field strategy, using different orientations to mitigate contamination from overlapping spectra. For each visit, we obtained 0.5 ks F140W imaging and 2 ks G141 grism spectroscopy, divided into four dithered blocks of exposures, with the direct images taken just after the grism exposures to enable wavelength calibration of the spectra based on source position. Table 1 lists the observation dates, orientation angles, and exposure times. We refer to confirmed structures by their CARLA names, whereas we refer to unconfirmed structures by their radio-loud AGN target names.

Each image covers a field of view of 2 × 2.3 arcmin² at a sampling of 0.13 arcsec pix⁻¹. The G141 grism covers the wavelength range 1.08–1.70 μm with a throughput >10% at low spectral resolution, $R\equiv \lambda /{\rm{\Delta }}\lambda =130$. This grism was chosen to enable identification of strong spectroscopic features at the redshifts of our cluster candidates (1.4 < z < 2.8)—namely Hα at 0.65 < z < 1.59, [O iii] at 1.16 < z < 2.40, Hβ at 1.22 < z < 2.50, and [O ii] at 1.90 < z < 3.56. Our efficient strategy of two orbits per field represents shallow observations, only allowing us to spectroscopically confirm star-forming galaxies with their strong, narrow emission lines. Specifically this strategy of shallow observations does not provide spectroscopic confirmation of the important, but more challenging, population of passive galaxies in the distant clusters.

Data reduction mainly follows the steps described in N16. In short, we first combine the individual F140W exposures with aXe (v2.2.4; Kümmel et al. 2009, 2011) to create deep drizzled, cosmic ray cleaned, direct images of each field, on which we perform source extraction using SExtractor (Bertin & Arnouts 1996). Using spectrally empty sky regions determined from the SExtractor catalogs, we then subtract the sky from the grism images using aXe and appropriate configuration files. Individual two-dimensional spectra in each field and visit are then extracted from the grism data based on source position and sizes. For each spectrum we also determine contamination estimates from neighboring objects using the aXe Gaussian contamination model.

We then use an internally developed Graphical User Interface (GUI) to facilitate spectral and source characterization. We determine source redshifts and emission line fluxes with the python version of mpfit using the same method as described in N16, now implemented within our GUI. See N16 for a detailed, in-depth description of the data processing methodology and implementation.

All spectra were initially analyzed by GN, with secondary assessments provided by co-authors. In our final catalogs, we provide the fitted redshifts and consensus quality flags described in Section 4.1. Table 2 shows the spectroscopic results, and spectra of all confirmed members are shown in Appendix D. Among the 20 fields, 16 are confirmed structures associated with the RLAGN, while we fail to confirm 4 cluster candidates (at z = 1.57, 2.16, 2.25, and 2.57). In 5 of the 20 fields, we also identify 7 background or foreground structures. A total of 4 (7) of the 16 confirmed structures have 12 (9) or more confirmed star-forming members. All 4 non-confirmed clusters have at least one source confirmed at the RLAGN redshift in addition to the RLAGN itself.¹⁷ We provide a catalog of all spectroscopically identified sources in the online material. We describe the content of this catalog in Appendix A.

Table 2.  CARLA HST Results

Field	σIRACa	zRLAGN	${\langle z\rangle }_{\mathrm{cl}}$ b	${\tilde{z}}_{\mathrm{cl}}$ c	#zcl/#ztotd
					HST	IRAC	[3.6]–[4.5] > −0.1
Confirmed CARLA Structures
CARLA J0116−2052	5.14	1.417	1.425	1.430	12/31	9/22	7/14
CARLA J0800+4029	6.38	2.004	1.986	1.986	10/26	5/18	5/14
CARLA J0958−2904	5.00	1.411	1.392	1.396	8/23	5/12	5/9
CARLA J1017+6116	6.67	2.80	2.801	2.801	7/41	3/20	3/10
CARLA J1018+0530	5.00	1.949	1.952	1.953	8/26	5/18	4/8
CARLA J1052+0806	4.71	1.641	1.646	1.648	6/40	1/17	1/9
CARLA J1103+3449	6.38	1.444	1.442	1.443	8/26	4/15	4/10
CARLA J1129+0951	6.33	1.520	1.528	1.531	12/39	4/16	4/7
CARLA J1131−2705	4.38	1.444	1.446	1.445	9/36	6/23	6/18
CARLA J1300+4009	4.86	1.669	1.675	1.676	8/28	2/10	2/7
CARLA J1358+5752	6.24	1.370	1.368	1.373	14/48	8/23	8/17
CARLA J1510+5958	5.62	1.719	1.725	1.719	6/46	5/24	5/14
CARLA J1753+6310	4.52	1.576	1.582	1.581	5/35	1/8	1/7
CARLA J2039−2514	8.00	1.997	1.999	2.000	9/30	3/14	3/10
CARLA J2227−2705	5.29	1.684	1.692	1.686	7/51	2/28	2/10
CARLA J2355−0002	5.62	1.487	1.490	1.489	12/44	7/28	7/14
Unconfirmed CARLA Structurese
6CSS1054+4459	4.67	2.573	(2.566)	(2.566)	(2)/38	(0)/17	(0)/7
J1317+3925	4.86	1.569	(1.574)	(1.569)	(3)/39	(3)/22	(3)/10
J1515+2133	4.24	2.249	(2.262)	(2.262)	(2)/35	(1)/22	(1)/10
TNR 2254+1857	5.62	2.164	(2.159)	(2.157)	(3)/25	(1)/14	(1)/10
Serendipitous Discoveries
CARLA-Ser J1017+6116	⋯	⋯	1.235	1.234	5/41	3/20	1/10
CARLA-Ser J1317+3925	⋯	⋯	1.467	1.465	8/39	3/22	3/10
CARLA-Ser J1510+5958	⋯	⋯	0.875	0.876	6/46	1/24	0/14
CARLA-Ser2 J1510+5958	⋯	⋯	0.977	0.976	7/46	5/24	0/14
CARLA-Ser J1753+6310	⋯	⋯	2.117	2.117	6/35	0/8	0/7
CARLA-Ser J2227−2705	⋯	⋯	1.355	1.358	10/51	3/28	1/10
CARLA-Ser2 J2227−2705	⋯	⋯	1.477	1.478	6/51	2/28	2/10

Notes.

^aOverdensity significance of color-selected sources above the field value (Wylezalek et al. 2014). ^bMean redshift of structure members. ^cMedian redshift of structure members. ^dNumber of confirmed structure members (#z_cl) compared to the total number of sources for which we measure a redshift (#z_tot). The first column corresponds to sources detected in our HST/F140W imaging, the second column to secure sources detected in our Spitzer/IRAC imaging, and the third column to sources passing our Spitzer/IRAC color-selection criterion. ^eFor unconfirmed structures, we show in parenthesis mean and median redshifts and source numbers based on the few confirmed sources at the RLAGN redshifts.

Download table as:  ASCIITypeset image

4.1. Redshift Quality Flags

4.2. Membership Definition

4.3. Line Fluxes

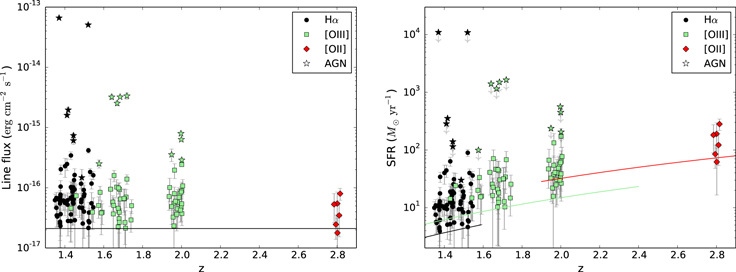

The left panel of Figure 1 shows the emission line fluxes of confirmed members as a function of redshift. For members with multiple-line identifications, we show only one line with the following priority order: Hα, [O iii], and then [O ii]. In our low-resolution grism data, Hα and the [N ii] λ6548, 6584 Å doublet are blended. Similar to other teams using WFC3 grism data (e.g., 3D-HST, Fumagalli et al. 2012, Momcheva et al. 2016; the WISP survey, Colbert et al. 2013), our reported Hα fluxes include the [N ii] contributions. However, we consider [N ii] contributions when estimating Hα SFRs, assuming a typical [N ii]/Hα ratio of 0.3 (see Section 4.4). The [O iii] λ4959, 5007 Å doublet is also unresolved in our grism data, but we fit and measure line fluxes of both emission lines in our fitting procedure (see N16 for details) and only refer to [O iii] λ5007 Å when using the generic [O iii] denomination. Finally, the [O ii] λ3727, 3729 Å doublet is also blended in our grism spectroscopy. However, we do not distinguish between the two lines when referring to [O ii], and our [O ii] fluxes include the contribution of both lines, fitted as a single Gaussian.

Zoom In Zoom Out Reset image size

In N16 we determined a 2.5 × 10⁻¹⁷ erg cm⁻² s⁻¹ line detection limit, with some scatter in the range (1.2–4.0) ×10⁻¹⁷ erg cm⁻² s⁻¹. This limit varies somewhat depending on the specific observation and grism exposure time. The 3D-HST survey had a similar two orbit depth per WFC3 G141 observation, and determined a 3σ emission line flux limit of 2.1 × 10⁻¹⁷ erg cm⁻² s⁻¹ (Momcheva et al. 2016). This limit, shown as the solid black line in the left panel of Figure 1, is consistent with our measured fluxes. Overall, fluxes are in the range (0.2–4.2) × 10⁻¹⁶ erg cm⁻² s⁻¹ for star-forming members and in the range (1.5–661) × 10⁻¹⁶ erg cm⁻² s⁻¹ for the RLAGN.

4.4. Star Formation Rates

4.5. Stellar Masses

4.6. Clusters of Interest

We next discuss several structures and bona fide clusters of interest, including ones with supporting data in the literature (CARLA J2355−0002, CARLA J1753+6310, CARLA J0800+4029, and CARLA J2039−2514), and the most distant confirmed structure in our sample (CARLA J1017+6116, at z = 2.8).

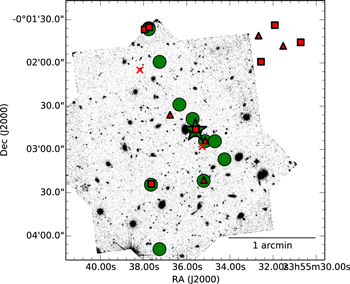

4.6.1. CARLA J2355−0002

De Breuck et al. (2001) reported the redshift of the targeted HzRG of this field, TXS 2353−003, as z = 2.587 ± 0.003 from long-slit spectroscopic observations with the ESO 3.6 m EFOSC1 instrument. They reported detection of Lyα, N v λ1240 Å, and C iv λ1549 Å emission. We do not find emission lines consistent with this redshift in our grism spectroscopy. In both orientations, we identify two strong emission lines consistent with Hα and [O iii] at z = 1.500 ± 0.006. A similar redshift, consistent with our measurement, was independently reported in Collet et al. (2015), who studied the radio-jet and gas properties of this HzRG as part of a larger study on the warm ionized gas properties of 50 HzRGs at z ≳ 2. With moderate-resolution VLT/SINFONI near-infrared spectroscopy (R = 1500), they measured a redshift of z = 1.487 for TXS 2353−003 based on Hα and [N ii] λλ6548,6583 emission. Given the higher spectral resolution of their data compared to our low-resolution grism data, we adopt this value as the redshift of the HzRG. Note that the redshift discrepancy with our grism measurement is due to the Sextractor source centroid being offset from the emission line region (see last paragraph of this section and Figure 3). Collet et al. (2015) do not identify any lines consistent with z ≃ 2.59.

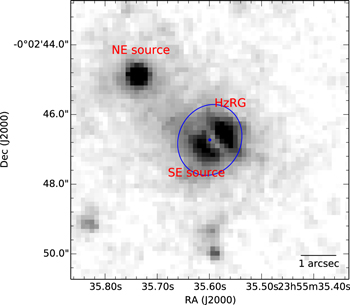

We only identify one source showing a tentative emission line at λ ∼ 13,380 Å that could be consistent with [O ii] at z ≃ 2.59. However, this identification is very uncertain and therefore not included in our catalog. HST grism data of this field does, however, identify 12 emission line galaxies at a median redshift ${\tilde{z}}_{\mathrm{cl}}=1.489$, out of a total of 46 redshift identifications. We identify both Hα and [O iii] emission for all 12 members (i.e., all redshifts are therefore of quality A). Collet et al. (2015) also obtained Hα narrow-band imaging of the field around TXS J2355−002 with the VLT/ISAAC 1.64 μm narrow-band filter. They identified six high-confidence Hα emitters at z = 1.5 (down to a 3σ flux of $7\,\times {10}^{-17}\,\mathrm{erg}\,{\mathrm{cm}}^{-2}\,{{\rm{s}}}^{-1}$), in addition to the HzRG, and five lower-confidence emitters. In Figure 2 we show the spatial distribution of the grism confirmed members (green markers) and Hα emitters (red markers) in the field. Four high-confidence and two lower-confidence emitters fall outside of our HST field of view (red squares and red triangles in Figure 2, respectively). Considering the narrow-band emitters within the HST field, all three remaining high-confidence z ∼ 1.5 Hα emitters (which includes the HzRG) correspond to independently confirmed members from our HST analysis. One of these Hα emitters actually corresponds to two confirmed HST members separated by less than one arcsecond. Of the three remaining low-confidence z ∼ 1.5 Hα emitters, all but one is independently confirmed from our HST analysis; the unconfirmed member shows bright continuum in our grism data, but with no indication of emission lines consistent with z ∼ 1.5. Collet et al. (2015) also identified two additional low-confidence z ∼ 1.5 Hα emitters, unpublished in their paper (private communication; red crosses in Figure 2). One of these sources corresponds to four sources within a 1'' radius aperture in our HST imaging. One of these HST sources is confirmed at z = 1.463 ± 0.006 (quality A), but is not considered a member of CARLA J2355−0002 due to its velocity shift of $\sim 2500\,\mathrm{km}\,{{\rm{s}}}^{-1}$ from the mean structure redshift, higher than our threshold of 2000 km s⁻¹. The other three sources of this group do not show notable spectral features. The other unpublished low-confidence emitter was not confirmed in our initial HST analysis. However, a posteriori, we identify tentative Hα and Hβ emission lines in both grism orientations consistent with z = 1.5, without the detection of [O iii]. This suggests that this source is likely an additional structure member. However, the identification is uncertain at the current depth of our HST grism data, and therefore is not included in our catalog.

Zoom In Zoom Out Reset image size

Collet et al. (2015) also reported peculiar radio-jet and gas properties for TXS 2353−003, finding many similarities with brightest cluster galaxies in low-redshift cool core clusters. Specifically they found a large (∼90°) offset between the position angle of the radio jets and the warm ionized gas, and a large radio size of 328 kpc. This suggests no direct interaction between the radio jets and the galaxy gas. They also identified a possible companion to the HzRG, 3'' to the northeast, with no emission lines in the SINFONI spectroscopic data. We also detect this source in the HST data (see Figure 3), similarly detecting only continuum without emission lines in the grism data. However, the approximately two times better HST/WFC3 spatial resolution compared to SINFONI allows us to identify two sources at the position of the HzRG, with visually complex morphologies. As seen in Figure 3, the two sources are separated by less than 07, and show distinct spectral traces in the grism data (see Panel (d) in Figure 24 in Appendix D). We identify faint continuum with strong Hα and [O iii] emission lines for the northwestern source, which we identify as the HzRG. We identify bright continuum with no clear emission lines for the south-eastern source. Collet et al. (2015) argued that the misalignment of the gas and jet could be explained by gas supply from a satellite galaxy. However, they also argued that the potential companion 3'' to the NE is unlikely a perturbing satellite. The other source we identify as less than 07 to the SE of the HzRG, unresolved in their imaging, seems a better candidate to be associated with the HzRG and responsible for the jet-gas misalignment.

Zoom In Zoom Out Reset image size

4.6.2. CARLA J1753+6310

Based on William Herschel Telescope ISIS spectroscopic data, Lacy et al. (1999) measured a tentative redshift of z = 1.96 for this source based on uncertain identification of a He ii emission line and Lyα absorption. We do not find any emission lines consistent with this redshift in our grism data. Cooke et al. (2016) studied the broadband spectral energy distributions of candidate members of this distant galaxy cluster, CARLA J1753+6310 (CARLA J1753+6311 in their paper), by combining the CARLA Spitzer/IRAC observations with deep optical imaging data. They also obtained Keck/LRIS optical spectroscopic data for the RLAGN and measured a redshift of z = 1.576 based on identification of a single [O ii] emission line. In our grism data, we detect bright continuum in both orientations and strong emission at 13,063 and 12,993 Å in the first and second orientations, respectively (see Panel (b) in Figure 22 in Appendix D). The emission line is spatially offset from the continuum, by approximately +05 in the first orientation and approximately −05 in the second orientation, while the continuum is aligned with the source centroid from SExtractor in both orientations. This suggests the presence of a line-emitting region located less than an arcsecond to the west of the SExtractor source centroid. With this close separation we consider the system as a single galaxy, the HzRG, at the redshift measured with Keck. The emission lines in our grism data are consistent with [O iii] at similar redshift.¹⁸ Hα unfortunately falls outside of the grism range at this redshift, but we assign a quality A to the HzRG redshift based on the complementary Keck detections of [O ii] and Hα lines reported by Cooke et al. (2016) and A. Rettura et al. (2018, in preparation), respectively.

We identify five emission line members at a median redshift of ${\tilde{z}}_{\mathrm{cl}}=1.581$. These identifications are based on [O iii] emission only, as Hα falls outside of the grism range at this redshift. With additional Keck/MOSFIRE observations of the field, we confirm a combined total of eight emission line members at $\langle z\rangle$ = 1.582 (A. Rettura et al., 2018, in preparation). Among these eight sources, three are new members confirmed outside the HST field of view with the MOSFIRE spectroscopy based on Hα emission. Excluding the HzRG that was re-observed as well, A. Rettura et al. (2018, in preparation) also present complementary Hα emission for HST source #619, which was already confirmed in our grism data based on [O iii] emission. We therefore assign a quality A redshift to this source.

Cooke et al. (2016) demonstrate that CARLA J1753+6310 is a mature cluster at high-redshift. They identify a red-sequence population dominated by passive galaxies (i.e., 80% of the red-sequence galaxies have broadband colors indicative of a passive population). They show that half the cluster galaxies in the core are quiescent, as compared to only 16% of field galaxies of similar mass and redshift. The relatively small number of confirmed star-forming members in our grism data is therefore consistent with this picture of an evolved cluster largely composed of passive members with minimal star formation.

The HST grism data of this field also identify a group of six emission line sources at a median redshift of ${\tilde{z}}_{\mathrm{cl}}=2.117$, within ±1000 km s⁻¹. This structure, serendipitously discovered, is composed of one quality A and five quality B⁻ sources. None of the sources have secure Spitzer/IRAC detections. The quality A source was identified on the basis of [O iii] and [O ii] emissions, while the quality B⁻ sources were identified based solely on [O iii] emission. This system is the second highest redshift confirmed structure in our sample. A. Rettura et al. (2018, in preparation) present this structure in more detail. This discovery, as well as the serendipitous discovery of three additional z > 1.3 structures not associated with the targeted RLAGN (in the fields of CARLA J1317+3925 and CARLA J2227−2705; see Table 2), suggests that a fraction of the Spitzer/IRAC overdensities are enhanced by line of sight projections—though we note that all the confirmed members of the background structure identified in this field are actually below the CARLA IRAC detection limit. Potentially, passive, massive members of this background structure are in the CARLA sample, but were not confirmed in the grism spectroscopy. Section 4.7 discusses serendipitous structures identified in our grism data.

4.6.3. CARLA J0800+4029 and CARLA J2039−2514

CARLA J0800+4029 and CARLA J2039−2514 are two of the highest redshift confirmed structures associated with the targeted RLAGN, at ${\tilde{z}}_{\mathrm{cl}}=1.986$ and ${\tilde{z}}_{\mathrm{cl}}=2.000$, respectively. These were two of the first fields observed by our HST program, and the grism results are presented in N16. Based on additional optical data, we show in N16 that CARLA J2039−2514 possesses a red-sequence population of passive galaxies. This suggests that CARLA J2039−2514 is a bona fide z = 2 galaxy cluster, while our analysis suggests that CARLA J0800+4029 is a younger forming cluster at similar epoch. We also show in N16 that the targeted HzRG of CARLA J2039−2514 is kinematically complex with two components, likely a dual AGN, separated by 3 kpc and confirmed at the same redshift. This complex morphology, together with similar findings for the HzRGs of CARLA J2355−0002, CARLA J1753+6310, and several other fields (e.g., the targeted RLAGN MRC0955−288, 6CE1100+3505, MRC1128−268, J1510+5958), is consistent with type-2 RLAGN often being found in close merging systems (e.g., Chiaberge et al. 2015). We redirect the reader to N16 for further details concerning CARLA J0800+4029 and CARLA J2039−2514, such as redshift distributions, mass estimates, color–magnitude relation analysis, and comparison to other individual high-redshift clusters.

4.6.4. CARLA J1017+6116

CARLA J1017+6116 is the highest redshift confirmed structure in our CARLA HST sample. We identify seven emission line members at ${\tilde{z}}_{\mathrm{cl}}=2.801$. At this redshift, Hα, [O iii], and Hβ fall outside the G141 grism wavelength range, and identifications are therefore based solely on [O ii] emission. However, we do not identify [O ii] emission in the grism data of the targeted QSO of this field, but additional strong [O iii] λ4363 Å, Hδ, and [Ne iii] λ3869 Å, at z = 2.80 (quality A). Excluding the targeted QSO, two confirmed members (HST sources #124 and #382) have Spitzer/IRAC detections with mid-infrared colors consistent with z > 1.3. This simple color criterion alone, however, does not disentangle between identifying the detected lines as [O iii] or [O ii]. These two sources have some of the reddest Spitzer/IRAC colors measured in our sample, with ([3.6]–[4.5])_AB colors of 0.4 mag for source #124 and 0.7 mag for source #382, consistent with very distant galaxies. We conservatively assign quality B⁻ redshifts to these two sources, as the color information alone also allows for an [O iii] identification. The redshifts of the other five sources are based on the detection of single emission lines, and are therefore of quality B⁻ as well.

We also serendipitously identify another structure in the grism data of this field. We confirm five emission line sources at a median redshift of ${\tilde{z}}_{\mathrm{cl}}=1.234$. Three of these sources have both multiple-line identifications of Hα and [O iii], as well as Spitzer/IRAC detections. The other two are identified based solely on Hα.

4.7. Serendipitous Discoveries

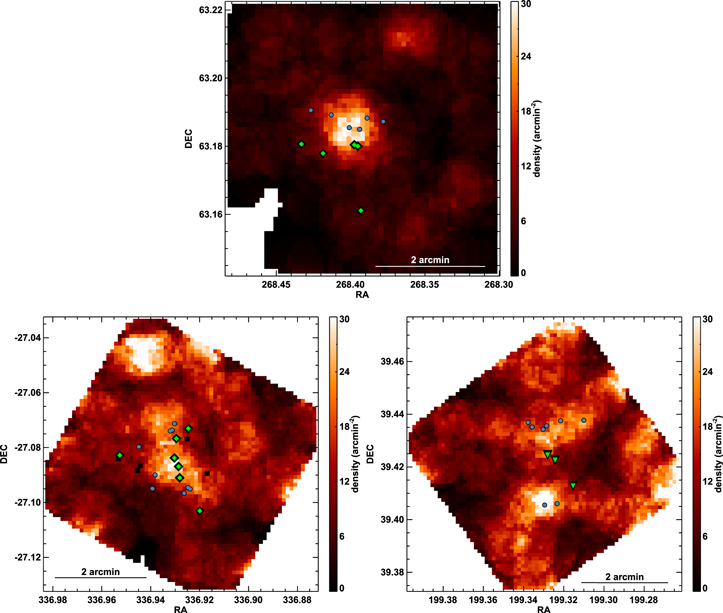

In addition to the 16 confirmed CARLA structures associated with the targeted RLAGN of our program, we identify a total of 7 serendipitous structures among 5 of the 20 HST fields. We refer to these serendipitous structures in the CARLA fields by the nomenclature "CARLA-SerX Jhhmm ± ddmm," where X is an integer, starting at 2 and in redshift order, if two or more serendipitous structures are identified in the same CARLA field, and where Jhhmm±ddmm are the CARLA coordinates of the respective field. As noted earlier, a fraction of the Spitzer/IRAC overdensities might be enhanced by line of sight projections. In the last column of Table 2, we show the number of structure members that satisfy our Spitzer/IRAC color criterion among the total number of sources with a measured redshift satisfying the same criterion. When compared to the second-to-last column, which shows the same numbers for Spitzer/IRAC-detected sources, we see that only one of the nine Spitzer-detected confirmed members of the z < 1.3 serendipitous structures has a color matching our z > 1.3 selection criterion. This corroborates the goodness of our selection criterion and further suggests that the overdensity significance (σ_IRAC, second column in Table 2) of the fields containing the three z < 1.3 serendipitous structures is minimally contaminated by these foreground structures. The serendipitous structures at z > 1.3, however, are more likely to enhance the CARLA overdensities, since a large fraction of z > 1.3 galaxies detected by Spitzer should satisfy our color-selection criterion. We discover four serendipitous structures at z > 1.3, including two within the same field (CARLA J2227−2705). CARLA-Ser J1753+6310, discovered at ${\tilde{z}}_{\mathrm{cl}}=2.117$ in the field of CARLA J1753+6310, is composed of six faint, star-forming members, none of which are detected in our Spitzer/IRAC data. The members of this serendipitous structure, however, lie close to the core of CARLA J1753+6310, as seen in the density map of that field in the top panel of Figure 4. We therefore cannot rule out a contribution of potential CARLA-Ser J1753+6310 members to the CARLA overdensity of this field. The two serendipitous structures identified in the field of CARLA J2227−2705 appear not to be contributing significantly to the CARLA overdensity in this field, as shown by their member spatial distribution overlaid on the CARLA density map in the bottom left panel of Figure 4. We see that CARLA members align with the density of red sources, whereas the serendipitous members are less clearly associated. We do not confirm a CARLA structure associated with the targeted RLAGN J1317+3925 at z = 1.569. In the grism data of this field, we only identify two additional sources at the redshift of the RLAGN, as shown in Table 2. However, we serendipitously identify CARLA-Ser J1317+3925, a foreground structure at ${\tilde{z}}_{\mathrm{cl}}=1.465$ composed of eight galaxies. Unlike the two serendipitous structures in the field of CARLA J2227−2705, CARLA-Ser J1317+3925 members spatially align with the overdensity of red sources, as shown in the density map of that field in the bottom right panel of Figure 4. On the other hand, the two sources at the RLAGN redshift do not appear associated with the overdensity. This suggests that the CARLA overdensity in this field is potentially associated with CARLA-Ser J1317+3925. This structure is therefore likely a "spurious" detection of an overdense structure, and not associated with the targeted RLAGN.

Zoom In Zoom Out Reset image size

To investigate whether we find a larger number of serendipitous structures than expected, we calculate the number of sources in the 3D-HST survey (Momcheva et al. 2016) that belong to a structure as defined in Section 4.2. To compare to our observations and redshift determinations, we select 3D-HST sources that have usable grism redshifts (use_zgrism = 1), and have any combinations of identified Hα, [O iii], or [O ii] emission lines above our limiting fluxes (2.5 × 10⁻¹⁷ erg cm⁻² s⁻¹) and falling within the wavelength range covered by the G141 grism (λ = 1.08–1.7 μm). Using 1 arcmin and ±2000 km s⁻¹ thresholds, we find that 7% of such selected galaxies in 3D-HST are members of structures containing at least five confirmed members. In contrast, the comparable number from our similarly deep CARLA program is 27%, with three quarters (20%) associated with the RLAGN structures and one quarter (7%) associated with serendipitous structures. This is consistent with our observations probing biased, rich, environments. Assuming no strong confirmation bias, the number of serendipitous structures identified in the CARLA program is consistent with expectations based on 3D-HST.

5.1. High-redshift Clusters

Our shallow two orbit per field strategy proves to be efficient at confirming Spitzer color-selected high-redshift structures, with an 80% confirmation rate (16/20 CARLA confirmations). Our grism confirmation method additionally allowed us to serendipitously discover and confirm other high-redshift structures not associated with the targeted RLAGN.

In the following section, we compare the spectroscopically confirmed high-redshift CARLA clusters with other high-redshift massive clusters. As laid out in the introduction, finding and confirming high-redshift galaxy clusters is nontrivial. Although much progress has been made in the past decade in finding and characterizing galaxy clusters at z > 1, confirmed galaxy clusters at even higher redshift (z ≳ 1.3) remain rare, making a direct comparison to the confirmed CARLA clusters challenging.

The South Pole Telescope (SPT) SZ survey (Reichardt et al. 2013; Bleem et al. 2015) discovered a few 10s of high-redshift galaxy clusters at z > 1, with about a third of those at z > 1.3 (Bleem et al. 2015). In contrast to CARLA clusters, the SZ-selected SPT clusters naturally represent a mass-selected sample, and the structures belong to the most massive structures known at this epoch. Another very successful program, the IRAC Shallow Cluster Survey (ISCS, Eisenhardt et al. 2008), identified 335 galaxy cluster and group candidates, including 106 at z > 1, using a 4.5 μm selected sample of objects in the 8.5 deg² Boötes field. These systems are typically less massive clusters, as they were selected from a relatively small survey area. The ISCS clusters were identified as three-dimensional overdensities using a wavelet algorithm, based on photometric redshift probability distributions. Similar to CARLA clusters, ISCS clusters therefore form an IRAC-based galaxy richness-selected sample, although the exact details of the selection differ from the CARLA selection. Brodwin et al. (2013) report on the high central SFRs in 16 spectroscopically confirmed ISCS clusters at 1 < z < 1.5.

For all spectroscopically confirmed z > 1.3 SPT and ISCS clusters with existing IRAC data, we generate IRAC1 and IRAC2 source catalogs using the same procedures and parameters as for the CARLA catalogs (Wylezalek et al. 2013, 2014). We use the same color cut of [3.6]–[4.5] > −0.1 as for the CARLA fields (Wylezalek et al. 2013). Similar to Wylezalek et al. (2013, 2014), we then measure the density of the IRAC-selected sources, Σ_x, within an 1' radius aperture around each cluster center. SPT cluster centers have been re-calculated using the IRAC photometry to calculate the centroid of the galaxy distribution from the IRAC-selected sources (A. H. Gonzalez et al. 2018, in preparation; D. Wylezalek et al. 2018, in preparation). ISCS cluster centers were determined based on the wavelet analysis from weighted galaxy density maps (Eisenhardt et al. 2008).

To account for the different depths among the SPT, ISCS, and CARLA Spitzer/IRAC observations, we apply a common flux density cut of F_lim = 10 μJy (see Wylezalek et al. 2013 for details on estimating limiting flux densities) to the SPT, ISCS and CARLA fields, shallower than the original depth of the CARLA survey (F_lim = 2.55 μJy). For completeness, we also show the CARLA overdensity significance at the original depth of the CARLA survey, F_lim = 2.55 μJy (pink open circles in Figure 5). To derive density estimates for a blind field, Σ_background, and the corresponding standard deviation to the blind field density distribution, σ_background, we apply the same criteria to a distribution of random locations from SpUDS. We then estimate the significance S of the overdensity of IRAC-selected sources in the fields using

$$\begin{eqnarray}&&S=\displaystyle \frac{{{\rm{\Sigma }}}_{x}-{{\rm{\Sigma }}}_{\mathrm{background},x}}{{\sigma }_{\mathrm{background},x}},\end{eqnarray} \tag{ 1 }$$

where x denotes that we repeat this calculation for the SPT, ISCS, and CARLA fields with the corresponding background estimates, respectively.

Zoom In Zoom Out Reset image size

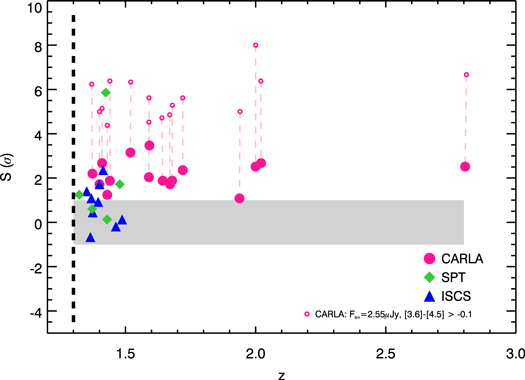

In Figure 5, we compare the IRAC overdensity significances, S, of SPT and ISCS clusters to our confirmed CARLA clusters. While CARLA, SPT, and ISCS clusters have been selected in different ways, CARLA clusters tend to show a similar or even higher galaxy richness than SPT and ISCS clusters, although the SPT clusters are expected to represent the most massive and virialized systems among the three samples. It is beyond the scope of this paper to evaluate how and if galaxy richness can be used to estimate the total mass of a galaxy cluster (see Rettura et al. 2017 in this respect). Instead, this simple analysis shows that our CARLA fields (the most overdense among the full CARLA sample, by selection) are comparable to confirmed massive, evolved systems in terms of overdensity of Spitzer/IRAC color-selected galaxies. The strength of the CARLA survey is to find similarly significant overdensities at z > 1.5. However, we caution the reader that the non-evolving flux cuts used here preclude direct comparison of the different redshift bins with each other. Investigation of evolutionary trends—and whether the current sample of 16 spectroscopically confirmed structures represent an evolutionary sequence—is therefore beyond the scope of the current analysis.

5.2. Line Ratios

In Figure 6, we show the Hα/[O iii] line ratios of confirmed members against Hα flux, compared to field values from the 3D-HST survey (Momcheva et al. 2016). We select sources from 3D-HST with usable grism redshifts (use_zgrism = 1) in the range where we observe both Hα and [O iii] (i.e., 1.37 < z < 1.59) and use their 3σ emission line flux limit of 2.1 × 10⁻¹⁷ erg cm⁻² s⁻¹. We assume a 1:3.2 [O iii] doublet ratio (see N16) to convert the 3D-HST [O iii] doublet fluxes into [O iii] λ5007 Å fluxes. As noted earlier, the Hα fluxes include the [N ii] contribution. We find a median of 0.76 for star-forming CARLA members (i.e., excluding AGN), slightly lower than unity, and lower than the 3D-HST median of 1.43 for sources within 0.15 < Hα/[O iii] < 7. Our results suggest that, on average, [O iii] is brighter than Hα at these redshifts for cluster galaxies. This is consistent with a decreasing ratio with redshift, where Hα is typically brighter than [O iii] at lower redshifts (e.g., Ly et al. 2007, Domínguez et al. 2013). This would additionally be consistent with elevated AGN activity in high-redshift (proto)clusters compared to the field, as seen in other works (e.g., Galametz et al. 2009), enhancing [O iii] line fluxes via AGN photoionization.

Zoom In Zoom Out Reset image size

Five sources from our grism survey have high ratios, in the range 4 < Hα/[O iii] < 7. Two of these sources are the central QSOs of CARLA J1358+5752 and CARLA J1129+0951. We identify and measure broad and strong Hα, and weaker [O iii] and Hβ fluxes for the two QSOs. Unless due to intrinsic QSO line properties, the high Hα/Hβ ratios (4.0 and 5.6, respectively) suggest the presence of intrinsic dust extinction that affects the Hα/[O iii] ratios, where the typical Balmer-decrement (i.e., Hα/Hβ ratio) is 3.37 for low-redshift radio-loud QSOs with negligible dust extinction (Dong et al. 2008). The three other sources with high Hα/[O iii] ratios are star-forming members of CARLA J1129+0951. We detect Hβ emission for one of the three sources, for an Hα/Hβ ratio of 5.2, where the intrinsic (i.e., dust-free) ratio is 2.98 for Case B recombination (Osterbrock 1989). We only detect [O iii] to the level of our detection limit and a ∼6× stronger Hα flux for the other two sources. In both cases, this suggests that the high Hα/[O iii] ratios are due to dust-attenuated [O iii] emission. Another possibility for the latter case would be a very strong [N ii] contribution to the Hα flux. Two sources have low Hα/[O iii] ratios, with values <0.3. One source is the central HzRG of CARLA J2355−0002, and the other is a star-forming member of this structure. Using sources with Spitzer detections, we do not find a dependence of the line ratio with galaxy stellar mass.

5.3. SFR versus Mass

In Figure 7, we show the SFRs of members as a function of galaxy stellar mass, where masses are determined as described in Section 4.5. The leftward green arrow represents the typical shift in stellar mass (20%) when using a sum of SSP and star-forming decaying models contributing 20% and 80% of the mass, respectively, instead of using an SSP-only model, as described in Section 4.5. Note that this shift does not significantly change our results. We also show uncertainties in the SSP-derived stellar masses, propagated from uncertainties in Spitzer/IRAC flux measurements. Most symbols have sizes similar to these uncertainties.

Zoom In Zoom Out Reset image size

As noted in Section 4.4, depending on the available emission lines, we estimate SFRs with the following priority order: Hα, [O iii], and [O ii] (highlighted by circles, squares, and diamonds in Figure 7, respectively). To compare the SFR-M_⋆ relation of our confirmed members with field values, we show the star-forming main sequence of 1.4 < z < 2.5 field galaxies established in Daddi et al. (2007; solid black line in Figure 7). The dashed and dotted lines represent 4× and 10× the main sequence, respectively. We also show the Whitaker et al. (2014) main sequences for (10¹⁰–10¹¹) M_⊙ galaxies, comparable to our mass estimates of Spitzer-detected members. We show the main sequences derived for the redshift ranges z = 0.5–1.0, 1.0–1.5, 1.5–2.0, and 2.0–2.5 (gray, blue, cyan, and yellow curves in Figure 7, respectively). The gray confidence region around the Daddi et al. (2007) z ∼ 2 main sequence corresponds to the semi-interquartile range (0.16 dex) of their SFR-M_⋆ distribution. The confidence regions around the Whitaker et al. (2014) main sequences represent the typical error (∼0.07 dex) in their SFR median stacks used to derive the polynomial fits of the main sequences in the range (10¹⁰–10¹¹)M_⊙, as in Table 2 of their paper. Using the limiting Spitzer/IRAC fluxes determined in Wylezalek et al. (2014), we determine upper limits on the galaxy masses of non-Spitzer-detected confirmed members. We highlight these sources with leftward arrows in Figure 7.

We find that Spitzer-detected confirmed members, with stellar masses typically above 10¹⁰ M_⊙, are located under the main sequence of their corresponding redshift bins up to z = 2. Indeed, Spitzer-detected z ∼ 1.5 members (highlighted by dark blue markers in Figure 7) are located below the field z ∼ 1.5 star-forming main sequence, and tend to better agree with the lower redshift (i.e., z = 0.5–1.0) star-forming main sequence of Whitaker et al. (2014). This would be consistent with an accelerated galactic evolution in overdense environments. Similarly, Spitzer-detected z ∼ 2 members are located below the z ∼ 2 (Daddi et al. 2007; Whitaker et al. 2014) main sequences. For many of the lower mass galaxies, we only have upper limits on their masses and are therefore unable to confidently address where they reside relative to the main sequence. On the other hand, at all redshifts, the more massive (i.e., Spitzer-detected) member galaxies, with stellar masses typically above 10¹⁰ M_⊙, form very few stars for their mass, as shown by their location under their respective star-forming main sequences of field galaxies. This suggests that these are evolved galaxies that have already undergone a major episode of star formation.

These results, however, are dependent on the robustness of the SFR estimates. We might be underestimating SFRs of dustier member galaxies, since our calculations assume a constant dust attenuation of 1 mag in the V-band for all galaxies. Additional longer wavelength data will be required to fully investigate how dust affects our results. However, we emphasize that our treatment is identical to the approach adopted in previous analyses (e.g., Zeimann et al. 2012, Newman et al. 2014), and that this value is typical of star-forming galaxies (e.g., Kewley et al. 2004, Sobral et al. 2012). Even adopting 2 mag of dust attenuation in the V-band, we still find that >75% of Spitzer-detected star-forming members are located below the Daddi et al. (2007) main sequence. Alternatively, we fit a second order polynomial to the subsample of 10¹⁰–10¹¹ M_⊙ Hα members and compute the amount of dust attenuation A_V, as a function of M_⋆, required to reproduce the Whitaker et al. (2014) main sequence at z = 1.5. We find that the required dust attenuation A_V is monotonically increasing with stellar mass and ranges from 2 mag at 10¹⁰ M_⊙ to 4 mag at 10¹¹ M_⊙. These values are significantly higher than typical dust attenuation for massive galaxies, both at low redshifts and in color-selected massive galaxies and comparable redshift to the CARLA sample. Specifically, using a sample of 90,000 star-forming galaxies from Data Release 7 of the Sloan Digital Sky Survey (Abazajian et al. 2009), Garn and Best (2010) find Hα dust attenuations ranging from 0.91 mag for 10¹⁰ M_⊙ galaxies to 1.70 mag at 10¹¹ M_⊙, with an average 1σ width of the distribution of ∼0.3 mag. This corresponds to A_V attenuations of 1–2 mag, respectively. Kashino et al. (2013, 2014) find similar dust attenuations from a sample of 271 sBzK-selected star-forming galaxies at 1.4 < z < 1.7 from the COSMOS field (McCracken et al. 2010). Our analysis therefore supports the result that massive (10¹⁰–10¹¹ M_⊙) confirmed members of these distant structures did indeed form earlier than field galaxies at similar redshift, and reside below the main sequence of star-forming galaxies at their redshift, unless significantly dust-obscured.

5.4. SFR versus Radius

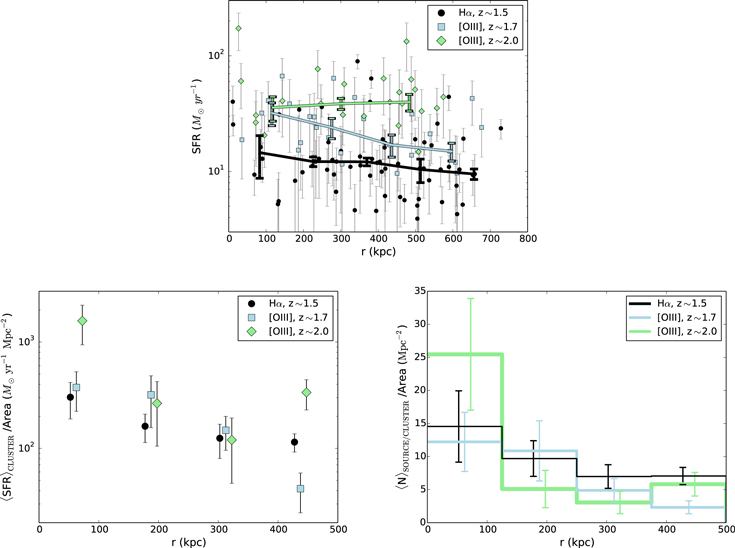

In the top panel of Figure 8, we show individual SFRs of members and corresponding running medians as a function of physical distance from the targeted RLAGN. We divided members into three redshift groups. The first group, represented by solid black circles, corresponds to members of the seven confirmed CARLA structures at z ∼ 1.5, for which the SFRs are based on Hα, and limited to >4 M_⊙ yr⁻¹. The second group, represented by solid light-blue squares, includes members of the five [O iii]-based SFR structures at z ∼ 1.7, which have limiting SFRs > 10 M_⊙ yr⁻¹. The third group, represented by solid light-green squares, is composed of the three [O iii]-based SFR structures at z ∼ 2.0 (with SFRs > 20 M_⊙ yr⁻¹; see Figure 1). We caution the reader that the use of different SFR tracers, each also having different limiting SFRs, precludes direct comparison of the three different redshift bins. Despite large scatter, we observe a general trend of slightly decreasing source SFR with distance from the targeted RLAGN for members of the Hα SFR-based group and for members of the [O iii] SFR-based group at z ∼ 1.7 (top panel Figure 8). Confirmed members of the [O iii] SFR-based group at z ∼ 2.0, limited to higher (>20 M_⊙ yr⁻¹) SFRs, do not exhibit such behavior. Higher number statistics and deeper observations to identify lower star-forming members would therefore be required to infer the radial SFR trend of individual sources at z ∼ 2. At close proximity to the RLAGN (<50 kpc), we see a steep increase of member galaxy SFRs (for the Hα SFR-based group and the [O iii] SFR-based group at z ∼ 2.0). This could be consistent with RLAGN nuclear activity triggering the star formation of satellite galaxies.

Zoom In Zoom Out Reset image size

In the bottom left panel of Figure 8, we show the average SFR density per structure (in M_⊙ yr⁻¹ Mpc⁻²) as a function of distance from the targeted RLAGN. Values are all derived within bins of 125 kpc from the RLAGN, and error bars represent the error in the mean. We observe a clear decreasing trend with distance from the targeted RLAGN for all SFR tracers and redshift bins, except the last radial bin of the [O iii] SFR-based group at z ∼ 2.0 (light-green diamonds), which exhibits an increase of SFR density. This is directly correlated to the average number density of sources with distance from the RLAGN. In the bottom right panel of Figure 8, we indeed observe a general higher concentration of star-forming members at close proximity to the RLAGN, and also a slightly increased concentration of sources within r = 375–500 kpc compared to r = 125–375 kpc for the [O iii] SFR-based group at z ∼ 2.0. Even though the RLAGN may not always reside at the center of the structures, this result supports that it is the case on average, as also shown in Wylezalek et al. (2013). These results also show that, on average, most of the star-forming budget in our confirmed CARLA structures is enclosed within their densest, central regions.

Overall these trends are consistent with Brodwin et al. (2013), who studied 16 confirmed clusters from the Spitzer/ISCS (Eisenhardt et al. 2008) in the range 1.0 < z < 1.5 and found similar trends for a subsample of clusters in the range 1.37 < z < 1.50, while lower redshift clusters showed lower SFR in clusters cores, ubiquitous at z = 0 (see also, e.g., Tran et al. 2010). Together, this suggests that cluster cores are the preferred sites of star formation at these epochs.

We conclude the following from our 40-orbit HST/WFC3 F140W and G141 follow-up observations on the 20 densest CARLA candidate clusters at 1.4 < z < 2.8.

• 1.
  We spectroscopically confirm 16 Spitzer color-selected distant structures associated with the targeted RLAGN, including three at z ∼ 2 (CARLA J1018+0530, CARLA J0800+4029, and CARLA J2039-2514) and one at z = 2.8 (CARLA J1017+6116). These structures are among the most distant confirmed cluster candidates currently known. We identify 143 members in these 16 structures, with an average of 9 members per confirmed structure. We also serendipitously discover and confirm 7 other structures at 0.87 < z < 2.12 not associated with the targeted RLAGN of our program.
• 2.
  With just two orbits of HST imaging and grism spectroscopy per field, we confirm emission line sources down to ∼2.5 × 10⁻¹⁷ erg cm⁻² s⁻¹, corresponding to limiting SFRs in the range 4–70 M_⊙ yr⁻¹, depending on the identified emission line and galaxy redshift.
• 3.
  We show that these newly confirmed CARLA structures at $1.4\lt z\lt 2.8$ are comparable or slightly richer in mid-infrared overdensity to spectroscopically confirmed massive SPT and ISCS clusters at 1.3 < z < 1.5, implying similar galaxy richness despite being at much higher redshift.
• 4.
  We find that massive (10¹⁰–10¹¹ M_⊙) confirmed structure members, all showing evidence of star formation, reside below the star-forming main sequence of galaxies at their redshift. Unless significantly dust-obscured, this implies that these galaxies in rich environments underwent a significant episode of star formation prior to the epoch that we are now observing them.
• 5.
  We find that the density of star-forming galaxies rises sharply at smaller radii from the central RLAGN, implying that most of the star-forming budget is enclosed within the densest regions of these structures. This trend is consistent with the results of Brodwin et al. (2013), who studied a sample of mid-infrared selected clusters at slightly lower redshift, and is consistent with an overall reversal of the SFR-density relation at higher redshifts.
• 6.
  Comparing spectroscopically confirmed member densities to expectations from field observations and numerical simulations, we classify, in Appendix B, our confirmed structures into three classes: (i) HPCs, (ii) PCs, and (iii) CGCs. Our analysis classifies three confirmed CARLA structures in the HPC category, while all other confirmed CARLA structures (13/16) are classified as probable confirmed clusters.
• 7.
  Finally, these results highlight both the strengths and weaknesses of shallow HST grism spectroscopy for confirming high-redshift galaxy clusters. With an extremely efficient strategy of just two orbits per field, we are able to confirm most of these candidate high-redshift clusters and demonstrate the robust selection efficiency of the CARLA Spitzer imaging program. However, by design, this strategy fails to confirm member galaxies lacking star formation and therefore fails to identify the interesting sample of massive, evolved, early-type galaxies in these distant structures. A deeper grism program would be able to achieve such science.

We thank the referee for useful comments and suggestions that improved the paper. We thank Nicole Nesvadba for kindly sharing data concerning the field around TXS 2353−003. This work is based on observations made with the NASA/ESA Hubble Space Telescope, obtained at the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy Inc., under NASA contract NAS 5-26555. These observations are associated with program #GO-13740. Support for program #GO-13740 was provided by NASA through a grant from the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy Inc., under NASA contract NAS 5-26555. This work is also based in part on observations made with the Spitzer Space Telescope, which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with NASA. This work is also based in part on observations made with the 200-inch Hale Telescope, Palomar Observatory, operated by the California Institute of Technology. The work of P.E. and D.S. was carried out at the Jet Propulsion Laboratory, California Institute of Technology, under a contract with NASA. S.M. acknowledges financial support from the Institut Universitaire de France (IUF), of which she is senior member. D.W. acknowledges support by Akbari-Mack Postdoctoral Fellowship. E.A.C. acknowledges support from the ERC Advanced Investigator program DUSTYGAL 321334. N.A.H. acknowledges support from STFC through an Ernest Rutherford Fellowship.

Facilities: HST (WFC3; STScI) - , Spitzer (IRAC; JPL/Caltech) - , Palomar (DBSP; Caltech). -

We describe in Table 3 the content of the spectroscopic catalog available in the online material. This catalog gathers spectroscopic information on all sources with a measured redshift in our 20 HST fields.

In this appendix we evaluate the significance of our CARLA spectroscopic overdensities (both targeted and serendipitous). This analysis provides an additional flag to better assess the status of our confirmations and non-confirmations.

As already mentioned, in Wylezalek et al. (2013, 2014) we derived an estimate of the Spitzer-selected galaxy overdensities for all CARLA fields and compared them to the average distribution of similarly selected galaxies from SpuDS. We measured a field galaxy overdensity of 9.6 ± 2.1 galaxies per arcmin² (Wylezalek et al. 2014). The fields of our 16 confirmed structures (CARLA clusters) have galaxy overdensity significances >4.4σ. This means that, based on the Spitzer-selected galaxy overdensities alone, there is an almost zero probability that our confirmed structures are simply field galaxy overdensities. As mentioned before, our detections can still be clusters, groups, filaments, or sky superpositions that cannot be distinguished in Spitzer colors alone. We therefore measure the overdensity of spectroscopically confirmed members in our CARLA fields and compare them to expected values in the field (using 3D-HST) and numerical simulations (using Cautun et al. 2014) in an attempt to understand whether our confirmations are in better agreement with being nodes of the cosmic web (i.e., virialized clusters) or filaments.

As previously, we select 3D-HST sources that have usable grism redshifts (use_zgrism = 1), and have any combinations of identified Hα, [O iii], or [O ii] emission lines above our limiting fluxes (2.5 × 10⁻¹⁷ erg cm⁻² s⁻¹) and falling within the wavelength range covered by the G141 grism (λ = 1.08–1.7 μm). We scan these sources in the redshift range z = 0.7–3.0 with a step of ±2000 km s⁻¹, corresponding to our adopted definition. For each redshift bin, we measure the number density of galaxies using randomly distributed non-overlapping 1' radius apertures. We then stack the density distributions within steps of 0.1 in redshift and fit Gaussians to the distributions to obtain the 1σ standard deviation of the spectroscopic field galaxy density (in arcmin⁻²) at these redshifts. We then compare confirmed member densities in our CARLA fields to the field values at the appropriate redshifts. The top left panel of Figure 9 shows the overdensity significance (in σ) of spectroscopic members of our confirmed CARLA and serendipitous structures and non-confirmed CARLA cluster candidates, shown as red circles, green triangles, and black crosses, respectively.

Zoom In Zoom Out Reset image size

We also measure galaxy contrasts ${\delta }_{\mathrm{spec}}=\tfrac{{N}_{\mathrm{members}}-{N}_{3{\rm{D}}{HST}}}{{N}_{3{\rm{D}}{HST}}}$ (where N_members and N_3DHST are measured in galaxies per arcmin²), which we can compare to numerical simulations (e.g., Cautun et al. 2014). Following a similar approach as in Mei et al. (2015), we compare the $(1+\delta )=\tfrac{\rho }{{\rho }_{\mathrm{bkg}}}$ galaxy contrast measurements of Cautun et al. (2014) to our (1 + δ_spec). Cautun et al. (2014) measured the probability density function (PDF) of contrasts (1 + δ) belonging to a void, a wall, a filament, or a node (virialized region) of the cosmic web. Following Cautun et al. (2014), we define, for this analysis, clusters and cluster progenitors as virialized regions at all redshifts. Numerical simulations predict that the haloes that are most probably accreted in clusters with masses M > 10¹⁴ M_⊙ at z < 0.5 have masses M ≥ 5 × 10¹³ M_⊙ at z > 1.5 (e.g., Chiang et al. 2013, Cautun et al. 2014).

Following Cautun et al. (2014), overdensities within 1σ from the mean of the node PDF have contrasts of 26 ≤ (1 + δ) ≤ 507 and a probability of ≲15% to be filaments, while those with contrasts of 6 ≤ (1 + δ) < 26 are within 1σ–2σ from the mean of the node PDF and have a probability of ≲40% to be filaments. Overdensities with contrasts of (1 + δ) < 6 are more than 2σ from the mean of the node PDF; their probability to be nodes of the cosmic web is ≲10%, and they also have a probability of ∼40%–50% to be filaments. We find galaxy contrasts (1 + δ_spec) ≥ 6 for 13 of our 16 confirmed CARLA cluster candidates, including one (CARLA J1017+6116) with a contrast higher than 26 (42; see top right panel of Figure 9). CARLA J1753+6310, showing a strong red sequence, dominated by a passive population (Cooke et al. 2016) and for which we confirm five star-forming members in our HST grism data, is among the three confirmed CARLA structures with (1 + δ_spec) < 6. This illustrates that the different star formation histories in the field and cluster environments can significantly affect our spectroscopic overdensity significances and galaxy contrasts. We therefore estimate different contributions of the star-forming population from the literature to scale our galaxy contrasts. Also note that the higher grism confusion in crowded (cluster) environments compared to the field tends to underestimate our measurements of spectroscopic significance and galaxy contrast.

The fraction of star-forming galaxies in the field is typically ∼80% at z > 1 (e.g., Darvish et al. 2016). The fraction of star-forming galaxies in clusters within a region of radius 0.5 Mpc (∼1') is typically ∼10%–20% and ∼40%–50% at 1 ≤ z ≤ 1.4 and z > 1.4, respectively (e.g., Brodwin et al. 2013). The exact percentage depends on the evolutionary status of the cluster. In fact, clusters dominated by passive populations are found up to z ∼ 2 (e.g., Newman et al. 2014, Cooke et al. 2016). To quantify how different star-forming galaxy fractions in clusters and the field (SFGF_cl and SFGF_bkg, respectively) change our classification, we scale (1 + δ_spec) by $\tfrac{{\mathrm{SFGF}}_{\mathrm{bkg}}}{{\mathrm{SFGF}}_{\mathrm{cl}}}$ for three different cases: (i) SFGF_cl = 15%, which is typical of evolved clusters; (ii) SFGF_cl = 50%, which corresponds to typical clusters at z ∼ 1.5 (e.g., Brodwin et al. 2013); and (iii) SFGF_cl = 100%, which corresponds to the most extreme case in which all galaxies are star-forming galaxies. We show our galaxy contrasts for these three cases in the bottom panels of Figure 9.

In the case SFGF_cl = 15% (Figure 9, bottom left panel), 14 of our 16 confirmed CARLA structures are within 1σ from the mean of the Cautun et al. (2014) node PDF (i.e., they have (1 + δ_spec) ≥ 26). Three of the serendipitous confirmations are also within 1σ of the node PDF, while four are within 2σ (i.e., they have 6 ≤ (1 + δ_spec) < 26). In the case SFGF_cl = 50% (Figure 9, bottom middle panel), the only confirmed CARLA structure within 1σ from the mean of the node PDF is CARLA J1017+6116, confirmed at z = 2.8 with eight star-forming members. With a contrast of (1 + δ_spec) = 78, Cautun et al. (2014) predicts a probability larger than ∼60% that this is a node of the cosmic web and <10% to be a filament. In this scenario, all other confirmed CARLA structures and five serendipitous structures have 6 ≤ (1 + δ_spec) < 26. In the extreme case of SFGF_cl = 100% (Figure 9, bottom right panel), again only the z = 2.8 confirmed structure is within 1σ from the mean of the node PDF. In this last scenario, 11 confirmed CARLA structures and 1 serendipitous have 6 ≤ (1 + δ_spec) < 26; all other sources have (1 + δ_spec) < 6.

In Table 4, we show for all 20 fields the spectroscopic overdensity significance (σ_spec), the galaxy contrast (1 + δ_spec) for the three star-forming galaxy fractions discussed here, and a robustness flag. This flag is composed of three integers, each corresponding to one of the three star-forming galaxy fraction cases, and each ranging from one to three, with 1, 2, and 3 corresponding to fields that have galaxy contrasts (1 + δ_spec) < 1σ, = 1σ–2σ, and >2σ from the mean of the node PDF, respectively. For example, a field with flag 111 is within 1σ from the mean of the node PDF (i.e., 26 ≤ (1 + δ_spec) ≤ 507) for SFGF_cl of 15%, 50%, and 100%, in this sequence. We also add a flag, not available to all fields, indicating the presence of a clearly defined red sequence as from Cooke et al. (2016) and N16.

Table 4.  CARLA HST Spectroscopic Significance and Galaxy Contrasts

Field	${\tilde{z}}_{\mathrm{cl}}$	σIRACa	σspecb	(1 + δspec)c			Flagd	RSe	Classf
				SFGFcl = 15%	SFGFcl = 50%	SFGFcl = 100%
Confirmed CARLA Structures
CARLA J0116−2052	1.430	5.14	5.54	39	12	6	122	⋯	PC
CARLA J0800+4029	1.986	6.38	8.91	64	19	10	122	0	PC
CARLA J0958−2904	1.396	5.00	3.71	24	7	4	223	⋯	PC
CARLA J1017+6116	2.801	6.67	12.26	228	69	34	111	⋯	HPC
CARLA J1018+0530	1.953	5.00	7.13	51	15	8	122	⋯	PC
CARLA J1052+0806	1.648	4.71	6.19	33	10	5	123	⋯	PC
CARLA J1103+3449	1.443	6.38	3.69	26	8	4	123	⋯	PC
CARLA J1129+0951	1.531	6.33	5.54	39	12	6	122	⋯	PC
CARLA J1131−2705	1.445	4.38	4.62	32	10	5	123	⋯	PC
CARLA J1300+4009	1.676	4.86	7.07	44	13	7	122	⋯	PC
CARLA J1358+5752	1.373	6.24	6.49	42	12	6	122	⋯	PC
CARLA J1510+5958	1.719	5.62	4.52	39	12	6	122	⋯	PC
CARLA J1753+6310	1.581	4.52	2.90	20	6	3	223	1	HPC
CARLA J2039−2514	2.000	8.00	8.02	58	17	9	122	1	HPC
CARLA J2227−2705	1.686	5.29	6.19	38	12	6	122	⋯	PC
CARLA J2355−0002	1.489	5.62	5.54	39	12	6	122	⋯	PC
Unconfirmed CARLA Structuresg
6CSS1054+4459	(2.566)	4.67	2.27	26	8	4	(123)	⋯	⋯
J1317+3925	(1.569)	4.86	1.74	12	4	2	(233)	⋯	⋯
J1515+2133	(2.262)	4.24	1.63	11	3	2	(233)	⋯	⋯
TNR 2254+1857	(2.157)	5.62	3.15	18	6	3	(223)	⋯	⋯
Serendipitous Discoveries
CARLA-Ser J1017+6116	1.234	⋯	2.17	14	4	2	233	⋯	CGC
CARLA-Ser J1317+3925	1.465	⋯	3.69	26	8	4	123	⋯	PC
CARLA-Ser J1510+5958	0.875	⋯	2.69	19	6	3	223	⋯	PC
CARLA-Ser2 J1510+5958	0.976	⋯	2.36	18	5	3	233	⋯	CGC
CARLA-Ser J1753+6310	2.117	⋯	5.51	37	11	6	122	⋯	PC
CARLA-Ser J2227−2705	1.357	⋯	4.64	30	9	4	123	⋯	PC
CARLA-Ser2 J2227−2705	1.478	⋯	2.77	19	6	3	223	⋯	PC

Notes.

^aOverdensity significance (in σ) of color-selected sources above the field value (Wylezalek et al. 2014). ^bOverdensity significance (in σ) of spectroscopically confirmed sources above the field value. The values derived assume identical star-forming galaxy fractions in the field and cluster environments. ^cGalaxy contrast of spectroscopically confirmed sources for three cases of star-forming galaxy fractions in clusters, respectively 15%, 50%, and 100%, with a constant fraction of 80% in the field. ^dRobustness flag, as described in the text. ^eFlag indicating if the confirmed structure exhibits a tight red sequence (0: False, 1: True) ^fConfirmed structure classification following our analysis. HPC: highly probable confirmed cluster, PC: probable confirmed cluster, CGC: confirmed galaxy concentration. ^gFor unconfirmed structures, overdensity significances and galaxy contrasts are derived based on the few (<5) confirmed sources at the RLAGN redshifts.

Download table as:  ASCIITypeset image

Using this analysis, we consider confirmed structures (confirmed CARLA structures and serendipitous discoveries) with at least two flag components equal to 1 as highly probable confirmed clusters or protoclusters (HPCs). We consider confirmed structures with at least two flag components equal or less than 2 as probable confirmed clusters or protoclusters (PC). For any flag combination, we consider confirmed structures with clear red sequences as highly probable confirmed clusters or protoclusters (HPCs). We consider all other confirmed structures as confirmed galaxy concentrations (CGCs). We show the classifications for our confirmed structures in Table 4. We have three confirmed CARLA structures classified as HPC, while the rest (13/16) are classified as PC. Among serendipitous discoveries, 5/7 are classified as PC, while the other two are classified as CGC. We do not classify unconfirmed CARLA structures but show their flags in Table 4 for completeness. We will refine these considerations when additional multi-wavelength imaging and spectroscopy will be available to us on these fields. For simplicity, in the main body of this paper, we adopt the very conservative approach to call all spectroscopic confirmations "structures."

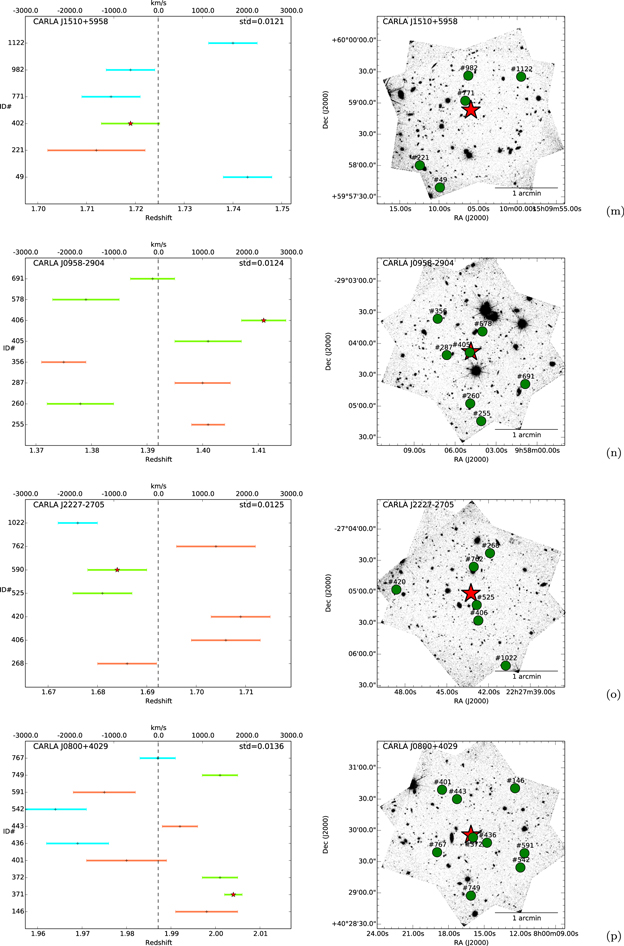

In this appendix we show and briefly discuss the redshift/velocity scatter and spatial distribution of confirmed members in our 16 confirmed CARLA cluster candidates. (Additional members of CARLA J1753+6311 confirmed with Keck spectroscopy are not shown here; see A. Rettura et al., 2018, in preparation.) CARLA confirmations are sorted by increasing scatter in redshift space (standard deviation). CARLA J2039−2514 and CARLA J0800+4029, already published in N16, are reproduced here for consistency.

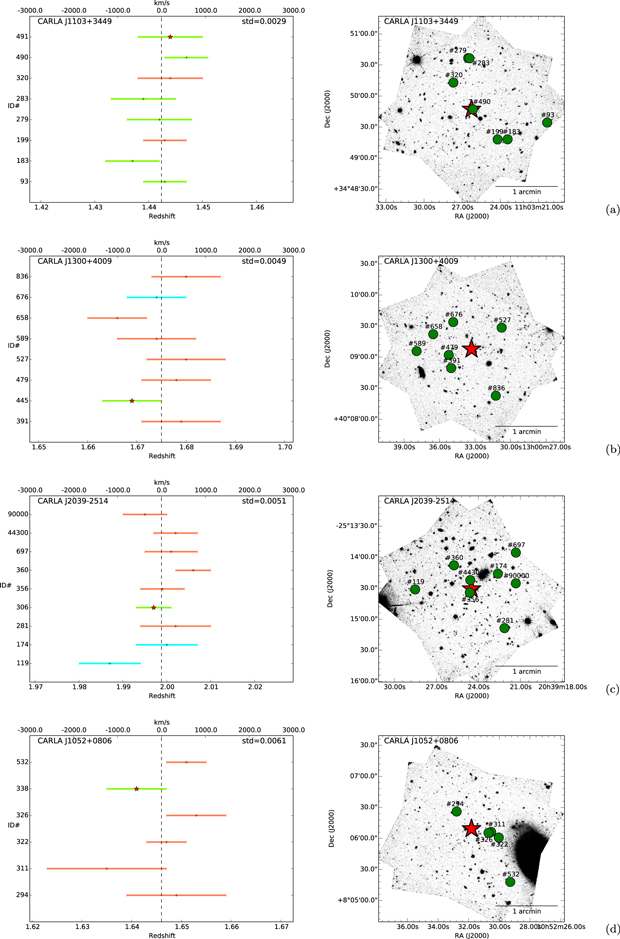

CARLA J1103+3449, Figure 10, Panel (a)—This confirmed CARLA cluster candidate is composed of eight members at z = 1.44, six being of quality A with both Hα and [O iii] detected. All members are confirmed within ±1000 km s⁻¹ and strongly peak at the same redshift as the RLAGN, which could provide evidence against a very massive virialized cluster of larger velocity scatter/dispersion. However, we determined a 123 flag for this confirmed structure (see Appendix B), which, following our analysis in Appendix B, would tend to support that CARLA J1103+3449, classified as PC, is probably a node of the cosmic web, as opposed to a filament. The RLAGN appears to possess at least one confirmed satellite member (#490).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

CARLA J1300+4009 (b)—Given its redshift, [O iii] was the only strong line available in our grism data for confirming members of this CARLA cluster candidate. The eight confirmed members have again very low velocity scatter, for a combined flag 122. Classified as PC, this would tend to support that CARLA J1300+4009 is most probably a node of the cosmic web at z = 1.68.

CARLA J2039−2514 (c)—We previously presented CARLA J2039−2514 in detail in N16 and showed that this z = 2.00 confirmed structure is already composed of a red-sequence of passive candidate members, consistent with being a bona fide galaxy cluster. With a flag of 122, CARLA J2039−2514, composed of nine confirmed members, including a dual AGN and classified as HPC, appears as a very strong candidate for being a massive node of the cosmic web at z = 2. The (dual AGN) RLAGN seem to possess at least two confirmed satellite members (#356 and #44300).

CARLA J1052+0806 (d)—This confirmed structure shows one of the densest cores, among our 20 CARLA HST fields, of red color-selected galaxies that only exhibit continuum in our grism data, without detection of emission lines. Due to proximity, their spectra are additionally contaminating each other. These sources are very promising targets for deeper spectroscopic observations and additional multi-wavelength follow-ups to reveal and study passive populations already present in a cluster core at z = 1.65. A flag of 123 classifies CARLA J1052+0806 as PC. A bright nearby galaxy, falling on the West side of our HST field of view, additionally contaminated a significant fraction of our grism data in this field, likely hindering confirmation of additional star-forming members of CARLA J1052+0806.

CARLA J1753+6310 (e)—We previously presented CARLA J1753+6310 in Section 4.6.2; see that section for details. We only confirm five members in our grism data, while additional Keck observations confirm an additional three members (A. Rettura et al., 2018, in preparation). CARLA J1753+6310 has a 223 flag, and Cooke et al. (2016) demonstrated that this structure possesses a strong red-sequence of passive candidate members and that its core is dominated by passive galaxies. CARLA J1753+6310, classified as HPC, therefore appears as a very strong candidate for being a massive node of the cosmic web at z = 1.58. The RLAGN likely possesses one confirmed satellite member (#470) at least.

CARLA J2355−0002 (f)—We previously presented CARLA J2355−0002 in Section 4.6.1; see that section for details. With a total of 12 quality-A-only members at z = 1.49, CARLA J2355−0002 appears as one of the most convincing spectroscopic confirmation from our HST data alone. Supporting data (Collet et al. 2015) additionally identifies z ∼ 1.5 Hα emitters outside our HST field of view. CARLA J2355−0002 has a 122 flag and its velocity distribution shows some scatter. This tends to support that CARLA J2355−0002, classified as PC, is probably a massive virialized cluster caught at an epoch of star formation. Confirmed (star-forming) members interestingly appear to be aligned in the NNE-SSW direction. Detailed study of CARLA J2355−0002 therefore appears very promising with respect to investigating the interplay between AGN nuclear activity, large-scale star formation, and the infall of gas from the cosmic web. The RLAGN seems to possess multiple confirmed satellite members.

CARLA J1131−2705 (g)—CARLA J1131−2705 is composed of nine members at z = 1.45, including four quality A and four quality B⁺ sources. Confirmed members are well peaked around the redshift of the RLAGN, with a scatter similar to CARLA J2355−0002. This confirmed structure has a 123 flag. Together this tends to support that CARLA J1131−2705, classified as PC, is a probable node of the cosmic web. One member (#442) appears as a probable satellite of the RLAGN.

CARLA J0116−2052 (h)—We confirm 12 members at z = 1.43, including 6 quality A sources, in the grism data of CARLA J0116−2052. As opposed to previously discussed confirmed structures, confirmed members of CARLA J0116−2052 appear to form two peaks around its mean redshift and are predominantly located to the north of the RLAGN. This might suggest that the RLAGN is not located at the center of the structure. However, with a flag of 122, our analysis supports that this confirmed structure is a probable node of the cosmic web. (It is classified as PC.)

CARLA J1017+6116 (i)—At a redshift of z = 2.80, CARLA J1017+6116 is the highest redshift confirmed structure among our 20 fields. With seven confirmed members at this redshift, CARLA J1017+6116 also possesses the highest spectroscopic overdensity significance and galaxy contrast of our sample. Confirmed members appear well distributed around the RLAGN redshift. However, at this high redshift, we relied on the sole identification of the relatively weak [O ii] emission line to confirm members of this structure. Additional spectroscopy would be required to obtain more robust redshift qualities on these sources. With a 111 flag, our analysis suggests that CARLA J1017+6116 is a highly probable node of the cosmic web (i.e., it is classified as HPC). Note that Spitzer/IRAC and HST/F140W flux measurements of source #124 are contaminated by a bright nearby source and a diffraction spike, and should be considered as upper limits only.

CARLA J1358+5752 (j)—CARLA J1358+5752 is the structure with the highest number of confirmed members in our data, with 14 confirmations at z = 1.37 including 10 quality A sources. Five confirmed sources appear slightly blueshifted compared to the rest of the members. This could suggest infalling galaxies in the structure potential. Together with a 122 flag, CARLA J1358+5752, classified as PC, appears as a probable node of the cosmic web. One source (#414) appears as a probable satellite of the RLAGN.

CARLA J1129+0951 (k)—We confirm 12 members at z = 1.53, including 8 quality A sources, in the grism data of CARLA J1129+0951. The velocity distribution is again double peaked, with 5 members slightly redshifted compared to the bulk of confirmed members including the RLAGN. Deeper, higher-resolution spectroscopy will be required to understand whether they are infalling galaxies. This structure has a 122 flag, classifying CARLA J1129+0951 as PC.

CARLA J1018+0530 (l)—Together with CARLA J2039−2514 and CARLA J0800+4029, CARLA J1018+0530 is one of the three confirmed structures at z = 2 among our 20 fields. CARLA J1018+0530 interestingly shows a concentration of bright continuum-only sources in the NE with respect to the RLAGN. This group shows hint of potential intra-cluster light, while narrow-band imaging available for this field suggests that sources of this group have photometric redshifts consistent with that of the RLAGN. A posteriori tentative detection of an emission line consistent with [O iii] at the redshift of the RLAGN for one source in this group tends to support this claim. We will present these data in a forthcoming paper. With a 122 flag, CARLA J1018+0530 is classified as PC. Two sources (#354 and #466) appear as probable satellites of the RLAGN.

CARLA J1510+5958 (m)—CARLA J1510+5958 is composed of six confirmed members, mainly of B qualities due to the redshift (z = 1.72) of the target. This allows identification of a sole strong emission line ([O iii]) in our grism data. Two sources appear significantly redshifted (>1000 km s⁻¹) compared to the other confirmed members. With a 122 flag, our analysis classifies CARLA J1510+5958 as PC. One source (#771) appears as a probable satellite of the RLAGN.

CARLA J0958−2904 (n)—CARLA J0958−2904 is confirmed with eight members at z = 1.40, including five quality A sources. Among our confirmed CARLA clusters, CARLA J0958−2904 shows the most redshifted RLAGN relative to the mean redshift of the structure. Unless due to, for example, wavelength mis-calibration, this could suggest that the targeted RLAGN of CARLA J0958−2904 might not reside at the center of the structure. Source #405 appears as a likely satellite of the RLAGN. With a 223 flag, CARLA J0958−2904 is classified as PC. Source #405 appears as a probable satellite of the RLAGN.

CARLA J2227−2705 (o)—CARLA J0958−2904, confirmed with seven members at z = 1.69, shows a double-peaked velocity distribution, which could potentially suggest that confirmed members are not yet well stabilized in the structure potential. With a 122 flag, our analysis classifies CARLA J2227−2705 as PC.

CARLA J0800+4029 (p)—We previously presented CARLA J0800+4029 in detail in N16. In N16, we showed that CARLA J0800+4029 does not exhibit a clear red-sequence of bright (F140W < 23 mag) candidate members, as opposed to CARLA J2039−2514, and is likely a younger forming structure than CARLA J2039−2514, which was confirmed at a similar redshift (z = 2). This would tend to better argue in favor of the large velocity scatter of CARLA J0800+4029 being consistent with infalling members in the structure potential rather than showing evidence for a massive stabilized cluster. Additional data, however, are required to better characterize the evolutionary status of this confirmed structure. With a flag of 122, our analysis classifies CARLA J0800+4029 as PC. Source #372 appears as a probable satellite of the RLAGN.

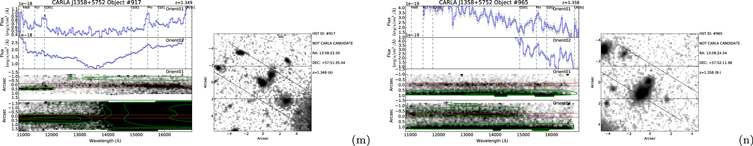

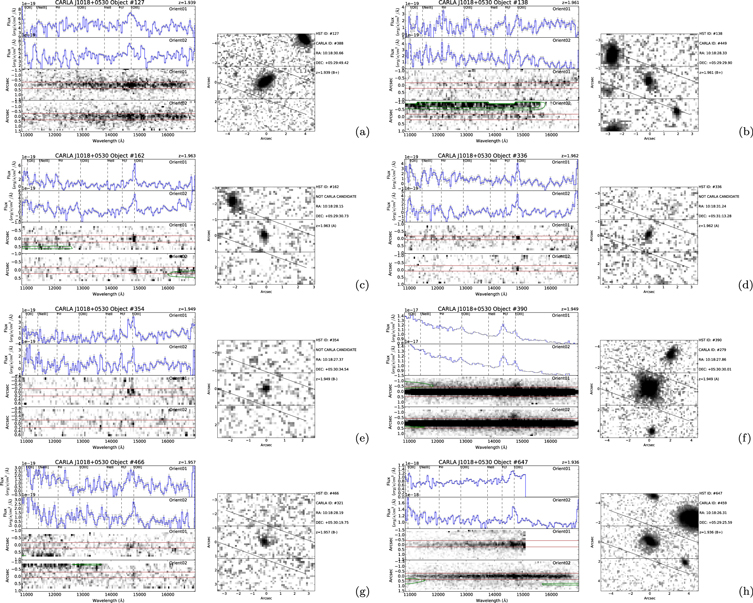

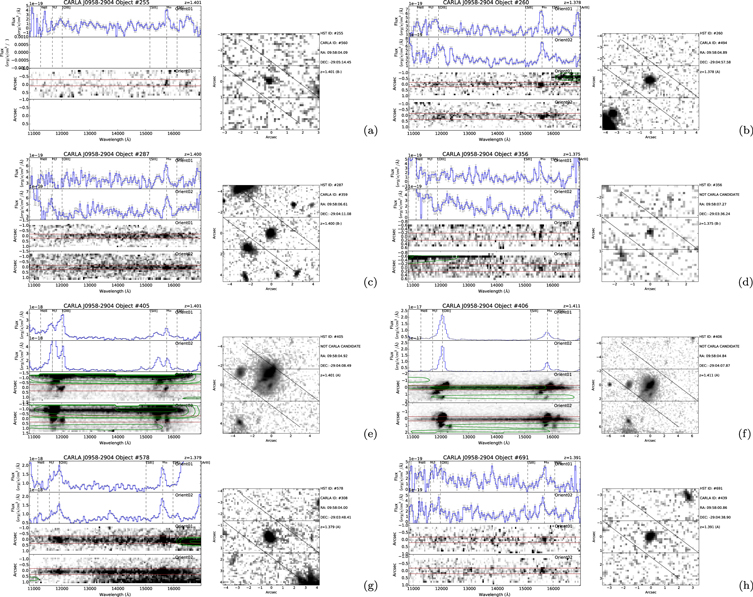

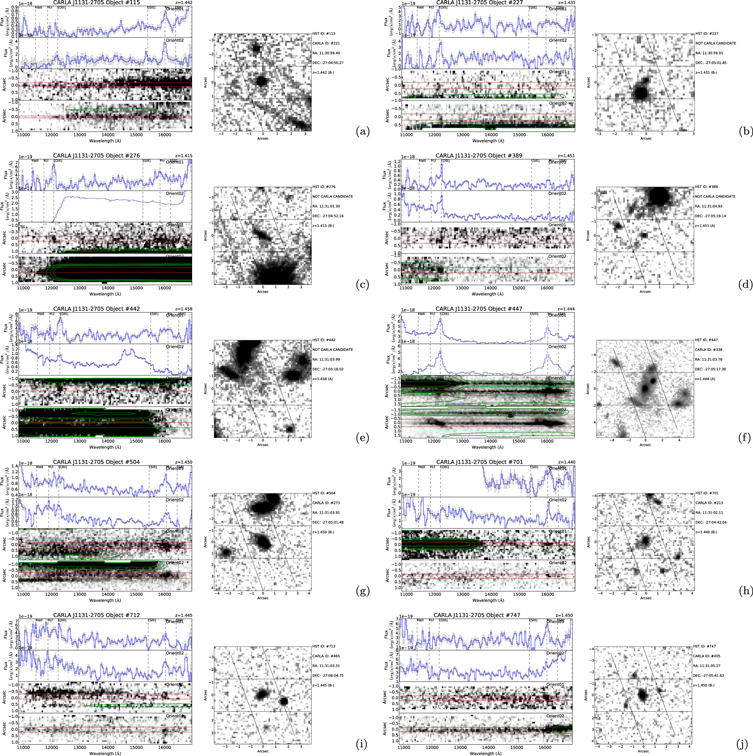

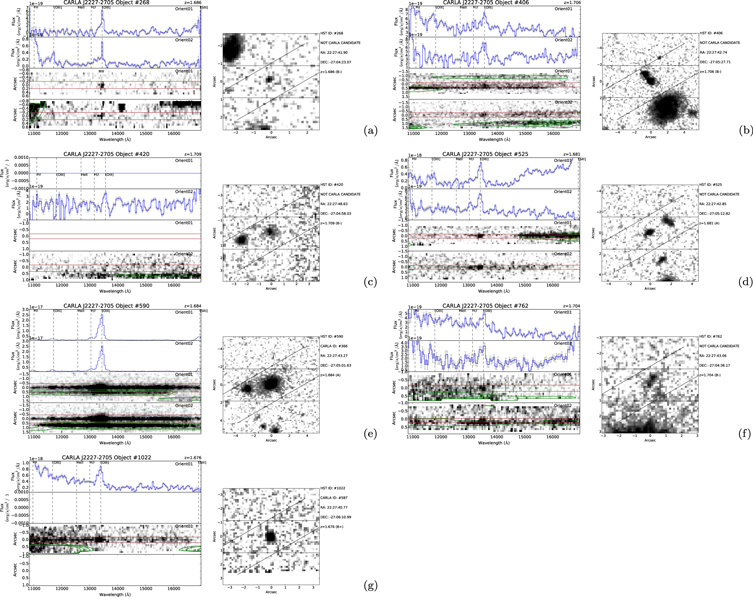

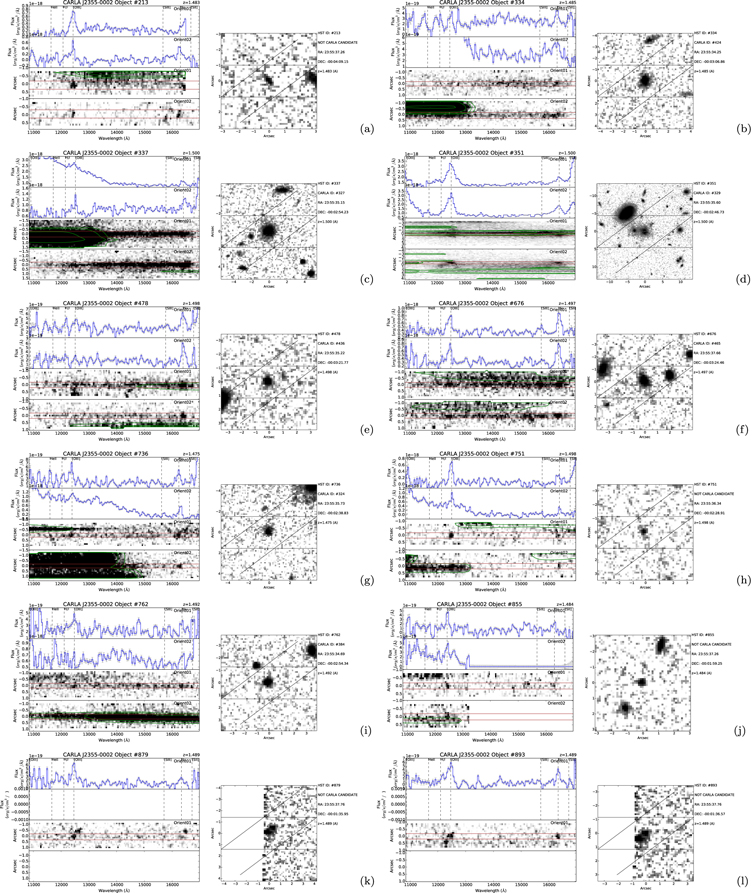

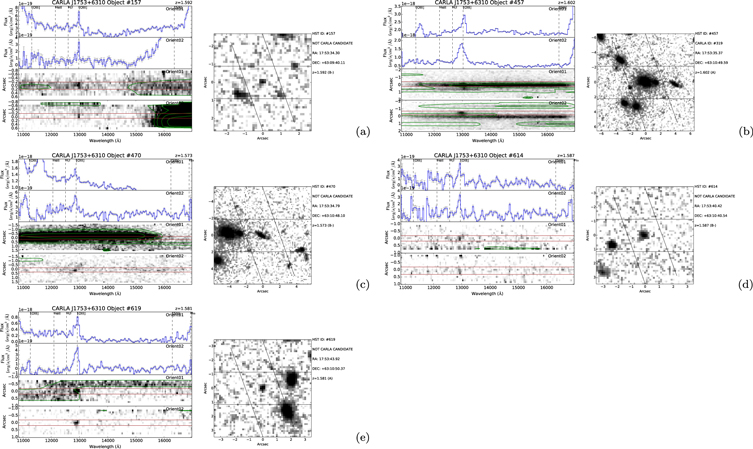

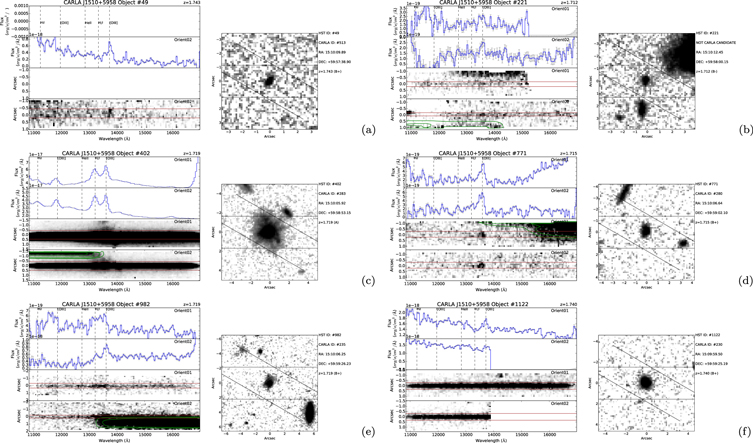

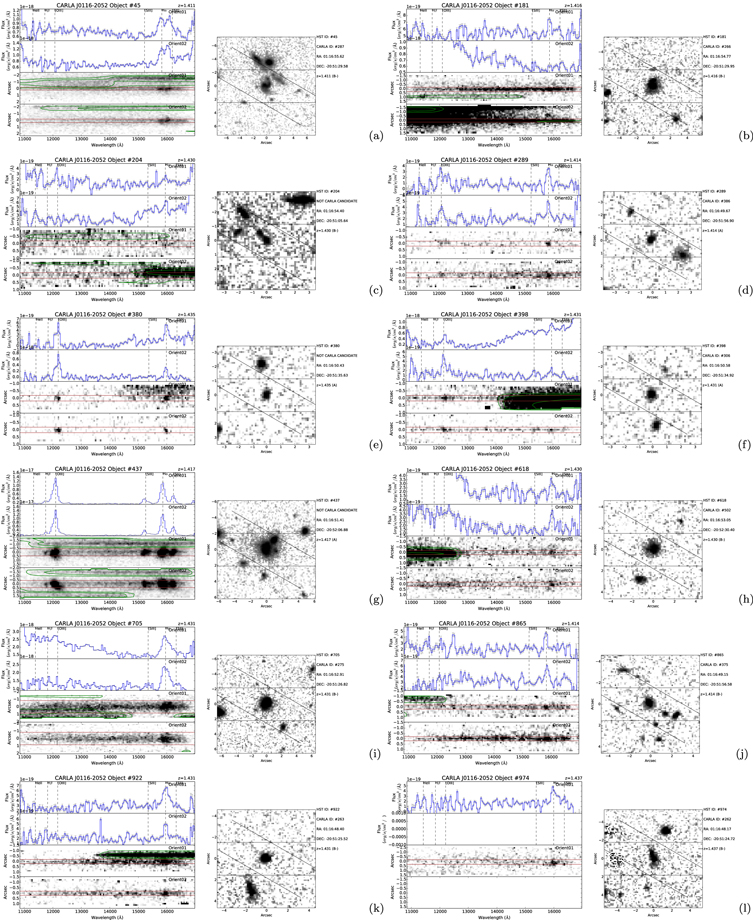

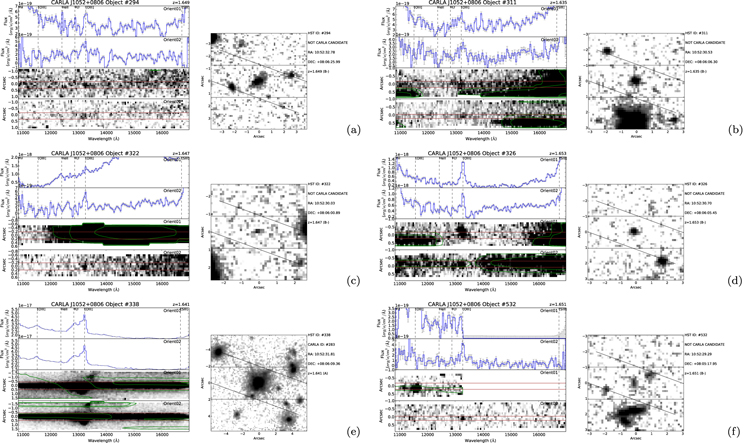

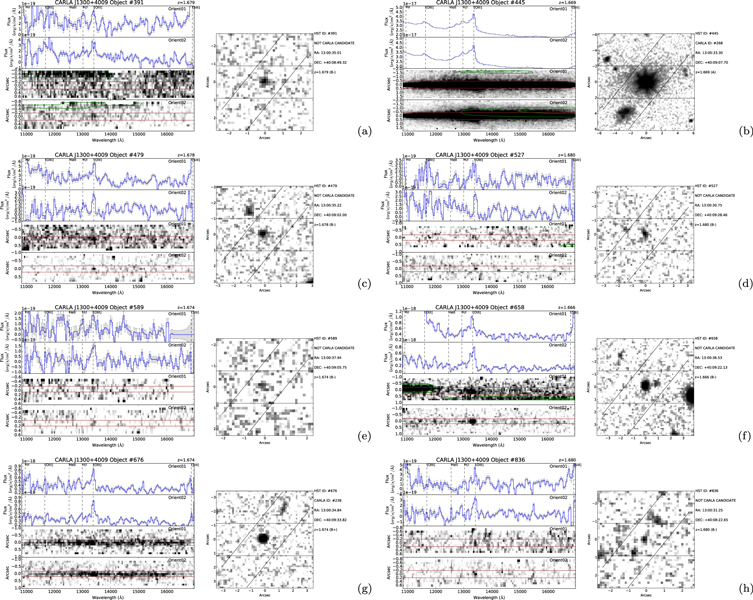

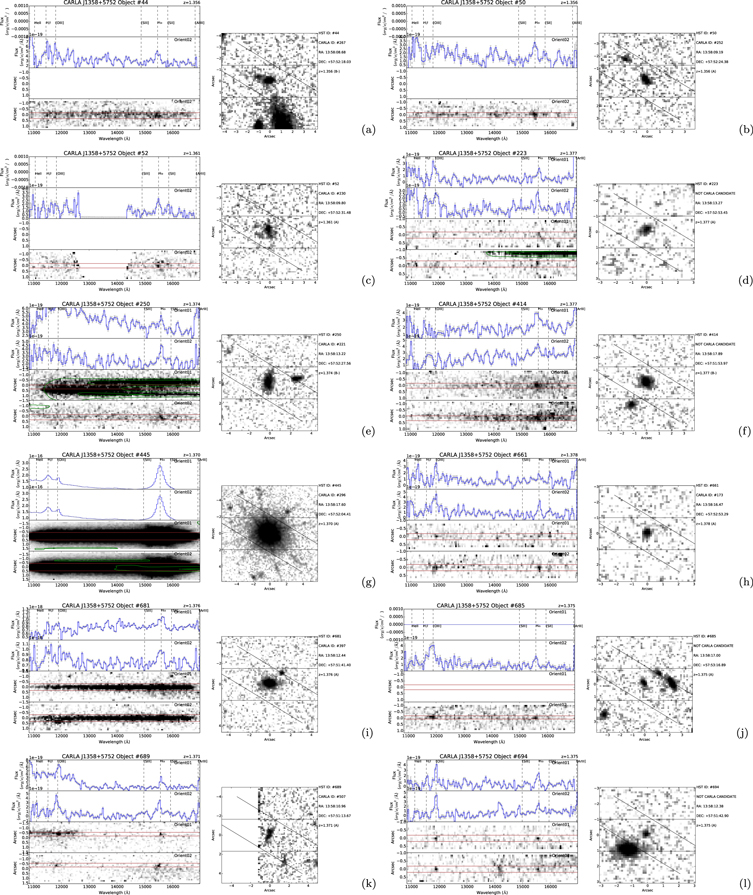

In the following appendix (Figures 11–24, in R.A. order), we show member spectra of all confirmed structure members, except CARLA J2039−2514 and CARLA J0800+4029, which were published in N16.
