The Mass–Concentration Relation and the Stellar-to-halo Mass Ratio in the CFHT Stripe 82 Survey

Dark matter (DM) is the dominant mass component in the universe. The hierarchical cold DM model with a cosmological constant (ΛCDM) successfully explains many observations of large-scale structure, and the growth and evolution of this structure with redshift. On smaller scales, simulations of structure formation in the DM component predict that matter should cluster in a characteristic way, producing dense, virialized halos with a universal density profile. The original description of this profile, by Navarro, Frenk, and White (NFW—Navarro et al. 1997), is characterized by just two parameters: these can be taken to be, for instance, the radius of the virialized region r_vir and the "scale" radius r_s at which the density profile has a logarithmic slope $d\mathrm{ln}\rho /d\mathrm{ln}r=-2$. Equivalently, halos can be described by a virialized mass (the mean density within the virial radius being fixed at a given redshift) and a concentration parameter c, the ratio of the virial radius to the scale radius. Simulations have shown that these two parameters are correlated, with the average concentration of a halo being a weakly decreasing function of mass for most halos (e.g., NFW; Jing 2000; Bullock et al. 2001).

More recent work at higher resolutions has shown that the density profiles of the most massive halos in particular deviate slightly from the original profile proposed by NFW, and are better fit by an Einasto profile (Einasto 1965; cf. Merritt et al. 2006; Gao et al. 2008; Dutton & Maccio 2014; Klypin et al. 2016), but for most systems the difference between the fits is relatively minor, and the behavior of the concentration parameter, taken as the ratio of the virial radius to the radius where $d\mathrm{ln}\rho /d\mathrm{ln}r=-2$, is approximately unchanged (though see Klypin et al. 2016 for a generalized definition of concentration, with a slightly different behavior at high mass.)

The concentration parameter appears to trace the formation history of halos, and the mean mass–concentration (m–c hereafter) relation is cosmology-dependent (e.g., Zhao et al. 2003, 2009). Thus, it represents an interesting cosmological measurement for surveys of groups and clusters. Individual masses and concentrations, and/or the average m–c relation, have been measured using several different methods, including gravitational lensing, X-ray surface brightness profile fitting, and galaxy velocities (see Groener et al. 2016 for references and a summary of techniques). Lensing-based methods are particularly interesting because they can determine the total mass distribution, without making any assumptions about the baryonic contents of a halo; on the other hand, they measure projected density, and need to be interpreted carefully as a result. Specific lensing techniques for estimating concentration or the density profile include strong gravitational lensing (e.g., Comerford & Natarajan 2007), weak gravitational lensing (using shear around stacked samples, e.g., Mandelbaum et al. 2008; Foëx et al. 2014; shear around single massive clusters, e.g., Okabe et al. 2010; or shear+magnification, e.g., Umetsu et al. 2014), and combinations of weak and strong lensing (Oguri et al. 2009, 2012; Sereno & Covone 2013; Merten et al. 2014).

Although the current results from large samples are in reasonable agreement with the theoretical predictions of the m–c relation (e.g., Merten et al. 2014; Umetsu et al. 2014), several concerns remain. First, many cluster samples are selected for X-ray luminosity and morphology, and/or the presence of strong lensing. Either selection can bias the sample to more concentrated objects, and/or prolate systems elongated along the line of sight (e.g., Oguri et al. 2005; Hennawi et al. 2007; Meneghetti et al. 2014). Clearly stacked measurements over large, volume-limited samples of optically selected clusters have an advantage here. A second concern is that the slope of the m–c relation is expected to be very shallow (e.g., Klypin et al. 2016), so measurements at low masses are particularly useful to constrain it. Here too, large samples are required to obtain a sufficiently strong stacked lensing signal. For both these reasons, lensing data from a deep, large-area survey is particularly useful for constraining halo concentration.

Stellar-mass-selected samples with well-calibrated mean halo masses have several other uses. The luminosity or stellar mass of the principal galaxy in a system should correlate strongly with the properties of the halo surrounding it. The exact relationship between central stellar mass and DM halo mass, and the scatter in this relationship, are critical for understanding the formation and evolution of galaxies. The stellar mass of the central galaxy in a system can be inferred from its observed luminosity in one or more bands. There are then several methods for estimating the mass of the surrounding halo, including stellar kinematics (Conroy et al. 2007; More et al. 2011; Wojtak & Mamon 2013), abundance matching (Behroozi et al. 2010; Moster et al. 2010; Shankar et al. 2014), the Tully–Fisher relation (Pizagno et al. 2007; Miller et al. 2014), weak lensing (Mandelbaum et al. 2006; Velander et al. 2014; Han et al. 2015; Hudson et al. 2015), and combinations of weak lensing and clustering (Leauthaud et al. 2012). Comparing the two, one can derive the mean stellar-to-halo mass relation (SHMR) or its inverse, the mean halo mass at fixed stellar mass.

Collectively, these studies have found an SHMR that is close to a broken power law, with stellar mass increasing rapidly with halo mass for low-mass systems, and more slowly for high-mass systems. The break in the relationship occurs at M_* ≳ 4.5 × 10¹⁰ M_⊙, or M_h ∼ 1.5 × 10¹² M_⊙ (e.g., Leauthaud et al. 2012), around the transition from isolated galaxies to galaxy groups. Given the importance of this measurement to relating DM structure to visible galaxies, it should be confirmed and calibrated independently in multiple surveys, with different potential selection functions and systematics. Once again, large halo samples and deep lensing measurements are required to obtain accurate results.

The Canada–France–Hawaii Telescope (CFHT) Stripe 82 survey is a deeper i-band follow-up of the SDSS Stripe 82 region with MegaCam on CFHT. Relative to SDSS imaging, it provides increased depth and excellent seeing, allowing sensitive lensing measurements over more than 100 deg². Thus it represents an ideal data set to explore the scaling of halo properties with mass. In this paper, we use a sample of redMaPPer clusters (Rykoff et al. 2014) and the LOWZ and CMASS galaxy samples of SDSS-III BOSS DR10 (Ahn et al. 2014), together with the shear catalog from the CFHT Stripe 82 data set, to measure the tangential shear around central galaxies, and to quantify the m–c relation and the SHMR. Throughout the paper, we assume a ΛCDM cosmology with parameter values from the latest Planck Collaboration analysis (Ade et al. 2014): Ω_m = 0.315, Ω_Λ = 0.685, σ₈ = 0.829, n_s = 0.96, and H₀ = 100 h km s⁻¹ Mpc⁻¹ with h = 0.673. Magnitudes are expressed using the AB scale.

2.1. The Source Catalog

2.2. Lens Selection

We consider as foreground lenses central galaxies from the redMaPPer cluster catalog, as well as individual massive galaxies from the LOWZ/CMASS samples. We separate the lenses into several bins in stellar mass, and two redshift bins, 0.2 < z < 0.4 and 0.4 < z < 0.6.

2.2.1. The RedMaPPer Cluster Catalog

The redMaPPer cluster catalog by Rykoff et al. (2014) is constructed from photometric galaxy samples of the SDSS DR8, using the optimized red-sequence richness estimator λ. The richness parameter λ corresponds to the number of red sequence galaxies brighter than 0.2L_* at the redshift of the cluster, within a scaled aperture. In order to reduce the potential effects of mis-centering, we choose only clusters with well-defined centers, corresponding to centering probabilities P_cen > 0.9 (see Rykoff et al. 2014). We then divide the clusters into two redshift bins with redshift 0.2 < z < 0.4 and 0.4 < z < 0.6, and two richness bins (20 < λ < 30, 30 < λ < 200) at each redshift. The final samples contain (14/118) systems at high redshift and (134/124) systems at low redshift, respectively.

2.2.2. LOWZ and CMASS Galaxy Catalog

We also use the LOWZ and CMASS galaxy sample from SDSS-III BOSS DR10 as lens galaxies.¹⁴ The BOSS survey has measured spectroscopic redshifts for 1.5 million galaxies, and is approximately volume-limited to z ∼ 0.52. The two samples are both the main SDSS-III BOSS BAO tracers (Dawson et al. 2013). The LOWZ samples consist of red galaxies at z < 0.4 from the SDSS DR8 (Aihara et al. 2011) imaging data; the CMASS samples are selected with an approximately constant stellar mass threshold (Eisenstein et al. 2011). Stellar masses for the two samples were derived using the Portsmouth SED-fitting method (Maraston et al. 2013), based on the BOSS spectroscopic redshift. In calculating the stellar mass, the Kroupa (2001) initial mass function (IMF) was assumed.

We choose LOWZ and CMASS galaxies in our two redshift ranges, 0.2 < z < 0.4 and 0.4 < z < 0.6. We also divide them into 3 and 4 stellar mass bins, which will be used on the SHMR measurement, with (2350, 2492, 2325) and (5966, 6168, 7481, 7611) systems for the low-z and high-z ranges, respectively (see Figure 1).

Zoom In Zoom Out Reset image size

We measure the m–c relation using the stacked lensing signal. Stacking many halos reduces the fluctuations due to noise caused by uncorrelated structures along the line of sight, shape measurement noise, substructures, and the shape variations of individual halos. Thus, the measurement can more accurately determine the average mass profile. Furthermore, it allows for the lensing measurement of lower-mass halos, where individual detection is impossible due to their smaller shears relative to clusters. Individual massive cluster observations and those based on stacked analysis of many halos are thus complementary, drastically increasing the available sensitivity in mass.

To interpret the average lensing signal around each sample, we fit a model including four separate components:

(1) The contribution from the main DM halo.

(2) The contribution from the central galaxy itself; given the smallest scales to which we are sensitive are ∼100 kpc, this can be treated as a point mass, as in, e.g., Leauthaud et al. (2012).

(3) A mis-centering term. In general, the position of the central galaxy is assumed to correspond to the dynamical center of the DM halo. This may not be the case for all systems, however; simulations suggest that some principal galaxies could be "sloshing" around in the potential wells of their halos (e.g., Gao & White 2006), possibly explaining features such as cold fronts in the gas in massive clusters (e.g., Ascasibar & Markevitch 2006). Mis-centering the halo to the primary sample will spread out and reduce the amplitude of the lensing signal on small scales, as discussed in Johnston et al. (2007), Leauthaud et al. (2010), George et al. (2012), Li et al. (2014), and More et al. (2015).

Following the model of Johnston et al. (2007) (subsequently tested in lensing shear maps of 25 massive clusters by Oguri et al. 2010), the distribution of centering offsets can be described by a 2D Gaussian distribution:

$$\begin{eqnarray}&&P({R}_{\mathrm{off}})=\displaystyle \frac{{R}_{\mathrm{off}}}{{\sigma }_{\mathrm{off}}^{2}}\exp \left(-\displaystyle \frac{1}{2}{({R}_{\mathrm{off}}/{\sigma }_{\mathrm{off}})}^{2}\right),\end{eqnarray} \tag{ 1 }$$

where R_off is the distance between the halo center and central galaxy position, and σ_off is the effective scale length. We convolve this distribution of offsets with the projected density profile of the halo, to model the net contribution of mis-centering to the stacked signal. Given that the mis-centering term is subdominant in all our mass and redshift bins, we do not expect to be sensitive to this difference.

(4) Contributions from neighboring halos, which dominate the lensing profile on large scales (Johnston et al. 2007; Cacciato et al. 2009; Li et al. 2009; Oguri & Hamana 2011). The tangential shear profile due to the neighboring halos is

$$\begin{eqnarray}&&{\gamma }_{2h}(\theta ;M,z)=\int \displaystyle \frac{{ldl}}{2\pi }{J}_{2}(l\theta )\displaystyle \frac{{\bar{\rho }}_{m}(z){b}_{h}(M)}{{(1+z)}^{3}{{\rm{\Sigma }}}_{\mathrm{crit}}{D}_{A}^{2}(z)}{P}_{m}({k}_{l};z),\end{eqnarray} \tag{ 2 }$$

where J₂ is the second-order Bessel function, ${\bar{\rho }}_{m}(z)$ is the mass density at z, D_A(z) is the angular diameter distance, P_m(k) is the linear matter power spectrum, b_h(M) is the halo bias, which we take from Tinker et al. (2010), and Σ_crit is the critical mass density

$$\begin{eqnarray}&&{{\rm{\Sigma }}}_{\mathrm{crit}}=\displaystyle \frac{{c}^{2}}{4\pi G}\displaystyle \frac{{D}_{s}}{{D}_{l}{D}_{{ls}}},\end{eqnarray} \tag{ 3 }$$

where D_ls is the angular diameter distance between the lens and the source, and D_l and D_s are the angular diameter distances from the observer to the lens and to the source, respectively.

Combining the four contributions, the lensing signal ΔΣ can be written as:

$$\begin{eqnarray}{\rm{\Delta }}{\rm{\Sigma }}(R) & = & \displaystyle \frac{{M}_{* }}{\pi {R}^{2}}+{p}_{\mathrm{cen}}{\rm{\Delta }}{{\rm{\Sigma }}}_{\mathrm{NFW}}(R)\\ & & +\,(1-{p}_{\mathrm{cen}}){\rm{\Delta }}{{\rm{\Sigma }}}_{\mathrm{NFW}}^{\mathrm{off}}(R| {P}_{\mathrm{off}})+{\rm{\Delta }}{{\rm{\Sigma }}}_{2h}(R),\end{eqnarray} \tag{ 4 }$$

where, sequentially, the terms come from the contribution of the central galaxy, the main DM halo, the mis-centering effect, and the contribution of neighboring halos. The model is described by 5 parameters: the halo mass M_vir, the concentration c_vir, the stellar mass M_*, the effective scale length σ_off and the probability p_cen that the centers we use correspond to the actual center of the DM halos. We will fit 4 out of the 5 parameters in the model, and fix the stellar mass.

The stellar masses M_* of LOWZ/CMASS galaxies were derived from the Portsmouth SED-fitting (Maraston et al. 2013) based on the SDSS-III BOSS DR10 data. The stellar masses of the central galaxies in the redMaPPer clusters were estimated by matching the positions of the cluster centers with the galaxy catalog of SDSS DR10.

To obtain ΔΣ we stack lens-source pairs in 8 logarithmic radial (R) bins from 0.1 to 10 Mpc h⁻¹. For a sample of selected lenses, ΔΣ(R) is estimated using

$$\begin{eqnarray}&&{\rm{\Delta }}{\rm{\Sigma }}(R)=\displaystyle \frac{{\sum }_{{ls}}{w}_{{ls}}{\gamma }_{t}^{{ls}}{{\rm{\Sigma }}}_{\mathrm{crit}}}{{\sum }_{{ls}}{w}_{{ls}}},\end{eqnarray} \tag{ 5 }$$

where ${\gamma }_{t}^{{ls}}$ is the tangential shear, ${w}_{{ls}}={w}_{n}{{\rm{\Sigma }}}_{\mathrm{crit}}^{-2}$, and w_n is the lensfit weight factor introduced to account for intrinsic scatter in ellipticity and shape measurement error (Miller et al. 2007, 2013).

The lensing signal is recalibrated as in Velander et al. (2014) and Hudson et al. (2015):

$$\begin{eqnarray}&&{\rm{\Delta }}{{\rm{\Sigma }}}^{\mathrm{cal}}(R)=\displaystyle \frac{{\rm{\Delta }}{\rm{\Sigma }}(R)}{1+K({z}_{l})}.\end{eqnarray} \tag{ 6 }$$

where

$$\begin{eqnarray}&&1+K({z}_{l})=\displaystyle \frac{{\sum }_{{ls}}{w}_{{ls}}(1+m)}{{\sum }_{{ls}}{w}_{{ls}}},\end{eqnarray} \tag{ 7 }$$

and the multiplicative error m was determined statistically by Miller et al. (2013). We apply this correction to the average shear measurement in both the low-z and high-z samples. The effect of the correction is to increase the average lensing signals by ∼5.5% and 6.2% at 0.2 < z < 0.4 and 0.4 < z < 0.6, respectively.

Finally, to reduce any possible "dilution" of the lensing signal by foreground galaxies scattered into our redshift selection region behind each group or galaxy, we remove any lens-source pairs with ${z}_{s}-{z}_{l}\lt 0.1$, as well as remove any objects with a BPZ parameter ODDS < 0.5, as mentioned earlier. This corresponds to the selection ZCUT3 from Battaglia et al. (2016); they show that it produces weak lensing signals comparable to their fiducial cut, and with similar errors, whereas more stringent cuts decrease the SN without any systematic change in the signal.

Considering the systematic errors in their lensing measurements due to shear calibration uncertainties and to photo-zs errors, Battaglia et al. (2016) find that they are less than 10% and 6%, respectively. They estimate that their total systematic uncertainties on measurements of ΔΣ/Σ_c are less than 16% in each of their radial bins, which cover a similar range of physical or angular scales as ours, albeit stacking around slightly more massive clusters. Given that our statistical uncertainties in each bin are always more than ∼20% and almost always more than 40%, we will assume systematics are subdominant in our lensing measurements.

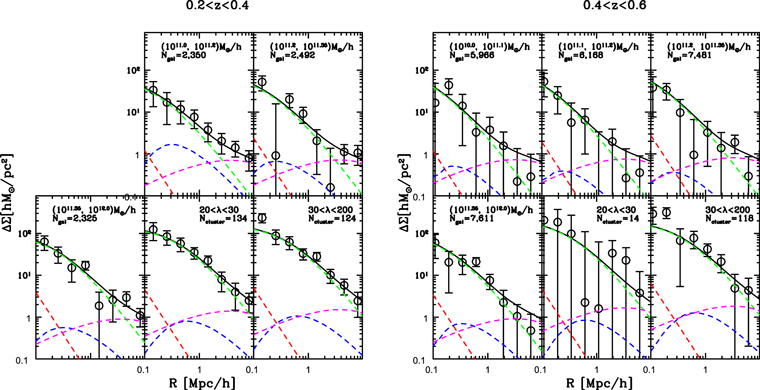

We show the observed galaxy–galaxy lensing signals for the low- and high-redshift samples in Figure 1. The black circles represent the measured excess surface mass density. The error bars are 1σ fluctuations obtained using 1000 bootstraps resampling 30 equal sub-areas from the real observation data sets.

We fit the measured lensing signals to the model described in Section 3 using a Monte Carlo Markov Chain (MCMC) method. A flat prior is adopted for the halo mass M_vir, the concentration c_vir, and the probability p_cen. A Gaussian prior is adopted for the effective scale length σ_off as Johnston et al. (2007).

As above, we select the clusters and massive galaxies carefully. For the cluster, only clusters with well-defined centers with p_cen > 0.9 are selected; for the LOWZ/CMASS galaxies, they are almost all central galaxies; ∼10% of them may be the most luminous satellite galaxies, as indicated by the clustering analysis by Parejko et al. (2013) and White et al. (2011). Then, a flat prior (0.65, 1.0) on the probability p_cen is adopted. A Gaussian prior is adopted for the effective scale length σ_off, following Johnston et al. (2007). Moreover, we test the effects of the adopted prior using the Gaussian prior of Melchior et al. (2016) for the p_cen, the difference on the fit results of mass and concentration is <5%, which suggests that such an effect is subdominant.

The black solid curves show the sum of all components for the best-fit models. The different model components are shown as dashed curves: the central galaxy (red), the DM halo profile (green), the mis-centering component (blue), and the contribution from neighboring halos (magenta). At small scales (0.1–1 Mpc), the DM halo is the dominant component. At large scales (>3 Mpc for galaxies and >5 Mpc for clusters), the contribution from neighboring halos dominates. The best-fit results for the 5 parameter values are given in Table 1. We convert the measured M_vir and c_vir to M₂₀₀ and c₂₀₀ using the formula from Johnston et al. (2007).

The values of the fitted probability p_cen were all higher than 0.9, which indicates that: (1) the centers of redMaPPer clusters are well-defined; (2) the centers of ∼10% LOWZ/CMASS galaxies are offset.

Following Cibirka et al. (2017), we investigate the impact of the intrinsic scatter of the mass-richness relation for the clusters with simulations. With the richness of redMaPPer clusters, we can estimate the related mass from the mass-richness relation with ${\sigma }_{m| \lambda }=0.25\,\mathrm{dex}$ (Simet et al. 2017), and draw the related concentration from the m–c relation with 0.1 dex (Dutton & Maccio 2014). We can then generate the ΔΣ for each cluster with the related mass and concentration. With 1000 independent analyses for the four redMaPPer cluster bins using the same analysis procedure, we found that the difference between the mean input and fitted average mass and concentration are ∼0.025 ± 0.020 and ∼0.23 ± 0.31, respectively. We conclude that it can be negligible in comparison with the measurement uncertainties.

4.1. m–c Relation

The recent multi-dark simulations of Klypin et al. (2016) predict an m–c relation of the form:

$$\begin{eqnarray}&&{c}_{200c}(z,M)=A{\left(\displaystyle \frac{{M}_{200c}}{{M}_{0}}\right)}^{B}{(1+z)}^{C},\end{eqnarray} \tag{ 8 }$$

where we will take M₀ = 2.0 × 10¹² M_⊙ h⁻¹. Here M_200c and c_200c denote the mass and concentration with respect to R_200c, the radius within which the halo has 200 times the critical density of the universe at that redshift.

As we cannot test the predicted redshift dependence of the m–c relation very accurately with only two redshift bins, we will assume the redshift dependence predicted by Klypin et al.(2016). For the redshift range 0.2 < z < 0.6 and the mass range of our samples, this corresponds to an exponent C ∼ −0.67. The best-fit m–c relations are shown in Table 2. We note that in practice, given the errors on the slope and normalization for the low-redshift sample, the m–c relations of both samples are actually consistent with no redshift evolution.

Table 2.  Best-fit Mass–Concentration Relations

z	A	B
0.2 < z < 0.4	5.24 ± 1.24	−0.13 ± 0.10
0.4 < z < 0.6	6.61 ± 0.75	−0.15 ± 0.05

Download table as:  ASCIITypeset image

Giocoli et al. (2012) found that halo triaxiality and substructures within the host halo virial radius can bias the observed, 2D m–c relation. They propose a method for correcting the observed 2D m–c relation for projection effects:

$$\begin{eqnarray}&&{c}_{2{\rm{D}}}(M)={c}_{3{\rm{D}}}(M)\times 1.630{M}^{-0.018},\end{eqnarray} \tag{ 9 }$$

The exact magnitude of the correction depends on the the radial range over which the fit is performed.

Meneghetti et al. (2014) studied the projection effects on the concentration with MUSIC-2 halos and found that the trend is qualitative agreement with the results of Giocoli et al. (2012). The correction by Giocoli et al. (2012) is obtained with the simulated halos of mass of 5 × 10¹³ M_⊙ h⁻¹ for z < 0.4 and 1.5 × 10¹⁴ M_⊙ h⁻¹ for z > 0.4, which is roughly consistent with the cluster mass region of our data; we can apply the correction as listed above to correct the 2D results of cluster measurement back to 3D results. However, there are no correction estimations for the lower-mass DM halo. In order to be consistent, we extrapolate the correction to the lower-halo-mass region for the LOWZ/CMASS galaxies in this analysis.

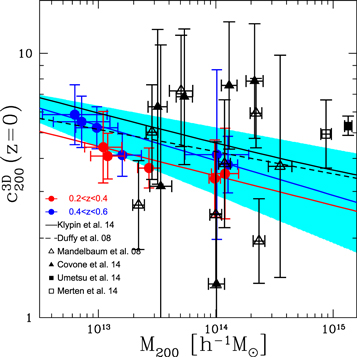

In Figure 2, we show the resulting 3D, corrected m–c relation, after rescaling to z = 0. The 3D correction is used on all the observational data set predictions.

Zoom In Zoom Out Reset image size

Given the corrections from 2D to 3D by Giocoli et al. (2012), we can directly compare our measurements with the 3D simulation results. Comparing with the results by Duffy et al. (2008) and Klypin et al. (2016), the amplitudes A and slopes B of both redshift samples are consistent with the simulation predictions.

We can also compare our results with previous lensing measurements. As with our own results, we correct all observational measurements from 2D to 3D using the formula of Giocoli et al. (2012).

By stacking weak lensing signals of galaxies, groups, and clusters from the SDSS data set, Mandelbaum et al. (2008) fit the data to the model assuming a spherical NFW profile excluding small scales to reduce the effects of baryons and mis-centering halos. As shown in Figure 2, their measurements are comparable to ours, but are more scattered.

Using the photo-z-selected clusters (Wen et al. 2009) in the CFHTLenS data, Covone et al. (2014) found an m–c relation with a normalization 1σ above that of Duffy et al. (2008), but were not able to measure the slope very accurately.

The recent weak+strong lensing measurements for individual clusters in the CLASH sample (Merten et al. 2014; shown binned here), as well as stacked shear+magnification measurements for the same sample (Umetsu et al. 2014), probe the concentration of more massive clusters with M₂₀₀ ∼ 10¹⁵ M_⊙ h⁻¹. Generally, they find mean concentrations that are 1σ–2σ above our best-fit relations at lower mass. This could indicate a change in the slope of the m–c relation at high mass, but it may also reflect the properties of the sample. Using hydrodynamical simulations, Meneghetti et al. (2014) have shown that the CLASH selection function, based on the degree of relaxation as estimated from X-ray morphology, biases the sample to higher concentrations, such that a higher normalization and a steeper slope to the m–c relation is expected. Strong-lensing selected samples are also expected to behave similarly.

Another possible interpretation of the higher concentrations in massive systems, however, is that they are real, and reflect a systematic change in the density profile, from NFW-like to a different form that has a more concentrated mass distribution for a given value of the scale and virial radii. As noted previously, high-resolution simulations suggest that the most massive clusters, corresponding to high peaks in the initial density field, should have density profiles that differ slightly from the NFW form, and are better represented by the Einasto form (e.g., Gao et al. 2008; Klypin et al. 2016). For typical values of the Einasto shape parameter α, the density profile shows more curvature in its logarithmic slope than an NFW profile.

The halos in our sample correspond to peaks of height $\nu \equiv \sigma (M)/{\delta }_{c}\simeq 1.0\mbox{--}2.7.$ Using the scaling relation from Gao et al. (2008), we expect an Einasto parameter α in the range of 0.165 to 0.225. The corresponding 3D density profiles are very close to the original NFW form. Over the range where the main halo term should dominate our lensing measurements, ∼0.25r_s (for the most massive, low concentration, low-redshift clusters) to 2–3 r_vir, Einasto profiles with these values of α differ from the NFW form by less than 20%, and this difference is largest at several times r_vir. Over the range 0.25 r_s – 2 r_vir, the 3D profiles differ from an NFW profile by less than 7%. Klypin et al. (2016) predict a slightly larger range of α for our peak heights, but here too the final 3D profiles differ from NFW by less than 20%. Projection, halo-to-halo scatter, and the other contributions to the surface density profile will further reduce the difference between the two models, so we do not expect to be sensitive to this difference. We have tested fitting the lensing signals of the redMaPPer clusters with the Einasto profile, and find a similar m–c relation as that for the NFW profile. We conclude that our data cannot distinguish between the two profiles on the mass scales we probe, as expected. Measurements at higher halo mass should be better able to confirm the predicted variation in the shape of the profile (although even with the much more massive CLASH sample, Umetsu et al. (2014) currently find a mean profile consistent with the original NFW form, and no improvement in the fit when using the Einasto form).

In this paper, the redMaPPer clusters are stacked by richness, while the LOWZ/CMASS galaxies are stacked by stellar mass.

For the cluster, a CLASH X-ray-selected sample can present a bias of ∼10% on concentration (Meneghetti et al. 2014). Because the redMaPPer cluster sample in our analysis is more general and less constraining, we expect the effects are at the few percent level. Furthermore, Old et al. (2015) found that no systematic bias exists for the cluster mass estimation with the redMaPPer algorithm, which analyzes the mass determination using the abundance matching method. The impact of the selection effect in the m–c relation can be ignored.

For the galaxy, using the EAGLE simulation, Matthee et al. (2016) studied the the magnitude and origin of the scatter in the SHMR. They found that a larger stellar mass corresponds to a more concentrated halo at fixed halo mass. However, the inclusion of concentration does not affect the scatter in stellar mass for the halo mass M₂₀₀ > 10^12.5 M_⊙. Because the lowest DM halo mass of our measurement is >5 × 10¹² M_⊙ h⁻¹, the bias on the m–c relation from the stellar mass scatter is insignificant.

4.2. SHMR Measurement

Given a mean stellar mass for the central galaxies in each sample, we can also estimate the SHMR. Following Behroozi et al. (2010) and Leauthaud et al. (2012), the SHMR is modeled as a log-normal probability distribution function, with a mean log relation denoted as M_* = f_SHMR(M_h), and a (log-normal) scatter denoted ${\sigma }_{\mathrm{log}{M}_{* }}.$

The relation f_SHMR(M_h) is mathematically defined via its inverse function:

$$\begin{eqnarray}{\mathrm{log}}_{10}({f}_{\mathrm{SHMR}}^{-1}({M}_{h})) & = & {\mathrm{log}}_{10}({M}_{1})+\beta {\mathrm{log}}_{10}\left(\displaystyle \frac{{M}_{* }}{{M}_{* ,0}}\right)\\ & & +\,\displaystyle \frac{{\left(\tfrac{{M}_{* }}{{M}_{* ,0}}\right)}^{\delta }}{1+{\left(\tfrac{{M}_{* }}{{M}_{* ,0}}\right)}^{-\gamma }}-\displaystyle \frac{1}{2},\end{eqnarray} \tag{ 10 }$$

where M₁ is a characteristic DM halo mass, M_*,0 is a characteristic stellar mass, β is the low-mass SHMR slope, and δ and γ jointly determine the high-mass SHMR slope (Behroozi et al. 2010).

Since our data only probe the high-mass end of this relation, we combine our results with those of Hudson et al. (2015) (H15), which cover the same redshift bins as ours but sample much smaller masses, in order to fit the full SHMR. We note that the SHMR is defined as having log-normal scatter in M_* at fixed M_h, whereas we are binning data in bins of fixed M_*. As a result, we need to fit to the mean of the inverse relation, which, because of the nonlinearity and scatter, is not equal to the inverse of the mean relation. We correct the mean halo mass at a given stellar mass for the effect of the scatter ${\sigma }_{\mathrm{log}{M}_{* }}$ by including a correction factor derived using the same method as Velander et al. (2014). We adopt a scatter of ${\sigma }_{\mathrm{log}{M}_{* }}=0.2\,\mathrm{dex}$ in our analysis as Leauthaud et al. (2012). Given this correction, the results of our fits for the high- and low-redshift data sets, combined in each case with H15, are given in Table 3.

Table 3.  Best-fit Results for the SHMR

z	${\mathrm{log}}_{10}({M}_{1})$	${\mathrm{log}}_{10}({M}_{* ,0})$	β	δ	γ
0.2 < z < 0.4	12.52 ± 0.050	10.98 ± 0.036	0.47 ± 0.022	0.55 ± 0.13	1.43 ± 0.28
0.4 < z < 0.6	12.70 ± 0.057	11.11 ± 0.038	0.50 ± 0.025	0.54 ± 0.16	1.72 ± 0.30

Download table as:  ASCIITypeset image

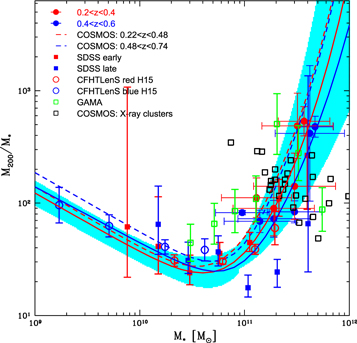

As discussed in Leauthaud et al. (2012) and Behroozi et al. (2010), the general shape of the SHMR (or its inverse, shown in Figure 3) indicates a peak in the efficiency of star formation for galaxies with masses around M_* ∼ 4–6 × 10¹⁰ M_⊙. Below this, stellar feedback limits the growth of galaxies, while above this mass hot gas and AGNs are probably responsible for the decrease in the stellar fraction. In Figure 3 we show the binned results and best-fit relations, in addition to results from other galaxy–galaxy lensing studies, including the measurements in SDSS (Mandelbaum et al. 2006), CFHTLenS (H15), the Cosmic Evolution Survey (COSMOS: Leauthaud et al. 2010, 2012), and the Galaxy And Mass Assembly (GAMA: Han et al. 2015). In general, there is good agreement between the different lensing determinations, as well as with other techniques such as abundance matching or clustering (e.g., Behroozi et al. 2010; Rodriguez-Torres et al. 2016). The only possible disagreement is at large masses, where the scatter in individual measurements is large. The individual X-ray clusters studied by Leauthaud et al. (2010, 2012), for instance, differ from the mean relation by factors of up to 5 (or 0.7 dex), which seems unlikely to be consistent with our assumed scatter of ${\sigma }_{\mathrm{log}{M}_{* }}=0.2\,\mathrm{dex}$, given the small size of that sample.

Zoom In Zoom Out Reset image size

This scatter for individual systems suggests that selection effects may still be a concern, in our and other published determinations of the SHMR. For instance, Leauthaud et al. (2015) found that the CMASS sample is significantly affected by mass incompleteness, and is ∼80% complete at ${\mathrm{log}}_{10}({M}_{* }/{M}_{\odot })\gt 11.6$ only in the narrow redshift range z = [0.51, 0.61]. The LOWZ sample, on the other hand, is ∼80% complete at ${\mathrm{log}}_{10}({M}_{* }/{M}_{\odot })\gt 11.6$ for z = [0.15, 0.43]. If completeness is correlated with high or low stellar mass for the primary galaxy, it could mean that the true scatter is larger than what we have assumed. Follow-up studies of the individual objects in our samples, as well as data from larger forthcoming lensing surveys, will be required to determine the exact effect of these biases on the mean relation.

A Chabrier (2003) IMF was assumed by the measurements of H15, Leauthaud et al. (2012), and Han et al. (2015). Ilbert et al. (2010) investigated the possible sources of uncertainty and bias by comparing stellar mass estimates between methods. The expected difference between a Kroupa IMF and a Chabrier IMF is not significant.

Combining samples of massive galaxies and clusters from the redMaPPer and LOWZ/CMASS catalogs, respectively, with the shear catalog of the CS82 survey, we have measured the projected density profiles around central galaxies at two different redshifts. We fit the lensing shear signal around these galaxies as a sum of contributions from the main DM halo, the central galaxy, centering errors and physical offsets between the galaxy and the halo, and neighboring halos. From the resulting fits, we determine the mean halo concentration as a function of mass, and also the mean relation between (central) stellar mass and halo mass (the SHMR).

Our main results are as follows.

1. We find that halo concentration decreases weakly with mass, c = A(M/M₀)^B, with the amplitude A ∼ 5–6 and slope B ∼ −0.14. These parameter values are in good agreement with the predictions of simulations, e.g., Duffy et al. 2008 or Klypin et al. 2016, given a correction for projection (Giocoli et al. 2012). Our low normalization also suggests that the much higher values of c ≳ 10 measured for more massive cluster samples are indeed a result of selection and/or projection effects, as inferred previously, e.g., by Meneghetti et al. (2014), for the CLASH sample.

2. Comparing our halo masses to the stellar masses of the central galaxies from the SDSS DR10 catalogs, we derive the SHMR for massive systems at redshift 0.2–0.6. Combining these measurements with those of H15 at lower masses, we fit the broken power-law form proposed by Behroozi et al. (2010), and find results consistent with those of previous lensing studies, e.g., Leauthaud et al. (2012).

In general, there is reasonable agreement between many different surveys and techniques on the overall shape of the SHMR. One unresolved issue is the extent of the scatter, particularly at the high-mass end. In groups and clusters, there could be a number of reasons for this scatter, including variations in halo merger history, hot gas content or thermodynamic state, AGN activity, or the details of central galaxy mergers. Having calibrated the mean relation for the redMaPPer and LOWZ/CMASS samples in CS82, we can follow-up these possibilities with the ancillary data available in this field. Future wide-field lensing surveys will also provide far more sensitive lensing measurements that are sufficient to determine the masses and concentrations for restricted subsets of groups and clusters, and to test for correlations between residuals in the halo scaling relations and the detailed properties of individual galaxies, groups, and clusters.
