X-RAY COUNTERPART OF GRAVITATIONAL WAVES DUE TO BINARY NEUTRON STAR MERGERS: LIGHT CURVES, LUMINOSITY FUNCTION, AND EVENT RATE DENSITY

We consider an NS–NS merger which leaves behind a stable or supra-massive millisecond magnetar. The post-merger geometric configuration is delineated in Figure 1. Since the open field angle of a millisecond magnetar is very wide, one can approximate a nearly isotropic pulsar wind. The X-rays produced by the internal dissipation of the magnetar wind are assumed to be emitted isotropically, their luminosity tracks the dipole spin-down luminosity of the magnetar with a certain efficiency η. Numerical simulations of NS–NS mergers show that around 10⁻³–10⁻¹ M_⊙ ejecta are ejected during the merger process (Freiburghaus et al. 1999; Rezzolla et al. 2010; Hotokezaka et al. 2013; Rosswog et al. 2013). These launched ejecta cover a significant solid angle. The X-ray photons can escape freely to the observer only when there are no ejecta in front. Otherwise, they are trapped by the ejecta and would first heat and accelerate the ejecta (along with the Poynting flux) and eventually escape when the ejecta become optically thin.

Zoom In Zoom Out Reset image size

Considering that such a system may also launch a relativistic jet in the direction perpendicular to the orbital plane (e.g., Metzger et al. 2008; Zhang & Dai 2010; Bucciantini et al. 2012), one may define three zones (Figure 1):

• 1.
  Jet zone: the direction where a short GRB can be detected. The X-rays from magnetar wind dissipation can be also observed, which powers the X-ray internal plateau, as seen in a good fraction of short GRBs (Lü et al. 2015);
• 2.

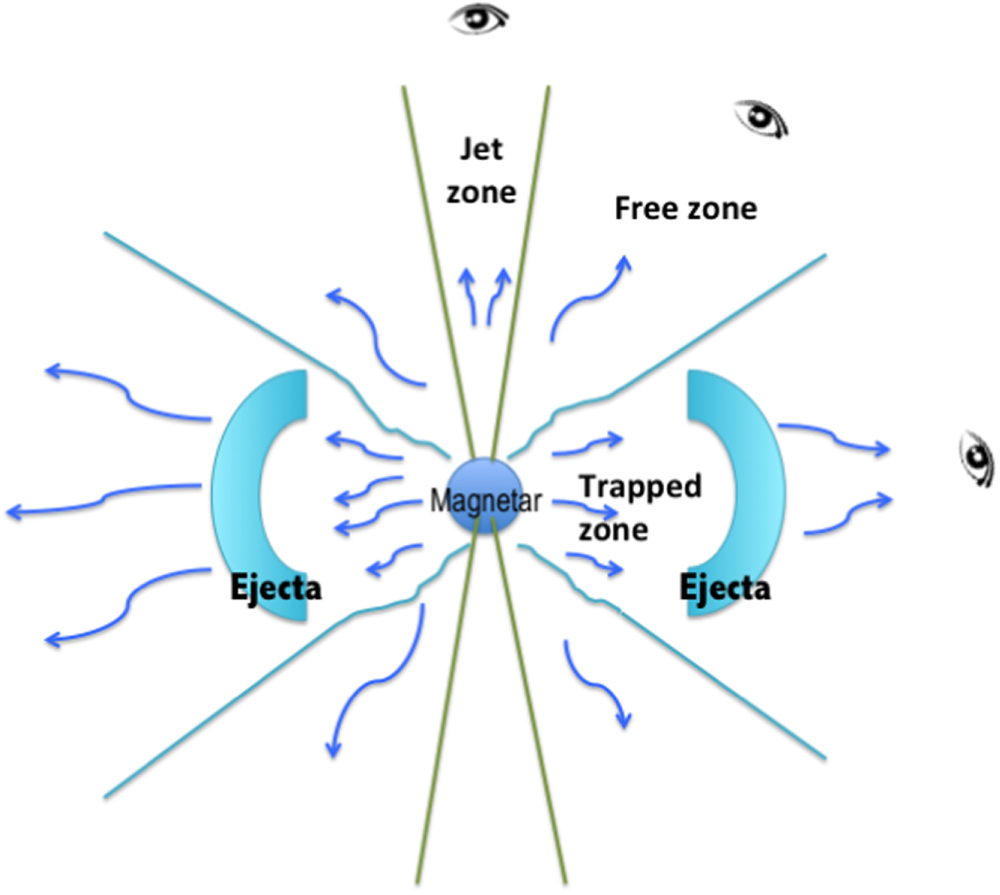

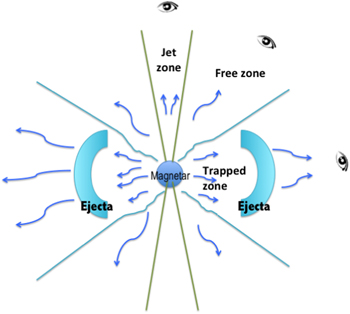

  Free zone: the direction where no short GRB is observed, but X-rays can still escape freely. In Figure 1 this zone is marked as an annular ring around the jet, but in principle it can include the solid angle patches not covered by the ejecta in any direction. Since a millisecond magnetar wind is supposed to be essentially isotropic, throughout the paper we assume that the X-ray luminosities in the free zone and in the jet zone are the same;
• 3.
  Trapped zone: the direction where X-rays are initially trapped by the dynamical ejecta.

One has the sum of the solid angles

$$\begin{eqnarray}&&{{\rm{\Omega }}}_{\mathrm{jet}}+{{\rm{\Omega }}}_{\mathrm{free}}+{{\rm{\Omega }}}_{\mathrm{trapped}}=4\pi .\end{eqnarray} \tag{ 1 }$$

Short GRB observations suggest a typical half opening angle of ${10}^{{\rm{o}}}$ (even with a wide distribution) so that the average jet solid angle is $\langle {{\rm{\Omega }}}_{\mathrm{jet}}\rangle \sim (1/70)4\pi$ (Berger 2014). We then define a solid angle ratio parameter,

$$\begin{eqnarray}&&{k}_{{\rm{\Omega }}}=\displaystyle \frac{\langle {{\rm{\Omega }}}_{\mathrm{free}}\rangle }{\langle {{\rm{\Omega }}}_{\mathrm{jet}}\rangle },\end{eqnarray} \tag{ 2 }$$

with which the relative distributions among the three solid angles can be determined.

The millisecond magnetar loses its rotation energy through both magnetic dipole radiation and GW radiation, with a total spin-down rate (e.g., Shapiro & Teukolsky 1983; Usov 1992; Zhang & Mészáros 2001; Gao et al. 2016a; Lasky & Glampedakis 2016)

$$\begin{eqnarray}&&\dot{E}=I{\rm{\Omega }}\dot{{\rm{\Omega }}}=-\displaystyle \frac{{B}_{p}^{2}{R}^{6}{{\rm{\Omega }}}^{4}}{6{c}^{3}}-\displaystyle \frac{32{{GI}}^{2}{\epsilon }^{2}{{\rm{\Omega }}}^{6}}{5{c}^{5}},\end{eqnarray} \tag{ 3 }$$

where ${\rm{\Omega }}=2\pi /P$ is the angular frequency and $\dot{{\rm{\Omega }}}$ its time derivative, I is the moment of inertia, B_p is the dipolar field strength at the magnetic poles on the NS surface, R is the radius of the NS, and is the ellipticity of the NS. The second term describes the GW radiation energy loss term, which is the direct energy loss rate from the system, it does not affect the evolution of the remnant. The first term is the magnetic dipole radiation or magnetar wind spin-down term. In the following, we define the negative of this term as the dipole spin-down luminosity

$$\begin{eqnarray}&&{L}_{\mathrm{sd}}(t)=\displaystyle \frac{{B}_{p}^{2}{R}^{6}{{\rm{\Omega }}}^{4}(t)}{6{c}^{3}},\end{eqnarray} \tag{ 4 }$$

which is directly related to the total energy power of the EM counterparts in the system. Dropping out one of the two terms in the right-hand side of Equation (3), one can define two characteristic spin-down timescales (Zhang & Mészáros 2001)

$$\begin{eqnarray}&&{t}_{\mathrm{md}}=\displaystyle \frac{3{c}^{3}I}{{B}_{p}^{2}{R}^{6}{{\rm{\Omega }}}_{i}^{2}}\simeq (2.0\times {10}^{3}\,{\rm{s}}){I}_{45}{B}_{p,15}^{-2}{P}_{i,-3}^{2}{R}_{6}^{-6},\end{eqnarray} \tag{ 5 }$$

$$\begin{eqnarray}&&{t}_{\mathrm{GW}}=\displaystyle \frac{5{c}^{5}}{128{GI}{\epsilon }^{2}{{\rm{\Omega }}}_{i}^{4}}\simeq (9.1\times {10}^{3}\,{\rm{s}}){I}_{45}^{-1}{P}_{i,-3}^{4}{\epsilon }_{-3}^{-2},\end{eqnarray} \tag{ 6 }$$

where ${{\rm{\Omega }}}_{i}$ and P_i are the initial angular velocity and period of the magnetar, respectively. Hereafter, the convention ${Q}_{n}=Q/{10}^{n}$ has been adopted. Before the spin-down time, Ω and therefore ${L}_{\mathrm{sd}}$, is essentially a constant. With dipolar spin-down and GW spin-down terms only, the decay of Ω after their respective spin-down timescale goes as ${\rm{\Omega }}\propto {t}^{-1/2}$ and $\propto {t}^{-1/4}$, respectively, so that ${L}_{\mathrm{sd}}\propto {t}^{-2}$ and ∝t⁻¹, respectively. When both dipolar and GW spin-down terms are considered, the overall spin-down timescale of the magnetar can be defined as

$$\begin{eqnarray}&&{t}_{\mathrm{sd}}=\min ({t}_{\mathrm{md}},{t}_{\mathrm{GW}}),\end{eqnarray} \tag{ 7 }$$

and the spin-down luminosity (Equation (4)) behaves as

$$\begin{eqnarray}{L}_{\mathrm{sd}}\propto \left\{\begin{array}{ll}{t}^{0}, & t\lt {t}_{\mathrm{sd}}={t}_{\mathrm{GW}},\\ {t}^{-1}, & {t}_{\mathrm{sd}}={t}_{\mathrm{GW}}\lt t\lt {t}_{\mathrm{md}},\\ {t}^{-2}, & t\gt {t}_{\mathrm{md}}\end{array}\right.\end{eqnarray} \tag{ 8 }$$

for ${t}_{\mathrm{GW}}\lt {t}_{\mathrm{md}}$, and

$$\begin{eqnarray}{L}_{\mathrm{sd}}\propto \left\{\begin{array}{ll}{t}^{0}, & t\lt {t}_{\mathrm{sd}}={t}_{\mathrm{md}},\\ {t}^{-2}, & t\gt {t}_{\mathrm{sd}}={t}_{\mathrm{md}}\end{array}\right.\end{eqnarray} \tag{ 9 }$$

for ${t}_{\mathrm{md}}\lt {t}_{\mathrm{GW}}$.

In the free zone, internal dissipation of the magnetar wind gives an X-ray luminosity which scales with ${L}_{\mathrm{sd}}$, i.e.,

$$\begin{eqnarray}&&{L}_{{\rm{X}},\mathrm{free}}(t)=\eta {L}_{\mathrm{sd}}=\displaystyle \frac{\eta {B}_{p}^{2}{R}^{6}{{\rm{\Omega }}}^{4}(t)}{6{c}^{3}},\end{eqnarray} \tag{ 10 }$$

where η is the efficiency of converting the dipole spin-down luminosity to the observed X-ray luminosity.

In the trapped zone, the dissipated photon energy defined by Equation (4) is trapped in the ejecta. Together with the non-dissipated Poynting flux energy, it is used to heat the ejecta and accelerate the ejecta via ${pdV}$ work. The optical depth of the ejecta is written as

$$\begin{eqnarray}&&\tau =\kappa ({M}_{\mathrm{ej}}/V^{\prime} )(R/{\rm{\Gamma }}),\end{eqnarray} \tag{ 11 }$$

where κ is the opacity of the ejecta, and $V^{\prime}$ is the co-moving volume. The ejecta is initially opaque when $\tau \gt 1$, so that X-ray emission is essentially the Wien tail of the merger-nova photosphere emission, if there is no significant energy dissipation and Comptonization below the photosphere (which we assume, for simplicity, in this paper). The trapped magnetar wind, however, becomes transparent after t_τ defined by $\tau =1$. The X-ray luminosity would rise up quickly to the level of free zone luminosity at $t\gt {t}_{\tau }$ (Equation (23)) if the magnetar is still alive, since the newly dissipated X-rays would escape the remnant without being reprocessed.

In order to calculate the X-ray lightcurve, one needs to solve the dynamical evolution of the merger-nova ejecta, which is heated by radioactive decay and energy injection from the magnetar (Yu et al. 2013).

The total energy of the ejecta excluding the rest mass energy can be expressed as

$$\begin{eqnarray}&&{E}_{\mathrm{ej}}=({\rm{\Gamma }}-1){M}_{\mathrm{ej}}{c}^{2}+{\rm{\Gamma }}{E}_{\mathrm{int}}^{\prime },\end{eqnarray} \tag{ 12 }$$

where Γ is the Lorentz factor, ${E}_{\mathrm{int}}^{\prime }$ is the internal energy in the co-moving frame, and the two terms represent the kinetic energy and the thermal energy of the ejecta, respectively. For each time step dt, the ejecta receive energy from the magnetar (with luminosity ${L}_{\mathrm{sd}}$) and from radioactive decay of the neutron-rich materials (with luminosity ${L}_{\mathrm{ra}}$), and in the mean time lose energy through emission of the electrons (with luminosity L_e). Energy conservation therefore gives

$$\begin{eqnarray}&&{{dE}}_{\mathrm{ej}}=({L}_{\mathrm{sd}}+{L}_{\mathrm{ra}}-{L}_{e}){dt},\end{eqnarray} \tag{ 13 }$$

where t is the observer's time, ${L}_{\mathrm{sd}}$ is defined by Equation (4), ${L}_{\mathrm{ra}}$ is the radioactive power, and L_e is bolometric radiation luminosity by the heated electrons. Equating the derivative of Equation (12) with (13) and noticing that ${dt}^{\prime} ={ \mathcal D }{dt}$ ($t^{\prime}$ is the co-moving time), where ${ \mathcal D }=1/[{\rm{\Gamma }}(1-\beta \cos \theta )]$ is the Doppler factor with $\beta =\sqrt{1-{{\rm{\Gamma }}}^{-2}}$ and $\theta =0$ for an on-beam observer), one has

$$\begin{eqnarray}&&\displaystyle \frac{d{\rm{\Gamma }}}{{dt}}=\displaystyle \frac{{L}_{\mathrm{sd}}+{L}_{\mathrm{ra}}-{L}_{e}-{\rm{\Gamma }}{ \mathcal D }({{dE}}_{\mathrm{int}}^{\prime }/{dt}^{\prime} )}{{M}_{\mathrm{ej}}{c}^{2}+{E}_{\mathrm{int}}^{\prime }}.\end{eqnarray} \tag{ 14 }$$

The change of the internal energy includes heating from magnetar and radioactivity and cooling due to radiation and pdV work (Kasen & Bildsten 2010). Therefore, in the co-moving frame, the evolution of internal energy can be calculated as (Yu et al. 2013)

$$\begin{eqnarray}&&\displaystyle \frac{{{dE}}_{\mathrm{int}}^{\prime }}{{dt}^{\prime} }=\xi {L}_{\mathrm{sd}}^{\prime }+{L}_{\mathrm{ra}}^{\prime }-{L}_{e}^{\prime }-P^{\prime} \displaystyle \frac{{dV}^{\prime} }{{dt}^{\prime} }\end{eqnarray} \tag{ 15 }$$

where ξ is an efficiency parameter to define the fraction of the spin-down energy that is used to heat the ejecta. The co-moving luminosities are defined as ${L}_{\mathrm{sd}}^{\prime }={L}_{\mathrm{sd}}/{{ \mathcal D }}^{2}$, ${L}_{\mathrm{ra}}^{\prime }={L}_{\mathrm{ra}}/{{ \mathcal D }}^{2}$, and ${L}_{e}^{\prime }={L}_{e}/{{ \mathcal D }}^{2}$, and the co-moving radiative heating luminosity can be calculated as

$$\begin{eqnarray}{L}_{\mathrm{ra}}^{\prime } & = & 4\times {10}^{49}{M}_{\mathrm{ej},-2}\\ & & \times {\left[\displaystyle \frac{1}{2}-\displaystyle \frac{1}{\pi }\arctan \left(\displaystyle \frac{t^{\prime} -{t}_{0}^{\prime }}{{t}_{\sigma }^{\prime }}\right)\right]}^{1.3}\,\mathrm{erg}\,{{\rm{s}}}^{-1},\end{eqnarray} \tag{ 16 }$$

with ${t}_{0}^{\prime }\sim 1.3$ ${\rm{s}}$ and ${t}_{\sigma }^{\prime }\sim 0.11$ ${\rm{s}}$ (Korobkin et al. 2012). For a relativistic gas, the pressure is (1/3) of the internal energy density, i.e.,

$$\begin{eqnarray}&&P^{\prime} ={E}_{\mathrm{int}}^{\prime }/(3V^{\prime} ).\end{eqnarray} \tag{ 17 }$$

The co-moving volume is determined by

$$\begin{eqnarray}&&\displaystyle \frac{{dV}^{\prime} }{{dt}^{\prime} }=4\pi {R}^{2}\beta c,\end{eqnarray} \tag{ 18 }$$

and the effective velocity of the ejecta for the observer can be generally written as (valid for both non-relativistic and relativistic regimes)

$$\begin{eqnarray}&&\displaystyle \frac{{dR}}{{dt}}=\displaystyle \frac{\beta c}{1-\beta }.\end{eqnarray} \tag{ 19 }$$

The co-moving frame bolometric emission luminosity of the heated electrons can be estimated as

$$\begin{eqnarray}{L}_{e}^{\prime }=\left\{\begin{array}{ll}{E}_{\mathrm{int}}^{\prime }c/(\tau R/{\rm{\Gamma }}), & \mathrm{for}\,t\lt {t}_{\tau },\\ {E}_{\mathrm{int}}^{\prime }c/(R/{\rm{\Gamma }}), & \mathrm{for}\,t\geqslant {t}_{\tau },\end{array}\right.\end{eqnarray} \tag{ 20 }$$

where the first expression takes into account the skin-depth effect of an optically thick emitter. The observed spectrum is nearly blackbody with a typical temperature,

$$\begin{eqnarray}{\varepsilon }_{\gamma ,p}\approx 4{ \mathcal D }{kT}^{\prime} =\left\{\begin{array}{ll}4{ \mathcal D }k{\left(\tfrac{{E}_{\mathrm{int}}^{\prime }}{{aV}^{\prime} \tau }\right)}^{1/4} & \mathrm{for}\,\tau \gt 1\\ 4{ \mathcal D }k{\left(\tfrac{{E}_{\mathrm{int}}^{\prime }}{{aV}^{\prime} }\right)}^{1/4} & \mathrm{for}\,\tau \leqslant 1\end{array}\right.\end{eqnarray} \tag{ 21 }$$

where k is the Boltzmann constant and a is the blackbody radiation constant.

For a blackbody spectrum with co-moving temperature $T^{\prime}$, the luminosity at a particular frequency ν is given by

$$\begin{eqnarray}&&{(\nu {L}_{\nu })}_{\mathrm{bb}}=\displaystyle \frac{8{\pi }^{2}{{ \mathcal D }}^{2}{R}^{2}}{{h}^{3}{c}^{2}}\displaystyle \frac{{(h\nu /{ \mathcal D })}^{4}}{\exp (h\nu /{ \mathcal D }{kT}^{\prime} )-1}.\end{eqnarray} \tag{ 22 }$$

So for a stable magnetar, the observed X-ray luminosity in the trapped zone can be written as

$$\begin{eqnarray}&&{L}_{{\rm{X}},\mathrm{trapped}}(t)={e}^{-\tau }\displaystyle \frac{\eta {B}_{p}^{2}{R}^{6}{{\rm{\Omega }}}^{4}(t)}{6{c}^{3}}+{({\nu }_{{\rm{X}}}{L}_{\nu ,{\rm{X}}})}_{\mathrm{bb}},\end{eqnarray} \tag{ 23 }$$

where the first term is emission from the dissipating wind, which is negligible when $\tau \gg 1$, and the second term is the Wien tail of the merger-nova photosphere, which can be calculated using Equation (22) by choosing a typical X-ray frequency.

The final product of an NS–NS merger depends on the initial masses of the two pre-merger NSs and the EoS of the compact object. For a merger product with mass M_s and a given EoS, one may define a critical period P_c above which the NS would collapse into a black hole. For a given EoS, the maximum mass ${M}_{\max }$ an NS can sustain is a function of period P. The shorter the P, the larger the ${M}_{\max },$ which can be cast into the form (Lasky et al. 2014; Ravi & Lasky 2014; Li et al. 2016c)

$$\begin{eqnarray}&&{M}_{\max }={M}_{\mathrm{TOV}}(1+\alpha {P}^{\beta }),\end{eqnarray} \tag{ 24 }$$

where ${M}_{\mathrm{TOV}}$ is the maximum mass of an NS with zero spin for a given EoS, α and β are the phenomenological parameters to describe how the maximum mass of a supra-massive NS depends on ${M}_{\mathrm{TOV}}$ and P, which depends on the NS EoS. Notice that $\beta \lt 0$ guarantees a decreasing ${M}_{\max }$ with increasing P. The collapse time can be calculated by equating M_s and ${M}_{\max }$, which gives

$$\begin{eqnarray}&&{P}_{c}={\left(\displaystyle \frac{{M}_{s}-{M}_{\mathrm{TOV}}}{\alpha {M}_{\mathrm{TOV}}}\right)}^{1/\beta }.\end{eqnarray} \tag{ 25 }$$

The merger product is a supra-massive NS if ${P}_{c}\gt {P}_{i}$, but would be a prompt BH (direct collapse or hypermassive NS) if ${P}_{c}\lt {P}_{i}$. Using Equation (3), one can derive the collapse time (Gao et al. 2016a)

$$\begin{eqnarray}&&{t}_{\mathrm{col}}=\displaystyle \frac{a}{2{b}^{2}}\mathrm{ln}\left[\left(\displaystyle \frac{a{{\rm{\Omega }}}_{i}^{2}+b}{a{{\rm{\Omega }}}_{c}^{2}+b}\right)\displaystyle \frac{{{\rm{\Omega }}}_{c}^{2}}{{{\rm{\Omega }}}_{i}^{2}}\right]+\displaystyle \frac{{{\rm{\Omega }}}_{i}^{2}-{{\rm{\Omega }}}_{c}^{2}}{2b{{\rm{\Omega }}}_{i}^{2}{{\rm{\Omega }}}_{c}^{2}},\end{eqnarray} \tag{ 26 }$$

where ${{\rm{\Omega }}}_{c}=2\pi /{P}_{c}$, $a=(32{GI}{\epsilon }^{2})/(5{c}^{5})$ and $b=({B}_{p}^{2}{R}^{6})/(6{c}^{3}I)$, and a and b are assumed to be approximately constant during the evolution.

The evidence of direct collapse of a supra-massive NS to a BH is collected from the sGRB observations. By analyzing the joint BAT-XRT light curves of sGRBs, Lü et al. (2015) found that a good fraction of them show an internal plateau (the temporal segment with decay slope close to flat), followed by a decay slope steeper than 3. This implies internal dissipation of a magnetar central engine with the steep decay marking the collapse of the supra-massive NSs into a black hole. Gao et al. (2016a) obtained a minimum 22% fraction of supra-massive NSs as the central engine of sGRBs. Within the EoS GM1 (Lasky et al. 2014), Gao et al. (2016a) obtained ∼30% supra-massive NSs that collapse to black holes in a range of delay timescales, ∼30% stable NS, and ∼40% prompt black holes if the cosmological NS–NS systems follow the mass distribution of Galactic NS–NS systems (Kiziltan et al. 2013; Martinez et al. 2015).

The outcome of our model depends on the EoS of the central compact star, which is not uniquely constrained either theoretically or observationally. Recently, Li et al. (2016c) studied the spin-dependent compact star structure for four recently constructed "unified" NS EoSs (BCPM, BSk20, BSk21, and Shen) and three developed strange quark star (QS) EoSs (CIDDM, CDDM1, and CDDM2) and derived the α and β values of each EoS in the convention of Equation (24). They found that except BCPM, all other six EoSs can reproduce the observed supra-massive NS/QS fraction. Furthermore, they found that the QS EoSs can better reproduce the observed collapse time distribution as inferred from the data (Lü et al. 2015). The best match with the data constrains the distributions of different parameters (P_i, B_p, , and η) for different EoSs (Table I.II of Li et al. 2016c). Again assuming the Galactic NS–NS mass distribution, we calculate the post-merger product fractions, which are shown in Table 1. These results are used below to construct the peak LF of these X-ray transients.

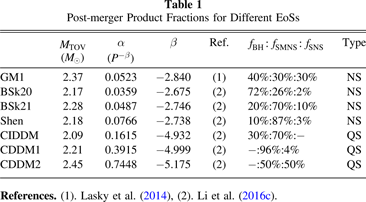

Table 1.  Post-merger Product Fractions for Different EoSs

	${M}_{\mathrm{TOV}}$	α	β	Ref.	${f}_{\mathrm{BH}}:{f}_{\mathrm{SMNS}}:{f}_{\mathrm{SNS}}$	Type
	$({M}_{\odot })$	$({P}^{-\beta })$
GM1	2.37	0.0523	−2.840	(1)	40%:30%:30%	NS
BSk20	2.17	0.0359	−2.675	(2)	72%:26%:2%	NS
BSk21	2.28	0.0487	−2.746	(2)	20%:70%:10%	NS
Shen	2.18	0.0766	−2.738	(2)	10%:87%:3%	NS
CIDDM	2.09	0.1615	−4.932	(2)	30%:70%:−	QS
CDDM1	2.21	0.3915	−4.999	(2)	−:96%:4%	QS
CDDM2	2.45	0.7448	−5.175	(2)	−:50%:50%	QS

References. (1). Lasky et al. (2014), (2). Li et al. (2016c).

Download table as:  ASCIITypeset image

The lightcurves of the X-ray transients depend on the relative positions among the following three critical times:

• 1.
  ${t}_{\mathrm{sd}}$: the spin-down time of NSs, as defined in Equation (7);
• 2.
  ${t}_{\tau }$: the time at which $\tau =1$ is satisfied, which is the transition point of wind emission from being trapped to free;
• 3.
  ${t}_{\mathrm{col}}$: the time at which the NS collapses into a black hole (Equation (26)).

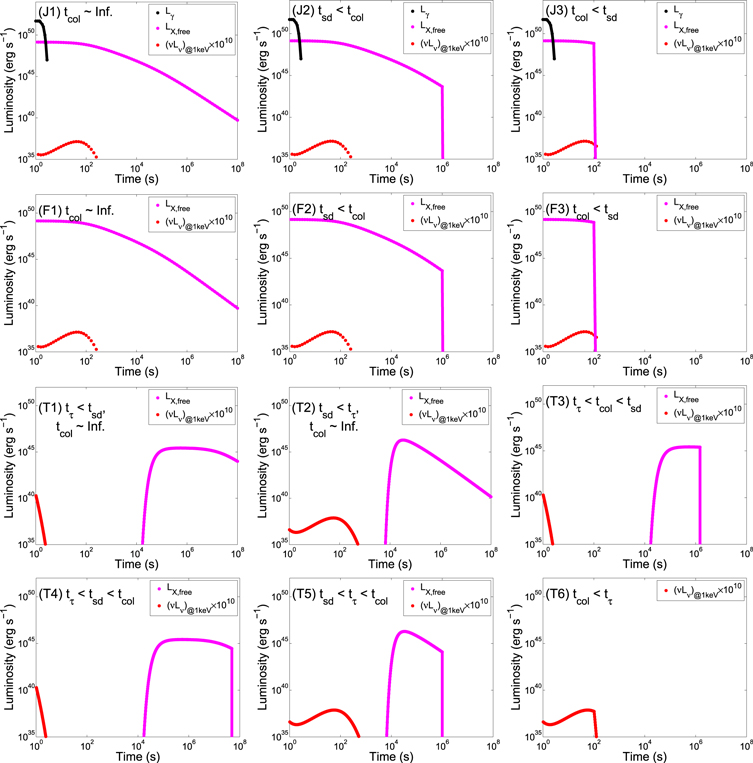

A gallery of all 12 possible X-ray lightcurves is collected in Figure 2. There are three general types that correspond to the three observational zones: jet zone (J1-J3), free zone (F1-F3), and trapped zone (T1-T6).

Zoom In Zoom Out Reset image size

The jet zone and free zone lightcurves are similar to each other, except that there is a short GRB observed (marked as the black solid line) for the jet zone but not in the free zone. There are three possible lightcurves for each case, which correspond to the cases of a stable NS (J1 and F1), a supra-massive NS with collapse happening during the decay phase (${t}_{\mathrm{col}}\gt {t}_{\mathrm{sd}}$, J2 and F2) and during the plateau phase (${t}_{\mathrm{col}}\lt {t}_{\mathrm{sd}}$, J3 and F3), respectively. Given the typical magnetar parameters (see Section 3.1 for details), the plateau is as bright as 10^49-50 $\mathrm{erg}\,{{\rm{s}}}^{-1}$, which is also consistent with the luminosity of the internal X-ray plateaus seen in some sGRB afterglows. The merger-nova typically peaks in optical/IR. In X-rays (dotted line) it is much fainter than the direct wind dissipation component, i.e., below 10⁴⁰ $\mathrm{erg}\,{{\rm{s}}}^{-1}$, so that it is not detectable. For indicative purposes, we mark a cutoff of lightcurve at ${t}_{\mathrm{col}}$. In reality, the decay should be shallower due to the so-called "curvature effect," i.e., the delay of arrival of high-latitude photons (Kumar & Panaitescu 2000; Uhm & Zhang 2015), but due to the effect of the zero time offset (Zhang et al. 2006) and a possible "bulk acceleration" effect (Uhm & Zhang 2015, 2016), the actual decay slope can be very steep, e.g., ∝t⁻¹⁰ as seen in the observations (Rowlinson et al. 2010, 2013; Lü et al. 2015). In the jet zone, interaction between the GRB jet and the ambient medium would also power a bright X-ray afterglow, which may appear as an external plateau (e.g., Lü et al. 2015). However, such afterglow emission is diminished in the free zone. The dominant X-ray emission should come from the nearly isotropic internal dissipation emission of the magnetar.

In the trapped zone, the lightcurves are more complicated, as shown in T1-6 in Figure 2. It includes two components: the merger-nova component (mostly too faint to be detected) and the wind dissipation component. Due to the ${e}^{-\tau }$ factor, the wind emission can diffuse out only when the ejecta gets transparent around t_τ (e.g., Gao et al. 2015). If the collapse happens before the ejecta becomes optically thin, there is no wind emission observed (T6). Otherwise, the wind emission would come out at around t_τ. In the case of a stable NS (${t}_{\mathrm{col}}=$ infinity), the wind emission always comes out, either during the plateau phase (${t}_{\tau }\lt {t}_{\mathrm{sd}}$, T1) or during the decay phase (${t}_{\tau }\gt {t}_{\mathrm{sd}}$, T2). In the case of supra-massive NSs, one has four cases depending on the comparison among ${t}_{\mathrm{col}}$, t_τ, and ${t}_{\mathrm{sd}}$: for ${t}_{\tau }\lt {t}_{\mathrm{col}}\lt {t}_{\mathrm{sd}}$ (T3), one observes part of the plateau and the star collapses before spinning down; for ${t}_{\tau }\lt {t}_{\mathrm{sd}}\lt {t}_{\mathrm{col}}$ (T4), one observes part of the plateau and a decay segment before the collapse; for ${t}_{\mathrm{sd}}\lt {t}_{\tau }\lt {t}_{\mathrm{col}}$ (T5), one can only observe a decay segment before the collapse; and for ${t}_{\mathrm{col}}\lt {t}_{\tau }$ (T6), the wind emission cannot be observed. For typical parameters, the merger-nova component (red solid line) for all 6 cases is too faint to be detected (as shown in Figure 2), but with extreme parameters (e.g., ${B}_{p}\gt {10}^{16}$ G), the X-ray emission of the merger-nova can be very bright (Siegel & Ciolfi 2016a, 2016b).

To sum up, bright X-ray transients are expected from the free zone, while in the trapped zone the chance of observing bright events is much lower. As a result, based on the current non-detection of bright X-ray transients one may constrain the solid angle ratio parameter k_Ω (Equation (2)) for the free zone. One can also predict the LF and event rate density of these transients once k_Ω and EoS are determined and study the detectability of these transients by current and future wide-field X-ray or soft γ-ray detectors.

The LF and event rate density of the X-ray transients depend on many factors, including the EoS, solid angle fraction k_Ω, and many other unknown parameters associated with the ejecta and the magnetar. Lacking observational data, it is impossible to give a unique prediction. In the following, we take GM1 EoS as an example (Lasky et al. 2014; Gao et al. 2016a), and discuss other EoSs through a comparison of the results. For each EoS, we adopt some typical parameters inferred from the sGRB data, and make predictions by assuming different values of k_Ω.

For the GM1 EoS (Glendenning & Moszkowski 1991) we adopt ${M}_{\mathrm{TOV}}=2.37{M}_{\odot }$, $R=12.05\,\mathrm{km}$, $I=2.13\times {10}^{45}\,{\rm{g}}\,{\mathrm{cm}}^{-2}$, $\alpha =1.58\times {10}^{-10}{s}^{-\beta }$, and $\beta =-2.84$ using the prescription of Equation (24) (Lasky et al. 2014). The following parameters are adopted in the simulations based on previous work (Gao et al. 2016a): the ejecta mass with a log-normal distribution ${N}_{\mathrm{ej}}$(${\mu }_{\mathrm{ej}}={10}^{-2}{M}_{\odot },{\sigma }_{\mathrm{ej}}=0.5)$, the dipolar magnetic field strength with a log-normal distribution N_B(${\mu }_{B}={10}^{15}\,G,{\sigma }_{B}=0.2$), the initial period P_i = 1 ms, ellipticity of the nascent NS $\epsilon =0.005$, and efficiency parameters $\xi =0.5$, $\eta =0.5$. For other EoSs, the best-fit parameters derived from Li et al. (2016c) are adopted. For all the simulations, the opacity parameter is adopted as $\kappa =2\,{\mathrm{cm}}^{2}\,{{\rm{g}}}^{-1}$. This is an unknown parameter, which ranges from 0.1–10 ${\mathrm{cm}}^{2}\,{{\rm{g}}}^{-1}$ depending on whether lanthanides dominate the opacity (Barnes & Kasen 2013; Tanaka & Hotokezaka 2013; Metzger & Piro 2014). Our moderate value is based on the consideration that the lanthanides do exist in the ejecta, on the other hand, the magnetar wind tends to destroy the heavy elements and reduce opacity. In reality, different merger systems may have different κ values, and our typical value may be regarded as the average value of opacity among different events. We simulate 10,000 events for the trapped-zone events. The number of free-zone events can be correspondingly simulated based on the assumed k_Ω.

The peak luminosity of the X-ray transients depends on several factors. In the free zone, it is the luminosity during the plateau phase. In the trapped zone, if ${t}_{\mathrm{col}}\gt {t}_{\tau }$, the peak luminosity is simply Equation (23) at t_τ. If ${t}_{\mathrm{col}}\lt {t}_{\tau }$ instead, the peak luminosity is defined by the merger-nova, and corresponds to the maximum value of Equation (22). As a result, the LF includes two components: one high-L component related to wind dissipation, and another low-L component related to merger-nova.

For GM1, it was found that f_BH : f_SMNS : f_SNS = 40%:30%:30% for prompt black holes, supra-massive NSs, and stable NSs (Gao et al. 2016a). The latter two are relevant to the X-ray transients we model.

In order to determine the event rate density of these transients, we use sGRB event rate (Sun et al. 2015) as a normalization. Since the event rate density evolves with redshift, throughout the paper we refer "event rate density" to the local one, i.e., ${\rho }_{0}$. It is possible that the sources other than NS–NS mergers (e.g., BH–NS mergers) may also contribute to the detected sGRBs, but in view of the prevalence of internal X-ray plateaus in sGRBs (Lü et al. 2015), it is possible that the majority of sGRBs are powered by NS–NS mergers. For simplicity, we assume that all sGRBs are powered by NS–NS mergers for the GM1 model. Based on the sGRB event rate density ${\rho }_{\mathrm{sGRB}}$, one can estimate that of the free-zone events:

$$\begin{eqnarray}&&{\rho }_{\mathrm{free}}=({f}_{\mathrm{SMNS}}+{f}_{\mathrm{SNS}}){k}_{{\rm{\Omega }}}\times {\rho }_{\mathrm{sGRB}}.\end{eqnarray} \tag{ 27 }$$

The event rate density of the trapped-zone events can be inferred based on the derived LF from the simulations.

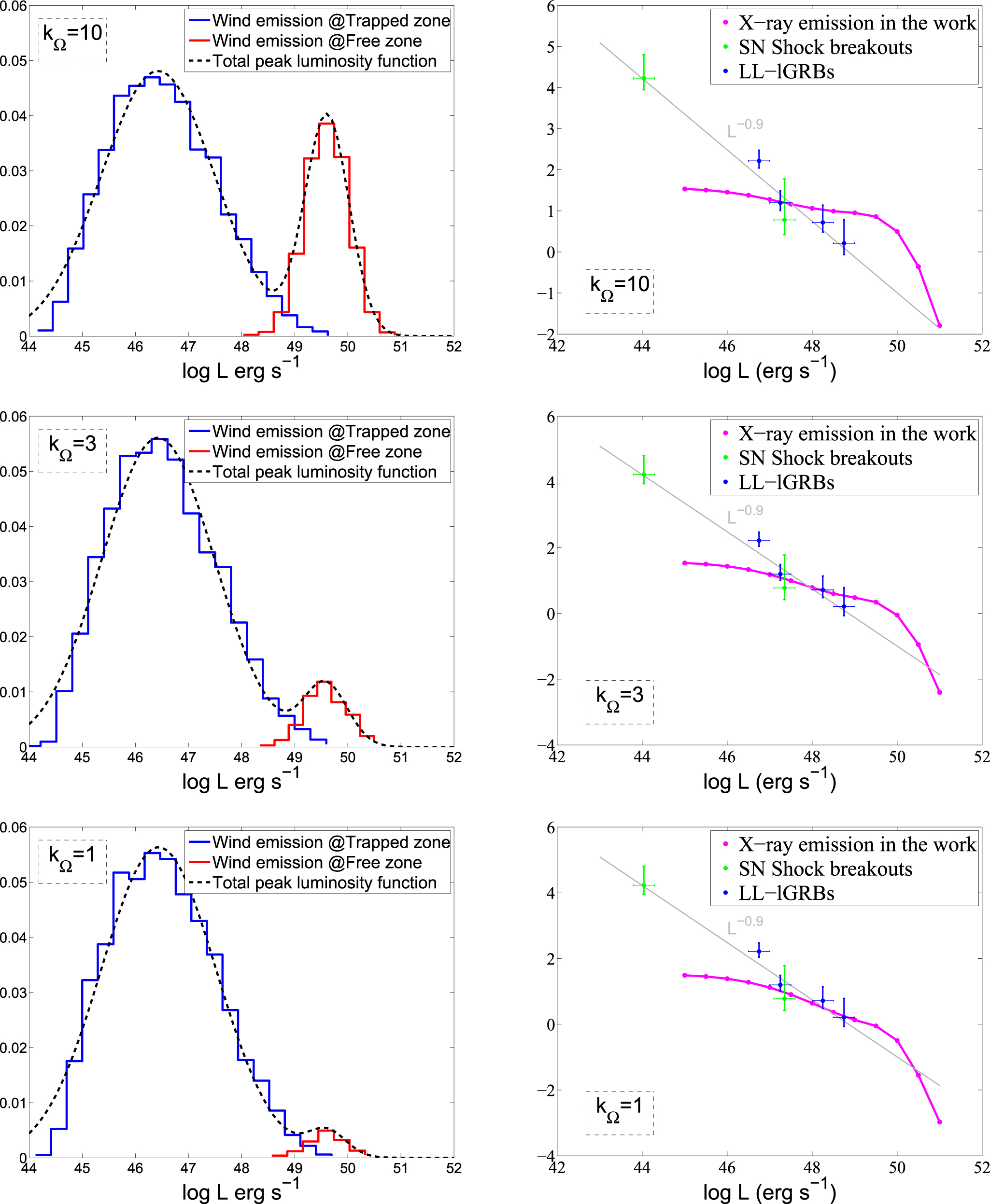

The LFs and event rate densities of the X-ray transients for GM1 EoS are derived for three k_Ω values (10, 3, 1), which are shown in Figure 3. A typical jet half opening angle of 10 degrees for sGRBs has been assumed. The peak LFs are shown in the left column and the estimated event rate densities are shown in the right column. The peak LFs are bimodal and can be fit with the sum of two log-normal distributions

$$\begin{eqnarray}{\rm{\Phi }}(d\mathrm{log}\,L)d\mathrm{log}\,L & = & \left[{N}_{1}\exp \left(-\displaystyle \frac{{(\mathrm{log}L-{\mu }_{1})}^{2}}{{2\sigma }_{1}^{2}}\right)\right.\\ & & +\left.{N}_{2}\exp \left(-\displaystyle \frac{{(\mathrm{log}L-{\mu }_{2})}^{2}}{{2\sigma }_{2}^{2}}\right)\right]d\mathrm{log}\,L.\end{eqnarray} \tag{ 28 }$$

The best-fit parameters are given in Table 2. The high-L component due to the direct wind dissipation in the free zone (red) peaks at ${10}^{49.6}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$, and the low-L component from the trapped zone (blue) peaks at ${10}^{46.4}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$. The high-L component becomes progressively significant when ${k}_{{\rm{\Omega }}}$ increases. In the event rate density plot, the high-L component defines the plateau-like feature in the high-L regime. For comparison, we display the event rate densities of SN shock breakouts and low-luminosity long GRBs (LL-lGRBs) from Sun et al. (2015). All these three types of transients share the similar luminosity range from 10⁴⁵ to 10⁵⁰ $\mathrm{erg}\,{{\rm{s}}}^{-1}$. Until now, we only have two confirmed SN SBOs and six LL-lGRBs. The non-detection of the X-ray transients discussed in this paper suggest that their event rate density should at most be comparable to the other two types. This criterion places a strong constraint to ${k}_{{\rm{\Omega }}}$. One can see that the case of ${k}_{{\rm{\Omega }}}=10$ is already disfavored by the data. As a result, the free zone may be at most a few times that of the jet zone. The majority of the solid angle should be in the trapped zone. This is consistent with the numerical simulations that suggest that the dynamical ejecta cover the majority of the solid angles. A more quantitative constraint on ${k}_{{\rm{\Omega }}}$ may be carried out in the future when the X-ray/soft γ-ray transients are detected (e.g., Li et al. 2016, in preparation, for a report on candidate events from the Swift BAT archives.)

Zoom In Zoom Out Reset image size

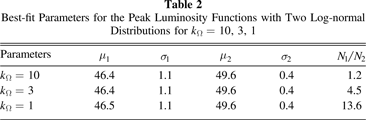

Table 2.  Best-fit Parameters for the Peak Luminosity Functions with Two Log-normal Distributions for ${k}_{{\rm{\Omega }}}=10,3,1$

Parameters	${\mu }_{1}$	${\sigma }_{1}$	${\mu }_{2}$	${\sigma }_{2}$	${N}_{1}/{N}_{2}$
${k}_{{\rm{\Omega }}}=10$	46.4	1.1	49.6	0.4	1.2
${k}_{{\rm{\Omega }}}=3$	46.4	1.1	49.6	0.4	4.5
${k}_{{\rm{\Omega }}}=1$	46.5	1.1	49.6	0.4	13.6

Download table as:  ASCIITypeset image

Besides EoS GM1, we also test EoSs from Li et al. (2016c), among which six out of seven could satisfy the lower limit of the observed supra-massive NS fraction. On the other hand, the supra-massive NS fraction, ${f}_{\mathrm{SMNS}}$ for several EoSs (BSK21, Shen, CIDDM, CDDM1, CDDM2) are too large. In order to satisfy the observational constraints from sGRBs (which shows that ${f}_{\mathrm{SMNS}}$ is ∼30%–50%), for these EoSs, we assume that NS–NS mergers contribute to 50% of the sGRB population, with the other half produced by NS–BH mergers.

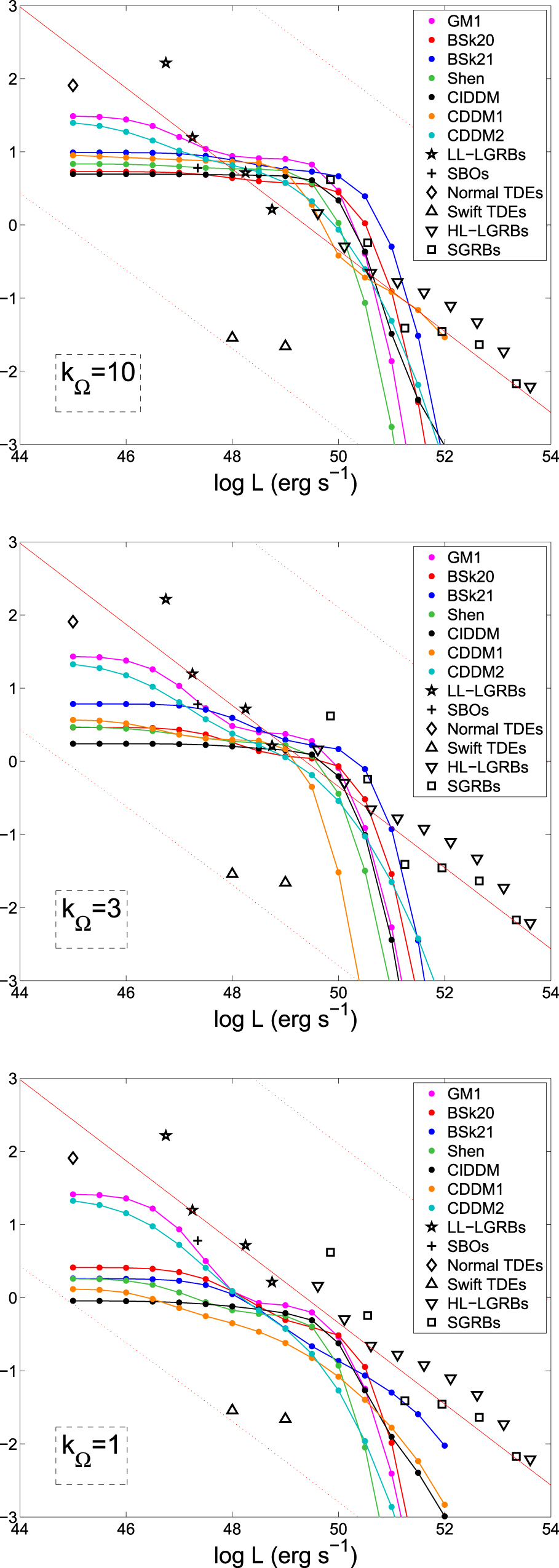

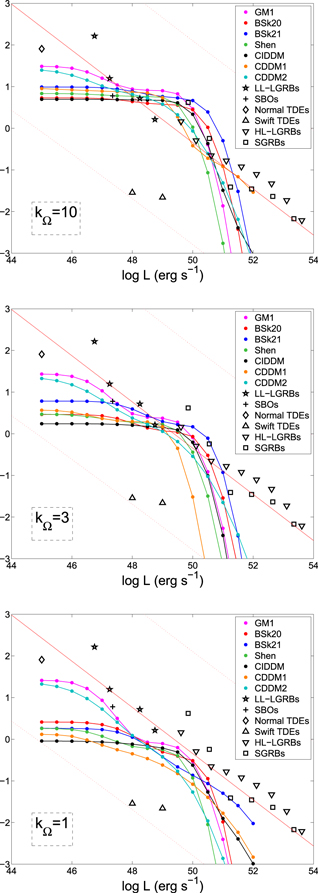

We show in Figure 4 the event rate density as a function of luminosity for all seven EoSs studied in Li et al. (2016c). The cases for ${k}_{{\rm{\Omega }}}=10,3,1$ are shown in different panels. One can see that all EoSs except EoS BSk21 meets the non-detection criterion, i.e., the predicted X-ray transients have an event rate at most of other observed transients with a similar luminosity. With a larger solid angle ratio, say ${k}_{{\rm{\Omega }}}\simeq 10$, all EoSs over-predict events with peak luminosity around 10^49-50 $\mathrm{erg}\,{{\rm{s}}}^{-1}$. The event rate density above 10⁴⁵ $\mathrm{erg}\,{{\rm{s}}}^{-1}$, ${\rho }_{0,\gt {10}^{45}}$, on the other hand, is around several tens of ${\mathrm{Gpc}}^{-3}\,{\mathrm{yr}}^{-1}$ for EoSs GM1, CDDM2, but is one order of magnitude smaller for other EoSs. This is because this population of transients mostly depends on the fraction of stable compact stars, which guarantee to still produce X-ray emission when the ejecta become transparent. EoSs GM1, and CCDM2 (with 50% correction for NS–NS mergers) have the highest stable fraction, and hence, the highest event rate density. Since at this luminosity the number is dominated by the trapped-zone low-L component, ${\rho }_{0,\gt {10}^{45}}$ varies little for different ${k}_{{\rm{\Omega }}}$ values.

Zoom In Zoom Out Reset image size

Also plotted in Figure 4 are the event rate densities of all other high-energy transients (besides LL-lGRBs and SBOs, TDEs and sGRBs are also plotted) studied in Sun et al. (2015). One can see that the predicted X-ray transients fall into the range of possible detections with the current facilities, if k_Ω is of order of unity.

To be more quantitative, we calculate the detectability of such X-ray transients for present high-energy satellites and future wide-field X-ray telescopes based on the estimated LFs and event rate densities. The detected number of events per year can be estimated as (Sun et al. 2015)

$$\begin{eqnarray}&&\dot{N}=\displaystyle \frac{{\rm{\Omega }}}{4\pi }{\int }_{{L}_{m}}^{{L}_{M}}{\rm{\Phi }}(L){dL}{\int }_{0}^{{z}_{\max }(L)}\displaystyle \frac{{\rho }_{0}f(z)}{1+z}\displaystyle \frac{{dV}}{{dz}}{dz},\end{eqnarray} \tag{ 29 }$$

where ${\rm{\Phi }}(L)$ is the LF and f(z) describes the redshift distribution of events. We take ${\rm{\Phi }}(L)$ for ${k}_{{\rm{\Omega }}}=1$ for EoS GM1 as an example. The redshift distribution f(z) is taken from Equation (20) in Sun et al. (2015), which considers a Gaussian distribution of the merger delay timescale for NS–NS mergers. The redshift-dependent specific co-moving volume reads (for the standard ΛCDM cosmology)

$$\begin{eqnarray}&&\displaystyle \frac{{dV}(z)}{{dz}}=\displaystyle \frac{c}{{H}_{0}}\displaystyle \frac{4\pi {D}_{L}^{2}}{{(1+z)}^{2}{[{{\rm{\Omega }}}_{M}{(1+z)}^{3}+{{\rm{\Omega }}}_{{\rm{\Lambda }}}]}^{1/2}}.\end{eqnarray} \tag{ 30 }$$

For a particular L, the maximum redshift ${z}_{\max }(L)$, which defines the maximum volume inside which an event with luminosity L can be detected, relies on the sensitivity threshold ${F}_{\mathrm{th}}$ via

$$\begin{eqnarray}&&{F}_{\mathrm{th}}=\displaystyle \frac{\eta L}{4\pi {D}_{L}^{2}({z}_{\max })}.\end{eqnarray} \tag{ 31 }$$

We estimate the detection rates for Swift/BAT and XRT, XMM-Newton, Chandra, as well as the upcoming Chinese wide-field X-ray telescope EP (with a designed field of view of 1str.). We also consider the specific flux sensitivity for each telescope by assuming a ∼1000 s exposure time.

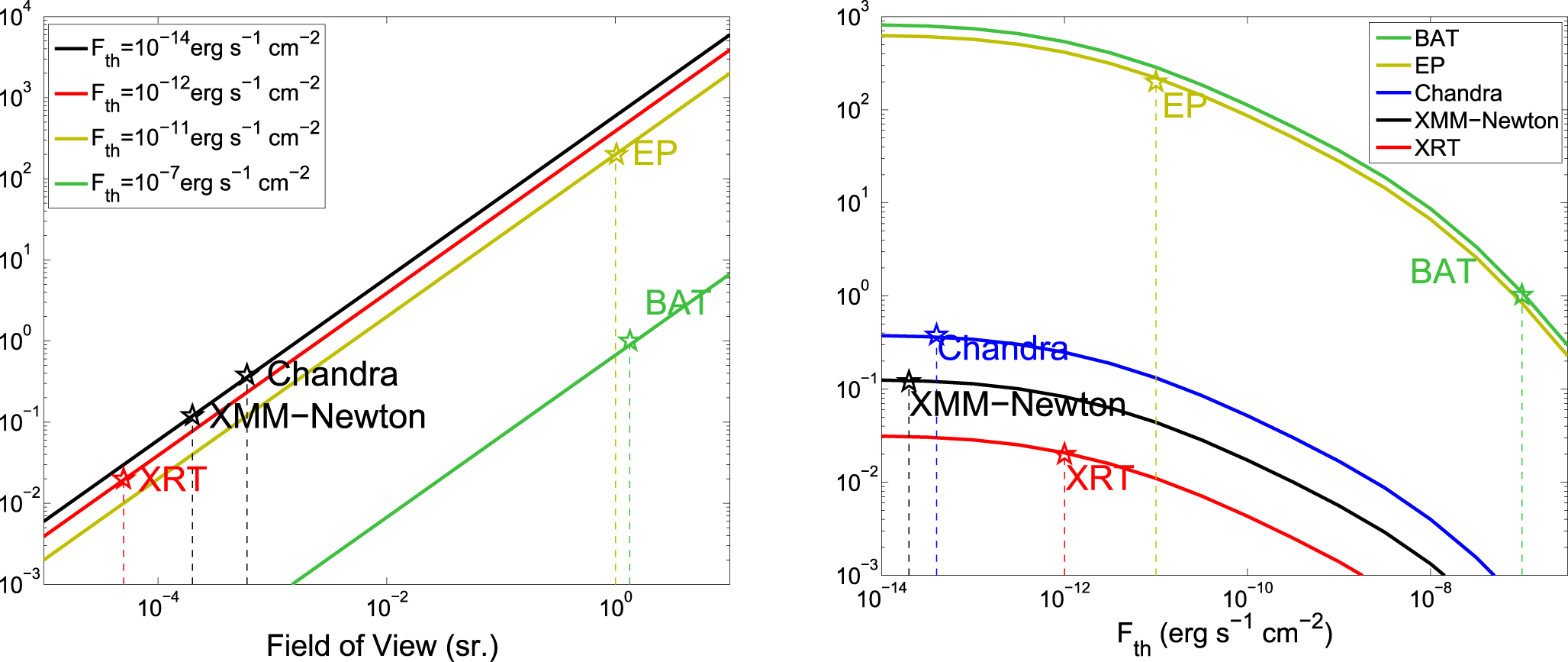

In Figure 5, we give the detection rate as a function of both sensitivity and field of view for all the above-mentioned instruments. It can be seen that the present narrow-field X-ray telescopes can hardly detect such X-ray transients. This is consistent with the non-detection of these events so far. The detection rate of BAT, $\dot{N}$, can be around 1–2 per year. For ten years' service, BAT may have already detected two dozens of such bright transients, if their spectra extend to the BAT energy band. However, they may have been confused as faint long-duration GRBs (or X-ray flashes). A systematic search in the faint BAT GRB sample may lead to identifications of such events (Y. Li et al. 2016, in preparation).

Zoom In Zoom Out Reset image size

The prediction for EP is very promising. With the high sensitivity and large field of view, EP may be able to detect ∼100 such events per year. Considering that for some parameters the light curves in the trapped zone show rapid decline as a function of time, which effectively reduce the integration time (with respect to the constant luminosity case), we more conservatively suggest a detection rate of several tens per solid angle per year for EP. The detections by EP would validate the existence of such events, testify the LFs of the transients, and constrain the range of k_Ω.

It is interesting to estimate the joint detection rate of these X-ray transients with the aLIGO GW signals. Taking EoS GM1 and ${k}_{{\rm{\Omega }}}=1$ as an example (the event rate densities vary by a factor of a few for different EoSs as discussed in Section 3.3), within the 200 Mpc aLIGO average range for NS–NS mergers (Abbott et al. 2016c), the estimated event rate of these transients is about 1 per year all sky. The joint GW/X-ray detections depend on the field of view of the high-energy detector. Since 200 Mpc is so close, sensitivity would not be an important factor, and the field of view would be the key factor to determine the joint detection rate. For instruments like EP (about 1 steradian solid angle), one joint GW/X-ray detection may be made within a ten-year operation of both the X-ray telescope and the GW detectors. Swift BAT has a larger field of view ($\sim 1/7$ of all sky). It may give 1 joint detection with aLIGO in seven years.
