Correlation of Cs flux and work function of a converter surface during long plasma exposure for negative ion sources in view of ITER

Several diagnostic systems for Cs detection surround the sample: two surface ionization detectors (SID) monitor the Cs outflow from the oven and the redistribution in the vessel in vacuum [26], while the neutral Cs density is absolutely measured by tunable diode laser absorption spectroscopy (TDLAS) averaged along the diagonal line of sight in vacuum and plasma environment [27, 28]. The TDLAS line of sight is parallel to the sample holder at 2 cm distance . The detection limit for the Cs density measurement is n_Cs ≥ 2 × 10¹³ m⁻³, and the measured Cs density has an error of typically ±10% (for densities close to the detection limit the error increases up to ±50% due to the low signal-to-noise ratio).

During plasma operation optical emission spectroscopy (OES) is applied for monitoring the Cs emission and the plasma parameters [29], e.g. the gas temperature, the atomic hydrogen density, the electron density, and the electron temperature, averaged along the line of sight crossing the vessel as shown in the top view in figure 1. Local measurements of electron density and electron temperature, as well as the electrostatic potentials, are obtained by a movable Langmuir probe in vicinity of the surface. Finally, a non-calibrated residual gas analyzer (RGA) is used to monitor the background gases during operation. Details on the applied diagnostics (OES, Langmuir probe, and RGA) can be found in [30]. Due to the high Cs dynamics during plasma operations, all diagnostics are operated simultaneously in order to relate the different parameters to the same experimental condition.

The work function (WF) of the sample is evaluated considering the photoelectric effect induced by irradiation and by applying the Fowler method [31] by means of the enhanced procedure described in [32]. A high pressure mercury lamp (100 W) is applied as a broadband light source since it has a highly intense emission from UV throughout the visible range. The light passes through an interference filter and is focused on the sample holder resulting in a spot diameter of about 1.5 cm. The photoemitted electrons are collected at the vessel walls by applying a bias voltage of −30 V to the sample against the grounded walls. The photocurrents are measured by a Keithley 602 Electrometer, capable of measuring currents down to the pA range. The dark current is between 10⁻¹⁰ A in vacuum and 10⁻⁶ A after plasma with Cs evaporation. The photocurrent depends on the energy of the incident photons, on the temperature of the sample, and on the work function χ of the surface. Hence, by using different interference filters to select the photon energy and by measuring the corresponding photocurrents, it is possible to absolutely determine the work function. Twenty filters with central transmission wavelength between 239 and 852 nm and with a nominal FWHM of 10 nm are available for the current investigations. This set of filters consists of 11 more filters with respect to the set applied in [24], fulfilling the conditions explained in [32]. Consequently, photon energies down to 1.45 eV are now available, but the lowest work function value to be detected depends on the signal-to-noise ratio. The entire setup was calibrated by means of an absolutely calibrated spectrometer and a radiant power meter.

Measurement of the photocurrent is not possible during plasma operation, since the plasma electrons will contribute to the measured current and it will not be possible to discern the low photocurrents from the total current. Consequently, the work function is measured within the first minutes (max. 3 min) after switching off the plasma. Hence, plasma pulses are used with plasma-on time ranging from few seconds up to several hours, and they are interrupted by short gas phases in order to measure the work function. The gas phases must be as short as possible in order to avoid degradation effects on the work function of the sample [24]. Typically, 5–10 min are enough to measure the work function few times after each plasma pulse. The typical error of the evaluated work function is of 0.1 eV. However, it must be considered that the values evaluated via the Fowler method are always upper limits, as explained in [32].

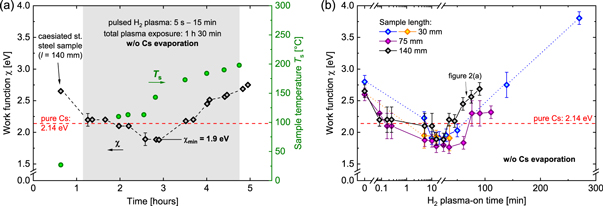

Figure 2(a) shows the work function of a freshly caesiated surface (initial work function of 2.7 eV) for a sample of 140 mm length during plasma exposure (indicated by the gray shaded area) without additional Cs evaporation. The maximum temperature of the sample during each plasma pulse is also shown in the figure. At the beginning 3 pulses of 5 s each are applied, and the work function drops from 2.7 to 2.2 ± 0.1 eV already after the first pulse, reaching a value very close to the work function of pure bulk Cs. During the pulse, it was not possible to have a precise measurement of the temperature, but it was below 100 °C. During the first plasma pulses peaks in the RGA signals for H₂O, CO₂ and N₂ are observed, suggesting that the plasma is releasing the adsorbates from the experiment surfaces including the Cs layer. The RGA signals instantaneously decrease when the plasma is switched off, and the magnitude of the peaks decreases during the subsequent plasma pulses, until no RGA peaks are observed after an overall plasma exposure of 15 min.

Zoom In Zoom Out Reset image size

For the campaign in figure 2(a) the TDLAS was not available, however a reproducible campaign after the installation of the TDLAS diagnostics has shown that the Cs deposited on the surfaces is redistributed inside the experiment when the plasma is on: the Cs density is around 2 × 10¹⁴ m⁻³ during the first plasma pulse and then decreases from pulse to pulse until the signal reaches the detection limit for the Cs detection (≤2 × 10¹³ m⁻³) after a pulsed plasma exposure of more than 1 hour. For each pulse, when the plasma is switched off the Cs density drops.

After the 3 pulses of 5 s, the pulse length is increased step-wise from 5 s to 15 min, interrupting the plasma only to measure the work function. Due to the additional plasma exposure and the interaction of the plasma particles with the surface, the work function first decreases and a minimum work function of χ_min = 1. 9 ± 0.1 eV is measured after an overall plasma-on time of 15 min. This value is measured with a dark current of 10⁻⁹ A and might be an upper limit. Then the work function starts to increase reaching 2.7 eV at the end of the present campaign after an overall plasma-on time of 1.5 h.

In further campaigns longer plasma exposures are applied with pulse lengths from several minutes up to few hours. The longer plasma exposure leads to a further increase of the work function, reaching 3.8 eV after an overall plasma-on time of 4.5 h and approaching the work function of a clean stainless steel surface (≥4.2 eV) after more than 5 h of plasma.

Figure 2(b) shows the work function plotted against the plasma-on time for a group of similar campaigns performed with different samples of stainless steel. All the samples show a first decrease of the work function from 2.7 eV down to 2.1 eV within 10 s of plasma-on time and a minimum value measured between 1.8 and 1.9 eV at around 10–15 min of plasma exposure. All the samples then show an increase of the work function up to values much higher than 2.1 eV.

In contrast to a degraded Cs layer [24], a freshly caesiated surface shows a work function equal to the one of pure Cs (2.1 eV) after only 5–10 s of plasma exposure without the need for further Cs evaporation. A decrease of the work function was observed in [24] for a degraded Cs layer (initial work function of 3.0 eV), however it was not possible to achieve the work function of bulk Cs by exposing the surface to the plasma even for about 3 h. Fresh Cs evaporation was needed to achieve low work functions of 2.2 eV (see table 1 which summarizes the work functions achieved at ACCesS during plasma exposure).

The temporal variation of the work function due to plasma exposure is the most important result of this study. The observation of a minimum work function is either due to a Cs coverage below one monolayer on the sample surface or to the adsorption of hydrogen particles on the Cs layer. Regarding the former effect, the minimum value that is usually reached in ultra-high vacuum systems for some sub-monolayer of Cs coverage is between 1.4 and 1.8 eV [8–10]. These values are lower with respect to the one evaluated here, however none of the literature values refers to a stainless steel substrate and a moderate vacuum level. Additionally, the value measured here can be an upper limit due to the evaluation via the Fowler method. Regarding the adsorption of hydrogen, it was observed in [35] that the hydrogen adsorption on a clean Cs monolayer decreases the work function by few 0.1 eV, which is comparable with the measurements obtained at ACCesS. Hence, both the adsorption of H atoms in the Cs layer and the presence of a sub-monolayer of Cs on the surface would explain a lower work function with respect to the bulk Cs value.

Nonetheless, the investigations performed here clearly show that for plasma exposures of few hours the work function increases up to values close to the clean substrate work function. The behavior of the work function can be explained by a gradual removal of the Cs layer from the surface due to the chemical, thermal and photo-induced desorption (the impinging positive ions and UV/VUV photons have higher energies than the binding energy of Cs at the surface, which is between 0.8 eV [34] and 3.3 eV [36] depending on the Cs coverage). Moreover, for plasma-on time larger than 20 min the sample temperature is higher than 175 °C so CsH can be decomposed, which might lead to desorption of Cs [33]. Hence, Cs removal is possible and is the most probable explanation for the observed behavior.

While the samples reach χ_min at approximately the same time, during the phase of increasing work function the samples show different values of work function under the same plasma-on time. This might be due to a difference in the initial thickness of the Cs layer (impossible to determine): while the dominant process for the observed minimum work function can be the hydrogen adsorption rather than the Cs removal, the dominant process for plasma-on times above 20 minute is the Cs removal, hence different thickness of the layer would lead to different onsets of the work function increase.

The increase of the work function due to Cs removal is a critical issue, however it is not possible to discriminate which mechanism (or which combination of mechanisms) is responsible for the Cs removal. While thermal and chemical effects are isotopically independent, physical sputtering is related to the mass, hence using a deuterium plasma could help to narrow down possible surface processes responsible for the Cs removal, as shown in the following.

Typical plasma parameters of a deuterium plasma at 10 Pa and 250 W are similar as for hydrogen, e.g. n_e ∼ 2 × 10¹⁶ m⁻³, T_e ∼ 2 eV, Γ_D ∼ 1.3 × 10²² m⁻²s⁻¹, and Γ₊ ∼ 1.2 × 10²⁰ m⁻²s⁻¹. The potential drop at the sample surface is of 11 V, and the gas temperature is around 0.05 eV. The maximal temperature reached by the sample is 275 °C, higher with respect to hydrogen operation, hence it might lead to an enhanced thermal desorption and thermal decomposition of CsD. Furthermore, due to the higher mass of the impinging particles, the physical sputtering is expected to be more relevant than in hydrogen. Consequently, if these are the driving processes for the Cs removal, a faster change of the work function can be expected in deuterium.

Figure 3 shows the work function of a freshly caesiated surface (l = 140 mm) plotted against the plasma exposure time in deuterium without further Cs evaporation together with the results obtained in hydrogen from figure 2(b). The work function of a pure Cs layer (2.1 eV) is reached between 5 and 10 s of plasma exposure while a minimum work function of 1.8 eV is measured after 10 min. Then the work function of the surface increases up to 2.6 eV after almost 3 h of plasma exposure.

Zoom In Zoom Out Reset image size

Comparing hydrogen and deuterium operation, the bulk Cs work function is achieved for both plasmas within 10 s and a similar minimum value is observed at the same plasma-on time (around 10 min), hence no significant isotopic effect occurs here. However, the increase of the work function due to Cs removal is lower in deuterium (around +0.3 eV/h) than in hydrogen plasma (around +0.5 eV/h). Hence, thermal desorption, thermal decomposition of Cs hydride and the physical sputtering do not seem to be the driving processes of the Cs removal, since these mechanisms are enhanced in deuterium and should have lead to a faster increase of the work function with respect to hydrogen operation. The results suggest that the driving process is thus chemical.

During long plasma operation at the ion source, Cs is expected to be continuously removed from the surfaces leading to a work function degradation of the plasma grid. Hence, it is mandatory to maintain a sufficient Cs flux onto the surface during plasma to counteract the Cs removal. The aim is to achieve and maintain several Cs layers on the surface, resulting in a work function of 2.1 eV. In this case, in fact, the work function is independent of the thickness of the layer, assuring temporal stability and homogeneity over the entire big area of the plasma grid.

At ACCesS, the case of a high Cs flux (>10¹⁷ m⁻²s⁻¹) during plasma was studied in [24]: this flux allows to maintain a work function of 2.2–2.3 eV for almost 3 h. However, for the current investigations the range of low Cs fluxes is studied in order to determine the threshold value for ensuring a stable low work function. In order to study this case, a stainless steel sample is caesiated in vacuum achieving a work function of 2.7 eV. The caesiation is then stopped, and a continuous hydrogen plasma at 10 Pa and 250 W is applied. During the plasma exposure Cs evaporation is resumed, and the Cs density is slowly increased step-wise. In order to measure the work function, the plasma is stopped as well as the Cs evaporation. The whole procedure must be repeated (starting always from a clean stainless steel sample) to measure the work function for different values of Cs flux, requiring several days for a single measurement.

Figure 4(a) shows the work function of a freshly caesiated stainless steel sample (l = 110 mm, work function of 2.7 eV) and the Cs density measured by TDLAS during the procedure described above. The caesiation is stopped before applying the hydrogen plasma, and during the continuous plasma exposure of 1 hour and 15 min further fresh Cs is evaporated into the vessel, without stopping to measure the work function. The Cs density measured by TDLAS is increased step-wise up to the stable value of 2 × 10¹⁴ m⁻³, corresponding to a Cs flux towards the surface of 1.5 × 10¹⁶ m⁻²s⁻¹. When the plasma is switched off, also the Cs evaporation in the vessel is stopped. The work function is measured within few minutes after plasma equal to 2.1 eV. In comparison with the hydrogen campaigns without Cs evaporation of figure 2(b), the work function is expected to reach values higher than 2.3 eV after 75 min of plasma exposure.

Zoom In Zoom Out Reset image size

In figure 4(a), the typical work function degradation after plasma exposure can be observed: the work function increases from 2.1 to 2.7 eV after 2 h resulting in a degradation rate of +0.3 eV/h, comparable to the value observed in [24] (+0.4 eV/h).

In order to determine the minimum Cs flux required to maintain a temporally stable work function of 2.1 eV, the same caesiation procedure is repeated with different Cs densities during plasma. The work function measured after long pulse plasma operation is shown for different Cs fluxes in figure 4(b). The Cs fluxes are evaluated from the Cs densities measured by TDLAS at the end of the plasma exposure. For Cs fluxes lower than 2 × 10¹⁵ m⁻²s⁻¹ the work function increases up to 3.8 eV as shown in figure 2(b) after a plasma exposure of 4.5 h. At a continuous Cs flux of 4.4 × 10¹⁵ m⁻²s⁻¹ (constant over the plasma operation), the incoming Cs flux is not yet enough to maintain the work function of bulk Cs, and a work function of 2.3 eV is achieved after 2 h and 20 min. Instead, a Cs flux of 1.5 × 10¹⁶ m⁻²s⁻¹ is sufficient to maintain a work function of 2.1 eV during long plasma operation.

The measurements at ACCesS show that for a fresh Cs layer a work function of 2.1 eV is achieved already in the first seconds of plasma exposure, and this can thus explain why at negative ion sources good performance is achieved for short pulses or at the beginning of long pulses [12]. Nonetheless, the work function can change during long plasma exposure and the results presented here indicate that there is a Cs flux threshold above which the work function can be maintained equal to 2.1 eV. In order to transfer the results to the ion sources, few considerations must be first done. At ELISE, up to 70% of the total Cs density close to the plasma grid is ionized [37], however the flux of Cs⁺ onto the plasma grid is strongly affected by the potential difference between the plasma and the plasma grid, which is usually positively biased with respect to the source walls. The Cs⁺ flux becomes negligible already for potential differences of few volts [37], and the main contribution to the Cs flux onto the plasma grid would be thus given by neutral Cs. The neutral Cs flux is typically around 5–10 × 10¹⁶ m⁻²s⁻¹ at the beginning of the plasma pulse, and then it decreases to values around few 10¹⁶ m⁻²s⁻¹ [13, 37]. Such Cs flux would be enough at ACCesS, however it seems to be not the case at the ion source since the co-extracted electron current strongly increases during the long plasma pulse, suggesting a variation of the work function. This would mean that the threshold at the ion source is higher with respect to ACCesS. Unfortunately, the actual processes responsible of the Cs removal (which then determines the threshold) are not yet identified. Nonetheless, from the current investigations thermal desorption and physical sputtering do not seem to be the driving processes, while chemical processes and photo-induced reactions can have a role. The fluxes of hydrogen atoms and positive ions are higher at the ion sources with respect to ACCesS (up to a factor of 5 for Γ_H and up to one order of magnitude for Γ ₊ ), and very recent measurements reveal that the VUV photon flux is around one order of magnitude higher at the ion source [38]. The higher fluxes would thus lead to an enhanced Cs removal and, as a consequence, would explain why a higher Cs flux is necessary to counteract the removal at the ion source.

Additionally, the ion source performance during long pulse operation decreases much faster in deuterium [12]. From investigations performed with hydrogen and deuterium plasmas at 0.6 Pa [5, 39], it can be estimated that at 0.6 Pa similar atomic fluxes are achieved with the two isotopes in the driver region (where the plasma is generated), since the higher density observed in deuterium is compensated by a lower thermal velocity. The positive ion density is more homogeneous over the plasma grid area, increasing the average positive ion flux of almost a factor of two in deuterium with respect to hydrogen. The same behavior of the fluxes when switching from hydrogen to deuterium can be expected also at 0.3 Pa. In fact, first measurements show that the atomic flux in hydrogen is similar to the one in deuterium also at this pressure [40]. Further investigations at 0.3 Pa are ongoing, and a higher flux of positive ions (or of the photons) might explain the faster degradation of the performance in deuterium.

Finally, the results presented in the current contribution indicate that higher Cs fluxes are needed in order to maintain the Cs coverage on the plasma grid, assuring a homogeneous and temporally stable work function during long pulse operation. However, there is a limitation for the Cs flux due to Cs leaking through the grids of the extraction system, causing high voltage breakdowns between the grids [12]. A compromise is needed, and the open question is how to get enough Cs flux on the plasma grid without damaging the extraction system.
