Cavity ring-down spectroscopy measurements of l-type doubling of hot bands in Δ vibrational states of OCS near 5.2 μm

It is well known that each bending or perpendicular mode of vibration in a non-rotating linear polyatomic molecule is doubly degenerate with exactly same frequency of oscillation. However, molecular rotation introduces a new phenomenon known as l-type doubling, l being the quantum number of vibrational angular momentum so that the vibration-rotation interaction induces the splitting of the degenerate energy levels. It is noteworthy to mention that the l-type doubling of a linear polyatomic molecule is analogues to the Lambda (Λ) doubling of a linear diatomic molecule with different origin of splitting in rotational energy levels. Lambda doubling is observed in a diatomic molecule having an unpaired electron in the outermost orbital [e.g. Nitric oxide (NO)] and the coupling between the unpaired electronic motion and the rotational motion of molecule results in a splitting of the individual rotational energy level. In contrast, l-type doubling of a linear polyatomic molecule arises from the interaction between bending vibration and rotational motion of the molecule. In brief, the degenerate bending vibration of a rotating linear polyatomic molecule can be either parallel or perpendicular to the direction of angular momentum which eventually causes slightly splitting of two degenerate bending vibrations and this is known as l-type doubling. Several decades ago, Herzberg [1] first introduced the concept of l-type doubling and suggested that this splitting is caused by a Coriolis-type interaction between one component of a doubly degenerate bending mode and stretching vibrations of the molecule. Subsequently, the existence of l-type doubling transitions was theoretically demonstrated by Neilsen and Shaffer [2] and pointed out the importance of this effect for better understanding of linear polyatomic molecular properties from spectroscopic data. In addition, accurate measurements of l-type doubling transitions can provide a variety of information about the bending mode of linear molecules with rotational constants, centrifugal distortion constants and Coriolis interaction. However, the effect of l-type doubling is usually significant only in the first excited state i.e. where v₁ = v₃ = 0, v₂ = 1, l = ±1 (v_i = vibrational quantum number). For l = 2 (i.e. Δ states) or greater, the l-type splittings are extremely small to be measured and usually observed for relatively high rotational states [3, 4].

Carbonyl sulphide (OCS) is a linear triatomic molecule which has three fundamental vibrations ν₁, ν₂, and ν₃ located at 858, 520 and 2062 cm⁻¹, respectively in which ν₁ and ν₃ are the stretching vibrations and ν₂ is the bending vibration which exhibits the l-type doubling. There has been considerable interests over the last several decades to measure the l-type doubling transitions in OCS because it is an important molecule of astrophysical interest [5] and also the second most abundant sulphur-containing species in the atmosphere of Venus [6]. The high-resolution spectroscopic detections of individual ro-vibrational transitions of OCS which could be attributed to the weaker hot bands with l-type doubling are important for the studies of terrestrial and planetary atmospheres [7]. Moreover, a good understanding of spectral line parameters such as l-type doubling constant and transition dipole moments, determined from experimental analysis would help us to analyze the astrophysical observations with absorption bands of minor constituents.

However, early studies were primarily focused on the microwave and infrared measurements of l-type doubling transitions in OCS for l = 1 vibrational state [8]. For instance, using a Spin-Flip Raman Laser, Buckly et al [9] reported the l-type doubling in the hot bands of OCS for l = 1 state near 1890 cm⁻¹. In another study, the existence of l-type doubling in OCS was also recorded using the molecular beam electric resonance spectroscopy in low J states of the (02²0) vibrational state of ¹⁶O¹²C³²S [3, 10]. In view of the earlier studies [11, 12], however, high-resolution spectroscopic measurements of l-type doubling transitions in the weak hot bands for higher values of l i.e. l = 2 or Δ vibrational state are very limited and to our knowledge, it has never been explored before to record the l-type splittings involving the parity doublet e and f sub-states arising from weak hot band transitions. But, the recent technological innovations [13, 14] of the mid-IR continuous-wave (cw) external-cavity quantum cascade lasers (EC-QCLs) with extremely narrow linewidth (∼0.0001 cm⁻¹) and mode-hop-free (MHF) tuning capability in a wide range of frequency when combined with highly-sensitive cavity-enhanced absorption techniques such as cavity ring-down spectroscopy (CRDS) [15] opens the possibility of exploiting this high-resolution spectroscopy to measure the l-type doubling transitions in weak hot bands for OCS. We note that the observation of such l-doublet splittings between e and f sub-levels of OCS in high J states has not previously been reported.

In the present study, we first report the observation of l-type doubling in R branch of ¹⁶O¹²C³²S in (14²0) ← (02²0) hot band ro-vibronic transitions using an EC-QCL based high-resolution cw-CRDS technique in the region of 1900–1904 cm⁻¹. Subsequently, the line strengths of the e and f sub-states for J = 22 to J = 29 rotational lines were measured by probing the respective absorption lines. Finally, the l-doublet splittings were utilized to determine the vibrational transition dipole moments, rotational constants, centrifugal distortion constants and l-type doubling constant for both e and f components in Δ vibrational state (l = 2) of OCS.

As mentioned above, high-resolution measurements of l-doublet splittings of OCS were made using the cw-CRDS method coupled with an EC-QCL operating at λ ∼ 5.2 μm (1923 cm⁻¹). The experimental arrangement of the cw-CRDS system has been described in detail previously [16–19] and therefore only salient features of the spectrometer are given here. In a classical cw-CRDS system, the decay rate of a laser light trapped in a high-finesse optical cavity is measured and the direct absorption of molecular spectral lines is recorded. The number density of a molecular species is calculated in an absolute scale from the knowledge of the molecular absorption cross-section without the need for secondary calibration standards. Additionally, as CRDS measurements are carried out in the time-domain thus it is insensitive to laser intensity fluctuations. The minimum detectable change in the absorption coefficient, α_min is 4.72 × 10⁻⁹ cm⁻¹ and the effective optical path length that is easily achieved is of the order of few kilometres in a small cavity volume. For the described high-resolution CRDS measurements, the probe was an EC-QCL with a fine MHF tuning range of 1847–1965 cm⁻¹, an output power of >80 mW over this range and a linewidth of ∼0.0001 cm⁻¹. The resulting short-time noise equivalent absorption (NEA) coefficient, which is given by √2 α_min ${{f}^{-\mathrm{1/2}}}_{acq}$ where f_acq is the data acquisition rate, was ∼7.16 × 10⁻¹⁰ cm⁻¹ Hz^−1/2 for f_acq = 90 Hz and α_min was determined to be 5 × 10⁻⁹ cm⁻¹ based on the typical empty cavity ring-down time (RDT) of τ₀ = 5.64 μs and standard deviation (1σ) of 0.08% with averaging of 6 RDT determinations. A cavity length of 50 cm and cavity mirrors with reflectivity of 99.98% at 5.2 μm were used in the cw-CRDS system, corresponding to finesse (F) of ∼15 700. Additionally, the linewidth of the EC-QCL (Δν_QCL) was determined to be ∼18 MHz (0.0006 cm⁻¹), matching the manufacturer specified value of 0.0003 cm⁻¹ with the EC-QCL. The linewidth of the TEM₀₀ cavity modes was also measured to be Δν_Cavity = (FSR/F) = 19 kHz, where the cavity's free spectral range (FSR) was 300 MHz. However, the high-resolution Doppler-limited cw-CRDS spectra involving rotationally resolved l-type splittings were acquired over the R branch of (14²0) ← (02²0) hot band transition of OCS by fine tuning over ∼0.1 cm⁻¹ of the piezoelectric transducer (PZT) attached to the tunable diffraction grating of the EC-QCL system. A custom written Labview program was used to scan the laser to acquire the absorption lines of OCS and the wavenumbers were recorded in real-time, utilizing a wavelength meter (Bristol Instruments, 621B) with an accuracy of ±0.001 cm⁻¹.

The performance of the cw-CRDS system was initially assessed by injecting a certified calibration gas mixture of 31 ± 0.2 ppm of OCS in N₂ (Air Liquid, UK, 99.99%) inside the optical cavity with a pressure of 5 Torr. Figure 1 shows an example of high-resolution spectrum of OCS, probing the R(24) rotational line of the (14⁰0) ← (02⁰0) hot band transition at 1900.255 cm⁻¹ with a line-strength of σ_line = 9.59 × 10⁻²³ cm² molecule⁻¹ cm⁻¹ at 296 K [20], as given by the HITRAN database [21].

Zoom In Zoom Out Reset image size

The spectrum was fitted with a Gaussian line-shape profile with FWHM of 0.003 06 cm⁻¹ which corresponds to the expected Doppler broadening at the measured wavelength. The integrated area under the curve was utilized to measure the concentration of the sample inside the cavity and it was measured to be [X]_OCS = (5.1 ± 0.2) × 10¹² molecules cm⁻³. As mentioned later, the same sample inside the cavity was used to determine the vibrational transition dipole moments for e and f sub-states of the (14²0) ← (02²0) ro-vibrational transition for l = 2 state. However, we first focused on the measurement of the l-type doubling constant of (14²0) vibrational state. To accomplish this, we then probed 8 rotationally resolved l-type doublet transitions for OCS from J = 22 to J = 29. The examples of the rotationally resolved l-doublet splittings between e and f components of the corresponding rotational lines for ∆ vibrational state are depicted in figure 2.

Zoom In Zoom Out Reset image size

It was observed that the splitting between the e and f sub-states increases with increasing J value and subsequently the l-type doubling constant was calculated. The variation of $({\rm{\Delta }}\nu /2J)$ with (J + 1) is shown in figure 3 and the slope of the straight line provides the l-type doubling constant [22, 23]. In our present study, the l-type doubling constant for (14²0) vibrational state was found to be (2.41 ± 0.3) × 10⁻⁵ cm⁻¹ which is ∼10 times smaller than the value of the l-type doubling constant for l = 1 state of OCS.

Zoom In Zoom Out Reset image size

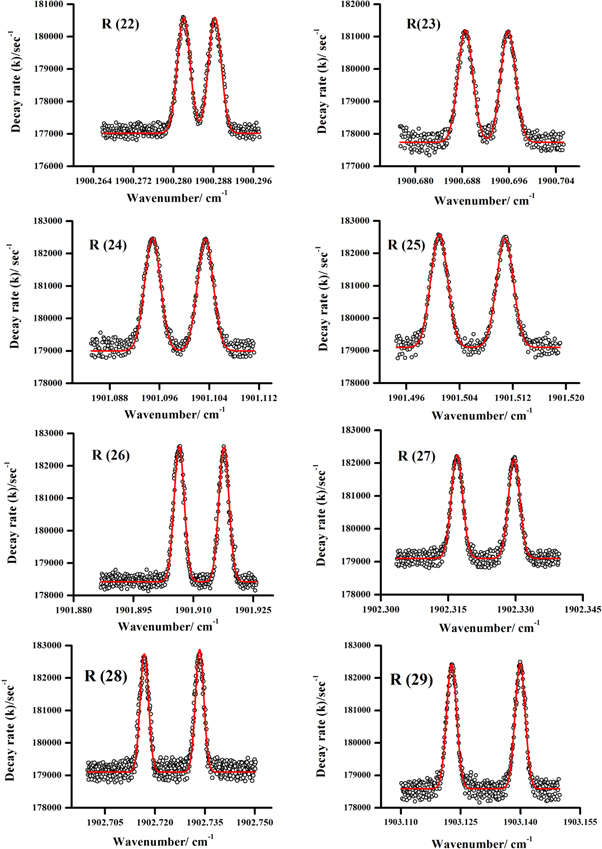

We next investigated the vibrational transition dipole moment and in order to do that, we first estimated the line strengths or line intensities of the individual ro-vibrational transition of the probed absorption lines. The integrated areas under the curves as depicted in figure 2 were then utilized to estimate the line strength of the individual ro-vibrational transition. The individual absolute line intensity, S_if can be expressed as [20, 24]

$$\begin{eqnarray}&&{S}_{if}=\left(\displaystyle \frac{8{\pi }^{3}}{3hc}\right)\displaystyle \frac{{T}_{0}}{T{Z}_{v}{Z}_{R}}\nu {N}_{i}{S}_{v}{S}_{R}{{\mu }_{v}}^{2}F\exp \left(-\displaystyle \frac{E^{\prime\prime} }{{k}_{B}T}\right)\left[1-\exp \left(-\displaystyle \frac{hc\nu }{{k}_{B}T}\right)\right]\end{eqnarray} \tag{ 1 }$$

where T is the temperature in Kelvins, T₀ = 273.15 K, ν is the wavenumber of the line centre at cm⁻¹, E^'' is the energy of the lower state and k_B is Boltzmann constant. For ∆l = 0, the Hönl-London factor, S_R is given by ${S}_{R}=\tfrac{{m}^{2}-{l}^{2}}{| m| },$ where m = J^'' + 1 for R branch, μ_v is the vibrational transition dipole moment and F is the Herman-Wallis factor, S_v is the vibrational intensity factor for the triatomic molecule; Z_v and Z_R are the vibrational and rotational partition functions, respectively. The product of the Herman-Wallis factor (F) and the squared of vibrational transition dipole moment (μ_v) were determined via experimental S_if values of the recorded spectra of OCS. Equation no (1) can now be re-written as follows:

$$\begin{eqnarray}&&{{\mu }_{v}}^{2}F=\displaystyle \frac{{S}_{if}}{\left(\tfrac{8{\pi }^{3}}{3hc}\right)\tfrac{{T}_{0}}{T{Z}_{v}{Z}_{R}}\nu {N}_{i}{S}_{v}{S}_{R}\exp \left(-\tfrac{E^{\prime\prime} }{{k}_{B}T}\right)\left[1-\exp \left(-\tfrac{hc\nu }{{k}_{B}T}\right)\right]}\end{eqnarray} \tag{ 2 }$$

A plot of right-hand side of equation (2) as a function of m yields a curve whose intercept at the origin is the transition dipole moment squared and the slope is proportional to the Herman-Wallis constant, α [Please see the supporting information for details is available online at stacks.iop.org/JPCO/2/045014/mmedia]. The values of B_v and D_v for the lower state i.e. (02²0) of the recoded transitions are shown in table 1 and the values were taken from the microwave data [5, 10].

In our present calculation, the vibrational partition function, Z_v was found to be 1.1987 at 296 K [20, 24]. Using equations (4) and (5) of the supporting information, we obtained S_v = 3 for both e and f sub-states of the (14²0) ← (02²0) hot band transition [24] and consequently, we determined the S_if values for e and f components probing the J = 22 to J = 29 rotational lines of R branch. The observed line strengths of the probed rotational lines of the measured transitions are shown in table 2. The S_if values shown here are in the order of 10⁻²³ cm² mol⁻¹ cm⁻¹. All the S_if values mentioned in table 2 from the HITRAN database have the uncertainties of ≥20% [21]

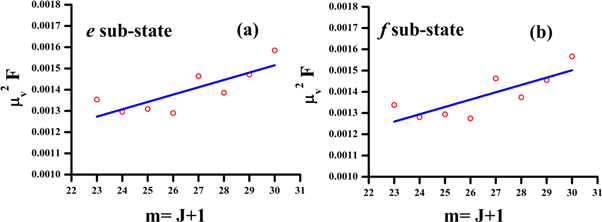

Subsequently, ${{\mu }_{v}}^{2}F$ values have been evaluated for both e and f sub-states of (14²0) vibrational state using equation (2). The plots of ${{\mu }_{v}}^{2}F$ versus m for e and f sub-states are shown in figures 4(a) and (b).

Zoom In Zoom Out Reset image size

The values of vibrational dipole moments (μ_v) and Herman-Wallis constants (α) have been mentioned in table 3 for e and f sub-states of the (14²0) ← (02²0) hot band transition. As expected, the difference between the μ_v values for e and f sub-states of the measured transition is very small but the observed μ_v values for both the e and f components were found to be ∼2–3 times smaller than the values of the hot band transitions for the l = 1 state of OCS [20]. However it is noteworthy to mention here that the observed μ_v values are much higher (∼30 times) than the values of the isotopic hydrogen cyanide (H¹²C¹⁴N) for the same vibrational transition in l = 2 state [24].

Additionally, we have made an attempt to measure the rotational constant, centrifugal distortion constant and band centres of e and f sub-components of the (14²0) vibrational level in l = 2 state by the least square analysis method. For that purpose, we have monitored the l-type doublet transition frequencies of e and f components of the probed rotational lines belonging to the (14²0) ← (02²0) hot band transition. Consequently, the transition frequencies were fitted with the following equation no (3) [9]

$$\begin{eqnarray}&&\nu ={\nu }_{0}+{B}_{\nu ^{\prime} }[J^{\prime} (J^{\prime} +1)-{l}^{2}]-D{}_{\nu ^{\prime} }[J^{\prime} (J^{\prime} +1)-{l}^{2}]-{B}_{\nu ^{\prime\prime} }[J^{\prime\prime} (J^{\prime\prime} +1)-{l}^{2}]\\ &&\,\,+D{}_{\nu ^{\prime\prime} }\,[J^{\prime\prime} (J^{\prime\prime} +1)-{l}^{2}]\end{eqnarray} \tag{ 3 }$$

where, ${B}_{v^{\prime} }$ ${B}_{v^{\prime\prime} }$ are the rotational constants at higher and lower energy states; ${D}_{v^{\prime} },$ ${D}_{v^{\prime\prime} }$ are the centrifugal distortion constants at higher and lower energy states, and ν₀ is the transition center of the selected hot band. The values of ${B}_{v^{\prime\prime} }$ for e and f sub-states are 6102.558 MHz and 6102.560 MHz, respectively whereas, the ${D}_{v^{\prime\prime} }$ values for e and f sub-states were found to be 1.54 KHz and 1.35 KHz, respectively [25, 26]. All the ${B}_{v^{\prime\prime} }$ and ${D}_{v^{\prime\prime} }$ values of the lower energy state were taken from microwave data of OCS and the least square analysis was performed with ν₀, ${B}_{{v}^{\mbox{'}}},$ ${D}_{{v}^{\mbox{'}}}$ as variables. Table 4 lists the observed and calculated values of transition frequencies of J = 22 to J = 31 rotational lines of the (14²0) ← (02²0) hot band transition in R branches of OCS in l = 2 state.

The ${B}_{v^{\prime} }^{e}$ and ${B}_{v^{\prime} }^{f}$ values for the (14²0) vibrational state were found to be 6159.9 ± 19 MHz and 6091.5 ± 17 MHz, respectively which are consistent with and of comparable accuracy to the microwave values of 6150 ± 12 MHz and 6099 ± 18 MHz [27]. Our centrifugal distortion constants, ${{D}_{v\mbox{'}}}^{e}$ = 2.6 ± 0.9 kHz and ${{D}_{v\mbox{'}}}^{f}$ = 1.8 ± 0.84 kHz, are new values, and can be compared with estimates from the force field of 2.57 KHz and 1.89 kHz [25].

In summary, we have employed an EC-QCL based high-resolution cw-CRDS technique for the measurement of l-type doubling in the (14²0) ← (02²0) weak hot band transition of OCS for l = 2 state. We have measured the l-type doubling constant in R branch of the selected hot band transition for the higher values of J and subsequently determined several spectroscopic parameters such as vibrational transition dipole moments, rotational constants, centrifugal distortion constants for e and f sub-levels and l-type doubling constant in Δ vibrational state (l = 2) of OCS. As the l-doublet splittings in the weak hot band transition (14²0) ← (02²0) of OCS for l = 2 state were not recorded before, therefore our new experimental data involving several spectroscopic parameters will be useful for better fundamental understanding of linear triatomic molecular properties and hyperfine structures of their isotopologues.

Financial supports for this research work from the SERB, Department of Science and Technology (DST), Govt. of India (Grant No: SB/S2/LOP-18/2013) and S N Bose Centre (Ref. SNB/MP/12-13/106) are gratefully acknowledged. Furthermore, G D Banik, A Maity and S Som acknowledge the S N Bose Centre for extended senior research fellowship.
