Abstract
Trapped ions have emerged as a front runner in quantum information processing due to their identical nature, all-to-all connectivity, and high fidelity quantum operations. As current trapped ion technologies are scaled, it will be important to improve the efficiency of loading ions, especially when working with long chains of ions or rare isotopes. Here, we compare two different isotope-selective photoionization schemes for loading ions. We show that a two-step photoionization scheme ending in an autoionizing transition increases the ion loading rate nearly an order of magnitude compared to an established technique which does not excite an autoionizing state. Our novel photoionization scheme can be extended to all isotopes of barium. Given that autoionizing resonances exist in every trapped ion species, exploitation of this process is a promising pathway to increase the loading rates for trapped ion computers.
Export citation and abstract BibTeX RIS
Original content from this work may be used under the terms of the Creative Commons Attribution 4.0 license. Any further distribution of this work must maintain attribution to the author(s) and the title of the work, journal citation and DOI.
1. Introduction
Barium is a versatile quantum information carrier with the capacity to be used as an optical, metastable, or ground-state qubit [1]. Additionally, barium has been demonstrated as a qudit, controlling and reading out up to 13-levels [2] by taking advantage of its unusually long-lived metastable state [3]. The flexibility of the atomic structure in barium and the visible wavelengths used to drive the electric-dipole transitions are also attractive from a practical perspective [4]. All of these key features of barium, coupled with extraordinary experimental state-preparation and measurement results [5–8] have captured the attention of researchers and motivated the trapping of barium in the most sophisticated surface traps as a front-running platform for quantum information processing [9–12]. Unfortunately, a caveat of working with metallic barium is that it can oxidize within seconds when exposed to atmosphere, and specifically, the radioactive isotope can only be sourced as a salt and commonly used in microgram quantities. For these reasons, the focus of this work is on maximizing the loading rate of barium to quickly generate long chains of ions for quantum information processing utilizing laser ablation.
Typically, photoionization for trapping ions is done using resonance-enhanced multi-photon ionization [13]. This can involve a resonant 'first step', using a laser that drives an electronic transition in the neutral atom, along with a 'second step' using light that is sufficiently energetic to drive the electron from the excited state to the unbound continuum. We choose to use two different lasers for photoionization since it allows a small ionization volume to be defined, which reduces Doppler broadening and increases the isotope-selectivity. Isotope shifts in the first step transition are generally large enough ( MHz) so that only the target isotope of neutral atoms are excited and then ionized. Researchers have employed a variety of different first steps in two-step photoionization schemes for the isotope-selective loading of barium such as and [14], as well as 791 nm [15]. We opt to use as our first step since it is a strong-dipole allowed transition and decays almost entirely back down to the state, which reduces the amount of dark atoms produced when repumping lasers are not present. We outline two relevant parameters for these first step transitions in table 1.
Table 1. Comparison of first steps used to drive a transition in neutral barium between the ground state, , and an excited intermediate state, as part of a two-step photoionization process for loading . The branching ratio represents the likelihood that an atom in the intermediate state will decay back to the ground state. In this work we use a laser as the first step to drive a strong dipole-allowed transition, with a branching ratio almost entirely back down to the ground state.
λ (nm) | Intermediate state | Linewidth (MHz) | Branching ratio |
---|---|---|---|
413 | [16] | 0.026(13) [16] | |
554 | [16] | 0.9966(0.2) [16] | |
791 | [17] | 0.38 [18] |
Utilizing an autoionizing resonance for the second step can significantly enhance the photoionization cross-section. For this reason, autoionizing resonances are routinely exploited in experiments [19–21]. By contrast, previous work loading has typically used a non-resonant second step during the photoionization process (i.e. not ending in an autoionizing transition) [9, 22] or not utilized photoionization at all [23]. Non-resonant photoionization schemes ionize an electron directly into the continuum, while autoionizing schemes use a resonant transition to a quasi-bound state embedded in the continuum, which can provide up to an order of magnitude higher experimentally measured photoionization cross-sections [24]. This is advantageous considering the loading efficiency of an ion trap has been shown to be proportional to the photoionization cross-section [25]. Another plausible method to increase the loading rate of in trapped ion experiments is with the use of magneto-optical traps [26, 27], but this is more challenging due to the technical overhead and the large number of repumpers needed to create a closed cooling cycle in neutral barium [28].
Autoionizing resonances can be found in the ionization spectrum of all elements with two valence electrons, including barium. These resonances, which are found past the first ionization threshold, describe states where the wavefunctions of the electrons have become correlated [29, 30]. They are the result of interference between discrete states and the ionization continuum [31], and they are found as distinct peaks in the photoionization cross-section. Typically, the resonance is characterized as a Fano-profile [24], allowing useful information to be extracted from the measured cross-section. The energies and cross-sections of these resonances can be calculated with multi-channel quantum defect theory analysis [32–34] or an eigenchannel R-matrix method [35, 36]. The cross-sections have also been empirically measured [24, 37, 38].
If the photon energy of the second step is tuned to a known autoionizing resonance, then the two valence electrons will become doubly excited and enter a quasi-bound state embedded in the ionization continuum with a lifetime, :
In this manuscript, two different photoionization schemes are compared for isotope-selective loading of ions. Each scheme is a two-step process with the first step using light to drive a strong dipole transition between the states. The second step for ionization uses either a non-resonant photoionization scheme with light, or an autoionizing scheme with light near . We use as the second step in the non-resonant scheme since it has been demonstrated by multiple groups due to the low cost of the laser [9, 22]. We use as the second step in the autoionizing scheme since this, combined with , has yielded the largest experimentally measured photoionization cross-section for barium [24]. There are many possible photoionization schemes that could be compared when trapping . We choose to keep the first step of the photoionization scheme the same to more directly compare the impact on loading rates of varying the second step between a non-resonant transition and an autoionizing transition. The two schemes are presented in figure 1(a). We observe a seven-fold increase in the loading rate for ions when using the autoionizing scheme compared with the non-resonant scheme. Furthermore, the autoionizing scheme requires significantly lower intensity in the second step beam to trap chains of , which reduces the likelihood of trap charging. The observed increase in loading rates is consistent with the increase in the previous experimentally measured photoionization cross-sections of the two compared photoionization schemes [24, 37, 38].
2. Experimental overview
The comparison of the two different photoionization schemes is conducted on a four-rod trap using IonControl software [39]. These experiments are performed using laser ablation on a naturally abundant, stable, salt () target in an isotope-selective manner trapping [22]. Typically, are applied to the needles, providing axial confinement of the ions. The voltage applied to the rods is delivered at by a helical resonator [40]. A pair of diagonal rods also has an additional applied. The secular radial frequencies for are and , respectively, and the axial frequency ωz is .

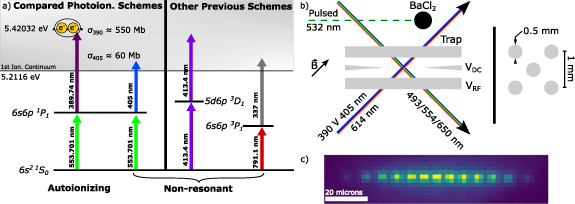

There are three relevant beam paths, as depicted in figure 1(b). The first beam path is comprised of linearly polarized 493, 554, and light focused to a beam waist of ∼31, 35, ( radius), respectively. This path provides Doppler cooling via using the transition, with light used to repump . The laser is also in this path and it is used to drive the first step in the photoionization process. The typical laser powers are , , and for the 493, 554, and beams, respectively.
The second beam path consists of linearly polarized 390 or light, as well as light. This path intersects with the first beam path at the center of the trap. During any given experiment either or is used as the second photoionization step, but never both. In , the state is populated within a few seconds of exposure to the laser because the beam is detuned by from the transition. This can decay to , so the laser is used to repump . The beam carries of power. It should be noted that the laser is not necessary if the beam is shuttered shortly after trapping. In this set of experiments, the beam was not shuttered so the laser was required for efficient cooling and ion detection. The beam waists were and for the and beams, respectively. The powers of the and beams vary depending on the experiment, but we only observe trapping above in this setup using either laser.
As shown in figure 1(b), the third and final beam consists of only the ablation laser. This is a nanosecond pulsed, flash-lamp pumped, Nd:YAG laser, capable of delivering up to of pulse energy, although we operate at much lower pulse energies, around . The beam waist of the ablation laser is . Upon hitting the ablation target, this laser pulse causes sublimation of the , generating a vapor of atomic barium. The ablation target is oriented such that the surface norm is directed towards the trap center, which is away [22]. The target contains worth of .
The laser is a fiber-pigtailed Cobolt 06-MLD from HÜBNER Photonics GmbH. The laser is a tunable Littrow laser from MOGLabs. Neither of the second step lasers were frequency locked. The frequencies of the first step for each isotope have already been measured in previous works [22]. The light used to drive the first step transition is a frequency-doubled Cateye laser from MOGLabs. For trapping , the laser is locked to . For most experiments, the , , and lasers were locked to , , and , respectively. Based on the frequency of the first step and previously measured photoionization cross-sections [41], where the autoionizing resonance occurs 5.420 32 eV above the state, the theoretical optimal target frequency for the laser is calculated to be . The resonance is wide, which exceeds the mode-hop free tuning range of the Littrow laser, so no attempt was made to rigorously quantify the loading rate as a function of frequency. In practice, the 390 nm laser was simply tuned to , and a significant increase in the loading rate of was observed, which is detailed in the following sections.
For ablation loading of the ion trap, the following experimental procedure is employed:
- (i)The RF and DC trap voltages are turned on and the laser frequencies are set for . The trap potential and DC voltages are kept on when trapping.
- (ii)The ablation laser sends a single pulse to the target. Approximately, later, the majority of the atomic flux reaches the trapping region where the atoms either pass through or are photoionized by the two-step process.
- (iii)Doppler cooling sweeps are implemented in order to cool and crystallize hot ions that may have been trapped. This is done by red-detuning the cooling beam and sweeping within five seconds back to the previously stated lock point. This corresponds to a detuning of , the natural linewidth transition.
- (iv)Steps (ii)–(iii) are repeated until an ion is trapped.
Fluorescent light from neutral atoms and ions is collected by a 0.26 NA home-built objective and sent to either a photo-multiplier tube (H10682-210) or a charge-coupled device (BFLY-PGE-05S2M-CS). Typically, experiments were run with light being sent to the photo-multiplier tube to quickly determine whether an ion had been trapped. To count how many ions were trapped, the collected light is sent to the charge-coupled device to image the ion chain, as shown in figure 1(c).
3. Results
3.1. Loading saturation & fluence experiments
The following section compares the loading rates of the two photoionization schemes as the second step power is varied, thus changing the intensity experienced by the neutral atoms. We find that the loading rate saturates in the autoionizing scheme at lower intensities compared to the non-resonant scheme. Similarly, we vary the ablation laser power and find that the autoionizing scheme can load ions with significantly lower ablation fluence. Typically, we work with intensities on the second-step photoionization beam up to . In this regime, if the second-step frequency is not resonant with an autoionizing transition, the photoionization cross-section is so small that the loading rate scales linearly with second-step laser intensity.

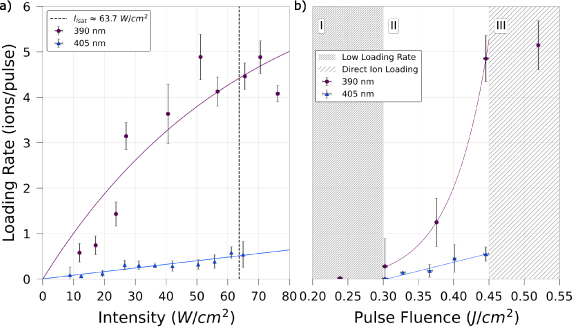

The loading rates of (ions/pulse) as a function of intensity for both photoionization schemes are depicted in figure 2(a). Below the autoionizing and non-resonant photoionization schemes converge to a loading rate of zero. But at higher intensity, the loading rate saturates when utilizing the autoionizing transition and significantly outperforms that of the non-resonant scheme. Saturation of the loading rate using the autoionizing transition occurs at with a loading rate of roughly 5 ions/pulse. Based on a linear fit, the non-resonant scheme would require an intensity of to achieve a similar loading rate.
Download figure:
Standard image High-resolution imageThe loading saturation intensity parameter can be calculated using the fitted Fano linewidth parameter [24],
where c is the speed of light and is the measured angular frequency of the light. Our results agree well with the calculated saturation parameter, as shown in figure 2(a). The ablation laser pulse fluence was kept constant throughout the loading saturation experiments at .
Figure 2(b) shows the loading rate of as a function of ablation laser fluence. The ablation laser fluence experiments were conducted with and average intensity for the and beams, respectively. As the laser fluence increases so does the amount of neutral atoms and ions produced. If the fluence is too low, loading can be difficult, but if it is too high, ions can be trapped directly [22]. There are three main regions considered when conducting the ablation loading experiments. Region I () is a region of low laser fluence in which there is minimal loading of ions. We were not able to load in this region using the non-resonant scheme after 100 attempts; however, we were able to successfully load after 53 attempts using the autoionizing scheme. Region II () is the ideal operating fluence for trapping, since it produces enough neutral atom flux to trap in an isotope-selective manner, but not enough ablation-produced ions to load directly. Region III () is a region of high fluence which produces a significant amount of ions from the ablation process itself, drastically reducing isotope-selectivity since ions can be loaded directly into the trap. These regions are not hard limits, but act mostly as guidelines for these experiments.
3.2. Optimized loading rates
In this section, we compare the loading rates of with ideal and similar laser parameters. For these experiments, the ablation fluence was set to and the average intensities of the second step 405 and photoionizing beams were and . The intensities used in the experiments were chosen such that the loading rate using the laser would be saturated.

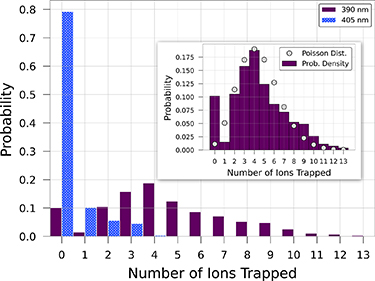

The likelihood of trapping long chains of was greatly increased using the autoionizing scheme, which is evident by the increase in the average ions per pulse. Roughly one out of five attempts succeeded in trapping using the non-resonant scheme, while nine out of ten attempts succeeded using the autoionizing scheme. The average loading rates with the standard deviation are ions/pulse and ions/pulse using the non-resonant and autoionizing schemes, respectively. These rates are compared in figure 3. The median ions trapped per pulse is 0 ions for the non-resonant scheme and 4 ions for the autoionizing scheme.
Download figure:
Standard image High-resolution imageThe loading rates quoted above cannot be directly compared to infer the enhancement from the autoionizing resonance, because the intensities of the second-step lasers and the quantity of neutral atoms produced during ablation were not identical across both sets of experiments. During the loading experiments, we monitor the rate of fluorescence at after each ablation laser pulse, as a proxy for the flux of neutral barium atoms. We observed higher neutral atom flux for the experiments conducted with the autoionizing scheme than with the non-resonant scheme (up to 39.5 higher fluorescence counts at ), which we attribute to natural variations in the number of ablated atoms. We make the simplifying assumption that the probability of trapping is proportional to both the neutral atom flux and the average second-step intensity, when the ionization rate is far from saturation [22]. Thus, we estimate that the loading rate using would have been ions/pulse, if the neutral atom flux and second-step laser power had been identical to those in the experiments. We therefore calculate that the increase in loading rate of using the autoionizing scheme is a factor of . This compares well with the ratio of photoionization cross-sections, which have previously been measured as / ≈ 6.9 [24] and / ≈ 9.2 [38].
4. Discussion
The demonstrated autoionizing scheme using 554 and lasers retains the isotope-selectivity previously presented in [22], since it utilizes the same first step, which is the isotope-selective step in the photoionization process. We conducted a brief study to confirm this, where 478 ions (minimum of two ions in the chain, a total of 114 unique ion chains) were analyzed for dark or dim ions, which indicate the presence of other ion isotopes besides . We found that only 8 ions in all of these chains were other isotopes. This puts a maximum bound on the isotope-selectivity for of 98, which is consistent with previous studies [22]. To achieve high loading rates, the first transition in the ionization sequence is usually power broadened significantly, which limits isotope selectivity [22]. Thus, using this more efficient autoionizing scheme and lowering the power of the first step laser may allow for better isotope selectivity with similar loading rates in the future.
We briefly investigated the loading rates of the isotope with the autoionizing scheme. A significant increase in the loading rate, with a factor of at least 5, was immediately apparent for the autoionizing scheme. However, we did not make a controlled quantitative comparison between the two schemes for this isotope. This photoionization scheme can also be applied to since the autoionizing transition is broad enough that it makes any isotope shifts between , , and negligible.
The linewidth of the measured autoionizing resonance is , but we found a considerable increase in the loading rate even when the frequency of the laser was detuned from the ideal frequency for driving the transition calculated to be at . So in practice, tuning anywhere near this resonance can result in a significant increase in the loading rate. In fact, the autoionizing transition is so broad that precision control of the laser frequency and linewidth are not required. However, under optimal conditions, exploiting autoionizing resonances can ionize atoms with ionization efficiencies near 100 [42].
There are many autoionizing resonances embedded in the first ionization continuum of barium that can be used for efficient photoionization. Assuming is the first step in a two-step photoionization scheme, the best second step is to utilize the strongest autoionizing resonance, as this will most efficiently ionize the neutral atoms and allow for lower intensities to be used. Other possible autoionizing states that are easily accessible from the intermediate state are outlined in table 2.
Table 2. Comparison of some previously measured autoionizing resonances when using as the intermediate state. Other intermediate states can be used, but the strongest experimentally measured photoionization cross-section of barium utilizes as the intermediate state. The energy is relative to the ground state.
Wavelength (nm) | Cross-section (Mb) | Autoion. State [41] | Energy (eV) [24] |
---|---|---|---|
380.75 | ≈ 300 [24] | 5.49 549 | |
384.33 | ≈ 290 [24] | 5.46 516 | |
389.74 | 550 [24], [38] | 5.42 032 | |
402.92 | 370 [24], [38] | 5.31 629 |
There are other first steps that can be used besides to drive to an intermediate state before exciting an autoionizing state embedded in the continuum. This includes, but is not limited to, the state driven with light [43] and the state driven with light [38]. The strongest resonance in the photoionization cross-section utilizing the intermediate state has been measured to be using as the second step [38]. This is a significantly strong resonance, but its cross-section is still considerably lower than the cross-section using as the intermediate state with , which is demonstrated in this manuscript. There are also considerable resonances in the photoionization spectrum of barium using as an intermediate state, for which relative cross-sections have been measured [43].
5. Conclusion
We have demonstrated an efficient isotope-selective photoionization scheme for trapping barium ions utilizing an autoionizing resonance, motivated by the and elusive isotopes. The increase in loading rates (ions/pulse) compared with previous ablation studies are consistent with previously measured photoionization cross-sections of barium and equate to a seven-fold enhancement in the loading rate of ions. This photoionization scheme will aid in the consistent trapping of long chains of barium ions and will help enable NISQ era devices to be built based on rare isotopes like . Furthermore, the demonstrated advantage of using autoionizing resonances allows researchers to efficiently ionize neutral atoms at significantly lower intensities, reducing the risk of trap charging.
