Functionalization of reduced graphene oxide by electroactive polymer for biosensing applications

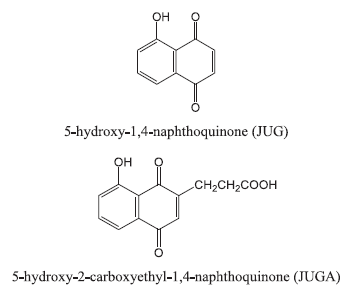

A 5-hydroxy-1,4-naphthoquinone monomer (juglone, JUG), 1-naphtol (1-NAP) were purchased from Fluka. Lithium perchlorate (LiClO₄), N'-(3-dimethylaminopropyl)-N-ethylcarbodiimide hydrochloride (EDC), N-hydroxysuccinimide (NHS); 2-(N-morpholino)ethanesulfonic acid (MES), epigallocatechin gallate (EGCG), tween 20 and phosphate buffered saline (PBS, pH 7.4) were purchased from Sigma Aldrich. Single-layer graphene oxide (diameter of 1–5 μm, thickness of 0.8–1.2 nm) was purchased from ACS Material LLC (Medford, MA, USA). Acetonitrile (ACN) was supplied by Aldrich (HPLC grade). 5-hydroxy-2-carboxyethyl-1,4-naphthoquinone (juglone acid, JUGA) was synthesized from 5-hydroxy-1,4-naphthoquinone (JUG) and succinic acid, which was previously described in detail [10]. All other reagents used were of analytical grade.

Two types of hybridization were considered on poly(JUG-co-JUGA)/rGO systems: short DNA probe versus DNA (short-chain nucleic acids) target and DNA probe versus real sample of DNA (from PCR products) target. The DNA probe sequences (25 mer) are Amino-Sp19 (5'-TAA-CTG-GCT-TGG-CGC-TGA-TCC-TGG-T-3'-C₆-NH₂) and Amino-Sp42 (5'-ATG-GTG-GGA-CAT-GGA-CGA-GCG-CGA-C-3'-C₁₂-NH₂). For hybridization: complementary 25 base DNA target sequences (short-chain nucleic acids) are Spacer 19 (3'-ATT-GAC-CGA-ACC-GCG-ACT-AGG-ACC-A-5') and Spacer 42 (3'-TAC-CAC-CCT-GTA-CCT-GCT-CGC-GCT-G-5') present in the clustered regularly interspersed palindromic repeats (CRISPR) from M. tuberculosis. The real samples of DNA targets are three different lineages of PCR products from M. tuberculosis as follows: Africanum, EAI (East-African Indian) and Beijing strains [11].

Graphene oxide (GO) was transformed to a reduced graphene oxide (rGO) using green tea polyphenol epigallocatechin gallate (EGCG) [12, 13]. Briefly, GO aqueous solution (1 mg mL⁻¹) was prepared by ultrasonication for 30 min, and then, EGCG (300 wt% relative to GO) was added to the GO dispersion. The mixture was heated to 80 °C under stirring for 8 h. The resulting slurry was filtered and washed by distillated water with a nylon membrane (0.22 μm) to obtain rGO as a black precipitate.

Glassy carbon (GC) working electrodes (BAS Inc.; diameter of 3 mm, area of 0.07 cm²) were thoroughly polished to a mirror finish using a slurry containing 0.3 μm α-Al₂O₃ power on a soft cloth and rinsed thoroughly with ethanol and then sonicated in doubly distilled water for 3 min to remove possible contaminants. Next, 5 μL of 0.5 mg mL⁻¹ rGO solution suspended in water was dropped on polished GC electrodes and allowed to evaporate at room temperature. Then, rGO/GC electrodes were immersed into a solution containing 50 mM JUG + 3.75 mM JUGA + 0.1 mM 1-NAP in acetonitrile, and electropolymerization was carried out by potential cycling in the range of 0.4–1.1 V versus saturated calomel reference electrode (SCE) and a platinum grid counter electrode for 20 cycles at 50 mV s⁻¹. The electrosynthesis of poly(JUG-co-JUGA) on rGO/GC electrode has been described elsewhere [12]. Electrodes were then washed with acetonitrile and ethanol to remove adsorbed monomers, before obtaining conducting polymer JUGA-co-JUG coated rGO-modified GC electrodes [poly(JUGA-co-JUG)/rGO/GC].

Probe grafting: poly(JUG-co-JUGA)/rGO/GC electrodes were incubated in a solution containing 0.1 μM of probe, 0.1 M MES buffer with 150 mM EDC and 300 mM NHS at 37 °C, overnight. NH₂-modified DNA targets were covalently attached to the exposed COOH-groups of the JUGA film by EDC and NHS. After incubation, the electrodes were washed with PBS containing 0.05% Tween 20 and incubated again in PBS at 37 °C for 1 hr to release physisorbed DNA probes.

Target hybridization: for DNA (short-chain nucleic acids) target, 1 nM of target DNA (spacer 19 and 42) were used. For PCR fragments, 5 μL of the PCR products diluted in 995 μL of PBS was first denatured at 95 °C, then slowly cooled to 55 °C and the probe-modified bioelectrodes were placed into the aliquot of hybridization solution containing the target DNA at 45 °C for 2 h. After hybridization, electrodes were rinsed thoroughly with 0.05% Tween 20 in PBS. Finally, the electrodes were immersed in PBS for 1 hr at 37 °C in order to remove non-hybridized targets.

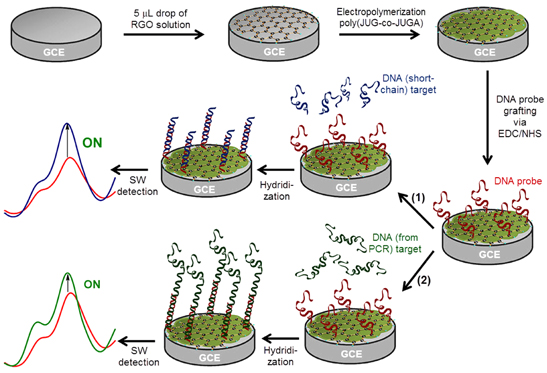

Hybridization was detected by recording the modification of the quinone electroactivity using square wave voltammetry (SWV) measurements on PGSTAT30 Autolab (GPES 4.9 software). A conventional 20 mL three-electrode cell was used, consisting of platinum grid counter electrode, saturated calomel reference electrode (SCE) and a modified-GC working electrode. The following parameters were used: pulse height 50 mV, pulse width 50 ms, scan increment 2 mV, frequency 12.5 Hz, potential range (−1.0 V to −0.1 V). The SWV scans were recorded in PBS medium, bubbled with argon for 20 min before the measurement. The stepwise schematic of fabrication procedure and signal-on detection of DNA biosensor is shown in figure 1.

Zoom In Zoom Out Reset image size

The electroactivity of poly(JUG-co-JUGA) and poly(JUG-co-JUGA)/rGO film onto GC electrodes was investigated in deoxygenated PBS by cyclic voltammetry technique. The cyclic voltammograms are presented in figure 2.

Zoom In Zoom Out Reset image size

The observed peaks are due to electroactivity of quinone groups in PBS electrolyte solution. Under the same experimental conditions, as seen from figure 2(B), current response for poly(JUG-co-JUGA)/rGO electrode was much larger and more stabilized than that of pure poly(JUG-co-JUGA) electrode. If the poly(JUG-co-JUGA) electrodes need more than 50 scans to stabilize the signal [14], so poly(JUG-co-JUGA)/rGO composite electrodes need less than 20 scans to do it. It can be supposed that the electron transfer rate and the number of active sites of poly(JUG-co-JUGA) film was remarkably enhanced owing to high electro-active surface area, excellent electrical conductivity and electronic transport properties of rGO layer. Moreover, the effect of scan rates (from 10 to 400 mV s⁻¹) on the peak currents at poly(JUG-co-JUGA)/rGO/GC electrode was investigated (figures not shown). The anodic (I_pa) and cathodic (I_pc) peak currents increased linearly along with the square root of scan rate (ν^1/2) and suggested an expected diffusion-controlled process.

In this work two different probes were studied: Amino-Sp19 and Amino-Sp42 with 25 bases (short DNA probes). Figure 3 shows the square wave voltammograms (SWVs) of poly(JUG-co-JUGA)/rGO/GC electrode before (line a) and after Sp19 (line b) and Sp42 (line c) probe grafting. As can be seen from this figure, the signal current decrease about −50% ± 5% (signal-off), following general equation:

$$\begin{eqnarray*}&&\Delta R(\%)=\frac{{{I}_{{\rm p}\;\,{\rm grafting}}}-{{I}_{{\rm p}\;\,{\rm polymer}}}}{{{I}_{{\rm p}\;\,{\rm polymer}}}}\times 100\%,\end{eqnarray*}$$

where I_{p grafting}, I_{p polymer} are the peaks' height after and before probe grafting, respectively. The decrease in SWV peak currents is attributed to steric hindrance generated by immobilization of the DNA probe strand on the surface.

Zoom In Zoom Out Reset image size

After grafting short DNA probes (Sp19 and Sp42) onto poly(JUG-co-JUGA)/rGO/GC electrodes, the bioelectrodes were incubated with different targets as described in subsection 2.3. The height of the SWV peak was used to calculate the relative current change (ΔI/I) before and after hybridization, using the following equation:

$$\begin{eqnarray*}&&\frac{\Delta I}{I}(\%)=\frac{{{I}_{{\rm p}\;\,{\rm hybridization}}}-{{I}_{{\rm p}\;\,{\rm probe}}}}{{{I}_{{\rm p}\;\,{\rm probe}}}}\times 100\%,\end{eqnarray*}$$

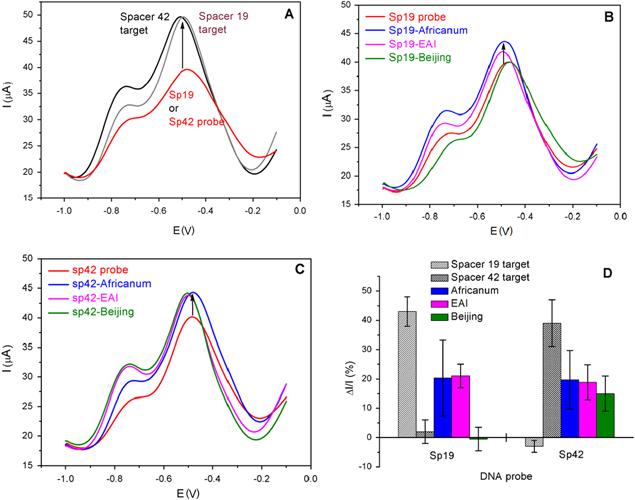

where I_{p hybridization} and I_{p probe} are the height of the SWV peak before and after hybridization, respectively. Figure 4 shows the SWVs of the bio-electrode before and after hybridization. Figure 4(D) presents the current change before and after hybridization (ΔI/I) of short DNA Sp19 and Sp42 probe with different targets.

Zoom In Zoom Out Reset image size

Taking into account the modeling of the steric hindrance of DNA strands, the hybridization between probe and target DNA leads to current increase of the redox signal (signal-on), induced by the quinone group embedded in JUG film. This effect was well studied and reported previously [6, 15]. In this study, after incubation with full complementary target, short probe Sp19 with target spacer 19 and probe Sp42 with target spacer 42, the height of the SWV current peak increases about 43% ± 5% and 40% ± 8%, respectively (figure 4(A)), whereas the negligible current change occurs with non-complementary (short probe Sp19 with target spacer 42 and probe Sp42 with target spacer 19). These results show the specific hybridization of the short M. tuberculosis DNA sequences.

As a next step, we have used the same probes (Sp19 and Sp42) to investigate their hybridization with PCR products of different lineages including Africanum; Beijing and EAI strains. Figure 4(B) (with probe Sp19) shows the increase in SWVs peak currents with ΔI/I = 20.3% ± 13% and ΔI/I = 21% ± 4% after hybridization between Sp19 probe with PCR product from Africanum (blue line) and EAI (magenta line), respectively. In particular, it can be observed from this figure that the PCR product from Beijing strain, the current response (green line) is not significantly changed (ΔI/I = −0.53% ± 4%). It is in accordance with the report of Sebban et al [16] confirming that this strain of PCR does not possess any complementary base with the probe sequence. Similarly, after hybridization of Africanum, EAI and Beijing strains with Sp42 probe, the increase in the peak current is insignificantly observed: ΔI/I = 19.7% ± 10% (blue line), ΔI/I = 18.8% ± 6% (magenta line) and ΔI/I = 15% ± 6% (green line), respectively. It can be logically expected that hybridization between the short DNA probes with targets is more selective and thus triggers significant SWVs current change (about 40%), while the PCR products, containing much longer DNA sequences compared to those of the probes induced only about 20% current increase. Indeed, only a part of the DNA target (from PCR products) is hybridized and therefore rigid, while most of the target is not hybridized, thus coiled. Thus, the SWVs peak current changes are lower because of the greater steric hindrance onto electrode surface [6].
