Laser engineering of microbial systems

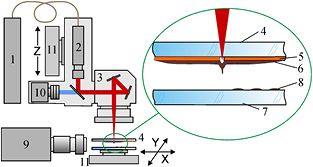

The experimental setup used to implement the LEMS procedure is shown in figure 1. Laser pulses of nanosecond ytterbium fiber laser YLPM-1-4x200-20-20 (wavelength λ  =  1.06 µm, pulse duration τ  =  8 ns, pulse energy E  =  7–100 µJ) with a close-to-Gaussian beam intensity profile (M²  <  1.5) are focused onto a gold absorbing layer at the donor glass plate. The scanning of laser radiation is implemented by means of an Lscan H-10-1064 two-mirror Galvano scanning head (Ateko, Russia) with an SL-1064-110-160 F-theta objective (Ronar-Smith, Singapore), with a focal length of 160 mm that allows focusing of laser radiation into a spot 30 µm in diameter. Printing of microdroplets is carried out from the donor slide to the collector glass plate located at a distance of 1 mm. The donor glass plate is coated with a 50 nm thick gold layer covered with a layer of substrate (pure gel or gel with soil) with a thickness of 200  ±  30 µm. Homogeneous coverage with the gel substrate is produced using a blade coater. We used gel based on hyaluronic acid (2% aqueous solution). The gel viscosity determined with a Micro VISC viscosimeter (RheoSense, USA) amounted to 15.5  ±  0.05 mPa · s.

Zoom In Zoom Out Reset image size

The energy of the laser pulses was controlled using a S310C thermosensor for power measurement (Thorlabs, USA) and a S144C photodiode detector for power measurement in combination with a PM100D digital measurement control panel (all Thorlabs devices, USA). The samples were studied using an HRM-300 Series optical 3D microscope (Huvitz, Korea) and a PHENOM ProX scanning electron microscope (SEM) (Phenom World, the Netherlands) with an energy-dispersive detector unit.

Optical recording of the laser-induced transport processes was carried out using a Fastcam SA-3 video camera (Photron, Japan) at a rate of up to 60 000 frames per second. The illumination was implemented using a CW laser diode at 660 nm wavelength, shaped by a telescope to get a circular beam of 14 mm in diameter.

For the preparation of soil mixture, we used a 10 cm top layer of mollisol (Belgorod region, Russia); 0.2 g of the dry soil was mixed with 0.4 ml of water and 0.8 ml of hydrogel. The mollisol soil particle size distribution performed with a Microtrac S3500 particle size analyzer showed that most of the soil particles have sizes in the range of 5–50 µm. The mixture for the LEMS procedure was gently homogenized by a glass stick. In our experiments, we used a polysaccharide gel based on low-molecular hyaluronic acid (hyaluronic acid sodium salt from Streptococcus equi, Sigma). The gel preparation procedure included the addition of phosphate buffer solution to the dry hyaluronic acid in proportions of 2% and 4%. After that the gel was placed in a refrigerator at  +4 °C for 48 h to reach full dissolution. For the cultivation of the microorganisms and their subsequent study, laser printing of microdroplets with the LEMS mixture was carried out directly onto a surface of glucose-peptone-yeast agar in Petri dishes, and in 96-well 'Eco-log' test plates.

In a separate series of experiments aimed at the analysis of the effect of printing processes on microorganisms, a reference Escherichia coli strain was used. The number of cells in the gel (2% aqueous solution of hyaluronic acid) was ~8  ×  10⁷ cells ml⁻¹. The number of colonies formed was determined when the microorganisms were cultivated on the surface of glucose-peptone-yeast agar in Petri dishes. The obtained results were compared with traditionally treated samples.

2.3.1. Cultivation and identification of bacteria.

An example of the distribution of soil microparticles in a gel after deposition of a layer of gel/substrate soil with a thickness of 200  ±  30 µm on a gold film of the donor plate is shown in figure 2. A comparison of 2D and 3D images shows that all soil microparticles and their agglomerates are located at the bottom of the gel/soil layer. They are at the maximum distance (~200 µm) from the gold film, which is explained by the higher density of particles compared to the density of the gel. This distribution of the particles is important from a practical point of view, since the maximum distance from the laser pulse impact site helps minimize the negative impact of a number of factors: high temperature, shock waves, laser light, and gold nanoparticles.

Zoom In Zoom Out Reset image size

The impact of short high-power laser pulses leads to the formation of a thin substrate jet (figure 3(a)) that forms a microdroplet on the acceptor plate (figure 3(b)). It can be seen that there is a thickening—a bubble at the base of the jet. Similar thin jets with thicker bubbles at their bases were observed everywhere in the experimental study of the processes of laser-induced transport of liquid media [1, 6, 8–10, 16, 17]. At low energies, only a small bubble is formed. When the threshold (which is determined by the parameters of the liquid layer) is exceeded, a jet appears. We believe that the most important parameters affecting the threshold value are the viscosity and the coefficient of surface tension of the liquid (substrate).

Zoom In Zoom Out Reset image size

Our experiments on microsampling of the substrate have clearly shown that the addition of soil microparticles in a gel essentially changes the parameters of the microdroplet transport (figure 3(a)): the diameter of the jets increases, and their velocities decrease. However, the size of the droplets formed on the acceptor plate varies insignificantly (figure 3(b)). A significant difference in the droplet size of the gel and gel/soil is observed only at laser pulse energies of E  >  25 µJ. With increasing energy E the droplet size on average monotonically increases and spraying appears gradually. As was shown in [18], such behavior can be explained by an increased laser-induced jet speed and violation of its laminarity at high laser pulse energies. At low energies E (the dashed ellipse on figure 3(b)), the droplets are stable without spraying. On the basis of the studies conducted with our experimental setup, the optimum conditions for the LEMS of gel/soil are realized using laser pulse energy in the range of 18–24 µJ.

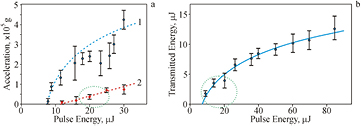

Dependences of the impact on living systems in the substrate of some negative physical factors—acceleration and laser irradiation on the laser pulse energy are shown in the figure 4. It can be seen that during the LEMS transfer, all living systems undergo significant dynamic loads, which on average increases with increasing of E (figure 4(a)). In the case of pure gel the acceleration is much larger and increases from 10⁵ g to 4 · 10⁵ G with increasing of pulse energy, where G is the gravitational acceleration (9.8 m s⁻²). The dashed ellipses on figure 4(a) show the region of E (16–25 µJ) with a stable jet and relatively low acceleration (2–7) · 10⁴ g in the case of gel/soil printing.

Zoom In Zoom Out Reset image size

The experiments have shown that under the action of laser pulse on the absorbing Au layer on the donor plate a part of the laser energy passes through this layer. The value of the transmitted energy increases on the average with increasing of E (figure 4(b)). The dashed ellipse on figure 4(b) shows the region of E (16–25 µJ) with the lowest values of transmitted energy.

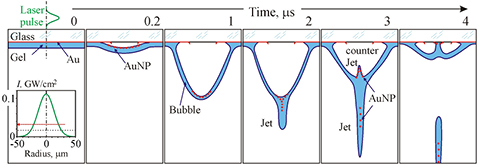

Sketches depicting the essential stages of the gel transfer dynamics in the LEMS technology under the action of a laser pulse are shown in figure 5.

Zoom In Zoom Out Reset image size

At first, a portion of the energy of a short laser pulse is reflected (nonlinear [19]) and another portion is absorbed (~20% [6]) in the gold layer and heats it and the thin neighboring layers of the glass and gel to high temperatures. An estimate in [6] showed that at E  =  20 µJ the temperature of such a system can reach 10⁴ K at the end of the laser pulse. It is well known that if the temperature exceeds (0.9–1) · T_c, where T_c is the critical value, explosive boiling occurs. The critical temperature of water and Au are, respectively, 647.1 and 7250 K. As a result, during the action of the laser pulse (t  =  0.01 on figure 5), an expanding bubble in the direction of the gel/soil [20] forms. When the bubble expands, the temperature and pressure inside it quickly fall and the gold vapor condenses on its walls and the glass surface. Then, the bubble with newly formed and transferred gold nanoparticles (AuNPs) in a thin layer of gel on its surface expands (t  =  1). At t  =  2, the expansion of the bubble is due to the inhibitory effect of atmospheric pressure stops and a thin jet in its base forms. One part of the AuNP passes into the jet and the other part remains on the bubble wall. At t  =  3, because of the difference in the external (atmospheric) and internal pressures, the bubble begins to contract, and the jet breaks away from it. The region of the bubble near the optical axis moves faster, because it is far from the stationary walls, and as a result a counter jet is formed [1, 16, 17]. At t  =  4, the anti-jet reaches the surface of the glass and subsequently the bubble finally collapses. The jet reaches the surface of the acceptor plate and forms a microdroplet that contains microparticles of soil and AuNP. As was shown in [6], for t  =  8 ns the content of AuNPs S_Au in the microdroplet (the ratio of their area in the SEM images to the droplet area in %) demonstrates almost linear dependence on E: S_Au (%)  ≈  0.01 · E (µJ) in a wide range of energies of the laser pulse (5 µJ  E  100 µJ). Therefore, from the viewpoint of minimizing the negative impact of the nanoparticles of the material of the absorbing layer on living systems in microdrops [21–23] it is preferable to carry out the transfer with minimum energy values (at E  <  25 µJ and S_Au  <  0.25%).Thus, we revealed the optimal range of energies from the point of view of the formation of stable jets and droplets with minimal side effects on living systems of giant accelerations, laser irradiation, and AuNPs, is the range of E  =  16–25 µJ.

Figure 6 shows optical images of gel/soil microdroplets on an acceptor plate, soil microparticles distribution in microdroplets, and the result of soil printing onto agar plates. On the size distribution chart (figure 6(b)) single microparticles (possible carriers of microorganisms) with a size of 8–12 µm are clearly observed. Laser printing of soil microparticles on a solid surface of nutrient media (glucose-peptone-yeast agar) in Petri dishes resulted in regular colony growth patterns (see figure 6(c)).

Zoom In Zoom Out Reset image size

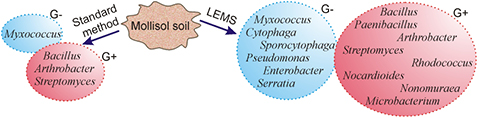

About 400 colonies germinated after LEMS were compared on the genera level with 250 grown by the standard inoculation method. All colonies were described and identified on the basis of phenotype analysis and a potassium hydroxide test. Gram-positive (G+) and gram-negative (G−) bacteria are identified (figure 7).

Zoom In Zoom Out Reset image size

Application of the LEMS method significantly increased the diversity of G+  bacteria (from 3–8) and G−  bacteria (from 1–6). It is well-known that G−  bacteria have a thinner cell wall compared to that of G+  bacteria which explains the higher sensitivity of the G−  bacteria to external influences. The observed bacteria abundance results demonstrate that the LEMS technology is friendlier for both for the G+  and G−  bacteria compared to the standard method. It is important that all bacteria that are cultured by the standard method also give colonies after laser printing. The very significant result is the segregation of the rare genus Nonomuraea by the LEMS technology.

A separate series of experiments was aimed at testing the effect of microprint processes in the LEMS technology on highly sensitive, hard-to-breed microorganisms. For this purpose, a gel substrate with a reference E. coli strain was used. The experiments have shown that when this culture is cultivated by a standard method, the colonies of microorganisms on the surface of the nutrient medium do not arise in Petri dishes. At the same time, the use of the LEMS technology led to the fact that all the microdroplets transferred to the nutrient medium formed colonies during cultivation.

The reason why the LIMS technology allows obtaining a greater variety in comparison with the standard method can be understood from the diagram shown in figure 8.

Zoom In Zoom Out Reset image size

With the standard method of cultivation, all particles are mixed together. At the same time, a part of the microbes is separated from its microenvironment (1 in figure 8) and dies. The other part of the existing symbiosis (3) is separated from each other and also dies. Some (4) that are in the 'sleeping' state are not activated. As a result, only the strongest remain (2). In the LEMS technology, microorganisms are neatly transferred with their microenvironment by separate carriers. Therefore, microorganisms 1 and 3 multiply in this case. Pulse action during the transfer leads to the activation of 'sleeping' microorganisms (4). As a result, using LEMS technology, biodiversity significantly increases, which was confirmed experimentally (figure 7).
