Redefining the role of obstacles in pedestrian evacuation

When a crowd tries to escape from a room in a life-and-death situation the passage through doors becomes crucial in determining the evacuation efficacy [1–7]. In some extreme cases, the accumulation of people in front of an emergency exit and the instinctive pushing reaction of the individuals, leads to door obstruction or clogging. Pedestrian systems are probably the most dramatic example of clogging, but this phenomenon is rather general for systems composed of many discrete particles that flow through constrictions. Indeed, this topic has been the focus of research in a variety of fields such as microbial populations [8], colloids [9], droplets [10], granular matter [11] or robots [12]. Recently a phase diagram has been proposed to encompass clogging in such many different systems [13].

In addition, the relationship between clogging and jamming is being a topic of discussion in the last years [14–16]. Basically, depending on the conditions, clogging may end up with the development of a completely jammed system [17] where the contact forces among particles increase notably in duration and intensity; for the pedestrian case, this process may often results in fatalities. Additionally, the emergence of contact forces within the crowd is believed to be the origin of sudden and unintended collective motions [5, 18–22] which are—in most circumstances—behind the occurrence of falls, the main cause of injuries in crowd accidents.

A smart solution that has been proposed to lessen clogging problems is the placement of obstacles [1] (such as columns or barriers) in front of exists (figure 1). Although at first sight this alternative might seem prejudicial for the evacuation, the idea is that obstacles can absorb the crowd pressure and reduce it to a level that will not cause harmful effects. Furthermore, decreasing pressure is thought to favour the conflict solution of pedestrians coinciding at the exit and competing for the same space; so that clogging can be minimized. Indeed, the improvement of bottleneck flow by placement of obstacles is being reproduced by most of the recently proposed models of pedestrian dynamics [23–28]. In addition, the beneficial role of the obstacle in clogging prevention has been taken as a genuine feature of many-particle systems passing through constrictions. Notably, it has been experimentally proved for granular matter discharged from a silo [29, 30], and the passage of different animals (such as sheep [13, 31] and mice [32]) through narrow doors. Nevertheless, apart from some inconclusive results [3, 33–35], an experimental confirmation of this feature in real pedestrian tests is still lacking.

Zoom In Zoom Out Reset image size

2.1. Evacuation drills

2.2. Image processing

2.3. Data analysis

As the persons are trying to reach the door, a natural way to display the velocity is in polar coordinates (v_r, v_θ) with the origin (r = 0) at the door centre. We have taken positive velocities when r decreases, i.e. persons approach the door. The angle increment is positive in the counterclockwise direction. If persons proceed unimpeded towards the door, as expected under low competitiveness, v_θ should be low. We have not filtered the small left and right oscillations due to the gait, so a residual v_θ will always be present. Note that as the radial velocity will increase linearly in average when approaching the door, due to mass conservation, we have multiplied v_r by r in order to rescale all the velocities and obtain the statistical distributions of these velocities with respect to the average, which is indicated as Δ in figures 3(J), (K). The sampling rate for the velocity is 25 measurements per second (one measurement for each video frame) but, as said above, velocities were calculated in time intervals of 1 s.

When dealing with flocks, or active matter in general, polarization is often used to describe the global velocity alignment of individuals [39, 40]. This magnitude is defined as

$$\begin{eqnarray*}&&\phi =\parallel \displaystyle \frac{1}{N}\displaystyle \sum _{i=1}^{N}\displaystyle \frac{\vec{{v}_{i}}}{| \vec{{v}_{i}}| }\parallel \end{eqnarray*}$$

which tends to zero for random motions and is equal to one if all the individuals move in exactly the same direction. We have also calculated the alignment of pedestrians velocity respect to the desired direction of motion $\vec{{u}_{i}}$ (which is assumed to be towards the door). To this end we have defined the 'alignment parameter':

$$\begin{eqnarray*}&&{\phi }_{d}=\parallel \displaystyle \frac{1}{N}\displaystyle \sum _{i=1}^{N}\displaystyle \frac{\vec{{v}_{i}}\cdot \vec{{u}_{i}}}{| \vec{{v}_{i}}| }\parallel \end{eqnarray*}$$

that would be one if all the participants head towards the door. Note that the range of this quantity is [−1, 1].

The correlation for the velocity directions is calculated with the formula

$$\begin{eqnarray*}&&C(r)=\displaystyle \frac{1}{{C}_{0}}\displaystyle \frac{{\displaystyle \sum }_{{ij}}\vec{{u}_{i}}\cdot \vec{{u}_{j}}\ \delta (r-{r}_{{ij}})}{{\displaystyle \sum }_{{ij}}\delta (r-{r}_{{ij}})},\end{eqnarray*}$$

where C₀ is a normalizing factor, r is the distance from the individual $i,\delta (r-{r}_{{ij}})$ is a smoothed Dirac delta function, and u is the velocity. Note that C would be one if all the individuals head in the same direction, and that finite size effects will appear at the scale of the recorded zone (a few metres).

See supplementary material is available online at stacks.iop.org/NJP/20/123025/mmedia for a movie showing the temporal evolution of the pedestrians, along with ϕ and ϕ_d, for three different situations: under low competitiveness, under high competitiveness, and under high competitiveness with an obstacle placed at 60 cm from the door.

In this work, we present the results of three series of drills in which we have not succeeded in achieving an experimental proof of the hypothesis that an obstacle in front of an exit may favours the evacuation performance (hence challenging its validity). Unexpectedly, we have discovered a possible benefit of the obstacle regarding prevention of falls. In the first series of experiments (series 1, table 1) we observed that the presence of the obstacle had not any perceptible impact in the evacuation times. This unexpected behaviour was attributed to the obstacle being placed too far from the exit. Also, we found that the 300 kg obstacle was not secured fast enough and it was displaced backwards (away from the door) by the students in their way out the room. In the next series of experiments (series 2, table 1) we amended this problem by designing a one-ton obstacle which was tightly secured in place. This time the obstacle did not move but, again, its role in the evacuation times was negligible. Finally, in order to discard that the obstacle position was still too far from the door, or that the effect was not showing due to the low number of people in the room, we devised the final series of exercises (series 3, table 1). In these, the same obstacle than in the second evacuation series (figure 1) was placed at three different distances from the door. Once more, we observed the same behaviour than in the two first series: decreasing competitiveness reduces evacuation times, but placing an obstacle does not. Nevertheless, an unexpected behaviour became apparent when dealing with such high number of people in competitive conditions: the placement of an obstacle seemed to suppress transversal collective motions that can cause falls (see supplementary material). The danger of these movements can be gauged by the fact that many deaths in emergency evacuations are caused by a mob threading on fallen people. Aiming to quantify all these features we have performed a careful examination of the pedestrian trajectories and velocities behind the bottleneck (figure 1(B)–(D)), as well as a detailed analysis of the passage times through the exit.

In figure 2 we show the outcomes of the evacuation times for all series of experiments. As an example, in figure 2(A) we report the average number of evacuated people versus time for the six different scenarios investigated in the third series of experiments mentioned above. Clearly, non-competitive evacuations display higher slopes than competitive ones, indicating greater flow rates. Additionally, figure 2(A) suggests that the effect of placing an obstacle is negligible in both, competitive and non-competitive evacuations. For a more rigorous verification of this result, we obtained the time lapses Δt_i between consecutive individuals. Remark that this information is not usually provided, but it is suitable to detect temporary door blockages which might become unperceived when computing average magnitudes such as the mean flow rate. The boxplots of Δt_i displayed in figure 2(D) confirm that the statistics of the competitive evacuations are distinct from the non-competitive ones; and this is so irrespective of the presence of the obstacle. As it was already reported [37], pushing and shoving leads to the development of long-lasting clogs which appear as outliers in the distributions and are the consequence of unsolved conflicts among pedestrians coinciding at the exit. Surprisingly, the presence of the obstacle (which in theory should be able to suppress or at least lessen pressure at the exit) is not able to reduce the number of these long-lasting clogs. This result is confirmed by representing the survival function (or CCDF) of the time lapses between consecutive pedestrians (figure 2(E)). All the evacuations performed in highly competitive conditions display broader distributions than those in low competitiveness, independently on the presence of the obstacle. We can therefore conclude that, for all the situations tested in this work, the obstacle has no effect in the passage time distributions. The features of the passage times described for the third series of experiments were also observed in the two previous ones. By way of example, in figures 2(B), (C) we present the boxplots of passage times in the other two series of evacuation drills. From these data, gathered from three different groups of people, we can challenge the notion that placing an obstacle in front of the door leads to an improvement in the evacuation time, at least for the crowd sizes, door widths, symmetrical obstacle positions and competitiveness level tested in this work. Still, it should not be discarded that there exists a specific condition in which the obstacle might offer some benefit concerning the evacuation time, but this feature must not be taken as a generic hallmark of pedestrian dynamics in any case. Furthermore, our finding contrasts with previous data on the effect of the obstacle in animal flow through bottlenecks [31, 13, 32], exposing a clear instance of the dangers involving direct extrapolation of animal behaviour to humans.

Zoom In Zoom Out Reset image size

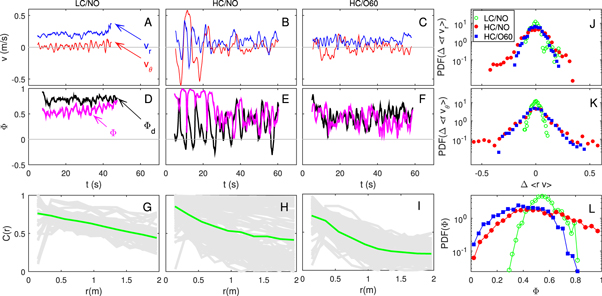

As mentioned, when implementing the third series of experiments we realized that the undesired transversal collective motions appearing in highly competitive evacuations [22] were almost suppressed by the placement of an obstacle (transversal in this context meaning in a direction mostly perpendicular to the door direction). Therefore, aiming to quantify this feature, we extracted the pedestrian trajectories, which were then used to obtain several indicators related with collective movements and, in particular, with the development of transversal rushes. The first one consists on analysing the temporal evolution of the average velocity of the whole group. Accounting for the special geometry of our problem, we consider polar coordinates centred at the exit door, and report, in figures 3(A)–(C), the radial (in the exit direction) and azimuthal (perpendicular to the exit direction) velocities for single evacuations in three different representative cases. When the evacuation proceeds smoothly (figure 3(A)) the average azimuthal velocity is nearly zero over all the exercise and the average radial velocity has a finite, rather constant, value. Increasing competitiveness (figure 3(B)) provokes the emergence of peaks in the azimuthal velocity (a signature of the transversal rushes) that are often associated with high amplitude oscillations of the radial velocity (note that a negative radial velocity means that people are, in average, moving away from the door). Interestingly, we have observed that these transversal waves are more likely to occur in the first half of the evacuation (when there is still a large number of people in the room). This feature should be further studied but points towards the importance of the group size in determining the collective behaviour emerging in these kind of complex systems. For the case of high competitiveness, the presence of the obstacle (figure 3(C)) leads to a remarkable reduction of the peaks in both azimuthal and radial velocities. The generality of this behaviour is manifested in figures 3(J), (K) where we display the distributions of radial and azimuthal velocities for all the evacuations performed in the same conditions. Clearly, increasing competitiveness leads to broader distributions and placing the obstacle minimizes the occurrence of extreme events, especially for the case of radial direction.

Zoom In Zoom Out Reset image size

In order to further investigate the emergence of collective movements, we have looked at the so-called polarization [39, 40] ϕ (as defined in section 2). This parameter accounts for the degree of global ordering: it is one if all the individual velocities point in the same direction and close to zero when they point in random directions. The low competitiveness evacuations (figure 3(D)) reveal a rather constant value of ϕ around 0.5, caused by the homogeneous movement of pedestrians towards the door. Indeed, the polarization slightly grows at the end of the evacuation when the number of pedestrians within the room reduces and their velocities direction becomes comparable. Increasing competitiveness (figure 3(E)) provokes a dramatic change in the behaviour of ϕ. The most conspicuous characteristic is the existence of time lapses during which all velocities point in the same direction (ϕ = 1), alternating with very short intervals in which pedestrians move almost randomly (downwards spikes nearly reaching ϕ ≈ 0). Interestingly, the presence of the obstacle prevents these ordered movements (figure 3(F)). Again, the distribution of the instantaneous polarization values obtained for all the evacuations performed in the same conditions (figure 3(L)) reflects the importance of the obstacle in eradicating situations in which all pedestrians move in the same direction.

Also, trying to adapt the measurement of the polarization to the special geometry of our problem, we have calculated what we named the 'alignment parameter' ϕ_d as it accounts for the alignment of each pedestrian velocity with their expected desired direction towards the exit (see methods). In brief, the contribution of each pedestrian to the value of ϕ_d is: +1 when its velocity point towards the door; −1 when it points in the opposite direction; and 0 when it points transversally to the exit direction. As expected, in the low competitiveness scenario ϕ_d takes constant values (close to one) all over the evacuation (figure 3(D)). Oppositely, in the high competitiveness case (figure 3(E)) ϕ_d strongly varies with time, reaching zero, and even negative values. Interestingly, the instants of ϕ_d ≈ 0 coincide with values of ϕ ≈ 1, indicating that all the individuals move in the same direction, which is approximately perpendicular to the exit direction (see supplementary material). The presence of the obstacle abates these events (figure 3(F)), yet it is not able to completely repair the effect of introducing competitiveness in the system as reflected by the lower values of ϕ_d obtained in figure 3(F) than in figure 3(D).

Finally, we have looked at the spatial correlation, C(r), of the individual velocities at a given instant. In figure 3(G), the C(r) instantaneous curves (one for each frame of the recorded video) are represented for a given evacuation in non-competitive conditions. The outcomes evidence that: (i) all curves are similar, in agreement with the small temporal variations observed for other magnitudes (figures 3(A) and (G)); and (ii) the velocity correlation decays slowly as expected from the specific geometry of our problem where the velocity direction depends on the position. Increasing competitiveness, however, introduces a high degree of inhomogeneity between the curves for different times (figure 3(H)): in some instants the correlation decays abruptly whereas, in other cases, it keeps a value close to one for distances up to 2 m. The abrupt decays in correlation correspond to situations in which ϕ ≈ 0 and the strongly spatially correlated scenarios happen when ϕ ≈ 1. As it happened with the other variables, placing the obstacle is found to minimize the highly correlated situations (figure 3(I)).

In summary, we have reported genuine experimental results of several series of experiments, demonstrating that the believed reduction of evacuation times caused by an obstacle is not necessarily true for the case of crowds of up to 200 pedestrians. Despite that this phenomenon must be confirmed by further experiments in which other obstacle diameters and shapes as well as more competitiveness levels are implemented, our work challenges the validity of most of the existent models in which there is always a given range of obstacle positions for which the flow rate improves (with more or less efficacy depending on the obstacle properties). This hints about the necessity of revisiting, for the case of highly competitive conditions, some numerical aspects (such as the route choice [41] at spatial scales smaller than one metre) and/or incorporating new ones (such as the individuals shape [42, 43] and the preferred orientation in the displacement [44, 45]). Moreover, we discovered that placing an obstacle in front of the exit reduces the magnitude and number of collective transversal displacements, suggesting that its implementation would be beneficial in preventing falls. Again, this novel feature should be corroborated by performing similar drills varying parameters such as the obstacle geometry, alignment with the centre of the door, or pedestrian competitiveness.

We thank L F Urrea and J C Sánchez for technical support. IZ, DM and AG acknowledge support from FIS2014-57325 and FIS2017-84631 MINECO/AEI/FEDER, UE Projects, and DRP from PID2015-003 ANPCyT. We are also indebted to the students, the soldiers and the officers in the América 66 Regiment, for their enthusiastic involvement in the evacuation drills.
