Ab initio study of Ti_0.5Al_0.5N(001)—residual and environmental gas interactions

A predictive modelling in solid-state physics requires a detailed knowledge of all underlying fundamental mechanisms on the nanoscale. For instance, surfaces should be considered when solids interact with another medium. However, very often these surface models are idealized, as surface structure and energetics are usually described in vacuum [1–3]. An important benchmark system in surface protection of tools is cubic metastable Ti_1−xAl_xN (space group $Fm\bar 3m$, prototype NaCl), which exhibits considerable improvements of physical and chemical properties with respect to its binary counterparts, cubic TiN and hexagonal AlN [4–6]. The metastable solubility limit of AlN in TiN, forming cubic rather than thermodynamically stable hexagonal Ti_1−xAl_xN, was experimentally determined to be in the range x = 0.5–0.9 [7–13]. Furthermore, Ti_1−xAl_xN has extensively been studied by ab initio calculations, probing its bonding, phase stability, structure and elastic properties [14–20]. It was suggested that the phase stability of Ti_1−xAl_xN does depend not only on the Al content but also on the Al distribution on the metallic sublattice [16, 21].

Synthesis of metastable Ti_1−xAl_xN can only be facilitated under non-equilibrium conditions, which is readily available in physical vapour deposition techniques such as sputtering and cathodic arc [7–13]. These non-equilibrium synthesis methods are governed by an interplay of thermodynamics and kinetics [22]. Fundamental understanding of elementary growth processes, such as surface diffusion and ion–surface interactions, is crucial for obtaining the required combination of physical and chemical properties for a particular application [22]. Interaction of Ti_1−xAl_xN with residual gas during synthesis as well as post-exposure has not been considered using ab initio methods. Recently, potential energy maps for Ti and Al adatoms on ordered and disordered Ti_0.5Al_0.5N(001) surfaces were calculated using ab initio methods and it was suggested that the surface disorder reduces Ti adatom mobility [23]. Furthermore, surface energetics is relevant for various processes, ranging from initial stages of oxidation to preferred crystallographic orientation [24–28]. Based on ab initio molecular dynamics (MD) data, it was argued that the oxidation of TiN(001) is facilitated by dissociative adsorption of O₂ and consequent formation of crystalline TiO₂ at 900 K [25]. No such data are available for Ti_1−xAl_xN. It is, however, known from annealing experiments that TiO₂ preferably forms upon oxidation of Ti_1−xAl_xN [29, 30]. It was suggested that Ti outward diffusion is responsible for these observations [29, 30], but no understanding on the atomic and electronic structure levels is available. Generally, other residual and environmental gases, such as H₂O, may also be relevant for synthesis, namely impurity incorporation, nucleation and surface diffusion, as well as for many physical properties such as ferroelectric, elastic and tribological [31–34]. Based on ab initio calculations, it was reported that molecular H₂O adsorption occurs on TiN(001) and TiN(111) surfaces, while dissociative H₂O adsorption is observed for TiN(110) [35]. As soon as AlN is incorporated into cubic TiN forming Ti_1−xAl_xN, these adsorption processes may be altered, but this has not yet been explored.

In this work, we use ab initio MD simulations to explore surface processes on Ti_0.5Al_0.5N(001) interacting with residual and environmental gases, O₂, H₂O and CO₂. Dissociative adsorption of O₂ induces preferred Ti–O bond formation and extraction of Ti from the TiAlN(001)/O interface, generating Ti vacancies at the interface. H₂O gives rise to O–H and N–H dipoles. Adsorption of CO₂ is responsible for C–O dipole formation and free atomic O triggers similar physics as the adsorption of O₂. These data explain on the atomistic level several experimental observations, such as preferred TiO₂ formation of Ti–Al–N surfaces [29, 30] and nucleation and growth of Ti–Al–O–N thin films [36].

Ab initio MD simulations of Ti_0.5Al_0.5N(001) interacting with O₂, H₂O and CO₂ were performed using the OpenMX code [37], based on the density functional theory [38] and basis functions in the form of linear combination of localized pseudoatomic orbitals [39]. The electronic potentials were fully relativistic with partial core corrections [40, 41] and the generalized gradient approximation was applied [42]. The basis functions used were generated by a confinement scheme [39, 43] and specified as follows: Ti5.0-s2p2d1, Al6.0-s2p2, N4.5-s2p1, O4.5-s2p1, H4.5-s2 and C4.5-s2p1. Ti, Al, N, O, H and C designate the chemical name, followed by the cutoff radius (Bohr radius units) in the confinement scheme and the last set of symbols defines primitive orbitals applied. The confinement radii as well as the basis set were carefully checked with respect to basic elemental data, such as equilibrium volume (or bond length in the case of free molecules) and bulk modulus. The energy cut off 2040 eV (150 Ryd) and the 96 × 96 × 240 grid within the real-space grid technique [44] were adjusted to reach the accuracy of 3 × 10⁻⁵ eV atom⁻¹ (10⁻⁶ H atom⁻¹). Canonical ensembles at 300 K were used to simulate Ti_0.5Al_0.5N(001) surface (six atomic layers, surface area 12.536 × 12.536 Å², 216 atoms, random distribution of Al and Ti [15]) interacting with O₂, H₂O and CO₂ gases as a function of coverage. The coverage was calculated based on ideal dissociative adsorption. These molecules were initially placed 3 Å from the Ti_0.5Al_0.5N(001) surface at ad hoc positions. The bottom layer of Ti_0.5Al_0.5N(001) slab was always frozen to mimic the infinitive bulk. The MD time step was 1.0 fs and the simulation time was 2000 fs for each coverage. The total MD time for all simulations performed was 54 000 fs. The adsorption energy (ΔE_ad) was calculated at 0 K as

$$\begin{equation} \Delta {E_{\rm ad}} = \frac{{{E_{{\rm slab}}} - n{E_{{\rm molecule}}} - {E_{\rm TiAlN}}}}{mn}, \end{equation} \tag{ 1 }$$

where E_slab, E_molecule, E_TiAlN, n and m designate the total energy of a Ti_0.5Al_0.5N(001) slab with adsorbed molecules, total energy of a molecule, total energy of the pristine Ti_0.5Al_0.5N(001) surface, number of adsorbed molecules and number of atoms in a molecule, respectively. All total energies at 0 K were obtained after full structural relaxations by minimizing the interatomic forces.

We start the discussions on the Ti_0.5Al_0.5N(001) surface interaction with residual and environmental gases by considering the O₂ case. Figure 1 shows the fundamental atomic process occurring during Ti_0.5Al_0.5N(001)–O₂ interactions as a function of coverage. Dissociative adsorption of O₂ occurs for all coverages probed. We observe the interaction of individual O atoms with surface metal atoms, but never with N. Ti sites are preferred over Al sites for the O₂ coverage up to 0.17 monolayers (ML). At an O₂ coverage of 0.17 ML, Ti escapes from the Ti_0.5Al_0.5N(001)/O interface layer, which is induced by an increased Ti–O coordination (three O nearest neighbours) compared to the Ti–O coordination (one O nearest neighbour) at lower O₂ coverages. This generates Ti vacancies in the Ti_0.5Al_0.5N(001)/O interface layer. This is consistent with the literature, since metal vacancies were suggested to form in Ti_0.5Al_0.5N [45] and isostructural Cr–Al–O–N [46]. We observe the apical Ti–O bond length of 1.66 Å at an O₂ coverage of 0.06–0.11 ML, which is not consistent with TiO₂ [47]. However, as soon as Ti escapes from the Ti_0.5Al_0.5N(001)/O interface layer at an O₂ coverage of 0.17 ML, the Ti–O bond adopts the length of 1.87–1.96 Å, which is in turn consistent with TiO₂ [47]. Hence, it is reasonable to assume that the O adsorption induces Ti extraction and the associated vacancy formation enables and constitutes the initial stage of TiO₂ formation. At an O₂ coverage of 0.22 ML, Al–O bonds begin to form, but it is only Ti that escapes from the Ti_0.5Al_0.5N(001)/O interface layer. This Al–O bond formation may be due to a decreased population of Ti atoms in the surface exposed to additional O₂ molecules. In this case, there is a broader distribution of O–metal bond lengths, from 1.65 to 2.18 Å. This structural disorder (broad bond length distribution) was also observed for the oxidation of Al(111) [48]. At an O₂ coverage of 0.44 ML, a Ti atom coordinated with five nearest O neighbours is observed. This is consistent with TiO₂ [47]. Our data also support the suggestion by Gnoth et al [49] that surface oxidation of cubic Ti–Al–N thin films is caused by reaction with atmospheric oxygen and/or residual gas immediately after synthesis [49]. to Baben et al [50] showed that the incorporation of O into cubic Ti–Al–N is energetically favourable and Sjölen et al [36] have observed the incorporation experimentally. Hence, the above discussed phenomena are also relevant for nucleation and growth of Ti–Al–O–N thin films. This may be a general feature of cubic transition metal Al nitrides, as O incorporation is energetically also favoured for Sc-, V- and Cr-containing phases [51].

Zoom In Zoom Out Reset image size

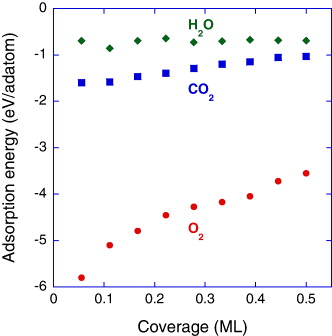

We continue to discuss the structure evolution as a function of coverage in terms of energetics. Figure 2 contains the corresponding adsorption energy data for O₂ molecules. As the O₂ coverage is increased from 0.06 to 0.50 ML, the adsorption energy increases from −5.8 to −3.5 eV per adatom. Clearly, the affinity of O towards Ti_0.5Al_0.5N(001) decreases with larger O₂ coverages. This trend as well as the absolute values is consistent with the literature [52, 53].

Zoom In Zoom Out Reset image size

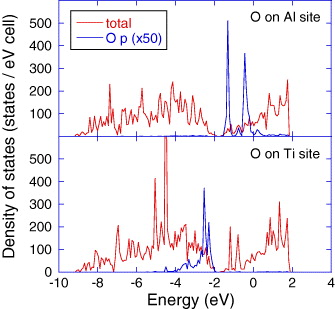

The fact that Ti–O bond formation is preferred at low O₂ coverages is counter-intuitive as Al₂O₃ is known to be more stable than TiO₂ [54]. This apparent inconsistency can be understood based on the electronic structure. Figure 3 shows the density of states for Ti_0.5Al_0.5N(001)–O₂ interaction at a coverage of 0.06 ML. We explore two cases: (i) O adsorbed on Ti sites, which is preferred according to our ab initio MD data presented above and (ii) O adsorbed on Al sites. The general features in the density of states for Ti_0.5Al_0.5N(001) are consistent with bulk Ti_0.5Al_0.5N [18], so no detailed discussions are provided here. O 2p states are localized in the range of approx. −4 to −2 and −2 to 0 eV for O adsorbed on Ti and Al sites, respectively. The O 2p states are hybridized with Ti 3d in case of adsorption on the Ti sites and Al 3p states in case of adsorption on the Al sites (partial density of states analysis is not shown here). A shift to lower energies, as observed for the O adsorption on the Ti sites, is consistent with an increase in the bond energy and hence bond strength. This is consistent with the electronic structure of bulk Ti_0.5Al_0.5N with incorporated O [50]. We suggest that the increased Ti–O bond strength constitutes the electronic origin for the preferred Ti–O bond formation compared to (the initially expected) Al–O formation and represents the early stages of TiO₂ formation on Ti_0.5Al_0.5N(001). These data explain on the electronic structure level the experimental observation of the selective oxidation of Ti on Ti–Al–N [29, 30] and TiAl [55] surfaces.

Zoom In Zoom Out Reset image size

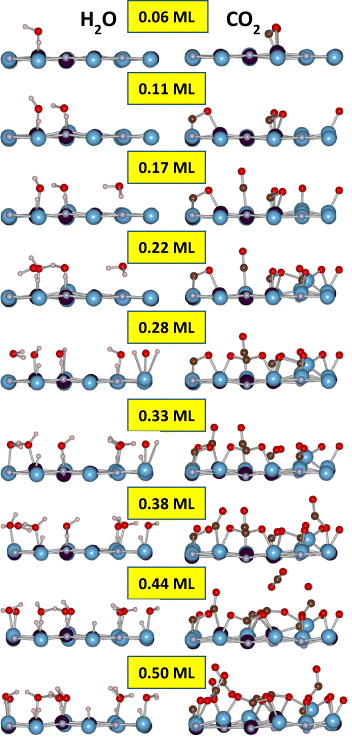

After considering the Ti_0.5Al_0.5N(001) surface interaction with O₂, we continue with the exposure to H₂O and CO₂. Figure 4 shows the fundamental atomic process occurring during Ti_0.5Al_0.5N(001)–H₂O and Ti_0.5Al_0.5N(001)–CO₂ interactions as a function of coverage. Dissociative adsorption of H₂O is observed for the coverage of 0.06–0.11 ML. O–H and N–H dipoles are formed. O–H dipoles have a tendency to align laterally. This may be relevant for tribological properties of these surfaces [34, 56]. At an H₂O coverage of 0.17 ML, a non-dissociated H₂O molecule is observed. Molecular H₂O adsorption was reported on TiN(001) [35]. On the other hand, dissociative adsorption of H₂O on Al₂O₃(0001) occurs [57]. At H₂O coverages larger than 0.22 ML, all H₂O molecules dissociate. Clearly, dissociative adsorption is the dominating physical mechanism. Figure 2 also contains the corresponding adsorption energy data for H₂O molecules. The average adsorption energy is −0.7 eV per adatom, which is the lowest value observed here. The adsorption energy appears not to be a function of H₂O coverage. It seems that the affinity of H₂O towards Ti_0.5Al_0.5N(001) is rather small.

Zoom In Zoom Out Reset image size

The last molecule interacting with Ti_0.5Al_0.5N(001) to be considered is CO₂ (see figure 4). Non-dissociative adsorption of CO₂ occurs for the lowest coverage of 0.06 ML. Already at a CO₂ coverage of 0.11 ML, CO₂ dissociates and C–O and Ti–O dipoles are formed. Evidently, surface oxidation can also be CO₂ driven. The observed dissociative adsorption of CO₂ on Ti_0.5Al_0.5N(001) is consistent with the interaction of CO₂ and many metal surfaces, such as Al, Bi, Fe, Mg, Ni, Pd, Re, Rh and Ru [58]. At a CO₂ coverage of 0.22 ML, Ti escapes from the Ti_0.5Al_0.5N(001)/O interface layer, induced by an increased Ti–O coordination. Here, Al–O bonds already coexist. This is the same physical mechanism as in the case of Ti_0.5Al_0.5N(001)–O₂ interaction, which is discussed above. Dissociative adsorption is continued for all coverages probed except of a CO₂ coverage of 0.44 ML, where a non-dissociative adsorption of CO₂ occurs at very large distance from the surface, namely ∼5 Å which is in the order of two interplanar distances. Since a relatively large CO₂ coverage is reached, Coulomb repulsion may occur with already adsorbed CO₂ molecules. However, already at a CO₂ coverage of 0.50 ML, dissociative adsorption is continued including the dissociation of the non-dissociated molecule at a CO₂ coverage of 0.44 ML. Clearly, dissociative adsorption is the dominating physical mechanism. Figure 2 also contains the corresponding adsorption energy data for CO₂ molecules. As CO₂ coverage is increased from 0.06 to 0.50 ML, the adsorption energy increases from −1.6 to −1.0 eV per adatom. This is the same trend as in the case of O₂ adsorption and the affinity of CO₂ towards Ti_0.5Al_0.5N(001) is in the range between those of O₂ and H₂O. This implies that the Ti_0.5Al_0.5N(001) surface would mainly be covered with O, while C-containing species should be seen as minor impurities.

Using ab initio MD simulations at 300 K, we have studied fundamental surface processes on Ti_0.5Al_0.5N(001) interacting with residual and environmental gases, O₂, H₂O and CO₂. Dissociative adsorption of O₂ occurs for all coverages probed. Surprisingly, Ti sites are preferred for an O₂ coverage of 0.06–0.17 ML. This may be understood based on the electronic structure. We suggest that the increased Ti–O bond strength relative to the Al–O surface bond strength is the electronic origin for the early stages of TiO₂ formation on Ti_0.5Al_0.5N(001), which explains the experimental observation of the selective oxidation of Ti on Ti–Al–N surfaces [29, 30] as well as nucleation and growth of Ti–Al–O–N thin films [36]. At an O₂ coverage of 0.17 ML, Ti escapes from the Ti_0.5Al_0.5N(001)/O interface layer, generating Ti vacancies. At a O₂ coverage of 0.22 ML, Al–O bonds begin to form. In the case of H₂O, dissociative adsorption, where O–H and N–H dipoles are formed, is a dominating mechanism for all coverages. O–H dipoles have a tendency to align laterally. At a H₂O coverage of 0.17 ML, a non-dissociated H₂O molecule is observed. This may be due to a competition of two mechanisms. Molecular H₂O adsorption was reported on TiN(001) [35], while dissociative adsorption occurs on Al₂O₃(0001) [57]. In the case of CO₂, non-dissociative adsorption occurs for the lowest coverage of 0.06 ML. Already at a CO₂ coverage of 0.11 ML, CO₂ dissociates and C–O and Ti–O dipoles are formed. At a CO₂ coverage of 0.22 ML, Ti escapes from the Ti_0.5Al_0.5N(001)/O interface layer, induced by an increased Ti–O coordination. This is the same physical mechanism as in the case of Ti_0.5Al_0.5N(001)–O₂ interaction. Larger CO₂ coverages are dominated by dissociation. The identified physical mechanisms are relevant for various processes, ranging from initial stages of oxidation and surface diffusion to nucleation of reaction layers upon exposure to residual and environmental gases.

This work was supported by the Deutsche Forschungsgemeinschaft within the Collaborative Research Centre SFB-TR 87.
