Strong influence of the oxygen stoichiometry on the vortex bundle size and critical current densities J_c of GdBa₂Cu₃O_x-coated conductors grown by co-evaporation

A significant improvement of the in-field dependences of RBa₂Cu₃O_7−δ (RBCO; R = Sm, Dy, Y, Gd) coated superconductors (CCs) can be obtained by proton or oxygen irradiation [1–3]. This irradiation introduces a high density of nanoclusters, which assists vortex pinning by defects originating during the synthesis of the tapes (dislocation, boundaries between islands and nanoparticles). With adequate irradiation doses the critical current density J_c at high fields can be doubled compared with pristine tapes [1–3]. The optimal doses result from a balance between the enhancement of the critical current densities J_c and the suppression of the superconducting properties produced by the damage. The disorder produced by the irradiation usually reduces the values of the superconducting critical temperature (T_c) and the self-field J_c (J_csf) [1–4]. Since structural disorder produced by irradiation should increase the penetration length (λ) [5–7], depairing critical current density (J₀), thermal fluctuations and the elasticity of the vortex lattice should be strongly affected [8]. The penetration depth λ in RBCO compounds can be modified by both irradiation-induced disorder [6] and changes in oxygen stoichiometry [9].

Another relevant feature for irradiated CCs is related to changes in the vortex dynamics when the doses are increased, which is manifested in the relaxation of the persistent critical currents [1–4, 10]. At intermediate and high temperatures, the inclusion of defects by irradiation usually suppresses the peak associated with double kinks (a fingerprint of correlated disorder) and produces an increment in the flux creep rates (S = −∂lnJ/∂t, with t being the time) [1, 2]. This suppression can be expected from random disorder avoiding the expansion of half-loops [11]. The increment in the flux creep rates seems counterintuitive, since more pinning would be expected to reduce its value [12]. Therefore, this increment at intermediate temperatures requires further analysis. The plateau usually observed in cuprates at intermediate temperatures is related to glassy relaxation, characteristic of collective creep of vortex bundles [8]. For this mechanism, the normalized creep rate $S$ is given by

$$\begin{eqnarray}&&S=\tfrac{T}{{U}_{0}+\mu T\,\mathrm{ln}(t/{t}_{0})}=\tfrac{T}{{U}_{0}}{\left(\tfrac{J}{{J}_{{\rm{c}}}}\right)}^{\mu }\end{eqnarray} \tag{ 1 }$$

(equation (1)), where U₀ is the characteristic energy, μ > 0 is the characteristic glassy exponent and t₀ is a characteristic time. At intermediate temperatures, ${U}_{0}\ll \mu T\,\mathrm{ln}(t/{t}_{0})$ and S is determined by the vortex bundle size as $S\,\approx 1/[\mu \,\mathrm{ln}(t/{t}_{0})],$ with ln(t/t₀) ≈ 27–30. Pristine tapes usually have μ ≈ 1.6–1.7 [2, 4, 13, 14] and this value systematically drops with irradiation. For instance, the optimal dose of irradiation with 6 MeV oxygen reduces μ to ≈1.4 [4]. The increment in the flux creep rates has been recently discussed considering the influence of the crystalline defects on the vortex bundle size [10]. For this study, the authors systematically removed crystalline defects by thermal annealing, which simultaneously modifies the vortex pinning and reduces the disorder produced by the irradiation (locally modifying the superfluid density [6]).

In this work, we modify the T_c of 1.3 μm thick GdBCO tapes grown by co-evaporation by modifying the oxygen stoichiometry [15]. The microstructure of pristine films displays, embedded in the GBCO matrix, sphere-like and irregular precipitates with typical diameter of approximately 50 nm spaced between 100 and 200 nm [4]. By changing the oxygen stoichiometry, modifications in T_c and λ without major changes in the pinning landscape are expected to occur [9]. The magnetic field dependence of J_c and the vortex dynamics of films with T_c between 78 and 93 K were analyzed by performing magnetization measurements. It was noted that the flux creep rates of the films strongly change with the reduction of T_c. Although a higher contribution of random point disorder to the vortex pinning is expected from oxygen vacancies, no appreciable contribution was observed. The results show that J_csf values are strongly suppressed as T_c decreases. In addition, the characteristic glassy exponent μ systematically decreases with T_c. These features are similar to those observed in irradiated CCs, strongly suggesting that the performance of CCs is significantly affected by reduction of T_c.

The GBCO tape was grown by the co-evaporation technique as previously described [16]. The oxygen content x of the tapes was adjusted to the desired value by using the iso-stoichiometric annealing method [15]. The sample was heated in O₂ at a pressure of 11.5 Torr at an annealing temperature T_ann(x) determined by the desired stoichiometry (445 °C for x = 6.85 and 410 °C for x = 6.96). After 2 h the film was slowly cooled down at a rate of 1 °C min⁻¹, while the O₂ pressure was continually adjusted to follow the corresponding constant-x line in the O₂ pressure versus T phase diagram. The magnetization (M) measurements were performed using a superconducting quantum interference device (SQUID) magnetometer with the applied magnetic field (H) parallel to the c-axis (H∣∣c). The T_c values used in this work, obtained from magnetization data, were determined from M(T) at μ₀H = 0.5 mT after zero-field cooling. The J_c values were calculated from the magnetization data using the appropriate geometrical factor in the Bean model. For H∣∣c, ${J}_{{\rm{c}}}=20{\rm{\Delta }}M/[w(1-w/3l)],$ where ΔM is the difference in magnetization between the top and bottom branches of the hysteresis loop and l and w are the length and width of the film (l > w), respectively. The M versus time curves were recorded for more than 1 h. The initial time was adjusted considering the best correlation factor in the log–log fitting of the J_c(t) dependence. To ensure a critical state, the initial state for each measurement was generated using a field variation ΔH ∼ 4H*, where H* is the field for full-flux penetration [17]. The microstructure of the films was analyzed by transmission electron microscopy (TEM) using a CM200 UT microscope operated at 200 kV. For TEM analysis, a thin lamella was prepared with a gallium-focused ion beam (FEI Helios Nanolab 650).

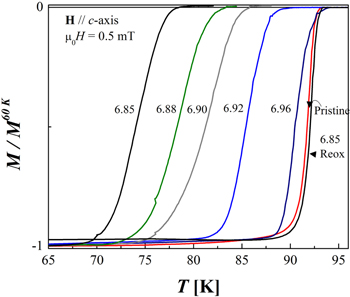

The microstructure of the GBCO tapes was previously studied, and the results are discussed in [4]. Figure 1(a) shows a cross-sectional TEM image where sphere-like and irregular precipitates embedded in the GBCO matrix are identified. Figure 1(b) shows a higher-magnification image with several sphere-like precipitates. Energy dispersive spectroscopy analysis indicates that these regions are rich in Gd, which can be associated with Gd₂O₃. Figure 2 shows the temperature dependence of the normalized magnetization for films with x = 6.85, 6.88, 6.9, 6.92, 6.96 and 7. The T_c values systematically decrease from ≈93 K (pristine) to ≈78 K. In addition, T_c ≈ 93 K is recovered after reoxygenation. Figure 3(a) shows a comparison between J_c(H) at 5 K for films with different x. The curves display two different regimes. At low fields J_c is almost independent of field up to a characteristic crossover H*, usually called B* [18]. Then, it is followed by a power-law regime (J_c ∝ H^−α) at intermediate fields, observed as a linear dependence on the log–log plot. The main change produced by T_c is related to the drop in J_csf. On the other hand, a negligible influence of x is observed in the power-law regime. In irradiated samples [1, 2], α drops with the different doses. Unlike these samples, the value of α remains almost constant (≈0.64) at 5 K, which indicates a negligible contribution to the vortex pinning of random point defects produced by oxygen vacancies. This insubstantial contribution indicates that the main changes produced in the in-field dependence of proton- and oxygen-irradiated CCs are mainly produced by nanoclusters [1–3]. On the other hand, similar J_c(H) dependences in a pristine film and a reoxygenated x = 6.85 are observed at different temperatures (see figure 3(a)), which indicates that no significant changes in the pinning landscape are produced by thermal annealing. Figure 3(b) shows the x dependence (related to T_c) of the J_csf values at T = 5, 27 and 40 K. A similar behavior is observed for the analyzed temperatures: J_csf drops systematically with reduction in the oxygen content. The suppression of J_csf is remarkable even for small changes in oxygen content. For instance, at 5 K and x = 6.96, there is a decrease close to 40% in comparison with pristine film and the T_c value drops to almost 1 K. This indicates that the modification in T_c has a significant affect on the vortex pinning and the intrinsic superconducting properties of the films. Although different types of disorder can be expected from the modification of the oxygen content (vacancies) and by irradiation (vacancies and random nanoclusters), the disorder in the nanoscale has a noticeable effect on the superfluid density, ${\rho }_{{\rm{s}}}={(\lambda (0)/\lambda (T))}^{2}$ [6], and on the related superconducting parameters [8], such as the depairing critical current (${J}_{0}=c{H}_{{\rm{c}}}/3\sqrt{6\pi }\lambda ,$ with H_c the thermodynamic critical field and c the speed of light) and the Ginzburg number, $Gi=\frac{1}{2}{(\gamma {T}_{{\rm{c}}}/{H}_{{\rm{c}}}^{2}(0){\xi }^{3}(0))}^{2},$ with ξ_ab the coherence length and γ the mass anisotropy). The value of Gi determines the strength of the thermal fluctuations and is directly related to thermal depinning of vortices. For optimally doped samples Gi ≈ 0.01 (T_c = 93 K and λ(0) ≈ 120 nm) and increases when T_c drops, and λ and γ increase. In addition, the flux creep mechanism is also affected by the ratio J_c/J₀, which is a parameter that characterizes the strength of the disorder potential [8]. An increment in λ(0) from 120 nm to 150 nm is expected in YBCO single crystals when T_c drops from ≈92 K to ≈82 K by modifying x [9], which implies that J₀ should be reduced by around 35%. For oxygen-deficient samples it is expected that both the reduction of J₀ and the increment in the vortex fluctuation (Gi) contribute to the drop in the J_c value. For proton- and oxygen-irradiated CCs [1–3], the inclusion of nanoclusters improves the vortex pinning, which is evidenced in larger J_c values at high magnetic fields. This enhancement in the pinning is expected to compensate the large suppression of J_csf observed in oxygen-deficient samples. It is worth mentioning that while, for fully oxygenated YBCO, the anisotropy parameter γ takes values between 5 and 7, it is known to increase when the oxygen content is reduced [19, 20]. The gradual change in γ with x is expected to affect the vortex pinning (changing Gi), which for highly oxygen-deficient samples (T_c < 50 K and x < 6.48) is evidenced in a vortex crossover from three-dimensional (3D) to a pure two-dimensional (2D) vortex-glass [21].

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

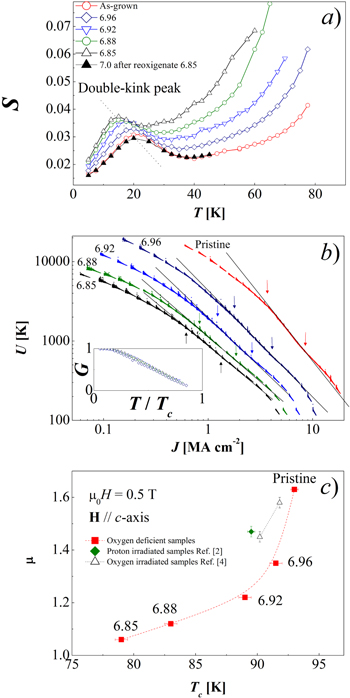

In order to analyze and compare the vortex dynamics in oxygen-deficient and oxygen-irradiated films [2, 4], magnetic relaxation measurements were performed at μ₀H = 0.5 T. Figure 4(a) shows the S(T) dependences for films with different oxygen doping. The initial increment of S(T) at low temperatures can be ascribed to an Anderson–Kim-like mechanism with S ≈ T/U (U being the pinning energy). Non-negligible S values are expected at T = 0 from quantum creep [8]. When x is reduced, the initial slope at low temperatures is increased, which suggests a drop in U. On the other hand, the temperature for the peak (≈20 K) is usually associated with double kinks and it systematically shifts when x is reduced (see dotted line in figure 4(a)). Considering the weak temperature dependence of the parameters ξ, λ and γ, the peak by double-kink excitation is expected to occur at the same J_c/J₀ ratio [22]. For example, the temperature for the peak in the pristine film is ≈22 K and J_c ≈ 8 MA cm⁻², whereas for x = 6.85 the peak for μ₀H = 0.5 T occurs at ≈15 K and J_c ≈ 2.2 MA cm⁻². In YBCO single crystals, for x = 6.95, λ (20 K) ≈130 nm (T_c ≈ 92 K) and for x = 6.8, λ (20 K) ≈155 nm (T_c ≈ 82 K) [9], which suggests that the reduction in J_c at the peak is consistent with a reduction in J₀ produced by an increment in λ due to the change in x. At temperatures higher than the peak associated with double kinks, the S(T) dependences plateau. When x decreases, a systematic increment in the absolute S value is observed, which can be related to a drop in the μ value. Finally, at even higher temperatures, S increases rapidly as the system crosses over into the plastic regime [23]. For the oxygen-deficient films it is expected that this crossover will be affected by the changes in λ and γ [23]. It is worth mentioning that reoxygenated films display S(T) behavior similar to that of pristine films, which indicates that no significant modifications in the pinning landscape are introduced during the thermal annealing and that the main changes can be associated with modifications in the superfluid density of the films [9].

Zoom In Zoom Out Reset image size

The glassy exponent μ was analyzed using the extended Maley's method [24] so as to compare the modifications in the vortex dynamics for GBCO CCs introduced by oxygen doping modification and those observed in tapes irradiated with protons and oxygen ions. Considering the approximation in which the current density decays as $\tfrac{{\rm{d}}J}{{\rm{d}}t}=-\left(\tfrac{{J}_{{\rm{c}}}}{\tau }\right){\exp (-{U}_{{\rm{e}}{\rm{f}}{\rm{f}}}(J)/T),}^{}$ the effective activation energy ${U}_{{\rm{e}}{\rm{f}}{\rm{f}}}(J)$ can be experimentally obtained by

$$\begin{eqnarray}&&{U}_{{\rm{e}}{\rm{f}}{\rm{f}}}=-T\left[\mathrm{ln}\left|\tfrac{{\rm{d}}J}{{\rm{d}}t}\right|-C\right]\end{eqnarray} \tag{ 2 }$$

(equation (2)), where $C=\,\mathrm{ln}({J}_{{\rm{c}}}/\tau )$ is nominally a constant factor. For an overall analysis it is necessary to consider the function G(T), which results in

$$\begin{eqnarray}&&{U}_{{\rm{e}}{\rm{f}}{\rm{f}}}(J,\,T=0)\approx {U}_{{\rm{e}}{\rm{f}}{\rm{f}}}\,(J,T)/G(T)\end{eqnarray} \tag{ 3 }$$

(equation (3)) [25]. Figure 4(b) shows the results obtained for x = 6.85, 6.88, 6.92, 6.96 and a pristine film. The inset shows G(T/T_c). In the limit of J ≪ J_c the μ exponent can be estimated as Δln U(J)/ΔlnJ [22]. The μ values obtained at intermediate temperatures as function of T_c and x are summarized in figure 4(c). In addition, the characteristic glassy exponent μ for tapes irradiated with protons and oxygen ions were included [2, 4]. The results indicate that μ is systematically reduced with x from μ ≈ 1.63 for the pristine tape to μ ≈ 1.12 for x = 6.85. The model of vortex loop nucleation for the 3D case and for random point defects predicts μ = 1/7 for single-vortex creep, μ = 3/2 or 5/2 for small-bundle creep, and μ = 7/9 for large-bundle creep [8]. Although different characteristic glassy exponents μ can be expected for mixed pinning landscapes, pristine films display μ values close to those predicted for small bundles. The change in the oxygen content reduces the μ values, in agreement with irradiated samples. The differences in the absolute value of μ between oxygen-deficient and irradiated samples may originate in the differences in the pinning landscapes. It is worth noting that unlike for films irradiated with proton and oxygen ions, with remarkable changes in the in-field J_c dependences, no appreciable contribution of oxygen vacancies to the pinning has been observed (α is weakly affected).

Studies in clean YBCO single crystals with low J_c values have shown that unlike CCs, the reduction in T_c with x weakly affects the glassy exponent μ ≈ 0.9 [22]. This fact indicates that the influence of the disorder on the vortex dynamics is different in strong-pinning (mixed pinning landscapes) and weak-pinning samples. This can be associated with the fact that changes in the glassy exponent μ are related to both λ (related to T_c) [6, 9] and J_c (related to the type of pinning center [10]). To our knowledge, there are no theoretical predictions of vortex bundle size and crossover between vortex regimes for samples with mixed pinning landscapes. Since high J_c values can be expected from an adequate combination of pinning centers, controlled modification of the size of dispersed defects and their influence on superconducting properties (such as superfluid density) should contribute to optimize pinning in CCs. Systematic determination of λ values and correlation vortex dynamics of pristine and irradiated films are necessary.

In summary, the influence of oxygen stoichiometry on the resulting vortex dynamics of 1.3 μm thick GdBa₂Cu₃O_7−δ-coated conductors was studied. Our results show that small changes in T_c have a significant effect on vortex pinning, which is manifested in a strong reduction of the J_csf values. In addition, the flux creep rates at intermediate and high temperatures show a systematic increment when x is reduced. This fact can be associated with a reduction in the characteristic glassy exponent μ. A reduction in both J_csf and μ values is usually observed in proton- and oxygen-irradiated CCs. This fact indicates a non-negligible contribution of the disorder produced by the irradiation in the final performance of irradiated tapes.

This work was partially supported by Agencia Nacional de Promoción Científica y Tecnológica PICT 2015-2171. NH and JG are members of the Instituto de Nanociencia y Nanotecnología—CNEA (Argentina).
