Structured targets for advanced laser-driven sources

The realization of laser-driven ultra-intense radiation sources is one of the main goals of the research activities carried out in the field of relativistic laser–matter interaction. Various schemes have been proposed for a number of applications, including high-energy particle sources (electrons [1] and ions [2, 3]), high intensity photon sources [4], high-order harmonic generation (HHG) [5] and ultra-intense terahertz (THz) sources [6]. In parallel with the development of these applications, several advanced target concepts [7] have been investigated, aiming at an improvement or a better control over the aforementioned schemes.

In this work we review some recent numerical results obtained with two specific advanced targets: relativistic surface-plasmon enhanced HHG with gratings [8](section 2), electron heating and enhanced ion acceleration with multilayer targets [9–11](section 3). Moreover, we provide an exploratory numerical investigation of laser-driven THz generation exploiting the aforementioned target concepts (section 4). THz emission from solid targets irradiated at relativistic or sub-relativistic intensities has been correlated with the conversion efficiency of laser energy into hot electrons energy [12]. Since both grating targets [13, 14] and multilayer targets [11, 15] generally provide a significantly higher laser absorption with respect to simple flat targets, an enhancement of THz emission may also be expected.

Grating targets have been investigated for a wide variety of applications, including laser-driven ion acceleration [13, 14, 16], synchrotron emission [17], electron acceleration [18, 19] and control [20, 21] or enhancement [8, 22–25] of HHG from laser–solid interaction. Here we review a recent numerical work on HHG using solid grating targets, where we observed that the irradiation of a grating at the resonance angle for surface plasmon excitation enhances HHG with respect to a flat solid target [8].

HHG with relativistic laser pulses interacting with solid targets [5, 26–30] is due to the relativistic motion of the electrons in the intense laser field at the target surface [31, 32] and has been proposed as a way to achieve higher intensities of the emitted harmonics with respect to conventional schemes based on atomic recollision in gaseous targets [33]. Indeed, HHG generation with gas targets is ultimately limited by the ionization threshold ($I\sim {10}^{15}\,{{\rm{W}}{\rm{cm}}}^{-2}$), while such intensity limit does not apply for HHG with laser–solid interaction. The use of a grating as a target for HHG has been proposed as a strategy to angularly separate the emitted harmonics, in order to obtain a quasi-monochromatic extreme ultra-violet (XUV) source [24, 25, 34] (the harmonic orders between the 8th and the 80th of a Ti:Sapphire laser with a wavelength ∼800 nm lie in the XUV spectral region). Given a grating with a spacing d between the grooves, the ${m}^{}{\rm{t}}{\rm{h}}$ harmonic order is diffracted according to [21, 22]:

$$\begin{eqnarray}&&n\lambda /{md}=\sin ({\theta }_{{\rm{i}}})+\sin ({\theta }_{{mn}}),\end{eqnarray} \tag{ 1 }$$

where λ is the laser wavelength, n is the diffraction order, ${\theta }_{{\rm{i}}}$ is the angle of incidence of the laser pulse and ${\theta }_{{mn}}$ is the diffraction angle.

When focusing a laser pulse on a grating target, a surface plasmon can be excited if a matching condition between the grating period and the angle of incidence is met. Experimental evidence of the excitation of surface plasmons in laser-grating interaction at relativistic intensities has been recently provided [13, 19, 35]. Since surface plasmon excitation is associated with electromagnetic field enhancement at the target surface, an enhancement of HHG can be expected, in addition to the grating diffraction effects.

Neglecting relativistic effects, for a cold, dense plasma (i.e. plasma frequency ${\omega }_{{\rm{p}}}\gg 2\pi c/\lambda$), the resonance angle θ_res for surface plasmon excitation is given by [36]:

$$\begin{eqnarray}&&j\lambda /d=1+\sin ({\theta }_{{\rm{res}}}),\end{eqnarray} \tag{ 2 }$$

where j is an integer. Even though equation (2) has been derived in a purely non-relativistic theory, recent works [13, 19, 35] suggest that this condition should hold even at relativistic laser intensities.

The irradiation of a grating target in a configuration suitable for the excitation of surface plasmons has been considered in [8], by means of 2D numerical simulations performed with the open source particle-in-cell (PIC) code piccante [37, 38]. A box size of $80\lambda \times 80\lambda$ and a resolution up to $\lambda /400$ were used. The laser had a normalized intensity a₀ = 15 and a temporal duration of 12 λ/c (intensity FWHM). The target was a $1\lambda$ thick grating with a spacing $d=2\lambda$, which according to equation (2) corresponds to a resonance angle ${\theta }_{{\rm{res}}}=30^\circ$. The peak-to-valley depth of the grooves was $0.25\lambda$. A simple flat target was also simulated for comparison. The electron density of the targets was ${n}_{{\rm{e}}}=128{n}_{{\rm{c}}}$, sampled with 144 macro-particles per cell (${n}_{{\rm{c}}}=\tfrac{\pi {m}_{{\rm{e}}}{c}^{2}}{{\lambda }^{2}{e}^{2}}$ is the critical electron density (e is the elementary charge, m_e is the electron rest mass and c is the speed of light). In the simulations the targets were irradiated at various incidence angles (15^◦–45°) and a Fourier transform of the diffracted electromagnetic field was performed in order to extract the harmonic content.

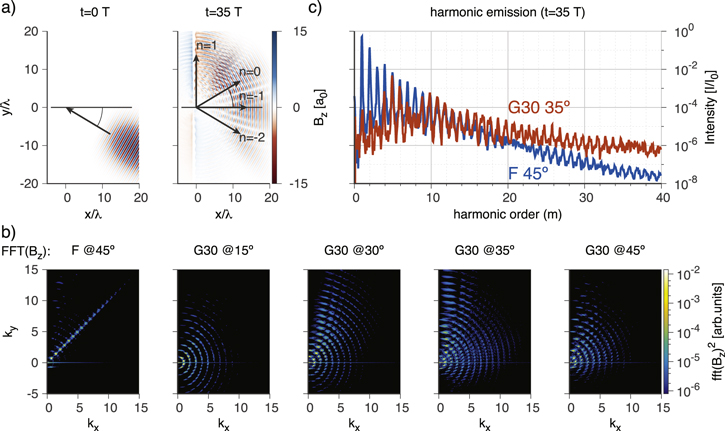

Figure 1(a) shows the $\hat{z}$ component of the magnetic field before and after the interaction with the grating target. Figure 1(b) shows the Fourier transform of the $\hat{z}$ component of the magnetic field in the $x\gt 0$ half-plane for a flat target irradiated at 45^◦ and for a grating target irradiated at θ_i = $15^\circ ,30^\circ ,35^\circ$ and 45°. In the case of a flat target all the harmonic orders are emitted along the specular direction, while for the grating high-order harmonics are diffracted, according to equation (1). A strong enhancement of harmonic emission is observed at incidence angles close to 30°, the expected surface plasmon resonance angle, in particular for harmonic orders diffracted close to the target surface (k_x = 0).

Zoom In Zoom Out Reset image size

Finally, figure 1(c) shows a comparison between the spectrum of the emission collected within $45^\circ \pm 2.5^\circ$ for the flat target irradiated at 45^° and that of the emission collected within $80^\circ \pm 2.5^\circ$ for the grating target irradiated at 35^° (these cases were observed to provide the highest harmonic yield for the two target types). While the spectrum for the flat target is dominated by the m = 1 order (i.e. the reflected laser light), for the grating a suppression of the m = 1 order and a significant increase of the intensity of emitted harmonics is observed. The enhancement of the harmonic emission is particularly evident for higher harmonic orders (≈2 orders of magnitude for m = 40).

These results show that the implementation of the described scheme in a laser-plasma interaction experiment should allow to observe higher-order harmonics irradiating a grating target near-resonance than a simple flat target. This approach may find application as an ultra-intense, quasi-monochromatic, XUV source.

Multilayer targets consisting in solid foils coated with a low-density layer [39–41] have been investigated within the framework of laser-driven ion acceleration [2, 3], where they have been proven to optimize the process. Specifically, they can lead to an increase of both the energy and the number of accelerated ions with respect to flat solid foils [9–11, 15, 41–43]. This could be beneficial for several potential applications [44, 45], such as radiotherapy [46, 47], material science [48, 49] or ultra-fast neutron sources [50].

Here we review some recent results concerning a numerical investigation of electron heating with multilayer targets [11], which is strongly related to the ion acceleration process [2, 3].

The use of a solid foil coupled with a low-density layer—near-critical when fully ionized—has been proposed as a possible solution to increase laser-target coupling [15, 51]. Indeed, laser interaction with a plasma at density ${n}_{{\rm{e}}}\sim {n}_{{\rm{c}}}$ is characterized by strong absorption and several nonlinear effects such as channel formation [52], self-focusing [52] and high-energy particle acceleration [53].

Experimental and numerical investigations of laser-driven ion acceleration with near-critical materials [9, 10, 41–43] reported a strong enhancement of the energy and the number of accelerated ions under certain target parameters. In [9, 10, 43] the effect was attributed to an enhanced target normal sheath acceleration (TNSA) mechanism due to an increase of the energy and of the number of electrons accelerated towards the back side of the target, while in [41] authors claimed an enhanced radiation pressure acceleration mechanism due to self-focusing and steepening of the laser pulse in the near-critical plasma.

Near-critical layers in [9, 10, 43], were obtained coating a thin solid foil with a very low-density nanostructured carbon foam [40]), whereas in [41, 42] authors exploited nanotubes and plastic foams, respectively. Regardless of the technique, while near-critical on average, all these targets are constituted by alternating voids and solid-density nanostructures. Due to the extreme contrast of modern day ultra-short laser systems [54], these nanostructures can survive long enough to influence the interaction with the laser.

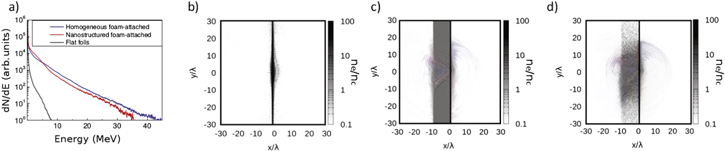

In [11] an extensive numerical campaign was carried out in order to elucidate the electron heating process in multilayer targets, taking into account a possible role played by the nanostructure of the near-critical layer. In this work 2D numerical simulations were performed with piccante code [37, 38]. Simulated targets consisted in 0.5 μm thick pre-ionized (Z/A = 1/3) foils with an electron density ${n}_{{\rm{e}}}=80{n}_{{\rm{c}}}$, coated with a 8 μm thick 'foam' layer with an average electron density equal to $1{n}_{{\rm{c}}}$ ($Z/A=1/2$). Two different types of foam were compared: a 'homogeneous' and a 'nanostructured' near-critical layer consisting in a spatially random collection of 10 nm over-dense (100 n_c) spheres, with a filling factor of 1% (so that the average density of the plasma was still 1 n_c). The laser pulse (λ = 0.8 μm) was P-polarized, Gaussian shaped in the transverse direction (waist of 3 μm) with ${\sin }^{2}$ temporal envelope (intensity FWHM of 25 fs). The peak intensity was varied between the normalized laser amplitudes a₀ = 1.5 and a₀ = 15 (i.e. from a table-top multi-TW facility up to a few hundred s TW facility [55]). The angle of incidence was 30°. As reported in figure 2, laser interaction with foam-attached targets, either modelled with a homogeneous or nanostructured near-critical layer, results in an enhanced laser-matter coupling, leading to a significant increase of the electron temperature with respect to simple foils. The electron temperature was found to be lower for the nanostructured target than for the homogeneous one. This might be due to the fact that a fraction of the total energy is lost to the ion population in the Coulomb explosion of the nanospheres. A similar effect was observed in [56], where an extensive parametric investigation of laser interaction with nanostructured near-critical plasmas was carried out. In order to benchmark the results of this numerical campaign with experimental data, the electron temperatures obtained from the simulations were coupled with simple models of TNSA [57], providing an estimation for the maximum ion energies. Estimations obtained using the electron temperature of the nanostructured case proved to be in close agreement with recent experimental results [9, 10], while the higher temperatures obtained with the uniform foam targets lead to an overestimation of the ions maximum energies. The higher electron temperatures obtained with foam-attached targets with respect to simple flat foils justify the higher ion energies observed in the experiments with the formers.

Zoom In Zoom Out Reset image size

We remark that simulations with foam-attached targets in [11] were performed with a relatively small angle of incidence of 30°. However, results in [15] provide an indirect indication that foam-attached targets could still allow for a significant enhancement of electron heating with respect to flat solid foils even for larger incidence angles (up to 60°).

THz sources are of great interest for several scientific and technological applications [58, 59], such as time-resolved THz spectroscopy [60] or imaging [61]. Conventional THz sources with high energy per pulse (in the range of $\sim 100\,\mu {\rm{J}}$) are based on large electron accelerators [62, 63]. Recently, sources based on ultra-intense laser–solid interaction have been proposed as a possible path to generate THz pulses with energies similar to those that can be obtained with particle accelerators, but with a compact set-up [6, 12, 64–69]. The experimental observation of 400 μJ per pulse broadband THz emission from solid foils irradiated at $I\sim {10}^{19}\,{{\rm{W}}{\rm{cm}}}^{-2}$ has been reported [6, 66], with a peak power of the emitted radiation approaching 1 GW [6]. THz emission from the rear of irradiated targets is attributed to coherent transition radiation of hot electrons [12, 65, 66, 70, 71], transient surface currents [6] and time varying TNSA charge separation field at the rear side of the target [6]. In these scenarios the intensity of THz emission has been directly correlated with the laser absorption. As already discussed, structured targets provide a mean to improve laser absorption [11, 13–15], which might also lead to an enhancement of THz emission. Here we present an exploratory numerical investigation of THz emission from irradiated gratings and multilayer targets. The properties of THz emission using these structured targets are compared with those obtained using a simple foil and a solid foil with a tailored exponential ramp (the gradient length-scale has been chosen so to enhance resonance absorption, as in [12]).

Numerical simulations were performed with the open source, massively parallel PIC code Smilei [72]. In this section Smilei rather than piccante was used due to its additional diagnostics, such as 'probes' and time-averaged fields. Cross-checks were performed between the two codes showing a very good agreement. A $250\lambda \times 448\lambda$ numerical box with a resolution of 48 points per wavelength was used. The simulation time was $350\lambda /{c}$. The P-polarized laser pulse had a Gaussian transverse shape (waist of $5\lambda$), a Gaussian temporal profile (field FWHM duration of $15\lambda /c$) and a normalized laser intensity of ${a}_{0}=2$ (i.e. a mildly relativistic regime accessible with a compact ∼10 TW laser system [14]). The incidence angle was 30°.

Four different targets were simulated: a simple flat foil (5λ thick, ${n}_{{\rm{e}}}=40{n}_{{\rm{c}}}$), a grating target (5λ thick, ${n}_{{\rm{e}}}=40{n}_{{\rm{c}}}$, 0.25 λ peak-to-valley depth, distance of the grooves $d=2\lambda$), a foam-attached target (flat foil plus 5λ thick uniform foam layer at ${n}_{{\rm{e}}}=1{n}_{{\rm{c}}}$) and a simple target with an exponential density ramp (5λ thick, ${n}_{{\rm{e}}}=40{n}_{{\rm{c}}}$, length-scale of the ramp $l=0.65\lambda$, which is the optimal length-scale for resonance absorption at 30° [73]). Forty-nine macro-electrons per cell were used to sample the electron density.

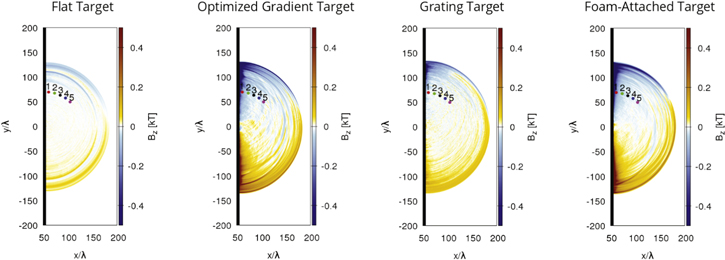

Figure 3 shows the $\hat{z}$ component (averaged over one laser cycle) of the magnetic field at $t=200\lambda /c$ for the considered targets. In the four cases the emission of a half-cycle electromagnetic burst from the back side of the target can be observed. The lowest intensity of the emitted radiation is observed for the flat target. All the other targets allow for a significant enhancement of electromagnetic emission with respect to the former. The strongest emission is obtained with the gradient target and the foam-attached target. The intensity of this electromagnetic burst can be directly correlated with the conversion efficiency of laser energy into electron kinetic energy, reported in figure 4. The absorption efficiency is $\approx 10 \%$ for the flat target, while it reaches $\approx 20 \%$ for the grating target and $\approx 60 \%$ for the other two targets. Figure 5 shows the $\hat{z}$ component of the magnetic field measured by 'probes' 1 and 3 (see figure 3). The decay time of the signal is of the order of several tens of $\lambda /c$, which implies a typical frequency of few tens of THz for $\lambda =0.8\,\mu {\rm{m}}$.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Figure 6 shows the squared amplitude of the Fourier transform of the signal detected by probes 1 and 3 for the optimized gradient and the foam-attached targets. The signal is broadband between few THz and ≈100 THz. Limited differences can be observed in the spectra obtained with the two targets. These results confirmed that, as previously suggested [12], the THz emission from a target with a controlled plasma gradient is significantly higher than from a simple flat foil. The grating target allows for a moderate enhancement of the THz emission. On the other hand, using foam-attached targets the emission intensity is comparable with that obtained with the gradient target. However, foam-attached targets do not require a fine control of the laser temporal shape nor a pre-heating pulse in order to obtain a tailored gradient. This relaxes the experimental set-up, while still allowing for a significant THz emission.

Zoom In Zoom Out Reset image size

Our results show that structured targets can be used to optimize laser-plasma coupling for a variety of applications. Here we have considered two specific target designs irradiated at laser intensities readily available in existing laser facilities: grating targets and foam-attached targets. Irradiating grating targets with an angle of incidence close to the one expected for surface plasmon resonance allows a significant enhancement of HHG with respect to simple flat targets. Foam-attached targets consisting of solid foils coated with a near-critical layer allow one to strongly enhance the laser-to-electrons conversion efficiency; this leads to an increase of the maximum energy and of the total charge of the TNSA ions. Finally, numerical simulations suggest that gratings and multilayer targets are a promising solution for the generation of electromagnetic bursts at THz frequencies, since in both cases a strong enhancement of THz emission with respect to simple flat targets is observed.

We gratefully thank Anna Grassi (Pierre et Marie Curie University, Paris and University of Pisa, Italy) for providing assistance in the use of Smilei PIC code.

The research leading to these results has received funding from the European Research Council Consolidator Grant ENSURE (ERC-2014-CoG No. 647554). We also acknowledge IscraC and LISA access schemes to MARCONI HPC machine at CINECA(Italy) via the projects LAST and SNAP.
