Open heavy flavor in QCD matter and in nuclear collisions

Early evaluations of HQ transport coefficients in deconfined matter were carried out using perturbative Born diagrams for cross sections off thermal partons, with a Debye screening mass ${m}_{D}={gT}$ introduced as an infrared regulator into the (dominant) t-channel gluon exchange propagator [41]

$$\begin{eqnarray}&&{D}_{g}=\displaystyle \frac{1}{(t-{m}_{D}^{2})},\end{eqnarray} \tag{ 18 }$$

where t is the four-momentum transfer in the scattering. Subsequently, these calculations have been routinely repeated to serve as a benchmark, and will be referred to as 'schematic leading-order (LO) pQCD' in the following. Even for a coupling constant as large as ${\alpha }_{s}={g}^{2}/4\pi =0.4$, which produces appreciable total cross sections of a few millibarns, the predominantly forward scattering results in friction coefficients for charm (bottom) quarks reaching about $A(p=0)\simeq 12(5)$ MeV, with a weak momentum dependence. The corresponding thermal relaxation times, ${\tau }_{Q}\simeq 15-20(40)$ fm c^–1 (translating into a spatial diffusion coefficient ${D}_{s}(2\pi T)\simeq 30$), are quite a bit longer than the typical QGP lifetime of about 5–10 fm c^–1 in central heavy-ion collisions at RHIC and LHC energies. When the first RHIC data on HF spectra and elliptic flow in Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}=200$ GeV were published [42, 43], it became clear that much shorter thermalization times are required to account for the strong medium modifications implied by these data (and subsequently by LHC data). A non-perturbative resonance model [31, 32], which gave a fair description of these first data, led to an initial estimate of the diffusion coefficient of ${D}_{s}(2\pi T)\simeq 4-6$.

Several developments in the perturbative framework have been carried out since then. In [44, 45], the schematic screening in equation (18) has been improved following the methods of [46] by matching a hard-thermal loop (HTL) calculation of the gluon self-energy for small momentum transfers, t, to a perturbative (unscreened) calculation at large t. This effectively leads to a reduction in the screening of the gluon exchange propagator, which may be represented as

$$\begin{eqnarray}&&{D}_{g}=\displaystyle \frac{1}{t-{{rm}}_{D}^{2}}.\end{eqnarray} \tag{ 19 }$$

Numerically, the effective reduction parameter turns out to be quite small, $r\simeq 0.2$, which produces a substantial increase (by about a factor of two) of the energy loss of a heavy quark for a typical strong coupling constant of ${\alpha }_{s}$ $\simeq$ 0.2. It has furthermore been argued [44, 45] that the running of the QCD coupling constant ought to be accounted for down to soft scales, rising up to values of ${\alpha }_{s}$ $\simeq \,1$ for small $| t|$. When combining the running coupling with the reduced Debye screening, the charm-quark friction coefficient (or thermalization rate) increases by a factor of 5–10 over the schematic fixed-coupling/-Debye mass scheme at small charm-quark momenta [45]. A matching of the HTL calculations at low $| t|$ to pQCD scattering at high $| t|$ has also been utilized in the calculations of the transport coefficients by the Torino group (or POWLANG (=POWHEG-Langevin, where POWHEG stands for positive weight high-energy generator [47]) approach) [36, 48], but with a fixed Debye mass as obtained from weak-coupling calculations and a coupling constant running with temperature (not with momentum transfer) [49]; in particular, the calculated longitudinal diffusion coefficient has been used to fix the friction coefficient via the Einstein relation. This leads to a significantly smaller thermalization rate at zero charm-quark momentum, but also to a different momentum dependence which is initially rising with p.

In a spirit similar to the implementation of [44, 45], the HQ–medium interactions have been calculated in the dynamical quasiparticle model using elastic Born cross sections with an infrared enhanced coupling constant [50]. In this calculation the HQ transport is coupled to a bulk medium whose equation of state is consistent with lQCD. The results for the charm-quark relaxation rate in this approach are smaller by about a factor of ∼2–3 compared to the HTL-inspired scheme with running coupling and reduced Debye mass. These transport coefficients have been subsequently employed in the PHSD (parton-hadron string dynamics) transport model [40, 51].

A large increase in the HQ thermalization rate raises the question of higher order corrections. In [52] the convergence of the perturbative expansion for the HQ transport coefficient has been scrutinized. It was found that even for a strong coupling constant as small as ${\alpha }_{s}=0.03$ (corresponding to g_s = 0.6) the next-to-leading order (NLO) correction is around a factor of two (and further growing for larger values of ${\alpha }_{s}$). This gives little hope for a rigorous perturbative evaluation of HQ transport, but rather calls for non-perturbative methods. For example, it would be of interest to carry out a ladder resummation of the infrared-augmented one-gluon exchange interaction and check for the appearance of bound-state solutions.

A large running coupling toward small momentum transfers in the one-gluon exchange interaction corresponds to a strong Coulomb force on the heavy quark at large distances. However, in the QCD vacuum, the long-distance part of the potential between a static color charge and its anti-charge is characterized by a linearly increasing 'string' interaction, presumably induced by gluonic condensates. The pertinent Cornell potential,

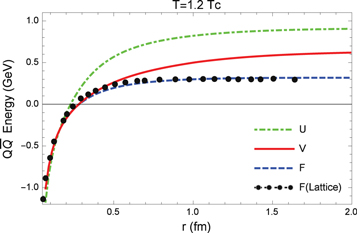

$$\begin{eqnarray}&&V(r)=-\displaystyle \frac{4}{3}\displaystyle \frac{{\alpha }_{s}}{r}+\sigma r,\end{eqnarray} \tag{ 20 }$$

was originally inferred from a successful description of the vacuum charmonium and bottomonium spectra [53] and is now well established from lQCD [16]. A key question in QGP research is how this fundamental force changes in the medium. Lattice-QCD computations of the free energy at finite temperature indicate that remnants of the confining force survive in the QGP, possibly up to 2 ${T}_{\mathrm{pc}}$ [54]. Thus, string-like interactions are likely to play an important role for HQ interactions when approaching ${T}_{\mathrm{pc}}$ from above. As elaborated in section 1.2, an extension of the potential model to finite temperature may provide an opportunity to include non-perturbative interactions in the description of open and hidden HF particles in QCD matter at moderate temperatures. This can be realized in the thermodynamic T-matrix formalism, which has been widely used in other contexts, such as the nuclear many-body problem [55], electromagnetic plasmas [56], or cold atomic gases [57]. In [58], the T-matrix formalism has been deployed to self-consistently evaluate HQ and quarkonium properties in the QGP. With additional relativistic (magnetic) corrections to the static potential [59], and an approximate description of vacuum spectroscopy, a comprehensive treatment of HF properties in the QGP can be carried out. Euclidean correlators, susceptibilities and spectral functions can be calculated and tested against lQCD results, as well as transport properties which can be implemented into URHIC phenomenology. In particular, the in-medium T-matrix for heavy–light parton scattering can be straightforwardly applied to calculate HQ transport coefficients using equation (12) [58, 60, 61]. A critical input to this approach is the two-body interaction kernel, i.e., the HQ potential. Ideally, one could take it directly from lQCD. However, lQCD computations rather provide the free (${F}_{Q\bar{Q}}$) and internal (${U}_{Q\bar{Q}}$) energies, which strictly speaking are not potentials. However, they have been used to bracket the uncertainty in the potential definition; the internal energy leads to much stronger interactions and is clearly preferred over the free energy when carrying out quarkonium [62–64] and open HF phenomenology [65] at RHIC and LHC energies. Most notably, when using the free energy, the calculated suppression of the ${\rm{\Upsilon }}(1S)$ state is larger than observed [66, 67], and, pertinent to the present topic, the calculated elliptic flow of open HF particles is much too small [68]. Recent progress in determining the underlying HQ potential has been made by directly calculating the static free and internal energies from the T-matrix [70]. It turns out that large imaginary parts in the single HQ self-energies as well as in the potential induce substantial deviations from the free energy (the latter emerges as potential in the limit of small imaginary parts, e.g., in the weak-coupling limit). Remarkably, the in-medium potential, V, gives rise to a long-range (non-Coulombic) force which is neither present in F nor in U, see figure 1. This has important consequences for the HQ transport coefficient, which for low momenta turns out to be larger than when U is assumed as potential. These results are not unlike the ones found in [54] where a two-parameter ansatz for the spectral function with a functional form adopted from HTL perturbation theory was used for the extraction of the potential. On the other hand, in [71] the (real part of the) potential turns out to be close to the free energy. More work is needed to clarify the differences in these findings.

Zoom In Zoom Out Reset image size

An in-medium Cornell potential also underlies the collisional dissociation approach for HF propagation in the QGP adopted in the model by Vitev et al [72]: the propagating heavy quarks can form in-medium D- and B-meson bound states which subsequently dissociate again, and so on. As in [31, 60], the presence of such mesonic correlations in the QGP has been found to be instrumental in generating sufficient suppression of the HF spectra at RHIC, and later at the LHC [72].

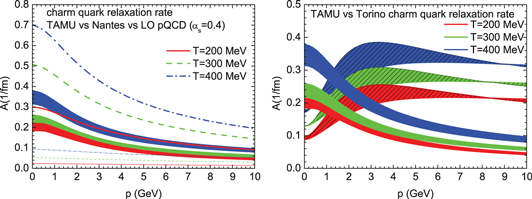

The momentum dependence of the charm-quark friction coefficient (or thermalization rate) is summarized in figure 2 for several of the above discussed approaches, as a function of three-momentum and for several temperatures. The schematic LO pQCD approach [41] with fixed coupling (${\alpha }_{s}=0.4$) and Debye mass gives relatively small values of around 0.05 fm⁻¹, with a weak momentum dependence. In the HTL approach of the Torino group (as implemented in the POWLANG HF transport approach for URHICs) [36, 48], much larger values are found (by a factor of ∼3–4 at low p), which is in part due the improved treatment of the screening and in part due to the procedure of inferring $A(p)$ from the longitudinal momentum diffusion coefficient, ${B}_{1}(p)$ (also, the charm-quark mass is m_c = 1.3 GeV). In particular, the latter produces a momentum dependence of the friction coefficient which increases with p before approximately leveling off. In contrast, the increase in soft HQ interactions due to a reduced screening mass and running coupling constant at low momentum transfers [44, 45] (as implemented in the MC@sHQ+EPOS (=Monte-Carlo at heavy quarks in EPOS, where the latter is spelled out in [75]) [73, 74] and BAMPS (=Boltzmann approach to multi-parton scatterings) [38, 76] HF transport approach) leads to a marked enhancement of the friction coefficient at low charm-quark momenta, by up to an order of magnitude over the schematic LO pQCD benchmark, while at high momenta it falls below the HTL approach of [36, 48]. The T-matrix approach (as used in the TAMU (=Texas A&M University) HF transport approach [65, 77]) also predicts a marked low-momentum enhancement of the thermalization rate, but generated by near-threshold resonances as a consequence of the ladder resummation. At high momenta it tends toward the schematic LO pQCD results. The T-matrix results have a slightly different temperature dependence [58, 60] than the pQCD-like approaches, with a relatively larger interaction strength near ${T}_{\mathrm{pc}}$, falling off at higher T as the resonances dissolve. This is even more pronounced with the newly derived potential [70] where the low-momentum friction coefficient decreases with temperature.

Zoom In Zoom Out Reset image size

Radiative ($2\to 3$) scattering processes are suppressed compared to elastic scattering with increasing mass of the incoming particle(s). For example, in electrodynamics, the radiative energy loss of a muon is parametrically suppressed relative to that of an electron by the fourth power of the mass ratio, ${({m}_{e}/{m}_{\mu })}^{4}$. The reason is the suppression of the energy relative to the momentum transfer, ${q}_{0}^{2}\sim {\vec{q}}^{\,4}/{m}_{Q}^{2}\ll {\vec{q}}^{\,2}$ (as discussed in the introduction), which renders the emission of an on-shell gluon (or photon) with ${q}^{2}=0$ unfavorable, at least as long as the three-momentum transfer is small. Within QCD, the pertinent suppression of forward-angle gluon emission was termed the 'dead cone' effect [78]; subsequently, it was argued that medium-induced gluon radiation can fill this dead cone, while a depletion persists for large energies of the emitted gluon [79, 80]. For sufficiently energetic heavy quarks, the mass effect is expected to cease and the radiative energy loss to take over from the elastic one [81], since the energy tends to be radiated in large quantities per scattering event. On the other hand, at the level of the nuclear modification factor in URHICs, also elastic scatterings with typically smaller energy loss can lead to a significant suppression effect due to the rather steeply falling initial spectra. Even for light-parton jet quenching, the quantitative role of elastic scattering has not yet been settled; e.g., in a pQCD thermal-field theory framework, the elastic contribution to the nuclear modification factor, ${R}_{\mathrm{AA}}$ (see section 3.1.3 for its definition), of pions remains significant at high p_T, despite the much smaller energy loss [82].

Heavy-flavor observables at intermediate and high p_T thus provide an excellent tool to map out the transition from a predominantly elastic- to radiative-scattering regime (and, in principle, as a function of temperature). The availability of two different HQ masses (charm and bottom) adds a further handle to determine this transition and test underlying mechanisms. Toward this end, several strategies have been pursued thus far. In [32, 36, 40, 48, 60, 77, 83] (UrQMD, POWLANG, PHSD and TAMU models), an absolute determination of the elastic contribution was attempted to infer the onset of radiative contributions by deviations from the experimental data beyond a certain p_T. Alternatively, in the MC@sHQ+EPOS [45, 73], Vitev et al [72], BAMPS [28, 38], and Cao et al/Duke [84, 85] models, both elastic and radiative contributions are included in a simultaneous best fit to data. Early on it was already realized that radiative energy loss alone, which was able to describe light-hadron suppression at RHIC, is insufficient to account for the suppression of HF decay electrons at RHIC [86].

The evaluation of HQ radiative energy loss has thus far been mostly based on pQCD. One starts from the elastic heavy–light parton scattering diagrams, augmented with the radiation of a gluon, albeit in different approximation schemes. In [87], within the HTL framework, the radiative energy loss rate for a heavy quark has been expanded in the number of HQ scattering events, i.e., in its inverse mean-free path. This is also known as an opacity expansion which, in particular, accounts for a finite size of the QCD medium, as originally developed for light-parton jet quenching [88]. The extension to heavy quarks [87] includes recoil effects of the plasma partons and the possibility that the initial heavy quark is produced off its mass shell and goes on-shell by radiating a gluon. The approach used in MC@sHQ+EPOS [73, 89] and BAMPS [28] utilizes the Born diagrams for elastic parton scattering with a radiated gluon [90] extended to a heavy quark in a regime of 'intermediate' energies where the mass effect can be argued to largely suppress coherence effects known to be important for light partons. In this framework the radiative $2\to 3$ cross section can be approximately cast into a factorized form of an elastic cross section times a probability of radiating an extra gluon (${P}_{g}\propto {\alpha }_{s}$), schematically given as

$$\begin{eqnarray}&&{\rm{d}}\sigma ({Qp}\to {Qpg})\simeq {\rm{d}}\sigma ({Qp}\to {Qp})\ {P}_{g}\ \ \quad (p=q,\bar{q},g).\end{eqnarray} \tag{ 21 }$$

To account for interference effects, in particular for a suppression of gluon emission if the latter is characterized by a formation time longer than the time between subsequent HQ scatterings, a practical prescription has been implemented in the BAMPS model [28]. It amounts to vetoing the gluon emission process if the HQ mean-free path, λ, is shorter than a fraction ${x}_{\mathrm{LPM}}$ of the gluon formation time, ${\tau }_{\mathrm{form}}$, i.e., $\lambda \lt {x}_{\mathrm{LPM}}{\tau }_{\mathrm{form}}$, with $0\lt {x}_{\mathrm{LPM}}\lt 1$ a free parameter. A different implementation of coherence effects is used in the MC@sHQ+EPOS model [91], where a suppression factor has been deduced assuming that multiple scatterings during the formation time can be represented by a single 'effective' scattering center with modified formation length. Further quantitative differences in these two implementations include the choice of charm-quark mass, m_c = 1.5 GeV [91] versus 1.3 GeV [28], and the use of finite versus zero mass for the radiated gluons, respectively.

Investigations of D-meson properties in hadronic matter have been carried out in several approaches to date, e.g., QCD sum rules [92, 93] and many-body theory [94–96]. Until recently, their focus was mostly on D-meson spectral properties, including mass shifts and in-medium broadening, while transport properties did not receive much attention. In 2011 a series of works were conducted to investigate the latter.

In [97] heavy-meson chiral perturbation theory was used to calculate the D-meson diffusion constant in a low-temperature pion gas using the π-D scattering amplitude to lowest order in the couplings (Born amplitudes). When extrapolated up to a temperature of T = 100 MeV (which might be beyond the applicability of the approximations), a relaxation rate of ${\gamma }_{D}$ $\simeq$ 0.05 fm⁻¹ for zero-momentum D mesons was found. In [98], scattering amplitudes of D mesons off pseudoscalar (π, K, η) and vector mesons (ρ, ω, ${K}^{* }$) as well as baryons and anti-baryons (N, $\bar{N}$, Δ, $\bar{{\rm{\Delta }}}$) were adopted from existing calculations based on effective Lagrangians. The resummation (unitarization) underlying these amplitudes led to significantly smaller values for the p = 0 relaxation rate, by about a factor of 10 at T = 100 MeV (where essentially only pions contribute). However, when extrapolated to temperatures around ${T}_{\mathrm{pc}}$, the D-meson relaxation rate increases to ∼0.08 fm⁻¹, or a relaxation time of ∼12 fm, which is comparable to the fireball lifetime in URHICs. The pertinent spatial diffusion coefficient amounts to ${D}_{s}(2\pi T)\simeq 6$, not far from estimates on the QGP side within the T-matrix formalism [58]. In [99] a similar set of hadronic scattering partners was employed with the amplitudes treated in Born approximation. At T = 100 MeV the relaxation rate was calculated to be rather large, ${\gamma }_{D}$ $\simeq$ 0.08 fm⁻¹, although the temperature dependence is more mild than in [97], see figure 3. Furthermore, using unitarized amplitudes with interaction vertices from HQ chiral perturbation theory, a pion gas result of ${\gamma }_{D}$ $\simeq$ 0.005 fm⁻¹ was found in [100], consistent with [98]. A more complete calculation [101] including scattering off the light pseudoscalar octet as well as nucleons and Δs led to good agreement with the full results of [98], see figure 3. This suggests that the use of resummed amplitudes, as well as excited states in hadronic matter, is critical to arrive at reliable results.

Zoom In Zoom Out Reset image size

The effects of higher excited hadronic states were estimated in [102] using the idea [98] that D-meson cross sections for scattering off light mesons (m) and baryons (b) can be approximated by ${\sigma }_{{Dm}}=7-10$ mb and ${\sigma }_{{Db}}=10-15$ mb, respectively. These values, motivated by constituent light-quark counting arguments, were found to reproduce the results of the microscopic calculations for ${\gamma }_{D}$ in [98] reasonably well. Up to T = 130 MeV the contribution of excited states is found to be negligible, but it increases the D-meson relaxation rate by up to ∼60% at T = 170 MeV, see figure 3.

The transport of B mesons in hadronic matter was also studied. In [103], Born amplitudes off pseudoscalar mesons from heavy-meson chiral perturbation theory where employed, leading to a small relaxation rate of ${\gamma }_{B}$ $\simeq$ 0.001 fm⁻¹ at T = 100 MeV (the D-meson rate was found to be only slightly larger in this framework). In the unitarized calculation of [104], a significantly larger value was obtained, close to ${\gamma }_{B}=0.003\,{\mathrm{fm}}^{-1}$, almost a factor of two smaller than for D-mesons in the same framework [100]. A more complete calculation [105] including ${B}^{* }$ resonances and scattering off N and Δs gave similar results at T = 100 MeV, but a significant increase of $\gtrsim$50% for T $\geqslant$ 140 MeV.

The extraction of transport coefficients in lQCD is rather challenging, but progress is being made. For the HF case one usually computes the euclidean $Q\bar{Q}$ correlation function in the vector channel, transforms it to the spectral function in Minkowski space (requiring an inverse integral transform), and then takes the zero-energy limit to extract the friction coefficient and from it the spatial diffusion coefficient, D_s. This has been carried out in quenched QCD [106], yielding a result of ${D}_{s}(2\pi T)\simeq 2\pm 1$ without a significant temperature dependence over the range T = 1.4–3 ${T}_{{\rm{c}}}$ (where ${T}_{{\rm{c}}}\simeq 270$ MeV). Alternatively, in the static limit the diffusion coefficient can be extracted from the color-electric field correlator which has been simulated in quenched QCD in [17]. Here the computed diffusion coefficient turned out to be ${D}_{s}(2\pi T)\simeq 6\pm 2$ for T = 1.1–1.5T_c and possibly increasing at higher T. A more recent quenched lQCD extraction based on the electric-field correlator method gives ${D}_{s}(2\pi T)\simeq 3.7-7$ for T = 1.5 T_c [107], consistent with the previous analysis [17].

Important questions remain about the microscopic mechanisms underlying the rather small values of the spatial HF diffusion coefficient, D_s. Detailed comparisons to model calculations are one way to gain insights, which will be done in section 2.2.5 in connection with figure 4. Alternatively, within lQCD, information about the effective degrees of freedom of the QGP at a given temperature can be obtained from generalized susceptibilities. These can be used to correlate the (conserved) charm quantum number with other conserved quantum numbers (e.g., baryon charge or strangeness), to test whether the prevalent degrees of freedom carrying charm are mesonic/diquark-like, or if they are quark-like. This has been scrutinized in a recent work [108], and it was found that hadronic degrees of freedom play a significant role in contributing to the partial charm-generated pressure above ${T}_{\mathrm{pc}}$, up to at least $T\simeq 1.2{T}_{\mathrm{pc}}\simeq 200\,\mathrm{MeV}$. This finding is quite consistent with the picture that broad D-meson resonances gradually dissolve with increasing temperature of the QGP, as predicted within the T-matrix approach [58, 60, 109]. It is furthermore quite intriguing that the corresponding T-matrix calculations of the HQ diffusion coefficient [58, 60] are comparable to the lQCD results discussed above.

Zoom In Zoom Out Reset image size

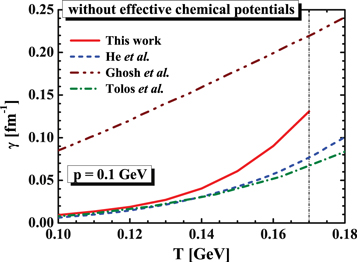

In figure 4 we present a summary of results for the spatial diffusion coefficient, D_s, scaled by the thermal wavelength. We compare the quenched lQCD results from section 2.2.4 to various model calculations of elastic charm-quark scattering in the QGP as discussed in section 2.2.1, corresponding to the $p\to 0$ limit of the friction coefficients displayed in figure 2. The schematic LO pQCD calculations with fixed coupling constant (${\alpha }_{s}=0.4$) and Debye mass (m_D = gT), as well as the T-matrix calculations with the free energy as potential, are significantly above the lQCD values. On the other hand, the T-matrix results with the internal energy as potential, the Torino and Nantes HTL/pQCD calculations, as well as the infrared-enhanced pQCD implementation into the dynamical quasiparticle model [50] (not shown), are largely within the range of the quenched lQCD data. The T-matrix and Torino results show a significant temperature dependence, while the lQCD results are currently inconclusive on this aspect. Also shown is the calculation of the D-meson diffusion coefficient in hadronic matter based on effective interactions [98]. As mentioned earlier, its temperature dependence and values extrapolated to the pseudo-critical region are suggestive for a continuous transition into the quark-based calculations, together with a shallow minimum structure around ${T}_{\mathrm{pc}}$ [98, 110]. We also note that calculations of D_s based on the bottom-quark friction coefficients [31, 36, 45, 58, 62] give similar results to the charm-quark ones, within 20% for most of the approaches; in other words, the charm- and bottom-quark friction coefficients, A(p = 0), differ by approximately the mass ratio ${m}_{b}/{m}_{c}$. Since the masses are divided out in converting A(p = 0) to D_s, the latter can indeed serve as a reasonably universal measure of the interaction strength in the QGP.

The diffusion coefficient has also been computed in the strong-coupling limit of conformal field theories (CFTs) by using the AdS/CFT correspondence principle. The result for the HQ drag (or friction) coefficient in a super-Yang–Mills (SYM) plasma with N_c fundamental charges has been worked out as [23–25]

$$\begin{eqnarray}&&{\gamma }_{Q}^{{\rm{SYM}}}=\displaystyle \frac{\pi \sqrt{\lambda }{T}_{\mathrm{SYM}}^{2}}{2{m}_{Q}},\end{eqnarray} \tag{ 22 }$$

which turns out to be proportional to the square root of the 't Hooft coupling, $\lambda ={g}_{\mathrm{SYM}}^{2}{N}_{c}$, highlighting its nonperturbative nature. Interestingly, the AdS/CFT friction coefficient (thermalization rate) exhibits the factor $T/{m}_{Q}$ characteristic for the time delay in the thermalization of a Brownian particle. Several caveats arise in converting this result into an estimate for the QCD plasma [111]. When rescaling the temperature of the SYM plasma to match the degrees of freedom (energy density) of the QCD plasma, and matching the coupling constant to an ${\alpha }_{s}$ estimated from the lQCD HQ free energies, one obtains ${\gamma }_{Q}={{CT}}^{2}/{m}_{Q}$ with C $\simeq$ 1.5–2.5, yielding ${\gamma }_{Q}\simeq 0.3-0.5\,{\mathrm{fm}}^{-1}$ at T = 250 MeV. The pertinent diffusion coefficient (not shown in figure 4) turns out to be rather similar to the pQCD results with running coupling and reduced Debye mass [44, 45] (Nantes, pink dash-dotted line in figure 4).

The diffusion of heavy flavor in the QGP and hadronic phase of URHICs needs to be interfaced by a transition of the degrees of freedom, from charm and bottom quarks to HF hadrons. Unlike in a macroscopic modeling of the bulk evolution, e.g., with hydrodynamics, where this transition is encoded in the equation of state, the hadronization mechanism for HF transport requires a microscopic treatment. This is both a challenge and an opportunity to learn about this fundamental process in QCD.

In the vacuum, the common procedure to hadronize quarks at high momentum is the use of an empirical fragmentation function, ${D}_{q}^{h}(z)$, which describes the probability distribution of producing a hadron of momentum p_h from a parent quark of momentum p_q, with the momentum fraction $z={p}_{h}/{p}_{q}$. Different quark species (as well as gluons) are modeled with different distributions which, once fixed (say, in ${e}^{+}{e}^{-}$ annihilation), are assumed to be universal for other collision systems. For HQ fragmentation a widely adopted form is the Peterson fragmentation function [112],

$$\begin{eqnarray}&&{D}_{Q}^{H}(z;{\epsilon }_{Q})=\displaystyle \frac{N}{z{[1-(1/z)-{\epsilon }_{Q}/(1-z)]}^{2}},\end{eqnarray} \tag{ 23 }$$

where N is a normalization factor to ensure $\int D(z){\rm{d}}{z}=1$. The parameter ${\epsilon }_{Q}$ controls the hardness of the distribution, with a maximum at $z\simeq 1-2{\epsilon }_{Q}$ and a width of $\sim {\epsilon }_{Q}$. A standard choice is ${\epsilon }_{c}=0.04$ and ${\epsilon }_{b}=0.005$, in line with the expected behavior of ${\epsilon }_{Q}\propto 1/{m}_{Q}^{2}$ [112]. An alternative, more involved, modeling of the HQ fragmentation function has been developed in connection with fixed-order-next-to-leading-logarithm (FONLL) calculations of HQ production [113, 114], where the Peterson framework does not apply in a straightforward way.

At low momentum, the fragmentation picture breaks down, and other mechanisms must set in. In particular, a recombination of heavy quarks with surrounding light quarks or anti-quarks has been suggested [115, 116] and found to account for flavor asymmetries in D-meson production in elementary hadronic reactions, especially at forward rapidities through recombination with valence quarks or anti-quarks of the projectile [117, 118]. The recombination picture is even more compelling within a QGP cooling through the transition temperature, where an ample abundance of thermal light quarks and anti-quarks provides a natural source to color-neutralize heavy quarks. Initial works have implemented this idea using an instantaneous approximation using 3D space-momentum Wigner functions to convert charm quarks into D mesons (or charmonia) with comoving light (or charm) quarks [119, 120]. Despite the fact that the major momentum fraction is carried by the heavy quark, a large effect on the D-meson elliptic flow in URHICs at low and intermediate momenta was found, as being imprinted by recombination with light quarks. One expects this mechanism to reach out to higher transverse momenta than for light hadrons since, at comparable momenta, the velocity of heavy quarks is smaller than for light quarks thus facilitating recombination with comoving thermal partons. A more rigorous implementation of the recombination mechanism at low and intermediate p_T should account for energy conservation (i.e., be formulated as a rate) and satisfy thermal equilibrium as the correct long-time limit. This is particularly important in situations with significant space-momentum correlations as is the case in non-central heavy-ion collisions with a collectively expanding partonic source with elliptic flow [121]. Such correlations are not accounted for in coalescence formalisms with global (momentum-space only) or factorized momentum- and coordinate-space distribution functions (such as usually done with 3D Wigner distributions). In the resonance recombination model (RRM) the hadronization of heavy quarks is described by scattering off thermal light quarks into broad D-meson-like resonances [122, 123], which by construction conserves 4-momentum and recovers the thermal-equilibrium limit. In the HF context, the RRM was implemented on a hydrodynamic hypersurface with elliptic flow [77]; it was shown that a HQ distribution in local equilibrium, with an elliptic flow as dictated by the hydrodynamic velocity fields, indeed maps into a D-meson distribution in local equilibrium with the correct mesonic elliptic flow⁴ . Utilizing the heavy–light quark T-matrix interactions, which generate resonances close to T_c, to compute the HQ recombination rates within the RRM [77, 110] puts the hadronization process on the same footing as the non-perturbative HQ diffusion processes (we recall in passing that the confining force plays an essential role in these interactions). In this picture, hadronization is simply a manifestation of the increasing strength of HQ interactions with the partonic medium as ${T}_{\mathrm{pc}}$ is approached from above.

A quantitative treatment of HQ recombination processes needs to allow for the possibility of forming higher excited hadrons, in particular ${D}^{* }$ mesons, ${{\rm{\Lambda }}}_{c}$ baryons and D_s mesons in the charm sector (and likewise for bottom). Even if these particles are not measured, they can have a significant impact on the D-meson abundance through depleting the charm quarks available for D-meson recombination, the so-called 'chemistry effect' (hadrons containing more than one charm quark or anti-quark, including double-charm baryons and charmonia, give small corrections in this context as their abundance only constitutes up to a few percent of the total charm yield). For example, the fraction of D_s and ${{\rm{\Lambda }}}_{c}$ could be significantly enhanced in URHICs relative to pp collisions in the presence of coalescence processes.

A 'hybrid' in-medium hadronization scheme, which embeds fragmentation into an environment of thermal partons, has recently been implemented into the POWLANG transport approach [124]. Here, the hadronization of a heavy quark propagating in a hydrodynamic background is carried out once it enters a fluid cell which has cooled down to a pseudo-critical temperature of ${T}_{\mathrm{pc}}=155$ MeV. The thermal light- and strange-quark distributions in the rest frame of the fluid cell are sampled and boosted into the laboratory frame where a string is constructed by joining the endpoints of the heavy- and light-quark positions. These configurations are then passed to PYTHIA 6.4 [125] to simulate the fragmentation of the string into hadrons. In this way the HF fragmentation process inherits collective flow of the expanding medium. By the nature of the fragmentation process, where the strings, once formed, are hadronized as in vacuum, the HF hadro-chemistry remains rather similar to that in the vacuum; in particular, it does not induce a sizeable enhancement of the ${D}_{s}^{+}/D$ or ${{\rm{\Lambda }}}_{c}^{+}/D$ ratios relative to pp collisions.

In practice, the question arises how to disentangle the effects of the QGP phase, hadronization (via coalescence) and hadronic phase from HF observables in URHICs. In [110] it was been suggested that heavy-strange mesons (D_s and B_s) can help in this respect, based on two main ideas. First, the suppression of strangeness in elementary (pp) collisions is lifted in heavy-ion collisions reflected in the near-equilibrium level of strange-particle production (quantified by a strangeness fugacity ${\gamma }_{s}$ $\simeq$ 1). Consequently, if HF recombination is effective, it would manifest itself as an increase in the ${D}_{s}/D$ (or ${B}_{s}/B$) ratio in AA relative to pp collisions. Moreover, the p_T dependence of this ratio could reveal how far out coalescence mechanisms are operative, especially since the small mass difference between strange and non-strange mesons renders a splitting in their nuclear modification factors due to collective flow a small effect. Second, it is expected that hadronic rescattering is much weaker for D_s than for D mesons, based on the picture that the coupling to the heat bath is mostly driven by the light-quark content of the hadron (the approximate constituent light-quark scaling of the D-meson interactions with light hadrons referred to in section 2.2.3 is one indication thereof; another one is the apparent earlier kinetic decoupling of multi-strange hadrons in the hadronic phase of URHICs, see, e.g., [126, 127] for recent works on this issue). This implies that the difference between the v₂ of D and D_s mesons can quantify the elliptic flow imprinted on the D during the hadronic phase, and thus serve as a measure of its hadronic transport coefficient. It furthermore turns out that the hadronic interactions do not have a large effect on the ${R}_{\mathrm{AA}}$ of the D mesons, presumably due to a compensation between the dropping temperature and increasing flow of the medium. This would be fortunate as to conserve the comparison of the D- and D_s-meson ${R}_{\mathrm{AA}}{\rm{s}}$ as a measure of coalescence processes.

We finish this section by illustrating the results for the coalescence probabilities of charm quarks as a function of their (transverse) momentum in URHICs for some of the implementations employed in the literature, c.f. figure 5. The three examples are based on rather different ingredients. The TAMU model [65, 77] (left panel) utilizes the RRM [122] with mesonic resonance rates for charm quarks of mass m_c = 1.7–1.8 GeV interacting with constituent thermal light quarks on a hydro hypersurface at T = 170 MeV, assuming a thermal hadro-chemistry. The Duke model [84] employs an instantaneous Wigner function approach [128] for charm quarks of mass m_c = 1.27 GeV with constituent thermal light quarks at T = 165 MeV where transverse-flow effects are simulated through an effective medium temperature; a hadro-chemistry is accounted for by coalescence into the ground and first excited states of D mesons and charmed baryons. In the PHSD transport model [40, 51], a Wigner function coalescence is implemented by a stochastic sampling of the local environment with charm quarks of mass m_c = 1.5 GeV, as given by the light-parton phase space distributions; the sampling is carried out when the PHSD bulk medium evolves through energy densities around ${\epsilon }_{\mathrm{pc}}$ $\simeq$ 0.5 GeV fm⁻³, representing the pseudo-transition region; also here the hadro-chemistry is accounted for through the inclusion of higher charm resonance states. The calculated coalescence probabilites in all three approaches share basic features, such as a maximum at low momentum and decreasing over a momentum range of a few times the HQ mass. The normalization of ${P}_{\mathrm{coal}}({p}_{t}\to 0)$ has been put to one in the TAMU and Duke models, while in the PHSD model it is below one and significantly depends on the assumed hadron radius in the Wigner function. A more rigorous way to determine the absolute normalization remains to be developed. The drop of ${P}_{\mathrm{coal}}({p}_{t})$ with increasing momentum is strongest in the Duke model, while it is weaker for PHSD and TAMU, possibly caused (at least in part) by the larger charm-quark masses used in the latter two models. We also note that other features of the coalescence process have significant impact on experimental observables, e.g., how the HQ momentum translates into a hadron momentum. In the Duke model, the net effect of heavy–light coalescence on D-meson observables turns out to be quite small, while is noticeable in PHSD, and still larger in the TAMU model. More detailed studies are needed to unravel the origin of these differences.

Zoom In Zoom Out Reset image size

In this section we return to the role that a 'mean-field' induced force could play in the propagation of heavy quarks in URHICs. The canonical environment for such a formulation are the earliest, off-equilibrium phases in the collision, where a high occupancy of gluonic modes is suggestive for a field description, or, from a slightly different viewpoint, a description in terms of a strongly coupled fluid without quasiparticle structure.

The latter approach has been adopted in [129], by employing the AdS/CFT duality to study the force needed to drag a heavy quark at constant velocity through an environment of two colliding (longitudinally Gaussian and transversely uniform) sheets of energy. When comparing the required force in this highly off-equilibrium medium to that of the equilibrium limit in the ${ \mathcal N }=4$ super-Yang–Mills plasma, it was found that the results are quite similar (within a few tens of percent) if evaluated at the same energy densities (or, equivalently, at the same 'pseudo'-temperatures extracted from different diagonal elements of the off-equilibrium stress-energy tensor). This suggests that the effects of the initial off-equilibrium phases on HQ diffusion in URHICs can be reasonably well approximated by the standard transport approach with coefficients extrapolated from the equilibrium theory at corresponding energy densities. In addition, a characteristic time delay in the impact of the initial medium on the HQ motion was found, on the order of 0.1–0.2 fm, which could serve as the absolute starting time for the transport simulation.

The gluon saturation approach has been followed in [130], by converting the gluonic field configurations obtained within the IP-glasma model [131] into off-equilibrium quantum-statistical gluon distribution functions, associated with a typical timescale of the inverse saturation momentum, ${\tau }_{\mathrm{glasma}}\sim 1/{Q}_{s}\sim 0.1-0.2\,\mathrm{fm}$ (not unlike the delay time found in the AdS/CFT approach discussed in the previous paragraph). This distribution has then been inserted into equation (12) to evaluate the HQ transport coefficients using the schematic LO pQCD matrix elements. The findings parallel those of the AdS/CFT approach, in that the HQ drag coefficient turns out to be very similar to the one in equilibrium provided the same total gluon density is enforced. It turns out to be larger than for a chemically equilibrated QGP at the same parton number (or energy) density, primarily due to the larger color factor in the pQCD HQ-gluon scattering amplitude relative to HQ-quark scattering.

A genuine mean-field contribution can also occur in later stages of the fireball evolution, e.g., due to an effective in-medium quark mass, ${m}_{Q}^{* }(T)$, when the quark propagates through regions with non-zero temperature gradient. The HQ mass is generally expected to increase with decreasing temperature of the QGP, as borne out of both perturbative and non-perturbative calculations (see, e.g., [15]). Thus, for a heavy quark propagating through an expanding fireball where the temperature decreases both with time and in outward direction, its 3-momentum is reduced due the pertinent mean-field force. This effect has been studied in relativistic Langevin simulations using the transport coefficients of [58] and found to soften the momentum spectrum while slightly reducing the elliptic flow, although both effects are quantitatively small (a few percent) [132]. Generally speaking, for large HQ scattering rates, corresponding to large imaginary parts in the self-energy, real parts tend to be rather structureless (by means of a dispersion integral) and the corresponding mean-field forces small. Repulsive forces on heavy quarks due to a vector mean-field in the QGP have been studied in the PHSD approach [51] and found to induce a hardening of the final D-meson spectra, enhancing the 'flow bump' in their ${R}_{\mathrm{AA}}$ and shifting it to slightly higher ${p}_{{\rm{T}}}$.

Heavy-ion collisions are a unique way to explore the phase diagram of QCD matter in the laboratory and study the properties of the QGP. The first fixed-target experiments with collisions of light nuclei at ultra-relativistic energies started in 1986 at the BNL AGS and at the CERN SPS. Heavy nuclei (Au and Pb) became available in the 1990s at both facilities. Since the year 2000, heavy-ion colliders are in operation, first at BNL (RHIC, first Au–Au collisions in 2000) and 10 years later at CERN (LHC, first Pb–Pb collisions in 2010).

The AGS and SPS fixed-target programs enabled the study of heavy-ion reactions at center-of-mass (CM) energies of $\sqrt{{s}_{\mathrm{NN}}}=1-20$ GeV per nucleon pair. In the heavy-ion program at the CERN SPS, open HF production was not measured directly. Indirect measurements based on the contribution of simultaneous semi-muonic decays of correlated $D\bar{D}$ pairs to the dimuon invariant-mass spectra were carried out in Pb–Pb and In–In collisions at $\sqrt{{s}_{\mathrm{NN}}}=17.2\,\mathrm{GeV}$ by the NA50 and NA60 collaborations [146, 147].

The RHIC began operation in 2000 with the capability of colliding nuclei from deuterons to Au at CM energies of up to 200 GeV per nucleon pair. Over the 15 years of data taking to date, several collision systems were studied at different collision energies. The luminosity for full energy Au–Au collisions was increased over the years from the design value of $2\cdot {10}^{26}\,{\mathrm{cm}}^{-2}\,{{\rm{s}}}^{-1}$ to about $5\cdot {10}^{27}\,{\mathrm{cm}}^{-2}\,{{\rm{s}}}^{-1}$ in the 2014 run. During years 2010, 2011 and 2014 a Beam Energy Scan (BES) campaign was conducted, taking data for Au–Au collisions at CM energies per nucleon pair of 62.4, 39, 27, 19.6, 14.5, 11.5 and 7.7 GeV. A summary of the data samples of heavy-ion collisions collected over this period is reported in table 1. Heavy-flavor results were reported by the PHENIX and STAR collaborations for Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}$ of 39, 62.4, 130 and 200 GeV, for Cu–Cu collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$, and for dAu collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$. Also proton–proton (pp) collisions at $\sqrt{s}=200\,\mathrm{GeV}$ were studied as a reference for heavy-ion collisions.

Table 1.  Summary of heavy-ion data taking periods at RHIC: collision systems, CM energies and total delivered integrated luminosity (from http://www.rhichome.bnl.gov/RHIC/Runs/).

	Year	Collision system	$\sqrt{{s}_{\mathrm{NN}}}$	Delivered int. lumi
			(GeV)	(${\mathrm{nb}}^{-1}$)
Run-1	2000	Au–Au	130	0.02
Run-2	2001/02	Au–Au	200	0.258
		Au–Au	19.6	$0.4\cdot {10}^{-3}$
Run-3	2002/03	d–Au	200	73
Run-4	2003/04	Au–Au	200	3.53
		Au–Au	62.4	0.067
Run-5	2004/05	Cu–Cu	200	42.1
		Cu–Cu	62.4	1.5
		Cu–Cu	22.4	0.02
Run-7	2006/07	Au–Au	200	7.25
Run-8	2007/08	d–Au	200	437
Run-10	2009/10	Au–Au	200	10.3
		Au–Au	62.4	0.544
		Au–Au	39	0.206
		Au–Au	11.5	$7.8\cdot {10}^{-3}$
		Au–Au	7.7	$4.23\cdot {10}^{-3}$
Run-11	2010/11	Au–Au	200	9.79
		Au–Au	27	0.063
		Au–Au	19.6	0.033
Run-12	2011/12	U–U	193	0.736
		Cu–Au	200	27.0
Run-14	2013/14	Au–Au	200	43.9
		Au–Au	14.5	0.044
		3He–Au	204	134
Run-15	2014/15	p–Au	200	1270
		p–Al	200	3970

The LHC accelerator started operation at the end of year 2009 with pp collisions at $\sqrt{s}=0.9\,\mathrm{TeV}$. Subsequently, protons were collided at CM energies of 7 TeV (in years 2010–2011), 2.76 TeV (in 2011), 8 TeV (in 2012), and 13 TeV (in 2015). Heavy-ion (AA) and proton–nucleus (pA) collisions are an integral part of the LHC physics program. A summary of the AA and pA data samples collected during the Run I of the LHC (2009–2013) is reported in table 2. The first two samples of Pb–Pb collisions were collected in years 2010 and 2011 at a CM energy of $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ per nucleon pair. About $10\,\mu {{\rm{b}}}^{-1}$ of integrated luminosity were delivered in 2010 and $166\,\mu {{\rm{b}}}^{-1}$ in 2011 to the three LHC experiments that took part in the heavy-ion program, namely ALICE (a detector dedicated to heavy-ion collisions), ATLAS and CMS. The next LHC run with Pb beams was conducted at the end of 2015 at $\sqrt{{s}_{\mathrm{NN}}}=5.02\,\mathrm{TeV}$. In 2013, pPb collisions were performed at the LHC at $\sqrt{{s}_{\mathrm{NN}}}=5.02\,\mathrm{TeV}$. All four main LHC experiments (ALICE, ATLAS, CMS and LHCb) took data. The delivered integrated luminosity was about $30\,{\mathrm{nb}}^{-1}$.

Table 2.  Summary of heavy-ion data taking periods during LHC Run I: collision systems, CM energies and total delivered integrated luminosity.

Year	Collision system	$\sqrt{{s}_{\mathrm{NN}}}$	Delivered int. lumi
		(TeV)	(${\mathrm{nb}}^{-1}$)
2010	Pb–Pb	2.76	0.010
2111	Pb–Pb	2.76	0.166
2013	p–Pb	5.02	30

The increase of the CM energy from fixed-target experiments to the colliders RHIC and LHC is reflected in a larger number of produced particles, a higher temperature of the created medium and a longer lifetime of the possible QGP phase. For example, the energy density of the medium estimated with the Bjorken formula for central Au–Au collisions at a nominal formation time of $1\,\mathrm{fm}{c}^{-1}$ increases from about $2\,\mathrm{GeV}{{\rm{f}}{\rm{m}}}^{-3}$ at $\sqrt{{s}_{\mathrm{NN}}}=19\,\mathrm{GeV}$ to about $5\,\mathrm{GeV}{{\rm{f}}{\rm{m}}}^{-3}$ at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ [159] and reaches about $14\,\mathrm{GeV}{{\rm{f}}{\rm{m}}}^{-3}$ in central Pb–Pb collisions at the LHC [160]. The decoupling time for hadrons at midrapidity increases by about 40% from top RHIC to top LHC energy, signaling that at higher collision energies the system lives longer and expands to a larger size at freeze-out [161]. Concerning HF hadron production, the cross section for $c\bar{c}$ and $b\bar{b}$ production in nucleon–nucleon collisions increases dramatically with increasing $\sqrt{{s}_{\mathrm{NN}}}$. A compilation of the measurements of ${p}_{{\rm{T}}}$-integrated charm and beauty production cross section in pp ($p\bar{p}$) and pA collisions as a function of $\sqrt{{s}_{\mathrm{NN}}}$ is reported in figure 6 (taken from [11, 156]). As will be discussed in the next section, the experimental results are described within uncertainties by calculations within perturbative QCD. The cross section for charm (beauty) production increases by about a factor of 10 (50) from RHIC to LHC energies.

Zoom In Zoom Out Reset image size

Open HF production is measured experimentally in proton–proton, proton–nucleus and nucleus–nucleus collisions exploiting various techniques. Charm and beauty hadrons can be fully reconstructed from their hadronic decays, or, alternatively, they can be studied inclusively by measuring electrons or muons from their semi-leptonic decays. Beauty production is also accessed via the inclusive ${\rm{B}}\to {\rm{J}}/\psi +X$ decay mode and by reconstructing jets of hadrons produced in the fragmentation of a beauty quark (b-jets). Experiments featuring vertex detectors with high spatial resolution, which are available at all four main LHC experiments, as well as at STAR and PHENIX at RHIC after their recent upgrades, can exploit the relatively long lifetime of D and B mesons to resolve their decay vertex from the interaction point. ${D}^{0}$, ${D}^{+}$ and ${D}_{s}^{+}$ mesons decay weakly with mean proper decay lengths $c\tau$ of approximately 120, 310 and 150 μm, respectively [162]. Beauty mesons have longer lifetimes than charmed hadrons: $c\tau \approx 500\,\mu {\rm{m}}$ for ${B}^{0}$, ${B}^{+}$ and ${B}_{s}^{0}$ [162], which makes it possible to disentangle the charm and beauty contributions in the sample of HF decay leptons. Most of the beauty-hadron decay channels proceed via $b\to c$ hadron cascades, giving rise to a topology that contains both a secondary and a tertiary decay vertex. In the remainder of this section the key points of the different experimental approaches to open HF reconstruction are briefly summarized.

Inclusive measurements of heavy-flavor decay leptons: open HF production is studied inclusively by measuring electrons and muons from semi-leptonic decays of charm and beauty hadrons, which are characterized by branching ratios (BRs) of the order of 5%–15% depending on the hadron species [162]. The crucial aspects are the lepton (electron, muon) identification and the subtraction of the background due to leptons not coming from HF hadron decays.

Electrons: for HF decay electrons, the various experimental collaborations have exploited different combinations of identification techniques, which are effective in different momentum ranges. The STAR [163] and ALICE [164] collaborations used specific ionization energy loss (dE/dx) measurements in combination with time-of-flight information at low momenta and with energy and shower shape from electromagnetic calorimeters at high momenta. In addition, in ALICE the signal from the Transition Radiation Detector was used in pp collisions [164]. In PHENIX, electron identification was performed using a ring imaging Cherenkov detector together with the information from an electromagnetic calorimeter [149]. ATLAS performed a measurement of HF decay electrons in pp collisions utilizing clusters in electromagnetic calorimeters matched to charged tracks [165]. The background electrons are dominated by photon conversions in the detector material and by Dalitz decays of ${\pi }^{0}$ and η mesons. Their contribution can be estimated using different techniques and subtracted statistically. Three main approaches to background estimation have been used: (i) low-invariant-mass ${e}^{+}{e}^{-}$ pairs (invariant-mass method, utilized by the STAR [166] and ALICE [156] collaborations); (ii) Monte Carlo simulation of background electrons from hadron decays (cocktail method, used in PHENIX [149] and ALICE [164]); (iii) special data taking with additional converter material of well defined thickness (converter method exploited in PHENIX [149]).

Muons: muons are tracked and identified using spectrometers located downstream of absorbers that stop the majority of the hadrons. The main background contribution is due to the decay in flight of pions and kaons and to hadrons punching through the absorber. It can be estimated via cocktail calculations, as done in PHENIX [167] and ALICE [168]. In ATLAS, the background is discriminated statistically based on a Monte Carlo template fit to the distribution of the difference between the track momentum measured in the muon spectrometer and that measured in the inner tracker, after accounting for energy loss in the calorimeters located in between the inner tracker and the muon spectrometer [165]. With the STAR apparatus, which does not include a dedicated muon spectrometer, muons were identified at very low momentum ($0.17\lt {p}_{{\rm{T}}}\lt 0.25\,\mathrm{GeV}{c}^{-1}$) by combining the measurements of dE/dx in the TPC and time-of-flight. The distribution of distance of closest approach (DCA) of the tracks to the primary vertex was then used to separate statistically muons from HF hadron decays from the dominant background due to muons from pion and kaon decays [169].

Cocktail subtraction methods use as input the yields and momentum/rapidity distributions of all relevant sources of background leptons, which are mainly pions, kaons and η mesons. Ideally, to reduce the uncertainties, this input should be taken from data measured with the same apparatus.

Dilepton invariant-mass analysis: heavy-flavor production can be studied via the contribution of simultaneous semi-leptonic decays of $D\bar{D}$ and $B\bar{B}$ pairs in the dilepton invariant-mass distribution. In particular, the open HF contribution is extracted from the intermediate-mass region, i.e., the region between the ϕ and the J/ψ peaks, where the main contributions to the dilepton spectrum are expected to be open HF decays, thermal radiation from the QGP and (at SPS energies) Drell–Yan dileptons. This technique was used in Pb–Pb collisions at the SPS with the NA50 [146] and NA60 [147] experiments to measure open-charm and thermal-dimuon production in Pb–Pb and In–In collisions. At RHIC, the PHENIX collaboration measured the di-electron production double differentially in mass and ${p}_{{\rm{T}}}$ which allowed the separation of regions dominated by charm from those dominated by beauty decays and the extraction of the $c\bar{c}$ and $b\bar{b}$ production cross sections in pp and dAu collisions [170, 171].

Beauty measurements from partially reconstructed decays

Beauty-decay leptons: the beauty contribution to the sample of HF decay leptons can be extracted by exploiting additional information. In particular, charm and beauty decay leptons can be separated based on the longer lifetime of beauty hadrons, which results in a larger separation of the production point of their decay leptons from the interaction vertex [157, 172]. This approach requires high resolution (of the order or better than 100 μm) on the track impact parameter, which is the distance of closest approach of a track (i.e., the reconstructed particle trajectory) to the interaction vertex. Alternatively, the fraction of beauty-decay electrons has been estimated in PHENIX [155], STAR [173] and ALICE [156] from correlations between HF decay electrons and charged hadrons. In the PHENIX case, the relative contributions of charm and beauty decays to the HF electron yield were extracted based on the partial reconstruction of $D/\bar{D}\to {e}^{\pm }{K}^{\mp }X$ decays by means of an invariant-mass analysis of unlike charge-sign electron-hadron pairs, which exhibits a correlated signal around the D-meson mass (${M}_{{eK}}\approx 1.9\,\mathrm{GeV}{c}^{-2}$) because of the charge correlation in D-meson decays [155]. The method adopted by ALICE and STAR is based on electron-hadron azimuthal correlations and exploits the fact that the width of the near-side peak is larger for beauty than for charm hadron decays, thus allowing one to disentangle the corresponding relative contribution to the yield of HF decay electrons [156, 173]. The main limitation of the beauty measurement via single electrons (muons) is that the correlation between the measured momentum of the lepton and that of the parent B meson is very broad, especially at low momentum.

Non-prompt J/ψ: the contribution of beauty-hadron decays to the yield of $J/\psi$ mesons can be measured inclusively by decomposing the $J/\psi$ yield into its prompt (i.e., $J/\psi$ produced at the interaction point) and non-prompt (displaced) components. This is achieved via fits to the distribution of the measured distances between the interaction vertex and the $J/\psi$ decay vertex. This approach has been used in pp, pPb and Pb–Pb collisions at the LHC by ALICE [174, 175], CMS [176] and LHCb [177, 178]. The branching ratio of inclusive beauty-hadron decays into $J/\psi$ measured at LEP is 1.16% [179–181], lower than that into single leptons. However, as compared to the measurement of beauty-decay leptons, this channel has the advantages of having generally less background and of providing a more direct measurement of the beauty-hadron kinematics due to the narrower correlation between the momentum of the $J/\psi$ and that of the parent beauty hadron.

Fully reconstructed decays of charm and beauty hadrons

This approach allows the reconstruction of HF hadrons exploiting hadronic decays of D mesons (and in the future of ${{\rm{\Lambda }}}_{c}$ baryons), and $J/\psi$+hadron (with the $J/\psi$ reconstructed from dileptonic decays) decays of B mesons. The branching ratios are smaller than those in semi-leptonic channels, but this technique has the advantage of providing access to the kinematics of the heavy-flavor hadron.

Charm mesons: D-meson production has been measured down to low transverse momentum by STAR [150] and ALICE [182, 183] in Au–Au and Pb–Pb collisions at RHIC and LHC, respectively. The measurement is based on the invariant-mass analysis of fully reconstructed decay topologies of the following hadronic decay channels: ${D}^{0}\to {K}^{-}{\pi }^{+}$ (BR = 3.88%), ${D}^{+}\to {K}^{-}{\pi }^{+}{\pi }^{+}$ (BR = 9.13%), ${D}^{* +}\to {D}^{0}{\pi }^{+}$ (BR = 67.7%), and ${{D}_{s}}^{+}\to \phi {\pi }^{+}\to {K}^{-}{K}^{+}{\pi }^{+}$ (BR = 2.24%) and their charge conjugates [162]. The huge combinatorial background is reduced by selections on the dE/dx and time-of-flight that provide kaon and pion identification. In addition, the spatial resolution of the ALICE silicon tracker makes it possible to reconstruct the D-meson decay vertex and to apply geometrical selections on its separation from the interaction vertex [182]. A technique based on geometrical selections on displaced decay-vertex topologies was used also for the preliminary results on ${D}^{0}$-meson production in Pb–Pb collisions recently reported by CMS [184].

Beauty mesons: the CMS collaboration recently published results of the production of B mesons in pPb collisions at the LHC in the transverse momentum range $10\lt {p}_{{\rm{T}}}\lt 60\,\mathrm{GeV}/c$ [185]. The following decays were reconstructed: ${B}^{+}\to J/\psi +{K}^{+}$, ${B}^{0}\to J/\psi +{K}^{* 0}(892)$ and ${{B}_{s}}^{+}\to J/\psi +\phi$, all having branching ratios of about 0.1% [162]. Kinematic selections on the displaced decay vertex topologies were applied to reduce the combinatorial background.

b-jets: reconstructed jets associated with beauty hadrons (b-jets) can be identified based on kinematic variables related to the relatively long lifetime and large mass of beauty hadrons (b-tagging). The first measurement of b-jets in heavy-ion collisions was performed by the CMS collaboration at the LHC [186]. Measurements of b-jets are complementary to those of beauty hadrons, because they are typically performed in a different momentum range and because the reconstructed jet energy is closely related to that of the b quark.

Interactions of heavy quarks with the constituents of the hot and dense medium created in nucleus–nucleus collisions are expected to modify the momentum and angular distribution of HF hadrons as compared to pp collisions. The main experimental observables used up to now to study these effects are the nuclear modification factor ${R}_{\mathrm{AA}}$ and the elliptic flow v₂, which is the coefficient of the second harmonic in the Fourier expansion of the particle azimuthal distributions. Further insight into the interaction mechanisms of heavy quarks with the medium and the properties of the medium can be provided by measurements of angular correlations involving HF particles and/or their decay products, and by measuring the higher harmonics in the Fourier expansion of the particle azimuthal distributions. However, with the currently available experimental samples, these more differential observables could only be accessed with limited statistical precision in nucleus–nucleus collisions.

The nuclear modification factor ${R}_{\mathrm{AA}}$ is commonly used to study the modification of the production yield and the momentum distribution of particles originating from hard (i.e., high-Q²) partonic scattering processes in nucleus–nucleus collisions relative to pp collisions. Since the rate of hard processes is expected to scale with the average number of binary nucleon–nucleon collisions occurring in the nucleus–nucleus collision, $\langle {N}_{\mathrm{coll}}\rangle$, the nuclear modification factor of the transverse momentum (${p}_{{\rm{T}}}$) distributions is expressed as:

$$\begin{eqnarray}&&{R}_{\mathrm{AA}}({p}_{{\rm{T}}})=\displaystyle \frac{1}{\langle {N}_{\mathrm{coll}}\rangle }\cdot \displaystyle \frac{{\rm{d}}{N}_{\mathrm{AA}}/{\rm{d}}{p}_{{\rm{T}}}}{{\rm{d}}{N}_{\mathrm{pp}}/{\rm{d}}{p}_{{\rm{T}}}}=\displaystyle \frac{1}{\langle {T}_{\mathrm{AA}}\rangle }\cdot \displaystyle \frac{{\rm{d}}{N}_{\mathrm{AA}}/{\rm{d}}{p}_{{\rm{T}}}}{{\rm{d}}{\sigma }_{\mathrm{pp}}/{\rm{d}}{p}_{{\rm{T}}}},\end{eqnarray} \tag{ 24 }$$

where ${\rm{d}}{N}_{\mathrm{AA}}/{\rm{d}}{p}_{{\rm{T}}}$ is the ${p}_{{\rm{T}}}$ spectrum measured in A–A collisions, ${\rm{d}}{N}_{\mathrm{pp}}/{\rm{d}}{p}_{{\rm{T}}}$ (${\rm{d}}{\sigma }_{\mathrm{pp}}/{\rm{d}}{p}_{{\rm{T}}}$) is the ${p}_{{\rm{T}}}$-differential yield (cross section) in pp collisions and $\langle {T}_{\mathrm{AA}}\rangle$ is the average nuclear overlap function. The nuclear overlap function is defined as the convolution of the nuclear density profiles of the colliding ions in the Glauber model [187, 188] and is related to the number of nucleon–nucleon collisions as ${N}_{\mathrm{coll}}={\sigma }_{\mathrm{NN}}^{{\rm{inel}}}\cdot {T}_{\mathrm{AA}}$, where ${\sigma }_{\mathrm{NN}}^{{\rm{inel}}}$ is the inelastic nucleon–nucleon cross section at a given $\sqrt{s}$. In the absence of nuclear effects, a value of ${R}_{\mathrm{AA}}=1$ is expected for HF particles in the whole ${p}_{{\rm{T}}}$ range, because, due to their large mass, charm and beauty quarks are produced predominantly in hard partonic scattering processes. Thermal production in the QGP, which does not scale with ${N}_{\mathrm{coll}}$, is expected to be negligible at the medium temperatures reached in heavy-ion collisions at RHIC and at the LHC [189, 190]. Parton in-medium energy loss shifts the momentum of quarks and gluons towards lower values, resulting in softer momentum distributions of the particles produced in their hadronization and subsequent decays. This leads to a suppression of hadron production relative to binary-scaled pp yields, ${R}_{\mathrm{AA}}\lt 1$, for transverse momenta larger than few GeV c^–1 and is expected to be the dominant effect in the nuclear modification factor at high transverse momenta (${p}_{{\rm{T}}}\gtrsim 5\,\mathrm{GeV}{c}^{-1}$). The ${R}_{\mathrm{AA}}$ can therefore be used to characterize HQ in-medium energy loss and to infer from it the corresponding transport coefficients. In the extraction of the transport coefficients, it should also be taken into account that the nuclear modification factor of hadrons is not a direct measurement of the energy ${\rm{\Delta }}E$ lost by their parent partons in the medium, and it is also sensitive to the momentum distribution of the produced partons and to their fragmentation process. At low and intermediate ${p}_{{\rm{T}}}$ (${p}_{{\rm{T}}}\lesssim 5\,\mathrm{GeV}{c}^{-1}$), effects other than in-medium energy loss are expected to modify the HF hadron production yield, leading to values of ${R}_{\mathrm{AA}}$ different from unity. These effects are related both to the formation of a hot and dense medium and to nuclear effects in the initial state of the collision. Among the initial-state effects, nuclear modification of the parton distribution functions, ${k}_{{\rm{T}}}$-broadening and energy loss in cold nuclear matter due to multiple scatterings of the initial partons could modify the production yield and ${p}_{{\rm{T}}}$ distribution of HF hadrons, as discussed in section 3.2.2. Final-state effects which could modify the hadron spectra in addition to energy loss are the collective 'radial' flow of the medium and the modification of hadronization in the presence of a medium. Low-momentum heavy quarks, including those shifted to low momentum by parton energy loss, could participate in the collective expansion of the system and possibly reach thermalization with the medium as a consequence of multiple interactions with the medium constituents [120, 191]. In elementary collisions heavy quarks are expected to hadronize mainly through fragmentation, while the ample presence of quarks and antiquarks in the medium makes the coalescence of charm and beauty quarks with light quarks a plausible hadronization mechanism (as discussed in section 2.2.6). This will impart (part of) the large radial and elliptic flow of the quarks from the medium on the heavy quarks and introduce a ${p}_{{\rm{T}}}$-dependent modification to the observed charmed hadron spectrum compared to a pure fragmentation scenario (even in the limit where heavy quarks do not take part in the collective expansion of the medium) [73, 77, 120, 124]. Furthermore, hadronization via coalescence may lead to a modification of the relative abundance of the different HF hadron species. In particular, a baryon-to-meson and strange-to-non-strange enhancement for charmed hadrons, similar to that observed for light-flavor hadrons, is predicted [110, 128, 192–195].

An observable complementary to the nuclear modification factor ${R}_{\mathrm{AA}}$ to study the interaction of heavy quarks with the medium is the anisotropy in the azimuthal distribution of HF hadrons. Anisotropy in particle momentum distributions originates from the initial anisotropy in the spatial distribution of the nucleons participating in the collision. The anisotropy of the azimuthal distribution of the particles produced in the collision is usually characterized with the Fourier coefficients:

$$\begin{eqnarray}&&{v}_{n}=\langle \cos [n(\varphi -{{\rm{\Psi }}}_{n})]\rangle ,\end{eqnarray} \tag{ 25 }$$

where φ is the azimuthal angle of the particle, and ${{\rm{\Psi }}}_{n}$ is the azimuthal angle of the initial state symmetry plane for the nth harmonic. If nuclei were spherically symmetric with a matter density depending only on the distance from the centre of the nucleus, the symmetry planes ${{\rm{\Psi }}}_{n}$ for all harmonics would coincide with the reaction plane, i.e., the plane defined by the beam direction and the impact parameter of the two colliding nuclei. Actually, due to fluctuations in the positions of the participant nucleons, the planes of symmetry fluctuate event-by-event around the reaction plane independently for each harmonic n and, therefore, the ${{\rm{\Psi }}}_{n}$ angles do not coincide with the reaction plane. Different analysis methods were developed to determine the v_n coefficients from the azimuthal distributions of the measured particles (see [196] for a review on this topic and [197–201] for the detailed descriptions of the various approaches). For non-central collisions the overlap region of the colliding nuclei has an 'almond' shape, and the largest contribution to the anisotropy is given by the second coefficient v₂, which is called elliptic flow. At RHIC and LHC energies, a positive v₂ is observed for many different hadron species [202–204] and is commonly ascribed to the combination of two mechanisms. The first one, which is dominant at low and intermediate momenta (${p}_{{\rm{T}}}\lt 6\,\mathrm{GeV}{c}^{-1}$), is the build-up of a collective expansion through interactions among the medium constituents, which convert the initial-state geometrical anisotropy into a momentum anisotropy of the final-state particles [205]. The second mechanism is the path-length dependence of in-medium parton energy loss, which is predicted to give rise to a positive v₂ for hadrons up to large ${p}_{{\rm{T}}}$ [206, 207]. This path-length dependence is expected to be different for the different energy-loss mechanisms: linear for collisional processes [46, 208] and close to quadratic for radiative processes [209]. Hence, the measurement of v₂ at high ${p}_{{\rm{T}}}$ can constrain the path-length dependence of parton energy loss. At low ${p}_{{\rm{T}}}$, the HF hadron v₂ offers a unique opportunity to test whether also heavy quarks take part in the collective expansion and possibly thermalize in the medium. In addition, at low and intermediate ${p}_{{\rm{T}}}$, the D and B meson elliptic flow (as well as that of their decay leptons) is expected to be sensitive to the role of hadronization via recombination, which is predicted to augment the v₂ of HF hadrons with respect to that of charm and beauty quarks [120, 210].

The measurement of higher-order flow coefficients of HF hadrons was proposed in [211] as a sensitive probe of the degree of charm- and beauty-quark thermalization. In particular, in this model, the triangular-flow coefficient v₃ is likely to show an incomplete coupling of the heavy quarks to the bulk medium as well as the expected mass hierarchy.

The study of angular correlations between HF hadrons could further constrain the models of interactions of heavy quarks with the medium, possibly providing valuable information on the path-length dependence of energy loss and on the relative contributions of collisional and radiative processes [90, 124, 212–214]. The medium effects on the angular (de)correlation and momentum imbalance of heavy quark-antiquark pairs can be studied via the correlations of two HF hadrons, $D\bar{D}$ and $B\bar{B}$. However, this measurement is extremely challenging because of the huge data samples required to cope with the small branching ratios of the hadronic channels through which D and B mesons can be fully reconstructed. In the beauty sector, angular correlations and energy imbalance of b-jets, the latter quantified, e.g., by measuring the asymmetry ${A}_{{\rm{J}}}=({E}_{T1}-{E}_{T2})/({E}_{T1}+{E}_{T2})$ of di-jets emitted in opposite hemispheres [215, 216], could become accessible in Pb–Pb collisions with the integrated luminosities that will be recorded during the LHC Run-2, i.e., the 2015–2018 data taking period. As an alternative, correlations involving electrons and muons from HF hadron decays can be studied, such as $D-e$, ${e}^{+}-{e}^{-}$, ${\mu }^{+}-{\mu }^{-}$, $e-\mu$. The interpretation of the results from these observables is, however, less straightforward than that of $D\bar{D}$ or b-jet correlations, because they contain also angular decorrelation effects due to the HF hadron decay kinematics, and because the lepton carries only a fraction of the parent-hadron momentum. With the currently available data samples, a measurement of $e-\mu$ correlations could be carried out in dAu collisions at RHIC [217]. In addition, two-particle correlations involving heavy flavors were measured utilizing a D meson or a HF decay lepton as trigger particle and the hadrons produced in the collision as associated particles. Such observables have also sensitivity to the HQ production and fragmentation process, as well as to the presence of collective effects that induce correlations between the HF particles and the bulk of hadrons produced in the collision. Measurements of e–hadron correlations in Au–Au collisions at RHIC were published by PHENIX [218], but with the current level of statistical uncertainties no quantitative conclusion can be drawn on the modification of the azimuthal-correlation shape as compared to pp collisions. Preliminary results for e–hadron correlations were also reported by STAR for Au–Au collisions at RHIC [219] and by ALICE for Pb–Pb collisions at the LHC [220]. The larger data samples of Au–Au and Pb–Pb collisions that will be collected in the coming years at RHIC and at the LHC will make it possible to fully exploit the potential of e–hadron and D–hadron correlations, to provide further constraints for the characterization of HQ interactions with the medium.

In the context of the study of HQ production in heavy-ion collisions, measurements in pp reactions provide a crucial reference to establish a baseline that allows the identification of modifications in AA reactions, which can be related to the formation of a hot and dense medium. In particular, a pp reference is needed to quantify the modification of the momentum distribution of HF particles in AA collisions through the nuclear modification factor ${R}_{\mathrm{AA}}$. Also in the studies of two-particle angular correlations, comparisons to pp results are mandatory to interpret the measurements in heavy-ion collisions.

A key aspect of open HF studies is that their production in elementary hadronic collisions can be calculated in the framework of perturbative QCD (pQCD) down to low ${p}_{{\rm{T}}}$ with the HQ mass, m_Q, acting as a long distance cutoff [158, 220]. The differential cross section for the inclusive production of HF hadrons in nucleon–nucleon collisions can be computed using the collinear factorization approach as a convolution of three factors: (i) the parton distribution functions of the incoming nucleons, (ii) the partonic hard scattering cross section calculated as a perturbative series in the strong coupling constant, and (iii) the fragmentation process describing the non-perturbative transition of a charm (beauty) quark into a HF hadron. The latter is modeled by a fragmentation function, which parametrizes the fraction of quark energy transferred to the produced hadron, as discussed in section 2.2.6. This formalism is implemented at next-to-leading order (NLO) accuracy in the general-mass variable-flavor-number scheme, GM-VFNS [222, 223] and in the fixed order next-to-leading-log (FONLL) resummation approach [113]. Both of these frameworks are based on the matching of 'massive' NLO calculations in the fixed-flavor number scheme (FFNS, valid at low ${p}_{{\rm{T}}}$), where heavy quarks are not active partons in the nucleon appearing only in the partonic hard scattering process, with 'massless' calculations in the zero-mass variable flavor number scheme (ZM-VFNS, valid for ${p}_{{\rm{T}}}\gg {m}_{Q}$), where charm and beauty quarks appear also as active partons in the nucleon PDFs and their mass can be neglected in the partonic hard scattering cross section.

Calculations of inclusive production cross sections of HF hadrons in hadronic collisions are also performed in the leading order (LO) approximation within the framework of ${k}_{{\rm{T}}}$-factorization with unintegrated gluon distribution functions (UGDFs) to account for the transverse momenta of the initial partons [224–226].

These theoretical frameworks allow for a mostly analytic calculation of inclusive ${p}_{{\rm{T}}}$ and y differential cross sections of heavy quarks, HF hadrons and their decay leptons at NLO+NLL (or LO) accuracy. However, for some particular studies, such as those of HF jets or correlations of HF hadrons with other particles produced in the interaction, a more complete description of the hadronic final state is needed, which can be obtained using Monte Carlo (MC) generators. General-purpose MC generators, such as PYTHIA [125, 227] or HERWIG [228], can serve this purpose, but are limited to LO accuracy. A more versatile description of hard processes can be achieved with the MC@NLO [229] and POWHEG [47] generators, where a consistent matching of NLO pQCD calculations with parton showers is implemented, thus combining the strength of MC generators (i.e., a complete modelling of the hadronic final state) with NLO accuracy in the hard scattering process and leading-logarithm resummation in the soft/collinear regimes.

These pQCD-based approaches are used in the models of HQ production and in-medium energy loss to compute the initial HQ distributions in heavy-ion collisions. In particular, HQ distributions calculated with FONLL are used in WHDG [86, 230], MC@sHQ+EPOS [91], TAMU [65], Djordjevic et al [231], and CUJET 3.0 [232, 233]. Other models make use of MC generators, e.g., MC@NLO in BAMPS [76], POWHEG in POWLANG [36], and PYTHIA (tuned to fit FONLL predictions for heavy quarks) in PHSD [40, 51]. In the model of Cao et al, a LO pQCD calculation was originally used to compute the initial HQ distributions [84], while in recent studies of angular correlations an improved initialization based on MC@NLO was adopted [213].

Since the above-mentioned pQCD calculations and MC generators provide a fundamental input for the studies of HQ interactions in the QGP, it is crucial to verify that they can describe the data from pp collisions at RHIC and LHC energies. This data-to-theory comparison constitutes also an important test of our understanding of QCD in its perturbative regime. Furthermore, a solid understanding of open-charm production is important also for cosmic-ray and neutrino astrophysics, because 'prompt' neutrino flux from charm decays is the dominant background for astrophysical neutrinos at energies of the order of 1 PeV [234, 235]. In the following, a selection of measurements of ${p}_{{\rm{T}}}$ and y differential inclusive production cross sections of open HF in pp collisions at RHIC and at the LHC will be presented and compared to the results of the pQCD calculations and MC generators presented above. Note that HF production was also measured at the Tevatron collider [154] at CM energies in between the RHIC and LHC ones. They are not reported in this review, which focuses on the accelerators and energies at which heavy-ion collisions have been studied.

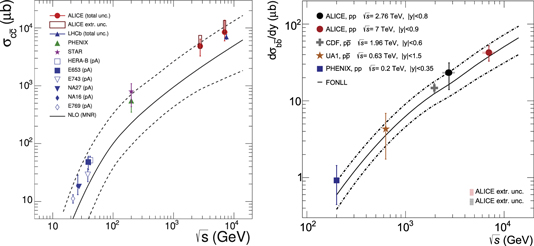

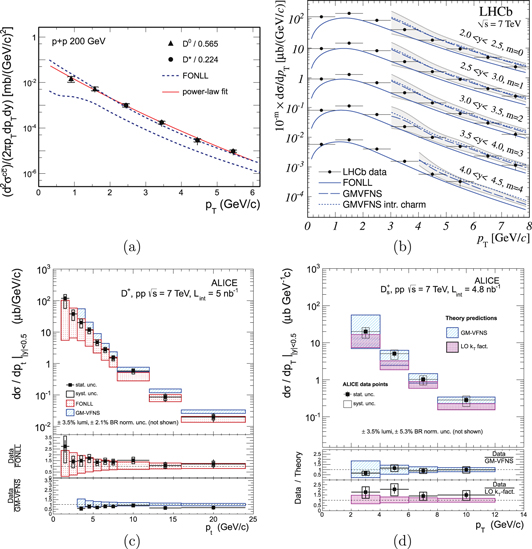

In figure 7 the ${p}_{{\rm{T}}}$-differential production cross section of electrons from HF hadron decays at mid-rapidity measured by the PHENIX collaboration in pp collisions at $\sqrt{s}=200\,\mathrm{GeV}$ (left panel) [236] and by the ALICE [164] and ATLAS [165] collaborations at $\sqrt{s}=7\,\mathrm{TeV}$ (right panel) is shown. The data are compared to FONLL pQCD calculations [237], which at both energies can describe the measurements within uncertainties. The central values of FONLL calculations are obtained using CTEQ-6.6 parton distribution functions [238], ${m}_{c}=1.5\,\mathrm{GeV}{c}^{-2}$ and ${m}_{b}=4.75\,\mathrm{GeV}{c}^{-2}$ for the charm and beauty quark masses, and QCD renormalization (${\mu }_{{\rm{R}}}$) and factorization (${\mu }_{{\rm{F}}}$) scales of ${\mu }_{{\rm{R}}}={\mu }_{{\rm{F}}}=\sqrt{{p}_{{\rm{T}}}^{2}+{m}_{q}^{2}}$. The theoretical uncertainty band is defined by varying the charm and beauty quark masses in the ranges $1.3\lt {m}_{c}\lt 1.7{\rm{GeV}}$/c² and $4.5\lt {m}_{b}\lt 5.0\,{\rm{GeV}}$ c^–2, and the QCD scales in the ranges $0.5\lt {\mu }_{{\rm{R}}}/{\mu }_{0}\lt 2$ and $0.5\lt {\mu }_{{\rm{F}}}/{\mu }_{0}\lt 2$ with the constraint $0.5\lt {\mu }_{{\rm{F}}}/{\mu }_{{\rm{R}}}\lt 2$. The outcomes of GM-VFNS and POWHEG, not shown in this figure, agree with the FONLL predictions within uncertainties (see [239] for a systematic comparison of FONLL, GM-VFNS and FONLL at LHC energies). A similar agreement between HF decay electron measurements and pQCD-based calculations is found for pp collisions at $\sqrt{s}=2.76\,\mathrm{TeV}$ [240].

Zoom In Zoom Out Reset image size

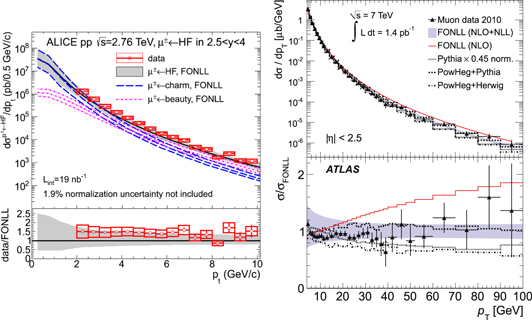

Heavy-flavor decay muon yield was measured in pp collisions at RHIC ($\sqrt{s}=200\,\mathrm{GeV}$) by the PHENIX collaboration at forward rapidity ($1.4\lt y\lt 1.9$) [167]. The measured HF production cross section was found to be consistent with state-of-the-art pQCD calculations (FONLL) within the substantial experimental and theoretical uncertainties. At the LHC, HF-decay muon measurements were carried out by the ATLAS collaboration at mid-rapidity at $\sqrt{s}=7\,\mathrm{TeV}$ [165] and by the ALICE collaboration at forward rapidity ($2.5\lt y\lt 4$) at $\sqrt{s}=2.76$ and 7 TeV [168, 241]. The measured ${p}_{{\rm{T}}}$-differential cross sections at forward rapidity at $\sqrt{s}=2.76\,\mathrm{TeV}$ and at mid-rapidity at $\sqrt{s}=7\,\mathrm{TeV}$ are shown in the left and right panels of figure 8, respectively. In both rapidity intervals, the predictions from FONLL calculations are compatible within uncertainties with the measured cross sections. In the forward-rapidity interval, the results of FONLL calculations are also shown separately for muons from charm and beauty decays. The predictions for beauty-decay muons include the contributions of muons coming directly from beauty-hadron decays ($B\to \mu$) and of muons from decays of charmed hadrons produced in beauty-hadron decays ($B\to D\to \mu$). According to FONLL, the yield of HF decay muons is dominated by muons from charm decays for ${p}_{{\rm{T}}}\lt 4\mbox{--}5\,\mathrm{GeV}{c}^{-1}$, while at higher ${p}_{{\rm{T}}}$ the main contribution is from beauty decays. The mid-rapidity results in the right panel of figure 8 are also compared to predictions obtained with the POWHEG Monte Carlo generator, interfaced to either PYTHIA or HERWIG for the parton shower simulation. POWHEG+PYTHIA agrees well with the FONLL calculations, while POWHEG+HERWIG predicts a significantly lower total cross section. As pointed out in [165], less than half of this difference may be accounted for by the different HF hadron decay models implemented in PYTHIA and HERWIG. Also shown in the right panel of figure 8 is the outcome of the PYTHIA event generator (LO plus parton shower), which describes well the measured ${p}_{{\rm{T}}}$ dependence, but overestimates the total cross section by a factor of about two. The FONLL(NLO) curve displayed in figure 8 is the central value of a FONLL calculation in which the next-to-leading-log resummation part was disabled in the pQCD calculation. Such a NLO calculation deviates significantly from the measured cross section, showing sensitivity to the NLL resummation term in the pQCD calculation. A very good description of the data is also provided by GM-VFNS, as can be seen in figure 3 of [242].

Zoom In Zoom Out Reset image size

Electrons from open-charm and -beauty decays could be statistically separated at RHIC using the ratio ${e}_{B}/({e}_{B}+{e}_{D})$ measured from e-hadron azimuthal correlations [173] and the measured HF decay electron cross section. The invariant cross section of electrons from beauty and charm decays measured by the STAR Collaboration in pp collisions at $\sqrt{s}=200\,\mathrm{GeV}$ is shown in the left panel of figure 9 [166], together with FONLL predictions, which describe the data within uncertainties. At the LHC, in addition to the studies of azimuthal correlations, a selection on the electron impact parameter was applied to disentangle charm and beauty contributions to the measured HF decay electrons [156, 157]. The ALICE results for beauty-decay electron ${p}_{{\rm{T}}}$-differential cross section at $\sqrt{s}=2.76\,\mathrm{GeV}$ [156] are reported in the right panel of figure 9. They are compared to the predictions from FONLL, GM-VFNS [242] and LO ${k}_{{\rm{T}}}$-factorization [225] calculations. The data and the pQCD calculations are consistent within the experimental and theoretical uncertainties.

Zoom In Zoom Out Reset image size

Open-charm production was measured at RHIC and at the LHC by reconstructing hadronic D-meson decays. A selection of results on D-meson ${p}_{{\rm{T}}}$-differential cross sections in pp collisions is presented in figure 10. In the top left panel, figure 10(a), the ${D}^{0}$ and ${D}^{* +}$ cross sections (scaled by the respective branching fractions $f(c\to {D}^{0})$ and $f(c\to {D}^{* +})$) measured in pp collisions at $\sqrt{s}=200\,\mathrm{GeV}$ at mid-rapidity by the STAR collaboration [150] are shown along with FONLL predictions. This production cross section is measured for 'inclusive' D-meson yields, including both the 'prompt' contribution coming from charm-quark fragmentation and decays of excited charmed-hadron states and the feeddown contribution due to beauty-hadron decays. The LHCb results on prompt ${D}^{0}$ production at forward rapidity at $\sqrt{s}=7\,\mathrm{TeV}$ [152] are shown in figure 10(b). The differential cross section is reported as a function of ${p}_{{\rm{T}}}$ for different rapidity intervals and is compared to pQCD calculations with the FONLL and GM-VFNS [243] approaches. Also shown is the outcome of GM-VFNS calculations using the CTEQ-6.5c2 parton densities with intrinsic charm [244], showing that the effect of intrinsic charm is expected to be small in the phase space region of the LHCb measurement. The LHCb collaboration recently reported results on the ${p}_{{\rm{T}}}$-differential production cross section of D mesons at $\sqrt{s}=13\,\mathrm{TeV}$ and found them to be in agreement with NLO predictions from FONLL, POWHEG, and GM-VFNS [245]. The measured ratios of the cross sections at 13 and 7 TeV are also found to be described within uncertainties by FONLL and POWHEG, even though the data are consistently above the central values of the ratios of pQCD predictions in all the considered ${p}_{{\rm{T}}}$ and y intervals. As argued in [235, 246, 247], ratios of cross sections at different CM energies can be predicted through pQCD calculations with an accuracy of a few percent in a wide range of y and ${p}_{{\rm{T}}}$ because some theoretical parameters (factorization and renormalization scales, quark mass, fragmentation fractions) are correlated at different energies and their uncertainties cancel almost completely in the ratio. On the other hand, PDF uncertainties do not cancel completely, because of the different Bjorken-x range of initial-state partons covered by the measurements at the two CM energies, making these ratios sensitive to the PDFs, and in particular to gluon PDFs at small x, where they are not yet well constrained by data. In the bottom panels, (c) and (d), of figure 10 the ALICE results on ${D}^{+}$ and ${D}_{s}^{+}$ ${p}_{{\rm{T}}}$-differential cross sections at mid-rapidity at $\sqrt{s}=7\,\mathrm{TeV}$ are reported together with predictions from FONLL, GM-VFNS and LO ${k}_{{\rm{T}}}$-factorization. A similar conclusion about the ability of pQCD calculations to describe the measurements at LHC energies is obtained. The NLO pQCD calculations provide also a good description of the ${D}^{+}$, ${D}^{* +}$, and ${D}_{s}^{+}$ cross sections measured by the ATLAS collaboration in pp collisions at $\sqrt{s}=7\,\mathrm{TeV}$ in the intervals $3.5\lt {p}_{{\rm{T}}}\lt 100\,\mathrm{GeV}{c}^{-1}$ and $| \eta | \lt 2.1$ [248]. At all energies and rapidities the pQCD calculations agree with the measured cross sections within uncertainties. Yet, the FONLL predictions obtained with the central values of the calculation parameters tend to underestimate the data, with the measured cross sections lying close to the upper edge of the theoretical uncertainty band. The tendency of FONLL to underestimate the charm data was also observed at the Tevatron [249]. On the other hand, the central value of the GM-VFNS predictions lies systematically above the data.

Zoom In Zoom Out Reset image size

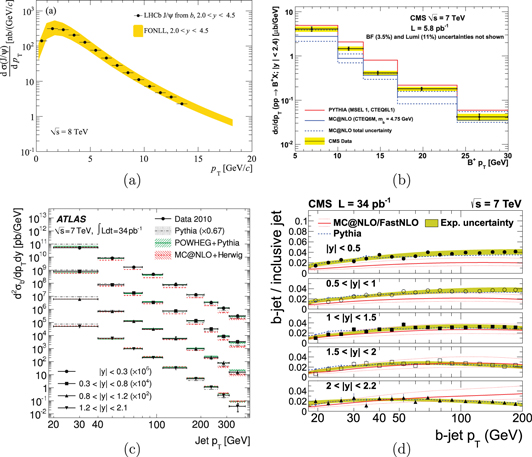

Figure 11 displays a selection of results on beauty production as a function of ${p}_{{\rm{T}}}$ at the LHC. In particular, the non-prompt $J/\psi$ cross section at forward rapidity, measured by the LHCb collaboration at $\sqrt{s}=8\,\mathrm{TeV}$ [250] is shown in panel (a); the ${B}^{+}$-meson cross section at mid-rapidity measured by CMS at $\sqrt{s}=7\,\mathrm{TeV}$ [251] is shown in panel (b); and panel (c) depicts the cross section of b-jets measured by ATLAS at $\sqrt{s}=7\,\mathrm{TeV}$ in different rapidity intervals [252]. Furthermore, in figure 11(d), the ratios of b-jet to inclusive-jet cross sections measured by CMS [253] in different rapidity intervals are shown as a function of ${p}_{{\rm{T}}}$. The data are compared to different theoretical predictions. FONLL provides a good description of the non-prompt $J/\psi$ data. A similar agreement with FONLL is observed for the recent measurement of non-prompt $J/\psi$ cross section at $\sqrt{s}=13\,\mathrm{TeV}$ [254]. However, the measured ratios of the production cross sections of $J/\psi$ from beauty-hadron decays at CM energies of 13 and 8 TeV are found to lie systematically above the predictions from FONLL calculations. As pointed out above, in the calculations of ratios of cross sections at different energies, the sensitivity to the pQCD scale variation is substantially reduced, thus providing some sensitivity to the (mostly gluon) PDFs in regions where they are not yet well constrained by data [235, 247]. PYTHIA, which has LO+LL accuracy, does not provide a good description of the measured B-meson cross section, which is instead correctly predicted by MC@NLO and FONLL (see [237] for a comparison of the measured ${B}^{+}$ and ${B}^{0}$ cross sections to FONLL). The CMS collaboration also measured the production of ${B}_{s}^{0}$ mesons (in the interval $8\lt {p}_{{\rm{T}}}\lt 50\,\mathrm{GeV}/c$) and ${{\rm{\Lambda }}}_{b}$ baryons (for $10\lt {p}_{{\rm{T}}}\lt 50\,\mathrm{GeV}/c$) at mid-rapidity. The measured ${B}_{s}^{0}$ production lies between the MC@NLO and PYTHIA predictions, indicating consistency among the three different B-meson species [255]. The measured ${p}_{{\rm{T}}}$-distribution of ${{\rm{\Lambda }}}_{b}$ baryons falls faster than both the measured ${p}_{{\rm{T}}}$ spectra of B mesons and the predicted spectra from PYTHIA and POWHEG generators [256]. Similar conclusions about the agreement between the measured beauty-hadron cross sections and FONLL calculations and the comparison of baryon and meson spectral shapes were reported by LHCb for the forward rapidity interval [257–259]. The measurements of b-jet cross sections can be compared to predictions from MC event generators featuring a complete description of the hadronic final state. The NLO generators POWHEG (matched to PYTHIA parton shower) and MC@NLO (interfaced to HERWIG for the parton shower) are found to describe the data reasonably well, with POWHEG+PYTHIA providing a slightly better agreement with the data across the different rapidity regions (see [252] for details). The LO+LL predictions from PYTHIA do not predict the correct normalization, overestimating the measured integrated cross section by a factor of about 1.5, but they can describe reasonably well the ${p}_{{\rm{T}}}$ dependence of the b-jet production cross section.

Zoom In Zoom Out Reset image size

Additional insight into HQ production and fragmentation can be obtained from measurements of HF azimuthal correlations, which help to constrain MC models and to disentangle different production processes for HF particles. For example, measurements of azimuthal correlations between B and $\bar{B}$ hadrons from CMS show a substantial contribution from production at small opening angles (${\rm{\Delta }}\varphi \approx 0$), which is not reproduced by PYTHIA [260]. This result points to the importance of the 'near' production (via the gluon splitting mechanism) in addition to the 'back-to-back' production (mostly via flavor creation). Recent results of D-hadron azimuthal correlations from ALICE [261] show that PYTHIA and POWHEG+PYTHIA provide a reasonable description of the data for this observable, which is potentially sensitive to charm-quark production and fragmentation and to charm-jet structure and properties. The production of D mesons, prompt and non-prompt $J/\psi$, and ϒ was also measured by ALICE and CMS as a function of the multiplicity of particles produced in the collision [262–264]. The per-event yields of open charm and beauty hadrons and quarkonia are found to increase with increasing multiplicity. This trend can be described by models including multiple parton interactions (MPI), thus providing sensitivity to the role of MPIs at the hard momentum scales relevant for $c\bar{c}$ and $b\bar{b}$ pair production.

The study of the properties of the hot and dense medium created in heavy-ion reactions requires a quantitative understanding of the effects induced by the presence of nuclei in the initial state of the collisions, as well as, possibly, by the relatively high multiplicities of particles in the final state. Such effects are commonly referred to as cold-nuclear-matter (CNM) effects and are assessed experimentally by studying particle production in proton–nucleus (pA) or deuteron–nucleus (dA) collisions.

Heavy-flavor production can be affected by a variety of CNM effects, which include the following.

• Modification of the parton distribution functions. The nuclear environment affects the quark and gluon distributions, which are modified in bound nucleons compared to those of free nucleons. The modification depends on the fractional parton momentum (x), on the scale of the parton–parton interaction (Q²), and on the atomic mass number (A) of the nucleus [265, 266]. This effect is commonly studied experimentally via the ratio between the PDF of nucleons in nuclei (nPDF) and those of the proton (deuteron), ${R}_{i}^{{\rm{A}}}(x,{Q}^{2})$, where i is the parton flavor. Four regions, depending on the value of x, are usually identified: (i) shadowing, which is a depletion (${R}_{i}^{{\rm{A}}}\lt 1$) at small x ($x\lt {10}^{-2}$); (ii) anti-shadowing, an enhancement (${R}_{i}^{{\rm{A}}}\gt 1$) at intermediate x (${10}^{-2}\lt x\lt {10}^{-1}$); (iii) EMC effect, a depletion (${R}_{i}^{{\rm{A}}}\lt 1$) in the valence quark region ($x\sim {10}^{-1}$); and (iv) an enhancement (${R}_{i}^{{\rm{A}}}\gt 1$) at large x ($0.8\lt x\lt 1$) associated with the Fermi motion of nucleons inside the nucleus. There is no comprehensive theoretical understanding of the observed pattern over the entire x range. The ${R}_{i}^{{\rm{A}}}(x,{Q}^{2})$ values can be calculated using phenomenological parameterizations based on global fit analyses of lepton–nucleus and proton–nucleus data, such as EPS09 [267], HKN07 [268] and nDS [269]. The depletion in the low-x region (shadowing) can be understood as due to high phase-space density of small-x gluons. If the parton density reaches saturation it can be described within the Colour Glass Condensate (CGC) effective theory, where an initial high-energy nucleus is treated as a coherent and dense (saturated) gluonic system [270]. The modification of the PDFs results in a modification of the effective partonic luminosity (and consequently of the HQ production cross section) in collisions involving nuclei relative to pp collisions.
• Multiple scattering of partons in the nucleus before and/or after the hard scattering affects the kinematic distribution of the produced heavy quarks and/or hadrons. These multiple collisions lead to transverse-momentum broadening (usually denoted as the Cronin effect) [271–273] and parton energy loss [274–277].
• On top of initial-state CNM effects, also effects in the final state, due to the high multiplicity of particles produced in pA (dA) collisions, may be responsible for a modification of the HF hadron yields and momentum distributions. The presence of final-state effects in small collision systems is suggested by measurements of long-range correlations of charged hadrons in pPb collisions at the LHC [278–281]. These observations can be described by hydrodynamic calculations assuming the formation of a medium with some degree of collectivity. It is still highly debated if such a collective flow is established, and alternative explanations, based, e.g., on the CGC effective theory [282] or anisotropic escape probability of partons from the collision zone [283] have been proposed. It should be pointed out that if a collective motion of the final-state particles is established, the medium could also impart a flow on HF particles. Additional indications for the importance of final-state effects in small collision systems are provided by the larger suppression of the $\psi (2S)$ meson with respect to the $J/\psi$ in dAu collisions at RHIC [285] and pPb collisions at the LHC [285], see, e.g., [286, 287] for pertinent model calculations.

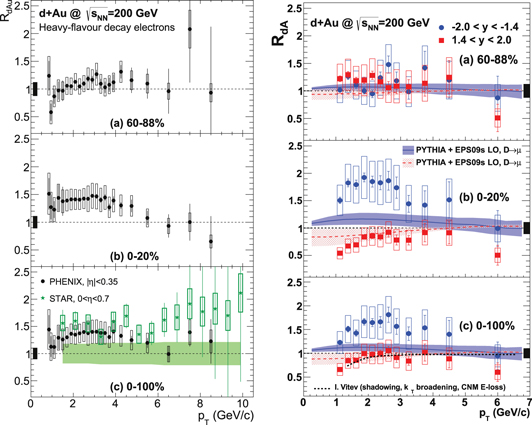

Heavy-flavor production was studied at RHIC and at the LHC in dAu and pPb collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ and $5.02\,\mathrm{TeV}$, respectively. At RHIC, the measurements were carried out by STAR [163] and PHENIX [288, 289] in the semi-leptonic channel. In particular, HF decay electrons were measured at mid-rapidity ($| \eta | \lt 0.35$ for PHENIX and $0\lt \eta \lt 0.7$ for STAR) and HF decay muons at forward (deuteron-going direction) and backward (Au-going) rapidity with PHENIX. The PHENIX collaboration also reported results for peripheral and central collisions. The resulting nuclear modification factor, ${R}_{d\mathrm{Au}}$, of HF decay leptons is shown in figure 12 as a function of ${p}_{{\rm{T}}}$ for multiplicity integrated (bottom panels), central (middle panels) and peripheral (top panels) collisions. The mid-rapidity results (left panels) show a slight enhancement of the production with respect to binary-scaled pp collisions, with a mild dependence on collision centrality. The data can be described in terms of nuclear PDFs (anti-shadowing) and ${k}_{{\rm{T}}}$-broadening (Cronin enhancement). The possible development of a collective flow in the HQ sector is also expected to lead to values of ${R}_{d\mathrm{Au}}$ larger than unity in the ${p}_{{\rm{T}}}$ range covered by the measurements. An approximate description of the measured values of nuclear modification factor can be obtained employing a blast-wave function, with parameters extracted from fits to the light-hadron spectra, to determine the momentum distribution of HF hadrons in dAu collisions [291]. Recently, the outcome of calculations in the POWLANG transport setup at RHIC energies were published [292]. In this model, it is assumed that in pA and dA collisions a hot and deconfined medium is formed. The relativistic Langevin equation is used to follow the propagation of charm and beauty quarks in the hydrodynamically expanding medium until hadronization, which is modeled by combining each heavy quark with a light parton from the medium to form color-singlet objects (strings), which are fragmented with PYTHIA to produce the final-state hadrons. The model can describe the midrapidity data within uncertainties, suggesting that, within such a framework, the enhancement of ${R}_{d\mathrm{Au}}$ of HF decay electrons observed at RHIC reflects the radial flow acquired by the parent-D and -B mesons.

Zoom In Zoom Out Reset image size

In the right panels of figure 12 the results on the HF-decay muon ${R}_{d\mathrm{Au}}$ at forward and backward rapidities are reported. They show a pronounced centrality dependence, with similar ${R}_{d\mathrm{Au}}$ values in peripheral collisions at forward and backward rapidity, but significant differences in central collisions, namely a suppression at forward rapidity (d-going direction) and an enhancement at backward rapidity (Au-going direction). The data at forward rapidity are described both by the model of Vitev et al [276], which includes shadowing, ${k}_{{\rm{T}}}$ broadening and CNM energy loss, and by pQCD calculations including EPS09 nPDFs [290]. The results at backward rapidity cannot be described by only considering nPDF effects, suggesting that other mechanisms are at work.

The $b\bar{b}$ production cross section was determined at mid-rapidity by the PHENIX collaboration from the invariant-mass and ${p}_{{\rm{T}}}$ distributions of ${e}^{+}{e}^{-}$ pairs. The result, ${\sigma }_{b\bar{b}}^{d\mathrm{Au}}=1.37\pm 0.28(\mathrm{stat})\pm 0.46(\mathrm{syst})\,\mathrm{mb}$, is consistent with binary scaling of the cross section measured in pp collisions [171]. The modification due to CNM effects on HF production at mid-rapidity is expected to be small as compared to the quoted uncertainties of the measurement.

At LHC energies, charm and beauty production was studied by measuring HF decay electrons (ALICE [293]), D mesons (ALICE [294]), B mesons (CMS [185]), and b-jets (CMS [295]) at mid-rapidity; at forward (p-going side) and backward (Pb-going) rapidity, beauty was studied via measurements of non-prompt $J/\psi$ by the LHCb collaboration [178]. Preliminary results were also reported by the ALICE collaboration for HF decay muons at forward and backward rapidity [296] and beauty-decay electrons at mid-rapidity [296].

The nuclear modification factor ${R}_{p\mathrm{Pb}}$ of prompt D mesons [294] and HF decay electrons [293] measured by the ALICE collaboration as a function of ${p}_{{\rm{T}}}$ at mid-rapidity is shown in figure 13. The reference pp cross sections at $\sqrt{s}=5.02\,{\rm{TeV}}$ were obtained with a pQCD-based energy scaling of the ${p}_{{\rm{T}}}$-differential cross sections measured at $\sqrt{s}=7\,{\rm{TeV}}$ [299]. No significant difference among different D-meson species (${D}^{0}$, ${D}^{+}$, ${D}^{* +}$ and ${D}_{s}^{+}$) is observed [294]. The average ${R}_{p\mathrm{Pb}}$ of ${D}^{0}$, ${D}^{+}$ and ${D}^{* +}$ mesons is reported in the left panel of figure 13. Within uncertainties, the measured D-meson ${R}_{p\mathrm{Pb}}$ is compatible with unity, indicating smaller than 10%–20% CNM effects for ${p}_{{\rm{T}}}\gt 2\,\mathrm{GeV}/c$. The D-meson ${R}_{p\mathrm{Pb}}$ is compared to model calculations including CNM effects, namely NLO pQCD calculations with ESP09 nPDF [267], calculations based on CGC effective theory [297] and predictions including shadowing, ${k}_{{\rm{T}}}$-broadening and CNM energy loss [72]. The data are fairly well described by the above mentioned models, which consider only initial-state effects and predict a small modification of the D-meson yield for ${p}_{{\rm{T}}}\gt 2\,\mathrm{GeV}{c}^{-1}$ and a larger effect at ${p}_{{\rm{T}}}\lt 1\,\mathrm{GeV}{c}^{-1}$, where the results of the different theoretical approaches differ. The effect of the possible formation of a collectively expanding medium, as calculated with the blast-wave approach of [291], is expected to be small for D mesons in multiplicity-integrated collisions. The first results from two different transport models assuming the formation of a hot and deconfined medium in pPb collisions at the LHC, which modifies the propagation and hadronization of heavy quarks, were recently published [292, 300] In these frameworks, a small bump in the ${R}_{p\mathrm{Pb}}$ at low/intermediate ${p}_{{\rm{T}}}$ due to radial flow is predicted, possibly accompanied by a moderate ($\lt 20 \% -30 \%$) suppression at high ${p}_{{\rm{T}}}$, due to in-medium energy loss. The models describe the data within uncertainties, even though the measured ${R}_{p\mathrm{Pb}}$ disfavors a suppression larger than 15%–20% in the transverse momentum interval $5\lt {p}_{{\rm{T}}}\lt 10\,\mathrm{GeV}{c}^{-1}$. However, the current uncertainties on the experimental and theoretical side do not allow us to discriminate between scenarios with only CNM effects or with CNM and hot medium effects.

Zoom In Zoom Out Reset image size

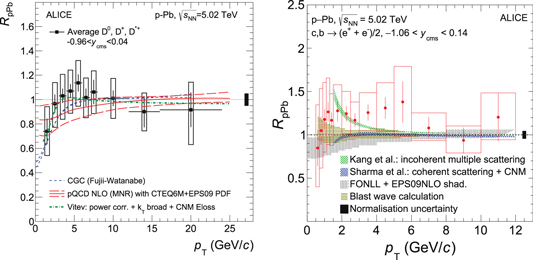

The HF decay electron result, shown in the right panel of figure 13, is also consistent with unity within uncertainties over the whole ${p}_{{\rm{T}}}$ range of the measurement. Given the large systematic uncertainties, the measured ${R}_{p\mathrm{Pb}}$ is also compatible with an enhancement in the transverse-momentum interval $1\lt {p}_{{\rm{T}}}\lt 6\,\mathrm{GeV}{c}^{-1}$, as observed at midrapidity in dAu collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ (see figure 12). Similarly to what is observed for D mesons, the data are described within uncertainties by pQCD calculations with nPDFs [267], and by a model including shadowing, ${k}_{{\rm{T}}}$ broadening and CNM energy loss [72], both of them predicting a small suppression at low ${p}_{{\rm{T}}}$. Calculations based on incoherent multiple scatterings [298] or on a blast-wave modeling of the possible establishment of collective flow [291] predict an enhancement in the nuclear modification factor at low ${p}_{{\rm{T}}}$. The uncertainties of the current measurements do not allow a discrimination among these different theoretical approaches.

As pointed out in [301], the nuclear modification of the PDFs at small x can be better constrained by means of a data-to-theory comparison of the ${p}_{{\rm{T}}}$-differential D-meson forward-to-backward ratio ${R}_{\mathrm{FB}}$, i.e., the ratio of the D-meson cross sections in symmetric intervals at forward and backward rapidity, in the kinematical region accessible with the LHCb apparatus. In this ratio, the theoretical uncertainties due to pQCD scales and quark mass partially cancel, as well as some of the contributions to the experimental systematic uncertainties, thus providing improved sensitivity to CNM effects on the PDFs. Preliminary results on the ${D}^{0}$-meson nuclear modification factor (using a pp reference extrapolated from the measurements at $\sqrt{s}=7$ and $13\,\mathrm{TeV}$) and forward-to-backward ratio were recently reported by LHCb [302]. A significant asymmetry in the forward-backward production is observed, with the ${D}^{0}$-meson ${R}_{p\mathrm{Pb}}$ slightly below (above) unity at forward (backward) rapidity and ${R}_{\mathrm{FB}}\lt 1$, consistent with theoretical predictions based on NLO pQCD calculations with CTEQ6M [238] PDFs with EPS09 [267] nuclear modification.

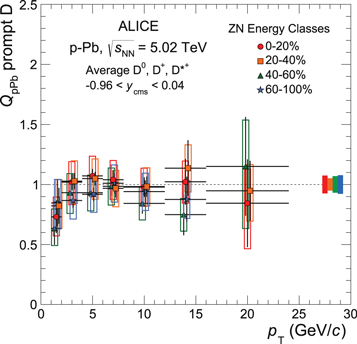

Results on D-meson production as a function of the pPb collision centrality were recently published [303]. In figure 14, the nuclear modification factor of prompt D mesons (average of ${D}^{0}$, ${D}^{+}$ and ${D}^{* +}$) is shown as a function of ${p}_{{\rm{T}}}$ for four different centrality classes, defined from the energy deposited in the neutron zero-degree calorimeters. The notation ${Q}_{p\mathrm{Pb}}$ is used for the nuclear modification factor in centrality classes to emphasize the possible presence of potential biases in the centrality estimation. As discussed in detail in [304], the selection based on the energy deposited in the neutron zero-degree calorimeters provides the least biased estimation of the collision geometry. The results indicate that charm-hadron production is compatible with binary scaling of the pp reference in all the considered centrality classes. In particular, no evidence of a substantial modification of D-meson production with respect to pp collisions is observed in the 20% most central collisions, in which the multiplicity of produced particles is comparable to that in peripheral nucleus-nucleus collisions at RHIC/LHC energies. Nevertheless, considering the current statistical and systematic uncertainties, centrality-dependent effects of the order of 10% cannot be excluded.

Zoom In Zoom Out Reset image size

The first preliminary measurements of jets from charm quarks (c-jets) in pPb (and pp) collisions in the jet transverse-momentum interval $40\lt {p}_{{\rm{T}}}\lt 400\,\mathrm{GeV}{c}^{-1}$ were recently reported by CMS [305]. The c-jet fraction in pPb collisions at $\sqrt{{s}_{\mathrm{NN}}}=5.02\,\mathrm{TeV}$ is consistent within uncertainties with that predicted by PYTHIA, as well as with the one measured in pp collisions at $\sqrt{s}=2.76\,\mathrm{TeV}$. This indicates small CNM effects on c-jet production in the measured ${p}_{{\rm{T}}}$ interval.

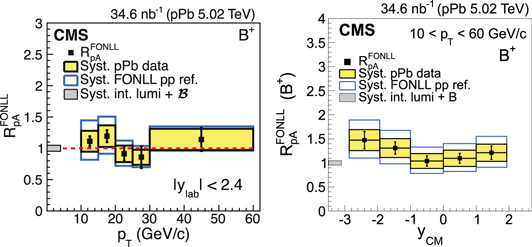

The production of beauty mesons, namely ${B}^{0}$, ${B}^{+}$ and ${B}_{s}^{0}$, was measured by the CMS collaboration [185] in pPb collisions as a function of transverse momentum in the range $10\lt {p}_{{\rm{T}}}\lt 60\,\mathrm{GeV}/c$. The production of ${B}^{+}$ mesons was also studied as a function of rapidity. The ${B}^{+}$ nuclear modification factor, computed using FONLL pQCD calculations as the pp reference, is shown in figure 15 as a function of ${p}_{{\rm{T}}}$ (left panel) and rapidity (right panel). No significant modification of B-meson production is observed in pPb collisions compared to the binary-scaled FONLL reference over the measured ${p}_{{\rm{T}}}$ range.

Zoom In Zoom Out Reset image size

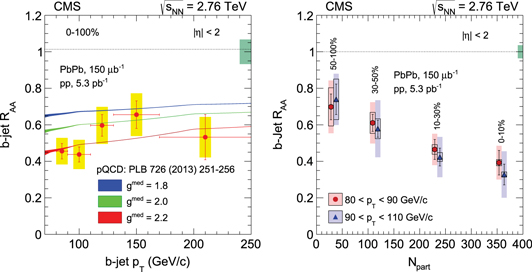

The CMS collaboration recently reported measurements of the b-jet ${p}_{{\rm{T}}}$-differential cross section and nuclear modification factor in pPb collisions at $\sqrt{{s}_{\mathrm{NN}}}=5.02\,\mathrm{TeV}$ in the jet transverse-momentum and pseudorapidity (in the centre-of-mass system) intervals $55\lt {p}_{{\rm{T}}}\lt 400\,\mathrm{GeV}{c}^{-1}$ and $-2.5\lt {\eta }_{\mathrm{cms}}\lt 1.5$ [295]. As there are no pp data available at the CM energy of pPb collisions, the pp reference for the ${R}_{\mathrm{pPb}}$ calculation was obtained from PYTHIA simulations. The discrepancies between PYTHIA and data observed at $\sqrt{s}=2.76$ and 7 TeV were accounted for in the systematic uncertainty. The resulting ${R}_{p\mathrm{Pb}}^{{\rm{PYTHIA}}}$ as a function of ${p}_{{\rm{T}}}$ is shown in the left panel of figure 16; it is compatible with unity within uncertainties, especially considering the 22% uncertainty on the PYTHIA reference. The data are described within uncertainties by a pQCD model that includes modest initial-state energy-loss effects [306]. Overall, the conclusions from the b-jet studies agree with those drawn from the measurements of B-meson production reported above. Future measurements of B mesons and b-jets in pp collisions at $\sqrt{s}=5.02\,\mathrm{TeV}$ are expected to provide a substantial reduction of the uncertainties on the pp reference, thus enabling a more definite assessment of possible modifications of beauty production in pPb collisions.

Zoom In Zoom Out Reset image size

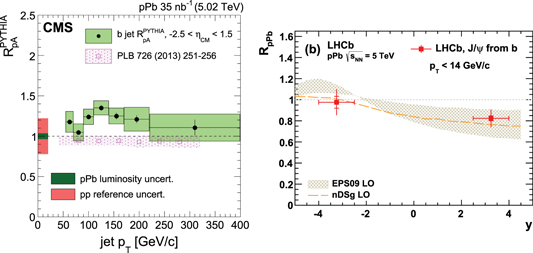

Beauty production in pPb collisions at the LHC was also studied by the LHCb collaboration by measuring non-prompt $J/\psi$ at large rapidities ($2\lt {y}_{\mathrm{lab}}\lt 4.5$) down to ${p}_{{\rm{T}}}=0$ [178]. The pp reference at $\sqrt{s}=5.02\,\mathrm{TeV}$ was obtained via an interpolation of the measurements at $\sqrt{s}$ values of 2.76, 7 and 8 TeV. The ${p}_{{\rm{T}}}$-integrated ${R}_{p\mathrm{Pb}}$ as a function of rapidity is shown in the right panel of figure 16 together with theoretical calculations. The nuclear modification factor is compatible with unity at backward rapidity (Pb-going side). In the forward-rapidity region the data show a modest suppression relative to the binary-scaled pp reference. Perturbative QCD calculations at LO including EPS09 or nDSg nPDF parameterizations [307] describe the data well at forward rapidity, while in the backward region the agreement is not as good (although still compatible within uncertainties) for EPS09, which predicts a slight enhancement of the yield of $J/\psi$ from beauty-hadron decays.

Further insight into possible modifications of HF production in dAu and pPb collisions can be obtained from measurements of azimuthal correlations. The angular correlation between HF hadrons reflects the correlation between HQ pairs and is therefore sensitive to their production mechanisms. In proton(deuteron)–nucleus collisions, the CGC effective theory predicts, in addition to a reduction of the overall particle yield, a broadening and suppression of the away-side peak (at ${\rm{\Delta }}\varphi =\pi$) in the two-particle azimuthal correlations [270, 308, 309]. A depletion of the away-side yields in two-particle azimuthal correlations is also expected to be induced by CNM energy loss and multiple scattering processes in the initial and final state [310]. These effects could also affect HF angular correlations. The azimuthal correlation between HF decay electrons at mid-rapidity (${p}_{{\rm{T}}}\gt 0.5\,\mathrm{GeV}{c}^{-1}$, $| \eta | \lt 0.35$) and HF decay muons at forward rapidity (${p}_{{\rm{T}}}\gt 1\,\mathrm{GeV}{c}^{-1}$, $1.4\lt \eta \lt 2.1$) were measured by the PHENIX collaboration in pp and dAu collisions at $\sqrt{s}=200\,\mathrm{GeV}$ [217]. The selection of a muon at forward rapidity allows to probe a low-x range in the Au nucleus, where saturation effects are predicted to occur. A suppression of the away-side peak (${\rm{\Delta }}\varphi =\pi$) is observed in dAu collisions compared to pp, indicating that the charm-quark pair kinematics is modified in the cold nuclear medium. Recent results of D-hadron azimuthal correlations in pPb collisions at the LHC were reported by the ALICE collaboration [261]. With the current level of uncertainties, no conclusion can be drawn on a possible modification of D-hadron correlations with respect to pp collisions.

Measurements of two-particle angular correlations in pA collisions can also be exploited to study whether also charm and beauty show v₂-like double-ridge long-range angular correlations in 'small systems', as observed for light hadrons [278–281]. An intriguing possible hint for a non-zero HF v₂ in high-multiplicity pPb collisions is provided by the ALICE measurements of angular correlations between a muon at forward rapidity and hadrons at midrapidity [311]. A positive v₂ is observed in the 20% highest-multiplicity pPb interactions for muon tracks up to ${p}_{{\rm{T}}}\approx 4\,\mathrm{GeV}{c}^{-1}$. Therefore, in the transverse momentum interval ${p}_{{\rm{T}}}\gt 2\,\mathrm{GeV}{c}^{-1}$, where the inclusive muon yield is expected to be dominated by HF hadron decays, the data may support a positive value of HF v₂.

In summary of this section, the measurements in proton(deuteron)–nucleus collisions show small to moderate modifications of HF production as compared to the binary-scaled pp references. The magnitude of this modification depends on rapidity, ${p}_{{\rm{T}}}$, and (at least at RHIC energy) collision centrality. The measured values of charm and beauty nuclear modification factors can be described by models including CNM effects: nuclear modification of the PDFs, (gluon) saturation, transverse-momentum broadening, and initial-parton energy loss. The uncertainties on the current experimental results, together with the large uncertainties on the parameterized nuclear PDFs at small Bjorken-x prevent a more conclusive theoretical interpretation of the data, making it difficult to address in a more quantitative way the role of the various CNM effects in the initial and final state.

Measurements of HF decay leptons in heavy-ion collisions have been carried out at RHIC and at the LHC by the STAR, PHENIX, ALICE and ATLAS collaborations at mid- and forward rapidity, exploiting both semi-electronic and the semi-muonic decay modes.

The first measurements of HF decay electron spectra in Au–Au reactions at RHIC were performed by PHENIX on the data sample recorded during the first RHIC run at a CM energy of $\sqrt{{s}_{\mathrm{NN}}}=130\,\mathrm{GeV}$ per nucleon pair [318]. The limited precision of the measurement prevented from drawing conclusions about possible modifications of charm production in heavy-ion collisions relative to a binary-scaled pp reference determined with the PYTHIA event generator tuned to reproduce charm production data from fixed-target experiments at the SPS and at FNAL [319] and single-electron data from the ISR [320–322]. The larger data sample of Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ collected in 2001 allowed the measurement of the centrality and ${p}_{{\rm{T}}}$ dependence of the yield of electrons from HF hadron decays at mid-rapidity [42, 323]. The measurements of the nuclear modification factor of HF decay electrons, reported in [42], showed a substantial suppression for ${p}_{{\rm{T}}}\gt 2\mathrm{GeV}/c$ in central Au–Au collisions relative to the expectation based on binary scaling of the yields measured in pp collisions. The magnitude of the observed suppression turned out to be compatible with that measured for neutral pions and was larger than expected in radiative-energy loss calculations, posing a challenge to this class of models. More precise measurements were carried out by the PHENIX [43, 149] and STAR [163] collaborations utilizing the larger data samples of Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ collected during the RHIC run-4. In addition, PHENIX published results from a sample of Cu–Cu collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ collected in run-5 [167] and in Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}=62.4\,\mathrm{GeV}$ from run-10 [324]. The STAR collaboration published a study of v₂ in Au–Au collisions at different energies utilizing the run-10 data samples [325]. Recently, the PHENIX collaboration reported first results of separated yields of single electrons from charm- and beauty-hadron decays from the sample of Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ collected in run-11 after the installation and commissioning of the vertex detector [172]. During the first run at the LHC (2009—2013), HF decay muon ${R}_{\mathrm{AA}}$ and v₂ were measured at forward rapidity by the ALICE collaboration [168, 326]. Preliminary results for HF decay electrons and muons at mid-rapidity were reported by ALICE [327] and ATLAS [328, 329].

A selection of results on the ${p}_{{\rm{T}}}$ dependence of the nuclear modification factor of HF decay leptons for different colliding systems and collision energies and centralities is collected in figure 18. In the top-left panel, the results on HF decay electron ${R}_{\mathrm{AA}}$ at midrapidity in central Au–Au, Cu–Cu and dAu collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ are compared [330]. A substantial suppression of the yield of electrons with ${p}_{{\rm{T}}}\gt 1.5\,\mathrm{GeV}/c$ is observed in the 10% most central Au–Au collisions [149]. The suppression increases with increasing ${p}_{{\rm{T}}}$, reaching a factor of about four at ${p}_{{\rm{T}}}=4\,\mathrm{GeV}{c}^{-1}$. The results from dAu collisions [288], showing a nuclear modification factor consistent or larger than unity, provide clear evidence that the high-${p}_{{\rm{T}}}$ suppression observed in central Au–Au collisions is a final-state effect due to the formation of a hot and dense medium. In the 10% most central Cu–Cu collisions a moderate suppression of the HF decay electron yield is observed for ${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}{c}^{-1}$. The magnitude of the suppression is smaller than that observed in central Au–Au collisions, as expected from the smaller size of the system created in the collisions of the lighter Cu nuclei.

Zoom In Zoom Out Reset image size

In Cu–Cu collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$, HF decay muons were measured at forward rapidity ($1.4\lt y\lt 1.9$) [167]. The results are reported in the top-right panel of figure 18 and compared to the mid-rapidity results. Open HF production is found to be significantly more suppressed at forward rapidity than at midrapidity. The magnitude of the suppression observed in Cu–Cu collisions at forward rapidity is comparable to that in central Au–Au collisions at midrapidity. This observation suggests that in-medium energy loss is not the only mechanism responsible for the observed suppression, as the medium size and density are larger in Au–Au than in Cu–Cu collisions. Other nuclear effects, such as gluon shadowing at small Bjorken-x or partonic energy loss in cold nuclear matter, can be relevant for the description of the forward-rapidity results. The gross features of the data are caught by model calculations by Vitev et al [72], shown in the top-right panel of figure 18, which include in-medium energy loss due to gluon radiation and in-medium hadron formation and dissociation, as well as cold-nuclear matter effects such as shadowing and ${k}_{{\rm{T}}}$-broadening.

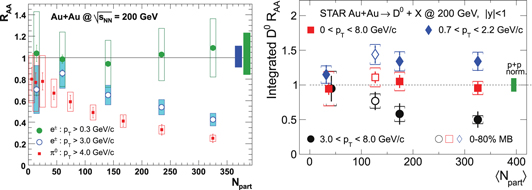

The HF decay electron ${R}_{\mathrm{AA}}$ in the 20% most central Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}=62.4\,\mathrm{GeV}$ is shown in the bottom-left panel of figure 18 [324]. Since a sample of pp collisions at RHIC is not available for this CM energy, the pp reference was taken from ISR data. The ${R}_{\mathrm{AA}}$ is found to be consistently larger than unity and no suppression is observed in the measured ${p}_{{\rm{T}}}$ range. In contrast to the HF results, the ${\pi }^{0}$ measurements at this lower collision energy show a suppression that increases with centrality [332]. Measurements at this lower collision energy offer the possibility to study HF production in a situation in which the initial temperature of the medium is reduced as compared to top RHIC energy, while still encompassing the transition region. This could shed light on the question whether the HQ coupling to the medium is primarily driven by an increasing temperature (or energy density), or by an increase in coupling strength in the pseudo-critical region of the chiral/deconfinement transition [331]. The measured HF decay electron nuclear modification factor can be described within uncertainties by the TAMU model [331], shown as a red band in the bottom-left panel of figure 18. In this approach, the HF-decay electron ${R}_{\mathrm{AA}}$ pattern at $\sqrt{{s}_{\mathrm{NN}}}=62.4\,\mathrm{GeV}$ emerges from the interplay of initial- and final-state effects, in particular the partial thermalization of heavy quarks in the hot medium (starting from a softer initial-production spectrum than at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$) and a Cronin enhancement, which is known to become more pronounced toward lower collision energies.

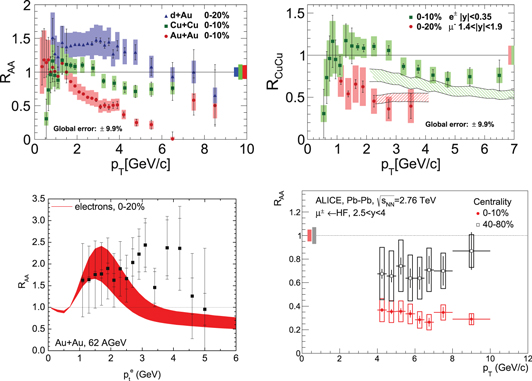

In the bottom-right panel of figure 18, the ${R}_{\mathrm{AA}}$ of HF decay muons at forward rapidity ($2.5\lt y\lt 4$) is shown for central and peripheral Pb–Pb collisions at the LHC energy of $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$. A strong suppression, by a factor of 3–4, is observed in the 10% most central collisions in the measured ${p}_{{\rm{T}}}$ range ($4\lt {p}_{{\rm{T}}}\lt 10\,\mathrm{GeV}{c}^{-1}$), without a significant ${p}_{{\rm{T}}}$ dependence within uncertainties. A smaller suppression is observed for peripheral (40%–80%) collisions. The higher collision energy allowed a precise determination of the nuclear modification factor in the momentum interval ${p}_{{\rm{T}}}\gt 6\,\mathrm{GeV}{c}^{-1}$, which was accessible with limited statistical precision at RHIC energies. In this high-${p}_{{\rm{T}}}$ interval, according to the central value of FONLL pQCD calculations, the dominant contribution to the HF-decay muon yield is due to beauty-hadron decays.

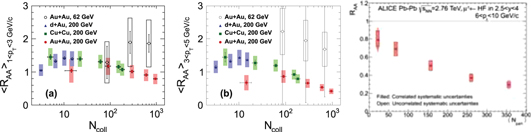

The system size dependence of the nuclear modification factor can be investigated by comparing results at different centralities and in different colliding systems. It was observed in [330] that when results from dAu, Cu–Cu and Au–Au collisions are compared in centrality intervals of comparable system size (i.e., similar average number of participant nucleons or binary collisions), similar trends and magnitudes are found for the ${R}_{\mathrm{AA}}$ as a function of ${p}_{{\rm{T}}}$. This is illustrated in the left and middle panels of figure 19, where the HF decay electron ${R}_{\mathrm{AA}}$ in the intervals $1\lt {p}_{{\rm{T}}}\lt 3\,\mathrm{GeV}{c}^{-1}$ (left) and $3\lt {p}_{{\rm{T}}}\lt 5\,\mathrm{GeV}{c}^{-1}$ (middle) from dAu, Cu–Cu and Au–Au collisions is compiled as a function of $\langle {N}_{\mathrm{coll}}\rangle$. The data at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ indicate a common trend (with the exception of the most peripheral Au–Au bin in the higher ${p}_{{\rm{T}}}$ range) among the three different systems, showing an enhancement which increases with increasing system size at low $\langle {N}_{\mathrm{coll}}\rangle$, followed by suppression for larger system sizes. This common trend suggests that the enhancement and suppression effects are dependent on the size of the colliding system and the produced medium and are the result of the interplay between CNM (nPDF, Cronin enhancement) and hot-medium (energy-loss, radial flow) effects. The results at $\sqrt{{s}_{\mathrm{NN}}}=62.4\,\mathrm{GeV}$, also shown in the left and middle panels of figure 19, suggest that at this lower collision energy the competition among different effects (Cronin enhancement, flow and energy loss) favors HF enhancement over suppression, consistently with previous observations of an increased Cronin enhancement with decreasing collision energy [333]. Studies of the system size dependence in Pb–Pb collisions at the LHC are shown in the right panel of figure 19, which reports the ${R}_{\mathrm{AA}}$ of HF decay muons for $2.5\lt y\lt 4$ and $6\lt {p}_{{\rm{T}}}\lt 10\,\mathrm{GeV}{c}^{-1}$, where, according to FONLL calculations, the beauty contribution is expected to be dominant. A trend of increasing suppression with increasing centrality is observed, qualitatively similar to that found in Au–Au collisions at RHIC, suggesting that HQ in-medium energy loss dominates over other cold and hot medium effects.

Zoom In Zoom Out Reset image size

The nuclear modification factor of electrons from HF hadron decays cannot be compared directly to that of light hadrons at the same ${p}_{{\rm{T}}}$, because of the kinematics of the semi-leptonic decay. According to PYTHIA simulations [125], HF decay electrons with ${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}{c}^{-1}$ originate to a large extent from the decay of D mesons with ${p}_{{\rm{T}}}\gt 4\,\mathrm{GeV}{c}^{-1}$, with the beauty contribution expected to be small at low ${p}_{{\rm{T}}}$ according to FONLL calculations. For this reason, in the left panel of figure 17, the ${R}_{\mathrm{AA}}$ of HF decay electrons with ${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}{c}^{-1}$ is compared to that of ${\pi }^{0}$ for ${p}_{{\rm{T}}}\gt 4\,\mathrm{GeV}{c}^{-1}$. In this intermediate ${p}_{{\rm{T}}}$ range, the data suggest a smaller suppression of HF hadrons as compared to light-flavor mesons. In addition, in order to draw conclusions on the parton energy loss starting from the measurements of charm and light-flavor hadron ${R}_{\mathrm{AA}}$, one should also consider the effects of the different momentum distributions of the initially produced charm quarks as compared to light quarks and gluons, their different fragmentation functions into hadrons, as well as the different initial-state effects on light and heavy quarks (e.g., the different Cronin enhancement of hadrons with different mass [288, 333]). This will be discussed in more detail in the next sub-section where the D-meson measurements are presented and discussed.

Further insight into the interaction of heavy quarks with the medium is provided by the measurements of elliptic flow and their comparison to model calculations. The results of the measurements of HF decay electron v₂ at mid-rapidity as a function of ${p}_{{\rm{T}}}$ in Au–Au collisions at RHIC are shown in figure 20. The left panel reports the results of the PHENIX collaboration for collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ in different centrality intervals [149]. The largest v₂ is observed in semi-peripheral collisions (20%–40% shown in the plot and 40%–60% not shown in the plot), for which the initial geometrical anisotropy is largest. The elliptic flow is found to be larger than zero in the interval $0.5\lt {p}_{{\rm{T}}}\lt 2.5\,\mathrm{GeV}{c}^{-1}$, with a maximum value of about 0.1 at ${p}_{{\rm{T}}}\approx 1.5\,\mathrm{GeV}{c}^{-1}$. Note that a non-zero v₂ of HF decay electrons does not necessarily imply a non-zero v₂ of charm (beauty) quarks usually associated with heavy quarks taking part in the collective expansion of the medium. A significant contribution to HF electrons at low and intermediate ${p}_{{\rm{T}}}$ may arise from the decays of charm (and beauty) hadrons produced via the recombination of a heavy quark with a light quark from the medium. Due to the light-quark collective flow, HF hadrons produced with this recombination mechanism can acquire a non-zero v₂ also in the case in which charm quarks have vanishing elliptic flow [120]⁵ . In the right panel of figure 20 the STAR measurements of HF decay electron v₂ at three different collision energies are compared for the 0%–60% centrality class [325]. The results at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ are compatible with the measurement by the PHENIX collaboration in the same centrality class (see [325] for the comparison). At lower collision energies, $\sqrt{{s}_{\mathrm{NN}}}=39$ and $62.4\,\mathrm{GeV}$, the v₂ values are smaller and consistent with zero within uncertainties. Also the PHENIX collaboration reported a measurement of HF decay electron v₂ at $\sqrt{{s}_{\mathrm{NN}}}=62.4\,\mathrm{GeV}$ in the interval $1\lt {p}_{{\rm{T}}}\lt 4\,\mathrm{GeV}{c}^{-1}$ [324]. The central values are non-zero but lower than at 200 GeV, and consistent with the STAR results at lower ${p}_{{\rm{T}}}$. However, the large uncertainties prevent from drawing firm conclusions on the dependence of v₂ on the collision energy.

Zoom In Zoom Out Reset image size

A number of theoretical model calculations are available for the elliptic flow coefficient and the nuclear modification factor of HF decay electrons at RHIC energies. In figure 21, taken from [11], a comprehensive comparison of the outcome of model calculations to the measurements is shown. Overall, the HF decay electron ${R}_{\mathrm{AA}}$ in central Au–Au collisions measured by the PHENIX [149] and STAR [163] collaborations and the v₂ measured by PHENIX [149] in minimum-bias (MB) collisions are fairly well described by available model calculations. In some of the models the quark-medium coupling (represented by the medium density/temperature and interaction cross section) is tuned to describe the ${R}_{\mathrm{AA}}$ of pions (Djordjevic et al, WHDG, Vitev et al) or electrons (BAMPS) at RHIC energies.

Zoom In Zoom Out Reset image size

The ALICE collaboration recently published results on the elliptic flow of HF decay muons at forward rapidity in the interval $3\lt {p}_{{\rm{T}}}\lt 10\,\mathrm{GeV}{c}^{-1}$ for three different centrality classes of Pb–Pb collisions at the LHC [326]. The ${p}_{{\rm{T}}}$ dependence of v₂ in the 20%–40% centrality class is shown in the right panel of figure 22. A positive v₂ is observed with a significance larger than $3\sigma$ in the ${p}_{{\rm{T}}}$ interval from 3 to about $5\,\mathrm{GeV}{c}^{-1}$. The data are compared to the predictions of the MC@sHQ+EPOS [74], TAMU [65] and BAMPS [38, 76] models. All the three models predict a substantial suppression of the high-${p}_{{\rm{T}}}$ yield (left panel of figure 22) and a positive v₂ (right panel of figure 22), approximately consistent with what is observed in the data. The BAMPS and MC@sHQ+EPOS models tend to underestimate and overestimate the ${R}_{\mathrm{AA}}$, respectively. The TAMU model describes the ${R}_{\mathrm{AA}}$ within uncertainties over the entire ${p}_{{\rm{T}}}$ interval, but slightly underestimates the elliptic flow. This indicates that it is challenging to simultaneously describe the strong suppression of HF decay muons at high-${p}_{{\rm{T}}}$ in central collisions and their azimuthal anisotropy in semi-central collisions.

Zoom In Zoom Out Reset image size

A major progress in the HF decay lepton studies can be provided by the separation of the contributions of charm and beauty hadron decays. The PHENIX collaboration recently published the measurements performed on a sample of MB Au–Au collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}{c}^{-1}$ recorded in 2011 with their new vertex detectors (VTX) [172]. The vertexing capabilities allow the separation of beauty and charm decay electrons based on the shape of the measured distributions of the distance of closest approach (DCA) of the tracks to the interaction vertex. An unfolding procedure was utilized to infer the parent charm- and beauty-hadron yields as a function of ${p}_{{\rm{T}}}$ starting from the measured electron yield as a function of ${p}_{{\rm{T}}}$ and DCA. The extracted fraction of beauty-decay electrons in the HF electron yield $\left(\tfrac{b\to e}{c\to e+b\to e}\right)$ as a function of ${p}_{{\rm{T}}}$ is shown as a red band in figure 23 and compared to the expectation from theoretical calculations. In particular, predictions from FONLL pQCD calculations (corresponding to no medium effects) and from three transport models, namely POWLANG [124], Duke (also denoted as Cao, Qin, Bass or Cao et al) for two different values of the ${D}_{s}(2\pi T)$ parameter governing the HQ-medium coupling [334], and TAMU [65] are displayed. Comparisons to other model calculations, not shown in figure 23, can be found in [172]. The models are in reasonable agreement with the extracted beauty-decay electron fraction within the relatively large uncertainties. From these results on the beauty fraction in Au–Au collisions, the nuclear modification factors of electrons from charm and beauty hadron decays were disentangled using (i) the additional information on the beauty-decay electron fraction in pp collisions extracted from the the angular correlation analysis performed by the STAR collaboration [173] and (ii) the measured ${R}_{\mathrm{AA}}$ of HF decay electrons in Au–Au collisions. The resulting ${R}_{\mathrm{AA}}$s are reported in figure 24 together with the ratio ${R}_{\mathrm{AA}}^{b\to e}/{R}_{\mathrm{AA}}^{c\to e}$. The electrons from beauty-hadron decays are found to be less suppressed than those from charm-hadron decays at a $1\sigma$ level in the range $3\lt {p}_{{\rm{T}}}\lt 4\,\mathrm{GeV}{c}^{-1}$.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

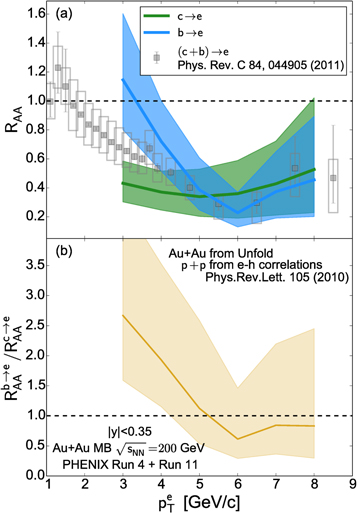

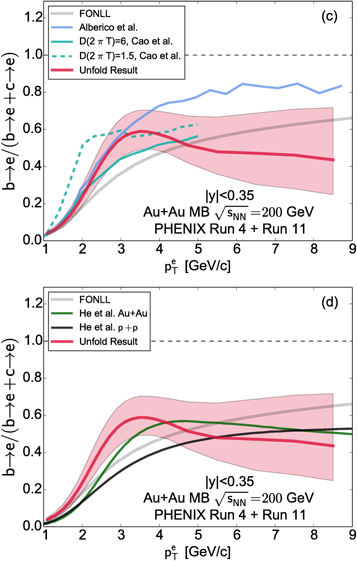

Preliminary results on beauty-decay electron ${R}_{\mathrm{AA}}$ in central Pb–Pb collisions at the LHC, obtained exploiting the different DCA shapes of charm and beauty decay electrons, were reported by the ALICE collaboration [335]. A suppression of the yield relative to the binary-scaled pp cross section $({R}_{\mathrm{AA}}\lt 1)$, albeit with sizeable uncertainties, is observed for ${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}{c}^{-1}$, consistent with in-medium energy loss of beauty quarks.

The production of D mesons was measured ${p}_{{\rm{T}}}$ differentially in Au–Au collisions at RHIC by the STAR collaboration [312] and in Pb–Pb collisions at the LHC with ALICE [336–341]. Preliminary results on the ${D}^{0}$-meson nuclear modification factor in Pb–Pb collisions at the LHC were recently reported by CMS [184]. All these measurements were carried out at midrapidity ($| y| \lt 1$ in the case of STAR and CMS and $| \eta | \lt 0.8$ for ALICE). The STAR collaboration measured the ${D}^{0}$-meson yield in the transverse-momentum range $0\lt {p}_{{\rm{T}}}\lt 8\,\mathrm{GeV}{c}^{-1}$ using a data sample of $\sim 8.2\times {10}^{8}$ MB-triggered events and $\sim 2.4\times {10}^{8}$ events in the 0%–10% centrality interval recorded during run-10 and run-11 [312]. Preliminary results were reported on ${D}^{0}$ production in U–U collisions at $\sqrt{{s}_{\mathrm{NN}}}=193\,\mathrm{GeV}$ [342]. Recently, STAR reported preliminary results on ${D}_{s}^{+}$-meson ${R}_{\mathrm{AA}}$ and v₂ in Au–Au collisions at top RHIC energy [343], which, although limited by statistics, show similar features as the ALICE measurements at the LHC [341]. ALICE obtained the first results on ${D}^{0}$-, ${D}^{+}$- and ${D}^{* +}$-meson nuclear modification factors in Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ by analyzing a sample of $13\times {10}^{6}$ collisions in the centrality range of 0%–80% collected in 2010 [336]. This sample allowed the measurement of the D-meson ${R}_{\mathrm{AA}}$ in the momentum interval $2\lt {p}_{{\rm{T}}}\lt 16\,\mathrm{GeV}{c}^{-1}$ in the 0%–20% and 40%–80% centrality classes. Using the larger data sample of $16.4\cdot {10}^{6}$ central (0%–10%) and $9.0\times {10}^{6}$ semi-peripheral (30%–50%) Pb–Pb collisions recorded in year 2011, the ${R}_{\mathrm{AA}}$ of ${D}^{0}$, ${D}^{+}$, and ${D}^{* +}$ mesons could be measured with improved precision in a wider transverse-momentum interval ($1\lt {p}_{{\rm{T}}}\lt 36\,\mathrm{GeV}\,{c}^{-1}$ for the 10% most central collisions) [339, 340]. In addition, the D-meson elliptic flow [337, 338] and the ${D}_{s}^{+}$-meson nuclear modification factor [341] were measured for the first time. Due to the small size of the data sample of pp collisions collected at $\sqrt{s}=2.76\,\mathrm{TeV}$, the pp reference for the ${R}_{\mathrm{AA}}$ at the LHC was obtained via a $\sqrt{s}$-scaling of the measurements at $\sqrt{s}=7\,\mathrm{TeV}$. The scaling factor and its uncertainty were obtained from FONLL calculations of the D-meson ${p}_{{\rm{T}}}$ differential cross section at $\sqrt{s}=2.76$ and $7\,\mathrm{TeV}$ [299].

A selection of results on the D-meson nuclear modification factor and elliptic flow is shown in figure 25. In the top-left panel, the transverse-momentum dependence of the ${R}_{\mathrm{AA}}$ of ${D}^{0}$ mesons in the 10% most central AuAu collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ from the STAR experiment [312] is compared to the outcome of various model calculations [28, 72, 73, 77, 84, 124]. The data show a structure in transverse-momentum which is characterized by an increase of ${R}_{\mathrm{AA}}$ with increasing ${p}_{{\rm{T}}}$ for ${p}_{{\rm{T}}}\lt 1.5\,\mathrm{GeV}{c}^{-1}$, a maximum at ${p}_{{\rm{T}}}$ around $1.5\,\mathrm{GeV}{c}^{-1}$, where a value ${R}_{\mathrm{AA}}\gt 1$ is measured, followed by a decrease. For ${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}{c}^{-1}$, a clear suppression relative to the binary-scaled pp cross section is observed. A similar trend is observed in the preliminary results from U–U collisions [342]. The ${R}_{\mathrm{AA}}$ measured by the STAR collaboration in the interval $0\lt {p}_{{\rm{T}}}\lt 3\,\mathrm{GeV}{c}^{-1}$ is described qualitatively, and to some extent also quantitatively, by the models that include interactions in an expanding fluid-dynamical medium, causing energy loss and radial flow (TAMU [77], BAMPS [28], Cao et al [84], MC@sHQ [73], POWLANG [124], and PHSD [40]). In these models, the ${R}_{\mathrm{AA}}$ shape at low ${p}_{{\rm{T}}}$ is the effect of the collective flow on the light and charm quarks and of the contribution of the recombination mechanism to charm-quark hadronization. In some of these models, e.g., TAMU [77], POWLANG [124] and Duke [85], the effect of hadronization via recombination, which converts low- and intermediate-${p}_{{\rm{T}}}$ charm quarks into D mesons, is rather crucial to describe the data at low and intermediate ${p}_{{\rm{T}}}$. In the TAMU [126] and PHSD models [40] the contribution to the v₂ due to D-meson rescattering in the hadronic phase is found to be significant (also for the ${R}_{\mathrm{AA}}$ in the PHSD model). The model by Vitev et al [72], which includes CNM and hot QGP (in-medium energy loss and meson dissociation) effects, is consistent with the data in the region of its applicability, ${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}{c}^{-1}$ (since the medium's transverse collective expansion is neglected).

Zoom In Zoom Out Reset image size

The prompt D-meson ${R}_{\mathrm{AA}}$ (average of ${D}^{0}$, ${D}^{+}$, and ${D}^{* +}$ nuclear modification factors) measured with ALICE [340] in central (0%–10%) Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ is shown in the top-right panel of figure 25 together with a selection of model predictions [28, 65, 74, 84, 124, 230, 314, 344]. In particular, only models for which simultaneous predictions for v₂ are available were included in this plot (other predictions compared to data are deferred to the left panel of figure 28). The prompt D-meson yield at high ${p}_{{\rm{T}}}$ is found to be strongly suppressed with respect to the binary-scaled pp reference. In the interval $3\lt {p}_{{\rm{T}}}\lt 10\,\mathrm{GeV}{c}^{-1}$, the suppression increases (${R}_{\mathrm{AA}}$ decreases) with increasing ${p}_{{\rm{T}}}$. The maximal suppression is observed around ${p}_{{\rm{T}}}=10\,\mathrm{GeV}{c}^{-1}$, where the yields are reduced by a factor of 5–6 relative to the binary-scaling expectation value. For ${p}_{{\rm{T}}}\gt 10\,\mathrm{GeV}{c}^{-1}$, the ${R}_{\mathrm{AA}}$ appears to increase (decreasing suppression) with increasing ${p}_{{\rm{T}}}$, even though the large uncertainties prevent a conclusion on the trend of the nuclear modification factor at high ${p}_{{\rm{T}}}$. A significant suppression, ${R}_{\mathrm{AA}}\lt 0.5$, is observed for D mesons with ${p}_{{\rm{T}}}\gt 25\,\mathrm{GeV}{c}^{-1}$. The preliminary CMS results on prompt ${D}^{0}$-meson ${R}_{\mathrm{AA}}$ in $2.5\lt {p}_{{\rm{T}}}\lt 40\,\mathrm{GeV}{c}^{-1}$ for central (0%–10%) Pb–Pb collisions are consistent with the ALICE results within uncertainties [184]. Since no significant modification of the D-meson production is observed in pPb collisions for ${p}_{{\rm{T}}}\gt 2\,\mathrm{GeV}{c}^{-1}$, the strong suppression of the D-meson yields observed for ${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}\,{c}^{-1}$ cannot be explained in terms of CNM effects and therefore is predominantly due to final-state effects induced by the hot and dense medium created in the collisions. This is also supported by the fact that the data cannot be described by the the outcome of a NLO pQCD calculation [158] including only the initial-state effects related to the nuclear modification of the PDF [264] ('NLO with EPS09' curve in figure 25), which instead was able to reproduce the measured D-meson nuclear modification factor in pPb collisions (see figure 13). On the other hand, all the models including interactions of charm quarks with an hot and dense partonic medium provide in general a reasonable description of the observed ${R}_{\mathrm{AA}}$.

To illustrate the evolution of the nuclear modification factor with $\sqrt{s}$, the D-meson ${R}_{\mathrm{AA}}$ measured in the 10% most central Au–Au and Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ and $2.76\,\mathrm{TeV}$ are compared in the left panel of figure 26. At high ${p}_{{\rm{T}}}$ (${p}_{{\rm{T}}}\gt 3\,\mathrm{GeV}{c}^{-1}$), where the nuclear modification factor is expected to be dominated by the effect of in-medium parton energy loss, the ${R}_{\mathrm{AA}}$ values measured at the two energies are compatible within uncertainties. However, as pointed out in [340], this does not necessarily imply a similar charm-quark energy loss and medium density at the two collision energies, since the nuclear modification factor is also sensitive to the slope of the ${p}_{{\rm{T}}}$ spectra of the hard-scattered partons. Therefore, the combined effect of a denser medium and harder initial ${p}_{{\rm{T}}}$ spectra at the LHC could result in similar values of ${R}_{\mathrm{AA}}$ as at RHIC energies (see, e.g., [346]). At lower ${p}_{{\rm{T}}}$, the ${R}_{\mathrm{AA}}$ measured at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ is lower than the one at $\sqrt{{s}_{\mathrm{NN}}}=200\,\mathrm{GeV}$ and does not show a 'bump-like' trend with a rise, a maximum and a successive decrease with increasing ${p}_{{\rm{T}}}$. However, due to the large uncertainties and the coarser binning at low ${p}_{{\rm{T}}}$, no firm conclusion can be drawn. In this comparison, it has to be considered that the ${R}_{\mathrm{AA}}$ at low and intermediate ${p}_{{\rm{T}}}$ is the result of the interplay of different effects occurring in the initial and final state. Therefore, a different ${R}_{\mathrm{AA}}$ trend at different CM energies could arise from a different role of initial-state effects and radial flow. As far as initial-state effects are concerned, with increasing $\sqrt{{s}_{\mathrm{NN}}}$ one expects a stronger reduction of the HQ production yields at low ${p}_{{\rm{T}}}$ due to nuclear shadowing (due to the smaller values of Bjorken-x being probed [267]) and a less pronounced Cronin peak at intermediate ${p}_{{\rm{T}}}$ [272, 347]. On the other hand, the radial flow of the medium at LHC energies is about 10%–20% larger than at RHIC [4, 5]. However, this does not necessarily imply that the bump-like structure observed in the ${R}_{\mathrm{AA}}$ trend at low ${p}_{{\rm{T}}}$ at RHIC energy should become more pronounced with increasing collision energy. The stronger radial flow effect could be counter-balanced in the ${R}_{\mathrm{AA}}$ by the different shape of the reference spectra in pp collisions at different $\sqrt{s}$. In this respect, is interesting to notice in the top-left and top-right panels of figure 25 that a reasonable description of the low and intermediate ${p}_{{\rm{T}}}$ data at both the collision energies is obtained with the models that include nuclear modification of the PDF, charm-quark interactions with the medium constituents, hydrodynamical medium expansion and hadronization via recombination, such as TAMU [65, 77], POWLANG [124], Duke [84] and MC@sHQ+EPOS [73, 74]. The BAMPS model [28], which does not include nuclear modification of the PDFs, predicts for LHC energies at low ${p}_{{\rm{T}}}$ (where shadowing is relevant) a value of ${R}_{\mathrm{AA}}$ larger than that observed in the data.

Zoom In Zoom Out Reset image size

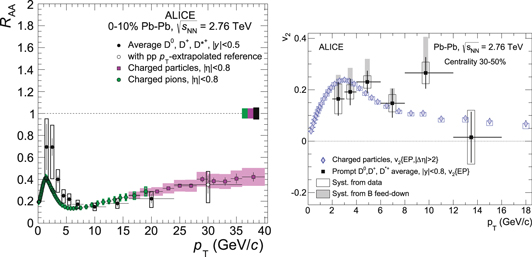

In the bottom panels of figure 25 the ${R}_{\mathrm{AA}}$ (left) and v₂ (right) of prompt D mesons (average of ${D}^{0}$, ${D}^{+}$, and ${D}^{* +}$) in semi-central (30%–50%) Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ are shown and compared to model predictions. The nuclear modification factor indicates that the D-meson yield is suppressed in the 30%–50% centrality class in the measured ${p}_{{\rm{T}}}$ range with respect to the binary-scaled pp reference [340]. This reduction of the yield in Pb–Pb collisions is smaller, by a factor of about two, than in the 10% most central collisions, as expected due to the decreasing medium density, size and lifetime from central to peripheral collisions. A positive elliptic flow is measured for prompt D mesons in the centrality class 30%–50% [337]. In particular, in the interval $2\lt {p}_{{\rm{T}}}\lt 6\,\mathrm{GeV}{c}^{-1}$ the measured v₂ is found to be larger than zero with $5.7\sigma$ significance. A positive v₂ of ${D}^{0}$ mesons was also observed in the 10%–30% centrality class [338]. These results indicate that the interactions with the medium constituents transfer information on the azimuthal anisotropy of the system to the charmed particles [338]. It also suggests that low-momentum charm quarks take part in the collective expansion of the medium, even though, with the current uncertainties, the possibility that the observed D-meson v₂ is completely due to the light-quark contribution in a scenario with hadronization via recombination cannot be ruled out. A positive v₂ is also observed for ${p}_{{\rm{T}}}\gt 6\,\mathrm{GeV}{c}^{-1}$, which is likely to originate from the path-length dependence of the partonic energy loss, although the large uncertainties do not allow for a firm conclusion.

As already pointed out in the discussion of the HF decay lepton results, the simultaneous comparison of the measured ${R}_{\mathrm{AA}}$ and v₂ to theoretical model calculations constrains the description of the interactions of heavy quarks with the medium, possibly providing sensitivity to the relative contributions of elastic (collisional) and inelastic (radiative) processes, and to the path-length dependence of in-medium parton energy loss. Overall, the observed elliptic flow is qualitatively described by the models that include both charm-quark energy loss in a spatially anisotropic medium and momentum gain processes transferring elliptic flow produced through the system expansion to charmed particles. The WHDG model does not include a hydrodynamical description of the medium expansion, so that the anisotropy results only from path-length dependent energy loss (the models of Djordjevic et al and Vitev et al do not provide a calculation for v₂; their ${R}_{\mathrm{AA}}$ is compared to the data in figure 28 below). The models that include only collisional energy loss (TAMU, POWLANG, BAMPS-elastic and PHSD) provide in general a good description of the v₂, but tend to overestimate (TAMU) or underestimate (POWLANG, BAMPS-elastic) the ${R}_{\mathrm{AA}}$ in central and/or semi-peripheral collisions. On the other hand, models including both radiative and collisional energy loss (Cao et al, BAMPS rad+el and WHDG) describe the ${R}_{\mathrm{AA}}$ in central collisions well, but tend to underestimate the elliptic flow at low ${p}_{{\rm{T}}}$. This may be a consequence of the fact that the inclusion of radiative processes reduces the weight of elastic interactions, which are more effective in building up the azimuthal momentum anisotropy. The MC@sHQ+EPOS model, which also includes both collisional and radiative processes, can describe the measured ${R}_{\mathrm{AA}}$ and v₂ within uncertainties at low (${p}_{{\rm{T}}}\lt 2\,\mathrm{GeV}{c}^{-1}$) and high (${p}_{{\rm{T}}}\gt 6-8\,\mathrm{GeV}\,{c}^{-1}$) transverse momenta at different collision energies and centrality, but it tends to overestimate ${R}_{\mathrm{AA}}$ and underestimate v₂ in the intermediate ${p}_{{\rm{T}}}$ region. From this discussion, it emerges that the role of the different interaction mechanisms, in particular radiative and collisional energy loss, is not yet completely clarified, even though the data-to-theory comparison suggests that both of these contributions are relevant. Finally, models including hadronization of charm quarks from recombination with light quarks from the medium (TAMU, Cao et al, MC@sHQ+EPOS, POWLANG and PHSD) predict a more pronounced radial flow peak in the low-${p}_{{\rm{T}}}$ ${R}_{\mathrm{AA}}$ and a larger v₂, due to the light-quark contribution, thus providing a better description of the data at low ${p}_{{\rm{T}}}$ (see, e.g., the discussion in [124]). In summary, this comprehensive data-to-theory comparison reiterates the challenges for theoretical models to simultaneously describe the measured D-meson ${R}_{\mathrm{AA}}$ and v₂ at different collision energies and centralities. This indicates that the current data from RHIC and LHC have the potential to better constrain the description of the interactions of charm quarks with the medium constituents and their hadronization mechanism.

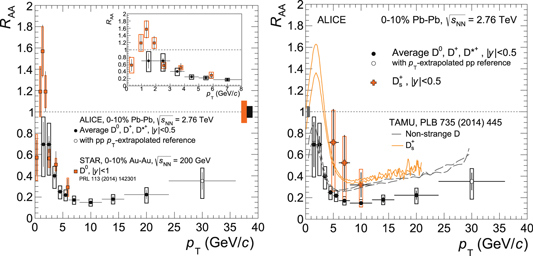

In the right panel of figure 26, the nuclear modification factor of D mesons (average of ${D}^{0}$, ${D}^{+}$ and ${D}^{* +}$) in central (0%–10%) Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ is compared to that of ${D}_{s}^{+}$ mesons [341] and to the corresponding predictions from the TAMU model [65, 110]. This comparison is meant to address the expected effect of hadronization via quark recombination in the partonic medium on the relative abundances of strange and non-strange D-meson species. An enhancement of the ${{D}_{s}}^{+}$ yield relative to that of non-strange D mesons at low and intermediate momenta is expected in nucleus–nucleus collisions as compared to pp interactions, if the dominant process for D-meson formation is in-medium hadronization of charm quarks via recombination with light quarks, due to the large abundance of strange quarks in the QGP [110, 192, 193, 348, 349]. In particular, the ${p}_{{\rm{T}}}$ dependence of this comparison has been suggested as a tool to map out the relative importance of recombination processes [110]. In the three ${p}_{{\rm{T}}}$ intervals, in which the ${{D}_{s}}^{+}$ yield could be measured in Pb–Pb collisions, the central values of its ${R}_{\mathrm{AA}}$ are found to be higher than those of non-strange D mesons, although compatible within uncertainties. Even though part of the systematic uncertainty is correlated between strange and non-strange D mesons [341], the current uncertainties prevent a conclusion on the expected modification of the relative abundance of charm-hadron species due to hadronization via recombination. Among the various models of open-charm production in heavy-ion collisions, TAMU is the only one providing a quantitative prediction for the ${{D}_{s}}^{+}$-meson nuclear modification factor. The measured ${R}_{\mathrm{AA}}$ is described within uncertainties by this prediction, where the ${p}_{{\rm{T}}}$ dependent enhancement of ${{D}_{s}}^{+}$ mesons relative to that of non-strange D mesons is a consequence of the recombination of charm quarks with thermally equilibrated strange quarks in the QGP. As discussed in section 2.2.6, an enhanced production of ${{D}_{s}}^{+}$ mesons (as well as ${{\rm{\Lambda }}}_{{\rm{c}}}$ baryons, etc) in heavy-ion collisions due to recombination entails a reduction of charm quarks available for hadronization into non-strange meson species. This 'chemistry effect' should therefore be considered in the interpretation of the comparison of the nuclear modification factors of non-strange D mesons and light-flavor hadrons (e.g., pions), which is discussed in the next paragraphs.

It is interesting to compare both the nuclear modification factor and the elliptic flow of D mesons with those of light-flavor particles, as done in figure 27. This could provide some additional insight into the interactions of partons with the medium constituents and on the degree of equilibration of charm quarks in the collectively expanding system. In the right panel of figure 27, the elliptic flow coefficients of D mesons [337] and charged particles [352] measured in Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ in the 30%–50% centrality class are compared. The magnitude and ${p}_{{\rm{T}}}$ trend of v₂ are observed to be similar (within uncertainties of about 30%) for charmed and light-flavor hadrons, which dominate the charged-particle sample. A similar observation was made for the ${D}^{0}$-meson and charged-particle v₂ in the 0%–10% and 10%–30% centrality classes [338]. The current uncertainties do not allow a conclusion on whether the D-meson elliptic flow follows the mass dependence predicted by hydrodynamical calculations, which would suggest a full thermalization of charm quarks with the medium. The comparison of the nuclear modification factor of D mesons and light-flavor particles (pions), mostly originating from gluon fragmentation at LHC energies, was long proposed as a test for the expected color-charge and quark mass dependence of in-medium parton energy loss [78, 79, 209, 353]. This comparison is shown in the left panel of figure 27 for the 10% most central Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$, where the ${R}_{\mathrm{AA}}$ of D mesons, pions (in the interval $1\lt {p}_{{\rm{T}}}\lt 20\,\mathrm{GeV}{c}^{-1}$) [350] and charged particles (in $16\lt {p}_{{\rm{T}}}\lt 40\,\mathrm{GeV}{c}^{-1}$) [351] are collected. At high ${p}_{{\rm{T}}}$ (${p}_{{\rm{T}}}\gt 8-10\,\mathrm{GeV}{c}^{-1}$) all light-flavor hadron species are found to be equally suppressed in Pb–Pb collisions and the particle ratios are compatible with those in vacuum [350], so that the charged particle ${R}_{\mathrm{AA}}$ can be used in this comparison in place of the pion ${R}_{\mathrm{AA}}$ at high ${p}_{{\rm{T}}}$. The nuclear modification factors of D mesons and light-flavor hadrons are found to be consistent for ${p}_{{\rm{T}}}\gt 6\,\mathrm{GeV}{c}^{-1}$. At lower ${p}_{{\rm{T}}}$ (${p}_{{\rm{T}}}\lt 6\,\mathrm{GeV}{c}^{-1}$), the ${R}_{\mathrm{AA}}$ of D mesons tends to be slightly higher than that of pions. Since, as pointed out in [340], the systematic uncertainties of D-meson yields are mainly correlated across ${p}_{{\rm{T}}}$ intervals, the current data provide a hint for ${R}_{\mathrm{AA}}^{{\rm{D}}}\gt {R}_{\mathrm{AA}}^{\pi }$ (at about a 1σ level) at intermediate and low ${p}_{{\rm{T}}}$. An interpretation of this potential difference between the D-meson and pion ${R}_{\mathrm{AA}}$ in terms of different in-medium parton energy loss of charm quarks, light quarks and gluons is, however, not straightforward because in this ${p}_{{\rm{T}}}$ range the ${R}_{\mathrm{AA}}$ is sensitive to other initial- and final-state effects, which could have rather different weights in the light and charm sectors. As pointed out in [315], similar values of the D-meson and pion ${R}_{\mathrm{AA}}$ could originate from the interplay of the color-charge and quark-mass dependent energy loss with the different ${p}_{{\rm{T}}}$ distributions in the pp reference and different fragmentation functions of charm quarks as compared to light quarks and gluons. In addition, at LHC energies the pion yield at ${p}_{{\rm{T}}}\sim 3-4\,\mathrm{GeV}/c$ could still have a significant component from soft production (due to the strong radial flow) which does not scale with the number of binary nucleon–nucleon collisions (contrary to the D-meson yield, modulo shadowing). A priori, initial-state effects, radial flow and hadronization via recombination (see the above remark about the hadro-chemistry in the charm sector) can affect the ${R}_{\mathrm{AA}}$ of D mesons and pions quite differently.

Zoom In Zoom Out Reset image size

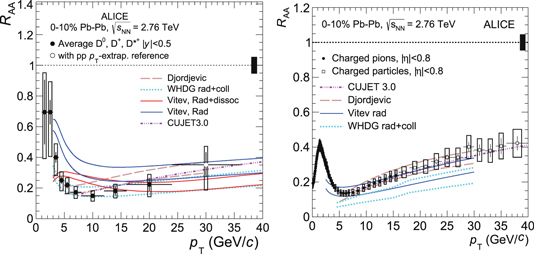

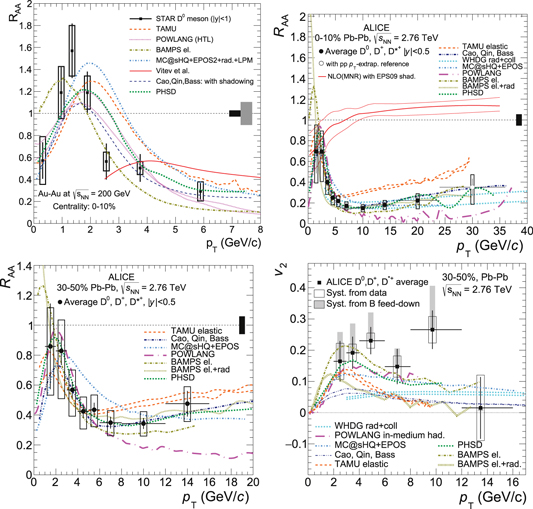

Four models provide a calculation for the nuclear modification factors of D mesons and pions (charged particles) namely Djordjevic et al [316], CUJET3.0 [232, 233], WHDG [230, 314, 344] and Vitev et al [72]. In figure 28, the outcome of these model calculations is compared to the measured ${R}_{\mathrm{AA}}$ of D mesons (left) and pions/charged particles (right) in central Pb–Pb collisions at the LHC. The models Djordjevic et al, WHDG and CUJET3.0 include both radiative and collisional energy loss. The WHDG calculations tend to overpredict the measured suppression of the pion ${R}_{\mathrm{AA}}$ while describing the D-meson one within experimental and theoretical uncertainties. For the Vitev et al model, two different implementations are considered: the first one (labelled as 'Vitev rad') includes only radiative energy loss; the second one ('rad+dissoc') considers in addition the effect of in-medium formation and dissociation of HF hadrons. The in-medium formation and dissociation process is not considered as being relevant for pions due to their much longer formation time. These model calculations can describe the measured light-flavor ${R}_{\mathrm{AA}}$ within uncertainties, while for D mesons a better agreement with the data is obtained when the in-medium dissociation mechanism is included in the calculation, indicating the relevance of this effect in the Vitev et al approach. However, within this model an overestimation of the measured D-meson ${R}_{\mathrm{AA}}$ toward lower momenta, ${p}_{{\rm{T}}}\lesssim 12\,\mathrm{GeV}{c}^{-1}$, persists. The Djordjevic et al and CUJET3.0 models can describe both the pion and D-meson ${R}_{\mathrm{AA}}$ results (as well as their ratio, see [340]) over the full ${p}_{{\rm{T}}}$ interval of the calculations (${p}_{{\rm{T}}}\gt 5$ and 8 GeV c⁻¹, respectively). In these models, which include collisional and radiative energy loss, the nuclear modification factors of D mesons and light-flavor hadrons turn out to be similar as a consequence of the interplay among (i) the larger energy loss of gluons with respect to that of charm quarks (mainly due to the larger color coupling factor), (ii) the different amount of gluon and light-quark contributions to the observed pion yield in pp and Pb–Pb collisions, and (iii) the harder ${p}_{{\rm{T}}}$ distribution and fragmentation of charm quarks with respect to those of gluons and light quarks.

Zoom In Zoom Out Reset image size

Besides the measurements of leptons from beauty-hadron decays described above, beauty production in Pb–Pb collisions at the LHC was studied at mid-rapidity through the measurements of non-prompt $J/\psi$ carried out by the ALICE [175] and CMS [354] collaborations. These measurements cover the low- and intermediate-${p}_{{\rm{T}}}$ regions, $1.5\lt {p}_{{\rm{T}}}^{J/\psi }\lt 30\,\mathrm{GeV}{c}^{-1}$, although with large uncertainties at low ${p}_{{\rm{T}}}$. At higher momenta, ${p}_{{\rm{T}}}\gt 80\,\mathrm{GeV}{c}^{-1}$, beauty production could be studied by CMS via the measurement of b-jets [186].

The ${R}_{\mathrm{AA}}$ of non-prompt $J/\psi$ in Pb–Pb collisions at $\sqrt{{s}_{\mathrm{NN}}}=2.76\,\mathrm{TeV}$ is shown in the left panel of figure 29 as a function of ${p}_{{\rm{T}}}$. The ALICE results (at low ${p}_{{\rm{T}}}$, $1.5\lt {p}_{{\rm{T}}}^{{\rm{J}}/\psi }\lt 10\,\mathrm{GeV}{c}^{-1}$) are obtained for the centrality class 0%–50% [175], while the CMS results at higher ${p}_{{\rm{T}}}$ ($6.5\lt {p}_{{\rm{T}}}^{{\rm{J}}/\psi }\lt 30\,\mathrm{GeV}{c}^{-1}$) are for the 20% most central collisions [354]. A clear suppression as compared to the binary-scaled pp reference is observed in central collisions for ${p}_{{\rm{T}}}^{{\rm{J}}/\psi }\gt 6.5\,\mathrm{GeV}{c}^{-1}$, with ${R}_{\mathrm{AA}}=0.37\pm 0.08(\mathrm{stat})\pm \,0.02(\mathrm{syst})$. A suppression is also observed in the intermediate ${p}_{{\rm{T}}}$ interval, covering the range $4.5\lt {p}_{{\rm{T}}}^{{\rm{J}}/\psi }\lt 10\,\mathrm{GeV}{c}^{-1}$, albeit with larger uncertainties. A larger data sample is needed at lower ${p}_{{\rm{T}}}$, where the uncertainties on the current result do not allow to draw any conclusion. Nevertheless, the results at intermediate and high ${p}_{{\rm{T}}}$ indicate that the beauty quarks are substantially affected by interactions with the constituents of the hot and dense medium, which induce a significant modification of their momentum distributions in heavy-ion collisions as compared to those observed in pp interactions. The nuclear modification factor of non-prompt $J/\psi$ is compared to that measured for prompt D mesons (average of ${D}^{0}$, ${D}^{+}$ and ${D}^{* +}$) in central (0%–10%) Pb–Pb collisions [340]. This comparison is meant to test the expected quark-mass dependence of in-medium energy loss [78–80]. The suppression of non-prompt $J/\psi$ seems to be weaker than that of D mesons at high and intermediate ${p}_{{\rm{T}}}$, although the uncertainties on the measurements reported in figure 29 prevent from drawing strong conclusions. In the discussion of this comparison of ${R}_{\mathrm{AA}}$ magnitudes, it is worth noting that the ${p}_{{\rm{T}}}$ of the $J/\psi$ is shifted to lower momenta with respect to that of the parent B meson, due to the decay kinematics. The average ${p}_{{\rm{T}}}$ of the parent B mesons in the highest J/ψ transverse momentum interval measured by CMS is about $11\,\mathrm{GeV}{c}^{-1}$. For a more direct comparison of D and B nuclear modification, the D-meson ${R}_{\mathrm{AA}}$ was measured by the ALICE collaboration [339] in the interval $8\lt {p}_{{\rm{T}}}\lt 16\,\mathrm{GeV}{c}^{-1}$, which provides a significant overlap with the ${p}_{{\rm{T}}}$ distribution of B mesons decaying to $J/\psi$ particles with $6.5\lt {p}_{{\rm{T}}}^{{\rm{J}}/\psi }\lt 30\,\mathrm{GeV}{c}^{-1}$ (for which 70% of the parent B mesons are estimated to have transverse momentum in the range $8\lt {p}_{{\rm{T}}}\lt 16\,\mathrm{GeV}{c}^{-1}$). In the right panel of figure 29, the centrality dependence of the nuclear modification factors of D mesons and non-prompt $J/\psi$ in the chosen ${p}_{{\rm{T}}}$ intervals are compared. The D-meson ${R}_{\mathrm{AA}}$ values in the centrality classes 0%–10% and 10%–20% are lower than that of non-prompt $J/\psi$ mesons in the centrality class 0%–20%. The significance of this difference is, however, smaller than $3\sigma$ considering the statistical and systematic uncertainties [339]. A preliminary measurement of non-prompt $J/\psi$ production performed on the larger data sample of Pb–Pb collisions recorded in 2011 was reported by the CMS collaboration [355]. The non-prompt $J/\psi$ nuclear modification factor in $| y| \lt 1.2$ is measured as a function of centrality using finer centrality intervals and the same ${p}_{{\rm{T}}}$ interval ($6.5\lt {p}_{{\rm{T}}}^{{\rm{J}}/\psi }\lt 30\,\mathrm{GeV}{c}^{-1}$) of the published result. Considering this measurement, the ${R}_{\mathrm{AA}}$ of non-prompt $J/\psi$ is larger than that of D mesons in the 0%–10% and 10%–20% centrality classes with a significance of about $3.5\sigma$ [339]. Similarly, the preliminary prompt ${D}^{0}$-meson ${R}_{\mathrm{AA}}$ measured by CMS in $8\lt {p}_{{\rm{T}}}\lt 16\,\mathrm{GeV}{c}^{-1}$ in six centrality intervals lies between charged-particle and non-prompt $J/\psi$ ${R}_{\mathrm{AA}}$ [184].

Zoom In Zoom Out Reset image size

The experimental observation of ${R}_{\mathrm{AA}}^{D}\lt {R}_{\mathrm{AA}}^{J/\psi \leftarrow B}$ alone does not allow one to conclude on the predicted difference between the in-medium energy loss of charm and beauty quarks. In analogy to the comparison of charm and light-flavor hadron nuclear modifications discussed above, effects other than quark-mass dependent parton energy loss could contribute to differences in the ${R}_{\mathrm{AA}}$: (i) the different ${p}_{{\rm{T}}}$ distributions of the initially produced charm and beauty quarks (which are steeper for charm than for beauty), and (ii) the different shapes of the fragmentation functions (which is harder for beauty than for charm quarks) as well as (iii) recombination contributions. Therefore, for a proper interpretation of the experimental results, the measured ${R}_{\mathrm{AA}}$ of D and B mesons (via non-prompt $J/\psi$) should be compared with the outcome of model calculations including HQ production, in-medium propagation and hadronization. Essentially all available models predict ${R}_{\mathrm{AA}}^{D}\lt {R}_{\mathrm{AA}}^{B}$ in the momentum range ${p}_{{\rm{T}}}\lt 20\,\mathrm{GeV}/c$, where the quark masses are not negligible with respect to their momenta [38, 48, 65, 72, 80, 82, 84, 230, 314, 317, 344, 356–358]. In the right panel of figure 29, the data are compared to the calculations by Djordjevic et al [316], which include both radiative and collisional processes and consider dynamical scattering centers in the medium. Note that, as discussed above, this model can describe the similarity of the D-meson and pion ${R}_{\mathrm{AA}}$. The model describes well the centrality dependence of the D-meson nuclear modification factor in the high-${p}_{{\rm{T}}}$ range considered in figure 29 and predicts a smaller suppression of non-prompt $J/\psi$ mesons as compared to D mesons, in qualitative agreement with the CMS result for the most central collisions. Care has to be taken in the data-to-model comparison for the 20%–100% class, as the centrality interval is very broad. The preliminary CMS results in finer centrality intervals from the 2011 Pb–Pb sample [355], are well described by the calculations of Djordjevic et al (see figure 4 in [316]). In order to study the origin of the difference in the nuclear modification factors of D and B mesons in this model, the ${R}_{\mathrm{AA}}$ of non-prompt $J/\psi$ was also computed using the charm-quark mass value in the calculation of the in-medium interactions of beauty quarks. The outcome of this test case, depicted as dotted lines in the right panel of figure 29, shows a substantially lower ${R}_{\mathrm{AA}}$ of non-prompt $J/\psi$, close to that of D mesons, as compared to the case in which the beauty-quark mass is used in the calculation (dotted lines in figure 29). This indicates that, in this model, the large difference in the ${R}_{\mathrm{AA}}$ of D mesons and non-prompt $J/\psi$ arises predominantly from the mass dependence of quark-medium interactions and is only moderately affected by the different production and fragmentation kinematics of charm and beauty quarks. Similar conclusions are derived by performing the same test with the MC@sHQ+EPOS and TAMU models (see [11, 339]).

A complementary approach to study beauty-quark interactions with the medium is provided by measurements of b-jets. Assuming that the quark hadronizes outside the medium, the jet energy should be, in first approximation, the sum of the energy of the beauty quark after its interaction with the medium and of the energy transferred by the quark to the medium that remains inside the jet cone. The nuclear modification factor of b-jets is shown in figure 30. In the left panel, the centrality-integrated ${R}_{\mathrm{AA}}$ is displayed as a function of ${p}_{{\rm{T}}}$ and compared to the pQCD-based calculations by Vitev et al including radiative and collisional energy loss [306]. The data show a significant suppression, almost independent of ${p}_{{\rm{T}}}$ in the measured range, of the b-jet yield relative to the pp expectation, indicating parton energy loss in the hot and dense medium. The measured ${R}_{\mathrm{AA}}$ is described by the Vitev et al model using values of the jet-medium coupling parameter in the range ${g}^{{\rm{med}}}=1.8-2$, similar to the value found for inclusive jets. In the right panel of figure 30, the b-jet ${R}_{\mathrm{AA}}$ is shown as a function of centrality, expressed in terms of the number of participant nucleons, ${N}_{\mathrm{part}}$, for two ${p}_{{\rm{T}}}$ intervals. A smooth decrease of ${R}_{\mathrm{AA}}$ with increasing centrality is observed, reaching a suppression of a factor of about 2.5 in the most central collisions. In the ${p}_{{\rm{T}}}$ range covered by these measurements the nuclear modification of the b-jet yield is found to be compatible, within the sizeable systematic uncertainties, with that of inclusive jets [359, 360]. This observation challenges models based on the strong-coupling limit, e.g., within the AdS/CFT correspondence [313], in which quark-mass dependent effects persist up to large ${p}_{{\rm{T}}}$. On the other hand, in pQCD-based models the quark mass effects are expected to be small at large ${p}_{{\rm{T}}}$ [306]. Nevertheless, even though quark mass related effects may not play a role in the high-momentum interval where the measurement was carried out, a difference between the ${R}_{\mathrm{AA}}{\rm{s}}$ of b-jets and inclusive jets could have been expected due to the color charge dependence of energy loss, since inclusive jets at LHC energies should be dominated by gluon jets up to very large ${p}_{{\rm{T}}}$. In this respect, it should be considered that at LHC energies a sizeable fraction of beauty quarks are produced by splitting of gluons into $b\bar{b}$ pairs (gluon splitting) [361]. As pointed out in [11], in the case of b-jets at very high ${p}_{{\rm{T}}}$, a significant part of the in-medium path length is likely to be covered by the parent gluon. For example, the formation (coherence) time of beauty quarks with an energy of 150 GeV is of about 1 fm/c, implicating that the very early (hot and dense) stages of the medium evolution are probed by the parent gluon, and not by the beauty quark. Note that, following the arguments of coherence time for HQ pairs from gluon splitting [11], the fact that the medium could be probed by the parent gluon is relevant only for beauty quarks at high ${p}_{{\rm{T}}}$. In the case of charm (for which the contribution of gluon splitting is smaller, $\approx$ 10%–20%, than for beauty [362, 363]), and for beauty at not-too-high ${p}_{{\rm{T}}}$ (${p}_{{\rm{T}}}\lesssim 50\,\mathrm{GeV}{c}^{-1}$, for which the coherence time is small because it is not increased by a large Lorentz boost) it is reasonable to assume that HF hadrons (and jets) probe the interactions of the heavy quarks with the medium.
