Ionization dynamics of XUV excited clusters: the role of inelastic electron collisions

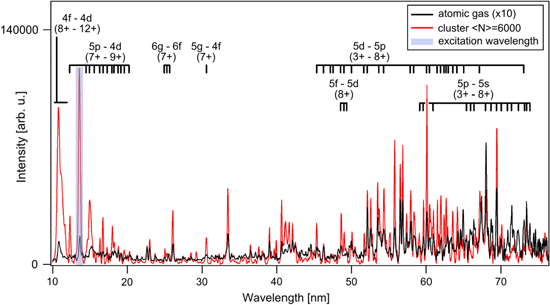

In order to distinguish between atomic and cluster specific signatures we discuss fluorescence spectra from clusters in comparison to measurements on the atomic beam. Figure 1 displays the fluorescence from the atomic (black) and the cluster beam (red) as a function of wavelength. The average cluster size of the cluster beam was $\langle N\rangle =6000$. The atomic beam was generated by expanding gas at low pressures below the onset of condensation. In order to achieve an adequate signal to noise ratio, the integration time was increased for the atomic beam. Note that the fluorescence yield of the atomic spectrum is much smaller than its cluster counterpart and has been scaled with a factor of ten for better visualization. The signal from elastically scattered light of the FEL at 13.5 nm is marked blue. Xenon atoms as well as xenon clusters emit a multitude of fluorescence lines in the wavelength regime from 10–76 nm, associated to charge states from ${\mathrm{Xe}}^{1+}$ to ${\mathrm{Xe}}^{12+}$. The lines are identified with the aid of the NIST data base [47]. However, only very few reference data of charge states from ${\mathrm{Xe}}^{12+}$ to ${\mathrm{Xe}}^{15+}$ as well as transitions from higher excited states to lower excited states for the charge states ${\mathrm{Xe}}^{q+}$ with $q\gt 5$ can be found. The fluorescence lines in the range from 10 to 20 nm, corresponding to high charge states, could be assigned by comparison to discharge measurements [48–50]. All in all, almost 80% of the altogether 120 lines could be assigned.

Zoom In Zoom Out Reset image size

A quantitative analysis of the line intensities reveals a drastically increased total fluorescence yield from clusters in comparison to atoms. The total emission yield per atom calculated from the cluster spectrum, that is displayed in figure 1 is approximately a factor of 5 higher than the atomic fluorescence yield. Further, strong differences in the line intensity ratios are visible. This suggests that in clusters additional ionization and excitation processes take place.

In the atomic beam, photoionization, photoexcitation and intra-atomic relaxation are the only processes creating and exciting the ions. We like to note, that for charge states ${\mathrm{Xe}}^{q+}$ with $q\geqslant 7$, more than one single photon has to be absorbed in each ionization step [51]. Whether higher charge states are formed by sequential multiphoton absorption or collective electron excitation in the vicinity of the 4d giant resonance of xenon is still under discussion [51–56]. However, it is clear that in the atomic beam electron impact ionization and excitation are negligible because the target density is so low that the mean free path for the electrons is much longer than the diameter of the beam. Therefore, the comparison of the atomic spectrum with the cluster spectrum gives a direct measure of the contribution of photoabsorption and excitation to the total fluorescence yield. Obviously, the much stronger per-atom-fluorescence yield from clusters gives evidence that in the case of clusters mechanisms other than direct photon-induced processes contribute significantly. There are two additional possibilities to populate fluorescing states in clusters: electron impact and recombination related processes. Fluorescence allows to analyze the contribution of both mechanisms, which will be discussed in the following two sections.

The difference in fluorescence yield between cluster spectra and atomic spectra is most prominent for the highest charge states found in the wavelength range from 10 to 12 nm (cf figure 1). We would like to point out that these fluorescence lines are found at shorter wavelength than the excitation wavelength of 13.5 nm and belong, predominantly, to the 4f–4d transitions of the charge states from ${\mathrm{Xe}}^{8+}$ up to ${\mathrm{Xe}}^{12+}$, possibly even ${\mathrm{Xe}}^{13+}$. A similar upconversion was already observed in the fluorescence spectra of argon clusters and Ar–Xe-core shell clusters [44–46].

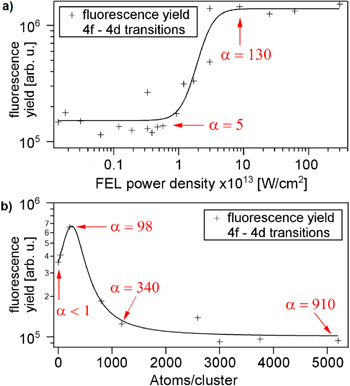

Figure 2 displays the integrated 4f–4d fluorescence yield depending on (a) FEL power density and (b) cluster size. The yield of these fluorescence lines follows a step-like function with increasing FEL power density. Above the level of 5·10¹³ W cm⁻² the signal immediately saturates. A size dependent investigation, shown in figure 2(b), reveals that the yield due to the 4f–4d transitions increases rapidly for small clusters, reaches a maximum at 300 atoms per cluster and decreases for larger cluster sizes.

Zoom In Zoom Out Reset image size

We attribute the sudden increase of signal with the FEL power density and the cluster size to the onset of nanoplasma formation, when electron emission becomes frustrated by the increasing Coulomb potential of the cluster. This denotes also the point where electron collision processes start to become efficient. This onset can be estimated through the frustration parameter $\alpha ={N}_{\mathrm{tot}}/{q}_{\mathrm{out}}$ introduced by [28], which is the ratio of photo-activated electrons ${N}_{\mathrm{tot}}={I}_{0}\tau \sigma /{\hslash }\omega$ to outer ionized [37] electrons ${q}_{\mathrm{out}}=({\hslash }\omega -{I}_{p}){r}_{s}{N}^{1/3}/(1.44\;\mathrm{eV}\;{\mathring{\rm A} }^{-1})$ estimated for a spherical, homogenously charged cluster [28]. For $\alpha \gt \;1$, the cluster starts to trap a fraction of the photo-activated electrons leading to nanoplasma formation. Increasing α denotes that frustration sets in earlier and a nanoplasma is formed more efficiently. The parameter α is directly depending on FEL power density I₀ as well as the amount of atoms per cluster N. In figure 2 the corresponding α values are calculated for the characteristic points of the graphs (indicated by the red arrows). The α values are calculated according to our experimental conditions: photon energy ${\hslash }\omega =91.4\;\mathrm{eV}$, pulse duration $\tau =150\;\mathrm{fs}$, photoionization cross section $\sigma =25\;\mathrm{Mb}$, Wigner–Seitz radius ${r}_{s}=2.45\;\mathring{\rm A}$, ionization potential of the 4d shell ${I}_{p}=67.5\;\mathrm{eV}$.

In both cases, the steep rise of the yield of the 4f–4d fluorescence lines is in line with the transition of the frustration parameter from low to high values denoting that the cluster becomes able to efficiently trap electrons. As recombination rivals the fluorescence of the high charge states, it is natural that the fluorescence signal of the 4f–4d transitions of ${\mathrm{Xe}}^{8+}$ to ${\mathrm{Xe}}^{12+}$ decreases again with increasing cluster size (cf figure 2(b)), when recombination becomes efficient. The fast saturation of the 4f–4d transitions as a function of the FEL power density (see figure 2(a)) is presently not completely understood, and further investigations including theoretical work are necessary.

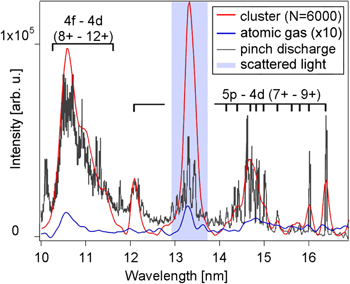

In order to obtain detailed insight into the role of inelastic electron collisions, we compare in the following the FEL-induced fluorescence from the highest charge states in our spectra to the fluorescence of xenon gas induced by electron impact [48]. Figure 3 is a small section of figure 1, displaying the fluorescence spectra in the wavelength range from 10 to 17 nm from clusters (red) and atomic gas (blue, x10). In addition, a spectrum produced by a dense plasma focus pinch discharge of xenon gas (black) from the literature [48] is added for comparison. The spectra are normalized to the same area under the peaks between 14 and 15.2 nm except the atomic spectrum. The line distribution in figure 3 shows a good match between the cluster fluorescence and the spectrum from the pinch discharge. Fluorescence from ${\mathrm{Xe}}^{10+}$ ions overlappes with the elastically scattered light peak at 13.5 nm and therefore is not expected to agree with that of the pinch discharge spectrum. In XUV-excited clusters, compared to the purely collisionally excited atomic spectrum, a slightly higher yield for the group of lines between 10 and 11.8 nm is found. It can be explained by taking the contribution from photoabsorption processes observed in the atomic spectrum (blue) into account. The striking similarity between the cluster spectrum and the electron impact induced fluorescence spectrum (figure 3) as well as the rapid increase of the highest charge states with the onset of the nanoplasma formation (figure 2) convey a clear picture of inelastic electron collisions being the leading process for ionization and excitation in particular for the highest occurring charge states.

Zoom In Zoom Out Reset image size

For understanding the efficient formation of high charge states via electron impacts several arguments can be made. In the cluster environment the ionization potentials of the cluster atoms and ions are lowered [57, 58]. Thereby collisional ionization of even highly charged ions becomes possible for electrons with lower kinetic energies than needed for isolated atoms. Both, photoionization and electron impact ionization, are enhanced by ionization potential lowering. Considering that every photoionization event releases at least one electron and taking into account the respective cross sections leads to much higher probabilities for collisional processes compared to photoabsorption.

Photoionization of xenon atoms from neutral xenon up to ${\mathrm{Xe}}^{2+}$ at 90 eV photon energy is dominated by the 4d giant resonance with an absorption cross section of around 25 Mb [59]. The photoionization cross sections for higher charges, for the valence orbitals 5s and 5p, and for excited states, are more than an order of magnitude lower [59, 60]. Photoexcitation is even more unlikely because excitation is only possible if the photon energy matches dipol-allowed transitions to excited states. In contrast to the photoabsorption, an electron impact can transfer an arbitrary amount of kinetic energy. Electron impact ionization of xenon exhibits large cross sections for the valence shell. For example: at small kinetic energies of 22 eV, corresponding to the excess energy of a photoelectron from the 4d shell, the collisional ionization cross section exceeds already 140 Mb [61].

Recent modeling of XUV excited argon clusters indicates that also collisional two-step processes contribute significantly to ionization [43]. Cluster atoms are first excited and then ionized via inelastic electron collisions. This process is termed augmented collisional ionization [43]. It is found to occur much more frequently than direct electron impact ionization from the ground state, because each electron needs less kinetic energy. For xenon clusters initially ionized with 90 eV photons, this effect can be expected to play an even more important role since the photoelectrons in xenon have a slightly higher excess energy, and the excitation cross sections are much larger than in argon [62]. For example, the total collisional excitation cross section of neutral xenon for the ground state electrons has its maximum of 400 Mb at 11 eV kinetic energy [63]. For excited states, the electron impact ionization cross sections are even higher than in the ground state and can reach values up to 2500 Mb [62]. The cross sections for collisional processes at the relevant energies exceed the photoabsorbtion cross sections in every single excitation and ionization channel and lead to mean free path lengths around 1 Å which is more than an order of magnitude smaller than the cluster radius ($r=3\;\mathrm{nm}$). Along these lines we conclude that multistep collisional processes are the doorway to reach high charge states with low electron kinetic energies.

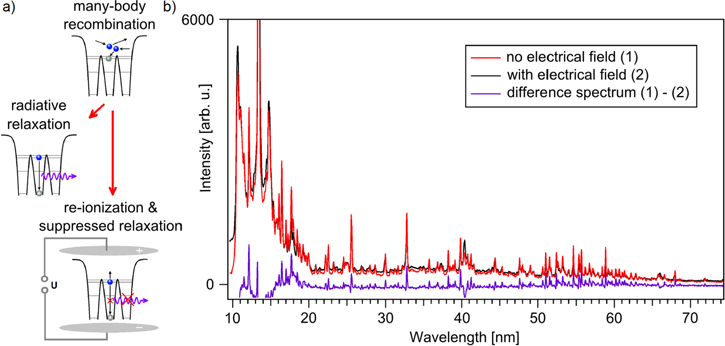

Recombination can be a rivaling process and a contributor to fluorescence at the same time. If a plasma electron recombines with an Xe${}^{q+}$ ion to ${\mathrm{Xe}}^{q-1}$ it suppresses the fluorescence of the Xe${}^{q+}$ species. But it is also very likely that the electrons recombine into long lived, weakly bound atomic Rydberg states [11, 57]. As an example a three-body recombination process is depicted in figure 4(a). When the electrons from the Rydberg states relax into lower-lying states afterwards, there is a probability for radiative decay which would be visible as a contribution to the fluorescence spectrum (see middle scheme of figure 4(a)). It is possible to investigate the contribution of recombination to the fluorescence yield through the application of a static electrical dc field across the interaction region. According to theoretical work, a weak electric field, such as the extraction voltage of a time-of-flight spectrometer (TOF), re-ionizes the recombined electrons from the weakly bound atomic Rydberg states [57]. This effect has recently been confirmed in experiments using an HHG source [11]. If recombination is suppressed as displayed in the lowest scheme of figure 4(a), the subsequent radiative decay of highly excited states cannot take place and some fluorescence lines should be diminished in the spectra.

Zoom In Zoom Out Reset image size

In figure 4(b), two spectra recorded under comparable experimental conditions, are shown: one without (red) and one with (black) an applied external field of 1 kV cm⁻¹. From the difference spectrum, we can estimate that the fluorescence stemming from recombination processes makes only a few percent of the total yield. It indicates that recombination related processes are of minor importance in populating the fluorescing states.

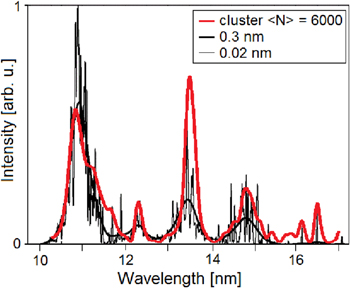

The electron temperature and the electron density of the nanoplasma determine the cluster nanoplasma evolution in this excitation wavelength range. Therefore, it is essential to have experimental access to these parameters. Provided that most of the fluorescence excitation is due to inelastic electron collisions with Xe ions, the electron temperature of the nanoplasma is imprinted in the spectral distribution. In the literature, the fluorescence for different average kinetic energies (electron temperatures) is calculated in the corona model and presented [48]. The calculations show, that slight changes of 1 or 2 eV of the electron temperature already lead to strong changes in the spectral line distribution. As shown in figure 5, the calculated spectrum for an average kinetic energy of 27 eV matches our fluorescence spectrum from xenon clusters.

Zoom In Zoom Out Reset image size

Even though the nanoplasma of the present experiment does not match the density of the calculated plasma we can use the calculations for estimating the electron temperature of the nanoplasma in clusters. The plasma density determines the yield for each single line but does not affect the intensity ratios. In the first place, the intensity ratios between the fluorescence lines depends only on the electron temperature. Nevertheless, other plasma characteristics like the opacity and the extent of the plasma can influence the measured spectral distribution via reabsorption and thereby distort the determined electron temperature. Due to a large extent but a low density of the calculated pinch discharge plasma a slight opacity factor (constant for all wavelength) has been taken into account within the calculations. In the present experiment the situation is reversed: the density is quite high but the extent of the nanoplasma is limited by the small cluster size of only a few nanometers. The line intensity reduction in our experiment is approximately a factor of 1.2 times stronger than in the calculations which might be the origin of the small deviations between the calculated spectrum and our measured spectrum.

The determined value of 27 eV coincides with the mean between the excess energy of a 4d photoelectron of 22 eV and the subsequent Auger electrons of 32 eV kinetic energy. It can be considered rather high, given that the electron temperature is expected to decrease quickly due to energy loss via inelastic collisions with ions, expansion and evaporation of hot electrons.

Thus, we assume that the fluorescing states of the highest charge states are populated in an early stage of the nanoplasma evolution. This conclusion is in line with our result that recombination is inefficient on the time scale of fluorescence. Beyond that, previous studies of heterogeneous clusters revealed fluorescence lines from high transient charge states, not observed in the final ion TOF charge state distribution. The earlier results imply, that such states are not only excited at the very beginning of the plasma dynamics but also can relax before recombination processes become dominant [45].
