THE COSMIC INFRARED BACKGROUND EXPERIMENT (CIBER): THE LOW RESOLUTION SPECTROMETER

The LRS is designed to obtain the absolute spectrum of the astrophysical sky brightness for 0.75 μm <λ < 2.1 μm. As shown in Table 1, the LRS is a refractive imaging spectrometer with a 5 cm aperture designed and fabricated by the Genesia corporation¹⁴ in Japan. The most demanding requirements on the LRS design are driven by the nature of absolute photometric measurement of faint, diffuse radiation over a wide wavelength range. The sensitivity and wavelength requirements lead to a multi-slit spectrometer with a large FoV (55) and a large pixel pitch (40 μm) to maximize the throughput of the system. To maximize the number of independent pixels available to measure surface brightness, the size of the point-spread function (PSF) was designed to be <1 pixel over the whole array. This design was verified by focus testing (for a discussion of the latter see Section 3.2.1). Furthermore, the LRS is designed to be cryogenically cycled to ≲ 100 K many times and tolerate both the launch acceleration and vibration, and the space environment experienced by sounding rocket payloads. These requirements lead to a simple, rugged, but precisely optimized mechanical design. Additionally, the LRS instrument includes a cold shutter assembly to monitor the detector dark current for absolute spectroscopy, and a calibration lamp to confirm the stability of the system during the flight. These components are basically common for all four of the CIBER instruments, and a light emitting diode L10660 peaking at 1450 nm by Hamamatsu photonics¹⁵ is chosen as the calibration lamp for the LRS to closely match the mean wavelength. Details of their design and implementation can be found in Zemcov et al. (2013).

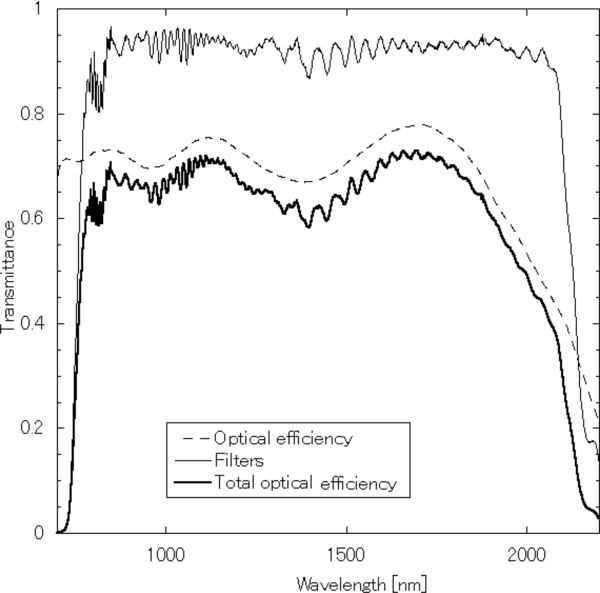

The design of the LRS optical elements is based on cryogenic measurements of the refractive indices of optical materials from Yamamuro et al. (2006). As shown in Figure 1, the LRS optics form an initial focus at a field stop, where a mask with five equally spaced slits is placed. This slit width is 140 ± 2 μm, equivalent to two pixels on the detector. The central slit has a small notch whose size on the detector is 6 pixels by 15 pixels located at the bottom center to facilitate laboratory testing. The optics then relay this field stop back to a collimated beam where a prism disperses incident light perpendicular to the slit mask direction with a spectral resolution of 15  ≲  λ/Δλ  ≲  30 depending on wavelength (see Section 3.2.2). Finally, this parallel beam is refocused on a 256 × 256 substrate-removed HgCdTe PICNIC detector array fabricated by Teledyne Technologies Inc.¹⁶ The slit mask is imaged to five separate 2.8 arcmin × 5.5 deg strips on the sky at the focal plane. The edges of the array are not illuminated by the optics and can be used as a monitor of diffuse stray light falling on the detector. The spectral response of the LRS is restricted to 0.75 μm <λ < 2.1 μm by two blocking filters in front of the optics (the effective spectral range is shown in Figure 2). In order to detect the peak of the CNIRB, the sensitivity goal of the LRS is 10 nW m⁻¹ sr⁻¹ in a 25 s integration time.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The LRS focal plane array electronics chain is the same as that of the other three CIBER arrays described in Zemcov et al. (2013). Here we simply note that the CIBER electronics, which have a common architecture for all four instruments, generate the clocking signals for the PICNIC multiplexer, perform the array readout and digitization, and are responsible for various housekeeping tasks. The digitized array readouts are passed from the CIBER electronics to the NASA-provided payload telemetry module for transmission to ground stations.

An important feature of the infrared arrays is the ability to perform a non-destructive read-out in which the charge on the detector photo-diode junction is not altered by sampling its value. The focal plane infrared arrays on CIBER optics are controlled by a sequence of reset and read-out pulses using the method presented in Hodapp et al. (1996). The PICNIC array on LRS is separated into four quadrants, and all four quadrants are operated in the same method independently. The array is read out at ∼4 Hz and then a reset signal is applied after some number of frames (Lee et al. 2010). Since electrical carriers generated by photons are integrated until the reset, an astrophysical image is obtained by calculating the best fit slope to each pixel within a reset interval ("sampling-up-the-ramp" technique; Garnett & Forrest 1993).

Thermally activated carriers give rise to a continuous stream of electrons in the absence of light and generate a dark current in HgCdTe detectors. Because of this, dark current subtraction is essential for absolute photometry. In flight, the LRS dark current was monitored by taking dark frames with the cold shutter. The temperature of the CIBER focal plane assemblies was controlled to within ±10 μK/s stability to prevent dark current caused by thermal drift (see Zemcov et al. 2013 for more detail).

The detector noise performance is evaluated by a laboratory dark test. In this test, we evaluate several dark frames taken while the cold shutter in front of the detector is closed. In this shutter closed configuration, any light from the outside does not reach at the array, so the best fit slope to each pixel within an integration interval corresponds to the dark current, and the read-out noise can be evaluated from the dispersion from the best-fit line. In Table 2, the average values and their variations of the dark current and read-out noise over the each quadrant or the whole array are shown as representative values. The resultant dark current and read-out noise of each pixel are consistent with the estimated performance of the detector design (for more detail, see Lee et al. 2010).

We carried out a photometric test to check linearity and to determine the saturation properties of the detector array. In this test, the detector is illuminated by thermal emission from the laboratory. The resulting image has high dynamic range; pixels at longer wavelengths (>1.8 μm) are saturated from thermal radiation, whereas pixels at the edges of the array are not illuminated by the optics and essentially give dark current. The first three or four samples following a reset do not follow a linear model because of the reset anomaly, which gives a large intensity ramp at the leading edge of each quadrant where the readout electronics is located. Therefore the linear fit excludes the first four samples. Figure 3(a) shows an example of the behavior of a typical pixel with a saturated photo current. Biesiadzinski et al. (2011) introduce a functional form to describe non-linearity, the resulting fit is also shown in Figure 3(a). The typical maximum electron capacity is 1.65 × 10⁵ e⁻ and pixel values deviate from the linearity from around 10⁵ e⁻ over the array. For example, for a typical 50 s flight integration a source brighter than 2000 e⁻ s⁻¹ (corresponding to 7 mag at 1 μm) would begin to cause non-linearities in the detector. This threshold is significantly larger than the estimated LRS diffuse sky brightness signal of ≲ 30 e⁻ s⁻¹. The brightness of sources which induce currents larger than 2000 e⁻ s⁻¹ can be derived by fitting to subsets where the signal depth is <10⁵ e⁻. For example, the brightest star detected with the LRS during the first CIBER flight (42Dra, a mag_J = 2.9, K1.5III star) has a photocurrent of 3 × 10⁴ e⁻ s⁻¹; its spectrum was derived using data from only the first three seconds of integration (Tsumura et al. 2010).

Zoom In Zoom Out Reset image size

Though the detector well begins to saturate ∼10⁵ e⁻, the detector is not perfectly linear even for well depths <10⁵ e⁻. Figure 3(b) shows the correction factor for the linearity as a function of the integrated signal normalized at 100 e⁻. Systematic separation lying low from the linearity might be caused by another reset anomaly, but this effect is small enough to neglect because the 1% difference in the first several points will be reduced by a factor of 100 by fitting to the whole data set. As described in Section 3.3, since the LRS absolute calibration was done with an integrated signal of ∼4 × 10⁴ e⁻ and the LRS diffuse integrated sky brightness is ∼2000 e⁻, 1.5% linearity correction is required.

PICNIC arrays can suffer from image persistence, a subtle increase in dark current in response to prior illumination. This image persistence varies significantly from detector to detector. We studied this effect with the flight PICNIC detector. The PICNIC detector was illuminated by the calibration lamp, and then the shutter was closed and dark images were taken. The first several dark frames have the image persistence from the calibration lamp, and the image persistence in the resulting dark images was studied as a function of time and the number of reset signals. The dark images were made from 12, 25, and 50 raw frames which is equivalent to 3, 6, and 13 s integrations, respectively.

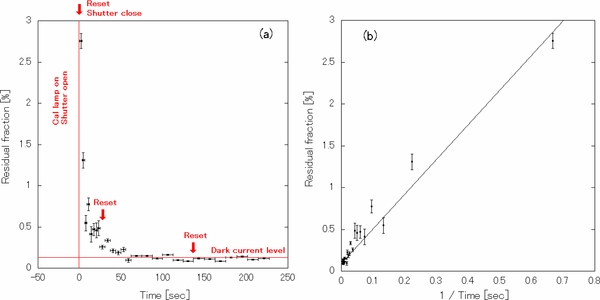

Figure 4 shows the image persistence at pixels where the average signal from the calibration lamp was 640 e⁻ s⁻¹. As Figure 4 shows, the image persistence after the first reset signal was <3% of the original value, and reduces to the dark current level inversely with time. This behavior is similar in all pixels over the array. Although there are widespread misconceptions that the image persistence can be also reduced by multiple resets, we found multiple reset signals, except the first reset, were not effective in reducing persistence. Smith et al. (2008) introduced a qualitative model of the image persistence of the HgCdTe detector array.

Zoom In Zoom Out Reset image size

Since the intervals between the fields during the CIBER flight was typically 15 s, the image persistence is visible in flight data when very bright stars are detected, and the persistent signals were about 0.2% of the original signals. We can mask detected persistent stars in such cases.

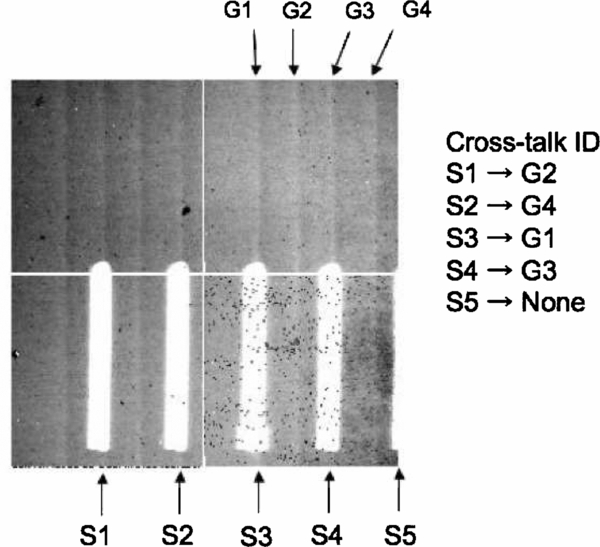

HgCdTe detector array readouts typically suffer from some level of electrical cross talk; indeed, we have observed cross-talk in the LRS electronic chain. A test was conducted to investigate the effects of the electrical cross-talk. In this test, the upper two quadrants of the detector array were masked and then the detector was illuminated by strong thermal emission from the laboratory and data was acquired. The cross-talk signals (labeled "G" in Figure 5) appeared even in the masked quadrants at identical positions of the incident thermal signals (labeled "S" in Figure 5). This measurement showed that 0.35% of the incident signal on a quadrant is injected into the other quadrants. Although this fraction is significantly below the noise level under normal flight conditions, the uncertainty in its correction imposed an irreducible systematic error on the CNIRB measurement from the first flight data set because of the large thermal stray light (this is discussed in Section 3.2.3).

Zoom In Zoom Out Reset image size

In order to maximize the number of independent pixels available for the measurement of surface brightness, the detector array must be at the best focus position of the instrument optics during flight. Because it is not possible to measure the positions of the optical components in the LRS to sufficient accuracy to calculate the position of the LRS's focal plane a priori, the position of the focal plane must be determined experimentally. To verify the focus of the instrument and measure the imaging quality at the best focal position, we carried out a campaign of laboratory measurements. For these tests, a high-resolution monochromator system MS257 manufactured by Newport¹⁷ was used as a light source with a narrow spectral band (see Zemcov et al. 2013 for details). The wavelength resolution of the monochromator is 15 nm in this test, so that spreading in the LRS dispersion direction is negligible. The incoming beam from the source is passed through a pinhole at the prime focus of a collimating telescope with a focal length f_col = 910 mm made by Parks Optical Inc.¹⁸ The focus of the collimating telescope is determined by an auto-collimation procedure using a collimating microscope and flat mirror placed at the aperture of the collimator (see Zemcov et al. 2013 for details). Once in focus, the beam from the collimating telescope is fed to the aperture of the LRS optics.

As the slit mask blocks most of the optical paths from the LRS aperture to the detector array, the beam of the collimating telescope must be steered to fall on the notch in the slit mask. The image formed on the array is a measurement of the PSF in response to a point source. As the detector is mechanically fixed in the instrument, the best focus is determined by moving the pinhole along the optical axis of the collimating telescope. Given the focal lengths of the LRS f_LRS and collimating telescope f_col, the relation between shifts along the optical axis at the position of the pinhole Δl_pinhole from best focus and the equivalent shift at the detector Δl_LRS can be calculated by

$$\begin{equation} \Delta l_{\mathrm{LRS}} = \left(\frac{f_{\mathrm{LRS}}}{f_{\mathrm{col}}} \right)^2 \Delta l_{\mathrm{pinhole}}. \end{equation} \tag{ 1 }$$

As the focal plane assembly is statically mounted on the instrument, moving the detector array to the best focus of the instrument requires opening the experiment and physically shimming the focal plane assembly by Δl_LRS. The experiment is then cooled and the test performed again. Due to the vagaries of the mechanical contraction of the various components under cryogenic cycling, the position of the detector array may not fall at the intended position. The focus position is therefore determined iteratively by testing, warming the experiment and shimming the focal plane assembly, cooling, and testing again. After several such iterations, the detector position repeatably falls at the best focus of the instrument. Figure 6 shows the best focus performance of the LRS in the configuration flown during the first CIBER flight. The misalignment between spatial and dispersion directions in Figure 6 was caused by undersampling. Measurements of a pixel-scale spot size suffered from a large systematic error, depending on where the centroid of the stop is locating in a pixel. However, it clearly shows that the detector was positioned close to the optimal focus where the PSF size was ∼1 pixel, showing that the imaging quality of LRS at the flight focus position matches the design. The focal depth of LRS is ∼80 μm (pixel size: 40 μm at f/2). We found no evidence that any coma, astigmatism, vignetting or other effects reduce the sensitivity.

Zoom In Zoom Out Reset image size

Prior to launch we measured instrument focus, subjected the experiment to a three-axis random vibration test, and then repeated the instrument focus measurements. We did not observe any measurable change in focus due to vibration.

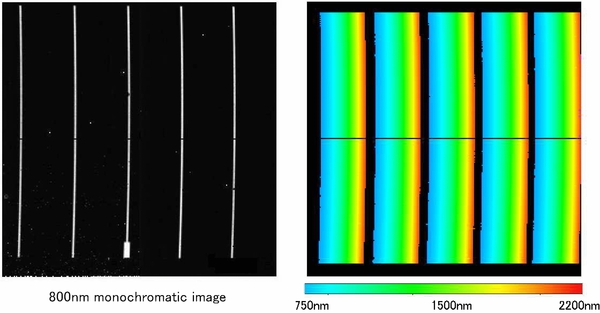

In order to map pixels on the focal plane to effective wavelengths, we measured the pixel-to-wavelength calibration using a spectral test. The output of the monochromator discussed in Section 3.2.1 is fiber-coupled to an integrating sphere, producing an aperture-filling monochromatic light source (see Zemcov et al. 2013 for detail about the integrating sphere). The LRS views the aperture of the integrating sphere while the wavelength of the monochromator is stepped from 750 nm to 2100 nm in 5 nm increments. The wavelength resolution of the monochromator is 15 nm in this test, which is smaller than the LRS resolution. Figure 7 shows both an image obtained at a particular wavelength during this spectral testing and the resulting wavelength calibration map derived from an ensemble of such images over 0.75 μm <λ < 2.1 μm. Figure 8 shows the measured wavelength resolution of LRS from this measurement, which is found to be consistent with the design specifications.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

As the slit mask provides five independent measurements of how light propagates through the LRS optical chain, the optical performance of the telescope and the tilt of the detector chip itself can be monitored by comparing the width of the slit images. These widths are found to be constant over the detector array which indicates that the design optical performance has been attained, and that no tilt of the detector chip is evident.

The limiting instrumental systematic in the first flight data was thermal emission from the ambient rocket skin surfaces scattered into the telescope aperture (Tsumura et al. 2010). The rocket skin was heated to temperatures up to 400 K by air friction during the powered ascent, and this thermal emission dominates over the astrophysical signal at wavelengths longer than 1.6 μm. Emission from the skin can enter the LRS optics by scattering on the LRS baffle and first lens. To reduce the sensitivity of the LRS to this stray light during CIBER's second flight, the LRS baffle was redesigned and fabricated to be blacker in the NIR, and a pop-up baffle was added to extend past the skin and rocket door, eliminating all lines of sight from the skin to either the interior of the LRS baffle or the first lens. A full discussion of these modifications can be found in Zemcov et al. (2013). The performance of the new LRS baffle system was evaluated by an off-axis test, following the methodology of Bock et al. (1995).

To implement this test, the LRS slit was removed and we replaced the PICNIC array with a silicon photo diode S10043 manufactured by Hamamatsu photonics. The active area of the photo diode is 10 mm × 10 mm, almost same size as the PICNIC active area. The instrument was installed on a custom optical bench which can be tilted from 0 to 90 degrees from horizontal. Light from a halogen lamp is chopped at ∼18 Hz and coupled to the collimating telescope, and illuminates the LRS entrance aperture and baffle. The brightness of the source is measured on-axis and then as a function of the angle between the incoming collimated light and the LRS telescope, yielding a measurement of the off axis light rejection of the new LRS baffling. Figure 9 (left) shows the result of this baffle measurement in terms of the gain function defined as

$$\begin{equation} g(\theta) = \frac{4\pi }{\Omega }G(\theta) \end{equation} \tag{ 2 }$$

where G(θ) is the response to a point source from an off-axis angle θ normalized to unity on axis, and Ω is the FoV solid angle in the measurement. The gain function is independent of FoV and is thus useful for comparing optical systems designed to observe extended emission. The modified baffling scheme provided an one order improvement for angles >20° due to the improved blacking and the new pop-up baffle.

Zoom In Zoom Out Reset image size

Since the new pop-up baffle goes past the end of the skin section, it blocks all stray paths from the rocket skin. In addition, it also reduces stray light from large angle, especially from the Earth. Here we estimate the stray light from the Earth with the old and new baffle scheme. The apparent surface brightness from the Earth referred to the sky I_stray(θ_earth) is calculated by

$$\begin{equation} I_{{\rm stray}}(\theta _{{\rm earth}})=\frac{1}{4\pi }\int g(\theta)I_{{\rm earth}}(\theta ,\phi)d\Omega , \end{equation} \tag{ 3 }$$

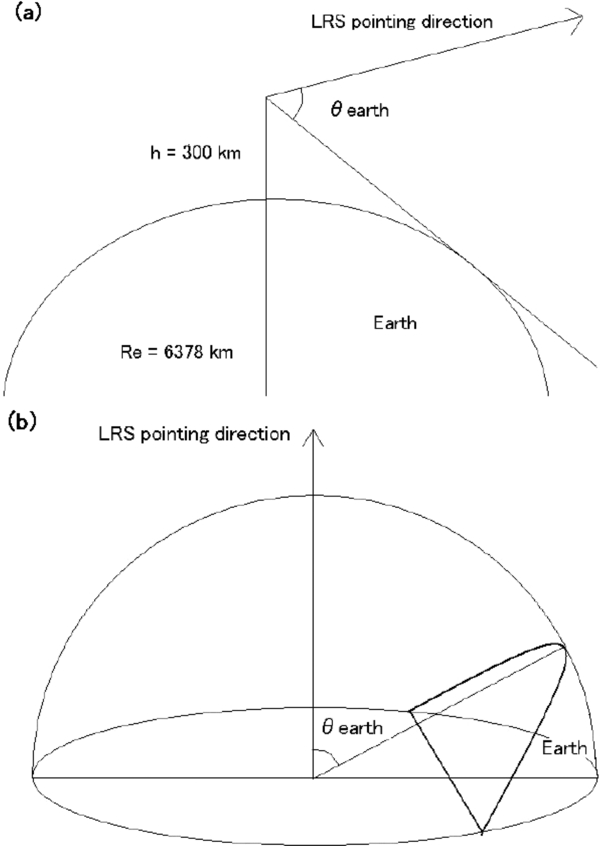

where θ_earth is the angle between the LRS pointing direction and the Earth, and I_earth(θ, ϕ) is the intensity from the Earth. For calculating Equation (3), we assumed a simple geometry model (Figure 10) and I_earth as

$$\begin{eqnarray} &&I_{{\rm earth}}(\theta ,\phi)=\left\lbrace \begin{array}{@{}l@{}}6\times 10^4 \ [{\rm nW\ m^{-1}\ sr^{-1}} ] \quad (\hbox{Airglow brightness}\\ \quad \hbox{from the Earth};\; {\rm Leinert\ et\ al.}\ \hbox{1998})\\ 0 \quad (\hbox{out of the Earth}). \\ \end{array} \right.\nonumber\\ \end{eqnarray} \tag{ 4 }$$

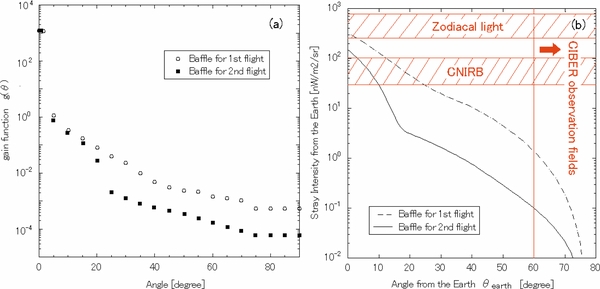

Note that the thermal radiation from the Earth (300 K black body) is less than half of the airglow emission at 2.2 μm. The Equation (3) was calculated numerically and the result is shown in Figure 9 (right) as a function of the angle from the Earth. Since the minimum elevation angle in CIBER observation targets is >60 deg, the estimated stray intensity from the Earth is negligible.

Zoom In Zoom Out Reset image size

No other internal ghosts or reflections were found even in the case that the brightest star (42Dra) was in the FoV.

Since the primary scientific motivation for the LRS measurement is to determine the absolute spectrum of the CNIRB, absolute calibration is an essential component of the LRS instrument characterization. An important point for LRS absolute calibration is that a calibration of sensitivity to extended emission is required. Unfortunately, an accurate measurement of the fluxes of individual sources in flight is made difficult by the slit mask, which requires precise knowledge of the PSF and pointing for use in calibration. Therefore, we need to measure a calibrated extended source in the laboratory for the LRS calibration.

To this end, we use instruments provided by the National Institute of Standards and Technology (NIST) in a collaborative arrangement. Two calibration measurements are performed using different light sources: a tunable laser (SIRCUS; Brown et al. (2006)) and a quartz–tungsten–halogen lamp. The traveling SIRCUS lasers brought to calibrate CIBER consist of a Ti:sapphire laser tunable from 700 nm to 1000 nm, and an optical parametric oscillator, fed by the Ti:sapphire laser, which was used to cover the range from 1000 nm to 2100 nm. A quartz–tungsten–halogen lamp manufactured by Schott¹⁹ is used for the white light calibrations. A comparison of the monochromatic and white light measurements is an independent check that the calibration is correct and that there are no low-level broad-band light leaks. In either case, the light source is coupled to a 48 inch barium sulfate integrating sphere, the output port of which is viewed by the LRS. The transfer standard detectors are different for the two sets of measurements. NIST broad-band radiance meters calibrated at SIRCUS were used for the laser measurements, and the NIST Remote Sensing Laboratory's Analytical Spectral Devices (ASD) FieldSpec3 spectroradiometer was used for the white light measurements. These measurements are used to accurately calibrate both the absolute and relative (i.e., pixel-to-pixel) responsivity of the LRS. A more detailed explanation of the CIBER calibration apparatus can be found in Zemcov et al. (2013).

The large mismatch in sensitivity of the LRS instrumentation compared to the NIST radiometers requires a scheme to attenuate the calibrated surface brightness to a level that does not saturate the LRS. The radiance levels observed by the LRS must be 10⁴–10⁶ fainter than that needed to make accurate measurements with the reference radiometers. The intensity levels for the LRS were reduced by passing light from the source through a cascade of one or more smaller integrating spheres (2–6 inches in diameter) in series with the large sphere, and using a monitor on one of the cascaded spheres to precisely measure each attenuation factor. A series of separate measurements at higher intensity levels were used to establish the ratio between the monitor and the radiance of the large sphere. This involved measuring the ratios of the radiance or monitor signal between each sphere and the next in the cascade. The flux levels were adjusted, as needed for adequate signal-to-noise ratios, over a very large dynamic range either by bypassing an integrating sphere in the cascade, adjusting the coupling between the light source and the optical fiber feeding an integrating sphere, or using a combination of half-wave-plate and a beam splitter for laser measurements.

The broad-band radiometers used to make laser measurements were calibrated at NIST using a laser-fed integrating sphere source and a detector calibrated to measure optical power. The radiance levels of the source were deduced given a knowledge of the dimensions of apertures on both the source and detector and the distance between them. The responsivity of the radiometers varies smoothly as a function of wavelength allowing us to interpolate to the higher resolutions used during the CIBER measurements. With the exception of one radiometer, which has a lens, all were simple Gershun-tube designs, and all utilized single-element solid state detectors made of either InGaAs, Si or Ge. The ASD used for the white-light measurements was calibrated at NIST using an integrating-sphere source of known radiance that is traceable to fixed-point blackbodies.

At each laser wavelength during the LRS measurements, the monitor signal was recorded with the laser on and then off (shuttered). The shutter intercepts the beam before it enters the fiber in order to measure the dark signals, and it is opened and closed by a trigger signal synchronized with the LRS integration. A similar procedure was used when the LRS viewed the white light source. Resets and periodic background measurements, made by blocking the lamp or turning it off, were performed manually.

The calibration from the white light measurements is straightforward. The ASD provides the absolutely calibrated spectrum B(λ) of the integrating sphere in nW m⁻¹ sr⁻¹ nm⁻¹; the LRS simply observes the source simultaneously and obtains the equivalent signal I_LRS in e⁻ s⁻¹. The conversion factor CF(x, y) from e⁻ s⁻¹ to nW m⁻¹ sr⁻¹ nm⁻¹ at pixel position (x, y) can be calculated by computing the ratio of these data,

$$\begin{equation} {\rm CF}(x,y) = \frac{T(\lambda)B(\lambda)}{I_{\mathrm{LRS}}(x,y)}, \end{equation} \tag{ 5 }$$

where T(λ) is the transmittance spectrum of the test window (a BK7 parallel plate with 20 mm thickness) of the CIBER cryostat which was measured separately, showing T(λ) ∼ 0.9 across the LRS free spectral range. The pixel position (x, y) is related to wavelength λ by the wavelength map shown in the right hand panel of Figure 7. Because the wavelength resolution of the LRS and reference ASD detector are different, the ASD measurements are smoothed to match the wavelength resolution of the LRS. These smoothed spectra yield the white light calibration factor for the LRS. A map of the pixel sensitivity, normalized to the mean over the array at each wavelength, is shown in Figure 11.

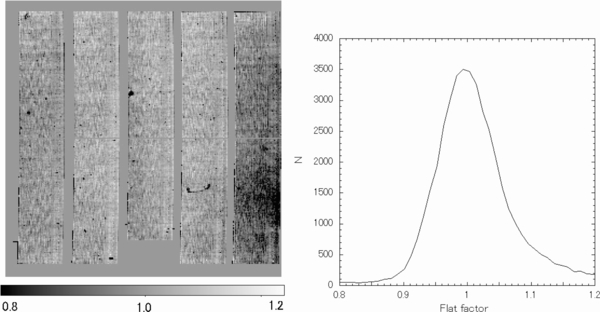

Zoom In Zoom Out Reset image size

The LRS calibration from the SIRCUS source is performed as follows. Although light from the laser is essentially monochromatic, the signal measured at the LRS detector is extended in the dispersive (x) direction due to the finite slit width (∼2 pixels) of the LRS. To collect all of the dispersed power, the LRS signal is summed along the dispersion direction on each slit and then compared to the monochromatic laser radiance P(λ) in nW m⁻¹ sr⁻¹.

$$\begin{equation} {\rm CF}(y, \mathrm{slit}) = \frac{T(\lambda)P(\lambda)}{\bigtriangleup \lambda _{\mathrm{LRS}} \sum \nolimits _x I_{\mathrm{LRS}}(x,y)}. \end{equation} \tag{ 6 }$$

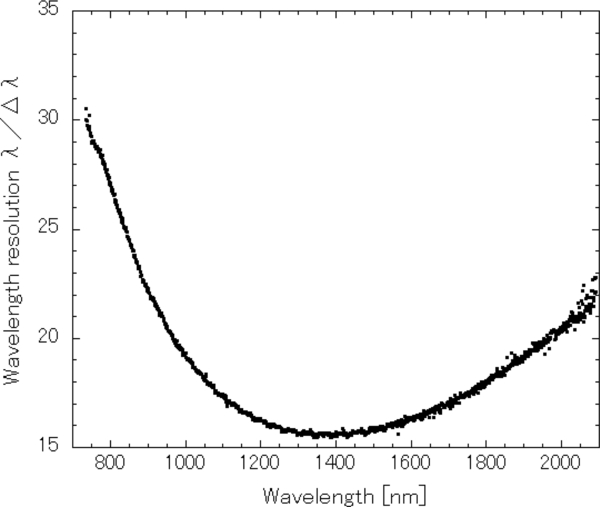

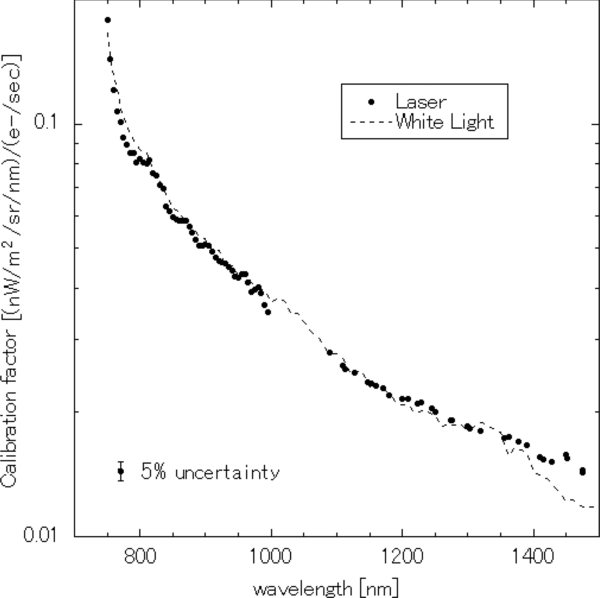

To directly compare the laser result with the white light result, the laser radiance was divided by the wavelength resolution of LRS ▵λ_LRS (see Figure 8) for matching units in nW m⁻¹ sr⁻¹ nm⁻¹.

We conducted this measurement three times, in 2008, 2009 (for the first flight), and 2010 (for the second flight). Between these measurements, the instrument was partially disassembled for servicing, including a change of the prism to remove a stray light path. The results of the laser measurement were consistent with each other within 5% although some variation must be expected from servicing the instruments. However, the results of the white light measurement varied up to 30% in the worst case due to bad repeatability of the absolute value from the white light measurements. Therefore, we rely on the result from the laser measurement and the result from the white light measurement is used to interpolate between laser bands. The 5% calibration variation could be due to the instrument disassembly and modifications between two measurements. Data analysis at >1.5 μm is still in process because the calibration of the long-wavelength detectors is still being measured at NIST. The average conversion curve over the array is shown in Figure 12. Since this conversion curve was derived from the measurements with an integrated signal of ∼4 × 10⁴ e⁻, a linearity correction up to 1.5% is applied to compare with the flight data with the integrated signal of ∼2000 e⁻ from the sky.

Zoom In Zoom Out Reset image size
