OSCILLATION-DRIVEN MAGNETOSPHERIC ACTIVITY IN PULSARS

Glitches (sudden "spin-up" of the star) are commonly detected in pulsars, including both normal pulsars and anomalous X-ray pulsars/soft gamma-ray repeaters (AXPs/SGRs). Stellar oscillations are likely excited during a glitch, which would propagate into the magnetosphere to affect the properties of the inner gap of the pulsar. Morozova et al. (2010) and Zanotti et al. (2012) have studied the oscillation effect on the magnetospheric activity within the framework of the space-charge-limited flow (SCLF) model. On the other hand, drifting subpulses in pulsar radio emission suggest that there are subbeams (sparks) generated in the pulsar polar cap region, which can be naturally interpreted as the existence of an inner vacuum gap (Ruderman & Sutherland 1975) or a partially screened inner gap (Gil et al. 2003, 2006). The binding energy problem faced by the inner gap model (which was the motivation of the SCLF model) is alleviated if pulsars have strong surface magnetic field and low temperature (Medin & Lai 2007; Gil et al. 2006), and it can be completely solved if pulsars are bare strange quark stars (Xu et al. 1999). Therefore, there is a strong motivation to study the oscillation effect on magnetospheric activities within the framework of the inner gap model, which is the subject of this paper.

Here we consider toroidal stellar oscillations. Similar to rotation, toroidal oscillations can also produce a voltage across the pulsar polar cap due to unipolar induction, which would modify the Goldreich & Julian (1969) charge density and affect gap properties and particle acceleration processes. The sign of voltage produced by oscillations varies periodically. One may roughly estimate the period of an oscillation as the size of star over the speed of sound. The timescale of particle acceleration in the inner gap, on the other hand, is approximately the height of the gap over speed of light. Since the size of star is much larger than the gap height and the speed of sound is much less than the speed of light, the timescale for particle acceleration is much shorter than the period of oscillation. Therefore, the periodic variation of the oscillation direction would not affect the ability of the inner gap to accelerate particles. Thanks to the additional voltage provided by oscillations, the properties of the inner gap, such as height and voltage, would be modified. In this paper we present a general solution to determine the properties of the inner gap with oscillations. We consider three modes of pair plasma production: curvature radiation (CR; Ruderman & Sutherland 1975), inverse Compton scattering (ICS; Zhang & Qiao 1996), and two-photon annihilation (2γ) processes (Zhang & Qiao 1998). We also discuss mode changing due to variation of the oscillation amplitude.

Interesting observational properties are observed to be associated with glitches in AXPs/SGRs. AXPs/SGRs are isolated neutron stars with long periods (2–10 s) and high period derivatives (10⁻¹³ to 10⁻¹¹). They are radio quiet in the quiescent state, which was considered as a distinctive characteristic with respect to normal radio pulsars (Mereghetti 2008). Recent observations suggest that some of them can become radio loud after some transient activities. Up to now, four AXPs/SGRs have been detected in the radio band: 1E 1547.0−5408, PSR J1622−4950, XTE J1810−197, and SGR J1745−2900 (Olausen & Kaspi 2014),⁴ all of which behave as transient AXPs/SGRs. Pulsed radio emission from these objects was detected after some outbursts, which decays in a timescale of months to years.⁵ The origin of this transient radio emission of AXPs/SGRs is still a mystery, and some ideas for interpreting it have been proposed (e.g., Morozova et al. 2012). Since the outbursts of AXPs/SGRs sometimes are associated with glitches (Kaspi et al. 2003; Dib & Kaspi 2014), it is possible that toroidal oscillations are excited during the outbursts, which modify the magnetospheric structure to allow radio emission to be produced. A direct motivation of our study is to explore this possibility.

In Section 2, we present the inner gap model under stellar oscillations. The general theory of the inner gap for three different modes is presented. In Section 3, we perform calculations of the gap properties by adopting typical parameters of radio pulsars and AXPs/SGRs. In Section 4, we apply the model to pulsars and AXPs/SGRs, and in particular we interpret the transient radio emission phenomenology of AXPs/SGRs. Conclusions are drawn in Section 5, with some discussion.

2.1. Goldreich–Julian Charge Density and Toroidal Oscillation Modification

Pulsars are rapidly rotating, highly magnetized compact objects. Strong electric fields are generated owing to unipolar induction. Goldreich & Julian (1969) found that in order for the pulsar magnetosphere to corotate with the star, the spatial electric charges have to follow a certain distribution, such that at every point in the magnetosphere the E × B drift of the charges just maintains the corotation of the magnetosphere. This charge density is called ρ_GJ. Without the effect of oscillation and considering the general relativity effect, for a small-angle approximation θ ≪ 1, this density can be written as (Muslimov & Tsygan 1992; Morozova et al. 2010)

$$\begin{eqnarray} \rho _{\rm GJ,rot}&=&-\frac{\Omega B}{2\pi c} \frac{1}{N\tilde{r}^3} \frac{f(\tilde{r})}{f(1)}\nonumber\\ &&\times \left[\left(1-\frac{\kappa }{\tilde{r}^3}\right)\cos \alpha + \frac{3}{2}H(\tilde{r})\theta \sin \alpha \cos \phi \right]. \end{eqnarray} \tag{ 1 }$$

Here Ω is the rotation angular velocity of the pulsar, B is the magnetic field strength at the pulsar surface, c is the velocity of light, $\tilde{r}\equiv {r}/{R}$ is the reduced radial coordinate, R is the radius of the pulsar, θ, ϕ denote the angular coordinates in a spherical coordinate system with z axis corresponding to the spin axis, α is the magnetic axis inclination angle of the pulsar, $N=\sqrt{1-({2GM}/{c^2r})}$ is the lapse function, κ ≡ (2GM/Rc²)(I/MR²), and M and I are the mass and moment of inertia of the pulsar, respectively. The function $f(\tilde{r})$ reads

$$\begin{equation} f(\tilde{r})=-3\left(\frac{\tilde{r}}{\varepsilon }\right)^3 \left[ \ln \left(1-\frac{\varepsilon }{\tilde{r}}\right) + \frac{\varepsilon }{\tilde{r}}\left(1+\frac{\varepsilon }{2\tilde{r}}\right) \right], \end{equation} \tag{ 2 }$$

where ε = 2GM/Rc², and the function $H(\tilde{r})$ reads

$$\begin{equation} H(\tilde{r}) = \frac{1}{\tilde{r}}\left(\varepsilon -\frac{\kappa }{\tilde{r}^2}\right) + \left(1-\frac{3}{2}\frac{\varepsilon }{\tilde{r}}+\frac{1}{2}\frac{\kappa }{\tilde{r}^3}\right) \left[f(\tilde{r})\left(1-\frac{\varepsilon }{\tilde{r}}\right)\right]^{-1}. \end{equation} \tag{ 3 }$$

We now consider the effect of oscillation. In general, there are two types of oscillations: spherical and toroidal. Only the toroidal oscillations can effectively modify the spin of the star and therefore affect the Goldreich–Julian charge density and magnetospheric configurations. Spherical oscillations, on the other hand, would not modify the magnetosphere structure significantly. Therefore, here we only consider toroidal oscillations. The velocity components of toroidal oscillations can be written as (Unno et al. 1989)

$$\begin{equation} \delta v^{\hat{i}} = \left[0,\ \frac{1}{\sin \theta }\partial _{\phi } Y_{lm}(\theta,\phi),\ -\partial _\theta Y_{lm}(\theta,\phi) \right] \tilde{\eta }(\tilde{r})e^{-i\omega t}, \end{equation} \tag{ 4 }$$

where Y_lm is the spherical harmonic function, $\tilde{\eta }(\tilde{r})$ is a parameter denoting the amplitude of the oscillations, and ω is the angular frequency of the oscillations. Generally speaking, the axis of toroidal oscillations should be close to the spin axis itself, so the z axis of the spherical coordinate system is likely the spin axis. Because the height of a pulsar inner gap is much smaller than the pulsar radius, in our calculations we take $\tilde{\eta }(\tilde{r})=\tilde{\eta }(1)$.

Morozova et al. (2010) obtained the modified Goldreich–Julian charge density caused by oscillations (their Equation (13)). However, there is a mistake in their derivation from their Equation (11) to Equation (13). The factor $1/\Theta ^2(\tilde{r})$ (Θ is the colatitude of the last closed magnetic field line) should not appear in the second term of their Equation (13). Within the polar cap region, where the colatitude with respect to the magnetic axis ϑ is small, the correct expression should read

$$\begin{equation} \rho _{\rm GJ,osc} = -K \frac{\Omega B}{4\pi c} \frac{1}{\tilde{r}^4} \frac{1}{N} \frac{f(\tilde{r})}{f(1)} l(l+1) Y_{lm}(\theta,\phi) \cos \vartheta e^{-i\omega t}, \end{equation} \tag{ 5 }$$

where $K=\tilde{\eta }(1)/\Omega R$ denotes the ratio of oscillation velocity and rotation velocity in the pulsar surface, which represents the intensity of the oscillations. Since Θ is a small quantity at the polar cap region, the factor $1/\Theta ^2(\tilde{r})$ is a large quantity. As a result, the ρ_{GJ, osc} value obtained in their paper is significantly overcalculated. After correcting the error, one gets the ratio

$$\begin{equation} \frac{\rho _{\rm GJ,osc}}{\rho _{\rm GJ,rot}} = \frac{K}{2\tilde{r}} \frac{l(l+1)Y_{lm}(\theta,\phi)\cos \vartheta }{1-\kappa /\tilde{r}^3} e^{-i\omega t}. \end{equation} \tag{ 6 }$$

With z axis fixed to the spin axis, the pulsar polar cap region would have θ ∼ α, where α is the magnetic axis inclination angle of the pulsar. For a nonextreme α in the realistic cases, given the same value of K, the oscillation modes with the same l but different m values would have ρ_GJ values of the same order of magnitude. For different l values, ρ_GJ increases by a factor Kl(l + 1)Y_lm, and the oscillation velocity increases as a factor ∼KlY_lm. As a result, when l is large, a large ρ_GJ would be obtained with a relatively smaller oscillation velocity.

It is unclear in reality which mode(s) would be excited and be dominant. Practically, introducing the inclination angle α would significantly complicate the calculations, so in the following calculations we assume α = 0 for simplification, so that θ = ϑ. At this configuration, the m = 0 modes have similar amplitudes to the cases with an arbitrary α except for those close to $90\deg$, and we only calculate the l = 2, m = 0 mode as an illustration.⁶ As discussed above, this example may be regarded as a typical example of l = 2 for arbitrary α values except those close to $90\deg$ and arbitrary m values, and the cases for different l values may be inferred through the simple scaling relations.

2.2. Basic Physical Picture of the Inner Gap

The picture of the vacuum gap model (RS75) is the following. Owing to a centrifugal force, particles in a pulsar magnetosphere continuously stream out the light cylinder in the open field line regions. At the polar cap of an "antiparallel" rotator, if the ion binding energy at the pulsar surface is large enough, no charge can be provided to sustain a continuous outflow, and a gap, in which the charge density ρ ≪ ρ_GJ, is formed. An electric field component parallel to the magnetic field, E_∥, is developed. Seed γ-rays in the gap would materialize in the strong B field and generate electron-positron pairs. These pairs are accelerated in the gap to ultrarelativistic energies and produce high-energy photons through CR or ICS. High-energy photons undergo pair production through γ − B or two-photon processes, and the newly produced positrons/electrons are accelerated and radiate again. This leads to a runaway pair creation avalanche, which ultimately leads to discharge of the gap potential and breakdown of the gap. Denoting the gap height as h, under one-dimensional approximation for h ≪ r_p (where r_p = R(ΩR/c)^1/2 is the polar cap radius), one can write the electric field in the gap as

$$\begin{equation} E(s)=-4\pi \int _h^s\rho _{\rm GJ}(s)\, {ds}, \end{equation} \tag{ 7 }$$

where s denotes the distance from the surface of the star. The corresponding electric potential difference along the gap is

$$\begin{equation} \Delta V(h) = -\int _0^h E(s)\, {ds}. \end{equation} \tag{ 8 }$$

There is a maximum voltage across the polar cap provided by the unipolar induction, denoted as ΔV_max. When ΔV approaches ΔV_max, the 1D approximation above would fail. The criterion

$$\begin{equation} \Delta V(h) < \Delta V_{\rm max} \end{equation} \tag{ 9 }$$

ensures that pair production screens E_∥ and limits the gap potential. Since pair production is the necessary condition for coherent radio emission, Equation (9) defines the radio death line of pulsars (e.g., RS75, Zhang et al. 2000).

For α = 0, the maximum voltage across the polar cap can be written as (see derivation in the Appendix)

$$\begin{eqnarray} \Delta V_{\rm max} &\approx& -\frac{\Omega R^2NB_0}{c} \frac{\Theta _0^2}{2} \left[(1-\kappa) + K\frac{l(l+1)}{2}Y_{lm}(\Theta _0,\phi)\right],\nonumber\\ {\rm for}\ m&=&0; \end{eqnarray} \tag{ 10 }$$

$$\begin{eqnarray} \Delta V_{\rm max}& \approx& -\frac{\Omega R^2NB_0}{c} \left[(1-\kappa)\frac{\sin ^2\Theta _0}{2} - KY_{lm}(\Theta _0,\phi)\right],\nonumber\\ {\rm for}\ m&\ne& 0. \end{eqnarray} \tag{ 11 }$$

The polar angle of the last open magnetic field line Θ₀ is determined by

$$\begin{equation} \Theta _0 \approx \frac{\sqrt[4]{N}}{f(1)} \sqrt{\frac{2\Omega R}{c} \left[(1-\kappa)+K\frac{l(l+1)}{2}Y_{l0}\right]},\ {\rm for}\ m=0; \end{equation} \tag{ 12 }$$

$$\begin{eqnarray} &&\frac{1}{2}f^4(1)\Theta _0^6 \approx \frac{\Omega ^2R^2N}{c^2} \left[(1-\kappa)\frac{\sin ^2\Theta _0}{2}-KY_{lm}(\Theta _0,\phi)\right]\nonumber\\ &&\quad \times \left[(1-\kappa)+K\frac{l(l+1)}{2}Y_{lm}(\Theta _0,\phi)\right],\ {\rm for}\ m\ne 0. \end{eqnarray} \tag{ 13 }$$

2.3. Different Gap Modes

For a pulsar inner gap, several processes operate simultaneously. Gamma rays are produced via both CR and ICS by electrons/positrons, and pair productions proceed through both γ − B and 2γ processes. The height and potential of the gap are determined by the process that takes the shortest distance to generate enough pairs to shut down the gap (Zhang et al. 1997). Based on physical conditions, one of the following three modes may play a dominant role in defining gap parameters: CR, resonant ICS, and 2γ processes. In the following, we discuss these modes in turn.

2.3.1. CR Mode

In RS75, only the CR mode was considered, and the height of the gap is determined by h ∼ l_γ, where l_γ is the mean free path of typical γ photons, which reads

$$\begin{eqnarray} &&l_\gamma = \frac{4.4}{e^2/\hbar c} \frac{\hbar }{m_e c} \frac{B_q}{B_\bot }\exp \left(\frac{4}{3\chi }\right), \quad \chi \ll 1, \end{eqnarray} \tag{ 14 }$$

$$\begin{eqnarray} &&\chi \equiv \frac{E_\gamma }{2m_e c^2} \frac{B_\bot }{B_q} \equiv \frac{E_{\gamma \bot }}{2m_e c^2} \frac{B}{B_q}, \end{eqnarray} \tag{ 15 }$$

where e and m_e are the electric charge and the mass of an electron, respectively, c is the speed of light, ℏ is the reduced Planck constant, B_q = m²c³/eℏ = 4.4 × 10³³ G is the critical magnetic field, B_⊥ is the perpendicular magnetic component with respect to the direction of the γ-ray photon in the corotating frame, E_γ is the energy of the γ-ray photon, and E_γ⊥ is the perpendicular energy of the γ photon with respect to the direction of the magnetic field in the corotation frame. According to RS75, a photon emitted parallel to the direction of the local magnetic field line and propagating along a distance h would see a perpendicular magnetic field

$$\begin{equation} B_\bot =\frac{h}{\rho }B, \end{equation} \tag{ 16 }$$

where ρ is the curvature radius of the magnetic field line. For a dipolar magnetic field, one has

$$\begin{equation} \rho \simeq \frac{4}{3} \sqrt{Rc/\Omega } \simeq 9.21\times 10^7(P R_6)^{1/2}\,{\rm cm}, \end{equation} \tag{ 17 }$$

where P is the rotational period of the pulsar and R₆ is the pulsar's radius in units of 10⁶ cm. For multipole magnetic fields, one may adopt a typical curvature radius ρ ∼ 10⁶ cm, comparable to the size of the pulsar. We consider both possibilities in the following calculations.

In order to break a gap, a lepton needs to at least release one photon within a typical mean free path l_e, and the photon needs to attenuate in the magnetic field to produce pairs within a mean free path l_γ (Equation 14). For the CR process, l_e ≪ l_γ is usually satisfied (Zhang et al. 2000); one may then take h ∼ l_γ. Note that in Equation (14), l_γ decreases with increasing E_γ, so the largest Lorentz factor of electrons/positrons γ_e determines the height of gap. Under the assumption that electrons/positrons can be accelerated to the largest Lorentz factor in the gap γ_em_ec² = ΔV(h), one can solve the height of the gap with Equation (14) (RS75), denoted as h_min.

However, in some situations, especially when the ICS mode is invoked, l_e often exceeds h_min (see more detail below). As a result, l_γ related to the largest γ_e is no longer a good estimate of the gap height h, since at this distance an electron on average has not produced a photon yet. The photon-pair cascade chain is not launched. In this case, we determine the gap height via

$$\begin{equation} l_e(\gamma _e) = l_\gamma (\gamma _e) = h(\gamma _e). \end{equation} \tag{ 18 }$$

When oscillations are considered, in some cases, even the CR mode also has l_e > l_γ.

For the CR mode, we have

$$\begin{equation} E_{\gamma,{\rm CR}}=\hbar \omega _{c,{\rm CR}}=\hbar \frac{3}{2}\frac{\gamma _e^3 c}{\rho }, \end{equation} \tag{ 19 }$$

$$\begin{equation} l_{e,{\rm CR}} \sim c \left(\frac{P_{\rm CR}}{\hbar \omega _{c,{\rm CR}}} \right)^{-1} = \frac{9}{4}\frac{\hbar \rho c}{\gamma _e e^2}, \end{equation} \tag{ 20 }$$

where γ_e is the Lorentz factor of electrons/positrons.

2.3.2. ICS Mode

For the ICS mode, we mainly focus on ICS at resonance. The scattering cross section of ICS becomes very large when the incident photon energy in the electron rest frame (ERF) equals the energy difference between the electron's Landau level ground state and the first excited state (Xia et al. 1985). The large scattering cross section of this resonant mode reduces l_e significantly so that pair cascade in the gap becomes possible (Zhang & Qiao 1996). There is another typical ICS energy ($\gamma _e^2 kT$), which is related to boosting the thermal peak of the source photons to high energies. This mode, called the thermal mode (Zhang et al. 1997), was later found to have too large an l_e, which may not play an important role (Zhang et al. 2000). We do not consider this mode in the following calculations.

In the resonant ICS mode, when the magnetic field is below the critical magnetic field, we have (Zhang et al. 1997)

$$\begin{equation} E_{\gamma,{\rm res}} \sim 2\gamma _e^2\hbar \omega _{\rm res}(1-\beta _e\mu _i) = 2\hbar \gamma _e\omega _B, \end{equation} \tag{ 21 }$$

where $\beta _e=(1-\gamma _e^{-2})^{1/2}$ is the dimensionless velocity of the relativistic particle, μ_i is the cosine of the angle between the incident photon and the direction of the electron's velocity, ω_B = eB/mc is the cyclotron frequency of an electron/positron in the magnetic field, and ω_res = ω_B/[γ_e(1 − β_eμ_i)] is the so-called resonant frequency of the ICS process. When the magnetic field exceeds B_q, the resonant ICS is in the Klein–Nishina regime, so that the largest energy of scattered photons is essentially the total energy of electrons

$$\begin{equation} E_{\gamma,{\rm max}} \simeq \gamma _e m_e c^2. \end{equation} \tag{ 22 }$$

For a given energy of scattered photons _s (in units of m_ec²), the incident photon's energy (in units of m_ec²) is

$$\begin{equation} \epsilon _i=\epsilon _s\left/\right. \left[2\gamma _e^2(1-\beta _e\mu _i)\right]. \end{equation} \tag{ 23 }$$

Then the mean free path of an electron can be written as

$$\begin{eqnarray} l_{e,{\rm ICS}}(\epsilon _s) &\sim & \left[ \int _0^1 \sigma ^\prime (\epsilon _s, \mu _i) (1-\beta _e\mu _i) n_{\rm ph}(\epsilon _s, \mu _i)\right.\nonumber\\ &&\left. \times \frac{\epsilon _s}{2\gamma _e^2} \frac{\beta _e}{(1-\beta _e\mu _i)^2} d\mu _i \right]^{-1}, \end{eqnarray} \tag{ 24 }$$

where

$$\begin{equation} n_{\rm ph}(\epsilon _i)d\epsilon _i = \frac{8\pi }{\lambda _c^3} \frac{\epsilon _i^2}{\exp (\epsilon _i/\theta _{\rm T})-1} d\epsilon _i \end{equation} \tag{ 25 }$$

represents the photon number density distribution of a semi-isotropic blackbody radiation, in which θ_T = k_BT/m_ec², k_B is Boltzmann's constant and λ_c = ℏ/m_ec ≃ 2.426 × 10⁻¹⁰ cm is the electron Compton wavelength. Here σ' is the scattering cross section in the ERF, which is calculated using the Sokolov & Ternov cross section in Baring et al. (2011)

$$\begin{eqnarray} \frac{d\sigma ^\prime _{\rm ST}}{d(\cos \theta _f)} &=& \frac{3\sigma _T}{64} \frac{\omega _f^2e^{-\kappa }}{\omega _i[2\omega _i-\omega _f-\zeta ]\varepsilon _\perp ^3}\nonumber\\ && \times \sum _{s=\pm 1}\frac{(\varepsilon _\perp -s)^2 \Lambda _s}{(\omega _i-B/B_q)^2+(\Gamma _s/2)^2}. \end{eqnarray} \tag{ 26 }$$

Here θ_f is the scattered angle in the ERF, σ_T is the Thomson cross section, ω_i = γ_ei(1 − β_eμ_i) is the incident photon energy in units of m_ec² in the ERF, ω_f is the energy of scattered photons in the ERF written as

$$\begin{equation} \omega _f = \frac{2\omega _i r}{1+\sqrt{1-2\omega _i r^2 \sin ^2\theta _f}}, \quad r=\frac{1}{1+\omega _i(1-\cos \theta _f)}, \end{equation} \tag{ 27 }$$

$\varepsilon _\perp =\sqrt{1+2B/B_q}$, $\kappa =\omega _f^2\sin ^2\theta _f/(2B/B_q)$, ζ = ω_iω_f(1 − cos θ_f), and

$$\begin{equation} \Lambda _s = (2\varepsilon _\perp +s){\omega _f^2\mathcal {T}-[\omega _i-\omega _f]} - s\varepsilon _\perp ^2[\omega _i-\omega _f], \end{equation} \tag{ 28 }$$

$$\begin{equation} \omega _f^2\mathcal {T} = 2(\omega _i-\omega _f)-2\omega _i\omega _f(1+\omega _i){1-\cos \theta _f}+2\omega _i^2, \end{equation} \tag{ 29 }$$

$$\begin{equation} \Gamma _s = \left(1-\frac{s}{\varepsilon _\perp }\right)\Gamma, \quad \Gamma =\alpha _f\frac{B}{B_q}I_1(B), \end{equation} \tag{ 30 }$$

$$\begin{eqnarray} I_1(B) &=& \int _0^\Phi \frac{d\phi e^{-\phi }}{\sqrt{(\Phi -\phi)(1/\Phi -\phi)}} \left[1-\frac{\phi }{2}(\Phi +1/\Phi)\right], \nonumber\\ \Phi& =&\frac{\sqrt{1+2B/B_q}-1}{\sqrt{1+2B/B_q}+1}. \end{eqnarray} \tag{ 31 }$$

The reason why the mean free path of electrons would exceed that of photons in the resonant ICS mode is ascribed to the offset between the energy of the resonant incident photons (res) (which provides the largest cross section) and the energy of the peak of blackbody radiation (which provides the largest number of photons).

When magnetic field exceeds the critical magnetic field B_q, the resonant condition cannot be satisfied since the resonant photons are in the Klein–Nishina regime. The ICS cross section declines, so that the electron mean free path l_e becomes much larger. In such a case, no solution can be found for Equation (18) for the resonant ICS mode. In any case, one may still have an ICS mode, even though the photon energies are not at the resonance. We then apply the minimum l_e(γ_e) to define the gap height.

For the resonant ICS mode, considering that the energy loss of particles in the acceleration process cannot exceed the maximum electric potential energy in the gap, we need to ensure that the voltage along the gap is enough to accelerate particles to the Lorentz factor required. This condition can be expressed as (Zhang & Qiao 1996)

$$\begin{equation} P_e \frac{h}{c}<e \Delta V(h). \end{equation} \tag{ 32 }$$

We adopt an approximation of the energy-loss rate at resonance (Dermer 1990):

$$\begin{equation} P_e\!=\!\frac{c\sigma _{\rm eff}}{\mu _+-\mu _-}\left(\!\frac{\epsilon _B^2}{\gamma _e}\!\right) \times \int _{\epsilon _B/\gamma _e(1-\beta _e\mu _-)}^{\epsilon _B/\gamma _e(1-\beta _e\mu _-)} d\epsilon \epsilon ^{-2} n_{\rm ph}(\epsilon)\left(\!1\!-\!\frac{\epsilon }{\gamma _e\epsilon _B}\!\right)\!, \end{equation} \tag{ 33 }$$

where σ_eff ≈ 3πσ_Tα_f is the effective cross section, and μ₊, μ₋ are cosines of the maximum and minimum incident angles, respectively, which we adopt as μ_± = ±1 in the calculations. In most cases, such a requirement is satisfied.

2.3.3. Two-photon Pair Production Mode

As for the 2γ process, we consider interaction between the photons created by high-energy particles (through CR or ICS) and thermal photons. The mean free path of a photon, l_2γ, is determined by (Zhang & Qiao 1998)

$$\begin{equation} \int _0^{l_{2\gamma }} 2.1\times 10^{-6}T_6^3 {\rm Max}[f(\nu, x)]dx=1, \end{equation} \tag{ 34 }$$

$$\begin{equation} {\rm Max}[f(\nu, x)]=0.270-0.507\mu _c+0.237\mu _c^2, \end{equation} \tag{ 35 }$$

where T₆ is the surface temperature of pulsars in units of 10⁶ K and μ_c is the cosine of the angle between the two photons. Since gap height is usually much shorter than the size of polar caps, most of the two-photon interactions occur at about $90\deg$ (one photon streaming out, while the other comes perpendicularly from other parts of the surface), so we simply adopt μ_c ∼ 0. A small change of μ_c would not noticeably affect the results. It is worth pointing out that the height of the gap due to 2γ processes is only relative to the surface temperature and has nothing to do with the expression of V(h); in other words, oscillations do not have an essential effect on 2γ processes. The 2γ process is more important in SGRs/AXPs thanks to their high surface temperatures (Zhang 2001).

When an oscillation gets its maximum amplitude with the same direction of rotation, it has the maximum effect on the properties of the gap. If the pair production condition is satisfied at this most optimistic condition, radio emission can be produced. Therefore, in the following, we mainly focus on this extreme condition and ignore the periodical variation of the oscillations. In other words, in Equation (5) we set e^−iωt = 1. In principle, the gap properties would vary with time during one oscillation, but it is difficult to have an observational effect owing to the high oscillation frequency. We may estimate the frequency of oscillation in a pulsar based on its analogy with the Earth. The pulsar oscillation frequency is P_osc∝(L/v), where L is the typical length of the star, which is of the order of the pulsar radius ∼10⁶ cm, and v is the speed of sound, which might be close to the speed of light for both neutron stars and solid quark stars (e.g., Haensel et al. 2007). From the observations of Earth oscillations, we know that the period of its fundamental-frequency oscillation is P_Earth ∼ 1 hr. The radius of the Earth is R_Earth ∼ 6.4 × 10⁸ cm, and the speed of sound (e.g., that earthquake wave) is v_Earth ∼ 5 × 10⁵ cm s⁻¹. As a result, the period of pulsar oscillation may be estimated as

$$\begin{equation} P_{\rm osc} \sim \frac{R}{R_{\rm Earth}} \frac{v_{\rm Earth}}{v} P _{\rm Earth } \sim 3\times 10^{-4}\,{\rm s}. \end{equation} \tag{ 36 }$$

The frequency is

$$\begin{equation} \nu _{\rm osc} = \frac{1}{P_{\rm osc}} \sim 3\,{\rm kHz}. \end{equation} \tag{ 37 }$$

This is much higher than the rotational frequency, so that the periodical variation of ρ_{GJ, osc} would be smoothed out and cannot cause an observable, periodical signal. In principle, an integrated average effect may be arguably more relevant, but this involves much more complicated calculations. The treatment here can provide an estimate to the correct order of magnitude. Moreover, since we will discuss the threshold condition for pair production (and hence radio emission), the maximum potential would be more relevant in defining such a condition.

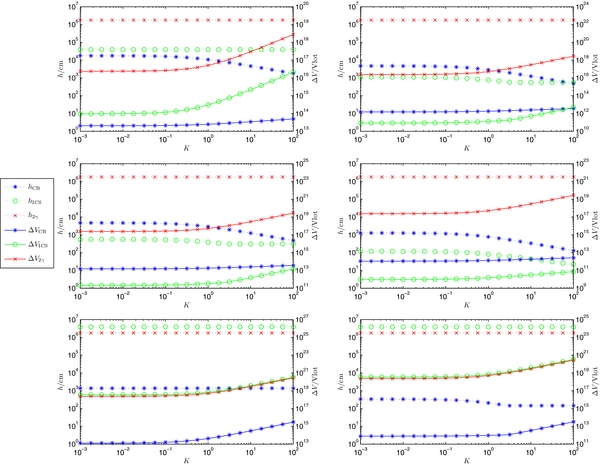

We show the general effects of oscillation for a typical pulsar period P = 1 s in Figure 1. The temperature T = 10⁶ K and magnetic field strengths B = 10¹², 10¹³, and 10¹⁴ G are adopted. Both dipole and multipole magnetic configurations are considered. The point lines represent the gap heights, while the solid lines represent the voltages along the gap. The blue lines with star points, green lines with circle points, and red lines with cross points represent CR, ICS, and 2γ modes, respectively. The gap properties are plotted against the dimensionless amplitude of oscillation K, which approximately equals the ratio of oscillation velocity to rotational velocity at the surface of the star. Our calculations start from K = 10⁻³, at which the differences of gap properties are small enough with respect to the cases without oscillation. Note that all the cases we calculate satisfy the requirement in Equation (32), so we do not present the condition in the figures.

Zoom In Zoom Out Reset image size

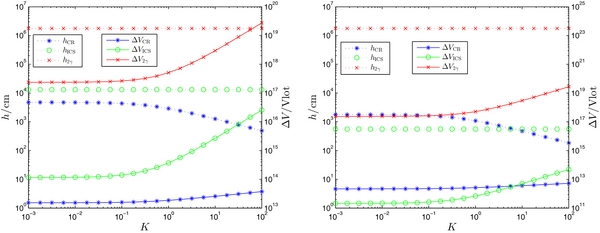

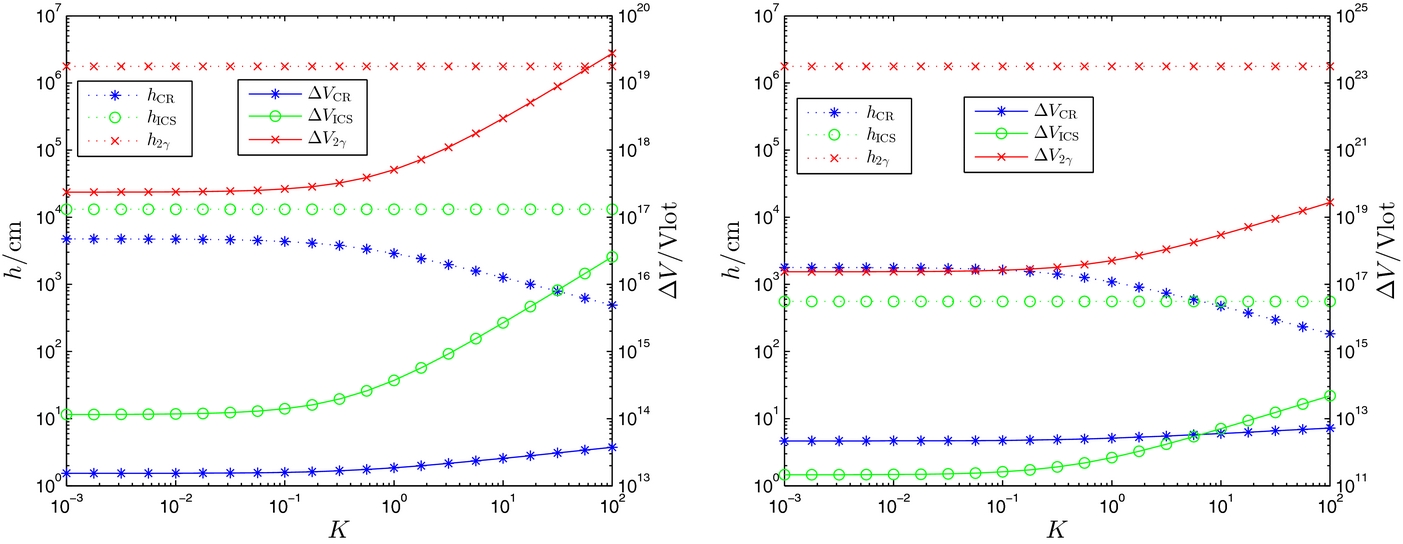

Keeping other parameters the same, we calculate a faster pulsar with P = 0.1 s in Figure 2. A typical SGR/AXP with P = 10 s, T = 5 × 10⁶ K, and B = 10¹⁴ G is calculated in Figure 3.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

As mentioned above, oscillations have the effect of enhancing the voltage across the polar cap when we have the same gap height, which means that ΔV(h) increases. For the 2γ mode, the height of the gap is only determined by temperature; therefore, it remains unchanged as the oscillation amplitude and ΔV vary. The CR and resonant ICS modes, on the other hand, are sensitive to these variations. The gap height may decrease when oscillations occur. Note that a larger voltage across the polar cap would accelerate particles to higher Lorentz factors, and photons emitted by high-energy particles would have a higher typical energy and hence a shorter mean free path, so that the gap would break down earlier and have a lower height. In this case, ΔV still increases but with a smaller slope than the 2γ mode case.

In some cases the gap height in the CR and resonant ICS modes would also remain unchanged. These cases occur when l_e > h_min (h_min is the mean free path of photons when γ_e = eΔV/(m_ec²)), so that the height of the gap should be determined by Equation (18). Note that ΔV(h) does not appear in Equation (18) or the expression of l_e, which means that the gap height does not react to oscillations when l_e > h_min, so that the gap height cannot be shorter than a lower limit determined by Equation (18) or a minimum of l_e. In the resonant ICS mode, l_e > h_min occurs more frequently (as discussed in Section 2.3.2).

Note that in reality the gap properties are determined by the mode whose gap height is the lowest. As a result, mode changing can happen as the oscillation amplitude varies or other parameters (e.g., surface temperature or magnetic field strength) change (see figures below). Zhang et al. (1997) first discussed such gap mode changing due to fluctuation of the pulsar surface temperature.

The 2γ mode dominates only at high temperature and a relatively small V(h), because a high temperature makes the 2γ process more effective and a relatively small V(h) makes the CR and ICS modes less effective. Here a relatively small V(h) means a weak magnetic field and a large period without oscillations. When V(h) is large, the CR and ICS modes become more effective; therefore, the 2γ process could not dominate, especially with oscillations. Comparing the CR mode with the resonant ICS mode, l_γ in the resonant ICS mode is much shorter than that in the CR mode. However, when the magnetic field strength exceeds B_q or is too weak with a dipole configuration, l_e > h_min often occurs in the resonant ICS mode, so that l_e defines the gap height, which is higher. In these cases, the CR mode would dominate the properties of the gap. The ICS mode plays an important role only when the magnetic field does not exceed B_q, typically with a multipole configuration, but sometimes in a strong enough dipole field also.

The influence of different magnetic field configurations is reflected in the curvature radii of magnetic field lines. The dipole magnetic field lines have larger curvature radii, which make the gap heights in the CR and resonant ICS modes higher. It also influences the condition of l_e > h_min.

After general considerations of the vacuum gap, we also analyze the oscillation effect on partially screened inner gaps. Following Gil et al. (2003, 2006), we introduce a shielding factor defined as η ≡ 1 − ρ_i/ρ_GJ where ρ_i is the real electric charge density in the gap contributed by iron ions. We determine the shielding factor η and surface temperature T_s by (Gil et al. 2006)

$$\begin{equation} \sigma _{\rm SB}T_s^4 = \gamma _e m_e c^3 \frac{\rho _{\rm GJ}}{e} \eta, \end{equation} \tag{ 38 }$$

$$\begin{equation} \eta \approx 1- \exp \left(\!30-\frac{\varepsilon _c}{k_B T_s}\!\right) \frac{\rho _{\rm GJ,rot}}{\rho _{\rm GJ}}, \ \varepsilon _c \!\approx\! (0.18\,{\rm keV})\left(\!\frac{B}{10^{12}\,{\rm G}}\!\right)^{0.7}\!, \end{equation} \tag{ 39 }$$

where σ_SB is the Stefan–Boltzmann constant and ε_c is the binding energy in the neutron star surface.

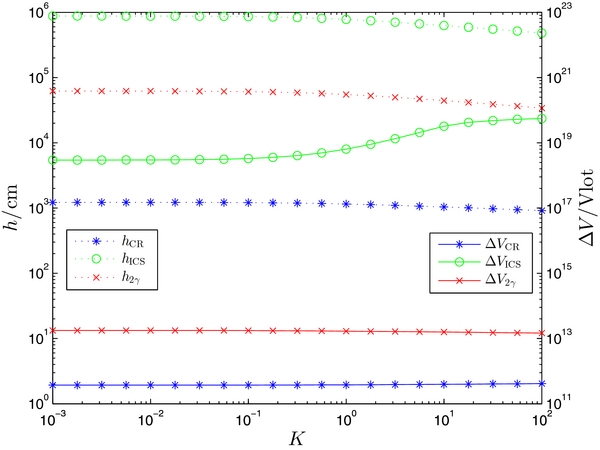

In Figure 4, we calculate the properties of the partially screened gap as a function of the dimensionless oscillation amplitude K. Here we adopt the dipole magnetic field B_di = 10¹² G and the multipole magnetic field B_multi = 5B_q, as is expected in the partially screened gap scenario. One can see that although oscillations increase the Goldreich–Julian charge density and are able to increase the voltage along the gap, they also enhance the heating by the back-flowing particles and thus decrease the shielding factor. As a result, the voltage increase is not as obvious in partially screened gaps as in vacuum gaps.

Zoom In Zoom Out Reset image size

4.1. Normal Pulsars

4.2. AXPs/SGRs

Pulsed radio emission is observed after flaring activities of some AXPs/SGRs, which are also accompanied by glitching activities (Kaspi et al. 2003; Dib & Kaspi 2014; Olausen & Kaspi 2014). This suggests that the condition of radio emission is satisfied after the flares/glitches. In the following, we show that the observations may be understood within the framework of our model.

The physical nature of AXPs/SGRs is still an open question. The standard model is that they are neutron stars with superstrong magnetic fields, known as magnetars (Thompson & Duncan 1995, 1996). Alternatively, a solid quark star model was suggested by Xu (2003, 2013). In the following, we discuss the radio activation mechanism within the framework of both models.

4.2.1. Magnetar Model

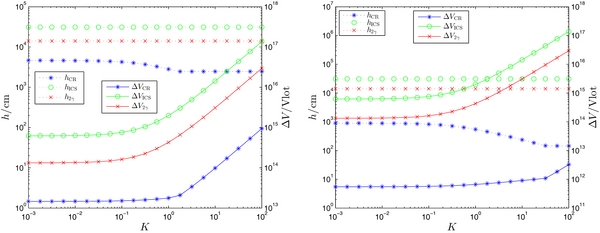

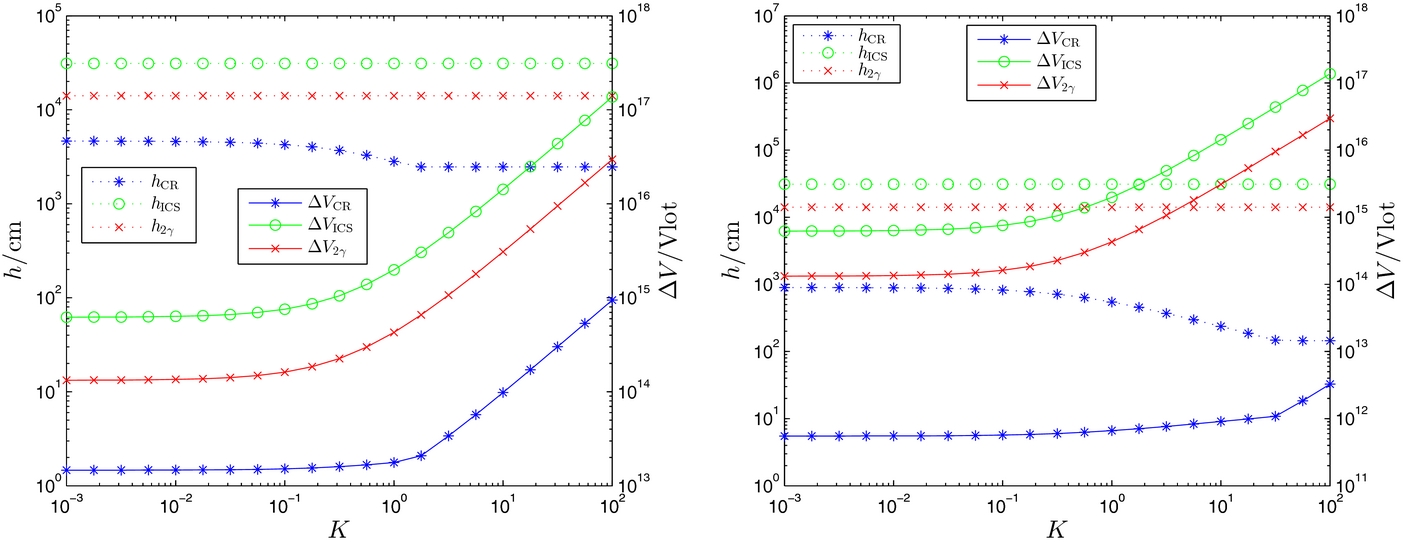

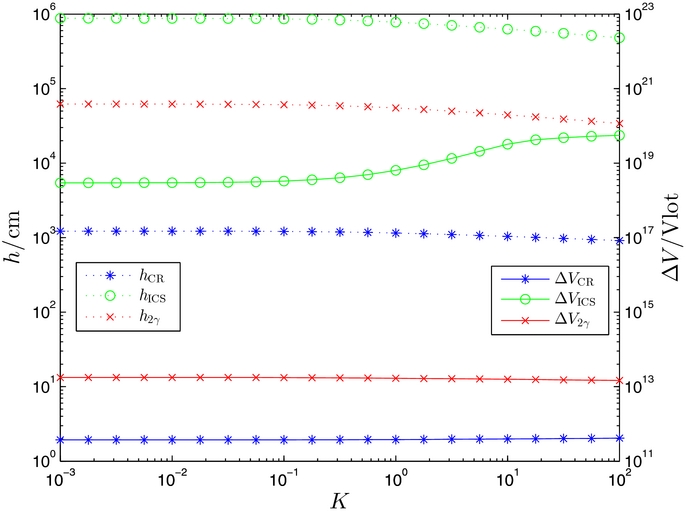

In Figure 3, we calculate the gap properties for typical parameters of an AXP/SGR: P = 10 s, T = 5 × 10⁶ K, and B = 10¹⁴ G. Because the magnetic field strength already exceeds the critical value B_q, the Klein–Nishina reduction effect makes the cross section small, so that l_e becomes very large. The ICS mode would not be important unless we consider the region far from the surface where magnetic field strength is below B_q. Since the inner gap height is much shorter than the radius of the pulsar, the resonant ICS mode is not important in any case. The 2γ mode is more dominant thanks to the high temperature. However, as a result of the strong magnetic field, the CR mode would be more effective than the 2γ mode and would determine the properties of the gap.⁷

Radio activation of AXPs/SGRs after outburst/glitch may be understood within the following picture: With the strong magnetic field in a magnetar, the CR mode gap would be above the pulsar radio emission death line even in the quiescent state. However, as slow rotators, the solid angle of the radio emission beam (if it exists) would be very small, so that the chance for detecting radio emission from a magnetar during the quiescent state is very low. After an outburst/glitch, toroidal oscillations would be excited. The strength of radio emission may be enhanced (owing to the larger potential). More importantly, the effect of the polar cap angle of the pulsar (Equation (12)) would be increased significantly when oscillations occur. The radio emission beam would be wider, such that it can be detected by an observer on Earth. Later, as oscillations damp away, the radio emission decays owing to the decrease of the voltage or to a less favorable geometric configuration. It finally vanishes when the radio beam exits the line of sight. Within this picture, not all outburst/glitches in magnetars would excite radio emission, which seems to be consistent with the data.

4.2.2. Solid Quark Star Model

In this subsection, we discuss the solid quark star model for AXPs/SGRs (Xu 2003, 2013). Within this model, no strong magnetic field is needed to power outbursts. We therefore assume that AXPs/SGRs have a similar magnetic field to normal pulsars, i.e., B ∼ 10¹² G.⁸ Owing to their long periods, these objects are then usually below the radio emission "death line," so that they are radio quiet. When an outburst occurs (which is attributed to starquakes in the solid quark star model), oscillations are excited. The oscillation-induced potential enhances voltage along the gap, so that one or more gap modes can be activated. The pulsar moves above to the death line and becomes radio loud. Later, the oscillations are damped out. Radio emission fades away and eventually disappears when the gap state falls below the death line again.

It is worth reviewing here the physical picture of outbursts and toroidal oscillations within the solid quark model. We consider bulk-variable starquakes (Zhou et al. 2014) in solid quark stars. Various quark star equations of state define a general positive R−M relation, with a turnover at the high-M range. There exists a maximum radius R_max in the R−M diagram. Owing to accretion from a fossil disk, the mass of the quark star increases and might exceed the mass corresponding to R_max. As mass keeps increasing, the quark star would contract to seek a more stable configuration. Since the star is in the solid state, the elastic energy would be accumulated to resist radius contraction. When the accumulated elastic energy finally exceeds a threshold, the solid would crack, and a bulk-variable starquake would occur. Strong oscillations are then excited. The gravitational and elastic energy released in a starquake may be estimated as

$$\begin{equation} \frac{GM^2}{R}\frac{\Delta R}{R} \sim 10^{53}\frac{\Delta R}{R}\,{\rm erg} \end{equation} \tag{ 40 }$$

for typical parameters: M ∼ 1.4 M_☉ and R ∼ 10⁶ cm. Here ΔR is the change of radius during configuration rearrangement. Such an energy is certainly large enough to power AXP/SGR outbursts and even giant flares. It has been suggested that oscillation-driven radiation could also act as the radiation mechanism of giant flares within this model (Xu et al. 2006). The starquakes induce oscillations, which convert the gravitational and elastic energy to the mechanical energy of oscillations. The oscillations then lead to acceleration of particles based on the mechanisms discussed in this paper, so that the mechanical energy of oscillations is converted to the kinetic energy of the particles and is finally converted to high-energy photon energy via CR or ICS mechanisms. An SGR/AXP outburst is then produced. The kHz quasi-periodic oscillations observed after SGR giant flares (e.g., Israel et al. 2005) may hint toward global oscillations of the central compact star, which is consistent with this picture.

Along a similar line, below we show that transient pulsed radio emission of several AXPs/SGRs detected after outbursts or giant flares is also consistent with such a picture. We calculate the gap properties of the four radio-loud AXPs/SGRs with different oscillation amplitudes. The magnetic field is assumed to be 10¹² G in order to explain the lack of radio emission in the quiescent state (below the death line). As an example, we show the result of 1E 1547.0−5408 in Figure 5. The black solid line with inverted triangle represents the maximum voltage across the polar cap, i.e., ΔV less than this critical value is necessary for radio emission. Note that the results of K = 10⁻³ can represent the gap properties without oscillation. We can see that with a dipole magnetic field considered, the result is consistent with our expectation: in the quiescent state, there is no oscillation, and ΔV of all three modes are larger than ΔV_max, so that the star is radio quiet. After an outburst, stellar oscillations are excited. As long as K exceeds a critical value, there is at least one mode whose ΔV becomes less than ΔV_max, so that the gap is activated and the star would become radio loud. With oscillations damped away later, radio emission decays and finally vanishes.

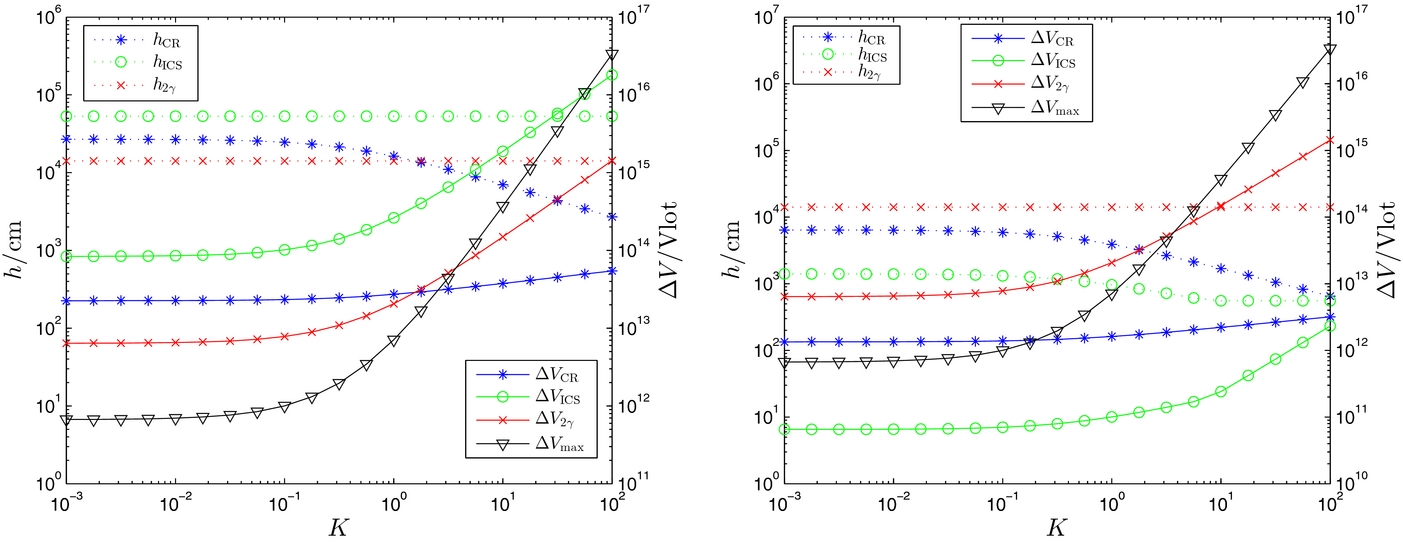

Zoom In Zoom Out Reset image size

We note that a dipole magnetic field is not a necessary condition. For a multipole field, gaps are more likely above the death line. However, if the magnetic field strength is even weaker (compared with the typical value 10¹² G), the gap would be below the death line in the quiescent state. The mechanism discussed above then becomes valid.

For other AXPs/SGRs with radio activation, we also carried out corresponding calculations. Similar to the result of 1E 1547.0−5408, we find that in a dipolar magnetic field with B = 10¹² G, there always exists a critical K value. When K exceeds the critical value, the gaps would be activated above the death line. In Table 1, we show the critical values of K of the four radio AXPs/SGRs. For solid quark stars, a relatively large K would be possible. This may be justified by the following two arguments (e.g., Xu et al. 2006). First, in solid quark stars, since the entire star is a rigid solid body, the large gravitational and elastic energy released in starquakes (Equation (40)) is large enough to power the large-amplitude oscillations required by the model. For neutron stars, only the crust is believed to be solid. In order to attain the large oscillation energy, one must appeal to the magnetic energy reservoir of the magnetar. Second, since solid quark stars are self-bound via strong interaction, unlike the gravity-bound case for neutron stars, the surface velocity in solid quark stars can be close to or even exceed the Kepler velocity. This allows the star to reach a K value greater than unity. We also note that here we only calculate the l = 2, m = 0 mode. For a larger l, the critical value of K will decrease markedly, which would ease the radio reactivation condition. Our results suggest that all the radio-activating AXPs/SGRs can be well interpreted in a reasonable parameter space within this model.

Table 1. The Critical K of the Four AXPs/SGRs That Show Radio Reactivation

Radio AXPs/SGRs	P/s	T/106 K	Critical K
1E 1547.0−5408	2.07	5.0	2.54 (CR)
PSR J1622−4950	4.33	5.8	3.20 (2γ)
XTE J1810−197	5.54	2.1	8.90 (CR)
SGR J1745−2900	3.76	5.0a	5.53 (CR)

Notes. When K exceeds this value, ΔV will become less than ΔV_max, and radio emission would be activated. A dipole field with B = 10¹² G is assumed, and the l = 2, m = 0 oscillation mode is calculated. ^aSince the surface temperature of the SGR J174−2900 is unknown, we just adopt a typical value.

Download table as:  ASCIITypeset image

Along with rotation itself, toroidal stellar oscillations can provide additional voltage due to unipolar induction, change Goldreich–Julian charge density, and influence particle acceleration and properties of the pulsar inner gap. In this paper we studied in detail the gap properties under toroidal oscillations for three different modes: CR, ICS, and 2γ. We show that as the oscillation amplitude varies, inner gap mode changing could occur, including activating a radio pulsar below the radio emission death line. Oscillations can also enlarge the size of the effective polar cap. These interesting properties allow us to interpret the observed radio activation in several AXPs/SGRs within the frameworks of both the magnetar model and the solid quark star model. Within the magnetar model, the reactivation is interpreted as a geometric effect due to the enlargement of the effective polar cap size. Within the solid quark star model, on the other hand, the reactivation is interpreted as moving a low B star from below the death line to above via oscillations. The same model can also account for the post-glitch radio pulse profile change observed in PSR J1119−6127.

As discussed earlier in the paper, we only consider the maximum effect of stellar oscillations and ignore the periodical variations of the gap properties. The timescale for periodic variation is too short to give interesting observational effects, even though within a period, gap mode changing may still happen. Also when the threshold condition of radio emission is considered (death line), the maximum effect would be the most relevant one to define the threshold condition.

Since the energy of oscillation is proportional to the square of amplitude, $K=\tilde{\eta }/\Omega B$ denotes the ratio of the oscillation velocity to the rotational velocity. The total energy of oscillation may be expressed as E∝K². We may estimate it as K² times the rotational energy, i.e.,

$$\begin{equation} E \sim \frac{1}{2} I \Omega ^2 K^2 = 1.58\times 10^{46}\, M_1 R_6^2 P^{-2} K^2 \,{\rm erg}, \end{equation} \tag{ 41 }$$

where M₁ and R₆ are the mass and radius of the pulsar normalized to 1 M_☉ and 10⁶ cm, respectively, and P is the period of the pulsar in units of seconds. Within this model, the oscillation energy should be larger than the observed energy release. This can set a rough lower limit to K.

In order to have an observational interest, a relatively large K is needed. This is naturally expected within the solid quark star model, since oscillation occurs in the entire star and the oscillation amplitude (associated with K) could be very large owing to the solid rigidity. For neutron stars, on the other hand, oscillations may only occur in the crust. A large-amplitude oscillation may break the crust. On the other hand, we note again that for oscillation modes with a higher l value, a relatively smaller oscillation velocity would be needed in order to have the same oscillation effect, as shown in Equation (6). Furthermore, the oscillation velocities can vary largely at different locations on the neutron (quark) star's surface. For rotation, on the other hand, different points on the star's surface would have the same angular velocity $\boldsymbol {\Omega }$ and $\rho _{\rm GJ,rot}\propto \boldsymbol {\Omega }\cdot \boldsymbol {B}$; but for oscillations, different points on the star's surface would have a different angular velocity component perpendicular to the direction of the magnetic field, denoted as Ω_eff⊥, and ρ_{GJ, osc} depends on Ω_eff⊥ in the polar cap region. For some oscillation modes, Ω_eff⊥ could be small in the equatorial region while large in the polar cap region. Therefore, significant oscillation effects could be obtained without breaking the crust of a neutron star.

One may ask why all AXPs/SGRs do not have radio emission after outbursts. Within the magnetar model, this may be interpreted as a viewing effect: not all activated radio emission can enter our line of sight. Within the solid quark star model, besides the beaming effect, there is another possibility. Radio activation is related to moving a pulsar from the graveyard; however, given certain parameters, even after oscillations the pulsar is still below the death line. So radio emission would not be observed in any case.

The solid quark star model requires a fossil disk to spin down the star. One related question would be whether the disk would absorb the radio emission from the pulsar magnetosphere. The fossil disks are believed to be very thin, so the probability of radio emission being absorbed should not be very large. In any case, when significant absorptions happen, this model would not produce radio emission in any case. These may correspond to those AXPs/SGRs that never activate.

We thank an anonymous referee for a constructive report, Vicky Kaspi for drawing our attention to the observations of PSR J1119−6127, and Viktoriya Morozova for a helpful communication. M.-X.L. and R.-X.X. acknowledge useful discussions at the pulsar group meetings at Peking University. This work is supported by the National Basic Research Program of China (973 program) No. 2012CB821801, the National Natural Science Foundation of China (Grant Nos. 11225314, 11133002, 11103020), the National Fund for Fostering Talents of Basic Science (No. J0630311), and the Undergraduate Research Fund of Education Foundation of Peking University.

For simplification, we assume that the magnetic axis aligns with the spin axis, so that ϑ = θ.

To obtain the voltage across the polar cap ΔV_max, we have to perform the integration

$$\begin{equation} \Delta V_{\rm max} = \int _0^{\Theta _0} E^\theta (R,\theta,\phi)d\theta. \end{equation} \tag{ A1 }$$

Owing to unipolar induction, we have

$$\begin{equation} E = -\frac{\boldsymbol {v}\times \boldsymbol {B}}{Nc}, \end{equation} \tag{ A2 }$$

where $\boldsymbol {v}$ includes contributions from both rotation and oscillation. The magnetic field takes the form

$$\begin{eqnarray} B^r &=& B_0\frac{f(\tilde{r})}{f(1)}\tilde{r}^3\cos \theta,\nonumber\\ B^\theta &=& \frac{1}{2}B_0N \left[-2\frac{f(\tilde{r})}{f(1)}+\frac{3}{(1-\varepsilon /\tilde{r})f(1)}\right] \frac{\sin \theta }{\tilde{r}^3}. \end{eqnarray} \tag{ A3 }$$

With Equation (4), we get

$$\begin{eqnarray} E^\theta (R,\theta,\phi)& =& -\frac{1}{Nc} \left[\Omega R \tilde{r}\sin \theta \left(1-\frac{\kappa }{\tilde{r}^3}\right)-\partial _\theta Y_{lm} \tilde{\eta }(\tilde{r})\right]\nonumber\\ && B_0\frac{f(\tilde{r})}{f(1)} \frac{\cos \theta }{\tilde{r}^3}. \end{eqnarray} \tag{ A4 }$$

Substituting Equation (A4) into Equation (A1), we have

$$\begin{eqnarray} \Delta V_{\rm max} &=& -\frac{\Omega R^2NB_0}{c} \left[(1-\kappa)\frac{\sin ^2\Theta _0}{2}\right.\nonumber\\ &&\left. - K\int _0^{\Theta _0}\partial _\theta Y_{lm}(\theta,\phi)\cos \theta d\theta \right]. \end{eqnarray} \tag{ A5 }$$

For a small polar angle Θ₀ ≪ 1, approximately one has

$$\begin{eqnarray} &&\int _0^{\Theta _0}\partial _\theta Y_{lm}(\theta,\phi)\cos \theta d\theta \approx -\frac{l(l+1)}{2}Y_{l0}\frac{\Theta ^2}{2},\quad {\rm for}\ m=0; \nonumber\\ && ({\rm A}6) \nonumber\\ &&\int _0^{\Theta _0}\partial _\theta Y_{lm}(\theta,\phi)\cos \theta d\theta \approx Y_{lm}(\Theta _0,\phi),\quad {\rm for}\ m\ne 0. \nonumber ({\rm A}7) \end{eqnarray} \tag{ A6 }$$

We then obtain the expression of ΔV_max; see Equations (10) and (11).

For an oscillating star, the last open field line is not straightforwardly defined. One may define a last open field line as the field line whose intersection with the equatorial plane satisfies the condition that the kinetic energy density of the outflowing plasma equals the energy density of the magnetic field (e.g., Abdikamalov et al. 2009; Morozova et al. 2010):

$$\begin{equation} \epsilon _{pl}(R_a,\pi /2,\phi) = \epsilon _{em}(R_a,\pi /2,\phi), \end{equation} \tag{ A8 }$$

where R_a denotes the radial coordinate of the intersection point at the equator and _pl and _em are the kinetic energy density and the magnetic field density, respectively, which take the form (Abdikamalov et al. 2009)

$$\begin{eqnarray} \epsilon _{pl}(R_a,\pi /2,\phi) &=& \frac{1}{2f(1)} \frac{N_R}{N_{R_a}} \frac{R^3}{R_a^3} \Delta V_{\rm max} \rho _{\rm GJ}, \nonumber ({\rm A}9) \\ \epsilon _{em}(R_a,\pi /2,\phi) &=& \frac{N_{R_a}}{32\pi }\frac{R^6}{R_a^6}B_0^2. \nonumber ({\rm A}10) \end{eqnarray} \tag{ A9 }$$

Here $N_R=\sqrt{1-2M/R}$ and $N_{R_a}=\sqrt{1-2M/R_a}\approx 1$. The footprints of these field lines in the polar region at the surface define the polar cap. Hence, the polar cap angle can be defined through the relation

$$\begin{equation} \frac{R}{R_a} = \frac{f(1)}{f(R_a/R)}\Theta _0^2. \end{equation} \tag{ A11 }$$

Here the function f(x) is the correction factor for general relativity, which is defined in Equation (2). Since R_a ≫ R, one has f(R_a/R) ≈ 1. Substituting Equations (1), (5), (10), and (11) into the above equations, we can derive the expression of the polar cap angle, which is given by Equations (12) and (13) in the text. Morozova et al. (2010) have carried out a similar derivation, but their results are somewhat different from ours.
