INTERPRETING SHORT GAMMA-RAY BURST PROGENITOR KICKS AND TIME DELAYS USING THE HOST GALAXY–DARK MATTER HALO CONNECTION

Gamma-ray bursts (GRBs; Klebesadel et al. 1973) show a strong bimodality in their prompt duration distributions (Kouveliotou et al. 1993). Long GRBs, with T₉₀ (the time for 90% of their photons to be received) greater than 2 s, have been associated with Type Ic supernovae (Galama et al. 1998; Bloom et al. 2002b; Berger et al. 2011; see also references in Levesque 2014). For short gamma-ray bursts (sGRBs; T₉₀ < 2s), several progenitor classes have been proposed. These include mergers of compact stellar remnants (i.e., combinations of neutron stars and black holes) via gravitational radiation, accretion-induced collapse of neutron stars, magnetar flaring, and magnetar formation through binary white dwarf mergers or white dwarf accretion-induced collapse (see Nakar 2007; Lee & Ramirez-Ruiz 2007; Gehrels et al. 2009; Berger 2011; Faber & Rasio 2012; Gehrels & Razzaque 2013; Berger 2013, and references therein).

These progenitor class models have many distinguishing signatures. The redshift distribution of sGRBs strongly depends on the delay time between star formation and gamma-ray emission (Guetta & Piran 2006; Hao & Yuan 2013). For models with longer delay times (e.g., binary mergers), the peak of the sGRB redshift distribution will occur much later than the peak in the cosmic star formation rate (CSFR); the opposite is true for prompt sGRB channels (e.g., magnetar collapse). Longer delay times also imply that the host galaxy masses will be higher (as the host galaxies have had more time to grow; Leibler & Berger 2010), the specific SFRs will be lower (Zheng & Ramirez-Ruiz 2007; Berger 2009), and the morphology distribution will be more elliptical (as more massive and redder galaxies are more elliptical; Lintott et al. 2008); see Berger et al. (2011) for a review.

Another important observational signature is the offset between the sGRB location and the host galaxy where the sGRB progenitors were formed. The conversion of stars to black holes, neutron stars, or white dwarfs imparts a significant velocity kick to the stellar remnant, which can be on the order of hundreds of kilometers per second (Hansen & Phinney 1997; Fryer et al. 1999b). If the remnant is in a binary system that survives the velocity kick, the binary system may well be expelled from its host galaxy (Zheng & Ramirez-Ruiz 2007; Zemp et al. 2009). ⁴ For long GRBs, the lack of significant differences between the burst locations and the host galaxies' stellar distributions provided an early indication that binary mergers were not long GRB progenitors (Bloom et al. 2002a). On the other hand, Swift and Hubble Space Telescope follow-up observations have found large offsets between sGRBs and nearby galaxies in a significant fraction of cases (Prochaska et al. 2006; Fong et al. 2010; Berger 2010; Fong et al. 2013; Fong & Berger 2013); e.g., Fong & Berger (2013) find that ≈20% of sGRBs occur at more than five effective radii from the nearest likely host galaxy.

These observations would seem to strongly favor binary mergers as sGRB progenitors (Lee et al. 2005; Church et al. 2011; Fong & Berger 2013; Berger 2013), yet it is not straightforward to interpret the observed offsets. For example, sGRB host galaxies with low luminosities and/or high redshifts may be below the detection threshold for observation (Berger 2010), meaning that the inferred offsets to the nearest observed galaxy would be much too high. Because it is often impossible to directly measure the depth of the potential well surrounding a galaxy, it is also difficult to robustly estimate the velocity distribution of the sGRB progenitors from the observed offsets (Bloom & Prochaska 2006). Finally, mergers that statistically trace the globular cluster (GC) distribution around galaxies (Grindlay et al. 2006; Lee et al. 2010; Church et al. 2011; Samsing et al. 2014) would result in very different interpretations for the offsets than if mergers traced the galactic potential (Fryer et al. 1999b; Bloom et al. 1999; Rosswog et al. 2003; Belczynski et al. 2006).

Using more detailed modeling to confirm the current interpretation of the offsets as binary neutron star mergers or neutron star–black hole mergers (Fong & Berger 2013) is therefore crucial, especially as this interpretation implies that optical counterparts exist for an important class of gravitational wave sources (Lattimer & Schramm 1974; Rosswog et al. 1999; Metzger et al. 2010; Roberts et al. 2011; Bauswein et al. 2013; Metzger et al. 2013; Berger 2013; Kasen et al. 2013; Barnes & Kasen 2013; Tanaka & Hotokezaka 2013; Grossman et al. 2014). ⁵

In this paper, we present a framework for modeling sGRBs which can predict the host galaxy luminosities, the host galaxy offsets, and the host dark matter halo masses for a wide range of assumptions about the progenitor velocity kick and time delay distributions. This framework takes advantage of recent empirical constraints on the galaxy stellar mass–halo mass relation as well as on galaxy star formation histories as a function of halo mass and redshift (Behroozi et al. 2013d). Galaxy star formation histories convolved with the assumed time delay distribution then give sGRB rates as a function of halo mass and redshift; as the dark matter halo mass determines the gravitational potential well, the sGRB offset distribution can be straightforwardly calculated from the assumed velocity kick distribution. In addition, the sGRB host galaxy luminosity distribution can be calculated by convolving galaxy star formation histories with a stellar population synthesis model (Conroy et al. 2010; Conroy & Gunn 2010). All of these results are provided in an observational context, i.e., including observational systematic effects on the redshift distribution and observed host properties of the modeled sGRBs.

We describe the constraints on host halo masses for sGRB progenitors in Section 2, and show examples for several different assumed sGRB delay distributions. We place upper limits on sGRB–galaxy offsets as well as make comparisons with current observations in Section 3. We discuss implications in Section 4 and summarize our conclusions in Section 5. In this work, we assume a flat, ΛCDM cosmology with parameters Ω_M = 0.27, $\Omega _\Lambda = 0.73$, h = 0.7, n_s = 0.95, and σ₈ = 0.82.

2.1. Methods

sGRBs are expected to trace the SFR of galaxies, albeit with a time delay between star formation and the GRB that depends on the progenitor class (e.g., Lee & Ramirez-Ruiz 2007; Gehrels et al. 2009; Berger 2013). Both the stellar mass and SFR of galaxies have been shown to be tightly linked to the galaxy host's dark matter halo mass and the cosmological redshift (e.g., Conroy & Wechsler 2009; Leitner 2012; Wang et al. 2013; Moster et al. 2013; Béthermin et al. 2013; Behroozi et al. 2013d; Yang et al. 2013; Lu et al. 2014b). To calculate the expected sGRB rate per dark matter halo, we therefore adopt the best-fitting mean galaxy SFR as a function of halo mass and redshift, SFR (M_h , z), from Behroozi et al. (2013d), and consider several options for the delay time distribution. For reference, the derivation of SFR (M_h , z) is briefly discussed in Appendix A.

A growing body of evidence suggests that the sGRB delay-time probability distribution, P(Δt), has a power-law form with P(Δt)∝(Δt)⁻¹; however, some uncertainty remains on the exact exponent (Berger 2013, and references therein). A (Δt)⁻¹ distribution formally diverges as Δt approaches 0, so we consider time-delay distributions which are power laws with an initial time cutoff:

$$\begin{equation} P(\Delta t) \propto \left\lbrace {\begin{array}{@{}ll}(\Delta t)^n & \hbox{if}\Delta t > t_\mathrm{cut}\\ 0 & \hbox{otherwise}\end{array}} \right. \end{equation} \tag{ 1 }$$

The choice of t_cut has little effect for reasonable values. For example, with a power-law index of n = −1, the mean time delay for GRBs which happen within the Hubble time t_H is

$$\begin{equation} \langle \Delta t \rangle = \frac{t_H - t_\mathrm{cut}}{\ln (t_H / t_\mathrm{cut})}. \end{equation} \tag{ 2 }$$

Thus, changing t_cut by an order of magnitude from 10 Myr to 100 Myr changes the mean time delay by only 0.17 dex. As discussed below, the power-law index n has a much more significant effect on the mean delay time. We therefore fix t_cut to 50 Myr.

In this paper, we consider three possible power-law indices: n = −1.5, n = −1, and n = −0.5. As noted above, indices with n ≈ −1 are favored in the literature (see Hao & Yuan 2013), but we include n = −1.5 and n = −0.5 to show the insensitivity of our main results on the hostless fraction to the time delay distribution. The implied cosmic sGRB rates for the different delay-time models are shown in Figure 1 and are obtained from convolving Equation (1) with the CSFR. These rates do not depend on the halo model assumed (only on the CSFR and the time-delay distribution). However, we note that the overall normalization is uncertain due to the unknown average beam opening angle—and therefore, average detection probability—for sGRBs. If the delay distributions are truncated at the Hubble time, the average delay times for these distributions are 0.8, 2.4, and 4.9 Gyr, for n of −1.5, −1, and −0.5, respectively; the medians are 0.18, 0.8, and 3.9 Gyr, respectively.

Zoom In Zoom Out Reset image size

2.2. Results

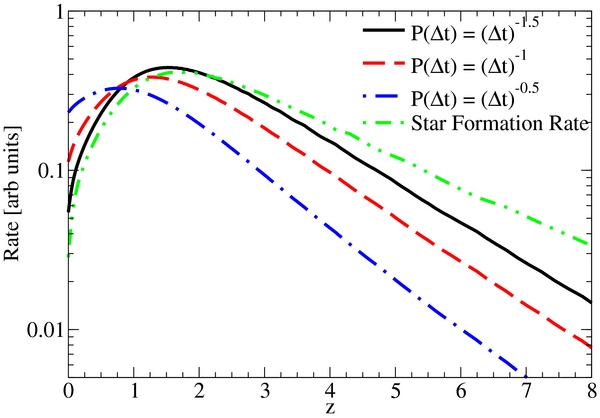

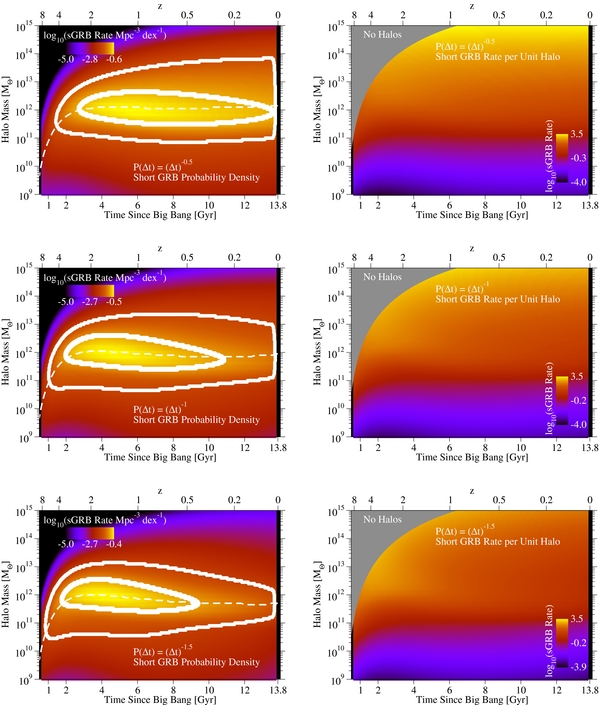

We show results for the probability distribution of sGRBs as a function of halo mass and cosmic time, P(M_h , t), in the left-hand panels of Figure 2 for all time-delay distributions considered. Regardless of the time-delay distribution assumed, the host halos of most sGRBs are in the range 10^11.5–10^12.5  M_☉. This is due to the equally narrow range in halo masses where most star formation in the universe takes place (Behroozi et al. 2013c).

Zoom In Zoom Out Reset image size

The largest visible effect of a change in the time-delay distribution is a change in when the sGRBs occur (see also Figure 1). There is a small secondary effect on the median halo mass for sGRBs at late times; because halos grow over time, shorter time-delay distributions will result in lower host halo masses for sGRBs. This effect is only apparent at z = 0, where the median sGRB halo mass for the shortest time-delay distribution (10^11.7  M_☉) is about 0.4 dex less than the median sGRB halo mass for the longest time-delay distribution (10^12.1  M_☉); the ratio of the median stellar masses at z = 0 for these two delay distributions is very similar (see Section 4.3).

We also show the sGRB rate per unit halo in the right-hand panels of Figure 2. Since larger halos host larger galaxies, the sGRB rate almost always increases with halo mass. Conversely, there is a fall-off in the sGRB probability density for halos below about 10^11.5  M_☉ in the right-hand panels of Figure 2. The main reason for the drop in the probability density for halos above 10^12.5  M_☉ (left-hand panels) is that the number density of halos falls off rapidly toward larger masses. Even though the sGRB rate per unit halo is higher, massive halos are too rare to host a significant fraction of sGRBs.

We discuss methods for calculating hostless fractions in Section 3.1, predictions for observed hostless fractions for several progenitor velocity distributions in Section 3.2, and the robustness of our results to observational and instrumental systematics in Section 3.3.

3.1. Methods

3.1.1. Escape of Short GRB Progenitors

As most sGRBs occur in halos of mass near 10¹²  M_☉, there are significant kinetic energy requirements for sGRBs to escape from their host galaxies. As an example, traveling from the halo center to 0.1R_vir in a 10¹²  M_☉ Navarro–Frenk–White (NFW; Navarro et al. 1997) halo requires an initial velocity above 300 km s⁻¹. The observed sGRB hostless fraction, in combination with priors on the host halo masses of sGRBs from Section 2, therefore constrains the sGRB progenitor velocity distribution.

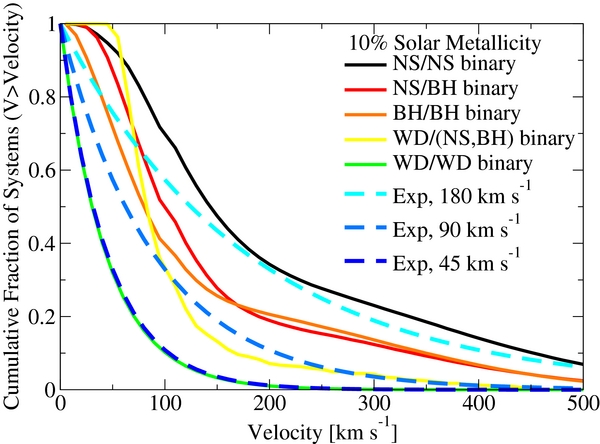

We have estimated the velocity kick distributions for binary combinations of neutron stars, black holes, and white dwarfs using population synthesis code (Fryer et al. 1998, 1999b). Based on the pulsar velocity distribution (Arzoumanian et al. 2002), we assume a bimodal velocity distribution for kicks imparted onto newly formed neutron stars. Black holes formed with no accompanying supernova explosion are assumed to receive no kick. Black holes formed with weak supernova explosions and considerable fallback are assumed to have kick momenta similar to those received by neutron stars. However, due to their higher masses, the black hole kick velocities are less than those for neutron stars. For white dwarf–white dwarf binaries, the velocity distribution is set to the local stellar velocity dispersion (Binney & Tremaine 2008). White dwarf–black hole and white dwarf–neutron star systems all have some minimum kick (≈60 km s⁻¹) in systems that remain bound after the formation of the neutron star or black hole, but the fraction of these systems with kicks above 200 km s⁻¹ is small. White dwarf–neutron star merger timescales are on the order of minutes and so have primarily been considered as long GRB progenitors (Fryer et al. 1999c), yet we include these systems as they may be the progenitors of extended emission sGRBs (King et al. 2007; Lee et al. 2010; Norris et al. 2010) or the precursors of accretion-induced collapse in neutron stars (Fryer et al. 1999a; Giacomazzo & Perna 2012). Figure 3 shows the cumulative fraction of each compact binary system as a function of minimum velocity.

Zoom In Zoom Out Reset image size

Since most stars form in ≈10¹²  M_☉ halos, the high-velocity tail (>200 km s⁻¹) of the velocity distribution has the largest impact on the observed hostless fraction. Because the exact functional form for the progenitor distribution is unknown, we test three different exponential velocity distributions, P(v) = exp (− λv), with mean velocities 〈v〉 of 45, 90, and 180 km s⁻¹. As shown in Figure 3, these distributions approximately bracket the high-velocity tails of the different progenitor classes. Binary white dwarf mergers correspond to the 45 km s⁻¹ distribution, white dwarf–neutron star or white dwarf–black hole mergers correspond approximately to the 90 km s⁻¹ distribution, binary neutron star mergers correspond approximately to the 180 km s⁻¹ distribution, and neutron star–black hole mergers fall in between the 90 and 180 km s⁻¹ distributions. We have also considered Maxwell–Boltzmann velocity distributions (see Appendix D) and verified that our main conclusions are unchanged by the alternate functional form. Additionally, we discuss uncertainties in the neutron star progenitor kick velocities in Appendix E.

We then employ a simple, yet conservative model for estimating the upper bound on the observed hostless fraction. Given a choice of time-delay distribution (Section 2), a velocity distribution for sGRB progenitors and the corresponding host halo masses, we can calculate the distribution of radii that the progenitors reach before the sGRB occurs. We assume that the sGRB progenitors begin at the half-light radii of their galaxies (well-approximated by 0.015R_200c; Kravtsov 2013), ⁶ and we assign a purely radial velocity chosen from the assumed velocity distribution. While progenitor velocities in the real universe will have a tangential component, assigning a purely radial velocity ensures that the model gives an upper bound on the hostless fraction (see also Appendix B).

The term "hostless" (e.g., Berger 2010; Fong et al. 2013; Fong & Berger 2013) does not directly specify the distance between the sGRB and the progenitor galaxy. We consider three separate thresholds r_thresh for where sGRBs would be considered "hostless"—i.e., 5R_e, 10R_e, and 15R_e (where R_e is the host galaxy half-light radius), to explore the expected radial distribution relative to the true galaxy host. We determine upper bounds on the hostless population by calculating the fraction of sGRB progenitors that receive velocity kicks large enough to reach these threshold radii, as measured in three dimensions. This ignores the fact that the sGRB progenitors will spend time below the turnaround radius; also, it ignores the fact that the projected two-dimensional radius will always be less than the true three-dimensional radius. Both of these effects will reduce the true hostless fraction below our estimated upper bounds. For simplicity, we also ignore the (weak) influence of dark energy on the gravitational force within halos, as well as the changing potential due to halo mass accretion. Appendix B tests the appropriateness of ignoring these effects, as well as our other assumptions, with more realistic simulations. The results of Appendix B confirm that the hostless fractions calculated by the method in this section provide a slight overestimate of the true hostless fractions. Finally, we ignore the effects of galaxy–galaxy mergers, as simulations suggest that <0.1% of stars can be unbound from the central galaxy (Behroozi et al. 2013a) in these collisions.

We summarize our escape model as follows:

• 1.
  For a given threshold radius r_thresh, we calculate the minimum radial velocity (v_r ) necessary for a particle to travel from 0.015R_200c to r_thresh in an NFW halo potential for a wide range of halo masses (10⁷  M_☉ < M_h < 10¹⁶  M_☉) and redshifts (0 < z < 8).
• 2.
  For a given initial velocity distribution for sGRB progenitors, we calculate the fraction of sGRBs that have speeds |v| greater than this minimum radial velocity, also as a function of halo mass and redshift.
• 3.
  We weight these fractions (i.e., P(|v| > v_r |M_h , z)) by the probability distribution for halo masses and redshifts of sGRBs, P(M_h , z), for a given time-delay distribution (Section 2) to calculate an upper bound for the total hostless fraction.

3.1.2. Instrumental, Geometrical, and Observational Biases

In Section 2, we calculated the volume density of sGRBs as a function of host halo mass and redshift. However, the observed redshift distribution for sGRBs will be biased due to geometrical and instrumental effects:

$$\begin{equation} {\rm sGRBr}_\mathrm{obs} = \int _0^{\infty } {\rm sGRBr}_\mathrm{intrinsic}(z) \frac{dV(z)}{dz} \frac{1}{1+z} \epsilon _\mathrm{detector}(z) dz, \end{equation} \tag{ 3 }$$

where sGRBr_obs is the observed sGRB rate (per unit time), sGRBr_intrinsic(z) is the intrinsic sGRB rate per unit time per unit volume (calculated in Section 2), V(z) is the comoving volume out to redshift z, (1 + z) is the time dilation factor, and _detector(z) is the mean detection probability for sGRBs at redshift z.

The redshift sensitivity, _detector(z), is constrained both by the apparent luminosity function of sGRBs (e.g., from BATSE or Fermi; Goldstein et al. 2012, 2013) and by the observed redshift distribution (e.g., Fong et al. 2013). Since the deconvolution process is nontrivial (Guetta & Piran 2006), we present our analysis in Appendix F; for the Swift Burst Alert Telescope (BAT), we find (Equation (F5)):

$$\begin{equation} \epsilon _\mathrm{detector}(z) \propto \exp (-4.3z), \end{equation} \tag{ 4 }$$

with an unknown overall constant of proportionality dependent on the unknown beaming angles of sGRBs.

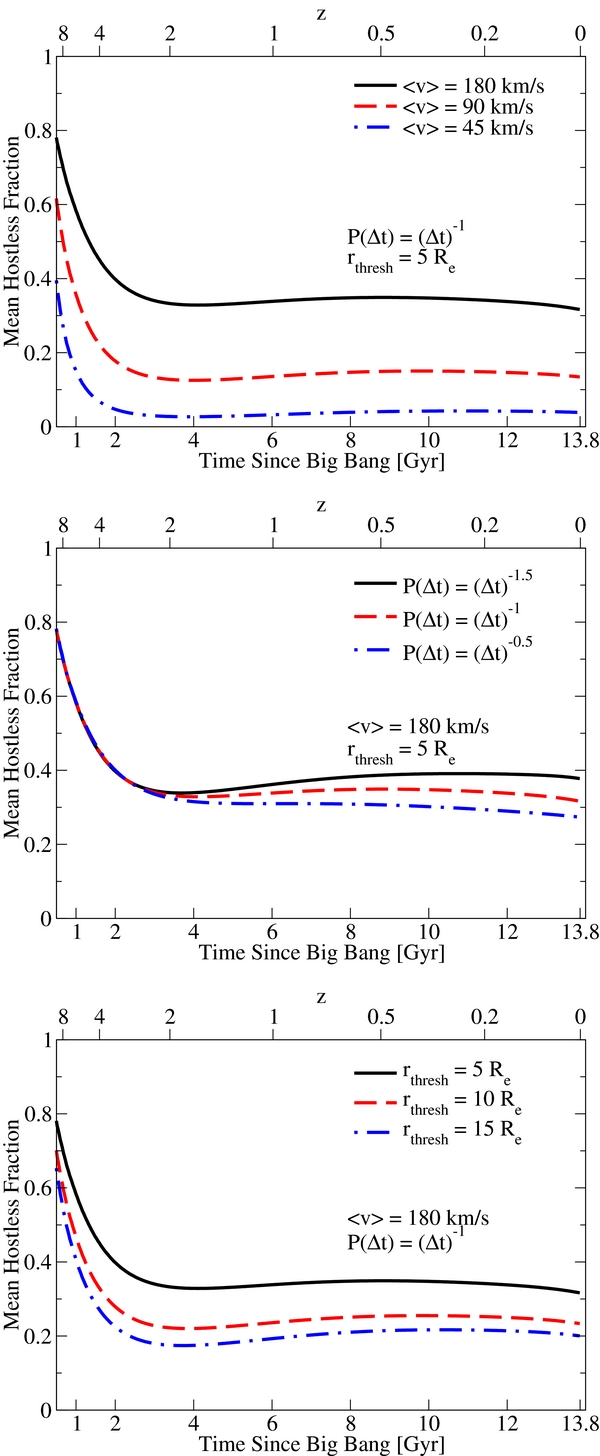

The fraction of observed sGRBs that are truly hostless is remarkably insensitive to the redshift sensitivity in Equation (4) (see also Section 3.3). The median halo mass where stars form has remained almost exactly the same since z = 4 (Behroozi et al. 2013c), as has the median halo mass where sGRBs occur (Figure 2, left panels). The energy required to escape from a given halo mass also does not evolve over this time (Figure 4). Therefore, for a given progenitor velocity distribution, the escape fraction does not change significantly as a function of the sGRB's redshift (Figure 5).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

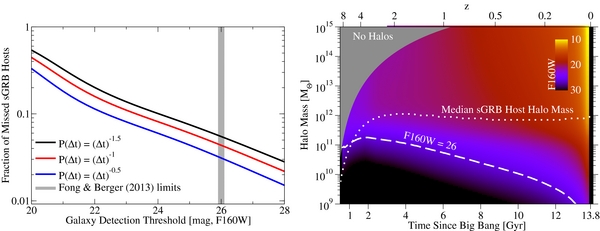

That said, _detector(z) can affect the fraction of sGRBs with unobservable hosts. sGRBs at higher redshifts are more likely to have faint galaxy hosts, which would artificially increase the observed hostless fraction if they were missed in the follow-up observations. For this reason, we also examine the effects of significantly extending Swift's redshift sensitivity in Section 3.3. On the other hand, faint galaxies are more likely to reside in small halos with shallow potential wells, meaning that many sGRBs with faint progenitor galaxies are more likely to be hostless to begin with (see, e.g., Figure 4).

To estimate the net change in the hostless fraction due to limited-depth follow-up observations, it is necessary to calculate host galaxy luminosities as a function of host halo mass and redshift. We do so by convolving galaxy star formation histories as a function of halo mass and redshift (Behroozi et al. 2013d) with the FSPS stellar population synthesis model (Conroy et al. 2009; Conroy & Gunn 2010) to obtain galaxy luminosities in the Hubble WFC3 F160W band. In this calculation, we have assumed the metallicity of stars formed at a given redshift tracks the gas-phase metallicity in Maiolino et al. (2008) and have adopted a dust optical depth of τ = 0.1 (calibrated to match CANDELS observations of the stellar mass–F160W relation from z = 0.6 to z ≈ 6, for M_* < 10¹⁰  M_☉; Chang et al. 2013; Salmon et al. 2014). Given host galaxy luminosities estimated in this way, it is straightforward to calculate how many observed sGRBs would not have detectable hosts in limited-depth follow-up observations. For this purpose, we adopt the same host galaxy detection threshold of F160W < 26 mag (AB) as in Fong & Berger (2013).

Finally, we note that the reported fraction of sGRBs at large radial offsets (Fong & Berger 2013) is almost certainly a lower limit for the true distribution. Obtaining a precise position with Swift requires an afterglow; however, merging binaries are expected to show an environmental dependence in their afterglow signatures (Panaitescu et al. 2001; Lee et al. 2005). At >5R_e, the external shock would take place within a very tenuous medium, implying a bias against detecting afterglows for highly offset sGRBs (Salvaterra et al. 2010). The true fraction of sGRBs taking place at this distance could therefore be as large as 50% if this effect were responsible for all sGRBs with X-ray telescope (XRT) follow-up that lack sub-arcsec positions (Fong et al. 2013).

3.2. Results

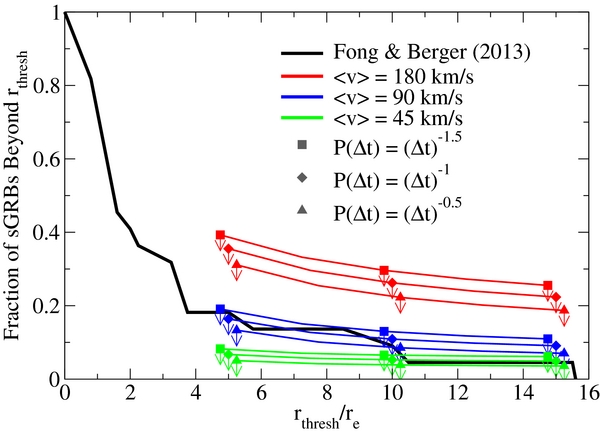

We show results for observed hostless fraction upper bounds in Table 1, and show the comparison to Fong & Berger (2013) in Figure 6. Regardless of the initial assumptions for the time-delay model or hostless threshold radius, hostless fractions for an exponential velocity distribution with 〈v〉 = 45 km s⁻¹ are all <9%, well below the hostless fraction of 18% for sGRBs occurring beyond 5R_e suggested by Fong & Berger (2013). With the small sample size in (Fong & Berger 2013; 22 sGRBs), the 45 km s⁻¹ models are excluded with confidence levels of 90%–98%. Fong et al. (2013) report a hostless fraction of 17% for 36 sGRBs (which overlaps with the sample in Fong & Berger 2013), although not all of these have sub-arcsecond locations; for this sample, the 45 km s⁻¹ models would be excluded with confidence levels between 93%–99.2%.

Zoom In Zoom Out Reset image size

Table 1. sGRB Hostless Fractions

〈v〉	n	f(r > 5Re)	f(r > 10Re)	f(r > 15Re)
(km s−1)
45	−0.5	<0.050	<0.039	<0.036
45	−1.0	<0.067	<0.053	<0.049
45	−1.5	<0.082	<0.065	<0.061
90	−0.5	<0.133	<0.085	<0.070
90	−1.0	<0.164	<0.109	<0.091
90	−1.5	<0.191	<0.130	<0.110
180	−0.5	<0.311	<0.223	<0.187
180	−1.0	<0.355	<0.262	<0.224
180	−1.5	<0.393	<0.296	<0.255

Notes. Upper limits on the observed fraction of sGRBs that have escaped their host galaxies for a range of different assumptions for the mean progenitor kick velocity (〈v〉; Section 3.1) and the time-delay power-law index (n; Section 2). f(r > 5R_e) refers to the fraction of sGRBs that occur at distances greater than five times the effective radius of their host galaxies; f(r > 10R_e) and f(r > 15R_e) denote the fractions that occur beyond 10 and 15 R_e, respectively. Several systematics, including Swift sGRB detectability and limited-depth optical/infrared follow-up are included, although these do not materially affect the results (see Section 3.3). Bold letters indicate combinations that result in hostless fractions consistent with Fong et al. (2013) and Fong & Berger (2013). These results strongly suggest that the mean progenitor kick velocity is greater than 45 km s⁻¹.

Download table as:  ASCIITypeset image

The results in Table 1 show the largest variation with the choice of velocity distribution, significantly smaller variation with the threshold radius, and finally, least variation with the delay-time model (see also Figures 5 and 6). As shown in Section 2, changing the delay-time model has only a small effect on the host halo masses. Longer delay times result in slightly larger halo masses at late times, which makes it modestly harder for sGRB progenitors to escape from their host galaxies. Changing the threshold radius has a larger impact; it takes approximately 1.8 times as much energy to travel to 10R_e as it does to reach 5R_e, for example. However, doubling the mean velocity from 90 km s⁻¹ to 180 km s⁻¹ quadruples the amount of kinetic energy available, which has the largest effect in Table 1 and in Figure 6.

From the exponential distribution with limits closest to the Fong & Berger (2013) results (〈v〉 = 90 km s⁻¹), we expect that at least one in five sGRB progenitors received a natal kick larger than 150 km s⁻¹ (Figure 3). We discuss the impact of this result on sGRB progenitor models, compare our result with previous velocity kick estimates (Fong & Berger 2013), and provide constraints on arbitrary velocity distributions in Section 4.1.

3.3. Robustness to Observational and Instrumental Systematics

The vast majority of the systematic effects discussed in Section 3.1.2 can be considered as reweighting the contributions from sGRBs at different redshifts; these include the change in observable comoving volume as a function of redshift, time dilation as a function of redshift, and the Swift detector sensitivity. As shown in Table 2 (Appendix C), reweighting the redshift distribution of sGRBs affects the observed hostless fractions at the 1%–2% level. As noted in Section 3.1.2, this is primarily because most stars are created at z ≈ 2 and are formed in a narrow range of host halo masses near 10¹²  M_☉ (Behroozi et al. 2013c). As this mass scale determines the energy required to escape independent of redshift, the hostless fraction of sGRBs is also a very weak function of redshift (see, e.g., Figures 4 and 5).

Table 2. sGRB Hostless Fractions, Sensitivity to Systematics

〈v〉	rthresh	n	True	Perfect Obs.	True for Swift Obs.	Actual Obs.	Upgraded Swift
(km s−1)	(Re)
45	15	−0.5	<0.011	<0.010	<0.012	<0.036	<0.054
45	15	−1.0	<0.013	<0.012	<0.015	<0.049	<0.068
45	15	−1.5	<0.015	<0.014	<0.019	<0.061	<0.077
45	10	−0.5	<0.015	<0.015	<0.016	<0.039	<0.057
45	10	−1.0	<0.018	<0.018	<0.020	<0.053	<0.070
45	10	−1.5	<0.021	<0.020	<0.025	<0.065	<0.080
45	5	−0.5	<0.030	<0.033	<0.030	<0.050	<0.067
45	5	−1.0	<0.037	<0.039	<0.039	<0.067	<0.082
45	5	−1.5	<0.042	<0.043	<0.047	<0.082	<0.093
90	15	−0.5	<0.052	<0.053	<0.053	<0.070	<0.083
90	15	−1.0	<0.062	<0.060	<0.067	<0.091	<0.100
90	15	−1.5	<0.069	<0.066	<0.079	<0.110	<0.112
90	10	−0.5	<0.069	<0.073	<0.070	<0.085	<0.099
90	10	−1.0	<0.082	<0.083	<0.087	<0.109	<0.117
90	10	−1.5	<0.092	<0.090	<0.102	<0.130	<0.130
90	5	−0.5	<0.121	<0.134	<0.120	<0.133	<0.148
90	5	−1.0	<0.143	<0.150	<0.145	<0.164	<0.172
90	5	−1.5	<0.158	<0.161	<0.168	<0.191	<0.188
180	15	−0.5	<0.176	<0.184	<0.177	<0.187	<0.196
180	15	−1.0	<0.201	<0.202	<0.209	<0.224	<0.222
180	15	−1.5	<0.219	<0.214	<0.237	<0.255	<0.241
180	10	−0.5	<0.214	<0.228	<0.213	<0.223	<0.235
180	10	−1.0	<0.244	<0.249	<0.249	<0.262	<0.263
180	10	−1.5	<0.264	<0.263	<0.279	<0.296	<0.283
180	5	−0.5	<0.307	<0.333	<0.304	<0.311	<0.329
180	5	−1.0	<0.344	<0.358	<0.345	<0.355	<0.361
180	5	−1.5	<0.370	<0.375	<0.379	<0.393	<0.384

Notes. Upper limits on the observed fraction of hostless sGRBs for a range of different assumptions for the mean progenitor kick velocity (〈v〉; Section 3.1), the hostless threshold radius (r_thresh; Section 3.1), and the time-delay power-law index (n; Section 2), analogous to Table 1. The True column gives the fraction of hostless sGRBs in the entire universe. The Perfect Obs. column gives the hostless fraction for sGRBs detectable by a perfect observatory; this includes both the effect of the increasing comoving volume available at higher redshifts and the time dilation between sGRB events at higher redshifts (Equation (3)). SwiftTrue for Swift Obs. gives the fraction of Swift-detected sGRBs which would be hostless; this adds the Swift sGRB detection probability from Equation (4). Actual Obs. gives the fraction of Swift-detected sGRBs for which follow-up to F160W < 26 mag would not find a nearby host, identical to Table 1. Finally, Upgraded Swift shows the expected hostless fractions if Swift were to be made dramatically more sensitive to higher-redshift sGRBs without corresponding increases in the depth of follow-up observations (see Section 3.3).

Download table as:  ASCIITypeset image

The effects of limited-depth follow-up observations are important only for the 45 km s⁻¹ velocity distribution, as shown in the "Actual Obs." column of Table 2. This column adds the effects of follow-up observations to F160W < 26 mag (AB) in the host galaxy luminosity, matching the limit in Fong & Berger (2013). Figure 7 shows the fraction of missed galaxy hosts for Swift-detected sGRBs as a function of the limiting luminosity and the time-delay distribution; it also shows the average F160W luminosities of sGRB host galaxies as a function of halo mass and cosmic time. The limit of F160W < 26 mag is deep enough that the galaxies that contribute most of the sGRB population in the universe are captured out to at least z ≈ 4 (Figure 7, right panel). Since F160W luminosity correlates strongly with halo mass, galaxies living in shallow halo potential wells are more likely to be missed; these are also the galaxies from which the sGRB progenitors are most likely to escape. This explains why the fraction of missed hosts in Figure 7 (left panel) is not additive with the fraction of hostless sGRBs in the "True for Swift Obs." column in Table 2 (i.e., the hostless fraction for infinitely deep follow-up observations). For example, the observed hostless fractions for the 180 km s⁻¹ models are affected only at the 0%–2% level. However, the fraction of missed hosts in Figure 7 does set a lower floor of 3%–6% for the observed "hostless" fraction; this is evident in the boosted hostless fraction for all the 〈v〉 = 45 km s⁻¹ models in Table 2 with finite-depth follow-up.

Zoom In Zoom Out Reset image size

Finally, the fact that most sGRB hosts would be captured out to z ≈ 4 with the current depth of follow-up observations means that these results are very insensitive to the actual Swift redshift-dependent detection probability. The "Upgraded Swift" column in Table 2 gives the expected hostless fraction if Swift's redshift-dependent sensitivity were upgraded to _detector = exp (− z). This sensitivity is far beyond any expectation of its current abilities (Guetta & Piran 2006; Coward et al. 2012; Kelley et al. 2013). Even with the same limited-depth follow-up observations (F160W < 26 mag), the expected observed hostless fractions change only at the 1%–2% level for "Upgraded Swift" (Table 2).

We discuss constraints on sGRB progenitor models and natal kick distributions in Section 4.1, sGRB host demographics and the observable effects of different time-delay models in Section 4.2, local sGRB host demographics and gravitational wave follow-up in Section 4.3, and possible links between sGRBs and GCs in Section 4.4.

4.1. Impact of sGRB–Galaxy Offsets on Kick Velocity Distributions and Allowable sGRB Progenitors

Fong et al. (2013) and Fong & Berger (2013) have found that at least 17%–18% of sGRBs occur beyond five effective radii (R_e) of the nearest likely host galaxy (see discussion at the end of Section 3.1.2). As noted in Section 3.2, it is very difficult for kick velocity distributions with 〈v〉 = 45 km s⁻¹ and below to reproduce these sGRB offsets. White dwarf–white dwarf mergers are therefore strongly disfavored as progenitor candidates. However, other types of mergers, including white dwarf–neutron star, binary–neutron star, and neutron star–black hole mergers would all be allowed by the present limits.

The model estimates in this paper were chosen to be simple and conservative, i.e., to provide stringent upper bounds for the hostless fraction of sGRBs. As shown in Figure 3, current models predict a significant energy difference between white dwarf–neutron star velocity kicks and binary neutron star velocity kicks, so it may be possible to exclude one of these progenitor classes with more advanced modeling such as direct injection of tracer particles into halos (e.g., Zemp et al. 2009; Kelley et al. 2010). This kind of modeling would also allow recovery of the full shape of the progenitor velocity kick distribution from the radial distribution of sGRBs (see also Appendix D). We note, however, that the best results for this modeling would also require more precise positions for sGRBs without afterglows.

Based on the match of the 90 km s⁻¹ exponential velocity distribution to the offsets reported in Fong & Berger (2013), we estimate that at least 19% of sGRB progenitors received natal kicks of more than 150 km s⁻¹ (Figures 3 and 6). These velocities are higher than those reported in Fong & Berger (2013), which were calculated by dividing projected sGRB–host galaxy offsets by the typical ages of the host galaxy stellar populations. This is to be expected since the latter method ignores the energy required to leave the host galaxy as well as the chance for multiple orbits of the progenitors. We note as well that stellar ages calculated from fitting galaxy luminosities are also extremely uncertain (Pforr et al. 2012); this is especially so for those in Fong & Berger (2013), which were derived assuming a single stellar population (Leibler & Berger 2010).

Our analysis can also place limits on arbitrary velocity distributions. For any given kick velocity, the method in Section 3.1.1 allows us to calculate the fraction of sGRBs, f₅(v), that the kick would eject beyond 5R_e. Then, for an arbitrary velocity distribution, P(v), the total ejected fraction, f, is given by

$$\begin{equation} f = \int _0^\infty P(v)f_5(v)dv. \end{equation} \tag{ 5 }$$

Since f₅(v) is monotonically increasing, sGRBs receiving kicks less than a given threshold velocity, v_thresh, can be ejected at most f₅(v_thresh) of the time. We can then rewrite Equation (5) as a limit on the maximum total fraction of ejected sGRBs:

$$\begin{equation} f < P(v<v_\mathrm{thresh}) f_5(v_\mathrm{thresh}) + P(v>v_\mathrm{thresh}) \end{equation} \tag{ 6 }$$

since kicks above v_thresh can eject up to 100% of the binaries they affect. Alternately, if we know the actual ejected fraction, f, we can rewrite the inequality using P(v < v_thresh) = 1 − P(v > v_thresh) to constrain the velocity distribution:

$$\begin{equation} P(v>v_\mathrm{thresh}) > \frac{f-f_5(v_\mathrm{thresh})}{1 - f_5(v_\mathrm{thresh})}, \end{equation} \tag{ 7 }$$

which is valid regardless of the functional form of P(v). These limits are shown in Figure 8 for f = 0.18 (Fong & Berger 2013); they are a weak function of the time delay model for the same reason discussed in Section 3.1.2. The velocity distributions that satisfy these limits are far from minimizing the average kick velocity, e.g., a velocity distribution with 90% of kicks less than 80 km s⁻¹ would have to have the remaining 10% of kicks at velocities larger than 1000 km s⁻¹, resulting in an average kick velocity of 172 km s⁻¹. We find that the velocity distributions that minimize the average kick velocities would have most kicks at 0 km s⁻¹ and then 24%, 28%, or 34% of kicks at 200 km s⁻¹ for time-delay models with P(Δt)∝(Δt)^−1.5, (Δt)⁻¹, and (Δt)^−0.5, respectively.

Zoom In Zoom Out Reset image size

We note that sGRB position offsets best constrain the high-velocity tails of the kick velocity distribution. At low kick velocities, the host galaxy's stellar velocity dispersion and radial distribution of star formation become much more important for determining sGRB locations. As noted above, velocity kick distributions with the same hostless fraction can have significantly different average velocities (see also Appendix D), yet it is clear that sGRB kick velocities need to extend well beyond the typical stellar velocity dispersions of their host galaxies.

4.2. Determining the Time-delay Distribution

Constraints on the time-delay distribution of sGRBs have come from the observed redshift distribution of sGRBs (Guetta & Piran 2006; Nakar et al. 2006), the host stellar masses (Zheng & Ramirez-Ruiz 2007; Leibler & Berger 2010), the fraction of early versus late hosts (Zheng & Ramirez-Ruiz 2007; O'shaughnessy et al. 2008), and observational constraints on binary pulsar merger timescales (Kalogera et al. 2001; Osłowski et al. 2011). In this section, we examine the relative effectiveness of each of the first three techniques.

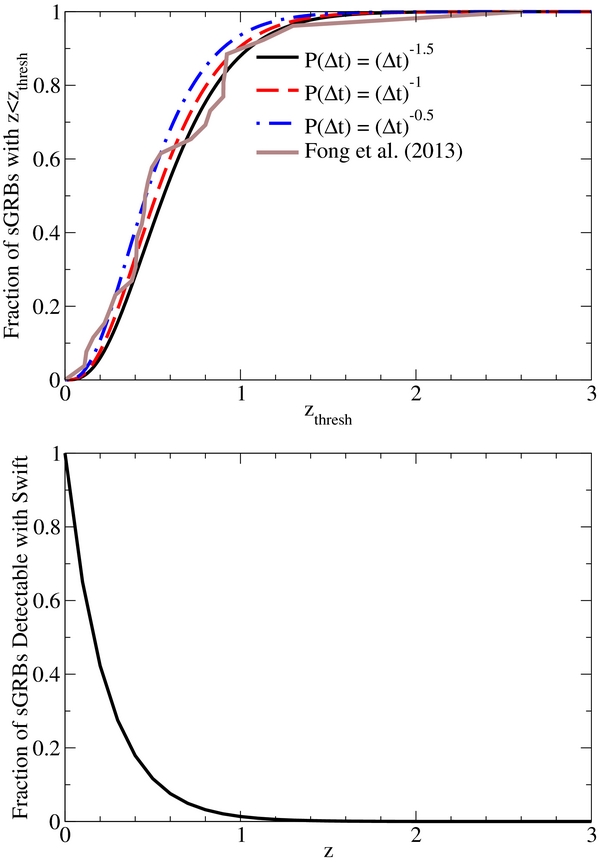

We show the predicted redshift distributions for sGRBs in Figure 9 for each of the three time-delay models considered (P(Δt)∝(Δt)^−1.5, (Δt)⁻¹, and (Δt)^−0.5). All three models are in excellent agreement with the redshift distribution from Swift in Fong et al. (2013); Kolmogorov–Smirnov (K-S) tests show no significant discrepancies (p > 0.48 in all cases) between the data and models. This may be surprising considering the significant differences between models present in Figure 1. However, as the bottom panel of Figure 9 shows, Swift's sensitivity to sGRBs occurring at z > 0.5 is very poor. In addition, the volume of the universe at z < 0.25 is not large enough for many sGRBs to occur. The effective redshift leverage is therefore too small for the differences in Figure 1 to appear without obtaining redshifts for many more sGRBs. We note also that the modeled redshift distribution is sensitive to the assumed intrinsic sGRB luminosity function (Appendix F), which is an additional source of uncertainty with this approach.

Zoom In Zoom Out Reset image size

We have also calculated expected stellar masses for sGRB host galaxies as a function of the time-delay model (Figure 10, top panel). The stellar mass functions show a clear dependence on the time-delay distribution; the longer the time delay between the initial star formation and the sGRB, the longer the host galaxy has to grow. However, the differences are within the typical ±0.3 dex systematic biases in recovered stellar masses (Conroy et al. 2009; Behroozi et al. 2010). It is also possible to predict observed galaxy luminosities for each of the models; Figure 10 shows the predicted luminosities for sGRB host galaxies in the Two Micron All Sky Survey (2MASS) Ks band, compared to Leibler & Berger (2010). ⁷ However, K-S tests do not reveal any discrepancy between the data in Leibler & Berger (2010) and the predicted luminosities for any of the three time-delay models (p > 0.46 in all cases).

Zoom In Zoom Out Reset image size

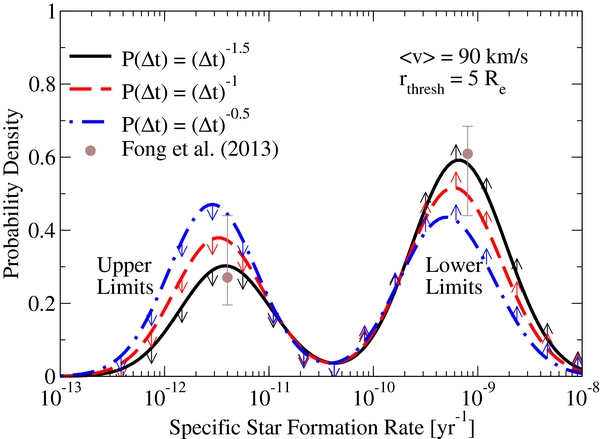

We finally consider sGRB host galaxy star formation. The main issue with calculating the fractions of early-type (passive) and late-type (star-forming) sGRB host galaxies is that the separate star formation histories of each galaxy type are very uncertain. It is exceptionally difficult to constrain these histories from individual galaxy observations because stellar populations older than 1 Gyr tend to have very similar colors (Tojeiro et al. 2007; Conroy et al. 2009). In addition, semi-analytical models have been notoriously unable to reproduce basic galaxy evolution, including the evolution of galaxy stellar mass functions (Lu et al. 2012, 2014a; Mutch et al. 2013). However, methods such as comparing stellar mass functions across redshifts (Behroozi et al. 2013b; Salmon et al. 2014) or more advanced semi-empirical approaches (P. S. Behroozi et al., in preparation) may be able to offer better constraints in the future.

That said, we can still provide useful limits. We assume that early-type and late-type galaxies have the same star formation histories, with the exception of an instantaneous drop in the SFR at the redshift of observation for early-type galaxies. This is guaranteed to overestimate the fraction of early-type hosts, since early-type galaxies have older stellar populations and all the time-delay models predict a decaying sGRB rate with increasing stellar population age. We can then calculate the early-type versus late-type fraction using the redshift-dependent fraction of early-type versus late-type galaxies as a function of stellar mass and redshift, from Brammer et al. (2011). The resulting predictions for sGRB host galaxy specific SFRs are shown in Figure 11, compared to the early/late-type fractions for sGRB host galaxies from Fong et al. (2013).

Zoom In Zoom Out Reset image size

As with the previous methods, the time-delay models are not distinguishable with present data. In contrast with other methods, the error bars and limits can be improved without requiring any more sGRB statistics. The primary error bars in the data (Fong et al. 2013) come from a handful of unclassified host galaxies, which could be classified with deeper follow-up observations. With very modest constraints on the recent star formation history of elliptical galaxies (e.g., that their stellar ages are >1 Gyr older than late-type galaxies), the available sGRB host data could rule out the shortest time-delay model (P(Δt)∝(Δt)^1.5) with >90% confidence.

4.3. Local Stellar Mass Function Predictions and Implications for Gravitational Wave Detection Follow-up

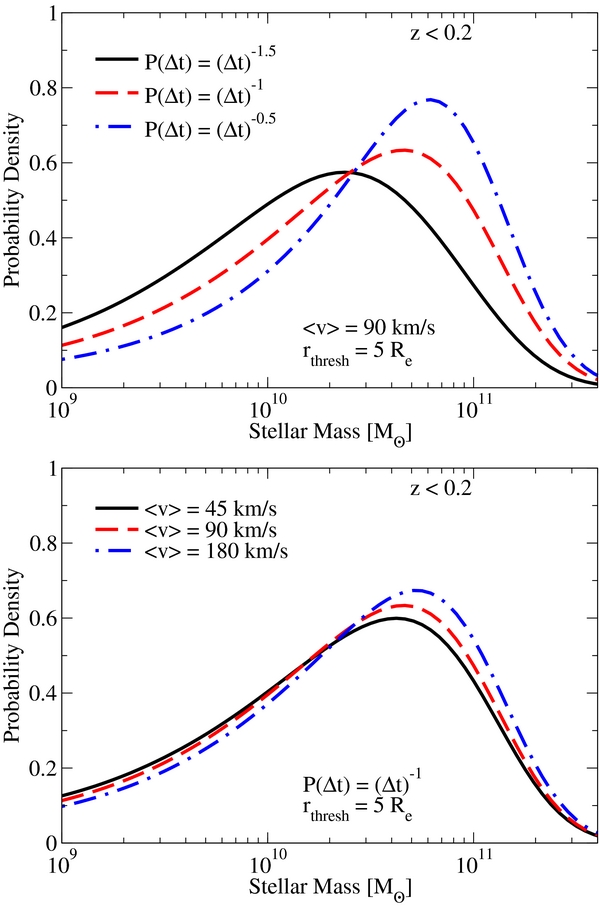

In Figure 12, we show predicted probability distributions for sGRB host galaxy stellar masses (i.e., stellar mass functions) in the nearby universe (z < 0.2). As with the stellar mass functions in Section 4.2, longer time delay distributions result in larger host galaxies. The host stellar mass functions also show some dependence on the progenitor kick distribution, since higher kick velocities preferentially eject sGRB progenitors from low stellar-mass galaxies. However, these differences are much smaller than for present uncertainties on the time-delay distribution (Section 4.2).

Zoom In Zoom Out Reset image size

If gravitational waves are registered by a ground-based detector, such as Advanced LIGO, it will be important to classify the source of the waves by optical and other follow-up observations. To exclude unrelated astrophysical transients from follow-up, several papers have suggested restricting follow-up to sources close in the sky to a specific catalog of nearby galaxies (e.g., Metzger et al. 2013; Hanna et al. 2014). If sGRBs or other star formation-correlated events are strong gravitational wave sources, Figure 12 suggests that the follow-up should be weighted toward more likely source galaxies to improve the chance of rapid follow-up. For example, Figure 12 implies that the vast majority of local sGRBs occur in galaxies larger than 10^9.5  M_☉, regardless of model. Hence, transients occurring near larger galaxies should be prioritized for follow-up observations. Because galaxy number density increases with decreasing stellar mass, observing for transients near smaller galaxies will result in far fewer successful follow-ups for the same amount of observing time. In addition, sGRB progenitors formed in <10^9.5  M_☉ galaxies are likely to be unbound from the galaxy/halo potential well (Figure 4), so the bursts themselves could appear up to a Mpc away (Kelley et al. 2010). Hence, follow-up observations weighted toward more probable galaxy sources will locate the true source much more quickly than an unweighted galaxy position mask, although the amount of improvement depends on the follow-up telescopes' fields of view and the existence of a complete galaxy catalog (Hanna et al. 2014).

4.4. The Distribution of Compact Binary Mergers Assembled in Globular Clusters

We have presented a method for robustly modeling sGRBs in the context of ΛCDM cosmology and hierarchical halo growth. Key findings include:

• 1.
  The observed hostless fraction of ≳18% (Fong & Berger 2013) means that white dwarf–white dwarf mergers are strongly disfavored as sGRB progenitors (Section 4.1).
• 2.
  The best-fitting match to the observed sGRB–galaxy offset distribution in (Fong & Berger 2013) would require 19% of sGRB progenitors to receive natal kicks of more than 150 km s⁻¹ (Section 4.1).
• 3.
  The expected hostless fraction is robust to a large number of uncertainties and systematics, including the assumed time-delay distribution (Section 3.2, Table 1), the Swift redshift sensitivity, and observational follow-up of host galaxies (Section 3.3, Table 2).
• 4.
  Regardless of the assumed time-delay distribution, most sGRBs occur in a tight halo mass range around 10¹²  M_☉, similar to the halo mass range where most stars are formed (Section 2.2, Figure 2).
• 5.
  Most sGRBs occur in a tight stellar mass range around 5× 10^10.5  M_☉), with only a weak dependence on the time-delay model (Section 4.2).
• 6.
  The observed redshift distribution of sGRBs also does not offer strong constraints on the time-delay model (Section 4.2), due to the limited redshift sensitivity of Swift.
• 7.
  The clearest observable impact of the time-delay model may be on the specific SFRs of sGRB hosts (Section 4.2).
• 8.
  The observed redshift distribution of hostless sGRBs is extremely similar to the observed redshift distribution of sGRBs with galaxy hosts for z < 3, regardless of model (Figure 5).
• 9.
  The vast majority of sGRBs are expected to occur in galaxies with stellar mass >10^9.5  M_☉, which suggests that optical/electro-magnetic (EM) follow-up of gravitational wave sources may be made more efficient by primarily searching near such galaxies (Section 4.3).

Support for P.S.B. was provided in part by an HST Theory grant; program number HST-AR-12159.01-A was provided by NASA through a grant from the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Incorporated, under NASA contract NAS5-26555. P.S.B. was also supported by a Giacconi Fellowship through the Space Telescope Science Institute. E.R.R. acknowledges support from the David and Lucile Packard Foundation and NSF grant AST-0847563. C.L.F. was supported through the auspices of the National Nuclear Security Administration of the U.S. Department of Energy and supported by its contract DEAC52-06NA25396 at Los Alamos National Laboratory. We appreciate the insightful comments we have received from the anonymous referee as well as Edo Berger, Andy Fruchter, Nick Gnedin, Dan Holz, Luke Kelley, and Andrey Kravtsov during the preparation of this paper. E.R.R.'s views on the topic have been clarified through many discussions with Ilya Mandel.

We defer to (Behroozi et al. 2013d, hereafter BWC13) for the full derivation of SFR(M_h , z), but we provide a summary of the technique here. BWC13 adopts a very flexible parameterization for the stellar mass–halo mass–redshift relation, SM(M_h , z). ⁹ A particular point in the SM(M_h , z) function parameter space implies an assignment of galaxy stellar masses to all halos at all redshifts for a dark matter simulation; our simulation and halo catalogs are described in Klypin et al. (2011) and Behroozi et al. (2013e, 2013f). From these assigned stellar masses, predictions for the stellar mass function (i.e., the number density of galaxies as a function of stellar mass) can be made; in addition, growth in the assigned stellar masses along dark matter halo merger trees can be used to predict galaxy star formation rates (SFRs). BWC13 compares these predicted observables to a wide range of published data from z = 0 to z = 8 and uses a Markov Chain Monte Carlo algorithm to derive the posterior distribution for SM(M_h , z) (and the resulting implied SFR(M_h , z)). The resulting best-fit SFR(M_h , z) is consistent with all recent published stellar mass functions, specific SFRs, and cosmic SFRs over this entire redshift range; in addition, the best-fit stellar mass—halo mass relation, SM(M_h , z), is consistent with a wide range of independent techniques (see BWC13).

We present tests of the model in Section 3.1 with a set of more realistic particle simulations. These simulations use the same evolving spherical halo potential as in Behroozi et al. (2013a), and we refer readers to Appendix B of that paper for full details. To summarize the technique, we inject sGRB progenitors into spherical NFW halos at z = 1 (mass range: 10¹⁰  M_☉ < M_h < 10¹⁴  M_☉) at a radius of 0.015R_200c with the circular velocity of the halo at that location. We then apply a velocity kick drawn from an exponential distribution with a mean speed 〈v〉 of 45, 90, or 180 km s⁻¹, and simulate the trajectory of the progenitor to z = 0 using leapfrog integration. We evolve the halo mass during this time according to the median mass accretion histories in Behroozi et al. (2013d), and we use a force law that accounts for the small effect of Hubble expansion on top of the Newtonian force from the halo (Behroozi et al. 2013a). Finally, we compute the projected radius at z = 0 for the sGRB as viewed along a random line of sight. We repeat this process for 10,000 realizations for each halo mass, velocity distribution, and threshold radius.

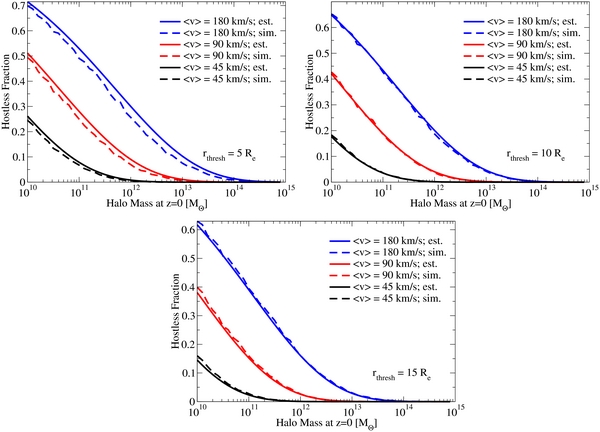

We find that the upper limit estimations from Section 3.1 are extremely close to the true simulated hostless fractions, as shown in Figure 13. The proximity of the estimates to the simulations is due to several factors. First, particles in gravitational orbits tend to spend most of their time near the turnaround radius, meaning that comparing the turnaround radius to the hostless threshold radius (as in Section 3.1) is a fairly accurate approximation. Secondly, because sGRBs that begin at R_e and reach at least 5R_e must be on fairly radial trajectories, the assumption that all of the kick energy is directed radially in Section 3.1 is also a very good one. Finally, the fact that Section 3.1 considered the three-dimensional turnaround radius instead of the two-dimensional projected radius offers a partial correction for the effects of Hubble expansion over the period from z = 1 to z = 0. Specifically, the accelerated expansion of the universe over this time period results in a force law that is weakened relative to the Newtonian version. Close to the halo center, this effect is small, but it becomes more important at larger distances (Behroozi et al. 2013a); this explains why the simulations show a slight excess over the estimated upper limits for r_thresh = 15R_e, but are still well within the estimates for r_thresh = 5R_e. The chosen time period (z = 1 to z = 0) maximizes the severity of this effect because the expansion of the universe is accelerating over this entire time period. At redshifts z > 1, the density of dark energy is small enough that the universe is still decelerating, which makes the force law stronger than the Newtonian version; this would make it harder for progenitors to escape from the original galaxy.

Zoom In Zoom Out Reset image size

See tabulated results in Table 2. The "True" column indicates the mean hostless fraction of all sGRBs from z = ∞ to z = 0 occurring in a fixed comoving volume of the universe. The "Perfect Obs." column gives the hostless fraction for perfect observations; this includes the effects of increasing visible comoving volumes at higher redshift as well as time dilation, but it assumes a perfect sGRB detector and follow-up observations to arbitrarily faint host galaxy luminosities. The "True for Swift Obs." column modifies the "Perfect Obs." column to include the redshift sensitivity for the Swift satellite from Equation (4), but again assumes perfect follow-up observations. Other columns are discussed in Section 3.3.

To test how the velocity distribution's function form affects our conclusions, we have repeated our full analysis using Maxwell–Boltzmann velocity kick distributions instead of exponential distributions. As shown in Figure 14, Maxwell–Boltzmann velocity distributions do not have the high-velocity tails present in the exponential distribution, and so represent a poorer match to the theoretical models. Table 3 lists the expected hostless fractions for all models, using Maxwell–Boltzmann distributions with identical mean velocities (45, 90, and 180 km s⁻¹) as the exponential distributions in our main analysis. The main findings for the exponential distributions still hold, including the relative insensitivity of the hostless fraction to the time delay model and any redshift reweighting from geometrical and instrumental effects. The principal change with the Maxwell–Boltzmann distribution is in the radial distribution of the sGRBs. Velocities of 45 and 90 km s⁻¹ are low with respect to the circular velocities of halos where most star formation occurs (M_h ≈ 10¹²  M_☉; v ≈ 250 km s⁻¹), and the lack of high-velocity tails mean that extremely few sGRBs would be able to escape their host galaxies. For the 180 km s⁻¹ model, the mean velocity is larger relative to star-forming halos' circular velocity, so many more sGRBs make it beyond 5R_e; however, the lack of high-velocity tails implies that comparatively few sGRBs will appear beyond 10 or 15R_e. The fact that star formation in halos occurs in a narrow mass range means that there is a correspondingly narrow range of kick energies which will allow sGRB progenitors to escape to a given distance from the host galaxy. For this reason, the relative fraction of sGRBs at different distances from the host galaxy is a potentially very sensitive probe of the shape of the velocity kick distribution.

Zoom In Zoom Out Reset image size

Soon after the discovery of pulsars, it was realized that their velocity distribution was much higher than the normal stellar population (Gunn & Ostriker 1970). Models for these enhanced velocities included both asymmetries in the supernova explosion that produced the pulsar (Herant 1995; Burrows & Hayes 1996; Fryer 2004; Janka 2007; Endeve et al. 2013), neutrino asymmetries (Kusenko 2004; Socrates et al. 2005), and the momentum exchange in unbinding a massive binary during the explosion (Hills 1983). A growing list of compact binary systems seem to require at least some kick in addition to the momentum imparted in a binary (Flannery & van den Heuvel 1975; Johnston et al. 1992; Yamaoka et al. 1993; Kaspi et al. 1994; Brandt & Podsiadlowski 1995; Kaspi et al. 1996; Bildsten et al. 1997; Fryer & Kalogera 1997) and most work assumes that either ejecta or neutrino asymmetries in the supernova impart a kick on the forming neutron star that produces the observed high pulsar space velocities.

These pulsar velocities can then be used to study the kick produced in a supernova explosion. Lyne et al. (1982) argued that the rms space velocity of observed pulsars was 210 km s⁻¹, but improved measurements of pulsar distances (Taylor & Cordes 1993) along with an increased sample of pulsars led to much larger pulsar rms velocity estimates of 450 km s⁻¹ (Lyne & Lorimer 1994). Selection biases complicate these estimates (Hansen & Phinney 1997; Fryer et al. 1998), but detailed studies of these effects suggest that the larger rms velocities are more accurate (Arzoumanian et al. 2002). Such high velocities rule out binary disruption as the primary kick mechanism and place stringent constraints on any explosion asymmetry mechanism.

It is also possible to match observations with a bimodal pulsar velocity distribution, e.g., half the pulsars receiving a Gaussian σ ∼ 90 km s⁻¹ kick and the other half receiving a σ ∼ 500 km s⁻¹ kick (Arzoumanian et al. 2002). This bimodal kick also appears to better explain a wide range of neutron star populations and binary systems (Fryer et al. 1998; Podsiadlowski et al. 2005). We use this bimodal kick distribution as our standard calculation for this study. However, it is possible that a single Maxwellian can explain the data, e.g., a Gaussian with σ ∼ 290 km s⁻¹ (Arzoumanian et al. 2002). We have conducted a series of single-mode calculations using a range of rms supernova kick velocities (Figure 15). For low kick velocities, momentum conservation following mass loss in the supernova explosion determines the mean motion of the binary systems, but beyond an rms velocity of 50–100 km s⁻¹, the kick dominates. The velocity distributions of both neutron star–neutron star and neutron star–black hole mergers are shown in Figure 15. Although a "no kick" model cannot explain the distribution of sGRBs, rms kick velocities above ∼100 km s⁻¹ can explain the data. High velocity single-kick models may produce many more ejected sGRBs than observed; however, uncertain afterglow likelihoods for ejected sGRBs (Section 4.1) substantially weaken constraints on the maximum allowable kick velocities.

Zoom In Zoom Out Reset image size

The observed redshift distribution of sGRBs from Swift (Fong et al. 2013) and the apparent luminosity or peak flux function (Goldstein et al. 2012, 2013) may be combined to give a constraint on the intrinsic sGRB flux function (Guetta & Piran 2006). Equivalently, they give a constraint on the redshift sensitivity of Swift (Guetta & Piran 2006; Coward et al. 2012; Kelley et al. 2013), under the assumption that the intrinsic flux distribution of sGRBs is independent of redshift. With this assumption, the intrinsic cumulative flux function (non-beaming-corrected) is separable into a flux-dependent shape and a redshift-dependent number density:

$$\begin{equation} \Phi _\mathrm{int}(F,z) = N_\mathrm{int}(z) \Phi _\mathrm{int}(F). \end{equation} \tag{ F1 }$$

The observed redshift distribution, P_obs(z), and the apparent cumulative flux function, Φ_obs(F), can then be written as

$$\begin{eqnarray} P_\mathrm{obs}(z) & = & \frac{V^{\prime }(z)}{1+z}N_\mathrm{int}(z) \Phi _\mathrm{int}(F_\mathrm{min}\mu _D(z)k(z)) \end{eqnarray} \tag{ F2 }$$

$$\begin{eqnarray} \Phi _\mathrm{obs}(F) & = & \int _0^\infty \frac{V^{\prime }(z)}{1+z}N_\mathrm{int}(z) \Phi _\mathrm{int}(F\mu _D(z)k(z))dz, \end{eqnarray} \tag{ F3 }$$

where V(z) is the comoving volume out to redshift z, L_min is the minimum detectable absolute luminosity, μ_D (z) is the cosmological dimming factor, and k(z) is the k-correction. ¹⁰ Finally, the redshift sensitivity, _detector(z), is

$$\begin{equation} \epsilon _\mathrm{detector}(z) = \frac{\Phi _\mathrm{int}(F_\mathrm{min}\mu _D(z)k(z))}{\Phi _\mathrm{int}(F_\mathrm{min})}. \end{equation} \tag{ F4 }$$

Equations (F2) and (F3) are typically solved for Φ_int(F) and N_int(z) via forward deconvolution (Guetta & Piran 2006). However, since Guetta & Piran (2006) have already found that a wide range of power-law time-delay models give acceptable fits, we can take a simpler approach. We first assume that N_int(z) is given by the P(Δt)∝(Δt)⁻¹ time-delay model; this allows _detector(z) to be determined directly from the observed sGRB redshift distribution (Equation (F2)). Using this assumed _detector(z), we then check that the implied apparent flux function (Equation (F3)) is consistent with observations for all three of the time-delay models.

The first step requires calculating the k-correction for sGRBs, as well as the knowing the minimum observable flux F_min for Swift. Following Coward et al. (2012), we adopt a Band et al. (1993) spectral fitting function for sGRBs, with parameters α = −1, β = −2.3, and E₀ = 511 keV. In addition, we adopt the same effective minimum flux limit of 1.5 ph s⁻¹ cm⁻² for Swift sGRBs. We find that the resulting Swift redshift sensitivity is extremely well-fit by

$$\begin{equation} \epsilon _\mathrm{detector}(z) = \exp (-4.3z) \end{equation} \tag{ F5 }$$

assuming that the Fong et al. (2013) redshift distribution is unbiased (see discussion in Appendix G). This functional form, as well as the comparison to the observed redshift distribution from Fong et al. (2013) are both shown in Figure 9. The fit for the modeled redshift distribution for the P(Δt)∝(Δt)⁻¹ time-delay model is extremely good; a K-S test finds negligible discrepancy (p > 0.9). Using this same fit for the P(Δt)∝(Δt)^−0.5 and (Δt)^−1.5 is still more than acceptable (Figure 9); K-S tests for both give p-values greater than 0.48.

Combining Equations (F4) and (F5), we find an implicit equation for the intrinsic cumulative flux function:

$$\begin{equation} \Phi _\mathrm{int}(F\mu _D(z)k(z)) = \Phi _\mathrm{int}(L_\mathrm{min}) \exp (-4.3z). \end{equation} \tag{ F6 }$$

The resulting functional form for Φ_int(F) is shown in Figure 16. Since the minimum Swift-discovered sGRB redshift is z ≈ 0.1 (Fong et al. 2013), the intrinsic flux function is not well-constrained for apparent source fluxes below 1.5 photon s⁻¹ cm⁻² for a source at z = 0.1.

Zoom In Zoom Out Reset image size

From Equations (F6) and (F3), as well as the redshift distributions implied by the three time-delay models, we have calculated the expected apparent flux functions (Figure 16, right panel). For comparison, we have also plotted the actual apparent flux functions obtained by combining the BATSE 5B (Goldstein et al. 2013) and Fermi two-year catalogs (Goldstein et al. 2012) for bursts with T₉₀ < 2 s. Since the BATSE 5B spectral catalog did not report 64 ms peak fluxes, we multiplied the 2 s fluxes by (2 s/T₉₀) to obtain the effective peak flux. In addition, we used the Fermi 64 ms peak fluxes matched to the BATSE spectral energy window.

As can be seen from Figure 16, the agreement between the modeled and observed sGRB flux functions is remarkable. Regardless of the time-delay model, K-S tests show no discrepancies (p > 0.9 in all cases). Hence, we adopt the fitting formula in Equation (F5) as the effective Swift detector sensitivity.

The observed redshift distribution used in Figure 9 is derived from associated host galaxy redshifts for 26 sGRBs with accurate positions (Fong et al. 2013). For an additional 4 sGRBs, the associated host galaxies do not have available redshifts (051210, 060121, 070707, and 081226A; Berger et al. 2007; Levan et al. 2006; Piranomonte et al. 2008; Nicuesa Guelbenzu et al. 2012). In one case (051210), available spectra are featureless, suggesting that this sGRB may lie in the redshift desert (1.4 < z < 2.5). In the three other cases, the host galaxies were too faint for straightforward spectral follow-up.

We have investigated what redshift information may be extracted from available measurements of these host galaxies. Knowing the apparent magnitude of a galaxy provides a weak prior on its redshift (Figure 17), which can be determined from the redshift dependence of the galaxy luminosity function and the differential observable volume. We note that, while high-redshift galaxies are universally faint, faint galaxies are not all at high redshifts. Because of the upturn in the faint-end slope of the luminosity function (Blanton et al. 2005), very faint galaxies (r > 24) are more likely to be at low redshifts than merely faint galaxies (22 < r < 24). Using galaxy luminosities derived in the same way as discussed in Section 3.1.2, we have calculated the resulting posterior redshift distributions given existing luminosity measurements for the hosts of the four sGRBs with missing redshifts (Figure 17, right panel).

Zoom In Zoom Out Reset image size

Encouragingly, all these distributions peak in the same redshift window as occupied by the better-measured sGRB sample (Figure 9). On the other hand, the distributions are very broad. If in fact all of these galaxies occurred at high redshifts (e.g., z > 1.5), the main impact would be to boost the inferred Swift sensitivity at z ∼ 2 by a factor of five, to 0.1%. Correspondingly, the intrinsic luminosity function inferred in Appendix F would be boosted at the luminous end. However, we note that the "Upgraded Swift" model considered in Appendix C tests the effect of boosting z = 2 sensitivity by a factor of 74, with only a minimal effect on our results in the main body of the paper.
