IGR J17544−2619 IN DEPTH WITH SUZAKU: DIRECT EVIDENCE FOR CLUMPY WINDS IN A SUPERGIANT FAST X-RAY TRANSIENT

The last decade has seen the discovery of two new classes of high-mass X-ray binaries (HMXBs), some with very high absorption (Walter et al. 2006), and some, featuring brief transient outbursts, called Supergiant Fast X-ray Transients (SFXTs; Negueruela et al. 2006).

The first fast transient identified with a supergiant companion was XTE J1739−302 (Smith et al. 2003), and data from INTEGRAL and other observatories quickly made it clear that there are many such systems (in't Zand 2005; Sguera et al. 2005; Negueruela et al. 2006). SFXTs have spectra similar to persistent supergiant HMXBs, but only occasionally and briefly reach comparable luminosities. Proposed mechanisms responsible for this behavior are clumping of the wind from the supergiant star (in't Zand 2005; Walter & Zurita Heras 2007; Negueruela et al. 2008), the presence of a dense equatorial wind component (Sidoli et al. 2007), and gated accretion due to the propeller effect from the magnetosphere of the compact object (Grebenev & Sunyaev 2007; Bozzo et al. 2008).

IGR J17544−2619 is an archetypical SFXT, with a history of rapid, seemingly sporadic outbursts of strongly variable flux (e.g., Gonzalez-Riestra et al. 2004; Krimm et al. 2007; Kuulkers et al. 2007). It was discovered in 2003 (Sunyaev et al. 2003), is associated with an O9Ib supergiant located at ∼3.6 kpc (Pellizza et al. 2006; Rahoui et al. 2008), and probably harbors a neutron star (in't Zand 2005). Suggestions of a long periodicity in the outbursts were made by Walter et al. (2006; a period of 165 ± 3 days) and Sidoli et al. (2009; a period of ∼150 days), but a recent periodogram analysis of the overall outburst history by Clark et al. (2009) found a strong periodic signal at a period of 4.926 ± 0.001 days that is presumably the true orbital period. Other SFXTs have recently been shown to have a remarkable range of periodicities: IGR J11215−5952 (a strict periodicity at around 165 days; Sidoli et al. 2007), SAX J1818.6−1703 (an active phase of about 6 days occurring every ∼30 days; Bird et al. 2009; Zurita Heras & Chaty 2009), and IGR J16479−4514 (3.3 days; Jain et al. 2009). IGR J17544−2619 and IGR J16479−4514 thus have periods comparable to those of persistent supergiant HMXBs.

Suzaku is Japan's fifth X-ray astronomy satellite. It was developed under Japan–US collaboration and launched on 2005 July 10 (Mitsuda et al. 2007). It allows high-sensitivity wide-band X-ray spectroscopy, with low and stable detector backgrounds. We present observations of IGR J17544−2619 with three of the X-ray imaging spectrometers (the XIS), which are sensitive to energies between 0.5 and 10 keV, and the silicon (PIN) layer of the hard X-ray detector (HXD) in the range 12–70 keV.

The observation of IGR J17544−2619 took place from 2008 March 19 through March 22. The XIS were operated in 1/4 window mode, resulting in light curves with 2 s time resolution. For a small portion of the observation (∼30 minutes), high count rates caused saturation to occur in the XIS instruments and contributed to data transfer problems in the HXD. To correct for this in the affected portion of the XIS data, a circle of 15 pixel radius was excised from the center of the point-spread function (PSF). Recovery of the HXD PIN data from this period was accomplished with intervention by the Suzaku user-support team. All other data reduction has been performed with HEAsoft 6.5, as directed in the Suzaku Data Reduction Guide.³

For the XIS, the background was taken from source-free regions near the edges of each CCD. Light curves and spectra were produced with xselect, and response files were generated with the tools xisrmfgen and xissimarfgen, which take into account extraction region, vignetting, etc. Spectra from the front-illuminated CCDs (XIS0 and XIS3) were combined and then fitted simultaneously in XSPEC (version 12.4.0) with the back-illuminated data (XIS1), and (in two cases) the HXD PIN data as well. In all instances, the relative normalizations among the different types of instruments were allowed to vary freely. For the PIN spectra, "tuned" background files were used to account for the non-X-ray background. These are simulated event files generated by the HXD team after each observation. They are dead-time corrected and have estimated systematic uncertainties of 1.3%.

3.1. Light Curves

Figure 1 shows the XIS count rate during the entire observation, summing the background-subtracted light curves from the three XIS detectors. The times are relative to a starting time at MJD = 54544.52698 or 2008 March at 12:38:51 UTC. In the ephemeris of Clark et al. (2009), in which the highest fluxes come at phase 0.0 relative to MJD 52702.9, our observation starts at a phase of 0.86 and ends at 0.41, covering a bit more than half of a complete orbit.

Zoom In Zoom Out Reset image size

There is an intense period of flaring for ∼1 day, with the flux during the brightest peak ∼9000 times greater than in the first 10 hr of the observation. This occurs at 36 hr in Figure 1, which has a phase of 0.16 in the Clark et al. (2009) ephemeris. An isolated medium-sized flare is seen ∼15 hr after the primary activity subsides, at 58 hr in Figure 1 (orbital phase 0.35). The most intense period of activity consists of multiple flares, with typical durations of ∼3 minutes, and ends with the large flare at 36 hr (peak flux 3.4 × 10⁻⁹ erg cm⁻² s⁻¹), which decays over a period of ∼30 minutes. Figure 2 shows one Suzaku orbit from the most active period of flaring. Unfortunately, the rise of the biggest flare occurred while Suzaku's view was obstructed by the Earth.

Zoom In Zoom Out Reset image size

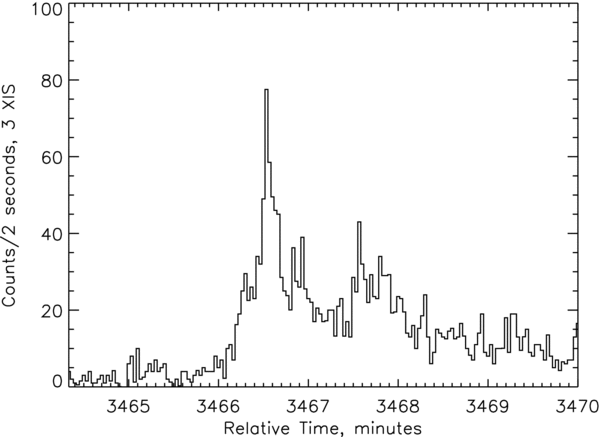

The fastest time variability is seen in the rise of the isolated flare at 58 hr, which doubles in a remarkable 4 s (Figure 3). Bozzo et al. (2009) saw secondary flaring in IGR J16479−4514 and suggested the possibility of a stable structure in the supergiant wind. The recently published short orbital periods of both sources support this notion, since the features seen in Figure 1 cover substantial stretches of the orbit. We note that the large outburst at 36 hr falls exactly halfway between the first small outburst at 13 hr and the last outburst at 58 hr, suggesting that our observations might span a periastron that occurs at the brightest outburst. Further in-depth observations may be required to see if the difference between the peak activity phase of Clark et al. (2009) at 0.0 and our brightest outburst at phase 0.16 is due to random variations from orbit to orbit or to uncertainties in the ephemeris.

Zoom In Zoom Out Reset image size

From the bottom panel of Figure 1, where the count rate is logarithmic, it is apparent that the flares are not completely isolated, but occur on pedestals of low-level emission. Such a pedestal is also seen in IGR J11215–5952, which has an active phase lasting on average ∼8 days out of its 165-day orbit (Sidoli et al. 2007). Passage through a dense equatorial outflow at the periastron of a highly eccentric orbit has been proposed to explain this phenomenon (Romano et al. 2009).

3.2. Spectroscopy

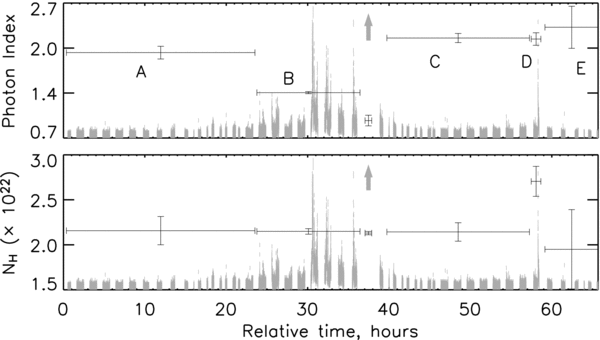

We first divided the XIS data into six time intervals, with each resulting spectrum fitted with an absorbed power law in the energy range 1–10 keV. These intervals correspond to the initial low-level period (A), medium flaring (B), major flare, post flare period (C), isolated medium flare (D), and final low-level period (E). Figure 4 shows these divisions, and the resulting N_H and Γ (photon index), with the remaining fitted parameters shown in Table 1. Also in Table 1, in the first row, is a subset of period (A): the first 32 ks of the observation, which isolates the period of lowest flux. As expected from the results of previous studies (Walter et al. 2006; Sidoli et al. 2008), we find progressive hardening during the first four epochs, from lowest to highest flux: Γ decreases from ∼2.06 to 0.96 with no significant change in absorbing column (all ∼2 × 10²² N_H cm⁻²). The isolated medium flare (D) has a photon index similar to the lowest level emission, but a significantly greater N_H than in any of the other time periods (2.7 × 10²² cm⁻²).

Zoom In Zoom Out Reset image size

Coincidentally, one monitoring observation in a study being conducted with Swift occured during our observation, at the end of period (A) (2008 March 20, 12:57:18–13:07:58 UT; Sidoli et al. 2009). The spectral fit to this pointing was extremely close to our period (A) values in Table 1, although the Swift error bars are larger (L. Sidoli 2008, private communication). In Clark et al. (2009), this coincidence between Suzaku and Swift is incorrectly given in their Table 1 as having taken place on March 31, resulting also in an incorrect orbital phase of 0.35 with their ephemeris.

Table 1. Absorbed Power-law Fits to XIS Data for Seven Time Intervals (See the Text)^a

Time	Duration	NH	Γ	Norm. at 1 keV	Reduced χ2	Flux
	(ks)	(1022 cm−2)		(ph keV−1cm−2 s−1)	(dof)	(erg cm−2 s−1)
Start	32.01	1.99 ± 0.91	2.06 ± 0.60	2.07/2.19 × 10−4	0.633 (26)	4.07/4.30 × 10−13
A	84.16	2.15 ± 0.15	1.97 ± 0.09	9.40/9.92 × 10−4	0.720 (184)	2.11/2.23 × 10−12
B	45.18	2.14 ± 0.03	1.37 ± 0.02	8.14/8.20 × 10−3	0.944 (868)	4.86/4.89 × 10−11
Flare	1.85	2.13 ± 0.02	0.96 ± 0.08	0.180/0.192	1.20 (863)	2.21/2.36 × 10−9
C	63.04	2.14 ± 0.10	2.18 ± 0.07	2.11/2.16 × 10−3	0.681 (235)	3.38/3.47 × 10−12
D	4.28	2.71 ± 0.17	2.17 ± 0.09	1.29/1.36 × 10−2	0.685 (185)	2.02/2.12 × 10−11
E	25.22	1.95 ± 0.44	2.34 ± 0.31	1.01/1.06 × 10−3	0.488 (65)	1.29/1.35 × 10−12

Note. ^aNormalizations are for the back-illuminated (XIS1) and front-illuminated (XIS0+XIS3) detectors, respectively, with the exponent applying to both. Fluxes are for the energy range 2–10 keV, with absorption removed, and are given in the same format as the normalization.

Download table as:  ASCIITypeset image

Four more spectra were accumulated by summing all intervals that had count rates within designated ranges. These were chosen such that each interval contained approximately one quarter of the total number of photon counts. This translated to selecting portions of the observation with rates of 0–3, 4–40, 41–75, and 76–118 events per second, as measured by XIS 1. The results were spectra with exposure times of 99.3 ks, 4.2 ks, 740 s, and 520 s, respectively. Table 2 contains the parameters of the fits. We see a trend of spectral hardening with increasing flux here as well, but N_H does not vary monotonically with flux.

Table 2. XIS Spectra Sorted by Count Rate^a

XIS Rate	NH	Γ	Norm. at 1 keV	Reduced χ2	Flux
(count s−1)	(1022 cm−2)		(ph keV −1cm−2 s−1)	(dof)	(erg cm−2 s−1)
0–3	2.31 ± 0.03	1.74 ± 0.02	2.92/3.12 × 10−3	1.51 (315)	9.35/9.98 × 10−12
3–40	2.02 ± 0.03	1.10 ± 0.02	2.81/3.19 × 10−2	1.08 (282)	2.72/3.09 × 10−10
40–75	2.11 ± 0.03	0.95 ± 0.01	0.176/0.187	1.10 (376)	2.18/2.32 × 10−9
75–118	2.25 ± 0.03	0.94 ± 0.01	0.275/0.296	1.09 (410)	3.47/3.73 × 10−9

Note. ^aThe count rate is per XIS detector. The spectral model and format of the results are the same as in Table 1.

Download table as:  ASCIITypeset image

For the orbit containing the major flare, spectroscopy on even finer timescales is possible. Figure 5 shows these divisions superimposed on light curves in the energy ranges 1–1.75 keV and 5.5–8 keV. The low-energy light curve shows dips not present in the high-energy time history, suggesting variable absorption. We divided this portion of the observation into six intervals, ranging from 120 to 820 s in duration, chosen to correspond to times where the lowest-energy light curve showed variability not present at higher energies. Table 3 lists the parameters of spectral fits with an absorbed power-law model. It is evident that there is dramatic variability in the absorption on very short timescales, while the index and unabsorbed flux remain unchanged. In particular, N_H more than doubles within ∼2 minutes, and the period of highest absorption lasts only ∼5 minutes. Spectra from the first three intervals and the last interval are shown in Figure 6. The first three clearly show variation restricted only to the lowest energies, consistent with highly variable absorption on this short timescale. The comparatively stable values of N_H for the longer integrations in Tables 1 and 2 may simply be the result of averaging over greater variability on short timescales. Sidoli et al. (2009) saw a similar rapid variability in absorption from XTE J1739−302, another canonical SFXT, using the Swift X-ray Telescope (XRT).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Table 3. XIS Spectra During the Decay of the Major Flare (see Figure 5)

Time	Duration	NH	Γ	Norm. at 1 keV	Reduced χ2	Flux
	(s)	(1022 cm−2)		(ph keV −1cm−2 s−1)	(dof)	(×10−9 erg cm−2 s−1)
1	120	1.47 ± 0.05	0.95 ± 0.03	0.266/0.289	0.544 (236)	3.41/3.71
2	229	3.33 ± 0.08	0.89 ± 0.02	0.256/0.275	0.776 (401)	3.34/3.59
3	339	2.56 ± 0.04	1.05 ± 0.02	0.318/0.345	0.998 (382)	3.23/3.51
4	130	2.63 ± 0.12	1.01 ± 0.05	0.177/0.190	0.503 (193)	1.94/2.08
5	150	1.61 ± 0.06	1.02 ± 0.03	0.183/0.194	0.737 (262)	2.07/2.20
6	820	1.91 ± 0.04	1.04 ± 0.02	0.119/0.123	0.832 (381)	1.28/1.33

Download table as:  ASCIITypeset image

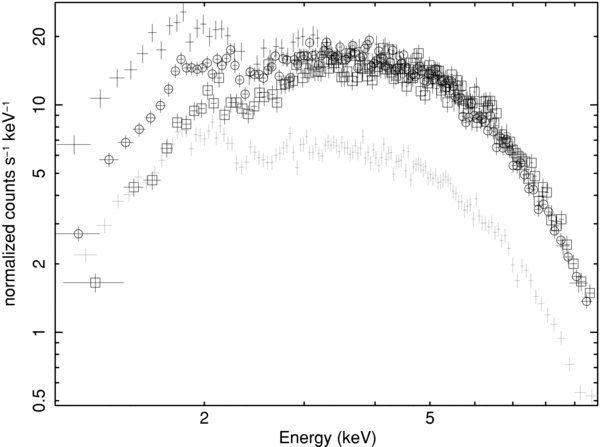

To see whether spectral properties are different during the rise and fall of an outburst, we selected and summed the rising and falling parts of all the clear peaks we could identify (with the exception of the large outburst, for which only the decline was available). See Figure 2 for an example of the time structure. Table 4 contains the resulting spectral parameters. No significant spectral difference is seen between the rising and falling intervals. In addition, Figure 2 shows no consistent asymmetry in count rate such as a fast rise and exponential decay (although the single peak in Figure 3 might be interpreted this way). These symmetries confirm the expectation that wind material is accreted directly and not temporarily stored in a small accretion disk, which could produce time-profile and spectral differences between the rise and fall of an outburst, such as those seen on longer timescales in low-mass X-ray binaries with large disks (e.g., Miyamoto et al. 1995).

Table 4. XIS Spectra Summed Over Intervals When Flux was Rising and Falling

	NH	Γ	Norm. at 1 keV	Reduced χ2	Flux
	(1022 cm−2)		(ph keV−1 cm−2 s−1)	(dof)	(×10−10 erg cm−2 s−1)
Rise	2.02 ± 0.11	1.08 ± 0.05	1.62/1.66 × 10−2	0.595 (142)	1.63/1.67
Fall	1.91 ± 0.08	1.17 ± 0.04	1.60/1.63 × 10−2	0.618 (214)	1.39/1.41

Download table as:  ASCIITypeset image

Finally, for the main flare and a period of moderate flaring (B), we fit the XIS spectra simultaneously with the HXD PIN spectrum. The models were a power law, a power law times an exponential decay, and thermal bremsstrahlung (bremss in XSPEC). For period (B), the simple power law by itself resulted in a poor fit, with reduced χ² = 1.46 for 926 degrees of freedom (dof), and the bremsstrahlung model, while it fit much better (χ² = 1.05, 926 dof), was systematically high from ∼20–40 keV. The power law with an exponential cutoff beginning at zero energy, which has one more free parameter, fit best (χ² = 0.89, 925 dof) and is shown with residuals in Figure 7. Table 5 has the parameters for all three fits. The same spectral model was shown to be a good fit to the broadband spectrum of the SFXT XTE J1739−302 (Blay et al. 2008). The superiority of this model to the other two is even clearer in the fit to the decay of the large flare, which has better statistics. The simple power law and bremsstrahlung spectra had reduced χ² of 12.5 and 7.0, respectively, while the cutoff power law had a much better reduced χ² of 1.27, with N_H = (1.69 ± 0.02) × 10²² cm⁻², power-law index (0.295 ± 0.014), and folding energy 8.00 ± 0.12 keV. The spectrum and fit are shown in Figure 8. There is no evidence for cyclotron scattering features despite the excellent counting statistics.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Table 5. Fits to Combined XIS/PIN Data for Period B (see Figure 4)

XSPEC Model	NH	Γ	kT	Folding Energy	Reduced χ2
	(1022 cm−2)		(keV)	(keV)	(dof)
wabs*pow	2.31 ± 0.03	1.46 ± 0.02	...	...	1.46 (926)
wabs*bremss	2.20 ± 0.02	...	26.4 ± 1.3	...	1.05 (926)
wabs*pow*highecut	1.84 ± 0.04	0.88 ± 0.03	...	10.5 ± 0.6	0.89 (925)

Download table as:  ASCIITypeset image

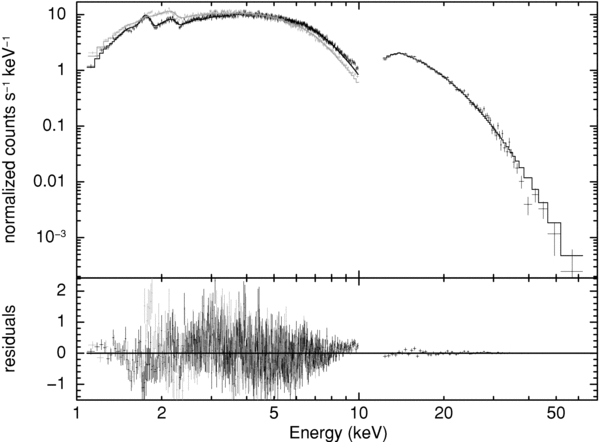

The good statistics of the spectrum shown in Figure 8 also allow for a sensitive search for iron fluorescence and absorption seen in other highly variable, wind-accreting HMXBs. A fluorescence line was seen in IGR J16207−5129 by Tomsick et al. (2009) at an equivalent width of 42 ± 12 eV. In the large flare from IGR J17544−2619 we find a much lower (and not significant) equivalent width: a best-fit value of 7.3 eV with a 95% confidence upper limit of 14.2 eV. In this fit, the line was assumed to be narrow and the centroid was initially fixed at 6.39 keV (the value from Tomsick et al.) but then allowed to fit, converging at 6.41 ± 0.05 keV. In AX J1845.0−0433, Zurita Heras et al. (2009) found an absorption edge consistent with highly ionized iron at 7.9 keV. We find no evidence of this feature in our spectrum. The best-fit depth for an edge at this energy is zero, with a 95% confidence limit of 0.026. When the energy of the edge is allowed to vary, it fails to converge on any meaningful value.

This in-depth look at prototypical SFXT behavior reconfirms the nature of this class, with faint emission punctuated by eruptions of hard X-rays and significant absorption that varies in time. IGR J17544−2619 displayed a dynamic range of nearly 10⁴, with the average flux during the first 10 hours at 4 × 10⁻¹³ erg cm⁻² s⁻¹ (2–10 keV) and a maximum of 4 × 10⁻⁹ erg cm⁻² s⁻¹ during the peak of the brightest flare. For an object at 3.6 kpc, this translates to a luminosity range of 6 × 10³² to 6 × 10³⁶ erg s⁻¹. In the simplest clumpy-wind picture, the X-ray luminosity scales as the accretion rate, which is in turn proportional to the local wind density.

The faintest interval we observed (the first 32 ks, or the first row in Table 1) is about 30 times brighter than the quiescent level in this source observed by in't Zand (2005) with Chandra, which showed a soft spectrum consistent with either thermal emission from the neutron star or the emission of the atmosphere of the supergiant companion. Our lowest level, with its hard spectrum, suggests active accretion at a flux (and presumably density) of 10⁻⁴ of the peak during outburst. The bright outburst seen by in't Zand (2005) rose in about an hour from complete quiescence, while the bright outburst we see here is preceded by a day of complex, rising activity. It is clear that much more observing of SFXTs with sensitive X-ray instruments will be necessary before we can understand what behavior is typical and what is exceptional.

The light curves show that periods of activity are made up of multiple fast flares, which can also appear as isolated events. Spectroscopy shows the average column density remaining fairly constant when averaged over long intervals but varying dramatically on short timescales, while the photon index hardens with intensity, in agreement with previous findings (Walter et al. 2006; Sidoli et al. 2008).

We were fortunate to catch a bright outburst in this observation. If all major flares last on the order of an hour, then in our 65 hr observation there would be only a 10% chance of seeing one, based on the Rossi X-ray Timing Explorer (RXTE) Galactic bulge scan data (Swank & Markwardt 2001), which show only 1 sample out of 650 having a flux above 5 × 10⁻¹⁰ erg cm⁻² s⁻¹. The RXTE observations are brief "snapshots" taken about once every three days, but demonstrate that outbursts like our brightest do not occur on most orbits.

We have analyzed the short-term variability of absorption for the first time in this system. The second time interval during the major flare (number 2 in Figure 5) shows an increase of ∼1.7 × 10²² N_H cm⁻² that lasts only 300 s before starting to decline again. Figure 6 shows that this episode corresponds to dramatic spectral evolution below 4 keV, which is best explained by a sudden rise in the amount of neutral absorbing material along the line of sight. It seems plausible that this is due to the neutron star (NS) passing behind a clump of dense stellar wind at some larger radius. Assuming a supergiant with R = 20 R_☉, M = 25 M_☉, and an orbital radius for the NS of 3R, the NS will have an orbital velocity of 280 km s⁻¹. Then, if the cloud is circular and has no tangential velocity, it must have a radius of 42,000 km (transverse to the vector toward the supergiant) and a mass of 1.5 × 10¹⁸ g. There is no constraint on the size in the radial direction. In the case of complete accretion of the clump and a 10% efficiency for the conversion of rest mass to X-rays, such a cloud could fuel a 5-minute outburst at a level of 4.5 × 10³⁵ erg s⁻¹, comparable to the largest flares we see exclusive of the very bright outburst. Estimates of the clump masses required for SFXT outbursts range from this level (Negueruela et al. 2008) to as high as 10²³ g (Walter & Zurita Heras 2007), but some of this variation is due to the range of outburst intensities that need to be explained. We expect clumps to have a wide distribution of sizes, both a priori and because of the wide range of flare sizes observed, so this first clump observed in absorption may not be representative of a typical outburst. Indeed, if clumps have a falling distribution in size, the first to be observed is most likely to be from the small end of the range that could have been observed.

Instead of a foreground clump, accreting material being focused toward the NS could be responsible for the absorption. A calculation of the ionization state due to the local X-ray environment and spectral fits with absorption from ionized and neutral material may be able to rule out such a scenario. This possibility will be investigated in future work. Regardless of the location of the density enhancement, however, this is direct evidence for exactly the sort of clump predicted by the clumpy-wind models.

The presence of optically thick clumps has also been reported in the persistent HMXBs Cygnus X-1 and Vela X-1 (Feng & Cui 2002; Kreykenbohm et al. 2008). Occultation by these clumps can last from minutes to hours, and can correspond to an increase in photoelectric absorption greater than one order of magnitude. We have shown that, as in Cyg X-1, absorption when measured on a short timescale in IGR J17544−2619 is much more variable than what is observed when integrations are taken over hours or more.

Pointed observations with INTEGRAL and AGILE have now shown Vela X-1, thought of as a persistent counterpart to the SFXTs, to undergo fast flaring and brief off states (Kreykenbohm et al. 2008; Soffitta et al. 2008), revealing a continuum of behavior between SFXTs and the "persistent" systems. Other supergiant binaries show more frequent outbursts than IGR J17544−2619 and XTE J1739−302 but much more frequent quiet periods than Vela X-1 (e.g., Walter & Zurita Heras 2007; Rahoui & Chaty 2008). Until recently, the available evidence pointed to a framework where the main difference between SFXTs and other supergiant HMXBs is diverse orbital geometries (e.g., Negueruela et al. 2008; Romano et al. 2009). The latest results showing orbital periods <5 days, however, tend to support the idea of intrinsic differences in the companion winds or in the neutron star magnetosphere (Bozzo et al. 2009). Continued monitoring of these objects by instruments with the level of sensitivity available to Suzaku will be necessary to characterize the range of wind clumping parameters and the dependence on orbital phase and to unify the description of wind-accreting HMXBs.

This research is partially supported by NASA grant NNX08AL35G and by the Spanish Ministerio de Ciencia e Innovación (MICINN) under grants AYA2008-06166-C03-03 and CSD2006-70. We thank the scheduling and user-support teams of the Suzaku mission for their assistance. D.M.S. thanks Laurel Ruhlen for useful conversations. We are grateful to the anonymous referee for pointing out a number of relevant results in the recent literature.
