ABSTRACT

The Advanced Camera for Surveys and the Near Infrared Camera and Multi-Object Spectrometer (NICMOS) have been used to obtain new Hubble Space Telescope images of NGC 4038/4039 ("The Antennae"). These new observations allow us to better differentiate compact star clusters from individual stars, based on both size and color. We use this ability to extend the cluster luminosity function (LF) by approximately 2 mag over our previous WFPC2 results, and find that it continues as a single power law, dN/dLLα with α = −2.13 ± 0.07, down to the observational limit of MV ≈ −7. Similarly, the mass function (MF) is a single power law dN/dMMβ with β = −2.10 ± 0.20 for clusters with ages <3 × 108 yr, corresponding to lower mass limits that range from 104 to 105M, depending on the age range of the subsample. Hence, the power-law indices for the luminosity and MFs are essentially the same. The LF for intermediate-age clusters (i.e., ∼100–300 Myr old objects found in the loops, tails, and outer areas) shows no bend or turnover down to MV ≈ −6, consistent with relaxation-driven cluster disruption models which predict the turnover should not be observed until MV ≈ −4. An analysis of individual ∼0.5 kpc sized areas over diverse environments shows good agreement between values of α and β, similar to the results for the total population of clusters in the system. There is tentative evidence that the values of both α and β are flatter for the youngest clusters in some areas, but it is possible that this is caused by observational biases. Several of the areas studied show evidence for age gradients, with somewhat older clusters appearing to have triggered the formation of younger clusters. The area around Knot B is a particularly interesting example, with a ∼10–50 Myr old cluster of estimated mass ∼106M having apparently triggered the formation of several younger, more massive (up to 5 × 106M) clusters along a dust lane. A comparison with new NICMOS observations reveals that only 16% ±  6% of the IR-bright clusters in the Antennae are still heavily obscured, with values of AV>3 mag.

Export citation and abstract BibTeX RIS

1. INTRODUCTION

The Antennae (NGC 4038/39) are the youngest and nearest example of a pair of merging disk galaxies in the Toomre (1977) sequence. As such, they have been observed in virtually every wavelength regime: radio (e.g., Wilson et al. 2000, 2003; Neff & Ulvestad 2000; Hibbard et al. 2001; Zhu et al. 2003; Schulz et al. 2007), infrared (e.g., Mirabel et al. 1998; Kassin et al. 2003; Wang et al. 2004; Brandl et al. 2005, 2009; Mengel et al. 2005; Clark et al. 2007; Rossa et al. 2007; Gilbert & Graham 2007; Mengel et al. 2008), optical (Rubin et al. 1970; Whitmore & Schweizer 1995; Whitmore et al. 1999; Kassin et al. 2003; Bastian et al. 2006), ultraviolet (e.g., Hibbard et al. 2005), and X-ray (e.g., Fabbiano et al. 2003, 2004; Metz et al. 2004; Zezas et al. 2006, 2007). One important result has been the discovery that much of the star formation occurs in the form of massive compact star clusters (Whitmore & Schweizer 1995; Whitmore et al. 1999), often referred to as "super star clusters." Some of these clusters have properties expected of young globular clusters (i.e., mass, effective radius, etc.). Hence, it may be possible to study the formation (and disruption, see Fall et al. 2005, hereafter FCW05; Whitmore et al. 2007, hereafter WCF07; and Fall et al. 2009, hereafter FCW09) of globular clusters in the local universe rather than trying to determine how they formed some 13 Gyr ago.

One of the primary challenges for previous observations of the Antennae was the difficulty of distinguishing faint young clusters from individual young stars, which can be as luminous as MV ≈ −9. The Advanced Camera for Surveys (ACS), with its superior spatial resolution over a wider field of view (FOV) than the WFPC2, provides an opportunity to improve this situation. The ability to better distinguish faint clusters from stars provides several new science opportunities. The first is an extension of the cluster luminosity and mass functions (MFs) to lower values. A large number of studies have found that the young cluster luminosity function (LF) in a variety of star-forming galaxies is a power law of the form ϕ(L)dLLαdL with a value of α ≈−2 (e.g., see compilations in Whitmore 2003; Larsen 2006a, 2006b; de Grijs & Parmentier 2007). However, recently there have been claims (e.g., Fritze-von Alvensleben 2004; de Grijs & Parmentier 2007; Anders et al. 2007) that the initial cluster LF has a turnover at faint magnitudes and is closer to the Gaussian form found for old globular clusters. The ability to push the LF about 2–3 mag fainter provides a more stringent test of the power-law nature of the initial cluster LF. Areas in the outskirts of the galaxy provide an especially sensitive test, since their low background levels allow cluster detections to fainter magnitudes. Most of the clusters in these tails, loops, and outer areas have intermediate ages (approximately 100–300 Myr) and have, therefore, survived the initial stages of cluster disruption or "infant mortality" associated with the removal of interstellar material (see Hills 1980; Lada et al. 1984; Boily & Kroupa 2003; Bastian & Goodwin 2006; and Fall et al. 2010 for theoretical discussions and Lada & Lada 2003, FCW05, and WCF07 for observational evidence).

Several studies have also found that the young cluster MF in a variety of galaxies is a power law of the form ϕ(M)dMMβdM with a value of β ≈−2 (e.g., Zhang & Fall 1999 in the Antennae; Hunter et al. 2003 in the Magellanic Clouds; Bik et al. 2003 in M51; and Chandar et al. 2010c in M83). While the LF and MF are sometimes considered to be interchangeable, this is not true for populations of clusters that include a wide range of ages, and hence mass-to-light ratios. In fact, the observed similarity in the values of α and β can be used as indirect evidence that the age and mass distributions are independent, at least up to ages of 300 Myr (e.g., Fall 2006). This independence has been established more directly in FCW05, and can be expressed explicitly by the fact that the bivariate mass–age distribution g(M, τ) can be approximated by the product of the univariate mass and age distribution: g(M, τ) ≈Mβτγ (FCW05; WCF07; FCW09).

There have also been claims for several galaxies, including the Antennae, that there is a cutoff to the upper mass with which clusters can form (e.g., Gieles et al. 2006; Bastian 2008; Larsen 2009), and that there are bends in the age distributions of some galaxies (e.g., Boutloukos & Lamers 2003, and Lamers et al. 2005). However, based on our WFPC2 data, we found that both the MF and the age distribution are simple power laws (see FCW09 for discussion). We suspect that these apparent discrepancies are due to selection effects in other studies, in particular to the exclusion of crowded regions that contain most of the young clusters. In this paper, we examine whether or not there is evidence for such bends or cutoffs from our new ACS data set.

A second new science opportunity enabled by the high-resolution ACS images is to dissect the contents, both clusters and individual stars, in some of the spectacular star forming knots found in the Antennae. We will be able to assess whether some of the universal trends found for star-forming galaxies, such as the correlation between the absolute visual magnitude of the brightest cluster and the total number of clusters (e.g., Whitmore 2003), hold or not in individual sub-kpc regions of the Antennae. Age and mass estimates for the clusters in these regions will allow us to assess how star formation proceeds in these extreme environments, and whether there is evidence for sequential star formation.

In this paper, we adopt a distance modulus of 31.71 mag for the Antennae, as found by Schweizer et al. (2008) based on the Type Ia supernova 2007sr. This modulus corresponds to a distance of 22 Mpc for a Hubble constant of H0 = 72 km s−1 Mpc−1. Note that this distance is slightly further than that adopted in our earlier papers (19.2 Mpc), and quite different from the shorter distance of 13.3 Mpc found by Saviane et al. (2008), based on an apparent misidentification of the tip of the red giant branch (see Schweizer et al. 2008 for details). At a distance of 22 Mpc, 1'' is equivalent to 107 pc, and one 0farcs05 ACS/WFC pixel covers 5.33 pc.

The remainder of this paper is organized as follows. Section 2 describes the observations and photometric reductions; Section 3 gives details of our procedure to estimate the ages and masses of the clusters; and Section 4 summarizes our method for separating stars and clusters (with more details included in the Appendix). We compare the 50 most luminous, massive, and IR-bright clusters in Section 5; examine the LF of star clusters in the Antennae in Section 6, and then the mass and age distributions in Section 7. In Section 8, we perform a detailed analysis of the cluster populations in star-forming knots and other regions, and Section 9 discusses patterns of star formation, including triggered star formation. A summary is provided in Section 10. Future papers will include a more detailed study of the age, mass, and size distributions of the clusters (R. Chandar et al. 2010, in preparation) and will incorporate our NICMOS observations of the Antennae more fully (B. Rothberg et al. 2010, in preparation).

2. DATA AND ANALYSIS

2.1. Optical ACS Observations

Observations of the main bodies of NGC 4038/39 were made with the Hubble Space Telescope (HST), using the ACS, as part of Program GO-10188. Multi-band photometry was obtained in the following optical broadband filters: F435W (≈B), F550M (≈V), and F814W (≈I). Observations in V were made using the medium-width filter F550M rather than the more widely used broadband filter F555W to minimize possible contamination from [O iii] and other nebular emission lines. Additional observations were made using the narrowband filter F658N to study Hα emission at the redshift of the Antennae. All optical observations were made with the Wide Field Camera (WFC) of the ACS, with a scale of 0farcs049 pixel−1 yielding a FOV of ∼202'' × 202''. Four separate exposures were taken for each of the filters F435W, F658N, and F814W, yielding total exposure times of 2192 s, 2300 s, and 1680 s, respectively. Six separate exposures were taken through the F550M filter, with a total exposure time of 2544 s. The longer integration and larger number of dither pointings maximized the spatial resolution of the F550M observations. Slightly shorter ACS/WFC exposures were also taken at two positions in the Southern tail, using the filters F435W, F550M, F658N, and F814W, and will be presented in a future paper.

Archival F336W photometry of the Antennae (Program GO-5962) was used to supplement our optical ACS/WFC observations. Two sub-pixel dither positions separated by 0farcs025 were observed through the F336W filter, yielding a total exposure time of 4500 s.

The flatfielded ACS/WFC images were co-added using the task MULTIDRIZZLE (Koekemoer et al. 2002) in PyRAF/STSDAS. A PIXFRAC value of 0.9 and a final scale of 0farcs045 pixel−1 were used for each of the filters. A second, higher resolution F550M image was constructed to take advantage of the additional pointings. This "super-resolution" image was constructed using a PIXFRAC value of 0.7 and has a scale of 0farcs03 pixel−1. From here on we will use the term "super-res" to denote the 0farcs03 pixel F550M image. The archival WFPC2/F336W images were co-added in a manner similar to that used by Whitmore et al. (1999), but using MULTIDRIZZLE rather than the older DRIZZLE task. Each chip was treated separately, creating four final output images (PC, WF2, WF3, and WF4). A PIXFRAC value of 0.8 was used for all four chips, resulting in final scales of 0farcs035 pixel−1 for the PC chip and 0farcs075 pixel−1 for each of the WF chips.

Figure 1 shows a color image of the Antennae produced by Lars Christensen (ESA). The F435W image is shown in blue, F550M is shown in green, and a combination of the F814W and F658N (Hα) images is shown in red. One intriguing aspect of this color image is that it makes it possible to tell the difference between regions that are red because they have strong Hα emission (these have a pinkish tint) and regions that are red because they suffer strong reddening due to dust (these have an orange tint).

Figure 1.

Figure 1. Color image of NGC 4038/4039 produced by Lars Christensen (ESA). The F435W image is shown in blue, the F550M image in green, and a combination of the F814W and Hα images in red.

Standard image High-resolution image

Catalogs of cluster candidates were constructed from the F550M "super-res" image using the task DAOFIND in IRAF. The higher resolution of the "super-res" image is better suited to separate close objects that might otherwise remain blended in the lower resolution images. Removal of artifacts (e.g., hot pixel residuals, remaining cosmic rays) and background galaxies was aided by the calculation of a "Concentration Index" C for each object, which is taken to be the difference between magnitudes measured within a 1 and a 3 pixel radius (see Whitmore et al. 1999). We note that more concentrated objects, such as stars, have lower values of C (i.e., ≈1.45), while extended objects, such as clusters, have larger values of C (i.e., >1.52). Hence, this parameter might more properly be called a "diffuseness" index. However, for historical uniformity we prefer to retain the term "Concentration" index. We also used the FWHM measured by the IRAF task RADPROF, and a parameter which we refer to as the "Flux Ratio," which is defined to be the ratio of the flux in a 3 pixel radius aperture to the flux measured in the background annulus. This parameter was found to be useful for removing false detections in areas of dust. The final object catalog was assembled using parameter values of C>0.0, 1.5 pixels <FWHM < 5.5 pixels, and a flux ratio > 1, and contained 60,790 candidate objects. For reference, a typical FWHM for stars in the Antennae is 1.7 pixels and for clusters is 2.0 pixels.

It has been suggested that the C technique, which uses the difference between magnitudes measured within two different apertures, may be sensitive to the precise center of an object at the sub-pixel level (Anders et al. 2006). If true, this would mean that objects of the same intrinsic size, but falling at the center of a pixel versus near the edge of a pixel, might have values of C that differ by as much as a magnitude or more according to Figure 29 in Anders et al. We tested for this effect by comparing our measured values of C for a number of isolated point sources believed to be foreground stars (i.e., Training Set 1 below). Figure 2(a) shows little, if any, trend. That is, if we break the sample in half, objects with more central pixel values have a mean $\bar{\mbox{$C$}} = 1.437\, \pm \, 0.014$, while objects centered more on the pixel edges have a value of $\bar{\mbox{$C$}} = 1.459 \pm 0.013$. Hence, the difference in $\bar{\mbox{$C$}}$ is only 0.022 ±  0.019. We can increase the sample by including all objects with C < 1.52 and V < 23 mag. While this sample may include some unresolved clusters in addition to stars (as discussed in Section 4), we again see no discernible trend, with more centrally positioned objects having a mean $\bar{\mbox{$C$}} = 1.459 \pm 0.005$, while objects with centers closer to the edge of a pixel have $\bar{\mbox{$C$}}=1.460 \pm 0.005$. Hence, the difference is 0.001 ± 0.006. These comparisons show that centering has a negligible effect on our measurements of C. We also note that while using as large a radius as advocated by Anders et al. (i.e., ∼5 pixels) might be optimal when objects are well separated, in crowded fields similar to the Antennae smaller apertures are clearly to be preferred.

Figure 2.

Figure 2. Values of the concentration index C, the difference between magnitudes measured within a 1 and a 3 pixel radius, are plotted vs. the positions of objects relative to the pixel center for (a) a sample of 26 isolated foreground stars and (b) candidate stars selected for having values of C < 1.52 and V < 23 mag. Note that there are no clear trends, contrary to the claims made by Anders et al. (2006).

Standard image High-resolution image

The IRAF tasks XY2RD and RD2XY were used to convert object coordinates in the "super-res" F550M image to the F435W, F550M, F658N, and F814W ACS/WFC image coordinate system, as well as to the F336W WFPC2 coordinate system. Any remaining small shifts in object positions were determined for each filter from the task GEOMAP. Aperture photometry for the ACS/WFC data was performed using the IRAF task PHOT, with a 2 pixel radius and inner and outer background annuli of 4 and 7 pixels, respectively, corresponding to angular sizes of 0farcs09, 0farcs18, and 0farcs315 in radius. The VEGAMAG zeropoint values for ACS/WFC of 25.779, 24.867, and 25.501 mag were used for the F435W, F550M, and F814W images (Sirianni et al. 2005). Aperture photometry for the F336W WFPC2 data on the PC chip was conducted using an aperture with a 2 pixel radius and inner and outer background annuli of 4 and 7 pixels, respectively, corresponding to angular sizes of 0farcs07, 0farcs14, and 0farcs245, respectively. An aperture radius of 1.5 pixels, and inner and outer background annuli of 3 and 6 pixel radii, corresponding to 0farcs112, 0farcs225, and 0farcs45, respectively, were used for the WF2, WF3, and WF4 chips.

Aperture corrections, defined as the amount of light in magnitudes required to extrapolate from an aperture magnitude to a total magnitude, were derived by making photometric measurements of isolated, high signal-to-noise (S/N) clusters in each filter (for the F550M filter this was done on both the normal and "super-res" ACS/WFC images) and for each individual CCD in the WFPC2 data. Aperture corrections for clusters were found to be significantly larger than those for isolated stars, for all instruments and filters. A median value was used for the aperture corrections for each filter. The aperture corrections used for the 2 pixel photometry of the normal ACS/WFC images correspond to 0.905, 0.890, and 0.915 mag for the F435W, F550M, and F814W images, respectively. The aperture corrections for the 3 pixel photometry of the "super-res" F550M image was 0.886 mag. These aperture corrections are for the 2 or 3 pixel apertures to a 0farcs5 radius aperture. Aperture corrections from 0farcs5 to infinity were taken from Sirianni et al. (2005).

Taking the different sizes of clusters into account properly would require different aperture corrections for each cluster. We experimented with making such corrections by deriving a formula relating aperture corrections and C indices for isolated, high S/N clusters. While this works well for many clusters, in crowded regions where values of C can be very uncertain the use of the formula adds considerable noise. Hence, corrections for variable cluster sizes have not been made in this paper, but will be revisited in a future paper (R. Chandar et al. 2010, in preparation). We note that while this use of constant corrections typically makes individual absolute magnitudes of clusters uncertain by a few tenths of a magnitude (and more than a full magnitude in a few exceptional cases), the effects on colors are negligible since the latter are determined from fixed apertures.

Aperture corrections for the F336W images and the 2 pixel PC and 1.5 pixel WF2, WF3, and WF4 apertures correspond to 1.041, 0.989, 0.937, and 1.055 mag, respectively. These corrections take the photometry in 2 or 1.5 pixel radius apertures to 0farcs5. The standard 0.1 mag correction from 0farcs5 to infinity was then added to the above corrections (Holtzman et al. 1995). We also applied charge transfer efficiency (CTE) corrections to the WFPC2/F336W photometry based on the prescription given by Dolphin (2000).9 We computed the X and Y coordinates for each object on the original images for each dither position. For objects appearing in both dither positions we adopted weighted averages of the CTE correction.

In addition to the data described above, long-slit Hα observations using the Space Telescope Imaging Spectrograph (STIS) were planned as part of this proposal, similar to those reported by Whitmore et al. (2005). Unfortunately, STIS stopped working before these observations could be obtained.

Completeness corrections were determined by adding artificial clusters in regions of different background levels to the F550M "super-res" image, using the IRAF task MKOBJECT. These artificial clusters had the same median values of C and FWHM as real cluster candidates over a magnitude range of 18–28. The artificial clusters were then run through the same detection algorithms as used for real cluster candidates. Recovery of the artificial clusters was based on two criteria: (1) whether the recovered luminosity was within ± 0.1 mag of the input magnitude, and (2) whether the recovered artificial cluster was detected within ± 0.5 pixel of its input coordinates. The numbers of recovered artificial clusters were then sorted as a function of the background level (we used seven different background levels), binned in 0.25 mag bins, and compared with the initial numbers of artificial clusters. Completeness curves were constructed by smoothing the binned data using a boxcar smoothing algorithm and interpolating a curve through these points. Figure 3 shows the completeness curves for the different background levels. The dashed horizontal line marks the 50% completeness level. The completeness limits in V at 50% for the seven background levels are 26.5, 26.4, 26.0, 25.3, 24.7, 24.2, and 23.3 mag, respectively.

Figure 3.

Figure 3. Completeness curves as determined from artificial object experiments for different background levels. The background levels (in units of electrons s−1) are 0 ⩽ I ⩽ 0.014; 0.014 < II ⩽ 0.020; 0.020 < III ⩽ 0.040; 0.040 < IV ⩽ 0.060; 0.060 < V ⩽ 0.090; 0.090 < VI ⩽ 0.120; and VII>0.120.

Standard image High-resolution image

In the rest of this paper, we will sometimes use the loose terminology "U" for the F336W filter for brevity, and similarly "B" for F435W, "V" for F550M, and "I" for F814W.

2.2. Near-infrared NICMOS Observations

Infrared observations were made using the Near Infrared Camera and Multi-Object Spectrometer (NICMOS) camera on HST as part of Program GO-10188. Observations were made using the NIC2 camera with the F160W, F187N, and F237M filters, and the NIC3 camera with the F110W, F160W, F164W, F187N, and F222M filters. Only the NIC3 results are briefly discussed here. See B. Rothberg et al. (2010, in preparation) for a more detailed presentation of the NICMOS data.

Two sets of NIC3 observations of the "overlap region" were carried out, one including the northern nucleus (NGC 4038) and the other the southern nucleus (NGC 4039). The NIC3 data were not reduced using the standard pipeline products. Instead, raw files were obtained from the archives and were first processed with the routine CALNICA, which flattens the data and performs instrumental calibration of the data, including dark current subtraction, non-linearity correction, conversion to count rates, and cosmic-ray identification. The output data were then processed with the task PEDSUB, which subtracts quadrant-dependent residual biases. Next, hot pixels were identified manually and masked. Finally, foreground stars were identified and masked. The F222M observations included an additional set of observations of a blank field for the purpose of background subtraction, since thermal contributions from the telescope are important in this bandpass.

The NICMOS observations were combined using the MULTIDRIZZLE task in STSDAS with the default values. The linear scale of NIC3 images is 0farcs20 pixel−1. However, the NIC3 observations were dithered, and the increased sampling made it possible to produce higher resolution data. The data in all three filters were rescaled to a final linear scale of 0farcs15 pixel−1 using a PIXFRAC value of 0.8. The data were rotated to a position angle of 0°, and all bad pixels were ignored in the final combination. No interpolation was used to correct for saturated or bad pixels. Testing of interpolation showed that leaving this turned on in MULTIDRIZZLE produces spurious results in cluster detection and photometry.

Photometry was conducted on the final data once they were divided by an ADCGAIN value of 6.5. The photometric zeropoints used for the photometry correspond to 22.610, 21.818, and 20.134 mag in the F110W, F160W, and F222M filters, respectively, and are on the VEGAMAG system. The aperture sizes used for the candidate-cluster photometry were 1.5 pixels in each filter, which corresponds to an angular size of 0farcs225 and a spatial size of 24.1 pc. Aperture corrections were measured to compensate for missing flux. Unfortunately, due to the limited FOV no high S/N isolated clusters could be identified for measuring aperture corrections. Hence, archival data for Program 9997 (PI: Dickinson, Photometric Recalibration of NICMOS) were retrieved and processed in the exact same manner as the target observations for the purpose of obtaining aperture corrections. The FWHM of cluster candidates on the NIC3 images of the Antennae was found to be very similar to point sources from Program 9997, justifying the use of point-source aperture corrections for the slightly resolved (at least by ACS standards) clusters in the Antennae. Two sets of aperture corrections were applied. The first corrected the 0farcs225 aperture to a 1farcs1 aperture used for the photometry zeropoint determination.10 These aperture corrections correspond to 0.548, 0.628, and 0.723 mag for the F110W, F160W, and F222M filters, respectively. Additional aperture corrections of 0.059, 0.090, and 0.121 mag for the F110W, F160W, and F222M filters, respectively, were used to extrapolate to infinity.

3. AGE DATING THE CLUSTERS

We age date the clusters using our ACS observations in the UBVIHα filters, following procedures very similar to those used for our earlier WFPC2 data (e.g., FCW05). We estimate the age, extinction, and mass of each cluster by comparing the integrated photometry described above with predictions from S. Charlot & A. G. Bruzual (2007, private communication, hereafter CB07; also see Bruzual & Charlot 2003) population synthesis models. Figure 4 shows a U − B versus V − I two-color diagram for the 160 brightest observed sources in the V filter (mV ⩽ 21.0; MV ⩽ −10.7). At these high luminosities, all of the objects should be clusters. The measured colors are compared with the CB07 population synthesis models, which are provided on the HST VEGAMAG system, with open star symbols marking the predicted locations of 106, 107, 108, 109, and 1010 yr old model clusters, starting from the upper left. The arrow in the diagram shows the reddening vector for AV = 1.0 mag. Overall, the model predictions match our cluster photometry relatively well. At the top end there are a fair number of clusters that fall above the models, due to either photometric uncertainties, inappropriate models, or a combination of the two. The open circles represent our measurements of Bastian et al. (2009) clusters and show that these clusters span a relatively large range in color–color space and, hence, in age. A few of the Bastian et al. clusters are not in our sample of the brightest 160 clusters, whence they do not feature a data point at the center of the circle. Two clusters (T54 and T270) are highlighted and will be discussed in more detail below.

Figure 4.

Figure 4. UB vs. VI diagram for the 160 brightest candidate clusters in the Antennae. The solid line shows the evolutionary track of a CB07 model cluster of solar metallicity, with open stars denoting cluster ages of 106, 107, 108, 109, and 1010 yr (labeled in Myr in the figure). Circled points also have spectroscopic observations by Bastian et al. (2009), providing independent age estimates. A few of the Bastian et al. clusters are not in our sample of the brightest 160 clusters, whence they do not feature a data point at the center of the circle. The arrow shows the reddening vector for AV = 1.0 mag. For details, see the text.

Standard image High-resolution image

While two-color diagrams as shown in Figure 4 are useful for visualizing the evolution of clusters, and hence are used extensively in this paper, we note that we actually use a χ2 minimization technique for age dating. This means that points outside the models (e.g., the "high" points in Figure 4) can be reasonably well fit. We estimate the age τ and extinction AV for each cluster by performing a least χ2 fit that compares observed magnitudes with magnitudes predicted from CB07 stellar population models with solar (Z = 0.02) metallicity, appropriate for young stars and clusters in the Antennae (Christopher 2008; Bastian et al. 2009). The best-fit combination of τ and AV returns the minimum χ2: χ2(τ, AV) = ∑λWλ(mobsλmmodλ)2, where the sum runs over all available broad- and medium-band (UBVI) filters and the F658N narrowband filter, but requires a minimum of three measurements (including the V band) to estimate age and extinction. The weights are related to the photometric uncertainty σλ through Wλ = [σ2λ + (0.05)2]−1. The F658N filter includes both continuum and (nebular) line emission, and is dominated by line emission for the youngest objects (τ ≲ several × 106 Myr) and by continuum emission for older objects with τ ≳ 107 yr. This enables us to use the narrowband filter as a fifth data point in many cases, regardless of the age of a cluster. We find that including the narrowband filter helps to break the age-extinction degeneracy, leading to more accurate age estimates in a number of cases. In a forthcoming paper (R. Chandar et al. 2010, in preparation) we will provide a more comprehensive description of our age-dating procedure.

Figure 5 (left panel) compares our photometric age estimates for 15 clusters with the spectroscopic ages determined by Bastian et al. (2009) from absorption- and emission-line features in ground-based integrated cluster spectra. This comparison shows that the photometric and spectroscopic age estimates agree within the uncertainties for all but two of the clusters, T54 and T270. Our age estimates are older in both cases. For T270 the discrepancy is probably due to a spatial resolution effect. Whereas we do not see any Hα emission in our small-aperture measurements, consistent with our age estimate of log τ = 7.86, the ground-based spectrum obtained through a much larger aperture shows strong emission lines (see Figure 3 by Bastian et al.). This interpretation is consistent with a blowup of the region shown in the lower right panel of Figure 5 (originally from our Figure 1), which reveals Hα emission close to, but not coincident with the cluster. Although Bastian et al. exclude emission lines from their fits, it appears that light from younger stars surrounding the cluster may contribute to the stellar continuum within their larger aperture, thereby affecting their results, since they find an age of log τ < 6.8 for T270. For T54 the color image shows no surrounding Hα emission (see Figure 5). This object could be either an older cluster with low extinction or a younger cluster with higher extinction. The location of this cluster in the two-color diagram (Figure 4) is consistent with both age estimates, our log τ = 8.16 and Bastian et al.'s log τ = 6.9. However, the lack of other nearby clusters and any Hα emission makes the younger age estimate somewhat suspect.

Figure 5.

Figure 5. Comparison between spectroscopic estimates of cluster ages by Bastian et al. (2009) and our photometric age estimates for 15 clusters (note that four data points overlay each other near [6.78, 6.65]). Images of the two outliers T54 and T270 are shown to the right, with our aperture size (radius = 0farcs09) marked by the small circles, and the approximate aperture (slit width = 0farcs75; no correction for ground-based seeing) used by Bastian et al. (2009) marked by the larger squares. For details, see the text.

Standard image High-resolution image

Other authors (e.g., Anders et al. 2004) have found that including near-IR filters in the age-dating process can be useful. We have chosen to not include the NICMOS observations in our age determinations in this paper for a variety of reasons, including the following two: our NICMOS images cover only ∼50% of the area covered by the ACS images, and the difference in spatial resolution between the NICMOS and ACS images would lead to serious difficulties in crowded areas. We plan to revisit this issue in future papers.

4. DIFFERENTIATING STARS FROM CLUSTERS

In Whitmore et al. (1999), one of our primary difficulties was differentiating individual stars from star clusters. The new ACS data presented here, with their higher spatial resolution, provide an opportunity to better separate the two. The concentration index C, the difference between magnitudes measured within a 1 and a 3 pixel radius, is one of the primary tools we use to help differentiate stars from clusters based on their image size.11

We begin by identifying three "training sets" of objects: (1) a set in a relatively isolated area primarily containing foreground stars and ancient globular clusters; (2) one in an area of the Northwest Extension (Outer 9 in Figure 17; see also Figure 5 in Whitmore et al. 1999) containing primarily intermediate-age clusters (∼100–300 Myr); and (3) one in a crowded area (Knot S) containing both individual young stars and clusters. The lessons learned from these three training sets will then be applied to objects in the entire galaxy. Many additional details and information on the training sets are given in the Appendix.

Based on Training Set 1 (Figure 6) we find that overall the concentration index C separates well most stars from old globular cluster candidates, with 1.37 < C < 1.52 ($\bar{\mbox{$C$}}=1.448$, sample rms = 0.049) for stars and 1.62 < C < 1.78 ($\bar{\mbox{$C$}}=1.676$, rms = 0.052) for old globular clusters. We therefore adopt a value of C = 1.52 as our boundary between unresolved and resolved objects. Stars and ancient-cluster candidates also separate fairly nicely in U − B versus V − I two-color diagrams (Figure 6(b)). This relatively good separation is important for cases where it is difficult to differentiate stars from clusters based on size alone, such as in very crowded regions. See Tables 1 and 2 and Appendix A.1 for more details concerning Training Set 1.

Figure 6.

Figure 6. Properties for Training Set 1, which consists of hand-selected stars (open circles) and candidate old globular clusters (filled circles) from Whitmore et al. (1999) in the field of the Antennae galaxies. The upper panel shows the computed absolute magnitude MV plotted vs. concentration index C, while the lower panel shows a two-color plot, UB vs. VI, for the same objects. The arrow marks a reddening corresponding to AV = 1 mag, assuming a standard Galactic extinction law, while the solid line shows the evolutionary track of a CB07 model star cluster of solar metallicity.

Standard image High-resolution image

Table 1. Training Set 1: Isolated Stars

No. ID R.A. Decl. V C U − B V − I
(1) (2) (3) (4) (5) (6) (7) (8)
 1 613 12:01:55.7415 −18:54:34.579 22.24 1.39 ... 0.68
 2 1136 12:01:54.5631 −18:54:20.884 23.32 1.46 ... 2.45
 3 2630 12:01:54.1272 −18:54:00.581 19.50 1.51 ... 1.46
 4 4839 12:01:48.6882 −18:53:43.771 22.76 1.52 ... 2.54
 5 7023 12:01:46.3254 −18:53:33.566 21.80 1.43 ... 0.96
 6 7491 12:01:46.9367 −18:53:31.676 20.58 1.38 ... 0.91
 7 8480 12:01:48.6734 −18:53:27.519 22.42 1.48 0.98 1.74
 8 8682 12:01:44.3237 −18:53:26.731 20.08 1.52 ... 0.63
 9 9286 12:01:49.1499 −18:53:24.155 22.44 1.41 1.29 2.00
10 10720 12:01:48.8214 −18:53:19.320 22.72 1.47 0.32 0.82
11 12987 12:01:46.9616 −18:53:12.194 23.76 1.37 ... 0.94
12 14982 12:01:49.0956 −18:53:06.515 22.21 1.39 1.65 2.91
13 16825 12:01:53.0615 −18:53:00.087 23.20 1.47 1.77 1.25
14 17004 12:01:50.0916 −18:52:59.413 23.41 1.44 ... 0.82
15 17964 12:01:50.4818 −18:52:56.122 21.50 1.49 1.51 1.71
16 18167 12:01:58.7591 −18:52:55.352 21.16 1.39 2.53 1.21
17 18417 12:01:44.7510 −18:52:54.474 21.05 1.50 ... 0.55
18 20475 12:01:56.2577 −18:52:46.213 20.09 1.44 2.43 2.00
19 21767 12:01:53.3848 −18:52:41.607 22.33 1.51 0.92 1.03
20 27696 12:01:53.7585 −18:52:27.105 20.34 1.39 0.12 0.57
21 29805 12:02:02.2895 −18:52:23.653 18.55 1.49 ... 0.45
22 34825 12:02:02.2330 −18:52:15.868 21.63 1.51 ... 0.57
23 35045 12:02:01.3544 −18:52:15.510 23.65 1.42 ... 1.81
24 50277 12:01:54.9046 −18:51:48.495 19.36 1.43 1.22 1.08
25 60076 12:01:49.8474 −18:51:21.501 18.84 1.39 −0.07 0.64
26 60094 12:01:52.4592 −18:51:21.133 22.60 1.49 ... 2.05

Download table as:  ASCIITypeset image

Table 2. Training Set 1: Old Globular Clusters

No. ID R.A. Decl. MV C U − B V − I Old ID
(1) (2) (3) (4) (5) (6) (7) (8) (9)a
Previous Good Candidates
 1 4150 12:01:51.4714 −18:53:47.899 −9.27 1.41 1.23 0.91 8b
 2 4169 12:01:51.5055 −18:53:47.739 −9.28 1.64 0.29 0.86 6
 3 5129 12:01:51.8439 −18:53:42.270 −9.42 1.64 0.01 0.80 3
 4 5641 12:01:53.1949 −18:53:39.703 −8.36 1.63 0.12 1.10 10
 5 9160 12:01:51.0299 −18:53:24.726 −8.63 1.69 0.09 0.94 9
 6 9443 12:01:50.8450 −18:53:23.616 −9.12 1.64 0.24 1.07 7
 7 10881 12:01:49.6483 −18:53:18.824 −8.12 1.75 0.21 0.89 11
 8 19740 12:01:57.2806 −18:52:49.207 −9.33 1.68 0.24 0.86 5
 9 20383 12:01:54.0195 −18:52:46.552 −10.89 1.48 0.31 0.79 1b
10 42197 12:01:51.8296 −18:52:04.096 −9.45 1.77 −0.14 0.77 2
11 60284 12:01:53.0748 −18:51:15.764 −9.28 1.65 0.10 0.80 4
Additional Good Candidates
12 935 12:01:53.4373 −18:54:24.962 −8.44 1.59 ... 0.86
13 1635 12:01:55.8945 −18:54:12.315 −8.53 1.58 ... 0.75
14 3016 12:01:53.3451 −18:53:57.197 −8.39 1.63 ... 0.81
15 4299 12:01:54.9452 −18:53:46.943 −8.32 1.60 ... 0.96
16 4927 12:01:52.9523 −18:53:43.351 −8.83 1.66 0.84 1.11
17 5234 12:01:54.6394 −18:53:41.680 −8.84 1.67 ... 0.98
18 7651 12:01:56.8215 −18:53:30.965 −8.53 1.73   0.78
19 12230 12:01:51.1248 −18:53:14.541 −8.06 1.62 1.29 1.06
20 16051 12:01:56.4667 −18:53:03.006 −8.19 1.65 0.00 1.20
21 16328 12:01:55.4370 −18:53:01.921 −8.26 1.75 1.11 1.01
22 20154 12:01:52.6369 −18:52:47.577 −8.56 1.60 0.00 0.81
23 21253 12:01:52.3052 −18:52:43.364 −8.22 1.66 0.05 0.83
24 39147 12:01:51.7752 −18:52:09.392 −8.65 1.72 0.45 0.81
25 56458 12:01:56.0763 −18:51:37.157 −9.11 1.59 0.52 1.00
26 59900 12:01:52.8571 −18:51:24.263 −8.78 1.58 0.19 0.83
Additional Fair Candidates
27 2771 12:01:50.8738 −18:53:59.279 −7.94 1.61 0.34 0.75
28 3393 12:01:49.8663 −18:53:53.634 −7.26 1.78 −0.03 0.84
29 7006 12:01:52.9097 −18:53:33.617 −8.47 1.73 −0.15 0.75
30 19624 12:01:54.9801 −18:52:49.689 −8.93 1.62 0.00 0.87
31 22843 12:01:57.7456 −18:52:38.276 −7.16 1.75 0.06 0.88
32 25751 12:01:54.2522 −18:52:30.796 −9.42 1.61 0.67 0.98
33 27148 12:01:58.1976 −18:52:28.094 −7.34 1.80 0.29 0.95
34 39147 12:01:51.7752 −18:52:09.392 −8.65 1.72 0.45 0.81
35 39889 12:01:53.7189 −18:52:08.176 −8.41 1.60 0.15 0.79
36 43099 12:01:53.6510 −18:52:02.501 −8.89 1.67 0.18 0.75
37 44151 12:01:53.4195 −18:52:00.339 −9.21 1.63 0.01 0.90
38 44714 12:01:54.0253 −18:51:59.188 −9.26 1.68 0.11 0.79
39 45810 12:01:51.8726 −18:51:57.080 −8.29 1.76 −0.14 0.82
40 46967 12:01:54.2646 −18:51:54.748 −8.33 1.79 −0.07 0.78
41 47348 12:01:55.5780 −18:51:54.035 −8.26 1.76 0.34 0.76
42 49136 12:01:51.8314 −18:51:50.645 −8.63 1.66 0.74 0.75

Notes. aSee Table 3, Whitmore et al. (1999). bLikely star, based on small value of C. See Appendix A.1 for discussion.

Download table as:  ASCIITypeset image

We use Training Set 2, which is dominated by intermediate age (∼100–300 Myr) clusters in the outer portions of the Antennae, to assess how our measurements of C and age behave at fainter magnitudes. In this age range, the brightest stars should have MV ≈ −3, well below our detection threshold. We find that essentially all objects brighter than MV = −7 have C values expected for extended objects, while at fainter absolute magnitudes the scatter increases and a few objects have C < 1.52 despite the fact that they are probably star clusters (Figure 7). One interesting result is that we find a possible correlation between MV and C for these intermediate-age clusters, in the sense that brighter clusters are typically larger, as might be expected. The cluster sizes in the Antennae will be addressed in more detail in a future paper (R. Chandar et al. 2010, in preparation). Figure 7 also shows that age estimates begin to fail for MV ⩾ −7. See Table 3 and Appendix A.2 for more details concerning Training Set 2.

Figure 7.

Figure 7. Properties for Training Set 2 (in NW Extension), which is dominated by intermediate-age clusters. The upper panel shows that bright sources have concentration indices C expected of clusters. At fainter magnitudes increased observational scatter results in some objects falling into (or even below!) the star category. This demonstrates that using size alone to distinguish stars from clusters breaks down at MV ≈ −7 for isolated objects. Similarly, the bottom panel shows that the age determination breaks down at MV ≈ −7, since none of the plotted objects are believed to have ages of log τ < 8.0.

Standard image High-resolution image

Table 3. Training Set 2 (NW Extension): Intermediate-age Clusters

No. ID R.A. Decl. MV C U − B V − I E(BV) Log τ Mass
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
1 58909 12:01:50.9787 −18:51:30.197 −10.22 1.81 −0.01 0.41 0.00 8.41 3.22 E5
2 58549 12:01:51.0594 −18:51:31.526 −10.10 1.81 −0.08 0.38 0.00 8.36 2.74 E5
3 59721 12:01:50.6764 −18:51:26.030 −9.96 1.84 −0.03 0.39 0.00 8.41 2.56 E5
4 59474 12:01:49.7051 −18:51:27.682 −9.30 1.71 0.30 0.46 0.00 8.56 1.78 E5
5 60197 12:01:49.3203 −18:51:18.795 −9.05 1.72 ... 0.57 0.04 8.26 1.05 E5
6 59798 12:01:49.9133 −18:51:25.384 −8.89 1.89 0.08 0.52 0.00 8.51 1.10 E5
7 59904 12:01:50.0653 −18:51:24.245 −8.72 1.68 0.43 0.43 0.00 8.56 1.02 E5
8 59797 12:01:51.3711 −18:51:25.379 −8.18 1.74 −0.11 0.35 0.00 8.31 4.50 E4
9 58828 12:01:51.2279 −18:51:30.517 −8.11 1.67 0.00 0.65 0.10 8.26 5.29 E4
Likely Star
... 60076 12:01:49.8474 −18:51:21.501 −12.87a 1.39 −0.07 0.64 0.02 ... ...

Note. aThis magnitude is meaningless if the object is a foreground star, but is included in case the object turns out to be a cluster. See the text for discussion.

Download table as:  ASCIITypeset image

Training Set 3 provides a more difficult, but also more typical case of a crowded region including both individual young stars and clusters. Figure 8 shows all objects in and around Knot S, plotted in four two-color diagrams, each for a different range of luminosity. The figure starts with the brightest objects (MV < −10) in the top left panel and ends with relatively faint objects (−8 < MV < −7) in the bottom right panel. The objects with C < 1.52 (i.e., profiles indistinguishable from stars) are shown as open squares, while those with C>1.52 (i.e., resolved) are shown as solid circles. Evolutionary tracks of CB07 solar-metallicity model clusters are shown as solid lines. Padova models for stars brighter than MV = −6 are shown by a string of dots in the top left panel. The arrow shows the reddening vector for AV = 1.0 mag. Based on these models and comparisons with our observations discussed below, we divide the two-color diagram into four distinct regions:

  • 1.
    "cluster space" (UB < 0.6 and VI>0.1),
  • 2.
    "foreground-star space" (UB>0.6 and VI>0.9),
  • 3.
    "yellow-star space" (UB>0.6 and 0.1 < VI < 0.9), and
  • 4.
    "blue-star/cluster space" (VI < 0.1).
Figure 8.

Figure 8. UB vs. VI two-color diagrams for objects around Knot S. Resolved objects (i.e., C>1.52) are shown as filled circles and unresolved objects as open squares. The four panels show objects in different luminosity ranges. The solid lines in each panel show CB07 evolutionary tracks for clusters of solar metallicity, while the dots in Panel (a) show Padova model colors for stars brighter than MV = −7. The dotted lines show the regions of the diagram used to define cluster space, foreground-star space, yellow-star space, and blue-star/cluster space, as discussed in the text.

Standard image High-resolution image

Several conclusions can be drawn from Figure 8. The first is that the brightest objects (i.e., MV < −10) are all consistent with being young (< 10 Myr) clusters with relatively little extinction (i.e., they lie close to the models). This is reassuring, since we have used MV = −9 (i.e., the Humphreys & Davidson 1979 limit) to differentiate clusters from stars in the past (e.g., Whitmore et al. 1999). The upper-right panel (showing objects with −10 < MV < −9) has three point-like objects that fall in or near what we call yellow-star space. These appear to be luminous yellow supergiant stars. We also find several point-like objects in cluster space, indicating that—based on their position in the two-color diagram—some clusters at the distance of the Antennae appear sufficiently concentrated that they cannot be distinguished from stars based on their size alone. Our final, and perhaps most important, conclusion is that in all cases down to MV = −7 more than 60% of the objects are resolved, and hence are clusters. This is actually a conservative lower limit since, as we just noted, many of the unresolved objects are also clusters based on their position in the two-color diagram.

These results have a number of important ramifications, the most important being that the number of faint clusters continues to rise down to at least MV ≈ −7. This provides a counterexample to published claims that the initial cluster LF in some galaxies has a Gaussian-like distribution (e.g., de Grijs et al. 2005; Anders et al. 2007), since this would require that essentially all the faint objects be individual stars. We will address this issue more fully in Section 6 below, when we examine the LF in more detail.

See Tables 4 and 5 and Appendix A.3 for more details concerning Training Set 3, and Appendix A.4 for an extension of this methodology to all of NGC 4038/39 covered by the ACS images.

Table 4. Training Set 3 (Knot S): Mixed Stars and Clusters

No. ID R.A. Decl. MV C U − B V − I E(BV) Log τ Mass
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
Candidate Clusters
 1 32771 12:01:50.5334 −18:52:19.242 −11.20 1.69 −0.93 0.35 0.00 7.51 2.73 E5
 3 33536 12:01:50.7583 −18:52:18.036 −9.51 1.77 0.18 0.52 0.00 8.46 1.83 E5
 6 34134 12:01:50.5929 −18:52:17.080 −8.75 1.68 −0.44 0.62 0.20 8.06 1.05 E5
 9 35118 12:01:50.4052 −18:52:15.428 −11.19 1.57 −1.06 0.36 0.00 7.51 2.74 E5
10 35128 12:01:50.7005 −18:52:15.399 −9.85 1.83 −0.94 0.64 0.64 6.38 1.84 E5
11 35687 12:01:50.5041 −18:52:14.532 −10.48 1.66 −1.03 0.44 0.26 6.76 5.09 E4
12 35780 12:01:50.4830 −18:52:14.404 −10.86 1.79 −1.24 0.22 0.32 6.50 9.55 E4
14 35897 12:01:50.4453 −18:52:14.223 −11.63 1.70 −0.91 0.49 0.00 7.63 4.55 E5
16 36094 12:01:50.4607 −18:52:13.932 −14.63 1.71 −1.68 −0.05 0.12 6.78 1.63 E6
19 37300 12:01:50.5679 −18:52:12.223 −12.93 1.66 −1.00 0.48 0.00 7.51 1.34 E6
21 37521 12:01:50.2009 −18:52:11.865 −10.76 1.84 −1.19 −0.03 0.00 6.78 3.35 E4
Candidate Stars
 2 32864 12:01:50.4862 −18:52:19.094 −10.78 1.50a −1.31 0.19 0.04 6.80a 4.10 E4a
 4 33853 12:01:50.7798 −18:52:17.531 −9.35 1.44 1.23 0.63 0.00 ... ...
 5 34109 12:01:50.3400 −18:52:17.149 −7.31 1.45 −1.64 0.50 0.00 ... ...
 7 34394 12:01:50.1945 −18:52:16.618 −8.25 1.40 −0.30 0.49 0.00 ... ...
 8 34439 12:01:50.5483 −18:52:16.524 −8.92 1.41 −0.80 0.25 0.32 ... ...
13 35829 12:01:50.1773 −18:52:14.329 −8.10 1.40 −0.68 0.53 0.00 ... ...
15 35914 12:01:50.4009 −18:52:14.197 −8.52 1.43 −0.64 0.16 0.22 ... ...
17 36966 12:01:50.4276 −18:52:12.707 −9.58 1.45 −0.68 0.14 0.00 ... ...
18 37058 12:01:50.2591 −18:52:12.555 −10.36 1.79a −1.12 0.02 0.02 6.78a 2.40 E4a
20 37398 12:01:50.3277 −18:52:12.066 −7.33 1.25 −1.65 1.43 0.28 ... ...
22 38311 12:01:50.4612 −18:52:10.702 −9.36 1.46 0.33 0.51 0.00 ... ...
23 38533 12:01:50.5411 −18:52:10.395 −8.86 1.54a −0.68 0.62 0.16 7.91a 8.07 E4a

Note aThese objects are likely to be clusters, based on C and their positions in the two-color diagram, hence age and mass values are included.

Download table as:  ASCIITypeset image

Table 5. Training Set 3 (Knot S): Brightest Candidate Yellow and Blue Stars

No. ID R.A. Decl. MV C U − B V − I
(1) (2) (3) (4) (5) (6) (7) (8)
Yellow Stars
1 38311 12:01:50.4612 −18:52:10.702 −9.36 1.46 0.33 0.51
2 33853 12:01:50.7798 −18:52:17.531 −9.35 1.44 1.23 0.63
3 33032 12:01:50.3345 −18:52:18.862 −9.32 1.40 0.45 0.63
4 34751 12:01:50.2708 −18:52:16.030 −8.85 1.35 0.48 0.35
5 34526 12:01:50.4021 −18:52:16.375 −8.54 1.37 0.50 0.12
6 34034 12:01:50.2675 −18:52:17.256 −8.16 1.44 0.66 0.50
Blue Stars
1 36176 12:01:50.5054 −18:52:13.803 −9.62 1.49 −0.91 −0.20
2 36353 12:01:50.2560 −18:52:13.578 −8.72 1.48 −1.22 −0.19
3 36579 12:01:50.3469 −18:52:13.242 −8.47 1.35 −0.95 0.04
4 36505 12:01:50.2515 −18:52:13.352 −8.20 1.47 −1.51 −0.37
5 32772 12:01:50.4016 −18:52:19.240 −8.18 1.50 −1.50 −0.32
6 34618 12:01:50.6484 −18:52:16.228 −8.06 1.48 −1.40 0.00
7 37952 12:01:50.2040 −18:52:11.238 −8.01 1.50 −1.63 −0.10

Download table as:  ASCIITypeset image

5. FIFTY MOST LUMINOUS, MASSIVE, AND IR-BRIGHT CLUSTERS

In this section, we compare the 50 most luminous (in V: Table 6), most massive (Table 7), and most IR-bright (in F160W: Table 8) clusters. Part of our motivation for doing so is to facilitate comparisons with other studies, since we suspect that at least some of the differing conclusions reached by various authors (see Section 1) result from excluding young clusters in crowded environments. In general these three sets are relatively disjoint, with the most luminous clusters tending to be the youngest (median log τ = 6.78), the IR-bright clusters being older (median log τ = 7.57; after removing those with questionable ages as indicated in Table 8), and the most massive clusters tending to be the oldest (median log τ = 7.84).

Table 6. 50 Most Luminous Clusters

No. ID R.A. Decl. MV Ca U − B V − I E(BV) Log τ Massb Comments
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12)
 1 36094 12:01:50.4607 −18:52:13.932 −14.63 1.71 −1.68 −0.05 0.12 6.78 1.63 E6 (10) Knot S
 2 50776 12:01:51.3963 −18:51:47.562 −14.45 1.61 −1.47 −0.23 0.04 6.78 1.09 E6 (24) Knot G
 3 38220 12:01:53.0075 −18:52:10.829 −14.20 1.52 −1.75 −0.14 0.08 6.76 9.22 E5 (28) Knot K, 13th IR
 4 38639 12:01:53.0355 −18:52:10.223 −13.27 1.67 −1.16 0.00 0.00 6.78 3.30 E5 Knot K, 35th IR
 5 21058 12:01:55.8098 −18:52:44.038 −13.08 1.57 −1.11 0.07 0.22 6.64 5.01 E5 Knot D
 6 36737 12:01:54.7459 −18:52:12.988 −12.93 1.67 −1.21 −0.09 0.00 6.78 2.45 E5 Knot F
 7 37300 12:01:50.5679 −18:52:12.223 −12.93 1.66 −1.00 0.48 0.00 7.51 1.34 E6 (18) Knot S
 8 37254 12:01:56.0399 −18:52:12.264 −12.87 1.61 −0.85 0.58 0.02 7.53 1.35 E6 (17) Region 6
 9 25671 12:01:51.1582 −18:52:30.977 −12.83 1.65 −0.86 0.38 0.00 7.72 1.56 E6 (13) Region 14
10 40713 12:01:50.5088 −18:52:06.752 −12.72 1.67 −1.05 0.10 0.06 6.78 2.39 E5 Knot R
11 32604 12:01:55.4307 −18:52:19.476 −12.68 1.65 −0.77 0.57 0.06 7.70 1.58 E6 (12) Region 7, 1st IR
12 38959 12:01:54.6090 −18:52:09.734 −12.60 1.63 −1.34 −0.17 0.00 6.58 1.60 E5 Knot F
13 36731 12:01:55.9896 −18:52:12.985 −12.54 1.66 −0.81 0.59 0.04 7.63 1.15 E6 (21) Region 6, 2nd IR
14 35177 12:01:54.8864 −18:52:15.318 −12.53 1.68 −0.95 0.09 0.12 6.78 2.37 E5 Knot F
15 15492 12:01:54.6691 −18:53:04.875 −12.39 1.62 −0.32 0.77 1.00 6.40 4.22 E6 (2) Knot B
16 45889 12:01:54.3092 −18:51:56.879 −12.26 1.60 −0.95 0.49 0.00 7.51 7.24 E5 (38) Region 9, 23rd IR
17 25220 12:01:52.0390 −18:52:31.975 −12.25 1.60 −1.07 0.13 0.10 6.78 1.73 E5 Knot M
18 27222 12:01:51.8954 −18:52:27.963 −12.24 1.70 −0.51 0.73 0.12 8.26 2.52 E6 (5) Knot M
19 26993 12:01:52.0013 −18:52:28.376 −12.22 1.66 −0.90 0.29 0.34 6.70 3.30 E5 Knot M
20 15398 12:01:54.5335 −18:53:05.193 −12.20 1.72 −0.74 0.63 0.12 7.68 1.16 E6 (20) Knot B, 8th IR
21 32364 12:01:55.7614 −18:52:19.797 −12.18 1.55 −0.83 0.36 0.00 7.72 8.54 E5 (30) Region 4, 38th IR
22 28556 12:01:53.1260 −18:52:25.650 −12.16 1.68 −0.92 0.53 0.00 7.51 6.60 E5 (42) Region 8, 10th IR
23 30652 12:01:50.5117 −18:52:22.453 −12.11 1.52 −1.09 0.27 0.14 6.74 1.64 E5 Knot T
24 29516 12:01:55.6342 −18:52:24.141 −12.06 1.58 −0.79 0.44 0.00 7.81 8.53 E5 (31) Knot E, 25th IR
25 21464 12:01:55.1483 −18:52:42.579 −12.06 1.78 −0.37 0.45 0.00 8.31 1.61 E6 (11) Region 2, 32nd IR
26 31099 12:01:52.2670 −18:52:21.710 −12.04 1.72 −1.20 0.11 0.04 6.78 1.21 E5 Knot L
27 14003 12:01:53.1657 −18:53:09.214 −12.01 1.75 −0.50 1.04 0.42 7.81 2.81 E6 (4) Knot A
28 31265 12:01:50.4090 −18:52:21.477 −11.99 1.86 −0.92 0.46 0.00 7.53 5.68 E5 (50) Knot T
29 38372 12:01:54.5174 −18:52:10.592 −11.97 1.62 −1.00 0.29 0.10 6.80 1.47 E5 Knot F, 42nd IR
30 55784 12:01:52.7066 −18:51:38.512 −11.92 1.59 −1.39 0.13 0.24 6.46 3.63 E5 Knot P
31 48841 12:01:51.3683 −18:51:51.199 −11.91 1.60 −0.47 1.03 0.44 7.91 3.05 E6 (3) Knot G
32 19275 12:01:55.4319 −18:52:51.151 −11.90 1.92 −1.46 0.39 0.32 6.02 4.68 E5 Knot C
33 19459 12:01:55.4798 −18:52:50.412 −11.90 1.67 −1.47 −0.13 0.10 6.56 1.25 E5 Knot C
34 29784 12:01:55.9339 −18:52:23.711 −11.86 1.66 −0.69 0.54 0.04 7.81 7.88 E5 (35) Region 4, 37th IR
35 42384 12:01:53.1008 −18:52:03.750 −11.85 1.61 −0.52 0.65 0.96 6.40 2.30 E6 (6) Knot J
36 27080 12:01:52.0153 −18:52:28.242 −11.85 1.75 −1.40 0.03 0.20 6.54 1.60 E5 Knot M
37 15502 12:01:54.6349 −18:53:04.827 −11.82 1.82 −1.27 0.11 0.38 6.48 3.12 E5 Knot B
38 19416 12:01:55.4844 −18:52:50.547 −11.81 1.77 −1.47 −0.08 0.00 6.72 8.76 E4 Knot C
39 28042 12:01:51.3940 −18:52:26.497 −11.77 1.70 −0.66 0.24 0.02 8.06 9.96 E5 (26) Region 14
40 25824 12:01:51.1646 −18:52:30.680 −11.77 1.61 −0.91 0.32 0.00 7.72 5.90 E5 (47) Region 14
41 40612 12:01:50.4939 −18:52:06.927 −11.76 1.65 −1.06 0.17 0.10 6.78 1.08 E5 Knot R
42 52713 12:01:51.2689 −18:51:44.205 −11.73 1.77 −1.17 0.54 0.00 7.12 2.18 E5 Knot G
43 32282 12:01:50.3558 −18:52:19.946 −11.72 1.75 −1.21 −0.19 0.04 6.66 9.07 E4 Knot T
44 15466 12:01:54.6439 −18:53:04.958 −11.70 1.84 −1.33 0.22 0.38 6.08 4.23 E5 Knot B, 4th IR
45 35897 12:01:50.4453 −18:52:14.223 −11.63 1.70 −0.91 0.49 0.00 7.63 4.55 E5 Knot S
46 29410 12:01:55.4840 −18:52:24.273 −11.62 1.64 −0.58 0.64 0.18 7.91 1.10 E6 (23) Knot E, 27th IR
47 14034 12:01:53.4714 −18:53:09.111 −11.60 1.75 −1.16 0.16 0.20 6.72 1.28 E5 Knot A
48 14422 12:01:53.3319 −18:53:08.037 −11.60 1.79 −0.62 0.80 0.28 7.86 1.38 E6 (15) Knot A
49 15145 12:01:54.6547 −18:53:06.010 −11.60 1.58 −0.54 0.43 0.58 6.66 3.94 E5 Knot B
50 14550 12:01:53.5296 −18:53:07.726 −11.60 1.63 −1.19 0.10 0.00 6.80 7.74 E4 Knot A

Notes. aValues of C > 1.51 are required for inclusion in this table. bValues in parentheses are the rank order from Table 7.

Download table as:  ASCIITypeset image

Table 7. 50 Most Massive Clusters

No. ID R.A. Decl. MVa Cb U − B V − I E(BV) Log τ Mass Comments
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12)
 1 14612 12:01:55.0360 −18:53:07.529 −7.79 1.67 −1.70 3.16 2.44 6.00 6.80 E6 "WS80"c, near Knot B, 16th IR
 2 15492 12:01:54.6691 −18:53:04.875 −12.39 (15) 1.62 −0.32 0.77 1.00 6.40 4.22 E6 Knot B
 3 48841 12:01:51.3683 −18:51:51.199 −11.91 (31) 1.60 −0.47 1.03 0.44 7.91 3.05 E6 Knot G
 4 14003 12:01:53.1657 −18:53:09.214 −12.01 (27) 1.75 −0.50 1.04 0.42 7.81 2.81 E6 Knot A
 5 27222 12:01:51.8954 −18:52:27.963 −12.24 (18) 1.70 −0.51 0.73 0.12 8.26 2.52 E6 Knot M
 6 42384 12:01:53.1008 −18:52:03.750 −11.85 (35) 1.61 −0.52 0.65 0.96 6.40 2.30 E6 Knot J
 7 32187 12:01:55.2607 −18:52:20.093 −11.28 1.65 −0.13 0.93 0.30 8.31 1.88 E6 Region 7, 19th IR
 8 31730 12:01:55.5385 −18:52:20.760 −11.31 1.74 −0.45 1.16 0.50 7.74 1.71 E6 Knot E
 9 25751 12:01:54.2522 −18:52:30.796 −9.42 1.61 0.67 0.98 0.00 9.68 1.66 E6 Region 8, old globular cluster
10 36094 12:01:50.4607 −18:52:13.932 −14.63 (1) 1.71 −1.68 −0.05 0.12 6.78 1.63 E6 Knot S
11 21464 12:01:55.1483 −18:52:42.579 −12.06 (25) 1.78 −0.37 0.45 0.00 8.31 1.61 E6 Region 2, 32th IR
12 32604 12:01:55.4307 −18:52:19.476 −12.68 (11) 1.65 −0.77 0.57 0.06 7.70 1.58 E6 Region 7, 1st IR
13 25671 12:01:51.1582 −18:52:30.977 −12.83 (9) 1.65 −0.86 0.38 0.00 7.72 1.56 E6 Region 14
14 42257 12:01:53.1051 −18:52:03.964 −11.35 1.58 −0.28 0.70 1.08 6.50 1.39 E6 Knot J, 21st IR
15 14422 12:01:53.3319 −18:53:08.037 −11.60 (48) 1.79 −0.62 0.80 0.28 7.86 1.38 E6 Knot A
16 30673 12:01:56.2076 −18:52:22.386 −10.23 1.77 0.04 1.18 0.48 8.41 1.37 E6 Region 4, 47th IR
17 37254 12:01:56.0399 −18:52:12.264 −12.87 (8) 1.61 −0.85 0.58 0.02 7.53 1.35 E6 Region 6
18 37300 12:01:50.5679 −18:52:12.223 −12.93 (7) 1.66 −1.00 0.48 0.00 7.51 1.34 E6 Knot S
19 18848 12:01:54.8341 −18:52:52.841 −7.66 1.67 0.56 3.02 2.20 6.68 1.20 E6 near Knot C, 28th IR
20 15398 12:01:54.5335 −18:53:05.193 −12.20 (20) 1.72 −0.74 0.63 0.12 7.68 1.16 E6 Knot B, 8th IR
21 36731 12:01:55.9896 −18:52:12.985 −12.54 (13) 1.66 −0.81 0.59 0.04 7.63 1.15 E6 Region 6, 2nd IR
22 21028 12:01:55.3679 −18:52:44.177 −11.21 1.53 −0.20 0.47 0.10 8.46 1.14 E6 Region 2
23 29410 12:01:55.4840 −18:52:24.273 −11.62 (46) 1.64 −0.58 0.64 0.18 7.91 1.10 E6 Knot E, 27th IR
24 50776 12:01:51.3963 −18:51:47.562 −14.45 (2) 1.61 −1.47 −0.23 0.04 6.78 1.09 E6 Knot G
25 35561 12:01:55.0547 −18:52:14.710 −10.49 1.63 −0.25 0.95 0.46 8.06 1.08 E6 Knot F
26 28042 12:01:51.3940 −18:52:26.497 −11.77 (39) 1.70 −0.66 0.24 0.02 8.06 9.96 E5 Region 14
27 41030 12:01:53.0442 −18:52:06.195 −11.17 1.66 −0.53 0.67 0.22 8.01 9.38 E5 Knot J, 17th IR
28 38220 12:01:53.0075 −18:52:10.829 −14.20 (3) 1.52 −1.75 −0.14 0.08 6.76 9.22 E5 Knot K, 13th IR
29 9443 12:01:50.8450 −18:53:23.616 −9.15 1.64 0.24 1.07 0.00 9.51 8.87 E5 near Outer 1, old globular cluster
30 32364 12:01:55.7614 −18:52:19.797 −12.18 (21) 1.55 −0.83 0.36 0.00 7.72 8.54 E5 Region 4, 38th IR
31 29516 12:01:55.6342 −18:52:24.141 −12.06 (24) 1.58 −0.79 0.44 0.00 7.81 8.53 E5 Knot E, 25th IR
32 23657 12:01:51.3760 −18:52:35.888 −10.61 1.56 −0.56 0.81 0.36 8.01 8.47 E5 Region 14
33 38235 12:01:54.8023 −18:52:10.810 −11.06 1.55 −0.48 0.92 0.18 8.11 8.17 E5 Knot F, 34th IR
34 40436 12:01:55.3956 −18:52:07.226 −11.21 1.71 −0.43 0.73 0.10 8.16 8.00 E5 Region 7, 41st IR
35 29784 12:01:55.9339 −18:52:23.711 −11.86 (34) 1.66 −0.69 0.54 0.04 7.81 7.88 E5 Region 4, 37th IR
36 31216 12:01:56.2315 −18:52:21.543 −11.20 1.77 −0.44 0.68 0.10 8.16 7.76 E5 Region 4, 46th IR
37 6993 12:01:52.5961 −18:53:33.643 −11.51 1.75 −0.54 0.40 0.02 8.06 7.59 E5 Outer 1
38 45889 12:01:54.3092 −18:51:56.879 −12.26 (16) 1.60 −0.95 0.49 0.00 7.51 7.24 E5 Region 9, 23rd IR
39 14825 12:01:57.8272 −18:53:06.960 −9.37 1.56 ... 0.94 0.00 9.30 7.20 E5 Outer 5, old globular cluster
40 24693 12:01:54.8371 −18:52:33.145 −8.45 1.69 1.27 1.41 1.44 6.00 6.82 E5 Region 2
41 39348 12:01:56.0426 −18:52:09.029 −10.93 1.78 0.04 0.43 0.00 8.46 6.75 E5 Region 6
42 28556 12:01:53.1260 −18:52:25.650 −12.16 (22) 1.68 −0.92 0.53 0.00 7.51 6.60 E5 near Region 8, 10th IR
43 40591 12:01:53.0323 −18:52:06.964 −10.89 1.55 −0.23 0.61 0.96 6.48 6.60 E5 Knot J
44 26387 12:01:55.5827 −18:52:29.540 −9.84 1.62 −0.21 1.09 0.50 8.01 6.20 E5 Region 8
45 38583 12:01:52.7265 −18:52:10.300 −11.52 1.59 −0.73 0.44 0.02 7.91 6.11 E5 near Knot K, 50th IR
46 31419 12:01:56.0175 −18:52:21.251 −11.17 1.71 −0.62 0.69 0.04 8.11 6.01 E5 Region 4, 43rd IR
47 25824 12:01:51.1646 −18:52:30.680 −11.77 (40) 1.61 −0.91 0.32 0.00 7.72 5.90 E5 Region 14
48 27555 12:01:51.5593 −18:52:27.393 −9.11 1.67 −0.15 1.28 0.58 8.31 5.87 E5 Region 14
49 34777 12:01:55.2514 −18:52:15.972 −10.62 1.62 −0.28 0.63 0.10 8.31 5.80 E5 Region 7
50 31265 12:01:50.4090 −18:52:21.477 −11.99 (28) 1.86 −0.92 0.46 0.00 7.53 5.68 E5 Knot T

Notes. aValues in parentheses are the rank order from Table 6. bValues of C > 1.51 are required for inclusion in this table. cSee Whitmore & Zhang (2002) for discussion of this object.

Download table as:  ASCIITypeset image

Table 8. 50 Brightest NICMOS Clusters

No. ID R.A. Decl. MVa C U − B V − I F110W F160W F222M E(BV) Log τ Massa Comments
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15)
 1 32604 12:01:55.4307 −18:52:19.476 −12.68 (11) 1.65 −0.77 0.57 17.92 16.87 16.25 0.06 7.70 1.6 E6 (12) Region 7
 2 36731 12:01:55.9896 −18:52:12.985 −12.54 (13) 1.66 −0.81 0.59 17.92 16.88 16.29 0.04 7.63 1.1 E6 (21) Region 6
 3 19807 12:01:55.2762 −18:52:48.952 −8.83 1.65 ... 2.71 18.48 16.89 16.28 1.00 10.30b  ⋅⋅⋅  b near Knot C
 4 15466 12:01:54.6439 −18:53:04.958 −11.70 (44) 1.84 −1.33 0.22 17.39 16.97 15.94 0.38 6.08 4.2 E5 Knot B
 5 24126 12:01:54.8838 −18:52:34.669 −12.02c 1.39c 1.59 1.49 18.01 17.02 16.93 0.34 10.30b  ⋅⋅⋅  b Region 2
 6 25439 12:01:55.3483 −18:52:31.510 −11.37 1.77 0.64 1.14 18.22 17.15 16.42 0.02 10.30b  ⋅⋅⋅  b Region 2
 7 25895 12:01:55.4406 −18:52:30.513 −11.63c 1.51c 0.63 1.11 18.30 17.23 16.60 0.00 10.27b  ⋅⋅⋅  b Region 2
 8 15398 12:01:54.5335 −18:53:05.193 −12.20 (20) 1.72 −0.74 0.63 18.19 17.24 16.75 0.12 7.68 1.2 E6 (20) Knot B
 9 31730 12:01:55.5385 −18:52:20.760 −11.31 1.74 −0.45 1.16 18.47 17.27 16.51 0.50 7.74 1.7 E6 (8) Region 7
10 28556 12:01:53.1260 −18:52:25.650 −12.16 (22) 1.68 −0.92 0.53 18.35 17.34 16.78 0.00 7.51 6.6 E5 (42) Region 8
11 36270 12:01:55.1438 −18:52:13.650 −9.09 1.64 −1.44 2.07 18.70 17.36 16.66 0.82 6.96 1.9 E5 Region 7
12 33952 12:01:55.2903 −18:52:17.375 −5.58 1.22 0.55 3.86 19.38 17.41 16.38 2.10 6.96 2.5 E5 Region 7
13 38220 12:01:53.0075 −18:52:10.829 −14.20 (3) 1.52 −1.75 −0.14 17.75 17.41 16.83 0.08 6.76 9.2 E5 (28) Knot K
14 31569 12:01:55.5458 −18:52:20.993 −9.24 1.76 −0.58 0.68 18.43 17.43 16.81 0.22 8.01 1.6 E5 Region 7
15 50277 12:01:54.9046 −18:51:48.495 −12.35c 1.43 c 1.22 1.08 18.29 17.48 17.16 0.12 10.30b  ⋅⋅⋅  b Region 9
16 14612 12:01:55.0360 −18:53:07.529 −7.79 1.67 −1.70 3.16 18.70 17.49 15.89 2.44 6.00 6.8 E6 (1) "WS80"d, near Knot B
17 41030 12:01:53.0442 −18:52:06.195 −11.17 1.66 −0.53 0.67 18.63 17.49 16.82 0.22 8.01 9.4 E5 (27) Knot J
18 33331 12:01:55.1975 −18:52:18.356 −8.19 1.60 ... 2.62 19.13 17.53 16.74 0.94 10.30b  ⋅⋅⋅  b Region 7
19 32187 12:01:55.2607 −18:52:20.093 −11.28 1.65 −0.13 0.93 18.67 17.55 16.90 0.30 8.31 1.9 E6 (7) Region 7
20 41285 12:01:53.1005 −18:52:05.728 −9.73 1.84 −0.65 0.73 18.87 17.60 17.05 0.82 6.60 1.4 E5 Knot J
21 42257 12:01:53.1051 −18:52:03.964 −11.35 1.58 −0.28 0.70 18.23 17.61 16.95 1.08 6.50 1.4 E6 (14) Knot J
22 46102 12:01:53.2415 −18:51:56.508 −11.44 1.74 −1.39 0.39 18.71 17.63 17.09 0.00 6.86 8.1 E4 Knot H
23 45889 12:01:54.3092 −18:51:56.879 −12.26 (16) 1.60 −0.95 0.49 18.63 17.67 17.30 0.00 7.51 7.2 E5 (38) Region 9
24 19825 12:01:54.6356 −18:52:48.902 −7.66 1.71 2.98 3.12 19.19 17.67 17.07 1.28 10.30b  ⋅⋅⋅  b Region 2
25 29516 12:01:55.6342 −18:52:24.141 −12.06 (24) 1.58 −0.79 0.44 18.73 17.69 17.28 0.00 7.81 8.5 E5 (31) Knot E
26 42620 12:01:53.1623 −18:52:03.366 −7.81 1.83 ... 2.55 19.21 17.72 16.85 1.90 6.60 5.2 E5 Knot J
27 29410 12:01:55.4840 −18:52:24.273 −11.62 (46) 1.64 −0.58 0.64 18.78 17.73 17.27 0.18 7.91 1.1 E6 (23) Knot E
28 18848 12:01:54.8341 −18:52:52.841 −7.66 1.67 0.56 3.02 19.29 17.79 17.01 2.20 6.68 1.2 E6 (19) near Knot C
29 29955 12:01:55.6571 −18:52:23.458 −11.19 1.65 −0.95 0.59 18.89 17.82 17.24 0.04 7.51 3.0 E5 Knot E
30 19330 12:01:55.4291 −18:52:50.871 −11.39 1.85 −1.60 0.41 18.33 17.85 17.01 0.34 6.16 3.2 E5 Knot C
31 29090 12:01:55.6321 −18:52:24.812 −11.49 1.66 −0.84 0.59 18.96 17.94 17.46 0.04 7.60 4.3 E5 Knot E
32 21464 12:01:55.1483 −18:52:42.579 −12.06 (25) 1.78 −0.37 0.45 18.82 17.97 17.67 0.00 8.31 1.6 E6 (11) Region 2
33 34907 12:01:55.7695 −18:52:15.723 −10.41 1.78 −1.37 0.14 18.88 17.97 17.38 0.00 6.72 2.2 E4 Region 5
34 38235 12:01:54.8023 −18:52:10.810 −11.06 1.55 −0.48 0.92 19.13 18.00 17.44 0.18 8.11 8.2 E5 (33) Knot F
35 38639 12:01:53.0355 −18:52:10.223 −13.27 (4) 1.67 −1.16 0.00 18.35 18.05 17.62 0.00 6.78 3.3 E5 Knot K
36 11721 12:01:55.0537 −18:53:16.055 −10.68 1.51 −0.78 1.30 19.29 18.05 17.02 0.42 7.34 4.4 E5 near Knot B
37 29784 12:01:55.9339 −18:52:23.711 −11.86 (34) 1.66 −0.69 0.54 19.04 18.09 17.61 0.04 7.81 7.9 E5 (35) Region 4
38 32364 12:01:55.7614 −18:52:19.797 −12.18 (21) 1.55 −0.83 0.36 19.06 18.09 17.55 0.00 7.72 8.5 E5 (30) Region 4
39 28435 12:01:55.5053 −18:52:25.815 −10.58 1.81 −1.03 0.52 19.13 18.12 17.49 0.50 6.56 1.1 E5 Knot E
40 35410 12:01:54.9067 −18:52:14.959 −10.97 1.52 −0.92 0.98 18.90 18.16 17.71 0.62 6.74 2.4 E5 Knot F
41 40436 12:01:55.3956 −18:52:07.226 −11.21 1.71 −0.43 0.73 19.24 18.19 17.84 0.10 8.16 8.0 E5 (34) Region 7
42 38372 12:01:54.5174 −18:52:10.592 −11.97 (29) 1.62 −1.00 0.29 19.23 18.23 17.55 0.10 6.80 1.5 E5 Knot F
43 31419 12:01:56.0175 −18:52:21.251 −11.17 1.71 −0.62 0.69 19.25 18.23 17.81 0.04 8.11 6.0 E5 (46) Region 4
44 35561 12:01:55.0547 −18:52:14.710 −10.49 1.63 −0.25 0.95 19.35 18.24 17.52 0.46 8.06 1.1 E6 (25) Knot F
45 22708 12:01:55.4540 −18:52:38.755 −10.56c 1.49c −0.10 0.96 19.42 18.29 17.75 0.34 8.36 1.1 E6c Region 2
46 31216 12:01:56.2315 −18:52:21.543 −11.20 1.77 −0.44 0.68 19.22 18.29 17.94 0.10 8.16 7.8 E5 (36) Region 4
47 30673 12:01:56.2076 −18:52:22.386 −10.23 1.77 0.04 1.18 19.45 18.30 17.84 0.48 8.41 1.4 E6 (16) Region 4
48 22079 12:01:56.3823 −18:52:40.601 −11.28 1.67 −0.90 0.50 19.37 18.31 17.73 0.28 6.76 1.1 E5 Region 3
49 50088 12:01:53.3190 −18:51:48.866 −11.51 1.66 −0.94 0.53 19.30 18.32 17.87 0.00 7.57 3.8 E5 Knot N
50 38583 12:01:52.7265 −18:52:10.300 −11.52 1.59 −0.73 0.44 19.39 18.33 17.66 0.02 7.91 6.1 E5 (45) near Knot K

Notes. aValues in parentheses are the rank order from Table 6 or 7, as appropriate. bVery questionable age estimate. cMissing in Table 6 and/or Table 7 due to value of C < 1.52. Hence, it is possible that some of these are stars. dSee Whitmore & Zhang (2002) for discussion of this object.

Download table as:  ASCIITypeset images: 1 2

Figure 9 shows the logarithmic age versus mass diagram with circles marking the 50 most massive clusters. Note that there are some objects in the diagram with apparent masses that would qualify them for the top 50, but which have been excluded (i.e., are not circled in Figure 9 or included in Table 7) based on a visual review of the images and the two-color diagrams. These are caused by a variety of interlopers and artifacts (e.g., stars, galactic nuclei, incorrect extinction corrections). The fraction of artifacts is quite low up to values of log τ < 8.6, which will be used in the following sections as an upper limit to reliable age dating (e.g., when constructing the MF). The most important artifact beyond this age is due to clusters that are probably quite young (e.g., are near regions with strong Hα, although they themselves do not have Hα emission) and are heavily extincted by dust (e.g., are in the overlap region). The age-dating algorithm often classifies these as intermediate-age or old clusters due to their red colors and lack of Hα emission, hence giving them larger masses than they actually possess. This is the well-known age versus extinction degeneracy. As long as a cluster shows Hα emission (log τ < 6.8) it is possible to break this degeneracy, but once there is no Hα emission, it is difficult to distinguish an intermediate-age cluster from a young cluster with strong extinction. Luckily, most young clusters expel most of the dust around them within about 10 Myr; hence, it is primarily the clusters with extensive foreground extinction where this is a problem (i.e., in the overlap region).

Figure 9.

Figure 9. log mass vs. log τ diagram for clusters in the Antennae. The solid black lines show completeness curves for MV = −9 (to exclude stars based on luminosity alone) and MV = −7 (where age and size estimates become difficult). The dashed red lines show the bins used for the MF determinations in Figure 15. The 50 most massive candidate clusters from Table 7 are circled. Some artifacts (e.g., stars, the nuclei of the two galaxies, etc.) have been removed from the sample based on visual inspection. In addition, many of the apparently massive sources with log τ>8.6 are likely to be younger clusters with strong foreground extinction, as discussed in the text, and hence are not included in Table 8 or circled in this figure.

Standard image High-resolution image

Figure 10 shows all three sets of clusters (most luminous in blue, most massive in red, and most IR-bright in white). Note that the IR observations with NICMOS only cover about half of the FOV (see Figures 11 and 12). For this reason we only include the 25 most IR-bright clusters, so that at least in the regions that are covered in all three sets the density of points are similar and hence can be more easily compared.

Figure 10.

Figure 10. (a) Top half of the Antennae (NGC 4038) with the 50 most luminous clusters (blue circles) and the 50 most massive clusters (red circles) marked (see Tables 6 and 7). Also marked are the 25 most IR-bright clusters (white circles, see Table 8). Their number has been scaled down since the FOV for NICMOS observations was only about half that covered by the ACS observations (see also Figures 10(b) and 11). (b) Same information as in Figure 10(a), but for the bottom half of the Antennae (NGC 4039).

Standard image High-resolution image
Figure 11.

Figure 11. NICMOS field no. 1, which includes the nucleus of NGC 4039. Panels (a) and (b) show different-contrast renditions of the F160W image, with and without the brightest IR clusters from Table 8 identified by circles. Panels (c) and (d) show similar FOVs taken from the F550M image obtained with ACS.

Standard image High-resolution image
Figure 12.

Figure 12. Similar to Figure 11, but for NICMOS field no. 2, which includes the nucleus of NGC 4038.

Standard image High-resolution image

As expected, the western loop (i.e., the right 1/3 of Figure 10(a)) has a higher number of luminous clusters (19 of 50) than of massive clusters (9 of 50) because of the predominance of young clusters in this region. Conversely, the area around Regions 4, 5, 6, and 7 and Knots E and F (i.e., in the vicinity below the red circle 34 in Figure 10(a)) has the highest number of massive clusters (19 of 50) compared to luminous clusters (11 of 50) because of the preponderance of intermediate-age clusters in this region. This implies that there has been more star formation in this region than anywhere else in the galaxy during the past few hundred Myr.

Figures 11 and 12 show the NICMOS F160W observations on the top (with and without positions marked by circles and rank order numbers), and the V observations on the bottom for comparison, for the two NIC-3 pointings. While most of the IR-bright objects have clear optical counterparts, there are a few IR-bright objects with relatively faint counterparts (i.e., 3, 16, 24, 28 in Figure 11 and 12, 18, 26 in Figure 12). There is only one object (12) out of the 50 with a marginal detection (i.e., MV = −5.58 ± 0.30; see Table 8). More quantitatively, only 8 of the 50 brightest IR-sources (16% ± 6%) have values of AV>3, with the highest value being AV ≈ 7 (assuming an intrinsic color of VI = 0.5 for all the clusters). This is in good agreement with the result by Whitmore & Zhang (2002) that 85% of the bright thermal radio sources have optical counterparts. Hence, our optical sample is not missing a large fraction of clusters due to dust obscuration.

6. LUMINOSITY FUNCTION

In this section, we utilize our new technique for differentiating clusters from stars based on a combination of size and color information, and we revisit the shape of the cluster LF in the main bodies of the Antennae. In Figure 13, we use a magnitude limit of MV < −7, since the completeness correction is ⩽ 50% for this range. It also becomes difficult to distinguish the stars from clusters for fainter magnitudes (e.g., see Figure 7). We note that corrections have not been made for extinction when constructing the LFs, for reasons further discussed below. We also manually removed six bright "interlopers" (five foreground stars and the nucleus of NGC 4039) from the sample to insure that they do not artificially bias the bright end of the cluster LF.

Figure 13.

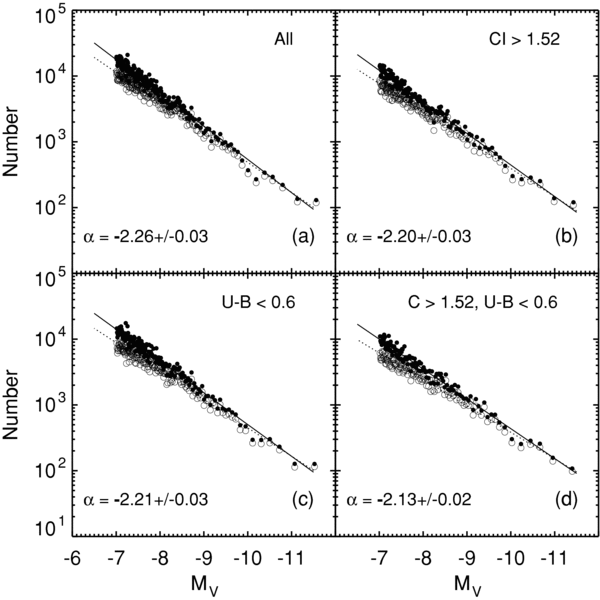

Figure 13. LFs for objects across the entire galaxy: (a) LF for all detected objects (i.e., a mix of individual stars and star clusters); (b) LF only for resolved objects (C>1.52); (c) LF for objects with UB colors that place them in "cluster space" or "blue-star/cluster space;" and (d) LF for objects selected by both size and UB color to be likely young clusters. Variable binning is used with open circles showing observed data and filled circles showing completeness corrected data. Values of α are for the completeness corrected fits to the data.

Standard image High-resolution image

Figure 13(a) shows the LF for all detected objects, i.e., for a mix of individual stars and clusters. Open symbols show the uncorrected data while filled symbols show completeness corrected data. To determine the slope of the LF via a least-squares fit, we restrict the range of the fit to MV = −15 to −7 (or −15.2 to −7.2 if one accounts for a foreground extinction of AV = 0.15). This yields a good fit with a single power law, dN/dLLα, where α = −2.26 ± 0.03. We next use what we have learned in Section 4 to produce subsamples designed to differentiate the clusters from the stars, to the degree possible. Figure 13(b) shows the result of using only the concentration index as a size criterion, C>1.52. Figure 13(c) shows the result of using only a color criterion, UB < 0.6, to select objects in cluster space or in blue-star/cluster space as shown in Figure 8. Figure 13(d) shows the result of using both the size and color criteria for clusters. This is our preferred cluster catalog and represents our "best guess" LF. As the figure demonstrates, the results of the various selections and fits are fairly similar, with values of the power-law index α ranging from −2.26 when using all objects to −2.13 for our best LF. This reflects the fact that most of the objects, even at MV = −7, are still clusters rather than stars.

The fits in Figure 13 use variable bin sizes, where there are an equal number of clusters in each bin, since Maíz Apellániz (2009) finds that using the standard fixed-bin-size technique will artificially steepen an LF. We empirically confirm this bias, with the variable-bin method systematically giving slightly higher values of α (i.e., flatter slopes), with a mean difference of ∼0.1. In the cases below where comparisons are made with past values of α derived from fixed binning, a correction of 0.1 is made. We use the variable-binning technique as our preferred method throughout the rest of this paper, although some later figures (e.g., Figure 15) show both techniques for comparison.

Figure 14 attempts to extract the stellar LF by restricting the sample to objects with C < 1.52 and MV < −10 (the latter criterion to avoid foreground stars). As expected, for stars the slope is steeper, with α = −2.47 ± 0.04.

Figure 14.

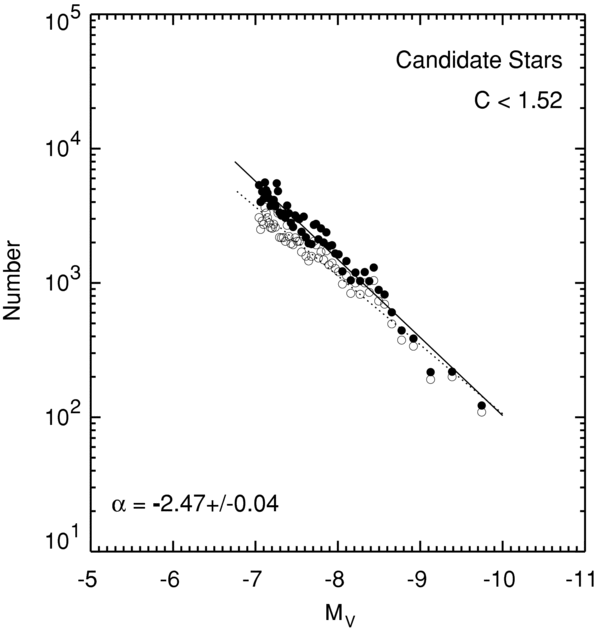

Figure 14. LF for candidate stars (C < 1.52) across the entire galaxies.

Standard image High-resolution image

The possibility of a bend (at the few-σ level) in the cluster LF obtained from WFPC2 data was discussed by Whitmore et al. (1999). The new ACS data do not appear to show any similar bend. More specifically, if we break the total luminosity range for clusters into two segments (−15 < MV < −10.4 and −10.4 < MV < −7), and use the UB < 0.6 criterion for distinguishing clusters, we find power-law exponents of α = −2.22 ± 0.17 and α = −2.23 ± 0.02, respectively. Hence, we do not find supporting evidence for any bend or break in the LF of star clusters in the Antennae when using the new, higher-quality ACS observations.

These results contradict recent claims for a turnover in the Antennae cluster LF, based on a re-analysis of our WFPC2 data (Anders et al. 2007). Clearly, the much deeper and higher-resolution ACS data show no evidence for a turnover, even if we restrict our sample to only include resolved objects. The peak found near MV ≈ −8.5 mag by Anders et al. appears to be caused by the introduction of a selection criterion that requires objects to have a U-band photometric uncertainty of σU ⩽ 0.2 mag. While completeness corrections could compensate for this effect in principle (as Anders et al. 2007 attempt to do), in practice it is difficult to accurately model the completeness of a cluster system as complicated as the Antennae's. Using the Anders et al. technique, even a very small mismatch in the true versus estimated completeness corrections can result in an apparent turnover near the completeness threshold, which appears to have happened in their analysis.

We search for any hint of a flattening of the cluster LF at the faintest magnitudes by attempting to extend the fits to MV = −6, at the risk of pushing the completeness corrections to where they become large. At the bright end, we use a restrictive cutoff of MV = −11 to increase the sensitivity of the least-squares fit to faint magnitudes. Using the UB < 0.6 criterion for clusters, since the C>1.52 criterion becomes unreliable beyond MV = −7, we find values for α that run from −2.24 ± 0.04 (for MV = −11 to −8) to −2.22 ± 0.03 (MV = −11 to −7) to −2.13 ±  0.02 (MV = −11 to −6). Hence, we find weak evidence for a potential small amount of flattening of the cluster LF beyond MV = −7. However, due to the greater dependence on the completeness correction at these faint light levels, we consider this result very uncertain.

A note on error estimates for the power-law index α is in order. While the formal internal statistical errors typically are quite small (e.g., 0.03 for the entire sample when a wide range in magnitudes is used, as shown in Figure 13), they do not include a number of possible errors, both internal and external (e.g., deficiencies in cluster-finding algorithms and uncertainties in background and completeness corrections). A more realistic approach to determining actual errors is to compare the scatter in a variety of determinations. For example, using the four methods shown in Figure 13 yields a mean $\bar{\alpha } = -2.20$ (rms = 0.05). If we divide the Antennae into three pieces: NGC 4039 (α ≈ −2.17), the overlap region between the two galaxies (α ≈ −2.15), and the western half of NGC 4038 (α ≈ −2.18), $\bar{\alpha } = -2.17$ (rms = 0.02). A comparison between an extinction-corrected LF with α = −1.99 (WFC07) and an uncorrected LF with α = −2.07 (Whitmore et al. 1999, down to MV = −9), both using WFPC2 data, yields a value of $\bar{\alpha } = -2.03$ (rms = 0.06). Note that including a correction for extinction has the problem that the faint end of the LF is automatically underpopulated due to the lack of objects below the completeness threshold, hence artificially flattening the LF. For the purposes of the current exercise, we make the comparison between extinction-corrected and uncorrected values only down to a value of MV = −9 in order to minimize the effect. Throughout the rest of this paper we use uncorrected LFs.

Taking an average of all the different methods discussed in this section, our estimate for the slope of the cluster LF, dN/dLLα, is $\bar{\alpha } = -2.17$ (rms = 0.07), based on an ensemble with 14 separate trials. This is quite similar to our single best ACS value of α = −2.13 ± 0.03 from Figure 13(d). We adopt the latter value as our best guess value, but use the rms value of 0.07 from the ensemble for our error estimate.

These results are in reasonably good agreement with our earlier WFPC2 results of −2.07 ± 0.06 (Whitmore et al. 1999, down to MV = −9) and extend the luminosity range by ∼2 mag.

7. MASS AND AGE DISTRIBUTIONS FOR CLUSTERS IN THE ANTENNAE

We previously studied the mass and age distributions for star clusters in the Antennae using the WFPC2 observations (Zhang & Fall 1999; FCW05; WCF07; FCW09). Here, we use the higher-resolution ACS images plus our new ability to separate clusters from stars to assess the accuracy and extend the range of our earlier results.

7.1. Mass Distributions

The MF for a population of star clusters provides important information on the formation and dynamical evolution of the clusters, and in principle is more straightforward to interpret than the LF, where the dimming of older clusters can affect the slope. A comparison between the mass and LFs can yield insights into the age distribution of the clusters as well as the processes responsible for the formation and dissolution of clusters. However, it is important to keep in mind that mass is a derived property, introducing additional biases and uncertainties. Hence, we must be careful to only use it in age and mass ranges that are reliable.

The top three panels of Figure 15 show the MFs for cluster candidates (i.e., MV < −9) in the Antennae in three intervals of age, log τ < 7.0, 7.0⩽ log τ < 8.0, and 8.0⩽ log τ ⩽ 8.6. The corresponding lower mass limits range from 104 to 105M, respectively, as shown by the dashed red lines in Figure 9.

Figure 15.

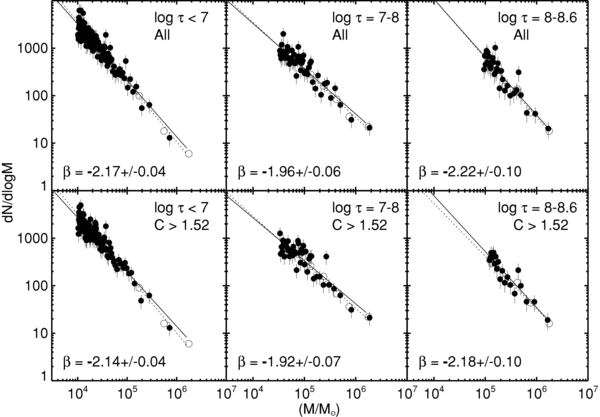

Figure 15. Top panels show the MFs for clusters in the Antennae for three different age intervals, using the bins shown by the dashed red lines in Figure 9. The bottom panels show the corresponding MFs for only the resolved clusters (C>1.52). The solid lines mark best fits to the variable-binning data (filled circles), while the dashed lines mark best fits to the fixed-binning data (open circles). The values of β given are for the variable-binning data.

Standard image High-resolution image

The bottom panels show the MFs in the same intervals of age, but with only resolved objects selected (i.e., C>1.52). Each panel shows the MF resulting from two different bin selections: our preferred version with variable bin sizes, where there are an equal number of clusters in each bin (filled circles), and a version with approximately fixed bin sizes (open circles).

We find that over the plotted mass–age range, the MF declines monotonically, with no evidence for a flattening or a peak. Similarly, we do not see any obvious steepening of the MF at the high mass end as suggested by Gieles et al. (2006), which would be expected if there was a physical cutoff to the masses with which clusters can form. Hence, the MFs for clusters in the Antennae can be described by a single power law of the form dN/dMMβ (or dN/dlogMMβ+1 plotted logarithmically). The solid lines are best fits to the variable-binning data (filled circles), while dashed lines are fits to the fixed-bin data (open circles). The values of β given in Figure 15 are for the variable-bin data, and the mean value for the six panels is $\bar{\beta } = -2.10 \pm 0.13$. A more realistic value for the uncertainty in β is 0.2, based on the discussion of uncertainties in α (Section 6) and the fact that the mass is a derived property, thus introducing additional artifacts and uncertainties (e.g., uncertainty in the metallicity).

The results presented here confirm and extend those based on previous WFPC2 data (Zhang & Fall 1999; FCW09). We find that the MF continues as a power law with β ≈ −2 to lower masses (i.e., ∼104M for ages <107 yrs) and to older ages (∼3 × 108 yr for >105M) than reported previously. This has a number of physical implications, which are discussed in detail in FCW09. In particular, the shape of the MF does not change for the first ∼3 × 108 yr over the observed mass–age range, at least within the uncertainties, which constrains various models for cluster disruption.

Figure 16 shows the MFs (top row) and LFs (bottom row) for four of the ∼0.5 kpc size areas that will be discussed in Section 8. In general, the indices α and β are essentially the same within the errors, as already found for the entire distribution of objects in the Antennae (i.e., α = −2.13 ±  0.07 and β = −2.10 ±  0.20). Fall (2006) shows that this similarity between the cluster LFs and MFs is only expected if the MF is a power law, and if the cluster age and mass distributions are approximately independent of one another.

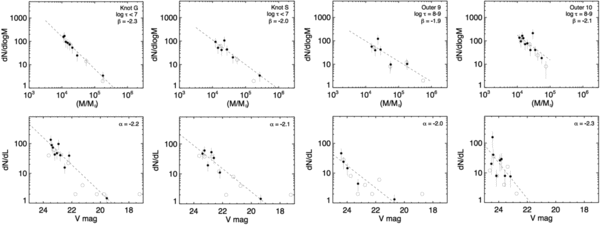

Figure 16.

Figure 16. Top row: cluster MFs for age ranges corresponding to the dominant-age population in each of four representative areas, and bottom row: the corresponding cluster LFs. The dashed lines mark best fits to the variable-binning data (filled circles). Open circles use fixed-binning.

Standard image High-resolution image

7.2. Age Distributions

The shape of the age distribution for star clusters provides clues to the formation and survival of the clusters. We previously found, based on WFPC2 data, that the age distribution of star clusters in the Antennae declines more or less continuously and in approximately power-law fashion, dN/dτ ∝ τγ, with γ ≈ −1.0 for the first few 108 yr. We also found that the shape of dN/dτ was similar in two different intervals of mass (FCW05; WCF07; FCW09), suggesting that the age distribution does not depend strongly on the mass of the clusters. Here we confirm and extend these two important conclusions, using the higher quality ACS data and the results from our detailed investigation of the 50 most massive clusters in the Antennae. A more detailed treatment will be presented by R. Chandar et al. (2010, in preparation).

The cluster age distribution is the result of a combination of formation and disruption processes. A value of γ = −1 for the shape of the age distribution implies that there should be equal numbers of clusters in equal bins of log τ above a given mass, which means that there are approximately 10 times fewer clusters each subsequent decade in log τ. If we assume that the star formation rate (SFR) is roughly constant, this implies a 90% cluster disruption rate each decade in log τ. While the assumption of a constant SFR is clearly an oversimplification, especially for merging galaxies where bursts of star formation are expected, the rapid drop in dN/dτ by 2 orders of magnitude from 5 to 500 Myr, when compared to the predicted increase in the SFR from a model simulation of the Antennae (a factor of a few; see Mihos et al. 1993), suggests that the dominant influence for understanding the demographics of clusters are disruption processes rather than fluctuations in the formation rate. Other arguments supporting this conclusion are presented in FCW05 and WFC07. Specifically, the dN/dτ diagram declines in a similar fashion throughout the Antennae (see Figures 8 and 9 in WCF07), even though there are no hydrodynamical processes that could synchronize the formation rate of the clusters this precisely over such large separations. In addition, the dN/dτ diagram looks similar in many star forming galaxy (see WCF07; Mora et al. 2009; Chandar et al. 2010a, 2010b).

In WCF07, our best-fit model for the Antennae clusters suggested an infant mortality rate of ∼80% per log τ decade, corresponding to a value of γ ≈ −0.7, which is only slightly flatter than the canonical value of −1 discussed above.

Recently, Bastian et al. (2009) have attempted to take into account variations in the SFR in the Antennae when interpreting the cluster age distribution, by adopting the SFR found in the simulation by Mihos et al. (1993). This is an interesting approach. Yet, it is limited by the large uncertainties imposed by our lack of understanding of the star formation process (e.g., shock-induced versus density-induced star formation; see Barnes 2004), the fraction of gas in the progenitors, etc. Perhaps most worrisome in using the Mihos et al. (1993) model for the Antennae to predict the varying SFR is the fact that according to this model most of the star formation should occur in the nuclear regions, while in reality most of it is currently distributed throughout the disks of the two galaxies. A new N-body/SPH simulation by Karl et al. (2010) predicts more distributed star formation, similar to the observations, and has a nearly constant SFR in the age range 6.7 < log τ < 8.7, in contrast to the Mihos et al. (1993) model where the SFR increases a factor of a few. This demonstrates the large uncertainties involved with making these simulations, and hence in using the Bastian et al. approach for estimating the cluster dissolution rate.

Probably the best approach for determining the disruption rate of clusters will be to combine the data from a much larger sample of galaxies, especially non-interacting spiral galaxies, where the assumption of a roughly constant SFR is better justified statistically. The recent study by Mora et al. (2009) provides a promising start in this direction. Using HST imaging, they found power-law age distributions for star clusters in five nearby spiral galaxies. Although they used a somewhat different technique, counting clusters brighter than a given V-band luminosity rather than above a given mass, they found that the age distributions are all consistent with ≈80% of the clusters being disrupted every decade in age for τ ≲ 109 yr, nearly identical to our results for the Antennae (see their Figure 15).

Table 7 lists the 50 most massive star clusters found in the present study of the Antennae. We can use its data to derive a mass-limited (log M>5.8) age distribution up to log τ = 8.6 (i.e., limited by artifacts that manifest themselves at higher ages; see discussion in Section 5). Making the first-order assumption of a roughly constant SFR during this period, a value of γ = −1 would imply that there should be approximately equal numbers of clusters in the three intervals log τ = 6–7, 7–8, and 8–9, while a value of γ = −0.7 (i.e., the preferred value from WCF07) would imply a factor of 2 increase for successive intervals. Counting the clusters in Table 7, we find that the above three age intervals contain 10, 19, and 45 clusters (extrapolating from a logarithmic range 8–8.6 for the last bin), respectively, in good agreement with the prediction from an 80% disruption model with roughly constant SFR.

Because Table 7 contains only 50 clusters, thus leading to low number statistics, we also checked the number of clusters in a second range of masses, 5.3 ⩽ log(M/M) ⩽ 5.7. Here we find that the three age intervals log τ = 6–7, 7–8, and 8–9 contain 28, 41, and 126 clusters, respectively. Hence, the lower mass clusters have a similar age distribution as the higher mass clusters, increasing in number by approximately a factor of 2 in successive unit intervals of log τ, as predicted from an 80% disruption model with roughly constant SFR.

To conclude, our new results confirm that the number of massive star clusters in the Antennae increases only slightly in bins of log τ and, therefore, must decline fairly steeply as a function of linear τ, with an index of γ ≈ −0.7. We have interpreted this steep decline as being primarily due to the disruption, rather than the formation, of clusters (see also FCW05; WCF07; FCW09). In addition, the similarity of the relative numbers of clusters in different age intervals, but at different masses, also supports the idea that any disruption that affects these clusters does so in a manner nearly independent of the cluster mass, at least for the first few 108 yr.

8. AREA-BY-AREA ANALYSIS

In this section, we examine selected areas in the Antennae. Three different sets of areas have been selected for study, as shown in Figure 17. The first set consists of the bright star-forming "knots" first identified by Rubin et al. (1970). These are labeled by letters A, B, C, through T. The second set consists of less prominent, more extended star-forming regions similar to the "other regions of interest" first identified by Whitmore & Schweizer (1995). These "regions" are labeled by numbers 1–15. The third set consists of areas in the outer parts of the galaxy (e.g., tails and loops). These are labeled as Outer 1, Outer 2,..., Outer 10. Table 9 collects information for each of the knots, regions, and outer areas.

Figure 17.

Figure 17. Locations of the star-forming knots (letters), regions (numbers), and outer areas in the Antennae.

Standard image High-resolution image

Table 9. Properties of Knots, Regions, and Outer Areas

ID Classa N N9b MV(Bright) log τc σd E(BV)c α β Rangee
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
Star-forming Knots
A 2 94 32 −11.60 6.74 0.91 0.30 −2.10 −1.95 6–7
B 3 46 31 −12.39 6.61 0.79 0.40 −1.60 −1.70 6–7
C 2 27 15 −11.90 6.02 0.48 0.32 −1.80 −1.60 6–7
D 1 48 22 −13.07 6.40 0.67 0.33 −2.00 −1.90 6–7
E 2 87 35 −12.06 7.60 0.83 0.20 −1.90 −2.10 6–7
F 1 80 38 −12.93 6.58 0.71 0.21 −2.00 −2.30 6–7
G 1 128 37 −14.45 6.81 0.83 0.13 −2.20 −2.30 6–7
H 1 39 17 −11.44 7.51 0.67 0.05 −2.20 −2.20 6–7
I 2 18 ... ... 6.64 0.97 0.46 ... ... ...
J 3 27 15 −11.85 6.52 1.10 0.64 ... −1.75 6–7
K 1 19 ... ... 6.52 0.38 0.25 ... ... ...
L 3 79 18 −12.04 6.70 0.88 0.25 −1.90 −2.10 6–7
M 2 160 34 −12.25 6.70 0.80 0.27 −1.90 −2.30 6–7
N 2 90 14 −10.83 6.79 0.67 0.15 −2.20 −2.00 6–7
P 2 122 9 −11.92 6.90 0.74 0.11 −2.50 −2.30 6–7
R 2 89 27 −12.71 6.74 0.81 0.22 −2.00 −2.00 6–7
S 1 96 34 −14.63 6.76 0.76 0.17 −2.10 −2.00 6–7
T 3 93 60 −12.11 6.74 0.66 0.15 −1.60 −1.60 6–7
Regions
1 2 53 16 −11.60 6.74 0.81 0.34 −2.15 −2.17 6–7
2 ... 201 18 −12.06 7.96 1.42 0.34 −2.30 −2.60 6–7
3 1 84 11 −11.28 6.78 0.90 0.26 −2.10 −2.05 6–7
4 2 118 14 −11.86 7.88 0.65 0.09 −2.00 −1.90 7.5–8.5
5 2 40 18 −11.42 6.91 0.64 0.09 −1.70 −1.80 6–7
6 1 21 8 −12.87 7.51 0.86 0.05 ... ... ...
7 ... 279 38 −12.68 7.74 0.88 0.17 −2.00 −2.00 7.5–8.5
8 ... ... 5 −11.37 8.31 1.31 0.29 −2.10 ... ...
9 ... 277 25 −12.27 7.46 0.86 0.12 −1.90 −2.00 6–7
10 ... 286 10 −10.01 7.51 0.82 0.12 −1.70 −1.50 7–8
11 ... ... 6 −10.28 7.32 1.09 0.16 −2.40 −2.10 6–7
12 ... 114 7 −10.54 8.36 0.94 0.14 −2.25 −2.10 7.5−8.5
13 2 30 8 −10.87 6.66 0.83 0.26 −1.80 −1.75 6–7
14 ... 320 44 −12.83 6.91 0.97 0.26 −2.00 −1.90 6–7
15 2 28 2 −11.22 7.66 0.77 0.23 −2.10 −2.50 6–7
Outer Areas
1 ... 216 14 −11.50 7.96 0.77 0.10 −2.30 −2.17 7.5−8.5
2 ... 57 ... ... 8.36 0.96 0.06 −2.20 −2.30 8–9
3 ... 35 1 −9.29 8.26 0.60 0.05 −2.00 −1.90 8–9
4 ... 22 2 −10.71 8.31 0.45 0.04 −2.20 −2.30 8–9
5 ... 92 7 −10.26 8.36 0.88 0.06 −2.10 −2.10 8–9
6 ... 37 5 −9.44 8.36 0.59 0.03 −2.10 −1.90 8–9
7 ... 51 4 −10.92 8.06 0.80 0.06 −2.20 −2.10 8–9
8 ... 16 1 −9.11 8.33 0.33 0.05 ... ... ...
9 ... ... 5 −10.21 8.33 0.20 0.02 −2.00 −1.90 8–9
10 ... 43 1 −9.20 8.31 0.77 0.03 −2.30 −2.10 8–9

Notes. aClass 1: has very dominant cluster(s), Class 2: has dominant cluster(s), Class 3: has no dominant cluster(s), –: not relevant since a general region rather than single cluster complex. bNumber of clusters with MV < −9. cMedian. dDispersion in log τ. Note that low values signify a single- rather than multi-age population. eRange in log τ used in determination of α and β.

Download table as:  ASCIITypeset image

In the following, we include all objects in our analysis rather than trying to select only clusters. This choice is based on the similarity we found in the results for the luminosity functions (Figure 13) between the various methods of selecting clusters and the total sample, and is—ultimately—due to the fact that most of the objects in our list are clusters down to at least MV = −7. Specifically, we do not wish to eliminate objects with C < 1.52 because many of them are unresolved young clusters, as seen from their position in cluster or blue-star/cluster space (Section 4). Repeating the analysis using, for example, a C>1.52 size criterion, results in only minor differences.

8.1. General Properties

We begin by examining general trends in the properties of the selected areas and then discuss possible physical interpretations for these trends. Some of the most prominent correlations for clusters in the selected areas are shown in Figure 18. The top left panel shows the MV(brightest) versus log N diagram, where MV(brightest) is the absolute magnitude of the brightest cluster in each area and log N is the number of clusters brighter than MV = −9 in that area. This is the strongest correlation (8σ level of significance) of those shown in the figure. A version of this diagram for cluster populations in entire galaxies was first shown by Whitmore (2003) and has been subsequently studied by several other authors (Larsen 2002; WCF07; Bastian 2008; Larsen 2009). The diagram was one of the primary drivers in developing the "universal" cluster demographics model described in WCF07, since the observed correlation can be explained by a statistical "size-of-sample" effect, assuming all young cluster systems in galaxies have power-law LFs with a value of α ≈ −2. A comparison of the data from our area-by-area analysis with the best-fit line for cluster populations in entire galaxies (mergers, starbursts, dwarfs, spirals) from WC07 (dotted line) shows that the relationship is essentially identical. This again provides evidence for a universal relationship, at least down to the ∼0.5 kpc scales we have studied here.

Figure 18.

Figure 18. Various correlations for clusters in the knots, regions, and outer areas shown in Figure 17. (a, upper left) Absolute magnitude MV of the brightest cluster in each area plotted vs. the logarithm of the number of clusters with MV<−9 in same area (the dotted line is the best-fit line for cluster populations in entire galaxies from WC07); (b, upper right) log E(BV) vs. log τ diagram for same clusters; (c, lower left) slopes α of the regional LFs plotted vs. log τ; (d, lower right) slopes β of the regional MFs plotted vs. log τ. The slopes of the best-fit lines for the top two diagrams are given and the significance (σ) of the correlation is given to the lower right in each diagram. For a detailed discussion, see the text.

Standard image High-resolution image

The second best correlation is the log E(BV) versus log τ relation shown in Figure 18(b) (7σ-level of significance). This is similar to the result from Figure 10(c) in Whitmore & Zhang (2002), but we now use the median value of log E(BV) for clusters within a defined area instead of plotting values of log E(BV) for individual clusters. Similar results have also been found by Bastian et al. (2005) for M51 and Mengel et al. (2005) for the Antennae. Using areas instead of individual clusters, we find a typical E(BV) value of ∼0.3 mag (i.e., AV ≈ 1 mag) for areas dominated by the youngest clusters with logarithmic ages (in years) log τ ≈ 6.5, declining to values of E(BV) ≈ 0.1 mag (AV ≈ 0.3 mag) for areas with logarithmic ages log τ ≈ 8.0.

Figures 18(c) and 18(d) show values of α (the slope of the LF) and β (the slope of the MF) as a function of the median age of the clusters in each region. We first note that for ages greater than log τ = 7, the slope values are relatively constant, and the mean values of α and β are roughly equal within the uncertainties (i.e., $\bar{\alpha } = -2.12 \pm 0.04$ (rms = 0.17) and $\bar{\beta } = -2.09 \pm 0.06$ (rms = 0.24)). This is similar to what we found for the total distributions of clusters in the Antennae, as discussed in Section 7.1, and provides further evidence that the mass and age distributions are independent of each other, as discussed in Fall (2006).

Figures 18(c) and 18(d) also show tentative evidence for flatter slopes for α and β when log τ < 7. However, it is possible that this is due to observational biases, for example difficulties in making completeness corrections for the youngest clusters, which tend to lie in areas of higher background brightness. In principle, our completeness corrections should take care of this effect, but the combination of high background and severe crowding makes this task more difficult. Another potential problem is extinction, since fainter clusters might suffer more extinction than highly luminous clusters due to their lack of massive stars needed to clear out the surrounding dust. We can test for this hypothetical effect fairly easily by comparing the colors of the bright and faint clusters. This comparison shows that a very small effect does exist (i.e., −0.02 mag in U − B when comparing clusters in the knots brighter than MV = −10 with those in the range MV = −10 to −9), but this effect is too small to cause more than a very minor difference in the LFs.

8.2. Area-by-area Analysis of Outer Areas

One of our primary goals for the outer areas, where the background is very low, is to push the LF to MV ≈ −6. This is particularly interesting because most of the clusters in these regions have intermediate ages, having probably been formed during the first encounter between the two galaxies (e.g., see Figure 17 of Whitmore et al. 1999). We should therefore be able to search for a possible turnover in the LF that is expected to eventually appear if the power-law form of the LF for young clusters evolves dynamically—assuming evaporation processes typical of the Milky Way—to the peaked form found for old globular clusters. Based on Fall & Zhang (2001) we might expect this turnover to occur around MV ≈ −4, assuming that most of the outer clusters are 100–300 yr old and that two-body relaxation is the dominant process.

Figure 19 shows the data and values of α for the best fits for the three outer areas with the most clusters (Outer 2, 5, and 7). We find no clear evidence for a turnover in the LFs of the cluster population in the tails, consistent with an extrapolation from the Fall & Zhang (2001) model.

Figure 19.

Figure 19. LFs for clusters in three outer areas. Note that there is no clear evidence of any turnover in the LFs at fainter magnitudes. This is consistent with relaxation-driven cluster disruption models, which predict the turnover should not be observed until MV ≈ −4 for clusters with ages of ∼200 Myr. This would correspond to a value of V = 27.7 in the diagram.

Standard image High-resolution image

9. PATTERNS OF STAR FORMATION

Star formation in merging galaxies is sometimes considered to be quite chaotic, with gas clouds slamming into one another at hundreds of km s−1. The "overlap region" in the Antennae is often quoted as a prime example. Yet, the periods and locations of violent interaction are relatively short-lived, being most pronounced during closest approaches. Hence, during much of a merger's evolution the distortions imposed by the interaction are less dramatic, resulting in a number of well-defined patterns, both large and small scale (e.g., Renaud et al. 2009). These patterns can provide important clues to the processes of star and cluster formation.

9.1. Large-scale Patterns

On the largest scales, a number of long "linear" (or gently curved) features can be discerned in the Antennae. The most obvious examples are the two long tidal tails (∼130 kpc in projection tip to tip) that give this system its nickname. Most of the clusters in the inner parts of these tails (the only parts covered by the central pointings; results from outer pointings along the tails will be reported in a future paper) have ages of roughly 200 Myr and were probably formed during the first-pass encounter between the two galaxies. However, an intriguing feature is the existence of ongoing star formation at a low level, as evidenced by the existence of about a dozen faint Hα knots strung along the inner edge of the southern tail near its base, where it connects to the disk of NGC 4038 (i.e., Outer 5; see Figures 17 and 20a).

Figure 20.

Figure 20. Mosaic of subareas in the Antennae (from Figure 1) that show interesting patterns of star formation. The capital letters and numbers in yellow correspond to the definitions of star formation knots, regions, and outer areas defined in Figure 17. For a discussion, see Section 9.

Standard image High-resolution image

A possible continuation of this feature is the increasingly strong Hα "streak" seen passing through knots N and P and extending to the "Western Loop" that includes knots G, R, S, T, M, and L (Figures 20(b) and 17). A faint but, again, increasingly strong dust lane is associated with this Hα emission. In the outer regions it is first aligned with the Hα knots themselves, but further into the galaxy it becomes offset to the inside of the Hα emission. A similar trend in alignment between Hα emission and dust is observed in M51. In fact, this whole aligned feature of Hα emission plus dust lane in the Antennae is reminiscent of, though perhaps less regular than, the spiral arms and outer tidal features in M51.

Similar large-scale features are the "spiral-looking tail" in Region 1 (Figure 20(e), ∼3.4 kpc) and the long (Figure 20(c), ∼8.2 kpc) dust lane running from the bottom of Outer 6 through Outer 3 and Outer 2, to near the end of Outer 1. A less prominent example is the nearly linear string of giant H ii regions following a line from Knot F to E to Region 3 (Figure 20(d)). This nearly straight string was used to good advantage by Whitmore et al. (2005), who aligned the long-slit of the STIS spectrograph with it. This string also forms the eastern edge of the overlap region. Hence, its apparent regularity in both morphological linearity and a smooth velocity field suggests that even the overlap region might be less chaotic than commonly believed.

Several other linear features are seen on slightly smaller scales. Examples are the two linear dust lanes that run from near the nucleus of NGC 4038 out to regions 13 and 14 (Figure 20(f)), respectively, with regions of prominent star formation along one edge of each dust lane (e.g., Knot L). The side-by-side arrangement of star formation and dust lanes is reminiscent of normal spiral arms (although the linear rather than spiral arrangement is not typical).

Note that while clusters form currently at the highest rate in the chaotic overlap region, other clusters are also forming throughout most of the two galaxies. In particular, the velocity pattern of the ionized gas in most of the northern half of NGC 4038 is quite regular (Amram et al. 1992), yet a large fraction of the clusters are forming in this region at the present time. Hence, high collision velocities are not required for making clusters, a result also found by Zhang et al. (2001) and Whitmore et al. (2005), and supported by theory (Renaud et al. 2008).

9.2. Small-scale Patterns: Evidence for Sequential Star Formation

While the specific details of how star formation is triggered may still be obscure, it is clear that compression and shocks play an important role (e.g., along spirals arms). One method for studying triggered star formation is to age-date stars or star clusters and then look for patterns that might indicate the presence of sequential star or cluster formation. A classic example of this is 30 Doradus, where Walborn et al. (1999) found evidence for several generations of star formation. Does our age-dating of clusters in the Antennae provide similar evidence of sequential cluster formation?

Figure 21 shows the pattern of ages obtained for clusters in Knot S, along with an Hα image of Knot S. There is some evidence for triggering as shown by the preponderance of 5–10 Myr clusters (green circles; including the central dominant cluster) positioned in what appears to be a hole in the Hα. The younger clusters (blue circles) are primarily to the left, as the star formation apparently works its way into the dust reservoir (see the ACS/HRC image in Figure 28). There is also a smaller region of triggered formation in the upper right, as evidenced by both the age dating and the presence of Hα in that area. We also note a scattering of older clusters throughout much of the region with ages 10–100 Myr (red circles), which may have triggered earlier episodes of star formation in this region.

Figure 21.

Figure 21. Top panel shows the V image of Knot S, with clusters color-marked by age (blue: log τ < 6.7; green: 6.7 < log τ < 7.0; and red: 7.0 < log τ < 7.7). The bottom panel shows the corresponding Hα image of Knot S.

Standard image High-resolution image

Knot B (Figure 22) presents a similar, but even more dramatic example of triggered cluster formation. In this case, we find a single cluster with an apparent age of ∼50 Myr (and a mass of ∼10 6M) located off to the right side, but also a population of younger clusters with a total mass of ∼8 × 106M, about eight times greater than the mass of the cluster that appears to have triggered their formation. Note that the Hα shell is centered on the older cluster and that the young clusters are located where the shell intersects a major dust lane at the edge of the overlap region (see Figure 1). Dividing the radius of the Hα bubble by the age of the central cluster yields an expansion velocity of ∼6 km s−1. This is smaller than values of 20–30 km s−1 derived for the bubbles in knots S and J by Whitmore et al. (1999), and than the direct measurements of Hα velocities by Amram et al. (1992). One possibility is that the age of this cluster is closer to 10–20 Myr, which lies in the range that is hard to measure (see Figure 9 and discussion in Whitmore et al. 1999). This slightly smaller age would give expansion velocities in the range 15–30 km s−1 and would also be more compatible with the age gradient shown in Figure 22. Presumably, the dust lane in the overlap region provides a much greater reservoir of raw material needed to form massive clusters than is the case for Knot S. An analogy might be that a match dropped on a field of dry grass might only result in a few minor brushfires, but a match dropped next to a tinder box can result in a much more impressive, explosive fire (e.g., Knot B).

Figure 22.

Figure 22. Similar to Figure 21, but for Knot B. The one intermediate-age cluster is circled in red and is the 20th most massive cluster from Table 7, with a mass of ≈106M and an age in the range 10–50 Myr. It appears to lie at the center of the prominent Hα shell (lower panel) and is likely to have triggered the formation of the younger clusters around it, including the second most massive cluster known in the Antennae, with a mass of 4.2 × 106M and age of ∼2.5 Myr.

Standard image High-resolution image

In general, early star formation tends to occur on the edges of gas reservoirs and then work its way into the dust lanes, creating a linear rather than circular gradient of sequential star formation. This is sometimes known as the "blister model" (Israel 1978). Several other knots and regions in the Antennae (e.g., knots A, E, F, K, L, and T; and regions 3, 4, and 13) have this linear morphology of sequential cluster formation with the gradient in the direction toward a major dust lane, as shown in Figure 23 (e.g., knots E and F and region 13). We note, however, that similar morphologies might also result from large-scale processes such as a density wave or collision between two large gas clouds. In fact, it is likely that both large- and small-scale triggering are happening simultaneously.

Figure 23.

Figure 23. Evidence for triggered cluster formation in knots E, F, L, and Region 13. Clusters are color-marked by age (blue: log τ < 6.7; green: 6.7 < log τ < 7.0; red: 7.0 < log τ < 7.7).

Standard image High-resolution image

Another interesting case is a dark, relatively circular dust cloud with a small amount of star formation on only one side of the cloud that is found near Outer 3 (see Figures 20(c) and 20(g)) in the southern outskirts of NGC 4039. The lack of an obvious trigger in this case suggests the possibility that the cloud is falling back into the galaxy and the star formation results from the ram pressure being exerted by the interstellar medium. Perhaps velocity measurements with ALMA will be able to test this hypothesis. This appears to be a relatively unique case in the Antennae, but we note that other examples may be harder to discern due to the geometry of their encounter. One possible second case might be near the center of Knot N, with a dust cloud falling back into the galactic disk along our line of sight (see Figure 20(b)).

10. CONCLUSIONS

The ACS on HST  was used to obtain high-resolution images of NGC 4038/4039, which allow us to better differentiate between individual stars and compact star clusters. We have used this improved ability to extend the cluster LF by approximately 2–3 mag at its faint end, when compared to the previous WFPC2 photometry. In addition, the NICMOS was used to help study the clusters still largely embedded in dust. Following are our main results:

  • 1.
    The cluster LF continues as a single power law, dN/dLLα, with α = −2.13 ± 0.07 down to the current observational limit of MV ≈ −7. This value is uncorrected for extinction and based on variable-binning fits. Similarly, the cluster MF is a single power law dN/dMMβ with β = −2.10 ± 0.20 for clusters with ages <3 × 108 yr, corresponding to lower mass limits that range from 104 to 105M, depending on the age range of the subsample. Hence, the power-law indices for the luminosity and MFs are essentially the same.
  • 2.
    The LF for intermediate-age clusters (e.g., ∼200 Myr old clusters found in the loops, tails, and outer areas) does not show any clear evidence of a turnover down to MV ≈ −6. This is consistent with relaxation-driven cluster disruption models, which predict the turnover should not be observed until MV ≈ −4 for this age range.
  • 3.
    The brightest individual stars in the Antennae reach absolute visual magnitudes of MV ≈ −9.5, a limit compatible with the so-called Humphreys & Davidson (1979) limit observed in the Milky Way and nearby galaxies (see the Appendix for details).
  • 4.
    Our photometrically determined cluster ages are in good agreement with spectroscopically determined ages from Bastian et al. (2009) for 13 of the 15 clusters in common. In the other two cases, spatial resolution effects are likely to be responsible for the age differences, since the ground-based spectroscopic observations contain light from a much larger area than our HST measurements.
  • 5.
    An area-by-area analysis shows a strong correlation between the absolute magnitude of an area's brightest cluster, MV (brightest), and the (logarithmic) number of clusters brighter than MV = −9 in that area, log N. The MV (brightest) versus log N diagram for all areas of the Antennae studied is essentially identical to the corresponding diagram for entire galaxies, supporting the universality of this observed trend on a scale of a few hundred pc and larger. In addition, the reddening versus age correlation found for individual clusters by Whitmore & Zhang (2002), Mengel et al. (2005), and Bastian et al. (2005) has been confirmed for the area-by-area analysis as well.
  • 6.
    The same area-by-area analysis also reveals a tentative discovery of a new relationship between the power-law exponent α of the LF and the median age of clusters in each area, in the sense that younger clusters have flatter LFs (i.e., values of α ≈ −1.8 for the youngest star- and cluster-forming knots and −2.1 for the outer areas). However, it is possible that this is caused by observational biases. The power-law indices for the LFs and MFs are in good agreement and are similar to the results for the total population of clusters in the galaxy.
  • 7.
    Using our age and mass estimates of clusters in the Antennae, we have found evidence of sequential cluster formation in several regions. Often there are somewhat older clusters which appear to have triggered the formation of younger, lower-mass satellite clusters. The area around Knot B is a particularly dramatic example of triggered star cluster formation, with evidence for one massive (∼106M) cluster, with an age in the range 10–50 Myr, having triggered the formation of several younger massive clusters (up to 5 × 106M) in the direction of a strong dust lane, with an amplification factor of ∼8× in the total mass of triggered clusters.
  • 8.
    NICMOS observations show that 16% ±  6% of the clusters in the Antennae are still largely embedded in their dust cocoons, with values of 3 ≲ AV ≲ 7 mag. However, the top 50 IR-bright clusters all have optical counterparts in the much deeper ACS observations; hence, the effect on our optically based catalog derived from deep ACS images is minimal.

In conclusion, the results presented here confirm and extend those based on previous WFPC2 data (e.g., Whitmore et al. 1999; Zhang & Fall 1999; Whitmore & Zhang 2002; FCW05; WCF07; FCW09). In addition, similarities between our results for the Antennae and those for a growing number of other star-forming galaxies (e.g., Mora et al. 2009) support the universality model for the formation and disruption of star clusters.

We thank Stéphane Charlot for making the CB07 population-synthesis models for HST passbands available ahead of publication, and Lars Christensen for the use of his beautiful color image of the Antennae. We thank Mike Fall, Nate Bastian, Mark Gieles, and Soeren Larsen for helpful discussions and comments on the manuscript. We also thank an anonymous referee for several comments that helped improve the paper. Support for Program GO-10188 was provided by NASA through a grant from the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Incorporated, under NASA contract NAS5-26555.

APPENDIX: DIFFERENTIATING STARS AND CLUSTERS IN THE ANTENNAE

With their higher spatial resolution across the entire FOV when compared to earlier WFPC2 data, our new ACS data provide a better opportunity for separating individual stars from clusters. In this Appendix, we describe in some detail three "training sets" designed to help teach us how to achieve this separation. These three training sets consist of objects in (1) an area dominated by foreground stars and old globular clusters, (2) one dominated by intermediate-age clusters, and (3) one containing a crowded mix of young stars and clusters.

A.1. Training Set 1: Isolated Foreground Stars versus Old Globular Clusters

Training Set 1 includes reddish and yellow–red objects (VI>0.5) in relatively low-background areas around the edges of the visually luminous galaxy disks. Most of these objects were identified as candidate foreground stars of our Galaxy in Table 4 of Whitmore et al. (1999). We contrast this set of 26 candidate stars with the 11 candidate old globular clusters from Table 3 of Whitmore et al. (1999). Information about the candidate foreground stars is given in Table 1. Information on the 11 candidate old globular clusters used as part of Training Set 1 is included in Table 2 (top group).

Figure 6(a) shows a plot of the absolute magnitude MV versus the concentration index C (i.e., the difference in magnitude using 1 and 3 pixel radius apertures) for the candidate foreground stars and old globular clusters of Training Set 1. We find that in general there is good separation between the two samples, with all of the candidate foreground stars lying in the range 1.37 < C < 1.52 ($\bar{C} = 1.448$ mag, sample rms = 0.049 mag) and all but two of the candidate old globular clusters lying in the range 1.62 < C < 1.78 ($\bar{C} = 1.676$ mag, rms = 0.052 mag). Note that the discrepant concentration indices for two of the candidate old globular clusters were already known (1 and 9 in Table 2, corresponding to 8 and 1, respectively, in Table 3 of Whitmore et al. 1999), but the objects were retained since they had colors appropriate for old globular clusters.

The measured UB and VI colors for our training-set objects are compared with a CB07 evolutionary track for a model star cluster in Figure 6(b). Note that only about half of the candidate stars (open circles) are detected in the U filter and can, therefore, be placed on this diagram. Most of the candidate globular clusters (filled circles) fall very close to the CB07 model predictions. There is only one discrepant object (1) which falls well below the track, where most of the candidate stars rather than globular clusters are found. Hence, object 1 is likely to be a star, based on both its color and its small value of C. The other globular cluster candidate (9) that has a value of C overlapping with those measured for individual stars has colors that are indistinguishable from those of other old globular clusters. Turning our attention to the candidate stars, we find that all but two lie in the bottom-right part of the two-color diagram, well separated from the globular clusters. While most of the candidate stars and globular clusters are separated in the two-color diagram, it is clear that some stars can have colors similar to old globular clusters (typically early F-type stars). Hence, we can use a combination of size and color information to more reliably differentiate between stars and clusters. The dotted line in Figure 6(b) shows the region of the UB versus VI diagram which we call "foreground-star space."

Based on the results above, we include in Table 2 a new set of candidate old globular clusters (middle and bottom groups). The criteria used for their selection are: age estimates in the range 8.8 < log τ < 10 (note that an examination of objects with estimated log τ>10 shows many of them to be either red foreground stars or distant background galaxies, hence our use of log τ < 10), concentration indices in the range 1.57 < C < 1.80, and locations away from regions with extensive dust (since a heavily reddened young cluster could masquerade as an old globular cluster).

A.2. Training Set 2: Isolated Intermediate-age Clusters

The second training set consists primarily of intermediate-age clusters (∼200 Myr) in what was defined as the northwestern extension in Figure 6 of Whitmore et al. 1999. This area is also designated as "Outer 9" in Figure 17. In a ∼200 Myr old population, the brightest stars should have absolute magnitudes MV ≈ −3, well below our detection threshold. Hence, the vast majority of objects in this sample should be clusters, with perhaps a foreground star or two also included.

This area contains a loop of material that is believed to have been extracted from NGC 4038 at roughly the same time as the long tidal tails (Whitmore et al. 1999). The loop features three of the best examples of intermediate-age clusters (58549, 58909, and 59721 in Figure 24). These clusters turn out to have nearly identical properties, as shown in Table 3 (first three entries) and in Figure 25. The wide FOV of the ACS allows us to include many other clusters with similar properties. One likely bright foreground star (STAR-60076 in Figure 24) has been removed from the sample based on its small value of C = 1.389, although we note that it has colors similar to those of intermediate-age clusters. We recommend that a spectrum of this object be obtained to make a firm determination of its true nature.

Figure 24.

Figure 24. Image of area containing Training Set 2. This area is marked "Outer 9" in Figure 17 and is called the "NW Extension" in Whitmore et al. (1999). The most luminous clusters (MV < −8) are marked by large circles with the ID number included (see Table 3), while the less luminous clusters in the range −8 < MV < −7 are marked by small circles. Most of the fainter clusters are not visible here because of the chosen contrast stretch. Note that the brightest object (60076) is probably a star since it has a concentration index of C = 1.39, although it has colors similar to the other clusters in the region.

Standard image High-resolution image
Figure 25.

Figure 25. UB vs. VI diagrams for Training Set 2, with objects sorted by absolute magnitude MV. Note how small the scatter is for the three brightest clusters (crosses in top diagram) and how it increases for fainter clusters. The solid lines show evolutionary tracks for CB07 model clusters of solar metallicity, while the dotted lines show similar tracks for model clusters of Z = 0.4Z.

Standard image High-resolution image

Figure 7 shows the values C and log τ for the objects of Training Set 2, after the objects have been sorted into three subsamples according to their absolute magnitudes MV. Note that all objects brighter than MV = −8 have values of C consistent with them being extended clusters, based on our results for Training Set 1 (i.e., C>1.52). At fainter magnitudes we find that the increased observational scatter results in some estimates of C < 1.52 and log τ < 8.0. Since we do not expect any intermediate-age stars in this region to have magnitudes brighter than our detection threshold, we interpret such values of C and log τ as being due to observational scatter, suggesting that the reliability of our C and age estimates is limited below MV ≈ −7. A supporting piece of evidence is that there is no Hα emission in this area, which would be expected if there actually were stars present with MV ≈ −7 and log τ < 8. One other interesting result is the apparent correlation between MV and C seen in Figure 7(a), in the sense that brighter clusters tend to be larger, as might be expected.

Figure 25 shows the UB versus VI diagrams for the objects of Training Set 2, again sorted by absolute magnitude. Note that the scatter for the three brightest clusters (crosses in top panel) is surprisingly small. We again find that a threshold of MV ≈ −7 marks the point at which a relatively large fraction (∼20%) of the objects would be misclassified (i.e., are in regions of color–color space expected to be occupied only by stars). However, the midpoint of the color distributions remains about the same over the entire magnitude range. This shows that the objects are all very similar and, therefore, likely intermediate-age clusters. For example, we are not suddenly seeing a large percentage of blue or yellow/red stars. Note, however, that there is a small offset between the observations and the model tracks in Figure 25, with the midpoint of the data lying roughly 0.15 mag blueward of the tracks in VI.

A.3. Training Set 3: Crowded Area of Knot S with both Stars and Clusters

The third training set consists of 23 objects around Knot S that were examined independently by four of us (BCW, RC, BR, and FS) with a variety of techniques that we have used to differentiate between stars and clusters in the past (e.g., visual examination using the IMEXAMINE tools in IRAF, varying contrasts on the DS9 display, circular shape, lack of nebulosity, etc.). This crowded area represents the opposite extreme from the areas containing Training Sets 1 and 2, with both the high density of objects and the high background level making size measurements more difficult. In general, the four independent assessments agreed at about the 85% level. Our final list of objects is based on the majority agreement from the independent assessments and consists of 12 candidate stars and 11 candidate clusters. Figure 26 shows the area around Knot S with the 23 objects marked while Table 4 includes information about the objects.

Figure 26.

Figure 26. Image of the area around Knot S, showing the Training Set 3 objects discussed in the text and listed in Table 4. Large circles mark candidate clusters, while small circles mark candidate stars.

Standard image High-resolution image

Next, Figure 27 shows the MV versus C and UB versus VI diagrams for the objects of Training Set 3. Nine of the 12 candidate stars have concentration indices in the range 1.37 < C < 1.52, appropriate for stars (see Figure 6). The one object (20) below this range is the faintest one in the sample (MV = −7.3) and also lies within a few pixels of a very bright object. Hence the photometry for this object is suspect. This finding is consistent with our results from Figure 7, where we found that estimates of C and log τ for objects with MV ≈ −7 were suspect even when the objects were isolated.

Figure 27.

Figure 27. Properties for Training Set 3. The two diagrams are similar to those shown in Figure 6 for Training Set 1. See the text for a description of how the "candidate" stars and clusters were selected.

Standard image High-resolution image

Another object (18) has a much larger value of C than the other candidate stars and is almost certainly a cluster, based on its C value and the fact that it lies right on the CB07 evolutionary track in Figure 27, at an age of ∼4 Myr. This was one of the three objects in crowded subgroups added to the original sample of 20 training-set objects in order to determine whether stars and clusters can be differentiated visually in this environment. While the correct assignments appear to have been made for the objects in the other two crowded subgroups (10 and 21, see Table 4), in the case of 18 the visual assignment of object type appears to have been incorrect.

All of the objects in Training Set 3 that were visually classified as clusters have values of C>1.52, with a mean $\bar{C} = 1.719$1 = 0.082) only slightly larger than that for the old globular clusters of Training Set 1. Hence, in general our visual classification agrees with the C criterion at the 80%–90% level.

Figure 27(b) shows that only two of the 11 candidate stars (4 and 22, after having removed 18) lie below the CB07 model tracks in or near the region where young yellowish stars lie, as indicated by the small dots marking Padova models for stars brighter than MV = −6. The remaining objects (e.g., 2, 5, 18, and 23) have colors expected for young clusters. Hence, size alone is not always sufficient to differentiate between stars and clusters. Many clusters are so compact that they remain indistinguishable from stars even at the improved resolution provided by ACS images. It is also possible that in some clusters the light from a single supergiant star dominates the light profile sufficiently so as to result in a smaller concentration index.

It is important to understand how an object gets to a position like 23's in the UB versus VI diagram of Figure 27, with a blue color in UB (−0.68 mag), but a yellow color in VI (+0.62 mag). A single star cannot have such colors, as shown by the Padova stellar models. What is needed is a combination of red or yellow supergiants, which dominate the light in VI, and blue supergiants, which dominate the light in UB. This composite nature of cluster light is the reason why clusters with ages from 5 to 8 Myr—when the earliest, most massive red supergiants appear—evolve so rapidly to the right, as is seen in the long horizontal stretch from V-I = −0.1 to +0.8 mag in the UB versus VI diagram. The position of some candidate stars in this region of the diagram is indisputable evidence that they are actually clusters, masquerading as stars based on their small C due to the likely dominance of a single red or yellow supergiant (see, e.g., Drout et al. 2009 for a discussion of yellow supergiants).

Figure 8 shows two-color diagrams for all measured objects in and around Knot S, rather than just for the 23 objects of Training Set 3. The major conclusions based on these diagrams are discussed in Section 4. We wish to make an additional point here, related to the discussion above. While most of the resolved objects in the −10 < MV < −9 diagram hug the CB07 evolutionary track very nicely, five objects lie substantially to its left. We believe most of these are cases where there is a mixture of light from a young cluster with one (or perhaps two) individual very bright star(s), hence resulting in colors that are intermediate between those of the cluster and stellar models. Ubeda et al. (2007) discuss this topic in their study of NGC 4214. This color "stochasticity" does not happen for the most luminous clusters (MV < −10) because such clusters have enough stars so that a few bright stars cannot greatly affect the total color. This has also been noted by other authors (e.g., Cervino et al. 2002).

In Figure 8, we divided each two-color diagram into four regions: cluster space, foreground-star space, yellow-star space, and blue-star/cluster space. The first three follow from the discussion above. However, the fourth region, blue-star/cluster space, is more problematic, since both individual blue supergiants and the youngest clusters have similar colors according to the models (i.e., the upper left regions of Figures 8 and 27b).

In principle, it should be possible to distinguish stars from clusters in this region of the two-color diagram based on their concentration index. However, as Figure 7 illustrates, the photometric uncertainties make this difficult for objects fainter than MV ≈ −7. Nevertheless, we note a clear statistical enhancement of objects in blue-star/cluster space for objects in the range −8< MV <−7 in Figure 8. We suspect that this is indeed caused by the onset of a large number of young blue stars within this absolute-magnitude range (see Section A.4 below for further discussion). A similar enhancement of yellow stars is not seen in yellow-star space, probably because the yellow supergiants are too faint to be observed in the U filter.

Figure 28 shows an ACS/HRC image taken as part of Proposal GO-10187, a study of Supernova 2004gt that went off in Knot S in 2004. The supernova is the very bright, red, and saturated object to the lower left of Knot S marked with a cross. The improved spatial resolution of the ACS/HRC provides an even better opportunity to distinguish between stars and clusters than do our dithered ACS/WFC observations. In Figure 29, which is a graytone version of Figure 28, we show the locations of the most luminous candidate yellow and blue stars around Knot S, based on the C < 1.52 criterion. Table 5 lists these stars and gives their positions and photometric parameters.

Figure 28.

Figure 28. ACS/HRC image of Knot S from the Hubble Legacy Archive (B. Whitmore et al. 2010, in preparation). The cross marks the position of Supernova 2004gt.

Standard image High-resolution image
Figure 29.

Figure 29. Brightest candidate blue and yellow stars in Knot S, taken from Table 5.

Standard image High-resolution image

Finally, Figure 30 shows a close-up view of the second-brightest candidate yellow star. As in several other cases, the dominant yellow–red object appears to be embedded in a faint cluster. This is consistent with the object's intermediate position in the two-color diagram between the CB07 cluster tracks and the Padova stellar models. Note also the preponderance of very blue or very yellow-red objects at slightly fainter magnitudes in the ACS/HRC image (Figure 28). Most of these objects are likely to be individual stars that have fallen out of our sample, generally due to the lack of a reliable WFPC2 measurement in the U band (filter F336W).

Figure 30.

Figure 30. Enlargement from Figure 28 showing the second-brightest candidate yellow star of Table 5. Note the concentrated light profile of the yellow star (near the center of the image), when compared to a normal blue cluster near the bottom right, and the associated reddish cluster that the star probably resides in. Most of the other yellow and red stars in Figure 28 show similar morphologies, although not as pronounced since the bright stars generally appear more centered on the associated faint clusters. Use the interactive display of the Hubble Legacy Archive (hla.stsci.edu, image name is HST_10187_03_ACS_HRC_F814W_F555W_F435W) to examine this image in more detail.

Standard image High-resolution image

A.4. Distinguishing Stars and Clusters Galaxy-wide

We now use what we have learned from Training Sets 1 through 3 to extend our study of objects to the entire galaxies. Figures 31(a)–31(d) plot all objects in the Antennae with MV < −9 that fall in cluster space, yellow-star space, foreground-star space, and blue-star/cluster space, respectively.

Figure 31.
Standard image High-resolution image
Figure 31.

Figure 31. (a) All objects in the Antennae with MV<−9 that fall in the "cluster space" portion of the two-color diagram (as described in the text). The top panel shows the number of these objects as a function of luminosity, the middle panel shows their two-color plot, and the bottom panel shows their distribution in MV vs. C and the percentage of objects in each of three bins. (b) Same as Figure 31(a), but for objects in "yellow-star space." (c) Same as Figure 31(a), but for objects in "foreground-star space." (d) Same as Figure 31(a), but for objects in blue-star/cluster space.

Standard image High-resolution image

Figure 31(a) shows that while the vast majority of objects in cluster space are resolved (89% with C > 1.52), there are also objects present in this part of the two-color diagram that are so compact as to be undifferentiable from stars based on their size alone, as discussed in Section A.3 above.

Next, Figure 31(b) shows the dramatic difference in the fraction of unresolved objects in yellow-star space (79%), demonstrating that—while apparent size alone is not a perfect discriminator between stars and clusters—it does provide a good first-order separation, especially for bright objects with MV < −9. However, one should keep in mind that there probably also are a few heavily reddened clusters in this region of the diagram, although they appear to be rare. Note that there are only four candidate yellow stars brighter than MV = −9.5; hence, this absolute magnitude appears to be an effective upper limit to the luminosity of yellow supergiants. This upper limit is known as the Humphreys & Davidson (1979) limit.

The fraction of unresolved objects in foreground-star space is an even higher 92%, as seen in Figure 31(c). Note that the objects with apparent "absolute magnitudes" brighter than MV = −10 are almost certainly all foreground stars in our own Galaxy, whence their "absolute magnitudes"—computed for the adopted distance to the Antennae—are meaningless. The objects fainter than MV = −10 are likely to be a mix of foreground stars, yellow stars in the Antennae, and a few heavily reddened clusters as, e.g., the two objects with C>1.52.

The fraction of objects in blue-star/cluster space with C>1.52 is essentially the same (87%) as in cluster space (89%), demonstrating that at these bright magnitudes few—if any—of the objects are individual stars. However, when we change our lower limit for MV from −9 to −8 mag and then on to −7 mag (not shown), we find that the fraction of objects with C < 1.52 increases from 13% to 29% and on to 32%, respectively. While a few percent of these increases may be due to observational uncertainties (e.g., the fraction of objects in cluster space with C < 1.52 also increases from 11% to 20%), it is clear that we are beginning to see a larger fraction of individual blue stars at fainter absolute magnitudes in this part of the diagram.

Footnotes

  • Based on observations with the NASA/ESA Hubble Space Telescope, obtained at the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc. under NASA contract NAS5-26555. Also based on data obtained from the Hubble Legacy Archive, which is a collaboration between the Space Telescope Science Institute (STScI/NASA), the Space Telescope European Coordinating Facility (ST-ECF/ESA), and the Canadian Astronomy Data Centre (CADC/NRC/CSA).

  • We used the updated version from the Web page http://purcell.as.arizona.edu/wfpc2_calib/.

  • 10
  • 11

    We experimented with other size estimates (e.g., the FWHM measured by the IRAF task RADPROF, and the effective or half-light radius re estimated from the ISHAPE software package; Larsen 1999), but found that—while these methods provide superior performance in certain circumstances (e.g., isolated objects with high S/N)—they were less robust in many cases (e.g., very crowded regions). We also tried estimating the residual light after a "mean cluster PSF" had been subtracted from every object and found that the performance was comparable, but not superior, to the simple C index.

Please wait… references are loading.
10.1088/0004-6256/140/1/75
